1. EMC & OpenStack:
A View from Within
Edgar StPierre
Sr. Consulting Solutions Architect
© Copyright 2013 EMC Corporation. All rights reserved.
1

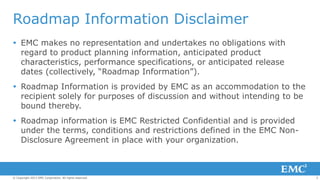

2. Roadmap Information Disclaimer
 EMC makes no representation and undertakes no obligations with
regard to product planning information, anticipated product
characteristics, performance specifications, or anticipated release
dates (collectively, “Roadmap Information”).
 Roadmap Information is provided by EMC as an accommodation to the
recipient solely for purposes of discussion and without intending to be
bound thereby.
 Roadmap information is EMC Restricted Confidential and is provided
under the terms, conditions and restrictions defined in the EMC NonDisclosure Agreement in place with your organization.
© Copyright 2013 EMC Corporation. All rights reserved.
2

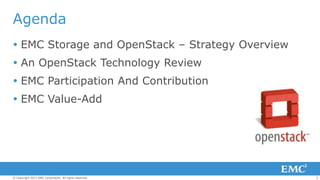

3. Agenda
 EMC Storage and OpenStack – Strategy Overview
 An OpenStack Technology Review
 EMC Participation And Contribution
 EMC Value-Add
© Copyright 2013 EMC Corporation. All rights reserved.
3

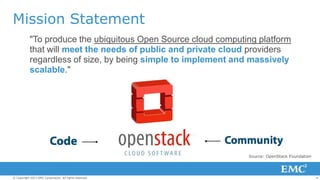

4. Mission Statement
"To produce the ubiquitous Open Source cloud computing platform
that will meet the needs of public and private cloud providers
regardless of size, by being simple to implement and massively
scalable."
Source: OpenStack Foundation
© Copyright 2013 EMC Corporation. All rights reserved.
4

5. OpenStack: Open Source Cloud OS
 Public clouds – level the playing field
against “the big three”
– Major Opportunists: Rackspace, HP
– And many more…
 Private clouds – open the door to
many distributors
…
Virtual
Data
Center
Virtual
Data
Center
Virtual
Data
Center
Virtual
Data
Center
Virtual
Data
Center
Virtual
Data
Center
– Canonical, Red Hat, SUSE,
Rackspace, and a host of others…
– And create opportunity for customers
to manage lower cost, and ultimately
flexible, private clouds
© Copyright 2013 EMC Corporation. All rights reserved.
5

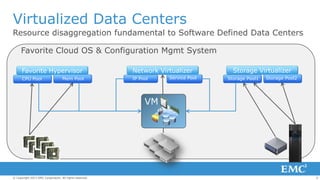

6. Virtualized Data Centers
Resource disaggregation fundamental to Software Defined Data Centers
Favorite Cloud OS & Configuration Mgmt System
Favorite Hypervisor
CPU Pool
Mem Pool
Network Virtualizer
IP Pool
Service Pool
Storage Virtualizer
Storage Pool1
Storage Pool2
VM
© Copyright 2013 EMC Corporation. All rights reserved.
6

7. Disaggregation of Storage Resources
OpenStack
VM
VM
Hypervisor
DFS/LVM
 Disaggregation at host level
–
–
–
Roll-your-own storage nodes with services
based on a DFS or LVM
All storage and data services on storage
node
This is SDDC goal for many apps
 Disaggregation at array level
–
–
–
–
–
© Copyright 2013 EMC Corporation. All rights reserved.
Not as flexible/ubiquitous as disaggregation
at host level
But: proven, performant, and inherently
resilient
Storage arrays have been disaggregating
disks for years
Array-based storage & data services
This is topic for today
7

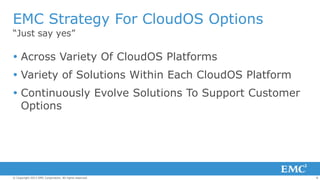

8. EMC Strategy For CloudOS Options
“Just say yes”
 Across Variety Of CloudOS Platforms
 Variety of Solutions Within Each CloudOS Platform
 Continuously Evolve Solutions To Support Customer
Options
© Copyright 2013 EMC Corporation. All rights reserved.
8

9. OpenStack
Technology Review
© Copyright 2013 EMC Corporation. All rights reserved.
9

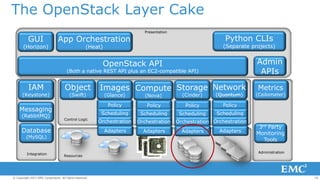

10. The OpenStack Layer Cake
GUI
(Horizon)
App Orchestration
Presentation
Python CLIs
(Separate projects)
(Heat)
Admin
APIs
OpenStack API
(Both a native REST API plus an EC2-compatible API)
IAM
(Keystone)
Object
(MySQL)
Integration
Resources
© Copyright 2013 EMC Corporation. All rights reserved.
(Cinder)
(Quantum)
Policy
Policy
Scheduling
Scheduling
Scheduling
Orchestration
Orchestration
Adapters
Metrics
Policy
Adapters
Database
(Nova)
Scheduling
Control Logic
(Glance)
Policy
(Swift)
Messaging
(RabbitMQ)
Images Compute Storage Network
Orchestration Orchestration
Adapters
Adapters
(Ceilometer)
3rd Party
Monitoring
Tools
Administration
10

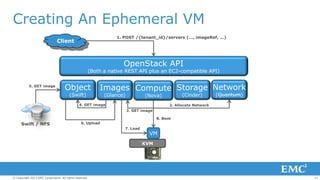

11. Creating An Ephemeral VM
1. POST /{tenant_id}/servers (…, imageRef, …)
Client
OpenStack API
(Both a native REST API plus an EC2-compatible API)
5. GET image
Object
(Swift)
Images Compute Storage Network
(Glance)
(Cinder)
(Nova)
4. GET image
(Quantum)
2. Allocate Network
3. GET image
Swift / NFS
8. Boot
6. Upload
7. Load
VM
KVM
© Copyright 2013 EMC Corporation. All rights reserved.
11

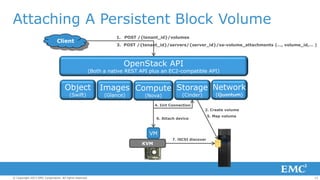

12. Attaching A Persistent Block Volume
1. POST /{tenant_id}/volumes
Client
3. POST /{tenant_id}/servers/{server_id}/os-volume_attachments (…, volume_id,… )
OpenStack API
(Both a native REST API plus an EC2-compatible API)
Object
(Swift)
Images Compute Storage Network
(Glance)
(Nova)
(Quantum)
(Cinder)
4. Init Connection
2. Create volume
6. Attach device
5. Map volume
VM
KVM
© Copyright 2013 EMC Corporation. All rights reserved.
7. iSCSI discover
12

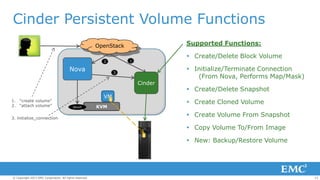

13. Cinder Persistent Volume Functions
Supported Functions:
OpenStack
Compute
Manager
Nova
Compute
Virt Driver
 Create/Delete Block Volume
1
2
3
Volume
Manager
Volum
Cinder
1. “create volume”
2. “attach volume”
VM
libvirt
3. initialize_connection
KVM
e
Driver
 Initialize/Terminate Connection
(From Nova, Performs Map/Mask)
 Create/Delete Snapshot
 Create Cloned Volume
 Create Volume From Snapshot
 Copy Volume To/From Image
 New: Backup/Restore Volume
© Copyright 2013 EMC Corporation. All rights reserved.
13

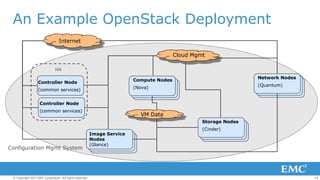

14. An Example OpenStack Deployment
Internet
Cloud Mgmt
HA
Network Nodes
Compute Nodes
Controller Node
(Quantum)
(Nova)
(common services)
Controller Node
(common services)
VM Data
Storage Nodes
Configuration Mgmt System
© Copyright 2013 EMC Corporation. All rights reserved.
Image Service
Nodes
(Glance)
(Cinder)
14

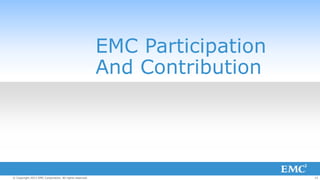

15. EMC Participation
And Contribution
© Copyright 2013 EMC Corporation. All rights reserved.
15

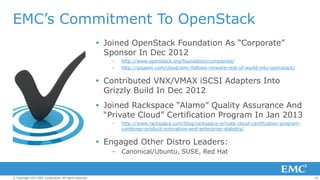

16. EMC’s Commitment To OpenStack
 Joined OpenStack Foundation As “Corporate”
Sponsor In Dec 2012
–
http://www.openstack.org/foundation/companies/
–
http://gigaom.com/cloud/emc-follows-vmware-rest-of-world-into-openstack/
 Contributed VNX/VMAX iSCSI Adapters Into
Grizzly Build In Dec 2012
 Joined Rackspace “Alamo” Quality Assurance And
“Private Cloud” Certification Program In Jan 2013
–
http://www.rackspace.com/blog/rackspace-private-cloud-certification-programcombines-product-innovation-and-enterprise-stability/
 Engaged Other Distro Leaders:
– Canonical/Ubuntu, SUSE, Red Hat
© Copyright 2013 EMC Corporation. All rights reserved.
16

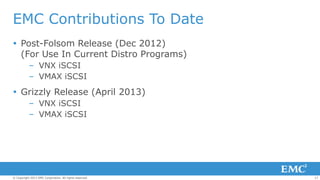

17. EMC Contributions To Date
 Post-Folsom Release (Dec 2012)
(For Use In Current Distro Programs)
– VNX iSCSI
– VMAX iSCSI
 Grizzly Release (April 2013)
– VNX iSCSI
– VMAX iSCSI
© Copyright 2013 EMC Corporation. All rights reserved.
17

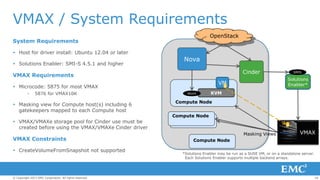

18. VMAX / System Requirements
OpenStack
System Requirements
 Host for driver install: Ubuntu 12.04 or later
 Solutions Enabler: SMI-S 4.5.1 and higher
Compute
Manager
Nova
Compute
Virt Driver
Volume
Manager
Cinder
Volume
VMAX Requirements
VM
 Microcode: 5875 for most VMAX
–
5876 for VMAX10K
 Masking view for Compute host(s) including 6
gatekeepers mapped to each Compute host
 VMAX/VMAXe storage pool for Cinder use must be
created before using the VMAX/VMAXe Cinder driver
VMAX Constraints
 CreateVolumeFromSnapshot not supported
© Copyright 2013 EMC Corporation. All rights reserved.
libvirt
Driver
SMIS
Solutions
Enabler*
KVM
Compute Node
Compute Node
Masking Views
VMAX
Compute Node
*Solutions Enabler may be run as a SUSE VM, or on a standalone server.
Each Solutions Enabler supports multiple backend arrays.
18

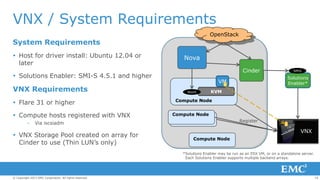

19. VNX / System Requirements
OpenStack
System Requirements
 Host for driver install: Ubuntu 12.04 or
later
Compute
Manager
Nova
Compute
Virt Driver
Volume
Manager
Cinder
Volume
 Solutions Enabler: SMI-S 4.5.1 and higher
VNX Requirements
 Flare 31 or higher
 Compute hosts registered with VNX
–
VM
libvirt
Solutions
Enabler*
KVM
Compute Node
Compute Node
Register
Via iscsiadm
 VNX Storage Pool created on array for
Cinder to use (Thin LUN’s only)
Driver
SMIS
VNX
Compute Node
*Solutions Enabler may be run as an ESX VM, or on a standalone server.
Each Solutions Enabler supports multiple backend arrays.
© Copyright 2013 EMC Corporation. All rights reserved.
19

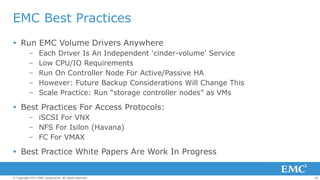

20. EMC Best Practices
 Run EMC Volume Drivers Anywhere
–
–
–
–
–
Each Driver Is An Independent ‘cinder-volume’ Service
Low CPU/IO Requirements
Run On Controller Node For Active/Passive HA
However: Future Backup Considerations Will Change This
Scale Practice: Run “storage controller nodes” as VMs
 Best Practices For Access Protocols:
– iSCSI For VNX
– NFS For Isilon (Havana)
– FC For VMAX
 Best Practice White Papers Are Work In Progress
© Copyright 2013 EMC Corporation. All rights reserved.
20

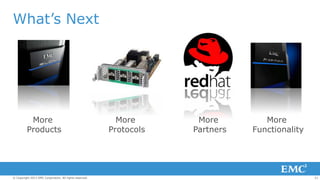

21. What’s Next
More
Products
© Copyright 2013 EMC Corporation. All rights reserved.
More
Protocols
More
Partners
More
Functionality
21

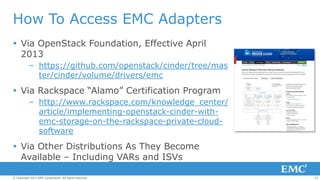

22. How To Access EMC Adapters
 Via OpenStack Foundation, Effective April
2013
– https://github.com/openstack/cinder/tree/mas
ter/cinder/volume/drivers/emc
 Via Rackspace “Alamo” Certification Program
– http://www.rackspace.com/knowledge_center/
article/implementing-openstack-cinder-withemc-storage-on-the-rackspace-private-cloudsoftware
 Via Other Distributions As They Become
Available – Including VARs and ISVs
© Copyright 2013 EMC Corporation. All rights reserved.
22

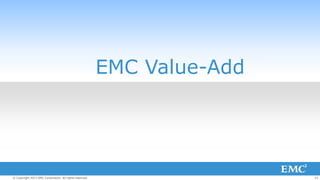

23. EMC Value-Add
© Copyright 2013 EMC Corporation. All rights reserved.
23

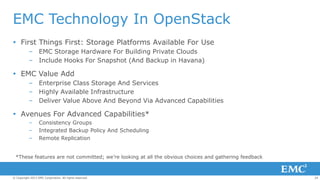

24. EMC Technology In OpenStack
 First Things First: Storage Platforms Available For Use
– EMC Storage Hardware For Building Private Clouds
– Include Hooks For Snapshot (And Backup in Havana)
 EMC Value Add
– Enterprise Class Storage And Services
– Highly Available Infrastructure
– Deliver Value Above And Beyond Via Advanced Capabilities
 Avenues For Advanced Capabilities*
–
–
–
Consistency Groups
Integrated Backup Policy And Scheduling
Remote Replication
*These features are not committed; we’re looking at all the obvious choices and gathering feedback
© Copyright 2013 EMC Corporation. All rights reserved.
24

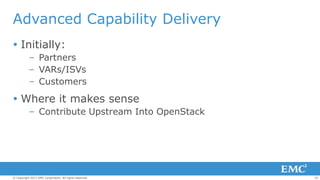

25. Advanced Capability Delivery
 Initially:
– Partners
– VARs/ISVs
– Customers
 Where it makes sense
– Contribute Upstream Into OpenStack
© Copyright 2013 EMC Corporation. All rights reserved.
25

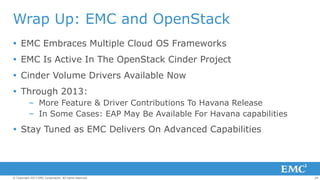

26. Wrap up
© Copyright 2013 EMC Corporation. All rights reserved.
26

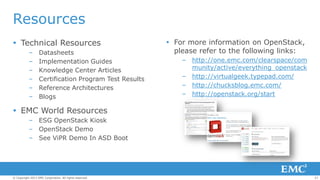

27. Resources
 Technical Resources
–
–
–
–
–
–
Datasheets
Implementation Guides
Knowledge Center Articles
Certification Program Test Results
Reference Architectures
Blogs
 For more information on OpenStack,
please refer to the following links:
– http://one.emc.com/clearspace/com
munity/active/everything_openstack
– http://virtualgeek.typepad.com/
– http://chucksblog.emc.com/
– http://openstack.org/start
 EMC World Resources
– ESG OpenStack Kiosk
– OpenStack Demo
– See ViPR Demo In ASD Boot
© Copyright 2013 EMC Corporation. All rights reserved.
27

28. Wrap Up: EMC and OpenStack
 EMC Embraces Multiple Cloud OS Frameworks
 EMC Is Active In The OpenStack Cinder Project
 Cinder Volume Drivers Available Now
 Through 2013:
– More Feature & Driver Contributions To Havana Release
– In Some Cases: EAP May Be Available For Havana capabilities
 Stay Tuned as EMC Delivers On Advanced Capabilities
© Copyright 2013 EMC Corporation. All rights reserved.
28
