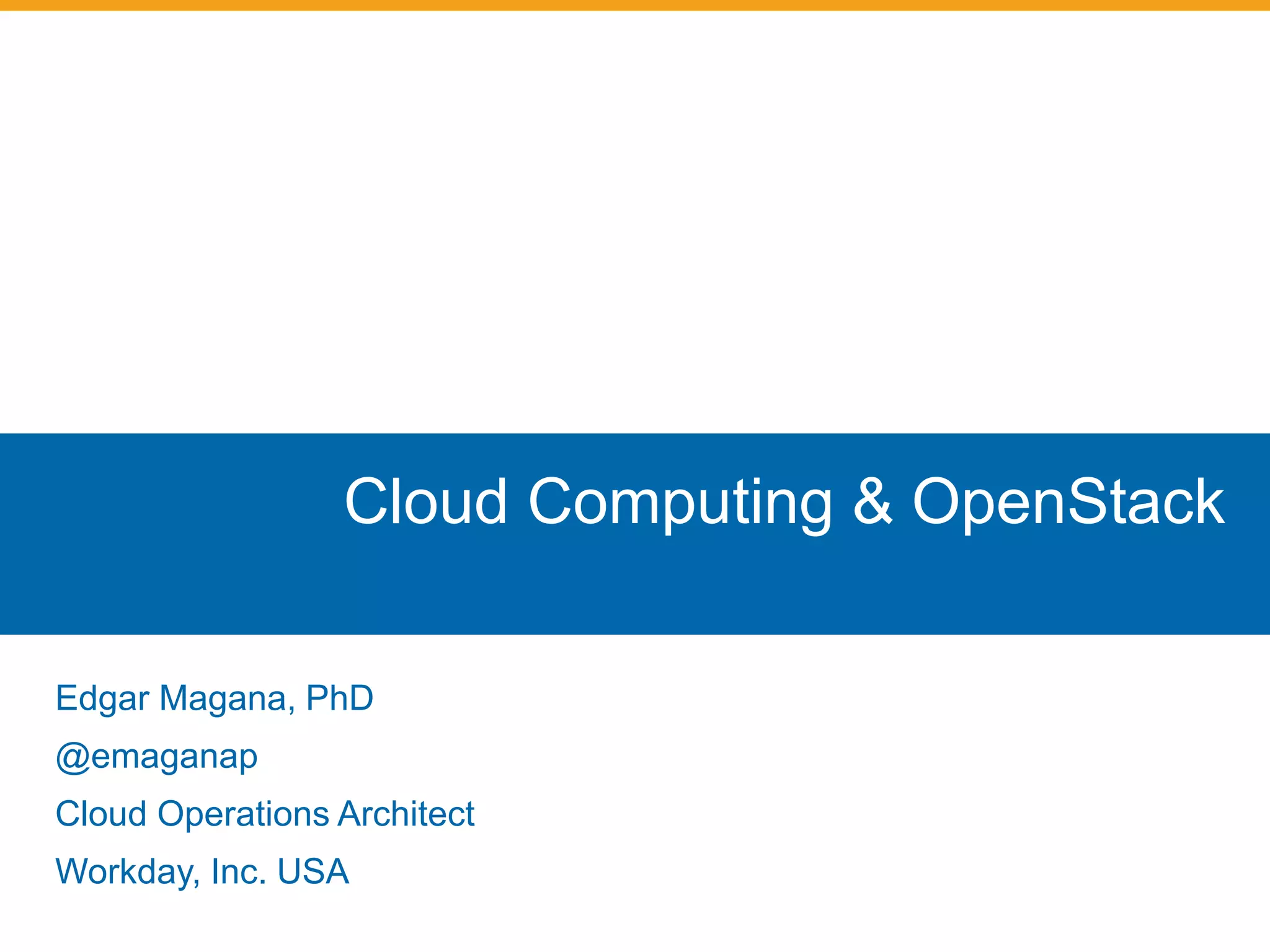

1. Cloud Computing & OpenStack
Edgar Magana, PhD
@emaganap
Cloud Operations Architect
Workday, Inc. USA

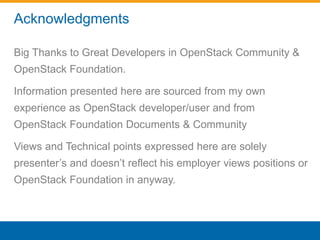

2. Acknowledgments
Big Thanks to Great Developers in OpenStack Community &
OpenStack Foundation.
Information presented here are sourced from my own
experience as OpenStack developer/user and from
OpenStack Foundation Documents & Community
Views and Technical points expressed here are solely
presenter’s and doesn’t reflect his employer views positions or
OpenStack Foundation in anyway.

5. Cloud Computing
 Cloud computing is computing in which large groups of remote servers
are networked to allow the centralized data storage, and online access to
computer services or resources. Clouds can be classified as public,
private or hybrid.
 Concept evolved in 1950 (IBM) called RJE (Remote Job Entry Process).
 In 2006 Amazon provided First public cloud AWS (Amazon Web Service).
 It has three components
1.) Client computers
2.) Distributed Servers
3.) Datacenters

6. Cloud Computing – Service Models
 SaaS(Software as a service): Required software, Operating system &
network is provided.
 PaaS(Platform as service): Operating system and network is provided.
 IaaS(Infrastructure as a service): Just Compute & Network is provided

7. Why cloud services are popular?
 Reduce the complexity of networks.
 Do not have to buy software licenses.
 Customization.
 Cloud providers that have specialized in a particular area (such as e-mail)
can bring advanced services that a single company might not be
able to afford or develop.
 Scalability, reliability, and efficiency.
 Information at cloud are not easily lost.

8. Why do I need to build a Cloud?
 Hardware - Compute & Storage (even commodity)
 Networking (Physical and Virtual)
 Space and Maintenance (Data Center)
 Cloud Management System (Physical and Virtual)

9. What is OpenStack?
 OpenStack is a cloud management system that controls large
pools of compute, storage, and networking resources
throughout a datacenter, all managed through a dashboard that
gives administrators control while empowering their users to
provision resources through a web interface.

10. OpenStack: A Brief History
 NASA Launches Nebula
– One of the first cloud computing platforms built for
Federal Government Private Cloud
 March 2010: Rackspace Open Sources Cloud Files
software, aka Swift
 May 2010: NASA open sources compute software,
aka “Nova”
 June 2010: OpenStack is formed
 July 2010: The inaugural Design Summit
 April 2012: OpenStack Foundation
 April 2013: Grizzly Release
 Nov 2013: Havana Release
 Quantum  Neutron
 April 2014: Icehouse Release
 October 2014: Juno Release
nebula.nasa.gov

11. OpenStack Community

12. OpenStack Core Services
 Compute ("Nova") provides virtual servers upon demand. Compute
resources are accessible via APIs for developers building cloud
applications and via web interfaces for administrators and users. The
compute architecture is designed to scale horizontally on standard
hardware, enabling the cloud economics companies have come to
expect.
 Network (”Neutron") is a pluggable, scalable and API-driven system for
managing networks and IP addresses. Like other aspects of the cloud
operating system, it can be used by administrators and users to increase
the value of existing datacenter assets.
 Block Storage ("Cinder") provides persistent block storage to guest VMs.
This project was born from code originally in Nova (the nova-volume
service described below).
 Dashboard ("Horizon") provides a modular web-based user interface for
all the OpenStack services.

13. OpenStack Core Services
 Object Store ("Swift") provides object storage. It allows you to store or
retrieve files (but not mount directories like a fileserver)
 Image ("Glance") provides a catalog and repository for virtual disk
images. These disk images are mostly commonly used in OpenStack
Compute.
 Identity ("Keystone") provides authentication and authorization for all
the OpenStack services
 Orchestration (“Heat”) orchestrates multiple cloud applications using
the AWS CloudFormation template format, through both an OpenStack-native
REST API and a CloudFormation-compatible Query API
 Metering (“Ceilometer”) monitoring and metering framework using an
agentless from 3rd party systems, all is natively implemented in
OpenStack
 Documentation (“What’s up doc?)
 How many in total?
24

14. OpenStack Core Services - Conceptual
docs.openstack.org

15. OpenStack Core Services - Conceptual
docs.openstack.org

16. OpenStack Core Services - Logical

17. Identity Service (Keystone) Overview

18. Keystone Overview
 Front-ends to various OpenStack
services (compute, storage, etc.) for
authentication and authorization (AA)
 Can function as an ID service on its own
with SQLite or MySQL as ID server
– Provides capabilities to create users and
roles
 Other ID services can be interfaced
 Can function as service catalogue to any
client (users, applications, GUI)
Token
Validation
Identity
Service
(Keystone)
Compute
Service
(Nova
8774)
Service
(Glance
9292)
Storage
Service
(Swift
8080)
Network
Service
(Neutron
9696)
Credentials
Token & SC
(with TTL)
API
Requests
with Token
Other ID
Backend

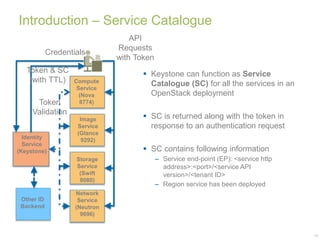

19. Introduction – Service Catalogue
 Keystone can function as Service
Catalogue (SC) for all the services in an
OpenStack deployment
 SC is returned along with the token in
response to an authentication request
 SC contains following information
– Service end-point (EP): <service http
address>:<port>/<service API
version>/<tenant ID>
– Region service has been deployed
19
Credentials
Token
Validation
Identity
Service
(Keystone)
Compute
Service
(Nova
8774)
Service
(Glance
9292)
Storage
Service
(Swift
8080)
Network
Service
(Neutron
9696)
Token & SC
(with TTL)
API
Requests
with Token
Other ID
Backend

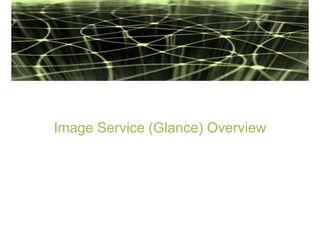

20. Image Service (Glance) Overview

21. Functionalities
 Meta-data about a [VM] image can be stored
or updated in Glance Registry while storing or
about stored data
 Glance registry service can interface with
Swift, file, S3 for image storage backend
– Can also interface with any web server for read-only
data
 Meta-data stored in SQLlite or MySQL
 OpenStack packaged Registry server is a
reference implementation (conforming to
Glance API)
21
Storage
Service
(File/Swift)
Glance
API
Controller
Glance
Registry
Metadata
Repository
Repository

22. Major Meta-data
 Major meta-data that can be specified ( meta key in [] indicates optional)
– Name – does not not have to unique
– [id]
– If not specified an UUID is generated
– Duplicate error returned, if duplicate ID found
– [store]
– File | Swift | S3 | HTTP | CEPH …
– If not specified configured (in .conf file) default is selected
– [type]
– ‘kernel` | `machine` | `raw` | `ramdisk`
– [is_public]
– By default non-public
 Glance does not scan the image to identify image parameters
22

23. Compute Service (Nova) Overview

24. Nova Functionalities
• Nova is the Compute Service
• On-demand CRUD of Virtual Servers or VMs
• On-demand attachment/detachment of VM to network via Nova-
Network
• Replaced by Neutron Service
• On-demand attachment/detachment of block storage (“volume”) to/from
VM
 Hypervisors supported:
• KVM: Linux Kernel-based VM
• VMWare ESX/ESXi 4.1 update 1
• Xen - XenServer 5.5, Xen Cloud Platform (XCP)
• Hyper-V
• LXC: Linux Containers
• UML: User Mode Linux

25. Nova Concepts - Projects/Tenants
 Project/Tenant is unit of isolation
between users
 An organization can have multiple
projects
 Each project is associated with
proper resources and attributes
 Project associated quota
– Number of volumes which may be
created
– Total size of all volumes within a project
as measured in GB
– Number of instances which may be
launched
– Number of processor cores which may
be allocated
– Publicly accessible IP addresses
25

26. Compute Instances
 Servers
– An abstraction of
running VM
instances or virtual
servers
 While creating
servers following
information
specified
– Flavor
– Image
– IPv4/6 addresses
– Metadata: user
specified, such as
server name
 Flavors
– Default
– Admin created
– Example:
–m1.medium:
Memory: 4096MB,
VCPUS: 2, Storage:
40GB, FlavorID: 3,
Swap: 0GB, RXTX
Quota: 0GB, RXTX
Cap: 0MB
– Admin can create
flavor:
–nova-manage
instance_type create
m1.mega 32768 16
320 0 0 0
 Image
– OS image
– VM disk
– Other files
26

27. Network Service (Nova-Network) Overview

28. Introduction
 Network service / controller provides network related services to
connect compute instances (VM) to network
 Nova has an embedded network component called Nova-Network that
provides network related services
– Target network domain: L2 network connecting VMs to local (access)
network
 A separate network service / controller called Neutron is a separate
(from Nova) service on its own
– Target network domain: L2, L3
28

29. Nova-Network
 Flat Mode
All Instances are attached to a single Linux bridge
IP addresses are injected into image on launch (from configuration file)
 FlatDHCP Mode
Similar to Flat Mode with DHCP for IP addresses
 VLAN Network Mode: Default Mode
A VLAN, Fixed IP Subnet, and Linux bridge per tenant
Switch must support 802.1Q VLAN tagging
 Neutron Network Manager (code is being renaming in Havana release)
A client (resident in Nova) for communication with Neutron Service
2

30. Flat Mode
30
TAP
1
vNIC
OS
WS1
VM1
ETH0
Hypervisor
TAP2
vNIC
OS
App
VM2
TAP3
vNIC
OS
WS2
VM3
br100
ETH0
br100
SW 11
SW 11
ETH1
Private
Towards Cloud DC Net
or Public Net
Nova Controller with
Nova-Network or
Neutron Controller
Nova Compute Host 1
Controller Host
Nova Compute Host 2
TAP
4
vNIC
OS
WS1
VM4
ETH0
Hypervisor
TAP5
vNIC
OS
App
VM5
TAP6
vNIC
OS
WS2
VM6
br100
Bridging, NAT, DHCP
 Outside communication via the controller node (where Nova-network is
resident)
 Nova network component (or controller) can run in each compute node

31. VLAN Mode
Nova Compute Host 1 Nova Compute Host 2 Host n
br0/ VLAN11
TAP
0
vNI
C
OS
WS1
VM1
ETH1
Hypervisor
TAP1
vNIC
OS
App
VM2
TAP3
vNIC
OS
WS2
VM3
br1 / VLAN 22
br0 / VLAN11
TAP
4
vNI
C
OS
WS1
VM4
ETH1
Hypervisor
TAP5
vNIC
OS
App
VM5
TAP6
vNIC
OS
WS2
VM6
br1 / VLAN 22
ETH1
SW 11
br0 / VLAN11
br0 / VLAN 22
SW 11
ETH0
Private
Towards DC Net
or Public Net
Nova with Nova-Network or
Neutron Controller

32. Networking Service (Neutron) Overview

33. Neutron Overview
 Incubation project in April 2011
 Promoted to Core Project at Folsom Summit (April 2012)
 Neutron Solves two main issues in Nova:
1. Limited networking technology
• Implements simple linux-based bridges (no advanced QoS, ACL
or monitoring)
• Limited back-end network technologies supported
• VLANs are the only option for multi-tenancy isolation
2. No tenant control over networking
 Tenant can not create their own network topologies
 Tenant can not leverage different network virtualization technologies

34. OpenStack Networking - Neutron
 Network as a Service (NaaS)
 Provides REST APIs to manage network connections for the
resources managed by other OpenStack Services (e.g. Nova)
 Technology Agnostic (framework based on “plug-ins”)
 Multi-tenancy: Isolation, Abstraction, full control over virtual
networks
 Modular Design: API specifies service, vendor provides its
implementation. Extensions for vendor-specific features.
 Standalone Service : It is not exclusive to OpenStack. Neutron
is an autonomous service
 Exposes vendor-specific network virtualization and SDN
technologies

35. Neutron Architecture
Neutron API
Neutron Service
Neutron Plug-in API
API Extensions
Service API
(VPN, FW & LBaaS)
Plug-In
Implementation
VNI & PNI
Plug-In
Extensions
Virtual & Physical Networking Infrastructure

36. Neutron Services - Havana
 Load Balancer as a Service (LBaaS):
 Stable release
 HA Proxy support
 Vendor specific framework in place
 Virtual Private Network as a Service (VPNaaS):
 IPsec support
 Site-to-Site configuration
 Single-site-to-Multi-site configuration
 Firewall as a Service (FWaaS):
 Separate FW service
 IP tables support
 Vendor specific service can be included
source: wiki.Openstack.org
Neutron Services

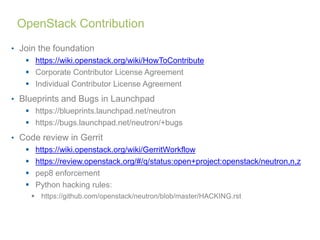

37. OpenStack Contribution
• Join the foundation
 https://wiki.openstack.org/wiki/HowToContribute
 Corporate Contributor License Agreement
 Individual Contributor License Agreement
• Blueprints and Bugs in Launchpad
 https://blueprints.launchpad.net/neutron
 https://bugs.launchpad.net/neutron/+bugs
• Code review in Gerrit
 https://wiki.openstack.org/wiki/GerritWorkflow
 https://review.openstack.org/#/q/status:open+project:openstack/neutron,n,z
 pep8 enforcement
 Python hacking rules:
 https://github.com/openstack/neutron/blob/master/HACKING.rst

38. Devstack
1. Install Ubuntu 14.04 or Fedora
2. Download DevStack
git clone git://github.com/openstack-dev/devstack.git
3. Start the install
cd devstack; ./stack.sh
It takes a few minutes, and you are done!

39. Questions!
