1. Change Detection
Prepared by:Prepared by:
Oluwafemi Opaleye

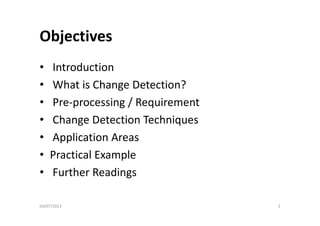

2. ObjectivesObjectives
• Introduction
• What is Change Detection?What is Change Detection?
• Pre‐processing / Requirement
• Change Detection Techniques
• Application AreasApplication Areas
• Practical Example
• Further Readings
04/07/2013 2

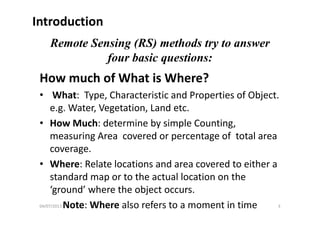

3. Introduction
Remote Sensing (RS) methods try to answer
four basic questions:f q
How much of What is Where?
• What: Type, Characteristic and Properties of Object.
e.g. Water, Vegetation, Land etc.g g
• How Much: determine by simple Counting,
measuring Area covered or percentage of total areameasuring Area covered or percentage of total area
coverage.
• Where: Relate locations and area covered to either a• Where: Relate locations and area covered to either a
standard map or to the actual location on the
‘ground’ where the object occursground where the object occurs.
Note: Where also refers to a moment in time04/07/2013 3

4. • What is the SHAPE and EXTENT of ... ?
(Area Boundaries Lineaments )(Area, Boundaries, Lineaments, ...)
• This extends the ‘WHERE’ to be a completely
GEOMETRIC blGEOMETRIC problem.
– Identification and Delineation of Boundaries
04/07/2013 4

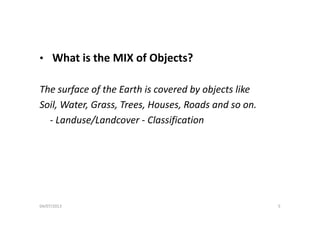

5. • What is the MIX of Objects?at s t e o Objects?
Th f f th E th i d b bj t likThe surface of the Earth is covered by objects like
Soil, Water, Grass, Trees, Houses, Roads and so on.
‐ Landuse/Landcover ‐ Classification
04/07/2013 5

6. • Has it CHANGED?
CHANGE may occur with progress of TIME.
Change may be detected through comparison of
observed states at different moments in time.
‐ CHANGE DETECTION
04/07/2013 6

7. What is Change Detection?What is Change Detection?
• Change detection is the process of identifying
differences in the state of an object or phenomenon
by observing it at different times.
• It is the detection of class transition between a pair
of co‐registered imagesof co‐registered images.
• The main goal is to use remote sensing to detect
CHANGE on a landscape (landuse and landcover)
over time.
04/07/2013 7

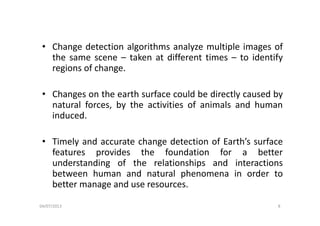

8. • Change detection algorithms analyze multiple images of
the same scene – taken at different times – to identifyy
regions of change.
• Changes on the earth surface could be directly caused by
natural forces, by the activities of animals and human
i d dinduced.
Ti l d h d i f E h’ f• Timely and accurate change detection of Earth’s surface
features provides the foundation for a better
understanding of the relationships and interactionsunderstanding of the relationships and interactions
between human and natural phenomena in order to
better manage and use resources.
04/07/2013 8

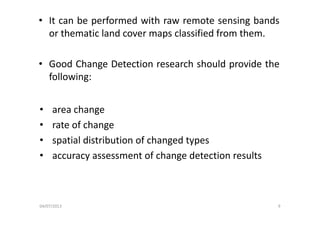

9. • It can be performed with raw remote sensing bands
or thematic land cover maps classified from them.or thematic land cover maps classified from them.
G d Ch D t ti h h ld id th• Good Change Detection research should provide the
following:
• area changeg
• rate of change
• spatial distribution of changed types• spatial distribution of changed types
• accuracy assessment of change detection results
04/07/2013 9

10. Pre‐processing / Requirement
• Geometric Correction – Georeferencing ‐ precise
coregistration between multitemporal imagescoregistration between multitemporal images
• Radiometric Correction ‐ precise radiometric and
atmospheric calibration or normalization betweenatmospheric calibration or normalization between
multitemporal images
/ f h l• Region/Area of Interest – same geographic location
• Remote sensing system consideration – spatial,
spectral, radiometric and temporal
– whenever possible, select images acquired from the same
type of sensors, with the same spectral and spatial
resolutions, and at the same seasonal timeframe in order to
i i i t d iminimize unwanted variances.
04/07/2013 10

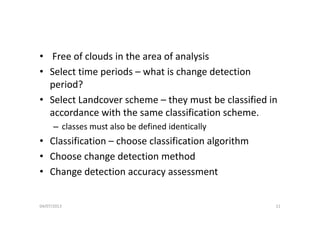

11. • Free of clouds in the area of analysis
• Select time periods – what is change detection
period?period?
• Select Landcover scheme – they must be classified in
accordance with the same classification schemeaccordance with the same classification scheme.
– classes must also be defined identically
Cl ifi ti h l ifi ti l ith• Classification – choose classification algorithm
• Choose change detection method
• Change detection accuracy assessment
04/07/2013 11

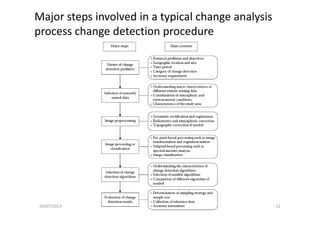

12. Major steps involved in a typical change analysis
process change detection procedurep g p
04/07/2013 12

13. Change Detection TechniquesChange Detection Techniques
• Visual Analysis
• Image Differencing
• Image ratioing• Image ratioing
• Post Classification Comparison
• Statistical analysis
04/07/2013 13

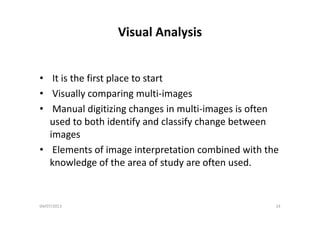

14. Visual AnalysisVisual Analysis
• It is the first place to start
• Visually comparing multi‐images
• Manual digitizing changes in multi‐images is often g g g g
used to both identify and classify change between
imagesg
• Elements of image interpretation combined with the
knowledge of the area of study are often usedknowledge of the area of study are often used.
04/07/2013 14

15. Drying up of Lake Faguibine ‐ Mali
1974 2006
▪ It covered area of about 590km2
▪ Water level have fluctuated widely since the beginning of 1980
▪ An extended period of reduced precipitation led to a complete drying of the
lakelake
Source: Africa: Atlas of Our Changing Environment , UNEP
04/07/2013 15

16. Declining Water Levels in Lake Chad (1972‐2007)
1972 A (12 797 k )1972 1987Area (12,797sqkm)
Area (1,563sqkm)
2007
1987 Image show that lake Chad
Lake Chad, located at the junction
of Niger, Nigeria, Chad and
Cameroon, was once the sixth
g
reduced to about one-tenth of what it
was in 1972 image.
2007 image show some improvement
but the extent of the lake is stilllargest lake in the world.
Persistent drought and increased
agriculture irrigation have reduced
the lake’s extent
but the extent of the lake is still
smaller to what it was 2-3 decades
ago.
Area (1 753sqkm)Area (1,753sqkm)
04/07/2013 16

17. Image Differencingg g
• It requires selection of corresponding bands from two
dates imageries of the same study area
• Uses software algorithm to identify and quantify the
changes between two temporal images
• The difference image is created by subtracting the
brightness values of one image from the other on a per‐g g p
pixel basis.
• Unchanged areas will have values at or nearer zero; whileg ;
areas with significant change will be progressively
positive or negative.
04/07/2013 17

18. Example of image differencing procedure
04/07/2013 18

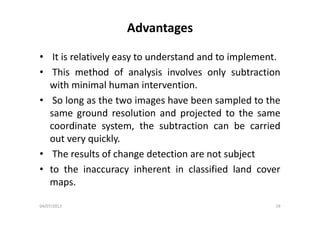

19. Advantages
• It is relatively easy to understand and to implement.y y p
• This method of analysis involves only subtraction
with minimal human intervention.with minimal human intervention.
• So long as the two images have been sampled to the
same ground resolution and projected to the samesame ground resolution and projected to the same
coordinate system, the subtraction can be carried
out very quicklyout very quickly.
• The results of change detection are not subject
• to the inaccuracy inherent in classified land cover
maps.
04/07/2013 19

20. LimitationsLimitations
• this method is limited in that it fails to reveal the• this method is limited in that it fails to reveal the
nature of a detected change (e.g., the class from
which a land cover has changed).which a land cover has changed).
• identify threshold values of change and no change in• identify threshold values of change and no‐change in
the resulting images.
• direct use of raw spectral data in change analysis
makes the detected change highly susceptible tomakes the detected change highly susceptible to
radiometric variations caused by illumination
conditions and seasonality.conditions and seasonality.
04/07/2013 20

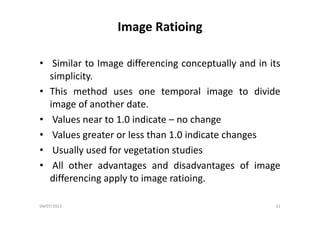

21. Image Ratioing
• Similar to Image differencing conceptually and in its• Similar to Image differencing conceptually and in its
simplicity.
• This method uses one temporal image to divide
image of another date.
• Values near to 1.0 indicate – no change
• Values greater or less than 1.0 indicate changesg g
• Usually used for vegetation studies
• All other advantages and disadvantages of image• All other advantages and disadvantages of image
differencing apply to image ratioing.
04/07/2013 21

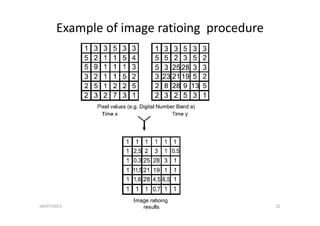

22. Example of image ratioing procedure
04/07/2013 22

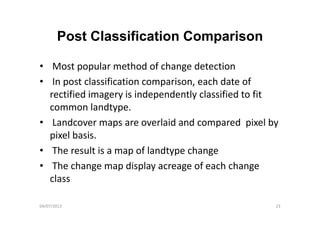

23. Post Classification ComparisonPost Classification Comparison
• Most popular method of change detection
• In post classification comparison, each date of
rectified imagery is independently classified to fit
common landtype.
• Landcover maps are overlaid and compared pixel by
pixel basis.p e bas s
• The result is a map of landtype change
• The change map display acreage of each change• The change map display acreage of each change
class
04/07/2013 23

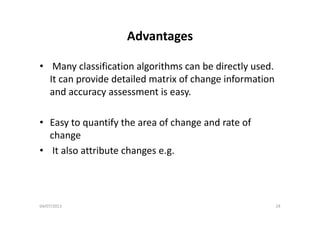

24. AdvantagesAdvantages
• Many classification algorithms can be directly used.
It can provide detailed matrix of change information
and accuracy assessment is easy.
• Easy to quantify the area of change and rate of
changec a ge
• It also attribute changes e.g.
04/07/2013 24

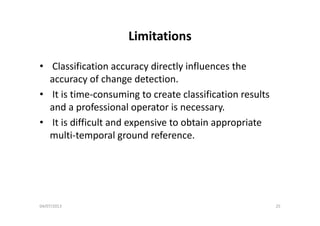

25. LimitationsLimitations
• Classification accuracy directly influences the
accuracy of change detection.
• It is time‐consuming to create classification results
and a professional operator is necessary.
• It is difficult and expensive to obtain appropriate
multi‐temporal ground reference.u e po a g ou d e e e ce
04/07/2013 25

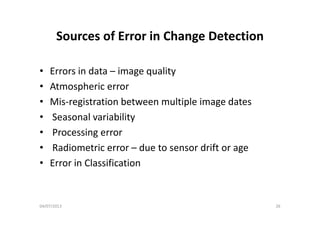

26. Sources of Error in Change DetectionSources of Error in Change Detection
• Errors in data – image quality
• Atmospheric errorAtmospheric error
• Mis‐registration between multiple image dates
• Seasonal variability
• Processing error
• Radiometric error – due to sensor drift or age
• Error in ClassificationError in Classification
04/07/2013 26

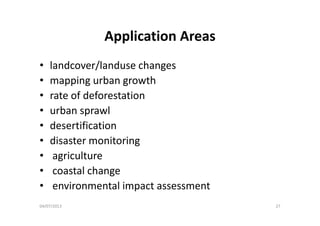

27. Application AreasApplication Areas
l d /l d h• landcover/landuse changes
• mapping urban growth
• rate of deforestation
• urban sprawlurban sprawl
• desertification
di t it i• disaster monitoring
• agriculture
• coastal change
• environmental impact assessmentp
04/07/2013 27

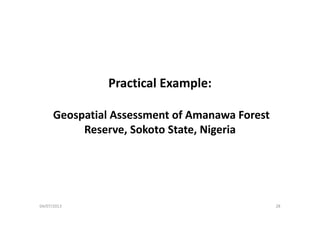

28. Practical Example:Practical xample:
Geospatial Assessment of Amanawa ForestGeospatial Assessment of Amanawa Forest
Reserve, Sokoto State, Nigeria
04/07/2013 28

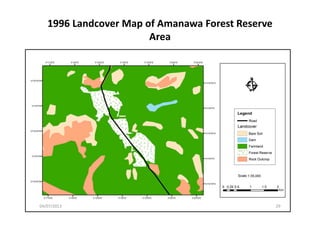

29. 1996 Landcover Map of Amanawa Forest Reserve
AreaArea
04/07/2013 29

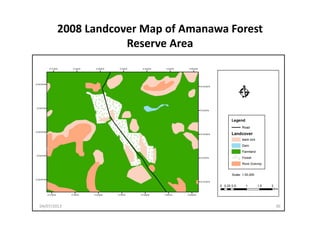

30. 2008 Landcover Map of Amanawa Forest
Reserve Area
04/07/2013 30

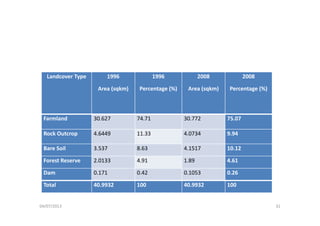

31. Landcover Type 1996
A ( k )
1996
P t (%)
2008
A ( k )
2008
P t (%)Area (sqkm) Percentage (%) Area (sqkm) Percentage (%)
Farmland 30.627 74.71 30.772 75.07
Rock Outcrop 4.6449 11.33 4.0734 9.94
Bare Soil 3.537 8.63 4.1517 10.12
Forest Reserve 2.0133 4.91 1.89 4.61
Dam 0.171 0.42 0.1053 0.26
Total 40.9932 100 40.9932 100
04/07/2013 31

32. Change Detection Map showing transition of
L d (1996 2008)Landcovers (1996‐2008)
04/07/2013 32

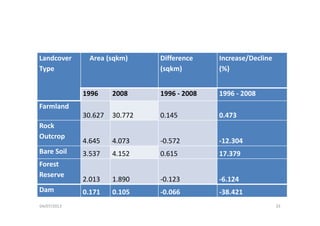

33. Landcover Area (sqkm) Difference Increase/Decline
Type
( q )
(sqkm) (%)
1996 2008 1996 ‐ 2008 1996 ‐ 2008
Farmland
30 627 30 772 0 145 0 47330.627 30.772 0.145 0.473
Rock
Outcrop
4 645 4 073 0 572 12 304
Outc op
4.645 4.073 ‐0.572 ‐12.304
Bare Soil 3.537 4.152 0.615 17.379
ForestForest
Reserve
2.013 1.890 ‐0.123 ‐6.124
Dam 0 171 0 105 0 066 38 421Dam 0.171 0.105 ‐0.066 ‐38.421
04/07/2013 33

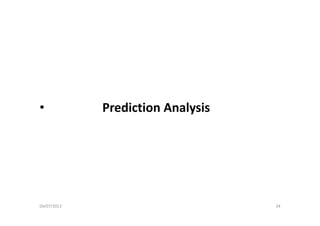

34. • Prediction Analysisy
04/07/2013 34

35. Markov Probability of Change in Landcover (1996 –
2008)
Bare Soil Dam Farmland Forest RockBare Soil Dam Farmland Forest Rock
Outcrop
Bare Soil 0.7646 0.0382 0.1726 0.0233 0.0012
Dam 0.2765 0.6137 0.1098 0.0000 0.0000
Farmland 0.3212 0.0680 0.6097 0.0011 0.0000
Forest 0.1849 0.0000 0.1475 0.6676 0.0000
Rock Outcrop 0.3376 0.0000 0.0231 0.0000 0.6393

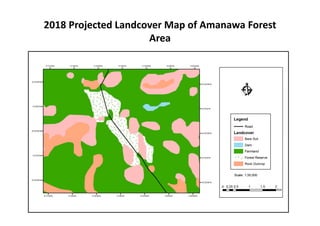

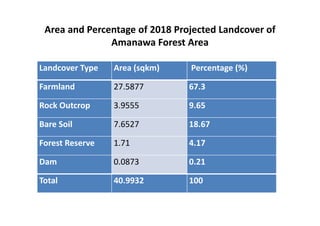

36. 2018 Projected Landcover Map of Amanawa Forest
AArea

37. Area and Percentage of 2018 Projected Landcover of
Amanawa Forest Area
Landcover Type Area (sqkm) Percentage (%)
Farmland 27 5877 67 3Farmland 27.5877 67.3
Rock Outcrop 3.9555 9.65
Bare Soil 7.6527 18.67
Forest Reserve 1.71 4.17
Dam 0.0873 0.21Dam 0.0873 0.21
Total 40.9932 100

38. Reading for further informationg
• J.R. Jensen (2005)Introductory Digital Image J Je se ( 005) t oducto y g ta age
Processing, A Remote sensing perspective.
467 492467‐492
• R. R. Jensen, J. D. Gatrell and D. McLean
(2007) Geo‐Spatial Technologies in Urban
Environments Policy, Practice, and Pixels. 145‐y, ,
167
04/07/2013 38

39. Thank You for Listening
04/07/2013 39
