Introduction:
 Cast iron is a group of iron-carbon alloys with a carbon content
more than 2%. Its usefulness derives from its relatively low
melting temperature. The alloy constituents affect its colour when
fractured: white cast iron has carbide impurities.
History:
 Cast iron was invented in China in the 5th century BC and poured
into molds to make ploughshares and pots as well as weapons and
pagodas. Although steel was more desirable, cast iron was cheaper
and thus was more commonly used for implements in ancient
China, while wrought iron or steel was used for weapons.
Manufacture of Cast-Iron:
 The cast-iron is manufactured by re-melting pig-iron with coke and
limestone. This re-melting is done in a furnace known as the cupola
furnace. It is more or less same as the blast furnace, but it is smaller in
size. Its shape is cylindrical with diameter of about 1 m and height of
about 5 m.
 The working of cupola furnace is also similar to that of blast furnace.
The raw materials are fed from top. The cupola furnace is worked
intermittently and it is open at top. After the raw materials are placed,
the furnace is fired and blast of air is forced through tuyeres. The blast
of air is cold as the impurities in pig-iron are removed by the oxidation

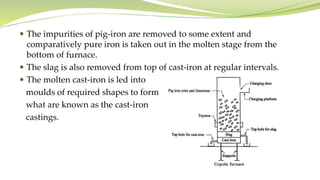

 The impurities of pig-iron are removed to some extent and
comparatively pure iron is taken out in the molten stage from the
bottom of furnace.
 The slag is also removed from top of cast-iron at regular intervals.
 The molten cast-iron is led into
moulds of required shapes to form
what are known as the cast-iron
castings.
Composition of Cast-Iron:
 The cast-iron contains about 2 to 4 per cent of carbon. In addition, it contains
the various impurities such as manganese, phosphorus, silicon and sulphur.
 The manganese makes cast-iron brittle and hard. Its amount should therefore
be kept below 0.75 per cent or so.
 The phosphorus increases fluidity of cast-iron. It also makes cast-iron brittle
and when its amount is more than 0.30 per cent, the resulting cast-iron is
lacking in toughness and workability. Its percentage is sometimes kept as
about 1 to 1.5 to get very thin castings.
 The silicon combines with part of iron and forms a solid solution. It also
removes combined carbon from graphite form. If its amount is less than 2.50
per cent, it decreases shrinkage and ensures softer and better castings.

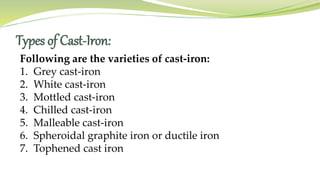

Types of Cast-Iron:
Following are the varieties of cast-iron:
1. Grey cast-iron
2. White cast-iron
3. Mottled cast-iron
4. Chilled cast-iron
5. Malleable cast-iron
6. Spheroidal graphite iron or ductile iron
7. Tophened cast iron
1. Grey cast iron:
 This is prepared from grey pig. Its colour is grey with a coarse
crystalline structure. It is soft and it melts readily. It is somewhat weak
in strength. It is extensively used for making castings. One of the key
characteristics of gray iron is its ability
to resist wear even when lubrication
supply is limited (e.g. the upper cylinder
walls in engine blocks).
 Gray iron is used to make engine blocks
and cylinder heads, manifolds, gas
burners, gear blanks, enclosures, and
housings.

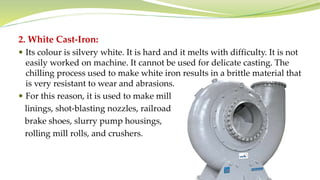

2. White Cast-Iron:
 Its colour is silvery white. It is hard and it melts with difficulty. It is not
easily worked on machine. It cannot be used for delicate casting. The
chilling process used to make white iron results in a brittle material that
is very resistant to wear and abrasions.
 For this reason, it is used to make mill
linings, shot-blasting nozzles, railroad
brake shoes, slurry pump housings,
rolling mill rolls, and crushers.
3. Mottled Cast-Iron:
 Cast iron or pig iron that is intermediate between white cast iron
and grey cast iron and shows a mottled surface on fracture is
known as mottled cast iron
 Iron which consists of a mixture of a variable proportions of gray
cast iron and white cast iron, such a material has a mottled
fracture.

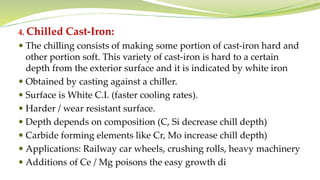

4. Chilled Cast-Iron:
 The chilling consists of making some portion of cast-iron hard and
other portion soft. This variety of cast-iron is hard to a certain
depth from the exterior surface and it is indicated by white iron
 Obtained by casting against a chiller.
 Surface is White C.I. (faster cooling rates).
 Harder / wear resistant surface.
 Depth depends on composition (C, Si decrease chill depth)
 Carbide forming elements like Cr, Mo increase chill depth)
 Applications: Railway car wheels, crushing rolls, heavy machinery
 Additions of Ce / Mg poisons the easy growth di

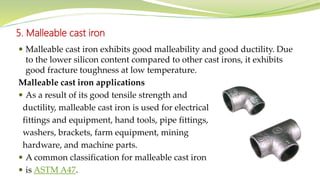

5. Malleable cast iron
 Malleable cast iron exhibits good malleability and good ductility. Due
to the lower silicon content compared to other cast irons, it exhibits
good fracture toughness at low temperature.
Malleable cast iron applications
 As a result of its good tensile strength and
ductility, malleable cast iron is used for electrical
fittings and equipment, hand tools, pipe fittings,
washers, brackets, farm equipment, mining
hardware, and machine parts.
 A common classification for malleable cast iron
 is ASTM A47.

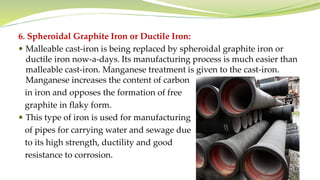

6. Spheroidal Graphite Iron or Ductile Iron:
 Malleable cast-iron is being replaced by spheroidal graphite iron or
ductile iron now-a-days. Its manufacturing process is much easier than
malleable cast-iron. Manganese treatment is given to the cast-iron.
Manganese increases the content of carbon
in iron and opposes the formation of free
graphite in flaky form.
 This type of iron is used for manufacturing
of pipes for carrying water and sewage due
to its high strength, ductility and good
resistance to corrosion.

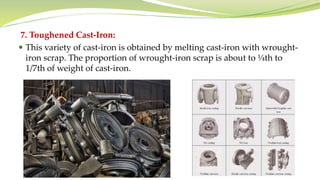

7. Toughened Cast-Iron:
 This variety of cast-iron is obtained by melting cast-iron with wrought-
iron scrap. The proportion of wrought-iron scrap is about to ¼th to
1/7th of weight of cast-iron.
Name
Nominal
composition
[% by weight]
Form and
condition
Yield strength
[ksi (0.2%
offset)]
Tensile
strength [ksi]
Elongation
[%]
Hardness
[Brinell scale]
Uses
Grey cast iron
(ASTM A48)
C 3.4,
Si 1.8, Mn 0.5
Cast — 50 0.5 260
Engine cylind
er
blocks, flywhe
els, gearbox
cases,
machine-tool
bases
White cast
iron
C 3.4, Si 0.7,
Mn 0.6
Cast (as cast) — 25 0 450
Bearing surfac
es
Malleable iron
(ASTM A47)
C 2.5, Si 1.0,
Mn 0.55
Cast
(annealed)
33 52 12 130
Axle bearings,
track wheels,
automotive cr
ankshafts
Ductile or
nodular iron
C 3.4, P 0.1,
Mn 0.4, Ni 1.0,
Mg 0.06
Cast 53 70 18 170
Gears, camsha
fts,
crankshafts
Ductile or
nodular iron
(ASTM A339)
—
Cast (quench
tempered)
108 135 5 310 —

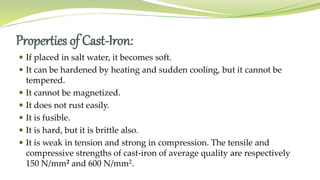

Properties of Cast-Iron:
 If placed in salt water, it becomes soft.
 It can be hardened by heating and sudden cooling, but it cannot be
tempered.
 It cannot be magnetized.
 It does not rust easily.
 It is fusible.
 It is hard, but it is brittle also.
 It is weak in tension and strong in compression. The tensile and
compressive strengths of cast-iron of average quality are respectively
150 N/mm2 and 600 N/mm2.

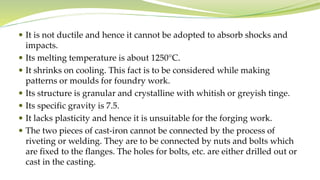

 It is not ductile and hence it cannot be adopted to absorb shocks and
impacts.
 Its melting temperature is about 1250°C.
 It shrinks on cooling. This fact is to be considered while making
patterns or moulds for foundry work.
 Its structure is granular and crystalline with whitish or greyish tinge.
 Its specific gravity is 7.5.
 It lacks plasticity and hence it is unsuitable for the forging work.
 The two pieces of cast-iron cannot be connected by the process of
riveting or welding. They are to be connected by nuts and bolts which
are fixed to the flanges. The holes for bolts, etc. are either drilled out or
cast in the casting.

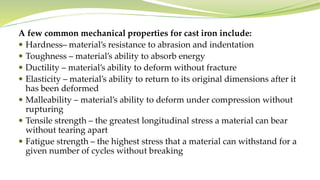

A few common mechanical properties for cast iron include:
 Hardness– material’s resistance to abrasion and indentation
 Toughness – material’s ability to absorb energy
 Ductility – material’s ability to deform without fracture
 Elasticity – material’s ability to return to its original dimensions after it
has been deformed
 Malleability – material’s ability to deform under compression without
rupturing
 Tensile strength – the greatest longitudinal stress a material can bear
without tearing apart
 Fatigue strength – the highest stress that a material can withstand for a
given number of cycles without breaking

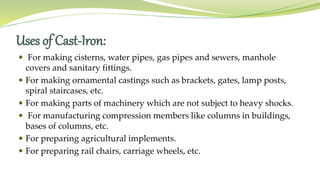

Uses of Cast-Iron:
 For making cisterns, water pipes, gas pipes and sewers, manhole
covers and sanitary fittings.
 For making ornamental castings such as brackets, gates, lamp posts,
spiral staircases, etc.
 For making parts of machinery which are not subject to heavy shocks.
 For manufacturing compression members like columns in buildings,
bases of columns, etc.
 For preparing agricultural implements.
 For preparing rail chairs, carriage wheels, etc.

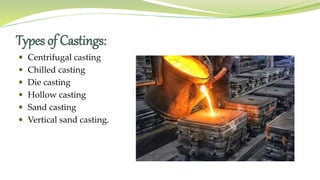

Types of Castings:
 Centrifugal casting
 Chilled casting
 Die casting
 Hollow casting
 Sand casting
 Vertical sand casting.

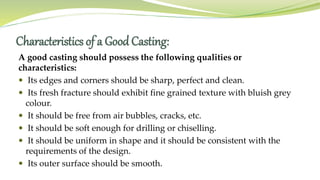

Characteristics of a Good Casting:
A good casting should possess the following qualities or
characteristics:
 Its edges and corners should be sharp, perfect and clean.
 Its fresh fracture should exhibit fine grained texture with bluish grey
colour.
 It should be free from air bubbles, cracks, etc.
 It should be soft enough for drilling or chiselling.
 It should be uniform in shape and it should be consistent with the
requirements of the design.
 Its outer surface should be smooth.

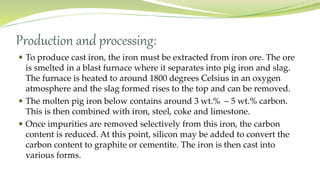

Production and processing:
 To produce cast iron, the iron must be extracted from iron ore. The ore
is smelted in a blast furnace where it separates into pig iron and slag.
The furnace is heated to around 1800 degrees Celsius in an oxygen
atmosphere and the slag formed rises to the top and can be removed.
 The molten pig iron below contains around 3 wt.% – 5 wt.% carbon.
This is then combined with iron, steel, coke and limestone.
 Once impurities are removed selectively from this iron, the carbon
content is reduced. At this point, silicon may be added to convert the
carbon content to graphite or cementite. The iron is then cast into
various forms.

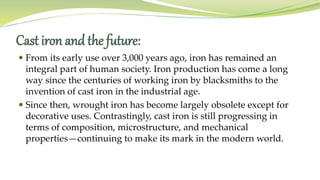

Cast iron and the future:
 From its early use over 3,000 years ago, iron has remained an
integral part of human society. Iron production has come a long
way since the centuries of working iron by blacksmiths to the
invention of cast iron in the industrial age.
 Since then, wrought iron has become largely obsolete except for
decorative uses. Contrastingly, cast iron is still progressing in
terms of composition, microstructure, and mechanical
properties—continuing to make its mark in the modern world.
Disadvantages of cast iron:
However, it has low wear resistance, mobility and low shake-suction.
Further, it has bad casting ability and machinability which is a distinct
disadvantage. The cost of casting steel alloys is also more than cast iron.
 It is Prone to rusting.
 It has poor tensile strength.
 Its parts are section sensitive, this is due to slow cooling of thick
sections.
 failure of Its parts is sudden and total, it does not exhibit yield point.
 It has poor impact resistance.
 Compared to steel it has poor machinability.
THANK YOU

More Related Content

What's hot

Stainless Steel and Special Steel
Stainless Steel and Special SteelStainless Steel and Special Steel
Stainless Steel and Special Steel
Manan000

Ferrous Metals
Ferrous MetalsFerrous Metals
Ferrous Metals
GAURAV. H .TANDON

Aluminium and it’s alloys
Aluminium and it’s alloysAluminium and it’s alloys
Aluminium and it’s alloys
Kunal Rathod

Types of steels in use
Types of steels in useTypes of steels in use
Types of steels in use
Ashish Kumar Gouda

Metals
MetalsMetals
Metals
shabir ahmad

Classification of steel
Classification of steelClassification of steel
Classification of steel
Bhagyashri Dhage

Types of steels
Types of  steelsTypes of  steels
Types of steels
prathap singh

cast iron
cast ironcast iron
cast iron
PraveenManickam2

Iron making
Iron makingIron making
Iron making
guddu_92

Steel Making: Lecture open hearth furnace
Steel Making: Lecture open hearth furnaceSteel Making: Lecture open hearth furnace
Steel Making: Lecture open hearth furnace
NED University of Engineering and Technology

Cast iron
Cast ironCast iron
Production of iron and steel
Production of iron and steelProduction of iron and steel
Production of iron and steel
temkin abdlkader

Heat treatment of steel
Heat treatment of steelHeat treatment of steel
Heat treatment of steel
banty patel

Various types of engineering cast iron
Various types of engineering  cast  ironVarious types of engineering  cast  iron
Various types of engineering cast iron
Sayan Das

Steel manufacturing process
Steel manufacturing processSteel manufacturing process
Steel manufacturing process
Ashvani Shukla

Thermo Mechanical Treatment
Thermo Mechanical TreatmentThermo Mechanical Treatment
Thermo Mechanical Treatment
Ansar Rizvi

Introduction to Physical Metallurgy Lecture Notes
Introduction to Physical Metallurgy Lecture NotesIntroduction to Physical Metallurgy Lecture Notes
Introduction to Physical Metallurgy Lecture Notes
FellowBuddy.com

Cast iron
Cast ironCast iron
Cast iron
Taral Soliya

ferrous metals and alloys
ferrous metals and alloysferrous metals and alloys
ferrous metals and alloys
mzpabhimzp

Cast iron
Cast ironCast iron
Cast iron
Gulfam Hussain


What's hot (20)

Stainless Steel and Special Steel
Stainless Steel and Special SteelStainless Steel and Special Steel
Stainless Steel and Special Steel

Ferrous Metals
Ferrous MetalsFerrous Metals
Ferrous Metals

Aluminium and it’s alloys
Aluminium and it’s alloysAluminium and it’s alloys
Aluminium and it’s alloys

Types of steels in use
Types of steels in useTypes of steels in use
Types of steels in use

Metals
MetalsMetals
Metals

Classification of steel
Classification of steelClassification of steel
Classification of steel

Types of steels
Types of  steelsTypes of  steels
Types of steels

cast iron
cast ironcast iron
cast iron

Iron making
Iron makingIron making
Iron making

Steel Making: Lecture open hearth furnace
Steel Making: Lecture open hearth furnaceSteel Making: Lecture open hearth furnace
Steel Making: Lecture open hearth furnace

Cast iron
Cast ironCast iron
Cast iron

Production of iron and steel
Production of iron and steelProduction of iron and steel
Production of iron and steel

Heat treatment of steel
Heat treatment of steelHeat treatment of steel
Heat treatment of steel

Various types of engineering cast iron
Various types of engineering  cast  ironVarious types of engineering  cast  iron
Various types of engineering cast iron

Steel manufacturing process
Steel manufacturing processSteel manufacturing process
Steel manufacturing process

Thermo Mechanical Treatment
Thermo Mechanical TreatmentThermo Mechanical Treatment
Thermo Mechanical Treatment

Introduction to Physical Metallurgy Lecture Notes
Introduction to Physical Metallurgy Lecture NotesIntroduction to Physical Metallurgy Lecture Notes
Introduction to Physical Metallurgy Lecture Notes

Cast iron
Cast ironCast iron
Cast iron

ferrous metals and alloys
ferrous metals and alloysferrous metals and alloys
ferrous metals and alloys

Cast iron
Cast ironCast iron
Cast iron


Similar to Cast iron

Iron & steel
Iron & steelIron & steel
Iron & steel
NabeelBhutta1

FERROUS METALS.pptx
FERROUS METALS.pptxFERROUS METALS.pptx
FERROUS METALS.pptx
Mohit Nayal

Classification of cast iron
Classification of cast ironClassification of cast iron
Classification of cast iron
AliAhssan

ferrous metals (Ch 07 Edition 11th) - uses and applications.pptx
ferrous metals (Ch 07 Edition 11th) - uses and applications.pptxferrous metals (Ch 07 Edition 11th) - uses and applications.pptx
ferrous metals (Ch 07 Edition 11th) - uses and applications.pptx
HarryPotter345757

13. engg materials
13. engg materials13. engg materials
13. engg materials
rajajha17

Cast iron
Cast ironCast iron
Cast iron
Cast ironCast iron
Cast iron
Cast iron Cast iron
Cast iron
Sobiya Momin

CAST IRON & WROUGHT IRON
CAST IRON & WROUGHT IRONCAST IRON & WROUGHT IRON
Chapter 3 Mechanical Engineering Materials - 22343
Chapter 3 Mechanical Engineering Materials - 22343 Chapter 3 Mechanical Engineering Materials - 22343
Chapter 3 Mechanical Engineering Materials - 22343
Sandip Polytechnic,Nashik

Engg. materials unit 3 eme
Engg. materials unit 3 emeEngg. materials unit 3 eme
Engg. materials unit 3 eme
Bhaskar Kandpal

Metallurgical properties of cast irons
Metallurgical properties of cast irons Metallurgical properties of cast irons
Metallurgical properties of cast irons
Yanie Hadzir

What is cast iron, its process, properties and applications
What is cast iron, its process, properties and applicationsWhat is cast iron, its process, properties and applications
What is cast iron, its process, properties and applications
Searchnscore

cast irons.pptx
cast irons.pptxcast irons.pptx
cast irons.pptx
AnonymousD93QRwwY

Types of cast iron & effect of impurities
Types of cast iron & effect of impuritiesTypes of cast iron & effect of impurities
Types of cast iron & effect of impurities
Karthika C

MSE7-3.pdf
MSE7-3.pdfMSE7-3.pdf
MSE7-3.pdf
quique90

Cast iron
Cast iron Cast iron
Cast iron
SanayKhadiwala

iron and steel
 iron and steel  iron and steel
iron and steel
MD ABDUL ALIM

Metallurgical properties of cast irons
Metallurgical properties of cast ironsMetallurgical properties of cast irons
Metallurgical properties of cast irons
Gulfam Hussain

introduction to Cast Iron
introduction to Cast Ironintroduction to Cast Iron
introduction to Cast Iron
pulkit bajaj


Similar to Cast iron (20)

Iron & steel
Iron & steelIron & steel
Iron & steel

FERROUS METALS.pptx
FERROUS METALS.pptxFERROUS METALS.pptx
FERROUS METALS.pptx

Classification of cast iron
Classification of cast ironClassification of cast iron
Classification of cast iron

ferrous metals (Ch 07 Edition 11th) - uses and applications.pptx
ferrous metals (Ch 07 Edition 11th) - uses and applications.pptxferrous metals (Ch 07 Edition 11th) - uses and applications.pptx
ferrous metals (Ch 07 Edition 11th) - uses and applications.pptx

13. engg materials
13. engg materials13. engg materials
13. engg materials

Cast iron
Cast ironCast iron
Cast iron

Cast iron
Cast ironCast iron
Cast iron

Cast iron
Cast iron Cast iron
Cast iron

CAST IRON & WROUGHT IRON
CAST IRON & WROUGHT IRONCAST IRON & WROUGHT IRON
CAST IRON & WROUGHT IRON

Chapter 3 Mechanical Engineering Materials - 22343
Chapter 3 Mechanical Engineering Materials - 22343 Chapter 3 Mechanical Engineering Materials - 22343
Chapter 3 Mechanical Engineering Materials - 22343

Engg. materials unit 3 eme
Engg. materials unit 3 emeEngg. materials unit 3 eme
Engg. materials unit 3 eme

Metallurgical properties of cast irons
Metallurgical properties of cast irons Metallurgical properties of cast irons
Metallurgical properties of cast irons

What is cast iron, its process, properties and applications
What is cast iron, its process, properties and applicationsWhat is cast iron, its process, properties and applications
What is cast iron, its process, properties and applications

cast irons.pptx
cast irons.pptxcast irons.pptx
cast irons.pptx

Types of cast iron & effect of impurities
Types of cast iron & effect of impuritiesTypes of cast iron & effect of impurities
Types of cast iron & effect of impurities

MSE7-3.pdf
MSE7-3.pdfMSE7-3.pdf
MSE7-3.pdf

Cast iron
Cast iron Cast iron
Cast iron

iron and steel
 iron and steel  iron and steel
iron and steel

Metallurgical properties of cast irons
Metallurgical properties of cast ironsMetallurgical properties of cast irons
Metallurgical properties of cast irons

introduction to Cast Iron
introduction to Cast Ironintroduction to Cast Iron
introduction to Cast Iron


More from Andhra University

Types of Ores- Building materials and construction
Types of Ores- Building materials and constructionTypes of Ores- Building materials and construction
Types of Ores- Building materials and construction
Andhra University

Indo Islamic influence architecture
Indo Islamic influence architecture Indo Islamic influence architecture
Indo Islamic influence architecture
Andhra University

Elements of hindu temple
Elements of hindu templeElements of hindu temple
Elements of hindu temple
Andhra University

Different types of dining typology
Different types of dining typologyDifferent types of dining typology
Different types of dining typology
Andhra University

Development of bhitargaon temple
Development of bhitargaon templeDevelopment of bhitargaon temple
Development of bhitargaon temple
Andhra University

Solar radiation- Heliometer and Solarimeter
Solar radiation- Heliometer and SolarimeterSolar radiation- Heliometer and Solarimeter
Solar radiation- Heliometer and Solarimeter
Andhra University

Literature study Hostels
Literature study HostelsLiterature study Hostels
Literature study Hostels
Andhra University

Hostel Literature Study
Hostel Literature StudyHostel Literature Study
Hostel Literature Study
Andhra University

Indus valley civilization
Indus valley civilization   Indus valley civilization
Indus valley civilization
Andhra University

Flame university
Flame universityFlame university
Flame university
Andhra University

Hindu Architecture
Hindu ArchitectureHindu Architecture
Hindu Architecture
Andhra University

Buddhist Architecture
Buddhist ArchitectureBuddhist Architecture
Buddhist Architecture
Andhra University

Steel - BUILDING MATERIALS AND CONSTRUCTION)
Steel - BUILDING MATERIALS AND CONSTRUCTION)Steel - BUILDING MATERIALS AND CONSTRUCTION)
Steel - BUILDING MATERIALS AND CONSTRUCTION)
Andhra University

Influence of eating in architecture.
Influence of eating in architecture.Influence of eating in architecture.
Influence of eating in architecture.
Andhra University

Acoustics
Acoustics Acoustics
Acoustics
Andhra University

WATER CONSUMPTION
WATER CONSUMPTIONWATER CONSUMPTION
WATER CONSUMPTION
Andhra University

Energy sources of garbage
Energy sources of garbageEnergy sources of garbage
Energy sources of garbage
Andhra University

KHAJURAHO GROUP OF MONUMENTS
KHAJURAHO GROUP OF MONUMENTSKHAJURAHO GROUP OF MONUMENTS
KHAJURAHO GROUP OF MONUMENTS
Andhra University

Basic design & Visual arts “TRANSFORMATIONS"
Basic design & Visual arts “TRANSFORMATIONS"Basic design & Visual arts “TRANSFORMATIONS"
Basic design & Visual arts “TRANSFORMATIONS"
Andhra University

Non Ferrous Metals (BUILDING MATERIALS AND CONSTRUCTION)
Non Ferrous Metals (BUILDING MATERIALS AND CONSTRUCTION)Non Ferrous Metals (BUILDING MATERIALS AND CONSTRUCTION)
Non Ferrous Metals (BUILDING MATERIALS AND CONSTRUCTION)
Andhra University


More from Andhra University (20)

Types of Ores- Building materials and construction
Types of Ores- Building materials and constructionTypes of Ores- Building materials and construction
Types of Ores- Building materials and construction

Indo Islamic influence architecture
Indo Islamic influence architecture Indo Islamic influence architecture
Indo Islamic influence architecture

Elements of hindu temple
Elements of hindu templeElements of hindu temple
Elements of hindu temple

Different types of dining typology
Different types of dining typologyDifferent types of dining typology
Different types of dining typology

Development of bhitargaon temple
Development of bhitargaon templeDevelopment of bhitargaon temple
Development of bhitargaon temple

Solar radiation- Heliometer and Solarimeter
Solar radiation- Heliometer and SolarimeterSolar radiation- Heliometer and Solarimeter
Solar radiation- Heliometer and Solarimeter

Literature study Hostels
Literature study HostelsLiterature study Hostels
Literature study Hostels

Hostel Literature Study
Hostel Literature StudyHostel Literature Study
Hostel Literature Study

Indus valley civilization
Indus valley civilization   Indus valley civilization
Indus valley civilization

Flame university
Flame universityFlame university
Flame university

Hindu Architecture
Hindu ArchitectureHindu Architecture
Hindu Architecture

Buddhist Architecture
Buddhist ArchitectureBuddhist Architecture
Buddhist Architecture

Steel - BUILDING MATERIALS AND CONSTRUCTION)
Steel - BUILDING MATERIALS AND CONSTRUCTION)Steel - BUILDING MATERIALS AND CONSTRUCTION)
Steel - BUILDING MATERIALS AND CONSTRUCTION)

Influence of eating in architecture.
Influence of eating in architecture.Influence of eating in architecture.
Influence of eating in architecture.

Acoustics
Acoustics Acoustics
Acoustics

WATER CONSUMPTION
WATER CONSUMPTIONWATER CONSUMPTION
WATER CONSUMPTION

Energy sources of garbage
Energy sources of garbageEnergy sources of garbage
Energy sources of garbage

KHAJURAHO GROUP OF MONUMENTS
KHAJURAHO GROUP OF MONUMENTSKHAJURAHO GROUP OF MONUMENTS
KHAJURAHO GROUP OF MONUMENTS

Basic design & Visual arts “TRANSFORMATIONS"
Basic design & Visual arts “TRANSFORMATIONS"Basic design & Visual arts “TRANSFORMATIONS"
Basic design & Visual arts “TRANSFORMATIONS"

Non Ferrous Metals (BUILDING MATERIALS AND CONSTRUCTION)
Non Ferrous Metals (BUILDING MATERIALS AND CONSTRUCTION)Non Ferrous Metals (BUILDING MATERIALS AND CONSTRUCTION)
Non Ferrous Metals (BUILDING MATERIALS AND CONSTRUCTION)


Recently uploaded

RDBMS Lecture Notes Unit4 chapter12 VIEW
RDBMS Lecture Notes Unit4 chapter12 VIEWRDBMS Lecture Notes Unit4 chapter12 VIEW
RDBMS Lecture Notes Unit4 chapter12 VIEW
Murugan Solaiyappan

Introduction to Google Productivity Tools for Office and Personal Use
Introduction to Google Productivity Tools for Office and Personal UseIntroduction to Google Productivity Tools for Office and Personal Use
Introduction to Google Productivity Tools for Office and Personal Use
Excellence Foundation for South Sudan

Parkinson Disease & Anti-Parkinsonian Drugs.pptx
Parkinson Disease & Anti-Parkinsonian Drugs.pptxParkinson Disease & Anti-Parkinsonian Drugs.pptx
Parkinson Disease & Anti-Parkinsonian Drugs.pptx
AnujVishwakarma34

Genetics Teaching Plan: Dr.Kshirsagar R.V.
Genetics Teaching Plan: Dr.Kshirsagar R.V.Genetics Teaching Plan: Dr.Kshirsagar R.V.
Genetics Teaching Plan: Dr.Kshirsagar R.V.
DrRavindrakshirsagar1

QCE – Unpacking the syllabus Implications for Senior School practices and ass...
QCE – Unpacking the syllabus Implications for Senior School practices and ass...QCE – Unpacking the syllabus Implications for Senior School practices and ass...
QCE – Unpacking the syllabus Implications for Senior School practices and ass...
mansk2

How to Manage Access Rights & User Types in Odoo 17
How to Manage Access Rights & User Types in Odoo 17How to Manage Access Rights & User Types in Odoo 17
How to Manage Access Rights & User Types in Odoo 17
Celine George

11. Post harvest quality, Quality criteria and Judgement.pptx
11. Post harvest quality, Quality criteria and Judgement.pptx11. Post harvest quality, Quality criteria and Judgement.pptx
11. Post harvest quality, Quality criteria and Judgement.pptx
UmeshTimilsina1

3. Maturity_indices_of_fruits_and_vegetable.pptx
3. Maturity_indices_of_fruits_and_vegetable.pptx3. Maturity_indices_of_fruits_and_vegetable.pptx
3. Maturity_indices_of_fruits_and_vegetable.pptx
UmeshTimilsina1

Dr. Nasir Mustafa CERTIFICATE OF APPRECIATION "NEUROANATOMY"
Dr. Nasir Mustafa CERTIFICATE OF APPRECIATION "NEUROANATOMY"Dr. Nasir Mustafa CERTIFICATE OF APPRECIATION "NEUROANATOMY"
Dr. Nasir Mustafa CERTIFICATE OF APPRECIATION "NEUROANATOMY"
Dr. Nasir Mustafa

How to Manage Line Discount in Odoo 17 POS
How to Manage Line Discount in Odoo 17 POSHow to Manage Line Discount in Odoo 17 POS
How to Manage Line Discount in Odoo 17 POS
Celine George

SQL Server Interview Questions PDF By ScholarHat
SQL Server Interview Questions PDF By ScholarHatSQL Server Interview Questions PDF By ScholarHat
SQL Server Interview Questions PDF By ScholarHat
Scholarhat

Node JS Interview Question PDF By ScholarHat
Node JS Interview Question PDF By ScholarHatNode JS Interview Question PDF By ScholarHat
Node JS Interview Question PDF By ScholarHat
Scholarhat

FINAL MATATAG Science CG 2023 Grades 3-10.pdf
FINAL MATATAG Science CG 2023 Grades 3-10.pdfFINAL MATATAG Science CG 2023 Grades 3-10.pdf
FINAL MATATAG Science CG 2023 Grades 3-10.pdf
maritescanete2

PRESS RELEASE - UNIVERSITY OF GHANA, JULY 16, 2024.pdf
PRESS RELEASE - UNIVERSITY OF GHANA, JULY 16, 2024.pdfPRESS RELEASE - UNIVERSITY OF GHANA, JULY 16, 2024.pdf
PRESS RELEASE - UNIVERSITY OF GHANA, JULY 16, 2024.pdf
nservice241

BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...
BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...
BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...
Nguyen Thanh Tu Collection

Mail Server Configuration Using App passwords in Odoo 17
Mail Server Configuration Using App passwords in Odoo 17Mail Server Configuration Using App passwords in Odoo 17
Mail Server Configuration Using App passwords in Odoo 17
Celine George

DepEd School Calendar 2024-2025 DO_s2024_008
DepEd School Calendar 2024-2025 DO_s2024_008DepEd School Calendar 2024-2025 DO_s2024_008
DepEd School Calendar 2024-2025 DO_s2024_008
Glenn Rivera

ASP.NET Core Interview Questions PDF By ScholarHat.pdf
ASP.NET Core Interview Questions PDF By ScholarHat.pdfASP.NET Core Interview Questions PDF By ScholarHat.pdf
ASP.NET Core Interview Questions PDF By ScholarHat.pdf
Scholarhat

Our Guide to the July 2024 USPS® Rate Change
Our Guide to the July 2024 USPS® Rate ChangeOur Guide to the July 2024 USPS® Rate Change
Our Guide to the July 2024 USPS® Rate Change
Postal Advocate Inc.

Lecture Notes Unit4 Chapter13 users , roles and privileges
Lecture Notes Unit4 Chapter13 users , roles and privilegesLecture Notes Unit4 Chapter13 users , roles and privileges
Lecture Notes Unit4 Chapter13 users , roles and privileges
Murugan146644


Recently uploaded (20)

RDBMS Lecture Notes Unit4 chapter12 VIEW
RDBMS Lecture Notes Unit4 chapter12 VIEWRDBMS Lecture Notes Unit4 chapter12 VIEW
RDBMS Lecture Notes Unit4 chapter12 VIEW

Introduction to Google Productivity Tools for Office and Personal Use
Introduction to Google Productivity Tools for Office and Personal UseIntroduction to Google Productivity Tools for Office and Personal Use
Introduction to Google Productivity Tools for Office and Personal Use

Parkinson Disease & Anti-Parkinsonian Drugs.pptx
Parkinson Disease & Anti-Parkinsonian Drugs.pptxParkinson Disease & Anti-Parkinsonian Drugs.pptx
Parkinson Disease & Anti-Parkinsonian Drugs.pptx

Genetics Teaching Plan: Dr.Kshirsagar R.V.
Genetics Teaching Plan: Dr.Kshirsagar R.V.Genetics Teaching Plan: Dr.Kshirsagar R.V.
Genetics Teaching Plan: Dr.Kshirsagar R.V.

QCE – Unpacking the syllabus Implications for Senior School practices and ass...
QCE – Unpacking the syllabus Implications for Senior School practices and ass...QCE – Unpacking the syllabus Implications for Senior School practices and ass...
QCE – Unpacking the syllabus Implications for Senior School practices and ass...

How to Manage Access Rights & User Types in Odoo 17
How to Manage Access Rights & User Types in Odoo 17How to Manage Access Rights & User Types in Odoo 17
How to Manage Access Rights & User Types in Odoo 17

11. Post harvest quality, Quality criteria and Judgement.pptx
11. Post harvest quality, Quality criteria and Judgement.pptx11. Post harvest quality, Quality criteria and Judgement.pptx
11. Post harvest quality, Quality criteria and Judgement.pptx

3. Maturity_indices_of_fruits_and_vegetable.pptx
3. Maturity_indices_of_fruits_and_vegetable.pptx3. Maturity_indices_of_fruits_and_vegetable.pptx
3. Maturity_indices_of_fruits_and_vegetable.pptx

Dr. Nasir Mustafa CERTIFICATE OF APPRECIATION "NEUROANATOMY"
Dr. Nasir Mustafa CERTIFICATE OF APPRECIATION "NEUROANATOMY"Dr. Nasir Mustafa CERTIFICATE OF APPRECIATION "NEUROANATOMY"
Dr. Nasir Mustafa CERTIFICATE OF APPRECIATION "NEUROANATOMY"

How to Manage Line Discount in Odoo 17 POS
How to Manage Line Discount in Odoo 17 POSHow to Manage Line Discount in Odoo 17 POS
How to Manage Line Discount in Odoo 17 POS

SQL Server Interview Questions PDF By ScholarHat
SQL Server Interview Questions PDF By ScholarHatSQL Server Interview Questions PDF By ScholarHat
SQL Server Interview Questions PDF By ScholarHat

Node JS Interview Question PDF By ScholarHat
Node JS Interview Question PDF By ScholarHatNode JS Interview Question PDF By ScholarHat
Node JS Interview Question PDF By ScholarHat

FINAL MATATAG Science CG 2023 Grades 3-10.pdf
FINAL MATATAG Science CG 2023 Grades 3-10.pdfFINAL MATATAG Science CG 2023 Grades 3-10.pdf
FINAL MATATAG Science CG 2023 Grades 3-10.pdf

PRESS RELEASE - UNIVERSITY OF GHANA, JULY 16, 2024.pdf
PRESS RELEASE - UNIVERSITY OF GHANA, JULY 16, 2024.pdfPRESS RELEASE - UNIVERSITY OF GHANA, JULY 16, 2024.pdf
PRESS RELEASE - UNIVERSITY OF GHANA, JULY 16, 2024.pdf

BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...
BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...
BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...

Mail Server Configuration Using App passwords in Odoo 17
Mail Server Configuration Using App passwords in Odoo 17Mail Server Configuration Using App passwords in Odoo 17
Mail Server Configuration Using App passwords in Odoo 17

DepEd School Calendar 2024-2025 DO_s2024_008
DepEd School Calendar 2024-2025 DO_s2024_008DepEd School Calendar 2024-2025 DO_s2024_008
DepEd School Calendar 2024-2025 DO_s2024_008

ASP.NET Core Interview Questions PDF By ScholarHat.pdf
ASP.NET Core Interview Questions PDF By ScholarHat.pdfASP.NET Core Interview Questions PDF By ScholarHat.pdf
ASP.NET Core Interview Questions PDF By ScholarHat.pdf

Our Guide to the July 2024 USPS® Rate Change
Our Guide to the July 2024 USPS® Rate ChangeOur Guide to the July 2024 USPS® Rate Change
Our Guide to the July 2024 USPS® Rate Change

Lecture Notes Unit4 Chapter13 users , roles and privileges
Lecture Notes Unit4 Chapter13 users , roles and privilegesLecture Notes Unit4 Chapter13 users , roles and privileges
Lecture Notes Unit4 Chapter13 users , roles and privileges


Cast iron

  • 1. Presented by: G. Lahari (319106101007) G. Likhitha(319106101008) K. Aditya(319106101009) K. Gayathri(319106101010) K. Lavanya(319106101011)
  • 2. Introduction:  Cast iron is a group of iron-carbon alloys with a carbon content more than 2%. Its usefulness derives from its relatively low melting temperature. The alloy constituents affect its colour when fractured: white cast iron has carbide impurities. History:  Cast iron was invented in China in the 5th century BC and poured into molds to make ploughshares and pots as well as weapons and pagodas. Although steel was more desirable, cast iron was cheaper and thus was more commonly used for implements in ancient China, while wrought iron or steel was used for weapons.
  • 3. Manufacture of Cast-Iron:  The cast-iron is manufactured by re-melting pig-iron with coke and limestone. This re-melting is done in a furnace known as the cupola furnace. It is more or less same as the blast furnace, but it is smaller in size. Its shape is cylindrical with diameter of about 1 m and height of about 5 m.  The working of cupola furnace is also similar to that of blast furnace. The raw materials are fed from top. The cupola furnace is worked intermittently and it is open at top. After the raw materials are placed, the furnace is fired and blast of air is forced through tuyeres. The blast of air is cold as the impurities in pig-iron are removed by the oxidation
  • 4.  The impurities of pig-iron are removed to some extent and comparatively pure iron is taken out in the molten stage from the bottom of furnace.  The slag is also removed from top of cast-iron at regular intervals.  The molten cast-iron is led into moulds of required shapes to form what are known as the cast-iron castings.
  • 5. Composition of Cast-Iron:  The cast-iron contains about 2 to 4 per cent of carbon. In addition, it contains the various impurities such as manganese, phosphorus, silicon and sulphur.  The manganese makes cast-iron brittle and hard. Its amount should therefore be kept below 0.75 per cent or so.  The phosphorus increases fluidity of cast-iron. It also makes cast-iron brittle and when its amount is more than 0.30 per cent, the resulting cast-iron is lacking in toughness and workability. Its percentage is sometimes kept as about 1 to 1.5 to get very thin castings.  The silicon combines with part of iron and forms a solid solution. It also removes combined carbon from graphite form. If its amount is less than 2.50 per cent, it decreases shrinkage and ensures softer and better castings.
  • 6. Types of Cast-Iron: Following are the varieties of cast-iron: 1. Grey cast-iron 2. White cast-iron 3. Mottled cast-iron 4. Chilled cast-iron 5. Malleable cast-iron 6. Spheroidal graphite iron or ductile iron 7. Tophened cast iron
  • 7. 1. Grey cast iron:  This is prepared from grey pig. Its colour is grey with a coarse crystalline structure. It is soft and it melts readily. It is somewhat weak in strength. It is extensively used for making castings. One of the key characteristics of gray iron is its ability to resist wear even when lubrication supply is limited (e.g. the upper cylinder walls in engine blocks).  Gray iron is used to make engine blocks and cylinder heads, manifolds, gas burners, gear blanks, enclosures, and housings.
  • 8. 2. White Cast-Iron:  Its colour is silvery white. It is hard and it melts with difficulty. It is not easily worked on machine. It cannot be used for delicate casting. The chilling process used to make white iron results in a brittle material that is very resistant to wear and abrasions.  For this reason, it is used to make mill linings, shot-blasting nozzles, railroad brake shoes, slurry pump housings, rolling mill rolls, and crushers.
  • 9. 3. Mottled Cast-Iron:  Cast iron or pig iron that is intermediate between white cast iron and grey cast iron and shows a mottled surface on fracture is known as mottled cast iron  Iron which consists of a mixture of a variable proportions of gray cast iron and white cast iron, such a material has a mottled fracture.
  • 10. 4. Chilled Cast-Iron:  The chilling consists of making some portion of cast-iron hard and other portion soft. This variety of cast-iron is hard to a certain depth from the exterior surface and it is indicated by white iron  Obtained by casting against a chiller.  Surface is White C.I. (faster cooling rates).  Harder / wear resistant surface.  Depth depends on composition (C, Si decrease chill depth)  Carbide forming elements like Cr, Mo increase chill depth)  Applications: Railway car wheels, crushing rolls, heavy machinery  Additions of Ce / Mg poisons the easy growth di
  • 11. 5. Malleable cast iron  Malleable cast iron exhibits good malleability and good ductility. Due to the lower silicon content compared to other cast irons, it exhibits good fracture toughness at low temperature. Malleable cast iron applications  As a result of its good tensile strength and ductility, malleable cast iron is used for electrical fittings and equipment, hand tools, pipe fittings, washers, brackets, farm equipment, mining hardware, and machine parts.  A common classification for malleable cast iron  is ASTM A47.
  • 12. 6. Spheroidal Graphite Iron or Ductile Iron:  Malleable cast-iron is being replaced by spheroidal graphite iron or ductile iron now-a-days. Its manufacturing process is much easier than malleable cast-iron. Manganese treatment is given to the cast-iron. Manganese increases the content of carbon in iron and opposes the formation of free graphite in flaky form.  This type of iron is used for manufacturing of pipes for carrying water and sewage due to its high strength, ductility and good resistance to corrosion.
  • 13. 7. Toughened Cast-Iron:  This variety of cast-iron is obtained by melting cast-iron with wrought- iron scrap. The proportion of wrought-iron scrap is about to ¼th to 1/7th of weight of cast-iron.
  • 14. Name Nominal composition [% by weight] Form and condition Yield strength [ksi (0.2% offset)] Tensile strength [ksi] Elongation [%] Hardness [Brinell scale] Uses Grey cast iron (ASTM A48) C 3.4, Si 1.8, Mn 0.5 Cast — 50 0.5 260 Engine cylind er blocks, flywhe els, gearbox cases, machine-tool bases White cast iron C 3.4, Si 0.7, Mn 0.6 Cast (as cast) — 25 0 450 Bearing surfac es Malleable iron (ASTM A47) C 2.5, Si 1.0, Mn 0.55 Cast (annealed) 33 52 12 130 Axle bearings, track wheels, automotive cr ankshafts Ductile or nodular iron C 3.4, P 0.1, Mn 0.4, Ni 1.0, Mg 0.06 Cast 53 70 18 170 Gears, camsha fts, crankshafts Ductile or nodular iron (ASTM A339) — Cast (quench tempered) 108 135 5 310 —
  • 15. Properties of Cast-Iron:  If placed in salt water, it becomes soft.  It can be hardened by heating and sudden cooling, but it cannot be tempered.  It cannot be magnetized.  It does not rust easily.  It is fusible.  It is hard, but it is brittle also.  It is weak in tension and strong in compression. The tensile and compressive strengths of cast-iron of average quality are respectively 150 N/mm2 and 600 N/mm2.
  • 16.  It is not ductile and hence it cannot be adopted to absorb shocks and impacts.  Its melting temperature is about 1250°C.  It shrinks on cooling. This fact is to be considered while making patterns or moulds for foundry work.  Its structure is granular and crystalline with whitish or greyish tinge.  Its specific gravity is 7.5.  It lacks plasticity and hence it is unsuitable for the forging work.  The two pieces of cast-iron cannot be connected by the process of riveting or welding. They are to be connected by nuts and bolts which are fixed to the flanges. The holes for bolts, etc. are either drilled out or cast in the casting.
  • 17. A few common mechanical properties for cast iron include:  Hardness– material’s resistance to abrasion and indentation  Toughness – material’s ability to absorb energy  Ductility – material’s ability to deform without fracture  Elasticity – material’s ability to return to its original dimensions after it has been deformed  Malleability – material’s ability to deform under compression without rupturing  Tensile strength – the greatest longitudinal stress a material can bear without tearing apart  Fatigue strength – the highest stress that a material can withstand for a given number of cycles without breaking
  • 18. Uses of Cast-Iron:  For making cisterns, water pipes, gas pipes and sewers, manhole covers and sanitary fittings.  For making ornamental castings such as brackets, gates, lamp posts, spiral staircases, etc.  For making parts of machinery which are not subject to heavy shocks.  For manufacturing compression members like columns in buildings, bases of columns, etc.  For preparing agricultural implements.  For preparing rail chairs, carriage wheels, etc.
  • 19. Types of Castings:  Centrifugal casting  Chilled casting  Die casting  Hollow casting  Sand casting  Vertical sand casting.
  • 20. Characteristics of a Good Casting: A good casting should possess the following qualities or characteristics:  Its edges and corners should be sharp, perfect and clean.  Its fresh fracture should exhibit fine grained texture with bluish grey colour.  It should be free from air bubbles, cracks, etc.  It should be soft enough for drilling or chiselling.  It should be uniform in shape and it should be consistent with the requirements of the design.  Its outer surface should be smooth.
  • 21. Production and processing:  To produce cast iron, the iron must be extracted from iron ore. The ore is smelted in a blast furnace where it separates into pig iron and slag. The furnace is heated to around 1800 degrees Celsius in an oxygen atmosphere and the slag formed rises to the top and can be removed.  The molten pig iron below contains around 3 wt.% – 5 wt.% carbon. This is then combined with iron, steel, coke and limestone.  Once impurities are removed selectively from this iron, the carbon content is reduced. At this point, silicon may be added to convert the carbon content to graphite or cementite. The iron is then cast into various forms.
  • 22. Cast iron and the future:  From its early use over 3,000 years ago, iron has remained an integral part of human society. Iron production has come a long way since the centuries of working iron by blacksmiths to the invention of cast iron in the industrial age.  Since then, wrought iron has become largely obsolete except for decorative uses. Contrastingly, cast iron is still progressing in terms of composition, microstructure, and mechanical properties—continuing to make its mark in the modern world.
  • 23. Disadvantages of cast iron: However, it has low wear resistance, mobility and low shake-suction. Further, it has bad casting ability and machinability which is a distinct disadvantage. The cost of casting steel alloys is also more than cast iron.  It is Prone to rusting.  It has poor tensile strength.  Its parts are section sensitive, this is due to slow cooling of thick sections.  failure of Its parts is sudden and total, it does not exhibit yield point.  It has poor impact resistance.  Compared to steel it has poor machinability.
