1. Cardiovascular System
Weighing in at 10 ounces, the blood-filled muscle
called the heart has become the universal symbol of
love. The Greeks believed the heart was the seat of
the spirit, the Chinese associated it with the center for
happiness and the Egyptians thought the emotions
and intellect arose from the heart. No one is sure the
exact origin of the love association, however. One
idea is that the heart got its "love mark" in the ancient
Greek city of Cyrene, now in modern-day Libya. The
colony was known for a plant called Silphium, with
heart-shaped seed pods. Silphium had medicinal
properties, and possibly also was used as an herbal
contraceptive.
hsc 1531 medical terminology | FSCJ | professor: michael l. whtichurch, MHS

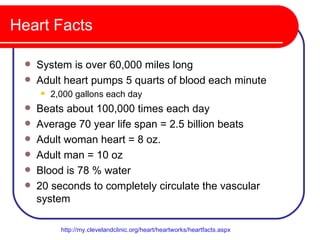

2. Heart Facts
System is over 60,000 miles long
Adult heart pumps 5 quarts of blood each minute
2,000 gallons each day
Beats about 100,000 times each day
Average 70 year life span = 2.5 billion beats
Adult woman heart = 8 oz.
Adult man = 10 oz
Blood is 78 % water
20 seconds to completely circulate the vascular
system
http://my.clevelandclinic.org/heart/heartworks/heartfacts.aspx
4. Multimedia Directory Continued
Slide 106Electrocardiography Video

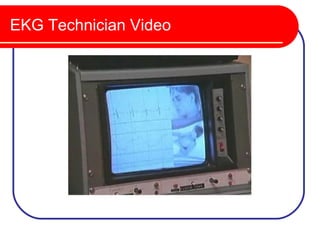

Slide 107EKG Technician Video
Slide 112Defibrillation Video

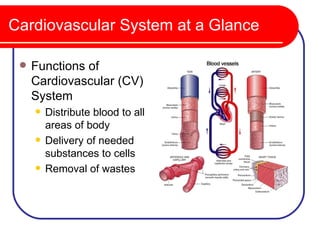

5. Cardiovascular System at a Glance
Functions of
Cardiovascular (CV)
System
Distribute blood to all
areas of body
Delivery of needed
substances to cells
Removal of wastes

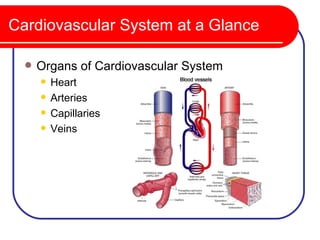

6. Cardiovascular System at a Glance
Organs of Cardiovascular System
Heart
Arteries
Capillaries
Veins

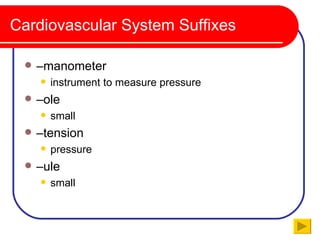

10. Cardiovascular System Suffixes
–manometer
instrument to measure pressure
–ole
small
–tension
pressure
–ule
small

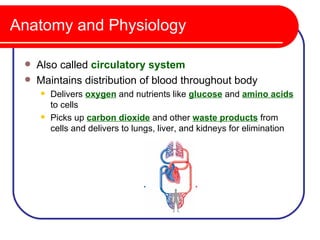

11. Anatomy and Physiology
Also called circulatory system
Maintains distribution of blood throughout body
Delivers oxygen and nutrients like glucose and amino acids
to cells
Picks up carbon dioxide and other waste products from
cells and delivers to lungs, liver, and kidneys for elimination

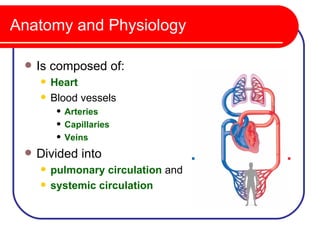

12. Anatomy and Physiology
Is composed of:
Heart
Blood vessels
Arteries
Capillaries
Veins
Divided into
pulmonary circulation and
systemic circulation

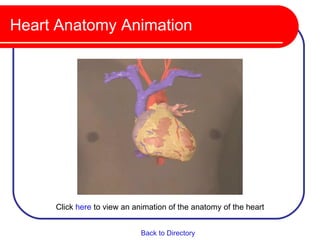

13. Heart Anatomy Animation
Click here to view an animation of the anatomy of the heart
Back to Directory

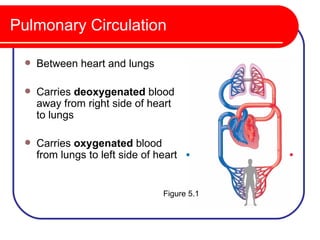

14. Pulmonary Circulation
Between heart and lungs
Carries deoxygenated blood
away from right side of heart
to lungs
Carries oxygenated blood
from lungs to left side of heart
Figure 5.1

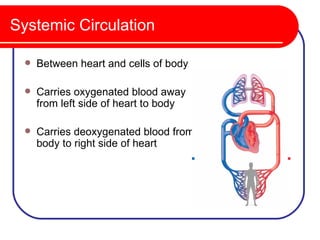

15. Systemic Circulation
Between heart and cells of body
Carries oxygenated blood away
from left side of heart to body
Carries deoxygenated blood from
body to right side of heart

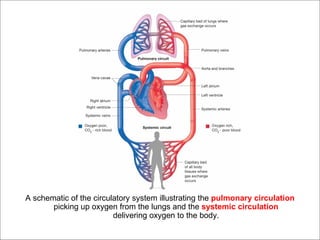

16. A schematic of the circulatory system illustrating the pulmonary circulation
picking up oxygen from the lungs and the systemic circulation
delivering oxygen to the body.

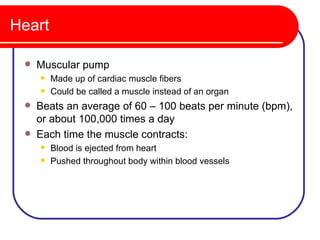

17. Heart
Muscular pump
Made up of cardiac muscle fibers
Could be called a muscle instead of an organ
Beats an average of 60 – 100 beats per minute (bpm),
or about 100,000 times a day
Each time the muscle contracts:
Blood is ejected from heart
Pushed throughout body within blood vessels

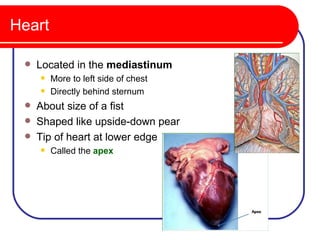

18. Heart
Located in the mediastinum
More to left side of chest
Directly behind sternum
About size of a fist
Shaped like upside-down pear
Tip of heart at lower edge
Called the apex

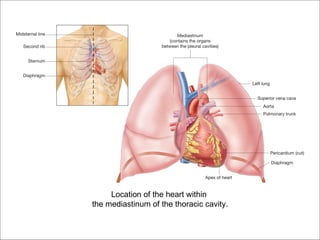

19. Location of the heart within
the mediastinum of the thoracic cavity.

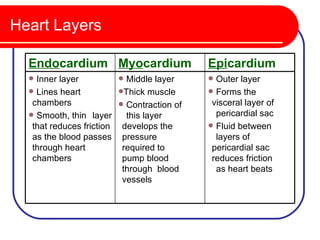

20. Heart Layers
Endocardium Myocardium Epicardium
Inner layer Middle layer Outer layer
Lines heart Thick muscle Forms the
chambers Contraction of visceral layer of
Smooth, thin layer this layer pericardial sac
that reduces friction develops the Fluid between
as the blood passes pressure layers of
through heart required to pericardial sac
chambers pump blood reduces friction
through blood as heart beats
vessels

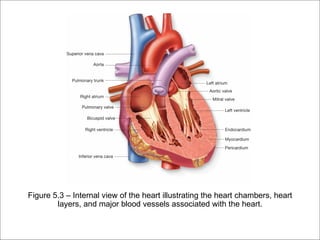

21. Figure 5.3 – Internal view of the heart illustrating the heart chambers, heart
layers, and major blood vessels associated with the heart.

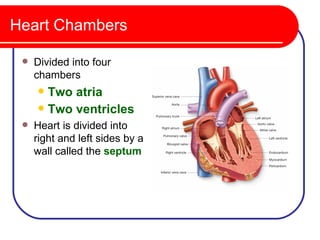

22. Heart Chambers
Divided into four
chambers
Two atria
Two ventricles
Heart is divided into
right and left sides by a
wall called the septum

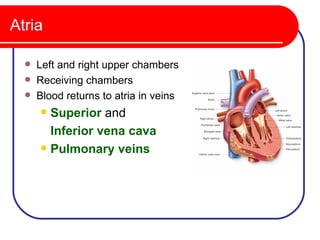

23. Atria
Left and right upper chambers
Receiving chambers
Blood returns to atria in veins
Superior and
Inferior vena cava
Pulmonary veins

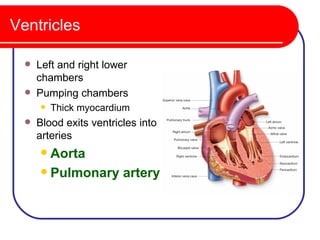

24. Ventricles
Left and right lower
chambers
Pumping chambers
Thick myocardium
Blood exits ventricles into
arteries
Aorta
Pulmonary artery
25. Figure 5.3 – Internal view of the heart illustrating the heart chambers, heart
layers, and major blood vessels associated with the heart.

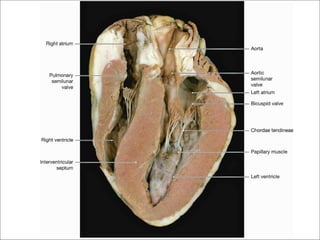

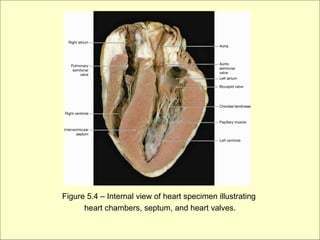

26. Figure 5.4 – Internal view of heart specimen illustrating
heart chambers, septum, and heart valves.

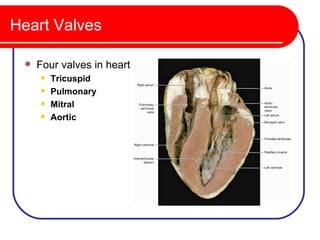

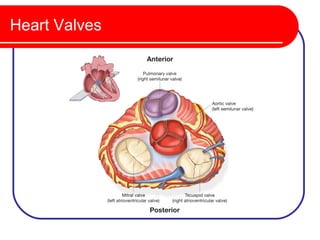

28. Heart Valves
Four valves in heart
Tricuspid
Pulmonary
Mitral
Aortic
29. Heart Valves
Act as restraining gates to control direction of blood
flow
Found at entrance and exit to ventricles
Allow blood to flow only in forward direction by
blocking it from returning to previous chamber

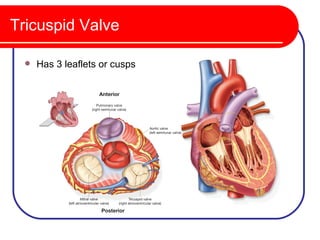

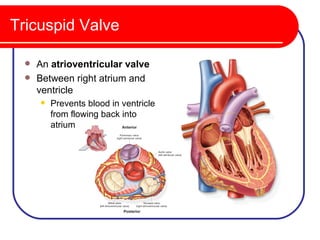

30. Tricuspid Valve
An atrioventricular valve
Between right atrium and
ventricle
Prevents blood in ventricle
from flowing back into
atrium

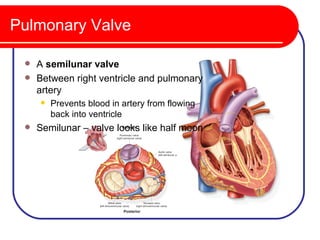

32. Pulmonary Valve
A semilunar valve
Between right ventricle and pulmonary
artery
Prevents blood in artery from flowing
back into ventricle
Semilunar – valve looks like half moon

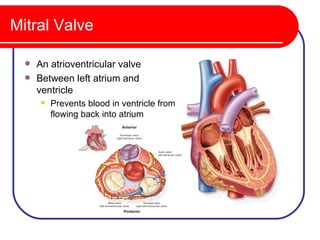

33. Mitral Valve
An atrioventricular valve
Between left atrium and
ventricle
Prevents blood in ventricle from
flowing back into atrium

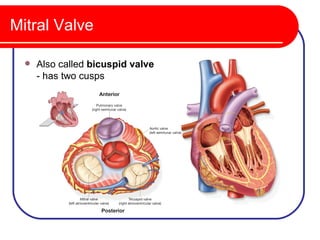

34. Mitral Valve
Also called bicuspid valve
- has two cusps

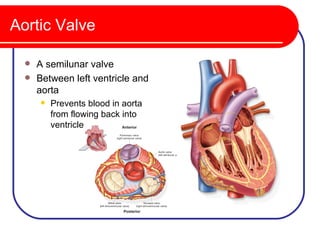

35. Aortic Valve
A semilunar valve
Between left ventricle and
aorta
Prevents blood in aorta
from flowing back into
ventricle
37. Figure 5.4 – Internal view of heart specimen illustrating
heart chambers, septum, and heart valves.

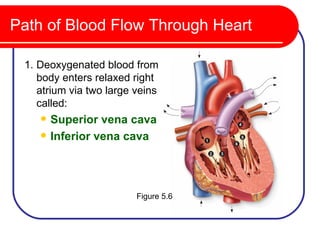

38. Path of Blood Flow Through Heart
1. Deoxygenated blood from
body enters relaxed right
atrium via two large veins
called:
Superior vena cava
Inferior vena cava
Figure 5.6

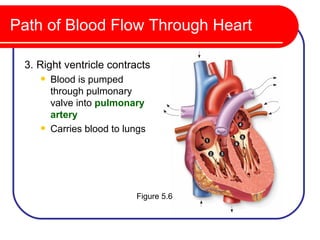

42. Path of Blood Flow Through Heart
3. Right ventricle contracts
Blood is pumped
through pulmonary
valve into pulmonary
artery
Carries blood to lungs
Figure 5.6

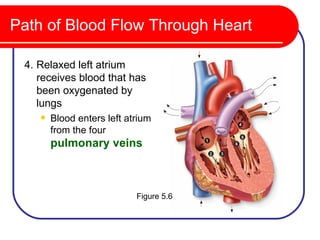

44. Path of Blood Flow Through Heart
4. Relaxed left atrium
receives blood that has
been oxygenated by
lungs
Blood enters left atrium
from the four
pulmonary veins
Figure 5.6

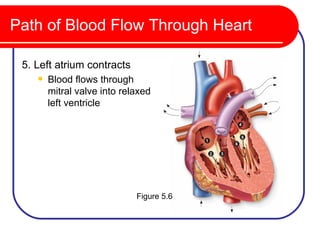

45. Path of Blood Flow Through Heart
5. Left atrium contracts
Blood flows through
mitral valve into relaxed
left ventricle
Figure 5.6

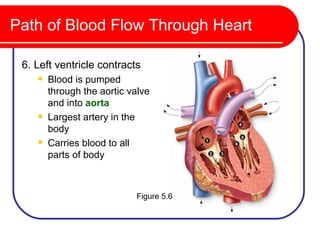

46. Path of Blood Flow Through Heart
6. Left ventricle contracts
Blood is pumped
through the aortic valve
and into aorta
Largest artery in the
body
Carries blood to all
parts of body
Figure 5.6

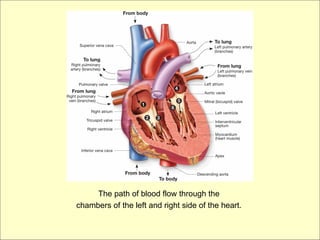

47. The path of blood flow through the
chambers of the left and right side of the heart.

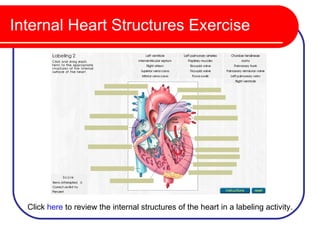

48. Internal Heart Structures Exercise
Click here to review the internal structures of the heart in a labeling activity.

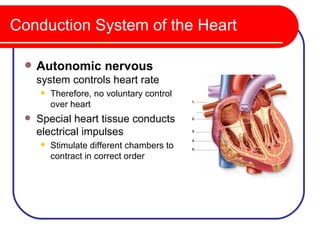

49. Conduction System of the Heart
Autonomic nervous
system controls heart rate
Therefore, no voluntary control
over heart
Special heart tissue conducts
electrical impulses
Stimulate different chambers to
contract in correct order

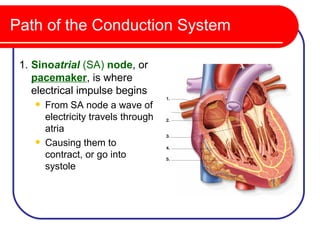

50. Path of the Conduction System
1. Sinoatrial (SA) node, or
pacemaker, is where
electrical impulse begins
From SA node a wave of
electricity travels through
atria
Causing them to
contract, or go into
systole

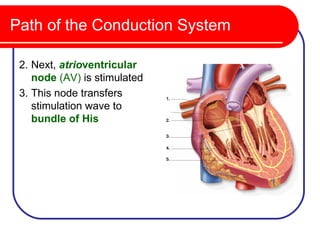

51. Path of the Conduction System
2. Next, atrioventricular
node (AV) is stimulated
3. This node transfers
stimulation wave to
bundle of His

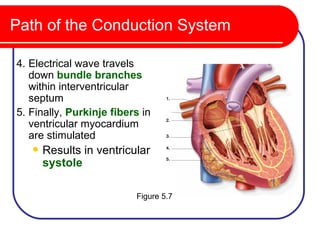

52. Path of the Conduction System
4. Electrical wave travels
down bundle branches
within interventricular
septum
5. Finally, Purkinje fibers in
ventricular myocardium
are stimulated
Results in ventricular
systole
Figure 5.7

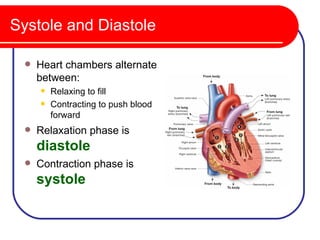

53. Systole and Diastole
Heart chambers alternate
between:
Relaxing to fill
Contracting to push blood
forward
Relaxation phase is
diastole
Contraction phase is
systole
58. Blood Vessels
Pipes that circulate blood
through body
Three types:
Arteries
Capillaries
Veins
Lumen is the channel
within blood vessels

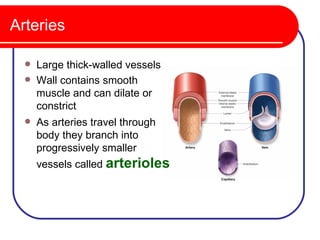

59. Arteries
Large thick-walled vessels
Wall contains smooth
muscle and can dilate or
constrict
As arteries travel through
body they branch into
progressively smaller
vessels called arterioles

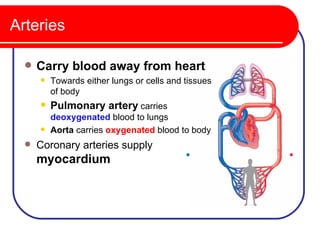

61. Arteries
Carry blood away from heart
Towards either lungs or cells and tissues
of body
Pulmonary artery carries
deoxygenated blood to lungs
Aorta carries oxygenated blood to body
Coronary arteries supply
myocardium

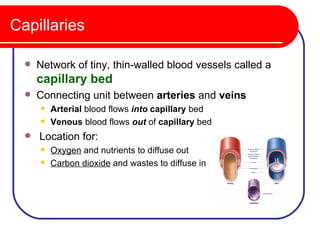

64. Capillaries
Network of tiny, thin-walled blood vessels called a
capillary bed
Connecting unit between arteries and veins
Arterial blood flows into capillary bed
Venous blood flows out of capillary bed
Location for:
Oxygen and nutrients to diffuse out
Carbon dioxide and wastes to diffuse in

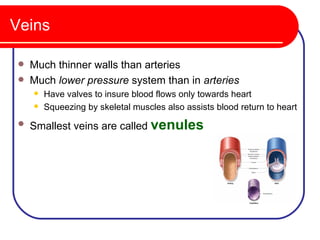

66. Veins
Much thinner walls than arteries
Much lower pressure system than in arteries
Have valves to insure blood flows only towards heart
Squeezing by skeletal muscles also assists blood return to heart
Smallest veins are called venules

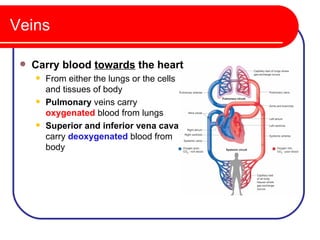

68. Veins
Carry blood towards the heart
From either the lungs or the cells
and tissues of body
Pulmonary veins carry
oxygenated blood from lungs
Superior and inferior vena cava
carry deoxygenated blood from
body
71. Systole and Diastole
Heart chambers alternate
between:
Relaxing to fill
Contracting to push blood
forward
Relaxation phase is
diastole
Contraction phase is
systole

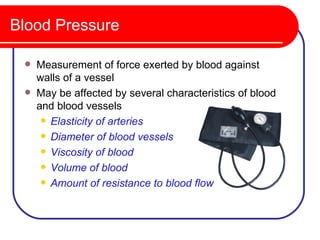

72. Blood Pressure
Measurement of force exerted by blood against
walls of a vessel
May be affected by several characteristics of blood
and blood vessels
Elasticity of arteries
Diameter of blood vessels
Viscosity of blood
Volume of blood
Amount of resistance to blood flow

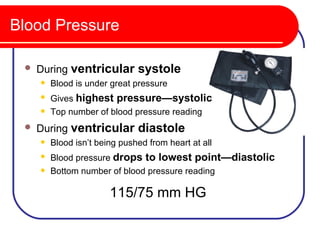

73. Blood Pressure
During ventricular systole
Blood is under great pressure
Gives highest pressure—systolic
Top number of blood pressure reading
During ventricular diastole
Blood isn’t being pushed from heart at all
Blood pressure drops to lowest point—diastolic
Bottom number of blood pressure reading
115/75 mm HG

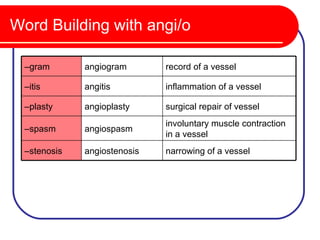

75. Word Building with angi/o
–gram angiogram record of a vessel
–itis angitis inflammation of a vessel

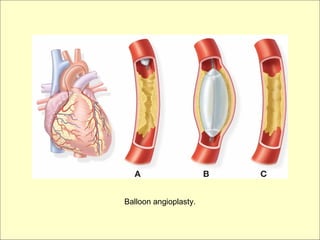

–plasty angioplasty surgical repair of vessel
involuntary muscle contraction
–spasm angiospasm
in a vessel
–stenosis angiostenosis narrowing of a vessel

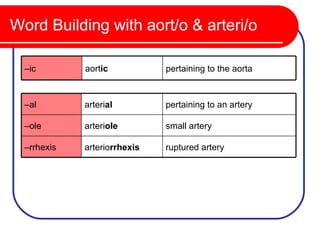

76. Word Building with aort/o & arteri/o
–ic aortic pertaining to the aorta
–al arterial pertaining to an artery
–ole arteriole small artery
–rrhexis arteriorrhexis ruptured artery

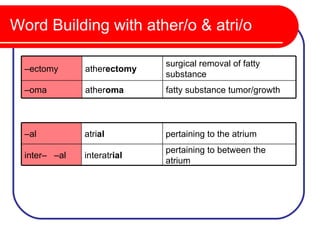

77. Word Building with ather/o & atri/o
surgical removal of fatty
–ectomy atherectomy
substance
–oma atheroma fatty substance tumor/growth
–al atrial pertaining to the atrium
pertaining to between the
inter– –al interatrial
atrium

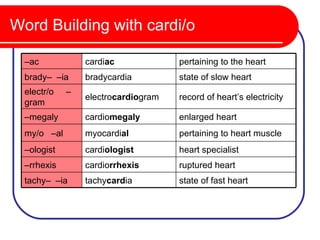

78. Word Building with cardi/o
–ac cardiac pertaining to the heart
brady– –ia bradycardia state of slow heart
electr/o –
electrocardiogram record of heart’s electricity
gram
–megaly cardiomegaly enlarged heart
my/o –al myocardial pertaining to heart muscle
–ologist cardiologist heart specialist
–rrhexis cardiorrhexis ruptured heart
tachy– –ia tachycardia state of fast heart
79. Word Building with cardi/o
–ac cardiac pertaining to the heart
brady– –ia bradycardia state of slow heart
electr/o –
electrocardiogram record of heart’s electricity
gram
–megaly cardiomegaly enlarged heart
my/o –al myocardial pertaining to heart muscle
–ologist cardiologist heart specialist
–rrhexis cardiorrhexis ruptured heart
tachy– –ia tachycardia state of fast heart

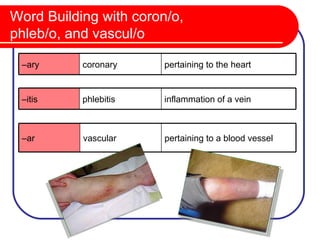

81. Word Building with coron/o,
phleb/o, and vascul/o
–ary coronary pertaining to the heart
–itis phlebitis inflammation of a vein
–ar vascular pertaining to a blood vessel

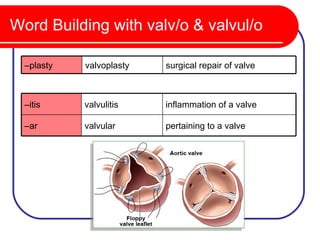

82. Word Building with valv/o & valvul/o
–plasty valvoplasty surgical repair of valve
–itis valvulitis inflammation of a valve
–ar valvular pertaining to a valve

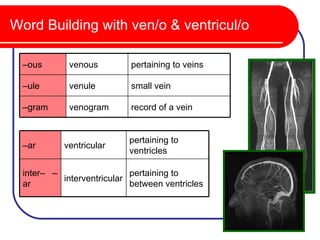

83. Word Building with ven/o & ventricul/o
–ous venous pertaining to veins
–ule venule small vein
–gram venogram record of a vein
pertaining to
–ar ventricular
ventricles
inter– – pertaining to
interventricular
ar between ventricles

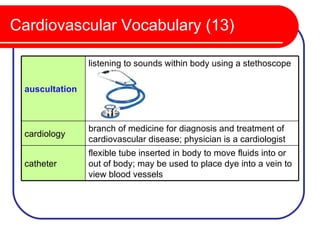

84. Cardiovascular Vocabulary (13)
listening to sounds within body using a stethoscope
auscultation
branch of medicine for diagnosis and treatment of
cardiology
cardiovascular disease; physician is a cardiologist
flexible tube inserted in body to move fluids into or
catheter out of body; may be used to place dye into a vein to
view blood vessels

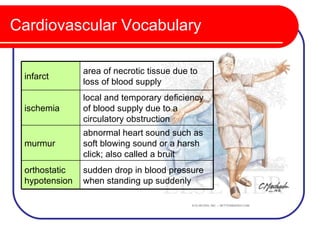

85. Cardiovascular Vocabulary
area of necrotic tissue due to
infarct
loss of blood supply
local and temporary deficiency
ischemia of blood supply due to a
circulatory obstruction
abnormal heart sound such as
murmur soft blowing sound or a harsh
click; also called a bruit
orthostatic sudden drop in blood pressure
hypotension when standing up suddenly

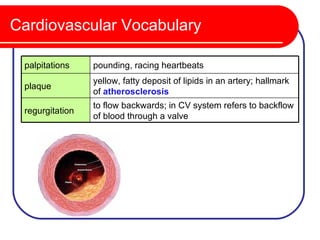

86. Cardiovascular Vocabulary
palpitations pounding, racing heartbeats
yellow, fatty deposit of lipids in an artery; hallmark
plaque
of atherosclerosis
to flow backwards; in CV system refers to backflow
regurgitation
of blood through a valve

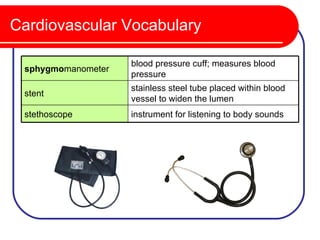

88. Cardiovascular Vocabulary

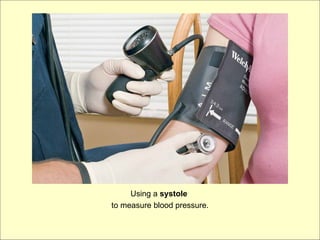

blood pressure cuff; measures blood
sphygmomanometer
pressure
stainless steel tube placed within blood
stent
vessel to widen the lumen
stethoscope instrument for listening to body sounds

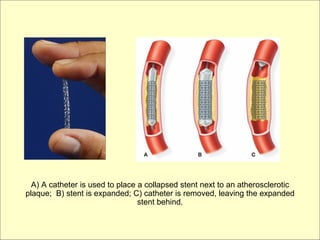

91. A) A catheter is used to place a collapsed stent next to an atherosclerotic
plaque; B) stent is expanded; C) catheter is removed, leaving the expanded
stent behind.
92.

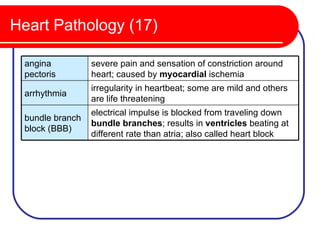

93. Heart Pathology (17)
angina severe pain and sensation of constriction around
pectoris heart; caused by myocardial ischemia
irregularity in heartbeat; some are mild and others
arrhythmia
are life threatening
electrical impulse is blocked from traveling down
bundle branch
bundle branches; results in ventricles beating at
block (BBB)
different rate than atria; also called heart block
95. Heart Pathology
complete stopping of heart
cardiac arrest
activity
myocardial disease; may be
caused by viral infection,
cardiomyopathy congestive heart failure, or
alcoholism; common reason
for heart transplant
hole, present at birth, in heart
congenital septal septum; allows mixing of
defect (CSD) oxygenated and
deoxygenated blood

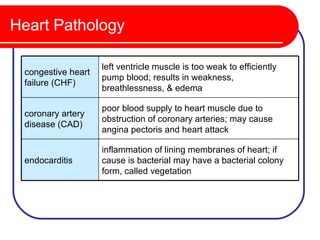

96. Heart Pathology
left ventricle muscle is too weak to efficiently
congestive heart
pump blood; results in weakness,
failure (CHF)
breathlessness, & edema
poor blood supply to heart muscle due to
coronary artery
obstruction of coronary arteries; may cause
disease (CAD)
angina pectoris and heart attack
inflammation of lining membranes of heart; if
endocarditis cause is bacterial may have a bacterial colony
form, called vegetation

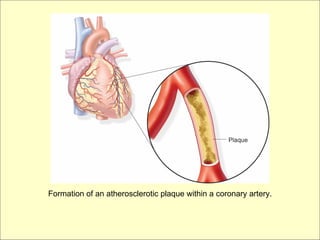

97. Formation of an atherosclerotic plaque within a coronary artery.

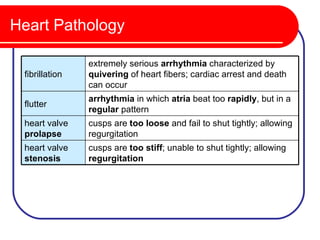

99. Heart Pathology
extremely serious arrhythmia characterized by
fibrillation quivering of heart fibers; cardiac arrest and death
can occur
arrhythmia in which atria beat too rapidly, but in a
flutter
regular pattern
heart valve cusps are too loose and fail to shut tightly; allowing
prolapse regurgitation
heart valve cusps are too stiff; unable to shut tightly; allowing
stenosis regurgitation

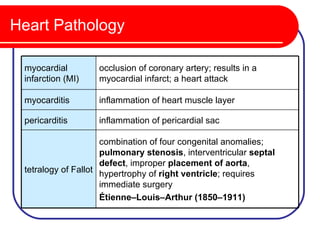

100. Heart Pathology
myocardial occlusion of coronary artery; results in a
infarction (MI) myocardial infarct; a heart attack
myocarditis inflammation of heart muscle layer
pericarditis inflammation of pericardial sac
combination of four congenital anomalies;
pulmonary stenosis, interventricular septal
defect, improper placement of aorta,
tetralogy of Fallot hypertrophy of right ventricle; requires
immediate surgery
Étienne–Louis–Arthur (1850–1911)

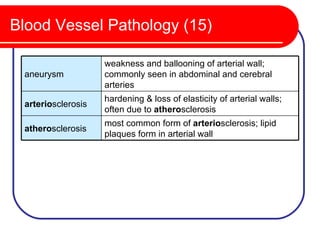

103. Blood Vessel Pathology (15)

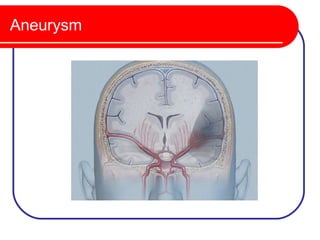

weakness and ballooning of arterial wall;
aneurysm commonly seen in abdominal and cerebral
arteries
hardening & loss of elasticity of arterial walls;
arteriosclerosis
often due to atherosclerosis
most common form of arteriosclerosis; lipid
atherosclerosis
plaques form in arterial wall
104. Illustration of a large aneurysm in the abdominal aorta which has ruptured.

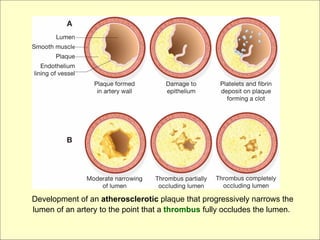

106. Development of an atherosclerotic plaque that progressively narrows the
lumen of an artery to the point that a thrombus fully occludes the lumen.

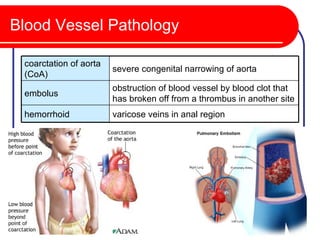

107. Blood Vessel Pathology
coarctation of aorta
severe congenital narrowing of aorta
(CoA)

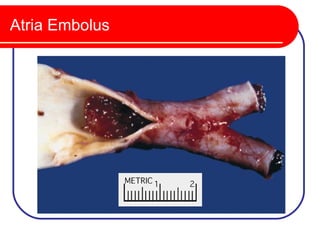

obstruction of blood vessel by blood clot that
embolus
has broken off from a thrombus in another site
hemorrhoid varicose veins in anal region

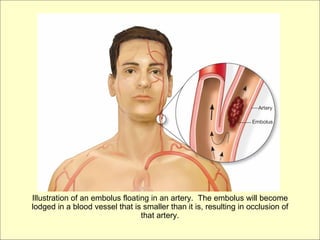

109. Illustration of an embolus floating in an artery. The embolus will become
lodged in a blood vessel that is smaller than it is, resulting in occlusion of
that artery.

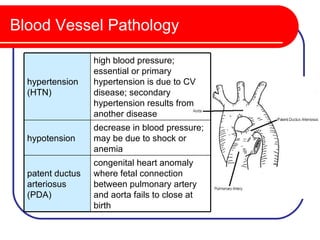

110. Blood Vessel Pathology
high blood pressure;
essential or primary
hypertension hypertension is due to CV
(HTN) disease; secondary
hypertension results from
another disease
decrease in blood pressure;
hypotension may be due to shock or
anemia

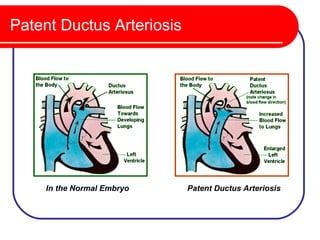

congenital heart anomaly
patent ductus where fetal connection
arteriosus between pulmonary artery
(PDA) and aorta fails to close at
birth
112. Blood Vessel Pathology
peripheral abnormal condition affecting any blood vessel
vascular disease outside the heart; symptoms may include pain,
(PVD) pallor, & blocked circulation
polyarteritis inflammation of several arteries
periodic ischemic attacks affecting extremities;
Raynaud’s especially fingers, toes, ears, and nose;
phenomenon extremities become cyanotic; triggered by cold
exposure
113. Blood Vessel Pathology
inflammation of vein
thrombophlebitis resulting in blood
clots within a vein
blood clot within a
blood vessel; may
thrombus
partially or completely
occlude blood vessel
swollen and
varicose veins distended veins; often
in the legs

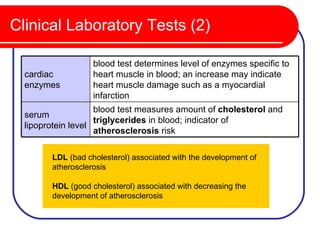

115. Clinical Laboratory Tests (2)
blood test determines level of enzymes specific to
cardiac heart muscle in blood; an increase may indicate
enzymes heart muscle damage such as a myocardial
infarction
blood test measures amount of cholesterol and
serum
triglycerides in blood; indicator of
lipoprotein level
atherosclerosis risk
LDL (bad cholesterol) associated with the development of
atherosclerosis
HDL (good cholesterol) associated with decreasing the
development of atherosclerosis

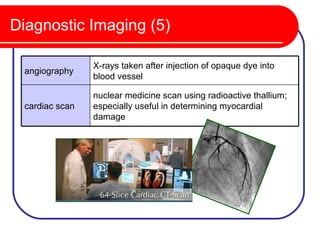

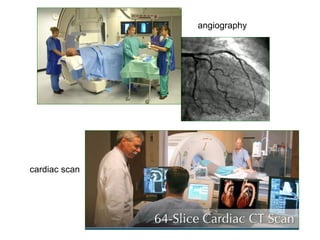

116. Diagnostic Imaging (5)
X-rays taken after injection of opaque dye into
angiography
blood vessel
nuclear medicine scan using radioactive thallium;
cardiac scan especially useful in determining myocardial
damage

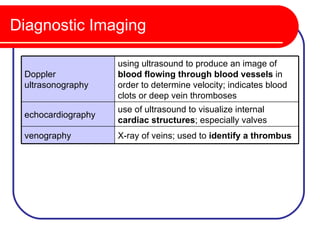

118. Diagnostic Imaging
using ultrasound to produce an image of
Doppler blood flowing through blood vessels in
ultrasonography order to determine velocity; indicates blood
clots or deep vein thromboses
use of ultrasound to visualize internal
echocardiography
cardiac structures; especially valves
venography X-ray of veins; used to identify a thrombus
119. Cardiac Function Tests (4)

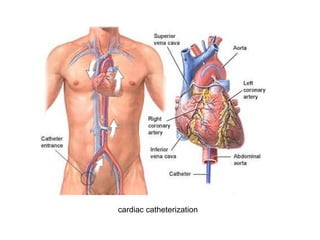

catheter is threaded through blood vessel
to heart; detects abnormalities, collects
cardiac catheterization
cardiac blood samples, and determines
blood pressure inside heart
process of recording electrical activity of
electrocardiography
heart; able to diagnose arrhythmias and
(ECG, EKG)
myocardial damage
EKG=Elektrokardiogramm (German spelling)

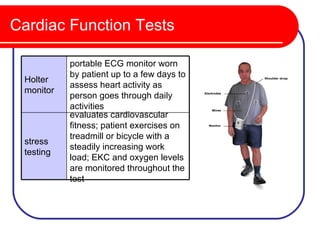

124. Cardiac Function Tests
portable ECG monitor worn
by patient up to a few days to
Holter
assess heart activity as
monitor
person goes through daily
activities
evaluates cardiovascular
fitness; patient exercises on
treadmill or bicycle with a
stress
steadily increasing work
testing
load; EKC and oxygen levels
are monitored throughout the
test

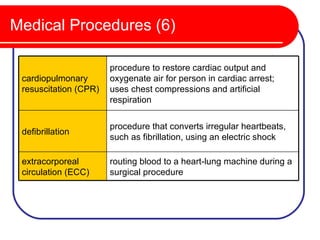

126. Medical Procedures (6)
procedure to restore cardiac output and
cardiopulmonary oxygenate air for person in cardiac arrest;
resuscitation (CPR) uses chest compressions and artificial
respiration
procedure that converts irregular heartbeats,
defibrillation
such as fibrillation, using an electric shock

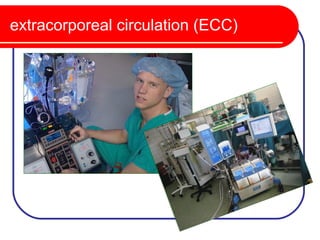

extracorporeal routing blood to a heart-lung machine during a
circulation (ECC) surgical procedure
128. An emergency medical technician positions defibrillator paddles on the chest
of a supine male patient.

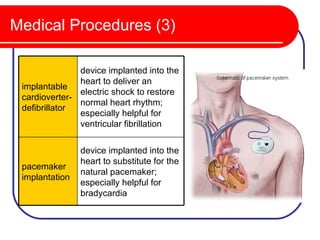

129. Medical Procedures (3)
device implanted into the
heart to deliver an
implantable
electric shock to restore
cardioverter-
normal heart rhythm;
defibrillator
especially helpful for
ventricular fibrillation
device implanted into the
heart to substitute for the
pacemaker
natural pacemaker;
implantation
especially helpful for
bradycardia
130. Figure 5.22 – Color enhanced X-ray showing pacemaker implanted in the
chest and the electrode wires running to the heart. (UHB Trust/Getty Images
Inc.–Stone Allstock)

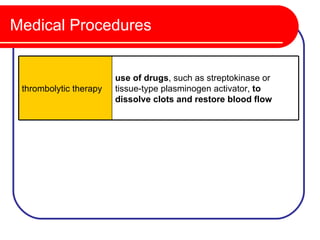

131. Medical Procedures
use of drugs, such as streptokinase or
thrombolytic therapy tissue-type plasminogen activator, to
dissolve clots and restore blood flow

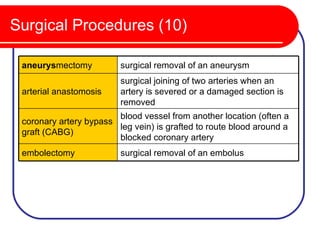

132. Surgical Procedures (10)
aneurysmectomy surgical removal of an aneurysm
surgical joining of two arteries when an
arterial anastomosis artery is severed or a damaged section is
removed

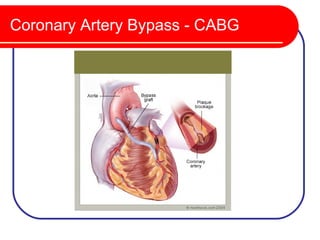

blood vessel from another location (often a
coronary artery bypass
leg vein) is grafted to route blood around a
graft (CABG)
blocked coronary artery
embolectomy surgical removal of an embolus

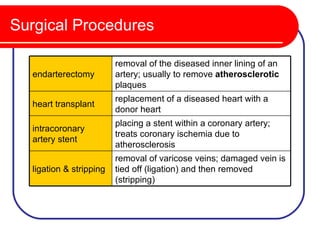

134. Surgical Procedures
removal of the diseased inner lining of an
endarterectomy artery; usually to remove atherosclerotic
plaques
replacement of a diseased heart with a
heart transplant
donor heart
placing a stent within a coronary artery;
intracoronary
treats coronary ischemia due to
artery stent
atherosclerosis
removal of varicose veins; damaged vein is
ligation & stripping tied off (ligation) and then removed
(stripping)

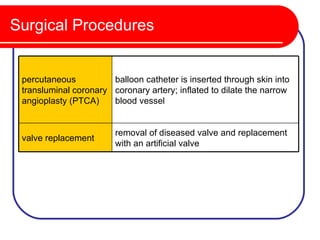

135. Surgical Procedures
percutaneous balloon catheter is inserted through skin into
transluminal coronary coronary artery; inflated to dilate the narrow
angioplasty (PTCA) blood vessel
removal of diseased valve and replacement
valve replacement
with an artificial valve

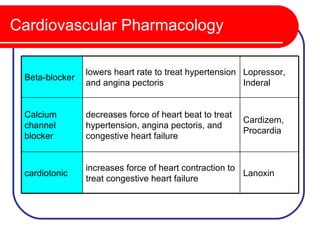

138. Cardiovascular Pharmacology
lowers heart rate to treat hypertension Lopressor,
Beta-blocker
and angina pectoris Inderal
Calcium decreases force of heart beat to treat
Cardizem,
channel hypertension, angina pectoris, and
Procardia
blocker congestive heart failure
increases force of heart contraction to
cardiotonic Lanoxin
treat congestive heart failure

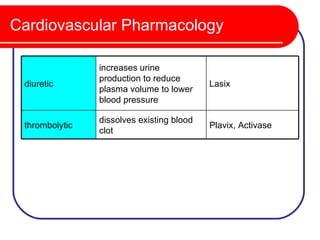

139. Cardiovascular Pharmacology
increases urine
production to reduce
diuretic Lasix
plasma volume to lower
blood pressure
dissolves existing blood
thrombolytic Plavix, Activase
clot

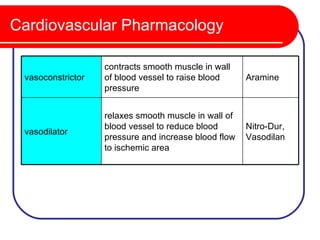

140. Cardiovascular Pharmacology
contracts smooth muscle in wall
vasoconstrictor of blood vessel to raise blood Aramine
pressure
relaxes smooth muscle in wall of
blood vessel to reduce blood Nitro-Dur,
vasodilator
pressure and increase blood flow Vasodilan
to ischemic area

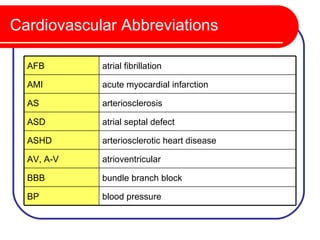

141. Cardiovascular Abbreviations
AFB atrial fibrillation
AMI acute myocardial infarction
AS arteriosclerosis
ASD atrial septal defect
ASHD arteriosclerotic heart disease
AV, A-V atrioventricular
BBB bundle branch block
BP blood pressure

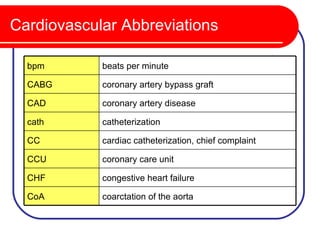

142. Cardiovascular Abbreviations
bpm beats per minute
CABG coronary artery bypass graft
CAD coronary artery disease
cath catheterization
CC cardiac catheterization, chief complaint
CCU coronary care unit
CHF congestive heart failure
CoA coarctation of the aorta
