Babu Banarsi Das Institute of Technology, Ghaziabad
INDUSTRIAL TRAINING REPORT ON
Automation using PLC
SUBMITTED IN PARTIAL FULFILLMENT FOR THE AWARD OF THE
DEGREE OF
BACHELOR OF DEGREE
IN
ELECTRONICS AND COMMUNICATION ENGINEERING
SUBMITTED BY
Rohit Singh
B.Tech VI SEMESTER
0803531072
(2008-12)
Training taken under
Moserbaer, A-164, Sector-80
Phase –II, Noida,
G.B Nagar, India
JULY 2011

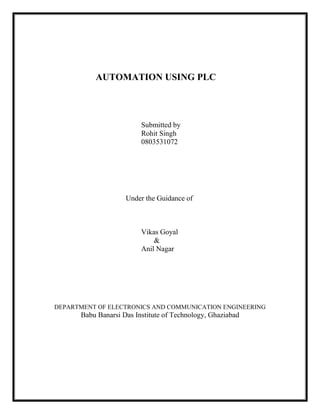

AUTOMATION USING PLC
Submitted by
Rohit Singh
0803531072
Under the Guidance of
Vikas Goyal
&
Anil Nagar
DEPARTMENT OF ELECTRONICS AND COMMUNICATION ENGINEERING
Babu Banarsi Das Institute of Technology, Ghaziabad

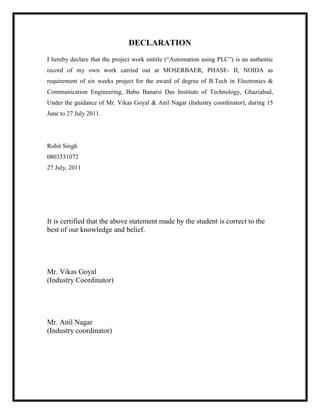

DECLARATION
I hereby declare that the project work entitle (“Automation using PLC”) is an authentic
record of my own work carried out at MOSERBAER, PHASE- II, NOIDA as
requirement of six weeks project for the award of degree of B.Tech in Electronics &
Communication Engineering, Babu Banarsi Das Institute of Technology, Ghaziabad,
Under the guidance of Mr. Vikas Goyal & Anil Nagar (Industry coordinator), during 15
June to 27 July 2011.
Rohit Singh
0803531072
27 July, 2011
It is certified that the above statement made by the student is correct to the
best of our knowledge and belief.
Mr. Vikas Goyal
(Industry Coordinator)
Mr. Anil Nagar
(Industry coordinator)

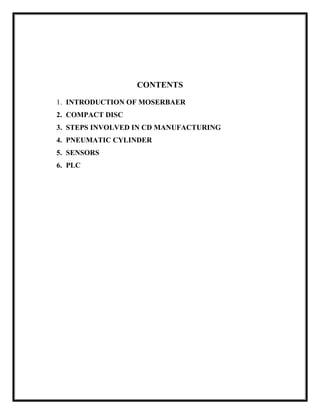

CONTENTS
1. INTRODUCTION OF MOSERBAER
2. COMPACT DISC
3. STEPS INVOLVED IN CD MANUFACTURING

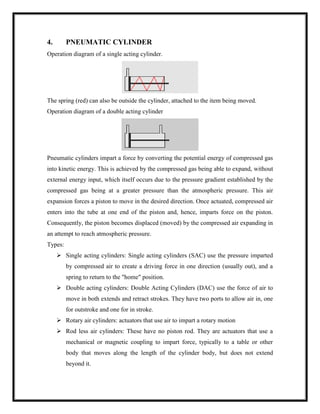

4. PNEUMATIC CYLINDER

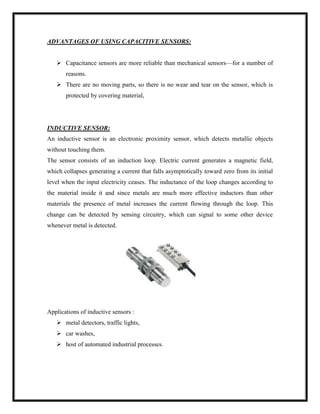

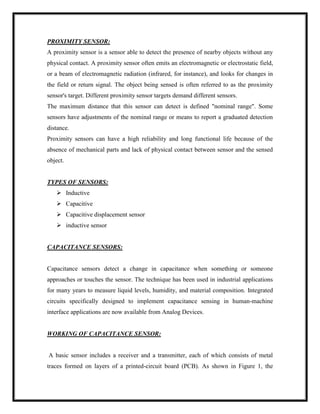

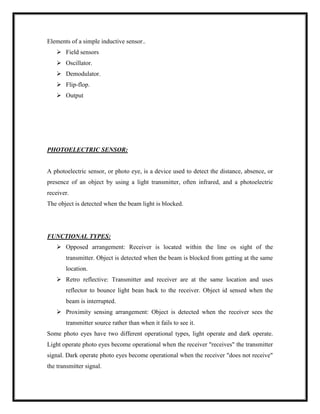

5. SENSORS
6. PLC

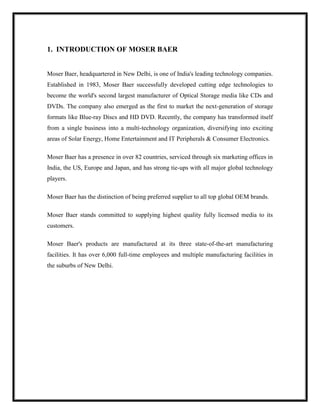

1. INTRODUCTION OF MOSER BAER
Moser Baer, headquartered in New Delhi, is one of India's leading technology companies.
Established in 1983, Moser Baer successfully developed cutting edge technologies to
become the world's second largest manufacturer of Optical Storage media like CDs and
DVDs. The company also emerged as the first to market the next-generation of storage
formats like Blue-ray Discs and HD DVD. Recently, the company has transformed itself
from a single business into a multi-technology organization, diversifying into exciting
areas of Solar Energy, Home Entertainment and IT Peripherals & Consumer Electronics.
Moser Baer has a presence in over 82 countries, serviced through six marketing offices in
India, the US, Europe and Japan, and has strong tie-ups with all major global technology
players.
Moser Baer has the distinction of being preferred supplier to all top global OEM brands.
Moser Baer stands committed to supplying highest quality fully licensed media to its
customers.
Moser Baer's products are manufactured at its three state-of-the-art manufacturing
facilities. It has over 6,000 full-time employees and multiple manufacturing facilities in
the suburbs of New Delhi.

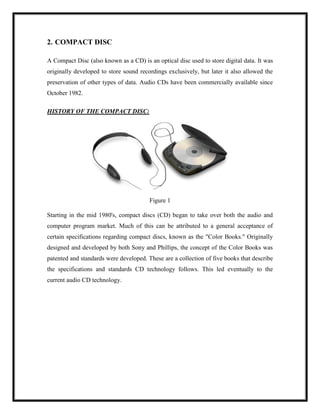

2. COMPACT DISC
A Compact Disc (also known as a CD) is an optical disc used to store digital data. It was
originally developed to store sound recordings exclusively, but later it also allowed the
preservation of other types of data. Audio CDs have been commercially available since
October 1982.
HISTORY OF THE COMPACT DISC:
Figure 1
Starting in the mid 1980's, compact discs (CD) began to take over both the audio and
computer program market. Much of this can be attributed to a general acceptance of
certain specifications regarding compact discs, known as the "Color Books." Originally
designed and developed by both Sony and Phillips, the concept of the Color Books was
patented and standards were developed. These are a collection of five books that describe
the specifications and standards CD technology follows. This led eventually to the
current audio CD technology.

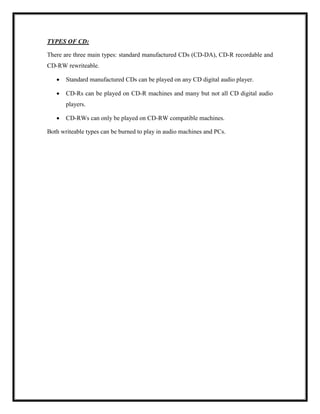

TYPES OF CD:
There are three main types: standard manufactured CDs (CD-DA), CD-R recordable and
CD-RW rewriteable.
 Standard manufactured CDs can be played on any CD digital audio player.
 CD-Rs can be played on CD-R machines and many but not all CD digital audio
players.
 CD-RWs can only be played on CD-RW compatible machines.
Both writeable types can be burned to play in audio machines and PCs.

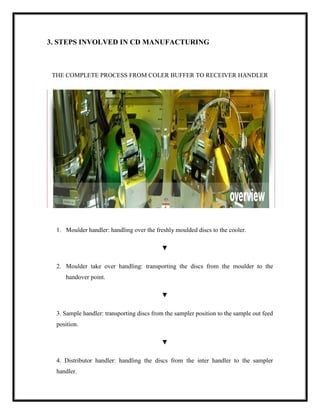

3. STEPS INVOLVED IN CD MANUFACTURING
THE COMPLETE PROCESS FROM COLER BUFFER TO RECEIVER HANDLER
1. Moulder handler: handling over the freshly moulded discs to the cooler.
▼
2. Moulder take over handling: transporting the discs from the moulder to the
handover point.
▼
3. Sample handler: transporting discs from the sampler position to the sample out feed
position.
▼
4. Distributor handler: handling the discs from the inter handler to the sampler
handler.
▼

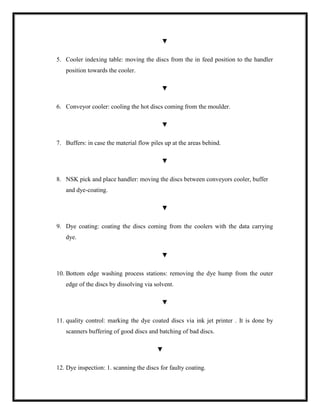

5. Cooler indexing table: moving the discs from the in feed position to the handler
position towards the cooler.
▼
6. Conveyor cooler: cooling the hot discs coming from the moulder.
▼
7. Buffers: in case the material flow piles up at the areas behind.
▼
8. NSK pick and place handler: moving the discs between conveyors cooler, buffer
and dye-coating.
▼
9. Dye coating: coating the discs coming from the coolers with the data carrying
dye.
▼
10. Bottom edge washing process stations: removing the dye hump from the outer
edge of the discs by dissolving via solvent.
▼
11. quality control: marking the dye coated discs via ink jet printer . It is done by
scanners buffering of good discs and batching of bad discs.
▼
12. Dye inspection: 1. scanning the discs for faulty coating.
▼

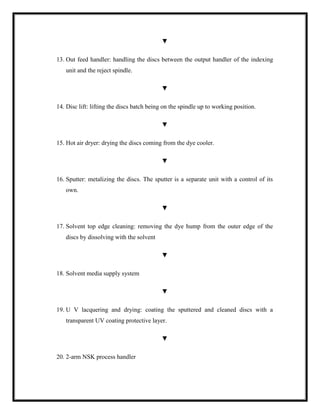

13. Out feed handler: handling the discs between the output handler of the indexing
unit and the reject spindle.
▼
14. Disc lift: lifting the discs batch being on the spindle up to working position.
▼
15. Hot air dryer: drying the discs coming from the dye cooler.
▼
16. Sputter: metalizing the discs. The sputter is a separate unit with a control of its
own.
▼
17. Solvent top edge cleaning: removing the dye hump from the outer edge of the
discs by dissolving with the solvent
▼
18. Solvent media supply system
▼
19. U V lacquering and drying: coating the sputtered and cleaned discs with a
transparent UV coating protective layer.
▼
20. 2-arm NSK process handler
▼

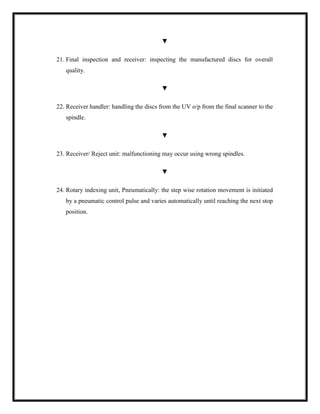

21. Final inspection and receiver: inspecting the manufactured discs for overall
quality.
▼
22. Receiver handler: handling the discs from the UV o/p from the final scanner to the
spindle.
▼
23. Receiver/ Reject unit: malfunctioning may occur using wrong spindles.
▼
24. Rotary indexing unit, Pneumatically: the step wise rotation movement is initiated
by a pneumatic control pulse and varies automatically until reaching the next stop
position.

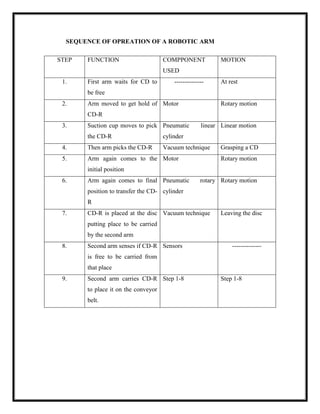

SEQUENCE OF OPREATION OF A ROBOTIC ARM
STEP FUNCTION COMPPONENT
USED
MOTION
1. First arm waits for CD to
be free
-------------- At rest
2. Arm moved to get hold of
CD-R
Motor Rotary motion
3. Suction cup moves to pick
the CD-R
Pneumatic linear
cylinder
Linear motion
4. Then arm picks the CD-R Vacuum technique Grasping a CD
5. Arm again comes to the
initial position
Motor Rotary motion
6. Arm again comes to final
position to transfer the CD-
R
Pneumatic rotary
cylinder
Rotary motion
7. CD-R is placed at the disc
putting place to be carried
by the second arm
Vacuum technique Leaving the disc
8. Second arm senses if CD-R
is free to be carried from
that place
Sensors --------------
9. Second arm carries CD-R
to place it on the conveyor
belt.
Step 1-8 Step 1-8

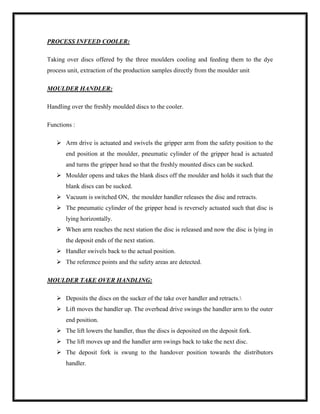

PROCESS INFEED COOLER:
Taking over discs offered by the three moulders cooling and feeding them to the dye
process unit, extraction of the production samples directly from the moulder unit
MOULDER HANDLER:
Handling over the freshly moulded discs to the cooler.
Functions :
 Arm drive is actuated and swivels the gripper arm from the safety position to the
end position at the moulder, pneumatic cylinder of the gripper head is actuated
and turns the gripper head so that the freshly mounted discs can be sucked.
 Moulder opens and takes the blank discs off the moulder and holds it such that the
blank discs can be sucked.
 Vacuum is switched ON, the moulder handler releases the disc and retracts.
 The pneumatic cylinder of the gripper head is reversely actuated such that disc is
lying horizontally.
 When arm reaches the next station the disc is released and now the disc is lying in
the deposit ends of the next station.
 Handler swivels back to the actual position.
 The reference points and the safety areas are detected.
MOULDER TAKE OVER HANDLING:
 Deposits the discs on the sucker of the take over handler and retracts.
 Lift moves the handler up. The overhead drive swings the handler arm to the outer
end position.
 The lift lowers the handler, thus the discs is deposited on the deposit fork.
 The lift moves up and the handler arm swings back to take the next disc.
 The deposit fork is swung to the handover position towards the distributors
handler.

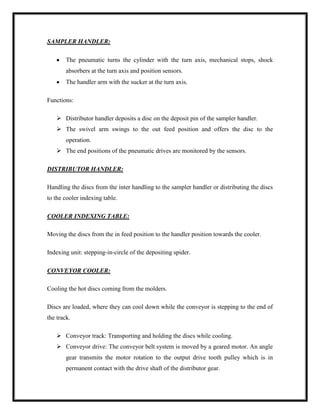

SAMPLER HANDLER:
 The pneumatic turns the cylinder with the turn axis, mechanical stops, shock
absorbers at the turn axis and position sensors.
 The handler arm with the sucker at the turn axis.
Functions:
 Distributor handler deposits a disc on the deposit pin of the sampler handler.
 The swivel arm swings to the out feed position and offers the disc to the
operation.
 The end positions of the pneumatic drives are monitored by the sensors.
DISTRIBUTOR HANDLER:
Handling the discs from the inter handling to the sampler handler or distributing the discs
to the cooler indexing table.
COOLER INDEXING TABLE:
Moving the discs from the in feed position to the handler position towards the cooler.
Indexing unit: stepping-in-circle of the depositing spider.
CONVEYOR COOLER:
Cooling the hot discs coming from the molders.
Discs are loaded, where they can cool down while the conveyor is stepping to the end of
the track.
 Conveyor track: Transporting and holding the discs while cooling.
 Conveyor drive: The conveyor belt system is moved by a geared motor. An angle
gear transmits the motor rotation to the output drive tooth pulley which is in
permanent contact with the drive shaft of the distributor gear.

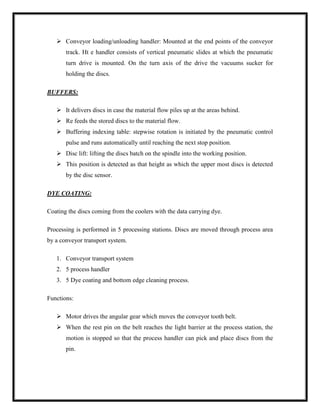

 Conveyor loading/unloading handler: Mounted at the end points of the conveyor
track. Ht e handler consists of vertical pneumatic slides at which the pneumatic
turn drive is mounted. On the turn axis of the drive the vacuums sucker for
holding the discs.
BUFFERS:
 It delivers discs in case the material flow piles up at the areas behind.
 Re feeds the stored discs to the material flow.
 Buffering indexing table: stepwise rotation is initiated by the pneumatic control
pulse and runs automatically until reaching the next stop position.
 Disc lift: lifting the discs batch on the spindle into the working position.
 This position is detected as that height as which the upper most discs is detected
by the disc sensor.
DYE COATING:
Coating the discs coming from the coolers with the data carrying dye.
Processing is performed in 5 processing stations. Discs are moved through process area
by a conveyor transport system.
1. Conveyor transport system
2. 5 process handler
3. 5 Dye coating and bottom edge cleaning process.
Functions:
 Motor drives the angular gear which moves the conveyor tooth belt.
 When the rest pin on the belt reaches the light barrier at the process station, the
motion is stopped so that the process handler can pick and place discs from the
pin.

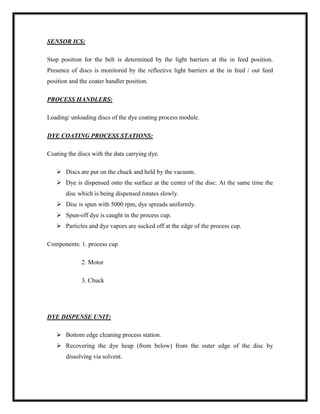

SENSOR ICS:
Stop position for the belt is determined by the light barriers at the in feed position.
Presence of discs is monitored by the reflective light barriers at the in feed / out feed
position and the coater handler position.
PROCESS HANDLERS:
Loading/ unloading discs of the dye coating process module.
DYE COATING PROCESS STATIONS:
Coating the discs with the data carrying dye.
 Discs are put on the chuck and held by the vacuum.
 Dye is dispensed onto the surface at the center of the disc. At the same time the
disc which is being dispensed rotates slowly.
 Disc is spun with 5000 rpm, dye spreads uniformly.
 Spun-off dye is caught in the process cup.
 Particles and dye vapors are sucked off at the edge of the process cup.
Components: 1. process cup
2. Motor
3. Chuck
DYE DISPENSE UNIT:
 Bottom edge cleaning process station.
 Recovering the dye heap (from below) from the outer edge of the disc by
dissolving via solvent.

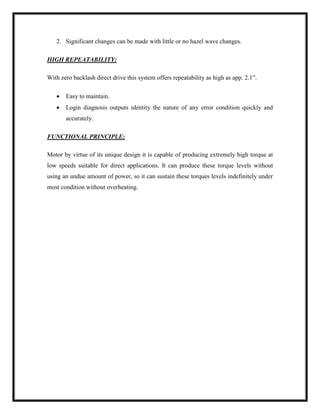

N S K DRIVE:
Mega torque motor system is a unique actuator with special capabilities. System consists
of almost all servo motor systems.
Incorporated in two units:
1. motor
2. driver unit
1. Motor: Motor consists of a high torque brushless actuator, high resolution brushless
resolver and a heavy duty precision NSK bearing.
The high torque eliminates the need for gear reduction, while the built in resolver usually
makes feedback components such as encoders or techno meters unnecessary. The heavy
duty mechanical support since the motor case can very often support the load directly in
most applications.
2. Driver Unit: It consists of a power amplifier, resolver interfaces and the digital motor
control circuits.
The driver units provide everything that is needed to control the motor torque, velocity
position for interface to any standards motor position controller or to act as a standalone
digital motion control system with its built-in zero backlash position control capabilities.
High speed: It features higher speed than ever before with less torque drop-off at the
immediate speeds. Smaller motors may be used for high speed indexing applications
when torque management is primarily for accelerations.
EASE OF USE:
1. The circuit parameters can be changed by the command, rather than by alternating
to adjust a multi-turn pot or changing capacitor values.
2. Significant changes can be made with little or no hazel wave changes.
HIGH REPEATABILITY:
With zero backlash direct drive this system offers repeatability as high as app. 2.1”.
 Easy to maintain.
 Login diagnosis outputs identity the nature of any error condition quickly and
accurately.
FUNCTIONAL PRINCIPLE:
Motor by virtue of its unique design it is capable of producing extremely high torque at
low speeds suitable for direct applications. It can produce these torque levels without
using an undue amount of power, so it can sustain these torques levels indefinitely under
most condition without overheating.
4. PNEUMATIC CYLINDER
Operation diagram of a single acting cylinder.
The spring (red) can also be outside the cylinder, attached to the item being moved.
Operation diagram of a double acting cylinder
Pneumatic cylinders impart a force by converting the potential energy of compressed gas
into kinetic energy. This is achieved by the compressed gas being able to expand, without
external energy input, which itself occurs due to the pressure gradient established by the
compressed gas being at a greater pressure than the atmospheric pressure. This air
expansion forces a piston to move in the desired direction. Once actuated, compressed air
enters into the tube at one end of the piston and, hence, imparts force on the piston.
Consequently, the piston becomes displaced (moved) by the compressed air expanding in
an attempt to reach atmospheric pressure.
Types:
 Single acting cylinders: Single acting cylinders (SAC) use the pressure imparted
by compressed air to create a driving force in one direction (usually out), and a
spring to return to the "home" position.
 Double acting cylinders: Double Acting Cylinders (DAC) use the force of air to
move in both extends and retract strokes. They have two ports to allow air in, one
for outstroke and one for in stroke.
 Rotary air cylinders: actuators that use air to impart a rotary motion
 Rod less air cylinders: These have no piston rod. They are actuators that use a
mechanical or magnetic coupling to impart force, typically to a table or other
body that moves along the length of the cylinder body, but does not extend
beyond it.

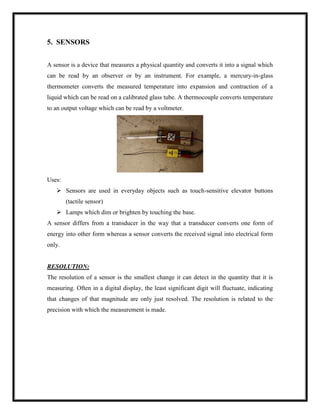

5. SENSORS
A sensor is a device that measures a physical quantity and converts it into a signal which
can be read by an observer or by an instrument. For example, a mercury-in-glass
thermometer converts the measured temperature into expansion and contraction of a
liquid which can be read on a calibrated glass tube. A thermocouple converts temperature
to an output voltage which can be read by a voltmeter.
Uses:
 Sensors are used in everyday objects such as touch-sensitive elevator buttons
(tactile sensor)
 Lamps which dim or brighten by touching the base.
A sensor differs from a transducer in the way that a transducer converts one form of
energy into other form whereas a sensor converts the received signal into electrical form
only.
RESOLUTION:
The resolution of a sensor is the smallest change it can detect in the quantity that it is
measuring. Often in a digital display, the least significant digit will fluctuate, indicating
that changes of that magnitude are only just resolved. The resolution is related to the
precision with which the measurement is made.
PROXIMITY SENSOR:
A proximity sensor is a sensor able to detect the presence of nearby objects without any
physical contact. A proximity sensor often emits an electromagnetic or electrostatic field,
or a beam of electromagnetic radiation (infrared, for instance), and looks for changes in
the field or return signal. The object being sensed is often referred to as the proximity
sensor's target. Different proximity sensor targets demand different sensors.
The maximum distance that this sensor can detect is defined "nominal range". Some
sensors have adjustments of the nominal range or means to report a graduated detection
distance.
Proximity sensors can have a high reliability and long functional life because of the
absence of mechanical parts and lack of physical contact between sensor and the sensed
object.
TYPES OF SENSORS:
 Inductive
 Capacitive
 Capacitive displacement sensor
 inductive sensor
CAPACITANCE SENSORS:
Capacitance sensors detect a change in capacitance when something or someone
approaches or touches the sensor. The technique has been used in industrial applications
for many years to measure liquid levels, humidity, and material composition. Integrated
circuits specifically designed to implement capacitance sensing in human-machine
interface applications are now available from Analog Devices.

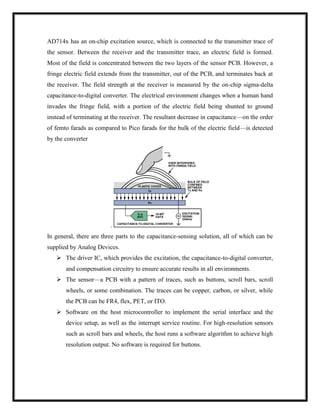

WORKING OF CAPACITANCE SENSOR:
A basic sensor includes a receiver and a transmitter, each of which consists of metal
traces formed on layers of a printed-circuit board (PCB). As shown in Figure 1, the
AD714x has an on-chip excitation source, which is connected to the transmitter trace of
the sensor. Between the receiver and the transmitter trace, an electric field is formed.
Most of the field is concentrated between the two layers of the sensor PCB. However, a
fringe electric field extends from the transmitter, out of the PCB, and terminates back at
the receiver. The field strength at the receiver is measured by the on-chip sigma-delta
capacitance-to-digital converter. The electrical environment changes when a human hand
invades the fringe field, with a portion of the electric field being shunted to ground
instead of terminating at the receiver. The resultant decrease in capacitance—on the order
of femto farads as compared to Pico farads for the bulk of the electric field—is detected
by the converter
.
In general, there are three parts to the capacitance-sensing solution, all of which can be
supplied by Analog Devices.
 The driver IC, which provides the excitation, the capacitance-to-digital converter,
and compensation circuitry to ensure accurate results in all environments.
 The sensor—a PCB with a pattern of traces, such as buttons, scroll bars, scroll
wheels, or some combination. The traces can be copper, carbon, or silver, while
the PCB can be FR4, flex, PET, or ITO.
 Software on the host microcontroller to implement the serial interface and the
device setup, as well as the interrupt service routine. For high-resolution sensors
such as scroll bars and wheels, the host runs a software algorithm to achieve high
resolution output. No software is required for buttons.
ADVANTAGES OF USING CAPACITIVE SENSORS:
 Capacitance sensors are more reliable than mechanical sensors—for a number of
reasons.
 There are no moving parts, so there is no wear and tear on the sensor, which is
protected by covering material,
INDUCTIVE SENSOR:
An inductive sensor is an electronic proximity sensor, which detects metallic objects
without touching them.
The sensor consists of an induction loop. Electric current generates a magnetic field,
which collapses generating a current that falls asymptotically toward zero from its initial
level when the input electricity ceases. The inductance of the loop changes according to
the material inside it and since metals are much more effective inductors than other
materials the presence of metal increases the current flowing through the loop. This
change can be detected by sensing circuitry, which can signal to some other device
whenever metal is detected.
Applications of inductive sensors :
 metal detectors, traffic lights,
 car washes,
 host of automated industrial processes.
Elements of a simple inductive sensor..
 Field sensors
 Oscillator.
 Demodulator.
 Flip-flop.
 Output
PHOTOELECTRIC SENSOR:
A photoelectric sensor, or photo eye, is a device used to detect the distance, absence, or
presence of an object by using a light transmitter, often infrared, and a photoelectric
receiver.
The object is detected when the beam light is blocked.
FUNCTIONAL TYPES:
 Opposed arrangement: Receiver is located within the line os sight of the
transmitter. Object is detected when the beam is blocked from getting at the same
location.
 Retro reflective: Transmitter and receiver are at the same location and uses
reflector to bounce light bean back to the receiver. Object id sensed when the
beam is interrupted.
 Proximity sensing arrangement: Object is detected when the receiver sees the
transmitter source rather than when it fails to see it.
Some photo eyes have two different operational types, light operate and dark operate.
Light operate photo eyes become operational when the receiver "receives" the transmitter
signal. Dark operate photo eyes become operational when the receiver "does not receive"
the transmitter signal.

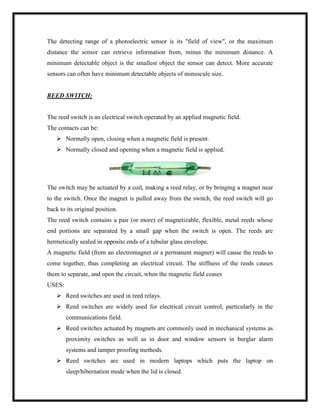

The detecting range of a photoelectric sensor is its "field of view", or the maximum
distance the sensor can retrieve information from, minus the minimum distance. A
minimum detectable object is the smallest object the sensor can detect. More accurate
sensors can often have minimum detectable objects of minuscule size.
REED SWITCH:
The reed switch is an electrical switch operated by an applied magnetic field.
The contacts can be:
 Normally open, closing when a magnetic field is present.
 Normally closed and opening when a magnetic field is applied.
The switch may be actuated by a coil, making a reed relay, or by bringing a magnet near
to the switch. Once the magnet is pulled away from the switch, the reed switch will go
back to its original position.
The reed switch contains a pair (or more) of magnetizable, flexible, metal reeds whose
end portions are separated by a small gap when the switch is open. The reeds are
hermetically sealed in opposite ends of a tubular glass envelope.
A magnetic field (from an electromagnet or a permanent magnet) will cause the reeds to
come together, thus completing an electrical circuit. The stiffness of the reeds causes
them to separate, and open the circuit, when the magnetic field ceases
USES:
 Reed switches are used in reed relays.
 Reed switches are widely used for electrical circuit control, particularly in the
communications field.
 Reed switches actuated by magnets are commonly used in mechanical systems as
proximity switches as well as in door and window sensors in burglar alarm
systems and tamper proofing methods.
 Reed switches are used in modern laptops which puts the laptop on
sleep/hibernation mode when the lid is closed.

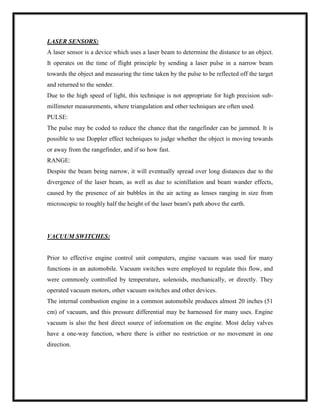

LASER SENSORS:
A laser sensor is a device which uses a laser beam to determine the distance to an object.
It operates on the time of flight principle by sending a laser pulse in a narrow beam
towards the object and measuring the time taken by the pulse to be reflected off the target
and returned to the sender.
Due to the high speed of light, this technique is not appropriate for high precision sub-
millimeter measurements, where triangulation and other techniques are often used.
PULSE:
The pulse may be coded to reduce the chance that the rangefinder can be jammed. It is
possible to use Doppler effect techniques to judge whether the object is moving towards
or away from the rangefinder, and if so how fast.
RANGE:
Despite the beam being narrow, it will eventually spread over long distances due to the
divergence of the laser beam, as well as due to scintillation and beam wander effects,
caused by the presence of air bubbles in the air acting as lenses ranging in size from
microscopic to roughly half the height of the laser beam's path above the earth.
VACUUM SWITCHES:
Prior to effective engine control unit computers, engine vacuum was used for many
functions in an automobile. Vacuum switches were employed to regulate this flow, and
were commonly controlled by temperature, solenoids, mechanically, or directly. They
operated vacuum motors, other vacuum switches and other devices.
The internal combustion engine in a common automobile produces almost 20 inches (51
cm) of vacuum, and this pressure differential may be harnessed for many uses. Engine
vacuum is also the best direct source of information on the engine. Most delay valves
have a one-way function, where there is either no restriction or no movement in one
direction.
TYPES
 Check valve: A valve that only allows the vacuum signal to move in one
direction. Often used with vacuum reservoirs.
 Delay valve: A vacuum delay valve is a valve with a small orifice, which delays a
vacuum signal. These are commonly used in automobiles to alter the behavior of a
vacuum signal. Delay valves are usually color-coded to their function
SUCTION CUP:
A suction cup, also sometimes known as a sucker is an object that uses negative fluid
pressure of air or water to adhere to nonporous surfaces. They exist both as artificially
created devices, and as anatomical traits of some animals such as octopi and squid.
The working face of the suction cup has a curved surface. When the center of the suction
cup is pressed against a flat, non-porous surface, the volume of the space between the
suction cup and the flat surface is reduced, which causes the fluid between the cup and
the surface to be expelled past the rim of the circular cup.
One cup suction lifter
When the user ceases to apply physical pressure to the centre of the outside of the cup,
the elastic substance of which the cup is made, tends to resume its original, curved shape.
Because all of the fluid has already been forced out of the inside of the cup, the cavity
which tends to develop between the cup and the flat surface has little to no air or water in
it, and therefore lacks pressure. The pressure difference between the atmosphere on the
outside of the cup, and the low-pressure cavity on the inside of the cup, is what keeps the
cup adhered to the surface.
6. PLC
INTRODUCTION:
A programmable logic controller (PLC) or programmable controller is a computerized
for automation of electromechanical processes, such as control of machinery on factory
assembly lines, amusement rides, or light fixtures. PLCs are used in many industries and
machines. Unlike general-purpose computers, the PLC is designed for multiple inputs
and output arrangements, extended temperature ranges, immunity to electrical noise, and
resistance to vibration and impact. Programs to control machine operation are typically
stored in battery-backed or non-volatile memory. A PLC is an example of a hard real
time system since output results must be produced in response to input conditions within
a bounded time, otherwise unintended operation will result.
HISTORY:
The PLC was invented in response to the needs of the American automotive
manufacturing industry. Programmable logic controllers were initially adopted by the
automotive industry where software revision replaced the re-wiring of hard-wired control
panels when production models changed.
Before the PLC, control, sequencing, and safety interlock logic for manufacturing
automobiles was accomplished using hundreds or thousands of relays, cam timers,
and drum sequencers and dedicated closed-loop controllers. The process for updating
such facilities for the yearly model change-over was very time consuming and expensive,
as electricians needed to individually rewire each and every relay.
Digital computers, being general-purpose programmable devices, were soon applied to
control of industrial processes. Early computers required specialist programmers, and
stringent operating environmental control for temperature, cleanliness, and power quality.
Using a general-purpose computer for process control required protecting the computer
from the plant floor conditions. An industrial control computer would have several
attributes: it would tolerate the shop-floor environment, it would support discrete (bit-
form) input and output in an easily extensible manner, it would not require years of
training to use, and it would permit its operation to be monitored. The response time of
any computer system must be fast enough to be useful for control; the required speed
varying according to the nature of the process.
DEVELOPMENT:
Early PLCs were designed to replace relay logic systems. These PLCs were programmed
in "ladder logic", which strongly resembles a schematic diagram of relay logic. This
program notation was chosen to reduce training demands for the existing technicians.
Other early PLCs used a form of instruction list programming, based on a stack-based
logic solver.

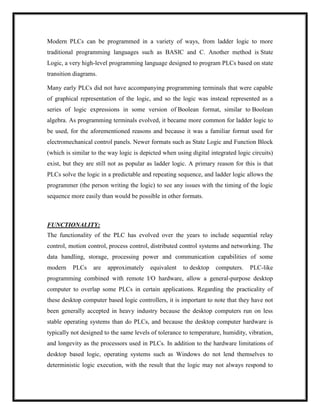

Modern PLCs can be programmed in a variety of ways, from ladder logic to more
traditional programming languages such as BASIC and C. Another method is State
Logic, a very high-level programming language designed to program PLCs based on state
transition diagrams.
Many early PLCs did not have accompanying programming terminals that were capable
of graphical representation of the logic, and so the logic was instead represented as a
series of logic expressions in some version of Boolean format, similar to Boolean
algebra. As programming terminals evolved, it became more common for ladder logic to
be used, for the aforementioned reasons and because it was a familiar format used for
electromechanical control panels. Newer formats such as State Logic and Function Block
(which is similar to the way logic is depicted when using digital integrated logic circuits)
exist, but they are still not as popular as ladder logic. A primary reason for this is that
PLCs solve the logic in a predictable and repeating sequence, and ladder logic allows the
programmer (the person writing the logic) to see any issues with the timing of the logic
sequence more easily than would be possible in other formats.
FUNCTIONALITY:
The functionality of the PLC has evolved over the years to include sequential relay
control, motion control, process control, distributed control systems and networking. The
data handling, storage, processing power and communication capabilities of some
modern PLCs are approximately equivalent to desktop computers. PLC-like
programming combined with remote I/O hardware, allow a general-purpose desktop
computer to overlap some PLCs in certain applications. Regarding the practicality of
these desktop computer based logic controllers, it is important to note that they have not
been generally accepted in heavy industry because the desktop computers run on less
stable operating systems than do PLCs, and because the desktop computer hardware is
typically not designed to the same levels of tolerance to temperature, humidity, vibration,
and longevity as the processors used in PLCs. In addition to the hardware limitations of
desktop based logic, operating systems such as Windows do not lend themselves to
deterministic logic execution, with the result that the logic may not always respond to

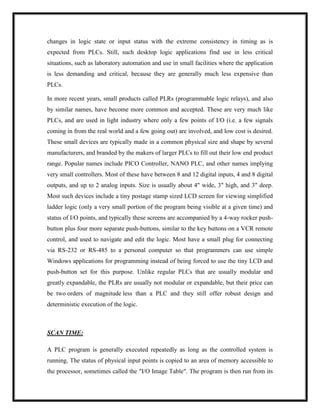

changes in logic state or input status with the extreme consistency in timing as is
expected from PLCs. Still, such desktop logic applications find use in less critical
situations, such as laboratory automation and use in small facilities where the application
is less demanding and critical, because they are generally much less expensive than
PLCs.
In more recent years, small products called PLRs (programmable logic relays), and also
by similar names, have become more common and accepted. These are very much like
PLCs, and are used in light industry where only a few points of I/O (i.e. a few signals
coming in from the real world and a few going out) are involved, and low cost is desired.
These small devices are typically made in a common physical size and shape by several
manufacturers, and branded by the makers of larger PLCs to fill out their low end product
range. Popular names include PICO Controller, NANO PLC, and other names implying
very small controllers. Most of these have between 8 and 12 digital inputs, 4 and 8 digital
outputs, and up to 2 analog inputs. Size is usually about 4" wide, 3" high, and 3" deep.
Most such devices include a tiny postage stamp sized LCD screen for viewing simplified
ladder logic (only a very small portion of the program being visible at a given time) and
status of I/O points, and typically these screens are accompanied by a 4-way rocker push-
button plus four more separate push-buttons, similar to the key buttons on a VCR remote
control, and used to navigate and edit the logic. Most have a small plug for connecting
via RS-232 or RS-485 to a personal computer so that programmers can use simple
Windows applications for programming instead of being forced to use the tiny LCD and
push-button set for this purpose. Unlike regular PLCs that are usually modular and
greatly expandable, the PLRs are usually not modular or expandable, but their price can
be two orders of magnitude less than a PLC and they still offer robust design and
deterministic execution of the logic.
SCAN TIME:
A PLC program is generally executed repeatedly as long as the controlled system is
running. The status of physical input points is copied to an area of memory accessible to
the processor, sometimes called the "I/O Image Table". The program is then run from its

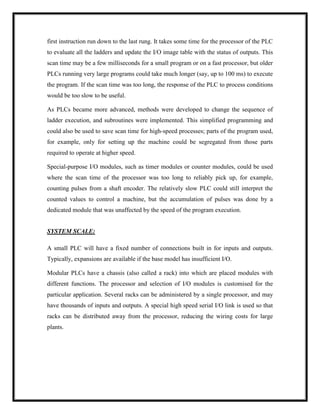

first instruction run down to the last rung. It takes some time for the processor of the PLC
to evaluate all the ladders and update the I/O image table with the status of outputs. This
scan time may be a few milliseconds for a small program or on a fast processor, but older
PLCs running very large programs could take much longer (say, up to 100 ms) to execute
the program. If the scan time was too long, the response of the PLC to process conditions
would be too slow to be useful.
As PLCs became more advanced, methods were developed to change the sequence of
ladder execution, and subroutines were implemented. This simplified programming and
could also be used to save scan time for high-speed processes; parts of the program used,
for example, only for setting up the machine could be segregated from those parts
required to operate at higher speed.
Special-purpose I/O modules, such as timer modules or counter modules, could be used
where the scan time of the processor was too long to reliably pick up, for example,
counting pulses from a shaft encoder. The relatively slow PLC could still interpret the
counted values to control a machine, but the accumulation of pulses was done by a
dedicated module that was unaffected by the speed of the program execution.
SYSTEM SCALE:
A small PLC will have a fixed number of connections built in for inputs and outputs.
Typically, expansions are available if the base model has insufficient I/O.
Modular PLCs have a chassis (also called a rack) into which are placed modules with
different functions. The processor and selection of I/O modules is customised for the
particular application. Several racks can be administered by a single processor, and may
have thousands of inputs and outputs. A special high speed serial I/O link is used so that
racks can be distributed away from the processor, reducing the wiring costs for large
plants.

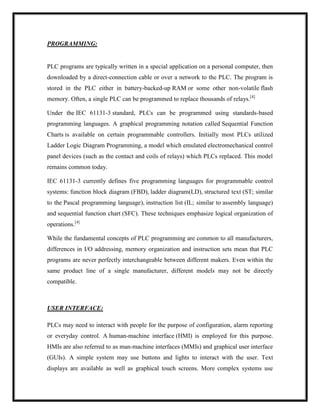

PROGRAMMING:
PLC programs are typically written in a special application on a personal computer, then
downloaded by a direct-connection cable or over a network to the PLC. The program is
stored in the PLC either in battery-backed-up RAM or some other non-volatile flash
memory. Often, a single PLC can be programmed to replace thousands of relays.[4]
Under the IEC 61131-3 standard, PLCs can be programmed using standards-based
programming languages. A graphical programming notation called Sequential Function
Charts is available on certain programmable controllers. Initially most PLCs utilized
Ladder Logic Diagram Programming, a model which emulated electromechanical control
panel devices (such as the contact and coils of relays) which PLCs replaced. This model
remains common today.
IEC 61131-3 currently defines five programming languages for programmable control
systems: function block diagram (FBD), ladder diagram(LD), structured text (ST; similar
to the Pascal programming language), instruction list (IL; similar to assembly language)
and sequential function chart (SFC). These techniques emphasize logical organization of
operations.[4]
While the fundamental concepts of PLC programming are common to all manufacturers,
differences in I/O addressing, memory organization and instruction sets mean that PLC
programs are never perfectly interchangeable between different makers. Even within the
same product line of a single manufacturer, different models may not be directly
compatible.
USER INTERFACE:
PLCs may need to interact with people for the purpose of configuration, alarm reporting
or everyday control. A human-machine interface (HMI) is employed for this purpose.
HMIs are also referred to as man-machine interfaces (MMIs) and graphical user interface
(GUIs). A simple system may use buttons and lights to interact with the user. Text
displays are available as well as graphical touch screens. More complex systems use

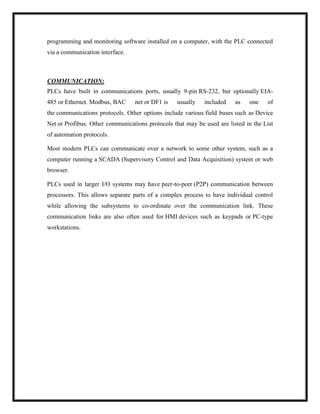

programming and monitoring software installed on a computer, with the PLC connected
via a communication interface.
COMMUNICATION:
PLCs have built in communications ports, usually 9-pin RS-232, but optionally EIA-
485 or Ethernet. Modbus, BAC net or DF1 is usually included as one of
the communications protocols. Other options include various field buses such as Device
Net or Profibus. Other communications protocols that may be used are listed in the List
of automation protocols.
Most modern PLCs can communicate over a network to some other system, such as a
computer running a SCADA (Supervisory Control and Data Acquisition) system or web
browser.
PLCs used in larger I/O systems may have peer-to-peer (P2P) communication between
processors. This allows separate parts of a complex process to have individual control
while allowing the subsystems to co-ordinate over the communication link. These
communication links are also often used for HMI devices such as keypads or PC-type
workstations.

More Related Content

What's hot

AUTOMATIC BOTTLE FILLING
AUTOMATIC BOTTLE FILLING AUTOMATIC BOTTLE FILLING
AUTOMATIC BOTTLE FILLING
rehaan ukaye

Report on arduino
Report on arduinoReport on arduino
Report on arduino
Ravi Phadtare

Mechanical Engineering Final year major project
Mechanical Engineering Final year major projectMechanical Engineering Final year major project
Mechanical Engineering Final year major project
AshishJaiswal181

Internship presentation at Fabrimax Engg Pvt Ltd
Internship presentation at Fabrimax Engg Pvt LtdInternship presentation at Fabrimax Engg Pvt Ltd
Internship presentation at Fabrimax Engg Pvt Ltd
abhishekgawande

Solidworks training report
Solidworks training reportSolidworks training report
Solidworks training report
Pawan Kumar

DLW Electrical Engineering industrial training Report
DLW Electrical Engineering industrial training Report DLW Electrical Engineering industrial training Report
DLW Electrical Engineering industrial training Report
Indian Institute of Technology Guwahati

VTU final year project report
VTU final year project reportVTU final year project report
VTU final year project report
athiathi3

Hydraulic lift
Hydraulic liftHydraulic lift
Hydraulic lift
Shikhar Saraswat

Gearless power-transmission-project report
Gearless power-transmission-project reportGearless power-transmission-project report
Gearless power-transmission-project report
Erole technologies Pvt. Ltd

Project presentation template
Project presentation templateProject presentation template
Project presentation template
Abhishek Bhardwaj

Final report obstacle avoiding roboat
Final report obstacle avoiding roboatFinal report obstacle avoiding roboat
Final report obstacle avoiding roboat
Shubham Thakur

Voice controlled robot ppt
Voice controlled robot pptVoice controlled robot ppt
Voice controlled robot ppt
Noor Ul Hudda Memon

VTU Internship Report.[Peekay Steel Castings]
VTU Internship Report.[Peekay Steel Castings]VTU Internship Report.[Peekay Steel Castings]
VTU Internship Report.[Peekay Steel Castings]
RAMINSHAH MUHAMMED

Overview of embedded system
Overview of embedded systemOverview of embedded system
Overview of embedded system
Dhruwank Vankawala

Scada ppt
Scada  pptScada  ppt
Scada ppt
AKANSHA GURELE

Oldham’s coupling
Oldham’s couplingOldham’s coupling
Oldham’s coupling
Akash Sood

SMART CAR-PARKING SYSTEM USING IOT
SMART CAR-PARKING SYSTEM USING IOTSMART CAR-PARKING SYSTEM USING IOT
SMART CAR-PARKING SYSTEM USING IOT
Saipandu143

Minor Project Report: Automatic Door Control System
Minor Project Report: Automatic Door Control SystemMinor Project Report: Automatic Door Control System
Minor Project Report: Automatic Door Control System
Saban Kumar K.C.

INDUSTRIAL TRAINING REPORT BY ShRiDhAR KaDaM
INDUSTRIAL TRAINING REPORT BY ShRiDhAR KaDaMINDUSTRIAL TRAINING REPORT BY ShRiDhAR KaDaM
INDUSTRIAL TRAINING REPORT BY ShRiDhAR KaDaM
shridharthecyberdude

HEAD MOTION CONTROLLED BY WHEELCHAIR
HEAD MOTION CONTROLLED BY WHEELCHAIRHEAD MOTION CONTROLLED BY WHEELCHAIR
HEAD MOTION CONTROLLED BY WHEELCHAIR
Ancy raju


What's hot (20)

AUTOMATIC BOTTLE FILLING
AUTOMATIC BOTTLE FILLING AUTOMATIC BOTTLE FILLING
AUTOMATIC BOTTLE FILLING

Report on arduino
Report on arduinoReport on arduino
Report on arduino

Mechanical Engineering Final year major project
Mechanical Engineering Final year major projectMechanical Engineering Final year major project
Mechanical Engineering Final year major project

Internship presentation at Fabrimax Engg Pvt Ltd
Internship presentation at Fabrimax Engg Pvt LtdInternship presentation at Fabrimax Engg Pvt Ltd
Internship presentation at Fabrimax Engg Pvt Ltd

Solidworks training report
Solidworks training reportSolidworks training report
Solidworks training report

DLW Electrical Engineering industrial training Report
DLW Electrical Engineering industrial training Report DLW Electrical Engineering industrial training Report
DLW Electrical Engineering industrial training Report

VTU final year project report
VTU final year project reportVTU final year project report
VTU final year project report

Hydraulic lift
Hydraulic liftHydraulic lift
Hydraulic lift

Gearless power-transmission-project report
Gearless power-transmission-project reportGearless power-transmission-project report
Gearless power-transmission-project report

Project presentation template
Project presentation templateProject presentation template
Project presentation template

Final report obstacle avoiding roboat
Final report obstacle avoiding roboatFinal report obstacle avoiding roboat
Final report obstacle avoiding roboat

Voice controlled robot ppt
Voice controlled robot pptVoice controlled robot ppt
Voice controlled robot ppt

VTU Internship Report.[Peekay Steel Castings]
VTU Internship Report.[Peekay Steel Castings]VTU Internship Report.[Peekay Steel Castings]
VTU Internship Report.[Peekay Steel Castings]

Overview of embedded system
Overview of embedded systemOverview of embedded system
Overview of embedded system

Scada ppt
Scada  pptScada  ppt
Scada ppt

Oldham’s coupling
Oldham’s couplingOldham’s coupling
Oldham’s coupling

SMART CAR-PARKING SYSTEM USING IOT
SMART CAR-PARKING SYSTEM USING IOTSMART CAR-PARKING SYSTEM USING IOT
SMART CAR-PARKING SYSTEM USING IOT

Minor Project Report: Automatic Door Control System
Minor Project Report: Automatic Door Control SystemMinor Project Report: Automatic Door Control System
Minor Project Report: Automatic Door Control System

INDUSTRIAL TRAINING REPORT BY ShRiDhAR KaDaM
INDUSTRIAL TRAINING REPORT BY ShRiDhAR KaDaMINDUSTRIAL TRAINING REPORT BY ShRiDhAR KaDaM
INDUSTRIAL TRAINING REPORT BY ShRiDhAR KaDaM

HEAD MOTION CONTROLLED BY WHEELCHAIR
HEAD MOTION CONTROLLED BY WHEELCHAIRHEAD MOTION CONTROLLED BY WHEELCHAIR
HEAD MOTION CONTROLLED BY WHEELCHAIR


Viewers also liked

Industrial Training Report-1
Industrial Training Report-1Industrial Training Report-1
Industrial Training Report-1
Rohit Grandhi, EIT

Layout of b.tech_project_report
Layout of b.tech_project_reportLayout of b.tech_project_report
Layout of b.tech_project_report
Anurag Farkya

Anurag
AnuragAnurag
Report on Industrial Training at Indian Ordnance Factory
Report on Industrial Training at Indian Ordnance FactoryReport on Industrial Training at Indian Ordnance Factory
Report on Industrial Training at Indian Ordnance Factory
Akash Bisariya

Control Panel
Control PanelControl Panel
Control Panel
Veronica Alejandro

INDUSTRIAL AUTOMATION USING PLC
INDUSTRIAL AUTOMATION USING PLCINDUSTRIAL AUTOMATION USING PLC
INDUSTRIAL AUTOMATION USING PLC
Mehvish Mushtaq

ppt on PLC
ppt on PLCppt on PLC
ppt on PLC
veenita more

Doorpneu plc 2014
Doorpneu  plc 2014Doorpneu  plc 2014
Doorpneu plc 2014
chockalingam athilingam

Defance Industry-Ordinace factory
Defance Industry-Ordinace factoryDefance Industry-Ordinace factory
Defance Industry-Ordinace factory
Yashodhan Yadav

Essay 3 Relationships at Work
Essay 3 Relationships at WorkEssay 3 Relationships at Work
Essay 3 Relationships at Work
Mai Lee Yang

cover page on industrial training on dlw
cover page on industrial training on dlwcover page on industrial training on dlw
cover page on industrial training on dlw
Sanjay Yadav

electrical control panel Jetctlog
electrical control panel Jetctlogelectrical control panel Jetctlog
electrical control panel Jetctlog
Yogesh Controlpanel

Ram niwas's training on indian rail way for download go to blog http://nowcra...
Ram niwas's training on indian rail way for download go to blog http://nowcra...Ram niwas's training on indian rail way for download go to blog http://nowcra...
Ram niwas's training on indian rail way for download go to blog http://nowcra...
Ram Niwas Bajiya

Training report of Elin Electronics Ltd.
Training report  of Elin Electronics Ltd.Training report  of Elin Electronics Ltd.
Training report of Elin Electronics Ltd.
adi174

rajghat-power-house-new-delhi-training-report
rajghat-power-house-new-delhi-training-reportrajghat-power-house-new-delhi-training-report
rajghat-power-house-new-delhi-training-report
Raj Sharma

Relationship between pneumatic & PLC
Relationship between pneumatic & PLCRelationship between pneumatic & PLC
Relationship between pneumatic & PLC
majitra

Site visit report.
Site visit report.Site visit report.
Site visit report.
Man Yee

ETHANOL AS A FUEL
ETHANOL AS A FUELETHANOL AS A FUEL
ETHANOL AS A FUEL
Akshay Gautam

Site visit report
Site visit reportSite visit report
Site visit report
Monnie Bao Jia

Research on customers - Aditya Birla Retail Ltd (more.)
Research on customers - Aditya Birla Retail Ltd (more.)Research on customers - Aditya Birla Retail Ltd (more.)
Research on customers - Aditya Birla Retail Ltd (more.)
Gigo George


Viewers also liked (20)

Industrial Training Report-1
Industrial Training Report-1Industrial Training Report-1
Industrial Training Report-1

Layout of b.tech_project_report
Layout of b.tech_project_reportLayout of b.tech_project_report
Layout of b.tech_project_report

Anurag
AnuragAnurag
Anurag

Report on Industrial Training at Indian Ordnance Factory
Report on Industrial Training at Indian Ordnance FactoryReport on Industrial Training at Indian Ordnance Factory
Report on Industrial Training at Indian Ordnance Factory

Control Panel
Control PanelControl Panel
Control Panel

INDUSTRIAL AUTOMATION USING PLC
INDUSTRIAL AUTOMATION USING PLCINDUSTRIAL AUTOMATION USING PLC
INDUSTRIAL AUTOMATION USING PLC

ppt on PLC
ppt on PLCppt on PLC
ppt on PLC

Doorpneu plc 2014
Doorpneu  plc 2014Doorpneu  plc 2014
Doorpneu plc 2014

Defance Industry-Ordinace factory
Defance Industry-Ordinace factoryDefance Industry-Ordinace factory
Defance Industry-Ordinace factory

Essay 3 Relationships at Work
Essay 3 Relationships at WorkEssay 3 Relationships at Work
Essay 3 Relationships at Work

cover page on industrial training on dlw
cover page on industrial training on dlwcover page on industrial training on dlw
cover page on industrial training on dlw

electrical control panel Jetctlog
electrical control panel Jetctlogelectrical control panel Jetctlog
electrical control panel Jetctlog

Ram niwas's training on indian rail way for download go to blog http://nowcra...
Ram niwas's training on indian rail way for download go to blog http://nowcra...Ram niwas's training on indian rail way for download go to blog http://nowcra...
Ram niwas's training on indian rail way for download go to blog http://nowcra...

Training report of Elin Electronics Ltd.
Training report  of Elin Electronics Ltd.Training report  of Elin Electronics Ltd.
Training report of Elin Electronics Ltd.

rajghat-power-house-new-delhi-training-report
rajghat-power-house-new-delhi-training-reportrajghat-power-house-new-delhi-training-report
rajghat-power-house-new-delhi-training-report

Relationship between pneumatic & PLC
Relationship between pneumatic & PLCRelationship between pneumatic & PLC
Relationship between pneumatic & PLC

Site visit report.
Site visit report.Site visit report.
Site visit report.

ETHANOL AS A FUEL
ETHANOL AS A FUELETHANOL AS A FUEL
ETHANOL AS A FUEL

Site visit report
Site visit reportSite visit report
Site visit report

Research on customers - Aditya Birla Retail Ltd (more.)
Research on customers - Aditya Birla Retail Ltd (more.)Research on customers - Aditya Birla Retail Ltd (more.)
Research on customers - Aditya Birla Retail Ltd (more.)


Similar to B.Tech Industrial Training Report

Vrx6570 rz(en)(p3 8)
Vrx6570 rz(en)(p3 8)Vrx6570 rz(en)(p3 8)
Vrx6570 rz(en)(p3 8)
Airwolf Airwolfi

User manual for dukan 895x projectors
User manual for dukan 895x projectorsUser manual for dukan 895x projectors
User manual for dukan 895x projectors
DukaneAVMarketing

User manual for dukan 895x projectors
User manual for dukan 895x projectorsUser manual for dukan 895x projectors
User manual for dukan 895x projectors
SchoolVision Inc.

8112 user manual
8112 user manual8112 user manual
8112 user manual
SchoolVision Inc.

CNC Plotter Black Book
CNC Plotter Black BookCNC Plotter Black Book
CNC Plotter Black Book
Milind Khamkar

final presentation summer training
final presentation summer trainingfinal presentation summer training
final presentation summer training
Rahul Sharma

KTS-440RC 2012-6 final 2007
KTS-440RC 2012-6 final 2007KTS-440RC 2012-6 final 2007
KTS-440RC 2012-6 final 2007
Seewanan Jhurry

DC brushless fan & blower Sunon
DC brushless fan & blower SunonDC brushless fan & blower Sunon
PEL_Automation
PEL_AutomationPEL_Automation
PEL_Automation
asiifhashmat

New Microsoft Office Word Document
New Microsoft Office Word DocumentNew Microsoft Office Word Document
New Microsoft Office Word Document
Debahuti Bhattacharya

Manufacturimg of comressor blade presentation 4 - copy
Manufacturimg of comressor blade presentation  4 - copyManufacturimg of comressor blade presentation  4 - copy
Manufacturimg of comressor blade presentation 4 - copy
anup sharma

sanyo_katalogus_2006.pdf
sanyo_katalogus_2006.pdfsanyo_katalogus_2006.pdf
sanyo_katalogus_2006.pdf
PepeLuisLopez3

Vacuum Picker
Vacuum PickerVacuum Picker
Vacuum Picker
prasanth vp

Av r500 uk
Av r500 ukAv r500 uk
INTEGRATION OF WATER CHILLER AND AIR COOLER
INTEGRATION OF WATER CHILLER AND AIR COOLERINTEGRATION OF WATER CHILLER AND AIR COOLER
INTEGRATION OF WATER CHILLER AND AIR COOLER
IRJET Journal

Ball following Robot using ESP32-cam & Arduino UNO
Ball following Robot using ESP32-cam & Arduino UNOBall following Robot using ESP32-cam & Arduino UNO
Ball following Robot using ESP32-cam & Arduino UNO
IRJET Journal

Installation, operation,
Installation, operation,Installation, operation,
Installation, operation,
Alejandro Castillo

Six sigma - dmr tilt table - matthew hunt
Six sigma  - dmr tilt table - matthew huntSix sigma  - dmr tilt table - matthew hunt
Six sigma - dmr tilt table - matthew hunt
Matthew Hunt

30 gt040 070-carrier flotronic
30 gt040 070-carrier flotronic30 gt040 070-carrier flotronic
30 gt040 070-carrier flotronic
Nurdin Sasrabahu

Kxmb2000 Manual
Kxmb2000 ManualKxmb2000 Manual
Kxmb2000 Manual
Shahzad Nathani


Similar to B.Tech Industrial Training Report (20)

Vrx6570 rz(en)(p3 8)
Vrx6570 rz(en)(p3 8)Vrx6570 rz(en)(p3 8)
Vrx6570 rz(en)(p3 8)

User manual for dukan 895x projectors
User manual for dukan 895x projectorsUser manual for dukan 895x projectors
User manual for dukan 895x projectors

User manual for dukan 895x projectors
User manual for dukan 895x projectorsUser manual for dukan 895x projectors
User manual for dukan 895x projectors

8112 user manual
8112 user manual8112 user manual
8112 user manual

CNC Plotter Black Book
CNC Plotter Black BookCNC Plotter Black Book
CNC Plotter Black Book

final presentation summer training
final presentation summer trainingfinal presentation summer training
final presentation summer training

KTS-440RC 2012-6 final 2007
KTS-440RC 2012-6 final 2007KTS-440RC 2012-6 final 2007
KTS-440RC 2012-6 final 2007

DC brushless fan & blower Sunon
DC brushless fan & blower SunonDC brushless fan & blower Sunon
DC brushless fan & blower Sunon

PEL_Automation
PEL_AutomationPEL_Automation
PEL_Automation

New Microsoft Office Word Document
New Microsoft Office Word DocumentNew Microsoft Office Word Document
New Microsoft Office Word Document

Manufacturimg of comressor blade presentation 4 - copy
Manufacturimg of comressor blade presentation  4 - copyManufacturimg of comressor blade presentation  4 - copy
Manufacturimg of comressor blade presentation 4 - copy

sanyo_katalogus_2006.pdf
sanyo_katalogus_2006.pdfsanyo_katalogus_2006.pdf
sanyo_katalogus_2006.pdf

Vacuum Picker
Vacuum PickerVacuum Picker
Vacuum Picker

Av r500 uk
Av r500 ukAv r500 uk
Av r500 uk

INTEGRATION OF WATER CHILLER AND AIR COOLER
INTEGRATION OF WATER CHILLER AND AIR COOLERINTEGRATION OF WATER CHILLER AND AIR COOLER
INTEGRATION OF WATER CHILLER AND AIR COOLER

Ball following Robot using ESP32-cam & Arduino UNO
Ball following Robot using ESP32-cam & Arduino UNOBall following Robot using ESP32-cam & Arduino UNO
Ball following Robot using ESP32-cam & Arduino UNO

Installation, operation,
Installation, operation,Installation, operation,
Installation, operation,

Six sigma - dmr tilt table - matthew hunt
Six sigma  - dmr tilt table - matthew huntSix sigma  - dmr tilt table - matthew hunt
Six sigma - dmr tilt table - matthew hunt

30 gt040 070-carrier flotronic
30 gt040 070-carrier flotronic30 gt040 070-carrier flotronic
30 gt040 070-carrier flotronic

Kxmb2000 Manual
Kxmb2000 ManualKxmb2000 Manual
Kxmb2000 Manual


More from Rohit Singh

Personality Development Presentation
Personality Development PresentationPersonality Development Presentation
Personality Development Presentation
Rohit Singh

A Report on State MachinesTiming Behavior and Data storage in hard disk drive
A Report on State MachinesTiming Behavior and Data storage in hard disk driveA Report on State MachinesTiming Behavior and Data storage in hard disk drive
A Report on State MachinesTiming Behavior and Data storage in hard disk drive
Rohit Singh

Design of FFT Processor
Design of FFT ProcessorDesign of FFT Processor
Design of FFT Processor
Rohit Singh

Microprocessor-Compatible Quadrature Decoder/Counter Design
Microprocessor-Compatible Quadrature Decoder/Counter DesignMicroprocessor-Compatible Quadrature Decoder/Counter Design
Microprocessor-Compatible Quadrature Decoder/Counter Design
Rohit Singh

LED & LASER sources of light
LED & LASER sources of lightLED & LASER sources of light
LED & LASER sources of light
Rohit Singh

M.Tech Voltage Reference Thesis Presentation
M.Tech Voltage Reference Thesis PresentationM.Tech Voltage Reference Thesis Presentation
M.Tech Voltage Reference Thesis Presentation
Rohit Singh

B.Tech Project Report
B.Tech Project ReportB.Tech Project Report
B.Tech Project Report
Rohit Singh


More from Rohit Singh (7)

Personality Development Presentation
Personality Development PresentationPersonality Development Presentation
Personality Development Presentation

A Report on State MachinesTiming Behavior and Data storage in hard disk drive
A Report on State MachinesTiming Behavior and Data storage in hard disk driveA Report on State MachinesTiming Behavior and Data storage in hard disk drive
A Report on State MachinesTiming Behavior and Data storage in hard disk drive

Design of FFT Processor
Design of FFT ProcessorDesign of FFT Processor
Design of FFT Processor

Microprocessor-Compatible Quadrature Decoder/Counter Design
Microprocessor-Compatible Quadrature Decoder/Counter DesignMicroprocessor-Compatible Quadrature Decoder/Counter Design
Microprocessor-Compatible Quadrature Decoder/Counter Design

LED & LASER sources of light
LED & LASER sources of lightLED & LASER sources of light
LED & LASER sources of light

M.Tech Voltage Reference Thesis Presentation
M.Tech Voltage Reference Thesis PresentationM.Tech Voltage Reference Thesis Presentation
M.Tech Voltage Reference Thesis Presentation

B.Tech Project Report
B.Tech Project ReportB.Tech Project Report
B.Tech Project Report


Recently uploaded

Curve Fitting in Numerical Methods Regression
Curve Fitting in Numerical Methods RegressionCurve Fitting in Numerical Methods Regression
Curve Fitting in Numerical Methods Regression
Nada Hikmah

Software Engineering and Project Management - Software Testing + Agile Method...
Software Engineering and Project Management - Software Testing + Agile Method...Software Engineering and Project Management - Software Testing + Agile Method...
Software Engineering and Project Management - Software Testing + Agile Method...
Prakhyath Rai

SCALING OF MOS CIRCUITS m .pptx
SCALING OF MOS CIRCUITS m                 .pptxSCALING OF MOS CIRCUITS m                 .pptx
SCALING OF MOS CIRCUITS m .pptx
harshapolam10

一比一原版(osu毕业证书)美国俄勒冈州立大学毕业证如何办理
一比一原版(osu毕业证书)美国俄勒冈州立大学毕业证如何办理一比一原版(osu毕业证书)美国俄勒冈州立大学毕业证如何办理
一比一原版(osu毕业证书)美国俄勒冈州立大学毕业证如何办理
upoux

Optimizing Gradle Builds - Gradle DPE Tour Berlin 2024
Optimizing Gradle Builds - Gradle DPE Tour Berlin 2024Optimizing Gradle Builds - Gradle DPE Tour Berlin 2024
Optimizing Gradle Builds - Gradle DPE Tour Berlin 2024
Sinan KOZAK

AI for Legal Research with applications, tools
AI for Legal Research with applications, toolsAI for Legal Research with applications, tools
AI for Legal Research with applications, tools
mahaffeycheryld

CompEx~Manual~1210 (2).pdf COMPEX GAS AND VAPOURS
CompEx~Manual~1210 (2).pdf COMPEX GAS AND VAPOURSCompEx~Manual~1210 (2).pdf COMPEX GAS AND VAPOURS
CompEx~Manual~1210 (2).pdf COMPEX GAS AND VAPOURS
RamonNovais6

An Introduction to the Compiler Designss
An Introduction to the Compiler DesignssAn Introduction to the Compiler Designss
An Introduction to the Compiler Designss
ElakkiaU

Redefining brain tumor segmentation: a cutting-edge convolutional neural netw...
Redefining brain tumor segmentation: a cutting-edge convolutional neural netw...Redefining brain tumor segmentation: a cutting-edge convolutional neural netw...
Redefining brain tumor segmentation: a cutting-edge convolutional neural netw...
IJECEIAES

1FIDIC-CONSTRUCTION-CONTRACT-2ND-ED-2017-RED-BOOK.pdf
1FIDIC-CONSTRUCTION-CONTRACT-2ND-ED-2017-RED-BOOK.pdf1FIDIC-CONSTRUCTION-CONTRACT-2ND-ED-2017-RED-BOOK.pdf
1FIDIC-CONSTRUCTION-CONTRACT-2ND-ED-2017-RED-BOOK.pdf
MadhavJungKarki

Comparative analysis between traditional aquaponics and reconstructed aquapon...
Comparative analysis between traditional aquaponics and reconstructed aquapon...Comparative analysis between traditional aquaponics and reconstructed aquapon...
Comparative analysis between traditional aquaponics and reconstructed aquapon...
bijceesjournal

Use PyCharm for remote debugging of WSL on a Windo cf5c162d672e4e58b4dde5d797...
Use PyCharm for remote debugging of WSL on a Windo cf5c162d672e4e58b4dde5d797...Use PyCharm for remote debugging of WSL on a Windo cf5c162d672e4e58b4dde5d797...
Use PyCharm for remote debugging of WSL on a Windo cf5c162d672e4e58b4dde5d797...
shadow0702a

132/33KV substation case study Presentation
132/33KV substation case study Presentation132/33KV substation case study Presentation
132/33KV substation case study Presentation
kandramariana6

Data Driven Maintenance | UReason Webinar
Data Driven Maintenance | UReason WebinarData Driven Maintenance | UReason Webinar
Data Driven Maintenance | UReason Webinar
UReason

Welding Metallurgy Ferrous Materials.pdf
Welding Metallurgy Ferrous Materials.pdfWelding Metallurgy Ferrous Materials.pdf
Welding Metallurgy Ferrous Materials.pdf
AjmalKhan50578

原版制作(Humboldt毕业证书)柏林大学毕业证学位证一模一样
原版制作(Humboldt毕业证书)柏林大学毕业证学位证一模一样原版制作(Humboldt毕业证书)柏林大学毕业证学位证一模一样
原版制作(Humboldt毕业证书)柏林大学毕业证学位证一模一样
ydzowc

Applications of artificial Intelligence in Mechanical Engineering.pdf
Applications of artificial Intelligence in Mechanical Engineering.pdfApplications of artificial Intelligence in Mechanical Engineering.pdf
Applications of artificial Intelligence in Mechanical Engineering.pdf
Atif Razi

学校原版美国波士顿大学毕业证学历学位证书原版一模一样
学校原版美国波士顿大学毕业证学历学位证书原版一模一样学校原版美国波士顿大学毕业证学历学位证书原版一模一样
学校原版美国波士顿大学毕业证学历学位证书原版一模一样
171ticu

Object Oriented Analysis and Design - OOAD
Object Oriented Analysis and Design - OOADObject Oriented Analysis and Design - OOAD
Object Oriented Analysis and Design - OOAD
PreethaV16

AI + Data Community Tour - Build the Next Generation of Apps with the Einstei...
AI + Data Community Tour - Build the Next Generation of Apps with the Einstei...AI + Data Community Tour - Build the Next Generation of Apps with the Einstei...
AI + Data Community Tour - Build the Next Generation of Apps with the Einstei...
Paris Salesforce Developer Group


Recently uploaded (20)

Curve Fitting in Numerical Methods Regression
Curve Fitting in Numerical Methods RegressionCurve Fitting in Numerical Methods Regression
Curve Fitting in Numerical Methods Regression

Software Engineering and Project Management - Software Testing + Agile Method...
Software Engineering and Project Management - Software Testing + Agile Method...Software Engineering and Project Management - Software Testing + Agile Method...
Software Engineering and Project Management - Software Testing + Agile Method...

SCALING OF MOS CIRCUITS m .pptx
SCALING OF MOS CIRCUITS m                 .pptxSCALING OF MOS CIRCUITS m                 .pptx
SCALING OF MOS CIRCUITS m .pptx

一比一原版(osu毕业证书)美国俄勒冈州立大学毕业证如何办理
一比一原版(osu毕业证书)美国俄勒冈州立大学毕业证如何办理一比一原版(osu毕业证书)美国俄勒冈州立大学毕业证如何办理
一比一原版(osu毕业证书)美国俄勒冈州立大学毕业证如何办理

Optimizing Gradle Builds - Gradle DPE Tour Berlin 2024
Optimizing Gradle Builds - Gradle DPE Tour Berlin 2024Optimizing Gradle Builds - Gradle DPE Tour Berlin 2024
Optimizing Gradle Builds - Gradle DPE Tour Berlin 2024

AI for Legal Research with applications, tools
AI for Legal Research with applications, toolsAI for Legal Research with applications, tools
AI for Legal Research with applications, tools

CompEx~Manual~1210 (2).pdf COMPEX GAS AND VAPOURS
CompEx~Manual~1210 (2).pdf COMPEX GAS AND VAPOURSCompEx~Manual~1210 (2).pdf COMPEX GAS AND VAPOURS
CompEx~Manual~1210 (2).pdf COMPEX GAS AND VAPOURS

An Introduction to the Compiler Designss
An Introduction to the Compiler DesignssAn Introduction to the Compiler Designss
An Introduction to the Compiler Designss

Redefining brain tumor segmentation: a cutting-edge convolutional neural netw...
Redefining brain tumor segmentation: a cutting-edge convolutional neural netw...Redefining brain tumor segmentation: a cutting-edge convolutional neural netw...
Redefining brain tumor segmentation: a cutting-edge convolutional neural netw...

1FIDIC-CONSTRUCTION-CONTRACT-2ND-ED-2017-RED-BOOK.pdf
1FIDIC-CONSTRUCTION-CONTRACT-2ND-ED-2017-RED-BOOK.pdf1FIDIC-CONSTRUCTION-CONTRACT-2ND-ED-2017-RED-BOOK.pdf
1FIDIC-CONSTRUCTION-CONTRACT-2ND-ED-2017-RED-BOOK.pdf

Comparative analysis between traditional aquaponics and reconstructed aquapon...
Comparative analysis between traditional aquaponics and reconstructed aquapon...Comparative analysis between traditional aquaponics and reconstructed aquapon...
Comparative analysis between traditional aquaponics and reconstructed aquapon...

Use PyCharm for remote debugging of WSL on a Windo cf5c162d672e4e58b4dde5d797...
Use PyCharm for remote debugging of WSL on a Windo cf5c162d672e4e58b4dde5d797...Use PyCharm for remote debugging of WSL on a Windo cf5c162d672e4e58b4dde5d797...
Use PyCharm for remote debugging of WSL on a Windo cf5c162d672e4e58b4dde5d797...

132/33KV substation case study Presentation
132/33KV substation case study Presentation132/33KV substation case study Presentation
132/33KV substation case study Presentation

Data Driven Maintenance | UReason Webinar
Data Driven Maintenance | UReason WebinarData Driven Maintenance | UReason Webinar
Data Driven Maintenance | UReason Webinar

Welding Metallurgy Ferrous Materials.pdf
Welding Metallurgy Ferrous Materials.pdfWelding Metallurgy Ferrous Materials.pdf
Welding Metallurgy Ferrous Materials.pdf

原版制作(Humboldt毕业证书)柏林大学毕业证学位证一模一样
原版制作(Humboldt毕业证书)柏林大学毕业证学位证一模一样原版制作(Humboldt毕业证书)柏林大学毕业证学位证一模一样
原版制作(Humboldt毕业证书)柏林大学毕业证学位证一模一样

Applications of artificial Intelligence in Mechanical Engineering.pdf
Applications of artificial Intelligence in Mechanical Engineering.pdfApplications of artificial Intelligence in Mechanical Engineering.pdf
Applications of artificial Intelligence in Mechanical Engineering.pdf

学校原版美国波士顿大学毕业证学历学位证书原版一模一样
学校原版美国波士顿大学毕业证学历学位证书原版一模一样学校原版美国波士顿大学毕业证学历学位证书原版一模一样
学校原版美国波士顿大学毕业证学历学位证书原版一模一样

Object Oriented Analysis and Design - OOAD
Object Oriented Analysis and Design - OOADObject Oriented Analysis and Design - OOAD
Object Oriented Analysis and Design - OOAD

AI + Data Community Tour - Build the Next Generation of Apps with the Einstei...
AI + Data Community Tour - Build the Next Generation of Apps with the Einstei...AI + Data Community Tour - Build the Next Generation of Apps with the Einstei...
AI + Data Community Tour - Build the Next Generation of Apps with the Einstei...


B.Tech Industrial Training Report

  • 1. Babu Banarsi Das Institute of Technology, Ghaziabad INDUSTRIAL TRAINING REPORT ON Automation using PLC SUBMITTED IN PARTIAL FULFILLMENT FOR THE AWARD OF THE DEGREE OF BACHELOR OF DEGREE IN ELECTRONICS AND COMMUNICATION ENGINEERING SUBMITTED BY Rohit Singh B.Tech VI SEMESTER 0803531072 (2008-12) Training taken under Moserbaer, A-164, Sector-80 Phase –II, Noida, G.B Nagar, India JULY 2011
  • 2. AUTOMATION USING PLC Submitted by Rohit Singh 0803531072 Under the Guidance of Vikas Goyal & Anil Nagar DEPARTMENT OF ELECTRONICS AND COMMUNICATION ENGINEERING Babu Banarsi Das Institute of Technology, Ghaziabad
  • 3. DECLARATION I hereby declare that the project work entitle (“Automation using PLC”) is an authentic record of my own work carried out at MOSERBAER, PHASE- II, NOIDA as requirement of six weeks project for the award of degree of B.Tech in Electronics & Communication Engineering, Babu Banarsi Das Institute of Technology, Ghaziabad, Under the guidance of Mr. Vikas Goyal & Anil Nagar (Industry coordinator), during 15 June to 27 July 2011. Rohit Singh 0803531072 27 July, 2011 It is certified that the above statement made by the student is correct to the best of our knowledge and belief. Mr. Vikas Goyal (Industry Coordinator) Mr. Anil Nagar (Industry coordinator)
  • 4. CONTENTS 1. INTRODUCTION OF MOSERBAER 2. COMPACT DISC 3. STEPS INVOLVED IN CD MANUFACTURING 4. PNEUMATIC CYLINDER 5. SENSORS 6. PLC
  • 5. 1. INTRODUCTION OF MOSER BAER Moser Baer, headquartered in New Delhi, is one of India's leading technology companies. Established in 1983, Moser Baer successfully developed cutting edge technologies to become the world's second largest manufacturer of Optical Storage media like CDs and DVDs. The company also emerged as the first to market the next-generation of storage formats like Blue-ray Discs and HD DVD. Recently, the company has transformed itself from a single business into a multi-technology organization, diversifying into exciting areas of Solar Energy, Home Entertainment and IT Peripherals & Consumer Electronics. Moser Baer has a presence in over 82 countries, serviced through six marketing offices in India, the US, Europe and Japan, and has strong tie-ups with all major global technology players. Moser Baer has the distinction of being preferred supplier to all top global OEM brands. Moser Baer stands committed to supplying highest quality fully licensed media to its customers. Moser Baer's products are manufactured at its three state-of-the-art manufacturing facilities. It has over 6,000 full-time employees and multiple manufacturing facilities in the suburbs of New Delhi.
  • 6. 2. COMPACT DISC A Compact Disc (also known as a CD) is an optical disc used to store digital data. It was originally developed to store sound recordings exclusively, but later it also allowed the preservation of other types of data. Audio CDs have been commercially available since October 1982. HISTORY OF THE COMPACT DISC: Figure 1 Starting in the mid 1980's, compact discs (CD) began to take over both the audio and computer program market. Much of this can be attributed to a general acceptance of certain specifications regarding compact discs, known as the "Color Books." Originally designed and developed by both Sony and Phillips, the concept of the Color Books was patented and standards were developed. These are a collection of five books that describe the specifications and standards CD technology follows. This led eventually to the current audio CD technology.
  • 7. TYPES OF CD: There are three main types: standard manufactured CDs (CD-DA), CD-R recordable and CD-RW rewriteable.  Standard manufactured CDs can be played on any CD digital audio player.  CD-Rs can be played on CD-R machines and many but not all CD digital audio players.  CD-RWs can only be played on CD-RW compatible machines. Both writeable types can be burned to play in audio machines and PCs.
  • 8. 3. STEPS INVOLVED IN CD MANUFACTURING THE COMPLETE PROCESS FROM COLER BUFFER TO RECEIVER HANDLER 1. Moulder handler: handling over the freshly moulded discs to the cooler. ▼ 2. Moulder take over handling: transporting the discs from the moulder to the handover point. ▼ 3. Sample handler: transporting discs from the sampler position to the sample out feed position. ▼ 4. Distributor handler: handling the discs from the inter handler to the sampler handler.
  • 9. ▼ 5. Cooler indexing table: moving the discs from the in feed position to the handler position towards the cooler. ▼ 6. Conveyor cooler: cooling the hot discs coming from the moulder. ▼ 7. Buffers: in case the material flow piles up at the areas behind. ▼ 8. NSK pick and place handler: moving the discs between conveyors cooler, buffer and dye-coating. ▼ 9. Dye coating: coating the discs coming from the coolers with the data carrying dye. ▼ 10. Bottom edge washing process stations: removing the dye hump from the outer edge of the discs by dissolving via solvent. ▼ 11. quality control: marking the dye coated discs via ink jet printer . It is done by scanners buffering of good discs and batching of bad discs. ▼ 12. Dye inspection: 1. scanning the discs for faulty coating.
  • 10. ▼ 13. Out feed handler: handling the discs between the output handler of the indexing unit and the reject spindle. ▼ 14. Disc lift: lifting the discs batch being on the spindle up to working position. ▼ 15. Hot air dryer: drying the discs coming from the dye cooler. ▼ 16. Sputter: metalizing the discs. The sputter is a separate unit with a control of its own. ▼ 17. Solvent top edge cleaning: removing the dye hump from the outer edge of the discs by dissolving with the solvent ▼ 18. Solvent media supply system ▼ 19. U V lacquering and drying: coating the sputtered and cleaned discs with a transparent UV coating protective layer. ▼ 20. 2-arm NSK process handler
  • 11. ▼ 21. Final inspection and receiver: inspecting the manufactured discs for overall quality. ▼ 22. Receiver handler: handling the discs from the UV o/p from the final scanner to the spindle. ▼ 23. Receiver/ Reject unit: malfunctioning may occur using wrong spindles. ▼ 24. Rotary indexing unit, Pneumatically: the step wise rotation movement is initiated by a pneumatic control pulse and varies automatically until reaching the next stop position.
  • 12. SEQUENCE OF OPREATION OF A ROBOTIC ARM STEP FUNCTION COMPPONENT USED MOTION 1. First arm waits for CD to be free -------------- At rest 2. Arm moved to get hold of CD-R Motor Rotary motion 3. Suction cup moves to pick the CD-R Pneumatic linear cylinder Linear motion 4. Then arm picks the CD-R Vacuum technique Grasping a CD 5. Arm again comes to the initial position Motor Rotary motion 6. Arm again comes to final position to transfer the CD- R Pneumatic rotary cylinder Rotary motion 7. CD-R is placed at the disc putting place to be carried by the second arm Vacuum technique Leaving the disc 8. Second arm senses if CD-R is free to be carried from that place Sensors -------------- 9. Second arm carries CD-R to place it on the conveyor belt. Step 1-8 Step 1-8
  • 13. PROCESS INFEED COOLER: Taking over discs offered by the three moulders cooling and feeding them to the dye process unit, extraction of the production samples directly from the moulder unit MOULDER HANDLER: Handling over the freshly moulded discs to the cooler. Functions :  Arm drive is actuated and swivels the gripper arm from the safety position to the end position at the moulder, pneumatic cylinder of the gripper head is actuated and turns the gripper head so that the freshly mounted discs can be sucked.  Moulder opens and takes the blank discs off the moulder and holds it such that the blank discs can be sucked.  Vacuum is switched ON, the moulder handler releases the disc and retracts.  The pneumatic cylinder of the gripper head is reversely actuated such that disc is lying horizontally.  When arm reaches the next station the disc is released and now the disc is lying in the deposit ends of the next station.  Handler swivels back to the actual position.  The reference points and the safety areas are detected. MOULDER TAKE OVER HANDLING:  Deposits the discs on the sucker of the take over handler and retracts.  Lift moves the handler up. The overhead drive swings the handler arm to the outer end position.  The lift lowers the handler, thus the discs is deposited on the deposit fork.  The lift moves up and the handler arm swings back to take the next disc.  The deposit fork is swung to the handover position towards the distributors handler.
  • 14. SAMPLER HANDLER:  The pneumatic turns the cylinder with the turn axis, mechanical stops, shock absorbers at the turn axis and position sensors.  The handler arm with the sucker at the turn axis. Functions:  Distributor handler deposits a disc on the deposit pin of the sampler handler.  The swivel arm swings to the out feed position and offers the disc to the operation.  The end positions of the pneumatic drives are monitored by the sensors. DISTRIBUTOR HANDLER: Handling the discs from the inter handling to the sampler handler or distributing the discs to the cooler indexing table. COOLER INDEXING TABLE: Moving the discs from the in feed position to the handler position towards the cooler. Indexing unit: stepping-in-circle of the depositing spider. CONVEYOR COOLER: Cooling the hot discs coming from the molders. Discs are loaded, where they can cool down while the conveyor is stepping to the end of the track.  Conveyor track: Transporting and holding the discs while cooling.  Conveyor drive: The conveyor belt system is moved by a geared motor. An angle gear transmits the motor rotation to the output drive tooth pulley which is in permanent contact with the drive shaft of the distributor gear.
  • 15.  Conveyor loading/unloading handler: Mounted at the end points of the conveyor track. Ht e handler consists of vertical pneumatic slides at which the pneumatic turn drive is mounted. On the turn axis of the drive the vacuums sucker for holding the discs. BUFFERS:  It delivers discs in case the material flow piles up at the areas behind.  Re feeds the stored discs to the material flow.  Buffering indexing table: stepwise rotation is initiated by the pneumatic control pulse and runs automatically until reaching the next stop position.  Disc lift: lifting the discs batch on the spindle into the working position.  This position is detected as that height as which the upper most discs is detected by the disc sensor. DYE COATING: Coating the discs coming from the coolers with the data carrying dye. Processing is performed in 5 processing stations. Discs are moved through process area by a conveyor transport system. 1. Conveyor transport system 2. 5 process handler 3. 5 Dye coating and bottom edge cleaning process. Functions:  Motor drives the angular gear which moves the conveyor tooth belt.  When the rest pin on the belt reaches the light barrier at the process station, the motion is stopped so that the process handler can pick and place discs from the pin.
  • 16. SENSOR ICS: Stop position for the belt is determined by the light barriers at the in feed position. Presence of discs is monitored by the reflective light barriers at the in feed / out feed position and the coater handler position. PROCESS HANDLERS: Loading/ unloading discs of the dye coating process module. DYE COATING PROCESS STATIONS: Coating the discs with the data carrying dye.  Discs are put on the chuck and held by the vacuum.  Dye is dispensed onto the surface at the center of the disc. At the same time the disc which is being dispensed rotates slowly.  Disc is spun with 5000 rpm, dye spreads uniformly.  Spun-off dye is caught in the process cup.  Particles and dye vapors are sucked off at the edge of the process cup. Components: 1. process cup 2. Motor 3. Chuck DYE DISPENSE UNIT:  Bottom edge cleaning process station.  Recovering the dye heap (from below) from the outer edge of the disc by dissolving via solvent.
  • 17. N S K DRIVE: Mega torque motor system is a unique actuator with special capabilities. System consists of almost all servo motor systems. Incorporated in two units: 1. motor 2. driver unit 1. Motor: Motor consists of a high torque brushless actuator, high resolution brushless resolver and a heavy duty precision NSK bearing. The high torque eliminates the need for gear reduction, while the built in resolver usually makes feedback components such as encoders or techno meters unnecessary. The heavy duty mechanical support since the motor case can very often support the load directly in most applications. 2. Driver Unit: It consists of a power amplifier, resolver interfaces and the digital motor control circuits. The driver units provide everything that is needed to control the motor torque, velocity position for interface to any standards motor position controller or to act as a standalone digital motion control system with its built-in zero backlash position control capabilities. High speed: It features higher speed than ever before with less torque drop-off at the immediate speeds. Smaller motors may be used for high speed indexing applications when torque management is primarily for accelerations. EASE OF USE: 1. The circuit parameters can be changed by the command, rather than by alternating to adjust a multi-turn pot or changing capacitor values.
  • 18. 2. Significant changes can be made with little or no hazel wave changes. HIGH REPEATABILITY: With zero backlash direct drive this system offers repeatability as high as app. 2.1”.  Easy to maintain.  Login diagnosis outputs identity the nature of any error condition quickly and accurately. FUNCTIONAL PRINCIPLE: Motor by virtue of its unique design it is capable of producing extremely high torque at low speeds suitable for direct applications. It can produce these torque levels without using an undue amount of power, so it can sustain these torques levels indefinitely under most condition without overheating.
  • 19. 4. PNEUMATIC CYLINDER Operation diagram of a single acting cylinder. The spring (red) can also be outside the cylinder, attached to the item being moved. Operation diagram of a double acting cylinder Pneumatic cylinders impart a force by converting the potential energy of compressed gas into kinetic energy. This is achieved by the compressed gas being able to expand, without external energy input, which itself occurs due to the pressure gradient established by the compressed gas being at a greater pressure than the atmospheric pressure. This air expansion forces a piston to move in the desired direction. Once actuated, compressed air enters into the tube at one end of the piston and, hence, imparts force on the piston. Consequently, the piston becomes displaced (moved) by the compressed air expanding in an attempt to reach atmospheric pressure. Types:  Single acting cylinders: Single acting cylinders (SAC) use the pressure imparted by compressed air to create a driving force in one direction (usually out), and a spring to return to the "home" position.  Double acting cylinders: Double Acting Cylinders (DAC) use the force of air to move in both extends and retract strokes. They have two ports to allow air in, one for outstroke and one for in stroke.  Rotary air cylinders: actuators that use air to impart a rotary motion  Rod less air cylinders: These have no piston rod. They are actuators that use a mechanical or magnetic coupling to impart force, typically to a table or other body that moves along the length of the cylinder body, but does not extend beyond it.
  • 20. 5. SENSORS A sensor is a device that measures a physical quantity and converts it into a signal which can be read by an observer or by an instrument. For example, a mercury-in-glass thermometer converts the measured temperature into expansion and contraction of a liquid which can be read on a calibrated glass tube. A thermocouple converts temperature to an output voltage which can be read by a voltmeter. Uses:  Sensors are used in everyday objects such as touch-sensitive elevator buttons (tactile sensor)  Lamps which dim or brighten by touching the base. A sensor differs from a transducer in the way that a transducer converts one form of energy into other form whereas a sensor converts the received signal into electrical form only. RESOLUTION: The resolution of a sensor is the smallest change it can detect in the quantity that it is measuring. Often in a digital display, the least significant digit will fluctuate, indicating that changes of that magnitude are only just resolved. The resolution is related to the precision with which the measurement is made.
  • 21. PROXIMITY SENSOR: A proximity sensor is a sensor able to detect the presence of nearby objects without any physical contact. A proximity sensor often emits an electromagnetic or electrostatic field, or a beam of electromagnetic radiation (infrared, for instance), and looks for changes in the field or return signal. The object being sensed is often referred to as the proximity sensor's target. Different proximity sensor targets demand different sensors. The maximum distance that this sensor can detect is defined "nominal range". Some sensors have adjustments of the nominal range or means to report a graduated detection distance. Proximity sensors can have a high reliability and long functional life because of the absence of mechanical parts and lack of physical contact between sensor and the sensed object. TYPES OF SENSORS:  Inductive  Capacitive  Capacitive displacement sensor  inductive sensor CAPACITANCE SENSORS: Capacitance sensors detect a change in capacitance when something or someone approaches or touches the sensor. The technique has been used in industrial applications for many years to measure liquid levels, humidity, and material composition. Integrated circuits specifically designed to implement capacitance sensing in human-machine interface applications are now available from Analog Devices. WORKING OF CAPACITANCE SENSOR: A basic sensor includes a receiver and a transmitter, each of which consists of metal traces formed on layers of a printed-circuit board (PCB). As shown in Figure 1, the
  • 22. AD714x has an on-chip excitation source, which is connected to the transmitter trace of the sensor. Between the receiver and the transmitter trace, an electric field is formed. Most of the field is concentrated between the two layers of the sensor PCB. However, a fringe electric field extends from the transmitter, out of the PCB, and terminates back at the receiver. The field strength at the receiver is measured by the on-chip sigma-delta capacitance-to-digital converter. The electrical environment changes when a human hand invades the fringe field, with a portion of the electric field being shunted to ground instead of terminating at the receiver. The resultant decrease in capacitance—on the order of femto farads as compared to Pico farads for the bulk of the electric field—is detected by the converter . In general, there are three parts to the capacitance-sensing solution, all of which can be supplied by Analog Devices.  The driver IC, which provides the excitation, the capacitance-to-digital converter, and compensation circuitry to ensure accurate results in all environments.  The sensor—a PCB with a pattern of traces, such as buttons, scroll bars, scroll wheels, or some combination. The traces can be copper, carbon, or silver, while the PCB can be FR4, flex, PET, or ITO.  Software on the host microcontroller to implement the serial interface and the device setup, as well as the interrupt service routine. For high-resolution sensors such as scroll bars and wheels, the host runs a software algorithm to achieve high resolution output. No software is required for buttons.
  • 23. ADVANTAGES OF USING CAPACITIVE SENSORS:  Capacitance sensors are more reliable than mechanical sensors—for a number of reasons.  There are no moving parts, so there is no wear and tear on the sensor, which is protected by covering material, INDUCTIVE SENSOR: An inductive sensor is an electronic proximity sensor, which detects metallic objects without touching them. The sensor consists of an induction loop. Electric current generates a magnetic field, which collapses generating a current that falls asymptotically toward zero from its initial level when the input electricity ceases. The inductance of the loop changes according to the material inside it and since metals are much more effective inductors than other materials the presence of metal increases the current flowing through the loop. This change can be detected by sensing circuitry, which can signal to some other device whenever metal is detected. Applications of inductive sensors :  metal detectors, traffic lights,  car washes,  host of automated industrial processes.
  • 24. Elements of a simple inductive sensor..  Field sensors  Oscillator.  Demodulator.  Flip-flop.  Output PHOTOELECTRIC SENSOR: A photoelectric sensor, or photo eye, is a device used to detect the distance, absence, or presence of an object by using a light transmitter, often infrared, and a photoelectric receiver. The object is detected when the beam light is blocked. FUNCTIONAL TYPES:  Opposed arrangement: Receiver is located within the line os sight of the transmitter. Object is detected when the beam is blocked from getting at the same location.  Retro reflective: Transmitter and receiver are at the same location and uses reflector to bounce light bean back to the receiver. Object id sensed when the beam is interrupted.  Proximity sensing arrangement: Object is detected when the receiver sees the transmitter source rather than when it fails to see it. Some photo eyes have two different operational types, light operate and dark operate. Light operate photo eyes become operational when the receiver "receives" the transmitter signal. Dark operate photo eyes become operational when the receiver "does not receive" the transmitter signal.
  • 25. The detecting range of a photoelectric sensor is its "field of view", or the maximum distance the sensor can retrieve information from, minus the minimum distance. A minimum detectable object is the smallest object the sensor can detect. More accurate sensors can often have minimum detectable objects of minuscule size. REED SWITCH: The reed switch is an electrical switch operated by an applied magnetic field. The contacts can be:  Normally open, closing when a magnetic field is present.  Normally closed and opening when a magnetic field is applied. The switch may be actuated by a coil, making a reed relay, or by bringing a magnet near to the switch. Once the magnet is pulled away from the switch, the reed switch will go back to its original position. The reed switch contains a pair (or more) of magnetizable, flexible, metal reeds whose end portions are separated by a small gap when the switch is open. The reeds are hermetically sealed in opposite ends of a tubular glass envelope. A magnetic field (from an electromagnet or a permanent magnet) will cause the reeds to come together, thus completing an electrical circuit. The stiffness of the reeds causes them to separate, and open the circuit, when the magnetic field ceases USES:  Reed switches are used in reed relays.  Reed switches are widely used for electrical circuit control, particularly in the communications field.  Reed switches actuated by magnets are commonly used in mechanical systems as proximity switches as well as in door and window sensors in burglar alarm systems and tamper proofing methods.  Reed switches are used in modern laptops which puts the laptop on sleep/hibernation mode when the lid is closed.
  • 26. LASER SENSORS: A laser sensor is a device which uses a laser beam to determine the distance to an object. It operates on the time of flight principle by sending a laser pulse in a narrow beam towards the object and measuring the time taken by the pulse to be reflected off the target and returned to the sender. Due to the high speed of light, this technique is not appropriate for high precision sub- millimeter measurements, where triangulation and other techniques are often used. PULSE: The pulse may be coded to reduce the chance that the rangefinder can be jammed. It is possible to use Doppler effect techniques to judge whether the object is moving towards or away from the rangefinder, and if so how fast. RANGE: Despite the beam being narrow, it will eventually spread over long distances due to the divergence of the laser beam, as well as due to scintillation and beam wander effects, caused by the presence of air bubbles in the air acting as lenses ranging in size from microscopic to roughly half the height of the laser beam's path above the earth. VACUUM SWITCHES: Prior to effective engine control unit computers, engine vacuum was used for many functions in an automobile. Vacuum switches were employed to regulate this flow, and were commonly controlled by temperature, solenoids, mechanically, or directly. They operated vacuum motors, other vacuum switches and other devices. The internal combustion engine in a common automobile produces almost 20 inches (51 cm) of vacuum, and this pressure differential may be harnessed for many uses. Engine vacuum is also the best direct source of information on the engine. Most delay valves have a one-way function, where there is either no restriction or no movement in one direction.
  • 27. TYPES  Check valve: A valve that only allows the vacuum signal to move in one direction. Often used with vacuum reservoirs.  Delay valve: A vacuum delay valve is a valve with a small orifice, which delays a vacuum signal. These are commonly used in automobiles to alter the behavior of a vacuum signal. Delay valves are usually color-coded to their function SUCTION CUP: A suction cup, also sometimes known as a sucker is an object that uses negative fluid pressure of air or water to adhere to nonporous surfaces. They exist both as artificially created devices, and as anatomical traits of some animals such as octopi and squid. The working face of the suction cup has a curved surface. When the center of the suction cup is pressed against a flat, non-porous surface, the volume of the space between the suction cup and the flat surface is reduced, which causes the fluid between the cup and the surface to be expelled past the rim of the circular cup. One cup suction lifter When the user ceases to apply physical pressure to the centre of the outside of the cup, the elastic substance of which the cup is made, tends to resume its original, curved shape. Because all of the fluid has already been forced out of the inside of the cup, the cavity which tends to develop between the cup and the flat surface has little to no air or water in it, and therefore lacks pressure. The pressure difference between the atmosphere on the outside of the cup, and the low-pressure cavity on the inside of the cup, is what keeps the cup adhered to the surface.
  • 28. 6. PLC INTRODUCTION: A programmable logic controller (PLC) or programmable controller is a computerized for automation of electromechanical processes, such as control of machinery on factory assembly lines, amusement rides, or light fixtures. PLCs are used in many industries and machines. Unlike general-purpose computers, the PLC is designed for multiple inputs and output arrangements, extended temperature ranges, immunity to electrical noise, and resistance to vibration and impact. Programs to control machine operation are typically stored in battery-backed or non-volatile memory. A PLC is an example of a hard real time system since output results must be produced in response to input conditions within a bounded time, otherwise unintended operation will result.
  • 29. HISTORY: The PLC was invented in response to the needs of the American automotive manufacturing industry. Programmable logic controllers were initially adopted by the automotive industry where software revision replaced the re-wiring of hard-wired control panels when production models changed. Before the PLC, control, sequencing, and safety interlock logic for manufacturing automobiles was accomplished using hundreds or thousands of relays, cam timers, and drum sequencers and dedicated closed-loop controllers. The process for updating such facilities for the yearly model change-over was very time consuming and expensive, as electricians needed to individually rewire each and every relay. Digital computers, being general-purpose programmable devices, were soon applied to control of industrial processes. Early computers required specialist programmers, and stringent operating environmental control for temperature, cleanliness, and power quality. Using a general-purpose computer for process control required protecting the computer from the plant floor conditions. An industrial control computer would have several attributes: it would tolerate the shop-floor environment, it would support discrete (bit- form) input and output in an easily extensible manner, it would not require years of training to use, and it would permit its operation to be monitored. The response time of any computer system must be fast enough to be useful for control; the required speed varying according to the nature of the process. DEVELOPMENT: Early PLCs were designed to replace relay logic systems. These PLCs were programmed in "ladder logic", which strongly resembles a schematic diagram of relay logic. This program notation was chosen to reduce training demands for the existing technicians. Other early PLCs used a form of instruction list programming, based on a stack-based logic solver.
  • 30. Modern PLCs can be programmed in a variety of ways, from ladder logic to more traditional programming languages such as BASIC and C. Another method is State Logic, a very high-level programming language designed to program PLCs based on state transition diagrams. Many early PLCs did not have accompanying programming terminals that were capable of graphical representation of the logic, and so the logic was instead represented as a series of logic expressions in some version of Boolean format, similar to Boolean algebra. As programming terminals evolved, it became more common for ladder logic to be used, for the aforementioned reasons and because it was a familiar format used for electromechanical control panels. Newer formats such as State Logic and Function Block (which is similar to the way logic is depicted when using digital integrated logic circuits) exist, but they are still not as popular as ladder logic. A primary reason for this is that PLCs solve the logic in a predictable and repeating sequence, and ladder logic allows the programmer (the person writing the logic) to see any issues with the timing of the logic sequence more easily than would be possible in other formats. FUNCTIONALITY: The functionality of the PLC has evolved over the years to include sequential relay control, motion control, process control, distributed control systems and networking. The data handling, storage, processing power and communication capabilities of some modern PLCs are approximately equivalent to desktop computers. PLC-like programming combined with remote I/O hardware, allow a general-purpose desktop computer to overlap some PLCs in certain applications. Regarding the practicality of these desktop computer based logic controllers, it is important to note that they have not been generally accepted in heavy industry because the desktop computers run on less stable operating systems than do PLCs, and because the desktop computer hardware is typically not designed to the same levels of tolerance to temperature, humidity, vibration, and longevity as the processors used in PLCs. In addition to the hardware limitations of desktop based logic, operating systems such as Windows do not lend themselves to deterministic logic execution, with the result that the logic may not always respond to
  • 31. changes in logic state or input status with the extreme consistency in timing as is expected from PLCs. Still, such desktop logic applications find use in less critical situations, such as laboratory automation and use in small facilities where the application is less demanding and critical, because they are generally much less expensive than PLCs. In more recent years, small products called PLRs (programmable logic relays), and also by similar names, have become more common and accepted. These are very much like PLCs, and are used in light industry where only a few points of I/O (i.e. a few signals coming in from the real world and a few going out) are involved, and low cost is desired. These small devices are typically made in a common physical size and shape by several manufacturers, and branded by the makers of larger PLCs to fill out their low end product range. Popular names include PICO Controller, NANO PLC, and other names implying very small controllers. Most of these have between 8 and 12 digital inputs, 4 and 8 digital outputs, and up to 2 analog inputs. Size is usually about 4" wide, 3" high, and 3" deep. Most such devices include a tiny postage stamp sized LCD screen for viewing simplified ladder logic (only a very small portion of the program being visible at a given time) and status of I/O points, and typically these screens are accompanied by a 4-way rocker push- button plus four more separate push-buttons, similar to the key buttons on a VCR remote control, and used to navigate and edit the logic. Most have a small plug for connecting via RS-232 or RS-485 to a personal computer so that programmers can use simple Windows applications for programming instead of being forced to use the tiny LCD and push-button set for this purpose. Unlike regular PLCs that are usually modular and greatly expandable, the PLRs are usually not modular or expandable, but their price can be two orders of magnitude less than a PLC and they still offer robust design and deterministic execution of the logic. SCAN TIME: A PLC program is generally executed repeatedly as long as the controlled system is running. The status of physical input points is copied to an area of memory accessible to the processor, sometimes called the "I/O Image Table". The program is then run from its
  • 32. first instruction run down to the last rung. It takes some time for the processor of the PLC to evaluate all the ladders and update the I/O image table with the status of outputs. This scan time may be a few milliseconds for a small program or on a fast processor, but older PLCs running very large programs could take much longer (say, up to 100 ms) to execute the program. If the scan time was too long, the response of the PLC to process conditions would be too slow to be useful. As PLCs became more advanced, methods were developed to change the sequence of ladder execution, and subroutines were implemented. This simplified programming and could also be used to save scan time for high-speed processes; parts of the program used, for example, only for setting up the machine could be segregated from those parts required to operate at higher speed. Special-purpose I/O modules, such as timer modules or counter modules, could be used where the scan time of the processor was too long to reliably pick up, for example, counting pulses from a shaft encoder. The relatively slow PLC could still interpret the counted values to control a machine, but the accumulation of pulses was done by a dedicated module that was unaffected by the speed of the program execution. SYSTEM SCALE: A small PLC will have a fixed number of connections built in for inputs and outputs. Typically, expansions are available if the base model has insufficient I/O. Modular PLCs have a chassis (also called a rack) into which are placed modules with different functions. The processor and selection of I/O modules is customised for the particular application. Several racks can be administered by a single processor, and may have thousands of inputs and outputs. A special high speed serial I/O link is used so that racks can be distributed away from the processor, reducing the wiring costs for large plants.
  • 33. PROGRAMMING: PLC programs are typically written in a special application on a personal computer, then downloaded by a direct-connection cable or over a network to the PLC. The program is stored in the PLC either in battery-backed-up RAM or some other non-volatile flash memory. Often, a single PLC can be programmed to replace thousands of relays.[4] Under the IEC 61131-3 standard, PLCs can be programmed using standards-based programming languages. A graphical programming notation called Sequential Function Charts is available on certain programmable controllers. Initially most PLCs utilized Ladder Logic Diagram Programming, a model which emulated electromechanical control panel devices (such as the contact and coils of relays) which PLCs replaced. This model remains common today. IEC 61131-3 currently defines five programming languages for programmable control systems: function block diagram (FBD), ladder diagram(LD), structured text (ST; similar to the Pascal programming language), instruction list (IL; similar to assembly language) and sequential function chart (SFC). These techniques emphasize logical organization of operations.[4] While the fundamental concepts of PLC programming are common to all manufacturers, differences in I/O addressing, memory organization and instruction sets mean that PLC programs are never perfectly interchangeable between different makers. Even within the same product line of a single manufacturer, different models may not be directly compatible. USER INTERFACE: PLCs may need to interact with people for the purpose of configuration, alarm reporting or everyday control. A human-machine interface (HMI) is employed for this purpose. HMIs are also referred to as man-machine interfaces (MMIs) and graphical user interface (GUIs). A simple system may use buttons and lights to interact with the user. Text displays are available as well as graphical touch screens. More complex systems use
  • 34. programming and monitoring software installed on a computer, with the PLC connected via a communication interface. COMMUNICATION: PLCs have built in communications ports, usually 9-pin RS-232, but optionally EIA- 485 or Ethernet. Modbus, BAC net or DF1 is usually included as one of the communications protocols. Other options include various field buses such as Device Net or Profibus. Other communications protocols that may be used are listed in the List of automation protocols. Most modern PLCs can communicate over a network to some other system, such as a computer running a SCADA (Supervisory Control and Data Acquisition) system or web browser. PLCs used in larger I/O systems may have peer-to-peer (P2P) communication between processors. This allows separate parts of a complex process to have individual control while allowing the subsystems to co-ordinate over the communication link. These communication links are also often used for HMI devices such as keypads or PC-type workstations.
