This document provides an overview of bacterial genetics. It discusses several key topics: 1. The principles of genetics were first applied to bacteria and viruses, leading to fundamental advances in biology and biochemistry and the birth of molecular biology. 2. DNA and RNA were discovered to be the genetic material. DNA is composed of adenine, thymine, guanine and cytosine and exists in a double helix structure. RNA differs from DNA by containing ribose instead of deoxyribose and uracil instead of thymine. 3. Bacteria possess extrachromosomal genetic elements like plasmids that are not essential but can confer traits like antibiotic resistance. Plasmids can transfer genes between bacteria.

1. Bacterial Genetics
Learning the Basics
1
Dr.T.V.Rao MD
Dr.T.V.Rao MD

2. Genetics Guide Life
2
Dr.T.V.Rao MD

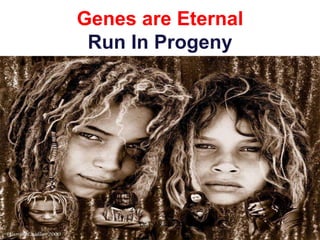

3. Genes are Eternal
Run In Progeny
3
Dr.T.V.Rao MD

4. Understanding Genetics
We resemble and differ because of
Genetic configurations
Parents - Son - Daughter, how they
resemble each other.
They breed true from Generation to
Generation
But vary in small proportions in
progeny.
Bacteria too obey the laws of
Genetics 4
Dr.T.V.Rao MD

5. Watson - Crick
Discovery of DNA
5
Dr.T.V.Rao MD

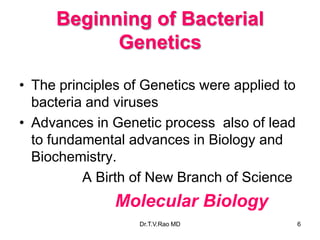

6. Beginning of Bacterial
Genetics
• The principles of Genetics were applied to
bacteria and viruses
• Advances in Genetic process also of lead
to fundamental advances in Biology and
Biochemistry.
A Birth of New Branch of Science
Molecular Biology
6
Dr.T.V.Rao MD

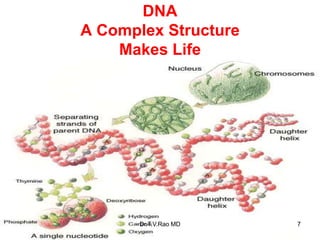

7. DNA
A Complex Structure
Makes Life
7
Dr.T.V.Rao MD

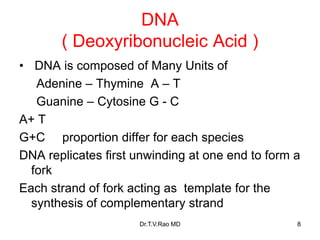

8. DNA
( Deoxyribonucleic Acid )
• DNA is composed of Many Units of
Adenine – Thymine A – T
Guanine – Cytosine G - C
A+ T
G+C proportion differ for each species
DNA replicates first unwinding at one end to form a
fork
Each strand of fork acting as template for the
synthesis of complementary strand
8
Dr.T.V.Rao MD

9. 9
Dr.T.V.Rao MD

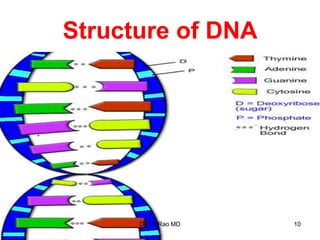

10. Structure of DNA
10
Dr.T.V.Rao MD

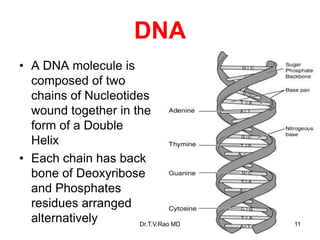

11. DNA
• A DNA molecule is
composed of two
chains of Nucleotides
wound together in the
form of a Double
Helix
• Each chain has back
bone of Deoxyribose
and Phosphates
residues arranged
alternatively 11
Dr.T.V.Rao MD

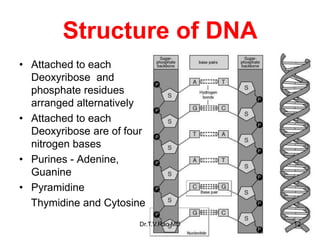

12. Structure of DNA
• Attached to each
Deoxyribose and
phosphate residues
arranged alternatively
• Attached to each
Deoxyribose are of four
nitrogen bases
• Purines - Adenine,
Guanine
• Pyramidine
Thymidine and Cytosine
12
Dr.T.V.Rao MD

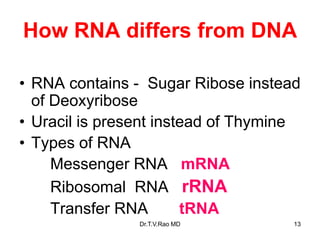

13. How RNA differs from DNA
• RNA contains - Sugar Ribose instead
of Deoxyribose
• Uracil is present instead of Thymine
• Types of RNA
Messenger RNA mRNA
Ribosomal RNA rRNA
Transfer RNA tRNA
13
Dr.T.V.Rao MD

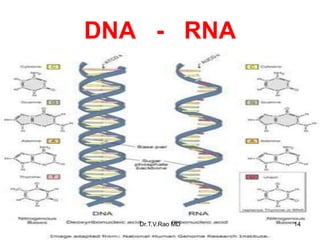

14. DNA - RNA
14
Dr.T.V.Rao MD

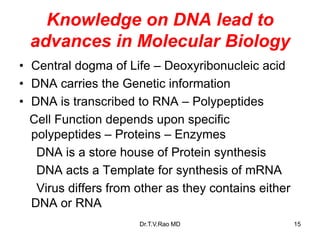

15. Knowledge on DNA lead to
advances in Molecular Biology
• Central dogma of Life – Deoxyribonucleic acid
• DNA carries the Genetic information
• DNA is transcribed to RNA – Polypeptides
Cell Function depends upon specific
polypeptides – Proteins – Enzymes
DNA is a store house of Protein synthesis
DNA acts a Template for synthesis of mRNA
Virus differs from other as they contains either
DNA or RNA
15
Dr.T.V.Rao MD

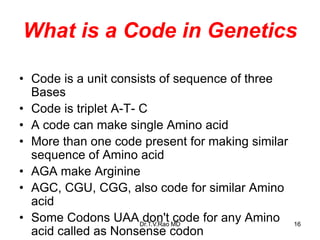

16. What is a Code in Genetics
• Code is a unit consists of sequence of three
Bases
• Code is triplet A-T- C
• A code can make single Amino acid
• More than one code present for making similar
sequence of Amino acid
• AGA make Arginine
• AGC, CGU, CGG, also code for similar Amino
acid
• Some Codons UAA don't code for any Amino
acid called as Nonsense codon
16
Dr.T.V.Rao MD

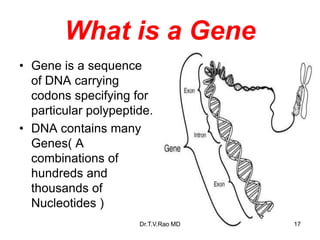

17. What is a Gene
• Gene is a sequence
of DNA carrying
codons specifying for
particular polypeptide.
• DNA contains many
Genes( A
combinations of
hundreds and
thousands of
Nucleotides )
17
Dr.T.V.Rao MD

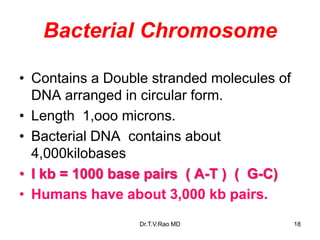

18. Bacterial Chromosome
• Contains a Double stranded molecules of
DNA arranged in circular form.
• Length 1,ooo microns.
• Bacterial DNA contains about
4,000kilobases
• I kb = 1000 base pairs ( A-T ) ( G-C)
• Humans have about 3,000 kb pairs.
18
Dr.T.V.Rao MD

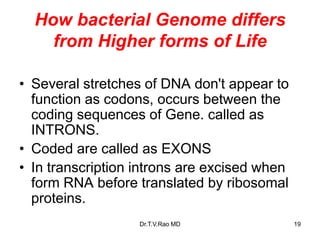

19. How bacterial Genome differs
from Higher forms of Life
• Several stretches of DNA don't appear to
function as codons, occurs between the
coding sequences of Gene. called as
INTRONS.
• Coded are called as EXONS
• In transcription introns are excised when
form RNA before translated by ribosomal
proteins.
19
Dr.T.V.Rao MD

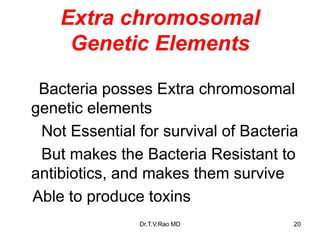

20. Extra chromosomal
Genetic Elements
Bacteria posses Extra chromosomal
genetic elements
Not Essential for survival of Bacteria
But makes the Bacteria Resistant to
antibiotics, and makes them survive
Able to produce toxins
20
Dr.T.V.Rao MD

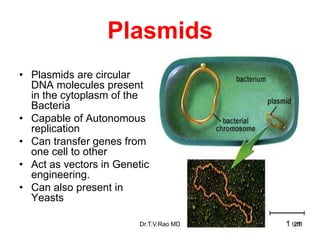

21. Plasmids
• Plasmids are circular
DNA molecules present
in the cytoplasm of the
Bacteria
• Capable of Autonomous
replication
• Can transfer genes from
one cell to other
• Act as vectors in Genetic
engineering.
• Can also present in
Yeasts
21
Dr.T.V.Rao MD

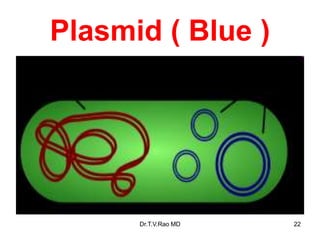

22. Plasmid ( Blue )
22
Dr.T.V.Rao MD

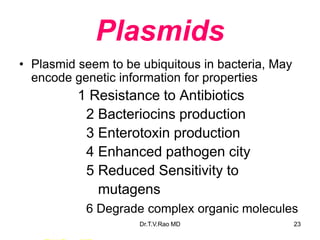

23. Plasmids
• Plasmid seem to be ubiquitous in bacteria, May
encode genetic information for properties
1 Resistance to Antibiotics
2 Bacteriocins production
3 Enterotoxin production
4 Enhanced pathogen city
5 Reduced Sensitivity to
mutagens
6 Degrade complex organic molecules
23
Dr.T.V.Rao MD

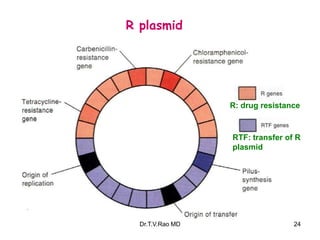

24. R plasmid
R: drug resistance
RTF: transfer of R
plasmid
24
Dr.T.V.Rao MD

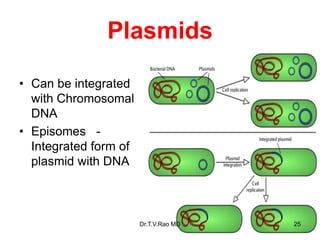

25. Plasmids
• Can be integrated
with Chromosomal
DNA
• Episomes -
Integrated form of
plasmid with DNA
25
Dr.T.V.Rao MD

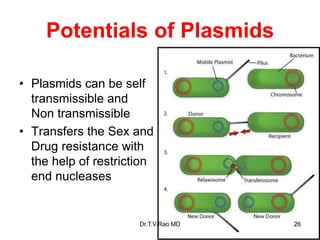

26. Potentials of Plasmids
• Plasmids can be self
transmissible and
Non transmissible
• Transfers the Sex and
Drug resistance with
the help of restriction
end nucleases
26
Dr.T.V.Rao MD

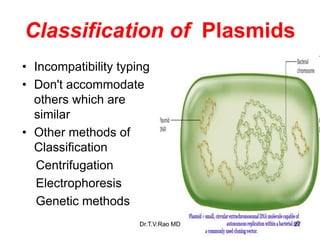

27. Classification of Plasmids
• Incompatibility typing
• Don't accommodate
others which are
similar
• Other methods of
Classification
Centrifugation
Electrophoresis
Genetic methods
27
Dr.T.V.Rao MD

28. Genotypic and Phenotypic
variation
• Genome – Sum total of Gene that make
up the genetic apparatus of cell
established as Genotype.
• Hereditary constitution of cell this
transmitted to its progeny
• Phenotype – is the physical expression in
a environment. Change according to
environment.
28
Dr.T.V.Rao MD

29. What is Phenotypic expression
• Exhibit – different phenotypes
• Appearance differs in different situations.
• Eg Typhoid bacilli flagellated normally
• But grown in Phenol agar don't grow flagella So
flagella are lost physical variation
• Lactose fermentation in E.coli dependent on
Beta Galactosidase
When lactose present - test is positive
When lactose is absent - test turns negative
29
Dr.T.V.Rao MD

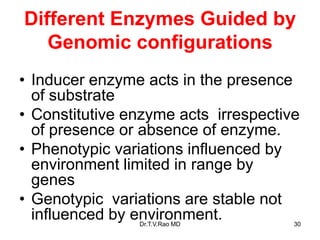

30. Different Enzymes Guided by
Genomic configurations
• Inducer enzyme acts in the presence
of substrate
• Constitutive enzyme acts irrespective
of presence or absence of enzyme.
• Phenotypic variations influenced by
environment limited in range by
genes
• Genotypic variations are stable not
influenced by environment. 30
Dr.T.V.Rao MD

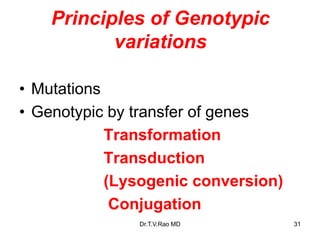

31. Principles of Genotypic
variations
• Mutations
• Genotypic by transfer of genes
Transformation
Transduction
(Lysogenic conversion)
Conjugation
31
Dr.T.V.Rao MD

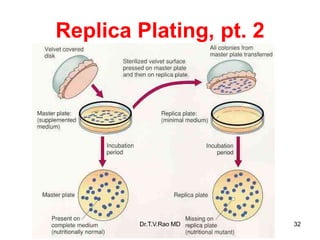

32. Replica Plating, pt. 2
32
Dr.T.V.Rao MD

33. Mutations in Bacteria
• Bacteria Multiply by asexual binary fission
• Altered Nucleotide sequence in expresses new
or altered characteristics
• Selective value to the organism
• Evolutionary value
• Acquires Antibiotic resistance grows in body
without inhibition
• Become a prominent organism
• Phenotypic variation occurs when genes
changes in response to the environment but
reversible.
T.V.Rao MD
33
Dr.T.V.Rao MD

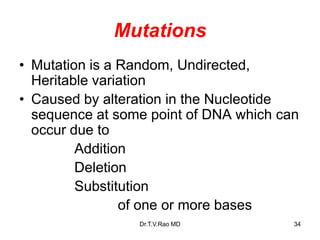

34. Mutations
• Mutation is a Random, Undirected,
Heritable variation
• Caused by alteration in the Nucleotide
sequence at some point of DNA which can
occur due to
Addition
Deletion
Substitution
of one or more bases
34
Dr.T.V.Rao MD

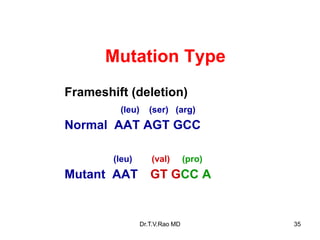

35. Mutation Type
Frameshift (deletion)
(leu) (ser) (arg)
Normal AAT AGT GCC
(leu) (val) (pro)
Mutant AAT AGT GCC A
35
Dr.T.V.Rao MD

36. Mutation Type
Frameshift (insertion)
(leu) (ser) (arg)
Normal AAT AGT GCC
(leu) (glut) (cyst)
Mutant AAT CAGT GCC
36
Dr.T.V.Rao MD

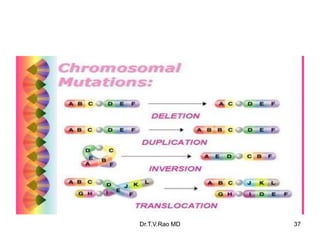

37. 37
Dr.T.V.Rao MD

38. Mutations can occur in any
sequence,inveitable, useful for
Survival
38
Dr.T.V.Rao MD

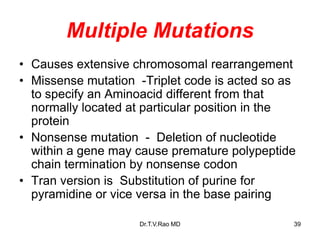

39. Multiple Mutations
• Causes extensive chromosomal rearrangement
• Missense mutation -Triplet code is acted so as
to specify an Aminoacid different from that
normally located at particular position in the
protein
• Nonsense mutation - Deletion of nucleotide
within a gene may cause premature polypeptide
chain termination by nonsense codon
• Tran version is Substitution of purine for
pyramidine or vice versa in the base pairing
39
Dr.T.V.Rao MD

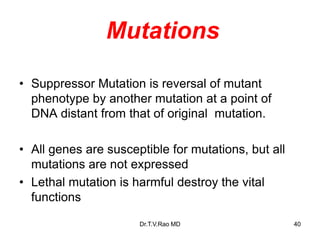

40. Mutations
• Suppressor Mutation is reversal of mutant
phenotype by another mutation at a point of
DNA distant from that of original mutation.
• All genes are susceptible for mutations, but all
mutations are not expressed
• Lethal mutation is harmful destroy the vital
functions
40
Dr.T.V.Rao MD

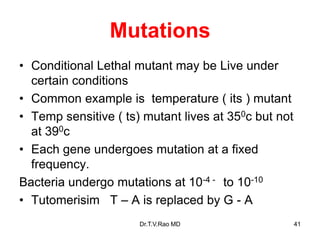

41. Mutations
• Conditional Lethal mutant may be Live under
certain conditions
• Common example is temperature ( its ) mutant
• Temp sensitive ( ts) mutant lives at 350c but not
at 390c
• Each gene undergoes mutation at a fixed
frequency.
Bacteria undergo mutations at 10-4 - to 10-10
• Tutomerisim T – A is replaced by G - A
41
Dr.T.V.Rao MD

42. Mutagenic Agents
• U V rays
• Alkyl ting
agents
• Arcidine Dyes
42
Dr.T.V.Rao MD

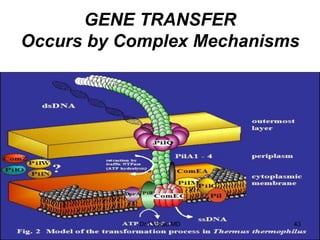

43. GENE TRANSFER
Occurs by Complex Mechanisms
43
Dr.T.V.Rao MD

44. The three bacterial sexual
processes
– 1. Conjugation: direct transfer of
DNA from one bacterial cell to
another.
–2. Transduction: use of a
Bacteriophages (bacterial virus) to
transfer DNA between cells.
–3. Transformation: naked DNA is
taken up from the environment by
bacterial cells.
44
Dr.T.V.Rao MD

45. Transformation of Genetic
material
( Gene Transfer )
• Different
Mechanisms
Transformation
Transduction
Conjugation
45
Dr.T.V.Rao MD

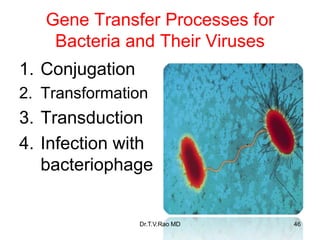

46. Gene Transfer Processes for
Bacteria and Their Viruses
1. Conjugation
2. Transformation
3. Transduction
4. Infection with
bacteriophage
46
Dr.T.V.Rao MD

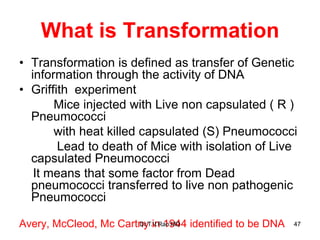

47. What is Transformation
• Transformation is defined as transfer of Genetic
information through the activity of DNA
• Griffith experiment
Mice injected with Live non capsulated ( R )
Pneumococci
with heat killed capsulated (S) Pneumococci
Lead to death of Mice with isolation of Live
capsulated Pneumococci
It means that some factor from Dead
pneumococci transferred to live non pathogenic
Pneumococci
Avery, McCleod, Mc Cartny in 1944 identified to be DNA 47
Dr.T.V.Rao MD

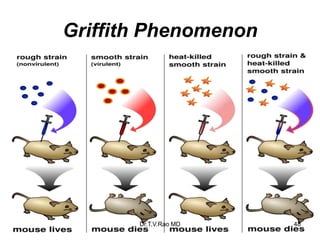

48. Griffith Phenomenon
48
Dr.T.V.Rao MD

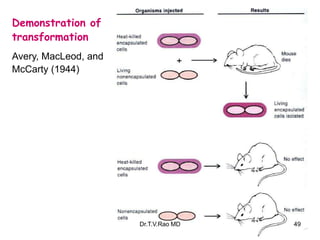

49. Demonstration of
transformation
Avery, MacLeod, and
McCarty (1944)
49
Dr.T.V.Rao MD

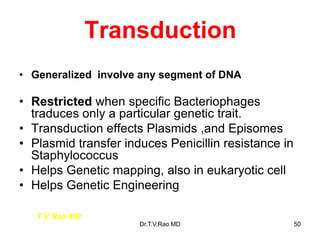

50. Transduction
• Generalized involve any segment of DNA
• Restricted when specific Bacteriophages
traduces only a particular genetic trait.
• Transduction effects Plasmids ,and Episomes
• Plasmid transfer induces Penicillin resistance in
Staphylococcus
• Helps Genetic mapping, also in eukaryotic cell
• Helps Genetic Engineering
T.V.Rao MD
50
Dr.T.V.Rao MD

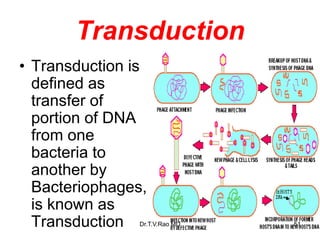

51. Transduction
• Transduction is
defined as
transfer of
portion of DNA
from one
bacteria to
another by
Bacteriophages,
is known as
Transduction 51
Dr.T.V.Rao MD

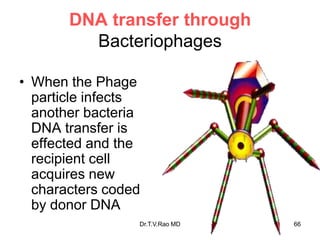

52. DNA transfer through
Bacteriophages
• When the Phage
particle infects
another bacteria
DNA transfer is
effected and the
recipient cell
acquires new
characters coded
by donor DNA
52
Dr.T.V.Rao MD

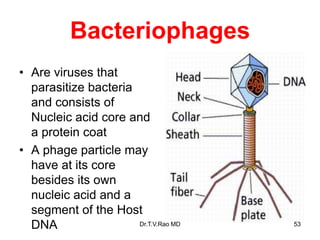

53. Bacteriophages
• Are viruses that
parasitize bacteria
and consists of
Nucleic acid core and
a protein coat
• A phage particle may
have at its core
besides its own
nucleic acid and a
segment of the Host
DNA 53
Dr.T.V.Rao MD

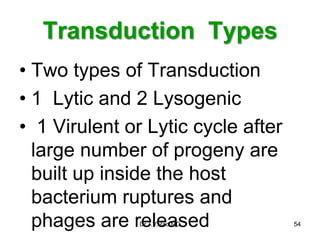

54. Transduction Types
• Two types of Transduction
• 1 Lytic and 2 Lysogenic
• 1 Virulent or Lytic cycle after
large number of progeny are
built up inside the host
bacterium ruptures and
phages are released 54
Dr.T.V.Rao MD

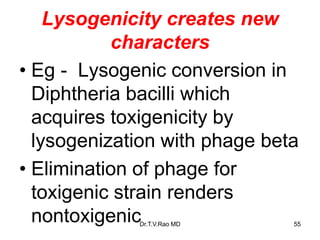

55. Lysogenicity creates new
characters
• Eg - Lysogenic conversion in
Diphtheria bacilli which
acquires toxigenicity by
lysogenization with phage beta
• Elimination of phage for
toxigenic strain renders
nontoxigenic 55
Dr.T.V.Rao MD

56. Conjugation
Lederberg - Tatum
• A process by which a Donor cell or male cell
makes contact with another cell, the recipient or
Female cell.
• DNA is directly transferable
• Plasmid Carry genetic information necessary for
conjugation to occur.
• Only cell that contain such plasmids can act as
donor. the cell lacking a corresponding plasmid
act as recipient.
• Requires direct contact between donor and
recipient
56
Dr.T.V.Rao MD

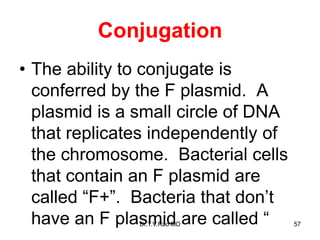

57. Conjugation
• The ability to conjugate is
conferred by the F plasmid. A
plasmid is a small circle of DNA
that replicates independently of
the chromosome. Bacterial cells
that contain an F plasmid are
called “F+”. Bacteria that don’t
have an F plasmid are called “ 57
Dr.T.V.Rao MD

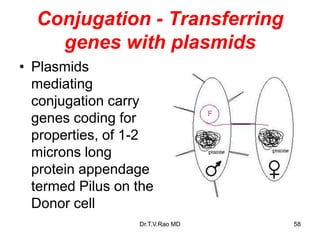

58. Conjugation - Transferring
genes with plasmids
• Plasmids
mediating
conjugation carry
genes coding for
properties, of 1-2
microns long
protein appendage
termed Pilus on the
Donor cell
58
Dr.T.V.Rao MD

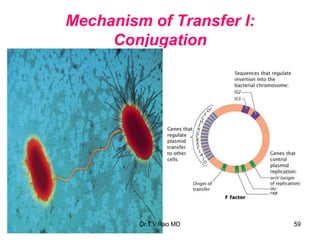

59. Mechanism of Transfer I:
Conjugation
59
Dr.T.V.Rao MD

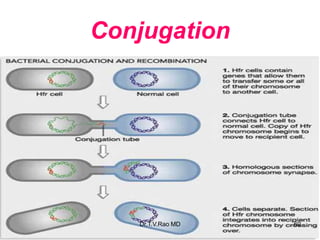

60. Conjugation
60
Dr.T.V.Rao MD

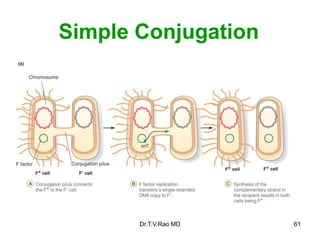

61. Simple Conjugation
61
Dr.T.V.Rao MD

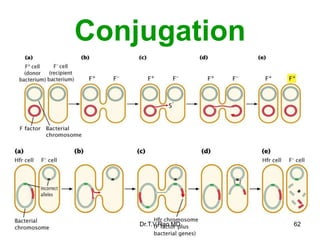

62. Conjugation
62
Dr.T.V.Rao MD

63. Pilus helps Conjugation
• Different types of Pilus
are specified by different
types of plasmids and
can help in aid of plasmid
classification.
• Only one strand of
circular DNA of the
plasmid nicked upon at a
specific site and passed
into a recipient.
• Spread to all other cells.
63
Dr.T.V.Rao MD

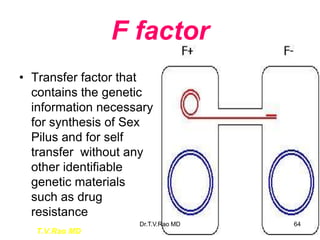

64. F factor
• Transfer factor that
contains the genetic
information necessary
for synthesis of Sex
Pilus and for self
transfer without any
other identifiable
genetic materials
such as drug
resistance
T.V.Rao MD
64
Dr.T.V.Rao MD

65. F factor helps transformation
• F+ called as Donor bacteria can transform
F- into F+ cell
Can be Episomes able to exist in some cells in the
integrated state in the donor cell chromosome
Can transform chromosomal genes to recruitment with
high frequency are known as Hfr cells
Conversion of F+ cells into Hfr state is reversible.
F factor incorporates some chromosomal genes and is
called as F’
Sexduction The process of transfer of host genes
through F’ factor
65
Dr.T.V.Rao MD

66. DNA transfer through
Bacteriophages
• When the Phage
particle infects
another bacteria
DNA transfer is
effected and the
recipient cell
acquires new
characters coded
by donor DNA
66
Dr.T.V.Rao MD

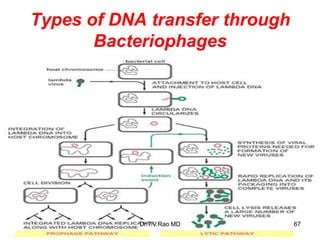

67. Types of DNA transfer through
Bacteriophages
67
Dr.T.V.Rao MD

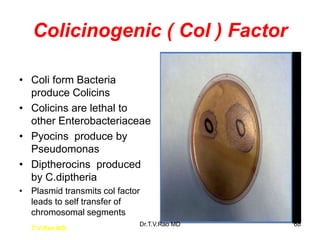

68. Colicinogenic ( Col ) Factor
• Coli form Bacteria
produce Colicins
• Colicins are lethal to
other Enterobacteriaceae
• Pyocins produce by
Pseudomonas
• Diptherocins produced
by C.diptheria
• Plasmid transmits col factor
leads to self transfer of
chromosomal segments
T.V.Rao MD
68
Dr.T.V.Rao MD

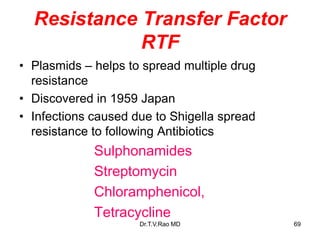

69. Resistance Transfer Factor
RTF
• Plasmids – helps to spread multiple drug
resistance
• Discovered in 1959 Japan
• Infections caused due to Shigella spread
resistance to following Antibiotics
Sulphonamides
Streptomycin
Chloramphenicol,
Tetracycline
69
Dr.T.V.Rao MD

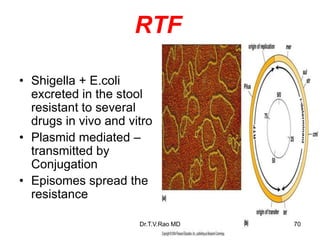

70. RTF
• Shigella + E.coli
excreted in the stool
resistant to several
drugs in vivo and vitro
• Plasmid mediated –
transmitted by
Conjugation
• Episomes spread the
resistance
70
Dr.T.V.Rao MD

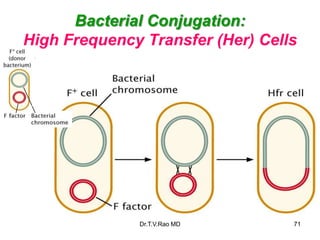

71. Bacterial Conjugation:
High Frequency Transfer (Her) Cells
71
Dr.T.V.Rao MD

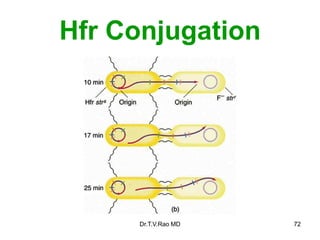

72. Hfr Conjugation
72
Dr.T.V.Rao MD

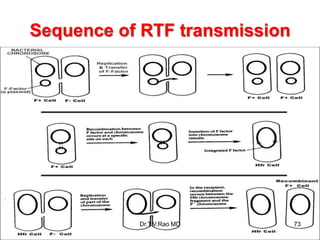

73. Sequence of RTF transmission
73
Dr.T.V.Rao MD

74. Hfr cell conjugating a Normal cell
74
Dr.T.V.Rao MD

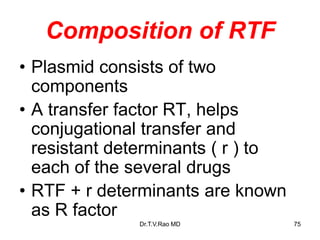

75. Composition of RTF
• Plasmid consists of two
components
• A transfer factor RT, helps
conjugational transfer and
resistant determinants ( r ) to
each of the several drugs
• RTF + r determinants are known
as R factor
75
Dr.T.V.Rao MD

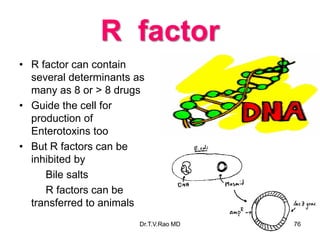

76. R factor
• R factor can contain
several determinants as
many as 8 or > 8 drugs
• Guide the cell for
production of
Enterotoxins too
• But R factors can be
inhibited by
Bile salts
R factors can be
transferred to animals
76
Dr.T.V.Rao MD

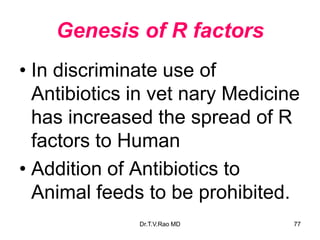

77. Genesis of R factors
• In discriminate use of
Antibiotics in vet nary Medicine
has increased the spread of R
factors to Human
• Addition of Antibiotics to
Animal feeds to be prohibited.
77
Dr.T.V.Rao MD

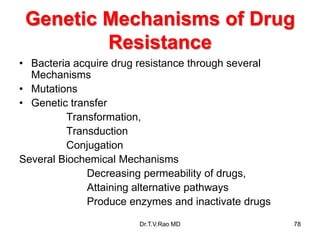

78. Genetic Mechanisms of Drug
Resistance
• Bacteria acquire drug resistance through several
Mechanisms
• Mutations
• Genetic transfer
Transformation,
Transduction
Conjugation
Several Biochemical Mechanisms
Decreasing permeability of drugs,
Attaining alternative pathways
Produce enzymes and inactivate drugs
78
Dr.T.V.Rao MD

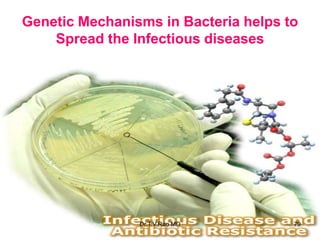

79. Genetic Mechanisms in Bacteria helps to
Spread the Infectious diseases
79
Dr.T.V.Rao MD

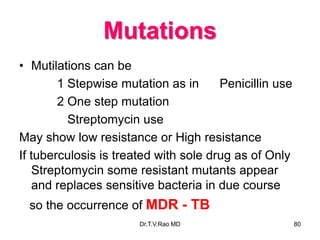

80. Mutations
• Mutilations can be
1 Stepwise mutation as in Penicillin use
2 One step mutation
Streptomycin use
May show low resistance or High resistance
If tuberculosis is treated with sole drug as of Only
Streptomycin some resistant mutants appear
and replaces sensitive bacteria in due course
so the occurrence of MDR - TB
80
Dr.T.V.Rao MD

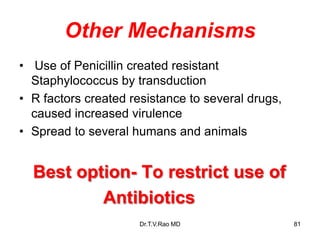

81. Other Mechanisms
• Use of Penicillin created resistant
Staphylococcus by transduction
• R factors created resistance to several drugs,
caused increased virulence
• Spread to several humans and animals
Best option- To restrict use of
Antibiotics
81
Dr.T.V.Rao MD

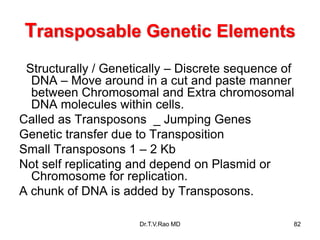

82. Transposable Genetic Elements
Structurally / Genetically – Discrete sequence of
DNA – Move around in a cut and paste manner
between Chromosomal and Extra chromosomal
DNA molecules within cells.
Called as Transposons _ Jumping Genes
Genetic transfer due to Transposition
Small Transposons 1 – 2 Kb
Not self replicating and depend on Plasmid or
Chromosome for replication.
A chunk of DNA is added by Transposons.
82
Dr.T.V.Rao MD

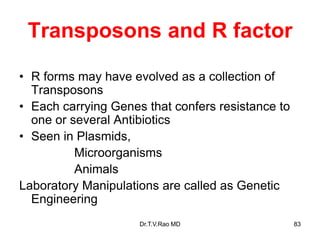

83. Transposons and R factor
• R forms may have evolved as a collection of
Transposons
• Each carrying Genes that confers resistance to
one or several Antibiotics
• Seen in Plasmids,
Microorganisms
Animals
Laboratory Manipulations are called as Genetic
Engineering
83
Dr.T.V.Rao MD

84. Molecular Genetics
• Analysis and
manipulation of
DNA using
Biochemical
and
Microbiological
techniques 84
Dr.T.V.Rao MD

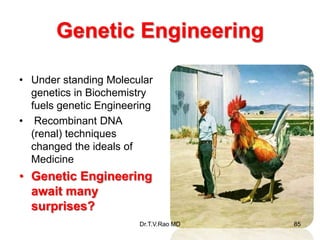

85. Genetic Engineering
• Under standing Molecular
genetics in Biochemistry
fuels genetic Engineering
• Recombinant DNA
(renal) techniques
changed the ideals of
Medicine
• Genetic Engineering
await many
surprises?
85
Dr.T.V.Rao MD

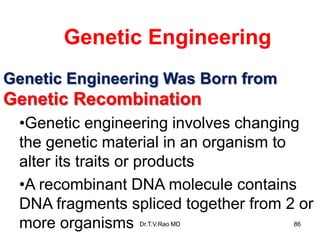

86. Genetic Engineering Was Born from
Genetic Recombination
•Genetic engineering involves changing
the genetic material in an organism to
alter its traits or products
•A recombinant DNA molecule contains
DNA fragments spliced together from 2 or
more organisms
Genetic Engineering
86
Dr.T.V.Rao MD

87. Modern applications
• Pharmaceutical production
–Insulin, interferon, hormones, vaccines
etc.
• Genetically engineered plants
• Animal gene alterations
• Gene probes
• DNA fingerprinting
• The human genome initiative
Dr.T.V.Rao MD 87

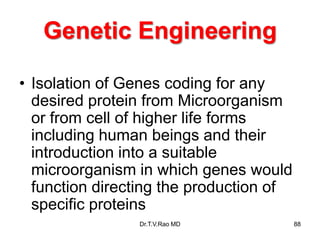

88. Genetic Engineering
• Isolation of Genes coding for any
desired protein from Microorganism
or from cell of higher life forms
including human beings and their
introduction into a suitable
microorganism in which genes would
function directing the production of
specific proteins
88
Dr.T.V.Rao MD

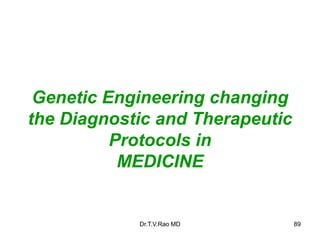

89. Genetic Engineering changing
the Diagnostic and Therapeutic
Protocols in
MEDICINE
89
Dr.T.V.Rao MD

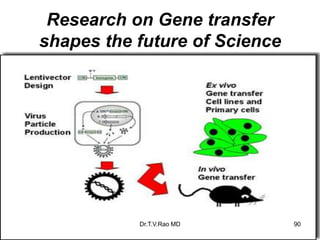

90. Research on Gene transfer
shapes the future of Science
90
Dr.T.V.Rao MD

91. Genetically Engineered Products
• Can prepare desired
protein in pure form in
economic way
Somatostatin
• Commercial
preparations pdf
Cloned Human
Insulin
Interferons
Hepatitis B
vaccine 91
Dr.T.V.Rao MD

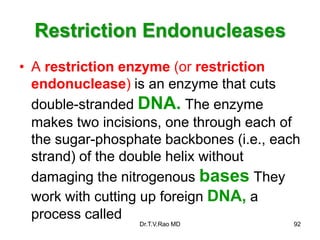

92. Restriction Endonucleases
• A restriction enzyme (or restriction
endonuclease) is an enzyme that cuts
double-stranded DNA. The enzyme
makes two incisions, one through each of
the sugar-phosphate backbones (i.e., each
strand) of the double helix without
damaging the nitrogenous bases They
work with cutting up foreign DNA, a
process called
92
Dr.T.V.Rao MD

93. Restriction Endonucleases
Made the advances in Genetic
Engineering
93
Dr.T.V.Rao MD

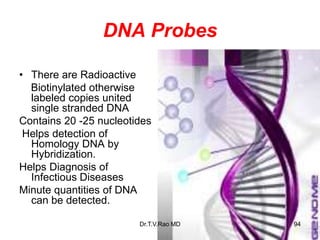

94. DNA Probes
• There are Radioactive
Biotinylated otherwise
labeled copies united
single stranded DNA
Contains 20 -25 nucleotides
Helps detection of
Homology DNA by
Hybridization.
Helps Diagnosis of
Infectious Diseases
Minute quantities of DNA
can be detected.
94
Dr.T.V.Rao MD

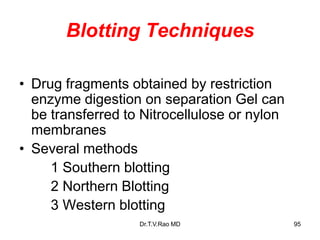

95. Blotting Techniques
• Drug fragments obtained by restriction
enzyme digestion on separation Gel can
be transferred to Nitrocellulose or nylon
membranes
• Several methods
1 Southern blotting
2 Northern Blotting
3 Western blotting
95
Dr.T.V.Rao MD

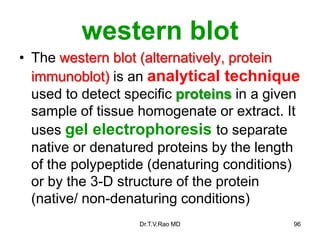

96. western blot
• The western blot (alternatively, protein
immunoblot) is an analytical technique
used to detect specific proteins in a given
sample of tissue homogenate or extract. It
uses gel electrophoresis to separate
native or denatured proteins by the length
of the polypeptide (denaturing conditions)
or by the 3-D structure of the protein
(native/ non-denaturing conditions)
96
Dr.T.V.Rao MD

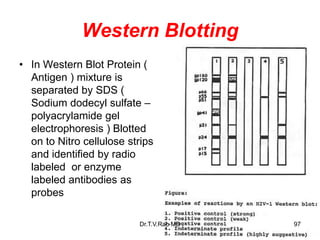

97. Western Blotting
• In Western Blot Protein (
Antigen ) mixture is
separated by SDS (
Sodium dodecyl sulfate –
polyacrylamide gel
electrophoresis ) Blotted
on to Nitro cellulose strips
and identified by radio
labeled or enzyme
labeled antibodies as
probes
97
Dr.T.V.Rao MD

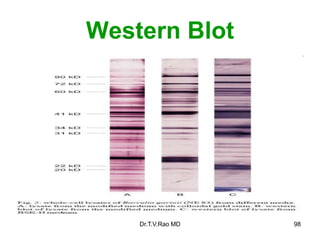

98. Western Blot
98
Dr.T.V.Rao MD

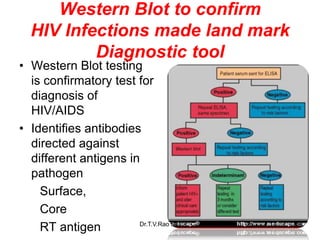

99. Western Blot to confirm
HIV Infections made land mark
Diagnostic tool
• Western Blot testing
is confirmatory test for
diagnosis of
HIV/AIDS
• Identifies antibodies
directed against
different antigens in
pathogen
Surface,
Core
RT antigen 99
Dr.T.V.Rao MD

100. Polymerase chain reaction
Kary B Mullis 1983
• Rapid
• Automatic
amplification of
specific DNA
sequences
• Nobel prize winning
Technology 1993
100
Dr.T.V.Rao MD

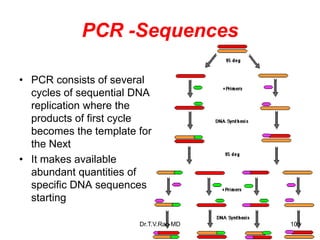

101. PCR -Sequences
• PCR consists of several
cycles of sequential DNA
replication where the
products of first cycle
becomes the template for
the Next
• It makes available
abundant quantities of
specific DNA sequences
starting
101
Dr.T.V.Rao MD

102. Genetic Mapping
• Genetic sequences
for Bacteriophages
and virus
• Genetic mapping is
done most of the
Human Genes
102
Dr.T.V.Rao MD

103. Newer Understanding on
GENES
103
Dr.T.V.Rao MD

104. Human Genome Project
104
Dr.T.V.Rao MD

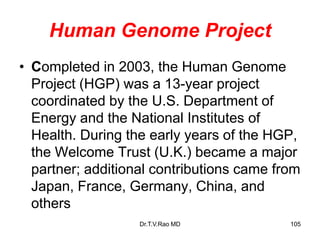

105. Human Genome Project
• Completed in 2003, the Human Genome
Project (HGP) was a 13-year project
coordinated by the U.S. Department of
Energy and the National Institutes of
Health. During the early years of the HGP,
the Welcome Trust (U.K.) became a major
partner; additional contributions came from
Japan, France, Germany, China, and
others
105
Dr.T.V.Rao MD

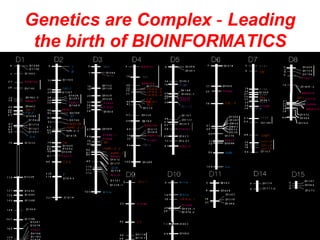

106. Genetics are Complex - Leading
the birth of BIOINFORMATICS
106
Dr.T.V.Rao MD

107. Genes Evolved and made us
Men
What NEXT ?
107
Dr.T.V.Rao MD

108. Are We Playing with Genes in the
Right Direction ?
108
Dr.T.V.Rao MD

109. Understanding of human Genome is
Changing the Future of Medicine
109
Dr.T.V.Rao MD

110. • Programmed Created by Dr.T.V.Rao MD
for Undergraduate Medical Students in
the Developing World
• Email
• doctortvrao@gmail.com
110
Dr.T.V.Rao MD
