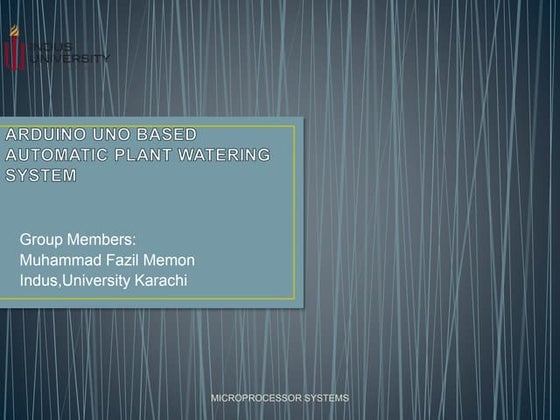

AUTOMATIC PLANT WATERING SYSTEM USING ARDUINO BASED PPTrishav164
So what is this project? What does it do? Basically this is a soil moisture monitoring system, which detects if the moisture content in the soil is above or below a certain satisfactory threshold value. If it goes below a certain critical point, it is time to water the plant until the soil surrounding the plant is moist enough. An arrangement of a DC motor relay is used to control the watering mechanism.
"Automatic Intelligent Plant Irrigation System using Arduino and GSM board"Disha Modi
Automatic irrigation is a form of irrigation system that incorporates the theory of control, power of wireless technology and feedback system with irrigation. The aim of our project is not only to minimize this manual intervention by the farmer in farm field, but also to successfully water garden plants planted in pots too. Which is why we are using micro- controller based Automated Irrigation system will serve the following purposes: 1) As there is no un-planned usage of water, a lot of water is saved from being wasted. 2) The irrigation is done only when there is not enough moisture in the soil and the microcontroller decides when should the pump be turned on/off, saves a lot time for the farmers. This also gives much needed rest to the farmers and helps, as they don’t have to go and turn the pump on/off manually. 3)This irrigation system can be monitor by user wirelessly. User can receive notification and can provide proper commands via his cell phone whenever necessary.
The aim of our project is to minimize this manual intervention by the farmer. Automated Irrigation system will serve the following purposes: 1) As there is no un-planned usage of water, a lot of water is saved from being wasted. 2) The irrigation is the only when there is not enough moisture in the soil and the sensors decides when should the pump be turned on/off, saves a lot time for the farmers. This also gives much needed rest to the farmers, as they don’t have to go and turn the pump on/off manually.
Arduino Automatic Watering System Plants Sprinkler Using IoTPRAVEEN KANSARI
In this project Arduino Automatic Watering System Plants Sprinkler using IoT, the watering system is automatic using the Arduino Uno board and gets the information about plants and moisture of the soil in Gmail, Twitter and Facebook. In here, two types of programming languages are used which are Embedded C and Python programming. The Embedded C is used for the arduino for automate the watering system of the plants and other language Python is used for sending status of the plants and soil moisture to the Gmail and also IFTTT is used for getting data in Twitter and Facebook. We get data of the moisture sensor in our Gmail, Twitter and Facebook account using the Python code. The data or information is value of the serial monitor of the arduino as the resistivity of soil moisture with the status of plant as a message.
This system uses sensor technology with the microcontroller, relay, DC motor and battery. Behave as an intelligent switching system that detects the soil moisture level and irrigates the plant if necessary. The ON / OFF motor will automatically be based on the dryness level of the soil.
ppt submit by Prashant D. Auti
This project uses soil moisture sensor and if the soil is dry, a mechanism to water the soil is set into motion. The whole circuit is controlled by the micro-controller based Arduino Uno Development Board.
Automated irrigation system based on soil moisture using arduinoVishal Nagar
Automated irrigation system based on soil moisture using arduino
More Details: Contact me 9982228229
www.roofurja.com
vishalnagarcool.blogspot.com
https://www.youtube.com/watch?v=utHRD4B8BxQ
This ppt is explained how to develop an automatic irrigation system that switches a pump motor on/off upon sensing moisture content of the soil.By using this method is to reduce human intervention and still ensure proper irrigation.
Edgefxkits.com has a wide range of electronic projects ideas that are primarily helpful for ECE, EEE and EIE students and the ideas can be applied for real life purposes as well.
http://www.edgefxkits.com/
Visit our page to get more ideas on popular electronic projects developed by professionals.
Edgefx provides free verified electronic projects kits around the world with abstracts, circuit diagrams, and free electronic software. We provide guidance manual for Do It Yourself Kits (DIY) with the modules at best price along with free shipping.
AUTOMATIC PLANT WATERING SYSTEM USING ARDUINO BASED PPTrishav164
So what is this project? What does it do? Basically this is a soil moisture monitoring system, which detects if the moisture content in the soil is above or below a certain satisfactory threshold value. If it goes below a certain critical point, it is time to water the plant until the soil surrounding the plant is moist enough. An arrangement of a DC motor relay is used to control the watering mechanism.
"Automatic Intelligent Plant Irrigation System using Arduino and GSM board"Disha Modi
Automatic irrigation is a form of irrigation system that incorporates the theory of control, power of wireless technology and feedback system with irrigation. The aim of our project is not only to minimize this manual intervention by the farmer in farm field, but also to successfully water garden plants planted in pots too. Which is why we are using micro- controller based Automated Irrigation system will serve the following purposes: 1) As there is no un-planned usage of water, a lot of water is saved from being wasted. 2) The irrigation is done only when there is not enough moisture in the soil and the microcontroller decides when should the pump be turned on/off, saves a lot time for the farmers. This also gives much needed rest to the farmers and helps, as they don’t have to go and turn the pump on/off manually. 3)This irrigation system can be monitor by user wirelessly. User can receive notification and can provide proper commands via his cell phone whenever necessary.
The aim of our project is to minimize this manual intervention by the farmer. Automated Irrigation system will serve the following purposes: 1) As there is no un-planned usage of water, a lot of water is saved from being wasted. 2) The irrigation is the only when there is not enough moisture in the soil and the sensors decides when should the pump be turned on/off, saves a lot time for the farmers. This also gives much needed rest to the farmers, as they don’t have to go and turn the pump on/off manually.

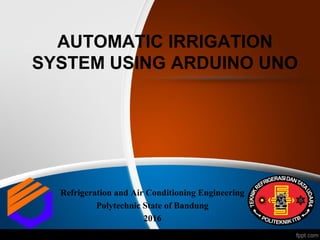

AUTOMATIC IRRIGATION SYSTEM USING ARDUINO UNORizki Verdian
This Presentation explain you about Automatic Irrigation System is a prototype for a system of irrigation or watering automatically based on the Arduino microcontroller integrated with proximity sensors (Ultrasonic Sensor), the DC motor and the pump using LED indicator lights.
Made by :
Andika Jamal Nurganda 151611004
Putri Sintia Sari 151611021
Rizki Verdian 151611025
Refrigeration and Air Conditioning Engineering
Polytechnic State of Bandung
2016
Dont forget watch demonstration video in youtube
Arduino based intelligent greenhouse ProjectAmit Saini
Final Year Project : - Arduino based ‘Intelligent Green House'
A complete greenhouse monitoring and controlling system ,that is automated, updating each and every detail on internet that can be accessed from anywhere. For sensors, it uses a light sensor, temperature sensor, moisture sensor, humidity sensor and all the updates will be available on internet through Ethernet shield through which the user can take care of the garden even when not at home.
Macam-macam motor dan pembahasan. Disusun untuk memenuhi mata kuliah Instrumentasi yang dibimbing oleh Bapak Muhammad Arman, ST., S.Psi M.Eng.
Semoga bermanfaat :)
Program Studi D3-Teknik Refrigerasi & Tata Udara
Politeknik Negeri Bandung
2016
GSM GPRS SIM900A Module with Stub Antenna and SMA ConnectorRaghav Shetty
GSM/GPRS Modem-RS232 is built with Dual Band GSM/GPRS engine- SIM900A, works on frequencies 900/ 1800 MHz. The Modem is coming with RS232 interface, which allows you connect PC as well as microcontroller with RS232 Chip(MAX232). The baud rate is configurable from 9600-115200 through AT command. The GSM/GPRS Modem is having internal TCP/IP stack to enable you to connect with internet via GPRS. It is suitable for SMS, Voice as well as DATA transfer application in M2M interface. The onboard Regulated Power supply allows you to connect wide range unregulated power supply . Using this modem, you can make audio calls, SMS, Read SMS, attend the incoming calls and internet through simple AT commands
This ppt explains how to use of proper method of irrigation and it is important.The main reason is the lack of rains & scarcity of land reservoir
water. This ppt is based on microcontroller .
Edgefxkits.com has a wide range of electronic projects ideas that are primarily helpful for ECE, EEE and EIE students and the ideas can be
applied for real life purposes as well.
http://www.edgefxkits.com/
Visit our page to get more ideas on popular electronic projects developed by professionals.
Edgefx provides free verified electronic projects kits around the world with abstracts, circuit diagrams, and free electronic software. We provide
guidance manual for Do It Yourself Kits (DIY) with the modules at best price along with free shipping.
Automatic tank level control using arduino mega convertedKunal Adhikari
Water is the most important Nature’s gift to mankind. Without water there is no life, especially now that fresh water is endangered. So, water management should reduce its wastage. As a first step, this controller will automatically switch ON and OFF the domestic water pump system depending on the water tank and underground sump levels (to prevent dry run of pump). In this paperwork an effort is made to design a cost-effective circuit and complete system using Arduino and Ultrasonic transducers, to be used in water level indication. It will control the storage level of water in a tank through SPST relay to provide water thoroughly, without any wastage of water or power.
Home Automation Water Tank Level Control Upamanyu Ray
Using Arduino Mega (only to simplify the connections, otherwise, Uno or Nano would have sufficed) tank level control to prevent overflow and absence of water in the tank, and also to make sure that the pump does not dry run in the sump.
Smartphone Controlled Water Pump Management System for Various Irrigation Sec...ijtsrd
The water pump technology described in this paper is Bluetooth controlled and may be used to remotely manage water using a mobile application. The system consists of a microcontroller with Bluetooth functionality coupled to a water pump. Through the interface of the mobile application, users may control the pump, modify flow rates, and keep an eye on its current status. The technology uses a secure Bluetooth connection and is energy efficient. It can be applied in a variety of contexts, such as water management in gardening, fisheries, agriculture, and diverse sectors of irrigation. This research demonstrates the viability and efficiency of using Bluetooth technology to remotely control water pumps, which contributes to preserving resources. The implementation of this initiative may also contribute to the reduction in the waste of electricity and water. Rafat Ara | Harun-Or-Roshid | Md. Abdur Rahim "Smartphone-Controlled Water Pump Management System for Various Irrigation Sectors Using Ardunio UNO" Published in International Journal of Trend in Scientific Research and Development (ijtsrd), ISSN: 2456-6470, Volume-8 | Issue-1 , February 2024, URL: https://www.ijtsrd.com/papers/ijtsrd62405.pdf Paper Url: https://www.ijtsrd.com/other-scientific-research-area/other/62405/smartphonecontrolled-water-pump-management-system-for-various-irrigation-sectors-using-ardunio-uno/rafat-ara
Introduction to Arduino-based Smart Home Automation
The world is rapidly evolving with technological advancements, and our homes are no exception. Smart home automation has gained immense popularity as it offers convenience, energy efficiency, and enhanced security. Arduino, an open-source electronics platform, has emerged as a powerful tool for building smart home automation systems.
Arduino-based smart home automation systems empower homeowners to control various devices and appliances remotely, create personalized schedules, and monitor their homes' status from anywhere in the world. From turning on lights and adjusting room temperatures to managing security systems and controlling entertainment systems, Arduino provides a flexible and customizable platform for automating everyday tasks.
By leveraging Arduino's versatility, homeowners can integrate a wide range of sensors, actuators, and communication modules into their smart homes. Whether it's detecting motion, measuring temperature and humidity, or monitoring air quality, Arduino allows for seamless integration and interaction between these devices.
One of the most significant advantages of Arduino-based smart home automation is its user-friendly programming environment. Arduino offers an easy-to-understand programming language that enables even beginners to develop complex automation systems. With a vast online community and extensive documentation, aspiring DIY enthusiasts and experienced developers alike can find ample resources and support to bring their smart home automation ideas to life.
In this series of tutorials on Arduino-based smart home automation, we will explore various aspects of building and programming these systems. We will delve into topics such as setting up the Arduino board, connecting sensors and actuators, designing intuitive user interfaces, and implementing wireless communication protocols. Through practical examples and step-by-step instructions, we aim to empower individuals to create their own smart homes tailored to their specific needs.
So, whether you're looking to enhance the comfort and convenience of your home or increase energy efficiency and security, Arduino-based smart home automation provides an accessible and flexible solution. Get ready to embark on an exciting journey of exploring the vast possibilities of Arduino and transform your living space into a truly smart home.
Automatic nutritioning plant with Arduino UNORizkya Nadila
Instrumentation Project
RHVAC Department - Bandung state Polytechnic
2A - group 3
- Ade Herdiana (151611001)
- Rizkya Nadila (151611026)
- Yossa Fariz R (151611031)
more info : rizkyanadilas@gmail.com
Monitoring and Automatic Nutrient for Hydroponik Plant Using Ultrasonic SensorAde Herdiana
Instrumentation Project
RHVAC Department - Bandung state Polytechnic
2A - group 3
- Ade Herdiana (151611001)
- Rizkya Nadila (151611026)
- Yossa Fariz R (151611031)
more info : ade.herdiana99@gmail.com
Irrigation is a scientific process of artificially supplying water to the land or soil that is being cultivated. Traditionally in dry regions having no or little rainfall water had to be supplied to the fields either through canals or hand pumps, tube wells. Conventional irrigation methods had severe problems such as increase in workload of farm labor and often it lead to problem such as over-irrigation or under-irrigation, and leaching of soil.
To develop smart based automatic Farming system capable of controlling many electrical appliances in an irrigation or field using android platform with a mobile handset, where data transmission is carried wirelessly. That’s why design Wireless transmission media using through and its interfacing peripherals for wireless data communication between Mobile Handset and appliances is our need. Hence to create a database of user interface in order to characterize the electric signals to atomize farming system. It also prevents for heat control if some farm gets burnt it’s start giving message to the farmers and also we will give fertilizers to the irrigation plant such that good yield to be produced.
IoT Based Water Quality Monitoring System for Smart CitiesYogeshIJTSRD
Since from the last centuries, water has been affected due to many parameters and actions done by human beings. Due to these actions drinking water becomes dangerous and harmful with increase in living population and also due to global warming and changes in natural climate. So, in upcoming generation we need safe drinking water for all living things. For these safety measures we need to first monitor the quality of the drinking water. In earlier days, people used some manual types of measurements for monitoring the water. But it takes more time and it has less efficiency. So, we need a better idea to check the quality of the water because water is more essential for all living things. By considering all these necessities, we develop a new methodology for monitoring the quality of the given water using IOT environment with low level of cost and with high efficiency. We also ensure real time data value by developing a web application using wi fi module, which can be accessed at anywhere. A. Guna Selvi | S. Vibhithra | A. John Clement Sunder "IoT Based Water Quality Monitoring System for Smart Cities" Published in International Journal of Trend in Scientific Research and Development (ijtsrd), ISSN: 2456-6470, Volume-5 | Issue-3 , April 2021, URL: https://www.ijtsrd.com/papers/ijtsrd40058.pdf Paper URL: https://www.ijtsrd.com/engineering/electronics-and-communication-engineering/40058/iot-based-water-quality-monitoring-system-for-smart-cities/a-guna-selvi
Similar to AUTOMATIC IRRIGATION SYSTEM USING ARDUINO UNO (20)
Water scarcity is the lack of fresh water resources to meet the standard water demand. There are two type of water scarcity. One is physical. The other is economic water scarcity.
Vaccine management system project report documentation..pdfKamal Acharya
The Division of Vaccine and Immunization is facing increasing difficulty monitoring vaccines and other commodities distribution once they have been distributed from the national stores. With the introduction of new vaccines, more challenges have been anticipated with this additions posing serious threat to the already over strained vaccine supply chain system in Kenya.
CFD Simulation of By-pass Flow in a HRSG module by R&R Consult.pptxR&R Consult
CFD analysis is incredibly effective at solving mysteries and improving the performance of complex systems!
Here's a great example: At a large natural gas-fired power plant, where they use waste heat to generate steam and energy, they were puzzled that their boiler wasn't producing as much steam as expected.
R&R and Tetra Engineering Group Inc. were asked to solve the issue with reduced steam production.
An inspection had shown that a significant amount of hot flue gas was bypassing the boiler tubes, where the heat was supposed to be transferred.
R&R Consult conducted a CFD analysis, which revealed that 6.3% of the flue gas was bypassing the boiler tubes without transferring heat. The analysis also showed that the flue gas was instead being directed along the sides of the boiler and between the modules that were supposed to capture the heat. This was the cause of the reduced performance.
Based on our results, Tetra Engineering installed covering plates to reduce the bypass flow. This improved the boiler's performance and increased electricity production.
It is always satisfying when we can help solve complex challenges like this. Do your systems also need a check-up or optimization? Give us a call!
Work done in cooperation with James Malloy and David Moelling from Tetra Engineering.
More examples of our work https://www.r-r-consult.dk/en/cases-en/
TECHNICAL TRAINING MANUAL GENERAL FAMILIARIZATION COURSEDuvanRamosGarzon1
AIRCRAFT GENERAL
The Single Aisle is the most advanced family aircraft in service today, with fly-by-wire flight controls.
The A318, A319, A320 and A321 are twin-engine subsonic medium range aircraft.
The family offers a choice of engines
Student information management system project report ii.pdfKamal Acharya
Our project explains about the student management. This project mainly explains the various actions related to student details. This project shows some ease in adding, editing and deleting the student details. It also provides a less time consuming process for viewing, adding, editing and deleting the marks of the students.
COLLEGE BUS MANAGEMENT SYSTEM PROJECT REPORT.pdfKamal Acharya
The College Bus Management system is completely developed by Visual Basic .NET Version. The application is connect with most secured database language MS SQL Server. The application is develop by using best combination of front-end and back-end languages. The application is totally design like flat user interface. This flat user interface is more attractive user interface in 2017. The application is gives more important to the system functionality. The application is to manage the student’s details, driver’s details, bus details, bus route details, bus fees details and more. The application has only one unit for admin. The admin can manage the entire application. The admin can login into the application by using username and password of the admin. The application is develop for big and small colleges. It is more user friendly for non-computer person. Even they can easily learn how to manage the application within hours. The application is more secure by the admin. The system will give an effective output for the VB.Net and SQL Server given as input to the system. The compiled java program given as input to the system, after scanning the program will generate different reports. The application generates the report for users. The admin can view and download the report of the data. The application deliver the excel format reports. Because, excel formatted reports is very easy to understand the income and expense of the college bus. This application is mainly develop for windows operating system users. In 2017, 73% of people enterprises are using windows operating system. So the application will easily install for all the windows operating system users. The application-developed size is very low. The application consumes very low space in disk. Therefore, the user can allocate very minimum local disk space for this application.
Cosmetic shop management system project report.pdfKamal Acharya
Buying new cosmetic products is difficult. It can even be scary for those who have sensitive skin and are prone to skin trouble. The information needed to alleviate this problem is on the back of each product, but it's thought to interpret those ingredient lists unless you have a background in chemistry.
Instead of buying and hoping for the best, we can use data science to help us predict which products may be good fits for us. It includes various function programs to do the above mentioned tasks.
Data file handling has been effectively used in the program.
The automated cosmetic shop management system should deal with the automation of general workflow and administration process of the shop. The main processes of the system focus on customer's request where the system is able to search the most appropriate products and deliver it to the customers. It should help the employees to quickly identify the list of cosmetic product that have reached the minimum quantity and also keep a track of expired date for each cosmetic product. It should help the employees to find the rack number in which the product is placed.It is also Faster and more efficient way.
Immunizing Image Classifiers Against Localized Adversary Attacksgerogepatton
This paper addresses the vulnerability of deep learning models, particularly convolutional neural networks
(CNN)s, to adversarial attacks and presents a proactive training technique designed to counter them. We
introduce a novel volumization algorithm, which transforms 2D images into 3D volumetric representations.
When combined with 3D convolution and deep curriculum learning optimization (CLO), itsignificantly improves
the immunity of models against localized universal attacks by up to 40%. We evaluate our proposed approach
using contemporary CNN architectures and the modified Canadian Institute for Advanced Research (CIFAR-10
and CIFAR-100) and ImageNet Large Scale Visual Recognition Challenge (ILSVRC12) datasets, showcasing
accuracy improvements over previous techniques. The results indicate that the combination of the volumetric
input and curriculum learning holds significant promise for mitigating adversarial attacks without necessitating
adversary training.
Sachpazis:Terzaghi Bearing Capacity Estimation in simple terms with Calculati...Dr.Costas Sachpazis
Terzaghi's soil bearing capacity theory, developed by Karl Terzaghi, is a fundamental principle in geotechnical engineering used to determine the bearing capacity of shallow foundations. This theory provides a method to calculate the ultimate bearing capacity of soil, which is the maximum load per unit area that the soil can support without undergoing shear failure. The Calculation HTML Code included.
Final project report on grocery store management system..pdfKamal Acharya
In today’s fast-changing business environment, it’s extremely important to be able to respond to client needs in the most effective and timely manner. If your customers wish to see your business online and have instant access to your products or services.
Online Grocery Store is an e-commerce website, which retails various grocery products. This project allows viewing various products available enables registered users to purchase desired products instantly using Paytm, UPI payment processor (Instant Pay) and also can place order by using Cash on Delivery (Pay Later) option. This project provides an easy access to Administrators and Managers to view orders placed using Pay Later and Instant Pay options.
In order to develop an e-commerce website, a number of Technologies must be studied and understood. These include multi-tiered architecture, server and client-side scripting techniques, implementation technologies, programming language (such as PHP, HTML, CSS, JavaScript) and MySQL relational databases. This is a project with the objective to develop a basic website where a consumer is provided with a shopping cart website and also to know about the technologies used to develop such a website.
This document will discuss each of the underlying technologies to create and implement an e- commerce website.
Overview of the fundamental roles in Hydropower generation and the components involved in wider Electrical Engineering.
This paper presents the design and construction of hydroelectric dams from the hydrologist’s survey of the valley before construction, all aspects and involved disciplines, fluid dynamics, structural engineering, generation and mains frequency regulation to the very transmission of power through the network in the United Kingdom.
Author: Robbie Edward Sayers
Collaborators and co editors: Charlie Sims and Connor Healey.
(C) 2024 Robbie E. Sayers
Industrial Training at Shahjalal Fertilizer Company Limited (SFCL)MdTanvirMahtab2
This presentation is about the working procedure of Shahjalal Fertilizer Company Limited (SFCL). A Govt. owned Company of Bangladesh Chemical Industries Corporation under Ministry of Industries.

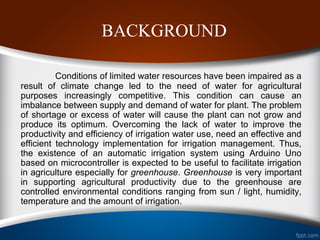

4. BACKGROUND
Conditions of limited water resources have been impaired as a
result of climate change led to the need of water for agricultural
purposes increasingly competitive. This condition can cause an
imbalance between supply and demand of water for plant. The problem
of shortage or excess of water will cause the plant can not grow and
produce its optimum. Overcoming the lack of water to improve the
productivity and efficiency of irrigation water use, need an effective and
efficient technology implementation for irrigation management. Thus,
the existence of an automatic irrigation system using Arduino Uno
based on microcontroller is expected to be useful to facilitate irrigation
in agriculture especially for greenhouse. Greenhouse is very important
in supporting agricultural productivity due to the greenhouse are
controlled environmental conditions ranging from sun / light, humidity,
temperature and the amount of irrigation.

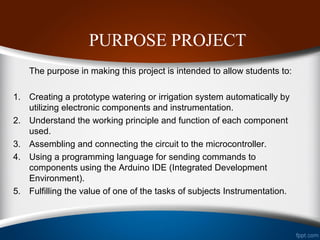

5. The purpose in making this project is intended to allow students to:
1. Creating a prototype watering or irrigation system automatically by
utilizing electronic components and instrumentation.
2. Understand the working principle and function of each component
used.
3. Assembling and connecting the circuit to the microcontroller.
4. Using a programming language for sending commands to
components using the Arduino IDE (Integrated Development
Environment).
5. Fulfilling the value of one of the tasks of subjects Instrumentation.
PURPOSE PROJECT

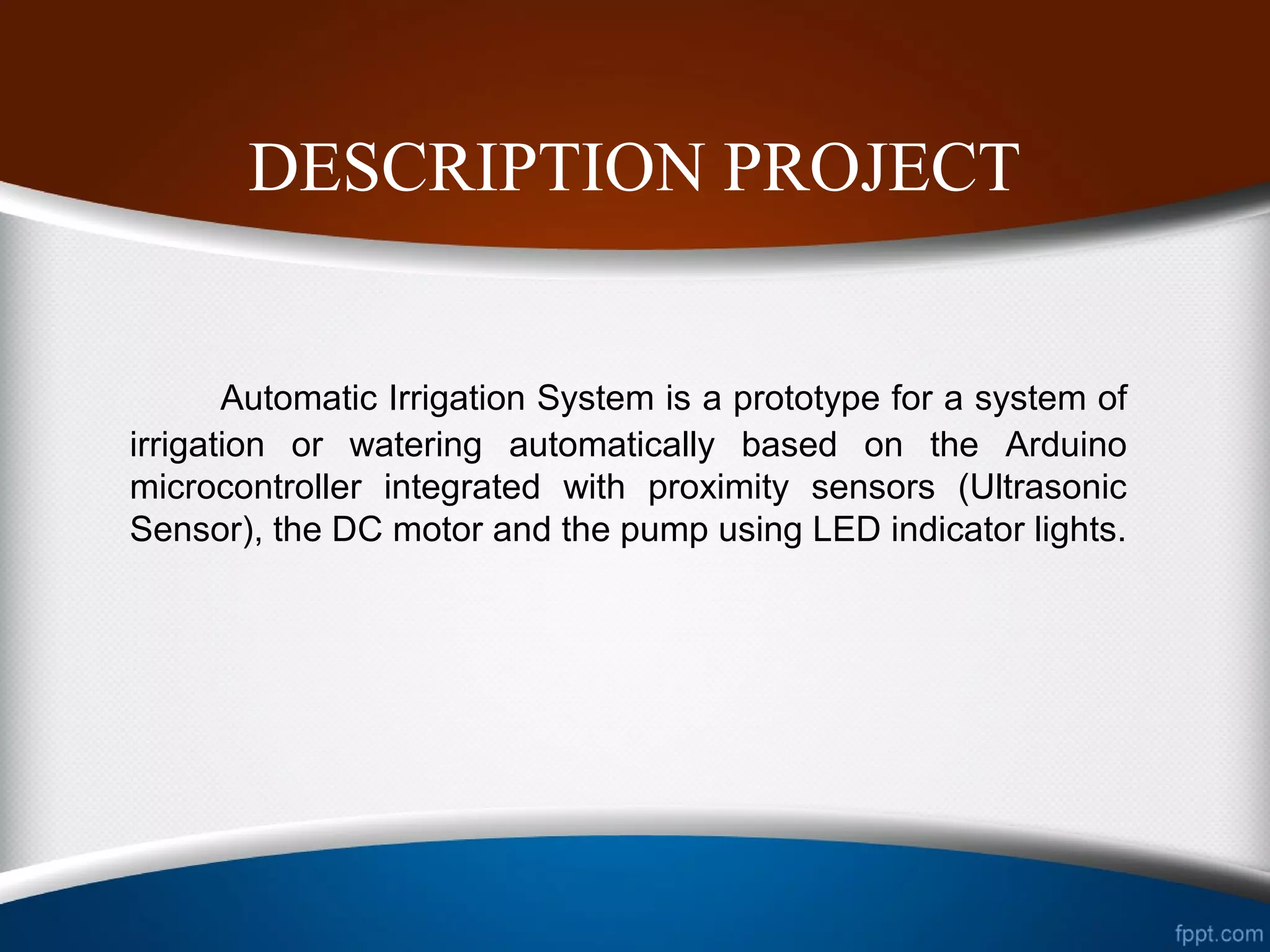

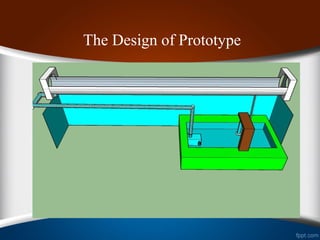

6. DESCRIPTION PROJECT
Automatic Irrigation System is a prototype for a system of
irrigation or watering automatically based on the Arduino
microcontroller integrated with proximity sensors (Ultrasonic
Sensor), the DC motor and the pump using LED indicator lights.

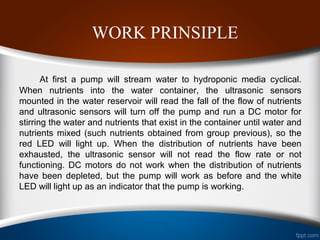

7. At first a pump will stream water to hydroponic media cyclical.
When nutrients into the water container, the ultrasonic sensors
mounted in the water reservoir will read the fall of the flow of nutrients
and ultrasonic sensors will turn off the pump and run a DC motor for
stirring the water and nutrients that exist in the container until water and
nutrients mixed (such nutrients obtained from group previous), so the
red LED will light up. When the distribution of nutrients have been
exhausted, the ultrasonic sensor will not read the flow rate or not
functioning. DC motors do not work when the distribution of nutrients
have been depleted, but the pump will work as before and the white
LED will light up as an indicator that the pump is working.
WORK PRINSIPLE

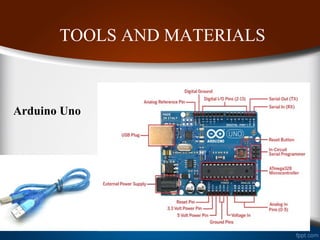

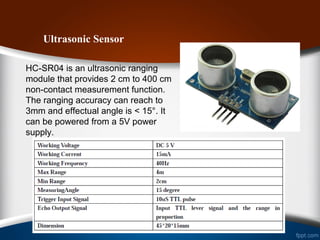

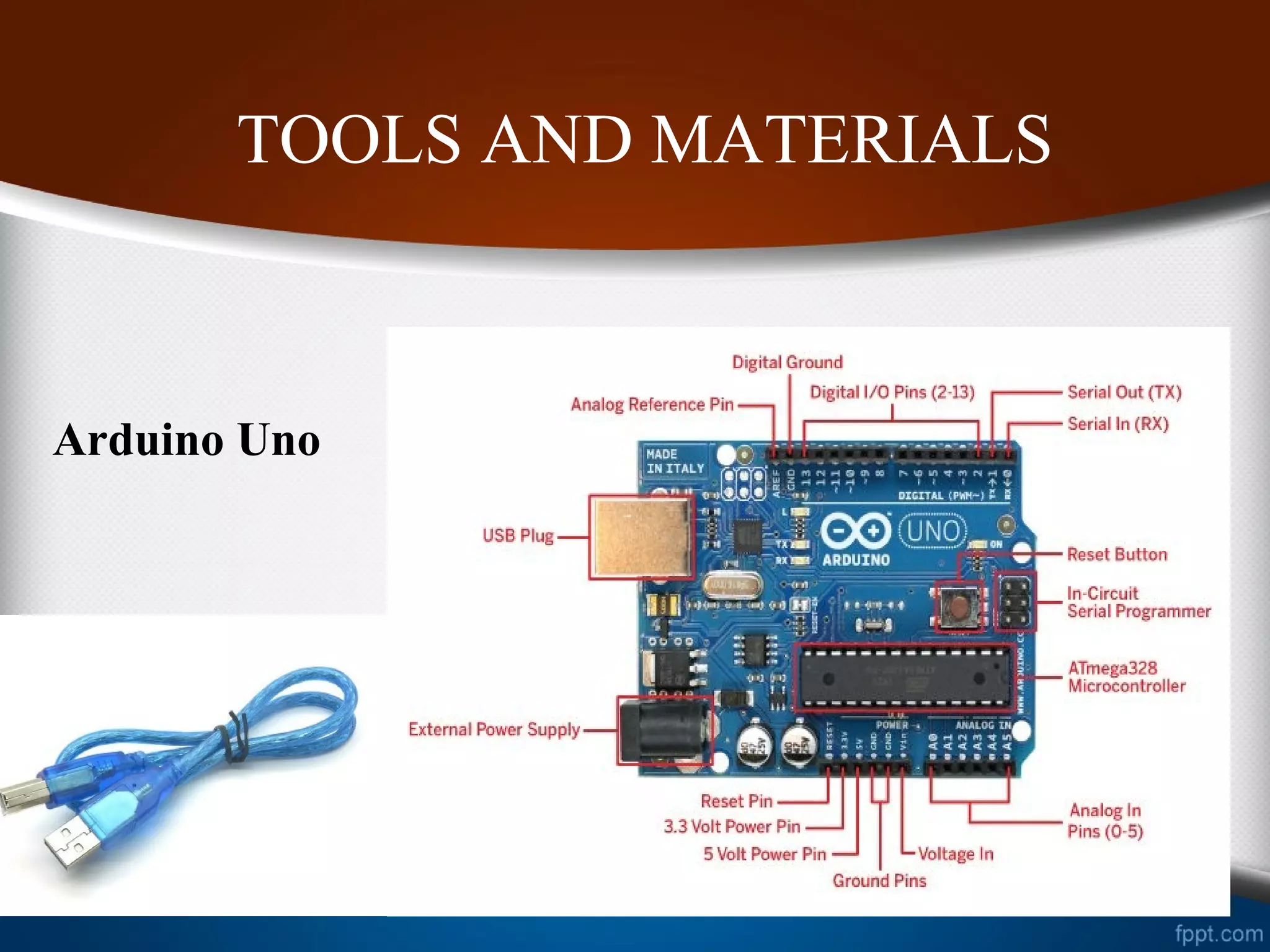

10. HC-SR04 is an ultrasonic ranging
module that provides 2 cm to 400 cm
non-contact measurement function.
The ranging accuracy can reach to
3mm and effectual angle is < 15°. It
can be powered from a 5V power
supply.
Ultrasonic Sensor

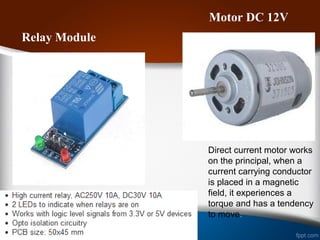

11. Relay Module
Direct current motor works
on the principal, when a
current carrying conductor
is placed in a magnetic
field, it experiences a
torque and has a tendency
to move.
Motor DC 12V

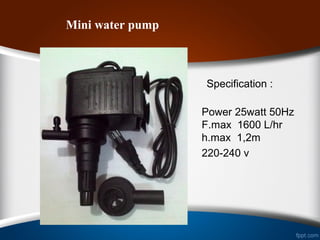

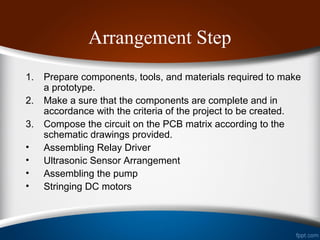

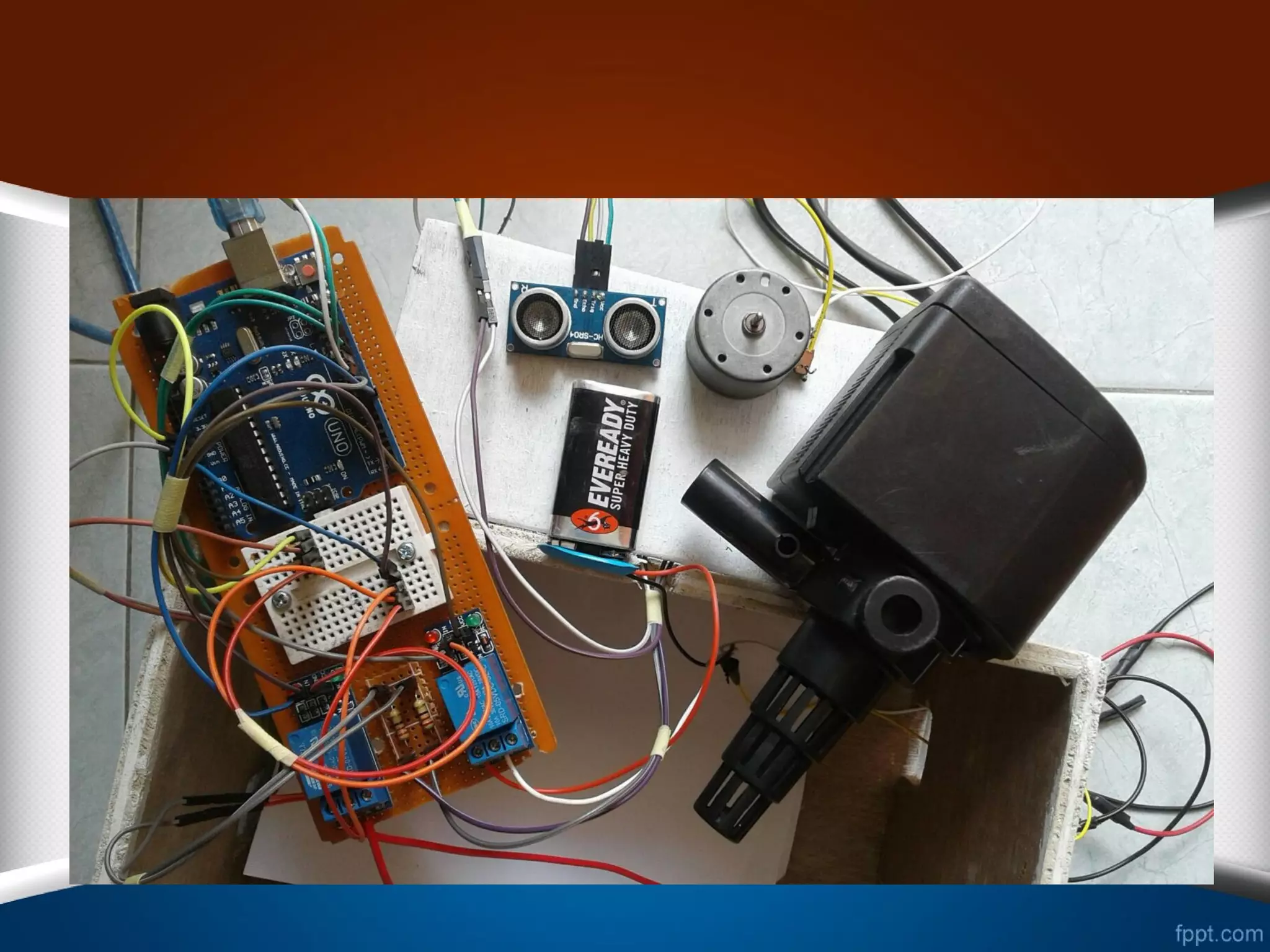

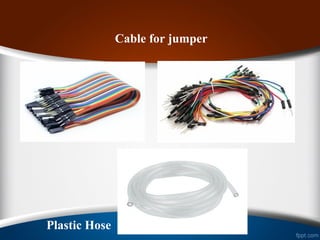

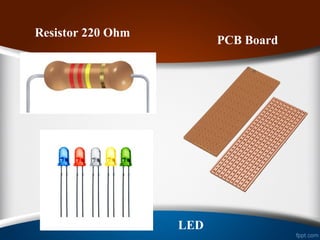

17. Arrangement Step
1. Prepare components, tools, and materials required to make
a prototype.
2. Make a sure that the components are complete and in
accordance with the criteria of the project to be created.

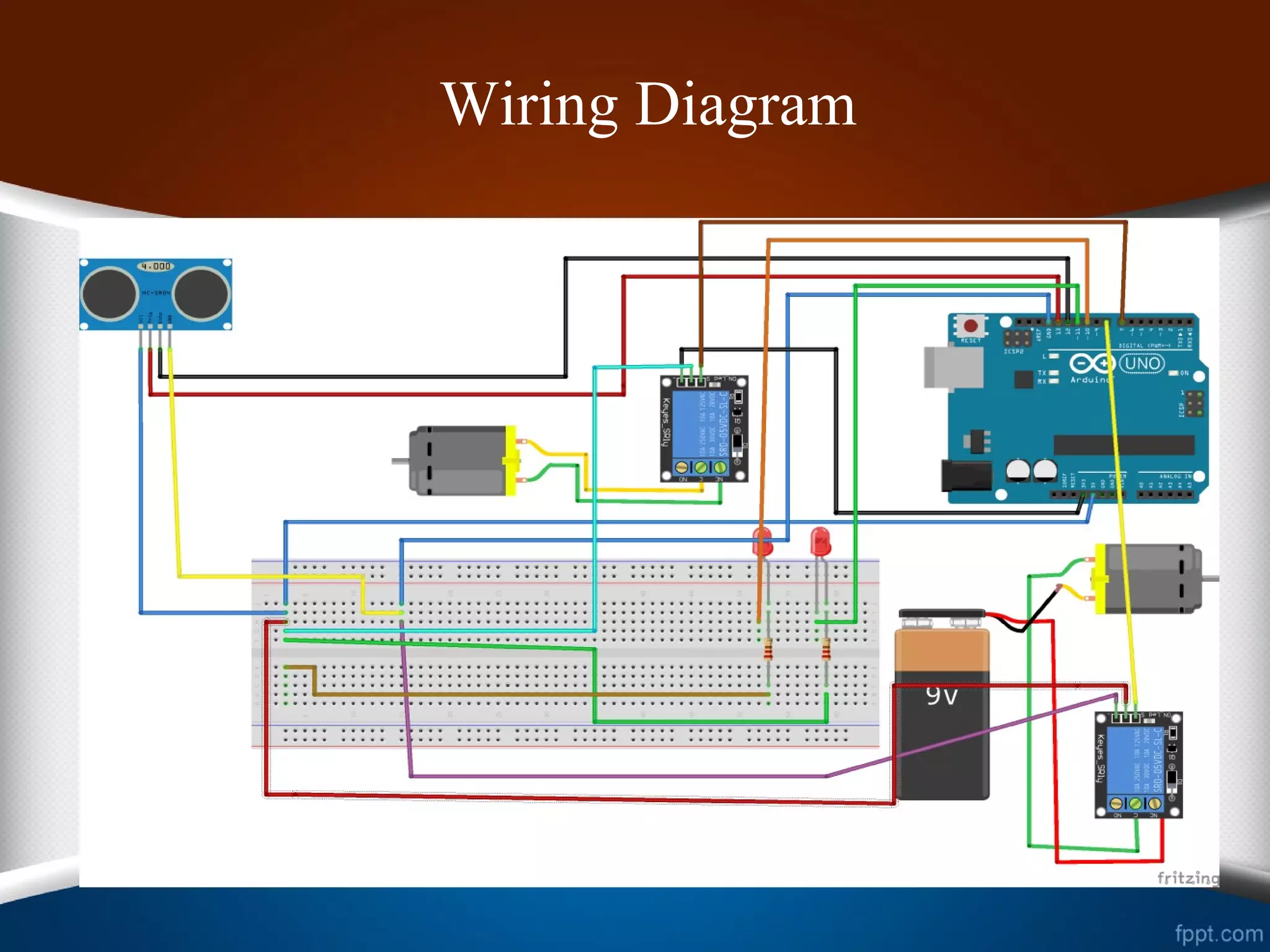

3. Compose the circuit on the PCB matrix according to the
schematic drawings provided.
• Assembling Relay Driver
• Ultrasonic Sensor Arrangement
• Assembling the pump
• Stringing DC motors

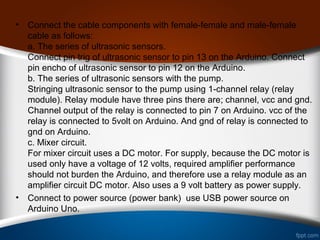

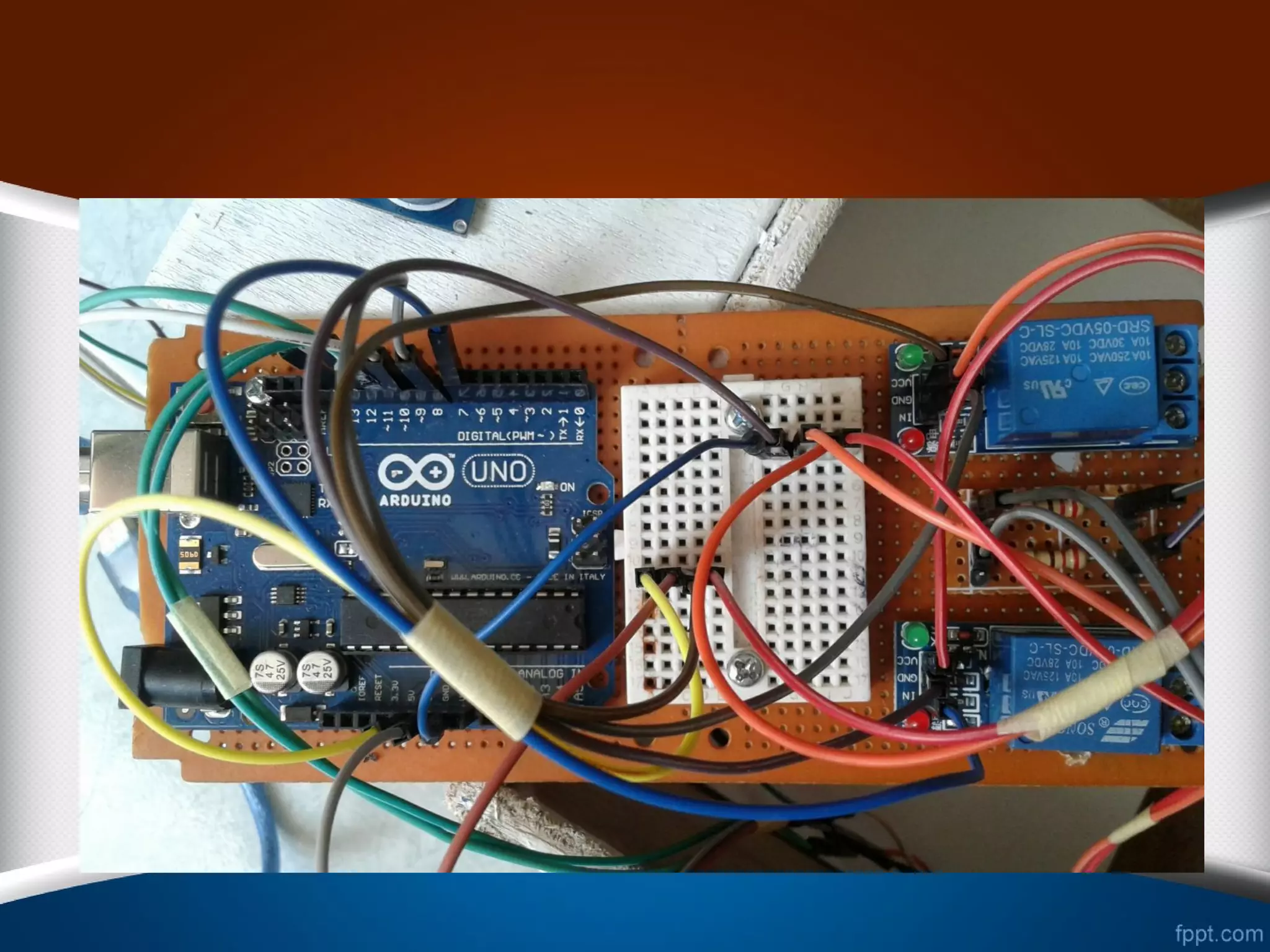

18. • Connect the cable components with female-female and male-female
cable as follows:
a. The series of ultrasonic sensors.
Connect pin trig of ultrasonic sensor to pin 13 on the Arduino. Connect
pin encho of ultrasonic sensor to pin 12 on the Arduino.
b. The series of ultrasonic sensors with the pump.
Stringing ultrasonic sensor to the pump using 1-channel relay (relay
module). Relay module have three pins there are; channel, vcc and gnd.
Channel output of the relay is connected to pin 7 on Arduino. vcc of the
relay is connected to 5volt on Arduino. And gnd of relay is connected to
gnd on Arduino.
c. Mixer circuit.
For mixer circuit uses a DC motor. For supply, because the DC motor is
used only have a voltage of 12 volts, required amplifier performance
should not burden the Arduino, and therefore use a relay module as an
amplifier circuit DC motor. Also uses a 9 volt battery as power supply.
• Connect to power source (power bank) use USB power source on
Arduino Uno.

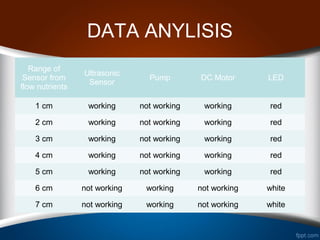

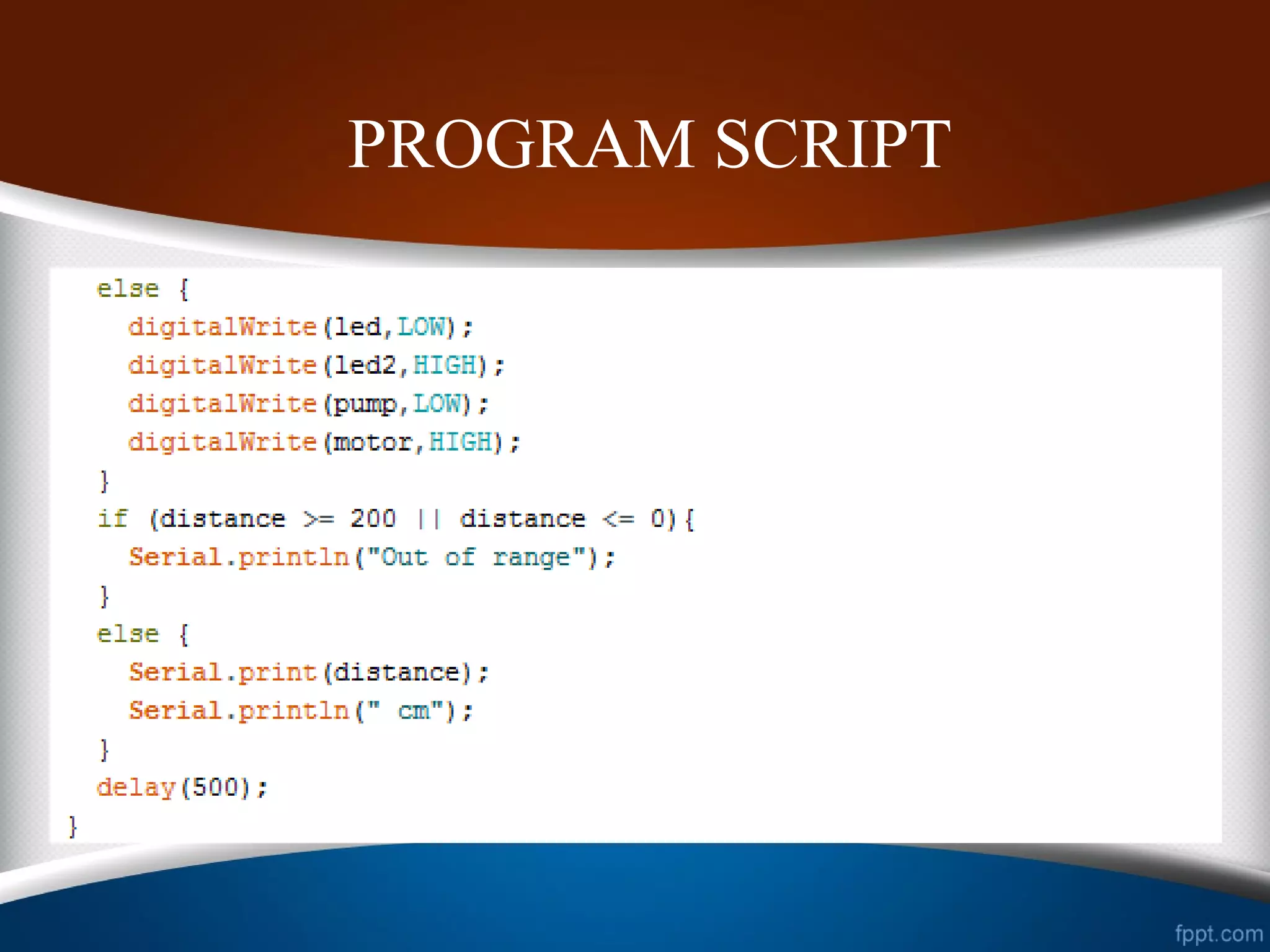

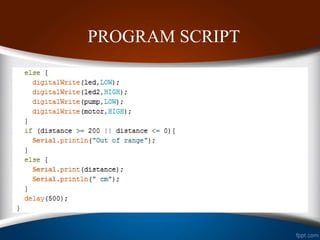

24. DATA ANYLISIS
Range of
Sensor from
flow nutrients
Ultrasonic
Sensor
Pump DC Motor LED
1 cm working not working working red
2 cm working not working working red
3 cm working not working working red
4 cm working not working working red
5 cm working not working working red
6 cm not working working not working white
7 cm not working working not working white

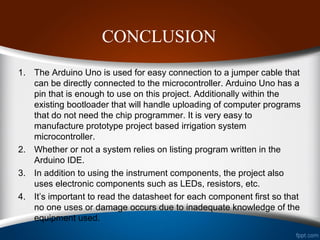

25. CONCLUSION
1. The Arduino Uno is used for easy connection to a jumper cable that
can be directly connected to the microcontroller. Arduino Uno has a
pin that is enough to use on this project. Additionally within the
existing bootloader that will handle uploading of computer programs
that do not need the chip programmer. It is very easy to
manufacture prototype project based irrigation system
microcontroller.
2. Whether or not a system relies on listing program written in the
Arduino IDE.
3. In addition to using the instrument components, the project also
uses electronic components such as LEDs, resistors, etc.
4. It’s important to read the datasheet for each component first so that
no one uses or damage occurs due to inadequate knowledge of the
equipment used.
