This document describes an Arduino-based automatic irrigation system. The system uses soil moisture and temperature sensors to monitor soil conditions. When the soil moisture drops below a threshold, a relay connected to an Arduino board activates a water pump to irrigate. The system aims to minimize manual intervention by farmers and prevent over- or under-watering. It provides a schematic diagram of the circuit components, which include an Arduino Uno, sensors, LCD display, and relay module. The document also includes photos of the prototype and discusses the benefits of automating irrigation.

1. Arduino Based Automatic
Irrigation System
to
WELCOME

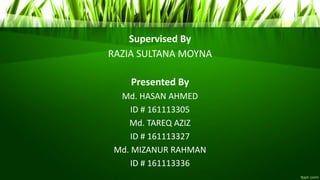

2. Supervised By
RAZIA SULTANA MOYNA
Presented By
Md. HASAN AHMED
ID # 161113305
Md. TAREQ AZIZ
ID # 161113327
Md. MIZANUR RAHMAN
ID # 161113336

3. Content
• Introduction
• Objective
• Block diagram of whole project
• Require components
• Circuit Diagram
• Working Steps
• 3d diagram in Fritzing
• Result & Discussion
• Conclusion

4. Introduction
• Irrigation is the artificial application of the land or soil.
• Knowing when and how much to water is two important
aspects of watering process.
• To make farming works easily, The Automatic Irrigation is
created.
• To impress the farmers for using renewable energy.

5. Objective
• To minimize manual intervention by the farmers.
• To prevent excessive wastage of water & Electricity.
• To protect the plant from instant damage.
Over Irrigation Under Irrigation Perfect Irrigation

6. Block diagram of Automatic Irrigation System
Temperatur
e sensor
Arduino
UNO
16*2 LCD
Relay
Relay
Driver
Moisture
Sensor Driver
Soil Moisture
Sensor Water Pump
I2C Module

7. Circuit Components
• Arduino UNO R3
• Breadboard with Power Supply
• Solar Panel
• Battery
• Soil Moisture Sensor & Driver
• 16*2 LCD with I2C Driver
• Relay with Driver
• Temperature Sensor
• Solar Pump
• Capacitor & Diode & wire

8. Schematic Diagram

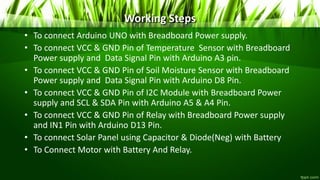

9. Working Steps
• To connect Arduino UNO with Breadboard Power supply.
• To connect VCC & GND Pin of Temperature Sensor with Breadboard
Power supply and Data Signal Pin with Arduino A3 pin.
• To connect VCC & GND Pin of Soil Moisture Sensor with Breadboard
Power supply and Data Signal Pin with Arduino D8 Pin.
• To connect VCC & GND Pin of I2C Module with Breadboard Power
supply and SCL & SDA Pin with Arduino A5 & A4 Pin.
• To connect VCC & GND Pin of Relay with Breadboard Power supply
and IN1 Pin with Arduino D13 Pin.
• To connect Solar Panel using Capacitor & Diode(Neg) with Battery
• To Connect Motor with Battery And Relay.

10. 3d diagram in Fritzing

11. Discussion & Result
• To control Relay with Motor, Arduino used. It is programmed by Arduino
IDE.
• To measure the temperature, The Temperature Sensor measures and
send signal in Arduino.
• To measure the level of soil, The Moisture Sensor senses and send signal
in Arduino.
• Finally The Pump supply the water to the water, until the desired
moisture level is reached.

12. Practical Implementation

13. Merits
• Highly sensitive.
• Works according to the soil condition.
• Low cost and reliable circuit.
• Complete elimination of manpower.
• System can be switched into manual mode whenever required.
• Irrigation in small places too like parks, garden.
• Very useful for common people who do not have time to water their
plant because of busy life schedule.
• This project is very economical in term of cost and power.

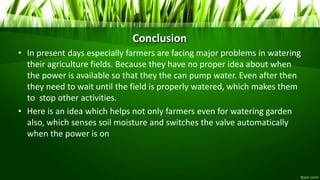

14. Conclusion
• In present days especially farmers are facing major problems in watering
their agriculture fields. Because they have no proper idea about when
the power is available so that they the can pump water. Even after then
they need to wait until the field is properly watered, which makes them
to stop other activities.
• Here is an idea which helps not only farmers even for watering garden
also, which senses soil moisture and switches the valve automatically
when the power is on

15. Thanks to All
Thanks to all this project related journals, Website, References &
all teacher of CITY UNIVERSITY.
