In this project Arduino Automatic Watering System Plants Sprinkler using IoT, the watering system is automatic using the Arduino Uno board and gets the information about plants and moisture of the soil in Gmail, Twitter and Facebook. In here, two types of programming languages are used which are Embedded C and Python programming. The Embedded C is used for the arduino for automate the watering system of the plants and other language Python is used for sending status of the plants and soil moisture to the Gmail and also IFTTT is used for getting data in Twitter and Facebook. We get data of the moisture sensor in our Gmail, Twitter and Facebook account using the Python code. The data or information is value of the serial monitor of the arduino as the resistivity of soil moisture with the status of plant as a message.

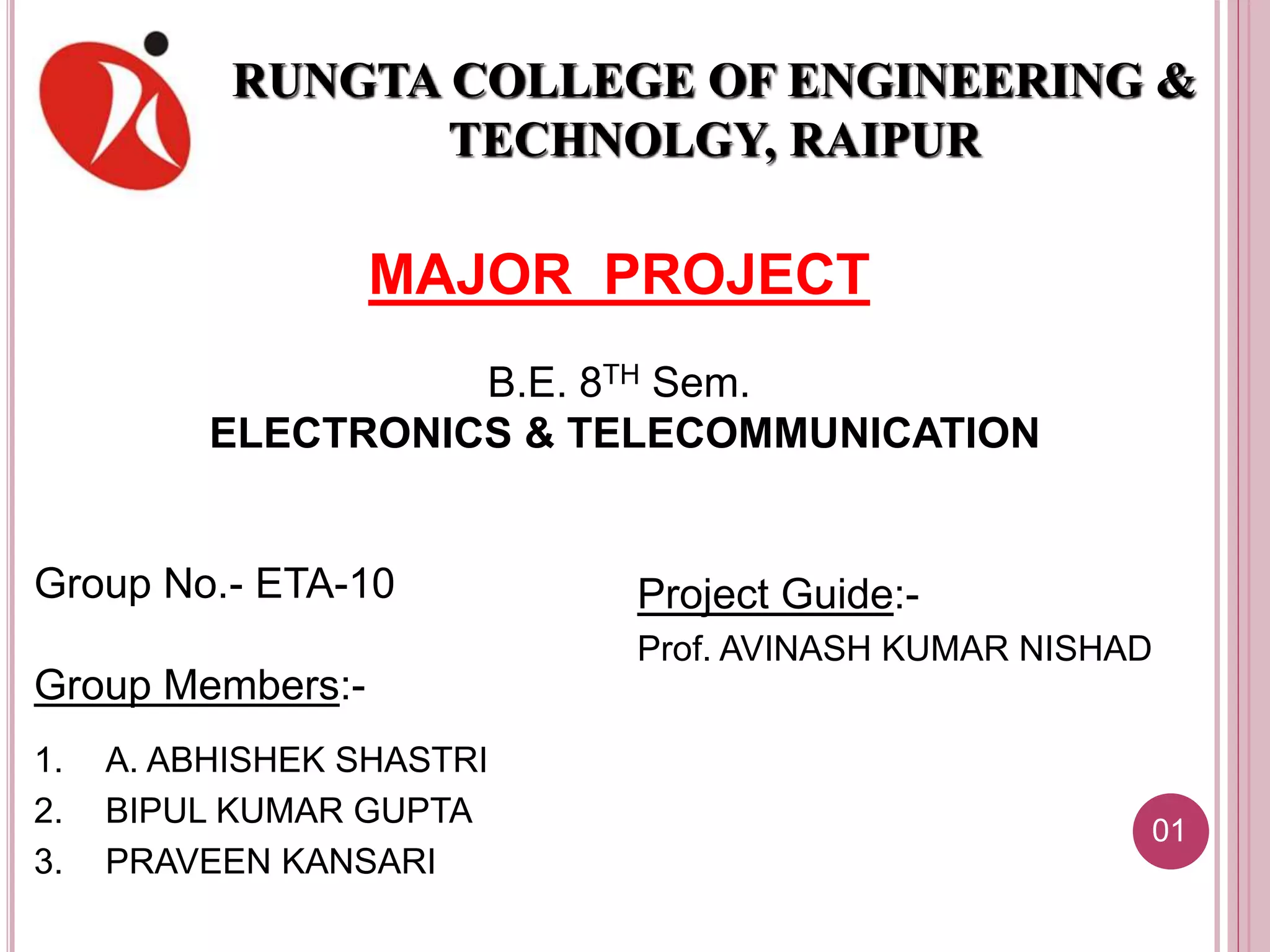

1. RUNGTA COLLEGE OF ENGINEERING &
TECHNOLGY, RAIPUR
Project Guide:-
Prof. AVINASH KUMAR NISHAD
Group No.- ETA-10
Group Members:-
1. A. ABHISHEK SHASTRI
2. BIPUL KUMAR GUPTA
3. PRAVEEN KANSARI
MAJOR PROJECT
B.E. 8TH Sem.
ELECTRONICS & TELECOMMUNICATION
01

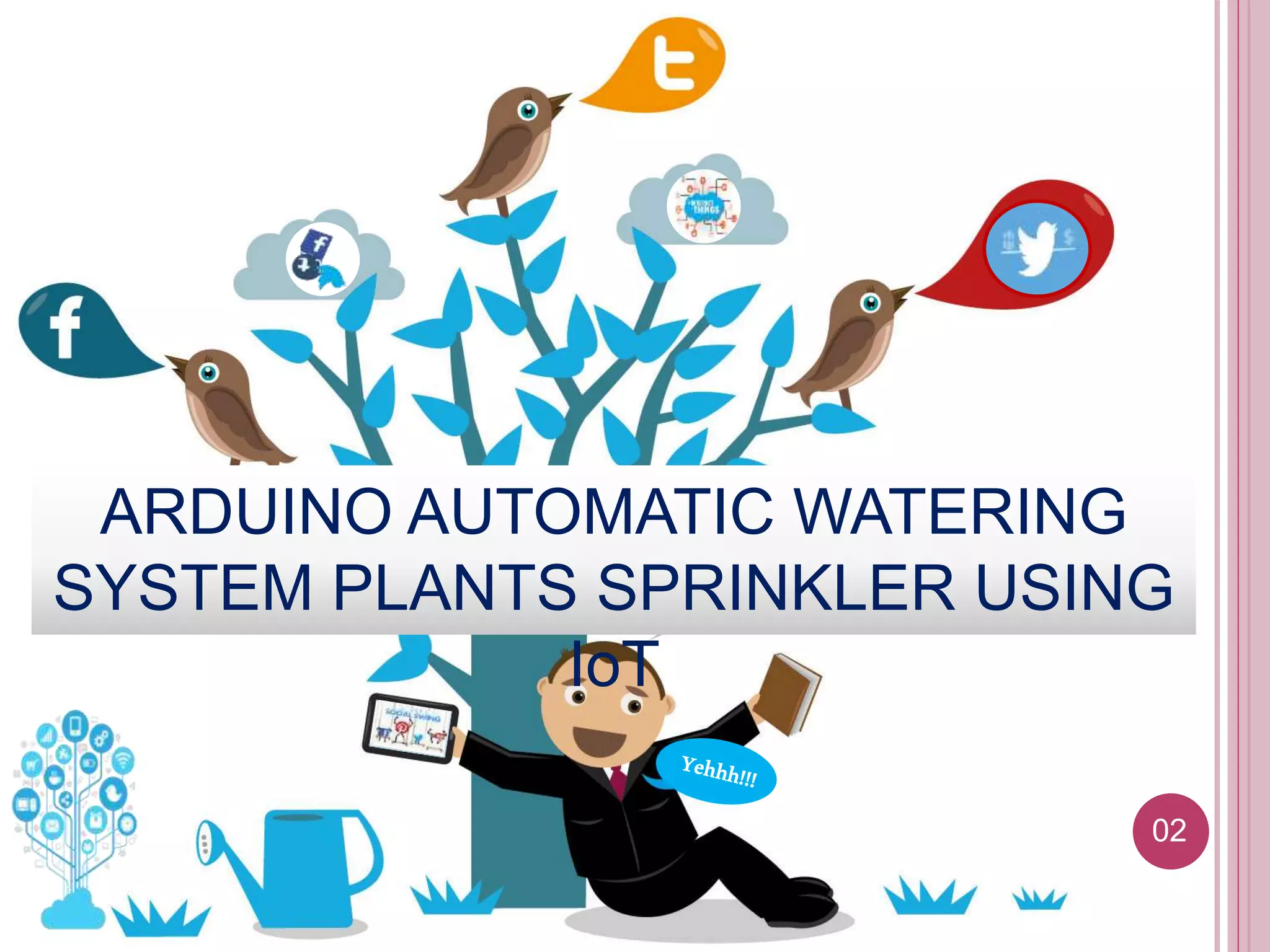

2. ARDUINO AUTOMATIC WATERING
SYSTEM PLANTS SPRINKLER USING
IoT
02

3.  INTRODUCTION
 COMPONENTS
 SOCIAL NETWORK
 LANGUAGES
CONTENTS
03
 BLOCK DIAGRAM
 WORKING
 APPLICATION
 CONCLUSION

4. INTRODUCTION
 It is a simple system, using Arduino to automate the
irrigation and watering of small potted plants or crops.
 This system does the control of soil moisture, doing
indications via LEDs. In case of dry soil it will activate
automatically the pumping of water for plants.
 We get the data and status of the humidity and plants in our
Gmail, Twitter & Facebook.
04

5. INTRODUCTION
 In our project, we make a simple automatic plant watering
system that will connected to the Internet.
 It is an Arduino based automatic plant water feeder system
that uses a soil moisture sensor.
05

6. COMPONENTS
 ARDUINO UNO
 MOISTURE SENSOR
 DRIVER (LM393)
 RELAY
 WATER PUMP
 BREAD BOARD, LEDs
06

7.  ARDUINO UNO
 MOISTURE SENSOR
 DRIVER (LM393)
 RELAY
 WATER PUMP
 BREAD BOARD, LEDs
COMPONENTS
SRAM-2KB EEPROM-1KB
07

8.  ARDUINO UNO
 MOISTURE SENSOR
 DRIVER (LM393)
 RELAY
 WATER PUMP
 BREAD BOARD, LEDs
COMPONENTS
08

9.  ARDUINO UNO
 MOISTURE SENSOR
 DRIVER (LM393)
 RELAY
 WATER PUMP
 BREAD BOARD, LEDs
COMPONENTS
09

10. COMPONENTS
 ARDUINO UNO
 MOISTURE SENSOR
 DRIVER (LM393)
 RELAY
 WATER PUMP
 BREAD BOARD, LEDs
10

11. COMPONENTS
 ARDUINO UNO
 MOISTURE SENSOR
 DRIVER (LM393)
 RELAY
 WATER PUMP
 BREAD BOARD, LEDs
11

12. COMPONENTS
 ARDUINO UNO
 MOISTURE SENSOR
 DRIVER (LM393)
 RELAY
 WATER PUMP
 BREAD BOARD, LEDs
12

13. SOCIAL NETWORK
13
I
F
T
T
T
F
A
C
E
B
O
O
K
T
W
I
T
T
E
R
G
M
A
I
L

14. IFTTT
14

15. LANGUAGES
15
PythonEmbedded C

16. BLOCK DIAGRAM
16

17. WORKING
 The moisture sensor is attached on the root of
plants.
 It sense the requirement of water.
 If yes, the arduino in which program is burned starts
the motor.
 And the alarm starts beeping and also LED ON.
 Automatically off by help of moisture sensor, the
motor after fill requirement of water . 17

18. MESSAGE SENDING PROCESS
18
Plants
Sensor
Facebook
GmailArduino
IFTTT Twitter

19. APPLICATION
Automated rooftop gardening system.
Controlled irrigation system in canals.
Reducing wastage of water.
19

20. CONCLUSION
 With the use of this technique we
can reduced water consumption.
 No nutrition pollution is released
into the environment because of
the controlled system.
 Hence will have great saving of
irrigation water, stronger, healthier
plants and stable, high yields.
20

21. 21
