Auto Room Lighting System
1. WELCOME TO OUR PRESENTATION
BANGLADESH UNIVERSITY OF SCIENCE BUSINESS AND TECHNOLOGY
(BUBT)
2. AUTOMATIC ROOM LIGHT CONTROLLING SYSTEM
Name ID
Md. Mahfuzur Rahman 14153103024
Md. Sayeed Mahmud 14153103095
Marufa Akter mukty 14153103105
Md. Sabbir Alam 14153103110
Tanjila Akter 14153103121
Ajmoon Nahar Urmi 14153103132
Group No: 03
Supervise By:
Md. Maynul Islam
Lecturer in EEE
Department of EEE
3. INTRODUCTION
Automatic Room Light controlling System is a microcontroller based project that automatically turn on or
off the lights in a room. Electricity, being one of the most important resources, must be utilized carefully.
The project implemented here is one such project where the microcontroller based system automatically
controls the room lights.

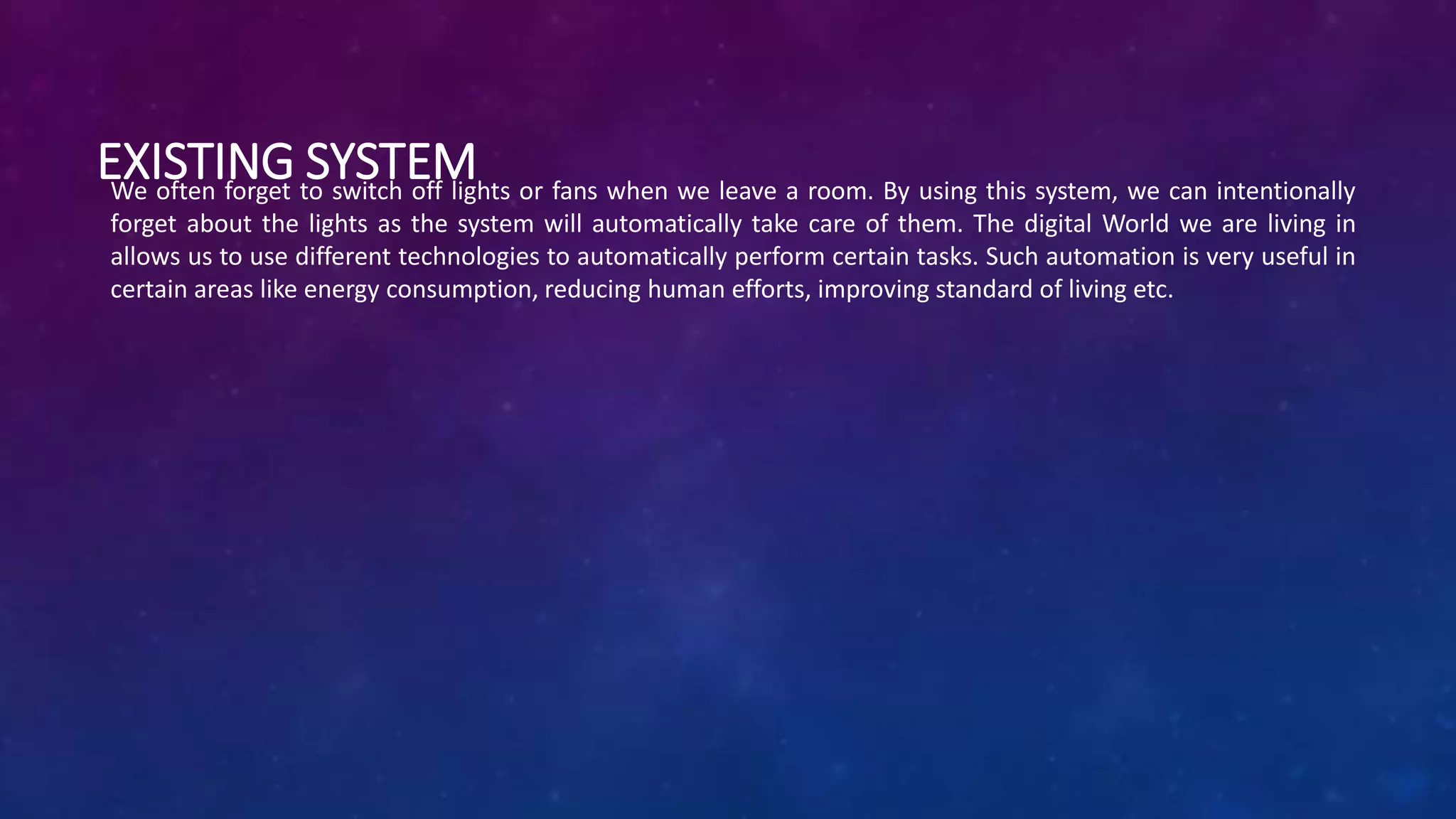

4. EXISTING SYSTEMWe often forget to switch off lights or fans when we leave a room. By using this system, we can intentionally
forget about the lights as the system will automatically take care of them. The digital World we are living in
allows us to use different technologies to automatically perform certain tasks. Such automation is very useful in
certain areas like energy consumption, reducing human efforts, improving standard of living etc.
5. AIM OF THE PROJECTThe aim of this project is to automatically turn on or off the lights in a room by detecting the human movement.
We implemented this project using 8051 Microcontroller and two Infrared (IR) sensors. Since the job of the
circuit is to turn on the light when someone enters the room and turn off the light when the last person leaves
the room, the project has to internally count the number of visitors entering and leaving the room. Hence, the
project acts as an Automatic Room Light System as well as Bidirectional Visitor Counter.

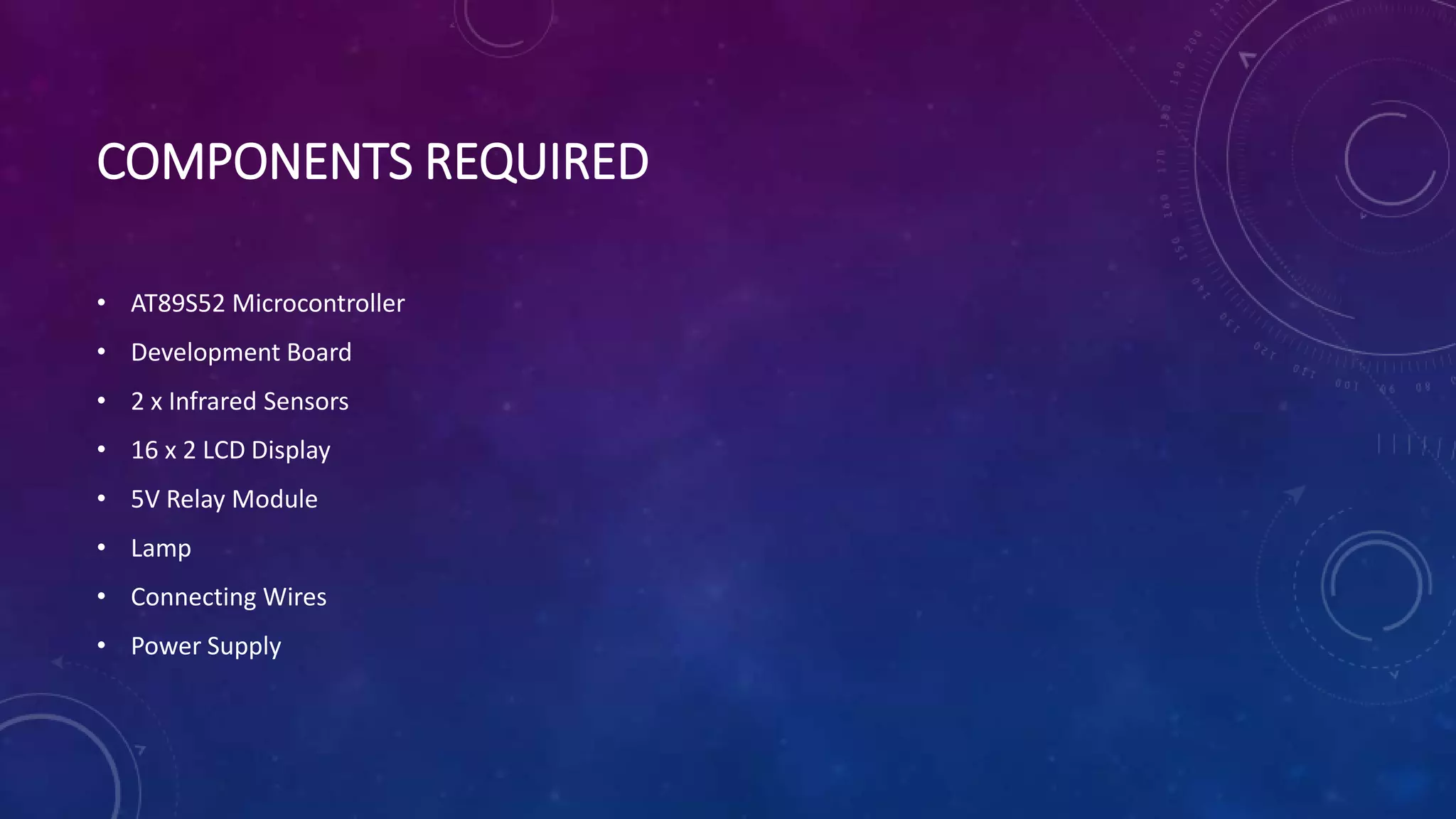

6. COMPONENTS REQUIRED
• AT89S52 Microcontroller
• Development Board
• 2 x Infrared Sensors
• 16 x 2 LCD Display
• 5V Relay Module
• Lamp
• Connecting Wires
• Power Supply
7. COMPONENT DESCRIPTION
LCD (liquid crystal display) LCD (liquid crystal
display) is the technology used for displays in
notebook and other smaller computers. Like light-
emitting diode (LED) and gas-plasma technologies,
LCDs allow displays to be much thinner than
cathode ray tube (CRT) technology
LCD Display Module
8. AT89S52 MICROCONTROLLER
The AT89S52 is a low-power, high-performance CMOS 8-
bit microcontroller with 8K bytes of in-system programmable
Flash memory. The device is manufactured using Atmel's high-
density nonvolatile memory technology and is compatible with
the indus- try-standard 80C51 instruction set and pinout.

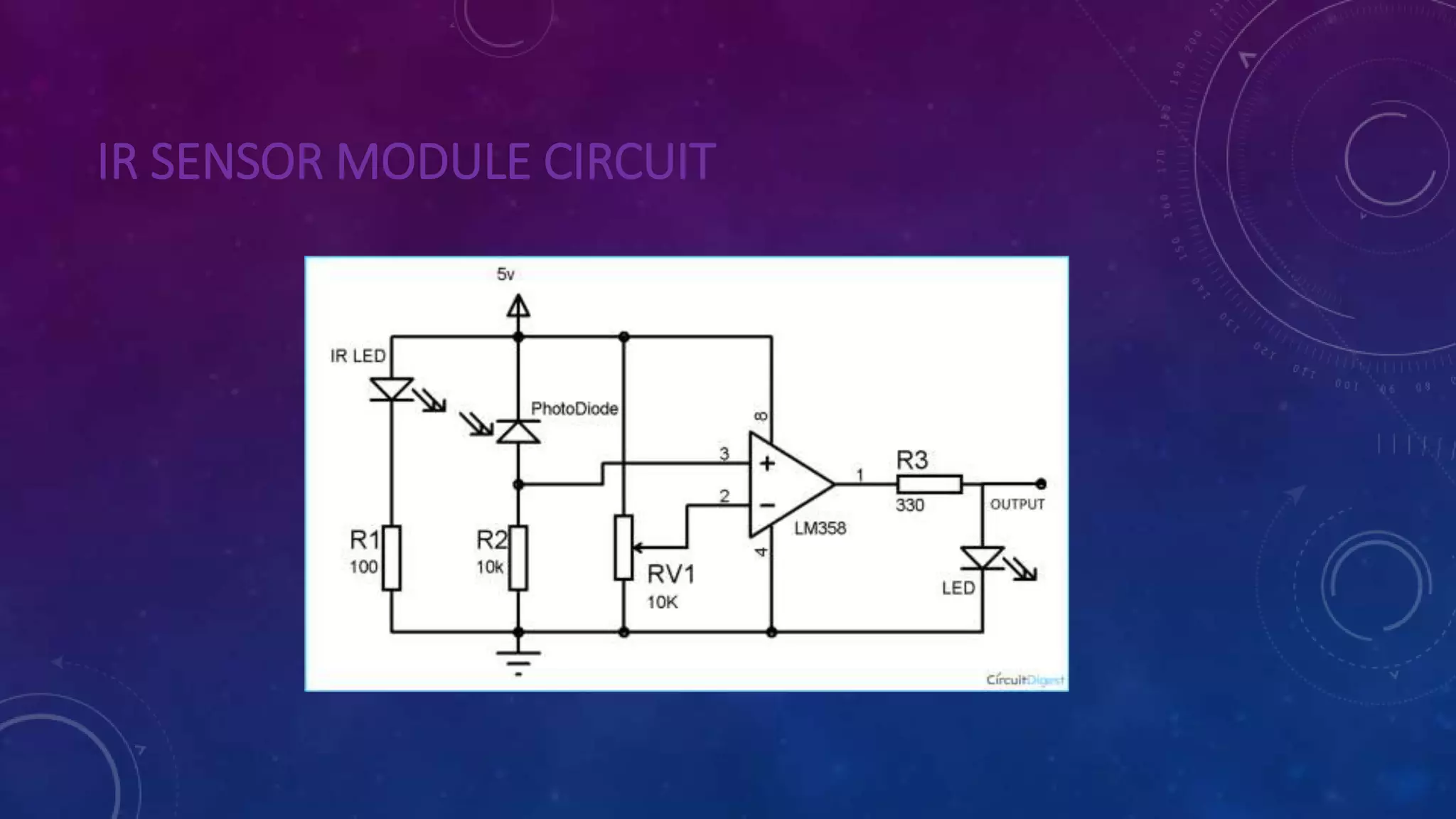

9. IR SENSOR MODULE
• An Infrared or IR Sensor is a simple circuit that is
used to detect objects (Proximity Sensor) or
measure distance (Range Finder). An IR Sensor
consists of 3 components: an IR Transmitter (IR
LED), an IR Receiver (like a Photo Diode) and a
signal processing circuit.
• We have used reflective type IR sensor modules
in this project. The detailed circuit diagram of the
module is shown in the following image.

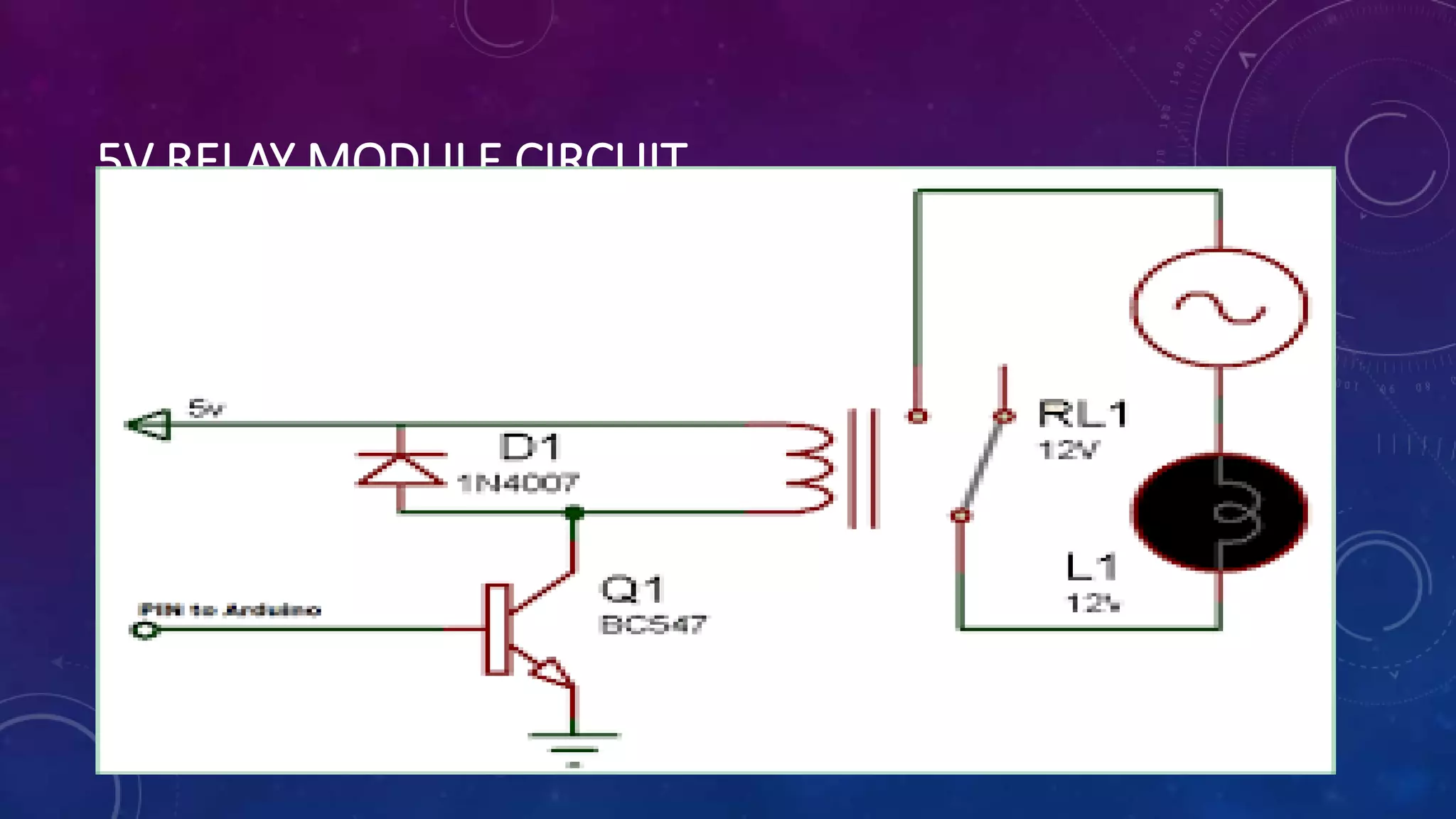

11. 5V RELAY MODULE
A 5V Relay Module is used in this project which helps 8051 Microcontroller to operate high voltage AC
loads like a light. The detailed circuit of the Relay Module is shown in the following image. It consists of a
5V Electromechanical Relay, an Optocoupler IC, transistor, two resistors and two diodes.
14. CIRCUIT DESCRIPTION
• we have used modules for Relay and IR Sensor and hence, the connections are shown with respect to
those modules only. Corresponding circuit diagrams are also provided.
• For the circuit design, a 16 x 2 LCD Display, two IR Sensors and a 5V Relay Module must be connected to
the 8051 Microcontroller. First, connect the 8 data pins of the LCD to PORT1 pins i.e. P1.0 to P1.7.
• The 3 control pins of LCD i.e. RS, RW and E are connected to P3.6, GND and P3.7 pins respectively. A 10
KΩ Potentiometer is connected to contrast adjust pin of LCD i.e. its pin 3.

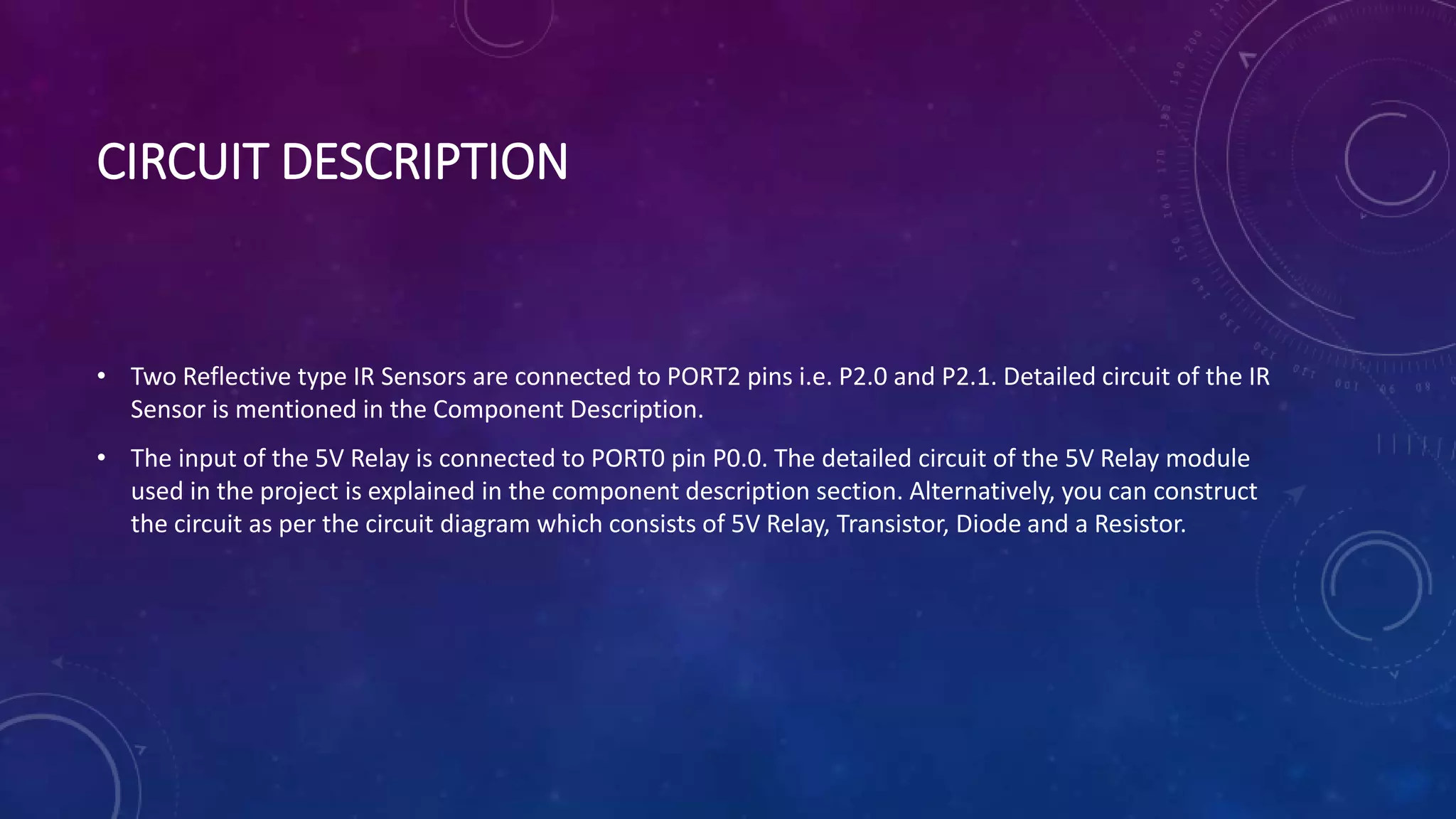

15. CIRCUIT DESCRIPTION
• Two Reflective type IR Sensors are connected to PORT2 pins i.e. P2.0 and P2.1. Detailed circuit of the IR
Sensor is mentioned in the Component Description.
• The input of the 5V Relay is connected to PORT0 pin P0.0. The detailed circuit of the 5V Relay module
used in the project is explained in the component description section. Alternatively, you can construct
the circuit as per the circuit diagram which consists of 5V Relay, Transistor, Diode and a Resistor.
17. WORKING OF THE PROJECT
• In this project, an automatic room lighting system is developed using 8051 microcontroller. The working
of the project is explained here.
• The main component of the project is IR Sensor and we have used two of them. The placement of the
sensors is important as it will determine the functioning of the project.
• Practically speaking, both the sensors must be placed on the either side of the door or entrance of the
room. The sensor placed on the outside of the room is named as Sensor 1 and the sensor, which is
placed on the inside is named Sensor 2.
• When a person tries to enter the room, Sensor 1 detects the person first and then Sensor 2. This action
will indicate the 8051 Microcontroller that the person is entering the room.
18. WORKING OF THE PROJECT
• Hence, the microcontroller will turn on the light and also increments the visitor counter to 1. If there
are more visitor, the microcontroller will keep the light turned on and increments the visitor counter
accordingly.
• When a person tries to leave the room, Sensor 2 detects the person first and then Sensor 1. This
process will make the microcontroller to understand that a person is trying to leave the room and
hence, it will decrement the count of visitors. The microcontroller will not turn off the light until the
last person has left the room.
• As the visitors start leaving the room, the visitor count will be decremented and when the last person
leaves the room, the count be comes 0. During this point, the microcontroller understands that there is
nobody in the room and turns OFF the light.
19. APPLICATIONS
• Automatic Room Light Controlling with Bidirectional Visitor Counter can be used to automatically
turn on the light in a room when a person enters the room and turn it off when the person leaves
the room.
• The project can also be dubbed as a Bidirectional Visitor Counter it is an integral part of the
Automatic Room Lighting circuit.
• The project can be modified with LEDs and as the number of persons in the room increases, the
number of LEDs turning ON also increases.
20. FUTURE PLAN
• Automatic Room Light and Fan or AC(Air Condition)Controlling with Bidirectional Visitor Counter can be
used to automatically turn on the light in a room when a person enters the room and turn it off when
the person leaves the room.
• The project can also be dubbed as a Bidirectional Visitor Counter it is an integral part of the Automatic
Room Lighting circuit.
