API Security talk at Api days 2018. by Jean-Baptiste Aviat, CTO @ Sqreen

1. API security: an insider’s point of view
APIDays Paris • 2017/01/30

2. Jean-Baptiste Aviat
CTO & Co-founder at Sqreen
Former hacker at Apple (Red Team)
jb@sqreen.io
@jbaviat
Who Am I?

3. What should I do for security?

4. You MUST do
EVERYTHING, NOW!

5. You do that, right?
Don’t you?

7. Just kidding.

8. Where should I even start?

9. The OWASP top 10

10. Web?! WTF I do APIs dude

11. No worries. This is security sanity.
It works for APIs as well.

12. •Injection
•Broken authentication
•Sensitive Data Exposure
•XML External Entities (XXE)
•Broken Access Control
•Security Misconfiguration
•Cross Site Scripting (XSS)
•Insecure Deserialisation
•Using components with known vulnerabilities

13. •Injection
•Broken authentication
•Sensitive Data Exposure
•XML External Entities (XXE)
•Broken Access Control
•Security Misconfiguration
•Cross Site Scripting (XSS)
•Insecure Deserialisation
•Using components with known vulnerabilities

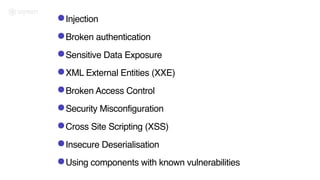

14. •Injection
•Broken authentication
•Sensitive Data Exposure
•XML External Entities (XXE)
•Broken Access Control
•Security Misconfiguration
•Cross Site Scripting (XSS)
•Insecure Deserialisation
•Using components with known vulnerabilities

15. •Injection
•Broken authentication
•Sensitive Data Exposure
•XML External Entities (XXE)
•Broken Access Control
•Security Misconfiguration
•Cross Site Scripting (XSS)
•Insecure Deserialisation
•Using components with known vulnerabilities

16. An HTTP server with a debugger

17. (byebug) thread list
+ 1 #<Thread:/webrick/server.rb:283 run> ...
2 #<WEBrick::TimeoutHandler::Thread/webrick/utils.rb:162 sleep> ...
3 #<Thread:sleep>/webrick/server.rb:174
(byebug) thread switch 3
[168, 177] in 2.2.0/webrick/server.rb
173: begin
=> 174: if svrs = IO.select([shutdown_pipe[0], *@listeners], …)
175: if svrs[0].include? shutdown_pipe[0]
176: break
At first sight

18. OWASP: injections

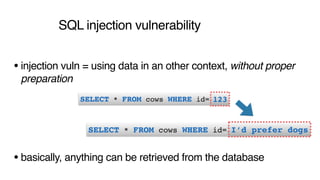

19. SQL injection vulnerability
•injection vuln = using data in an other context, without proper
preparation
•basically, anything can be retrieved from the database

20. (byebug) break ActiveRecord::SQLite3Adapter.exec_query
[283, 292] in …/active_record/…/sqlite3_adapter.rb
287:
=> 288: def exec_query(sql, name = nil, …)
[...]
(byebug) var local
[…]
sql = SELECT * FROM posts WHERE id=3
Database access: from the inside

21. 0 ActiveRecord::SQLite3Adapter.exec_query(sql#String, …)
…
7 PostsController.set_post
…
27 ActionController.dispatch(request#ActionDispatch::Request, …)
…
40 ActionDispatch::ParamsParser.call(env#Hash)
…
76 WEBrick::GenericServer.start_thread(sock#TCPSocket, …)
Database access: a closer look

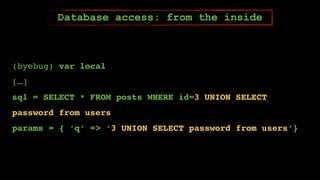

22. (byebug) var local
[…]
sql = SELECT * FROM posts WHERE id=3 UNION SELECT
password from users
params = { ‘q’ => ‘3 UNION SELECT password from users’}
Database access: from the inside

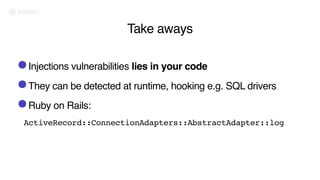

23. Take aways
•Injections vulnerabilities lies in your code
•They can be detected at runtime, hooking e.g. SQL drivers
•Ruby on Rails:
ActiveRecord::ConnectionAdapters::AbstractAdapter::log

24. OWASP: broken authentication

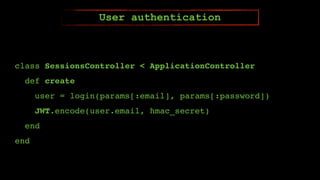

25. class SessionsController < ApplicationController
def create
user = login(params[:email], params[:password])
JWT.encode(user.email, hmac_secret)
end
end
User authentication

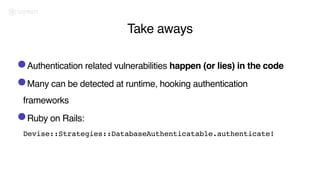

27. Take aways
•Authentication related vulnerabilities happen (or lies) in the code
•Many can be detected at runtime, hooking authentication
frameworks
•Ruby on Rails:
Devise::Strategies::DatabaseAuthenticatable.authenticate!

28. OWASP: business vulnerabilities

29. Stripe::Charge.create(
:amount => 2000,
:currency => "usd",
:description => "Charge for jb@sqreen.io“
)
Payment monitoring

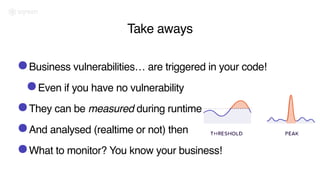

30. Take aways
•Business vulnerabilities… are triggered in your code!
•Even if you have no vulnerability
•They can be measured during runtime
•And analysed (realtime or not) then
•What to monitor? You know your business!

31. OWASP: Components with Known Vulnerabilities

32. irb(main):001:0> Gem.loaded_specs.map do |k, v|
puts "%20st%st%s " % [k, v.version, v.homepage]
end
rake 10.4.2
erubis 2.7.0 http://www.kuwata-lab.com/erubis/
nokogiri 1.6.6.2 http://nokogiri.org
actionview 4.2.3 http://www.rubyonrails.org
sqlite3 1.3.10 https://github.com/sparklemotion/sqlite3-ruby
execjs 2.6.0 https://github.com/rails/execjs
...
CVE-2015-1819
CVE-2015-7941
CVE-2015-7942
CVE-2015-8035
An application
dependencies

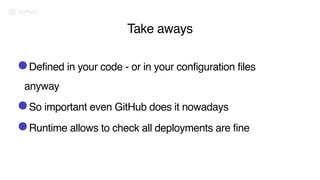

33. Take aways
•Defined in your code - or in your configuration files
anyway
•So important even GitHub does it nowadays
•Runtime allows to check all deployments are fine

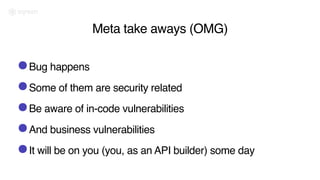

34. Meta take aways (OMG)
•Bug happens
•Some of them are security related
•Be aware of in-code vulnerabilities
•And business vulnerabilities
•It will be on you (you, as an API builder) some day

35. Questions?
OWASP top 10 2017:
https://www.owasp.org/images/7/72/OWASP_Top_10-2017_%28en%29.pdf.pdf
CTO security checklist:
https://cto-security-checklist.sqreen.io/
