1. Making Web Development “Secure By Default”
!
Adam Goodman
2014-05-31

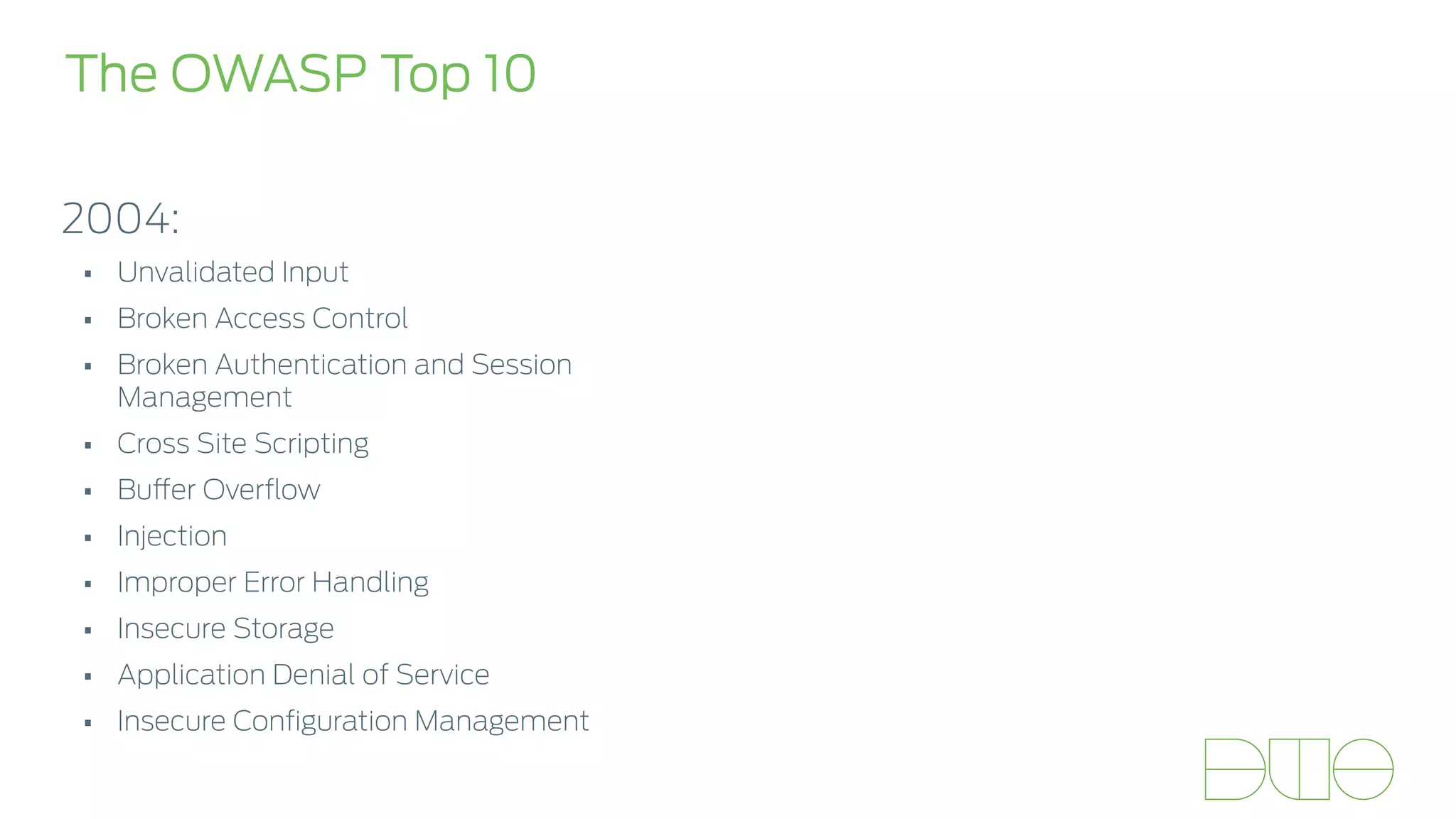

2. The OWASP Top 10
2004:
• Unvalidated Input
• Broken Access Control
• Broken Authentication and Session
Management
• Cross Site Scripting
• Buffer Overflow
• Injection
• Improper Error Handling
• Insecure Storage
• Application Denial of Service
• Insecure Configuration Management

3. The OWASP Top 10
2004:
• Unvalidated Input
• Broken Access Control
• Broken Authentication and Session
Management
• Cross Site Scripting
• Buffer Overflow
• Injection
• Improper Error Handling
• Insecure Storage
• Application Denial of Service
• Insecure Configuration Management
2013:
• Injection
• Broken Authentication and Session
Management
• Cross Site Scripting
• Insecure Direct Object References
• Security Misconfiguration
• Sensitive Data Exposure
• Missing Function Level Access Control
• Cross-Site Request Forgery
• Using Components with Known Vulnerabilities
• Unvalidated Redirects and Forwards

5. 2004:
• Unvalidated Input
• Broken Access Control
• Broken Authentication and Session
Management
• Cross Site Scripting
• Buffer Overflow
• Injection
• Improper Error Handling
• Insecure Storage
• Application Denial of Service
• Insecure Configuration Management
2013:
• Injection
• Broken Authentication and Session
Management
• Cross Site Scripting
• Insecure Direct Object References
• Security Misconfiguration
• Sensitive Data Exposure
• Missing Function Level Access Control
• Cross-Site Request Forgery
• Using Components with Known Vulnerabilities
• Unvalidated Redirects and Forwards
Success Story: Buffer Overflow

6. Buffer Overflow - Review
void bad_idea(const char *input) {!
char buf[10];!
strcpy(buf, input);!
/* ... */!
}!
!
int main(void) {!
bad_idea("This is a longish string");!
return 0;!
}!

7. Buffer Overflow - Review
void less_bad_idea(const char *input) {!
char buf[10];!
strlcpy(buf, input, sizeof(buf));!
/* ... */!
}!
!
int main(void) {!
less_bad_idea(“This is a longish string");!
return 0;!
}!

8. Microsoft SDL
http://blogs.msdn.com/b/bryang/archive/2011/04/01/security-development-lifecycle.aspx

9. Best Practices
• “Deprecate Unsafe Functions” - no more strcpy, strcat, …
• Training
• Code reviews
• Automated enforcement (framework changes, analysis tools, …)

10. Compiler Smarts
void less_bad_idea(const char *input) {!
char buf[10];!
/* MSVC 2005 and newer; C++ only */!
strcpy_s(buf, input);!
/* ... */!
}!
!
!
(Similar: FORTIFY_SOURCE in gcc)

11. Exploit Mitigation
Make it less feasible to exploit bugs (i.e. turn “security bugs” back
into “ordinary bugs”):
• Stack Smashing Protection (SSP)
• Data Execution Prevention (DEP / NX)
• Address Space Layout Randomization (ASLR)

12. Encapsulate Hazardous Code
We don’t write web apps in C/C++ anymore.
!
Most of our high-level languages and web servers are still built on C,
but these are carefully-curated components written by skilled
developers with lots of review (we hope!).

13. (We’re Not There Quite Yet)
http://xkcd.com/1354/

14. To Review
Hypothesis: Buffer overflows fell off the OWASP Top 10 thanks to
• Concerted efforts to define and (automatically!) detect anti-
patterns
• Better tooling to simplify code / limit human error
• Catch-all exploit mitigation technologies
• The simple fact that we don’t build web apps in C/C++ anymore!

15. To Review
Hypothesis: Buffer overflows fell off the OWASP Top 10 thanks to:
• Concerted efforts to define and (automatically!) detect anti-
patterns
• Better tooling to simplify code / limit human error
• Catch-all exploit mitigation technologies
• The simple fact that we don’t build web apps in C/C++ anymore!
!
How can we apply these ideas to other classes of bugs?

16. 2004:
• Unvalidated Input
• Broken Access Control
• Broken Authentication and Session
Management
• Cross Site Scripting
• Buffer Overflow
• Injection
• Improper Error Handling
• Insecure Storage
• Application Denial of Service
• Insecure Configuration Management
2013:
• Injection
• Broken Authentication and Session
Management
• Cross Site Scripting
• Insecure Direct Object References
• Security Misconfiguration
• Sensitive Data Exposure
• Missing Function Level Access Control
• Cross-Site Request Forgery
• Using Components with Known Vulnerabilities
• Unvalidated Redirects and Forwards
XSRF

17. XSRF Review
1. Alice logs into https://mybank.com, and gets back a session
cookie:
200 OK
Set-Cookie: session-id=123-456789; path=/; domain=.mybank.com; Secure; HttpOnly;
2. Alice is tricked into opening https://evilsite.com, whose JavaScript
code sends a POST to mybank.com:
POST /transfer_funds
Cookie: session-id=123-456789
...
destination=evil_account_number&amount=100000&currency=USD

18. 1. https://mybank.com sends back another cookie with an “xsrf
token”:
200 OK
Set-Cookie: session-id=123-456789; path=/; domain=.mybank.com; Secure; HttpOnly;
Set-Cookie: _xsrf=SOMESECRETVALUE; path=/; domain=.mybank.com; Secure; HttpOnly;
2. On any page with a form, https://mybank.com includes the same
token in an input field to be POST-ed:
…
<input type='hidden' name='_xsrf' value='SOMESECRETVALUE'>
…
XSRF Tokens

19. 3. https://mybank.com rejects any POST that without an XSRF
token, or in which the token doesn’t match the Cookie
XSRF Tokens

20. XSRF Tokens
Elegant solution:
• Requires no new server-side state
• Can be added to most existing web applications with minor
modifications
• “Secure by default”

21. 2004:
• Unvalidated Input
• Broken Access Control
• Broken Authentication and Session
Management
• Cross Site Scripting
• Buffer Overflow
• Injection
• Improper Error Handling
• Insecure Storage
• Application Denial of Service
• Insecure Configuration Management
2013:
• Injection
• Broken Authentication and Session
Management
• Cross Site Scripting
• Insecure Direct Object References
• Security Misconfiguration
• Sensitive Data Exposure
• Missing Function Level Access Control
• Cross-Site Request Forgery
• Using Components with Known Vulnerabilities
• Unvalidated Redirects and Forwards
XSS

22. XSS - Review
{% autoescape None %}
!
<html>
<body>
<h1>Your Notes</h1>
{% for row in rows %}
<hr>
<p>
{{ row.content }}
</p>
{% end %}
</body>
</html>

23. Threats
• Annoy users (i.e. <script>alert(‘hi’)</script>)
• Steal any data in the DOM
• (Including XSRF tokens!)
• Phish users’ credentials, even if it wasn’t a login page!
XSS - Review

24. XSS - Escape All The Things
{% autoescape None %}
!
<html>
<body>
<h1>Your Notes</h1>
{% for row in rows %}
<hr>
<p>
{{ escape(row.content) }}
</p>
{% end %}
</body>
</html>

25. XSS - Autoescape
• Actually, Tornado does auto-escape by default (I had to disable
it!)
• But, naive auto-escaping is not good enough!

26. Different Contexts
{% autoescape None %}
!
<html>
<head>
<title>Hello, World</title>
<script>
var qux = {{ json_encode(qux) }};
</script>
</head>
<body>
<input type="hidden" name="foo" value="{{ escape_attr(foo) }}" />
<a href="/{{ url_escape(bar) }}">{{ escape(baz) }}</a>
</body>
</head>

27. Context-Aware Auto-Escaping
Basic idea: as you’re generating template output, feed it back
through an HTML parser. When you hit a template directive, figure
out what context you’re in, and call the appropriate escaping
function!

28. Mitigation: Content-Security-Policy (CSP)
HTTP Header that will tell the browser from what sources it’s
allowed to load (and in the case of scripts, execute) content.
•Content-Security-Policy: default-src ‘self' - load scripts/
images/etc. only from the same domain (and do not run inline
scripts or process inline CSS!)
•Content-Security-Policy: default-src 'self'; img-src * - same,
except allow loading images from any host
For more, see: http://cspisawesome.com

29. Mitigation: Content-Security-Policy (CSP)
• Turns security vulnerabilities back into “ordinary bugs”…
• (… if your users are using supported browsers!)
• Eliminating inline scripts usually requires some restructuring
• but separating code, data, and presentation is a good pattern
anyway, right? :)

30. 2004:
• Unvalidated Input
• Broken Access Control
• Broken Authentication and Session
Management
• Cross Site Scripting
• Buffer Overflow
• Injection
• Improper Error Handling
• Insecure Storage
• Application Denial of Service
• Insecure Configuration Management
2013:
• Injection
• Broken Authentication and Session
Management
• Cross Site Scripting
• Insecure Direct Object References
• Security Misconfiguration
• Sensitive Data Exposure
• Missing Function Level Access Control
• Cross-Site Request Forgery
• Using Components with Known Vulnerabilities
• Unvalidated Redirects and Forwards
SQL Injection

31. SQL Injection - Review
class LoginHandler(tornado.web.RequestHandler):
def post(self):
user = self.get_argument('username')
password = self.get_argument('password')
!
pwhash = hashlib.sha1(password).hexdigest();
row = self.application.db.get(
'SELECT uid FROM users WHERE uname='%s' AND password='%s''
% (user, pwhash))
if row:
self.set_secure_cookie('user', str(row.uid))
self.redirect('/')

32. SQL Injection - Review
class LoginHandler(tornado.web.RequestHandler):
def post(self):
user = self.get_argument('username')
password = self.get_argument('password')
!
pwhash = hashlib.sha1(password).hexdigest();
row = self.application.db.get(
'SELECT uid FROM users WHERE uname='%s' AND password='%s''
% (user, pwhash))
if row:
self.set_secure_cookie('user', str(row.uid))
self.redirect('/')
!
!
(By the way, DO NOT store your passwords like this!)

33. Fun things to submit for ‘user’:
• akgood' OR '1' = '1
• akgood'; DROP TABLE users; SELECT …
• or just point a tool like sqlmap (http://sqlmap.org/) at it!
SQL Injection - Review

34. Parameterized Queries
class LoginHandler(tornado.web.RequestHandler):
def post(self):
user = self.get_argument('username')
password = self.get_argument('password')
!
pwhash = hashlib.sha1(password).hexdigest();
row = self.application.db.get(
'SELECT uid FROM users WHERE uname=%s AND password=%s',
user, pwhash)
if row:
self.set_secure_cookie('user', str(row.uid))
self.redirect('/')
!
!
Can you see the difference?!

35. ORM
class LoginHandler(tornado.web.RequestHandler):
def post(self):
username = self.get_argument('username')
password = self.get_argument('password')
!
pwhash = hashlib.sha1(password).hexdigest();
rows = self.application.session.query(
User).filter_by(uname=username, password=pwhash)
if rows:
row = rows[0]
self.set_secure_cookie('user', str(row.uid))
self.redirect('/')

36. ORM Magic
from sqlalchemy.ext.declarative import declarative_base
from sqlalchemy import Column, Integer, String
!
Base = declarative_base()
class User(Base):
__tablename__ = 'users'
!
uid = Column(Integer, primary_key=True)
uname = Column(String)
password = Column(String)

37. Middle Ground: SQL Expression API
class LoginHandler(tornado.web.RequestHandler):
def post(self):
username = self.get_argument('username')
password = self.get_argument('password')
!
pwhash = hashlib.sha1(password).hexdigest();
s = select([users]).where(
(users.c.uname == username) & (users.c.password == pwhash))
rows = self.application.conn.execute(s)
if rows:
row = rows[0]
self.set_secure_cookie('user', str(row['uid']))
self.redirect(‘/')
!
…
!
users = Table('users', meta, autoload=True, autoload_with=engine)

38. Static Analysis
If you really must write raw SQL:
• basic: a check to ensure that developers never use the string
interpolation operator (‘%’) in a database function call
• better: dataflow analysis to trace the construction of a query
string and ensure no untrusted inputs were used (a.k.a. ‘taint
analysis’)

39. Static Analysis: Commercial Solutions
Powerful, but extremely expensive - e.g.:
• Veracode
• Coverity
• Fortify

40. Static Analysis: Homegrown Hacks
Example: make sure that we only ever use Python’s
“SystemRandom” class to generate random values
v1: basically, grep for instances of:
• ‘random.w+’ (other than ‘random.SystemRandom)
• ‘from random import .*’
(other than ‘from random import SystemRandom)
v2: use the python AST

41. Abstract Syntax Tree
>>> import ast
>>> m = ast.parse("from random import SystemRandom")
>>> ast.dump(m)
"Module(body=[ImportFrom(module='random', names=[alias(name='SystemRandom',
asname=None)], level=0)])"
>>> m.body[0].module
‘random'
!
>>> m2 = ast.parse("self.db.execute('SELECT * FROM users WHERE uname=%s' %
(uname))")
>>> ast.dump(m2)
"Module(body=[Expr(value=Call(func=Attribute(value=Attribute(value=Name(id='self'
, ctx=Load()), attr='db', ctx=Load()), attr='execute', ctx=Load()),
args=[BinOp(left=Str(s='SELECT * FROM users WHERE uname=%s'), op=Mod(),
right=Name(id='uname', ctx=Load()))], keywords=[], starargs=None,
kwargs=None))])"

42. Checking SystemRandom with the AST
class RandomVisitor(ast.NodeVisitor):
def visit_Attribute(self, node):
if (isinstance(node.value, ast.Name) and node.value.id == 'random'
and node.attr != 'SystemRandom'):
raise BadRandomGenerator(node.lineno)
!
def visit_ImportFrom(self, node):
if (node.module == 'random'
and any(alias.name != 'SystemRandom' for alias in node.names)):
raise BadRandomGenerator(node.lineno)
!
with open(some_python_module, 'r') as fp:
m = ast.parse(fp.read())
RandomVisitor().visit(m)

43. • Use frameworks and tools that prevent entire classes of bugs by
default - either by intentionally mitigating vulnerabilities or simply
by encapsulating dangerous code so you don’t have to deal with
it.
• If you see an anti-pattern, write a script to enforce it!
• Can be quite basic, especially if you pair it with peer code
reviews and consistent coding norms
• Don’t forget about the rest of the SDL
Conclusions

44. Thanks!
akgood@duosecurity.com
@akgood
