1. Analog Electronics
Presented By
Munesh Kumar Singh, (MIEEE, MIAENG, MSESI)
Research Scholar
Department of Electrical Engineering
Indian Institute of Technology Delhi
New Delhi, India

2. Contents
 Semiconductor Diode
Bipolar Transistor and its Applications
 Single Stage Amplifier
 Multi-Stage Amplifier
 Field Effect Transistor

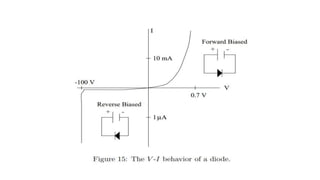

3. Semiconductor Diode
A diode is fabricated from a p-n
junction. Semi-conductors such as
silicon or germanium can be “doped”
with small concentrations of specific
impurities to yield a material which
conducts electricity via electron
transport (n-type) or via holes (p-type).
When these are brought together to
form a p-n junction, electrons (holes)
migrate away from the n-type (p-type)
side.

5. Diode as a Rectifier
Rectifier is a device which convert the ac supply to dc supply. It use in
mobile charger, battery charging system and etc.

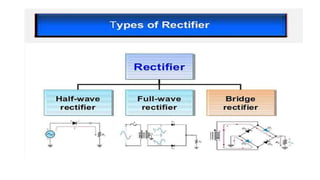

There are some classification of rectifier as;
1. Half-wave rectifier
2. Full wave rectifier
3. Bridge rectifier

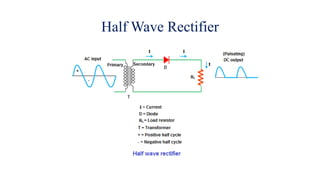

7. Half Wave Rectifier

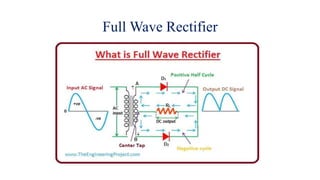

8. Full Wave Rectifier

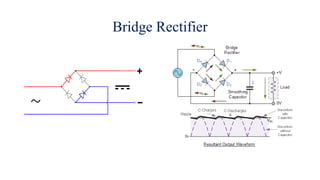

9. Bridge Rectifier

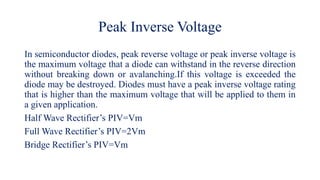

10. Peak Inverse Voltage
In semiconductor diodes, peak reverse voltage or peak inverse voltage is
the maximum voltage that a diode can withstand in the reverse direction
without breaking down or avalanching.If this voltage is exceeded the
diode may be destroyed. Diodes must have a peak inverse voltage rating
that is higher than the maximum voltage that will be applied to them in
a given application.
Half Wave Rectifier’s PIV=Vm
Full Wave Rectifier’s PIV=2Vm
Bridge Rectifier’s PIV=Vm

11. Thank You
