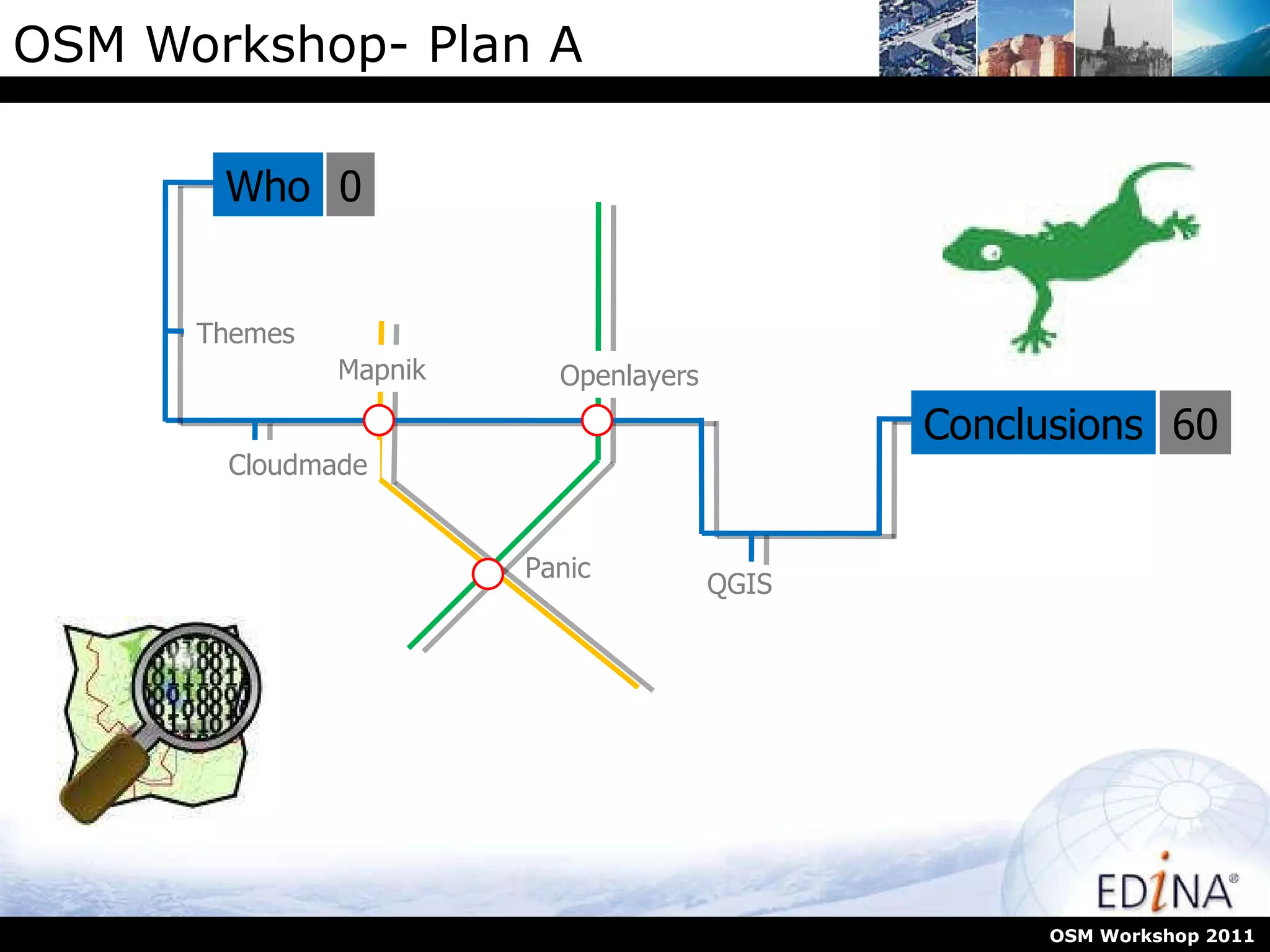

1. OSM Workshop- Plan A OSM Workshop 2011 Who Themes Cloudmade QGIS Conclusions 0 60 Panic Openlayers Mapnik

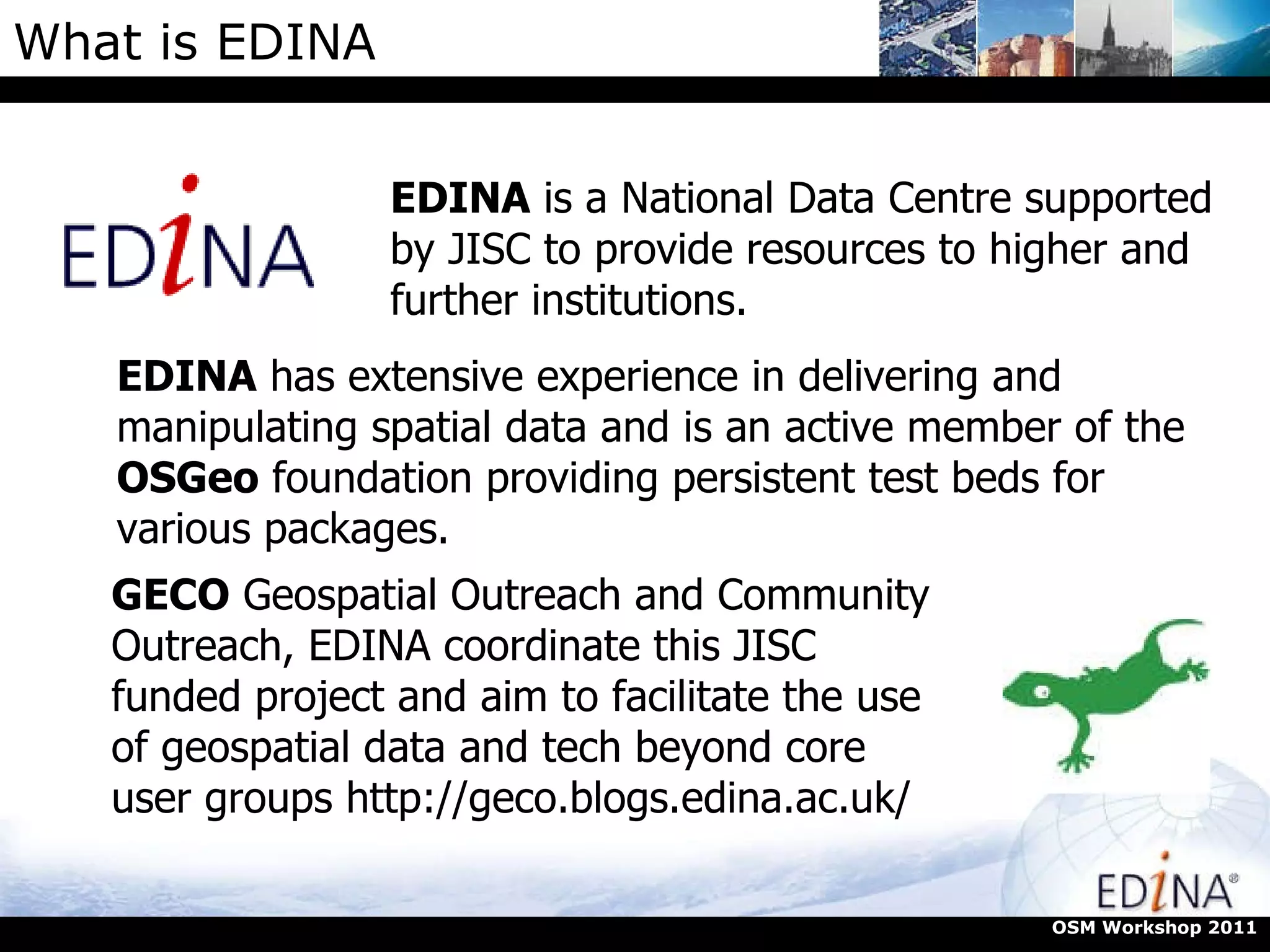

2. What is EDINA EDINA is a National Data Centre supported by JISC to provide resources to higher and further institutions. OSM Workshop 2011 EDINA has extensive experience in delivering and manipulating spatial data and is an active member of the OSGeo foundation providing persistent test beds for various packages. GECO Geospatial Outreach and Community Outreach, EDINA coordinate this JISC funded project and aim to facilitate the use of geospatial data and tech beyond core user groups http://geco.blogs.edina.ac.uk/

3. Doing more with GIS/OpenLayers We’ve seen what OSM is and how we can contribute data to it. Now lets look at what we might want to do with it. OSM Workshop 2011

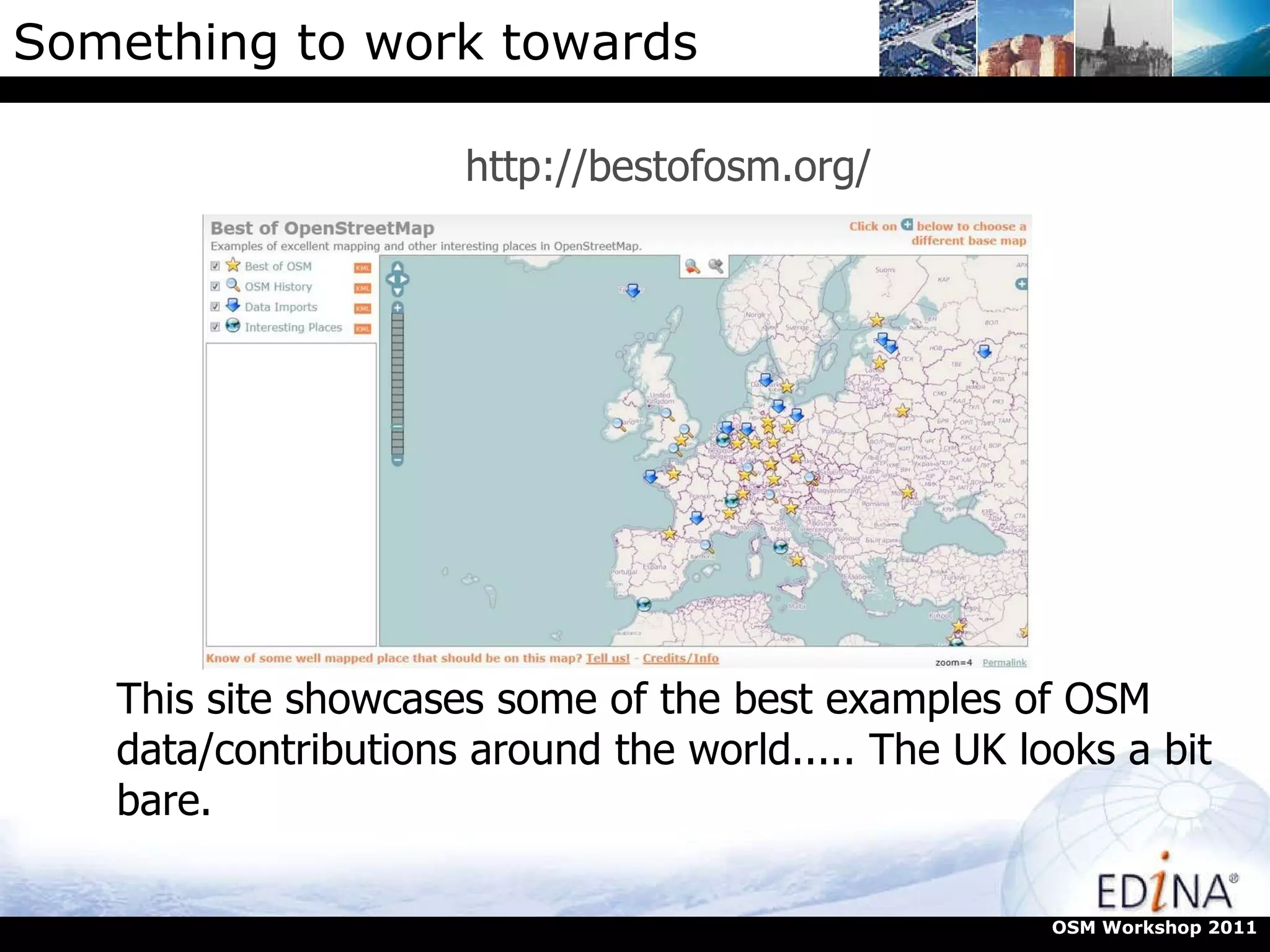

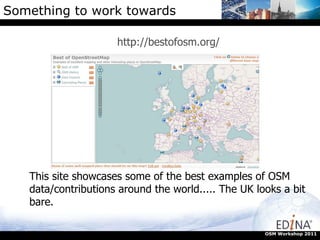

4. Something to work towards http://bestofosm.org/ OSM Workshop 2011 This site showcases some of the best examples of OSM data/contributions around the world..... The UK looks a bit bare.

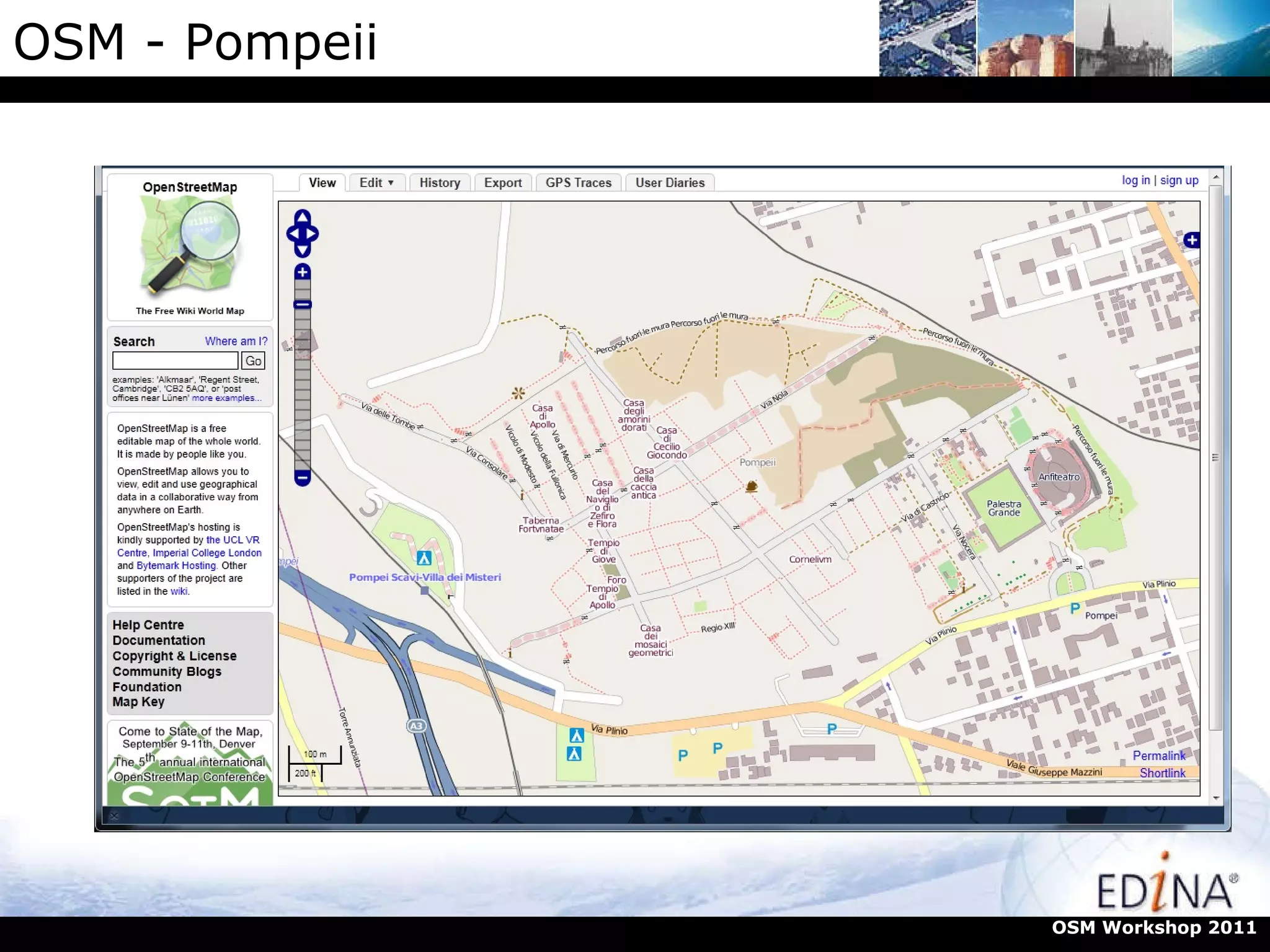

5. OSM - Pompeii OSM Workshop 2011

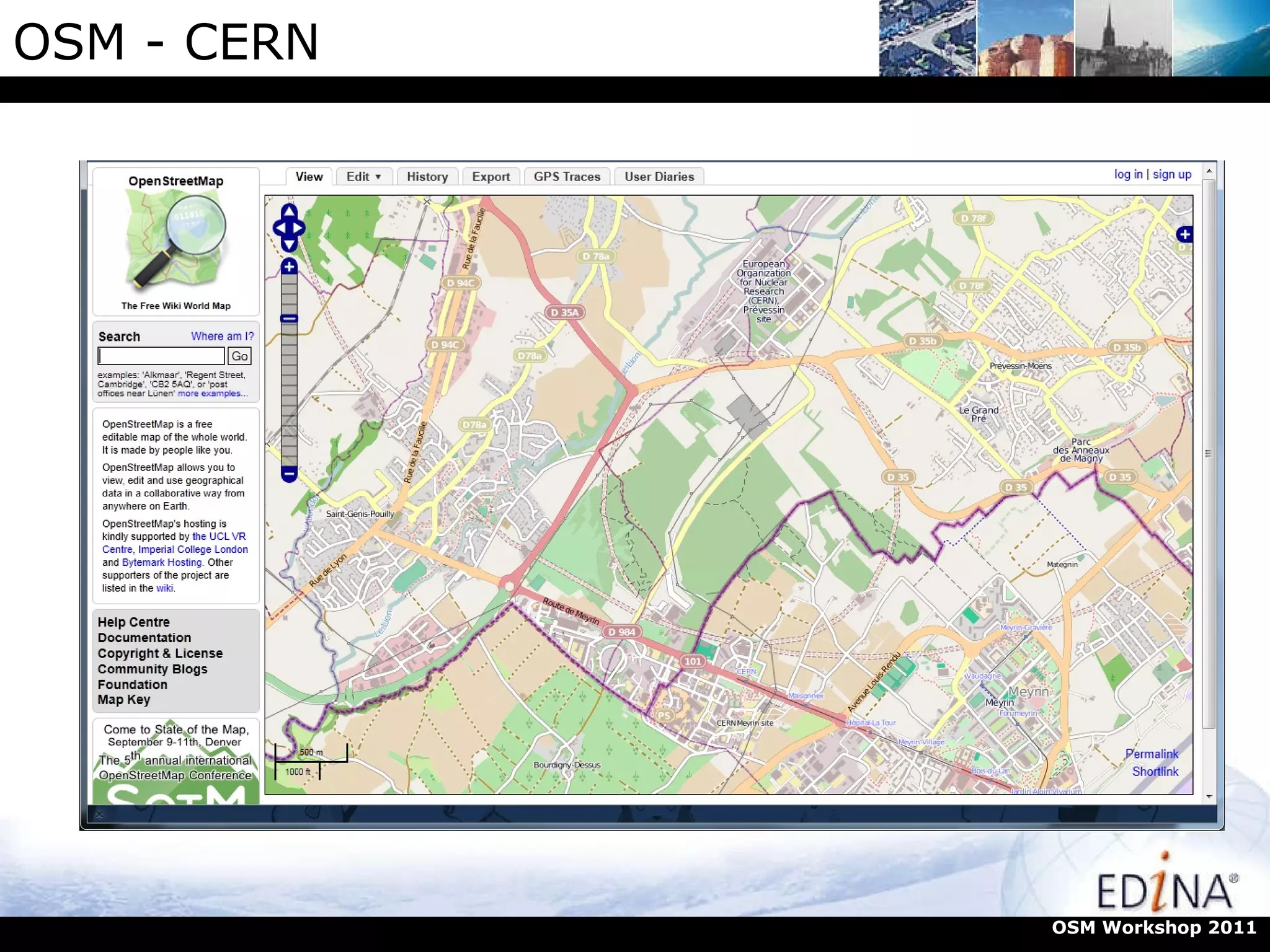

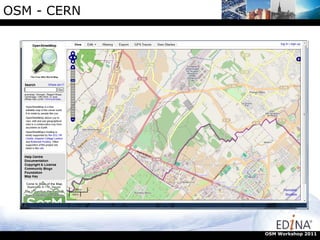

6. OSM - CERN OSM Workshop 2011

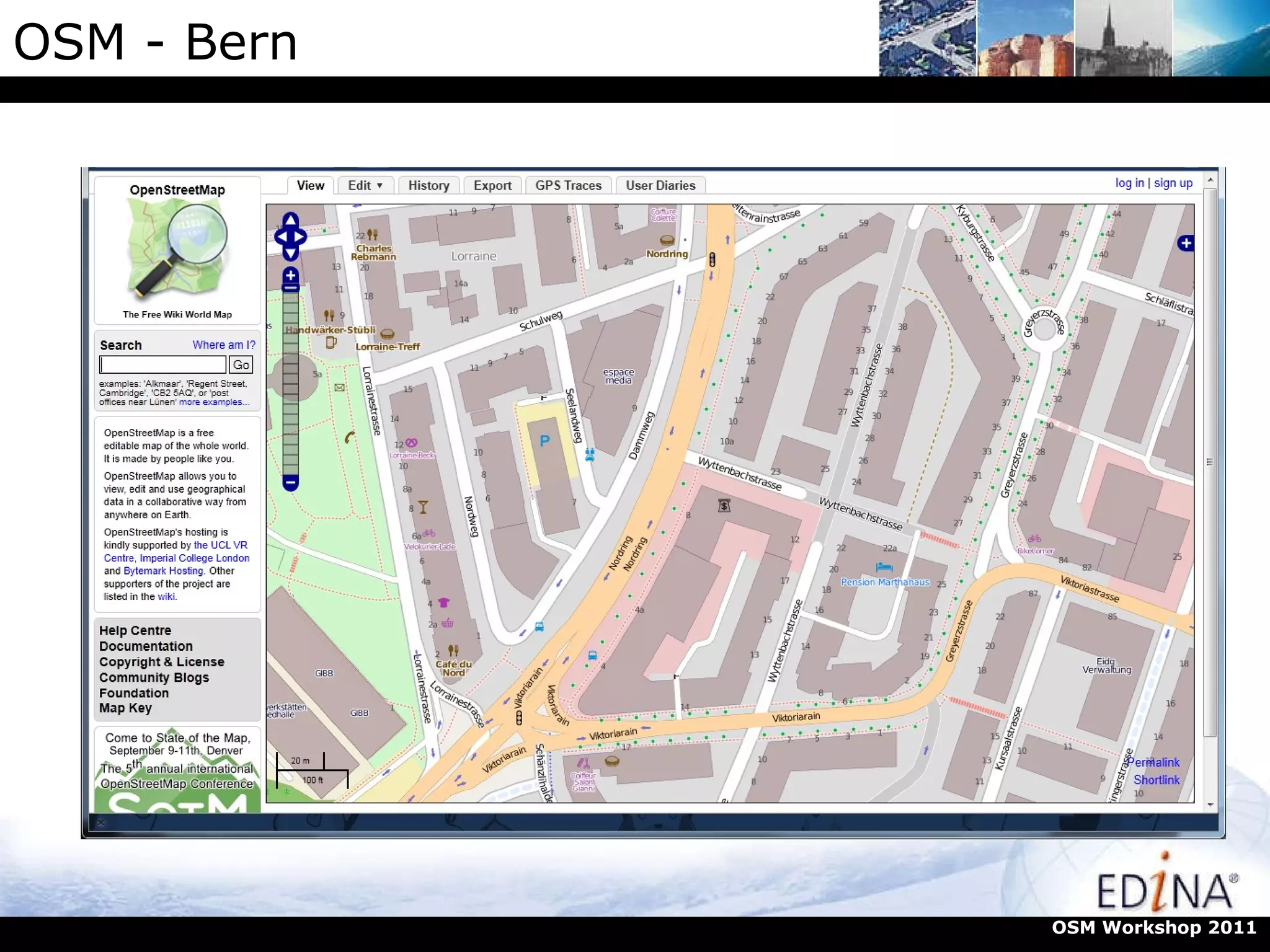

7. OSM - Bern OSM Workshop 2011

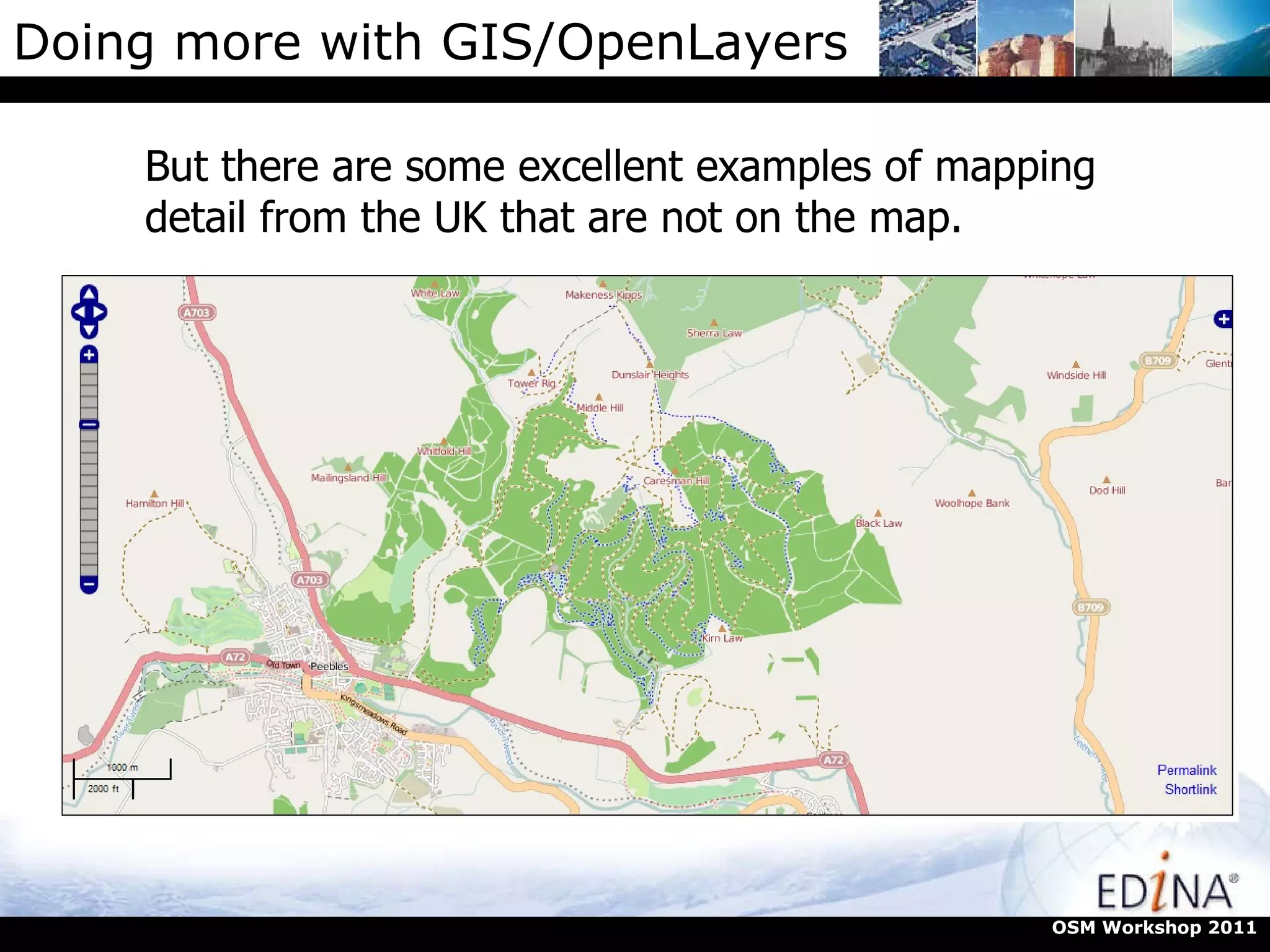

8. Doing more with GIS/OpenLayers But there are some excellent examples of mapping detail from the UK that are not on the map. OSM Workshop 2011

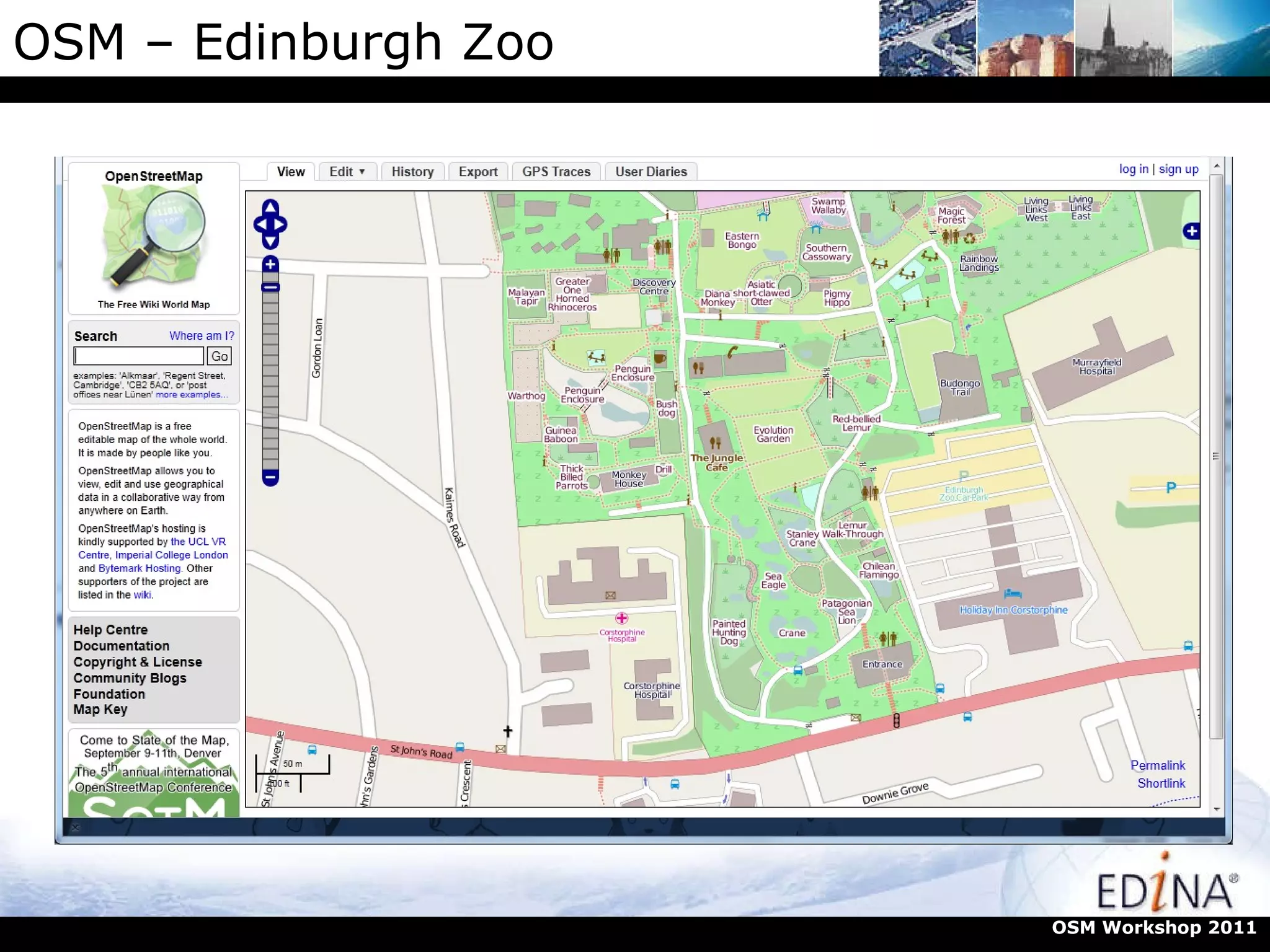

9. OSM – Edinburgh Zoo OSM Workshop 2011

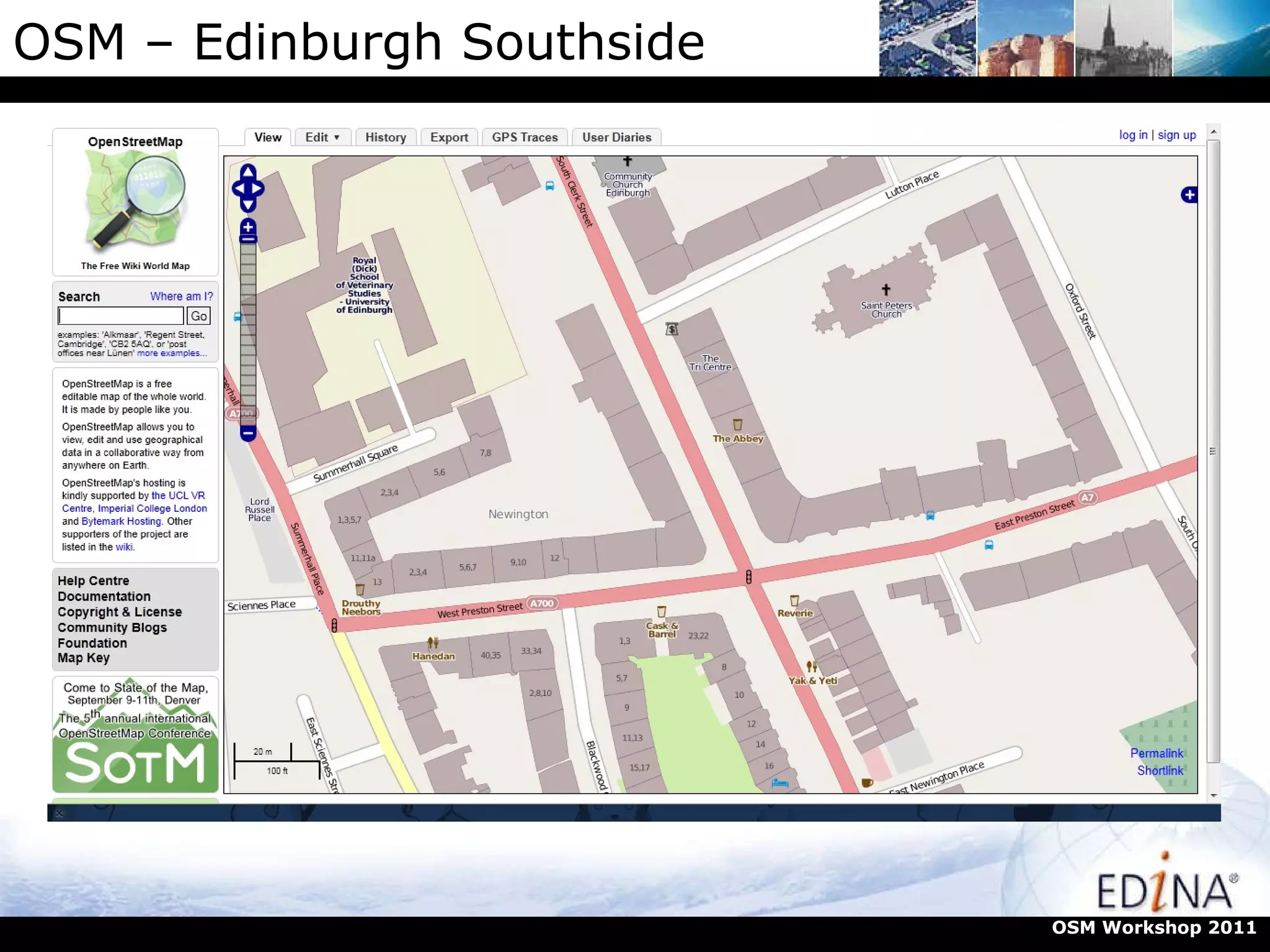

10. OSM – Edinburgh Southside OSM Workshop 2011

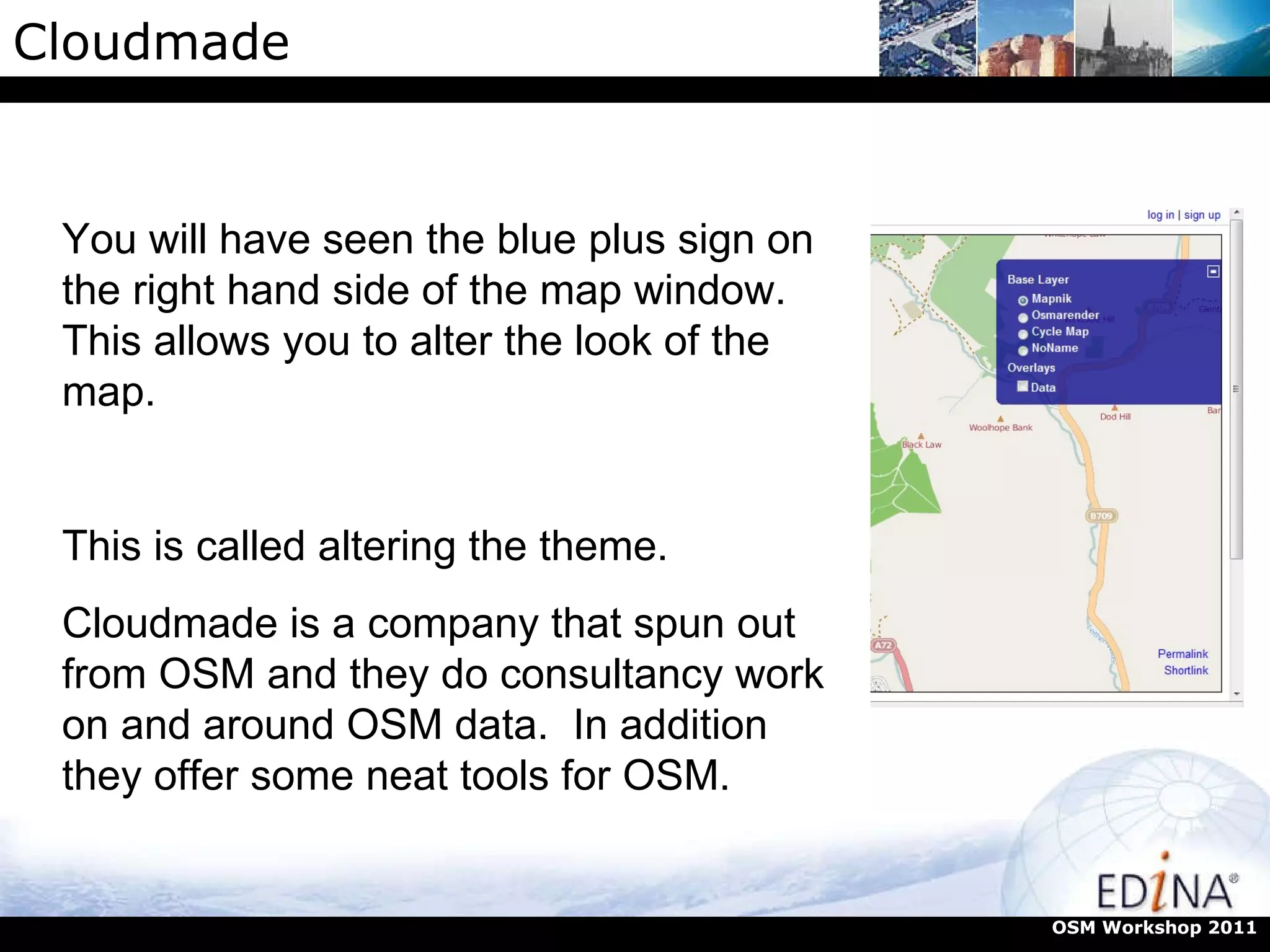

11. Cloudmade OSM Workshop 2011 You will have seen the blue plus sign on the right hand side of the map window. This allows you to alter the look of the map. This is called altering the theme. Cloudmade is a company that spun out from OSM and they do consultancy work on and around OSM data. In addition they offer some neat tools for OSM.

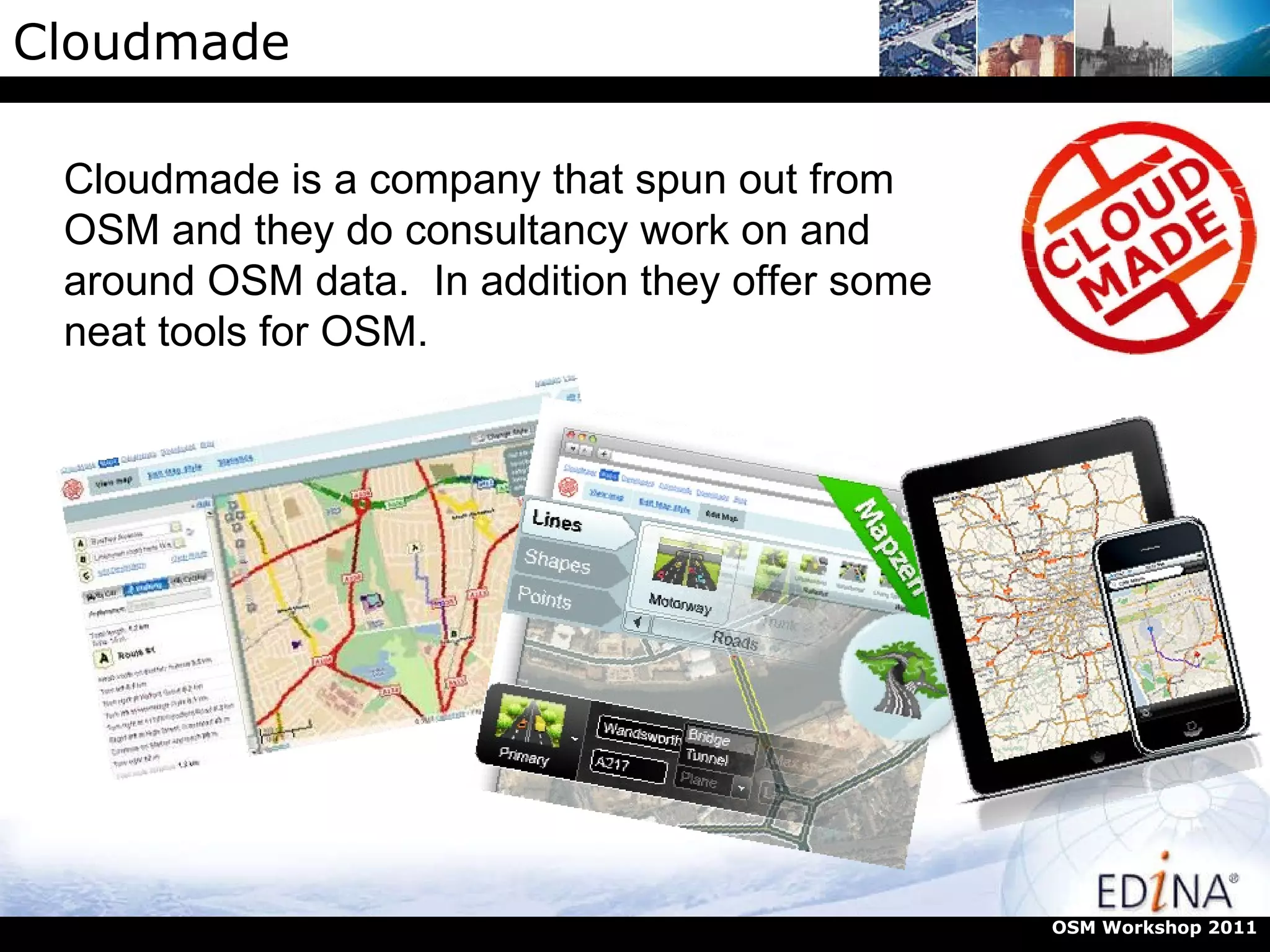

12. Cloudmade OSM Workshop 2011 Cloudmade is a company that spun out from OSM and they do consultancy work on and around OSM data. In addition they offer some neat tools for OSM.

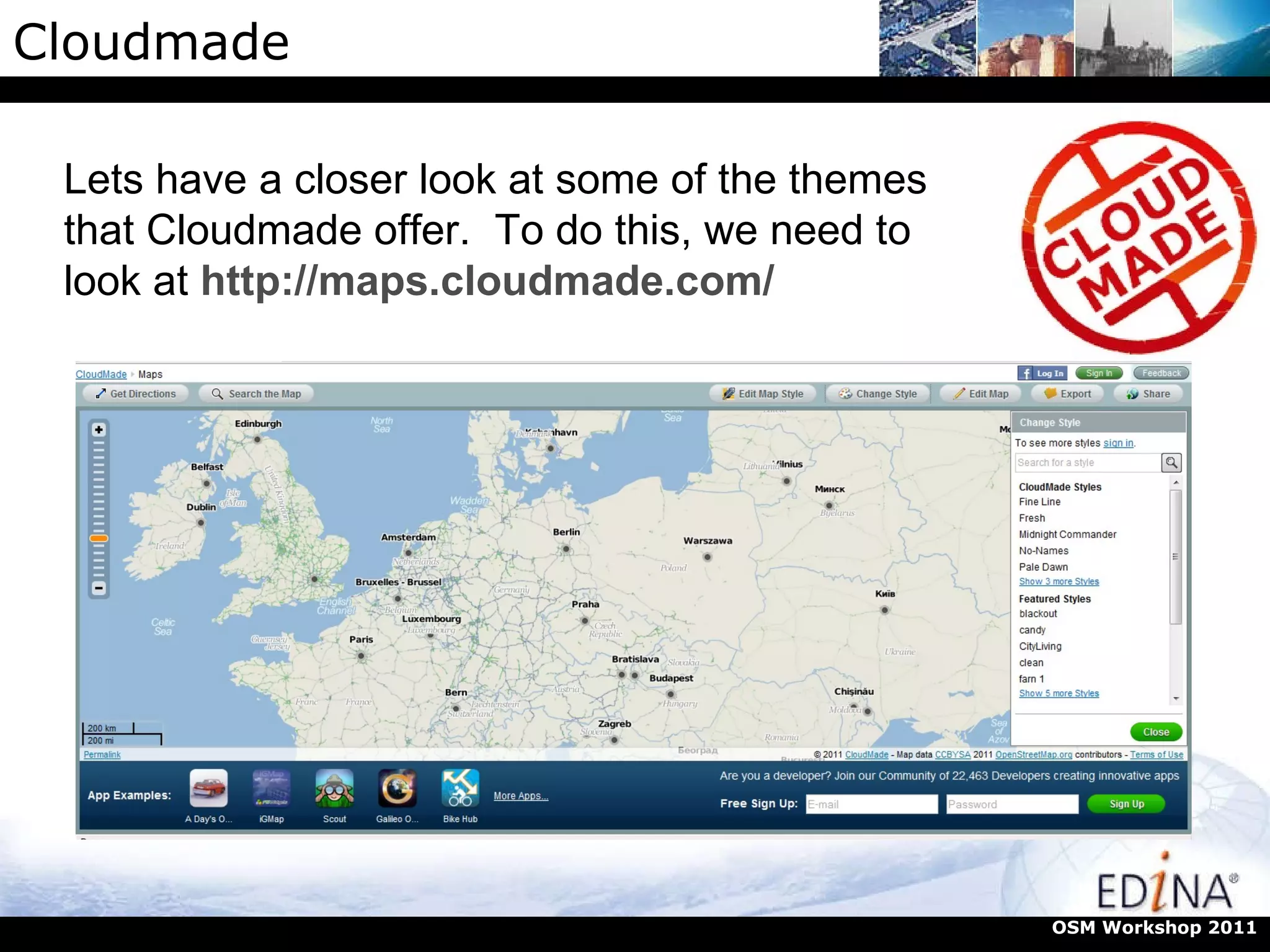

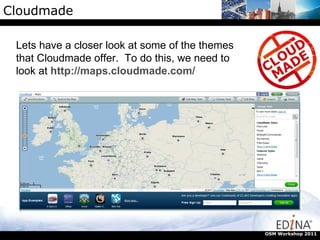

13. Cloudmade OSM Workshop 2011 Lets have a closer look at some of the themes that Cloudmade offer. To do this, we need to look at http://maps.cloudmade.com/

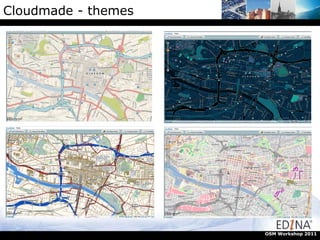

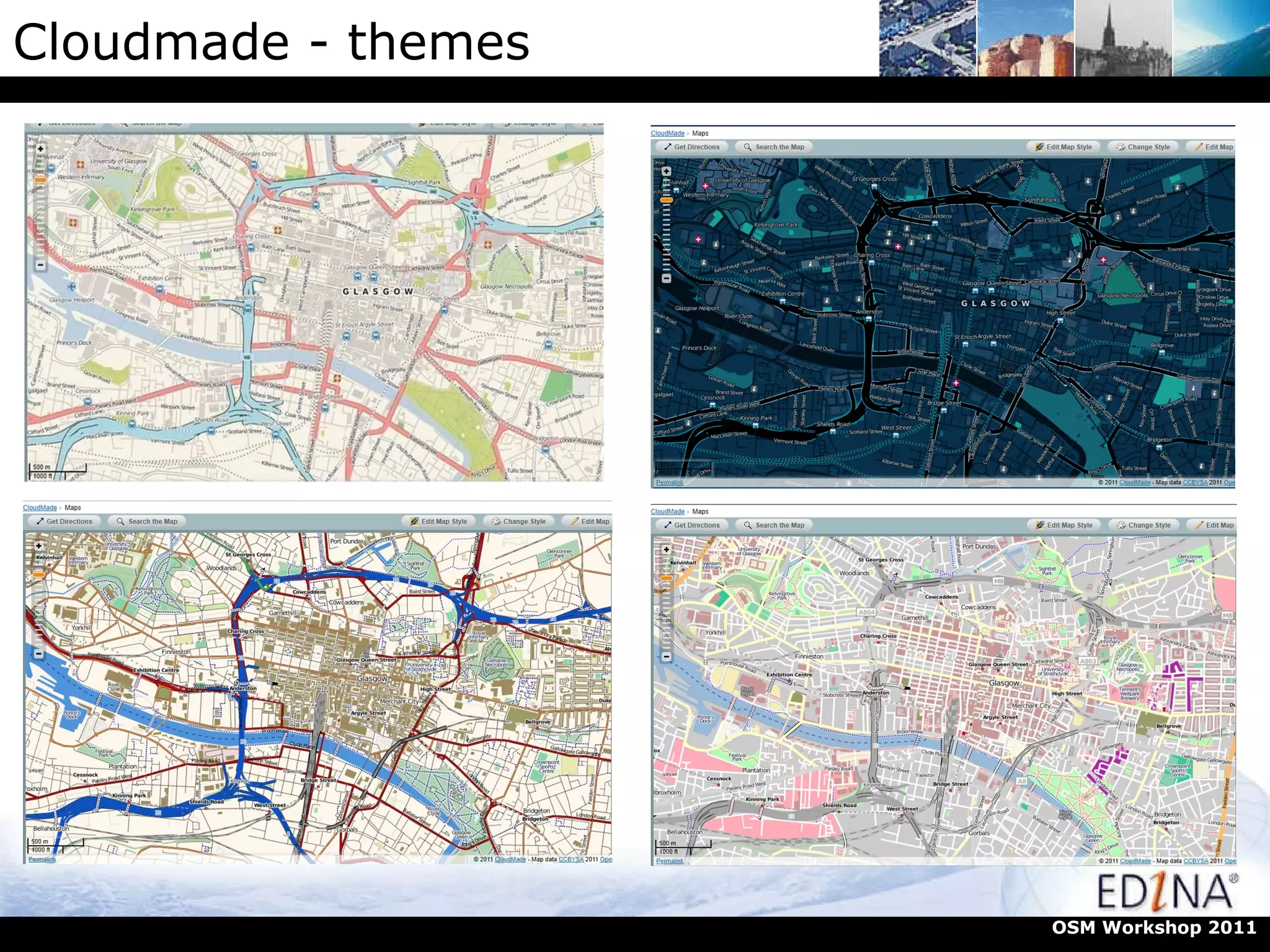

14. Cloudmade - themes OSM Workshop 2011

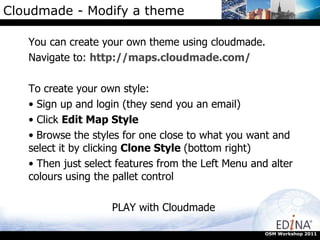

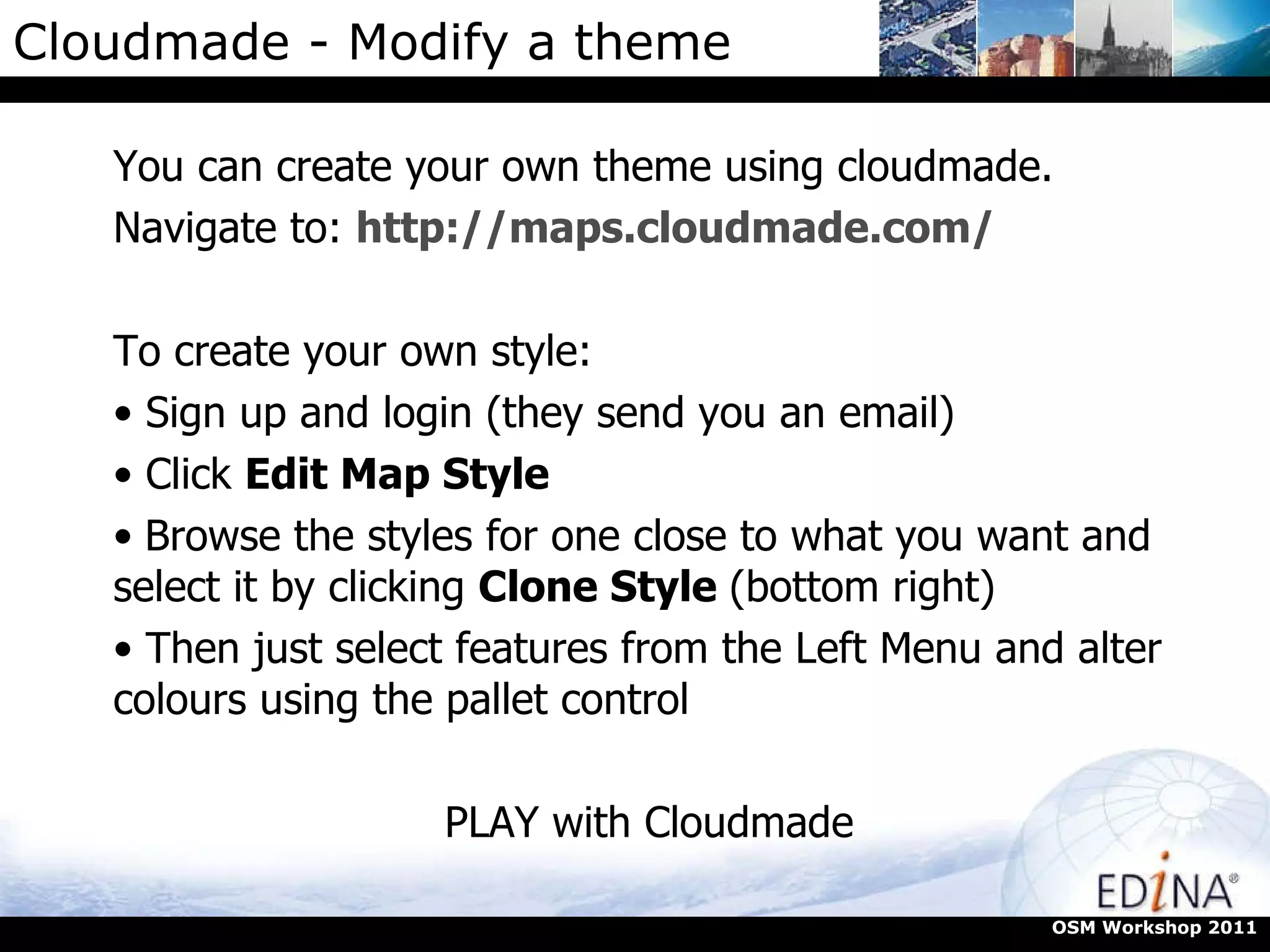

15. Cloudmade - Modify a theme You can create your own theme using cloudmade. Navigate to: http://maps.cloudmade.com/ To create your own style: Sign up and login (they send you an email) Click Edit Map Style Browse the styles for one close to what you want and select it by clicking Clone Style (bottom right) Then just select features from the Left Menu and alter colours using the pallet control PLAY with Cloudmade OSM Workshop 2011

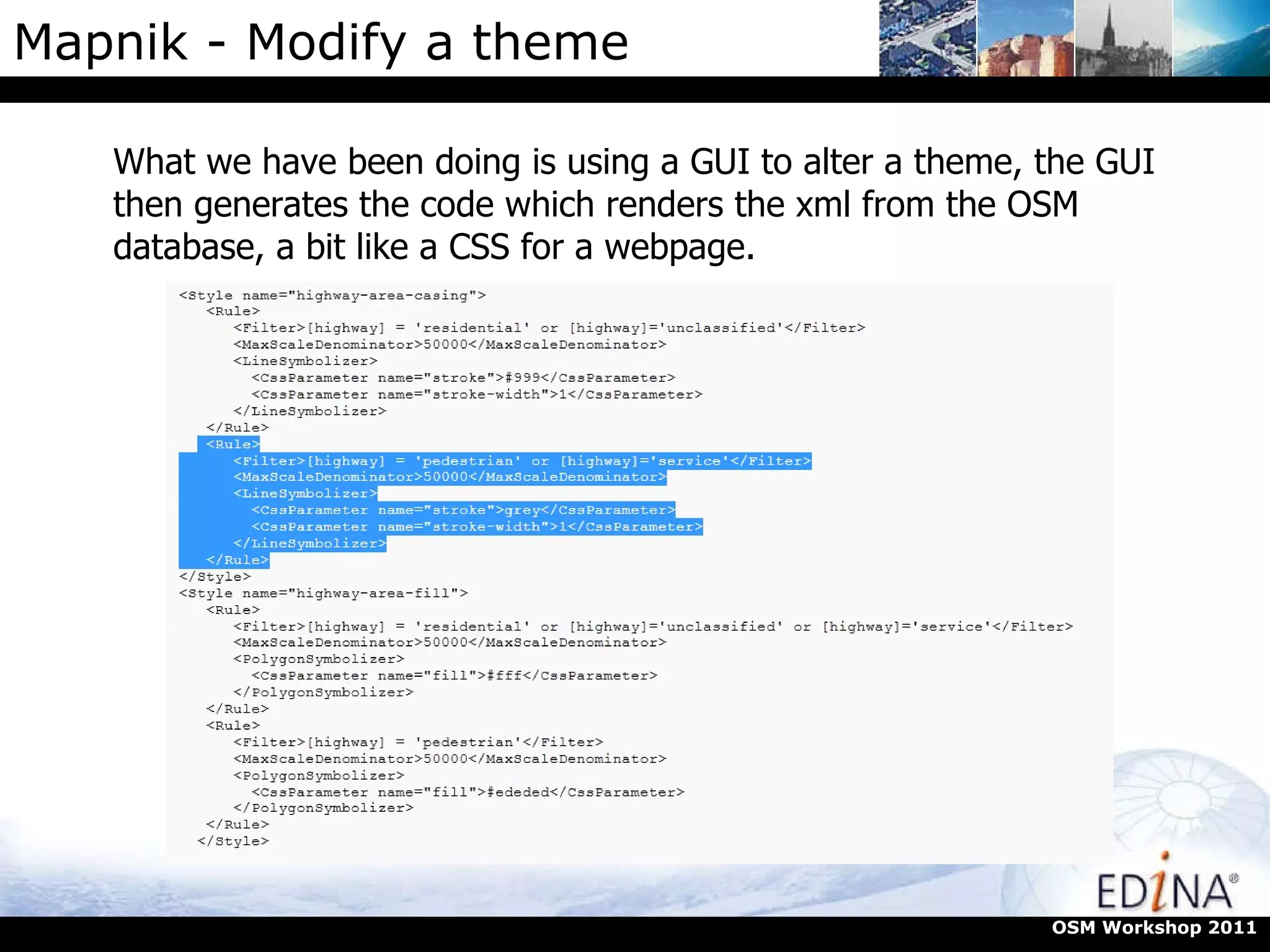

16. Mapnik - Modify a theme What we have been doing is using a GUI to alter a theme, the GUI then generates the code which renders the xml from the OSM database, a bit like a CSS for a webpage. OSM Workshop 2011

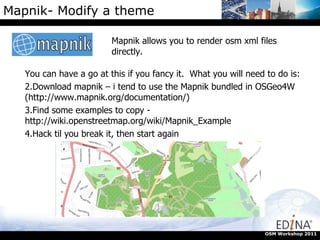

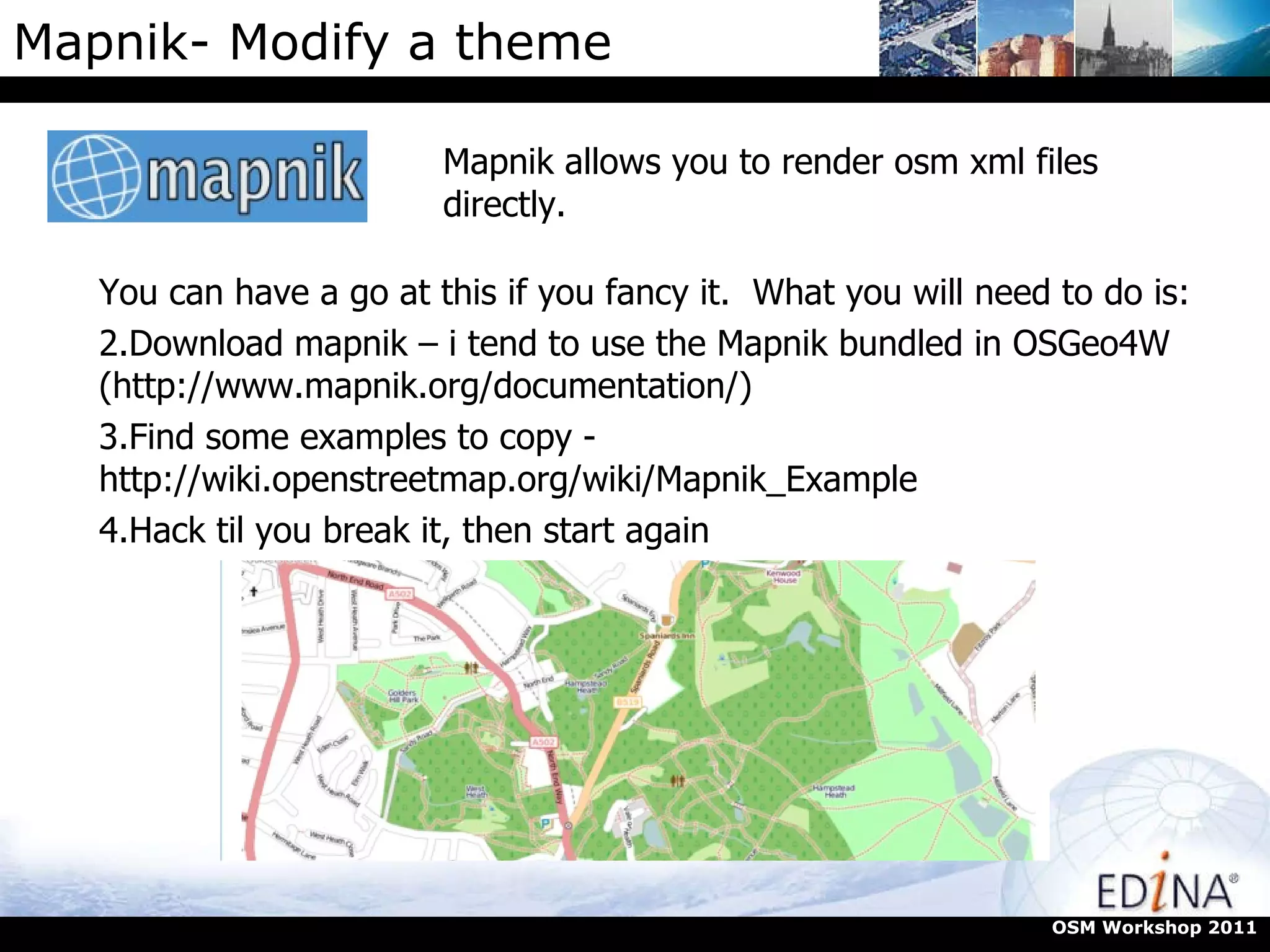

17. Mapnik- Modify a theme Mapnik allows you to render osm xml files directly. OSM Workshop 2011 You can have a go at this if you fancy it. What you will need to do is: Download mapnik – i tend to use the Mapnik bundled in OSGeo4W (http://www.mapnik.org/documentation/) Find some examples to copy - http://wiki.openstreetmap.org/wiki/Mapnik_Example Hack til you break it, then start again

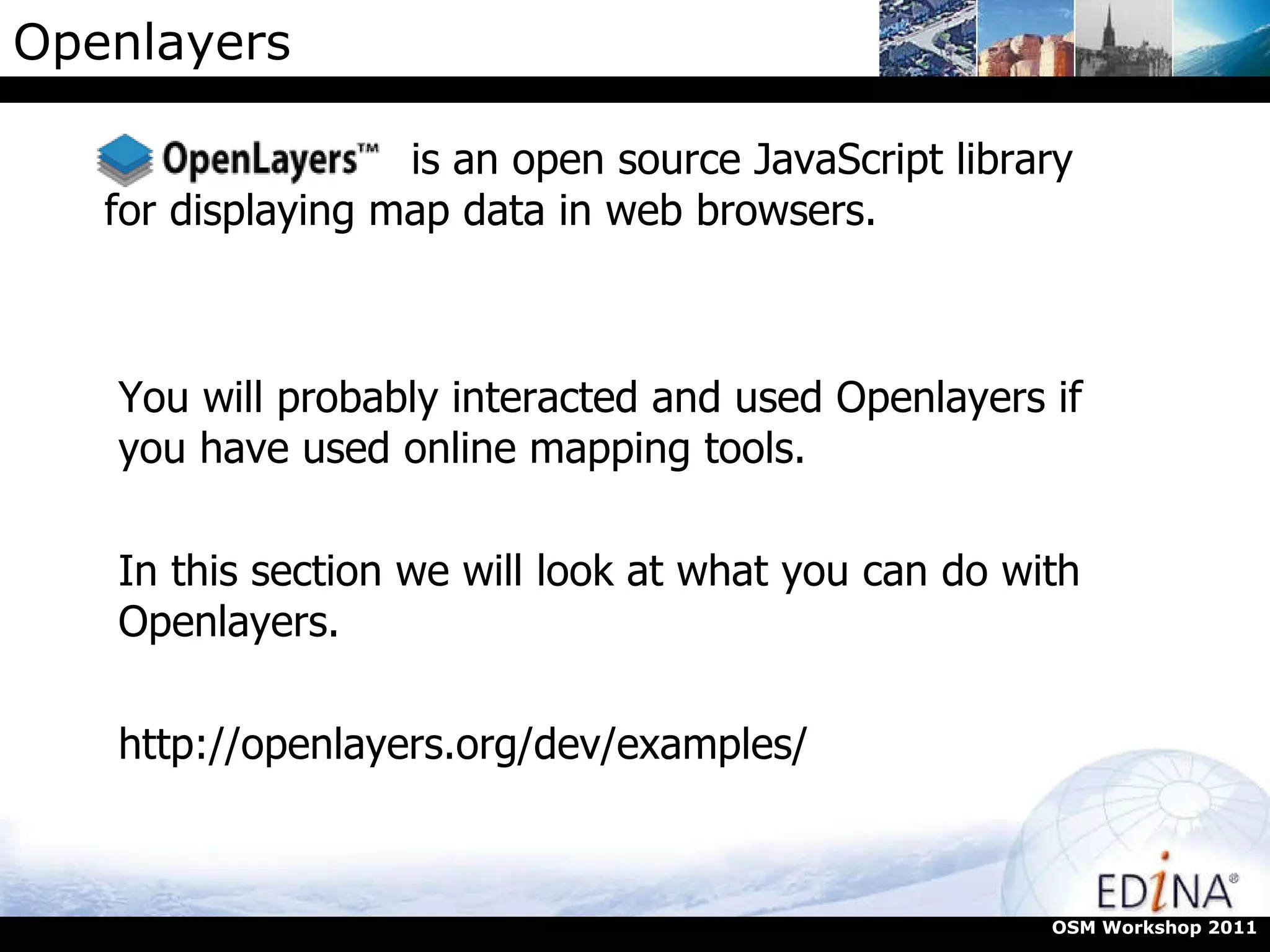

18. Openlayers is an open source JavaScript library for displaying map data in web browsers. You will probably interacted and used Openlayers if you have used online mapping tools. In this section we will look at what you can do with Openlayers. http://openlayers.org/dev/examples/ OSM Workshop 2011

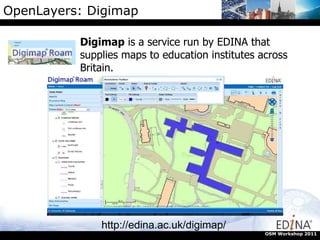

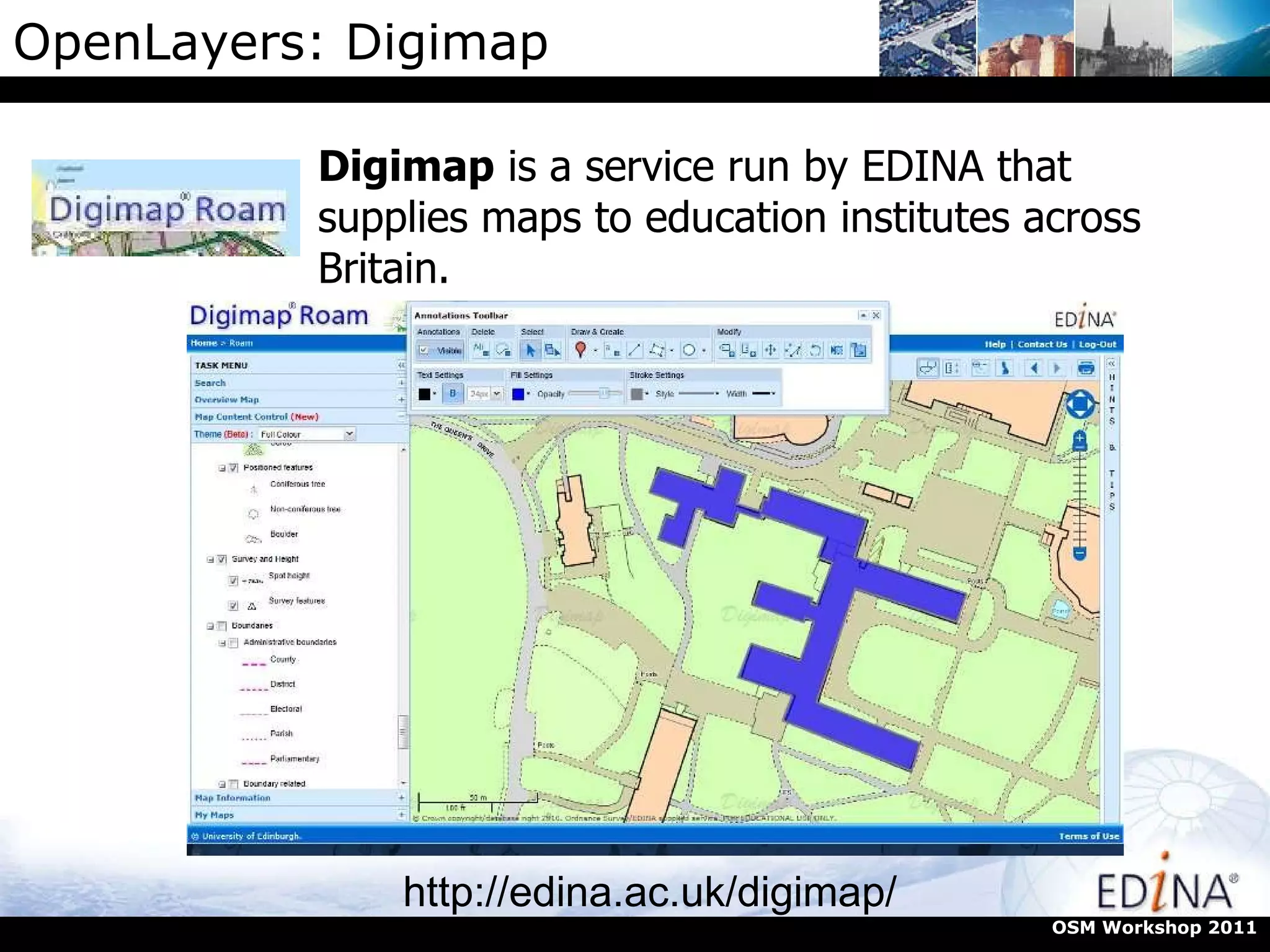

19. OpenLayers: Digimap Digimap is a service run by EDINA that supplies maps to education institutes across Britain. http://edina.ac.uk/digimap/ OSM Workshop 2011

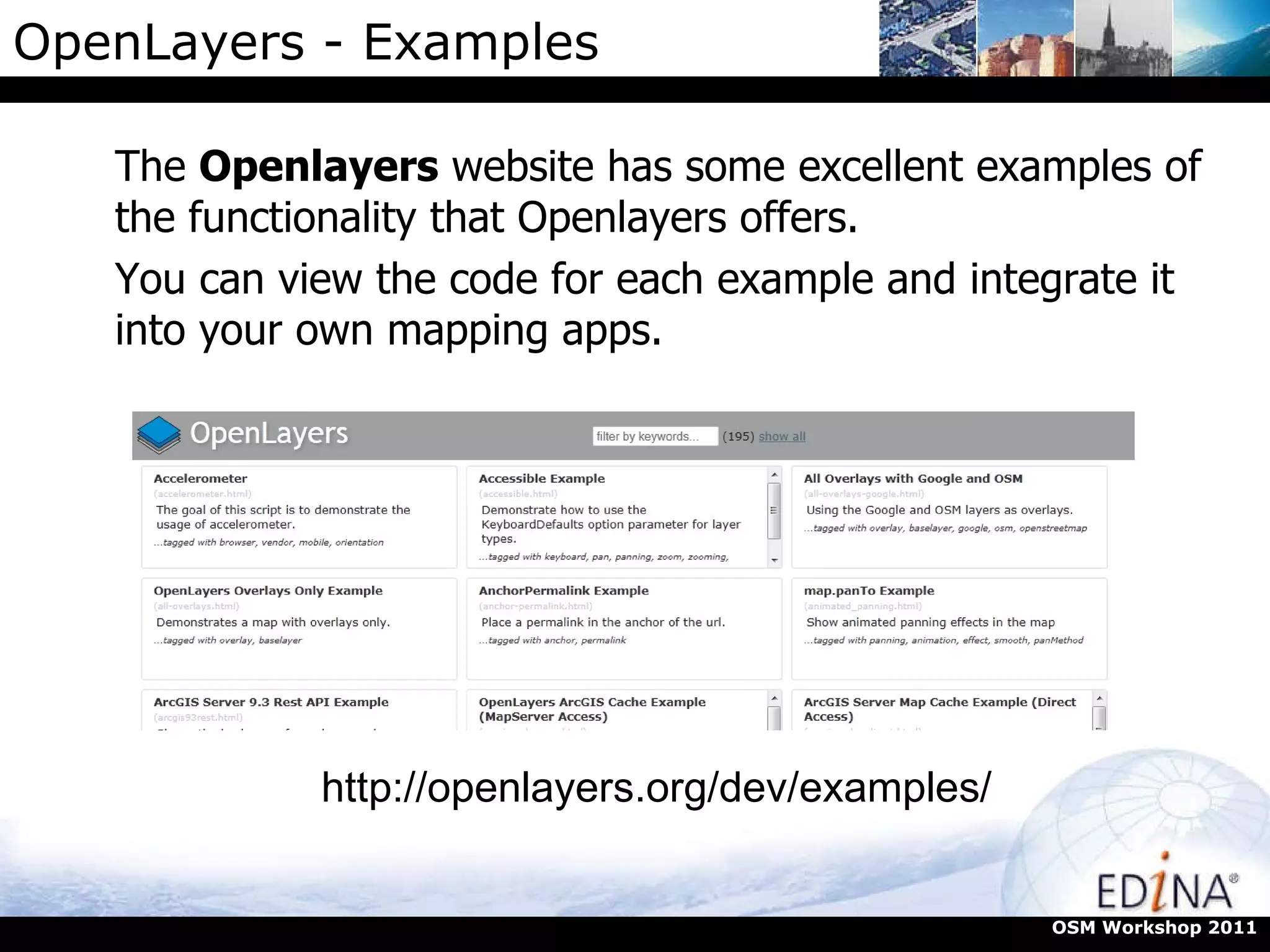

20. OpenLayers - Examples The Openlayers website has some excellent examples of the functionality that Openlayers offers. You can view the code for each example and integrate it into your own mapping apps. OSM Workshop 2011 http://openlayers.org/dev/examples/

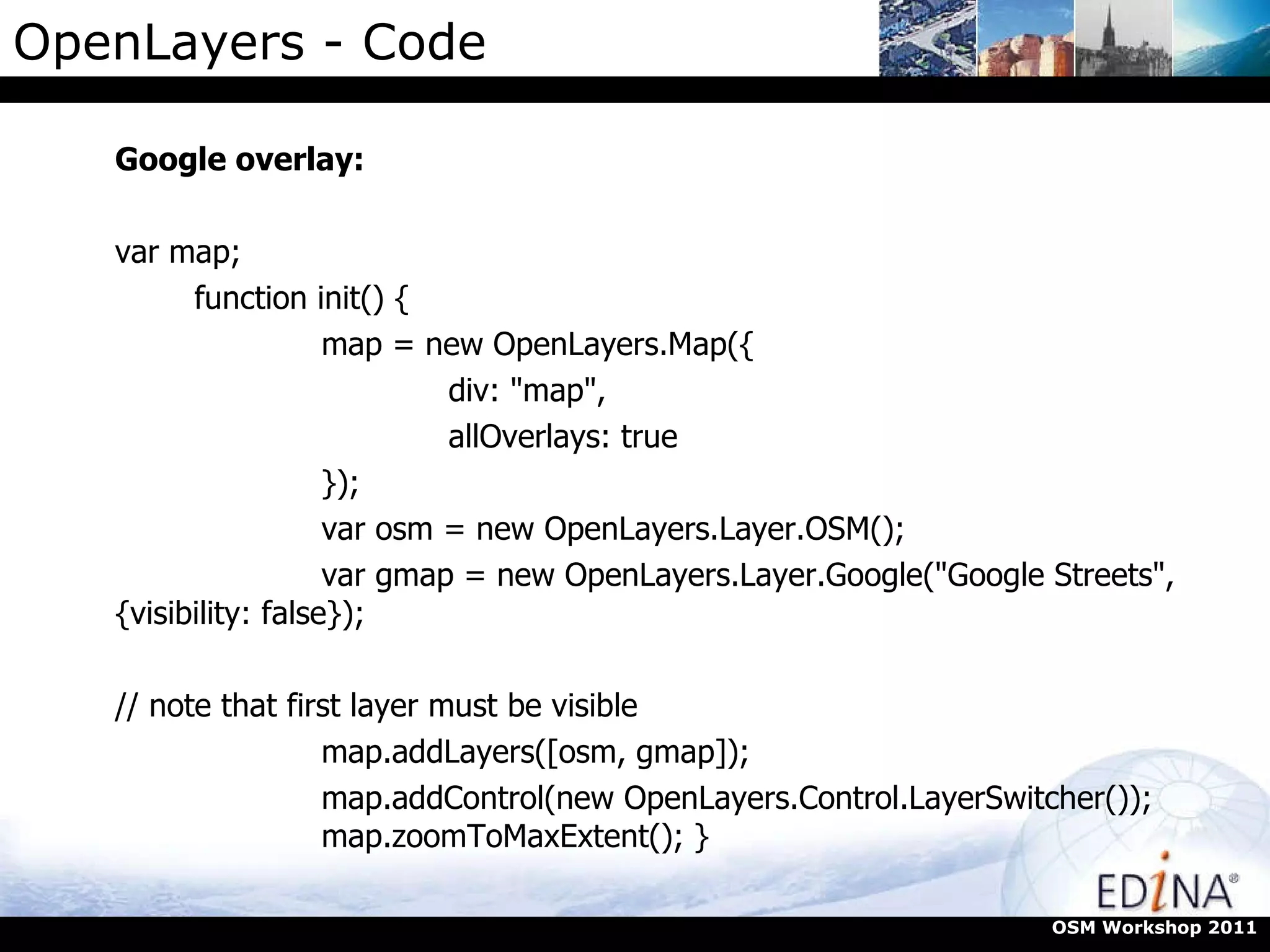

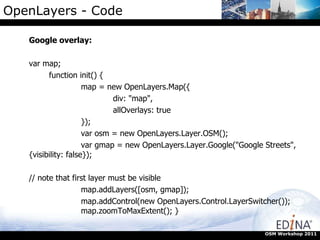

21. OpenLayers - Code Google overlay: var map; function init() { map = new OpenLayers.Map({ div: "map", allOverlays: true }); var osm = new OpenLayers.Layer.OSM(); var gmap = new OpenLayers.Layer.Google("Google Streets", {visibility: false}); // note that first layer must be visible map.addLayers([osm, gmap]); map.addControl(new OpenLayers.Control.LayerSwitcher()); map.zoomToMaxExtent(); } OSM Workshop 2011

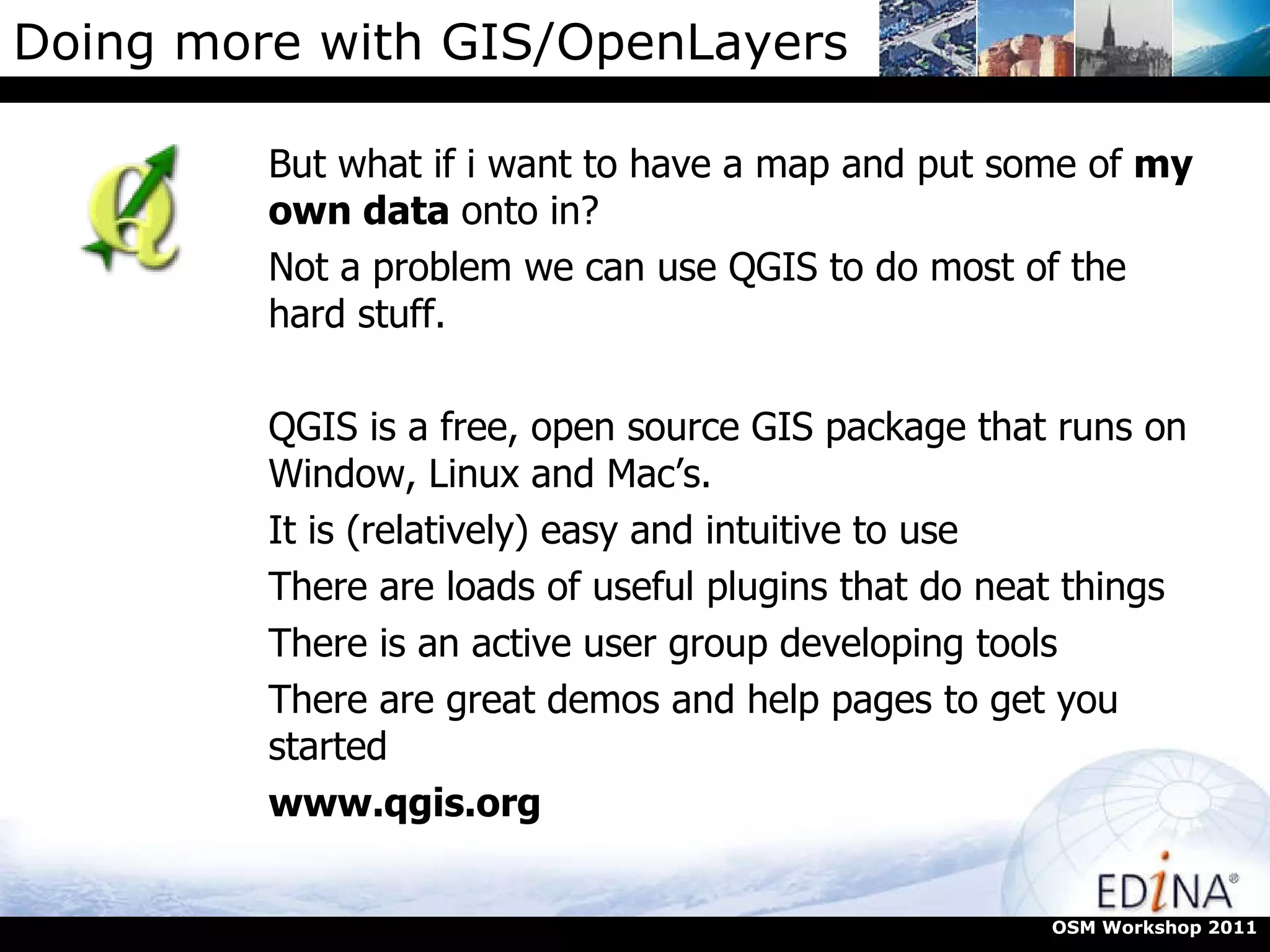

22. Doing more with GIS/OpenLayers But what if i want to have a map and put some of my own data onto in? Not a problem we can use QGIS to do most of the hard stuff. QGIS is a free, open source GIS package that runs on Window, Linux and Mac’s. It is (relatively) easy and intuitive to use There are loads of useful plugins that do neat things There is an active user group developing tools There are great demos and help pages to get you started www.qgis.org OSM Workshop 2011

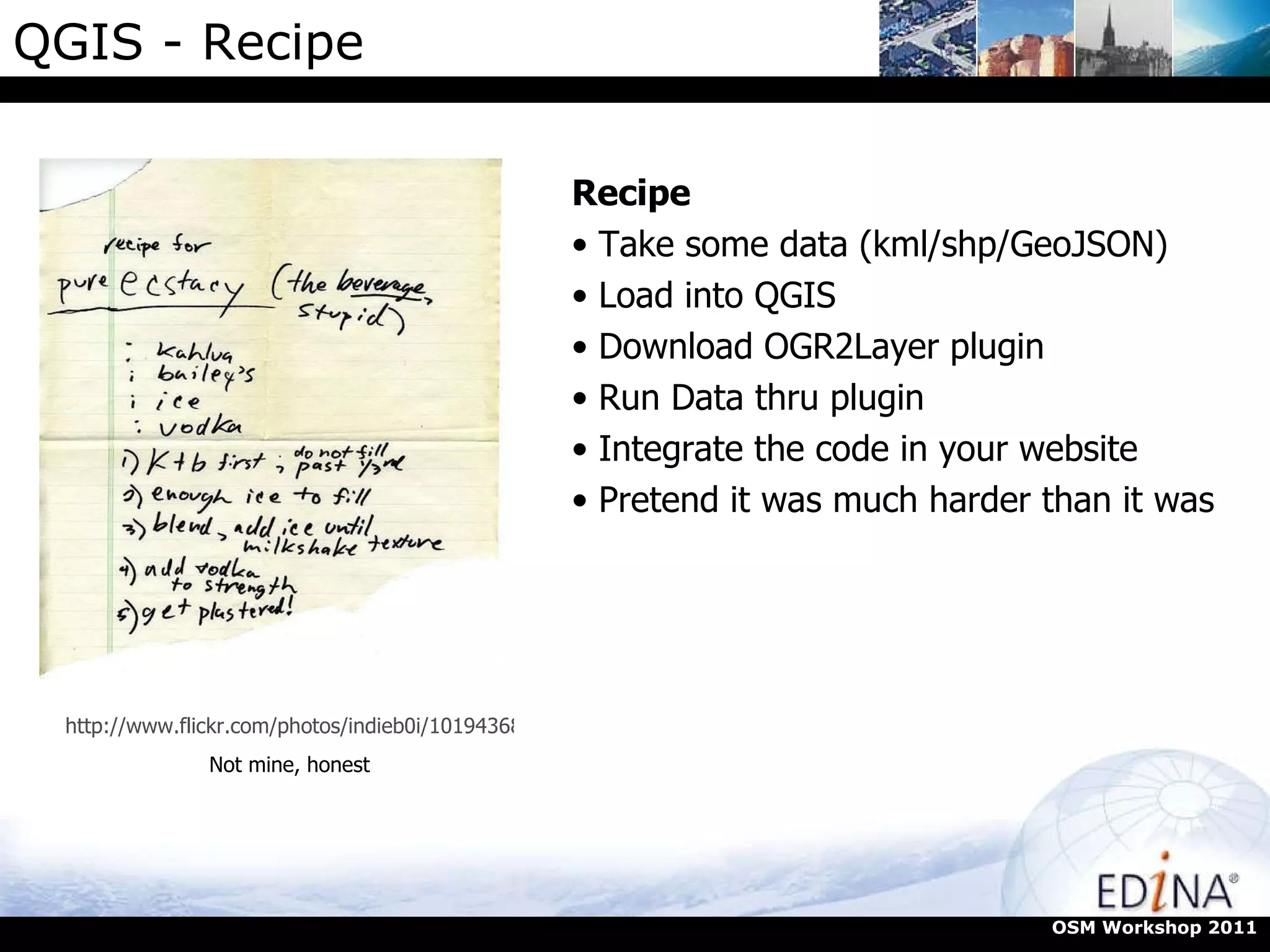

23. QGIS - Recipe OSM Workshop 2011 http://www.flickr.com/photos/indieb0i/101943682/ Not mine, honest Recipe Take some data (kml/shp/GeoJSON) Load into QGIS Download OGR2Layer plugin Run Data thru plugin Integrate the code in your website Pretend it was much harder than it was

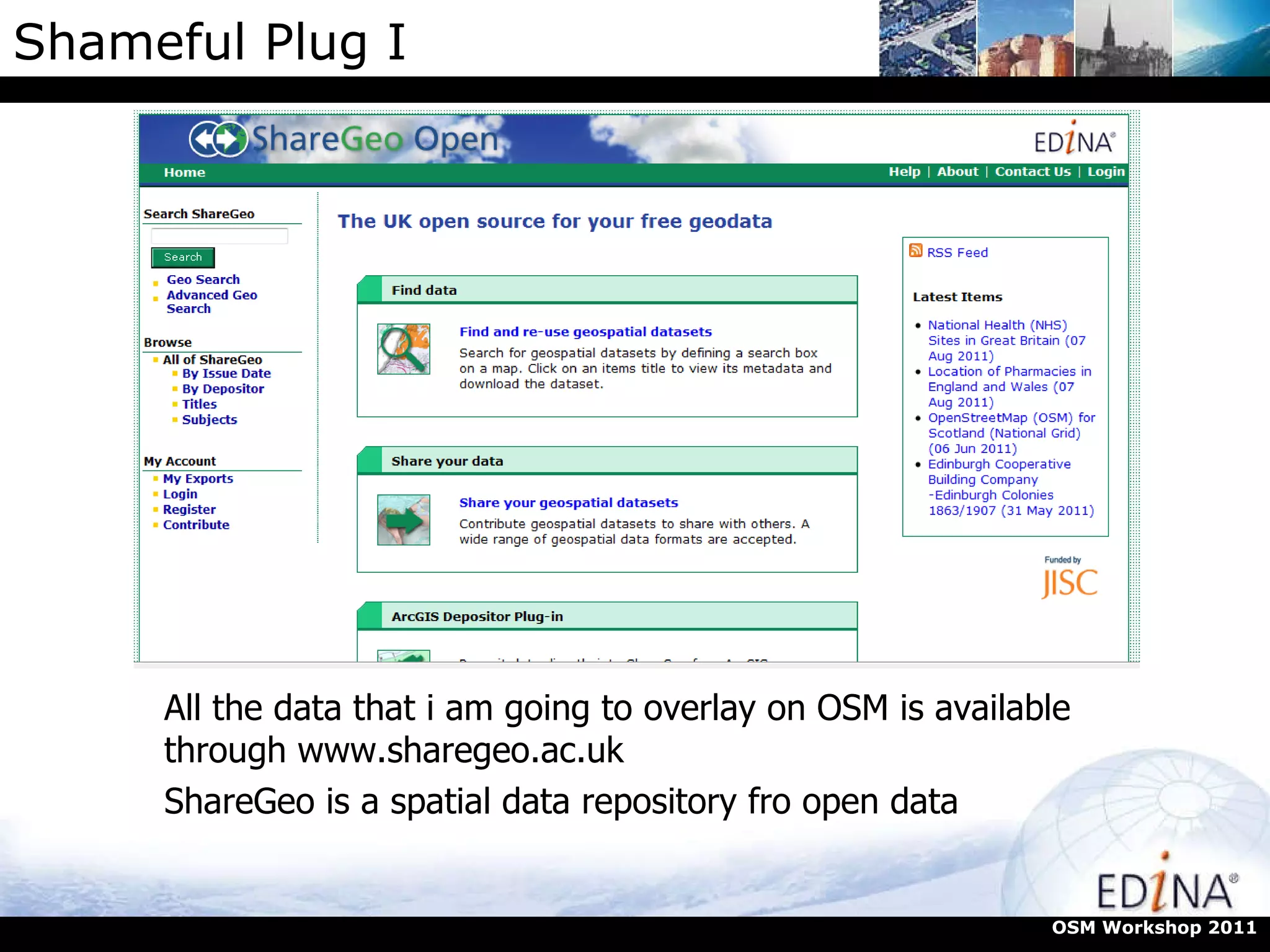

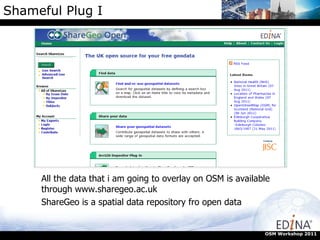

24. Shameful Plug I OSM Workshop 2011 All the data that i am going to overlay on OSM is available through www.sharegeo.ac.uk ShareGeo is a spatial data repository fro open data

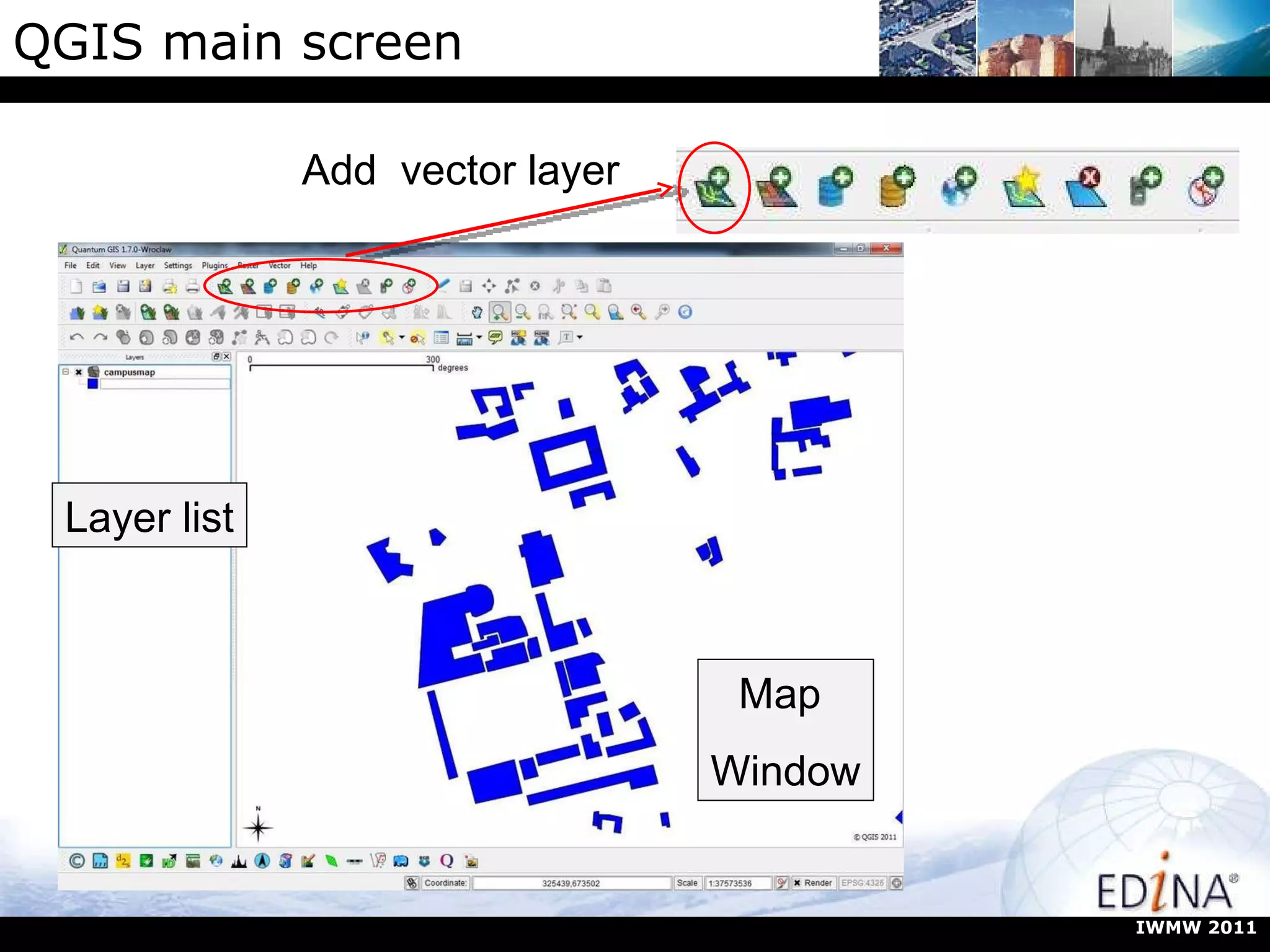

25. QGIS main screen Add vector layer Layer list Map Window IWMW 2011

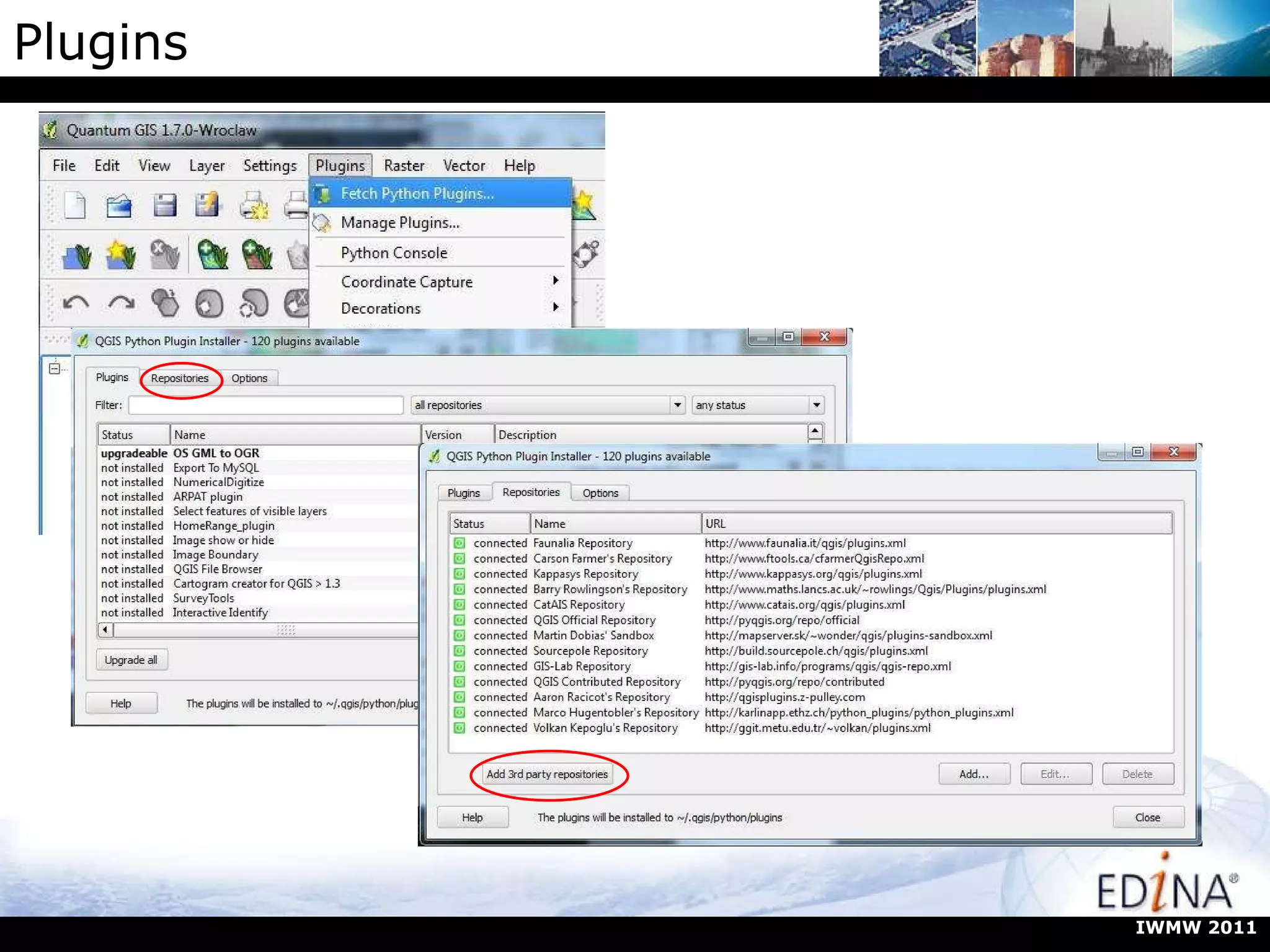

26. Plugins IWMW 2011

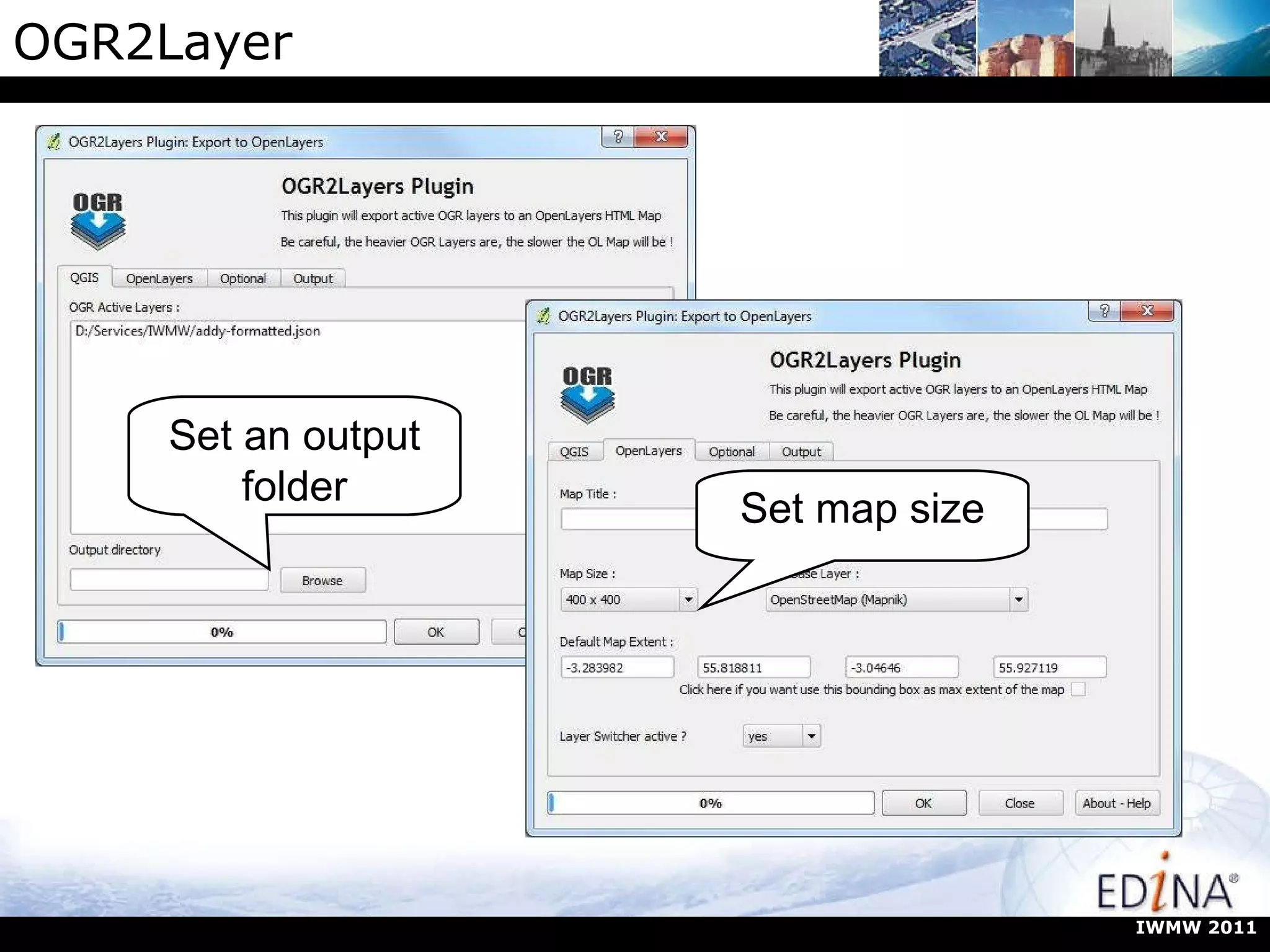

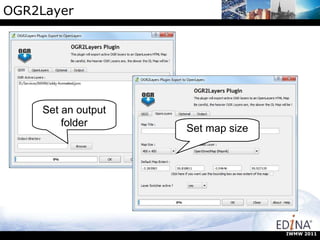

27. OGR2Layer Set an output folder Set map size IWMW 2011

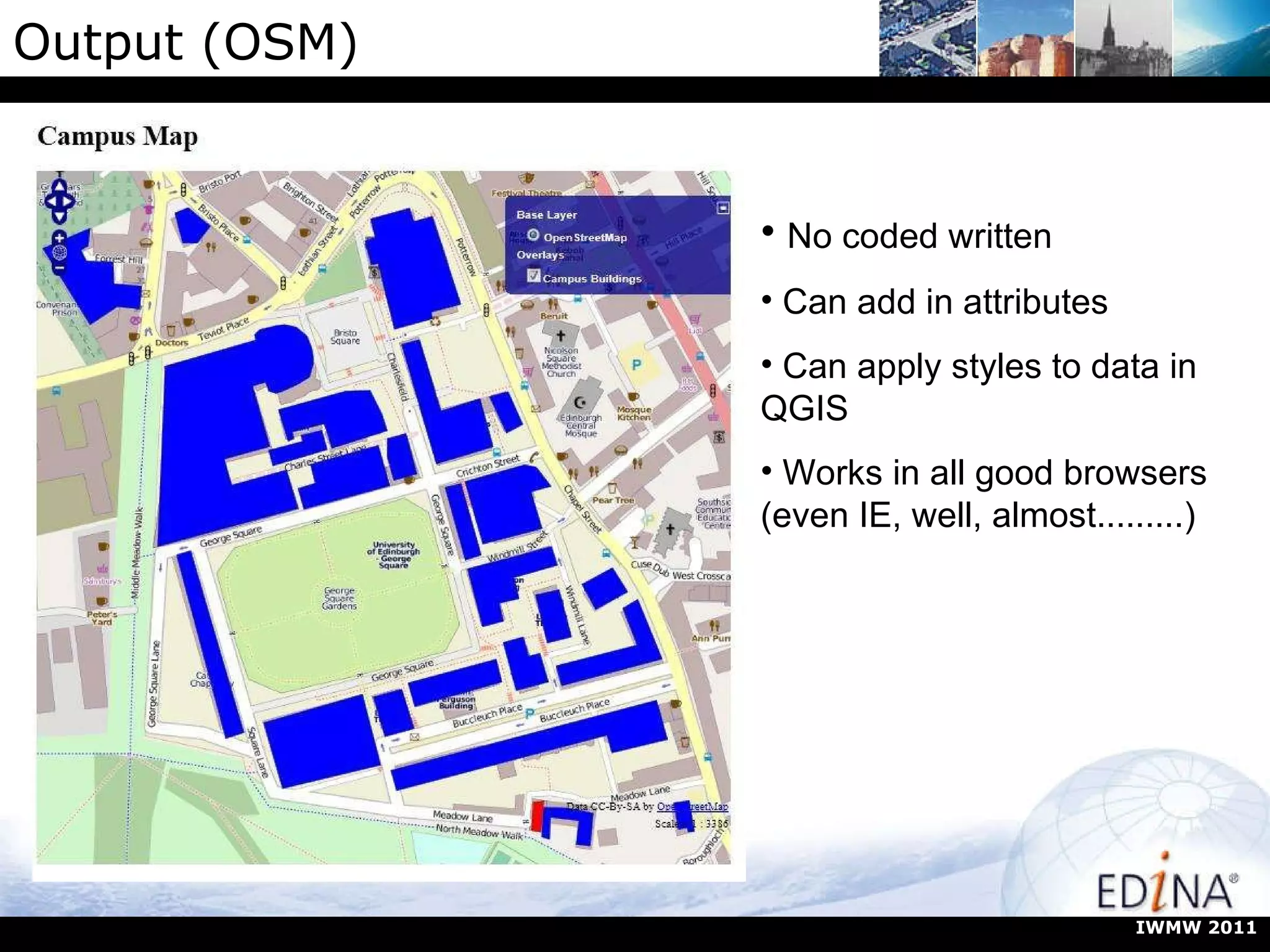

28. Output (OSM) No coded written Can add in attributes Can apply styles to data in QGIS Works in all good browsers (even IE, well, almost.........) IWMW 2011

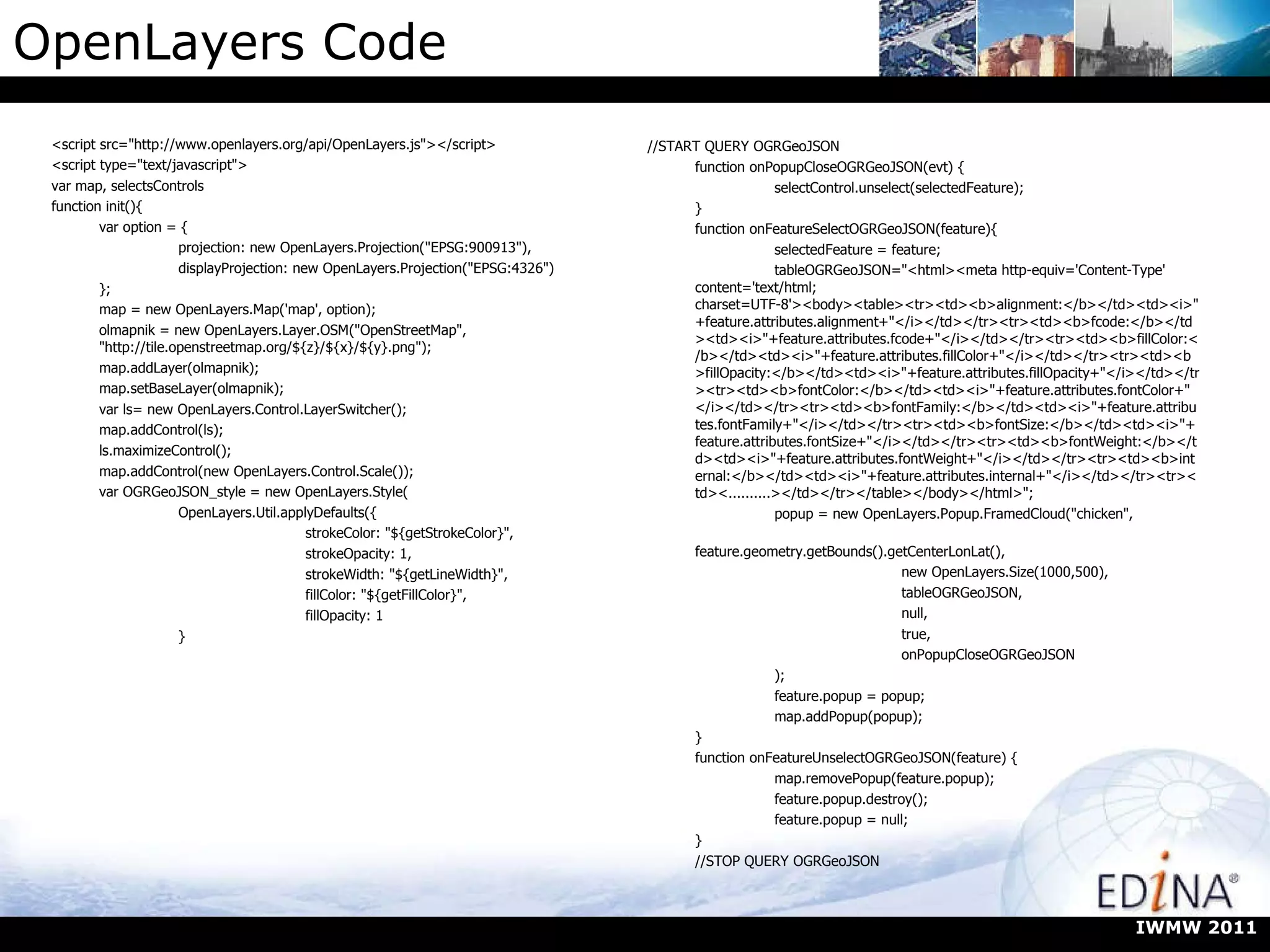

29. OpenLayers Code <script src=&quot;http://www.openlayers.org/api/OpenLayers.js&quot;></script> <script type=&quot;text/javascript&quot;> var map, selectsControls function init(){ var option = { projection: new OpenLayers.Projection(&quot;EPSG:900913&quot;), displayProjection: new OpenLayers.Projection(&quot;EPSG:4326&quot;) }; map = new OpenLayers.Map('map', option); olmapnik = new OpenLayers.Layer.OSM(&quot;OpenStreetMap&quot;, &quot;http://tile.openstreetmap.org/${z}/${x}/${y}.png&quot;); map.addLayer(olmapnik); map.setBaseLayer(olmapnik); var ls= new OpenLayers.Control.LayerSwitcher(); map.addControl(ls); ls.maximizeControl(); map.addControl(new OpenLayers.Control.Scale()); var OGRGeoJSON_style = new OpenLayers.Style( OpenLayers.Util.applyDefaults({ strokeColor: &quot;${getStrokeColor}&quot;, strokeOpacity: 1, strokeWidth: &quot;${getLineWidth}&quot;, fillColor: &quot;${getFillColor}&quot;, fillOpacity: 1 } //START QUERY OGRGeoJSON function onPopupCloseOGRGeoJSON(evt) { selectControl.unselect(selectedFeature); } function onFeatureSelectOGRGeoJSON(feature){ selectedFeature = feature; tableOGRGeoJSON=&quot;<html><meta http-equiv='Content-Type' content='text/html; charset=UTF-8'><body><table><tr><td><b>alignment:</b></td><td><i>&quot;+feature.attributes.alignment+&quot;</i></td></tr><tr><td><b>fcode:</b></td><td><i>&quot;+feature.attributes.fcode+&quot;</i></td></tr><tr><td><b>fillColor:</b></td><td><i>&quot;+feature.attributes.fillColor+&quot;</i></td></tr><tr><td><b>fillOpacity:</b></td><td><i>&quot;+feature.attributes.fillOpacity+&quot;</i></td></tr><tr><td><b>fontColor:</b></td><td><i>&quot;+feature.attributes.fontColor+&quot;</i></td></tr><tr><td><b>fontFamily:</b></td><td><i>&quot;+feature.attributes.fontFamily+&quot;</i></td></tr><tr><td><b>fontSize:</b></td><td><i>&quot;+feature.attributes.fontSize+&quot;</i></td></tr><tr><td><b>fontWeight:</b></td><td><i>&quot;+feature.attributes.fontWeight+&quot;</i></td></tr><tr><td><b>internal:</b></td><td><i>&quot;+feature.attributes.internal+&quot;</i></td></tr><tr><td><..........></td></tr></table></body></html>&quot;; popup = new OpenLayers.Popup.FramedCloud(&quot;chicken&quot;, feature.geometry.getBounds().getCenterLonLat(), new OpenLayers.Size(1000,500), tableOGRGeoJSON, null, true, onPopupCloseOGRGeoJSON ); feature.popup = popup; map.addPopup(popup); } function onFeatureUnselectOGRGeoJSON(feature) { map.removePopup(feature.popup); feature.popup.destroy(); feature.popup = null; } //STOP QUERY OGRGeoJSON IWMW 2011

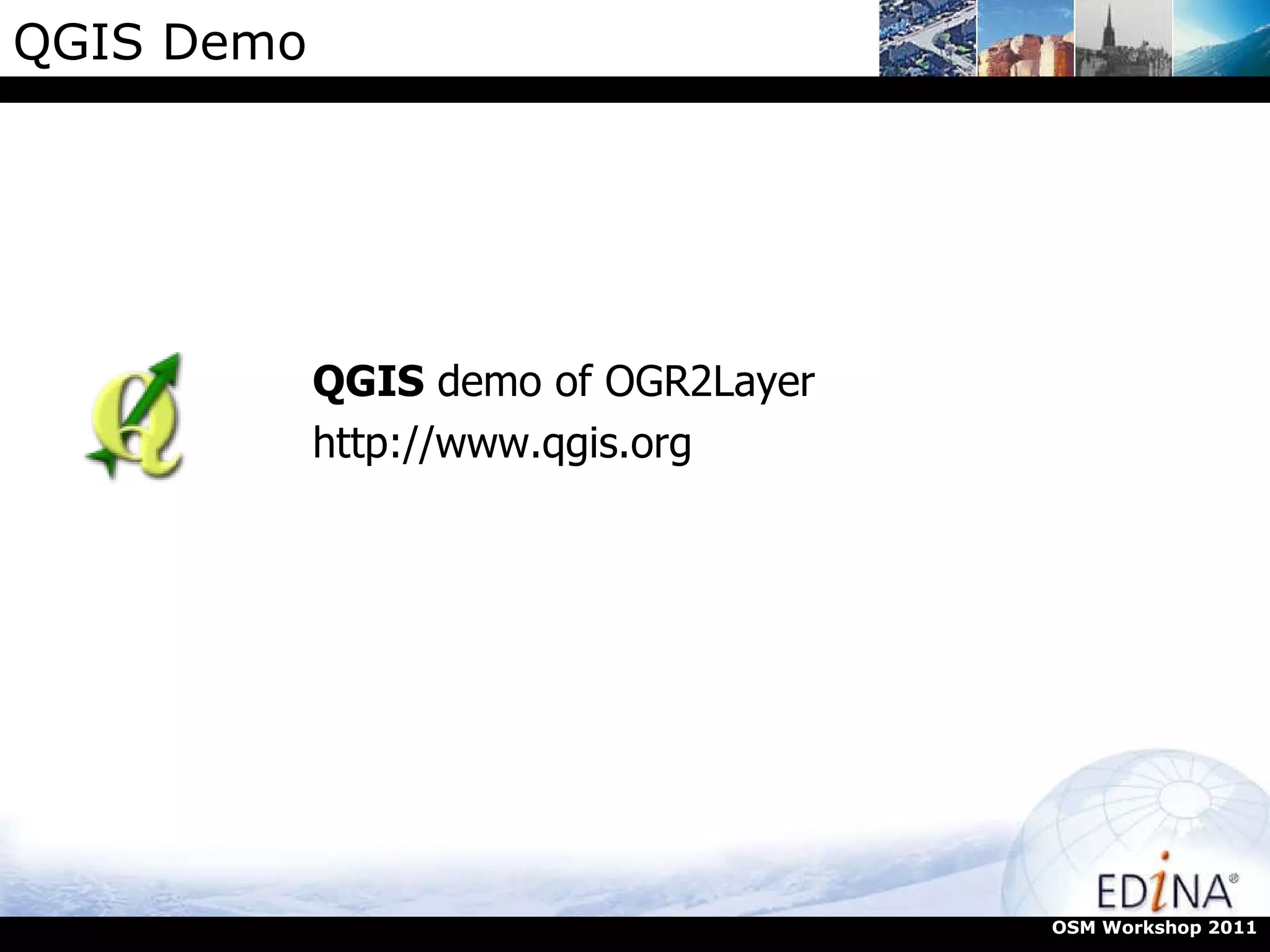

30. QGIS Demo QGIS demo of OGR2Layer http://www.qgis.org OSM Workshop 2011

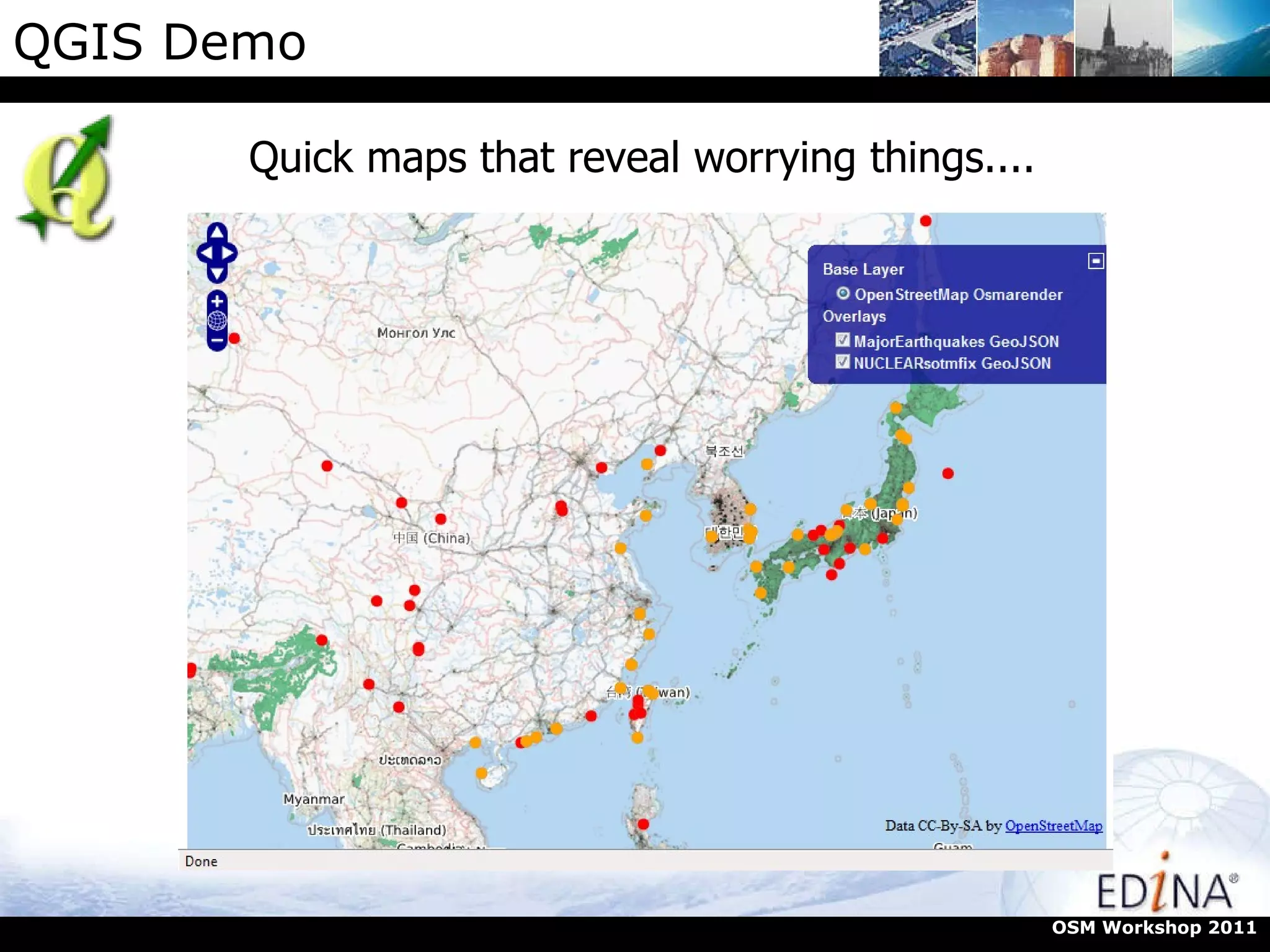

31. QGIS Demo Quick maps that reveal worrying things.... OSM Workshop 2011

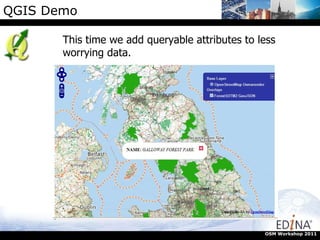

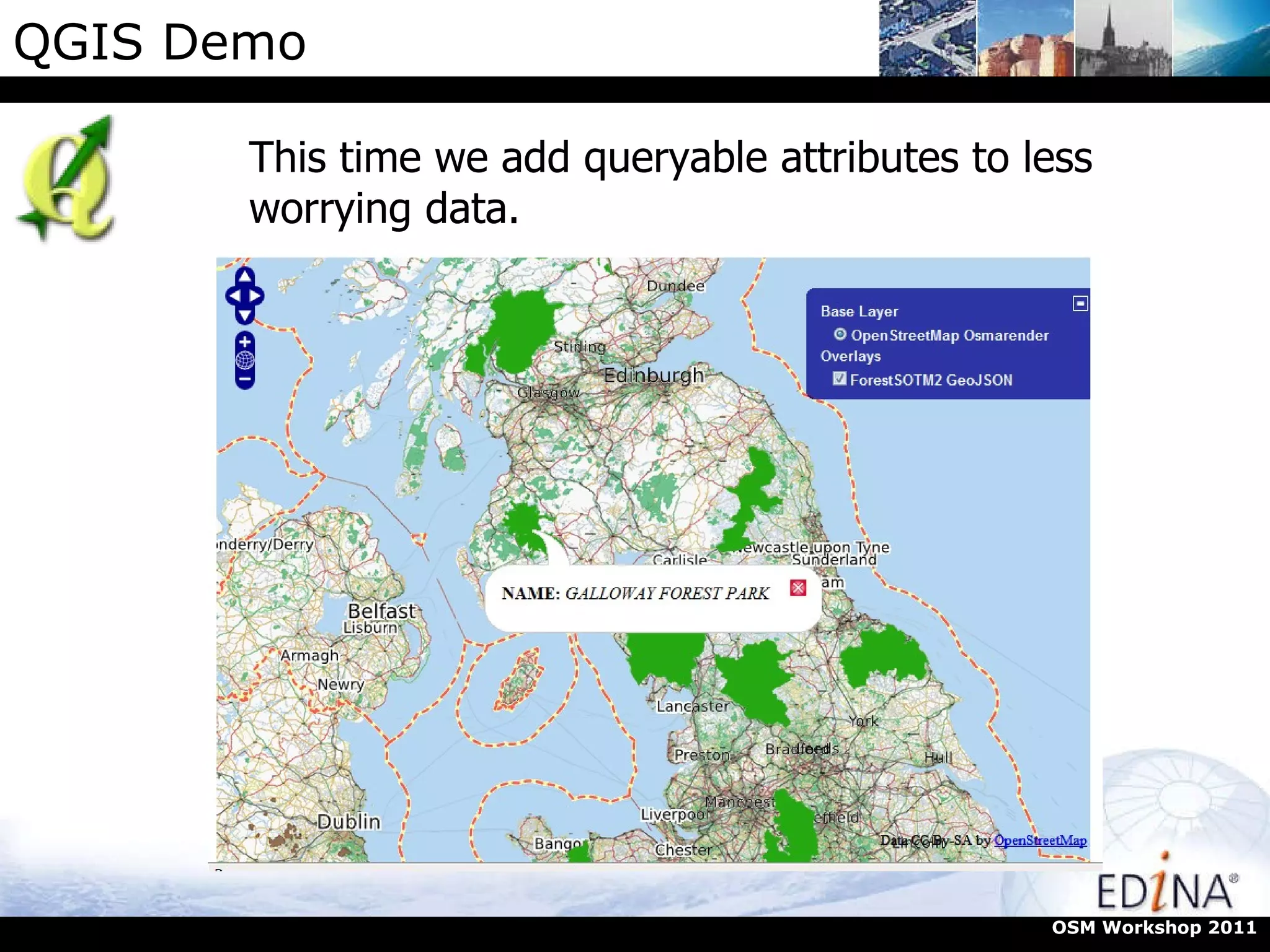

32. QGIS Demo This time we add queryable attributes to less worrying data. OSM Workshop 2011

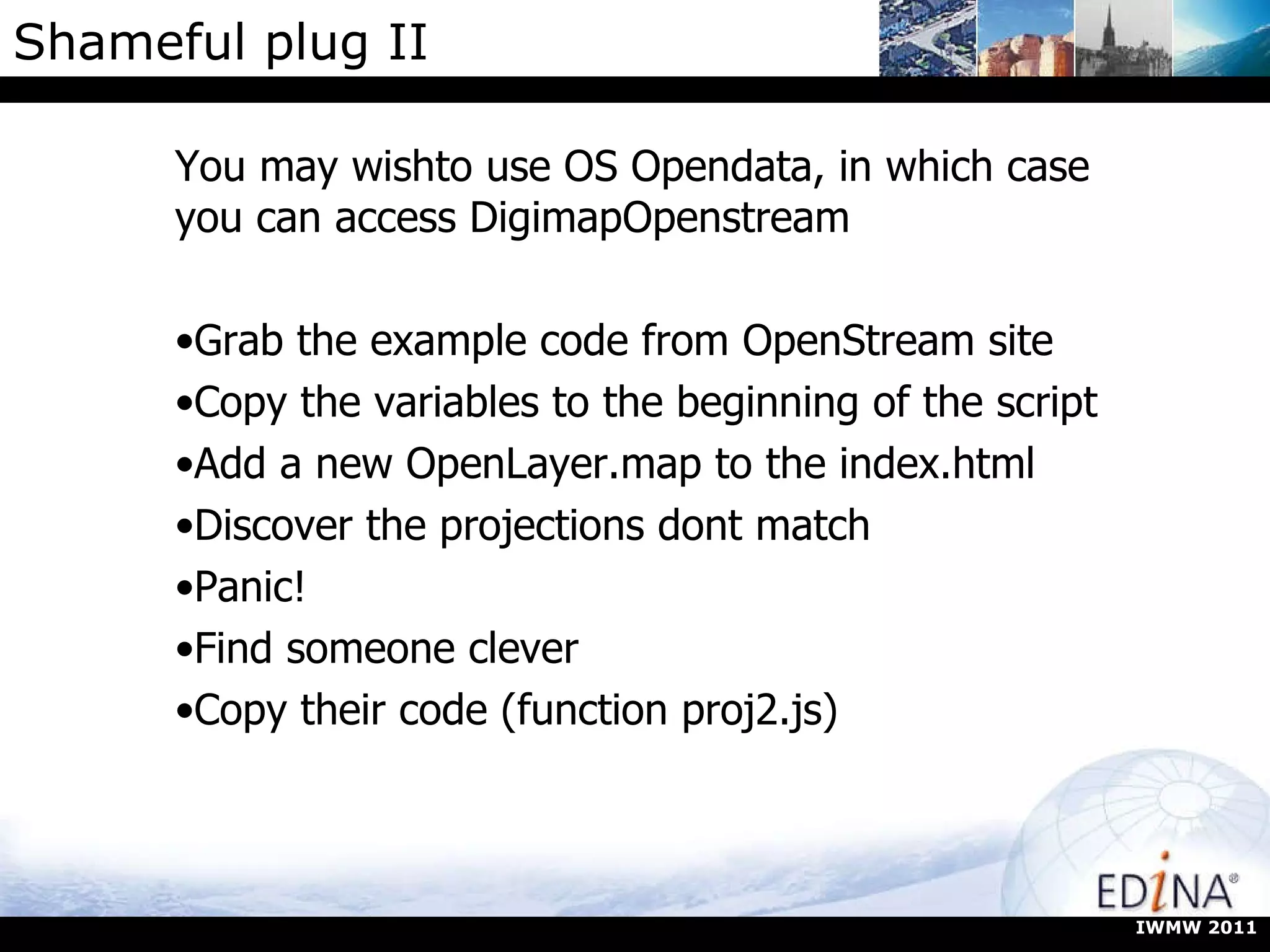

33. Shameful plug II You may wishto use OS Opendata, in which case you can access DigimapOpenstream Grab the example code from OpenStream site Copy the variables to the beginning of the script Add a new OpenLayer.map to the index.html Discover the projections dont match Panic! Find someone clever Copy their code (function proj2.js) IWMW 2011

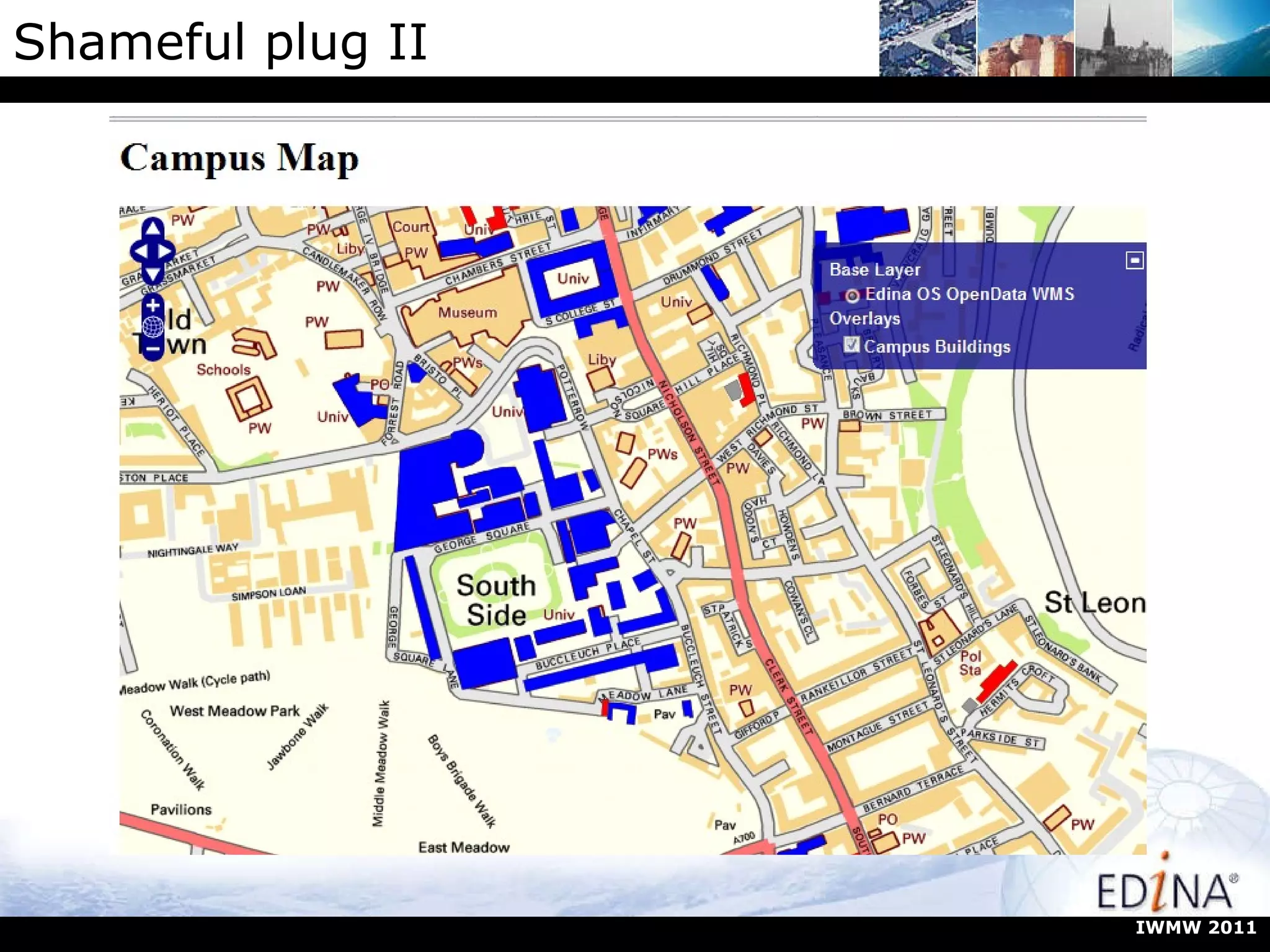

34. Shameful plug II IWMW 2011

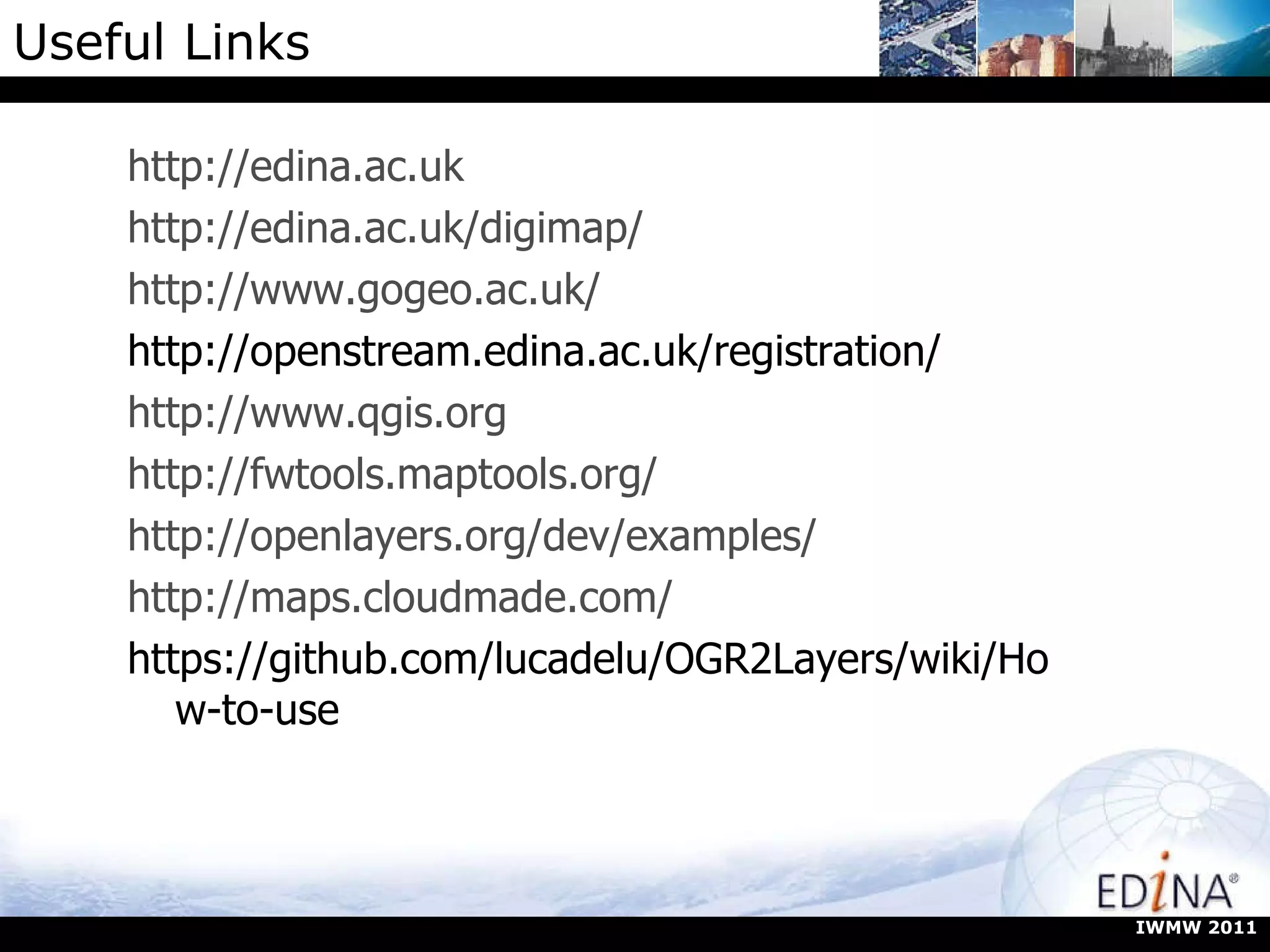

35. Useful Links http://edina.ac.uk http://edina.ac.uk/digimap/ http://www.gogeo.ac.uk/ http://openstream.edina.ac.uk/registration/ http://www.qgis.org http://fwtools.maptools.org/ http://openlayers.org/dev/examples/ http://maps.cloudmade.com/ https://github.com/lucadelu/OGR2Layers/wiki/How-to-use IWMW 2011

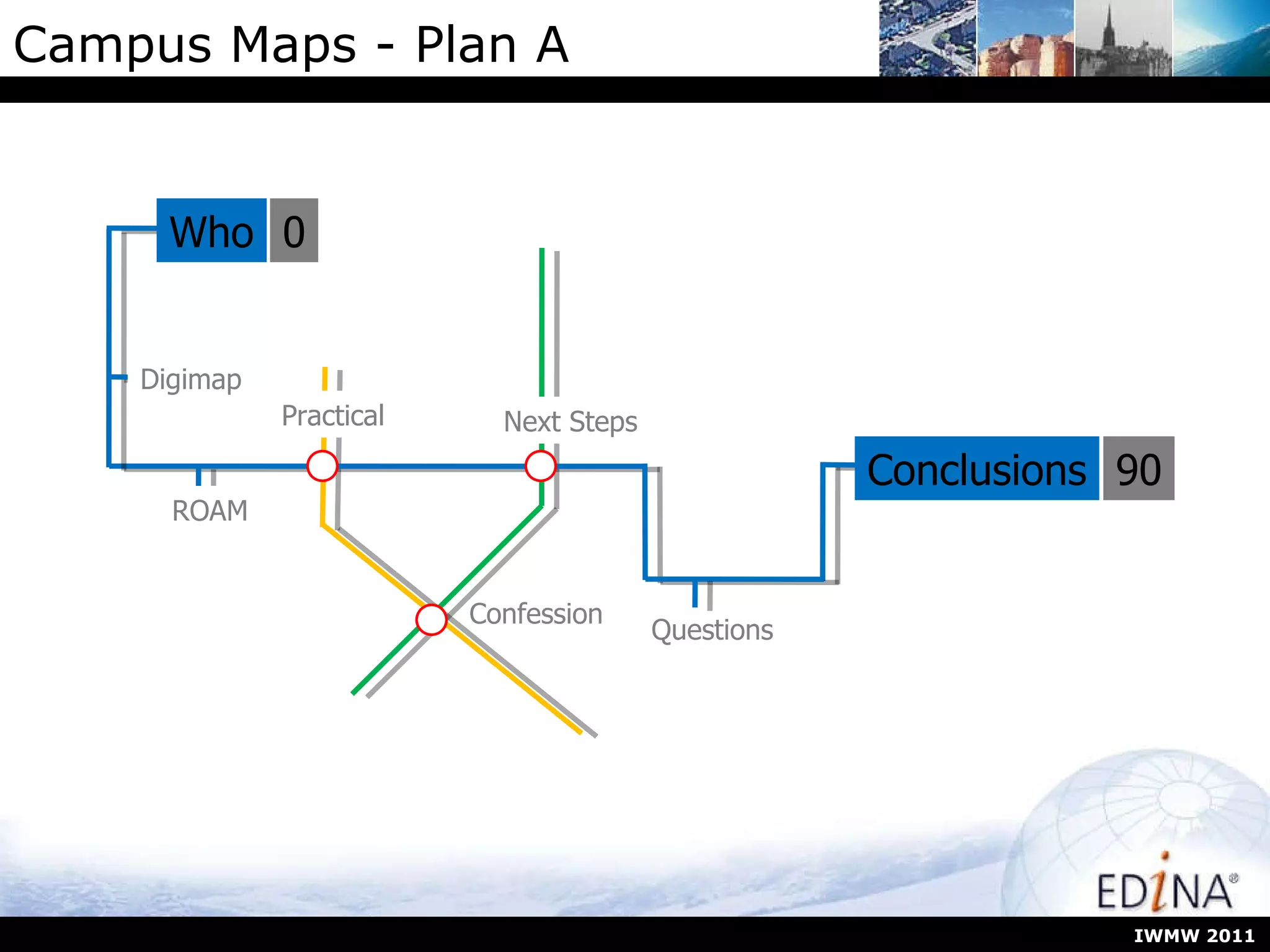

36. Campus Maps - Plan A IWMW 2011 Who Digimap ROAM Questions Conclusions 0 90 Confession Next Steps Practical

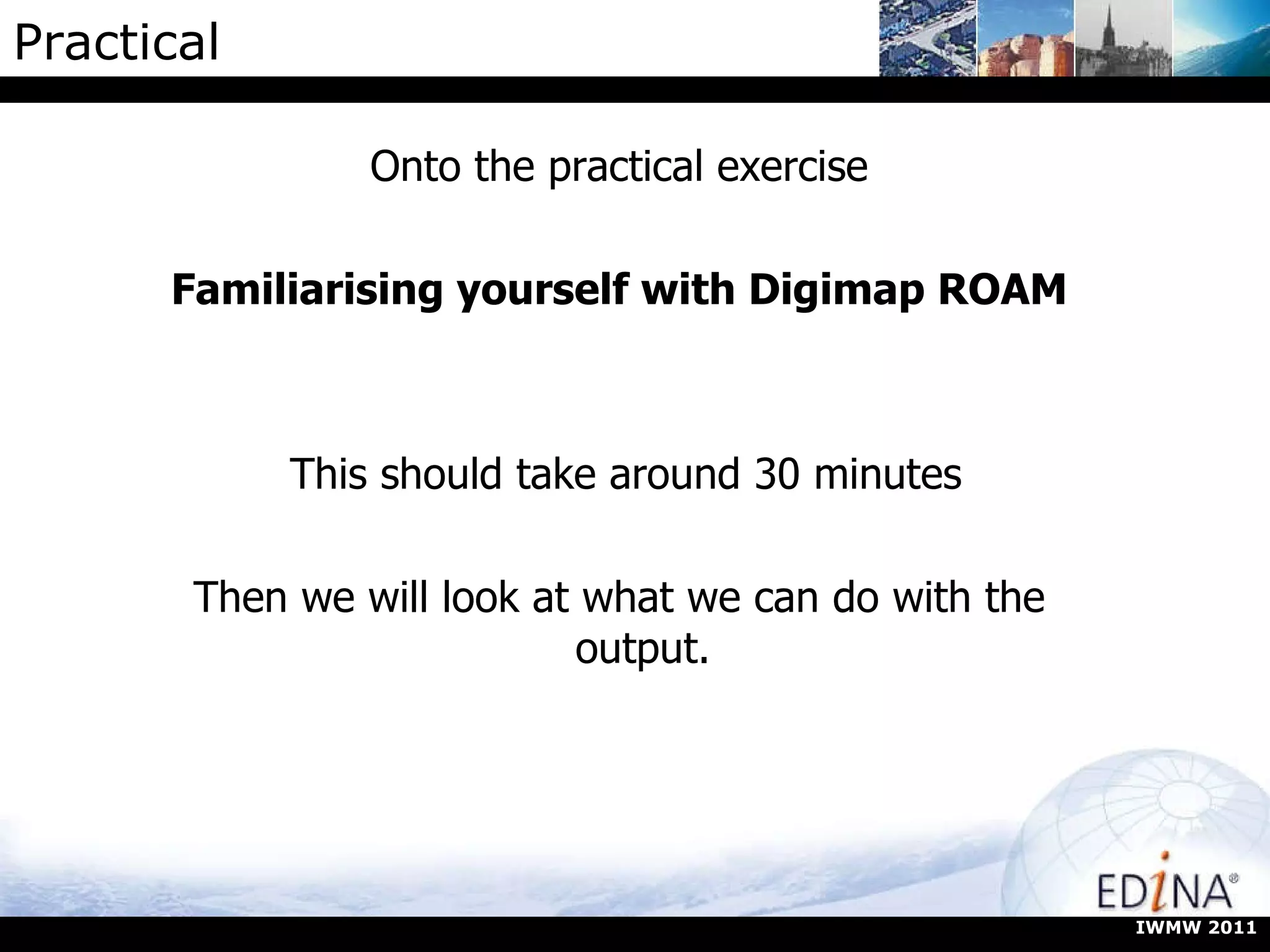

37. Practical Onto the practical exercise Familiarising yourself with Digimap ROAM This should take around 30 minutes Then we will look at what we can do with the output. IWMW 2011

38. After the magic button? Well, this is the bit has still to be decided and we want your help. IWMW 2011

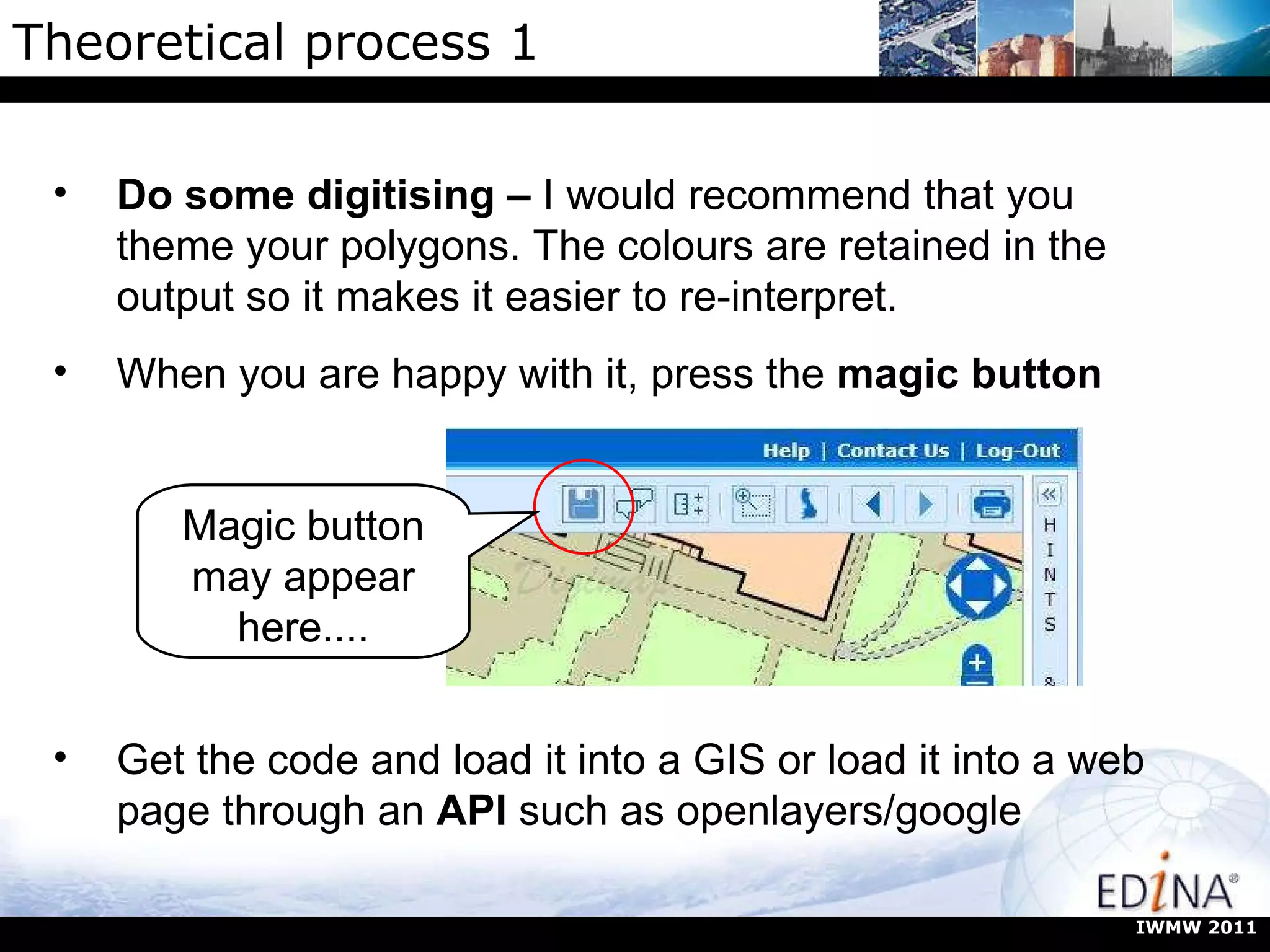

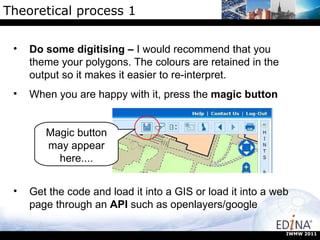

39. Theoretical process 1 Magic button may appear here.... IWMW 2011 Do some digitising – I would recommend that you theme your polygons. The colours are retained in the output so it makes it easier to re-interpret. When you are happy with it, press the magic button Get the code and load it into a GIS or load it into a web page through an API such as openlayers/google

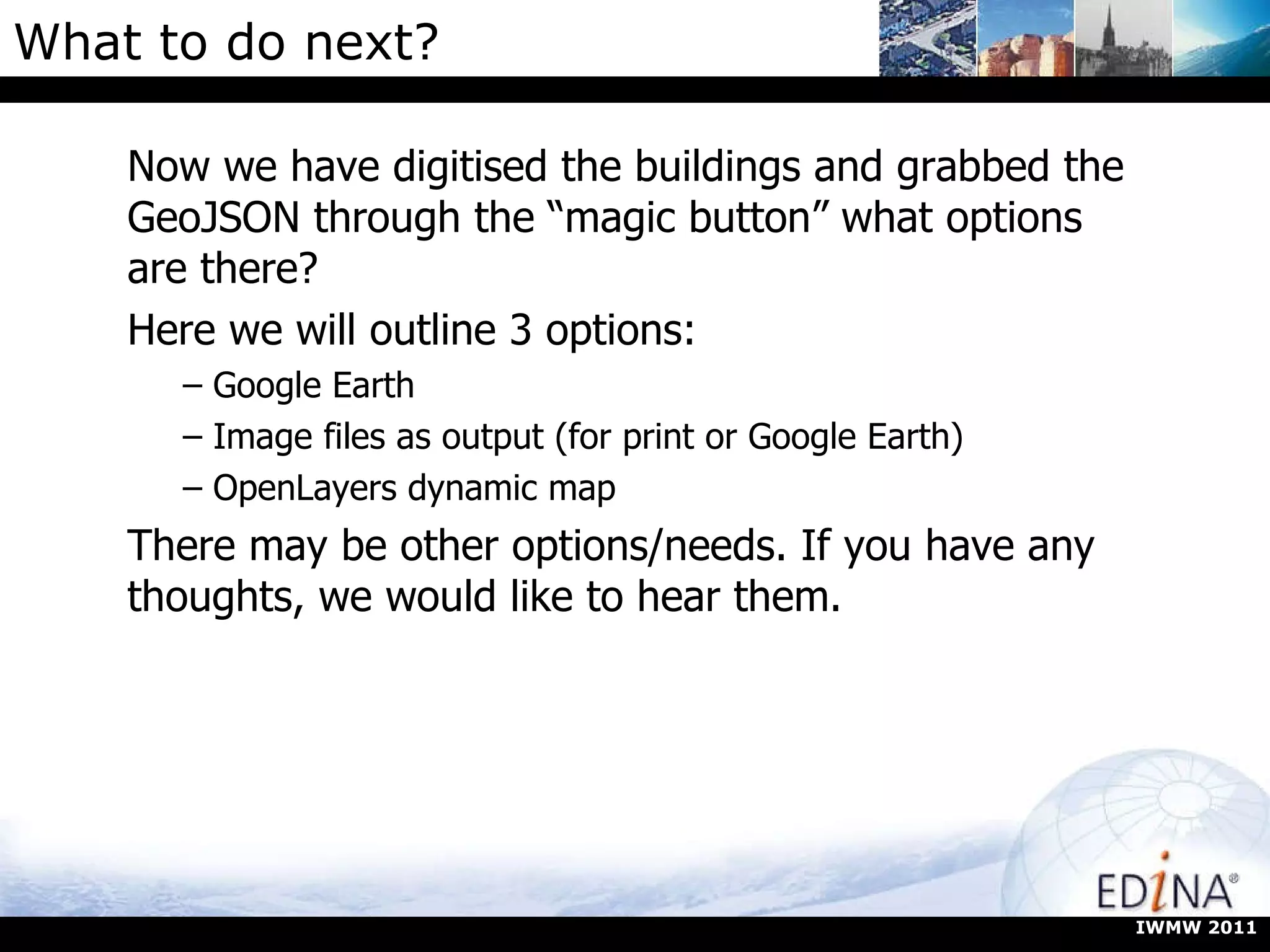

40. What to do next? Now we have digitised the buildings and grabbed the GeoJSON through the “magic button” what options are there? Here we will outline 3 options: Google Earth Image files as output (for print or Google Earth) OpenLayers dynamic map There may be other options/needs. If you have any thoughts, we would like to hear them. IWMW 2011

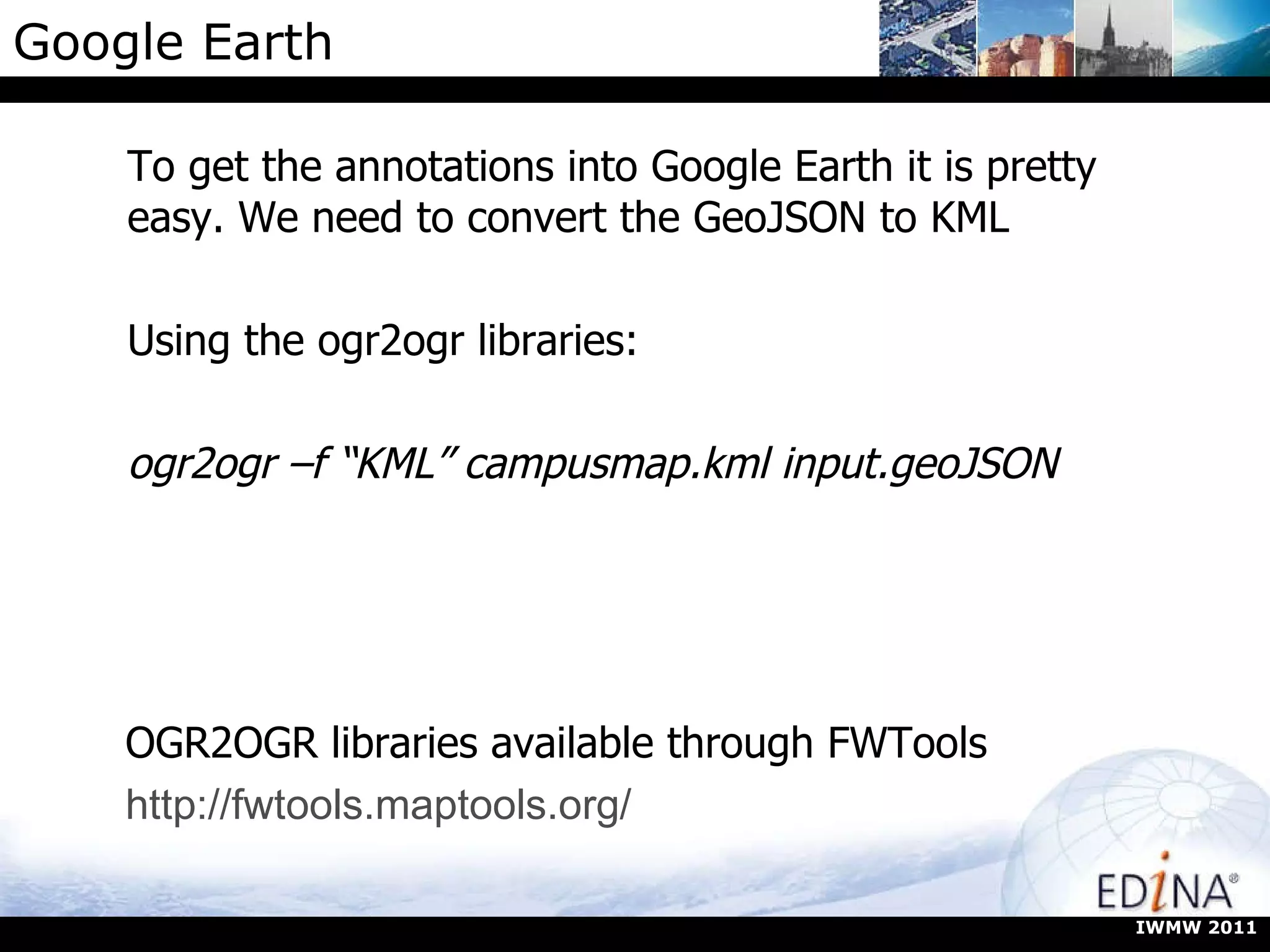

41. Google Earth To get the annotations into Google Earth it is pretty easy. We need to convert the GeoJSON to KML Using the ogr2ogr libraries: ogr2ogr –f “KML” campusmap.kml input.geoJSON IWMW 2011 OGR2OGR libraries available through FWTools http://fwtools.maptools.org/

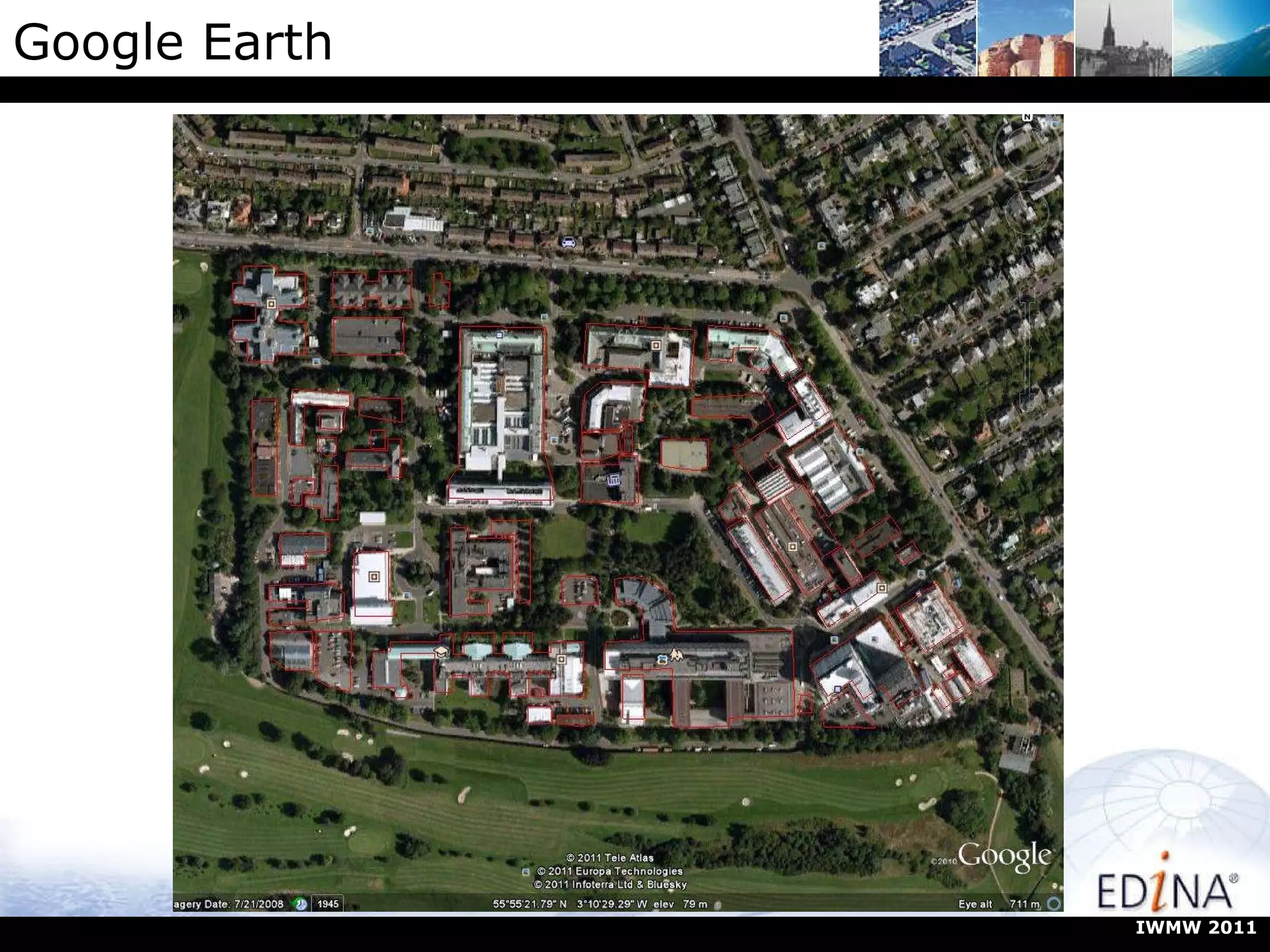

42. Google Earth IWMW 2011

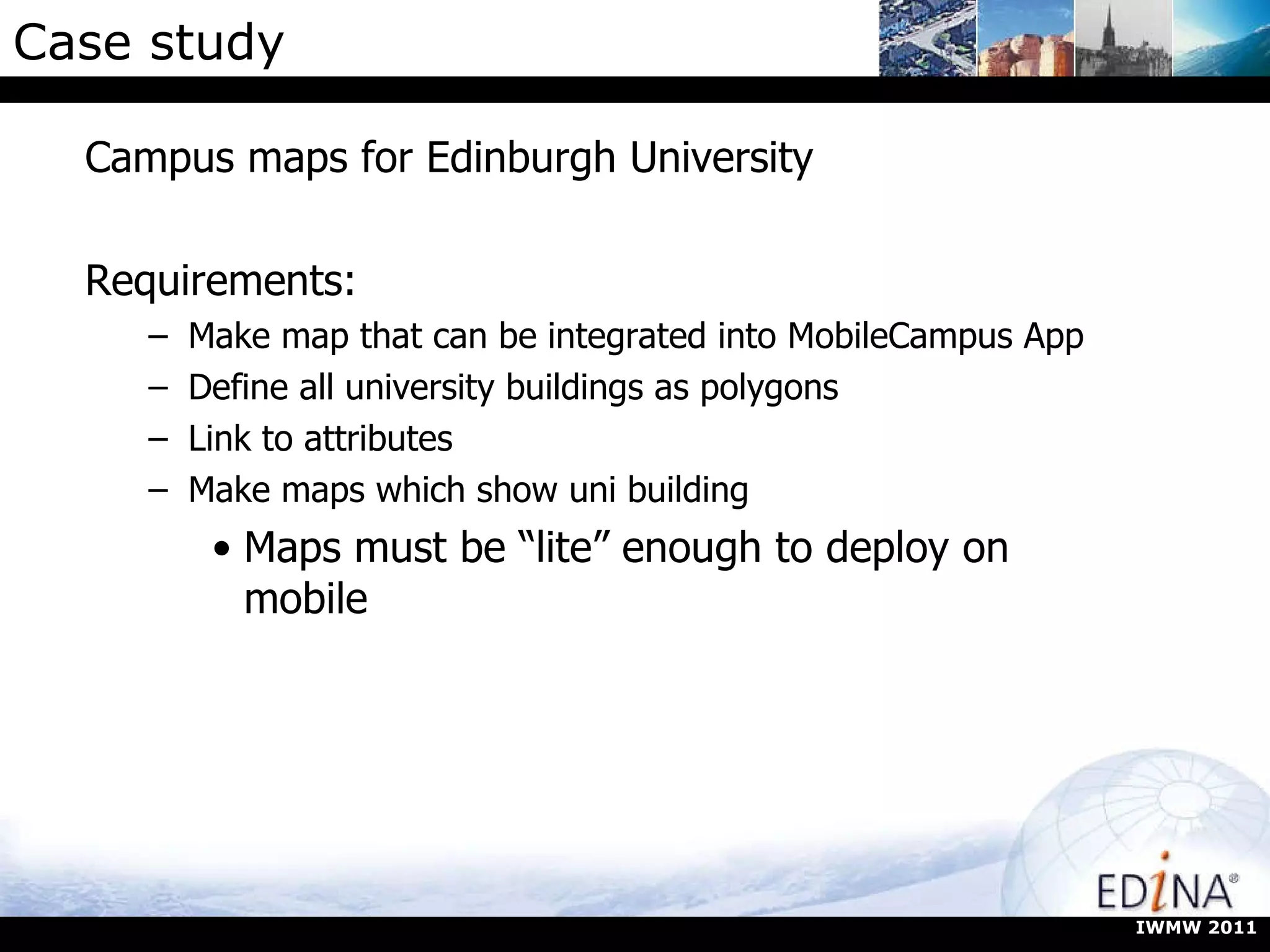

43. Case study Campus maps for Edinburgh University Requirements: Make map that can be integrated into MobileCampus App Define all university buildings as polygons Link to attributes Make maps which show uni building Maps must be “lite” enough to deploy on mobile IWMW 2011

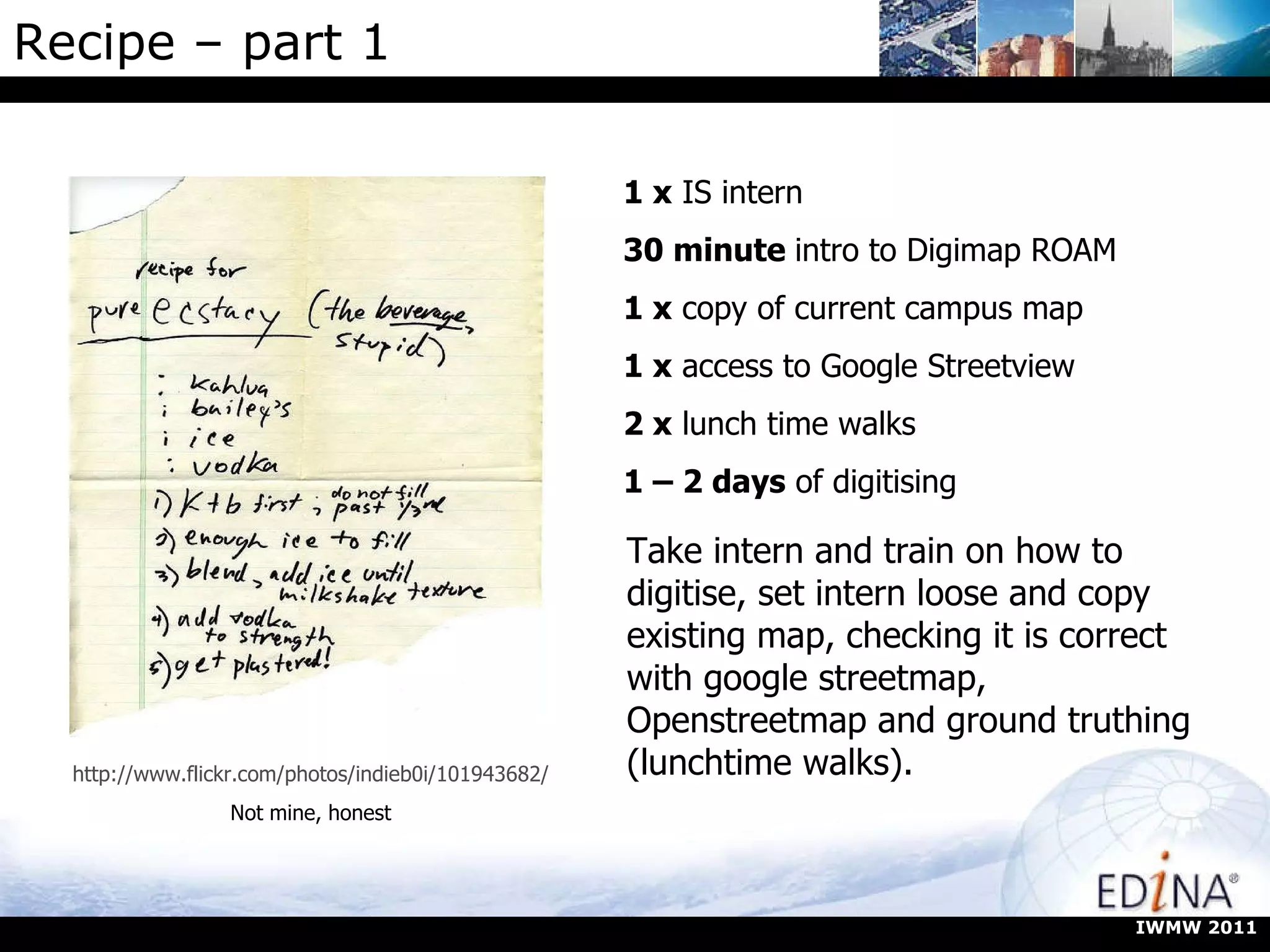

44. Recipe – part 1 1 x IS intern 30 minute intro to Digimap ROAM 1 x copy of current campus map 1 x access to Google Streetview 2 x lunch time walks 1 – 2 days of digitising http://www.flickr.com/photos/indieb0i/101943682/ Not mine, honest Take intern and train on how to digitise, set intern loose and copy existing map, checking it is correct with google streetmap, Openstreetmap and ground truthing (lunchtime walks). IWMW 2011

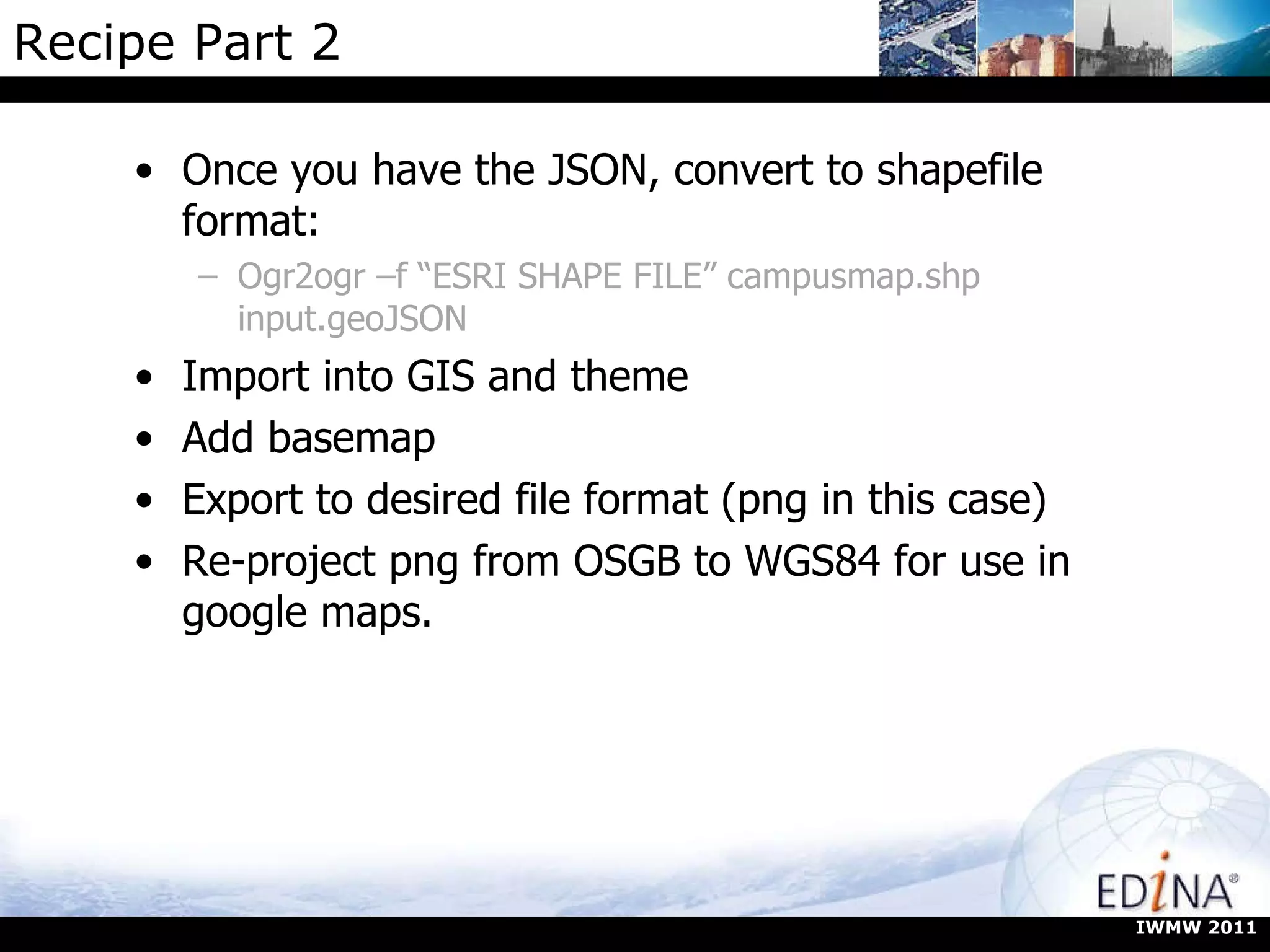

45. Recipe Part 2 Once you have the JSON, convert to shapefile format: Ogr2ogr –f “ESRI SHAPE FILE” campusmap.shp input.geoJSON Import into GIS and theme Add basemap Export to desired file format (png in this case) Re-project png from OSGB to WGS84 for use in google maps. IWMW 2011

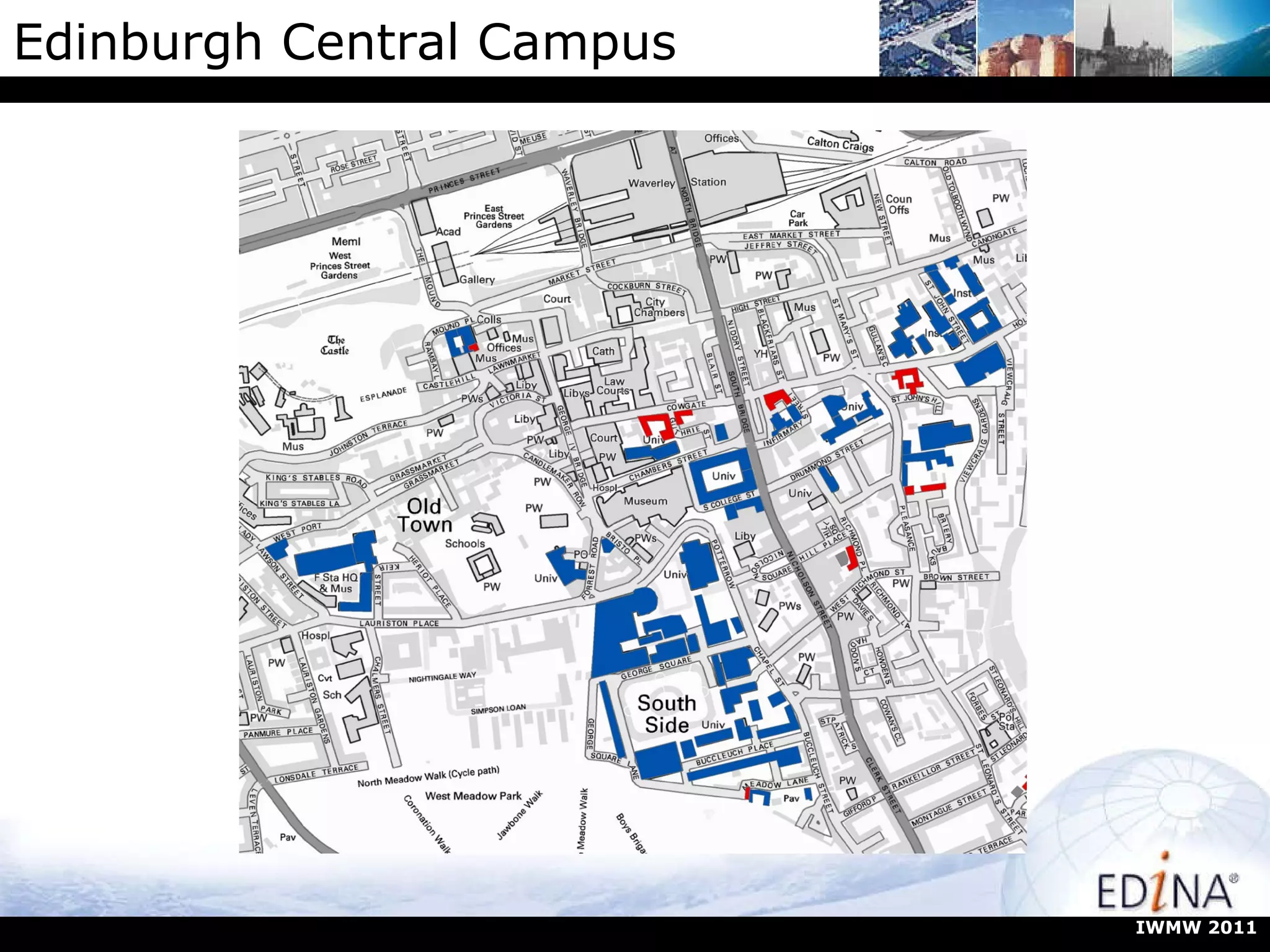

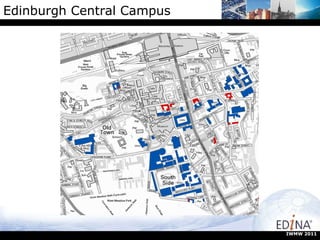

46. Edinburgh Central Campus IWMW 2011

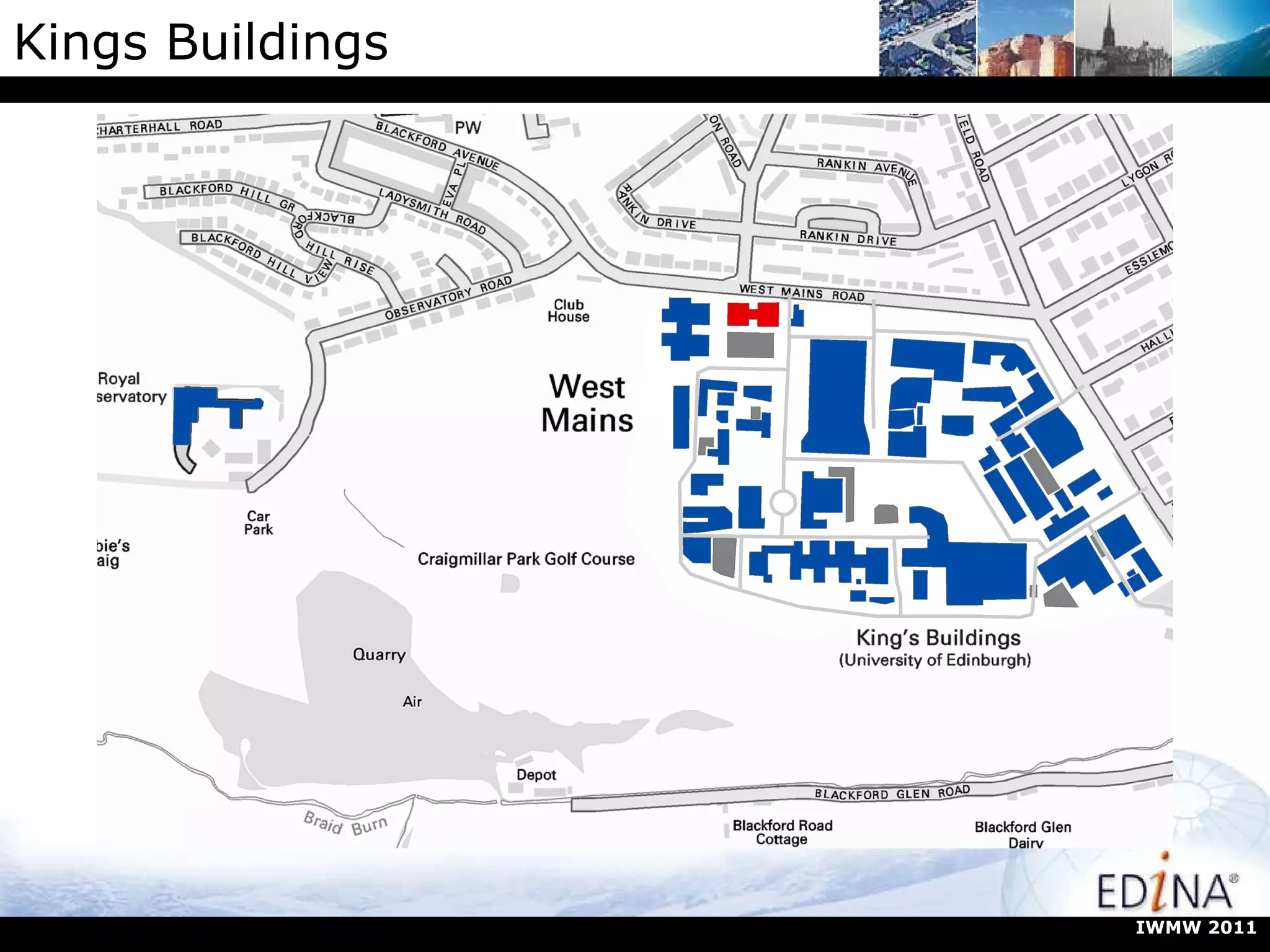

47. Kings Buildings IWMW 2011

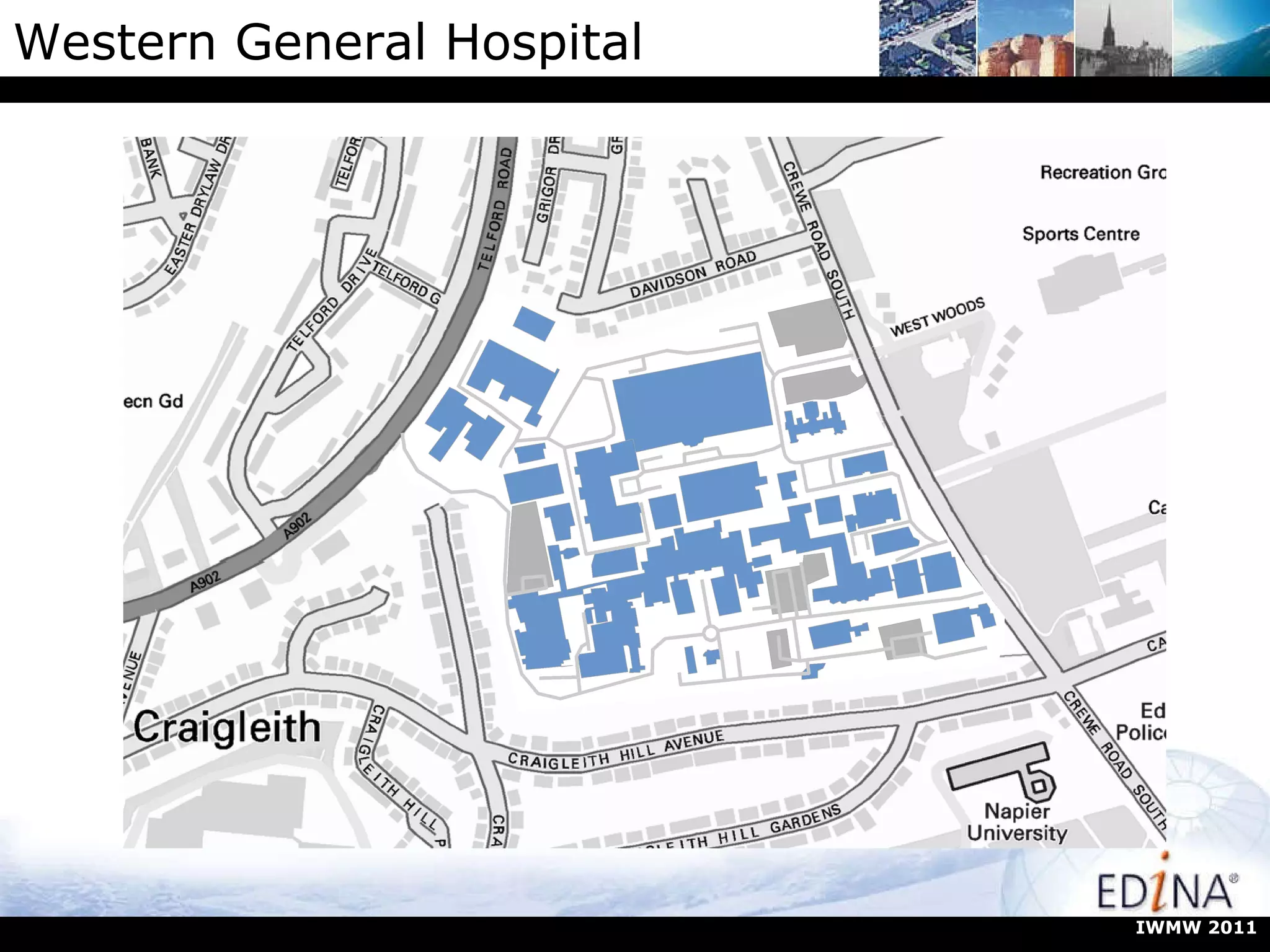

48. Western General Hospital IWMW 2011

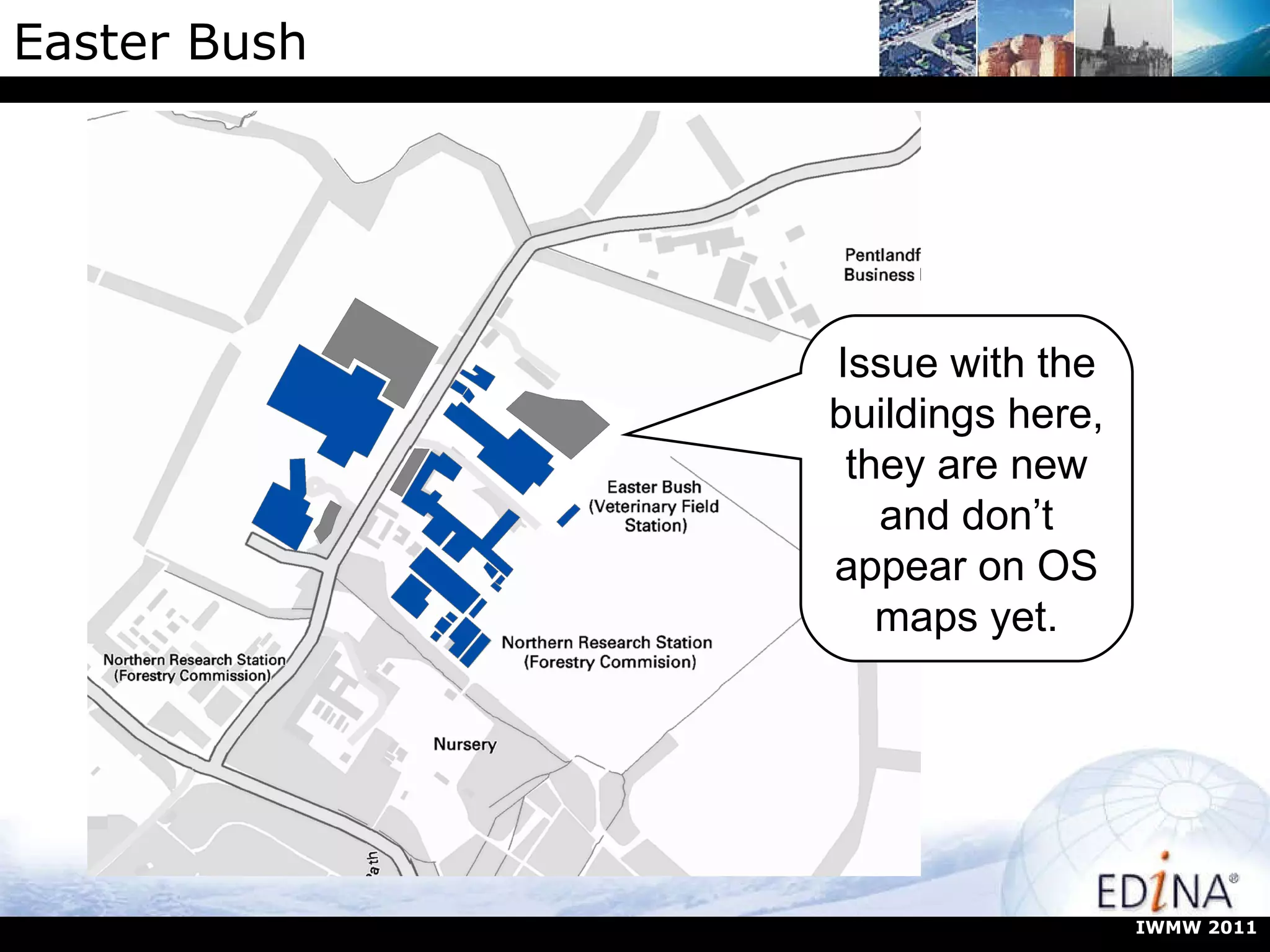

49. Easter Bush Issue with the buildings here, they are new and don’t appear on OS maps yet. IWMW 2011
