ACT antimicrobial susceptibility testing, inoculation and drug sensitivity
1. Prepared by Dr. Sadaf Konain Ansari
for 2nd
year BDS
AntimicrobialAntimicrobial
Susceptibility TestingSusceptibility Testing
(AST)(AST)
2. Reasons and Indications for
Antimicrobial Susceptibility Testing
(AST)
Goal
Offer guidance to physician in selecting effective
antibacterial therapy for a pathogen in a specific body
site
Performed on bacteria isolated from clinical
specimens if the bacteria’s susceptibility to
particular antimicrobial agents is uncertain
Susceptibilities NOT performed on bacteria that are
predictably susceptible to antimicrobials
Ex. Group A Strep
Dr.Sadaf Konain Ansari
3. Factors to Consider When
Determining Whether Testing is
Warranted
Body site of infection
Susceptibility not performed on bacteria isolated from body
site where they are normal flora
Ex. Susceptibility for E. coli is NOT performed when isolated
from stool, but IS performed when isolated from blood
Dr.Sadaf Konain Ansari
4. Factors to Consider When
Determining Whether Testing is
Warranted (cont’d)
Presence of other bacteria and quality of specimen
Ex. Two or more organisms grown in a urine
specimen
Host status
Immunocompromised patients
Allergies to usual antimicrobials
Dr.Sadaf Konain Ansari
5. Selecting Antimicrobial Agents for
Testing and Reporting
Clinical & Laboratory Standards
Institute (CLSI)
Develop standards, methods, QC parameters,
and interpretive criteria for sensitivity
testing
If necessary, can alter the breakpoints of
the SIR ( susceptible, intermediate,
resistant) based on emerging resistance
Dr.Sadaf Konain Ansari

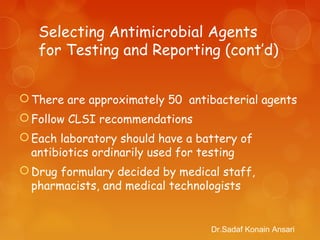

6. Selecting Antimicrobial Agents
for Testing and Reporting (cont’d)
There are approximately 50 antibacterial agents
Follow CLSI recommendations
Each laboratory should have a battery of
antibiotics ordinarily used for testing
Drug formulary decided by medical staff,
pharmacists, and medical technologists
Dr.Sadaf Konain Ansari
7. Selection of Test Batteries
Generally, labs choose 10-15 antibiotics
to test susceptibility for GP organisms
and another 10-15 for GN organisms
Too many choices can confuse
physicians and be too expensive
Primary objective
Use the least toxic, most cost-effective, and most clinically
appropriate agents
Refrain from more costly, broader-spectrum agents
Dr.Sadaf Konain Ansari

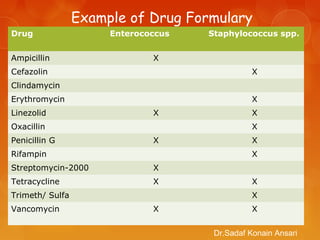

8. Example of Drug Formulary
Drug Enterococcus Staphylococcus spp.
Ampicillin X
Cefazolin X
Clindamycin
Erythromycin X
Linezolid X X
Oxacillin X
Penicillin G X X
Rifampin X
Streptomycin-2000 X
Tetracycline X X
Trimeth/ Sulfa X
Vancomycin X X
Dr.Sadaf Konain Ansari

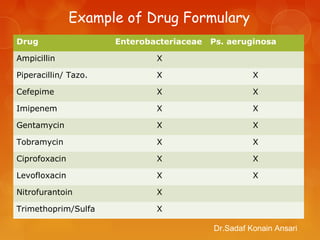

9. Example of Drug Formulary
Drug Enterobacteriaceae Ps. aeruginosa
Ampicillin X
Piperacillin/ Tazo. X X
Cefepime X X
Imipenem X X
Gentamycin X X
Tobramycin X X
Ciprofoxacin X X
Levofloxacin X X
Nitrofurantoin X
Trimethoprim/Sulfa X
Dr.Sadaf Konain Ansari

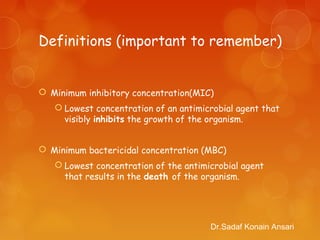

10. Definitions (important to remember)
Minimum inhibitory concentration(MIC)
Lowest concentration of an antimicrobial agent that
visibly inhibits the growth of the organism.
Minimum bactericidal concentration (MBC)
Lowest concentration of the antimicrobial agent
that results in the death of the organism.
Dr.Sadaf Konain Ansari
11. Definitions (cont’d)
Susceptible ”S”
Interpretive category that indicates an organism is
inhibited by the recommended dose, at the
infection site, of an antimicrobial agent
Intermediate “I”
Interpretive category that represents an organism
that may require a higher dose of antibiotic for a
longer period of time to be inhibited
Resistant “R”
Interpretive category that indicates an organism is
not inhibited by the recommended dose, at the
infection site, of an antimicrobial agent.
Dr.Sadaf Konain Ansari
13. Methods of Performing AST
Agar dilution method
Broth macrodilution / Tube dilution
Broth microdilution
Disk diffusion method
Gradient diffusion method (E-Test)
Dr.Sadaf Konain Ansari
14. Standardization of Antimicrobial
Susceptibility Testing
Inoculum Preparation
Use 4-5 colonies
NOT just 1 colony
Inoculum Standardization
using 0.5
McFarland
standard
Dr.Sadaf Konain Ansari
15. Methods of Performing AST
Agar Dilution
Dilutions of antimicrobial agent added
to agar
Growth on agar indicates MIC
Broth macrodilution/Tube Dilution Tests
Two-fold serial dilution series, each
with 1-2 mL of antimicrobial
Too expensive and time consuming
Microdilution Tests
plastic trays with dilutions of
antimicrobials
Dr.Sadaf Konain Ansari
16. Disk Diffusion/ Kirby- Bauer
Procedure
Use a well-isolated, 18-24 hour old
organism
Transfer organism to a broth
Either tryptic soy/sterile saline
Ensure a turbidity of 0.5 McFarland
Inoculate MH agar by swabbing in
three different directions “Lawn of
growth”
Place filter paper disks impregnated
with anitmicrobial agents on the agar
Invert and incubate for 16-18 hours
at35 o
C in non-CO2
Dr.Sadaf Konain Ansari
17. Disk Diffusion/ Kirby-Bauer (cont’d)
During incubation, drug
diffuses into agar
Depending on the organism and
drug, areas of no growth form
a zone of inhibition
Zones are measured to
determine whether the
organism is susceptible,
intermediate, or resistant to
the drug
Dr.Sadaf Konain Ansari
18. E- test/ Gradient Diffusion Method
“MIC on a stick”
Plastic strips
impregnated with
antimicrobial on one side
MIC scale on the other
side
Read MIC where zone
of inhibition intersects E
strip scale
Dr.Sadaf Konain Ansari
19. Automated
Antimicrobial Susceptibility Test
Methods
Detect growth in micro volumes of broth with
various dilutions of antimicrobials
Detection via photometric, turbi-dimetric, or
fluoro-metric methods
Types
BD Phoenix
Microscan Walkaway
TREK Sensititre
Vitek 1 and 2
Dr.Sadaf Konain Ansari
20. Automated
Antimicrobial Susceptibility Test Methods
Advantages
Increased reproducibility
Decreased labor costs
Rapid results
Software
Detects multi-drug resistances
ESBLs
Correlates bacterial ID with sensitivity
Disadvantages
Cost
Dr.Sadaf Konain Ansari
21. Quality Control in Susceptibility
Testing
Reflects types of patient isolates & range of
susceptibility
Frequency of quality control depends on
method, CLSI, or manufacturer
Reference strains of QC material
American Type Culture Collection(ATCC)
E. coli ATCC* 25922
S. aureus ATCC* 25923
Dr.Sadaf Konain Ansari

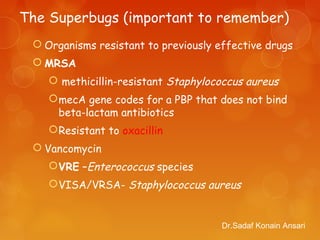

22. The Superbugs (important to remember)
Organisms resistant to previously effective drugs
MRSA
methicillin-resistant Staphylococcus aureus
mecA gene codes for a PBP that does not bind
beta-lactam antibiotics
Resistant to oxacillin
Vancomycin
VRE –Enterococcus species
VISA/VRSA- Staphylococcus aureus
Dr.Sadaf Konain Ansari
23. The Superbugs: The Beta-Lactamases
Gram negative rods that have genes on chromosomes that code for
enzymes against certain antimicrobials
ESBLs-extended spectrum beta lactamase
Resistant to extended spectrum cephalosporins, penicillins,
aztreonam
Examples: E. coli, Klebsiella
Carbapenemases (CRE)
Klebsiella pneumoniae- KPC- Class A
Class B (NDM, VIM, IMP)- metallo beta lactamases
Resistant to penicillins, cephalosporins, carbapenems, and aztreonam
Cephalosporinases
AmpC enzyme
inducible
“SPACE” organisms Dr.Sadaf Konain Ansari

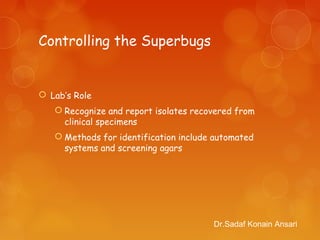

24. Controlling the Superbugs
Lab’s Role
Recognize and report isolates recovered from
clinical specimens
Methods for identification include automated
systems and screening agars
Dr.Sadaf Konain Ansari
25. Controlling the Superbugs
Role of Health Care Workers/Facilities
Hand hygiene with the use of alcohol-based hand
rubs or soap and water after patient care
Contact precautions for patients identified as
colonized or infected with a superbug
Healthcare personnel education about the
methods of transmission, contact precautions,
and proper use of hand hygiene
Minimization of invasive devices (catheters, etc.)
Proper administration of antimicrobial agents
where therapy is selected for susceptible
organisms for the proper duration
Dr.Sadaf Konain Ansari
27. References
http://www.biomerieux-diagnostics.com/servlet/srt/bio/clinical-d
http://www.cdc.gov/std/gonorrhea/lab/diskdiff.htm
http://www.who.int/drugresistance/Antimicrobial_Detection/en/
Kiser, K. M., Payne, W. C., & Taff, T. A. (2011). Clinical
Laboratory Microbiology: A Practical Approach . Upper
Saddle River, NJ: Pearson Education.
Mahon, C. R., Lehman, D. C., & Manuselis, G. (2011).
Textbook of Diagnostic Microbiology (4th ed.).
Maryland Heights, MO: Saunders.
Murray, P. R. (2013, May). Carbapenem-resistant
Enterobacteriaceae: what has happened, and what is
being done. MLO, 45(5), 26-30.
Dr.Sadaf Konain Ansari
29. ESKAPEPathogens of Highest Concern The most serious, life-
threatening infections are caused by a group of drug-
resistant bacteria that the Infectious Diseases Society of
America (IDSA) has labeled the "ESKAPE" pathogens, because
they effectively escape the effects of antibacterial drugs
What are ESKAPE
Dr.Sadaf Konain Ansari

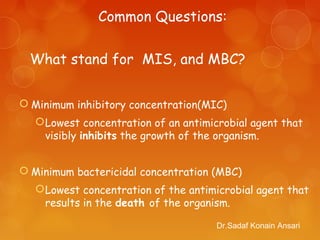

30. Minimum inhibitory concentration(MIC)
Lowest concentration of an antimicrobial agent that
visibly inhibits the growth of the organism.
Minimum bactericidal concentration (MBC)
Lowest concentration of the antimicrobial agent that
results in the death of the organism.
What stand for MIS, and MBC?
Dr.Sadaf Konain Ansari
Common Questions:
31. Susceptible ”S”
Interpretive category that indicates an organism is inhibited by the
recommended dose, at the infection site, of an antimicrobial agent
Intermediate “I”
Interpretive category that represents an organism that may require
a higher dose of antibiotic for a longer period of time to be inhibited
Resistant “R”
Interpretive category that indicates an organism is not inhibited by
the recommended dose, at the infection site, of an antimicrobial
agent.
What stands for S, I and R?
Dr.Sadaf Konain Ansari
Common Questions:
