The 8086 CPU has two functional units - the Bus Interface Unit (BIU) and Execution Unit (EU). The BIU fetches instructions and data from memory and writes data to memory or ports. It uses an instruction queue to pre-fetch up to 6 bytes to improve execution speed. The EU decodes instructions and performs operations using its 16-bit ALU. The 8086 has general purpose registers including AX, BX, CX and DX and segment registers for addressing memory. It uses flags to indicate the result of operations.

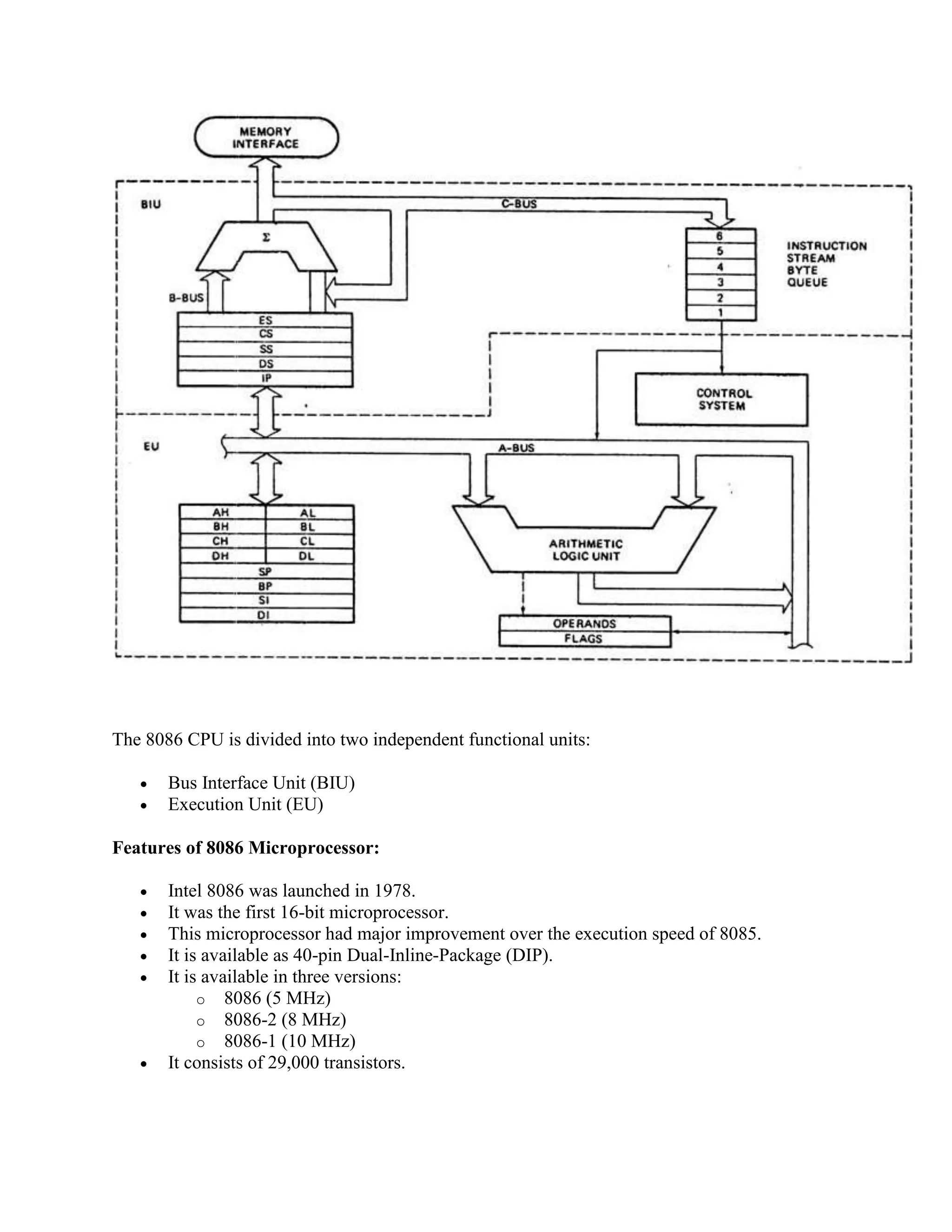

1. The 8086 CPU is divided into two independent functional units:
 Bus Interface Unit (BIU)
 Execution Unit (EU)
Features of 8086 Microprocessor:
 Intel 8086 was launched in 1978.
 It was the first 16-bit microprocessor.
 This microprocessor had major improvement over the execution speed of 8085.
 It is available as 40-pin Dual-Inline-Package (DIP).
 It is available in three versions:
o 8086 (5 MHz)
o 8086-2 (8 MHz)
o 8086-1 (10 MHz)
 It consists of 29,000 transistors.

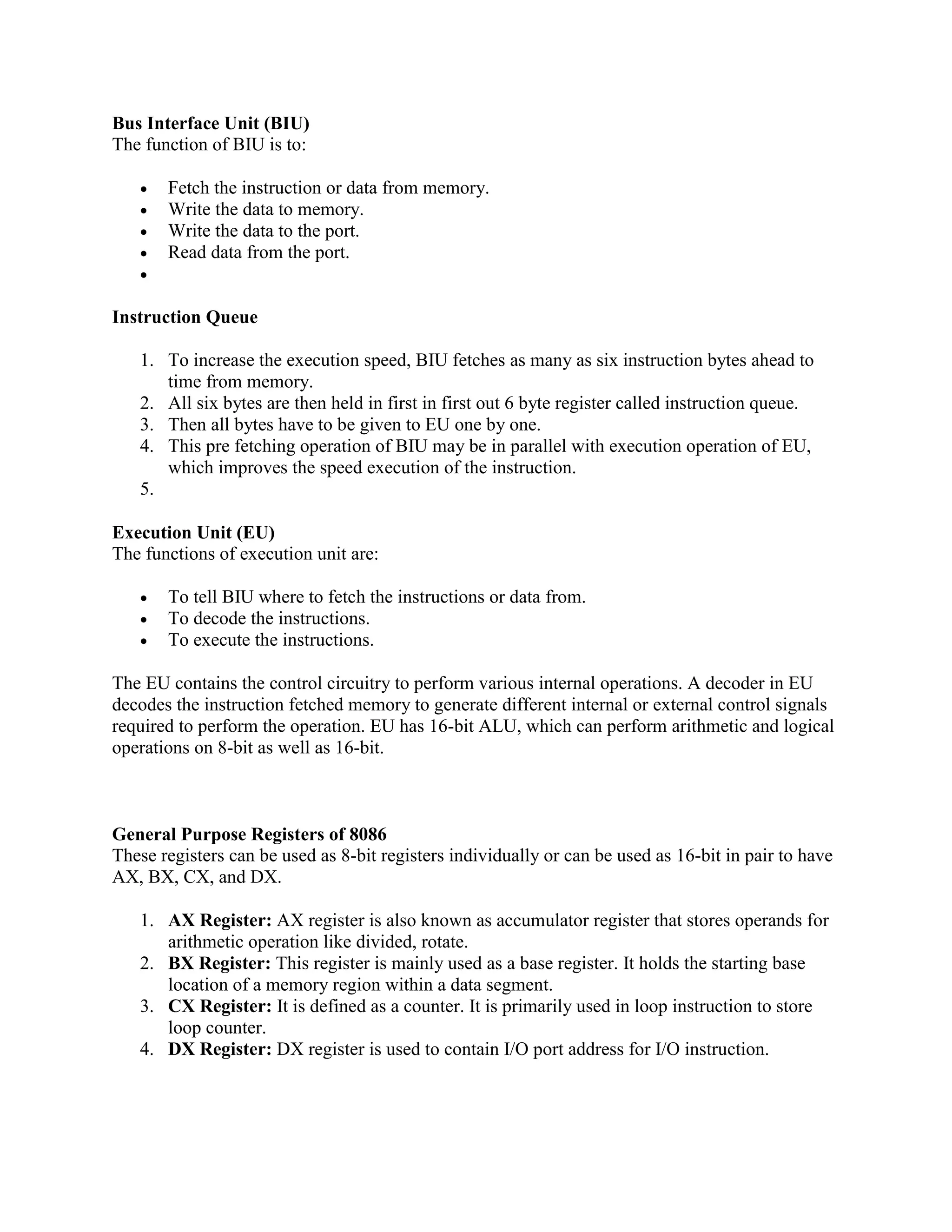

2. Bus Interface Unit (BIU)
The function of BIU is to:
 Fetch the instruction or data from memory.
 Write the data to memory.
 Write the data to the port.
 Read data from the port.

Instruction Queue
1. To increase the execution speed, BIU fetches as many as six instruction bytes ahead to
time from memory.
2. All six bytes are then held in first in first out 6 byte register called instruction queue.
3. Then all bytes have to be given to EU one by one.
4. This pre fetching operation of BIU may be in parallel with execution operation of EU,
which improves the speed execution of the instruction.
5.
Execution Unit (EU)
The functions of execution unit are:
 To tell BIU where to fetch the instructions or data from.
 To decode the instructions.
 To execute the instructions.
The EU contains the control circuitry to perform various internal operations. A decoder in EU
decodes the instruction fetched memory to generate different internal or external control signals
required to perform the operation. EU has 16-bit ALU, which can perform arithmetic and logical
operations on 8-bit as well as 16-bit.
General Purpose Registers of 8086
These registers can be used as 8-bit registers individually or can be used as 16-bit in pair to have
AX, BX, CX, and DX.
1. AX Register: AX register is also known as accumulator register that stores operands for
arithmetic operation like divided, rotate.
2. BX Register: This register is mainly used as a base register. It holds the starting base
location of a memory region within a data segment.
3. CX Register: It is defined as a counter. It is primarily used in loop instruction to store
loop counter.
4. DX Register: DX register is used to contain I/O port address for I/O instruction.

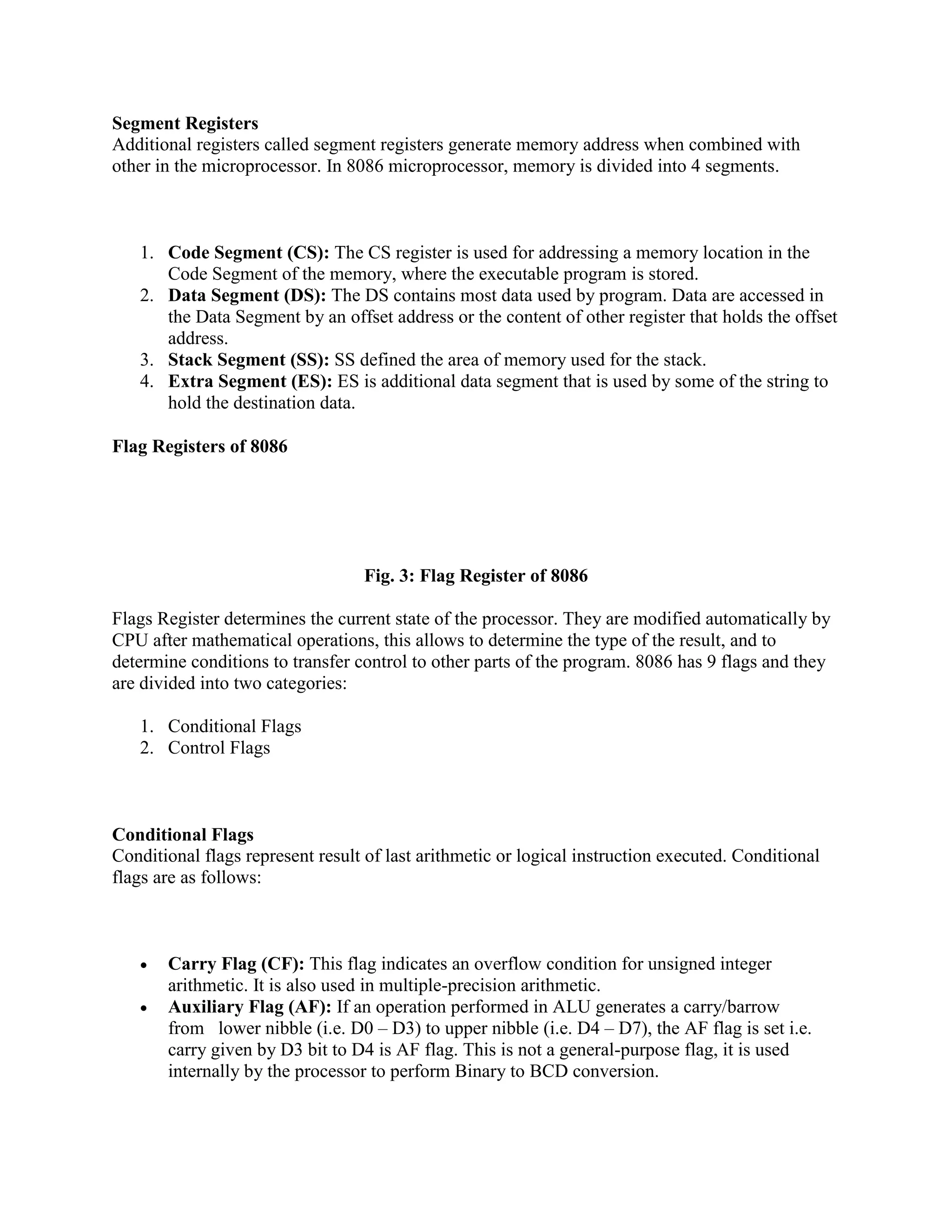

3. Segment Registers
Additional registers called segment registers generate memory address when combined with
other in the microprocessor. In 8086 microprocessor, memory is divided into 4 segments.
1. Code Segment (CS): The CS register is used for addressing a memory location in the
Code Segment of the memory, where the executable program is stored.
2. Data Segment (DS): The DS contains most data used by program. Data are accessed in
the Data Segment by an offset address or the content of other register that holds the offset
address.
3. Stack Segment (SS): SS defined the area of memory used for the stack.
4. Extra Segment (ES): ES is additional data segment that is used by some of the string to
hold the destination data.
Flag Registers of 8086
Fig. 3: Flag Register of 8086
Flags Register determines the current state of the processor. They are modified automatically by
CPU after mathematical operations, this allows to determine the type of the result, and to
determine conditions to transfer control to other parts of the program. 8086 has 9 flags and they
are divided into two categories:
1. Conditional Flags
2. Control Flags
Conditional Flags
Conditional flags represent result of last arithmetic or logical instruction executed. Conditional
flags are as follows:
 Carry Flag (CF): This flag indicates an overflow condition for unsigned integer
arithmetic. It is also used in multiple-precision arithmetic.
 Auxiliary Flag (AF): If an operation performed in ALU generates a carry/barrow
from lower nibble (i.e. D0 – D3) to upper nibble (i.e. D4 – D7), the AF flag is set i.e.
carry given by D3 bit to D4 is AF flag. This is not a general-purpose flag, it is used
internally by the processor to perform Binary to BCD conversion.

4.  Parity Flag (PF): This flag is used to indicate the parity of result. If lower order 8-bits of
the result contains even number of 1’s, the Parity Flag is set and for odd number of 1’s,
the Parity Flag is reset.
 Zero Flag (ZF): It is set; if the result of arithmetic or logical operation is zero else it is
reset.
 Sign Flag (SF): In sign magnitude format the sign of number is indicated by MSB bit. If
the result of operation is negative, sign flag is set.
 Overflow Flag (OF): It occurs when signed numbers are added or subtracted. An OF
indicates that the result has exceeded the capacity of machine.
Control Flags
Control flags are set or reset deliberately to control the operations of the execution unit. Control
flags are as follows:
1. Trap Flag (TP):
a. It is used for single step control.
b. It allows user to execute one instruction of a program at a time for debugging.
c. When trap flag is set, program can be run in single step mode.
2. Interrupt Flag (IF):
a. It is an interrupt enable/disable flag.
b. If it is set, the maskable interrupt of 8086 is enabled and if it is reset, the interrupt
is disabled.
c. It can be set by executing instruction sit and can be cleared by executing CLI
instruction.
3. Direction Flag (DF):
a. It is used in string operation.
b. If it is set, string bytes are accessed from higher memory address to lower
memory address.
c. When it is reset, the string bytes are accessed from lower memory address to
higher memory address.

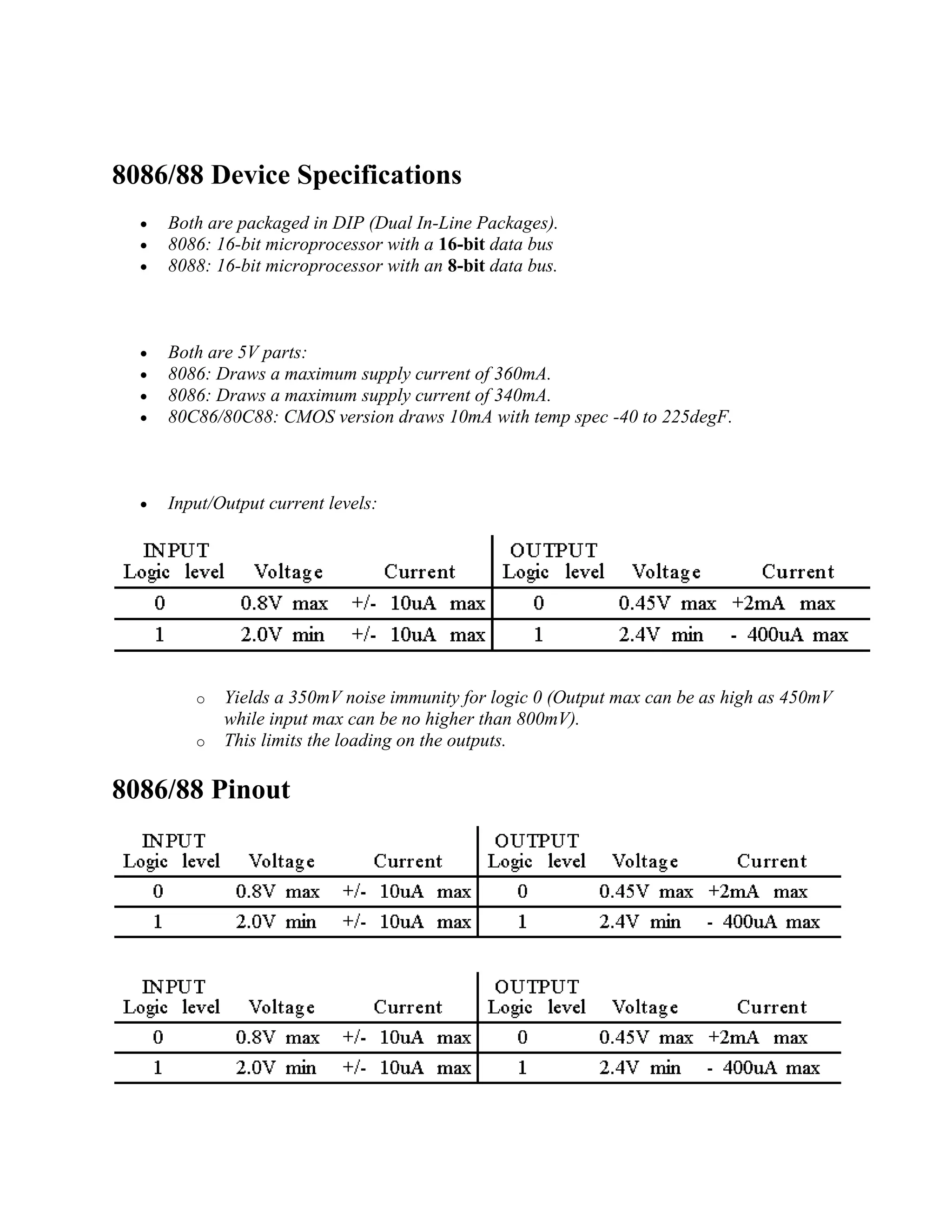

5. 8086/88 Device Specifications
 Both are packaged in DIP (Dual In-Line Packages).
 8086: 16-bit microprocessor with a 16-bit data bus
 8088: 16-bit microprocessor with an 8-bit data bus.
 Both are 5V parts:
 8086: Draws a maximum supply current of 360mA.
 8086: Draws a maximum supply current of 340mA.
 80C86/80C88: CMOS version draws 10mA with temp spec -40 to 225degF.
 Input/Output current levels:
o Yields a 350mV noise immunity for logic 0 (Output max can be as high as 450mV
while input max can be no higher than 800mV).
o This limits the loading on the outputs.
8086/88 Pinout

6. 8086/88 Pinout
 Pin functions:
 AD15-AD0
o Multiplexed address(ALE=1)/data bus(ALE=0).
 A19/S6-A16/S3 (multiplexed)
o High order 4 bits of the 20-bit address OR status bits S6-S3.
 M/IO
o Indicates if address is a Memory or IO address.
 RD
o When 0, data bus is driven by memory or an I/O device.
 WR
o Microprocessor is driving data bus to memory or an I/O device. When 0, data bus
contains valid data.
 ALE (Address latch enable)
o When 1, address data bus contains a memory or I/O address.
 DT/R (Data Transmit/Receive)
o Data bus is transmitting/receiving data.
 DEN (Data bus Enable)
o Activates external data bus buffers.
8086/88 Pinout
 Pin functions:
 S7, S6, S5, S4, S3, S2, S1, S0
o S7: Logic 1, S6: Logic 0.
o S5: Indicates condition of IF flag bits.
o S4-S3: Indicate which segment is accessed during current bus cycle:

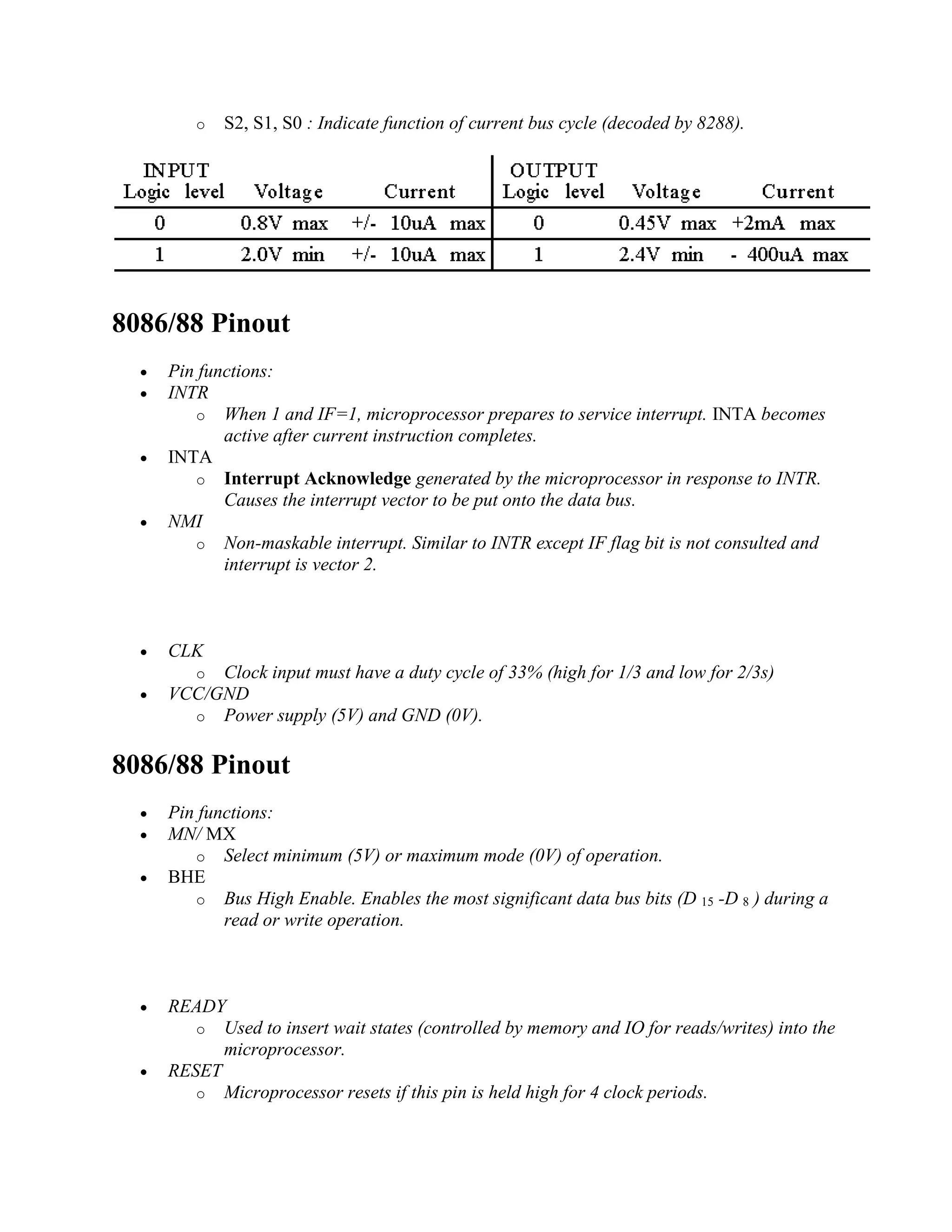

7. o S2, S1, S0 : Indicate function of current bus cycle (decoded by 8288).
8086/88 Pinout
 Pin functions:
 INTR
o When 1 and IF=1, microprocessor prepares to service interrupt. INTA becomes
active after current instruction completes.
 INTA
o Interrupt Acknowledge generated by the microprocessor in response to INTR.
Causes the interrupt vector to be put onto the data bus.
 NMI
o Non-maskable interrupt. Similar to INTR except IF flag bit is not consulted and
interrupt is vector 2.
 CLK
o Clock input must have a duty cycle of 33% (high for 1/3 and low for 2/3s)
 VCC/GND
o Power supply (5V) and GND (0V).
8086/88 Pinout
 Pin functions:
 MN/ MX
o Select minimum (5V) or maximum mode (0V) of operation.
 BHE
o Bus High Enable. Enables the most significant data bus bits (D 15 -D 8 ) during a
read or write operation.
 READY
o Used to insert wait states (controlled by memory and IO for reads/writes) into the
microprocessor.
 RESET

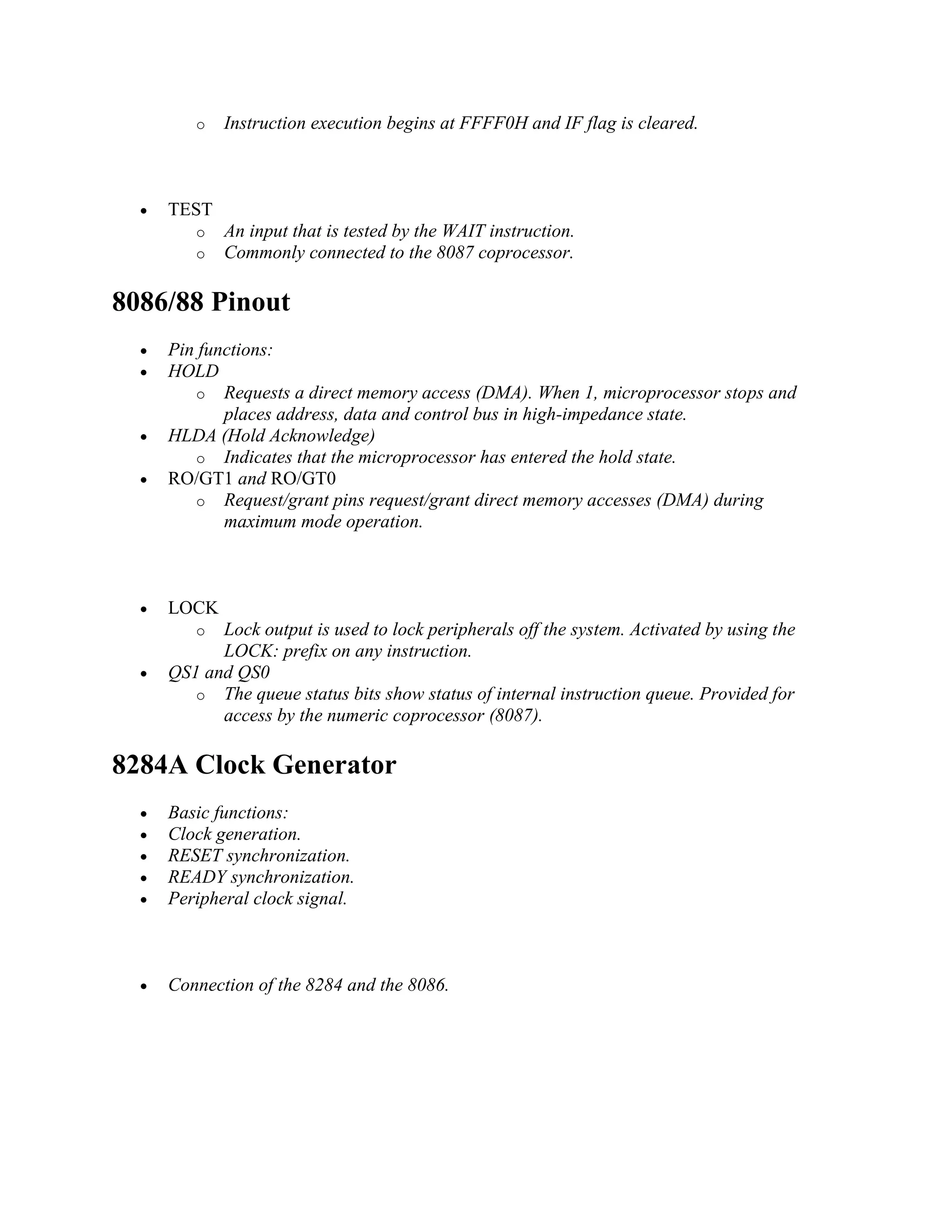

o Microprocessor resets if this pin is held high for 4 clock periods.

8. o Instruction execution begins at FFFF0H and IF flag is cleared.
 TEST
o An input that is tested by the WAIT instruction.
o Commonly connected to the 8087 coprocessor.
8086/88 Pinout
 Pin functions:
 HOLD
o Requests a direct memory access (DMA). When 1, microprocessor stops and
places address, data and control bus in high-impedance state.
 HLDA (Hold Acknowledge)
o Indicates that the microprocessor has entered the hold state.
 RO/GT1 and RO/GT0
o Request/grant pins request/grant direct memory accesses (DMA) during
maximum mode operation.
 LOCK
o Lock output is used to lock peripherals off the system. Activated by using the
LOCK: prefix on any instruction.
 QS1 and QS0
o The queue status bits show status of internal instruction queue. Provided for
access by the numeric coprocessor (8087).
8284A Clock Generator
 Basic functions:
 Clock generation.
 RESET synchronization.
 READY synchronization.
 Peripheral clock signal.
 Connection of the 8284 and the 8086.

9. 8284A Clock Generator
8284A Clock Generator
 Clock generation:
o Crystal is connected to X1 and X2.
o XTAL OSC generates square wave signal at crystal's frequency which feeds:
 An inverting buffer (output OSC) which is used to drive the EFI input of other 8284As.
 2-to-1 MUX
 F/ C selects XTAL or EFI external input.
o The MUX drives a divide-by-3 counter (15MHz to 5MHz).
o This drives:
 The READY flipflop (READY synchronization).
 A second divide-by-2 counter (2.5MHz clk for peripheral components).
 The RESET flipflop.
 CLK which drives the 8086 CLK input.
8284A Clock Generator
 RESET:
o Negative edge-triggered flipflop applies the RESET signal to the 8086 on the
falling edge.
o The 8086 samples the RESET pin on the rising edge.

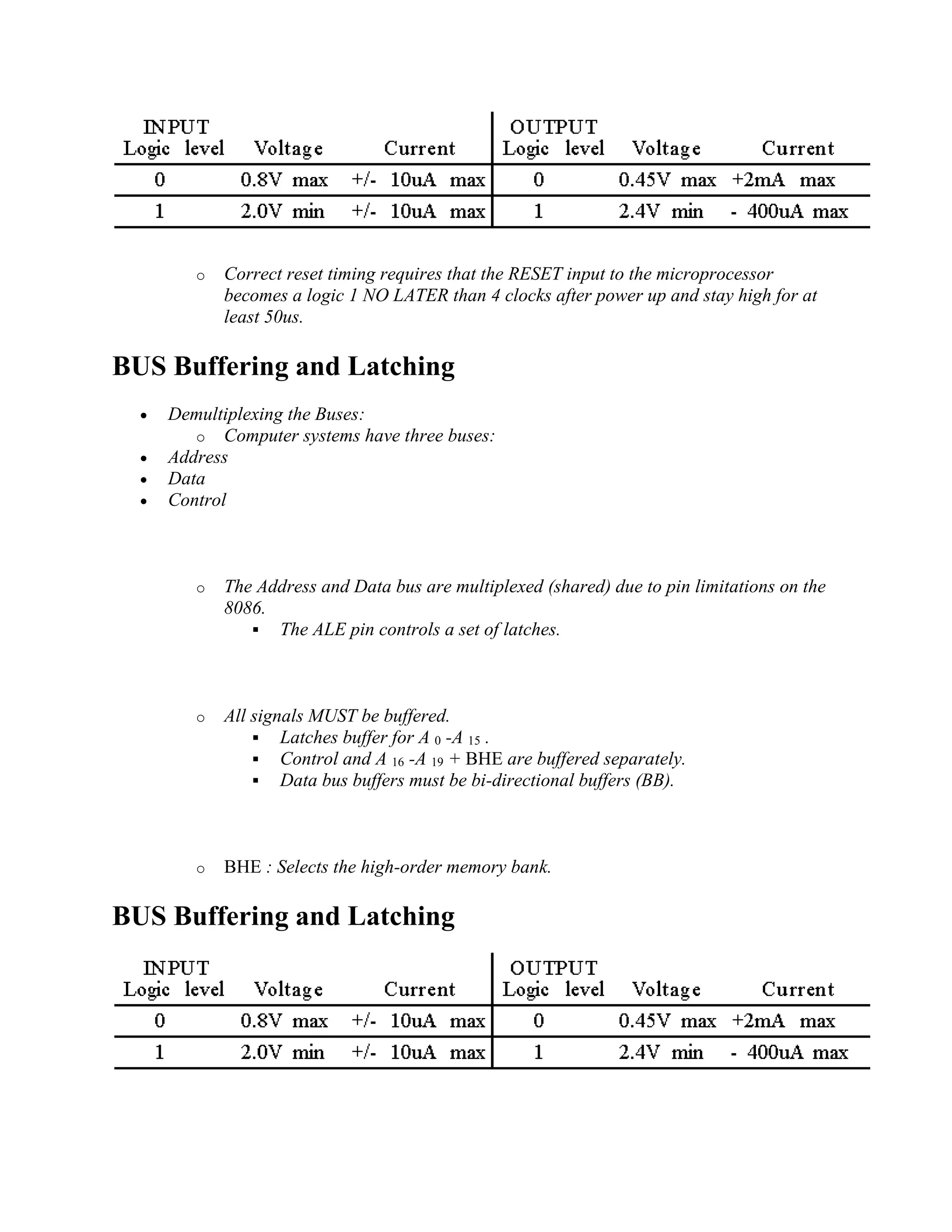

10. o Correct reset timing requires that the RESET input to the microprocessor
becomes a logic 1 NO LATER than 4 clocks after power up and stay high for at
least 50us.
BUS Buffering and Latching
 Demultiplexing the Buses:
o Computer systems have three buses:
 Address
 Data
 Control
o The Address and Data bus are multiplexed (shared) due to pin limitations on the
8086.
 The ALE pin controls a set of latches.
o All signals MUST be buffered.
 Latches buffer for A 0 -A 15 .
 Control and A 16 -A 19 + BHE are buffered separately.
 Data bus buffers must be bi-directional buffers (BB).
o BHE : Selects the high-order memory bank.
BUS Buffering and Latching

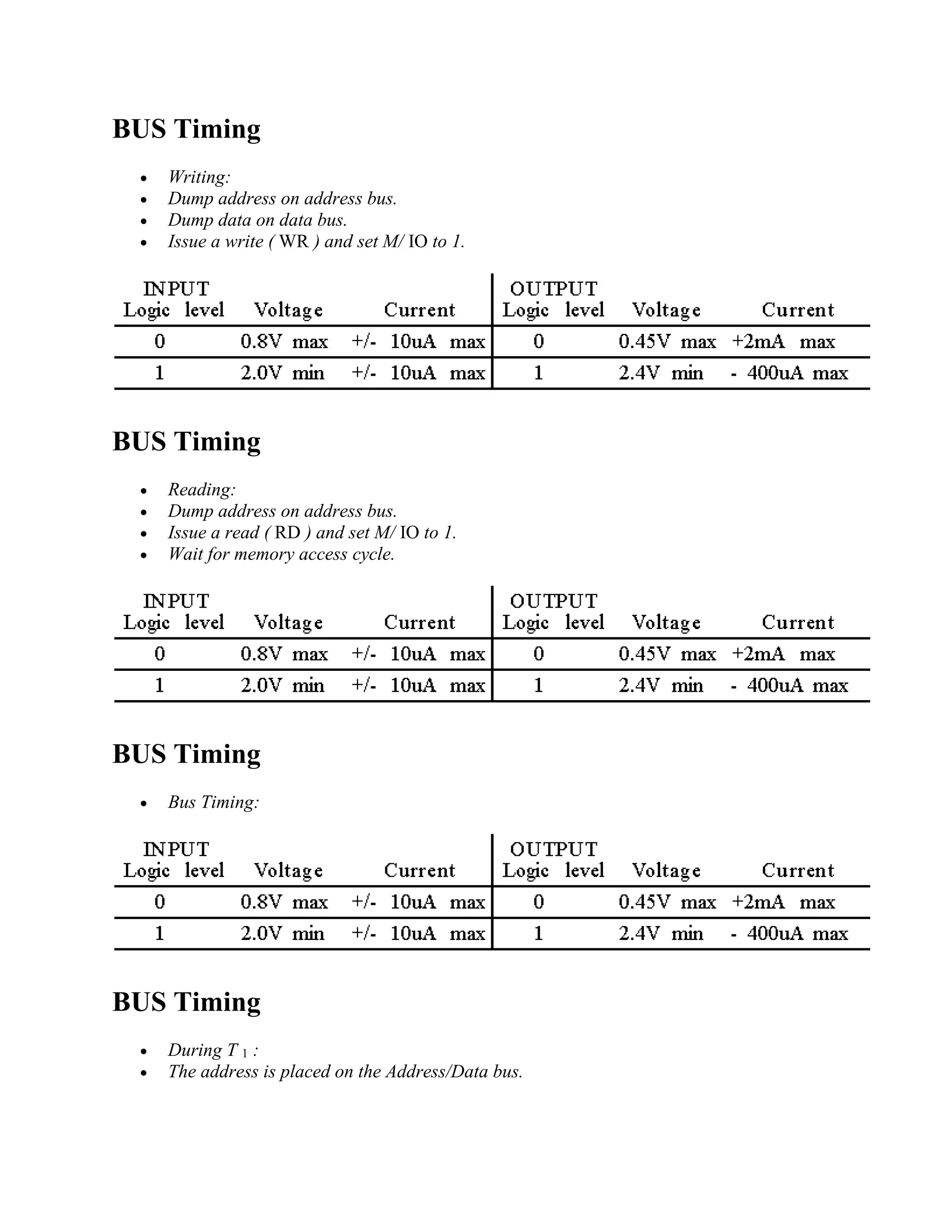

11. BUS Timing
 Writing:
 Dump address on address bus.
 Dump data on data bus.
 Issue a write ( WR ) and set M/ IO to 1.
BUS Timing
 Reading:
 Dump address on address bus.
 Issue a read ( RD ) and set M/ IO to 1.
 Wait for memory access cycle.
BUS Timing
 Bus Timing:
BUS Timing
 During T 1 :
 The address is placed on the Address/Data bus.

12.  Control signals M/ IO , ALE and DT/ R specify memory or I/O, latch the address onto the
address bus and set the direction of data transfer on data bus.
 During T 2 :
 8086 issues the RD or WR signal, DEN , and, for a write, the data.
 DEN enables the memory or I/O device to receive the data for writes and
the 8086 to receive the data for reads.
 During T 3 :
 This cycle is provided to allow memory to access data.
 READY is sampled at the end of T 2 .
 If low, T 3 becomes a wait state.
 Otherwise, the data bus is sampled at the end of T 3 .
 During T 4 :
 All bus signals are deactivated, in preparation for next bus cycle.
 Data is sampled for reads, writes occur for writes.
BUS Timing
 Timing:
o Each BUS CYCLE on the 8086 equals four system clocking periods (T states).
o The clock rate is 5MHz , therefore one Bus Cycle is 800ns .
o The transfer rate is 1.25MHz .
o Memory specs (memory access time) must match constraints of system timing.
o For example, bus timing for a read operation shows almost 600ns are needed to
read data.
 However, memory must access faster due to setup times, e.g. Address
setup and data setup.
 This subtracts off about 150ns .
 Therefore, memory must access in at least 450ns minus another 30-40ns
guard band for buffers and decoders.
 420ns DRAM required for the 8086.
BUS Timing
 READY:
o An input to the 8086 that causes wait states for slower memory and I/O
components.

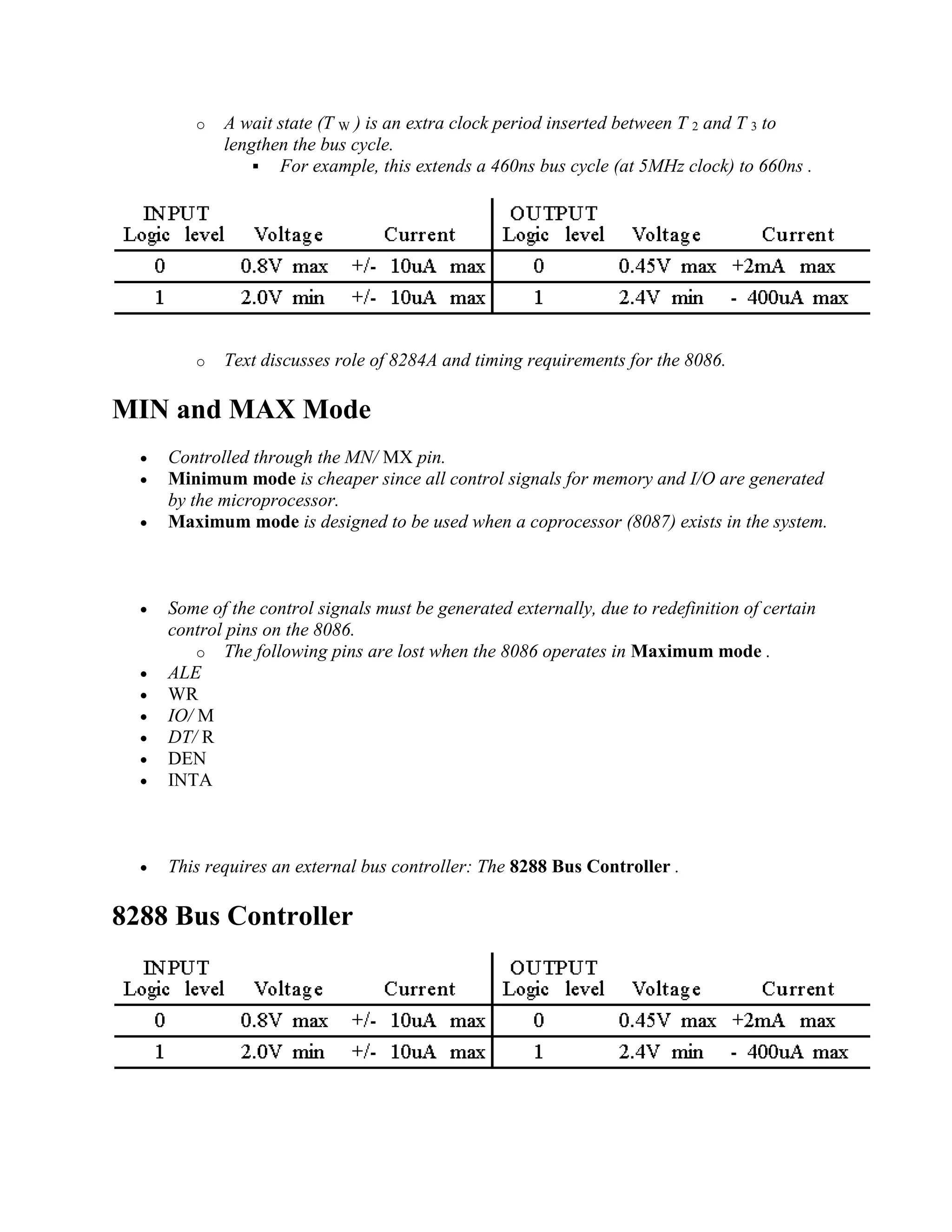

13. o A wait state (T W ) is an extra clock period inserted between T 2 and T 3 to
lengthen the bus cycle.
 For example, this extends a 460ns bus cycle (at 5MHz clock) to 660ns .
o Text discusses role of 8284A and timing requirements for the 8086.
MIN and MAX Mode
 Controlled through the MN/ MX pin.
 Minimum mode is cheaper since all control signals for memory and I/O are generated
by the microprocessor.
 Maximum mode is designed to be used when a coprocessor (8087) exists in the system.
 Some of the control signals must be generated externally, due to redefinition of certain
control pins on the 8086.
o The following pins are lost when the 8086 operates in Maximum mode .
 ALE
 WR
 IO/ M
 DT/ R
 DEN
 INTA
 This requires an external bus controller: The 8288 Bus Controller .
8288 Bus Controller

14.  Separate signals are used for I/O ( IORC and IOWC ) and memory ( MRDC and MWTC
).
 Also provided are advanced memory ( AIOWC ) and I/O ( AIOWC ) write strobes plus
INTA .
MAX Mode 8086 System
