The document discusses multiple partition allocation in storage management. It covers maintaining information about allocated and free partitions in a memory table. When a new process arrives, it is allocated memory from the first hole large enough to accommodate it, using approaches like first-fit, best-fit, or worst-fit allocation. The best-fit approach allocates from the smallest hole that is big enough, while worst-fit allocates from the largest hole.

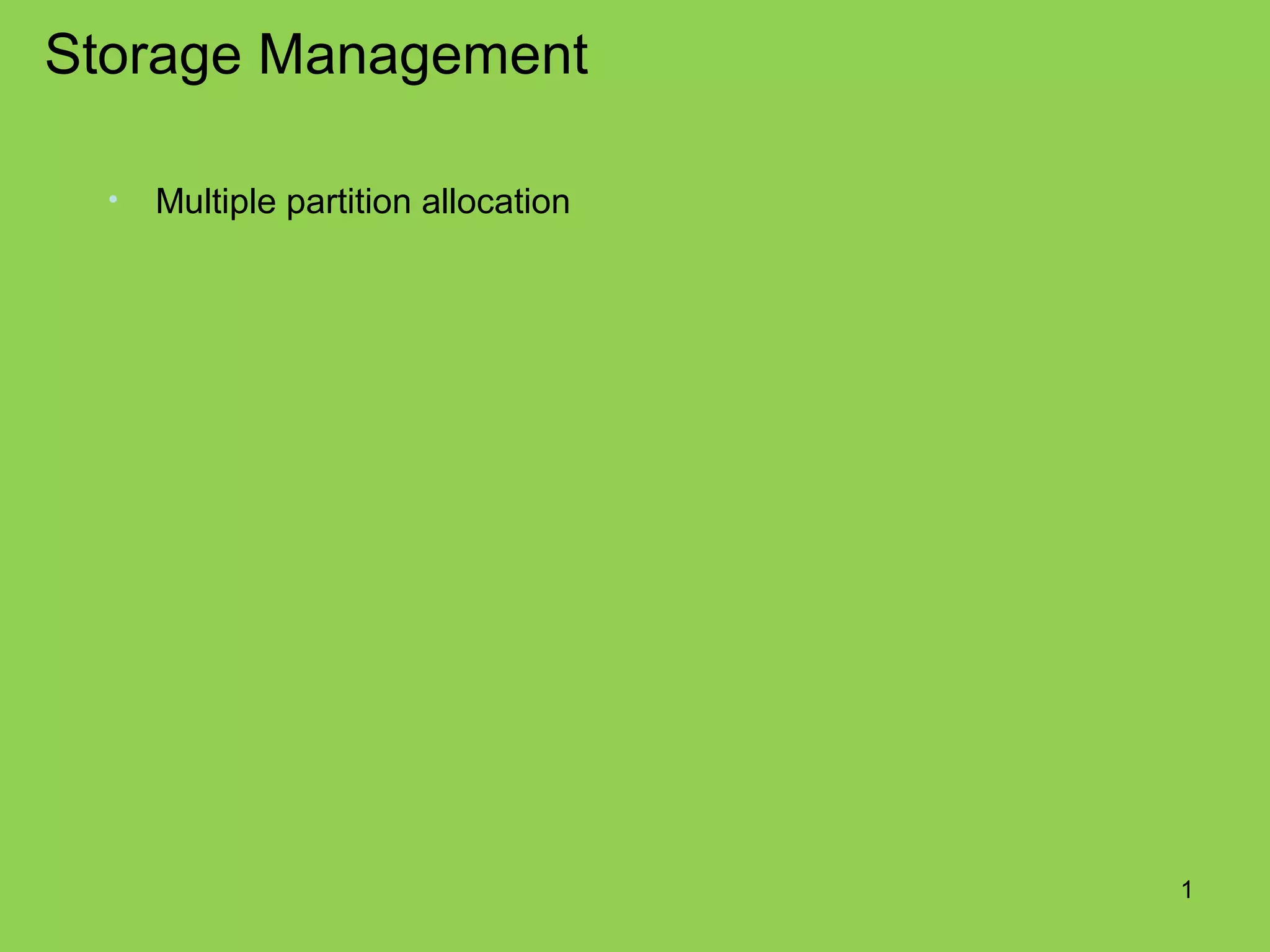

1. Storage Management
• Multiple partition allocation
1

2. HOME PREVIOUS TOPIC NEXT
PREVIOUS QUESTION PAPERS FOR OS
CPP TUTORIALS
2

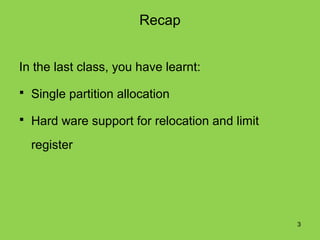

3. Recap
In the last class, you have learnt:
 Single partition allocation
 Hard ware support for relocation and limit
register
3

4. Objectives
On completion of this class, you will be able to
know
 Multiple partition allocation
 Allocation of memory
4

5. Multiple Partition Allocation
Job scheduling
• Must take into account who wants to run, the memory
needs, and partition availability
• This is a combination of short / medium term scheduling
Sequence of events:
• In an empty memory slot, load a program
• It can compete for CPU time
• Upon job completion, the partition becomes available
5

6. Multiple Partition Allocation
Hole
 Block of available memory;
 Holes of various size are scattered throughout
memory
Dynamic storage
 When a process arrives, it is allocated memory
from a hole large enough to accommodate it
6

7. Multiple Partition Allocation
• Operating system maintains information about:
• allocated partitions ( holes )
• free partitions ( holes )
• Operating System maintains a table of this
memory
• Space is allocated based on this table
• Adjacent free spaces merged to get largest holes
7

8. Multiple Partition Allocation
• Consider an example consisting of 5 processes
from P1 to P5
• These process occupy some space in memory
and corresponding burst times for their execution
as shown in the table in next slide
• Sequence of allocation of these multiple
processes in to the memory capacity of 2160K are
shown in the next slide
8

9. Multiple Partition Allocation
Job queue
Indicates a Hole
Process Memory Time
0K 0K 0K 0K 0K
P1 600 K 10
OS OS OS OS OS
P2 1000 K 5
400 k 400 k 400 k 400 k 400 k
P3 300 K 20
P1 P5
P4 700 K 8 P1 P1
P5 500 K 15 900 k
1000 k 1000 k 1000 k 1000 k 1000 k
0K
P2 P4
OS P2 Allocate P4 P1 Terminates
P4 P5 Allocated P4
P2 Terminates
400 k 1700 k 1700 k 1700 k
2000 k 2000 k 2000 k 2000 k 2000 k
2160 K P3 P3 P3 P3 P3
2300 k 2300 k 2300 k 2300 k 2300 k
2560 k 2560 k 2560 k 2560 k 2560 k
2560 k
9

10. Memory Allocation
How to allocate memory to a new process?
 First fit
- Allocate the first hole that's big enough
–Search can start at the beginning
–Creates average size holes
 Best fit
-Allocate smallest hole that's big enough
–Must search entire list, unless ordered by size
–Produces the smallest leftover hole which cannot be
used 10

11. Memory Allocation
• Worst fit
– Allocate largest hole
– Must search the entire list, unless sorted by size
– Gets rid of large holes making it difficult to run large
programs
• First-fit and best-fit better than worst-fit in terms
of speed and storage utilization
11

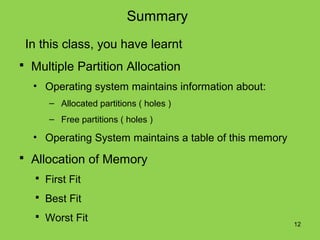

12. Summary
In this class, you have learnt
 Multiple Partition Allocation
• Operating system maintains information about:
– Allocated partitions ( holes )
– Free partitions ( holes )
• Operating System maintains a table of this memory
 Allocation of Memory
 First Fit
 Best Fit
 Worst Fit
12

13. Frequently Asked Questions
1. Explain about Multiple Partition Allocation
2. Explain how to allocate memory to a new
process
13

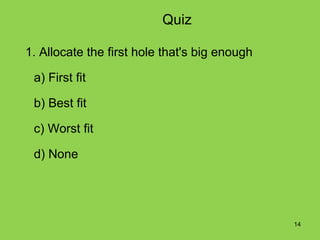

14. Quiz
1. Allocate the first hole that's big enough
a) First fit
b) Best fit
c) Worst fit
d) None
14

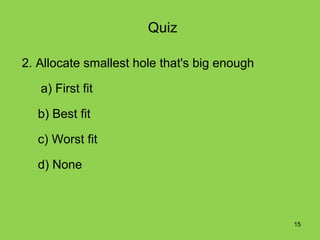

15. Quiz
2. Allocate smallest hole that's big enough
a) First fit
b) Best fit
c) Worst fit
d) None
15

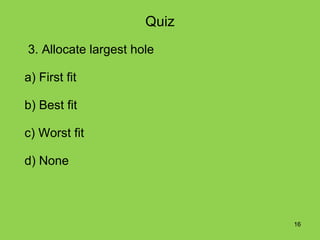

16. Quiz
3. Allocate largest hole
a) First fit
b) Best fit
c) Worst fit
d) None
16

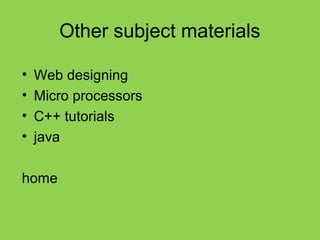

17. Other subject materials
• Web designing
• Micro processors
• C++ tutorials
• java
home

18. Quiz
4. Block of available memory
a) Hole
b) Byte
c) Word
d) None
18
