VHDL 360©

by: Mohamed Samy
  Samer El-Saadany

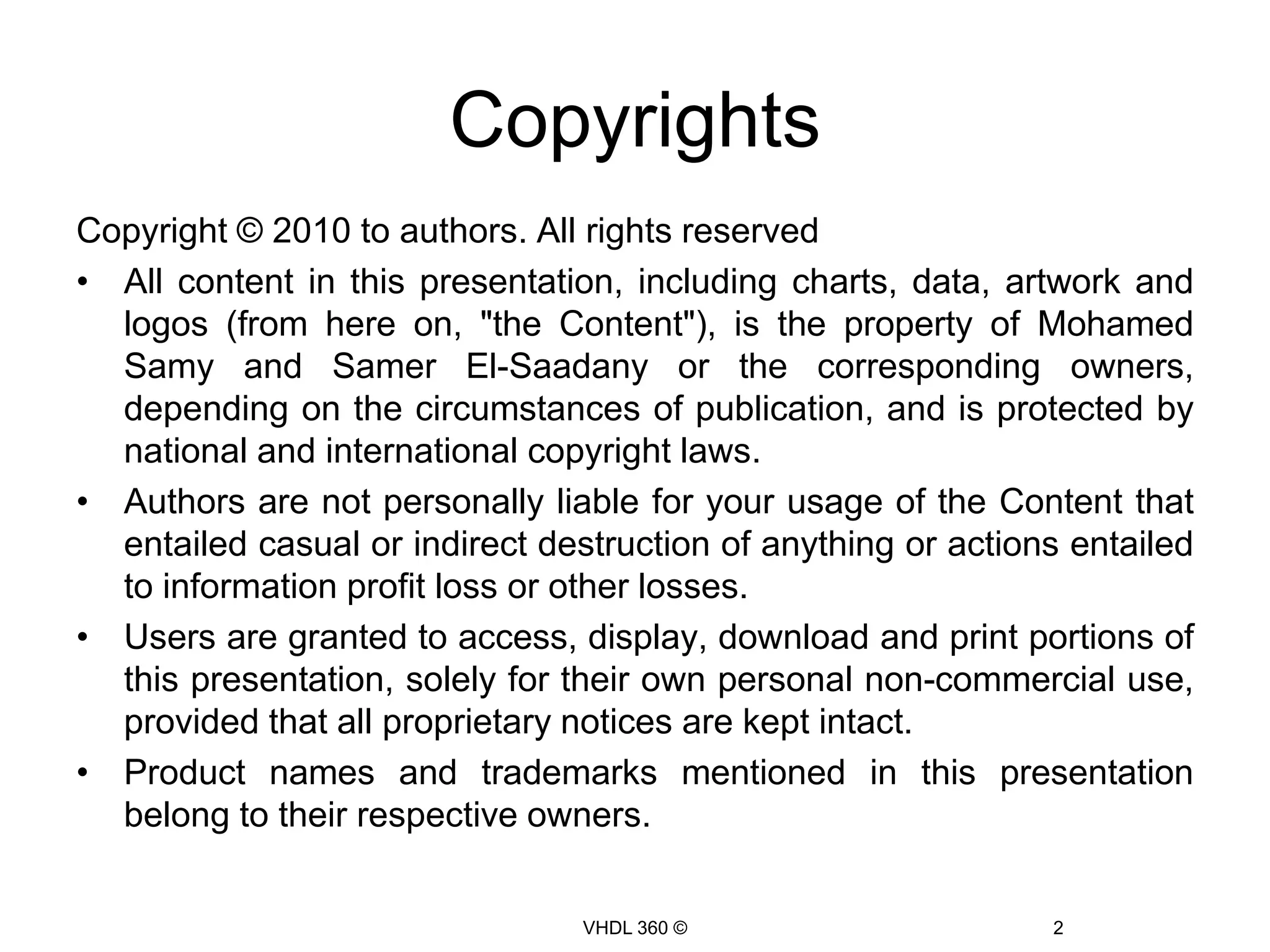

Copyrights
Copyright © 2010 to authors. All rights reserved
• All content in this presentation, including charts, data, artwork and
  logos (from here on, "the Content"), is the property of Mohamed
  Samy and Samer El-Saadany or the corresponding owners,
  depending on the circumstances of publication, and is protected by
  national and international copyright laws.
• Authors are not personally liable for your usage of the Content that
  entailed casual or indirect destruction of anything or actions entailed
  to information profit loss or other losses.
• Users are granted to access, display, download and print portions of
  this presentation, solely for their own personal non-commercial use,
  provided that all proprietary notices are kept intact.
• Product names and trademarks mentioned in this presentation
  belong to their respective owners.


                                 VHDL 360 ©                    2

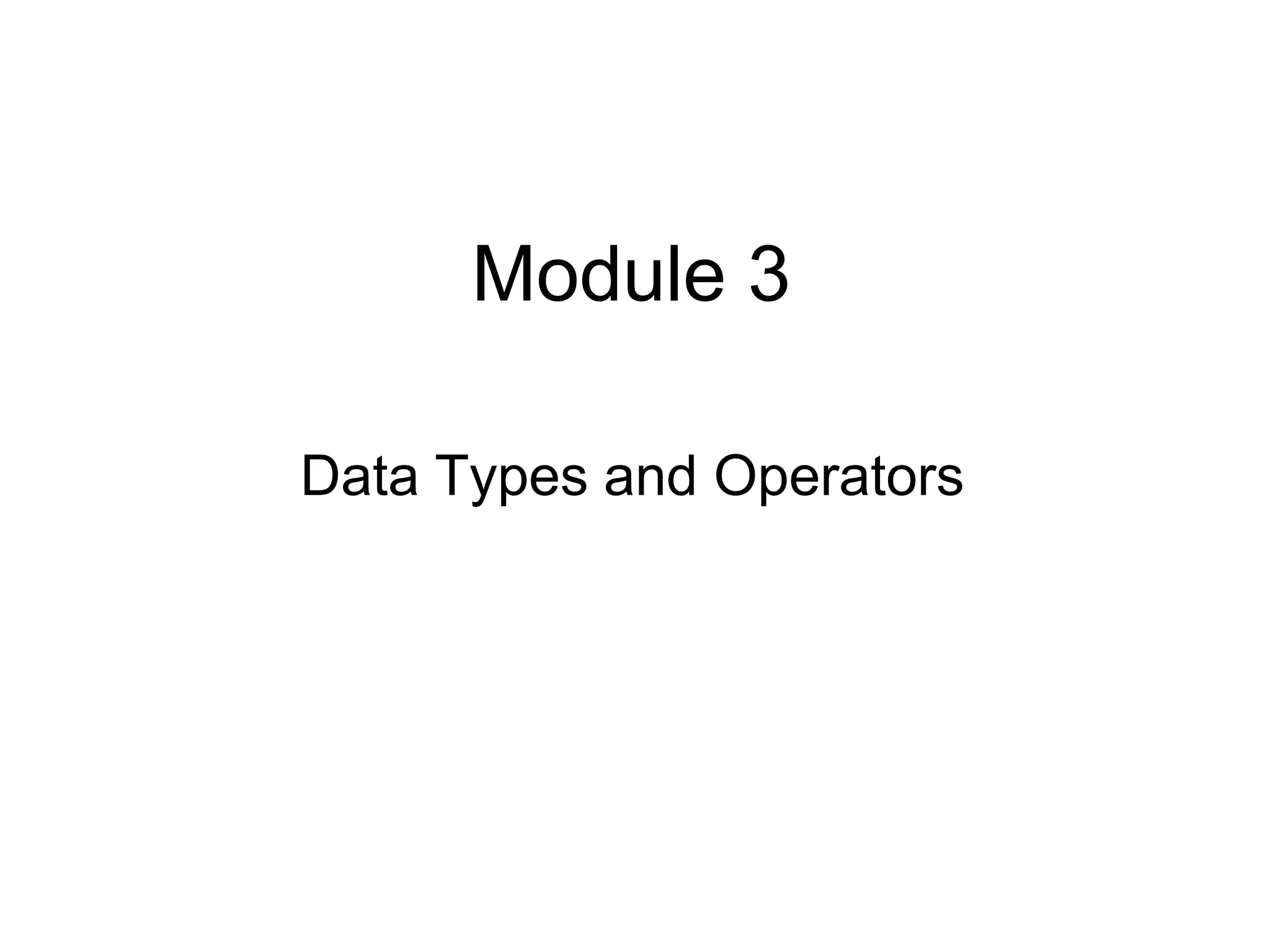

Module 3

Data Types and Operators

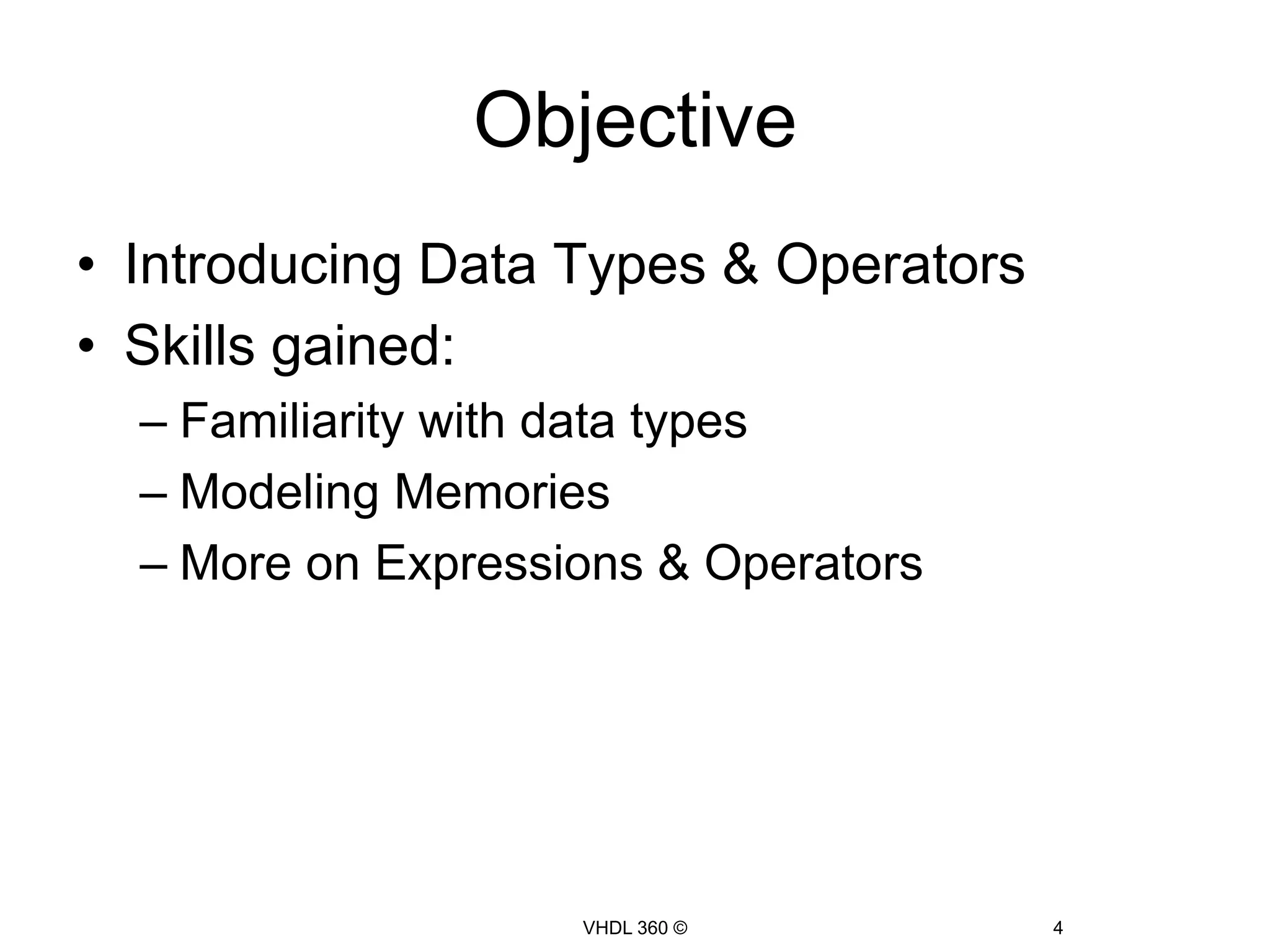

Objective
• Introducing Data Types & Operators
• Skills gained:
  – Familiarity with data types
  – Modeling Memories
  – More on Expressions & Operators




                    VHDL 360 ©         4

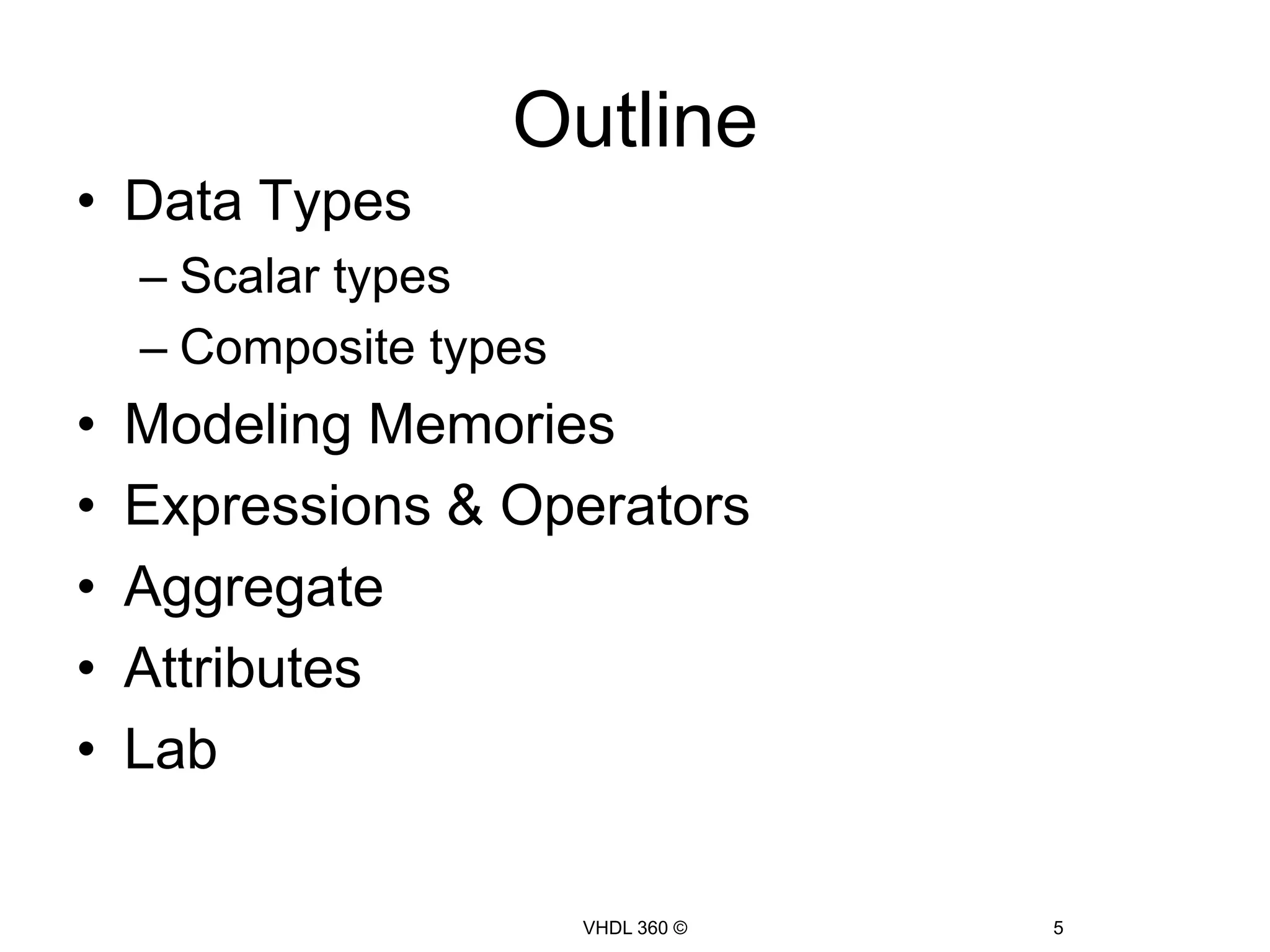

Outline
• Data Types
    – Scalar types
    – Composite types
•   Modeling Memories
•   Expressions & Operators
•   Aggregate
•   Attributes
•   Lab

                        VHDL 360 ©   5

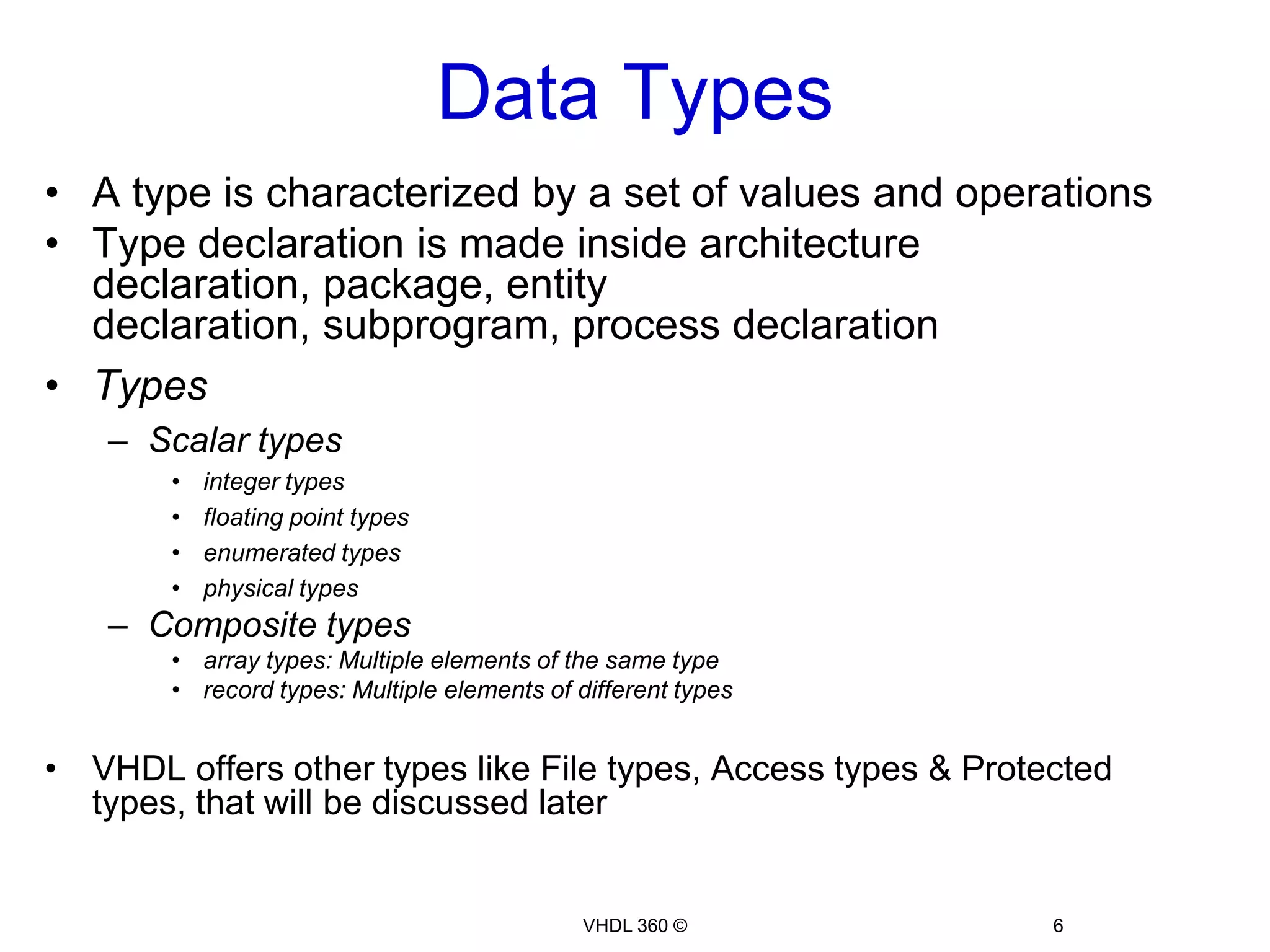

Data Types
• A type is characterized by a set of values and operations
• Type declaration is made inside architecture
  declaration, package, entity
  declaration, subprogram, process declaration
• Types
   – Scalar types
       •   integer types
       •   floating point types
       •   enumerated types
       •   physical types
   – Composite types
       • array types: Multiple elements of the same type
       • record types: Multiple elements of different types


• VHDL offers other types like File types, Access types & Protected
  types, that will be discussed later


                                             VHDL 360 ©        6

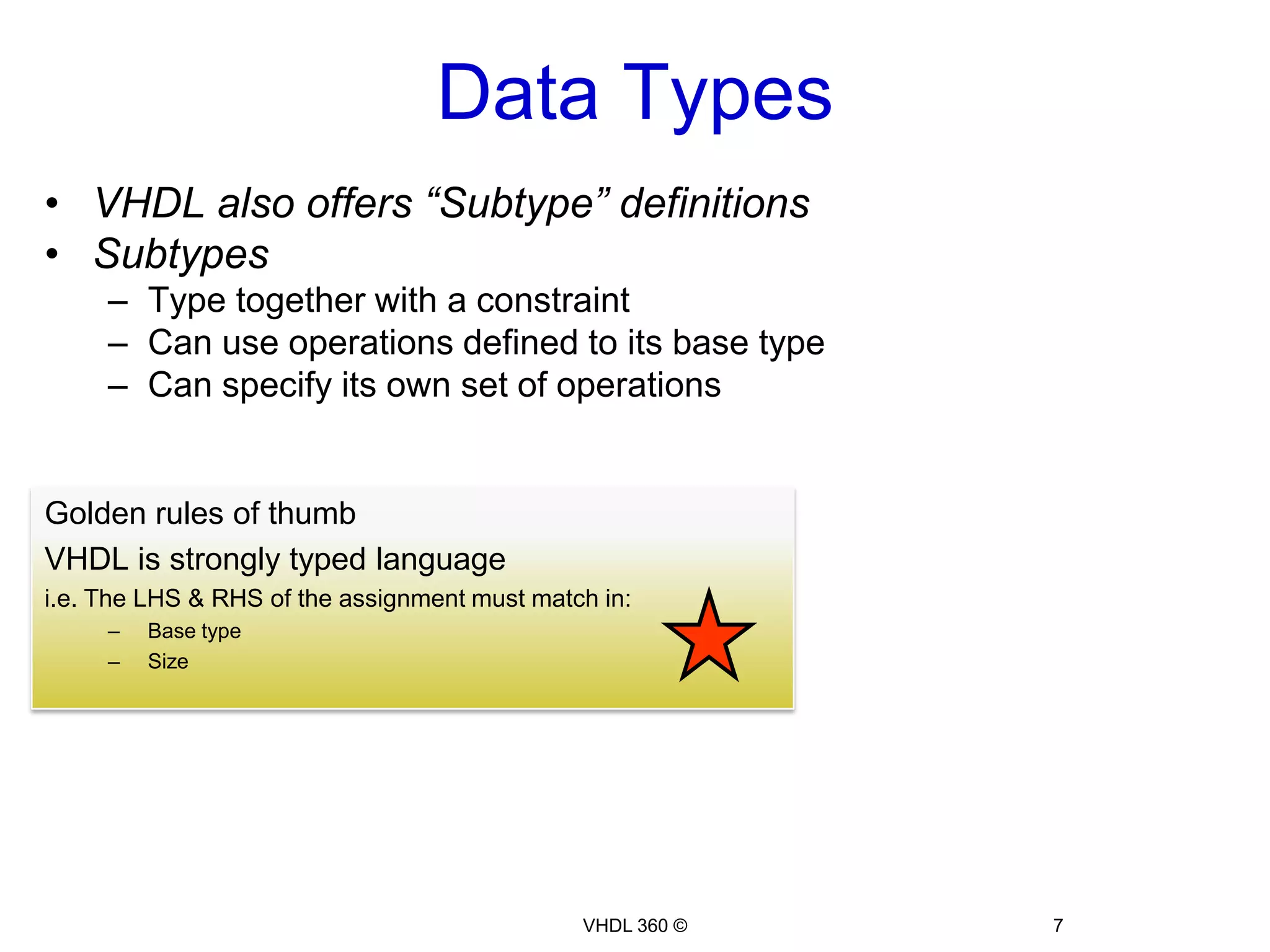

Data Types
• VHDL also offers “Subtype” definitions
• Subtypes
     – Type together with a constraint
     – Can use operations defined to its base type
     – Can specify its own set of operations


Golden rules of thumb
VHDL is strongly typed language
i.e. The LHS & RHS of the assignment must match in:
     –   Base type
     –   Size




                                              VHDL 360 ©   7

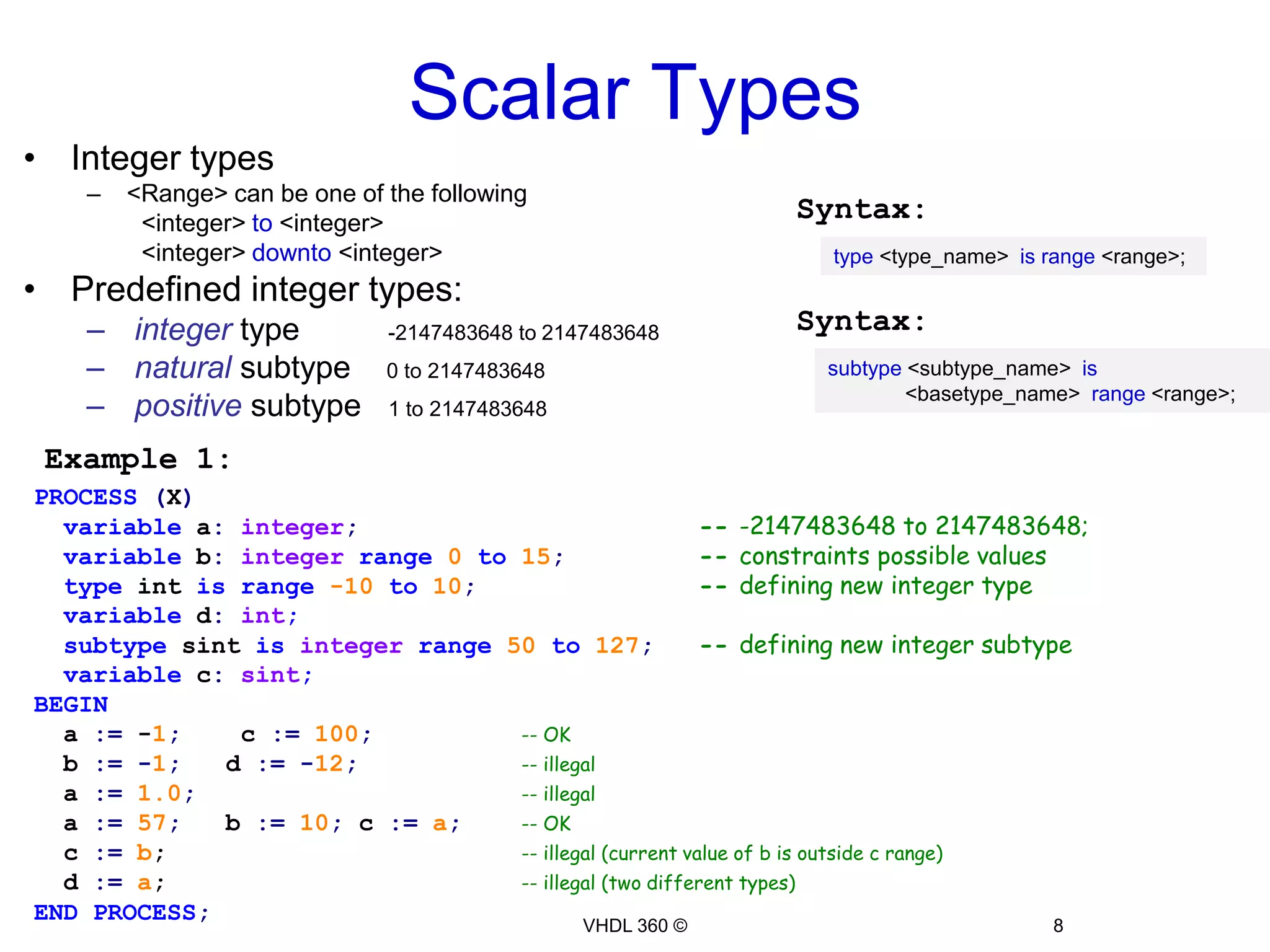

Scalar Types
• Integer types
    –   <Range> can be one of the following
         <integer> to <integer>
                                                              Syntax:
         <integer> downto <integer>                              type <type_name> is range <range>;
• Predefined integer types:
    – integer type            -2147483648 to 2147483648       Syntax:
    – natural subtype         0 to 2147483648                   subtype <subtype_name> is
                                                                        <basetype_name> range <range>;
    – positive subtype        1 to 2147483648

 Example 1:
PROCESS (X)
  variable a: integer;                                 -- -2147483648 to 2147483648;
  variable b: integer range 0 to 15;                   -- constraints possible values
  type int is range -10 to 10;                         -- defining new integer type
  variable d: int;
  subtype sint is integer range 50 to 127;             -- defining new integer subtype
  variable c: sint;
BEGIN
  a := -1;    c := 100;          -- OK
  b := -1;   d := -12;           -- illegal
  a := 1.0;                      -- illegal
  a := 57;   b := 10; c := a;    -- OK
  c := b;                        -- illegal (current value of b is outside c range)
  d := a;                        -- illegal (two different types)
END PROCESS;
                                                VHDL 360 ©                            8

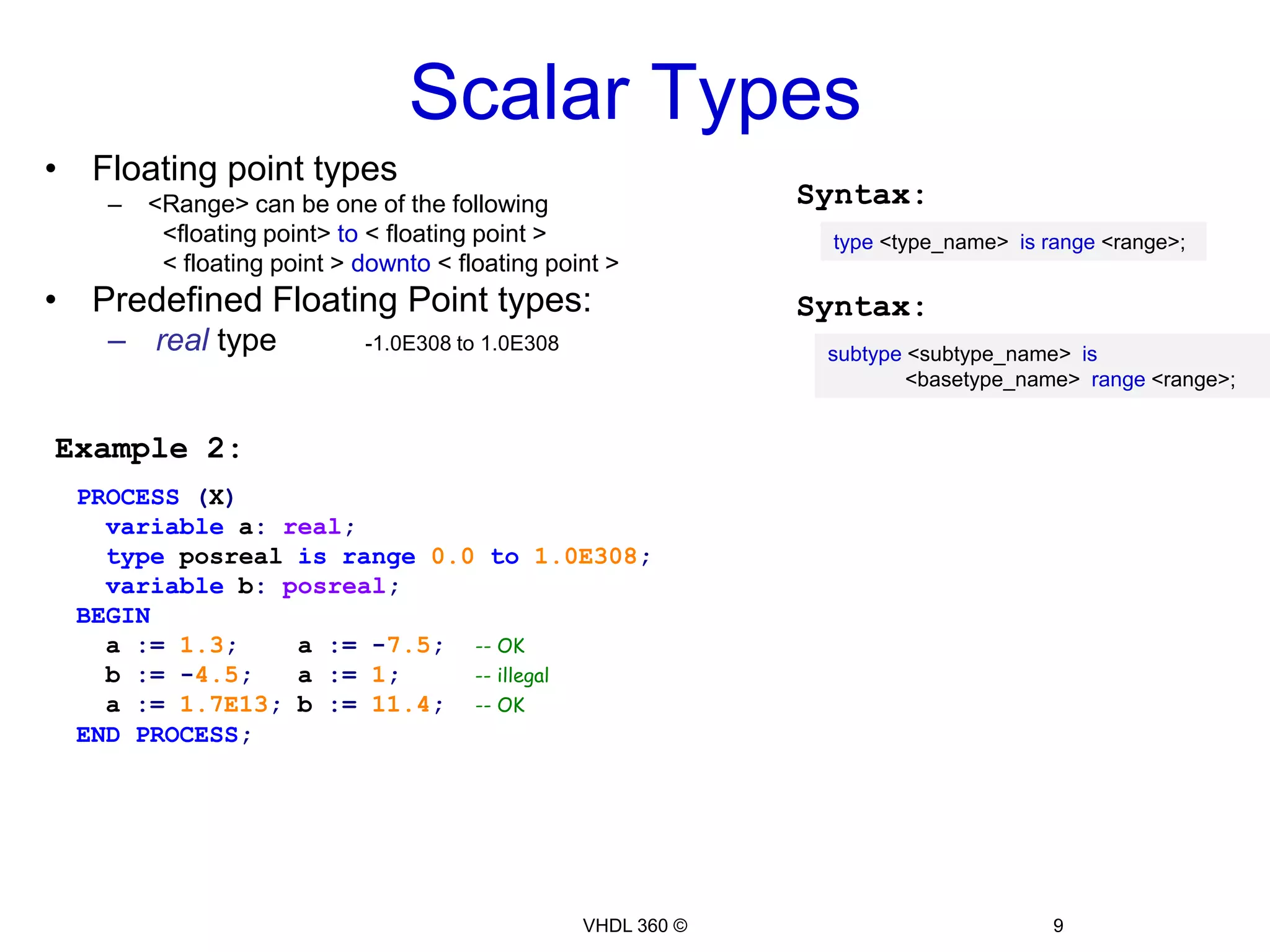

Scalar Types
• Floating point types
   –   <Range> can be one of the following                    Syntax:
        <floating point> to < floating point >                 type <type_name> is range <range>;
        < floating point > downto < floating point >
• Predefined Floating Point types:                            Syntax:
   – real type             -1.0E308 to 1.0E308                 subtype <subtype_name> is
                                                                       <basetype_name> range <range>;


Example 2:
 PROCESS (X)
   variable a: real;
   type posreal is range 0.0 to 1.0E308;
   variable b: posreal;
 BEGIN
   a := 1.3;    a := -7.5; -- OK
   b := -4.5;   a := 1;     -- illegal
   a := 1.7E13; b := 11.4; -- OK
 END PROCESS;




                                                 VHDL 360 ©                         9

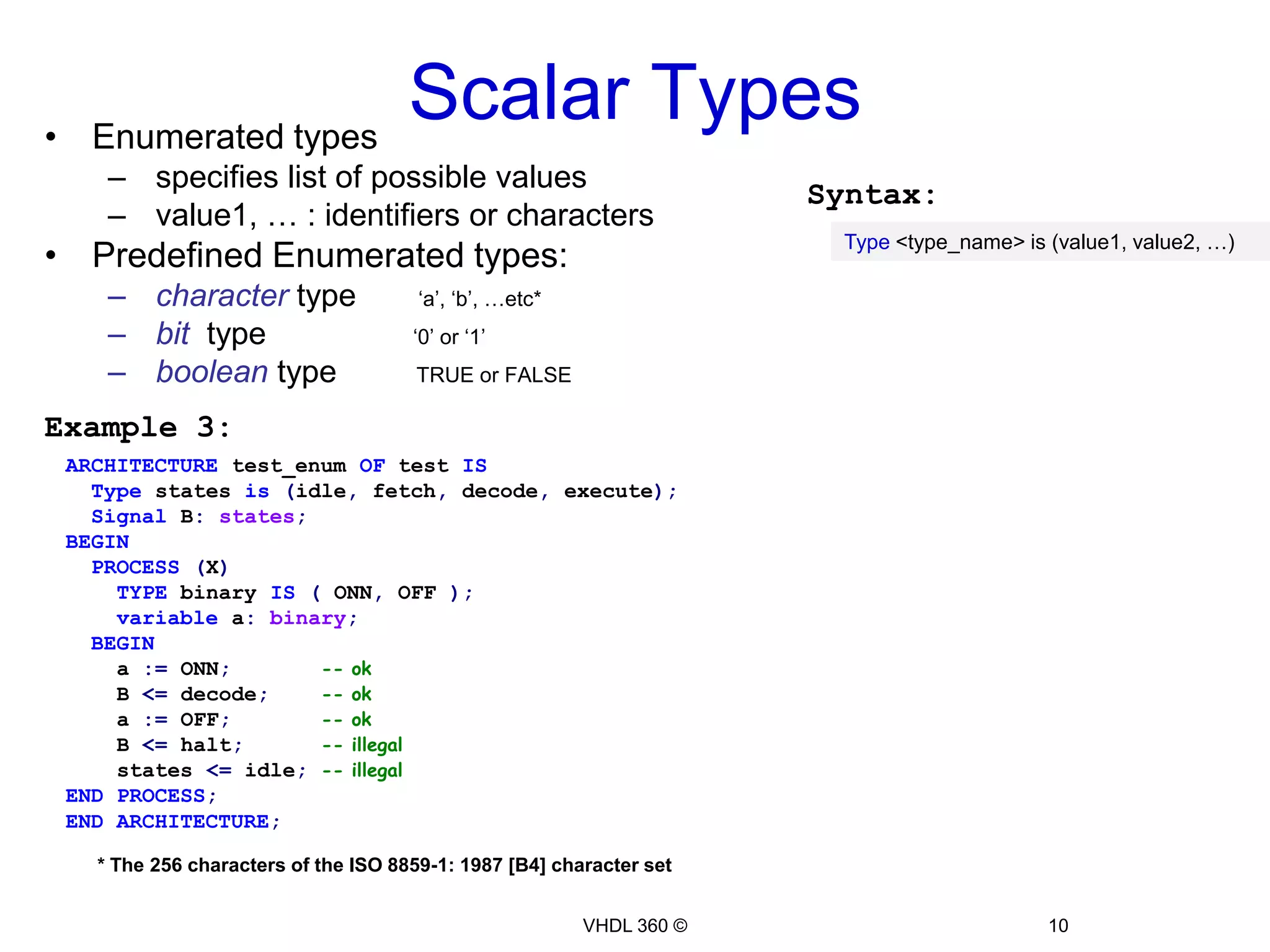

• Enumerated types
                                     Scalar Types
    – specifies list of possible values
                                                                     Syntax:
    – value1, … : identifiers or characters
                                                                      Type <type_name> is (value1, value2, …)
• Predefined Enumerated types:
    – character type                  „a‟, „b‟, …etc*
    – bit type                       „0‟ or „1‟
    – boolean type                   TRUE or FALSE

Example 3:
 ARCHITECTURE test_enum OF test IS
   Type states is (idle, fetch, decode, execute);
   Signal B: states;
 BEGIN
   PROCESS (X)
     TYPE binary IS ( ONN, OFF );
     variable a: binary;
   BEGIN
     a := ONN;       -- ok
     B <= decode;    -- ok
     a := OFF;       -- ok
     B <= halt;      -- illegal
     states <= idle; -- illegal
 END PROCESS;
 END ARCHITECTURE;

   * The 256 characters of the ISO 8859-1: 1987 [B4] character set


                                                        VHDL 360 ©                        10

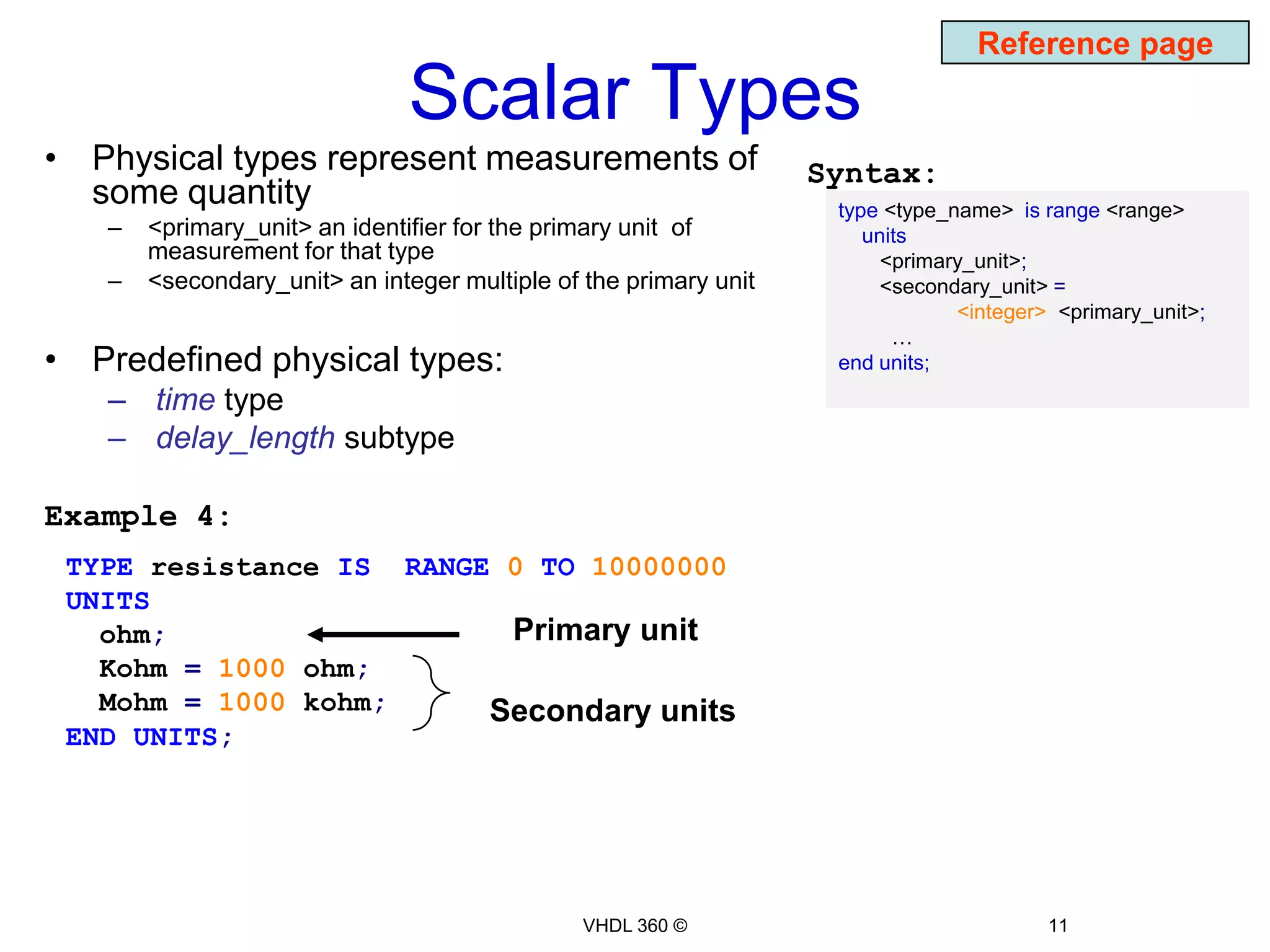

Reference page

                               Scalar Types
• Physical types represent measurements of                        Syntax:
  some quantity                                                    type <type_name> is range <range>
   –   <primary_unit> an identifier for the primary unit of           units
       measurement for that type                                        <primary_unit>;
   –   <secondary_unit> an integer multiple of the primary unit         <secondary_unit> =
                                                                               <integer> <primary_unit>;
                                                                         …
• Predefined physical types:                                       end units;
   – time type
   – delay_length subtype

Example 4:
 TYPE resistance IS RANGE 0 TO 10000000
 UNITS
   ohm;                   Primary unit
   Kohm = 1000 ohm;
   Mohm = 1000 kohm;     Secondary units
 END UNITS;




                                               VHDL 360 ©                               11

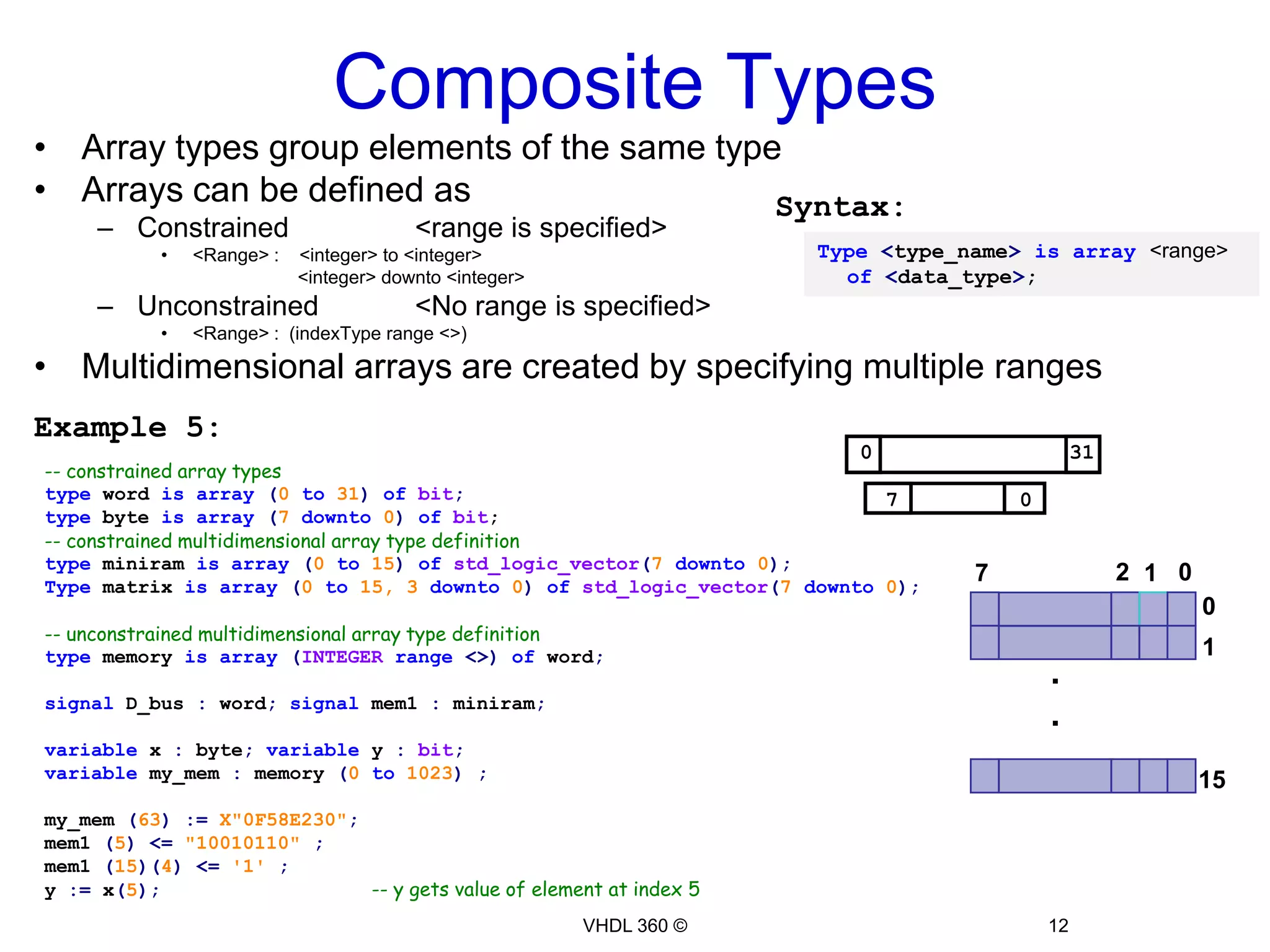

Composite Types
• Array types group elements of the same type
• Arrays can be defined as                   Syntax:
     – Constrained                      <range is specified>
           •   <Range> :   <integer> to <integer>                    Type <type_name> is array <range>
                           <integer> downto <integer>                  of <data_type>;
     – Unconstrained                    <No range is specified>
           •   <Range> : (indexType range <>)

• Multidimensional arrays are created by specifying multiple ranges
Example 5:
                                                                        0                     31
-- constrained array types
type word is array (0 to 31) of bit;                                    7            0
type byte is array (7 downto 0) of bit;
-- constrained multidimensional array type definition
type miniram is array (0 to 15) of std_logic_vector(7 downto 0);
Type matrix is array (0 to 15, 3 downto 0) of std_logic_vector(7 downto 0);
                                                                                 7                 2 1 0
                                                                                                           0
-- unconstrained multidimensional array type definition
type memory is array (INTEGER range <>) of word;                                                           1
                                                                                         .
signal D_bus : word; signal mem1 : miniram;
                                                                                         .
variable x : byte; variable y : bit;
variable my_mem : memory (0 to 1023) ;                                                                     15
my_mem (63) := X"0F58E230";
mem1 (5) <= "10010110" ;
mem1 (15)(4) <= '1' ;
y := x(5);                  -- y gets value of element at index 5
                                                        VHDL 360 ©                       12

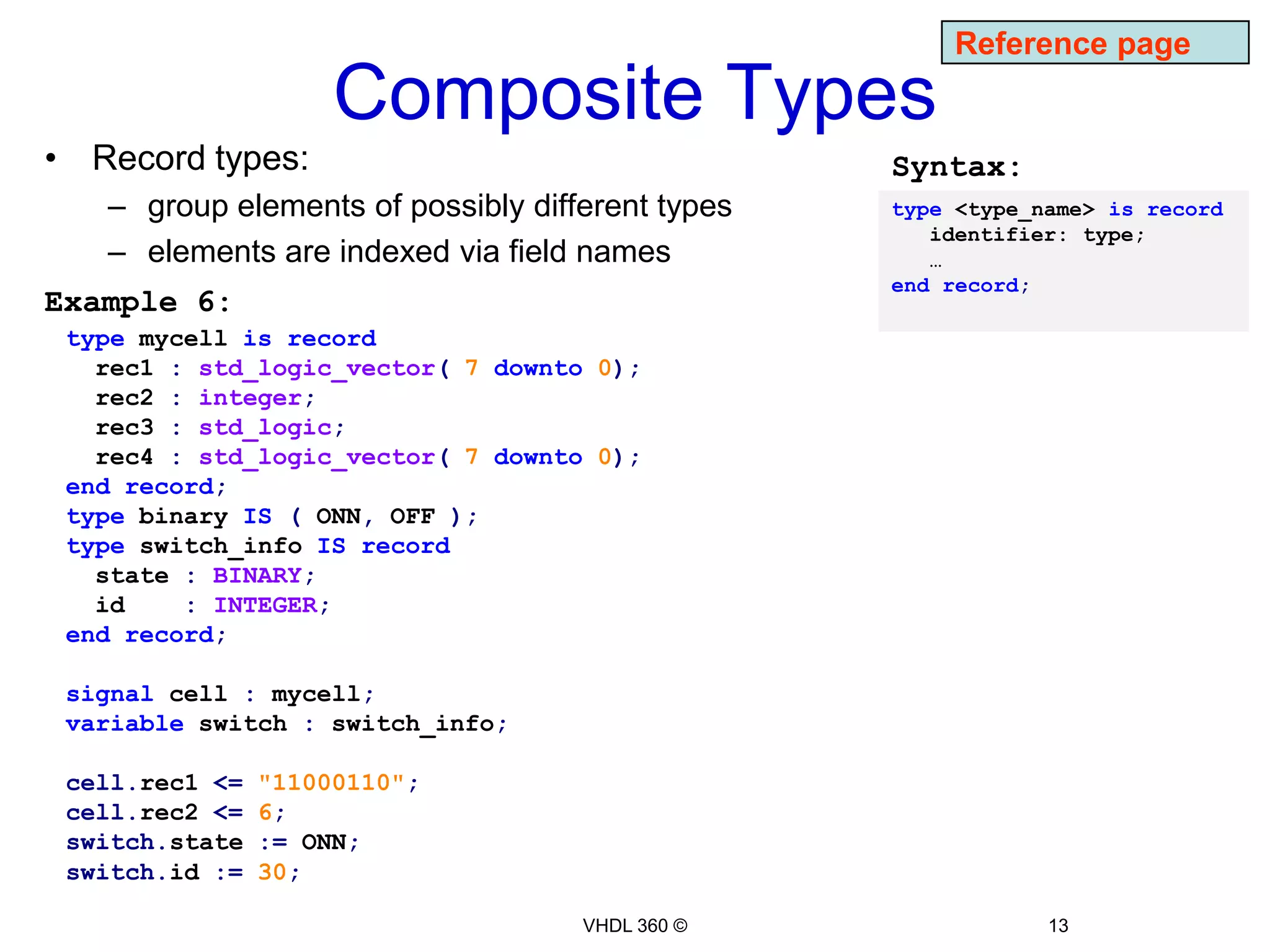

Reference page

                     Composite Types
• Record types:                                   Syntax:
   – group elements of possibly different types   type <type_name> is record
                                                     identifier: type;
   – elements are indexed via field names            …
                                                  end record;
Example 6:
 type mycell is record
   rec1 : std_logic_vector( 7 downto 0);
   rec2 : integer;
   rec3 : std_logic;
   rec4 : std_logic_vector( 7 downto 0);
 end record;
 type binary IS ( ONN, OFF );
 type switch_info IS record
   state : BINARY;
   id    : INTEGER;
 end record;

 signal cell : mycell;
 variable switch : switch_info;

 cell.rec1 <=   "11000110";
 cell.rec2 <=   6;
 switch.state   := ONN;
 switch.id :=   30;

                                    VHDL 360 ©                13

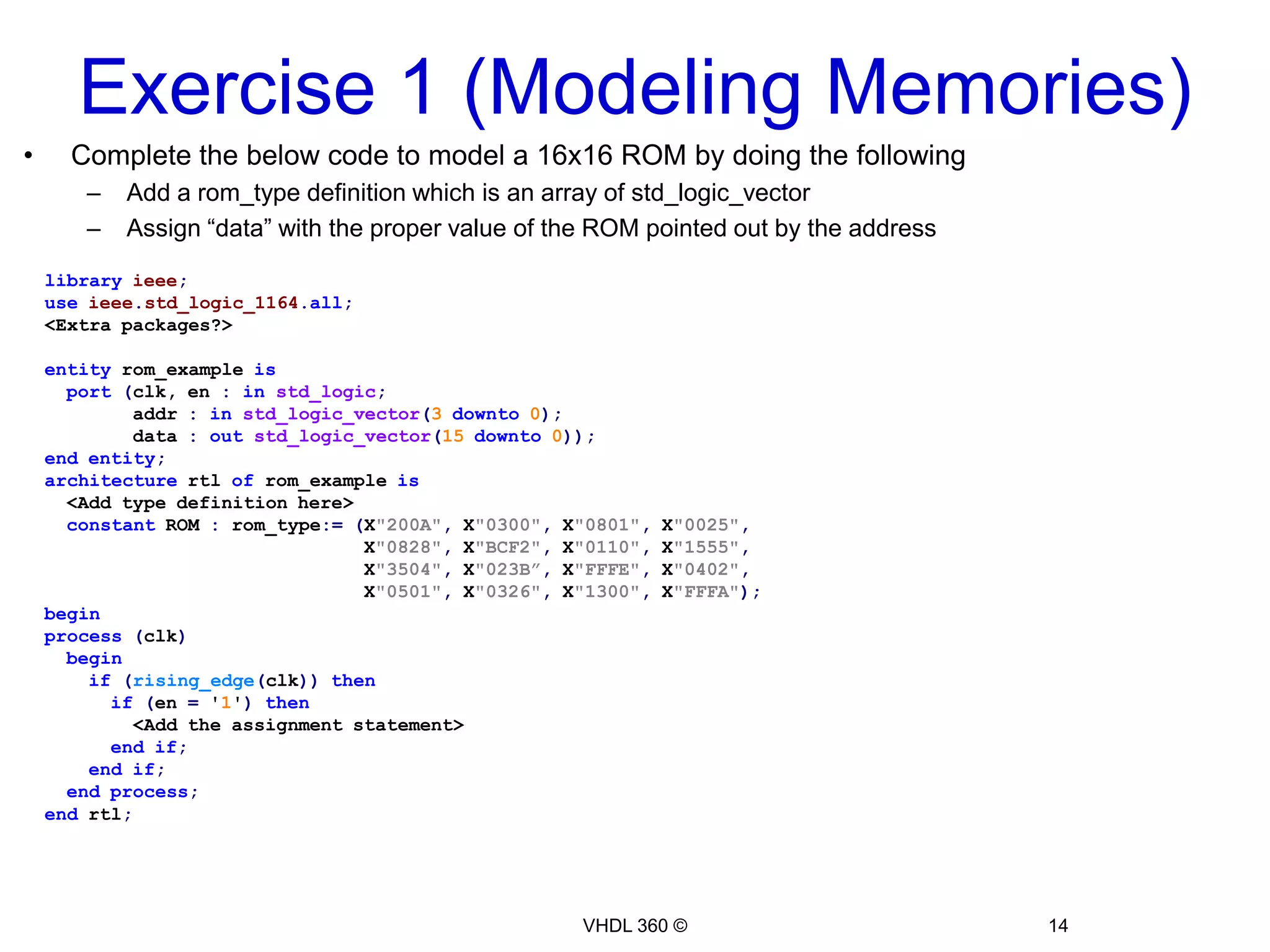

Exercise 1 (Modeling Memories)
•     Complete the below code to model a 16x16 ROM by doing the following
       –   Add a rom_type definition which is an array of std_logic_vector
       –   Assign “data” with the proper value of the ROM pointed out by the address

    library ieee;
    use ieee.std_logic_1164.all;
    <Extra packages?>

    entity rom_example is
      port (clk, en : in std_logic;
            addr : in std_logic_vector(3 downto 0);
            data : out std_logic_vector(15 downto 0));
    end entity;
    architecture rtl of rom_example is
      <Add type definition here>
      constant ROM : rom_type:= (X"200A", X"0300", X"0801",   X"0025",
                                 X"0828", X"BCF2", X"0110",   X"1555",
                                 X"3504", X"023B”, X"FFFE",   X"0402",
                                 X"0501", X"0326", X"1300",   X"FFFA");
    begin
    process (clk)
      begin
        if (rising_edge(clk)) then
          if (en = '1') then
            <Add the assignment statement>
          end if;
        end if;
      end process;
    end rtl;




                                                    VHDL 360 ©                         14

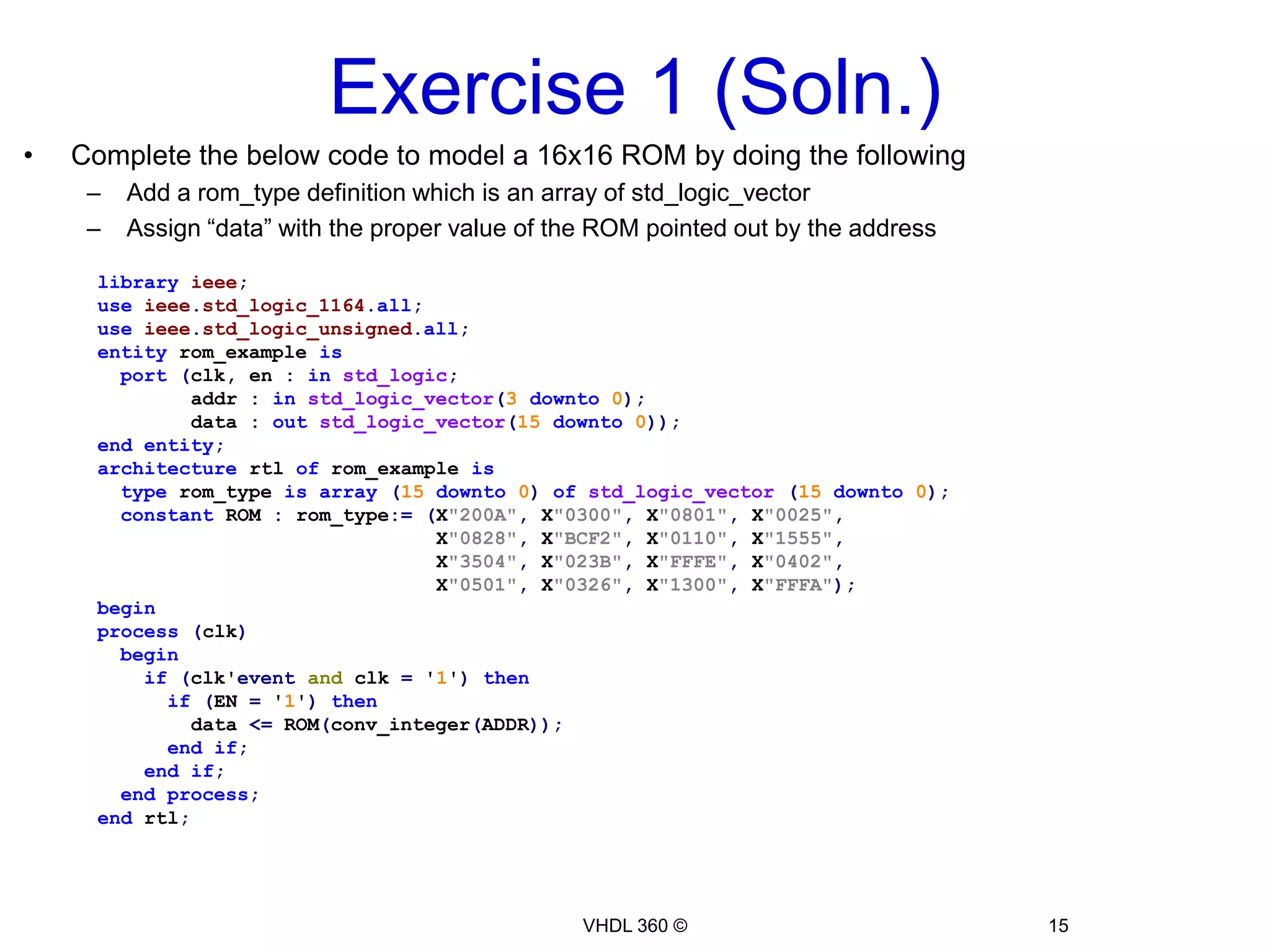

Exercise 1 (Soln.)
•   Complete the below code to model a 16x16 ROM by doing the following
     –   Add a rom_type definition which is an array of std_logic_vector
     –   Assign “data” with the proper value of the ROM pointed out by the address

     library ieee;
     use ieee.std_logic_1164.all;
     use ieee.std_logic_unsigned.all;
     entity rom_example is
       port (clk, en : in std_logic;
              addr : in std_logic_vector(3 downto 0);
              data : out std_logic_vector(15 downto 0));
     end entity;
     architecture rtl of rom_example is
       type rom_type is array (15 downto 0) of std_logic_vector (15 downto 0);
       constant ROM : rom_type:= (X"200A", X"0300", X"0801", X"0025",
                                   X"0828", X"BCF2", X"0110", X"1555",
                                   X"3504", X"023B", X"FFFE", X"0402",
                                   X"0501", X"0326", X"1300", X"FFFA");
     begin
     process (clk)
       begin
         if (clk'event and clk = '1') then
           if (EN = '1') then
              data <= ROM(conv_integer(ADDR));
           end if;
         end if;
       end process;
     end rtl;




                                                  VHDL 360 ©                         15
•

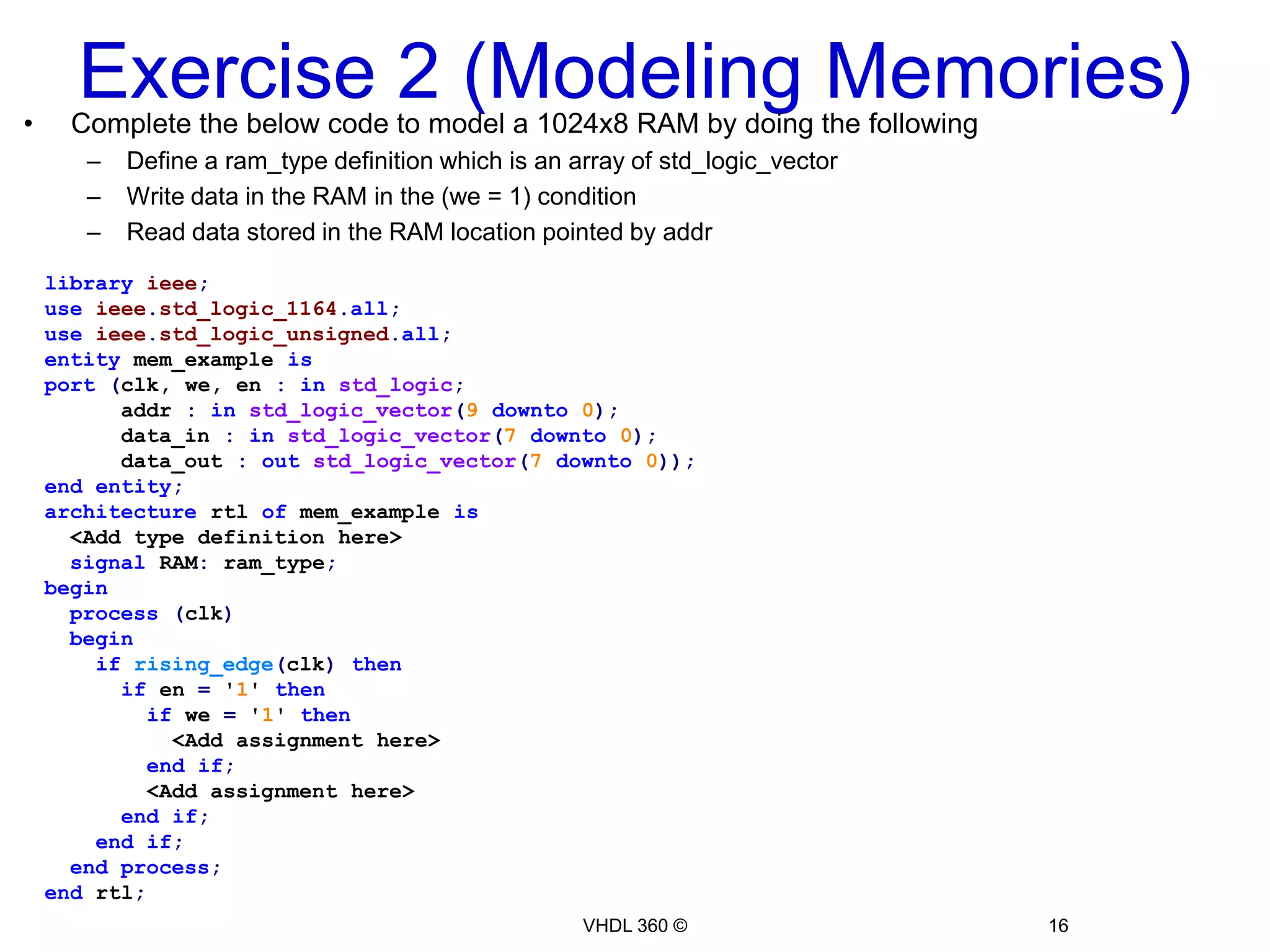

      Exercise 2 (Modeling Memories)
      Complete the below code to model a 1024x8 RAM by doing the following
       –   Define a ram_type definition which is an array of std_logic_vector
       –   Write data in the RAM in the (we = 1) condition
       –   Read data stored in the RAM location pointed by addr
    library ieee;
    use ieee.std_logic_1164.all;
    use ieee.std_logic_unsigned.all;
    entity mem_example is
    port (clk, we, en : in std_logic;
          addr : in std_logic_vector(9 downto 0);
          data_in : in std_logic_vector(7 downto 0);
          data_out : out std_logic_vector(7 downto 0));
    end entity;
    architecture rtl of mem_example is
      <Add type definition here>
      signal RAM: ram_type;
    begin
      process (clk)
      begin
        if rising_edge(clk) then
          if en = '1' then
             if we = '1' then
               <Add assignment here>
             end if;
             <Add assignment here>
          end if;
        end if;
      end process;
    end rtl;
                                                     VHDL 360 ©                 16
•

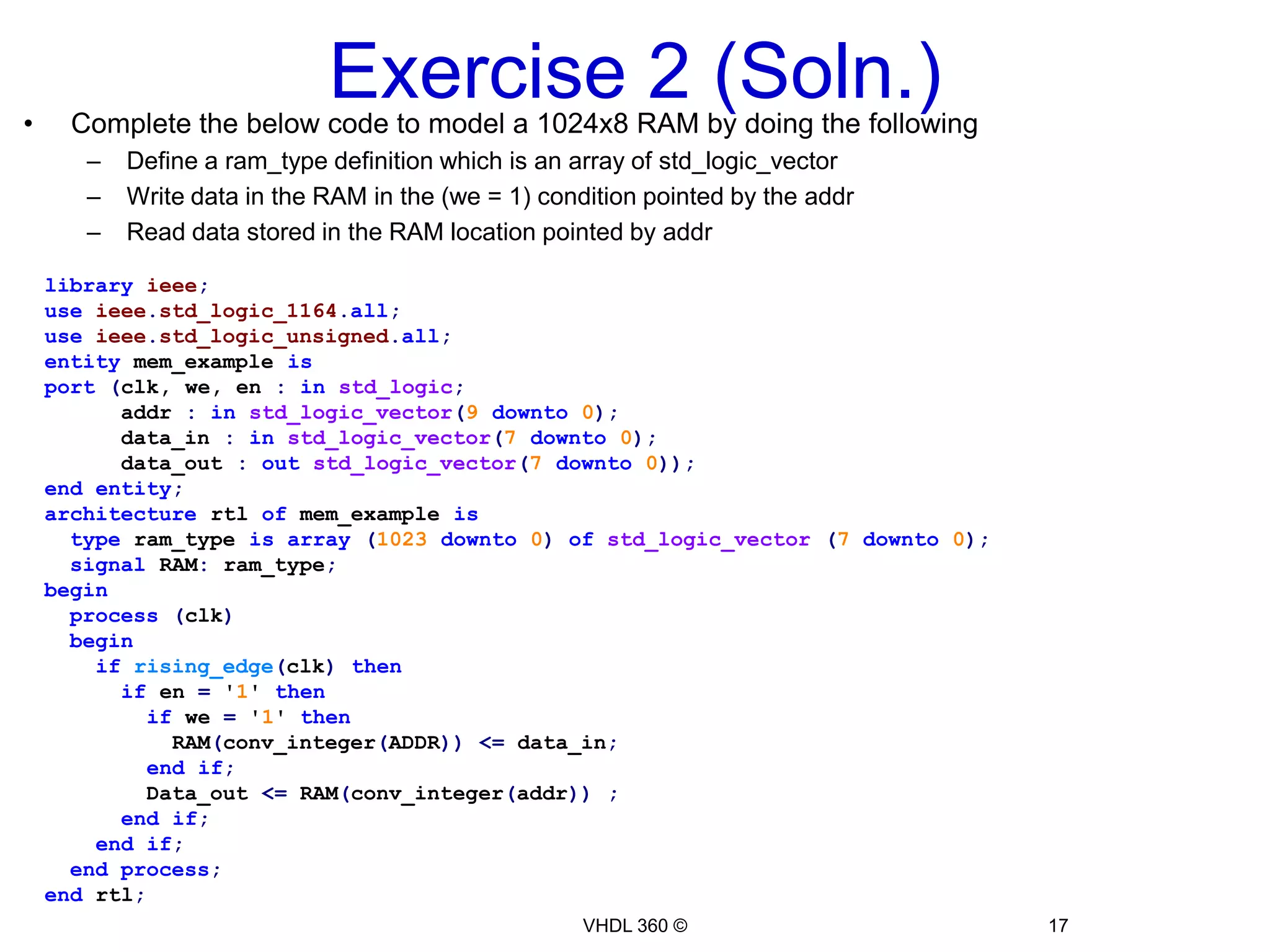

                             Exercise 2 (Soln.)
      Complete the below code to model a 1024x8 RAM by doing the following
       –   Define a ram_type definition which is an array of std_logic_vector
       –   Write data in the RAM in the (we = 1) condition pointed by the addr
       –   Read data stored in the RAM location pointed by addr

    library ieee;
    use ieee.std_logic_1164.all;
    use ieee.std_logic_unsigned.all;
    entity mem_example is
    port (clk, we, en : in std_logic;
          addr : in std_logic_vector(9 downto 0);
          data_in : in std_logic_vector(7 downto 0);
          data_out : out std_logic_vector(7 downto 0));
    end entity;
    architecture rtl of mem_example is
      type ram_type is array (1023 downto 0) of std_logic_vector (7 downto 0);
      signal RAM: ram_type;
    begin
      process (clk)
      begin
        if rising_edge(clk) then
          if en = '1' then
             if we = '1' then
               RAM(conv_integer(ADDR)) <= data_in;
             end if;
             Data_out <= RAM(conv_integer(addr)) ;
          end if;
        end if;
      end process;
    end rtl;
                                                     VHDL 360 ©                  17

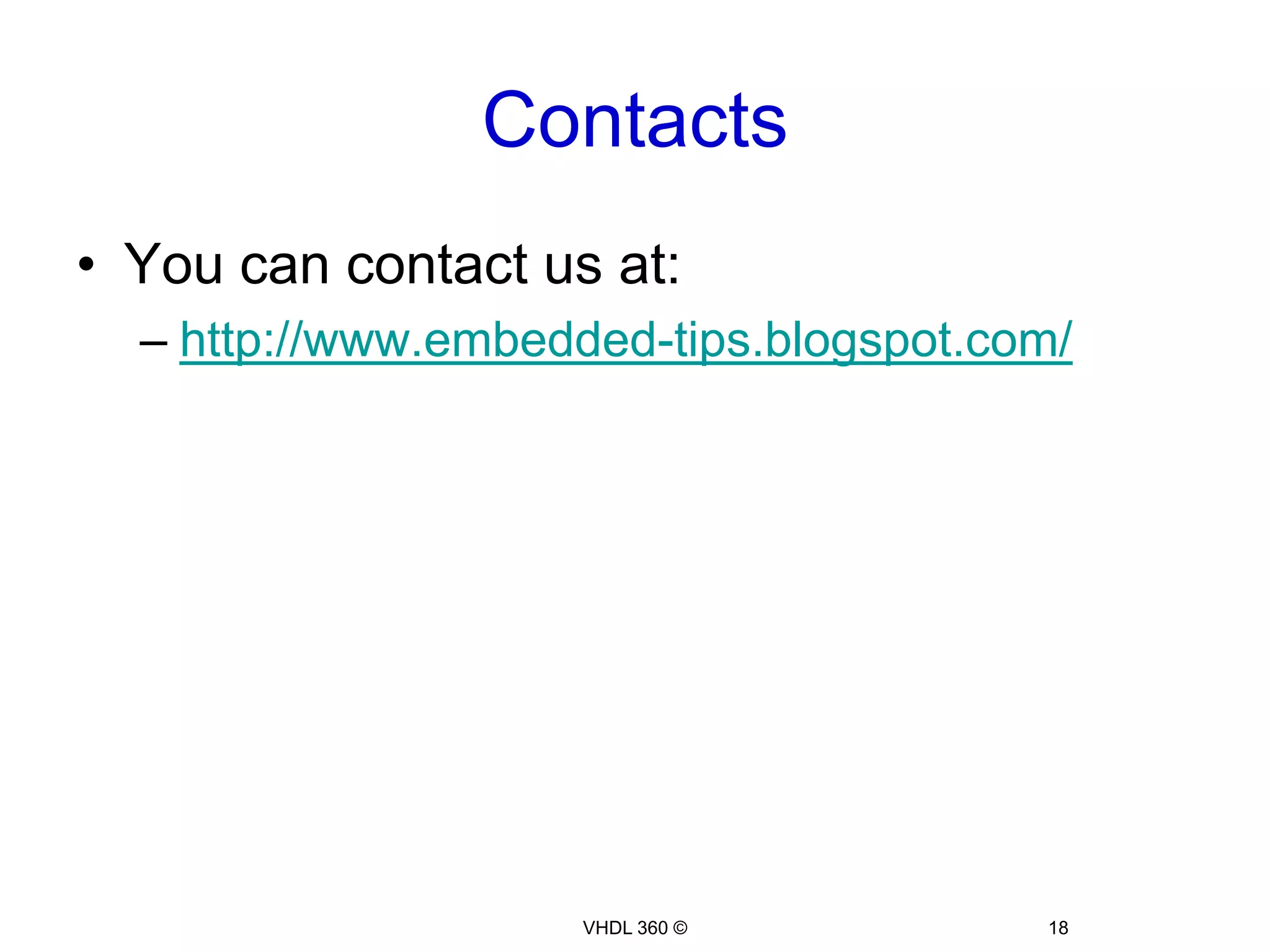

Contacts
• You can contact us at:
  – http://www.embedded-tips.blogspot.com/




                     VHDL 360 ©         18

More Related Content

What's hot

Ppt presentation on FET
Ppt presentation on  FETPpt presentation on  FET
Ppt presentation on FET
Skmdbg

Programmable array logic
Programmable array logicProgrammable array logic
Programmable array logic
Gaditek

signal flow graph
signal flow graphsignal flow graph
signal flow graph
Rajput Manthan

Lecture6 modulation
Lecture6 modulationLecture6 modulation
Lecture6 modulation
Jawaher Abdulwahab Fadhil

DSP_2018_FOEHU - Lec 07 - IIR Filter Design
DSP_2018_FOEHU - Lec 07 - IIR Filter DesignDSP_2018_FOEHU - Lec 07 - IIR Filter Design
DSP_2018_FOEHU - Lec 07 - IIR Filter Design
Amr E. Mohamed

Z transforms and their applications
Z transforms and their applicationsZ transforms and their applications
Z transforms and their applications
Ram Kumar K R

Reference for z and inverse z transform
Reference for z and inverse z transformReference for z and inverse z transform
Reference for z and inverse z transform
abayteshome1

Fir filter design using Frequency sampling method
Fir filter design using Frequency sampling methodFir filter design using Frequency sampling method
Fir filter design using Frequency sampling method
Sarang Joshi

single stage amplifier Unit 5 AMVLSI
single stage amplifier Unit 5 AMVLSIsingle stage amplifier Unit 5 AMVLSI
single stage amplifier Unit 5 AMVLSI
Harsha Raju

CMOS Logic
CMOS LogicCMOS Logic
Z Transform
Z TransformZ Transform
Z Transform
Darshan Bhatt

Instrumental lecture 2
Instrumental lecture 2Instrumental lecture 2
Instrumental lecture 2esmail_alwrafi

Stick Diagram
Stick Diagram Stick Diagram
Stick Diagram rohitladdu

OPERATIONS ON SIGNALS
OPERATIONS ON SIGNALSOPERATIONS ON SIGNALS
OPERATIONS ON SIGNALS
vishalgohel12195

Dc3 t1
Dc3 t1Dc3 t1
Combinational circuits r011
Combinational circuits   r011Combinational circuits   r011
Combinational circuits r011
arunachalamr16

Decimation in Time
Decimation in TimeDecimation in Time
Decimation in Time
SURAJ KUMAR SAINI

Unit no. 5 cmos logic design
Unit no. 5 cmos logic designUnit no. 5 cmos logic design
Unit no. 5 cmos logic design
swagatkarve

ADDITTIVE WHITE GAUSIAN NOIS ( AWGN)
ADDITTIVE WHITE GAUSIAN NOIS ( AWGN)ADDITTIVE WHITE GAUSIAN NOIS ( AWGN)
ADDITTIVE WHITE GAUSIAN NOIS ( AWGN)
mohammedalimahdi


What's hot (20)

Ppt presentation on FET
Ppt presentation on  FETPpt presentation on  FET
Ppt presentation on FET

Programmable array logic
Programmable array logicProgrammable array logic
Programmable array logic

signal flow graph
signal flow graphsignal flow graph
signal flow graph

Lecture6 modulation
Lecture6 modulationLecture6 modulation
Lecture6 modulation

DSP_2018_FOEHU - Lec 07 - IIR Filter Design
DSP_2018_FOEHU - Lec 07 - IIR Filter DesignDSP_2018_FOEHU - Lec 07 - IIR Filter Design
DSP_2018_FOEHU - Lec 07 - IIR Filter Design

Z transforms and their applications
Z transforms and their applicationsZ transforms and their applications
Z transforms and their applications

Single sidebands ssb lathi
Single sidebands ssb   lathiSingle sidebands ssb   lathi
Single sidebands ssb lathi

Reference for z and inverse z transform
Reference for z and inverse z transformReference for z and inverse z transform
Reference for z and inverse z transform

Fir filter design using Frequency sampling method
Fir filter design using Frequency sampling methodFir filter design using Frequency sampling method
Fir filter design using Frequency sampling method

single stage amplifier Unit 5 AMVLSI
single stage amplifier Unit 5 AMVLSIsingle stage amplifier Unit 5 AMVLSI
single stage amplifier Unit 5 AMVLSI

CMOS Logic
CMOS LogicCMOS Logic
CMOS Logic

Z Transform
Z TransformZ Transform
Z Transform

Instrumental lecture 2
Instrumental lecture 2Instrumental lecture 2
Instrumental lecture 2

Stick Diagram
Stick Diagram Stick Diagram
Stick Diagram

OPERATIONS ON SIGNALS
OPERATIONS ON SIGNALSOPERATIONS ON SIGNALS
OPERATIONS ON SIGNALS

Dc3 t1
Dc3 t1Dc3 t1
Dc3 t1

Combinational circuits r011
Combinational circuits   r011Combinational circuits   r011
Combinational circuits r011

Decimation in Time
Decimation in TimeDecimation in Time
Decimation in Time

Unit no. 5 cmos logic design
Unit no. 5 cmos logic designUnit no. 5 cmos logic design
Unit no. 5 cmos logic design

ADDITTIVE WHITE GAUSIAN NOIS ( AWGN)
ADDITTIVE WHITE GAUSIAN NOIS ( AWGN)ADDITTIVE WHITE GAUSIAN NOIS ( AWGN)
ADDITTIVE WHITE GAUSIAN NOIS ( AWGN)


Viewers also liked

digital logic circuits, digital component
 digital logic circuits, digital component digital logic circuits, digital component
digital logic circuits, digital component
Rai University

Components of digital computer
Components of digital computerComponents of digital computer
Components of digital computer
Vanitha Kumari

Computer architecture
Computer architectureComputer architecture
Computer architecture
Zuhaib Zaroon

Register transfer and micro operation
Register transfer and micro operationRegister transfer and micro operation
Register transfer and micro operation
Kamal Acharya

COMPUTER ORGANIZATION -Multiplexer,Demultiplexer, Encoder
COMPUTER ORGANIZATION -Multiplexer,Demultiplexer, EncoderCOMPUTER ORGANIZATION -Multiplexer,Demultiplexer, Encoder
COMPUTER ORGANIZATION -Multiplexer,Demultiplexer, EncoderVanitha Chandru

Encoders and decoders
Encoders and decodersEncoders and decoders
Encoders and decoders
Gaditek

Encoder and decoder
Encoder and decoderEncoder and decoder
Encoder and decoder
Then Murugeshwari

Multiplexers & Demultiplexers
Multiplexers & DemultiplexersMultiplexers & Demultiplexers
Multiplexers & Demultiplexers
Jayanshu Gundaniya


Viewers also liked (10)

digital logic circuits, digital component
 digital logic circuits, digital component digital logic circuits, digital component
digital logic circuits, digital component

Components of digital computer
Components of digital computerComponents of digital computer
Components of digital computer

Computer architecture
Computer architectureComputer architecture
Computer architecture

Register transfer and micro operation
Register transfer and micro operationRegister transfer and micro operation
Register transfer and micro operation

COMPUTER ORGANIZATION -Multiplexer,Demultiplexer, Encoder
COMPUTER ORGANIZATION -Multiplexer,Demultiplexer, EncoderCOMPUTER ORGANIZATION -Multiplexer,Demultiplexer, Encoder
COMPUTER ORGANIZATION -Multiplexer,Demultiplexer, Encoder

Encoders and decoders
Encoders and decodersEncoders and decoders
Encoders and decoders

Chapter 3
Chapter 3Chapter 3
Chapter 3

Data types
Data typesData types
Data types

Encoder and decoder
Encoder and decoderEncoder and decoder
Encoder and decoder

Multiplexers & Demultiplexers
Multiplexers & DemultiplexersMultiplexers & Demultiplexers
Multiplexers & Demultiplexers


Similar to Data types and Operators

Data types and Operators Continued
Data types and Operators ContinuedData types and Operators Continued
Data types and Operators Continued
Mohamed Samy

java Basic Programming Needs
java Basic Programming Needsjava Basic Programming Needs
java Basic Programming Needs
Raja Sekhar

VHDL-Data-Types.ppt
VHDL-Data-Types.pptVHDL-Data-Types.ppt
VHDL-Data-Types.ppt
seemasylvester

the-vhsic-.pptx
the-vhsic-.pptxthe-vhsic-.pptx
the-vhsic-.pptx
jpradha86

Data types
Data typesData types
Data types
Nokesh Prabhakar

Vhdl identifiers,data types
Vhdl identifiers,data typesVhdl identifiers,data types
Vhdl identifiers,data types
MadhuriMulik1

FP 201 Unit 2 - Part 2
FP 201 Unit 2 - Part 2FP 201 Unit 2 - Part 2
FP 201 Unit 2 - Part 2rohassanie

Pj01 3-java-variable and data types
Pj01 3-java-variable and data typesPj01 3-java-variable and data types
Pj01 3-java-variable and data types
SasidharaRaoMarrapu

Java Programming For Android
Java Programming For AndroidJava Programming For Android
Java Programming For Android
TechiNerd

5variables in c#
5variables in c#5variables in c#
5variables in c#
Sireesh K

Qtp - Introduction to fundamentals of vbscript
Qtp - Introduction to fundamentals of vbscriptQtp - Introduction to fundamentals of vbscript
Qtp - Introduction to fundamentals of vbscript
Vibrant Technologies & Computers

data types in C programming
data types in C programmingdata types in C programming
data types in C programming
Harshita Yadav

cassignmentii-170424105623.pdf
cassignmentii-170424105623.pdfcassignmentii-170424105623.pdf
cassignmentii-170424105623.pdf
YRABHI

Android webinar class_java_review
Android webinar class_java_reviewAndroid webinar class_java_review
Android webinar class_java_reviewEdureka!

Cs1123 3 c++ overview
Cs1123 3 c++ overviewCs1123 3 c++ overview
Cs1123 3 c++ overviewTAlha MAlik

Cpprm
CpprmCpprm
Cpprm
Shawne Lee

ch6-Short.ppt eee cse www rrr www qqq rrr ttt
ch6-Short.ppt eee cse www rrr www qqq rrr tttch6-Short.ppt eee cse www rrr www qqq rrr ttt
ch6-Short.ppt eee cse www rrr www qqq rrr ttt
winimag331


Similar to Data types and Operators (20)

Data types and Operators Continued
Data types and Operators ContinuedData types and Operators Continued
Data types and Operators Continued

java Basic Programming Needs
java Basic Programming Needsjava Basic Programming Needs
java Basic Programming Needs

VHDL-Data-Types.ppt
VHDL-Data-Types.pptVHDL-Data-Types.ppt
VHDL-Data-Types.ppt

Unit i
Unit  iUnit  i
Unit i

the-vhsic-.pptx
the-vhsic-.pptxthe-vhsic-.pptx
the-vhsic-.pptx

Data types
Data typesData types
Data types

Vhdl identifiers,data types
Vhdl identifiers,data typesVhdl identifiers,data types
Vhdl identifiers,data types

FP 201 Unit 2 - Part 2
FP 201 Unit 2 - Part 2FP 201 Unit 2 - Part 2
FP 201 Unit 2 - Part 2

Pj01 3-java-variable and data types
Pj01 3-java-variable and data typesPj01 3-java-variable and data types
Pj01 3-java-variable and data types

Java Programming For Android
Java Programming For AndroidJava Programming For Android
Java Programming For Android

5variables in c#
5variables in c#5variables in c#
5variables in c#

Qtp - Introduction to fundamentals of vbscript
Qtp - Introduction to fundamentals of vbscriptQtp - Introduction to fundamentals of vbscript
Qtp - Introduction to fundamentals of vbscript

data types in C programming
data types in C programmingdata types in C programming
data types in C programming

cassignmentii-170424105623.pdf
cassignmentii-170424105623.pdfcassignmentii-170424105623.pdf
cassignmentii-170424105623.pdf

Android webinar class_java_review
Android webinar class_java_reviewAndroid webinar class_java_review
Android webinar class_java_review

Datatypes
DatatypesDatatypes
Datatypes

Vhdl
VhdlVhdl
Vhdl

Cs1123 3 c++ overview
Cs1123 3 c++ overviewCs1123 3 c++ overview
Cs1123 3 c++ overview

Cpprm
CpprmCpprm
Cpprm

ch6-Short.ppt eee cse www rrr www qqq rrr ttt
ch6-Short.ppt eee cse www rrr www qqq rrr tttch6-Short.ppt eee cse www rrr www qqq rrr ttt
ch6-Short.ppt eee cse www rrr www qqq rrr ttt


More from Mohamed Samy

Building Hierarchy
Building HierarchyBuilding Hierarchy
Building Hierarchy
Mohamed Samy

Modeling FSMs
Modeling FSMsModeling FSMs
Modeling FSMs
Mohamed Samy

Synthesis Examples
Synthesis ExamplesSynthesis Examples
Synthesis Examples
Mohamed Samy

Writing more complex models (continued)
Writing more complex models (continued)Writing more complex models (continued)
Writing more complex models (continued)
Mohamed Samy

Writing more complex models
Writing more complex modelsWriting more complex models
Writing more complex models
Mohamed Samy

Create your first model for a simple logic circuit
Create your first model for a simple logic circuitCreate your first model for a simple logic circuit
Create your first model for a simple logic circuit
Mohamed Samy

Introduction to VHDL
Introduction to VHDLIntroduction to VHDL
Introduction to VHDL
Mohamed Samy


More from Mohamed Samy (7)

Building Hierarchy
Building HierarchyBuilding Hierarchy
Building Hierarchy

Modeling FSMs
Modeling FSMsModeling FSMs
Modeling FSMs

Synthesis Examples
Synthesis ExamplesSynthesis Examples
Synthesis Examples

Writing more complex models (continued)
Writing more complex models (continued)Writing more complex models (continued)
Writing more complex models (continued)

Writing more complex models
Writing more complex modelsWriting more complex models
Writing more complex models

Create your first model for a simple logic circuit
Create your first model for a simple logic circuitCreate your first model for a simple logic circuit
Create your first model for a simple logic circuit

Introduction to VHDL
Introduction to VHDLIntroduction to VHDL
Introduction to VHDL


Recently uploaded

The Challenger.pdf DNHS Official Publication
The Challenger.pdf DNHS Official PublicationThe Challenger.pdf DNHS Official Publication
The Challenger.pdf DNHS Official Publication
Delapenabediema

aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa
siemaillard

Fish and Chips - have they had their chips
Fish and Chips - have they had their chipsFish and Chips - have they had their chips
Fish and Chips - have they had their chips
GeoBlogs

aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa
siemaillard

Additional Benefits for Employee Website.pdf
Additional Benefits for Employee Website.pdfAdditional Benefits for Employee Website.pdf
Additional Benefits for Employee Website.pdf
joachimlavalley1

Basic phrases for greeting and assisting costumers
Basic phrases for greeting and assisting costumersBasic phrases for greeting and assisting costumers
Basic phrases for greeting and assisting costumers
PedroFerreira53928

Cambridge International AS A Level Biology Coursebook - EBook (MaryFosbery J...
Cambridge International AS  A Level Biology Coursebook - EBook (MaryFosbery J...Cambridge International AS  A Level Biology Coursebook - EBook (MaryFosbery J...
Cambridge International AS A Level Biology Coursebook - EBook (MaryFosbery J...
AzmatAli747758

Unit 8 - Information and Communication Technology (Paper I).pdf
Unit 8 - Information and Communication Technology (Paper I).pdfUnit 8 - Information and Communication Technology (Paper I).pdf
Unit 8 - Information and Communication Technology (Paper I).pdf
Thiyagu K

2024.06.01 Introducing a competency framework for languag learning materials ...
2024.06.01 Introducing a competency framework for languag learning materials ...2024.06.01 Introducing a competency framework for languag learning materials ...
2024.06.01 Introducing a competency framework for languag learning materials ...
Sandy Millin

The geography of Taylor Swift - some ideas
The geography of Taylor Swift - some ideasThe geography of Taylor Swift - some ideas
The geography of Taylor Swift - some ideas
GeoBlogs

The approach at University of Liverpool.pptx
The approach at University of Liverpool.pptxThe approach at University of Liverpool.pptx
The approach at University of Liverpool.pptx
Jisc

Language Across the Curriculm LAC B.Ed.
Language Across the  Curriculm LAC B.Ed.Language Across the  Curriculm LAC B.Ed.
Language Across the Curriculm LAC B.Ed.
Atul Kumar Singh

How to Make a Field invisible in Odoo 17
How to Make a Field invisible in Odoo 17How to Make a Field invisible in Odoo 17
How to Make a Field invisible in Odoo 17
Celine George

Polish students' mobility in the Czech Republic
Polish students' mobility in the Czech RepublicPolish students' mobility in the Czech Republic
Polish students' mobility in the Czech Republic
Anna Sz.

How to Create Map Views in the Odoo 17 ERP
How to Create Map Views in the Odoo 17 ERPHow to Create Map Views in the Odoo 17 ERP
How to Create Map Views in the Odoo 17 ERP
Celine George

How libraries can support authors with open access requirements for UKRI fund...
How libraries can support authors with open access requirements for UKRI fund...How libraries can support authors with open access requirements for UKRI fund...
How libraries can support authors with open access requirements for UKRI fund...
Jisc

Synthetic Fiber Construction in lab .pptx
Synthetic Fiber Construction in lab .pptxSynthetic Fiber Construction in lab .pptx
Synthetic Fiber Construction in lab .pptx
Pavel ( NSTU)

The Art Pastor's Guide to Sabbath | Steve Thomason
The Art Pastor's Guide to Sabbath | Steve ThomasonThe Art Pastor's Guide to Sabbath | Steve Thomason
The Art Pastor's Guide to Sabbath | Steve Thomason
Steve Thomason

Home assignment II on Spectroscopy 2024 Answers.pdf
Home assignment II on Spectroscopy 2024 Answers.pdfHome assignment II on Spectroscopy 2024 Answers.pdf
Home assignment II on Spectroscopy 2024 Answers.pdf
Tamralipta Mahavidyalaya

Instructions for Submissions thorugh G- Classroom.pptx
Instructions for Submissions thorugh G- Classroom.pptxInstructions for Submissions thorugh G- Classroom.pptx
Instructions for Submissions thorugh G- Classroom.pptx
Jheel Barad


Recently uploaded (20)

The Challenger.pdf DNHS Official Publication
The Challenger.pdf DNHS Official PublicationThe Challenger.pdf DNHS Official Publication
The Challenger.pdf DNHS Official Publication

aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa

Fish and Chips - have they had their chips
Fish and Chips - have they had their chipsFish and Chips - have they had their chips
Fish and Chips - have they had their chips

aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa

Additional Benefits for Employee Website.pdf
Additional Benefits for Employee Website.pdfAdditional Benefits for Employee Website.pdf
Additional Benefits for Employee Website.pdf

Basic phrases for greeting and assisting costumers
Basic phrases for greeting and assisting costumersBasic phrases for greeting and assisting costumers
Basic phrases for greeting and assisting costumers

Cambridge International AS A Level Biology Coursebook - EBook (MaryFosbery J...
Cambridge International AS  A Level Biology Coursebook - EBook (MaryFosbery J...Cambridge International AS  A Level Biology Coursebook - EBook (MaryFosbery J...
Cambridge International AS A Level Biology Coursebook - EBook (MaryFosbery J...

Unit 8 - Information and Communication Technology (Paper I).pdf
Unit 8 - Information and Communication Technology (Paper I).pdfUnit 8 - Information and Communication Technology (Paper I).pdf
Unit 8 - Information and Communication Technology (Paper I).pdf

2024.06.01 Introducing a competency framework for languag learning materials ...
2024.06.01 Introducing a competency framework for languag learning materials ...2024.06.01 Introducing a competency framework for languag learning materials ...
2024.06.01 Introducing a competency framework for languag learning materials ...

The geography of Taylor Swift - some ideas
The geography of Taylor Swift - some ideasThe geography of Taylor Swift - some ideas
The geography of Taylor Swift - some ideas

The approach at University of Liverpool.pptx
The approach at University of Liverpool.pptxThe approach at University of Liverpool.pptx
The approach at University of Liverpool.pptx

Language Across the Curriculm LAC B.Ed.
Language Across the  Curriculm LAC B.Ed.Language Across the  Curriculm LAC B.Ed.
Language Across the Curriculm LAC B.Ed.

How to Make a Field invisible in Odoo 17
How to Make a Field invisible in Odoo 17How to Make a Field invisible in Odoo 17
How to Make a Field invisible in Odoo 17

Polish students' mobility in the Czech Republic
Polish students' mobility in the Czech RepublicPolish students' mobility in the Czech Republic
Polish students' mobility in the Czech Republic

How to Create Map Views in the Odoo 17 ERP
How to Create Map Views in the Odoo 17 ERPHow to Create Map Views in the Odoo 17 ERP
How to Create Map Views in the Odoo 17 ERP

How libraries can support authors with open access requirements for UKRI fund...
How libraries can support authors with open access requirements for UKRI fund...How libraries can support authors with open access requirements for UKRI fund...
How libraries can support authors with open access requirements for UKRI fund...

Synthetic Fiber Construction in lab .pptx
Synthetic Fiber Construction in lab .pptxSynthetic Fiber Construction in lab .pptx
Synthetic Fiber Construction in lab .pptx

The Art Pastor's Guide to Sabbath | Steve Thomason
The Art Pastor's Guide to Sabbath | Steve ThomasonThe Art Pastor's Guide to Sabbath | Steve Thomason
The Art Pastor's Guide to Sabbath | Steve Thomason

Home assignment II on Spectroscopy 2024 Answers.pdf
Home assignment II on Spectroscopy 2024 Answers.pdfHome assignment II on Spectroscopy 2024 Answers.pdf
Home assignment II on Spectroscopy 2024 Answers.pdf

Instructions for Submissions thorugh G- Classroom.pptx
Instructions for Submissions thorugh G- Classroom.pptxInstructions for Submissions thorugh G- Classroom.pptx
Instructions for Submissions thorugh G- Classroom.pptx


Data types and Operators

  • 1. VHDL 360© by: Mohamed Samy Samer El-Saadany
  • 2. Copyrights Copyright © 2010 to authors. All rights reserved • All content in this presentation, including charts, data, artwork and logos (from here on, "the Content"), is the property of Mohamed Samy and Samer El-Saadany or the corresponding owners, depending on the circumstances of publication, and is protected by national and international copyright laws. • Authors are not personally liable for your usage of the Content that entailed casual or indirect destruction of anything or actions entailed to information profit loss or other losses. • Users are granted to access, display, download and print portions of this presentation, solely for their own personal non-commercial use, provided that all proprietary notices are kept intact. • Product names and trademarks mentioned in this presentation belong to their respective owners. VHDL 360 © 2
  • 3. Module 3 Data Types and Operators
  • 4. Objective • Introducing Data Types & Operators • Skills gained: – Familiarity with data types – Modeling Memories – More on Expressions & Operators VHDL 360 © 4
  • 5. Outline • Data Types – Scalar types – Composite types • Modeling Memories • Expressions & Operators • Aggregate • Attributes • Lab VHDL 360 © 5
  • 6. Data Types • A type is characterized by a set of values and operations • Type declaration is made inside architecture declaration, package, entity declaration, subprogram, process declaration • Types – Scalar types • integer types • floating point types • enumerated types • physical types – Composite types • array types: Multiple elements of the same type • record types: Multiple elements of different types • VHDL offers other types like File types, Access types & Protected types, that will be discussed later VHDL 360 © 6
  • 7. Data Types • VHDL also offers “Subtype” definitions • Subtypes – Type together with a constraint – Can use operations defined to its base type – Can specify its own set of operations Golden rules of thumb VHDL is strongly typed language i.e. The LHS & RHS of the assignment must match in: – Base type – Size VHDL 360 © 7
  • 8. Scalar Types • Integer types – <Range> can be one of the following <integer> to <integer> Syntax: <integer> downto <integer> type <type_name> is range <range>; • Predefined integer types: – integer type -2147483648 to 2147483648 Syntax: – natural subtype 0 to 2147483648 subtype <subtype_name> is <basetype_name> range <range>; – positive subtype 1 to 2147483648 Example 1: PROCESS (X) variable a: integer; -- -2147483648 to 2147483648; variable b: integer range 0 to 15; -- constraints possible values type int is range -10 to 10; -- defining new integer type variable d: int; subtype sint is integer range 50 to 127; -- defining new integer subtype variable c: sint; BEGIN a := -1; c := 100; -- OK b := -1; d := -12; -- illegal a := 1.0; -- illegal a := 57; b := 10; c := a; -- OK c := b; -- illegal (current value of b is outside c range) d := a; -- illegal (two different types) END PROCESS; VHDL 360 © 8
  • 9. Scalar Types • Floating point types – <Range> can be one of the following Syntax: <floating point> to < floating point > type <type_name> is range <range>; < floating point > downto < floating point > • Predefined Floating Point types: Syntax: – real type -1.0E308 to 1.0E308 subtype <subtype_name> is <basetype_name> range <range>; Example 2: PROCESS (X) variable a: real; type posreal is range 0.0 to 1.0E308; variable b: posreal; BEGIN a := 1.3; a := -7.5; -- OK b := -4.5; a := 1; -- illegal a := 1.7E13; b := 11.4; -- OK END PROCESS; VHDL 360 © 9
  • 10. • Enumerated types Scalar Types – specifies list of possible values Syntax: – value1, … : identifiers or characters Type <type_name> is (value1, value2, …) • Predefined Enumerated types: – character type „a‟, „b‟, …etc* – bit type „0‟ or „1‟ – boolean type TRUE or FALSE Example 3: ARCHITECTURE test_enum OF test IS Type states is (idle, fetch, decode, execute); Signal B: states; BEGIN PROCESS (X) TYPE binary IS ( ONN, OFF ); variable a: binary; BEGIN a := ONN; -- ok B <= decode; -- ok a := OFF; -- ok B <= halt; -- illegal states <= idle; -- illegal END PROCESS; END ARCHITECTURE; * The 256 characters of the ISO 8859-1: 1987 [B4] character set VHDL 360 © 10
  • 11. Reference page Scalar Types • Physical types represent measurements of Syntax: some quantity type <type_name> is range <range> – <primary_unit> an identifier for the primary unit of units measurement for that type <primary_unit>; – <secondary_unit> an integer multiple of the primary unit <secondary_unit> = <integer> <primary_unit>; … • Predefined physical types: end units; – time type – delay_length subtype Example 4: TYPE resistance IS RANGE 0 TO 10000000 UNITS ohm; Primary unit Kohm = 1000 ohm; Mohm = 1000 kohm; Secondary units END UNITS; VHDL 360 © 11
  • 12. Composite Types • Array types group elements of the same type • Arrays can be defined as Syntax: – Constrained <range is specified> • <Range> : <integer> to <integer> Type <type_name> is array <range> <integer> downto <integer> of <data_type>; – Unconstrained <No range is specified> • <Range> : (indexType range <>) • Multidimensional arrays are created by specifying multiple ranges Example 5: 0 31 -- constrained array types type word is array (0 to 31) of bit; 7 0 type byte is array (7 downto 0) of bit; -- constrained multidimensional array type definition type miniram is array (0 to 15) of std_logic_vector(7 downto 0); Type matrix is array (0 to 15, 3 downto 0) of std_logic_vector(7 downto 0); 7 2 1 0 0 -- unconstrained multidimensional array type definition type memory is array (INTEGER range <>) of word; 1 . signal D_bus : word; signal mem1 : miniram; . variable x : byte; variable y : bit; variable my_mem : memory (0 to 1023) ; 15 my_mem (63) := X"0F58E230"; mem1 (5) <= "10010110" ; mem1 (15)(4) <= '1' ; y := x(5); -- y gets value of element at index 5 VHDL 360 © 12
  • 13. Reference page Composite Types • Record types: Syntax: – group elements of possibly different types type <type_name> is record identifier: type; – elements are indexed via field names … end record; Example 6: type mycell is record rec1 : std_logic_vector( 7 downto 0); rec2 : integer; rec3 : std_logic; rec4 : std_logic_vector( 7 downto 0); end record; type binary IS ( ONN, OFF ); type switch_info IS record state : BINARY; id : INTEGER; end record; signal cell : mycell; variable switch : switch_info; cell.rec1 <= "11000110"; cell.rec2 <= 6; switch.state := ONN; switch.id := 30; VHDL 360 © 13
  • 14. Exercise 1 (Modeling Memories) • Complete the below code to model a 16x16 ROM by doing the following – Add a rom_type definition which is an array of std_logic_vector – Assign “data” with the proper value of the ROM pointed out by the address library ieee; use ieee.std_logic_1164.all; <Extra packages?> entity rom_example is port (clk, en : in std_logic; addr : in std_logic_vector(3 downto 0); data : out std_logic_vector(15 downto 0)); end entity; architecture rtl of rom_example is <Add type definition here> constant ROM : rom_type:= (X"200A", X"0300", X"0801", X"0025", X"0828", X"BCF2", X"0110", X"1555", X"3504", X"023B”, X"FFFE", X"0402", X"0501", X"0326", X"1300", X"FFFA"); begin process (clk) begin if (rising_edge(clk)) then if (en = '1') then <Add the assignment statement> end if; end if; end process; end rtl; VHDL 360 © 14
  • 15. Exercise 1 (Soln.) • Complete the below code to model a 16x16 ROM by doing the following – Add a rom_type definition which is an array of std_logic_vector – Assign “data” with the proper value of the ROM pointed out by the address library ieee; use ieee.std_logic_1164.all; use ieee.std_logic_unsigned.all; entity rom_example is port (clk, en : in std_logic; addr : in std_logic_vector(3 downto 0); data : out std_logic_vector(15 downto 0)); end entity; architecture rtl of rom_example is type rom_type is array (15 downto 0) of std_logic_vector (15 downto 0); constant ROM : rom_type:= (X"200A", X"0300", X"0801", X"0025", X"0828", X"BCF2", X"0110", X"1555", X"3504", X"023B", X"FFFE", X"0402", X"0501", X"0326", X"1300", X"FFFA"); begin process (clk) begin if (clk'event and clk = '1') then if (EN = '1') then data <= ROM(conv_integer(ADDR)); end if; end if; end process; end rtl; VHDL 360 © 15
  • 16. Exercise 2 (Modeling Memories) Complete the below code to model a 1024x8 RAM by doing the following – Define a ram_type definition which is an array of std_logic_vector – Write data in the RAM in the (we = 1) condition – Read data stored in the RAM location pointed by addr library ieee; use ieee.std_logic_1164.all; use ieee.std_logic_unsigned.all; entity mem_example is port (clk, we, en : in std_logic; addr : in std_logic_vector(9 downto 0); data_in : in std_logic_vector(7 downto 0); data_out : out std_logic_vector(7 downto 0)); end entity; architecture rtl of mem_example is <Add type definition here> signal RAM: ram_type; begin process (clk) begin if rising_edge(clk) then if en = '1' then if we = '1' then <Add assignment here> end if; <Add assignment here> end if; end if; end process; end rtl; VHDL 360 © 16
  • 17. Exercise 2 (Soln.) Complete the below code to model a 1024x8 RAM by doing the following – Define a ram_type definition which is an array of std_logic_vector – Write data in the RAM in the (we = 1) condition pointed by the addr – Read data stored in the RAM location pointed by addr library ieee; use ieee.std_logic_1164.all; use ieee.std_logic_unsigned.all; entity mem_example is port (clk, we, en : in std_logic; addr : in std_logic_vector(9 downto 0); data_in : in std_logic_vector(7 downto 0); data_out : out std_logic_vector(7 downto 0)); end entity; architecture rtl of mem_example is type ram_type is array (1023 downto 0) of std_logic_vector (7 downto 0); signal RAM: ram_type; begin process (clk) begin if rising_edge(clk) then if en = '1' then if we = '1' then RAM(conv_integer(ADDR)) <= data_in; end if; Data_out <= RAM(conv_integer(addr)) ; end if; end if; end process; end rtl; VHDL 360 © 17
  • 18. Contacts • You can contact us at: – http://www.embedded-tips.blogspot.com/ VHDL 360 © 18
