Single sideband (SSB) modulation encodes information in one of the sidebands of a modulated signal. It is generated by multiplying a carrier signal with a modulating signal containing the information to be transmitted. This removes one of the redundant sidebands, improving spectrum efficiency compared to amplitude modulation. Vestigial sideband (VSB) modulation is similar but retains a fraction of one sideband, allowing for simpler receiver filtering while maintaining higher bandwidth efficiency than double sideband modulation.

1. Single Sidebands SSB
Friday, November 30, 2012
1

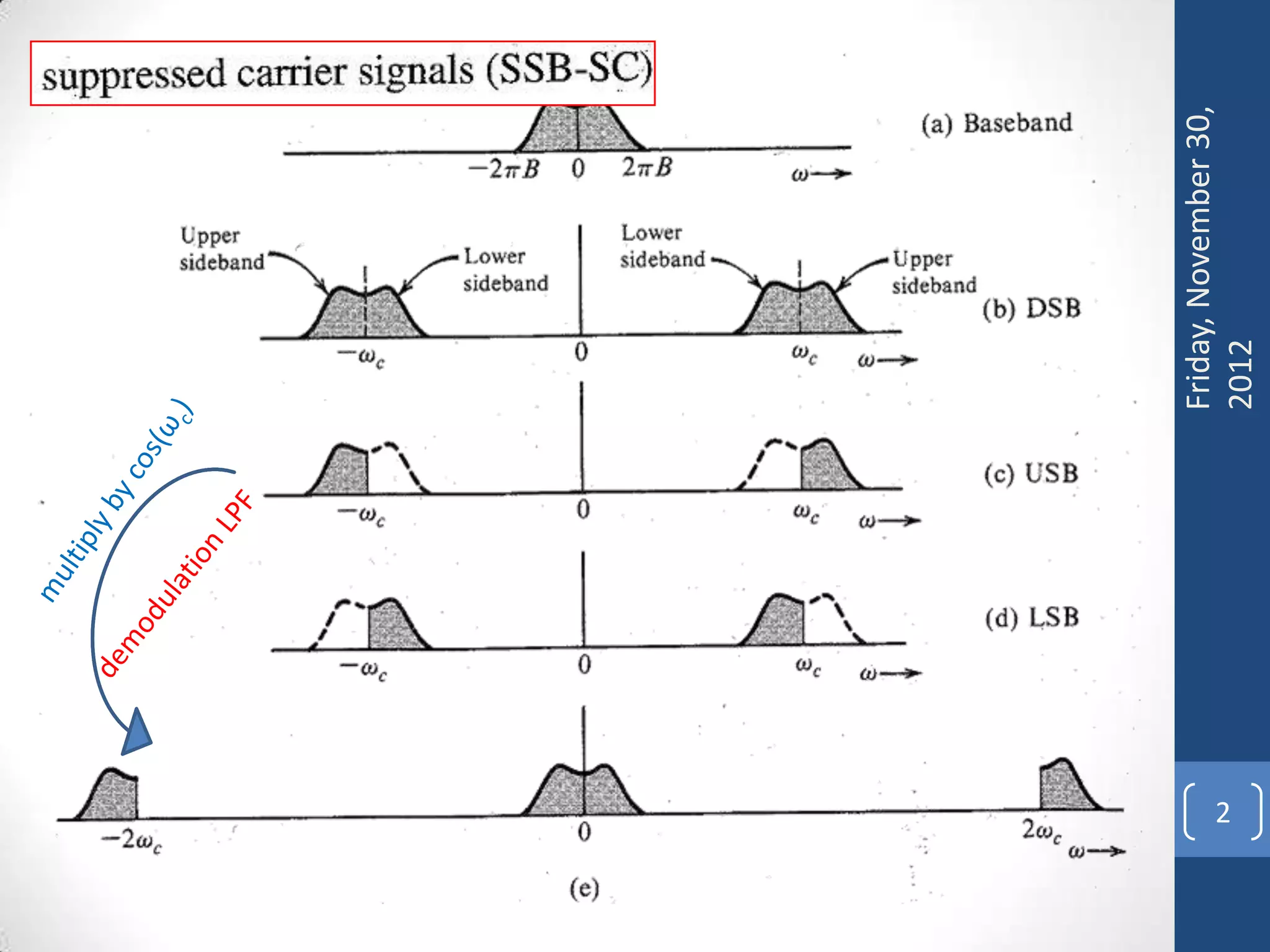

2. Friday, November 30,
2
2012

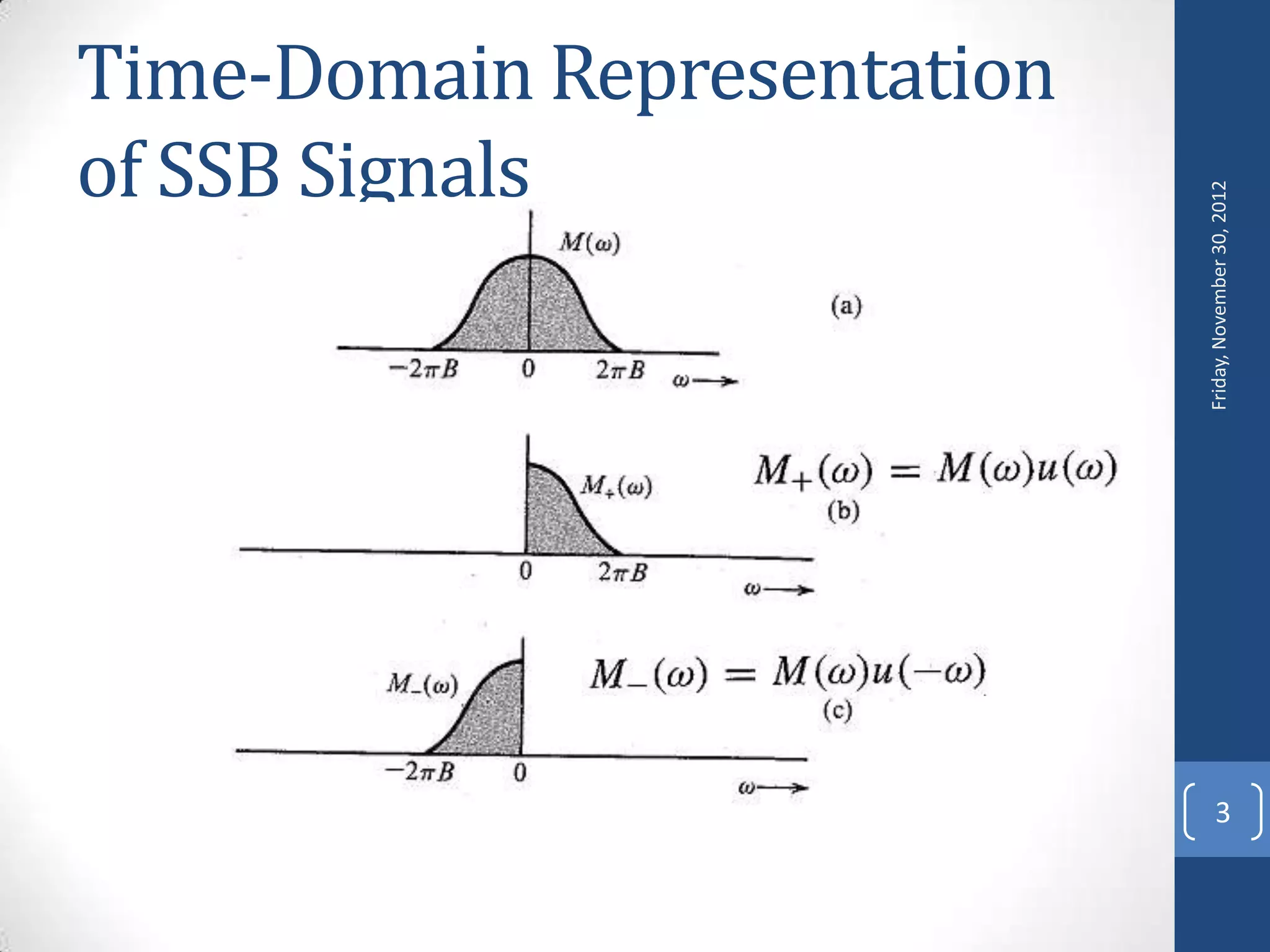

3. Time-Domain Representation
of SSB Signals
Friday, November 30, 2012
3

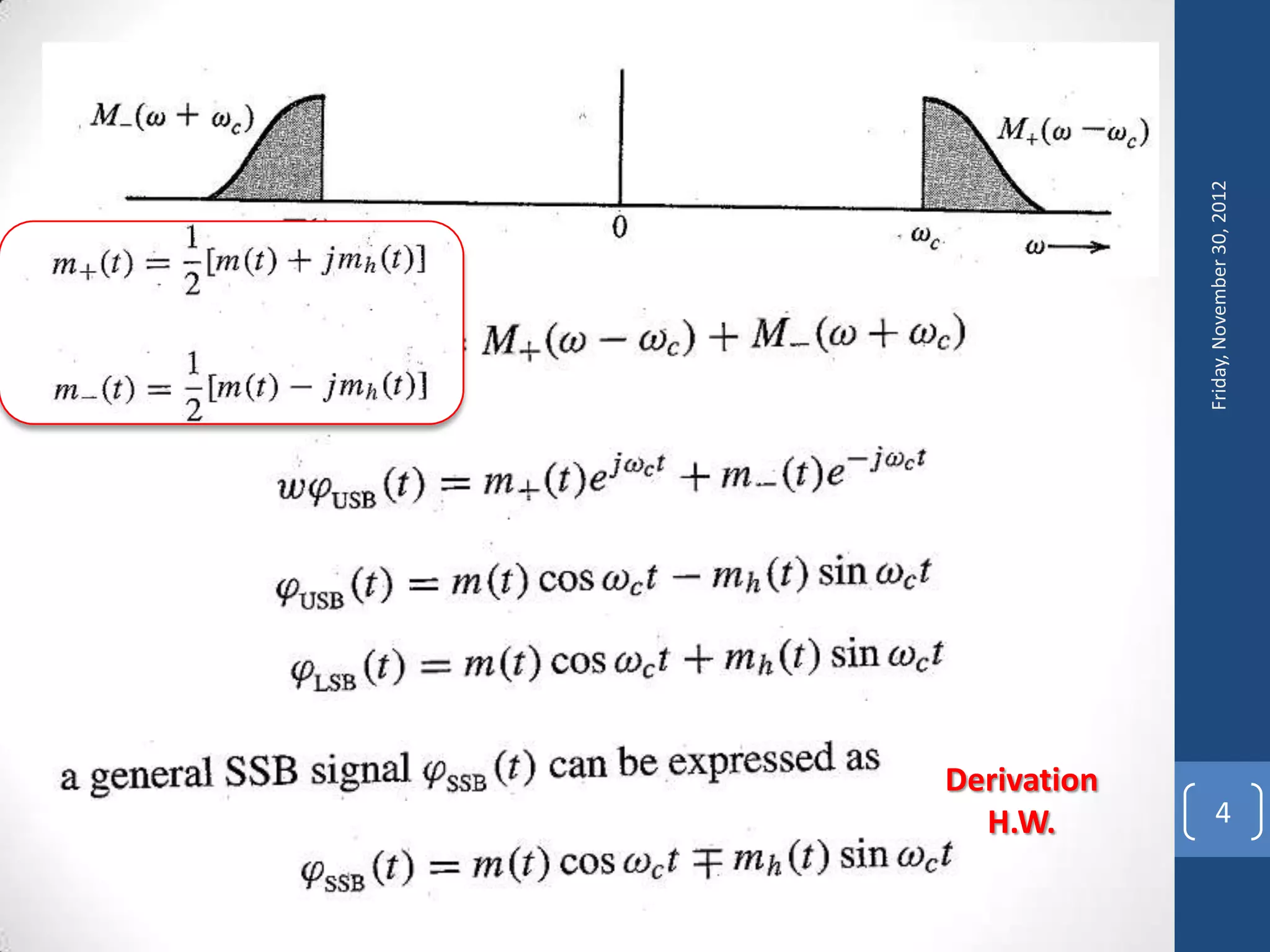

4. H.W.
Derivation
Friday, November 30, 2012
4

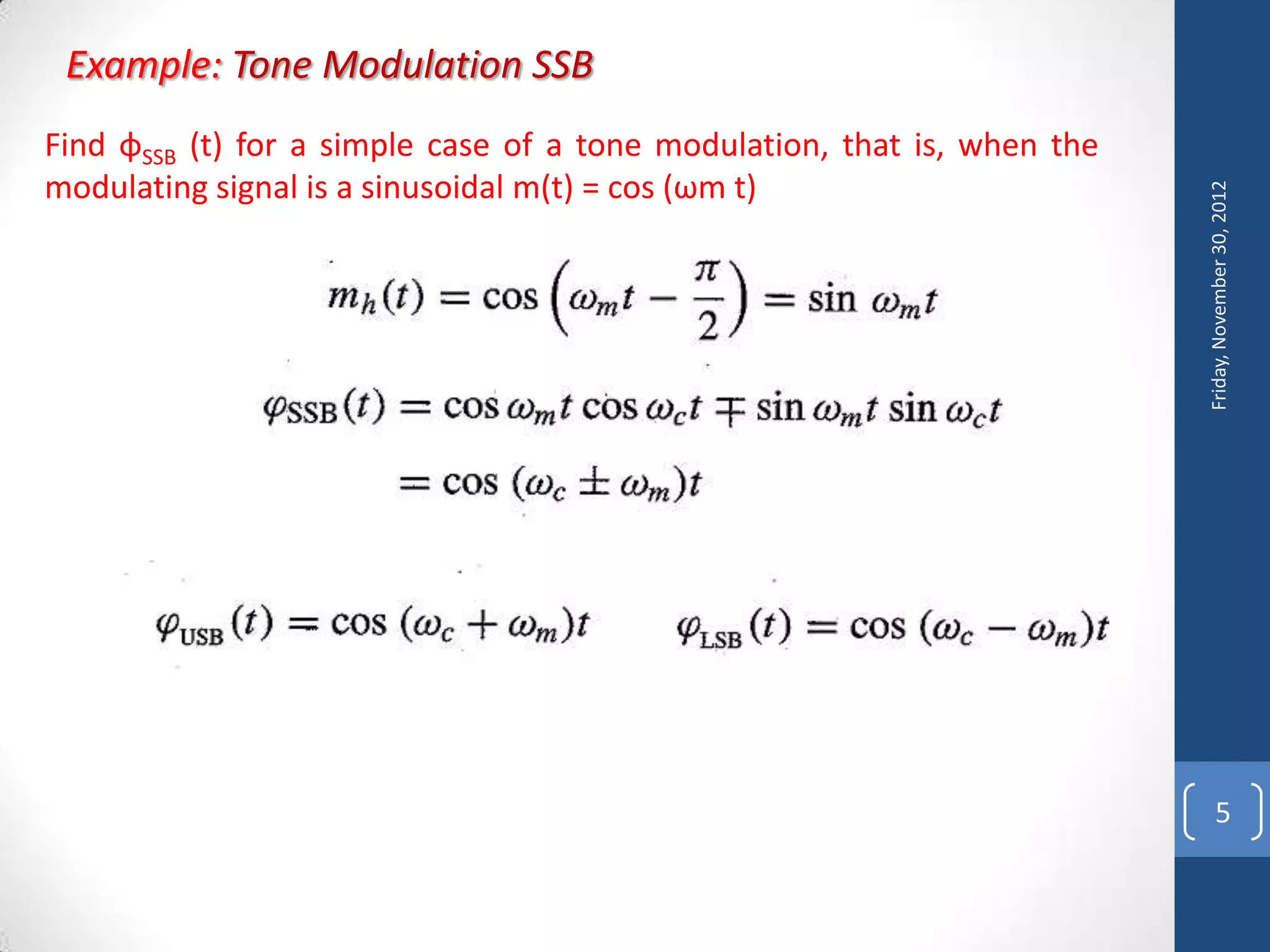

5. Example: Tone Modulation SSB
Find φSSB (t) for a simple case of a tone modulation, that is, when the
modulating signal is a sinusoidal m(t) = cos (ωm t)
Friday, November 30, 2012
5

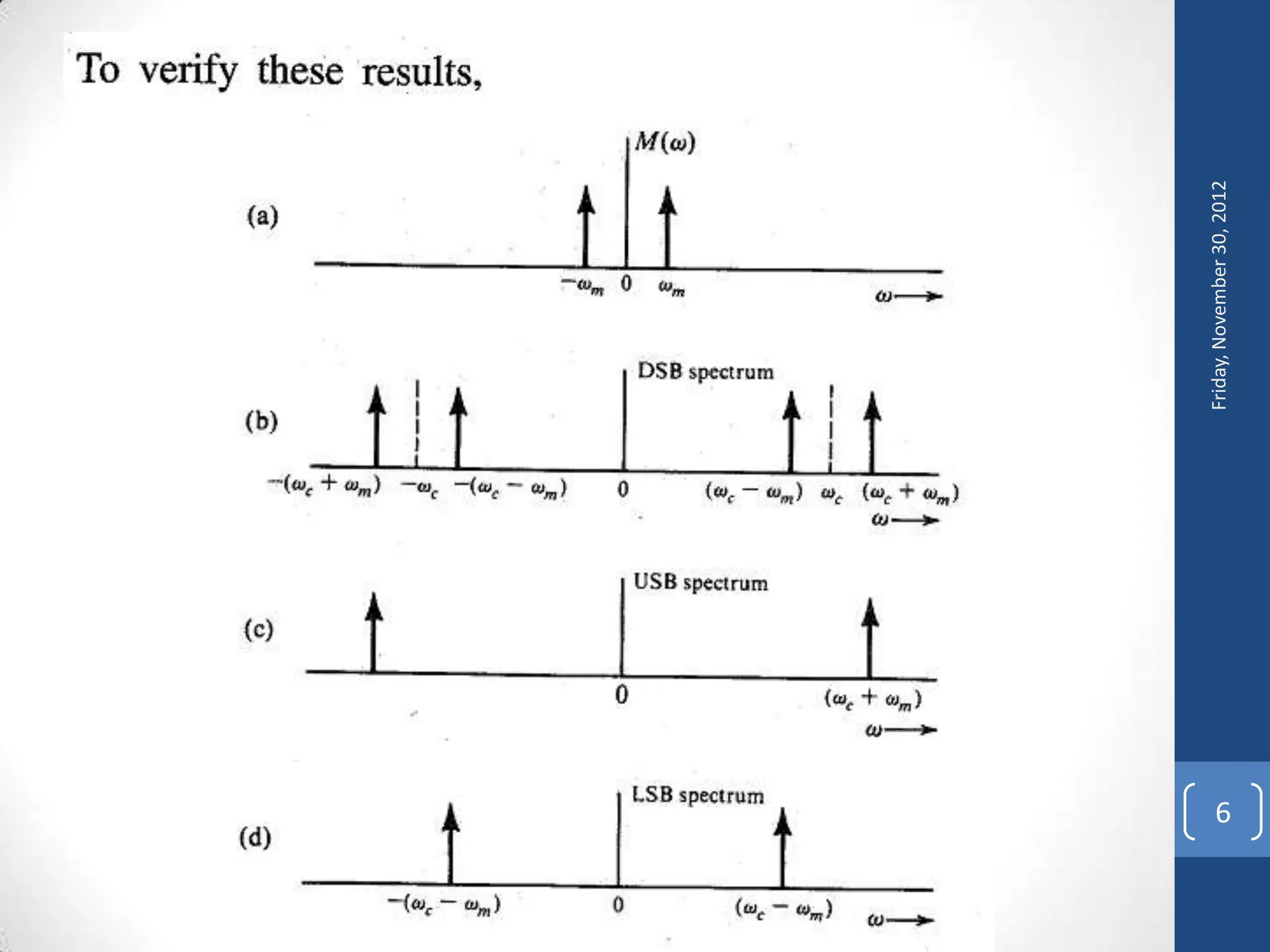

6. Friday, November 30, 2012
6

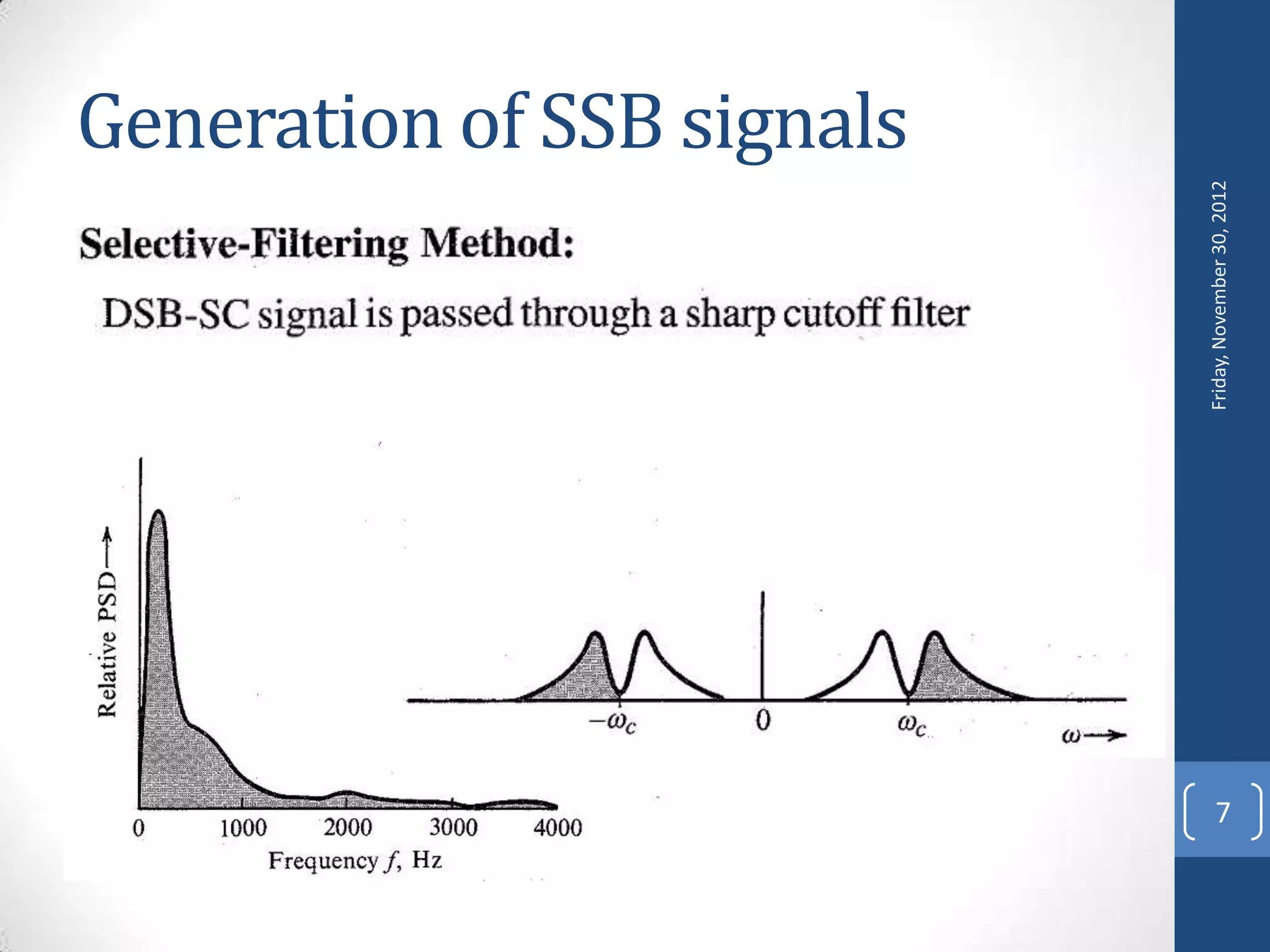

7. Generation of SSB signals
Friday, November 30, 2012
7

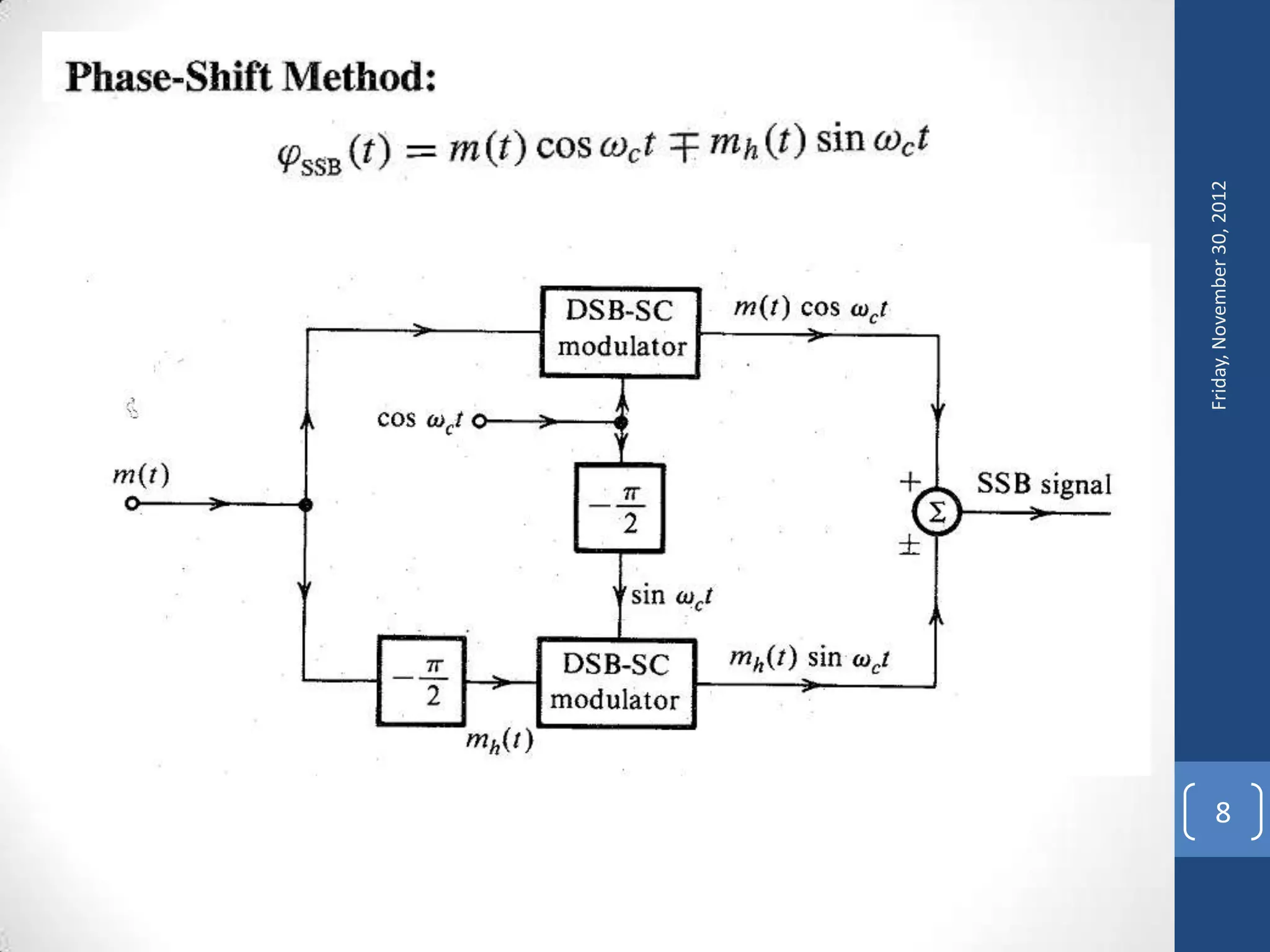

8. Friday, November 30, 2012
8

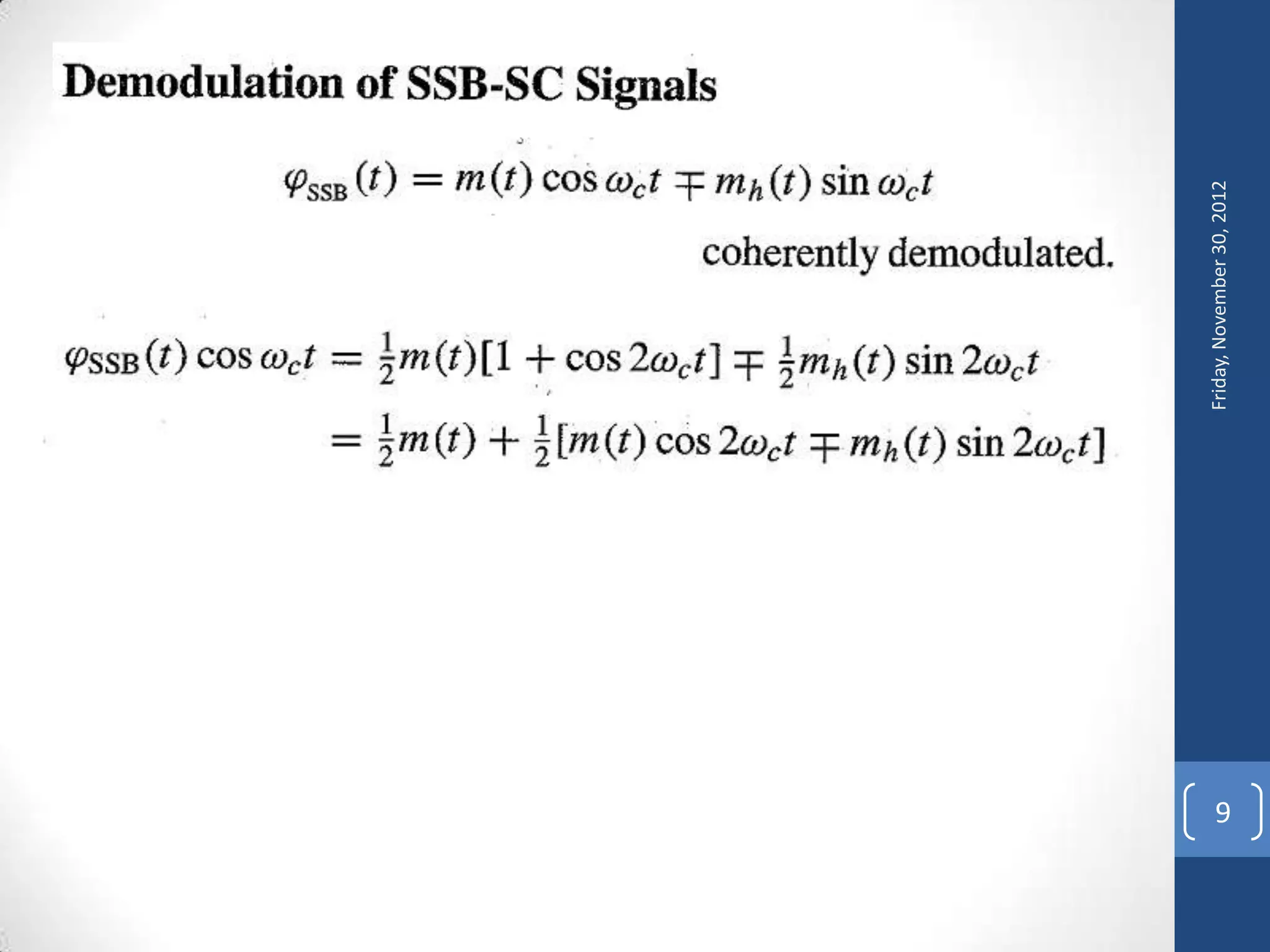

9. Friday, November 30, 2012
9

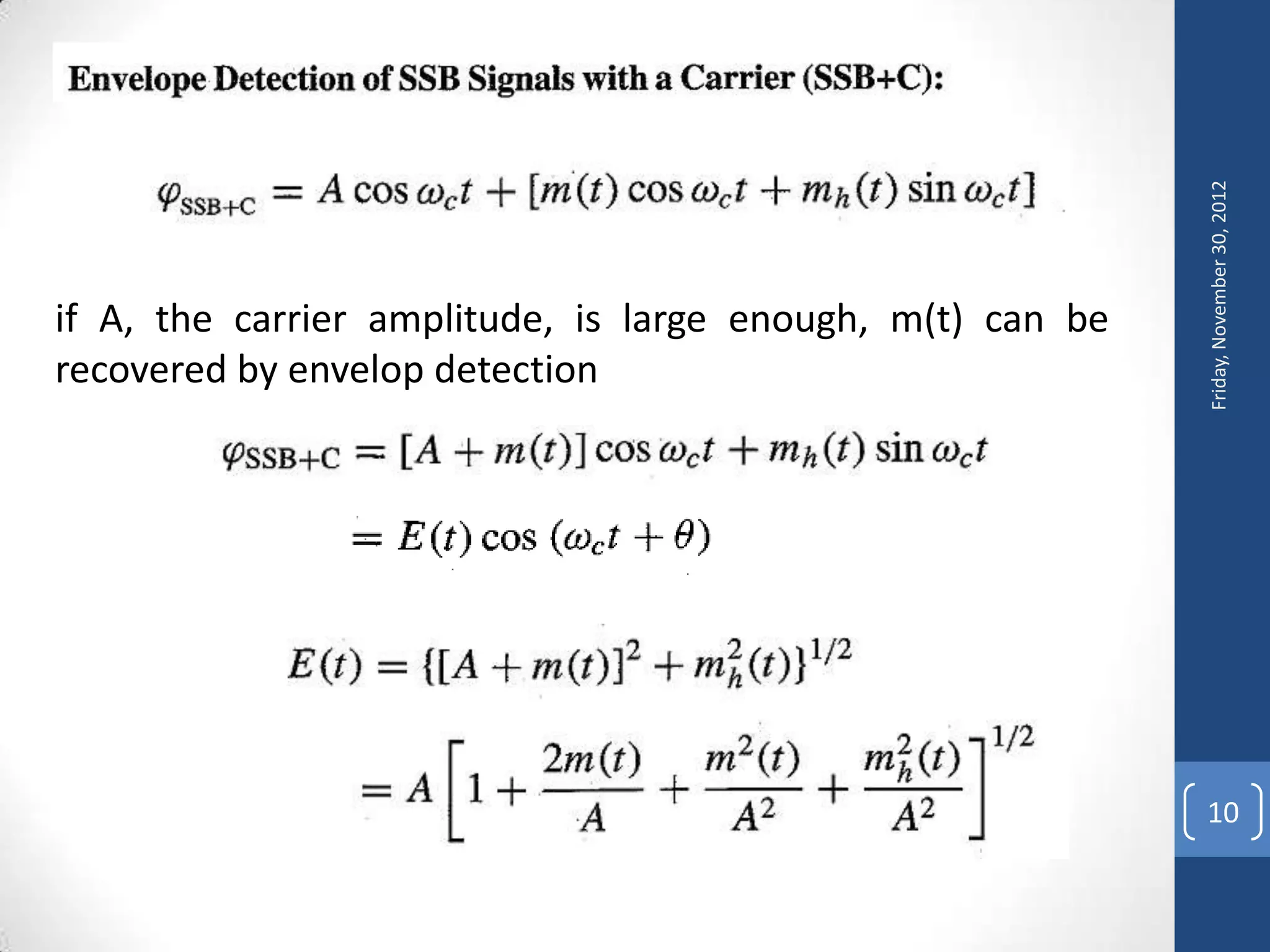

10. Friday, November 30, 2012
if A, the carrier amplitude, is large enough, m(t) can be
recovered by envelop detection
10

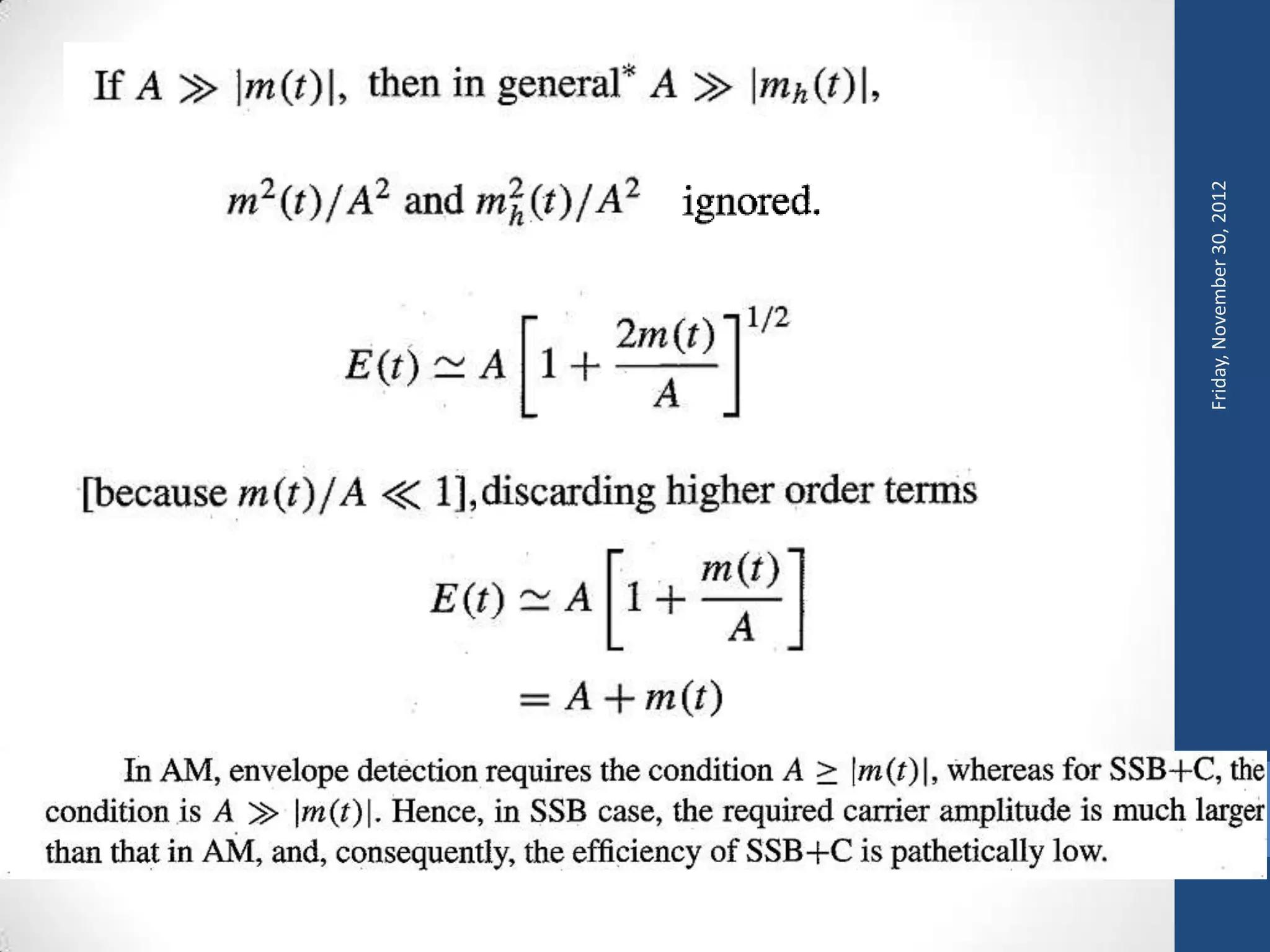

11. Friday, November 30, 2012
11

12. VSB
Vestigial Sideband
Friday, November 30, 2012
12

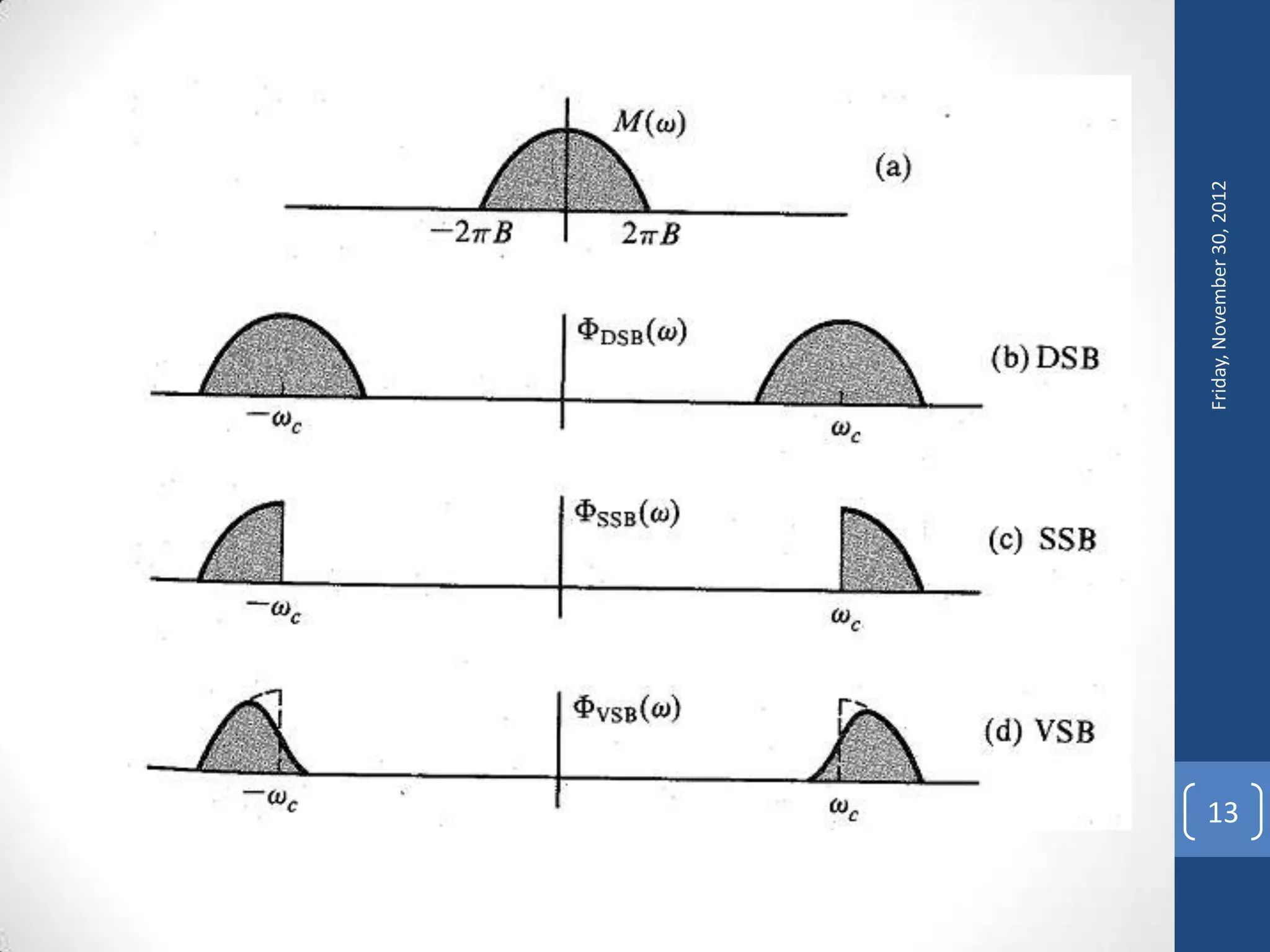

13. Friday, November 30, 2012
13

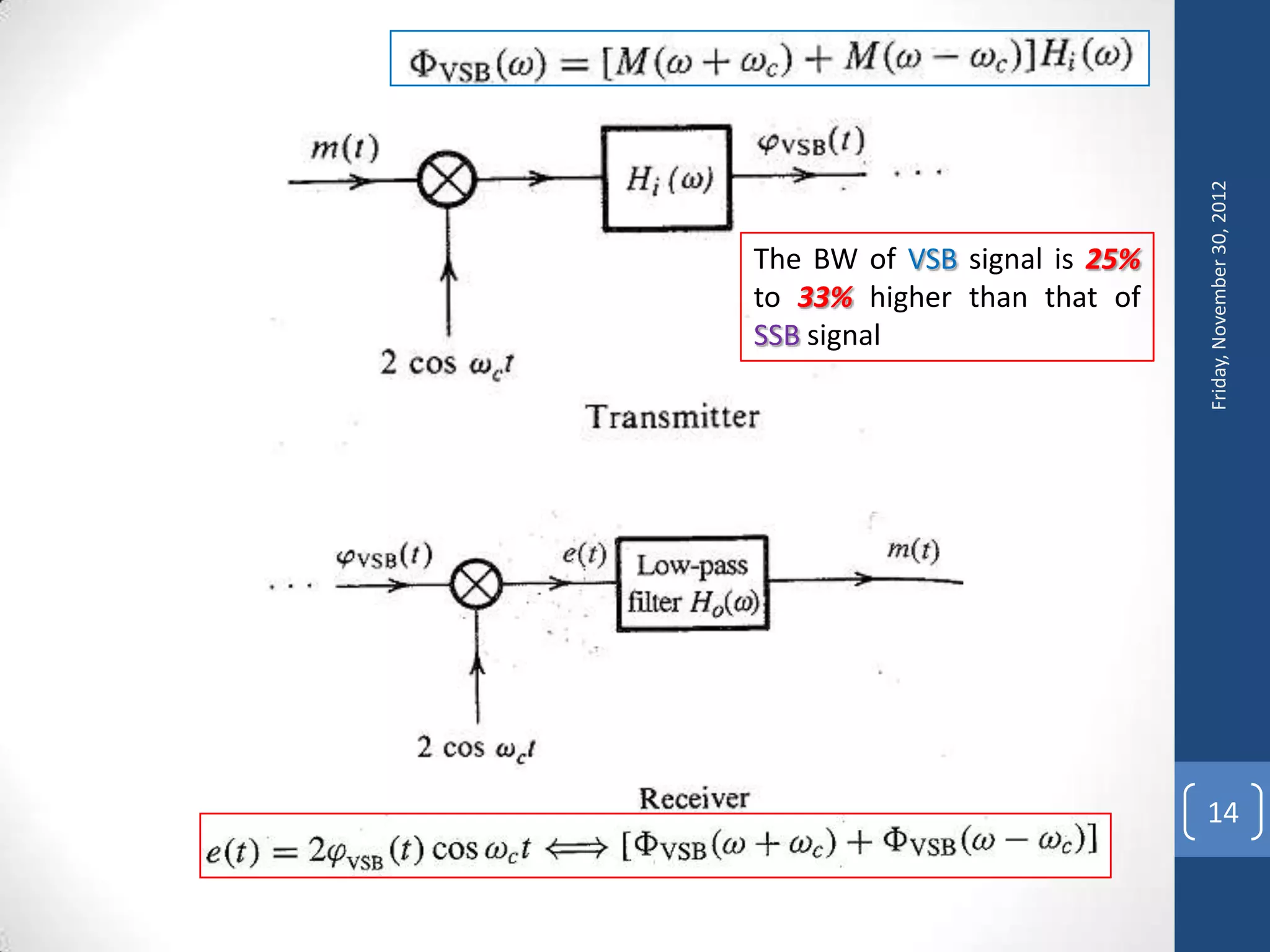

14. Friday, November 30, 2012
The BW of VSB signal is 25%
to 33% higher than that of
SSB signal
14

15. The signal e(t) is passed through the low-pass equalizer filter of transfer function
Ho(t)
Friday, November 30, 2012
The output of the equalizer filter is required to be m(t). Hence, the output signal
spectrum is given by
15

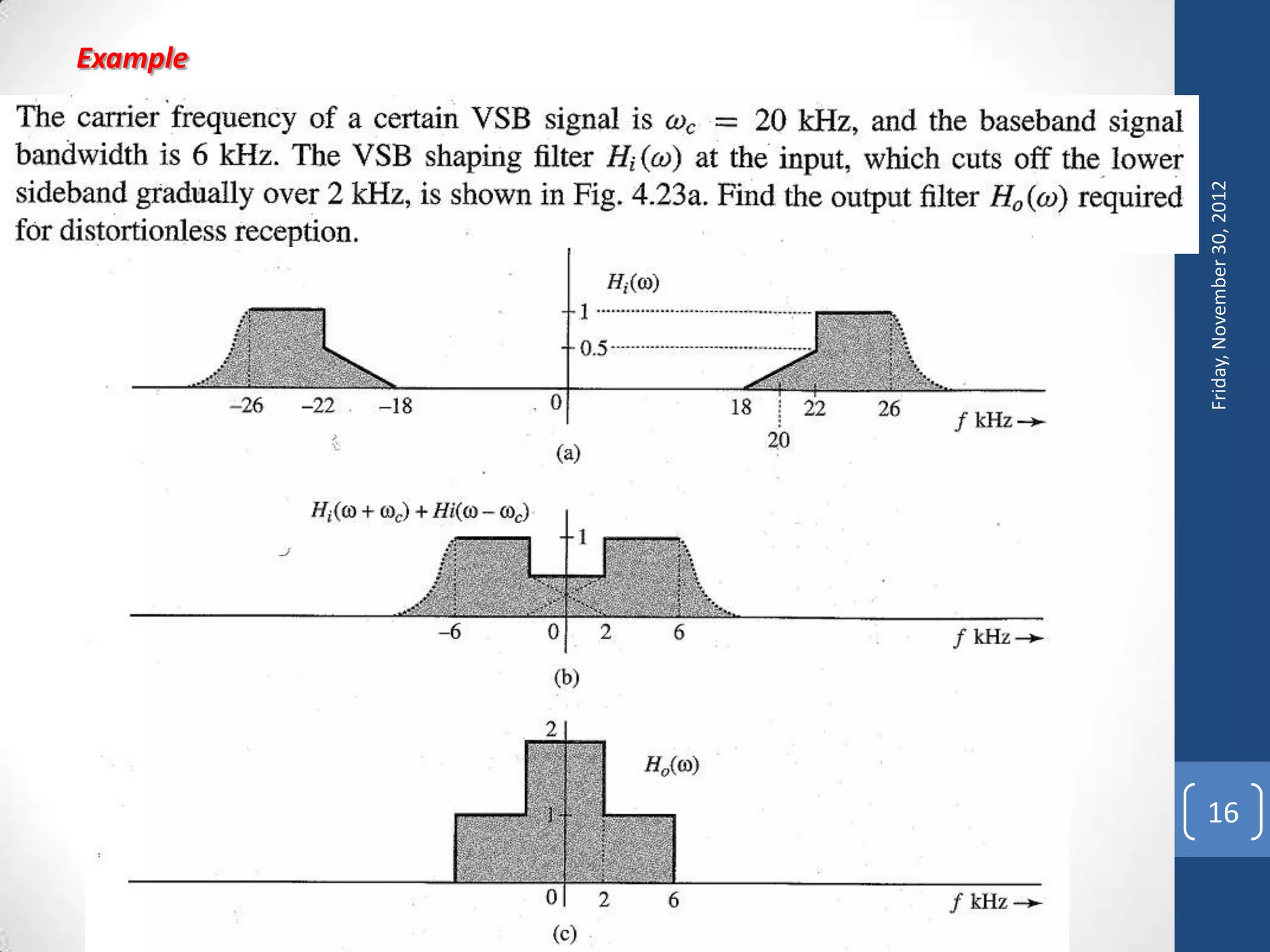

16. Example
Friday, November 30, 2012
16
