2.8 Absolute Value Functions

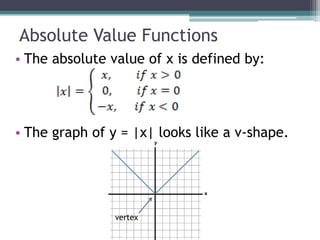

Absolute Value Functions
• The absolute value of x is defined by:




• The graph of y = |x| looks like a v-shape.




                vertex

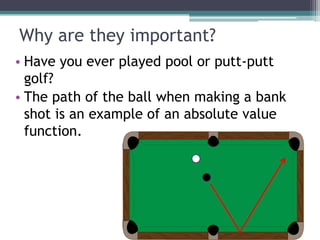

Why are they important?
• Have you ever played pool or putt-putt
  golf?
• The path of the ball when making a bank
  shot is an example of an absolute value
  function.

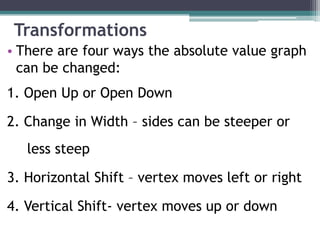

Transformations
• There are four ways the absolute value graph
  can be changed:
1. Open Up or Open Down

2. Change in Width – sides can be steeper or
   less steep

3. Horizontal Shift – vertex moves left or right

4. Vertical Shift- vertex moves up or down

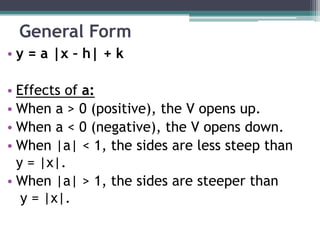

General Form
• y = a |x – h| + k

• Effects of a:
• When a > 0 (positive), the V opens up.
• When a < 0 (negative), the V opens down.
• When |a| < 1, the sides are less steep than
  y = |x|.
• When |a| > 1, the sides are steeper than
   y = |x|.
Examples




Notice:
a is the slope of the right side of the graph!

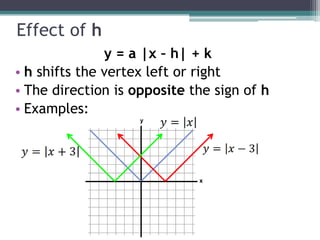

Effect of h
               y = a |x – h| + k
• h shifts the vertex left or right
• The direction is opposite the sign of h
• Examples:

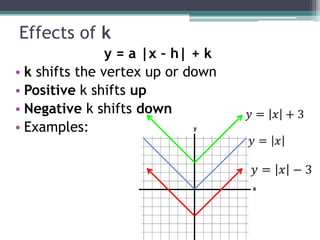

Effects of k
                y = a |x – h| + k
• k shifts the vertex up or down
• Positive k shifts up
• Negative k shifts down
• Examples:

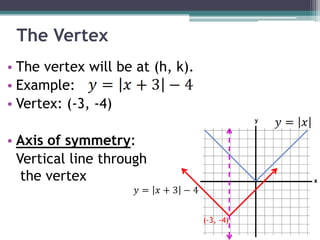

The Vertex
• The vertex will be at (h, k).
• Example:
• Vertex: (-3, -4)

• Axis of symmetry:
  Vertical line through
   the vertex

                                  (-3, -4)

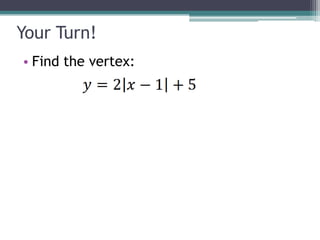

Your Turn!
• Find the vertex:
Graphing Absolute Value Functions
• Plot the vertex.
• Sketch the axis of symmetry.
• Use a (the slope) to graph the right side.
• Use symmetry to draw in the left side.

• Example:
Graph

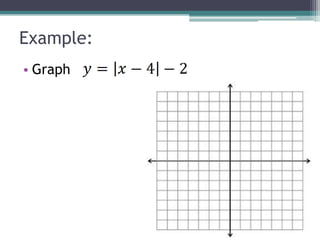

Example:
• Graph

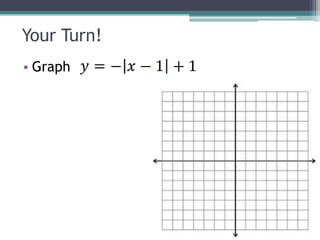

Your Turn!
• Graph

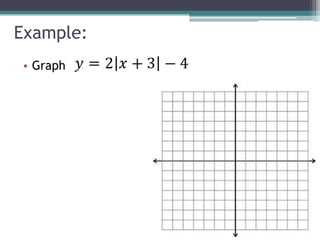

Example:
• Graph

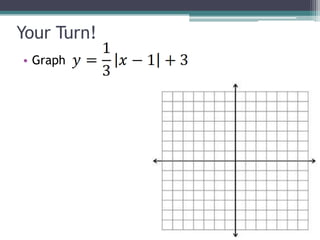

Your Turn!
• Graph
Writing Absolute Value Functions
• y = a| x – h | + k

• Find the vertex (h, k)

• Count the slope (of the right side) to find a.

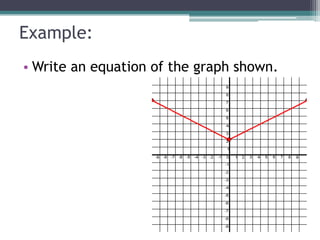

Example:
• Write an equation of the graph shown.

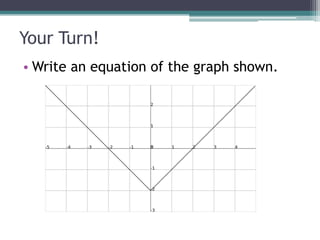

Your Turn!
• Write an equation of the graph shown.
