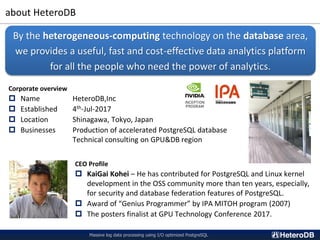

2. about HeteroDB
Massive log data processing using I/O optimized PostgreSQL
Corporate overview
Name HeteroDB,Inc
Established 4th-Jul-2017
Location Shinagawa, Tokyo, Japan
Businesses Production of accelerated PostgreSQL database
Technical consulting on GPU&DB region
By the heterogeneous-computing technology on the database area,
we provides a useful, fast and cost-effective data analytics platform
for all the people who need the power of analytics.
CEO Profile
KaiGai Kohei – He has contributed for PostgreSQL and Linux kernel
development in the OSS community more than ten years, especially,
for security and database federation features of PostgreSQL.
Award of “Genius Programmer” by IPA MITOH program (2007)
The posters finalist at GPU Technology Conference 2017.
3. Features of RDBMS
High-availability / Clustering
DB administration and backup
Transaction control
BI and visualization
We can use the products that
support PostgreSQL as-is.

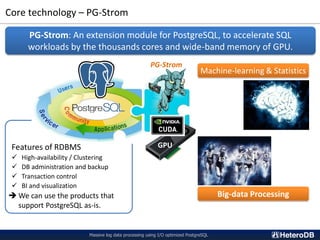

Core technology – PG-Strom
Massive log data processing using I/O optimized PostgreSQL
PG-Strom: An extension module for PostgreSQL, to accelerate SQL
workloads by the thousands cores and wide-band memory of GPU.
GPU
Big-data Processing
PG-Strom
Machine-learning & Statistics
4. GPU’s characteristics - mostly as a computing accelerator
Massive log data processing using I/O optimized PostgreSQL
Over 10years history in HPC, then massive popularization in Machine-Learning
NVIDIA Tesla V100
Super Computer
(TITEC; TSUBAME3.0) Computer Graphics Machine-Learning
How I/O workloads are accelerated by GPU that is a computing accelerator?
Simulation

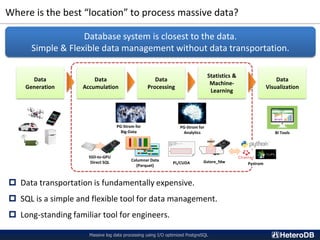

5. Where is the best “location” to process massive data?
Massive log data processing using I/O optimized PostgreSQL
Data transportation is fundamentally expensive.
SQL is a simple and flexible tool for data management.
Long-standing familiar tool for engineers.
Data
Visualization
Data
Processing
Data
Accumulation
Data
Generation
Statistics &
Machine-
Learning
PG-Strom for
Big-Data
PG-Strom for
Analytics
SSD-to-GPU
Direct SQL Columnar Data
(Parquet)
CREATE FUNCTION
my_logic( reggstore, text )
RETURNS matrix
AS $$
$$ LANGUAGE ‘plcuda’;
PL/CUDA
INSERT
Gstore_fdw Pystrom
Database system is closest to the data.
Simple & Flexible data management without data transportation.
BI Tools

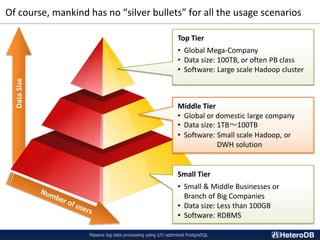

6. DataSize
Of course, mankind has no “silver bullets” for all the usage scenarios
Massive log data processing using I/O optimized PostgreSQL
Small Tier
• Small & Middle Businesses or
Branch of Big Companies
• Data size: Less than 100GB
• Software: RDBMS
Middle Tier
• Global or domestic large company
• Data size: 1TB〜100TB
• Software: Small scale Hadoop, or
DWH solution
Top Tier
• Global Mega-Company
• Data size: 100TB, or often PB class
• Software: Large scale Hadoop cluster

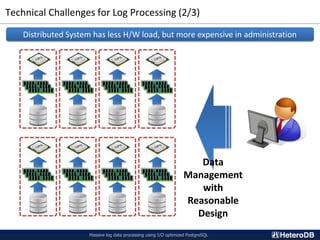

8. Technical Challenges for Log Processing (2/3)
Massive log data processing using I/O optimized PostgreSQL
Distributed System has less H/W load, but more expensive in administration
Data
Management
with
Reasonable
Design
9. Data
Management

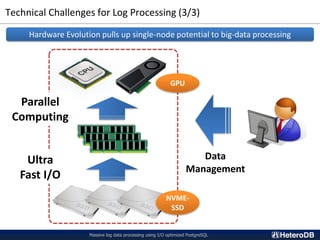

Technical Challenges for Log Processing (3/3)
Massive log data processing using I/O optimized PostgreSQL
Ultra
Fast I/O
Parallel
Computing
Hardware Evolution pulls up single-node potential to big-data processing
GPU
NVME-
SSD
10. Massive log data processing using I/O optimized PostgreSQL
How PostgreSQL utilizes GPU?
〜Architecture of PG-Strom〜

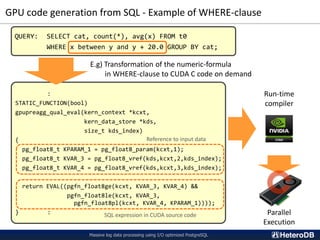

11. GPU code generation from SQL - Example of WHERE-clause
Massive log data processing using I/O optimized PostgreSQL
QUERY: SELECT cat, count(*), avg(x) FROM t0
WHERE x between y and y + 20.0 GROUP BY cat;
:
STATIC_FUNCTION(bool)
gpupreagg_qual_eval(kern_context *kcxt,
kern_data_store *kds,
size_t kds_index)
{
pg_float8_t KPARAM_1 = pg_float8_param(kcxt,1);
pg_float8_t KVAR_3 = pg_float8_vref(kds,kcxt,2,kds_index);
pg_float8_t KVAR_4 = pg_float8_vref(kds,kcxt,3,kds_index);
return EVAL((pgfn_float8ge(kcxt, KVAR_3, KVAR_4) &&
pgfn_float8le(kcxt, KVAR_3,
pgfn_float8pl(kcxt, KVAR_4, KPARAM_1))));
} :
E.g) Transformation of the numeric-formula
in WHERE-clause to CUDA C code on demand
Reference to input data
SQL expression in CUDA source code
Run-time
compiler
Parallel
Execution

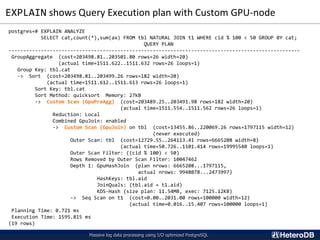

12. EXPLAIN shows Query Execution plan with Custom GPU-node
Massive log data processing using I/O optimized PostgreSQL
postgres=# EXPLAIN ANALYZE
SELECT cat,count(*),sum(ax) FROM tbl NATURAL JOIN t1 WHERE cid % 100 < 50 GROUP BY cat;
QUERY PLAN
---------------------------------------------------------------------------------------------------
GroupAggregate (cost=203498.81..203501.80 rows=26 width=20)
(actual time=1511.622..1511.632 rows=26 loops=1)
Group Key: tbl.cat
-> Sort (cost=203498.81..203499.26 rows=182 width=20)
(actual time=1511.612..1511.613 rows=26 loops=1)
Sort Key: tbl.cat
Sort Method: quicksort Memory: 27kB
-> Custom Scan (GpuPreAgg) (cost=203489.25..203491.98 rows=182 width=20)
(actual time=1511.554..1511.562 rows=26 loops=1)
Reduction: Local
Combined GpuJoin: enabled
-> Custom Scan (GpuJoin) on tbl (cost=13455.86..220069.26 rows=1797115 width=12)
(never executed)
Outer Scan: tbl (cost=12729.55..264113.41 rows=6665208 width=8)
(actual time=50.726..1101.414 rows=19995540 loops=1)
Outer Scan Filter: ((cid % 100) < 50)
Rows Removed by Outer Scan Filter: 10047462
Depth 1: GpuHashJoin (plan nrows: 6665208...1797115,
actual nrows: 9948078...2473997)
HashKeys: tbl.aid
JoinQuals: (tbl.aid = t1.aid)
KDS-Hash (size plan: 11.54MB, exec: 7125.12KB)
-> Seq Scan on t1 (cost=0.00..2031.00 rows=100000 width=12)
(actual time=0.016..15.407 rows=100000 loops=1)
Planning Time: 0.721 ms
Execution Time: 1595.815 ms
(19 rows)
13. A usual composition of x86_64 server
Massive log data processing using I/O optimized PostgreSQL
GPUSSD
CPU
RAM
HDD
N/W

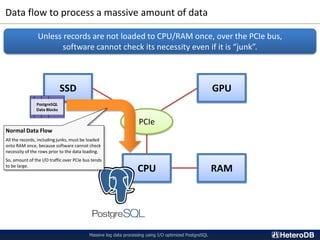

14. Data flow to process a massive amount of data
Massive log data processing using I/O optimized PostgreSQL
CPU RAM
SSD GPU
PCIe
PostgreSQL
Data Blocks
Normal Data Flow
All the records, including junks, must be loaded
onto RAM once, because software cannot check
necessity of the rows prior to the data loading.
So, amount of the I/O traffic over PCIe bus tends
to be large.
Unless records are not loaded to CPU/RAM once, over the PCIe bus,
software cannot check its necessity even if it is “junk”.

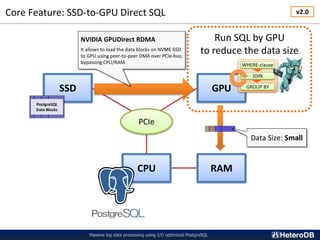

15. Core Feature: SSD-to-GPU Direct SQL
Massive log data processing using I/O optimized PostgreSQL
CPU RAM
SSD GPU
PCIe
PostgreSQL
Data Blocks
NVIDIA GPUDirect RDMA
It allows to load the data blocks on NVME-SSD
to GPU using peer-to-peer DMA over PCIe-bus;
bypassing CPU/RAM. WHERE-clause
JOIN
GROUP BY
Run SQL by GPU
to reduce the data size
Data Size: Small
v2.0

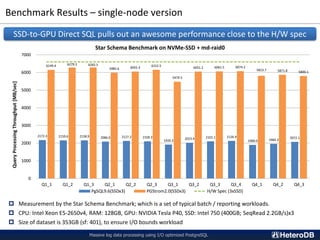

16. Benchmark Results – single-node version
Massive log data processing using I/O optimized PostgreSQL
2172.3 2159.6 2158.9 2086.0 2127.2 2104.3
1920.3
2023.4 2101.1 2126.9
1900.0 1960.3
2072.1
6149.4 6279.3 6282.5
5985.6 6055.3 6152.5
5479.3
6051.2 6061.5 6074.2
5813.7 5871.8 5800.1
0
1000
2000
3000
4000
5000
6000
7000
Q1_1 Q1_2 Q1_3 Q2_1 Q2_2 Q2_3 Q3_1 Q3_2 Q3_3 Q3_4 Q4_1 Q4_2 Q4_3
QueryProcessingThroughput[MB/sec]
Star Schema Benchmark on NVMe-SSD + md-raid0
PgSQL9.6(SSDx3) PGStrom2.0(SSDx3) H/W Spec (3xSSD)
SSD-to-GPU Direct SQL pulls out an awesome performance close to the H/W spec
Measurement by the Star Schema Benchmark; which is a set of typical batch / reporting workloads.
CPU: Intel Xeon E5-2650v4, RAM: 128GB, GPU: NVIDIA Tesla P40, SSD: Intel 750 (400GB; SeqRead 2.2GB/s)x3
Size of dataset is 353GB (sf: 401), to ensure I/O bounds workload

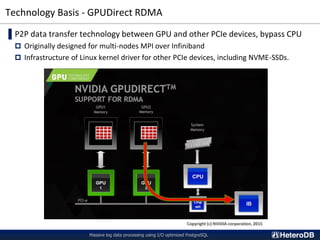

17. Technology Basis - GPUDirect RDMA
Massive log data processing using I/O optimized PostgreSQL
▌P2P data transfer technology between GPU and other PCIe devices, bypass CPU
Originally designed for multi-nodes MPI over Infiniband
Infrastructure of Linux kernel driver for other PCIe devices, including NVME-SSDs.
Copyright (c) NVIDIA corporation, 2015

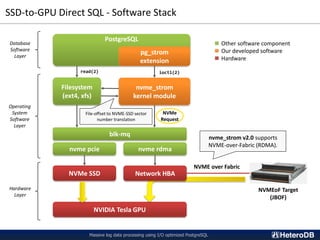

18. SSD-to-GPU Direct SQL - Software Stack
Massive log data processing using I/O optimized PostgreSQL
Filesystem
(ext4, xfs)
nvme_strom
kernel module
NVMe SSD
NVIDIA Tesla GPU
PostgreSQL
pg_strom
extension
read(2) ioctl(2)
Hardware
Layer
Operating
System
Software
Layer
Database
Software
Layer
blk-mq
nvme pcie nvme rdma
Network HBA
File-offset to NVME-SSD sector
number translation
NVMEoF Target
(JBOF)
NVMe
Request
■ Other software component
■ Our developed software
■ Hardware
NVME over Fabric
nvme_strom v2.0 supports
NVME-over-Fabric (RDMA).

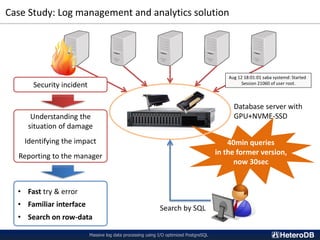

19. 40min queries
in the former version,
now 30sec
Case Study: Log management and analytics solution
Massive log data processing using I/O optimized PostgreSQL
Database server with
GPU+NVME-SSD
Search by SQL
Security incident
• Fast try & error
• Familiar interface
• Search on row-data
Aug 12 18:01:01 saba systemd: Started
Session 21060 of user root.
Understanding the
situation of damage
Identifying the impact
Reporting to the manager

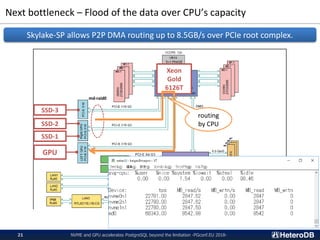

21. Next bottleneck – Flood of the data over CPU’s capacity
NVME and GPU accelerates PostgreSQL beyond the limitation -PGconf.EU 2018-21
Skylake-SP allows P2P DMA routing up to 8.5GB/s over PCIe root complex.
GPU
SSD-1
SSD-2
SSD-3
md-raid0
Xeon
Gold
6126T
routing
by CPU

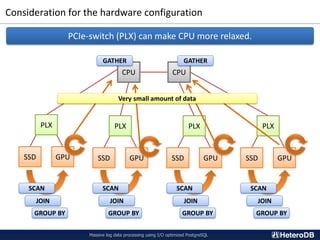

22. Consideration for the hardware configuration
Massive log data processing using I/O optimized PostgreSQL
PCIe-switch (PLX) can make CPU more relaxed.
CPU CPU
PLX
SSD GPU
PLX
SSD GPU
PLX
SSD GPU
PLX
SSD GPU
SCAN SCAN SCAN SCAN
JOIN JOIN JOIN JOIN
GROUP BY GROUP BY GROUP BY GROUP BY
Very small amount of data
GATHER GATHER

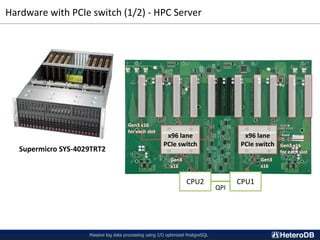

23. Hardware with PCIe switch (1/2) - HPC Server
Massive log data processing using I/O optimized PostgreSQL
Supermicro SYS-4029TRT2
x96 lane
PCIe switch
x96 lane
PCIe switch
CPU2 CPU1
QPI
Gen3
x16
Gen3 x16
for each slot
Gen3 x16
for each slot
Gen3
x16

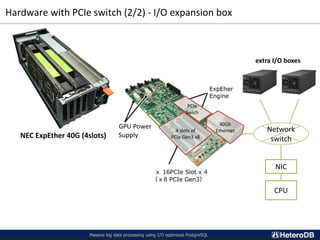

24. Hardware with PCIe switch (2/2) - I/O expansion box
Massive log data processing using I/O optimized PostgreSQL
NEC ExpEther 40G (4slots)
4 slots of
PCIe Gen3 x8
PCIe
Swich
40Gb
Ethernet Network
switch
CPU
NIC
extra I/O boxes

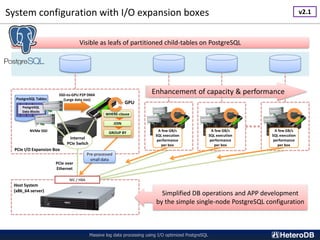

25. System configuration with I/O expansion boxes
Massive log data processing using I/O optimized PostgreSQL
PCIe I/O Expansion Box
Host System
(x86_64 server)
NVMe SSD
PostgreSQL Tables
PostgreSQL
Data Blocks
Internal
PCIe Switch
SSD-to-GPU P2P DMA
(Large data size)
GPU
WHERE-clause
JOIN
GROUP BY
PCIe over
Ethernet
Pre-processed
small data
A few GB/s
SQL execution
performance
per box
A few GB/s
SQL execution
performance
per box
A few GB/s
SQL execution
performance
per box
NIC / HBA
Simplified DB operations and APP development
by the simple single-node PostgreSQL configuration
Enhancement of capacity & performance
Visible as leafs of partitioned child-tables on PostgreSQL
v2.1

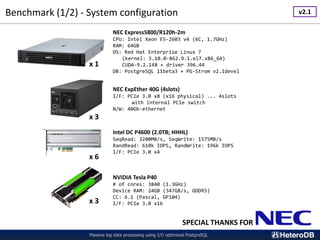

26. Benchmark (1/2) - System configuration
Massive log data processing using I/O optimized PostgreSQL
x 1
x 3
x 6
x 3
NEC Express5800/R120h-2m
CPU: Intel Xeon E5-2603 v4 (6C, 1.7GHz)
RAM: 64GB
OS: Red Hat Enterprise Linux 7
(kernel: 3.10.0-862.9.1.el7.x86_64)
CUDA-9.2.148 + driver 396.44
DB: PostgreSQL 11beta3 + PG-Strom v2.1devel
NEC ExpEther 40G (4slots)
I/F: PCIe 3.0 x8 (x16 physical) ... 4slots
with internal PCIe switch
N/W: 40Gb-ethernet
Intel DC P4600 (2.0TB; HHHL)
SeqRead: 3200MB/s, SeqWrite: 1575MB/s
RandRead: 610k IOPS, RandWrite: 196k IOPS
I/F: PCIe 3.0 x4
NVIDIA Tesla P40
# of cores: 3840 (1.3GHz)
Device RAM: 24GB (347GB/s, GDDR5)
CC: 6.1 (Pascal, GP104)
I/F: PCIe 3.0 x16
SPECIAL THANKS FOR
v2.1

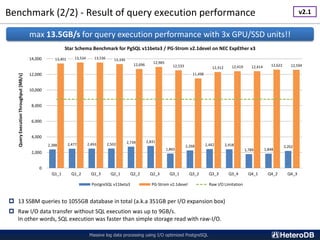

27. Benchmark (2/2) - Result of query execution performance
Massive log data processing using I/O optimized PostgreSQL
13 SSBM queries to 1055GB database in total (a.k.a 351GB per I/O expansion box)
Raw I/O data transfer without SQL execution was up to 9GB/s.
In other words, SQL execution was faster than simple storage read with raw-I/O.
2,388 2,477 2,493 2,502 2,739 2,831
1,865
2,268 2,442 2,418
1,789 1,848
2,202
13,401 13,534 13,536 13,330
12,696
12,965
12,533
11,498
12,312 12,419 12,414 12,622 12,594
0
2,000
4,000
6,000
8,000
10,000
12,000
14,000
Q1_1 Q1_2 Q1_3 Q2_1 Q2_2 Q2_3 Q3_1 Q3_2 Q3_3 Q3_4 Q4_1 Q4_2 Q4_3
QueryExecutionThroughput[MB/s]
Star Schema Benchmark for PgSQL v11beta3 / PG-Strom v2.1devel on NEC ExpEther x3
PostgreSQL v11beta3 PG-Strom v2.1devel Raw I/O Limitation
max 13.5GB/s for query execution performance with 3x GPU/SSD units!!
v2.1

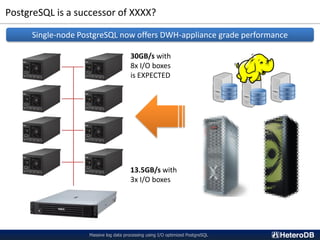

28. PostgreSQL is a successor of XXXX?
Massive log data processing using I/O optimized PostgreSQL
13.5GB/s with
3x I/O boxes
30GB/s with
8x I/O boxes
is EXPECTED
Single-node PostgreSQL now offers DWH-appliance grade performance
29. Massive log data processing using I/O optimized PostgreSQL
The Future Direction
〜How latest hardware makes Big-Data easy〜

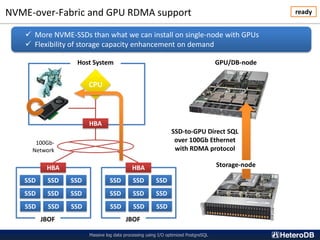

30. NVME-over-Fabric and GPU RDMA support
Massive log data processing using I/O optimized PostgreSQL
ready
Host System
SSD
SSD
SSD
HBA
CPU
100Gb-
Network
JBOF
More NVME-SSDs than what we can install on single-node with GPUs
Flexibility of storage capacity enhancement on demand
GPU/DB-node
Storage-node
SSD-to-GPU Direct SQL
over 100Gb Ethernet
with RDMA protocol
SSD
SSD
SSD
SSD
SSD
SSD
SSD
SSD
SSD
HBA
JBOF
SSD
SSD
SSD
SSD
SSD
SSD
HBA

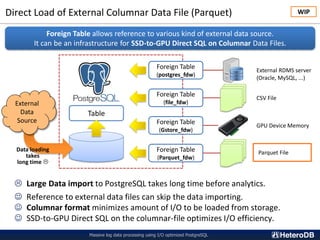

31. Direct Load of External Columnar Data File (Parquet)
Massive log data processing using I/O optimized PostgreSQL
Large Data import to PostgreSQL takes long time before analytics.
Reference to external data files can skip the data importing.
Columnar format minimizes amount of I/O to be loaded from storage.
SSD-to-GPU Direct SQL on the columnar-file optimizes I/O efficiency.
Foreign Table allows reference to various kind of external data source.
It can be an infrastructure for SSD-to-GPU Direct SQL on Columnar Data Files.
Table
Foreign Table
(postgres_fdw)
Foreign Table
(file_fdw)
Foreign Table
(Gstore_fdw)
Foreign Table
(Parquet_fdw)
External RDMS server
(Oracle, MySQL, ...)
CSV File
GPU Device Memory
Parquet File
External
Data
Source
Data loading
takes
long time
WIP

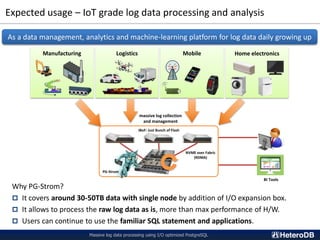

32. Expected usage – IoT grade log data processing and analysis
Massive log data processing using I/O optimized PostgreSQL
As a data management, analytics and machine-learning platform for log data daily growing up
Manufacturing Logistics Mobile Home electronics
Why PG-Strom?
It covers around 30-50TB data with single node by addition of I/O expansion box.
It allows to process the raw log data as is, more than max performance of H/W.
Users can continue to use the familiar SQL statement and applications.
BI Tools
massive log collection
and management
JBoF: Just Bunch of Flash
NVME over Fabric
(RDMA)
PG-Strom

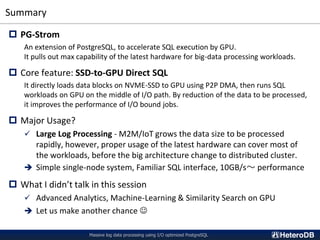

33. Summary
Massive log data processing using I/O optimized PostgreSQL
PG-Strom
An extension of PostgreSQL, to accelerate SQL execution by GPU.
It pulls out max capability of the latest hardware for big-data processing workloads.
Core feature: SSD-to-GPU Direct SQL
It directly loads data blocks on NVME-SSD to GPU using P2P DMA, then runs SQL
workloads on GPU on the middle of I/O path. By reduction of the data to be processed,
it improves the performance of I/O bound jobs.
Major Usage?
Large Log Processing - M2M/IoT grows the data size to be processed
rapidly, however, proper usage of the latest hardware can cover most of
the workloads, before the big architecture change to distributed cluster.
Simple single-node system, Familiar SQL interface, 10GB/s〜 performance
What I didn’t talk in this session
Advanced Analytics, Machine-Learning & Similarity Search on GPU
Let us make another chance
36. uninitialized
File
BLK-100: unknown
BLK-101: unknown
BLK-102: unknown
BLK-103: unknown
BLK-104: unknown
BLK-105: unknown
BLK-106: unknown
BLK-107: unknown
BLK-108: unknown
BLK-109: unknown
Consistency with disk buffers of PostgreSQL / Linux kernel
Massive log data processing using I/O optimized PostgreSQL
① PG-Strom checks PG’s shared buffer of the blocks to read
If block is already cached on the shared buffer of PostgreSQL.
If block may not be all-visible using visibility-map.
② NVME-Strom checks OS’s page cache of the blocks to read
If block is already cached on the page cache of Linux kernel.
But, on fast-SSD mode, page cache shall not be copied unless it is not diry.
③ Then, kicks SSD-to-GPU P2P DMA on the uncached blocks
BLK-100: uncached
BLK-101: cached by PG
BLK-102: uncached
BLK-103: uncached
BLK-104: cached by OS
BLK-105: cached by PG
BLK-106: uncached
BLK-107: uncached
BLK-108: cached by OS
BLK-109: uncached
BLCKSZ
(=8KB)
Transfer Size
Per Request
BLCKSZ *
NChunks
BLK-108: cached by OS
BLK-104: cached by OS
BLK-105: cached by PG
BLK-101: cached by PG
BLK-100: uncached
BLK-102: uncached
BLK-103: uncached
BLK-106: uncached
BLK-107: uncached
BLK-109: uncached
unused
SSD-to-GPU
P2P DMA
Userspace DMA
Buffer (RAM)
Device Memory
(GPU)
CUDA API
(userspace)
cuMemcpyHtoDAsync
BLK-108: cached by OS
BLK-104: cached by OS
BLK-105: cached by PG
BLK-101: cached by PG

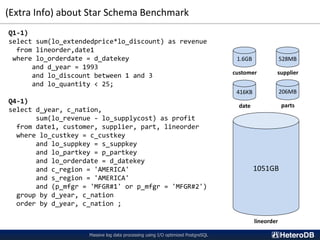

37. (Extra Info) about Star Schema Benchmark
Massive log data processing using I/O optimized PostgreSQL
Q1-1)
select sum(lo_extendedprice*lo_discount) as revenue
from lineorder,date1
where lo_orderdate = d_datekey
and d_year = 1993
and lo_discount between 1 and 3
and lo_quantity < 25;
Q4-1)
select d_year, c_nation,
sum(lo_revenue - lo_supplycost) as profit
from date1, customer, supplier, part, lineorder
where lo_custkey = c_custkey
and lo_suppkey = s_suppkey
and lo_partkey = p_partkey
and lo_orderdate = d_datekey
and c_region = 'AMERICA'
and s_region = 'AMERICA'
and (p_mfgr = 'MFGR#1' or p_mfgr = 'MFGR#2')
group by d_year, c_nation
order by d_year, c_nation ;
1.6GB
customer
528MB
supplier
416KB
date
206MB
parts
lineorder
1051GB
