  PGconf.ASIA Unconference Session ～Partition-wiseJoin & Visibility-Map～ HeteroDB,Inc Chief Architect & CEO KaiGai Kohei <kaigai@heterodb.com>
• 2.
  about HeteroDB Discussion Materialsfor Foreign Partners2 Corporate overview  Name HeteroDB,Inc  Established 4th-Jul-2017  Location Shinagawa, Tokyo, Japan  Businesses Sales of accelerated database product Technical consulting on GPU&DB region By the heterogeneous-computing technology on the database area, we provides a useful, fast and cost-effective data analytics platform for all the people who need the power of analytics. CEO Profile  KaiGai Kohei – He has contributed for PostgreSQL and Linux kernel development in the OSS community more than ten years, especially, for security and database federation features of PostgreSQL.  Award of “Genius Programmer” by IPA MITOH program (2007)  The top-5 posters finalist at GPU Technology Conference 2017.
• 3.

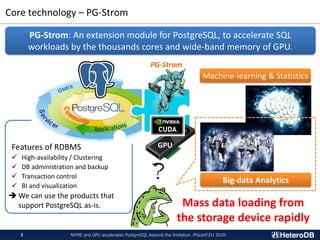

  Features of RDBMS ✓High-availability / Clustering ✓ DB administration and backup ✓ Transaction control ✓ BI and visualization ➔ We can use the products that support PostgreSQL as-is. Core technology – PG-Strom PG-Strom: An extension module for PostgreSQL, to accelerate SQL workloads by the thousands cores and wide-band memory of GPU. GPU Big-data Analytics PG-Strom NVME and GPU accelerates PostgreSQL beyond the limitation -PGconf.EU 2018-3 Mass data loading from the storage device rapidly Machine-learning & Statistics
• 4.
  NVME and GPUaccelerates PostgreSQL beyond the limitation -PGconf.EU 2018-4 SSD-to-GPU Direct SQL Execution and Visibility-map
• 5.
  A usual compositionof x86_64 server GPUSSD CPU RAM HDD N/W NVME and GPU accelerates PostgreSQL beyond the limitation -PGconf.EU 2018-5
• 6.

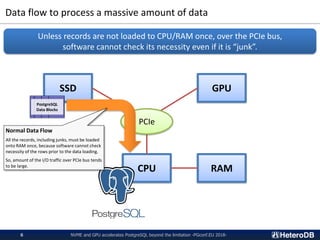

  Data flow toprocess a massive amount of data CPU RAM SSD GPU PCIe PostgreSQL Data Blocks Normal Data Flow All the records, including junks, must be loaded onto RAM once, because software cannot check necessity of the rows prior to the data loading. So, amount of the I/O traffic over PCIe bus tends to be large. NVME and GPU accelerates PostgreSQL beyond the limitation -PGconf.EU 2018-6 Unless records are not loaded to CPU/RAM once, over the PCIe bus, software cannot check its necessity even if it is “junk”.
• 7.

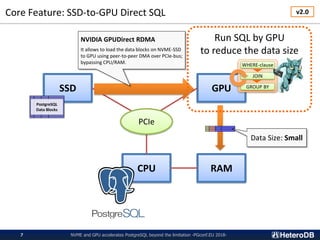

  Core Feature: SSD-to-GPUDirect SQL CPU RAM SSD GPU PCIe PostgreSQL Data Blocks NVIDIA GPUDirect RDMA It allows to load the data blocks on NVME-SSD to GPU using peer-to-peer DMA over PCIe-bus; bypassing CPU/RAM. WHERE-clause JOIN GROUP BY Run SQL by GPU to reduce the data size Data Size: Small NVME and GPU accelerates PostgreSQL beyond the limitation -PGconf.EU 2018-7 v2.0
• 8.

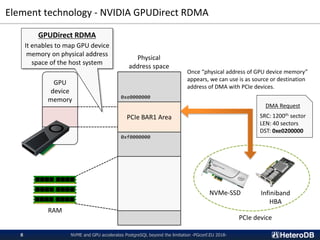

  Element technology -NVIDIA GPUDirect RDMA Physical address space PCIe BAR1 Area GPU device memory RAM NVMe-SSD Infiniband HBA PCIe device GPUDirect RDMA It enables to map GPU device memory on physical address space of the host system Once “physical address of GPU device memory” appears, we can use is as source or destination address of DMA with PCIe devices. NVME and GPU accelerates PostgreSQL beyond the limitation -PGconf.EU 2018-8 0xf0000000 0xe0000000 DMA Request SRC: 1200th sector LEN: 40 sectors DST: 0xe0200000
• 9.

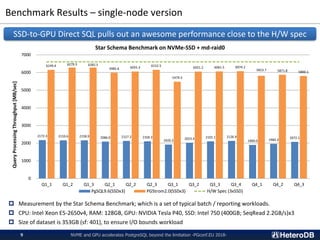

  Benchmark Results –single-node version NVME and GPU accelerates PostgreSQL beyond the limitation -PGconf.EU 2018-9 2172.3 2159.6 2158.9 2086.0 2127.2 2104.3 1920.3 2023.4 2101.1 2126.9 1900.0 1960.3 2072.1 6149.4 6279.3 6282.5 5985.6 6055.3 6152.5 5479.3 6051.2 6061.5 6074.2 5813.7 5871.8 5800.1 0 1000 2000 3000 4000 5000 6000 7000 Q1_1 Q1_2 Q1_3 Q2_1 Q2_2 Q2_3 Q3_1 Q3_2 Q3_3 Q3_4 Q4_1 Q4_2 Q4_3 QueryProcessingThroughput[MB/sec] Star Schema Benchmark on NVMe-SSD + md-raid0 PgSQL9.6(SSDx3) PGStrom2.0(SSDx3) H/W Spec (3xSSD) SSD-to-GPU Direct SQL pulls out an awesome performance close to the H/W spec  Measurement by the Star Schema Benchmark; which is a set of typical batch / reporting workloads.  CPU: Intel Xeon E5-2650v4, RAM: 128GB, GPU: NVIDIA Tesla P40, SSD: Intel 750 (400GB; SeqRead 2.2GB/s)x3  Size of dataset is 353GB (sf: 401), to ensure I/O bounds workload
• 10.

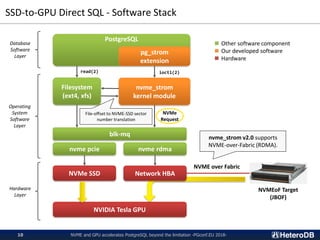

  SSD-to-GPU Direct SQL- Software Stack NVME and GPU accelerates PostgreSQL beyond the limitation -PGconf.EU 2018-10 Filesystem (ext4, xfs) nvme_strom kernel module NVMe SSD NVIDIA Tesla GPU PostgreSQL pg_strom extension read(2) ioctl(2) Hardware Layer Operating System Software Layer Database Software Layer blk-mq nvme pcie nvme rdma Network HBA File-offset to NVME-SSD sector number translation NVMEoF Target (JBOF) NVMe Request ■ Other software component ■ Our developed software ■ Hardware NVME over Fabric nvme_strom v2.0 supports NVME-over-Fabric (RDMA).
• 11.

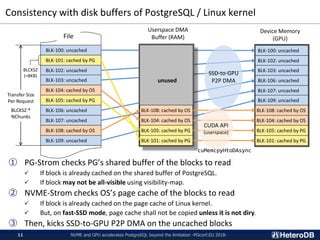

  uninitialized File BLK-100: unknown BLK-101: unknown BLK-102:unknown BLK-103: unknown BLK-104: unknown BLK-105: unknown BLK-106: unknown BLK-107: unknown BLK-108: unknown BLK-109: unknown Consistency with disk buffers of PostgreSQL / Linux kernel NVME and GPU accelerates PostgreSQL beyond the limitation -PGconf.EU 2018-11 BLK-100: uncached BLK-101: cached by PG BLK-102: uncached BLK-103: uncached BLK-104: cached by OS BLK-105: cached by PG BLK-106: uncached BLK-107: uncached BLK-108: cached by OS BLK-109: uncached BLCKSZ (=8KB) Transfer Size Per Request BLCKSZ * NChunks BLK-108: cached by OS BLK-104: cached by OS BLK-105: cached by PG BLK-101: cached by PG BLK-100: uncached BLK-102: uncached BLK-103: uncached BLK-106: uncached BLK-107: uncached BLK-109: uncached unused SSD-to-GPU P2P DMA Userspace DMA Buffer (RAM) Device Memory (GPU) CUDA API (userspace) cuMemcpyHtoDAsync ① PG-Strom checks PG’s shared buffer of the blocks to read ✓ If block is already cached on the shared buffer of PostgreSQL. ✓ If block may not be all-visible using visibility-map. ② NVME-Strom checks OS’s page cache of the blocks to read ✓ If block is already cached on the page cache of Linux kernel. ✓ But, on fast-SSD mode, page cache shall not be copied unless it is not diry. ③ Then, kicks SSD-to-GPU P2P DMA on the uncached blocks BLK-108: cached by OS BLK-104: cached by OS BLK-105: cached by PG BLK-101: cached by PG
• 12.

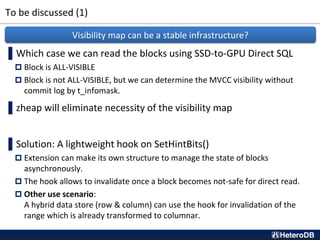

  To be discussed(1) ▌Which case we can read the blocks using SSD-to-GPU Direct SQL  Block is ALL-VISIBLE  Block is not ALL-VISIBLE, but we can determine the MVCC visibility without commit log by t_infomask. ▌zheap will eliminate necessity of the visibility map ▌Solution: A lightweight hook on SetHintBits()  Extension can make its own structure to manage the state of blocks asynchronously.  The hook allows to invalidate once a block becomes not-safe for direct read.  Other use scenario: A hybrid data store (row & column) can use the hook for invalidation of the range which is already transformed to columnar. Visibility map can be a stable infrastructure?
• 13.
  I/O Path optimizationon PCIe-bus and Partition-wise Join
• 14.

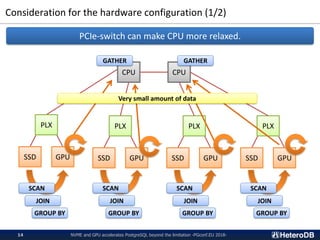

  Consideration for thehardware configuration (1/2) NVME and GPU accelerates PostgreSQL beyond the limitation -PGconf.EU 2018-14 PCIe-switch can make CPU more relaxed. CPU CPU PLX SSD GPU PLX SSD GPU PLX SSD GPU PLX SSD GPU SCAN SCAN SCAN SCAN JOIN JOIN JOIN JOIN GROUP BY GROUP BY GROUP BY GROUP BY Very small amount of data GATHER GATHER
• 15.

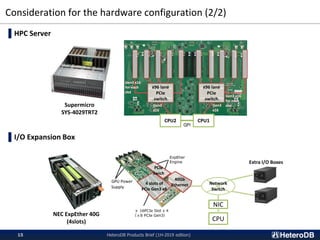

  Consideration for thehardware configuration (2/2) HeteroDB Products Brief (1H-2019 edition)15 Supermicro SYS-4029TRT2 x96 lane PCIe switch x96 lane PCIe switch CPU2 CPU1 QPI Gen3 x16 Gen3 x16 for each slot Gen3 x16 for each slotGen3 x16 ▌HPC Server ▌I/O Expansion Box NEC ExpEther 40G (4slots) Network Switch 4 slots of PCIe Gen3 x8 PCIe Swich 40Gb Ethernet CPU NIC Extra I/O Boxes
• 16.

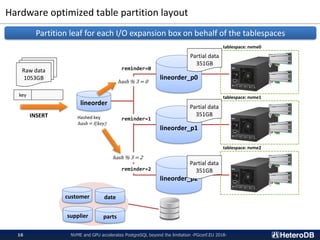

  Hardware optimized tablepartition layout NVME and GPU accelerates PostgreSQL beyond the limitation -PGconf.EU 2018-16 lineorder lineorder_p0 lineorder_p1 lineorder_p2 reminder=0 reminder=1 reminder=2 customer date supplier parts tablespace: nvme0 tablespace: nvme1 tablespace: nvme2 key INSERT Hashed key hash = f(key) hash % 3 = 2 hash % 3 = 0 Raw data 1053GB Partial data 351GB Partial data 351GB Partial data 351GB Partition leaf for each I/O expansion box on behalf of the tablespaces
• 17.

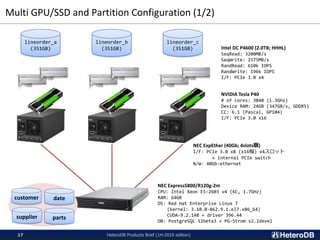

  Multi GPU/SSD andPartition Configuration (1/2) HeteroDB Products Brief (1H-2019 edition)17 NEC Express5800/R120g-2m CPU: Intel Xeon E5-2603 v4 (6C, 1.7GHz) RAM: 64GB OS: Red Hat Enterprise Linux 7 (kernel: 3.10.0-862.9.1.el7.x86_64) CUDA-9.2.148 + driver 396.44 DB: PostgreSQL 11beta3 + PG-Strom v2.1devel lineorder_a (351GB) lineorder_b (351GB) lineorder_c (351GB) NEC ExpEther (40Gb; 4slots版) I/F: PCIe 3.0 x8 (x16幅) x4スロット + internal PCIe switch N/W: 40Gb-ethernet NVIDIA Tesla P40 # of cores: 3840 (1.3GHz) Device RAM: 24GB (347GB/s, GDDR5) CC: 6.1 (Pascal, GP104) I/F: PCIe 3.0 x16 Intel DC P4600 (2.0TB; HHHL) SeqRead: 3200MB/s SeqWrite: 1575MB/s RandRead: 610k IOPS RandWrite: 196k IOPS I/F: PCIe 3.0 x4 customer date supplier parts
• 18.

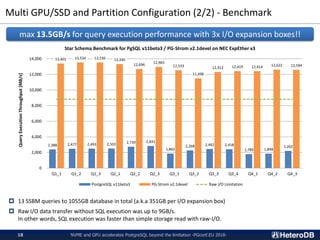

  Multi GPU/SSD andPartition Configuration (2/2) - Benchmark NVME and GPU accelerates PostgreSQL beyond the limitation -PGconf.EU 2018-18  13 SSBM queries to 1055GB database in total (a.k.a 351GB per I/O expansion box)  Raw I/O data transfer without SQL execution was up to 9GB/s. In other words, SQL execution was faster than simple storage read with raw-I/O. 2,388 2,477 2,493 2,502 2,739 2,831 1,865 2,268 2,442 2,418 1,789 1,848 2,202 13,401 13,534 13,536 13,330 12,696 12,965 12,533 11,498 12,312 12,419 12,414 12,622 12,594 0 2,000 4,000 6,000 8,000 10,000 12,000 14,000 Q1_1 Q1_2 Q1_3 Q2_1 Q2_2 Q2_3 Q3_1 Q3_2 Q3_3 Q3_4 Q4_1 Q4_2 Q4_3 QueryExecutionThroughput[MB/s] Star Schema Benchmark for PgSQL v11beta3 / PG-Strom v2.1devel on NEC ExpEther x3 PostgreSQL v11beta3 PG-Strom v2.1devel Raw I/O Limitation max 13.5GB/s for query execution performance with 3x I/O expansion boxes!!
• 19.

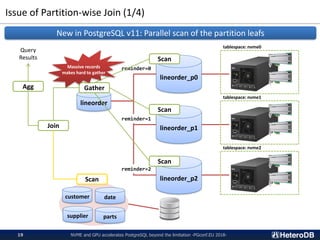

  Issue of Partition-wiseJoin (1/4) NVME and GPU accelerates PostgreSQL beyond the limitation -PGconf.EU 2018-19 lineorder lineorder_p0 lineorder_p1 lineorder_p2 reminder=0 reminder=1 reminder=2 customer date supplier parts tablespace: nvme0 tablespace: nvme1 tablespace: nvme2 New in PostgreSQL v11: Parallel scan of the partition leafs Scan Scan Scan Gather Join Agg Query Results Scan Massive records makes hard to gather
• 20.

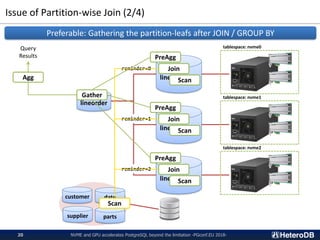

  Issue of Partition-wiseJoin (2/4) NVME and GPU accelerates PostgreSQL beyond the limitation -PGconf.EU 2018-20 lineorder lineorder_p0 lineorder_p1 lineorder_p2 reminder=0 reminder=1 reminder=2 customer date supplier parts tablespace: nvme0 tablespace: nvme1 tablespace: nvme2 Preferable: Gathering the partition-leafs after JOIN / GROUP BY Join Gather Agg Query Results Scan Scan PreAgg Join Scan PreAgg Join Scan PreAgg
• 21.

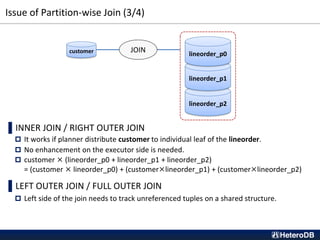

  Issue of Partition-wiseJoin (3/4) ▌INNER JOIN / RIGHT OUTER JOIN  It works if planner distribute customer to individual leaf of the lineorder.  No enhancement on the executor side is needed.  customer × (lineorder_p0 + lineorder_p1 + lineorder_p2) = (customer × lineorder_p0) + (customer×lineorder_p1) + (customer×lineorder_p2) ▌LEFT OUTER JOIN / FULL OUTER JOIN  Left side of the join needs to track unreferenced tuples on a shared structure. lineorder_p2 customer lineorder_p1 lineorder_p0 JOIN
• 22.

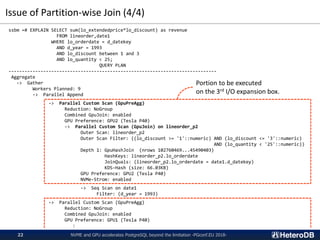

  Issue of Partition-wiseJoin (4/4) NVME and GPU accelerates PostgreSQL beyond the limitation -PGconf.EU 2018-22 ssbm =# EXPLAIN SELECT sum(lo_extendedprice*lo_discount) as revenue FROM lineorder,date1 WHERE lo_orderdate = d_datekey AND d_year = 1993 AND lo_discount between 1 and 3 AND lo_quantity < 25; QUERY PLAN ------------------------------------------------------------------------------ Aggregate -> Gather Workers Planned: 9 -> Parallel Append -> Parallel Custom Scan (GpuPreAgg) Reduction: NoGroup Combined GpuJoin: enabled GPU Preference: GPU2 (Tesla P40) -> Parallel Custom Scan (GpuJoin) on lineorder_p2 Outer Scan: lineorder_p2 Outer Scan Filter: ((lo_discount >= '1'::numeric) AND (lo_discount <= '3'::numeric) AND (lo_quantity < '25'::numeric)) Depth 1: GpuHashJoin (nrows 102760469...45490403) HashKeys: lineorder_p2.lo_orderdate JoinQuals: (lineorder_p2.lo_orderdate = date1.d_datekey) KDS-Hash (size: 66.03KB) GPU Preference: GPU2 (Tesla P40) NVMe-Strom: enabled -> Seq Scan on date1 Filter: (d_year = 1993) -> Parallel Custom Scan (GpuPreAgg) Reduction: NoGroup Combined GpuJoin: enabled GPU Preference: GPU1 (Tesla P40) : Portion to be executed on the 3rd I/O expansion box.
• 23.

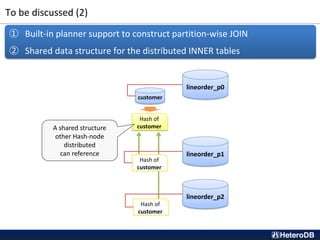

  To be discussed(2) ① Built-in planner support to construct partition-wise JOIN ② Shared data structure for the distributed INNER tables lineorder_p2 customer lineorder_p1 lineorder_p0 Hash of customer Hash of customer Hash of customer A shared structure other Hash-node distributed can reference
