1. PostgreSQL as a Machine-Learning Platform
〜Gstore_fdw and data collaboration〜
HeteroDB,Inc
Chief Architect & CEO
KaiGai Kohei <kaigai@heterodb.com>

2. about HeteroDB
PostgreSQL as Machine-Learning Platform -PGconf.EU 2018-2
Corporate overview
 Name HeteroDB,Inc
 Established 4th-Jul-2017
 Headcount 2 (KaiGai and Kashiwagi)
 Location Shinagawa, Tokyo, Japan
 Businesses Sales of accelerated database product
Technical consulting on GPU&DB region
By the heterogeneous-computing technology on the database area,
we provides a useful, fast and cost-effective data analytics platform
for all the people who need the power of analytics.
CEO Profile
 KaiGai Kohei – He has contributed for PostgreSQL and Linux kernel
development in the OSS community more than ten years, especially,
for security and database federation features of PostgreSQL.
 Award of “Genius Programmer” by IPA MITOH program (2007)
 The top-5 posters finalist at GPU Technology Conference 2017.

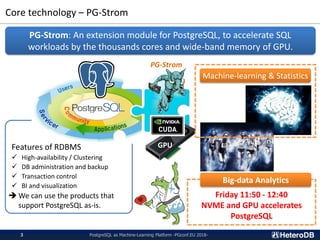

3. Friday 11:50 - 12:40
NVME and GPU accelerates
PostgreSQL
Features of RDBMS
✓ High-availability / Clustering
✓ DB administration and backup
✓ Transaction control
✓ BI and visualization
➔ We can use the products that
support PostgreSQL as-is.
Core technology – PG-Strom
PG-Strom: An extension module for PostgreSQL, to accelerate SQL
workloads by the thousands cores and wide-band memory of GPU.
GPU
Big-data Analytics
PG-Strom
PostgreSQL as Machine-Learning Platform -PGconf.EU 2018-3
Machine-learning & Statistics

4. GPU’s characteristics - mostly as a computing accelerator
PostgreSQL as Machine-Learning Platform -PGconf.EU 2018-4
Over 10years history in HPC, then massive popularization in Machine-Learning
NVIDIA Tesla V100
Super Computer
(TITEC; TSUBAME3.0) Computer Graphics Machine-Learning
How PG-Strom utilizes the power of GPU for in-database analytics?
Simulation

5. PostgreSQL as Machine-Learning Platform -PGconf.EU 2018-5
2 Years Before...

6. PGconf.SV 2016 at SunFrancisco
PostgreSQL as Machine-Learning Platform -PGconf.EU 2018-6
Acceleration of drug-discovery workloads
with in-database analytics approach
using PL/CUDA user defined function

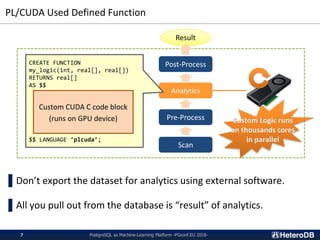

7. PL/CUDA Used Defined Function
PostgreSQL as Machine-Learning Platform -PGconf.EU 2018-7
Result
Scan
Pre-Process
Analytics
Post-ProcessCREATE FUNCTION
my_logic(int, real[], real[])
RETURNS real[]
AS $$
$$ LANGUAGE ‘plcuda’;
Custom CUDA C code block
(runs on GPU device)
▌Don’t export the dataset for analytics using external software.
▌All you pull out from the database is “result” of analytics.

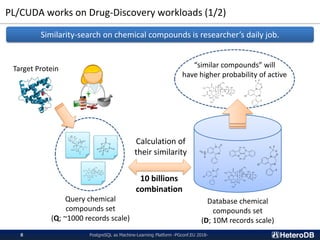

8. PL/CUDA works on Drug-Discovery workloads (1/2)
PostgreSQL as Machine-Learning Platform -PGconf.EU 2018-8
Database chemical
compounds set
(D; 10M records scale)
Query chemical
compounds set
(Q; ~1000 records scale)
Calculation of
their similarity
Target Protein “similar compounds” will
have higher probability of active
10 billions
combination
Similarity-search on chemical compounds is researcher’s daily job.

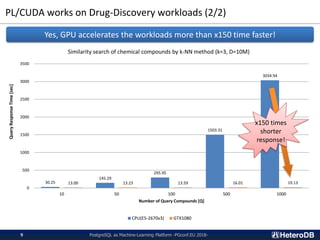

9. PL/CUDA works on Drug-Discovery workloads (2/2)
PostgreSQL as Machine-Learning Platform -PGconf.EU 2018-9
30.25
145.29
295.95
1503.31
3034.94
13.00 13.23 13.59 16.01 19.13
0
500
1000
1500
2000
2500
3000
3500
10 50 100 500 1000
QueryResponseTime[sec]
Number of Query Compounds [Q]
Similarity search of chemical compounds by k-NN method (k=3, D=10M)
CPU(E5-2670v3) GTX1080
Yes, GPU accelerates the workloads more than x150 time faster!
x150 times
shorter
response!

10. PostgreSQL as Machine-Learning Platform -PGconf.EU 2018-10
But...

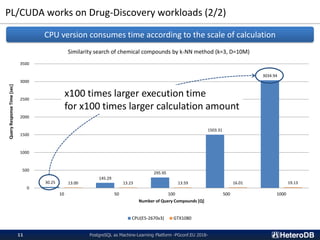

11. PL/CUDA works on Drug-Discovery workloads (2/2)
PostgreSQL as Machine-Learning Platform -PGconf.EU 2018-11
30.25
145.29
295.95
1503.31
3034.94
13.00 13.23 13.59 16.01 19.13
0
500
1000
1500
2000
2500
3000
3500
10 50 100 500 1000
QueryResponseTime[sec]
Number of Query Compounds [Q]
Similarity search of chemical compounds by k-NN method (k=3, D=10M)
CPU(E5-2670v3) GTX1080
CPU version consumes time according to the scale of calculation
x100 times larger execution time
for x100 times larger calculation amount

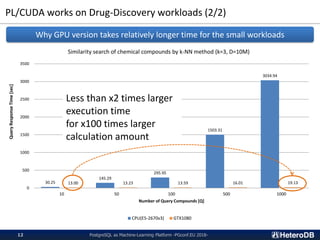

12. PL/CUDA works on Drug-Discovery workloads (2/2)
PostgreSQL as Machine-Learning Platform -PGconf.EU 2018-12
30.25
145.29
295.95
1503.31
3034.94
13.00 13.23 13.59 16.01 19.13
0
500
1000
1500
2000
2500
3000
3500
10 50 100 500 1000
QueryResponseTime[sec]
Number of Query Compounds [Q]
Similarity search of chemical compounds by k-NN method (k=3, D=10M)
CPU(E5-2670v3) GTX1080
Why GPU version takes relatively longer time for the small workloads
Less than x2 times larger
execution time
for x100 times larger
calculation amount

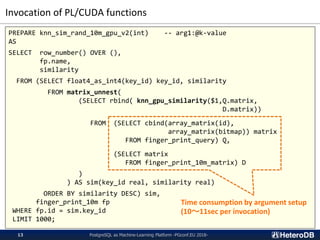

13. Invocation of PL/CUDA functions
PostgreSQL as Machine-Learning Platform -PGconf.EU 2018-13
PREPARE knn_sim_rand_10m_gpu_v2(int) -- arg1:@k-value
AS
SELECT row_number() OVER (),
fp.name,
similarity
FROM (SELECT float4_as_int4(key_id) key_id, similarity
FROM matrix_unnest(
(SELECT rbind( knn_gpu_similarity($1,Q.matrix,
D.matrix))
FROM (SELECT cbind(array_matrix(id),
array_matrix(bitmap)) matrix
FROM finger_print_query) Q,
(SELECT matrix
FROM finger_print_10m_matrix) D
)
) AS sim(key_id real, similarity real)
ORDER BY similarity DESC) sim,
finger_print_10m fp
WHERE fp.id = sim.key_id
LIMIT 1000;
Time consumption by argument setup
(10～11sec per invocation)

14. PostgreSQL as Machine-Learning Platform -PGconf.EU 2018-14
idea:
Keep the dataset on
GPU device memory

15. PostgreSQL as Machine-Learning Platform -PGconf.EU 2018-15
Gstore_fdw
GPU memory store

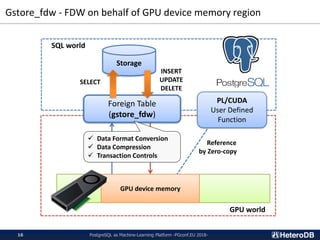

16. Gstore_fdw - FDW on behalf of GPU device memory region
PostgreSQL as Machine-Learning Platform -PGconf.EU 2018-16
GPU world
Storage
SQL world
GPU device memory
Foreign Table
(gstore_fdw)
INSERT
UPDATE
DELETE
SELECT
Reference
by Zero-copy
✓ Data Format Conversion
✓ Data Compression
✓ Transaction Controls
PL/CUDA
User Defined
Function

17. Gstore_fdw manages persistent device memory (1/4)
PostgreSQL as Machine-Learning Platform -PGconf.EU 2018-17
CREATE FOREIGN TABLE ft (
id int,
x0 real,
x1 real,
x2 real,
x3 real,
x4 real,
x5 real,
x6 real,
x7 real,
x8 real,
x9 real
) SERVER gstore_fdw
OPTIONS (pinning '0', format 'pgstrom');

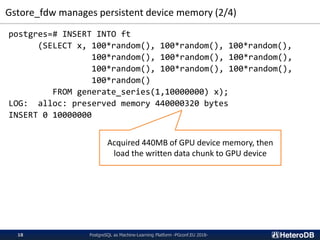

18. Gstore_fdw manages persistent device memory (2/4)
PostgreSQL as Machine-Learning Platform -PGconf.EU 2018-18
postgres=# INSERT INTO ft
(SELECT x, 100*random(), 100*random(), 100*random(),
100*random(), 100*random(), 100*random(),
100*random(), 100*random(), 100*random(),
100*random()
FROM generate_series(1,10000000) x);
LOG: alloc: preserved memory 440000320 bytes
INSERT 0 10000000
Acquired 440MB of GPU device memory, then
load the written data chunk to GPU device

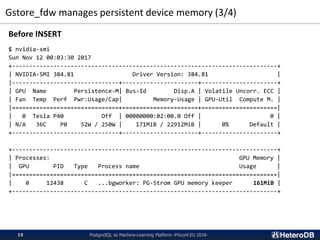

19. Gstore_fdw manages persistent device memory (3/4)
PostgreSQL as Machine-Learning Platform -PGconf.EU 2018-19
Before INSERT
$ nvidia-smi
Sun Nov 12 00:03:30 2017
+-----------------------------------------------------------------------------+
| NVIDIA-SMI 384.81 Driver Version: 384.81 |
|-------------------------------+----------------------+----------------------+
| GPU Name Persistence-M| Bus-Id Disp.A | Volatile Uncorr. ECC |
| Fan Temp Perf Pwr:Usage/Cap| Memory-Usage | GPU-Util Compute M. |
|===============================+======================+======================|
| 0 Tesla P40 Off | 00000000:02:00.0 Off | 0 |
| N/A 36C P0 52W / 250W | 171MiB / 22912MiB | 0% Default |
+-------------------------------+----------------------+----------------------+
+-----------------------------------------------------------------------------+
| Processes: GPU Memory |
| GPU PID Type Process name Usage |
|=============================================================================|
| 0 12438 C ...bgworker: PG-Strom GPU memory keeper 161MiB |
+-----------------------------------------------------------------------------+

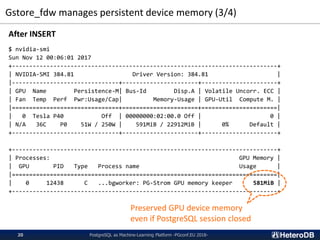

20. Gstore_fdw manages persistent device memory (3/4)
PostgreSQL as Machine-Learning Platform -PGconf.EU 2018-20
After INSERT
$ nvidia-smi
Sun Nov 12 00:06:01 2017
+-----------------------------------------------------------------------------+
| NVIDIA-SMI 384.81 Driver Version: 384.81 |
|-------------------------------+----------------------+----------------------+
| GPU Name Persistence-M| Bus-Id Disp.A | Volatile Uncorr. ECC |
| Fan Temp Perf Pwr:Usage/Cap| Memory-Usage | GPU-Util Compute M. |
|===============================+======================+======================|
| 0 Tesla P40 Off | 00000000:02:00.0 Off | 0 |
| N/A 36C P0 51W / 250W | 591MiB / 22912MiB | 0% Default |
+-------------------------------+----------------------+----------------------+
+-----------------------------------------------------------------------------+
| Processes: GPU Memory |
| GPU PID Type Process name Usage |
|=============================================================================|
| 0 12438 C ...bgworker: PG-Strom GPU memory keeper 581MiB |
+-----------------------------------------------------------------------------+
Preserved GPU device memory
even if PostgreSQL session closed

21. PostgreSQL as Machine-Learning Platform -PGconf.EU 2018-21
By the way...

22. PostgreSQL as Machine-Learning Platform -PGconf.EU 2018-22
GPU device memory
can perform
like a shared memory

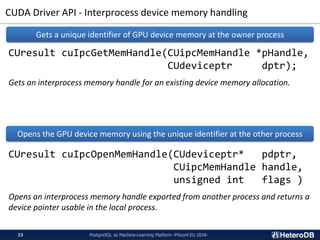

23. CUDA Driver API - Interprocess device memory handling
PostgreSQL as Machine-Learning Platform -PGconf.EU 2018-23
CUresult cuIpcGetMemHandle(CUipcMemHandle *pHandle,
CUdeviceptr dptr);
Gets an interprocess memory handle for an existing device memory allocation.
CUresult cuIpcOpenMemHandle(CUdeviceptr* pdptr,
CUipcMemHandle handle,
unsigned int flags )
Opens an interprocess memory handle exported from another process and returns a
device pointer usable in the local process.
Gets a unique identifier of GPU device memory at the owner process
Opens the GPU device memory using the unique identifier at the other process

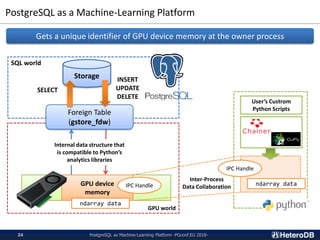

24. PostgreSQL as a Machine-Learning Platform
PostgreSQL as Machine-Learning Platform -PGconf.EU 2018-24
GPU world
Inter-Process
Data Collaboration
Storage
SQL world
GPU device
memory
Foreign Table
(gstore_fdw)
INSERT
UPDATE
DELETE
SELECT
User’s Custrom
Python Scripts
IPC Handle
IPC Handle
Internal data structure that
is compatible to Python’s
analytics libraries
ndarray data
ndarray data
Gets a unique identifier of GPU device memory at the owner process

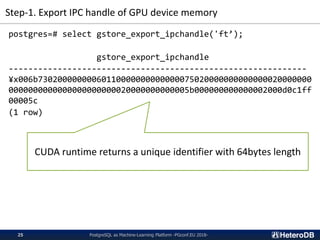

25. Step-1. Export IPC handle of GPU device memory
PostgreSQL as Machine-Learning Platform -PGconf.EU 2018-25
postgres=# select gstore_export_ipchandle('ft’);
gstore_export_ipchandle
-------------------------------------------------------------
¥x006b73020000000060110000000000000075020000000000000020000000
0000000000000000000000020000000000005b000000000000002000d0c1ff
00005c
(1 row)
CUDA runtime returns a unique identifier with 64bytes length

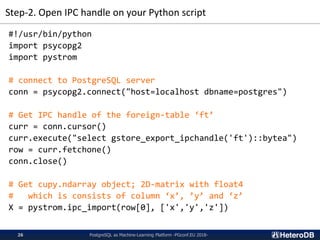

26. Step-2. Open IPC handle on your Python script
PostgreSQL as Machine-Learning Platform -PGconf.EU 2018-26
#!/usr/bin/python
import psycopg2
import pystrom
# connect to PostgreSQL server
conn = psycopg2.connect("host=localhost dbname=postgres")
# Get IPC handle of the foreign-table ‘ft’
curr = conn.cursor()
curr.execute("select gstore_export_ipchandle('ft')::bytea")
row = curr.fetchone()
conn.close()
# Get cupy.ndarray object; 2D-matrix with float4
# which is consists of column ‘x’, ’y’ and ‘z’
X = pystrom.ipc_import(row[0], ['x','y','z'])

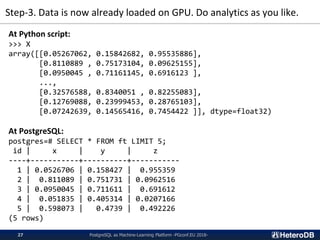

27. Step-3. Data is now already loaded on GPU. Do analytics as you like.
PostgreSQL as Machine-Learning Platform -PGconf.EU 2018-27
At Python script:
>>> X
array([[0.05267062, 0.15842682, 0.95535886],
[0.8110889 , 0.75173104, 0.09625155],
[0.0950045 , 0.71161145, 0.6916123 ],
...,
[0.32576588, 0.8340051 , 0.82255083],
[0.12769088, 0.23999453, 0.28765103],
[0.07242639, 0.14565416, 0.7454422 ]], dtype=float32)
At PostgreSQL:
postgres=# SELECT * FROM ft LIMIT 5;
id | x | y | z
----+-----------+----------+-----------
1 | 0.0526706 | 0.158427 | 0.955359
2 | 0.811089 | 0.751731 | 0.0962516
3 | 0.0950045 | 0.711611 | 0.691612
4 | 0.051835 | 0.405314 | 0.0207166
5 | 0.598073 | 0.4739 | 0.492226
(5 rows)

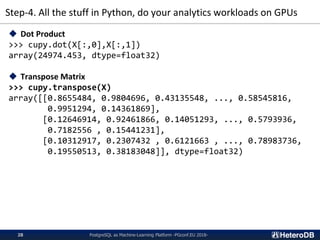

28. Step-4. All the stuff in Python, do your analytics workloads on GPUs
PostgreSQL as Machine-Learning Platform -PGconf.EU 2018-28
◆ Dot Product
>>> cupy.dot(X[:,0],X[:,1])
array(24974.453, dtype=float32)
◆ Transpose Matrix
>>> cupy.transpose(X)
array([[0.8655484, 0.9804696, 0.43135548, ..., 0.58545816,
0.9951294, 0.14361869],
[0.12646914, 0.92461866, 0.14051293, ..., 0.5793936,
0.7182556 , 0.15441231],
[0.10312917, 0.2307432 , 0.6121663 , ..., 0.78983736,
0.19550513, 0.38183048]], dtype=float32)

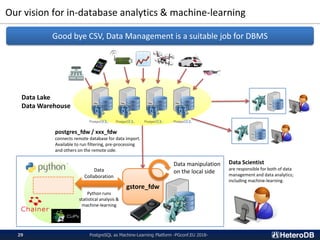

29. Our vision for in-database analytics & machine-learning
PostgreSQL as Machine-Learning Platform -PGconf.EU 2018-29
gstore_fdw
Data manipulation
on the local sideData
Collaboration
Good bye CSV, Data Management is a suitable job for DBMS
Python runs
statistical analysis &
machine-learning
Data Scientist
are responsible for both of data
management and data analytics;
including machine-learning.
Data Lake
Data Warehouse
postgres_fdw / xxx_fdw
connects remote database for data import.
Available to run filtering, pre-processing
and others on the remote side.

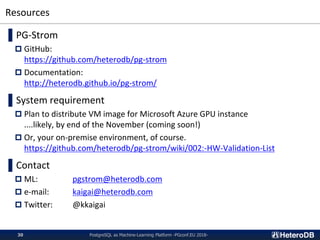

30. Resources
PostgreSQL as Machine-Learning Platform -PGconf.EU 2018-30
▌PG-Strom
 GitHub:
https://github.com/heterodb/pg-strom
 Documentation:
http://heterodb.github.io/pg-strom/
▌System requirement
 Plan to distribute VM image for Microsoft Azure GPU instance
....likely, by end of the November (coming soon!)
 Or, your on-premise environment, of course.
https://github.com/heterodb/pg-strom/wiki/002:-HW-Validation-List
▌Contact
 ML: pgstrom@heterodb.com
 e-mail: kaigai@heterodb.com
 Twitter: @kkaigai
