1. Numeral Systems
Binary, Decimal and Hexadecimal Numbers
Svetlin Nakov
Telerik Corporation
www.telerik.com

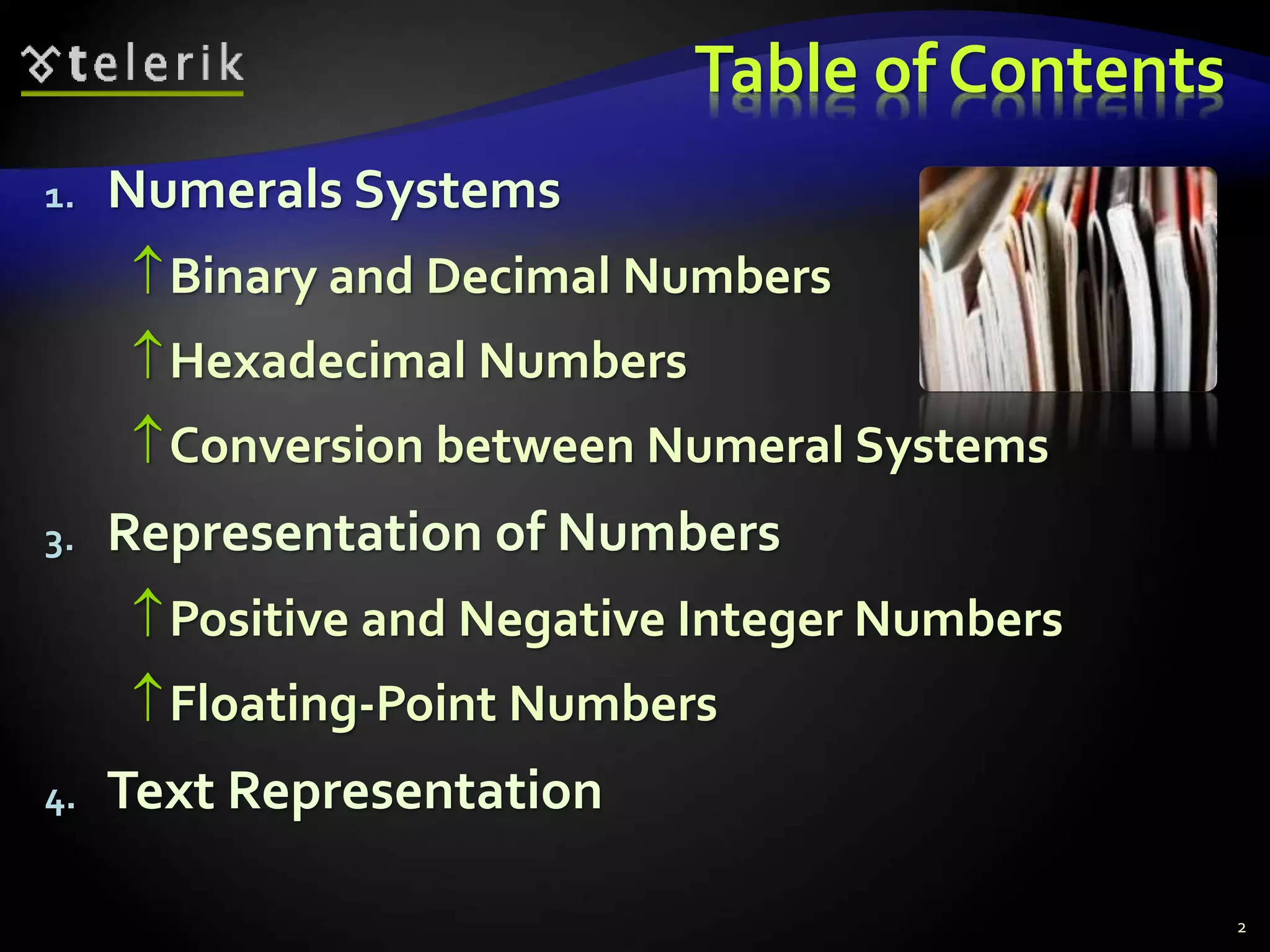

2. Table of Contents
1. Numerals Systems
Binary and Decimal Numbers
Hexadecimal Numbers
Conversion between Numeral Systems
3. Representation of Numbers
Positive and Negative Integer Numbers
Floating-Point Numbers
4. Text Representation
2

3. Numeral Systems
Conversion between Numeral Systems

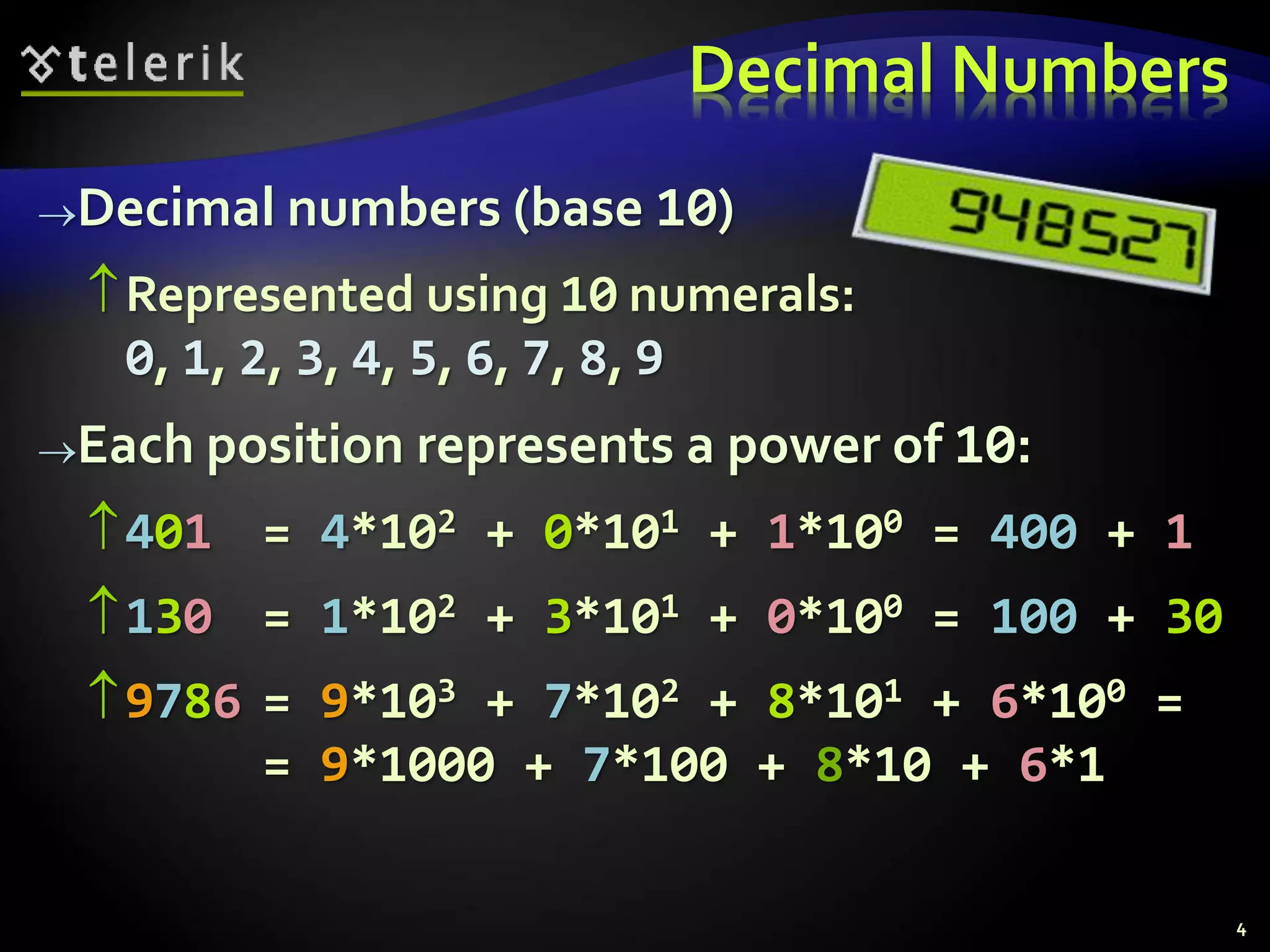

4. Decimal numbers (base 10)
Represented using 10 numerals:
0, 1, 2, 3, 4, 5, 6, 7, 8, 9
Each position represents a power of 10:
401 = 4*102 + 0*101 + 1*100 = 400 + 1
130 = 1*102 + 3*101 + 0*100 = 100 + 30
9786 = 9*103 + 7*102 + 8*101 + 6*100 =
= 9*1000 + 7*100 + 8*10 + 6*1
Decimal Numbers
4

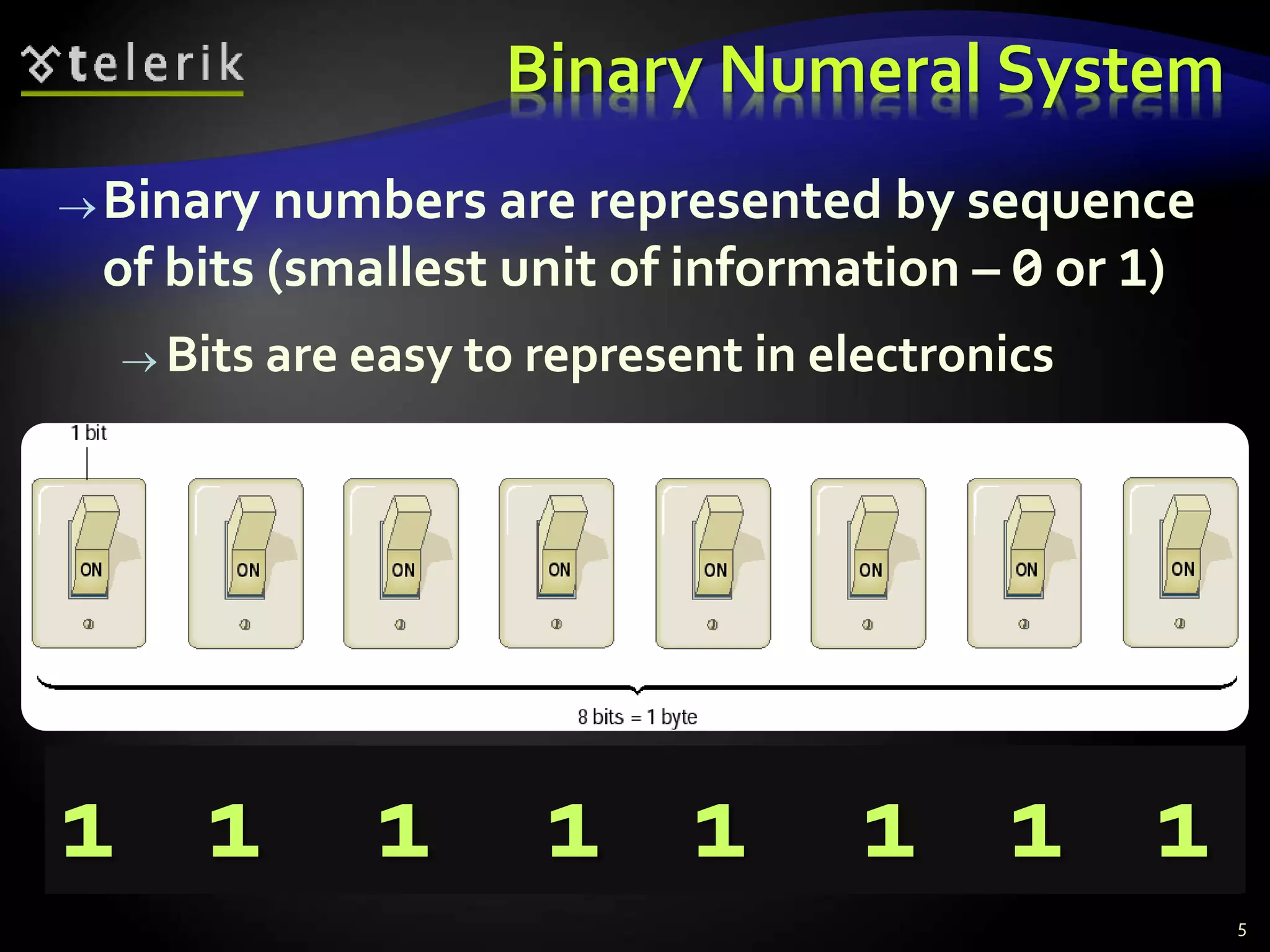

5. Binary Numeral System
5
1 0 1 1 0 0 1 01 0 0 1 0 0 1 01 0 0 1 0 0 1 11 1 1 1 1 1 1 1
Binary numbers are represented by sequence
of bits (smallest unit of information – 0 or 1)
 Bits are easy to represent in electronics

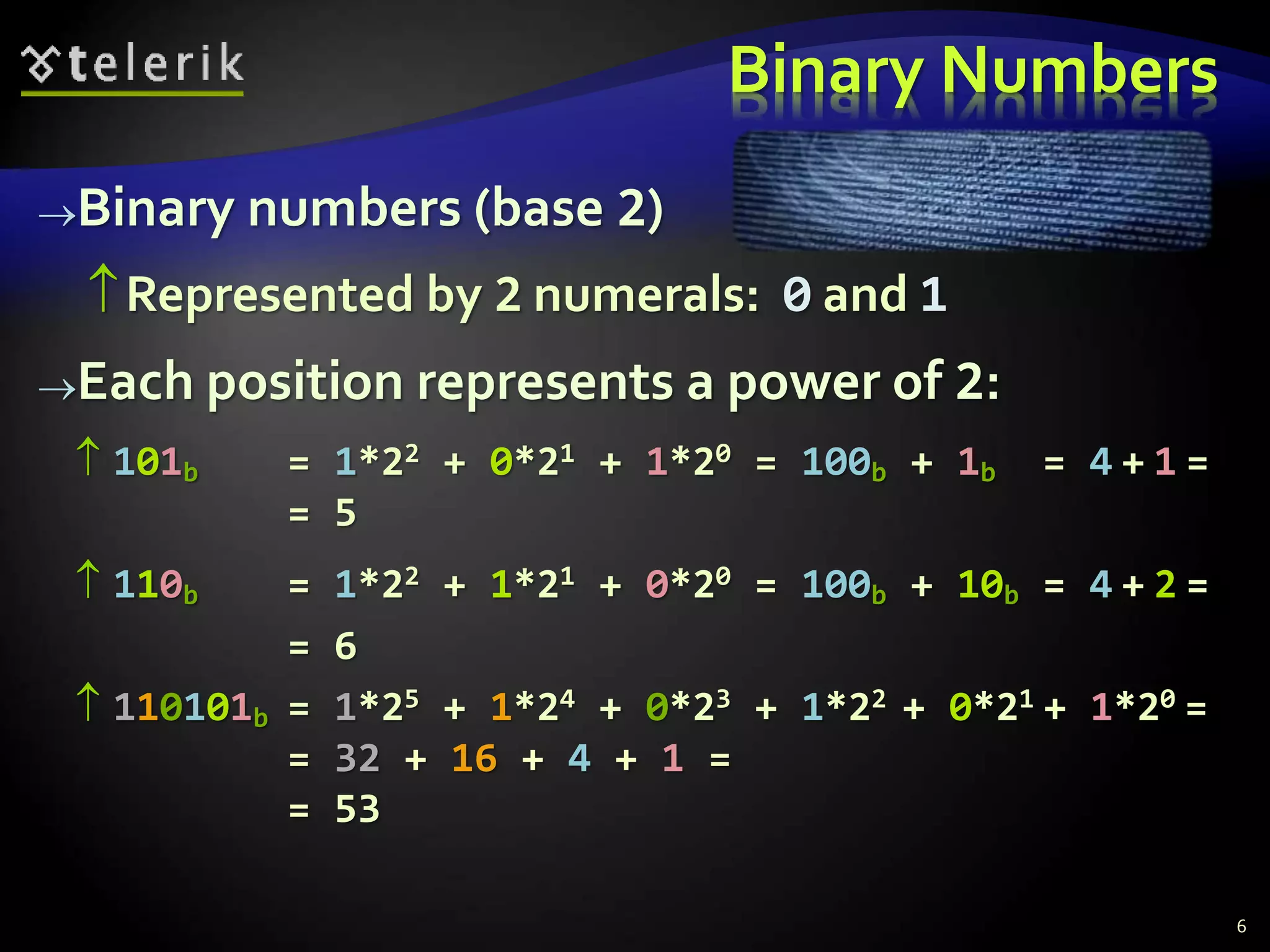

6. Binary numbers (base 2)
Represented by 2 numerals: 0 and 1
Each position represents a power of 2:
 101b = 1*22 + 0*21 + 1*20 = 100b + 1b = 4 + 1 =
= 5
 110b = 1*22 + 1*21 + 0*20 = 100b + 10b = 4 + 2 =
= 6
 110101b = 1*25 + 1*24 + 0*23 + 1*22 + 0*21 + 1*20 =
= 32 + 16 + 4 + 1 =
= 53
Binary Numbers
6

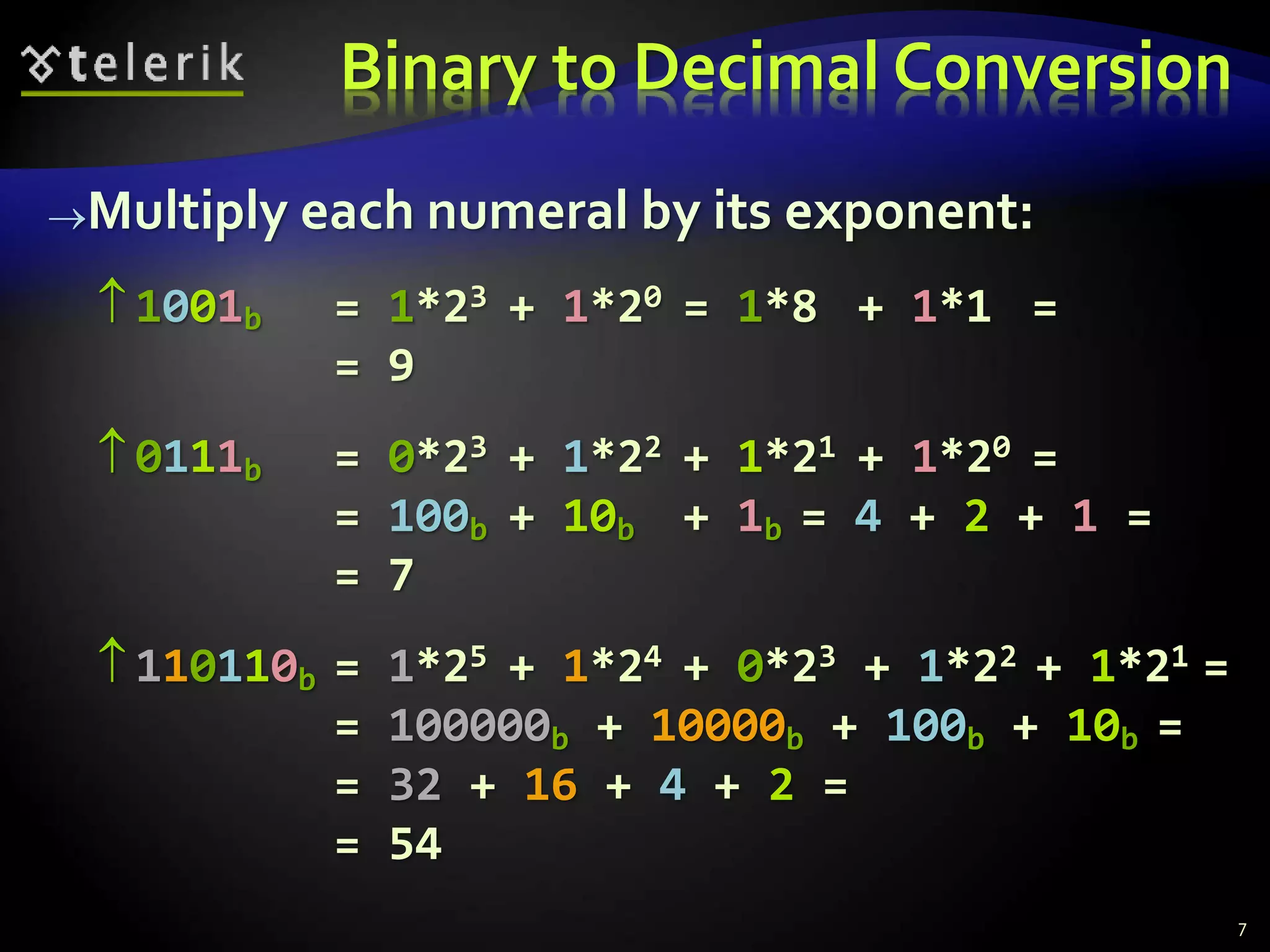

7. Binary to Decimal Conversion
Multiply each numeral by its exponent:
 1001b = 1*23 + 1*20 = 1*8 + 1*1 =
= 9
 0111b = 0*23 + 1*22 + 1*21 + 1*20 =
= 100b + 10b + 1b = 4 + 2 + 1 =
= 7
 110110b = 1*25 + 1*24 + 0*23 + 1*22 + 1*21 =
= 100000b + 10000b + 100b + 10b =
= 32 + 16 + 4 + 2 =
= 54
7

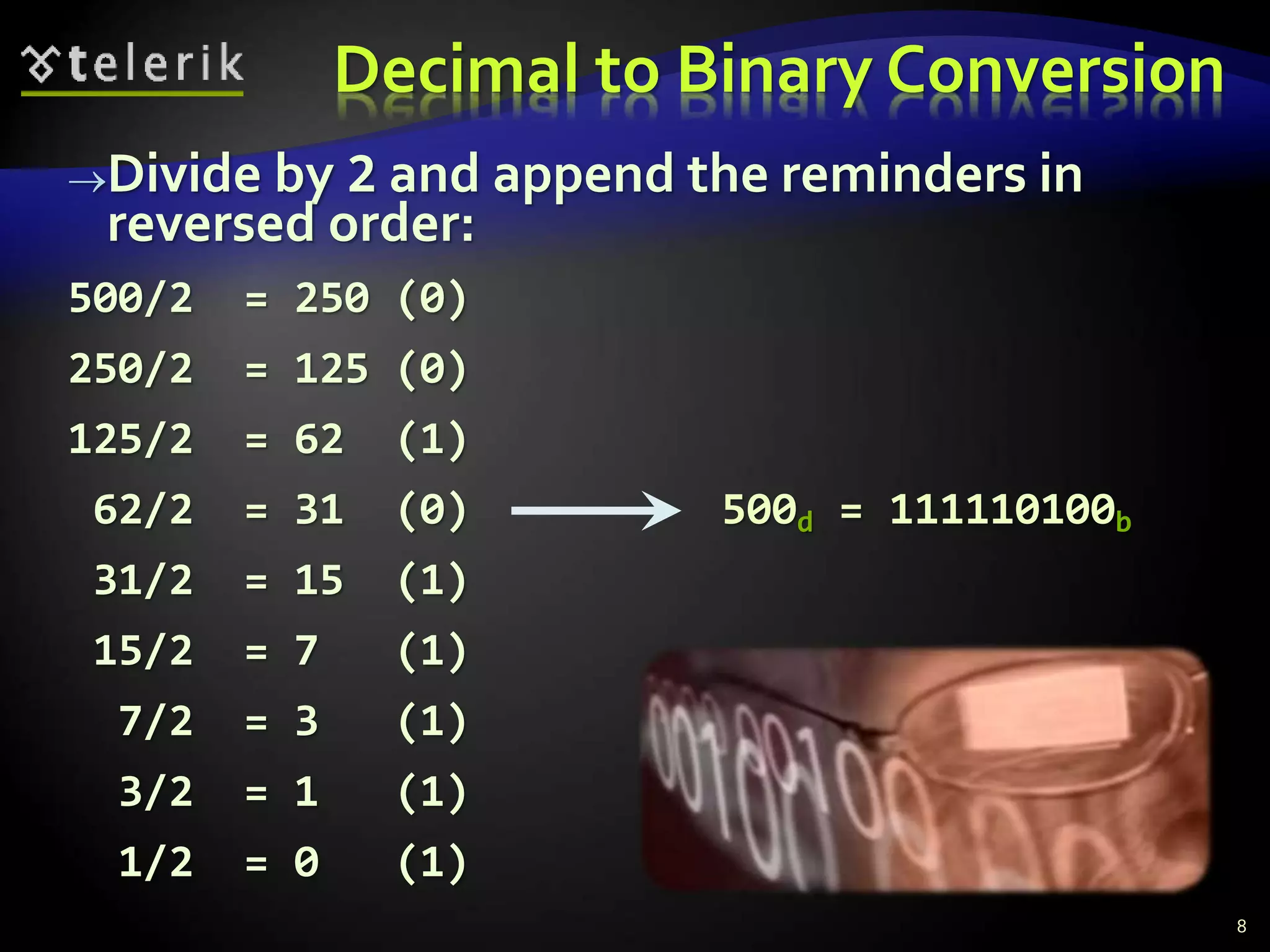

8. Decimal to Binary Conversion
Divide by 2 and append the reminders in
reversed order:
500/2 = 250 (0)
250/2 = 125 (0)
125/2 = 62 (1)
62/2 = 31 (0) 500d = 111110100b
31/2 = 15 (1)
15/2 = 7 (1)
7/2 = 3 (1)
3/2 = 1 (1)
1/2 = 0 (1)
8

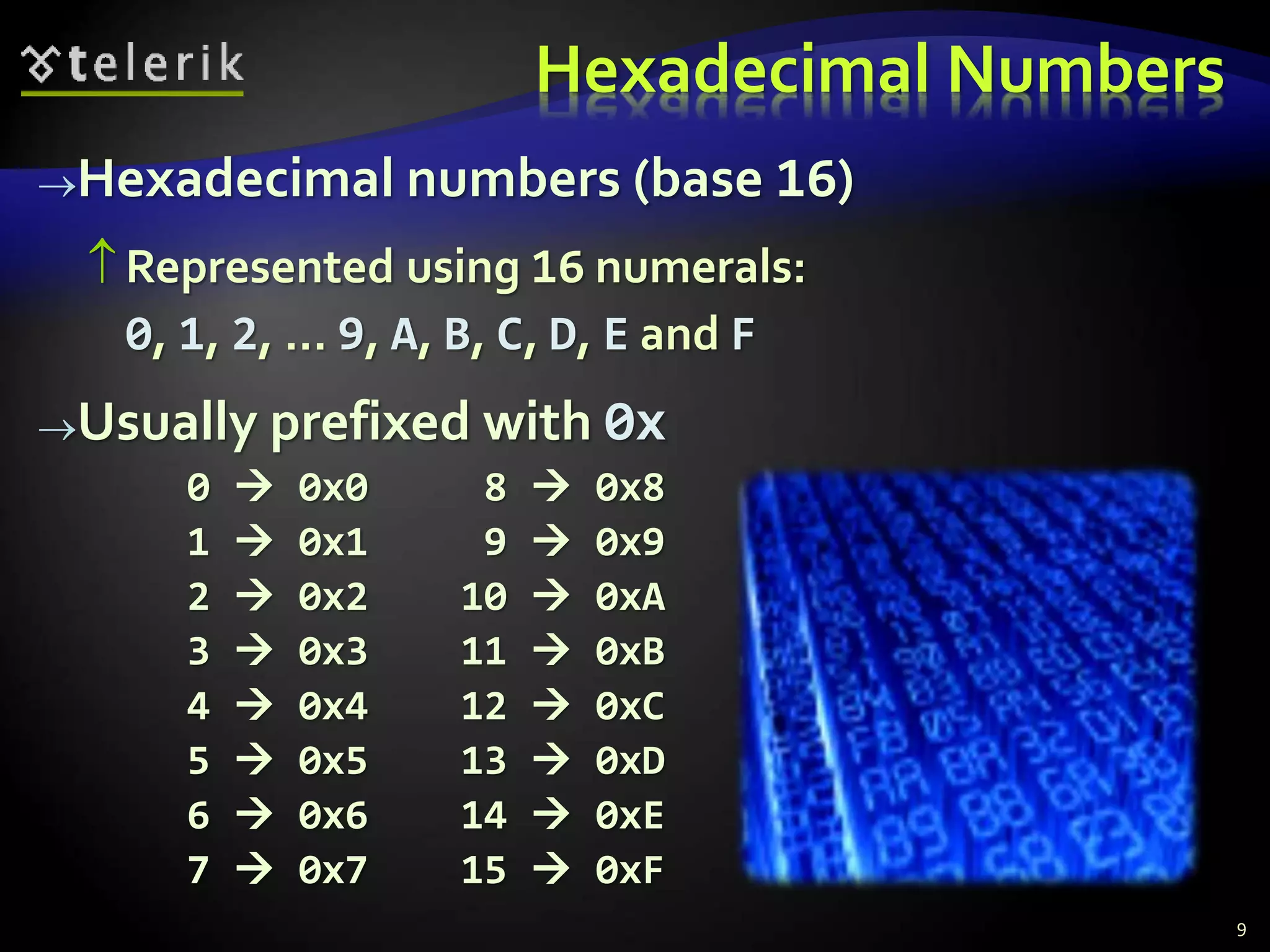

9. Hexadecimal Numbers
Hexadecimal numbers (base 16)
 Represented using 16 numerals:
0, 1, 2, ... 9, A, B, C, D, E and F
Usually prefixed with 0x
0  0x0 8  0x8
1  0x1 9  0x9
2  0x2 10  0xA
3  0x3 11  0xB
4  0x4 12  0xC
5  0x5 13  0xD
6  0x6 14  0xE
7  0x7 15  0xF
9

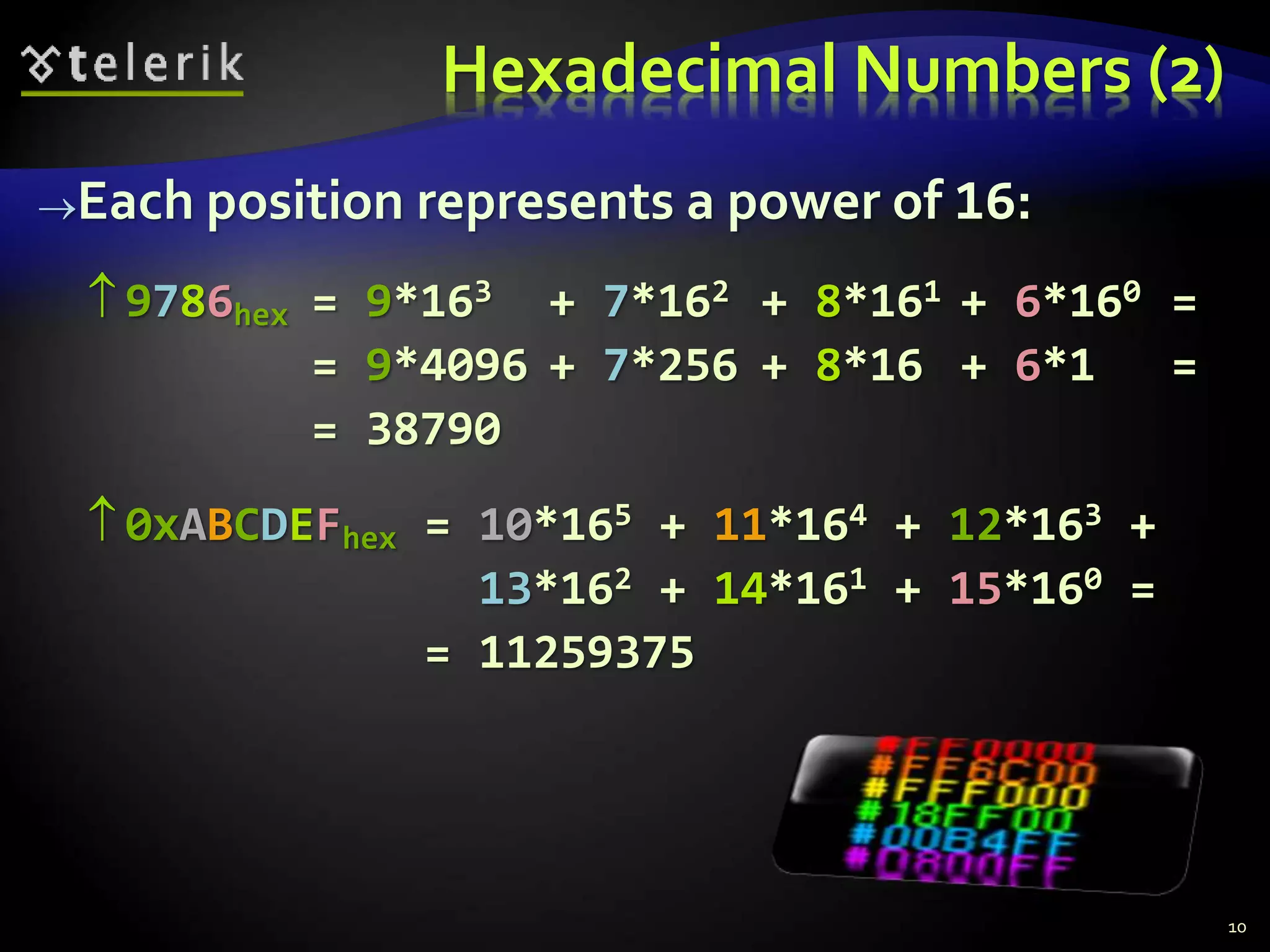

10. Hexadecimal Numbers (2)
Each position represents a power of 16:
 9786hex = 9*163 + 7*162 + 8*161 + 6*160 =
= 9*4096 + 7*256 + 8*16 + 6*1 =
= 38790
 0xABCDEFhex = 10*165 + 11*164 + 12*163 +
13*162 + 14*161 + 15*160 =
= 11259375
10

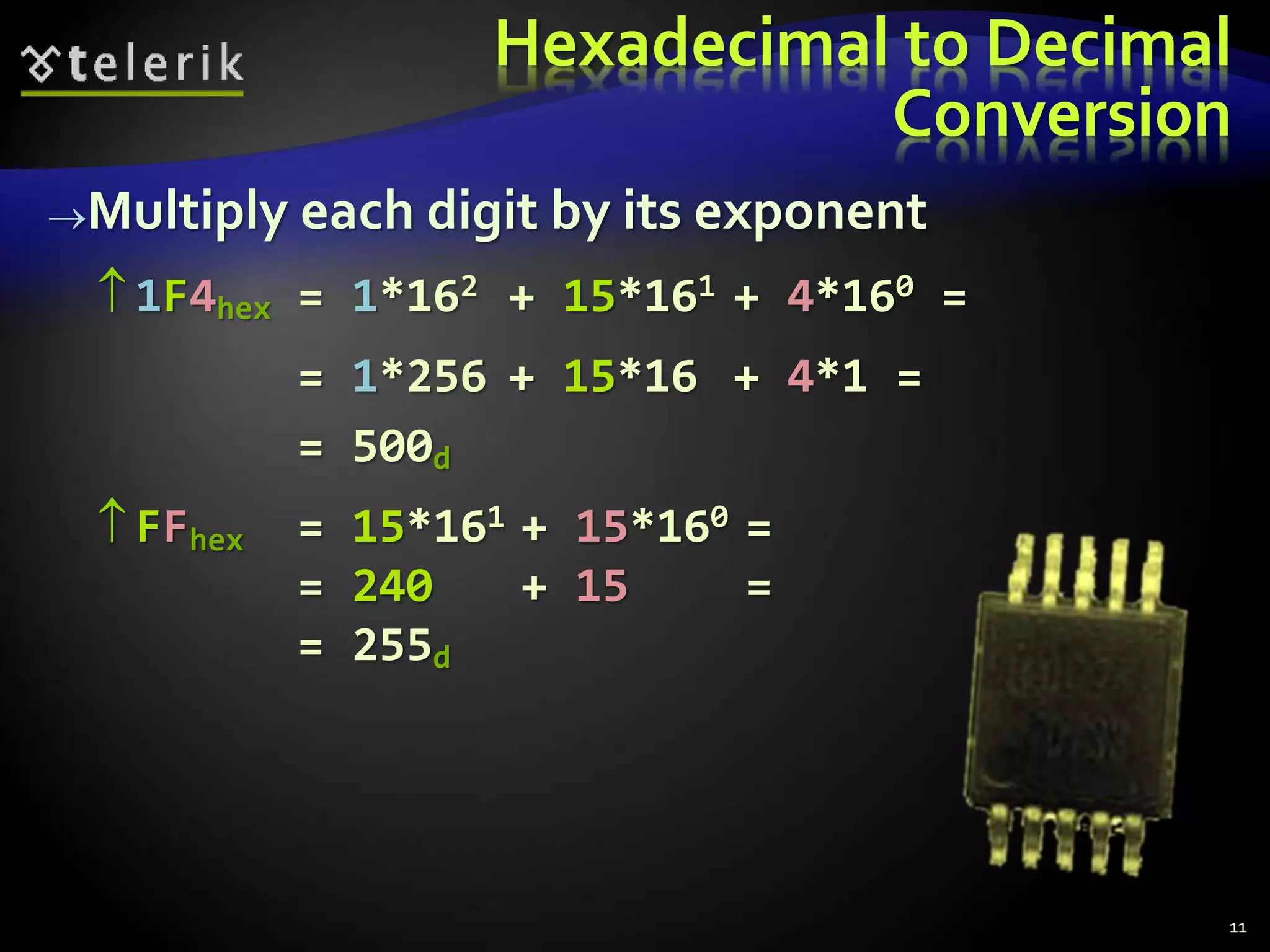

11. Hexadecimal to Decimal
Conversion
Multiply each digit by its exponent
 1F4hex = 1*162 + 15*161 + 4*160 =
= 1*256 + 15*16 + 4*1 =
= 500d
 FFhex = 15*161 + 15*160 =
= 240 + 15 =
= 255d
11

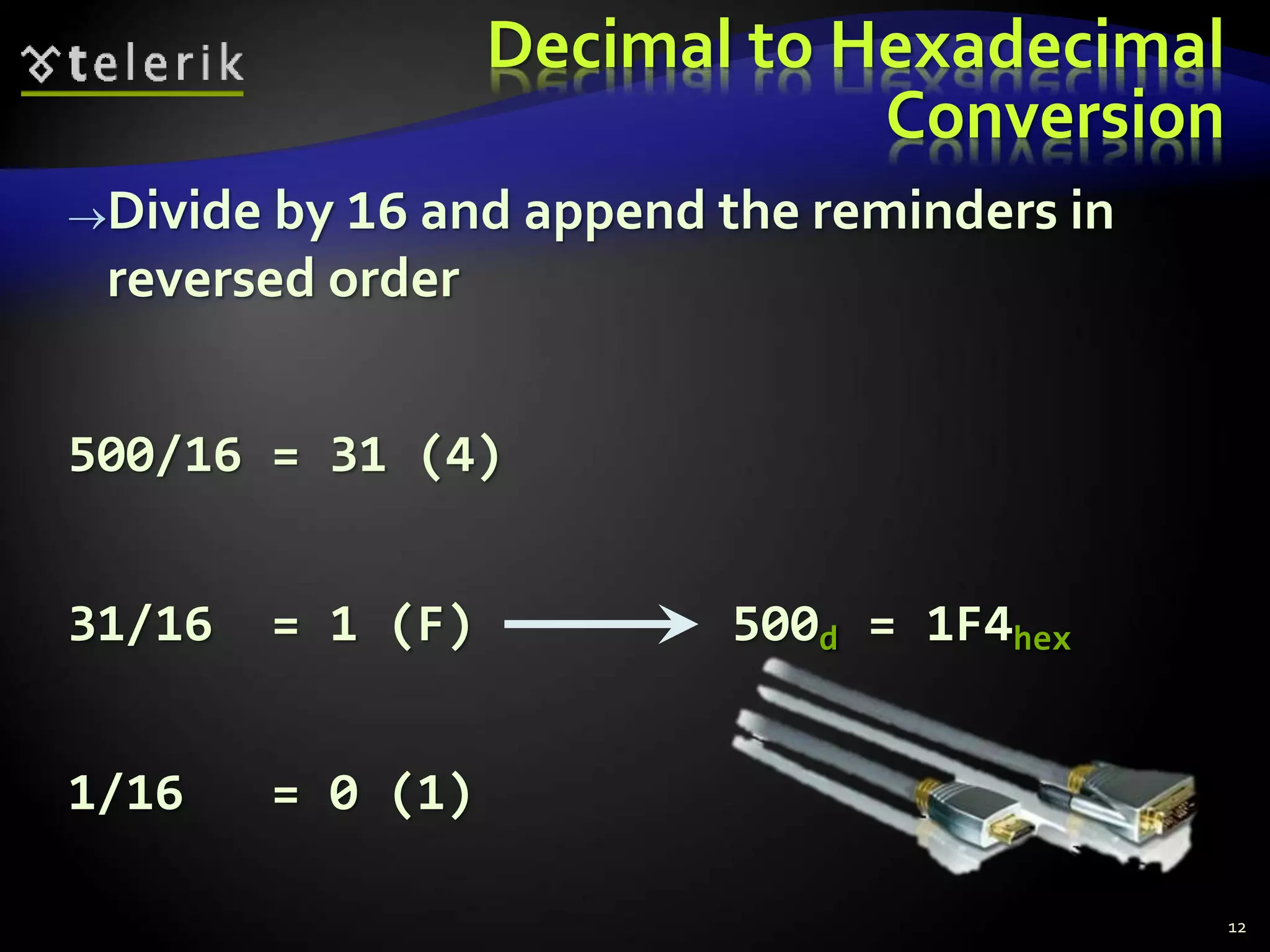

12. Decimal to Hexadecimal
Conversion
Divide by 16 and append the reminders in
reversed order
500/16 = 31 (4)
31/16 = 1 (F) 500d = 1F4hex
1/16 = 0 (1)
12

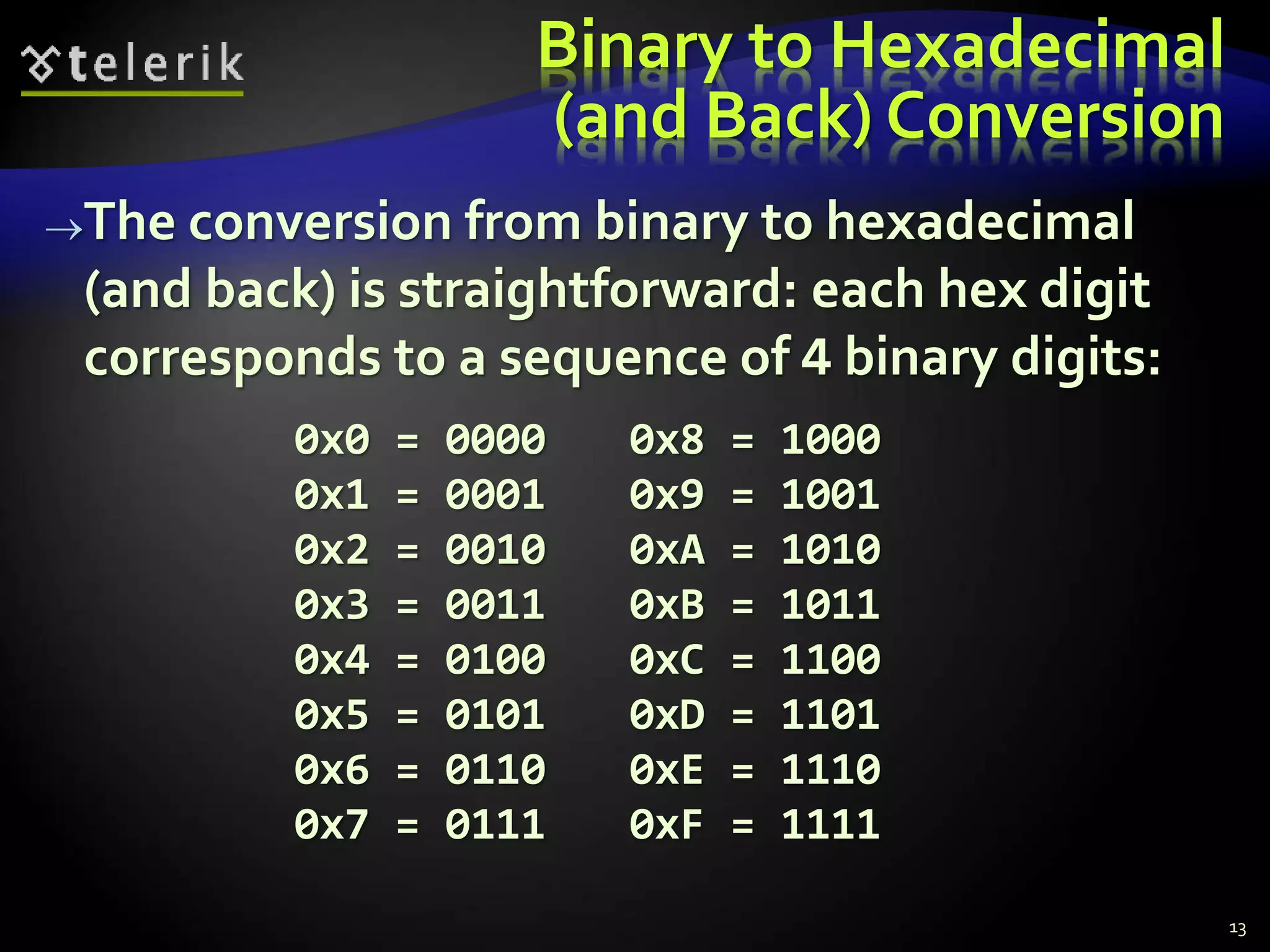

13. Binary to Hexadecimal
(and Back) Conversion
The conversion from binary to hexadecimal
(and back) is straightforward: each hex digit
corresponds to a sequence of 4 binary digits:
0x0 = 0000 0x8 = 1000
0x1 = 0001 0x9 = 1001
0x2 = 0010 0xA = 1010
0x3 = 0011 0xB = 1011
0x4 = 0100 0xC = 1100
0x5 = 0101 0xD = 1101
0x6 = 0110 0xE = 1110
0x7 = 0111 0xF = 1111
13

14. Numbers Representation
Positive and Negative Integers and
Floating-Point Numbers

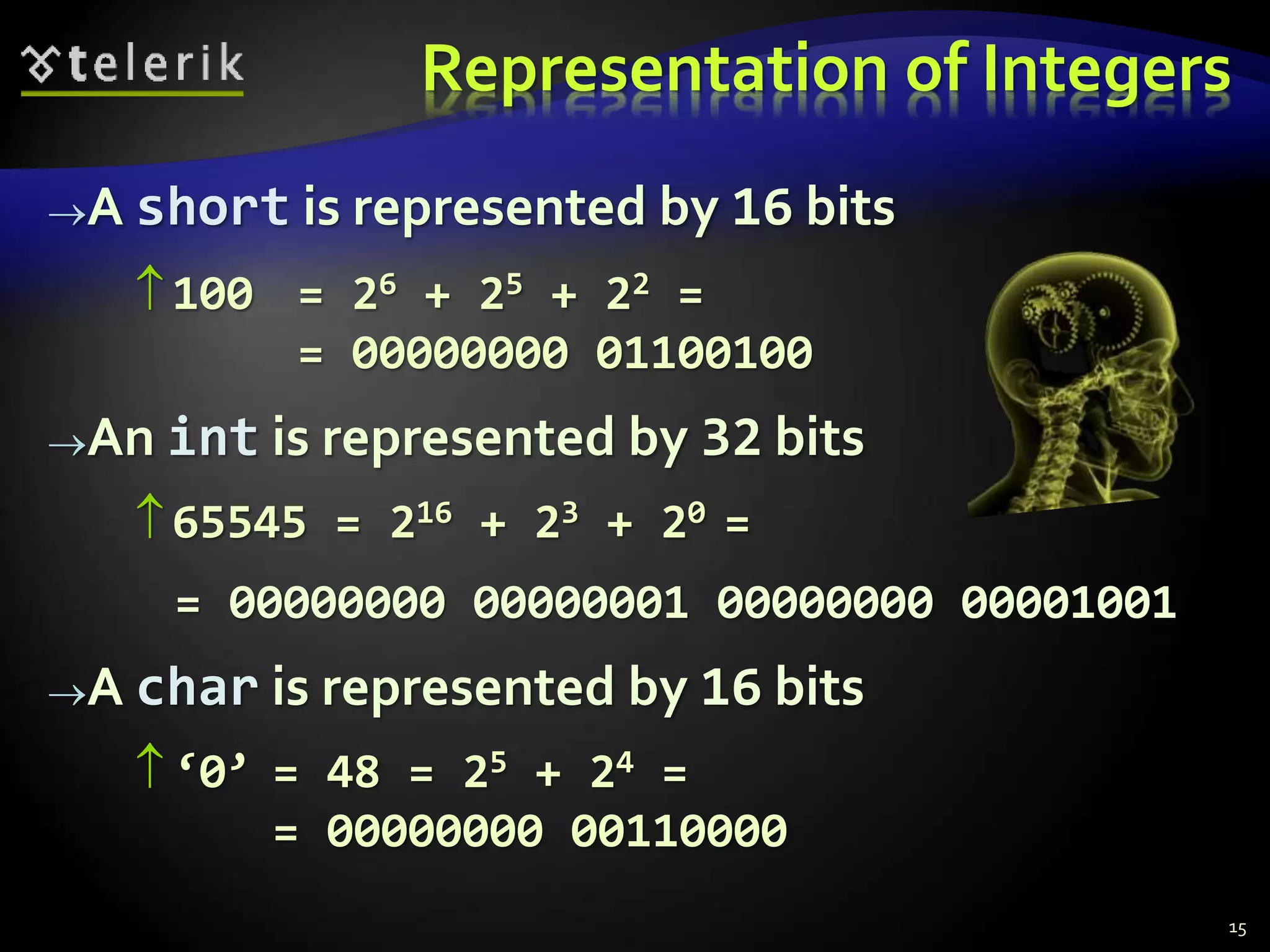

15. Representation of Integers
A short is represented by 16 bits
100 = 26 + 25 + 22 =
= 00000000 01100100
An int is represented by 32 bits
65545 = 216 + 23 + 20 =
= 00000000 00000001 00000000 00001001
A char is represented by 16 bits
‘0’ = 48 = 25 + 24 =
= 00000000 00110000
15

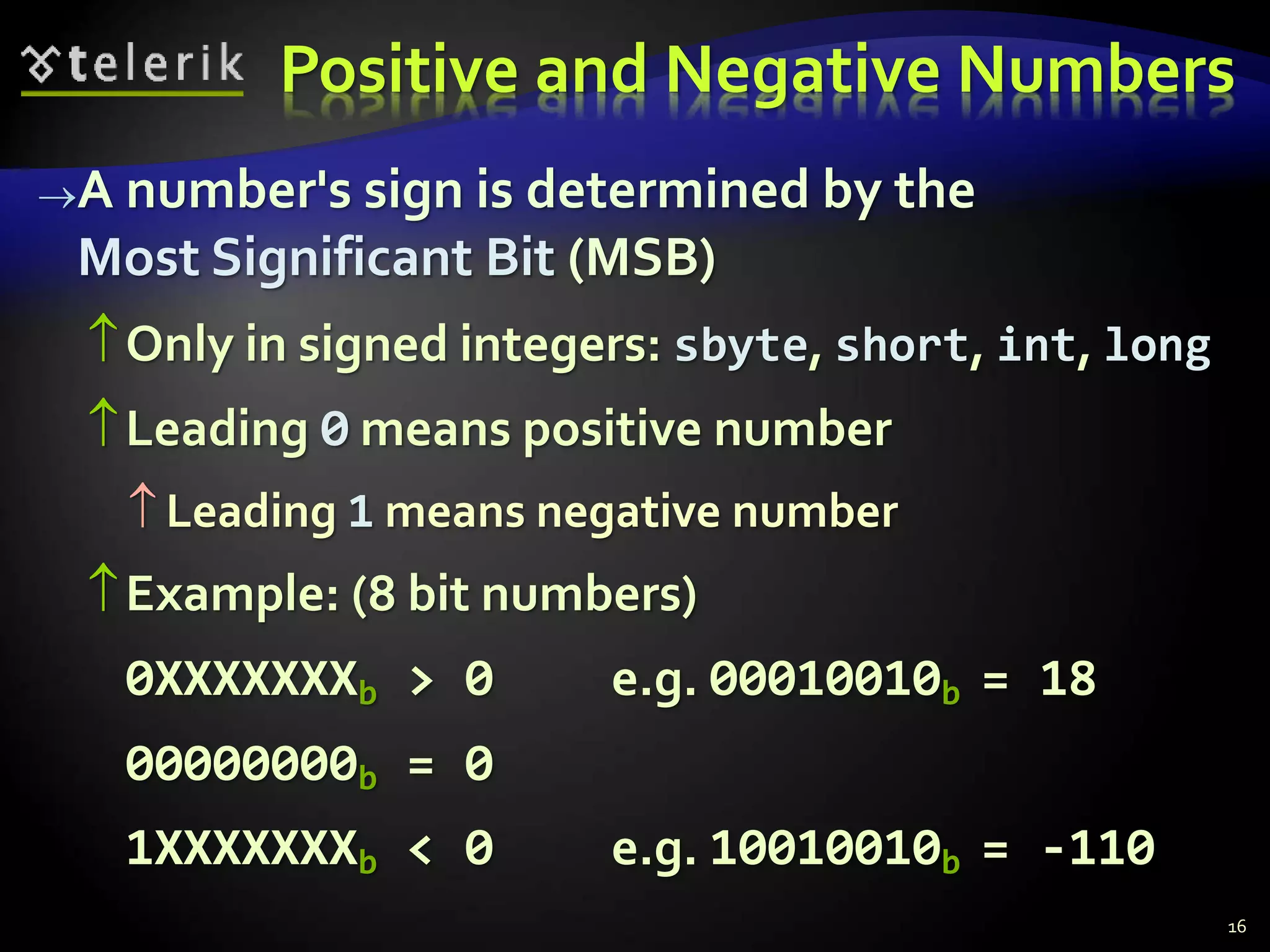

16. Positive and Negative Numbers
A number's sign is determined by the
Most Significant Bit (MSB)
Only in signed integers: sbyte, short, int, long
Leading 0 means positive number
 Leading 1 means negative number
Example: (8 bit numbers)
0XXXXXXXb > 0 e.g. 00010010b = 18
00000000b = 0
1XXXXXXXb < 0 e.g. 10010010b = -110
16

17. Positive and Negative Numbers (2)

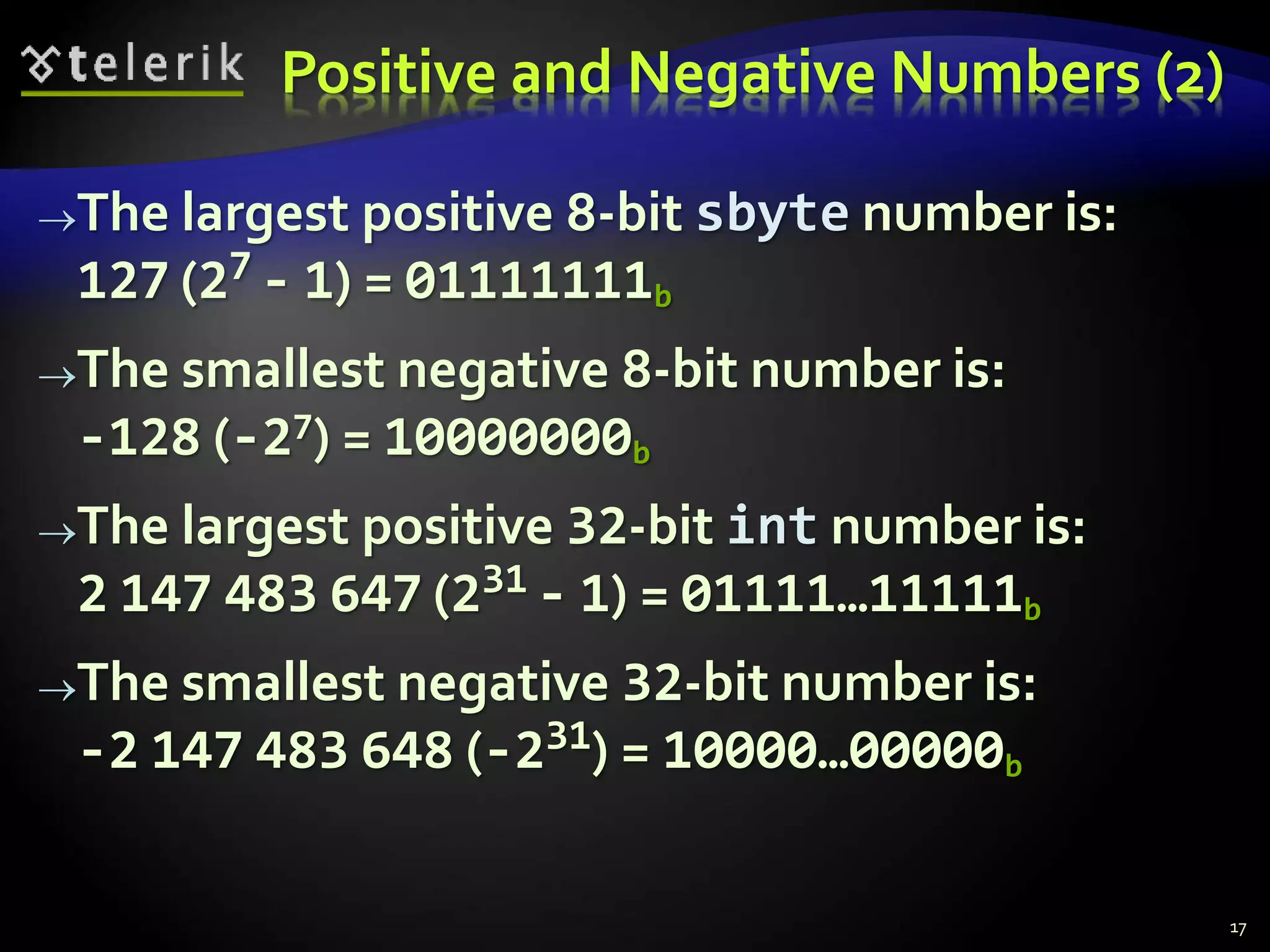

The largest positive 8-bit sbyte number is:
127 (27 - 1) = 01111111b
The smallest negative 8-bit number is:
-128 (-27) = 10000000b
The largest positive 32-bit int number is:
2 147 483 647 (231 - 1) = 01111…11111b
The smallest negative 32-bit number is:
-2 147 483 648 (-231) = 10000…00000b
17

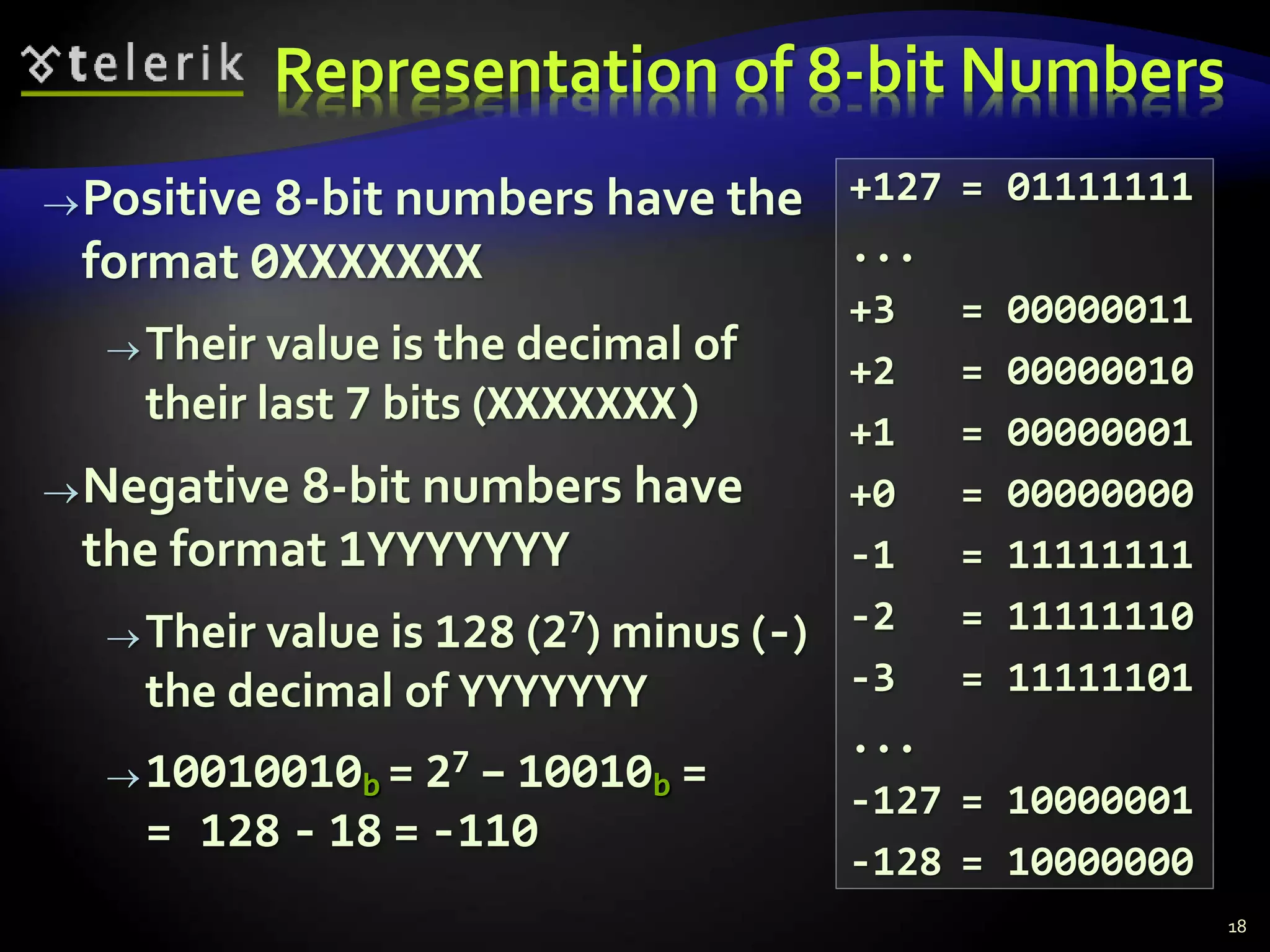

18. Representation of 8-bit Numbers
+127 = 01111111
...
+3 = 00000011
+2 = 00000010
+1 = 00000001
+0 = 00000000
-1 = 11111111
-2 = 11111110
-3 = 11111101
...
-127 = 10000001
-128 = 10000000
Positive 8-bit numbers have the
format 0XXXXXXX
Their value is the decimal of
their last 7 bits (XXXXXXX)
Negative 8-bit numbers have
the format 1YYYYYYY
Their value is 128 (27) minus (-)
the decimal of YYYYYYY
10010010b = 27 – 10010b =
= 128 - 18 = -110
18

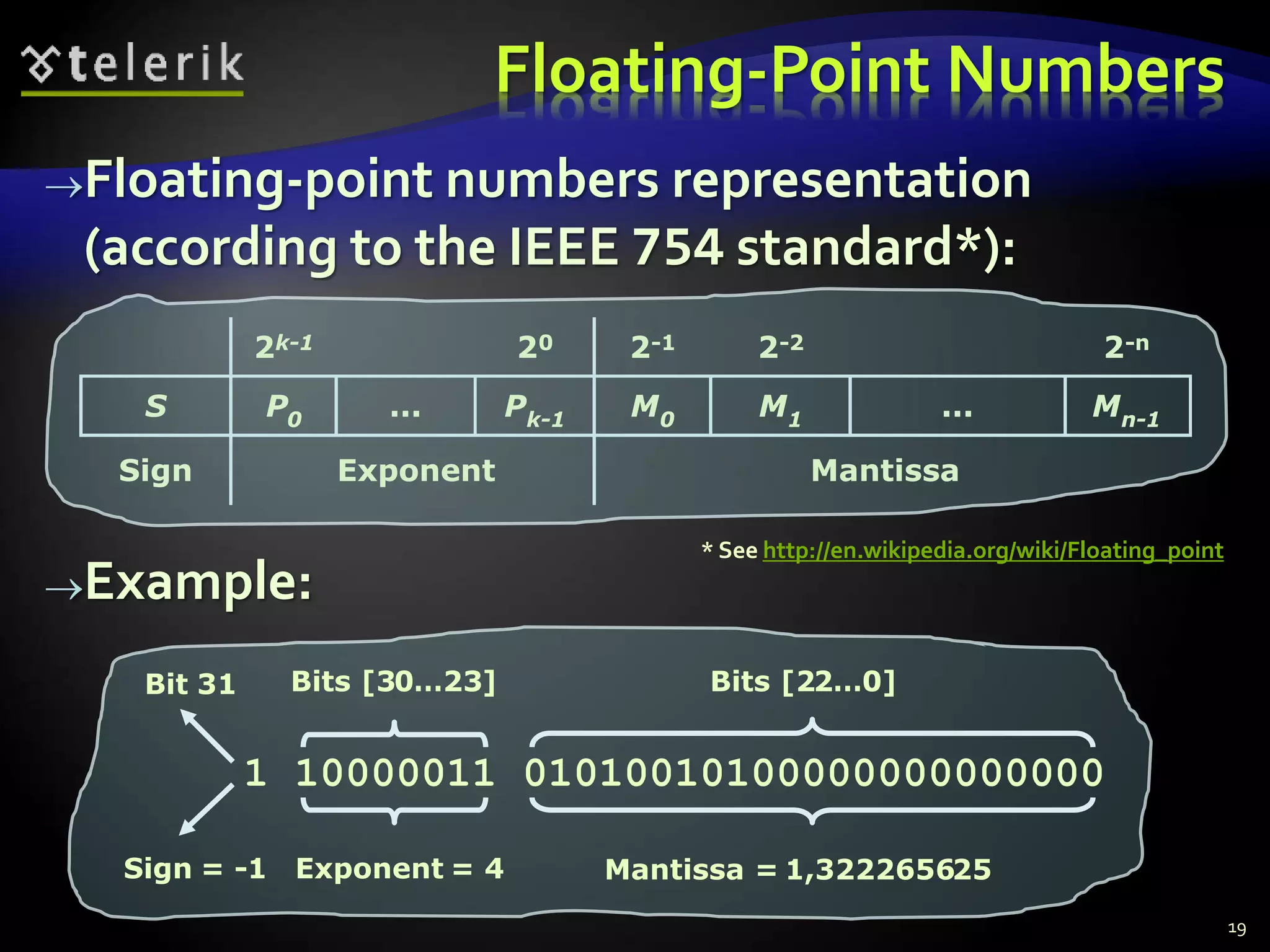

19. Floating-Point Numbers
Floating-point numbers representation
(according to the IEEE 754 standard*):
Example:
19
2k-1 20 2-1 2-2 2-n
S P0 ... Pk-1 M0 M1 ... Mn-1
Sign Exponent Mantissa
1 10000011 01010010100000000000000
Mantissa = 1,322265625Exponent = 4Sign = -1
Bits [22…0]Bits [30…23]Bit 31
* See http://en.wikipedia.org/wiki/Floating_point

20. Text Representation in
Computer Systems

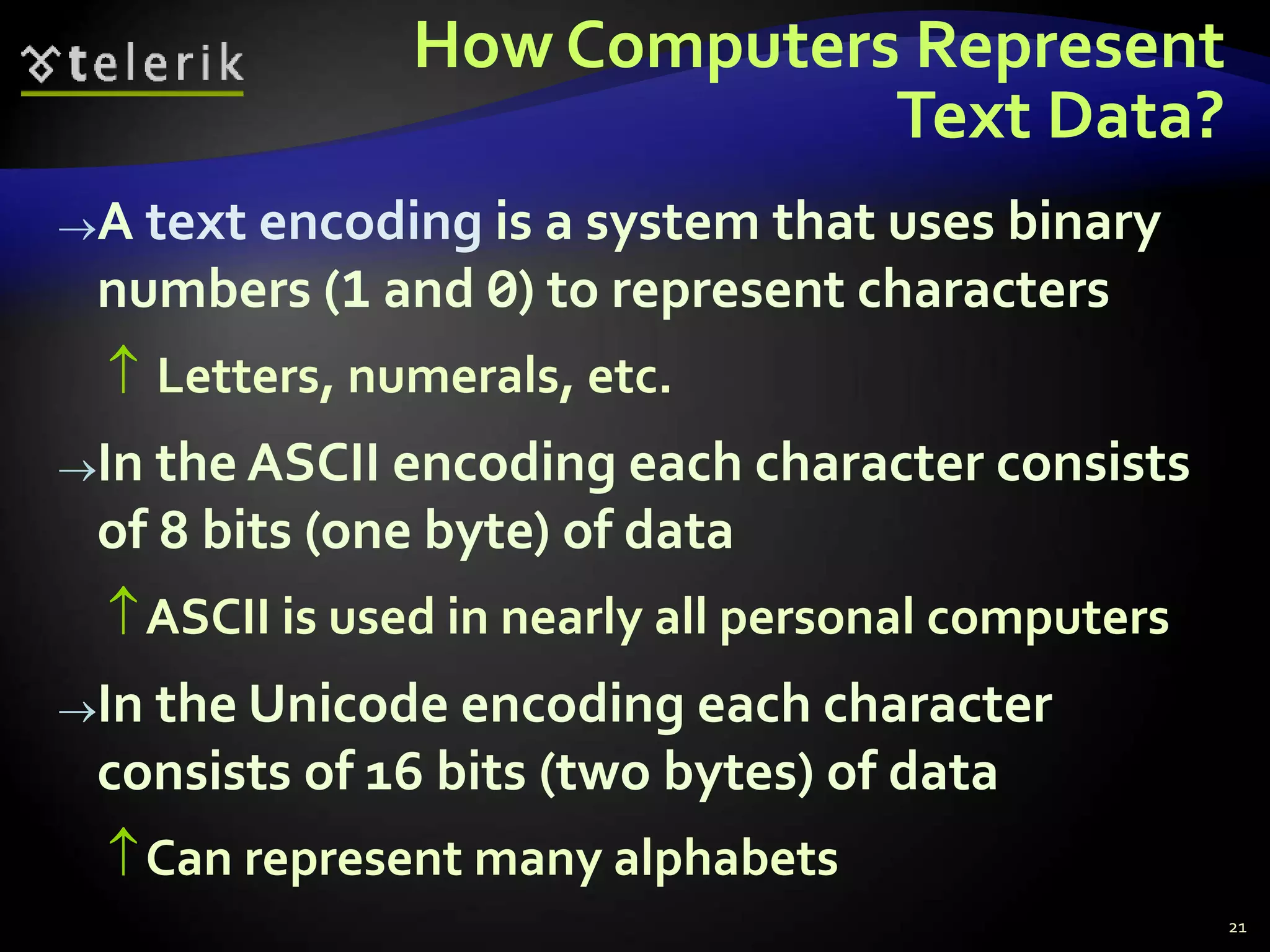

21. How Computers Represent
Text Data?
A text encoding is a system that uses binary
numbers (1 and 0) to represent characters
 Letters, numerals, etc.
In the ASCII encoding each character consists
of 8 bits (one byte) of data
ASCII is used in nearly all personal computers
In the Unicode encoding each character
consists of 16 bits (two bytes) of data
Can represent many alphabets
21

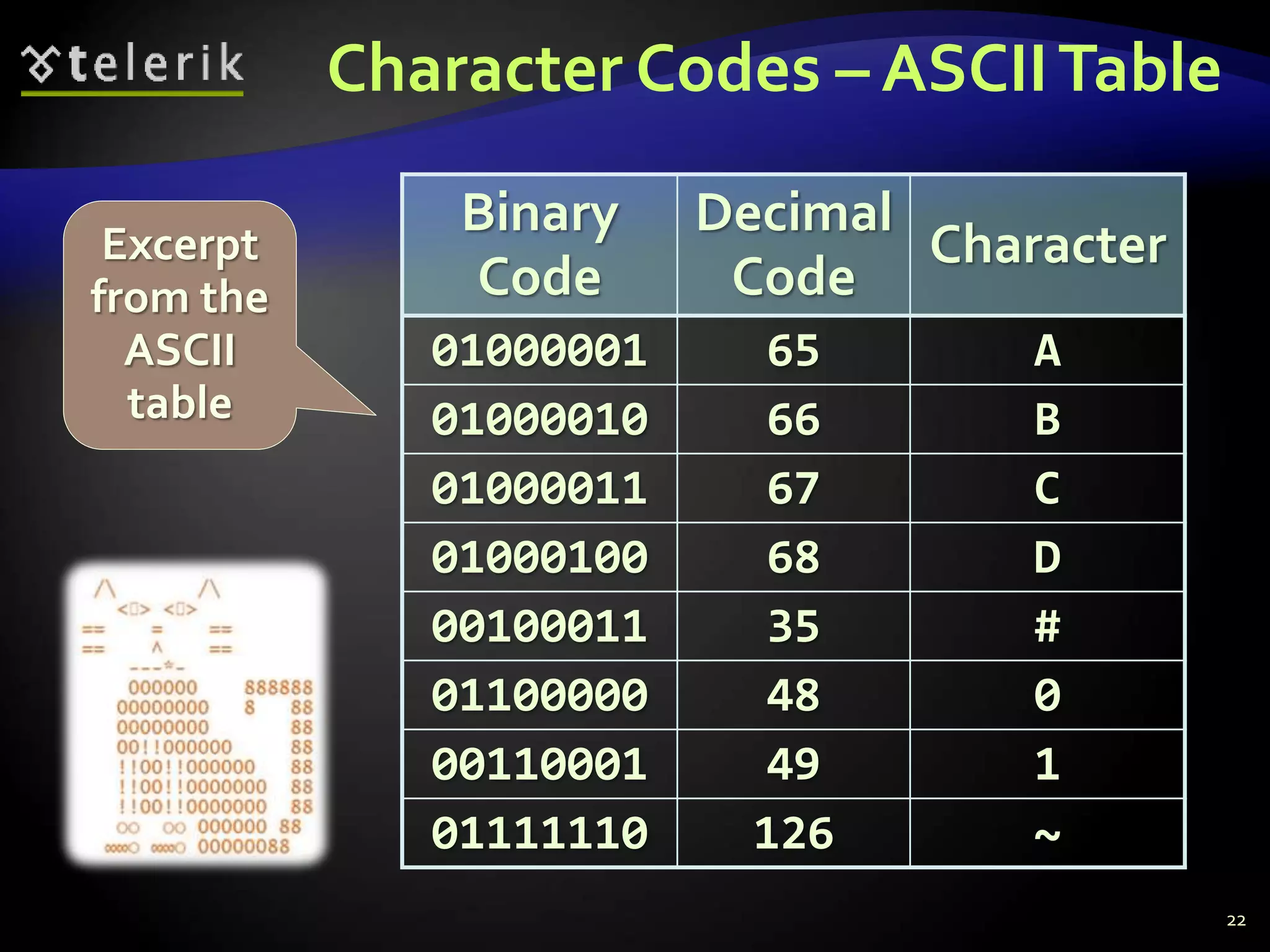

22. Character Codes – ASCIITable
Excerpt
from the
ASCII
table
Binary
Code
Decimal
Code
Character
01000001 65 A
01000010 66 B
01000011 67 C
01000100 68 D
00100011 35 #
01100000 48 0
00110001 49 1
01111110 126 ~
22

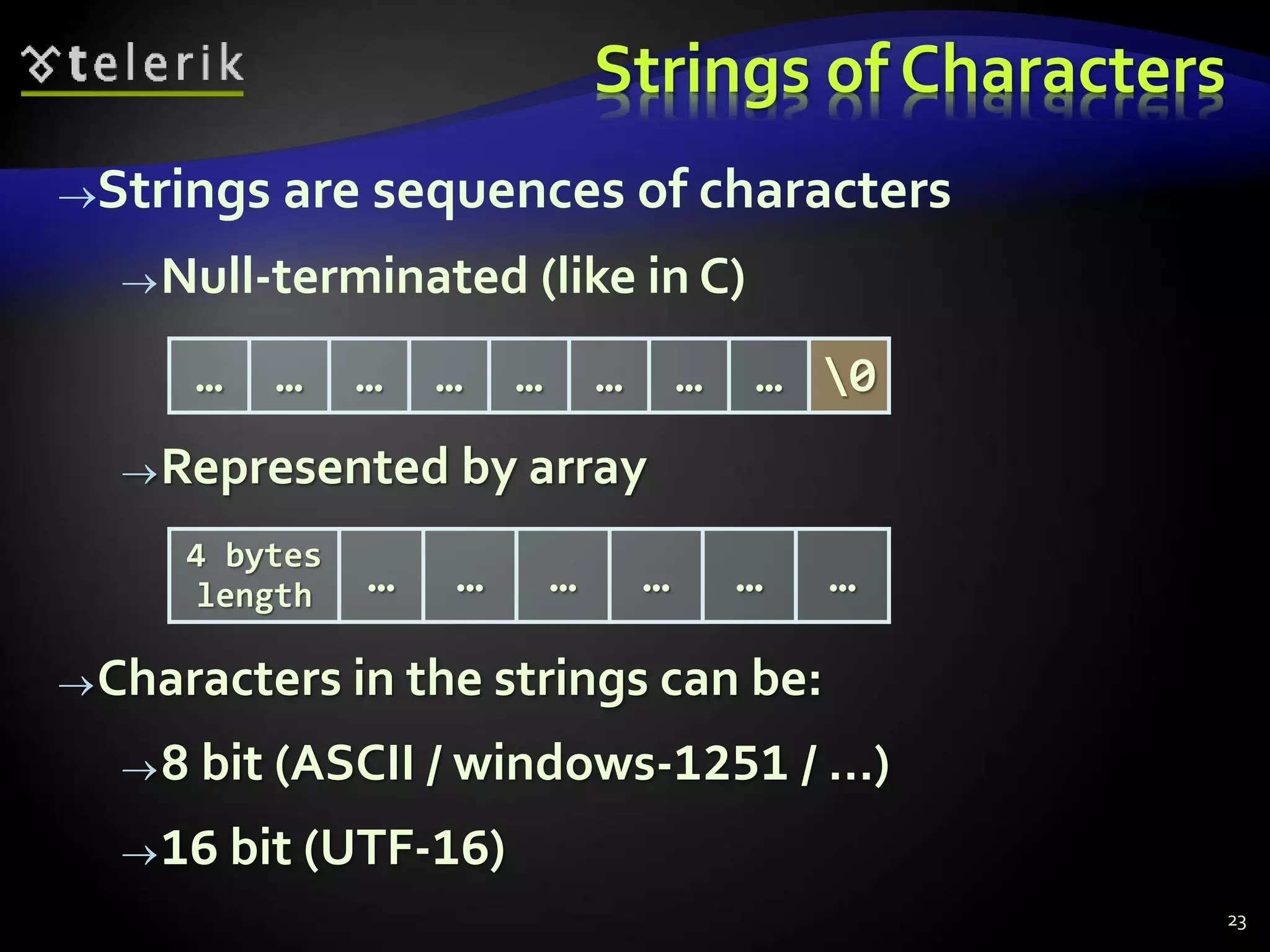

23. Strings of Characters
Strings are sequences of characters
Null-terminated (like in C)
Represented by array
Characters in the strings can be:
8 bit (ASCII / windows-1251 / …)
16 bit (UTF-16)
… … … … … … … … 0
4 bytes
length … … … … … …
23

24. Questions?
Numeral Systems
http://academy.telerik.com

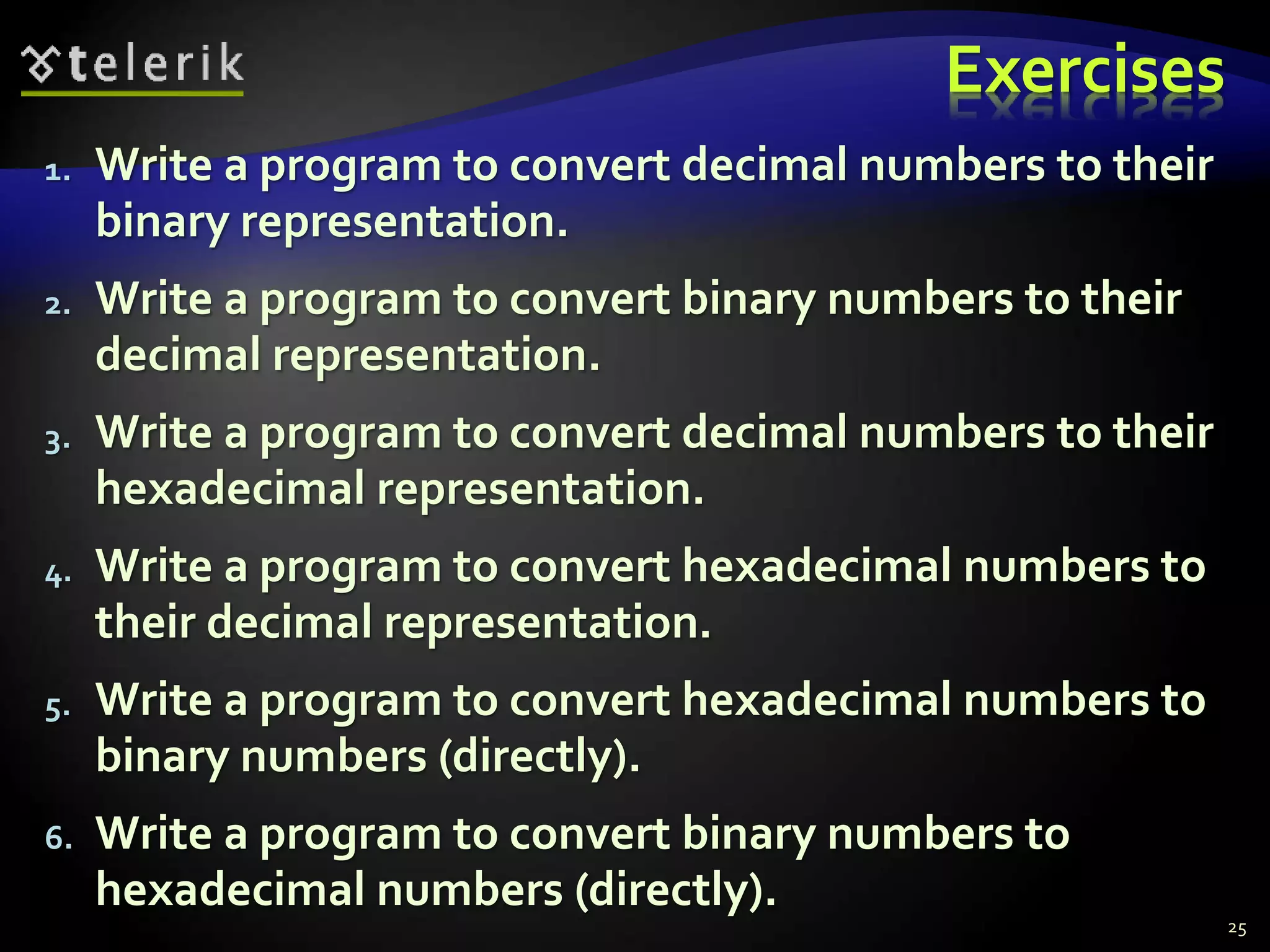

25. Exercises
1. Write a program to convert decimal numbers to their
binary representation.
2. Write a program to convert binary numbers to their
decimal representation.
3. Write a program to convert decimal numbers to their
hexadecimal representation.
4. Write a program to convert hexadecimal numbers to
their decimal representation.
5. Write a program to convert hexadecimal numbers to
binary numbers (directly).
6. Write a program to convert binary numbers to
hexadecimal numbers (directly).
25

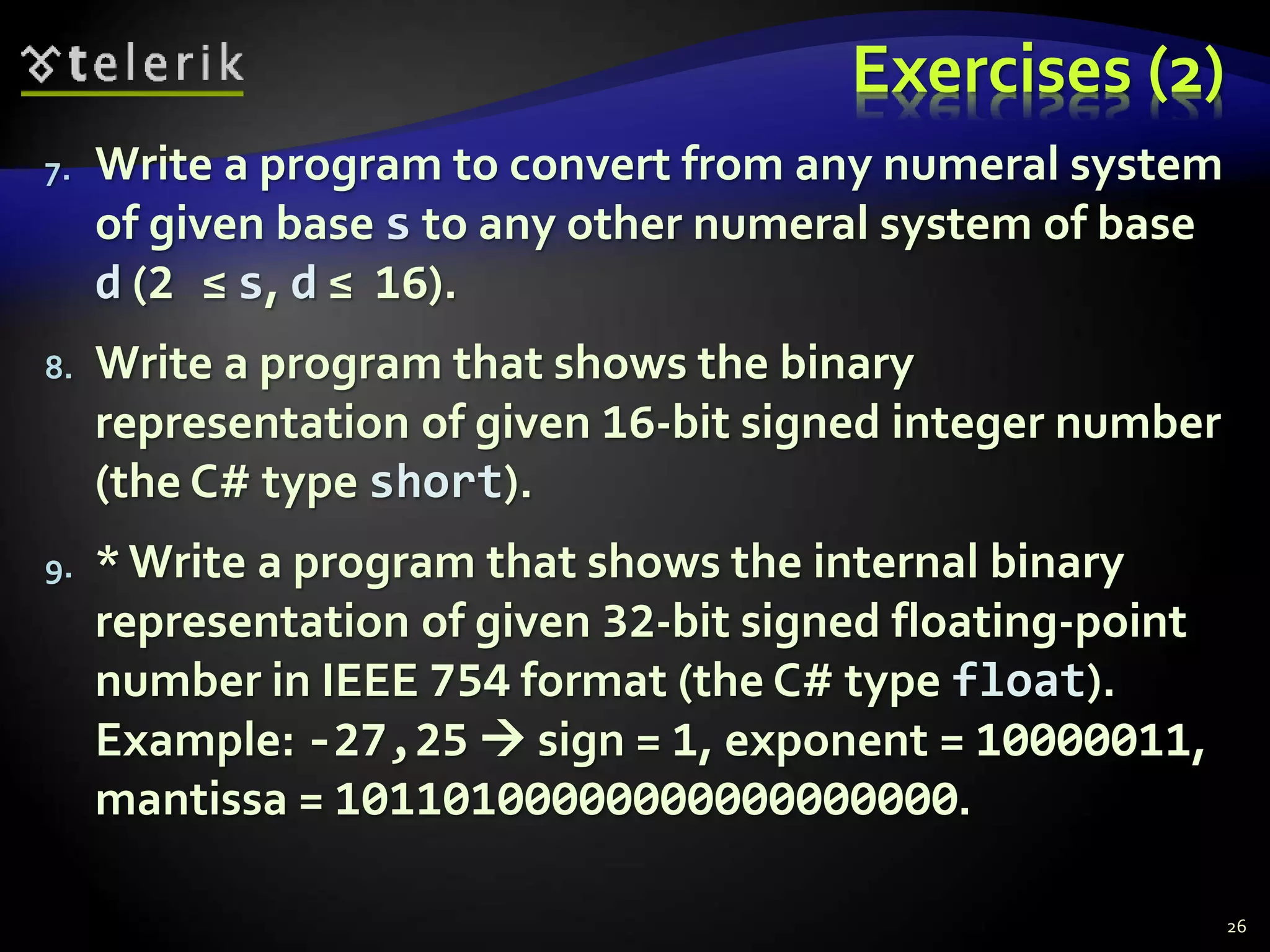

26. Exercises (2)
7. Write a program to convert from any numeral system
of given base s to any other numeral system of base
d (2 ≤ s, d ≤ 16).
8. Write a program that shows the binary
representation of given 16-bit signed integer number
(the C# type short).
9. * Write a program that shows the internal binary
representation of given 32-bit signed floating-point
number in IEEE 754 format (the C# type float).
Example: -27,25  sign = 1, exponent = 10000011,
mantissa = 10110100000000000000000.
26
