Binary code represents data using 0s and 1s. Gray code is a binary system where two consecutive values differ in only one bit, making it useful for minimizing errors in digital circuits. To convert between binary and Gray code, the most significant bit will remain the same while other bits are converted using logic gates that flip values based on adjacent less significant bits.

1. Binary to gray code conversion

2. WHAT IS A BINARY CODE ?
 A binary code represents text or
computer processor instructions using
the binary number system's two binary
digits, 0 and 1. The binary code assigns
a bit string to each symbol or instruction

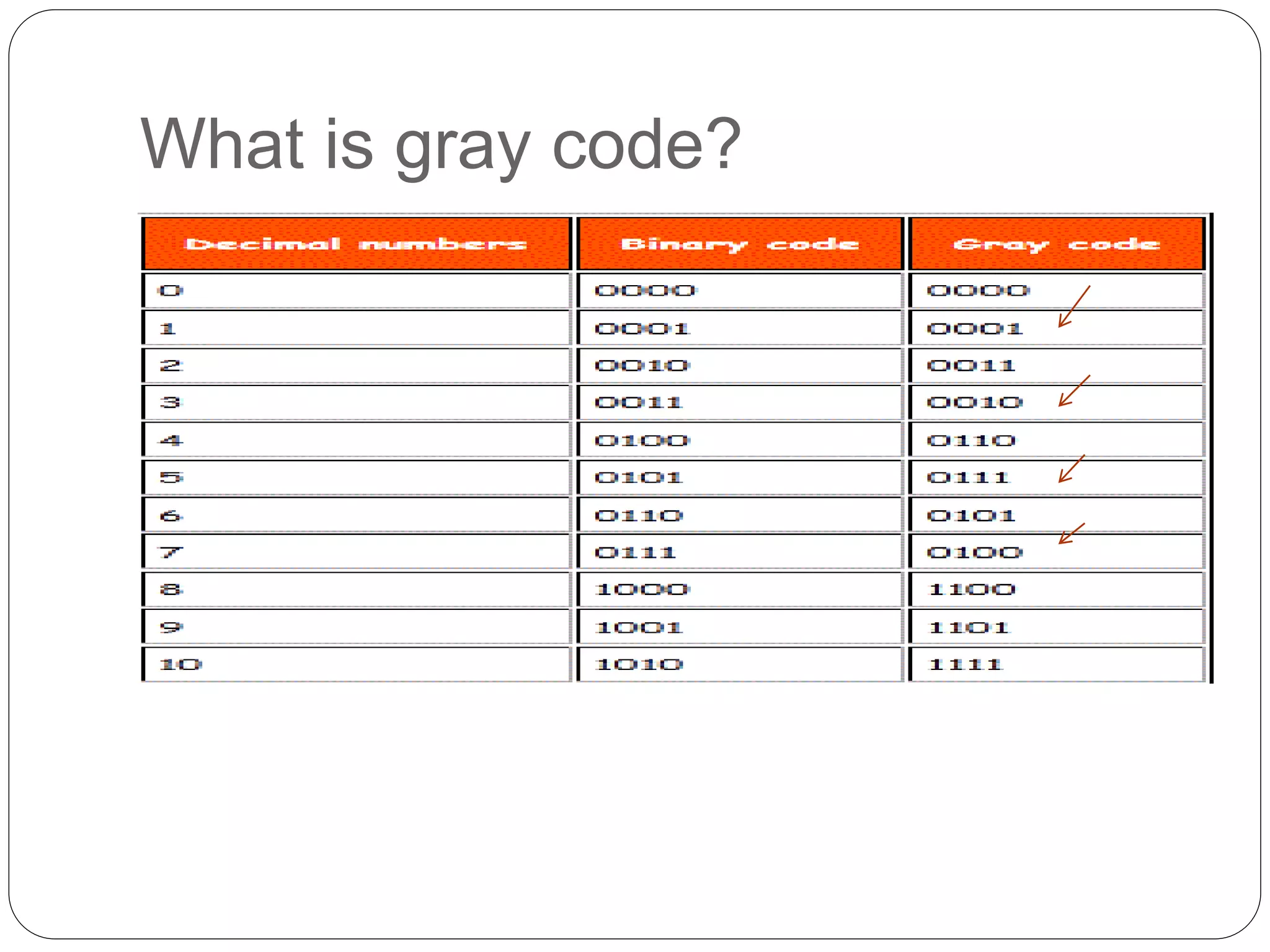

3. What is gray code?
 The reflected binary code, also known
as Gray code after Frank Gray, is a
binary numeral system where two
successive values differ in only one bit
(binary digit)

4. Binary to gray conversion
 Lets take a input string & we have to convert it into
gray code
MSB
WILL
BE
SAME

5. How to built it into a circuit ? What
Could be the logic ?

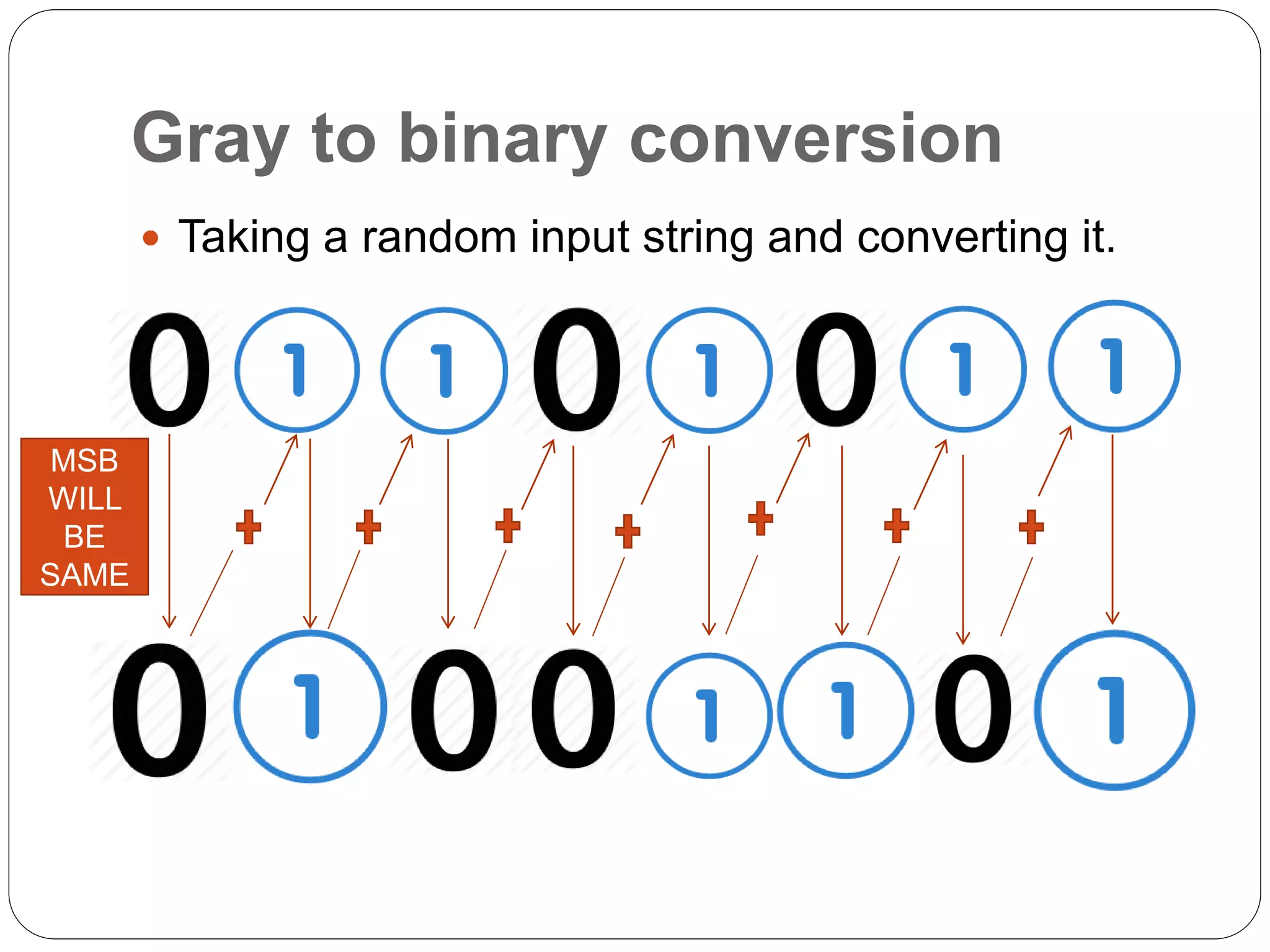

6. Gray to binary conversion
 Taking a random input string and converting it.
MSB
WILL
BE
SAME

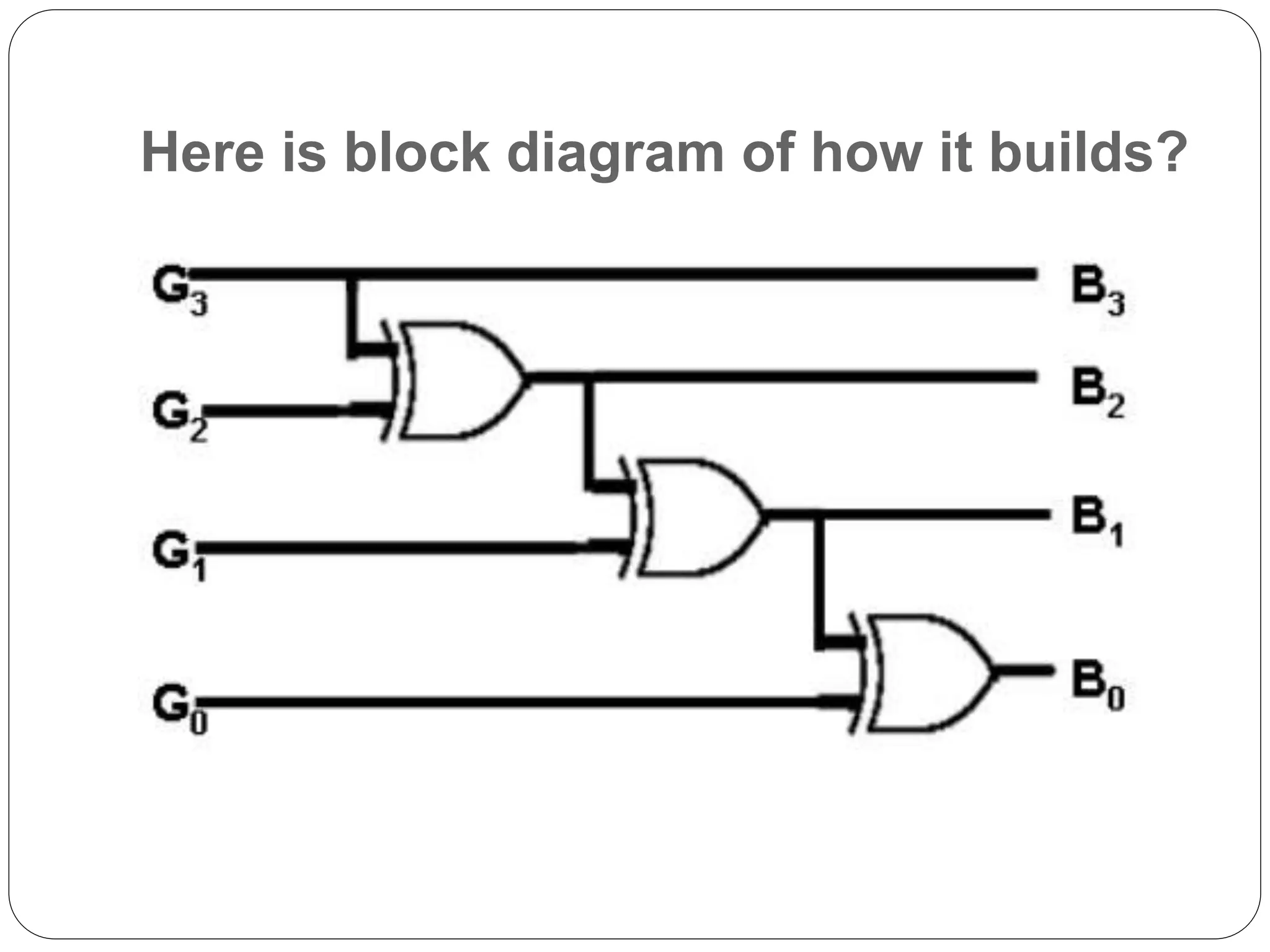

7. Here is block diagram of how it builds?

8. SIMULATION(BINARY-GRAY)

9. SIMULATION(GRAY-BINARY)

10. THANK YOU!!
