Binary to grey code conversion
•Download as PPTX, PDF•
9 likes•7,495 views
Binary code represents data using 0s and 1s. Gray code is a binary system where two consecutive values differ in only one bit, making it useful for minimizing errors in digital circuits. To convert between binary and Gray code, the most significant bit will remain the same while other bits are converted using logic gates that flip values based on adjacent less significant bits.
Report
Share
Report
Share
Recommended
4 bit Binary to Gray converter using XOR
The BINARY to GRAY CODE CONVERTER is a digital circuit that is used to convert the binary input into the corresponding equivalent gray code at its output
Dlc{binary to gray code conversion} ppt
BINARY TO GRAY CODE CONVERSION

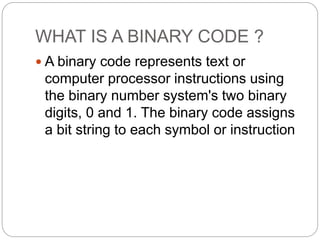

1- WHAT IS A BINARY CODE ?
-> A binary code represents text or computer processor instructions using the binary number system's two binary digits, 0 and 1. The binary code assigns a bit string to each symbol or instruction.
2- WHAT IS A GRAY CODE ?
-> The reflected binary code(RBC), also known as Gray code after Frank Gray, is a binary numeral system where two successive values differ in only one bit. This code was originally designed to prevent spurious output from electromechanical switches.
THE GRAY CODE{Image in Ppt}

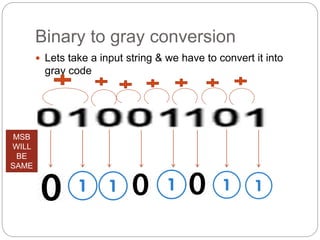

3- Binary-to-Gray code conversion
->
The MSB in the Gray code is the same as corresponding MSB in the binary number.
Going from left to right, add each adjacent pair of binary code bits to get the next Gray code bit. Discard carries.
ex: convert 101102 to Gray code
1 + 0 + 1 + 1 + 0 binary
1 1 1 0 1 Gray

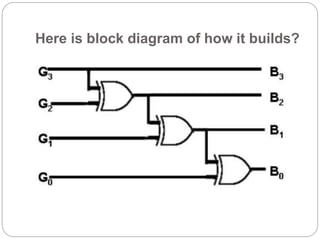

CONVERTING CIRCUIT{Image in Ppt}
LOGIC DIAGRAM OF 4 BIT BINARY TO GRAY CODE CONVERTER{Image in Ppt}
TRUTH TABLE{Image in Ppt}
All images related to topics are in ppt.
THANK YOU
