The document discusses the features and design of a smart note taker. A smart note taker is a digital pen that can capture handwritten notes and convert them to digital text. It allows users to write notes in the air or on paper and have them saved digitally. The document outlines the internal components of a smart note taker including its database, block diagram, and how handwriting is recognized and converted to text. Advantages are that it is helpful for those who are blind and a time-saving device. Disadvantages include that smart note takers are expensive and processing can be slower.

2. CONTENT
Introduction
Features
Construction
Internal structure of SNT
Working of smart note taker
Explanation
Database
Block diagram of SNT
Advantages and Disadvantage
Current products
Conclusion
References

3. INTRODUCTION
SMART NOTE TAKER (A DIGITAL PEN)-
Smart note taker is one of useful product which can
satisfy the needs of people in today’s technological and
fast life.
With the help of smart note taker people will be able
to make notes in air, while being busy with their work.
The written notes will be stored in the memory chip of
the pen and will be able to read in digital medium after
the job is done.
Note taking in education is perceived as a major
component in the learning process.

4. to be continued…….
One of the smart note taker is LIVESCRIBE SMART
PEN, invented by Jim Margraff in Oakland.

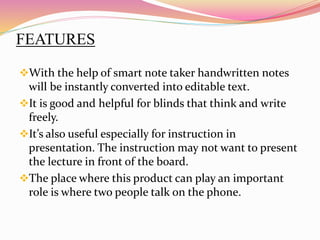

5. FEATURES
With the help of smart note taker handwritten notes
will be instantly converted into editable text.
It is good and helpful for blinds that think and write
freely.
It’s also useful especially for instruction in
presentation. The instruction may not want to present
the lecture in front of the board.
The place where this product can play an important
role is where two people talk on the phone.

6. To be continued……
The drawn figure can be processed and directly sent to the
server computer in the room.
The server computer then can broadcast the drawn shape
through network to all of the computers which are present
in the room.

7. to be continued……
It can recognize upto 22 languages such as English-
Canada, English-GB, English-US, German, Simplified
Chinese, Traditional Chinese, Korean, Danish, etc….

8. CONSTRUCTION AND WORKING
Since, JAVA applet is suitable for both the
drawings and strings all these applications can be
put together by developing a single JAVA applet
program.
The java code that we will develop will also be
installed on the pen so that the processor in the
pen will be able to draw and type the desired text
on the display panel.
Applet is a function of java which for example, is a
kind of container (file) which contains a set of
programs made in java.

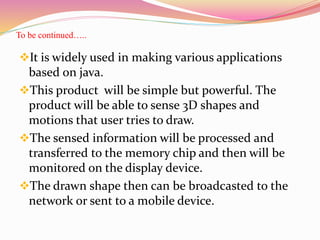

9. To be continued…..
It is widely used in making various applications
based on java.
This product will be simple but powerful. The
product will be able to sense 3D shapes and
motions that user tries to draw.
The sensed information will be processed and
transferred to the memory chip and then will be
monitored on the display device.
The drawn shape then can be broadcasted to the
network or sent to a mobile device.

10. INTERNAL STRUCTURE OF SMART
NOTE TAKER

11. WORKING OF SMART NOTE TAKER

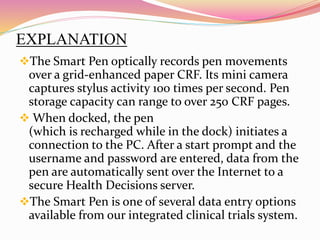

12. EXPLANATION
The Smart Pen optically records pen movements
over a grid-enhanced paper CRF. Its mini camera
captures stylus activity 100 times per second. Pen
storage capacity can range to over 250 CRF pages.
 When docked, the pen
(which is recharged while in the dock) initiates a
connection to the PC. After a start prompt and the
username and password are entered, data from the
pen are automatically sent over the Internet to a
secure Health Decisions server.
The Smart Pen is one of several data entry options
available from our integrated clinical trials system.

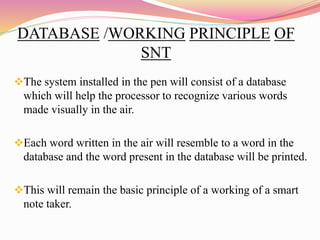

13. DATABASE /WORKING PRINCIPLE OF
SNT
The system installed in the pen will consist of a database
which will help the processor to recognize various words
made visually in the air.
Each word written in the air will resemble to a word in the
database and the word present in the database will be printed.
This will remain the basic principle of a working of a smart
note taker.

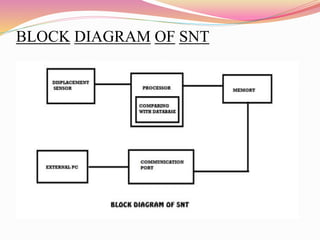

14. BLOCK DIAGRAM OF SNT

15. ADVANTAGES
Smart note taker is reliable and powerful.
It is helpful for blinds that think and write freely.
Smart note taker is used for instructors in
presentations.
 easy-to-use wireless connection.
Drawer (contents outline, library, history).
it is helpful for blinds that think and write freely.
it is time saving.
It is used along with paint and JAVA graphics so we can
say this product is compatible with all graphics
software.

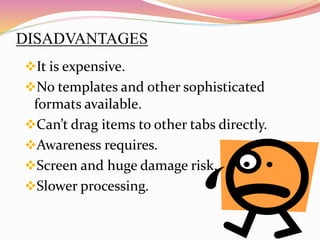

16. DISADVANTAGES
It is expensive.
No templates and other sophisticated
formats available.
Can’t drag items to other tabs directly.
Awareness requires.
Screen and huge damage risk.
Slower processing.

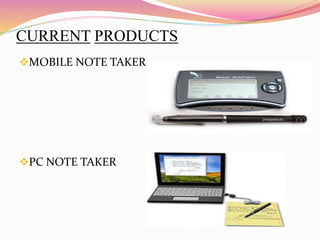

17. CURRENT PRODUCTS
MOBILE NOTE TAKER
PC NOTE TAKER

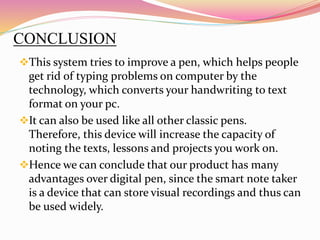

18. CONCLUSION
This system tries to improve a pen, which helps people
get rid of typing problems on computer by the
technology, which converts your handwriting to text
format on your pc.
It can also be used like all other classic pens.
Therefore, this device will increase the capacity of
noting the texts, lessons and projects you work on.
Hence we can conclude that our product has many
advantages over digital pen, since the smart note taker
is a device that can store visual recordings and thus can
be used widely.

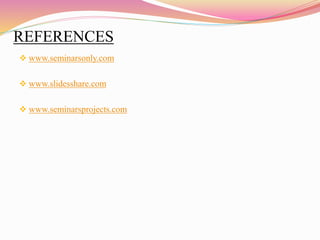

19. REFERENCES
