Design involves formulating a plan to satisfy a particular need and create something with physical reality. When designing a chair, factors like purpose, intended user (adult or child), material strength and cost, aesthetics, and ergonomics must be considered. Machine design uses technical information, scientific principles, and imagination to design machines to perform specific functions with maximum economy and efficiency. This document discusses various machine design considerations and principles like types of loads, material selection, and theories of failure.
The document discusses stress concentration and fatigue failure in machine elements. It defines stress concentration as the localization of high stresses due to irregularities or abrupt changes in cross-section. Stress concentration can be reduced by avoiding sharp changes in cross-section and providing fillets and chamfers. Fatigue failure occurs when fluctuating stresses cause cracks over numerous load cycles. The endurance limit is the maximum stress amplitude that causes failure after an infinite number of cycles. Factors like stress concentration, surface finish, size, and mean stress affect the endurance limit. Designs should minimize stress raisers and protect against corrosion to prevent fatigue failures.
Basic types of screw fasteners, Bolts of uniform
strength, I.S.O. Metric screw threads, Bolts under
tension, eccentrically loaded bolted joint in shear,
Eccentric load perpendicular and parallel to axis of
bolt, Eccentric load on circular base, design of Turn
Buckle.
1. The document discusses the fundamentals and types of mechanisms in machine theory. It covers kinematics, dynamics, types of links, kinematic pairs, and classifications of kinematic pairs.
2. A kinematic chain is formed when kinematic pairs are coupled together to transmit motion. The relationships between the number of links, pairs, and joints in a kinematic chain are explained.
3. Common kinematic chains including four-bar chains, single slider-crank chains, and double slider-crank chains are described. Inversions of mechanisms by fixing different links are used to obtain different mechanisms.
ME6601 - DESIGN OF TRANSMISSION SYSTEM NOTES AND QUESTION BANK ASHOK KUMAR RAJENDRAN
This document contains the question bank for the subject ME6601 - Design of Transmission Systems for the sixth semester Mechanical Engineering students of RMK College of Engineering and Technology. It is prepared by R. Ashok Kumar and S. Arunkumar, faculty of the Mechanical Engineering department.
The question bank contains 190 questions divided into two parts: Part A containing conceptual questions and Part B containing design/numerical problems. The questions cover the five units of the subject - Design of Flexible Elements, Spur Gears and Parallel Axis Helical Gears, Bevel, Worm and Cross Helical Gears, Gear Boxes, and Cams, Clutches and Brakes. Most questions are related
Working, Construction And Types of Band BrakesKhushal Hudke
Band brakes consist of a flexible band wrapped around a rotating drum that is used to slow or stop the drum's rotation. The band is made of materials like leather or steel lined with friction material. One end of the band is attached to a lever's fulcrum while the other end attaches to the lever at a distance, allowing an external force applied to the lever to tighten the band against the drum. When the band tightens, friction between the band and drum is created, applying a tangential force to the drum to slow or stop its movement. Band brakes can be classified as simple or differential, with differential brakes being self-energizing and potentially self-locking.
BEST PPT FOR DOWNLOADING & SUBMISSION
INFORMATION IN POINTS
When the inertia forces are considered in the analysis of the mechanism, the analysis is known as dynamic force analysis.
Now applying D’Alembert principle one may reduce a dynamic system into an equivalent static system and use the techniques used in static force analysis to study the system.
Garcia and Bayo (1994), Wang and Wang (1998), Shi and Mc Phee (2000) were interested in the analytical and
experimental study of the dynamic response of these mechanisms
This document discusses rope drives and the types of ropes used to transmit power over long distances. Fibre ropes made of materials like hemp and manila are suitable for transmitting moderate power over short distances up to 8 meters. Wire ropes are used for transmitting large amounts of power over longer distances up to 150 meters. Wire ropes can transmit power between pulleys that are further apart than fibre ropes and are made of strong materials like alloy steel. The document provides details on the design and selection of wire ropes, including considerations for stresses from axial loads, bending around pulleys, starting and stopping loads, and impact loads. An example problem is included to demonstrate the selection of a wire rope for a mine hoist.
(1) The document discusses power screws, which are screw and nut systems that convert rotational motion to linear motion.
(2) Power screws have advantages like high efficiency in transmitting power but limitations like lower strength than V-threads.
(3) Common forms of threads for power screws include square, ACME, trapezoidal, and buttress threads, which vary in properties like strength, efficiency, and direction of power transmission.
The document discusses stress concentration and fatigue failure in machine elements. It defines stress concentration as the localization of high stresses due to irregularities or abrupt changes in cross-section. Stress concentration can be reduced by avoiding sharp changes in cross-section and providing fillets and chamfers. Fatigue failure occurs when fluctuating stresses cause cracks over numerous load cycles. The endurance limit is the maximum stress amplitude that causes failure after an infinite number of cycles. Factors like stress concentration, surface finish, size, and mean stress affect the endurance limit. Designs should minimize stress raisers and protect against corrosion to prevent fatigue failures.
Basic types of screw fasteners, Bolts of uniform
strength, I.S.O. Metric screw threads, Bolts under
tension, eccentrically loaded bolted joint in shear,
Eccentric load perpendicular and parallel to axis of
bolt, Eccentric load on circular base, design of Turn
Buckle.
1. The document discusses the fundamentals and types of mechanisms in machine theory. It covers kinematics, dynamics, types of links, kinematic pairs, and classifications of kinematic pairs.
2. A kinematic chain is formed when kinematic pairs are coupled together to transmit motion. The relationships between the number of links, pairs, and joints in a kinematic chain are explained.
3. Common kinematic chains including four-bar chains, single slider-crank chains, and double slider-crank chains are described. Inversions of mechanisms by fixing different links are used to obtain different mechanisms.
ME6601 - DESIGN OF TRANSMISSION SYSTEM NOTES AND QUESTION BANK ASHOK KUMAR RAJENDRAN
This document contains the question bank for the subject ME6601 - Design of Transmission Systems for the sixth semester Mechanical Engineering students of RMK College of Engineering and Technology. It is prepared by R. Ashok Kumar and S. Arunkumar, faculty of the Mechanical Engineering department.
The question bank contains 190 questions divided into two parts: Part A containing conceptual questions and Part B containing design/numerical problems. The questions cover the five units of the subject - Design of Flexible Elements, Spur Gears and Parallel Axis Helical Gears, Bevel, Worm and Cross Helical Gears, Gear Boxes, and Cams, Clutches and Brakes. Most questions are related
Working, Construction And Types of Band BrakesKhushal Hudke
Band brakes consist of a flexible band wrapped around a rotating drum that is used to slow or stop the drum's rotation. The band is made of materials like leather or steel lined with friction material. One end of the band is attached to a lever's fulcrum while the other end attaches to the lever at a distance, allowing an external force applied to the lever to tighten the band against the drum. When the band tightens, friction between the band and drum is created, applying a tangential force to the drum to slow or stop its movement. Band brakes can be classified as simple or differential, with differential brakes being self-energizing and potentially self-locking.
BEST PPT FOR DOWNLOADING & SUBMISSION
INFORMATION IN POINTS
When the inertia forces are considered in the analysis of the mechanism, the analysis is known as dynamic force analysis.
Now applying D’Alembert principle one may reduce a dynamic system into an equivalent static system and use the techniques used in static force analysis to study the system.
Garcia and Bayo (1994), Wang and Wang (1998), Shi and Mc Phee (2000) were interested in the analytical and
experimental study of the dynamic response of these mechanisms
This document discusses rope drives and the types of ropes used to transmit power over long distances. Fibre ropes made of materials like hemp and manila are suitable for transmitting moderate power over short distances up to 8 meters. Wire ropes are used for transmitting large amounts of power over longer distances up to 150 meters. Wire ropes can transmit power between pulleys that are further apart than fibre ropes and are made of strong materials like alloy steel. The document provides details on the design and selection of wire ropes, including considerations for stresses from axial loads, bending around pulleys, starting and stopping loads, and impact loads. An example problem is included to demonstrate the selection of a wire rope for a mine hoist.
(1) The document discusses power screws, which are screw and nut systems that convert rotational motion to linear motion.
(2) Power screws have advantages like high efficiency in transmitting power but limitations like lower strength than V-threads.
(3) Common forms of threads for power screws include square, ACME, trapezoidal, and buttress threads, which vary in properties like strength, efficiency, and direction of power transmission.
The document describes an experiment to determine the natural frequency of a spring-mass system. A spring is attached vertically to an adjustable screw and platform. Weights are added to the platform to stretch the spring from its free length. The time for a set number of oscillations is measured for different weights. This is used to calculate the experimental periodic time and natural frequency, which are compared to the theoretical values calculated using the spring constant and mass. The results show that the experimental and theoretical natural frequencies match closely.
This document discusses different types of bearings used in mechanical engineering. It describes bearings as machine components that support another element and allow relative motion while carrying a load. There are two main types - sliding contact bearings and rolling contact bearings. Rolling contact bearings, also called anti-friction bearings, use balls or rollers between elements and have lower coefficients of friction than sliding contact bearings. The document further details types of rolling contact bearings like ball bearings, roller bearings, and their construction and applications.
This document discusses tolerances, allowances, and fits between parts. It defines tolerance as the permissible variation in a dimension, given as the difference between maximum and minimum limits. Tolerances are necessary due to variations in materials and machines. The document provides examples of shaft and hole tolerances of 0.001 inches each, resulting in a clearance of 0.004 inches maximum. Allowance is defined as the intentional difference between the lower hole limit and higher shaft limit, ensuring the proper fit. The key difference between tolerance and allowance is that tolerance refers to variation within a single part, while allowance refers to the relationship between mating parts.
Unit 5- balancing of reciprocating masses, Dynamics of machines of VTU Syllabus prepared by Hareesha N Gowda, Asst. Prof, Dayananda Sagar College of Engg, Blore. Please write to hareeshang@gmail.com for suggestions and criticisms.
Unit-3 - Velocity and acceleration of mechanisms, Kinematics of machines of VTU Syllabus prepared by Hareesha N Gowda, Asst. Prof, Dayananda Sagar College of Engg, Blore. Please write to hareeshang@gmail.com for suggestions and criticisms.
Unit 6- spur gears, Kinematics of machines of VTU Syllabus prepared by Hareesha N Gowda, Asst. Prof, Dayananda Sagar College of Engg, Blore. Please write to hareeshang@gmail.com for suggestions and criticisms.
Cams are used to convert rotary motion to oscillatory motion or vice versa. They are commonly used in internal combustion engines to operate valves. This chapter discusses the fundamentals of cam and follower design including the different types of cams, followers, motions, and cam profiles. The objectives are to understand basic concepts and terminology and learn how to design a cam and follower set to achieve a desired output motion.
Helical gears are cylindrical gears whose teeth are angled and appear as a segment of a helix. They can transmit power between parallel or perpendicular axes. Key terms used in helical gears include helix angle, axial pitch, and normal pitch. The face width of single and double helical gears is determined based on the pitch, module, and helix angle. Helical gears are stronger than spur gears and can transmit higher loads while running more smoothly due to their angled teeth. They are commonly used in heavy load applications in industries such as steel, textiles, food processing, and construction equipment.
The flywheel is a rotating mechanical device that stores rotational energy. It is typically made of steel and connects the engine's crankshaft to the transmission, smoothing out the power delivery from the engine. The flywheel's position is between the engine and clutch, and it is used to start the engine by providing rotational energy to the crankshaft when the starter is engaged. The principle of the flywheel has been known since Neolithic pottery wheels and spindles, and it was further developed during the Industrial Revolution for use in steam engines.
Design of Belt Drives With Pulley Theory By Prof. Sagar A. DhotareSagar Dhotare
It covers following points :-
Introduction flat and V Belt
Types of Belts
Calculations for Tensions
Maximum Torque Transmitted
pulley design
Advantage and disadvantages of V belt over flat belt
This document provides notes on dynamics of machines from a professor at Kalaignarkarunanidhi Institute of Technology in Coimbatore, India. It covers topics like vibratory motion, types of vibrations including free, forced and damped vibrations. It defines key terms used in vibratory motion like period, cycle, frequency. It describes different types of free vibrations such as longitudinal, transverse and torsional vibrations. Methods to determine the natural frequency of free longitudinal vibration including equilibrium method, energy method and Rayleigh's method are presented. The document also discusses the effect of inertia of constraints in longitudinal vibration and frequency of free damped vibrations. An example problem is given to determine frequency of longitudinal
Sliding Contact Bearing Theory Prof. Sagar DhotareSagar Dhotare
In present ppt covers following points:
Introduction of Sliding Contact Bearings
Classification
Applications
Different lubrications systems
Hydrodynamic bearing concept and working
Comparison between sliding and rolling contact bearings
PETROFF’S EQUATION For Hydrodynamic Journal Bearing
Dimensionless Parameters used in SCB
Design procedure for Hydrodynamic Journal Bearing
V-belts are used to transmit power between pulleys in factories and workshops. They are made of fabric, cords, and rubber molded into a trapezoidal shape to fit into the V-grooved pulleys. The belts grip the pulleys through a wedging action caused by the 30-40 degree V-groove. Clearance is provided at the bottom of the groove to prevent wear from making the groove narrower. The driving tension ratio between pulleys depends on factors like the groove angle and coefficient of friction between the belt and groove.
Three types of gear trains are described:
1. Simple gear trains involve one gear on each shaft to transmit power.
2. Compound gear trains have more than one gear on a shaft, allowing for larger speed reductions.
3. Epicyclic gear trains have gears mounted on shafts that can move relative to a fixed axis, enabling high velocity ratios with moderate sized gears. Epicyclic trains are used in automotive differentials and machinery.
1. Vibration is a periodic motion where the motion repeats itself after an interval of time. Energy is converted between potential and kinetic forms during vibration.
2. Forced vibration occurs when an external force causes an object to vibrate, while free vibration happens when an object vibrates on its own accord after an initial disturbance.
3. Resonance is a phenomenon where the frequency of an external force matches the natural frequency of a vibrating system, causing the amplitude of vibrations to become very high.
The document discusses stress concentration and fatigue failure in machine elements. It defines stress concentration as irregular stress distribution caused by abrupt changes in cross-section shape. Stress concentration factors are introduced to quantify the maximum stress compared to nominal stress. The document also discusses endurance limit and fatigue strength testing methods. Factors that affect fatigue strength like material properties, surface finish, size and temperature are summarized. Methods to evaluate and reduce stress concentration in designs are provided.
Design of transmission system Two_marks_questions with answersGopinath Guru
The document discusses various topics related to transmission systems including belt drives, chain drives, gear drives, and wire ropes.
It begins with two marks questions and answers related to power drives and their classification, mechanical drives and their classification, the law of belting, crowning of pulleys, friction and its applications.
It then discusses belt materials, belt rating, types of belts, merits and demerits of belt drives, materials for belt pulleys, ply of belts, belt joints, conditions for flat belt installation, and factors for belt drive selection.
The document also covers creep in belts, V-belt designation, advantages of timing belts over V-belts, purpose of gearbox housing, function
This document describes the design process for a 9-speed gearbox with an input speed range of 180-1800 rpm. It involves calculating the step ratio, selecting standard step ratios, choosing the output speeds, determining the structural formula, selecting input speeds for each stage, and calculating the number of teeth for each gear. The solution shows the number of teeth for each gear in the two-stage gearbox with input, intermediate, and output shafts.
Here are the steps to solve this problem:
1. Power at 25% overload = 15 * 1.25 = 18.75 kW
2. Torque = Power / Speed = 18.75 * 1000 / 720 = 26 Nm
3. Engagement speed = 0.75 * 720 = 540 rpm
4. Given: No. of shoes = 4
Outside dia. of pulley = 35 cm = 0.35 m
Inside dia. of pulley rim = 32.5 cm = 0.325 m
Width of pulley = 25 cm = 0.25 m
5. Design the shoes and springs based on given data and centrifugal clutch formulae.
6. Check initial clearance between friction
Design of Flat belt, V belt and chain drivesDr. L K Bhagi
Geometrical relationships, Analysis of belt tensions, Condition for maximum power transmission, Characteristics of belt drives, Selection of flat belt, V- belt, Selection of V belt, Roller chains, Geometrical relationship, Polygonal effect, Power rating of roller chains, Design of chain drive, Introduction to belt drives and belt construction, Introduction to chain drives
The document discusses various topics related to machine design including design philosophy, design of joints, gears, bearings and tribology. It also lists various textbooks and references related to machine design. The contents of the course include design of machine elements under static and variable loads, design of shafts, riveted, bolted and welded joints, power screws, belt drives, gears, journal bearings, ball and roller bearings.
Machine design deals with planning, constructing, and analyzing machine elements. It involves deciding on dimensions and configurations based on factors like costs, strength, efficiency, and intended functions. Materials selection is also important, considering their mechanical properties for the operating conditions. Metals are commonly used and classified as ferrous (containing iron) and non-ferrous. Properties like strength, stiffness, ductility, fatigue resistance, and hardness influence the choice of material. The design process also evaluates factors such as reliability, maintenance needs, and safety.
The document describes an experiment to determine the natural frequency of a spring-mass system. A spring is attached vertically to an adjustable screw and platform. Weights are added to the platform to stretch the spring from its free length. The time for a set number of oscillations is measured for different weights. This is used to calculate the experimental periodic time and natural frequency, which are compared to the theoretical values calculated using the spring constant and mass. The results show that the experimental and theoretical natural frequencies match closely.
This document discusses different types of bearings used in mechanical engineering. It describes bearings as machine components that support another element and allow relative motion while carrying a load. There are two main types - sliding contact bearings and rolling contact bearings. Rolling contact bearings, also called anti-friction bearings, use balls or rollers between elements and have lower coefficients of friction than sliding contact bearings. The document further details types of rolling contact bearings like ball bearings, roller bearings, and their construction and applications.
This document discusses tolerances, allowances, and fits between parts. It defines tolerance as the permissible variation in a dimension, given as the difference between maximum and minimum limits. Tolerances are necessary due to variations in materials and machines. The document provides examples of shaft and hole tolerances of 0.001 inches each, resulting in a clearance of 0.004 inches maximum. Allowance is defined as the intentional difference between the lower hole limit and higher shaft limit, ensuring the proper fit. The key difference between tolerance and allowance is that tolerance refers to variation within a single part, while allowance refers to the relationship between mating parts.
Unit 5- balancing of reciprocating masses, Dynamics of machines of VTU Syllabus prepared by Hareesha N Gowda, Asst. Prof, Dayananda Sagar College of Engg, Blore. Please write to hareeshang@gmail.com for suggestions and criticisms.
Unit-3 - Velocity and acceleration of mechanisms, Kinematics of machines of VTU Syllabus prepared by Hareesha N Gowda, Asst. Prof, Dayananda Sagar College of Engg, Blore. Please write to hareeshang@gmail.com for suggestions and criticisms.
Unit 6- spur gears, Kinematics of machines of VTU Syllabus prepared by Hareesha N Gowda, Asst. Prof, Dayananda Sagar College of Engg, Blore. Please write to hareeshang@gmail.com for suggestions and criticisms.
Cams are used to convert rotary motion to oscillatory motion or vice versa. They are commonly used in internal combustion engines to operate valves. This chapter discusses the fundamentals of cam and follower design including the different types of cams, followers, motions, and cam profiles. The objectives are to understand basic concepts and terminology and learn how to design a cam and follower set to achieve a desired output motion.
Helical gears are cylindrical gears whose teeth are angled and appear as a segment of a helix. They can transmit power between parallel or perpendicular axes. Key terms used in helical gears include helix angle, axial pitch, and normal pitch. The face width of single and double helical gears is determined based on the pitch, module, and helix angle. Helical gears are stronger than spur gears and can transmit higher loads while running more smoothly due to their angled teeth. They are commonly used in heavy load applications in industries such as steel, textiles, food processing, and construction equipment.
The flywheel is a rotating mechanical device that stores rotational energy. It is typically made of steel and connects the engine's crankshaft to the transmission, smoothing out the power delivery from the engine. The flywheel's position is between the engine and clutch, and it is used to start the engine by providing rotational energy to the crankshaft when the starter is engaged. The principle of the flywheel has been known since Neolithic pottery wheels and spindles, and it was further developed during the Industrial Revolution for use in steam engines.
Design of Belt Drives With Pulley Theory By Prof. Sagar A. DhotareSagar Dhotare
It covers following points :-
Introduction flat and V Belt
Types of Belts
Calculations for Tensions
Maximum Torque Transmitted
pulley design
Advantage and disadvantages of V belt over flat belt
This document provides notes on dynamics of machines from a professor at Kalaignarkarunanidhi Institute of Technology in Coimbatore, India. It covers topics like vibratory motion, types of vibrations including free, forced and damped vibrations. It defines key terms used in vibratory motion like period, cycle, frequency. It describes different types of free vibrations such as longitudinal, transverse and torsional vibrations. Methods to determine the natural frequency of free longitudinal vibration including equilibrium method, energy method and Rayleigh's method are presented. The document also discusses the effect of inertia of constraints in longitudinal vibration and frequency of free damped vibrations. An example problem is given to determine frequency of longitudinal
Sliding Contact Bearing Theory Prof. Sagar DhotareSagar Dhotare
In present ppt covers following points:
Introduction of Sliding Contact Bearings
Classification
Applications
Different lubrications systems
Hydrodynamic bearing concept and working
Comparison between sliding and rolling contact bearings
PETROFF’S EQUATION For Hydrodynamic Journal Bearing
Dimensionless Parameters used in SCB
Design procedure for Hydrodynamic Journal Bearing
V-belts are used to transmit power between pulleys in factories and workshops. They are made of fabric, cords, and rubber molded into a trapezoidal shape to fit into the V-grooved pulleys. The belts grip the pulleys through a wedging action caused by the 30-40 degree V-groove. Clearance is provided at the bottom of the groove to prevent wear from making the groove narrower. The driving tension ratio between pulleys depends on factors like the groove angle and coefficient of friction between the belt and groove.
Three types of gear trains are described:
1. Simple gear trains involve one gear on each shaft to transmit power.
2. Compound gear trains have more than one gear on a shaft, allowing for larger speed reductions.
3. Epicyclic gear trains have gears mounted on shafts that can move relative to a fixed axis, enabling high velocity ratios with moderate sized gears. Epicyclic trains are used in automotive differentials and machinery.
1. Vibration is a periodic motion where the motion repeats itself after an interval of time. Energy is converted between potential and kinetic forms during vibration.
2. Forced vibration occurs when an external force causes an object to vibrate, while free vibration happens when an object vibrates on its own accord after an initial disturbance.
3. Resonance is a phenomenon where the frequency of an external force matches the natural frequency of a vibrating system, causing the amplitude of vibrations to become very high.
The document discusses stress concentration and fatigue failure in machine elements. It defines stress concentration as irregular stress distribution caused by abrupt changes in cross-section shape. Stress concentration factors are introduced to quantify the maximum stress compared to nominal stress. The document also discusses endurance limit and fatigue strength testing methods. Factors that affect fatigue strength like material properties, surface finish, size and temperature are summarized. Methods to evaluate and reduce stress concentration in designs are provided.
Design of transmission system Two_marks_questions with answersGopinath Guru
The document discusses various topics related to transmission systems including belt drives, chain drives, gear drives, and wire ropes.
It begins with two marks questions and answers related to power drives and their classification, mechanical drives and their classification, the law of belting, crowning of pulleys, friction and its applications.
It then discusses belt materials, belt rating, types of belts, merits and demerits of belt drives, materials for belt pulleys, ply of belts, belt joints, conditions for flat belt installation, and factors for belt drive selection.
The document also covers creep in belts, V-belt designation, advantages of timing belts over V-belts, purpose of gearbox housing, function
This document describes the design process for a 9-speed gearbox with an input speed range of 180-1800 rpm. It involves calculating the step ratio, selecting standard step ratios, choosing the output speeds, determining the structural formula, selecting input speeds for each stage, and calculating the number of teeth for each gear. The solution shows the number of teeth for each gear in the two-stage gearbox with input, intermediate, and output shafts.
Here are the steps to solve this problem:
1. Power at 25% overload = 15 * 1.25 = 18.75 kW
2. Torque = Power / Speed = 18.75 * 1000 / 720 = 26 Nm
3. Engagement speed = 0.75 * 720 = 540 rpm
4. Given: No. of shoes = 4
Outside dia. of pulley = 35 cm = 0.35 m
Inside dia. of pulley rim = 32.5 cm = 0.325 m
Width of pulley = 25 cm = 0.25 m
5. Design the shoes and springs based on given data and centrifugal clutch formulae.
6. Check initial clearance between friction
Design of Flat belt, V belt and chain drivesDr. L K Bhagi
Geometrical relationships, Analysis of belt tensions, Condition for maximum power transmission, Characteristics of belt drives, Selection of flat belt, V- belt, Selection of V belt, Roller chains, Geometrical relationship, Polygonal effect, Power rating of roller chains, Design of chain drive, Introduction to belt drives and belt construction, Introduction to chain drives
The document discusses various topics related to machine design including design philosophy, design of joints, gears, bearings and tribology. It also lists various textbooks and references related to machine design. The contents of the course include design of machine elements under static and variable loads, design of shafts, riveted, bolted and welded joints, power screws, belt drives, gears, journal bearings, ball and roller bearings.
Machine design deals with planning, constructing, and analyzing machine elements. It involves deciding on dimensions and configurations based on factors like costs, strength, efficiency, and intended functions. Materials selection is also important, considering their mechanical properties for the operating conditions. Metals are commonly used and classified as ferrous (containing iron) and non-ferrous. Properties like strength, stiffness, ductility, fatigue resistance, and hardness influence the choice of material. The design process also evaluates factors such as reliability, maintenance needs, and safety.
The document discusses the contents of Unit 1 of the subject ME 8593-DESIGN OF MACHINE ELEMENTS. It includes an introduction to the design process and factors influencing machine design. It also discusses selection of materials based on mechanical properties, preferred numbers, fits and tolerances. Additionally, it covers direct, bending and torsional stress equations, impact and shock loading, calculation of principle stresses for various load combinations, eccentric loading, curved beams, crane hook and 'C' frame. The document also mentions factor of safety, theories of failure, design based on strength and stiffness, stress concentration and design for variable loading.
This document discusses machine design and engineering materials. It defines machine design as using scientific principles, technical information and imagination to design machines to perform specific functions efficiently. Some basic requirements of machine elements are listed, such as strength, wear resistance, manufacturability and reliability. Common engineering materials like cast iron, carbon steel and alloy steels are described. The document also discusses standardization, preferred numbers, and manufacturing considerations in machine design such as primary shaping processes, machining processes, surface finishing processes and joining processes.
The document provides an introduction to machine design, outlining key requirements for machine elements such as strength, rigidity, and wear resistance. It discusses the mechanical engineering design process and various topics that will be covered in the machine design course, including design of elements against static and fluctuating loads, shaft keys and couplings, threaded joints, and mechanical springs. Standardization, aesthetics, and other considerations in machine design are also introduced.
Machine design is the process of creating or improving machines. It requires consideration of factors like the type and stresses of loads on the machine, the kinematics or motion of parts, selection of suitable materials, and determining the proper form and size of parts. Successful machine design draws on knowledge of mathematics, engineering mechanics, strength of materials, manufacturing processes, and other disciplines. The general procedure involves recognizing a need, synthesizing a mechanism design, analyzing stresses, selecting materials, designing elements, and modifying the design as needed before production. The document outlines the content of a machine design course, including sessions on mechanism dynamics, failure analysis, design of elements like flywheels and joints, and a design project.
DESIGN OF MACHINE ELEMENTS NOTES.PDF SHARESelvaBabu2
This document provides an overview of the course Design of Machine Elements. It discusses key considerations in machine design like the design process, classifications of designs, factors influencing design like material selection and stresses, and general design principles. The course covers topics like design of shafts and couplings, fasteners, springs, bearings and flywheels. It aims to impart knowledge of engineering mechanics, strength of materials and other topics to successfully design machine components.
DESIGN AND ANALYSIS OF AXIAL CROSSING OF WORK ROLLS IN ROLLING MILL WORK ROLL...IAEME Publication
Rolling Mill is one of the machine for rolling steel or other metal into sheets. For reliable and efficient working of rolling mill it is necessary that all the components used in rolling mill should work properly without fail. Work roll assembly is very important part of the rolling mill. It has been observed that In hot rolling mill during the metal rolling at finishing mill (4-Hi mill Reversible) , work roll pair come out due to the axial crossing of work rolls and due to which uneven thickness of metal, strip breakage, bending of locking plate, metal shifting and equipment breakdown occurs. After the Study it has been observed that wear of the work roll liner is one of the reasons for the axial crossing of the work rolls.
The document discusses machine design and related topics. It begins by defining machine design as the creation and improvement of machines. It then discusses various types of machine designs, considerations in machine design like loads, motions, materials selection, and manufacturing processes. It also covers topics like general procedures in machine design, engineering materials and their properties, interchangeability, and important terms used in limit systems.
Modelling and Analysis of CNC Milling Machine Bed with Composite Materialijsrd.com
Structural materials used in a machine tool have a decisive role in determining the productivity and accuracy of the part manufactured in it. The conventional structural materials used in precision machine tools such as cast iron and steel at high operating speeds develop positional errors due to the vibrations transferred into the structure. Faster cutting speeds can be acquired only by structure which has high stiffness and good damping characteristics. Clearly the life of a machine is inversely proportional to the levels of vibration that the machine is subjected. The further process is carried out to undergo the deformation, natural frequency and displacement using Static analysis, Modal analysis and Harmonic analysis respectively. Since the bed in machine tool plays a critical role in ensuring the precision and accuracy in components. It is one of the most important tool structures which tend to absorb the vibrations resulting from the cutting operation. To analyze the bed for possible material changes that could increase stiffness, reduce weight, improve damping characteristics and isolate natural frequency from the operating range. This was the main motivation behind the idea to go in for a composite model involving High Modulus Carbon Fiber Reinforced Polymer Composite Material (HM CFRP). Though carbon has good strength and stiffness properties but it lacks in damping requirements. On the other hand polymer, though it lacks in strength but it has good damping characteristics and it is used to hold the carbon fibers. This makes it ideal to combine these materials in a proper manner. In this work, a machine bed is selected for the analysis static loads. Then investigation is carried out to reduce the weight of the machine bed without deteriorating its structural rigidity. The 3D CAD model of the bed has been created by using commercial 3D modelling software and analyses were carried out using ANSYS.
This document provides information on the course ME 8593-DESIGN OF MACHINE ELEMENTS. The objectives of the course are to familiarize students with the design process, principles of evaluating component shape and dimensions to satisfy requirements, use of standards and catalogs, and use of standard machine components. The textbook and reference materials are listed. The course will cover topics such as stresses in machine elements, shafts and couplings, joints, energy storing elements, and bearings.
Optimization of cutting tool material in lathe machine by T-testIJMER
Modern manufacturers, seeking to remain competitive in the market, rely on their
manufacturing engineers and production personnel to quickly and effectively set-up manufacturing
processes for new products. T-test method is a powerful and efficient method for optimizing quality and
performance output of a manufacturing process, thus a powerful tool for meeting this challenge. This
paper discusses an investigation into the use of t-test method for optimizing controlled dia of workpiece in
a lathe machine. Control parameters being considered in this paper are spindle speed, feed rate and
depth of cut. After experimentally turning sample work pieces using the selected parameters, this
investigation produced an optimum combination of controlled parameter for the cutting tool.
Here are the key parts of a piston and their functions:
- Piston head (crown): Transmits force from combustion to connecting rod.
- Piston rings: Provide seal between piston and cylinder wall to prevent leakage of combustion gases and oil.
- Piston skirt: Guides piston up and down inside cylinder and transfers lateral loads from connecting rod.
- Piston pin: Connects small end of connecting rod to piston and allows it to rotate freely during operation.
The piston is a critical component that converts expanding combustion gases into linear motion via the connecting rod and crankshaft. It must withstand high pressures and temperatures while forming an effective gas seal with the cylinder. Piston rings, skirt
This document provides an overview of the vocational training report submitted by Surendra Kumar on his training at Simplex Casting Limited Unit-3. It includes an introduction to the company profile, descriptions of the manufacturing processes used including casting, forming, fabrication, and machining. It also describes the machine shop facilities, focusing on the CNC machine shop and detailing CNC machines, their parts and functions. The welding processes used in the fabrication shop are also outlined.
Solar operated sheet metal bending machineshushay hailu
The document describes the design of a solar-powered sheet metal bending machine. It notes that existing manually operated sheet metal bending machines at Adigrat University pose safety risks. The objectives of the new design are to develop components, select materials, and create drawings using Solidworks. The methodology follows a PDD sequence, including problem identification, data collection from observations and interviews, design analysis, and cost estimation. Materials are selected based on availability, suitability for working conditions, and cost, with cast iron, mild steel, and stainless steel chosen for components like gears, rollers, housing, and screws.
DESIGN AND ANALYSIS OF HIGH ENTROPY ALLOY SPUR GEARIRJET Journal
This document describes the design and analysis of a high entropy alloy spur gear. It begins by introducing gear types and materials typically used for gears. It then discusses high entropy alloys as an alternative material with improved properties like corrosion resistance and lower weight. The document details the design of a spur gear and pinion using CAD software. It analyzes the gear assembly made of carbon steel and various high entropy alloys under different loads using FEA software to compare stress, strain, deformation and other parameters. Graphs show the relationship between load and various structural responses. The high entropy alloys generally had lower weight and similar or higher strength compared to carbon steel.
Design of refill band spiral winding attachment on lathe machineIJARIIT
Now-a-days in this competitive era it is essential to complete jobs in smallest cycle time in order to achieve maximum
profit at minimum wastage.
Some leading, printing machine manufacturers outsource some parts from vendors. Currently, one of the roller sub-assembly
is being outsourced from outer vendors.
During the visit, we observed that the existing process of manufacturing of such sub-assembly is very lengthy & of manual
nature.
As to find an alternative solution to the existing problem, we decided to semi-automate the process which will also result in better
productivity and which will reduce wastage also. For achieving this, we designed and manufacture an attachment which can be
used on a simple lathe machine.
Using attachment made the whole process semi-automated, results of which are compared with the previous manual process. It
is observed that using attachment reduces cycle time, reduces man power, and also decreases wastage than the manual process.
This project is on the design and construction of a solar power hacksaw machine for cutting of metal to different size and length with the help of solar hacksaw.
The document discusses product engineering and computer-aided design and manufacturing (CAD/CAM). It defines product engineering as the process of designing a device to be manufactured and sold, considering factors like cost, quality, and market needs. CAD is described as faster and more accurate than manual drawing, allowing easy editing and reuse of components. CAM is said to enable greater design freedom, productivity, and reliability while reducing costs. Concurrent engineering is introduced as an approach that involves cross-functional teams from the start to reduce the product development cycle.
This document provides an overview of CAD/CAM systems and processes. It discusses the product cycle and how CAD/CAM is integrated at various stages from concept development to manufacturing. The key stages of a typical CAD process and CAM process within a CAD/CAM system are described. The achievements enabled by CAD/CAM technologies are listed. Product engineering is discussed as dealing with both the design and manufacturing aspects of a product while considering factors like cost, producibility and other specifications.
This document provides an overview of computer-aided design and manufacturing (CAD/CAM) technologies. It discusses the benefits of CAD/CAM and lists over 20 common computer-aided technologies such as CAD, CAE, CAPP, CNC, and CAM. The influence of computers on the manufacturing environment is described, showing how CAD, CAM, and other technologies integrate across the product development cycle. Finally, a diagram illustrates how CAD/CAM can be overlaid onto the traditional product cycle from concept to manufacturing to improve the process.
The document discusses computer aided design and manufacturing (CAD/CAM). It begins by introducing CAD as using computers to assist in design processes like defining geometry, analysis, and optimization. CAM uses computers to plan, manage, and control manufacturing operations. The benefits of CAD/CAM over manual drafting include increased accuracy, easier modification, storage, and sharing of designs. CAD systems require hardware like workstations, computers, and output devices. Graphics software is used for modeling, drafting, analysis and optimization. Computers have influenced manufacturing by allowing for computer monitoring and control of processes as well as manufacturing support applications.
This document provides an introduction and overview of a CAD/CAM course. The objectives are to familiarize students with CAD/CAM terminology, software, and basic tools. Students will learn how to apply CAD concepts to engineering design problems and integrate CAD and CAM systems by using CAD for modeling and converting designs to CAM for manufacturing. The course will cover topics like geometric modeling, solid modeling, numerical control, and computer integrated manufacturing systems. CAD is used in mechanical engineering applications like automotive, aerospace, tool and die making to create 2D and 3D designs for analysis, simulation, and prototyping.
The document discusses different types of welded joints including butt joints and fillet joints. It describes the geometry and strengths of square butt joints, single V-butt joints, and single and double U-butt joints used to join plates of different thicknesses. Fillet joints can be transverse or parallel and the document explains how to calculate the strengths of each type. Several example problems are also included showing how to calculate weld sizes for butt and fillet joints subjected to tensile, shear, bending, and eccentric loads.
This document discusses riveted joints and provides details on:
1. Rivets are used to make permanent fastenings between metal plates in structures like ships, bridges, tanks, and boilers. A rivet has a head and a cylindrical shank.
2. The main types of riveted joints are lap joints and butt joints. Lap joints have one plate overlapping the other. Butt joints have plates aligned with a cover plate riveted on one or both sides.
3. Important considerations in riveted joint design include rivet pitch, margin, shear strength, tearing strength, and crushing strength. The joint strength is the lowest of these values.
A transmission shaft supports two gears and is mounted between two bearings. The document provides the pitch circle diameters of the two gears as 900 mm and 600 mm respectively. It also provides material properties and states that ASME code factors kb and kt are 1.5 and 2.0. The question asks to determine the shaft diameter using the ASME code, taking into account that the gears are connected to the shaft by keys.
A coupling is a mechanical device that rigidly joins two rotating shafts together. There are three main types of couplings: rigid couplings for perfectly aligned shafts, flexible couplings for shafts with misalignment, and flange couplings which can transmit high torque capacities but do not tolerate misalignment or shocks/vibrations. Design of couplings involves calculating shaft diameters, sleeve/flange dimensions, key dimensions, and bolt diameters based on the transmitted power, material properties, and safety factors. Dimensional relationships and equations are used to check stresses in the various coupling components.
This document discusses different types of machine keys used to connect rotating elements like shafts, gears, and pulleys. It describes saddle keys, sunk keys, taper keys, parallel keys, and feather keys. Design considerations for keys include preventing slippage while transmitting torque. Keys are designed based on withstanding shear and compressive stresses. Sample problems demonstrate how to calculate the required key dimensions given input torque and shaft dimensions. Splines are also discussed as an alternative to keys, with their torque capacity determined by factors like spline area, mean radius, and permissible pressure.
A cotter joint connects two coaxial rods subjected to axial forces. It uses a tapered wedge-shaped steel cotter to rigidly connect the rods. The document provides design equations to calculate dimensions of socket and spigot cotter joints and sleeve and cotter joints to withstand axial loads based on permissible stresses of the material. It also describes the design of knuckle joints and provides standard proportions. Design examples are given for different joint configurations.
How to Add Chatter in the odoo 17 ERP ModuleCeline George
In Odoo, the chatter is like a chat tool that helps you work together on records. You can leave notes and track things, making it easier to talk with your team and partners. Inside chatter, all communication history, activity, and changes will be displayed.
This presentation was provided by Steph Pollock of The American Psychological Association’s Journals Program, and Damita Snow, of The American Society of Civil Engineers (ASCE), for the initial session of NISO's 2024 Training Series "DEIA in the Scholarly Landscape." Session One: 'Setting Expectations: a DEIA Primer,' was held June 6, 2024.
Macroeconomics- Movie Location
This will be used as part of your Personal Professional Portfolio once graded.
Objective:
Prepare a presentation or a paper using research, basic comparative analysis, data organization and application of economic information. You will make an informed assessment of an economic climate outside of the United States to accomplish an entertainment industry objective.
This slide is special for master students (MIBS & MIFB) in UUM. Also useful for readers who are interested in the topic of contemporary Islamic banking.
A review of the growth of the Israel Genealogy Research Association Database Collection for the last 12 months. Our collection is now passed the 3 million mark and still growing. See which archives have contributed the most. See the different types of records we have, and which years have had records added. You can also see what we have for the future.
Main Java[All of the Base Concepts}.docxadhitya5119
This is part 1 of my Java Learning Journey. This Contains Custom methods, classes, constructors, packages, multithreading , try- catch block, finally block and more.
Executive Directors Chat Leveraging AI for Diversity, Equity, and InclusionTechSoup
Let’s explore the intersection of technology and equity in the final session of our DEI series. Discover how AI tools, like ChatGPT, can be used to support and enhance your nonprofit's DEI initiatives. Participants will gain insights into practical AI applications and get tips for leveraging technology to advance their DEI goals.
Exploiting Artificial Intelligence for Empowering Researchers and Faculty, In...Dr. Vinod Kumar Kanvaria
Exploiting Artificial Intelligence for Empowering Researchers and Faculty,
International FDP on Fundamentals of Research in Social Sciences
at Integral University, Lucknow, 06.06.2024
By Dr. Vinod Kumar Kanvaria
A workshop hosted by the South African Journal of Science aimed at postgraduate students and early career researchers with little or no experience in writing and publishing journal articles.

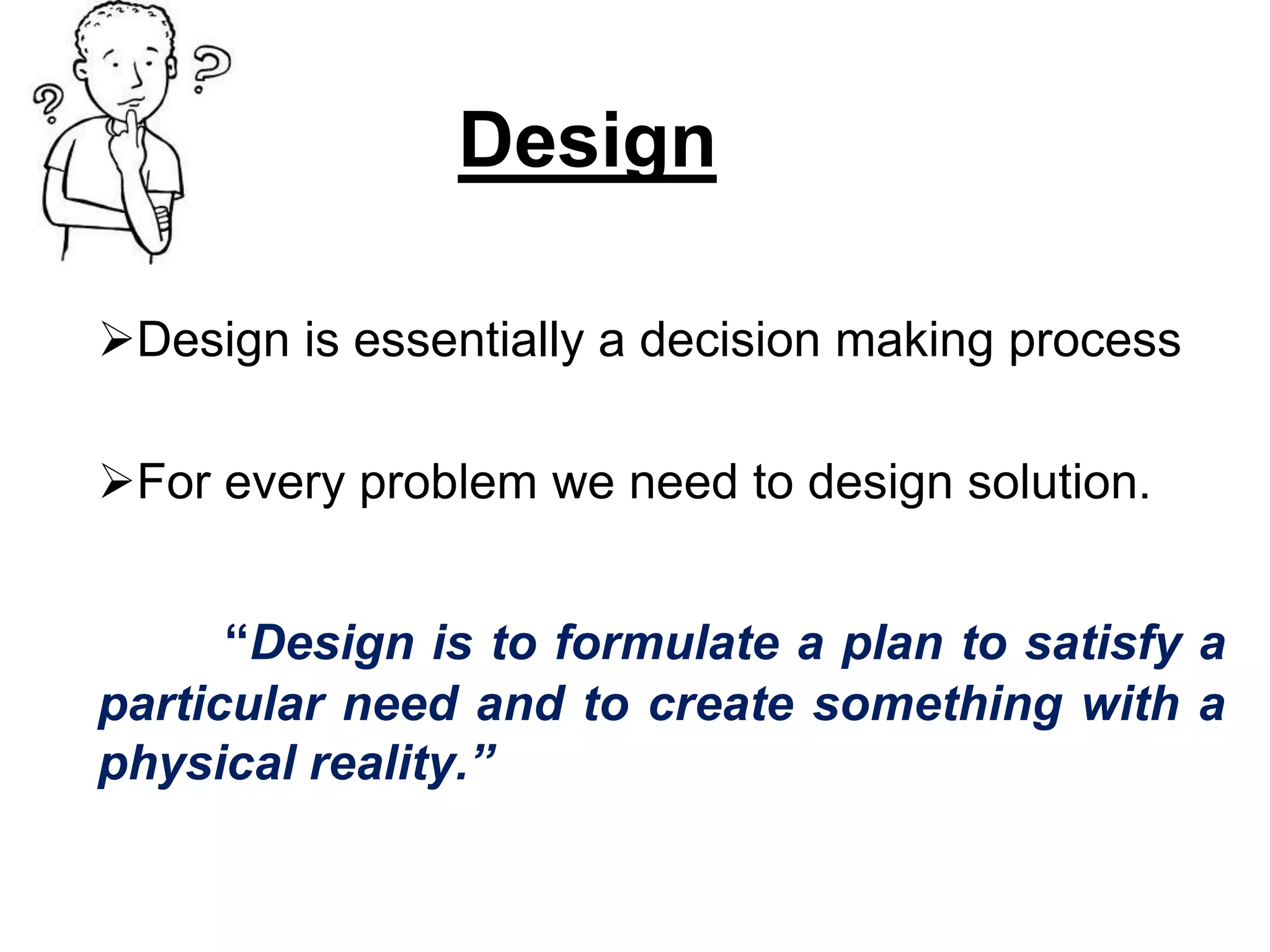

1. Design
Design is essentially a decision making process
For every problem we need to design solution.
“Design is to formulate a plan to satisfy a
particular need and to create something with a
physical reality.”
2. Design of a Chair
Factors need to be considered-
The purpose for which the chair is to be designed
Whether the chair is to be designed for a grown up
person or a child
Material for the chair
strength and cost need to be considered
Aesthetic and ergonomics of the designed chair.
Yugal Kishor Sahu 2Machine Design I
3. Yugal Kishor Sahu 3
Design disciplines
Many more……
Clothing/Fashion
DesignShip Design
Process Design Bridge Design
Building Design
Machine Design
Machine Design I
4. • Machine is defined as a combination of resting bodies
which successfully constrained relative motions which is
used to transform other forms of energy in to mechanical
energy or transmit and modify available energy to do some
useful work.
“Machines can receive mechanical energy and modify
it so that a specific task is carried out.”
Yugal Kishor Sahu 4Machine Design I
5. MACHINE DESIGN
Use of
Technical Information
Scientific Principles
Imagination
To perform
Specific function
With
Maximum economy
Maximum efficiency
It is define as the use of scientific
principles, technical information and
imagination in the description of a machine
or mechanical system to perform specific
function with maximum economy and
efficiency.
6. CLASSIFICATION OF M/C DESIGN
Machine
Design
Adaptive
Design
Development
Design
New Design
7. CLASSIFICATION OF M/C DESIGN
On the Basis of methodology
Machine
Design
Rational
Design
Empirical
Design
Industrial
Design
8. Yugal Kishor Sahu 8
SYLLABUS
UNIT-I General Considerations
UNIT-II Basic element design (cotter joint, Knuckle joint, etc)
Keys and Couplings
UNIT-III Shaft and Axle
Clutches
UNIT-IV Threaded fasteners
Power screws
UNIT-V Riveted Joints
Welded joint
Machine Design I
9. Yugal Kishor Sahu 9
Books to be referred
• Design of Machine Elements By V.B. Bhandari,
TMH publication
• Machine Design By Shigley, Mcgraw hill
publication.
• A Textbook of Machine Design By Sunderraj
Murthy, Khanna publication
• PSG Design Data Book
• Design Data Book by V.B. Bhandari
Machine Design I
11. Yugal Kishor Sahu 11
GENERAL CONSIDERATIONS
1. Type of load and stress
2. Motion of the parts
3. Selection of materials
4. Form and size of the part
5. Convenient and economical features
6. Use of standard part
7. Safety of operation
8. Workshop facilities
9. Numbers of machines to be manufactured
10. Assembling
Unit I
Factors to be considered in machine design
Machine Design I
12. General Design Procedure
• Recognition of need
• Synthesis (Mechanism)
• Analysis of forces
• Material selection
• Design of elements (size and stress)
• Modification
• Detailed drawing
• Production
Yugal Kishor Sahu 12Machine Design I
13. Yugal Kishor Sahu 13
Classification of Engg. materials
Engineering
materials
Ferrous metals
Non Ferrous
metals
Non- metals
Machine Design I
14. Cast Iron
Wrought Iron
Steel
Yugal Kishor Sahu
14
Ferrous metals
Cast Iron- Alloy of iron, carbon and silicon
Hard and brittle
Carbon content- 1.7 to 3 %
Types
1. Grey Cast iron
2. White Cast iron
3. Malleable Cast iron
4. Spheroidal or nodular
5. Austenitic Cast iron
6. Abrasion resistant iron
Machine Design I
15. Steels
Yugal Kishor Sahu
15
This is very pure iron the iron content is of order of 99.5 %.
It is produced by remelting pig iron and some small amount of
silicon , sulphur or phosphorous may be present.
Chains, Crane hooks, railway couplings and such other
components may be made of this iron.
Wrought Iron
Steel is basically an alloy of iron and carbon in which the carbon
content can be less than 1.7 % and carbon is present in the form of
iron carbide to impart hardness and strength.
Categories of steel
1. Plain carbon steel
2. Alloy steel
Machine Design I
16. Yugal Kishor Sahu 16
1. Plain carbon steel
The properties of plain carbon steel depend mainly on the
carbon percentages and other alloying elements are not
usually present in more than 0.5 to 1% such as 0.5% Si or 1%
Mn etc.
Categorization of steel:-
Machine Design I
17. • Nickel- For strength and toughness
• Chromium- for hardness and strength
• Tungsten- hardness at elevated temperature
• Vanadium – for tensile strength
• Manganese- for high strength in hot rolled and heat treated condition
• Silicon- for high elastic limit
• Cobalt- for hardness
• Molybdenum – for extra tensile strength.
Yugal Kishor Sahu 17
2. Alloy steel
These are steels in which elements other than carbon are added
in sufficient quantities to impart desired properties, such as
wear resistance, corrosion resistance, electric or magnetic
properties.
Important alloying elements are:-
Machine Design I
18. Yugal Kishor Sahu
18
Non-Ferrous metals
Metals containing elements other than iron as their main
constituent are referred to as Non-Ferrous metals
Non-Ferrous
metals
Aluminum
Copper
Brass
Bronze
Gun metal
Machine Design I
19. Timber
Leather
Rubber
Plastics
Thermo-setting plastic
Thermo plastic
Yugal Kishor Sahu
19
Non-metals
Non metallic materials are used in engineering practice due to
their low cost, flexibility and resistance to heat and electricity.
Machine Design I
20. BIS Standard designation of steels
1. On the basis of strength
Fe 360 (Min Tensile strength is 360 N/mm2 )
FeE 250 (Min. Yielding Strength is 250 N/mm2 )
2. On the basis of chemical composition
(a) For plain carbon steel:-
i. A figure indicating 100 times the average %age of carbon
ii. A letter “C”
iii. A figure indicating 10 times the average %age of manganese.
e.g. 55C4 (0.55% C and 0.4 % Mn)
0.35 % to 0.45 % C & 0.7 to 0.9% Mn (40C8)
(b) For Alloy steel:-
i. A figure indicating 100 times the average %age of carbon
ii. Chemical symbols for alloying element each followed by the
figure for its average %age content multiplied by a factor.
21. Machine Design I Yugal Kishor Sahu 21
S.No. Elements Multiplying factor
1 Cr, Ni, Mn, Si, W 4
2 Al, Be, V, Pb, Cu, Ti, Mo 10
3 P. S, N 100
e.g. 25Cr4Mo2 0.25% C, 1% Cr, 0.2% Mo
40 Ni8 Cr8 V2 0.4% C, 2% Ni, 2% Cr, 0.2% V
22. Yugal Kishor Sahu 22
Selection of Materials
The best materials is one which serve the desired objective
at the minimum cost.
• Property of material,
• Cost of materials
• Availability of materials
Machine Design I
23. Yugal Kishor Sahu 23
Design against static load
Static load: force that is gradually applied
and does not changes its magnitude and
direction w. r. t. time.
Modes of failure
1. Failure by elastic deflection
2. Failure by general yielding
3. Failure by fracture
Machine Design I
24. Yugal Kishor Sahu 24
1. Failure by elastic deflection
• e.g. Buckling of columns, transmission shaft
supporting gears etc.
• Lateral or torsional rigidity is considered as the
criteria of design.
• The moduli of elasticity and rigidity are the
important properties
Machine Design I
25. Yugal Kishor Sahu 25
2. Failure by general yielding
• e.g. mechanical components made of ductile
material fails due to a large amount of plastic
deformation.
• Considerable portion of the component is
subjected to plastic deformation called general
yielding.
• Yield strength is an important property
Machine Design I
26. Yugal Kishor Sahu 26
3. Failure by fracture
• e.g. mechanical components made of brittle
materials fails due to fracture without any plastic
deformation.
• Ultimate tensile strength is an important
property.
Machine Design I
27. Yugal Kishor Sahu 27
Stresses on an oblique plane
y
x x
y
xy
xy
xy
xy
xy
xy
x
y
cos 2 sin 2
2 2
x y x y
xy
1
sin 2 cos2
2
x y xy
Machine Design I
28. Yugal Kishor Sahu 28
Principal stresses and planes
• No shear stress i.e.
• Principal stresses are
0
2
tan 2
xy
x y
2 2
1
1
4
2 2
x y
x y xy
2 2
2
1
4
2 2
x y
x y xy
2 2
max
1
4
2
x y xy
Machine Design I
29. Yugal Kishor Sahu 29
Factor of safety
While designing a component it is necessary to provide
sufficient reserve strength in case of an accident.
it is achieved by a suitable factor of safety
Failure stress Failure load
Fs
Allowable stress Working load
,
,
yt
ut
S
Allowable Stress for ductile materials
Fs
S
for brittle materials
Fs
Machine Design I
30. Yugal Kishor Sahu 30
Factor of safety depends upon:-
1. Effect of failure
2. Type of load
3. Degree of accuracy in force analysis
4. Material of component
5. Reliability of component
6. Cost of component
7. Testing of machine element
8. Service conditions
9. Quality of manufacture
Machine Design I
31. Yugal Kishor Sahu 31
Theories of failure under static load
1. Maximum principal or normal stress theory
(Rankine’s theory)
2. Maximum shear stress theory (Guest’s or
Tresca’s theory)
3. Maximum principal strain theory (Saint
Venant’s theory)
4. Maximum strain energy theory (Haighs theory)
5. Maximum distortion energy theory (Hencky
and von-mises theory)
Machine Design I
32. Yugal Kishor Sahu 32
1. Maximum principal or normal stress theory
(Rankine’s theory)
• Failure or yielding occurs at a point when the
maximum principal or normal stress reaches
the limiting strength of the material.
• Mostly used for brittle material.
1
yt
fs
For ductile material
1
ut
fs
For brittle material
Machine Design I
33. Yugal Kishor Sahu 33
2. Maximum shear stress theory (Guest’s or
Tresca’s theory)
• Failure or yielding occurs at a point when the
maximum shear stress reaches a value equal
to the shear stress at yield point in a simple
tension test.
• Mostly used for ductile material.
max
0.5yt yt
fs fs
Machine Design I
34. Yugal Kishor Sahu 34
3. Maximum principal strain theory (Saint Venant’s
theory)
• Failure or yielding occurs at a point when the
maximum principal strain reaches a limiting
value of strain.
1 2
max
E mE
1 2 yt
E mE E fs
2
1
yt
m fs
Machine Design I
35. Yugal Kishor Sahu 35
4. Maximum strain energy theory (Haigh’s
theory)
• Failure or yielding occurs at a point when strain energy per
unit volume reaches a limiting value of strain energy per
unit volume as determined from simple tension test.
• May be used for ductile material.
2 2 1 2
1 1 2
21
2
U
E m
2
2
1
2
yt
U
E fs
2
2 2 1 2
1 2
2 yt
m fs
Machine Design I
36. Yugal Kishor Sahu 36
5. Maximum distortion energy theory (Hencky
and von-mises theory)
• Failure or yielding occurs when the distortion
energy (also called shear strain energy) per unit
volume reaches the limiting value of distortion
energy.
• Mostly used for ductile material in place of
maximum strain energy theory.
Machine Design I
37. Yugal Kishor Sahu 37
Problem 1. The load on a bolt consists of an axial pull of 10
kN together with a transverse shear force of 5 kN. Find
the diameter of bolt required according to
(a) Maximum principal stress theory
(b) Maximum shear stress theory
(c) Maximum principal strain theory
(d) Maximum strain energy theory
(e) Maximum distortion energy theory.
Take permissible tensile stress at elastic limit = 100 MPa
and poisons ratio = 0.3.
Machine Design I
Ans. (a) d=12.397 (b) 13.41 (c) 12.71 (d) 12.78 (e) 13.41
38. Yugal Kishor Sahu 38
Problem 2.(HW) The forces acting on a bolt
consists of two components an axial pull of 12
kN transverse shear force of 6 kN. The bolt is
made of steel (SY= 310 N/mm2) and the factor of
safety is 2.5. Determine the diameter of bolt
using the maximum shear stress theory of
failure.
Machine Design I
Ans. 13.2
39. Yugal Kishor Sahu 39
Problem 3. A cylindrical shaft made of steel of
yield strength 700 MPa is subjected to static
loads consisting of bending moment 10 kN-m
and a torsional moment of 30 kN-m . Determine
the diameter of the shaft using two different
theories of failure and assuming factor of safety
=2. Take E=210 GPa and poison ratio= 0.25.
Machine Design I
Ans. (a) Max Shear Stress theory:- 95.97mm
(b) Max distortion energy theory:- 83.5mm
40. Yugal Kishor Sahu 40
Problem 4.(HW) A mild steel shaft of 50 mm
diameter is subjected to a bending moment of
2000 N-m and a torque T. If the yield point of the
steel in tension is 200 MPa find the maximum
value of this torque without causing yielding of
the shaft according to
1. maximum principal stress theory
2. maximum shear stress theory
3. maximum distortion energy theory.
Machine Design I
Ans. (1) 214450.12N-mm (2) 13.4124255.2N.mm (3)
41. Yugal Kishor Sahu 41
• Stress Concentration:
it is defined as the localization of high stresses due to
the irregularities present in the component and abrupt
changes of the cross section.
Machine Design I
42. Yugal Kishor Sahu 42
Causes of stress concentration
1. variation in properties of material
2. Load application
3. Abrupt changes in section
4. Discontinuity in the component
5. Machining scratches
Machine Design I
43. Yugal Kishor Sahu 43
Reduction of stress concentration
1. Additional notches and holes in tension
member:
Machine Design I
44. Yugal Kishor Sahu 44
2. Fillet radius, undercutting and notch for member
in bending:
Machine Design I
45. Yugal Kishor Sahu 45
3. Drilling additional holes for shaft:
4. Reduction of stress concentration in threaded
members:
Machine Design I
46. Yugal Kishor Sahu 46
Theoretical stress concentration factor is defined as the
ratio of maximum stress to the nominal stress. It is given by
Kt. It depends upon the material and geometry.
Where σ0 and ζ0 are stresses obtained by elementary
equations for minimum cross section. And σmax and ζmax are
localized stresses at the discontinuity.
Stress concentration factor
max max
0 0
tK
Machine Design I
47. Yugal Kishor Sahu 47
Stress concentration factors
For a rectangular plate with
transverse hole
Nominal stress
For a flat plate with a shoulder fillet
Nominal stress
0
( )
P
w d t
0
P
dt
Machine Design I
PSG D.B. Pg No. 7.10 PSG D.B. Pg No. 7.9
48. Yugal Kishor Sahu 48
For round shaft with shoulder fillet
Nominal stress for tensile force Nominal stress for bending moment
0
2
4
P
d
0
bM y
I
Machine Design I
PSG D.B. Pg No. 7.11 PSG D.B. Pg No. 7.14
49. Yugal Kishor Sahu 49
Problem 1. A flat plate subjected to a tensile force of 5 kN
as shown in fig. The plate material is grey cast iron FG
200 and the factor of safety is 2.5. Determine the
thickness of the plate.
Machine Design I
Ans. t= 9mm
52. Yugal Kishor Sahu 52
Problem 2. A rectangular plat, 15 mm thick made of a brittle
material is shown in fig. Calculate the stresses at each of
three holes of 3, 5 and 10 mm diameter.
(Apr- May 2018)
Machine Design I
Ans. (a) 163.7 N/mm2 (b) 166.67 N/mm2 (c) 200 N/mm2
53. Yugal Kishor Sahu 53
Problem 3. A round shaft made of a brittle material and
subjected to a bending moment of 15 N-m. The stress
concentration factor at the fillet is 1.5 and the ultimate
tensile strength of the shaft material is 200 N/mm2.
Determine the diameter d, the magnitude of the stress at
the fillet and the factor of safety.
(Nov-Dec 2016, April May 2015)
Machine Design I
Ans. (a) d=18.18mm (b) 38.14 N/mm2 (c) 5.24
55. Yugal Kishor Sahu 55
Problem 4. A Non-rotating shaft supporting a load of 2.5 kN
is shown in fig. The shaft is made of brittle material with
an ultimate tensile strength of 300 N/mm2 . The factor of
safety is 3. Determine the dimensions of the shaft
(Nov- Dec 2010)
Machine Design I
Ans. 40.5 mm
57. Yugal Kishor Sahu 57
Problem 5 A plate, 10 mm thick, subjected to a
tensile load of 20 kN is shown in fig below. The
plate is made of cast iron (Sut=350 N/mm2) and
the factor of safety is 2.5. Determine the fillet
radius. (Nov- Dec 2014)
Machine Design I
Ans. t=3mm
58. Yugal Kishor Sahu 58
Fluctuating stresses
• External force vary in magnitude with respect to time is
called fluctuating load and stresses induced due to
these loads are called fluctuating stresses.
• 80 % failure in machine component occurs because of
fatigue failure.
• Types of mathematical models for cyclic stress:-
1. fluctuating or alternating stresses
2. Repeated stresses
3. Reversed stresses
Design against fluctuating load
Machine Design I
59. Yugal Kishor Sahu 59
1. Fluctuating or alternating stress
Machine Design I
61. Yugal Kishor Sahu 61
Fatigue failure
• Fatigue failure is defined as time delayed fracture under cyclic
loading.
• Best example is bending and unbending of a wire.
• Other examples are transmission shafts, connecting rods, gears,
vehicle suspension springs and ball bearings.
Cracks occurs generally in the
Regions of discontinuity (keyways, oil holes etc)
Regions of irregularities in machining operations (scratches, stamp
mark, inspection mark etc)
Internal cracks due to defect in materials like blow holes.
Machine Design I
62. Yugal Kishor Sahu 62
Endurance limit
• The fatigue or endurance limit of a material is
defined as the maximum amplitude of
completely reversed stress that the standard
specimen can sustain for an unlimited number of
cycles without fatigue failure. (106 cycles )
• The fatigue life is defined as the number of
stress cycles that the standard specimen can
complete during the test before the appearance
of first fatigue crack.
Machine Design I
64. Yugal Kishor Sahu 64
Rotating beam machine subjected to bending moment
developed by R.R. Moore
Machine Design I
65. Yugal Kishor Sahu 65
S-N curve
• The S-N curve is the graphical representation of stress
amplitude (Sf) verses the number of stress cycles (N)
before the fatigue failure on a log-log graph paper.
Machine Design I
67. Yugal Kishor Sahu 67
Notch sensitivity
• Fatigue stress concentration factor (Kf) is defined as
• It is applicable to actual material and depends upon the
grain size of the material.
• Notch sensitivity is defined as the tendency of a material
unable to resist the damaging effects of stress raising
notches in fatigue loading.
• Notch sensitivity factor q is defined as
Machine Design I
68. Yugal Kishor Sahu 68
Relationship between Kf, Kt and q
I. When the material has no sensitivity to notches,
q=0 and Kf= 1
II. When the material is fully sensitive to notches,
q=1 and Kf=Kt
1 ( 1)f tK q K
Machine Design I
69. Yugal Kishor Sahu 69
Estimation of endurance limit
• Se’ = endurance limit stress of a rotating beam specimen
subjected to reversed bending stress (N/mm2)
• Se = endurance limit stress of a particular mechanical
component subjected to reversed bending stress
(N/mm2)
For steels Se’=0.5 Sut
For cast iron Se’=0.4 Sut
For wrought aluminum alloys Se’=0.4 Sut
For cast aluminum alloys Se’=0.3 Sut
Machine Design I
70. Yugal Kishor Sahu 70
Factors affecting endurance limit
Se= Ka Kb Kc Kd Se’
where
Ka= surface finish factor
Kb= size factor
Kc= reliability factor
Kd= modifying factor to account for stress
concentration factor.
Machine Design I
71. Yugal Kishor Sahu 71
Surface finish factor (Ka)
• Surface finish factor for steel only:-
• For cast iron parts Ka=1
Machine Design I
72. Yugal Kishor Sahu 72
Size factor (Kb)
Diameter (d)
(mm)
Kb
d ≤ 7.5 1.00
7.5 ≤ d ≤ 50 0.85
d > 50 0.75
Machine Design I
74. Yugal Kishor Sahu 74
Endurance limit of a component subjected to
torsional shear stress is obtained from
endurance limit in reversed bending by the
following equation:-
1. According to maximum shear stress theory,
Sse= 0.5Se
2. According to distortion energy theory, Sse=
0.577Se.
Endurance limit of a component subjected to axial
loading is obtained by
(Se)a= 0.8 Se
Machine Design I
75. Machine Design I Yugal Kishor Sahu 75
April- May 2016
Ans= 55.9 N/mm2
76. Machine Design I Yugal Kishor Sahu 76
Problem A Transmission shaft made of steel 20 C8 (Sut= 440
N/mm2) is subjected to reversed torsional moment. The shaft
diameter is 30 mm and the expected reliability is 95 %. There is
a step in the shaft at which the theoretical stress concentration
factor is 1.8, while the notch sensitivity factor is 0.86. Determine
the endurance limit for reversed torsional moment, using the
distortion energy theory. April- May 2014
77. Yugal Kishor Sahu 77
Types of problem in fatigue design:-
1. Components subjected to completely
reversed stresses, and
2. Components subjected to fluctuating
stresses.
These design problems are further
divided into two groups-
a. Design for infinite life, and
b. Design for finite life.
Machine Design I
78. Yugal Kishor Sahu 78
1. Reversed stress- design for infinite life
• Endurance limit becomes criteria of failure.
• Stress amplitude should be lower than the endurance
limit in order to withstand the infinite number of cycles.
• Such components are designed with the help of the
following equations:-
e
a
se
a
S
fs
S
fs
Machine Design I
79. Yugal Kishor Sahu 79
Problem 1 A plate made of steel 20C8 (Sut=440 N/mm2) in
hot rolled and normalized condition is shown in fig below.
It is subjected to a completely reversed axial load of 30
kN. The notch sensitivity factor q can be taken as 0.8
and the expected reliability is 90%. The factor of safety is
2. The size factor can be taken as 0.85. determine the
plate thickness for infinite life. (2007,2008)
Machine Design I
Ans. t= 36.7mm
80. Yugal Kishor Sahu 80
Problem 2 A component machined from a plate made of
steel 45C8 (Sut=630N/mm2) is shown in fig below. It is
subjected to a completely reversed axial force of 50 kN.
The expected reliability is 90% and the factor of safety is
2. The size factor is 0.85. Determine the plate thickness t
for infinite life, if notch sensitivity factor is 0.8.
(Nov-Dec 2014)
Machine Design I
Ans. t= 26.5mm
81. Yugal Kishor Sahu 81
2. Reversed stresses –design for finite life
• S-N curve is used
• Design procedure for such problems
are as follows:-
1. Locate point A with coordinates
[3,log10(0.9Sut)]
2. Locate point B with coordinates
[6,log10(Se)]
3. Join AB which is used as a criterion
of failure for finite life problems.
4. Depending upon life N draw a vertical
line from log10N, will intersect AB at
F.
5. Draw a line FE parallel to the
abscissa. The ordinate at point E, i.e.
log10(Sf) gives the fatigue strength
corresponding to N cycles.
Machine Design I
82. Yugal Kishor Sahu 82
Problem 3. A rotating bar made of steel 45C8 (Sut =630 N/mm2 ) is
subjected to a completely reversed bending stress. The corrected
endurance limit of the bar is 315 N/mm2 . Calculate the fatigue
strength of the bar for a life of 90,000 cycles. (2011, 2013)
Machine Design I
Ans. Sf= 386 N/mm2
83. Yugal Kishor Sahu 83
Problem 4. A cantilever beam made of cold drawn steel 20C8
(Sut=540N/mm2) is subjected to a completely reversed load of 1000
N as shown in fig. The notch sensitivity factor q at the fillet can be
taken as 0.85 and the expected reliability is 90%. Determine the
diameter d of the beam for a life of 10000 cycles.
(April May 2017, Nov-Dec 2014)
Machine Design I
Ans. d=16.92mm
84. Yugal Kishor Sahu 84
Cumulative damage in fatigue
• When the mechanical component is subjected to different stress levels for
different parts of the work cycle e.g.
A component is subjected to completely reversed bending stress:-
1. σ1 for n1 cycles 2. σ2 for n2 cycles
3. σ3 for n3 cycles 4. σ4 for n4 cycles
And N1, N2, N3, N4 are the no. of stress cycles before fatigue failure for
stresses σ1, σ2, σ3, σ4 individually applied to component
or
Where α1, α2, α3, α4 are proportionate of total life consumed by stresses σ1,
σ2, σ3, σ4
31 2 4
1 2 3 4
1
nn n n
N N N N
31 2 4
1 2 3 4
1
N N N N N
Machine Design I
85. Yugal Kishor Sahu 85
Problem 5. The work cycle of a mechanical component
subjected to completely reversed bending stress
consists of the following three elements:
1. ± 350 N/mm2 for 85 % of the time.
2. ± 400 N/mm2 for 12 % of the time, and
3. ± 500 N/mm2 for 3 % of the time.
The material for the component is 50C4 (Sut=660
N/mm2) and the corrected endurance limit of the
component is 280 N/mm2. Determine the life of the
component.
Machine Design I
Ans. N= 62632 cycles
86. Yugal Kishor Sahu 86
3. fluctuating stress- design for infinite life
Problem is solved by using equation of-
1.Gerber line- a parabolic curve joining Se to Sut
2. Soderberg line- a straight line joining Se to Syt
3. Goodman line- a straight line joining Se to Sut
Machine Design I
87. Yugal Kishor Sahu 87
• Equation for Soderberg line-
• Equation for Goodman line-
• Equation for Gerber line-
Where
1m a
yt e
S S
S S
1m a
ut e
S S
S S
2
1a m
e ut
S S
S S
a m
a m
S S
and
fs fs
Machine Design I
88. Yugal Kishor Sahu 88
Modified Goodman diagram (for axial & Bending Stress)
Goodman diagram is modified by combining fatigue failure with
Failure by yielding.
Machine Design I
89. Yugal Kishor Sahu 89
Problem 6. A machine component is subjected to
fluctuating stress that varies from 40 to 100
N/mm2. The corrected endurance limit stress
for the machine component is 270 N/mm2. The
ultimate tensile strength and yield strength of
the material are 600 and 450 N/mm2
respectively. Find the factor of safety using:
i. Gerber theory
ii. Soderberg line
iii. Goodman line. (April- May 2016)
Machine Design I
Ans. (i) 5.41 (ii) 3.75 (iii) 4.39
90. Yugal Kishor Sahu 90
Problem 7. A cantilever beam made of cold drawn steel 40C8
(Sut=600N/mm2 and Syt=380 N/mm2) is shown in fig below. The force
P acting at the free end varies from -50 N to +150 N. The expected
reliability is 90% and the factor of safety is 2. The notch sensitivity
factor at the fillet is 0.9. Determine the diameter of the beam at the
fillet cross-section
I. using Gerber theory as failure criterion
II. using modified goodman diagram as failure criterion
(2011, 2013, 2014)
Machine Design I
Ans. (i) d= 11.47 mm(ii) d=11.84 mm
91. Yugal Kishor Sahu 91
Problem.8 (HW) A cantilever beam made of cold drawn steel C40 is
shown in fig. The force P acting at the free end varies from —50 N
to +55 N. The expected reliability is 90% and the factor of safety is
2. The notch sensitivity factor at the fillet is 0.9. Determine the
diameter d at the fillet cross-section. (Nov-Dec 2013)
Machine Design I
92. Machine Design I Yugal Kishor Sahu 92
PSG Data Book Page No. 1.11
96. Yugal Kishor Sahu 96
Problem.9 A transmission shaft of cold drawn steel C 30 is
subjected to a fluctuating torque which varies from -100 to +400
N-m. The factor of safety is 2 and expected reliability is 90 %.
Neglecting the effect of stress concentration factor determine the
diameter of the shaft. April-May 2010
(Use of modified Goodman diagram for torsional shear stress)
Machine Design I
Ans. d= 30mm
Modified Goodman diagram (for Torsional shear Stress)
