1. Topology optimization (pages from
Bendsoe and Sigmund and Section
6.5)
• Looks for the connectivity of the structure. How
many holes.
• Optimum design of bar in tension, loaded on
right side

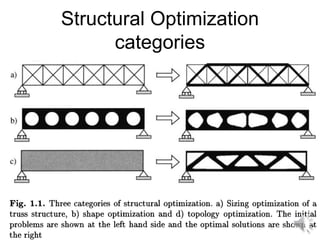

2. Structural Optimization
categories
• Fig. 1.1

3. Problem optimization
classification
• Provide examples of sizing, shape, and
topology optimization in the design of a car
structure.

4. History
• Microstructure based approach by various
mathematicians in the 1970s and early 1980s
• Engineers caught on after landmark paper of
Martin Bendsoe of the Technical University of
Denmark and Noboru Kikuchi of the University of
Michigan in 1988
• Method dominated by Danes
• Alternative based on simpler mathematics called
Evolutionary Structural Optimization developed
by Australians Mike Xie and Grant Steven in mid
1990s.

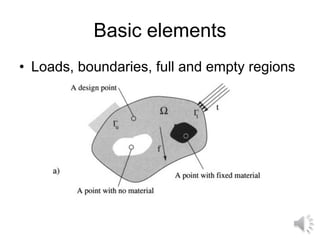

5. Basic elements
• Loads, boundaries, full and empty regions

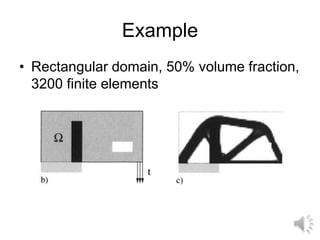

6. Example
• Rectangular domain, 50% volume fraction,
3200 finite elements

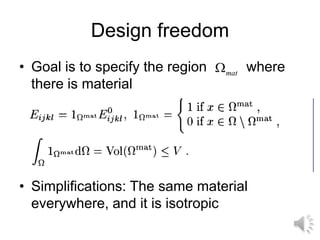

7. Design freedom
• Goal is to specify the region where
there is material
• Simplifications: The same material
everywhere, and it is isotropic
mat


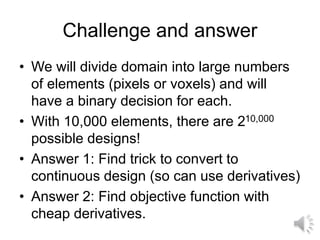

8. Challenge and answer
• We will divide domain into large numbers
of elements (pixels or voxels) and will
have a binary decision for each.
• With 10,000 elements, there are 210,000
possible designs!
• Answer 1: Find trick to convert to
continuous design (so can use derivatives)
• Answer 2: Find objective function with
cheap derivatives.

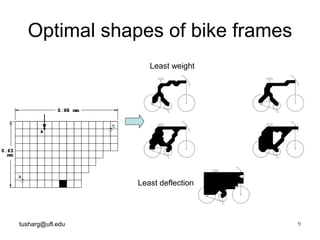

9. tusharg@ufl.edu 9
Optimal shapes of bike frames
Least weight
Least deflection

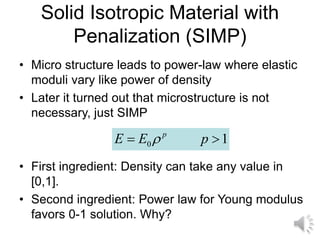

10. Solid Isotropic Material with
Penalization (SIMP)
• Micro structure leads to power-law where elastic
moduli vary like power of density
• Later it turned out that microstructure is not
necessary, just SIMP
• First ingredient: Density can take any value in
[0,1].
• Second ingredient: Power law for Young modulus
favors 0-1 solution. Why?
0 1
p
E E p

 

11. Problem SIMP
• Assume E is proportional to the square of
the density. Compare the compliance of a
bar in tension for a volume fraction of 0.5
between uniform density of 0.5 and half of
the area at full density and half empty.

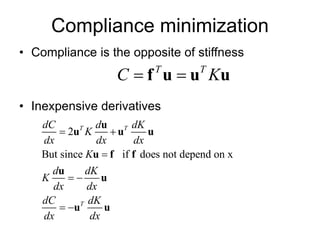

12. Compliance minimization
• Compliance is the opposite of stiffness
• Inexpensive derivatives
T T
C K
 
f u u u
2
But since if does not depend on x
T T
T
dC d dK
K
dx dx dx
K
d dK
K
dx dx
dC dK
dx dx
 

 
 
u
u u u
u f f
u
u
u u

13. Density design variables
• Recall
• For density variables
• Want to increase density of elements with high
strain energy and vice versa
• To minimize compliance for given weight can use
an optimality criterion method.
T
dC dK
dx dx
 u u
1
T p e
e
dC
K
d



 u u

14. Ole Sigmund’s Site
• http://www.topopt.dtu.dk/
• Good summary and many examples
• Minimize compliance for given volume
• Provides also a 99-line computer code that
we will analyze.
• Can get also a mobile phone ap that would
do for you topology optimization.

15. Problem top
• Use the top ap or the web site to design a
bar in tension with aspect ratio of 3, with
the tensile loads applied at two corners of
the rectangle.
