Systemd is a system and service manager that replaces SysVinit and aims to be a unified system for Linux systems. It provides enhanced service management through "unit" configuration files and capabilities like socket activation. Systemd allows for process isolation and containerization. While it has advantages like improved integration and security, some criticize it as being too complex, monopolistic, and forcing adoption through essential components.

1. ssyysstteemmdd:: EEvvoolluuttiioonn,,
RReevvoolluuttiioonn oorr DDeecclliinnee ??
______________________________________________________
““HHuuhh?? WWhhaatt''ss tthhiiss ssyysstteemmdd tthhiinnggiiee ddooiinngg
Normation – CC-BY-SA
normation.com
aass PPIIDD 11 ??””
Matthieu CERDA

2. Normation – CC-BY-SA
normation.com 2

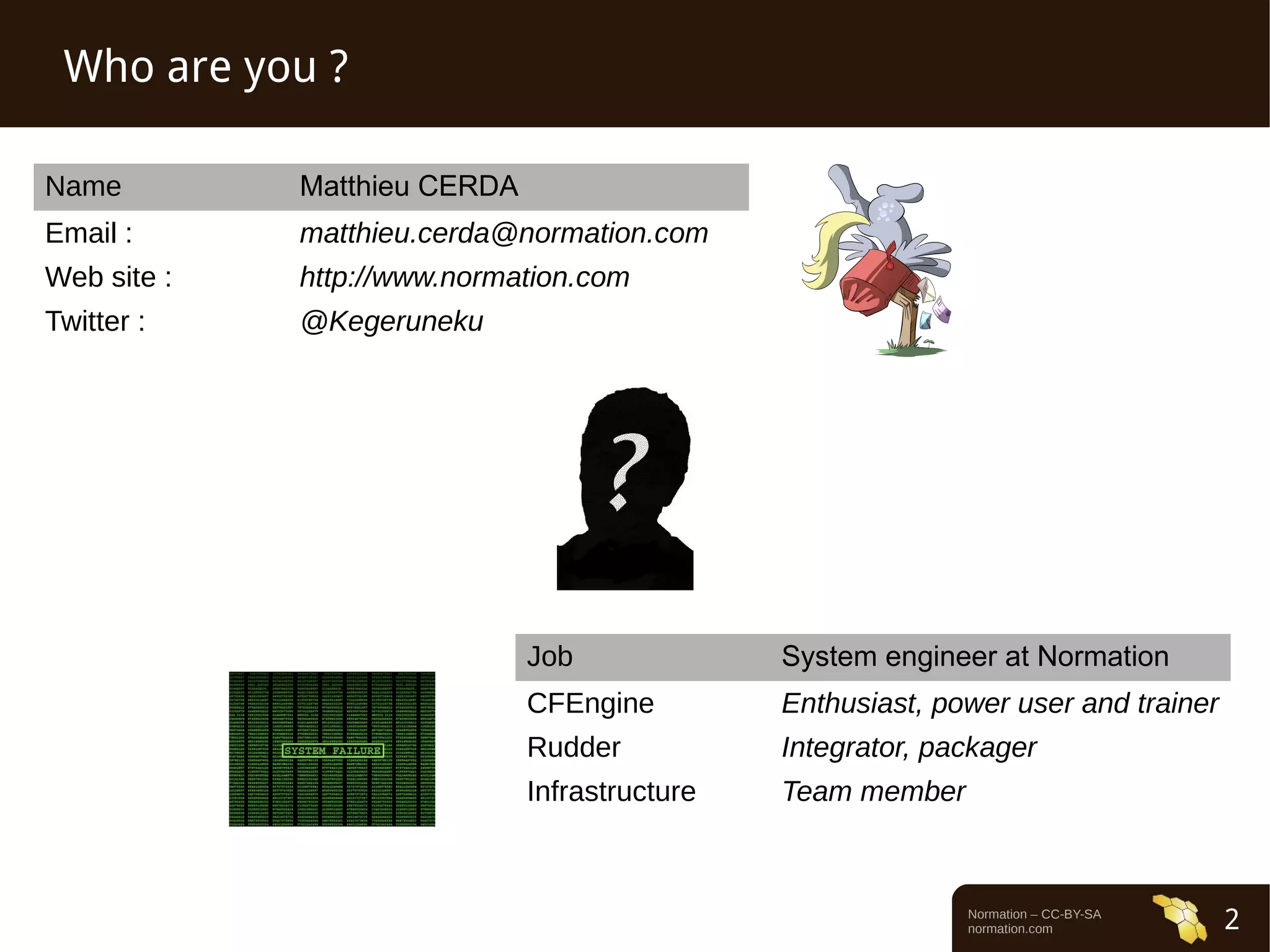

Who are you ?
Name Matthieu CERDA
Email : matthieu.cerda@normation.com
Web site : http://www.normation.com
Twitter : @Kegeruneku
Job System engineer at Normation
CFEngine Enthusiast, power user and trainer
Rudder Integrator, packager
Infrastructure Team member

3. Normation – CC-BY-SA
normation.com 3
What are we going to talk about
Systemd
(but not only)

4. Normation – CC-BY-SA
normation.com 4

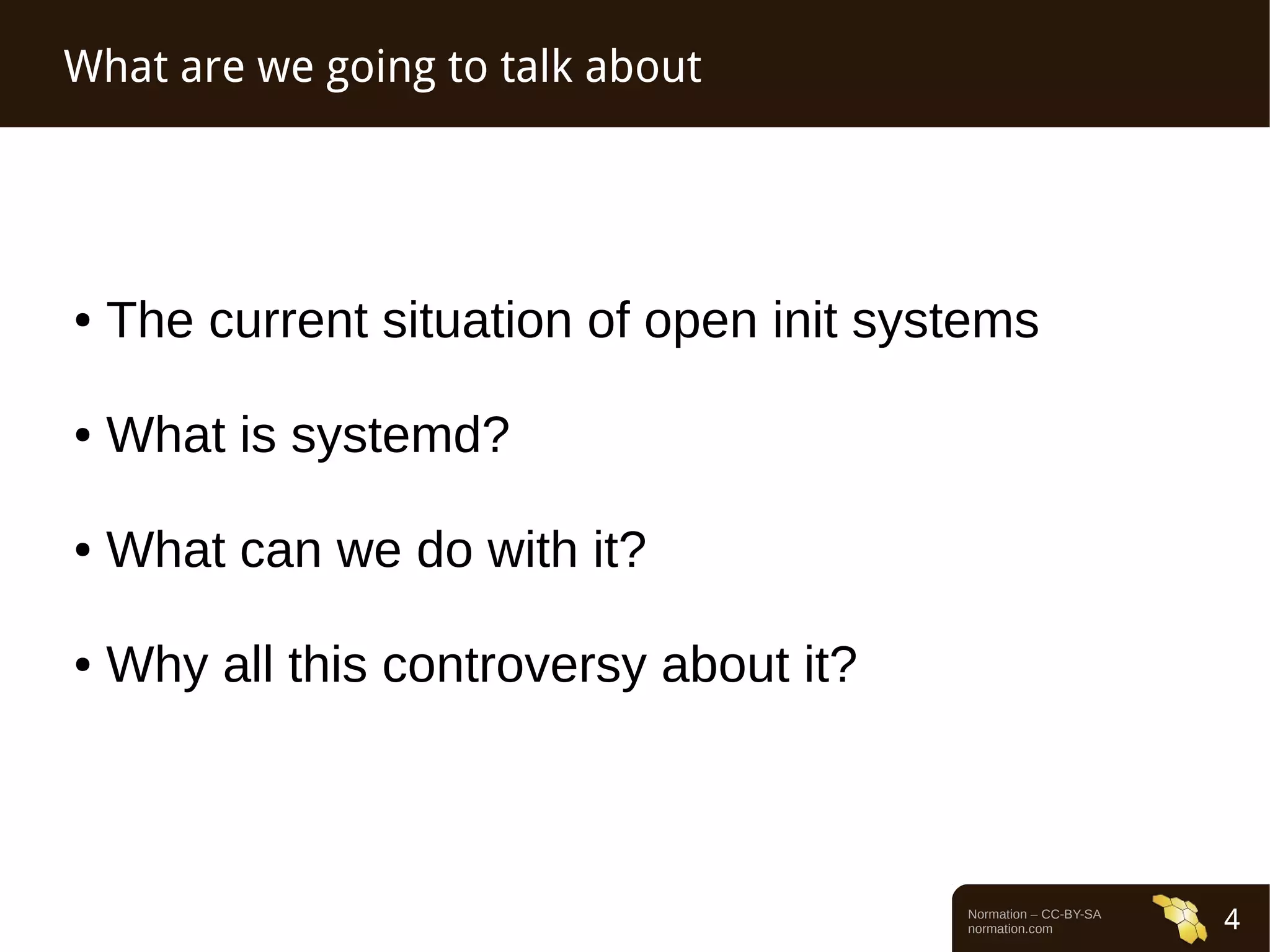

What are we going to talk about
● The current situation of open init systems
● What is systemd?
● What can we do with it?
● Why all this controversy about it?

5. Normation – CC-BY-SA
normation.com 5

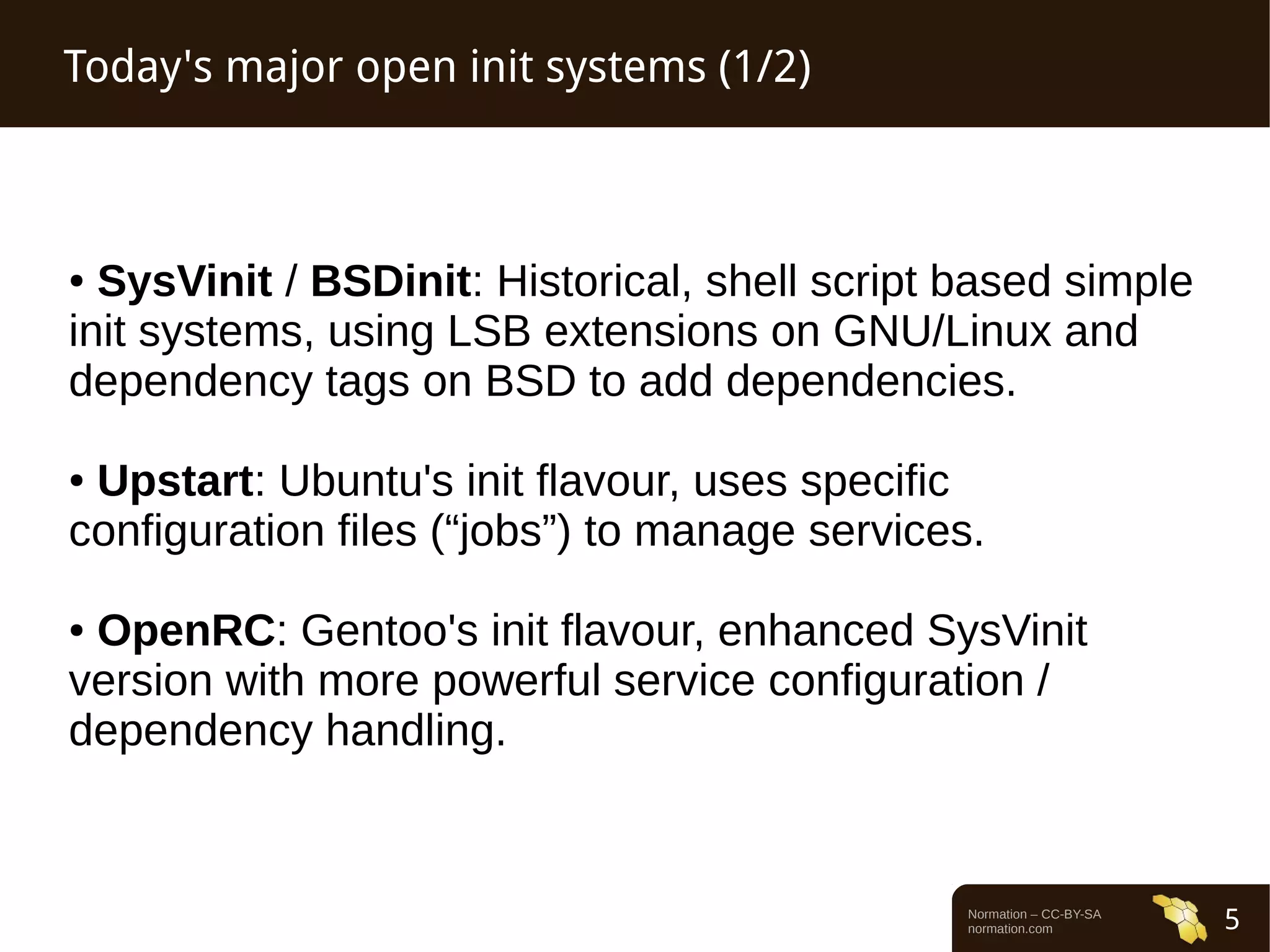

Today's major open init systems (1/2)
● SysVinit / BSDinit: Historical, shell script based simple
init systems, using LSB extensions on GNU/Linux and
dependency tags on BSD to add dependencies.
● Upstart: Ubuntu's init flavour, uses specific
configuration files (“jobs”) to manage services.
● OpenRC: Gentoo's init flavour, enhanced SysVinit
version with more powerful service configuration /
dependency handling.

6. Normation – CC-BY-SA
normation.com 6

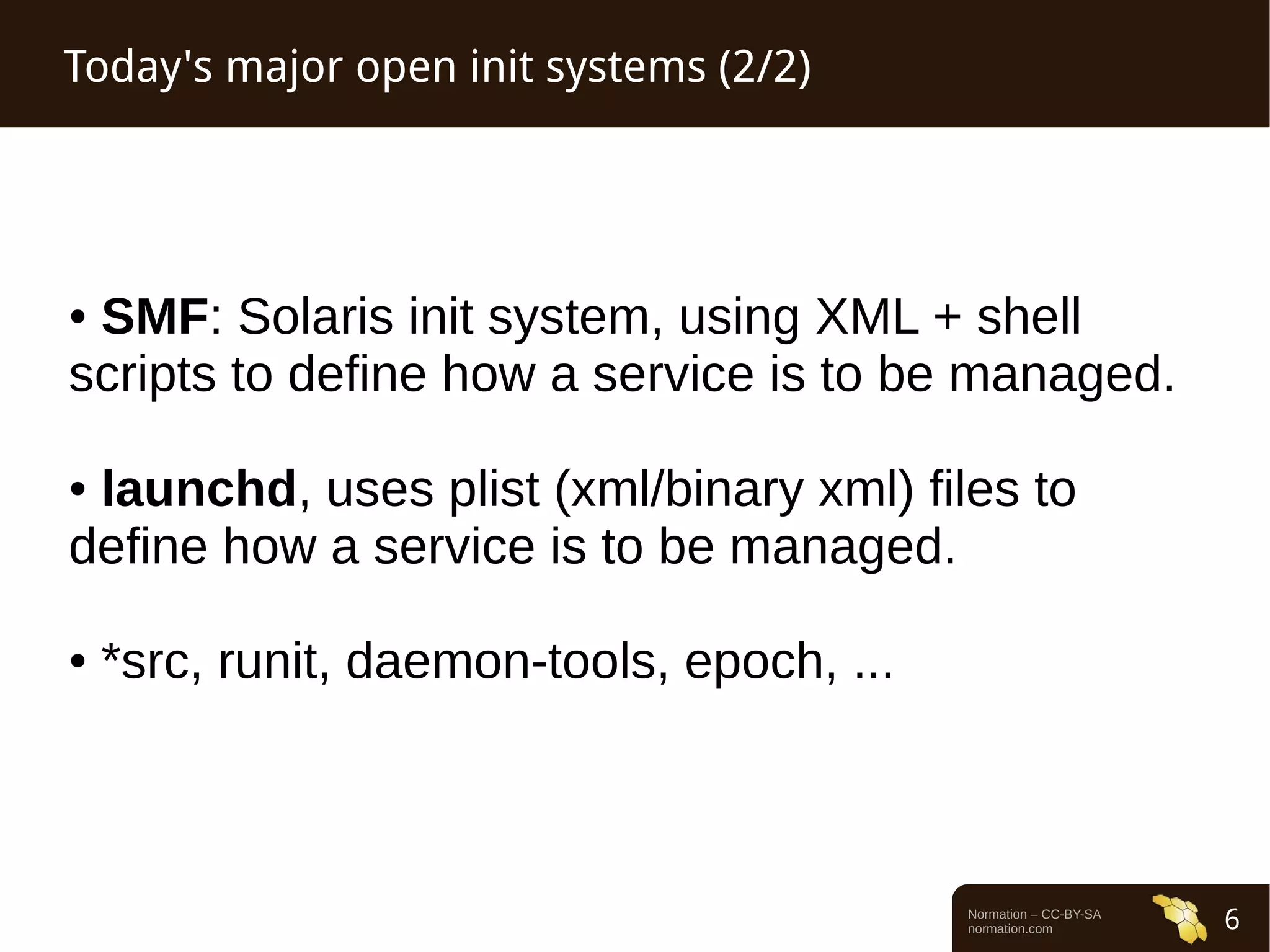

Today's major open init systems (2/2)
● SMF: Solaris init system, using XML + shell
scripts to define how a service is to be managed.
● launchd, uses plist (xml/binary xml) files to
define how a service is to be managed.
● *src, runit, daemon-tools, epoch, ...

7. Normation – CC-BY-SA
normation.com 7

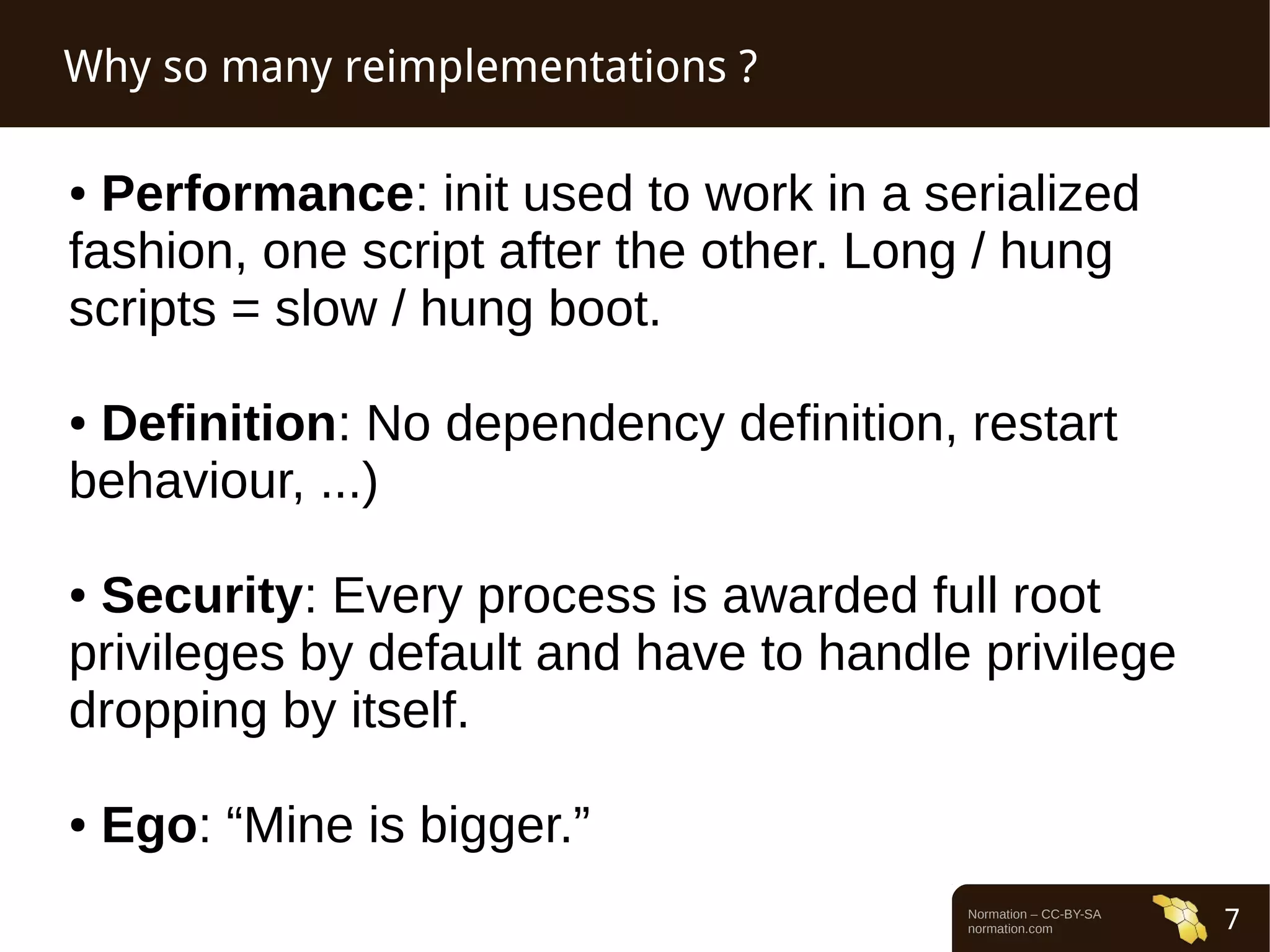

Why so many reimplementations ?
● Performance: init used to work in a serialized
fashion, one script after the other. Long / hung
scripts = slow / hung boot.
● Definition: No dependency definition, restart
behaviour, ...)
● Security: Every process is awarded full root
privileges by default and have to handle privilege
dropping by itself.
● Ego: “Mine is bigger.”

8. http://www.freedesktop.org/wiki/Software/systemd/
Normation – CC-BY-SA
normation.com 8

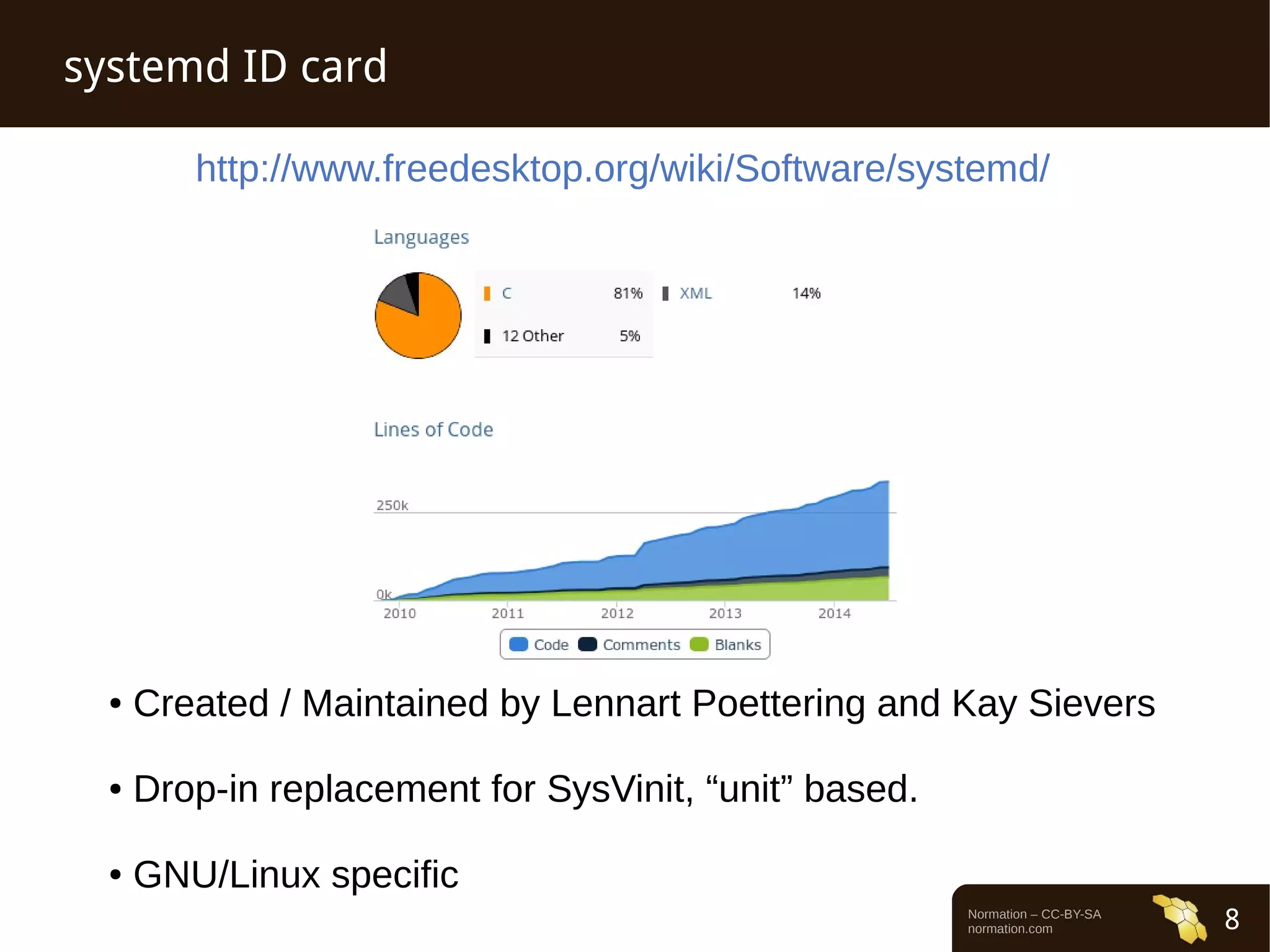

systemd ID card
● Created / Maintained by Lennart Poettering and Kay Sievers
● Drop-in replacement for SysVinit, “unit” based.
● GNU/Linux specific

9. Normation – CC-BY-SA
normation.com 9

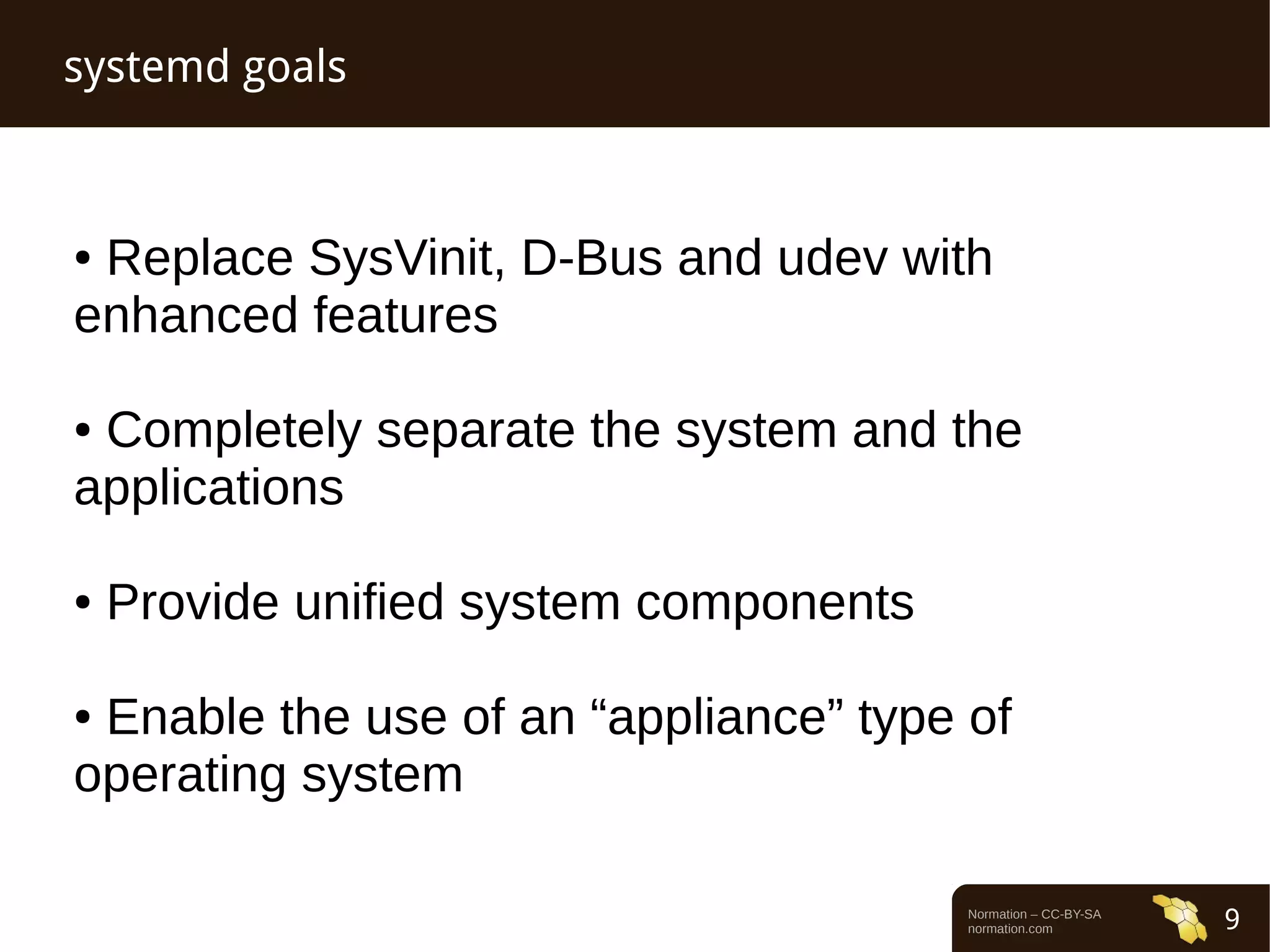

systemd goals
● Replace SysVinit, D-Bus and udev with
enhanced features
● Completely separate the system and the
applications
● Provide unified system components
● Enable the use of an “appliance” type of
operating system

10. Normation – CC-BY-SA
normation.com 10

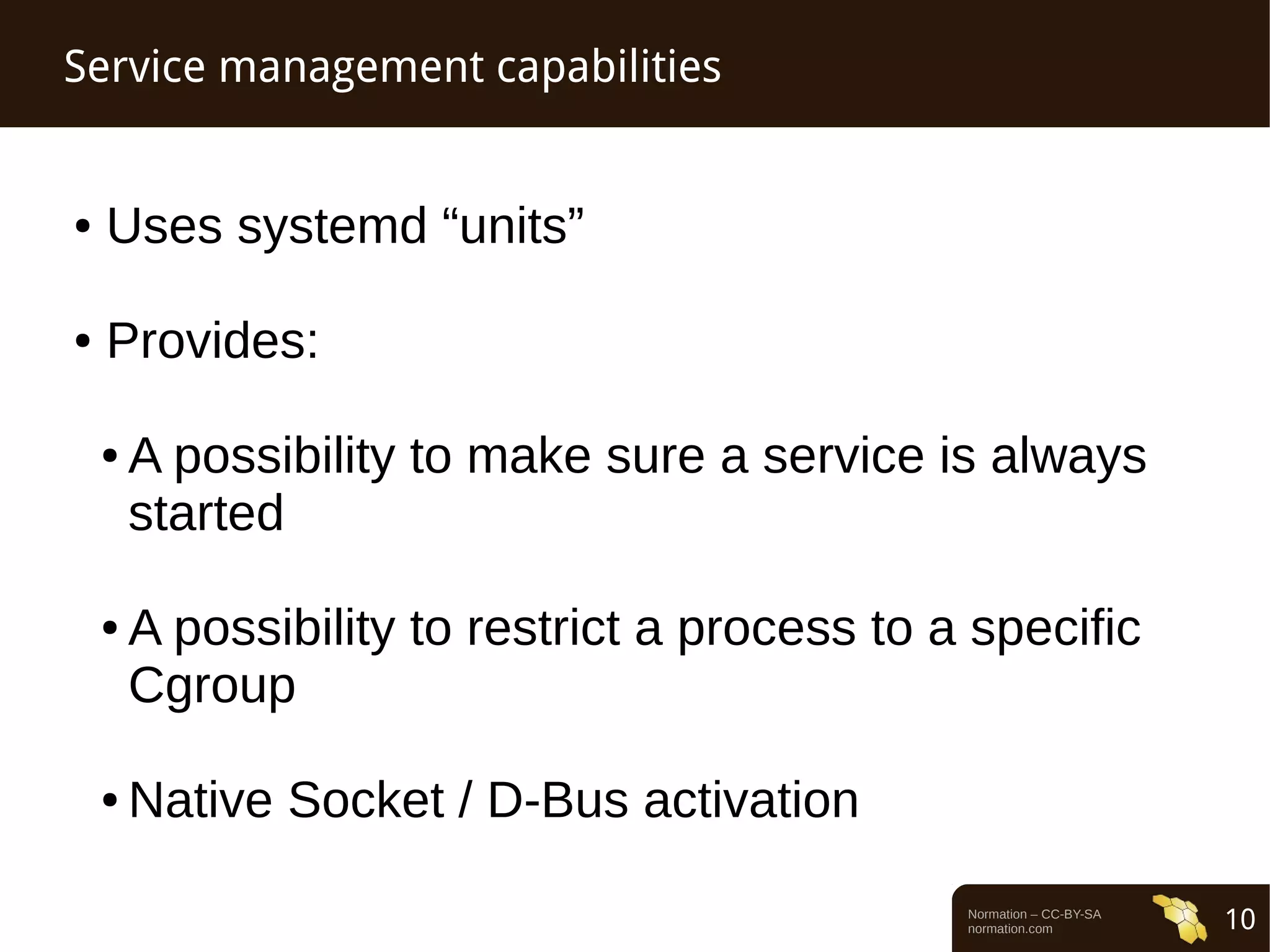

Service management capabilities
● Uses systemd “units”
● Provides:
● A possibility to make sure a service is always
started
● A possibility to restrict a process to a specific
Cgroup
● Native Socket / D-Bus activation

11. Normation – CC-BY-SA
normation.com 11

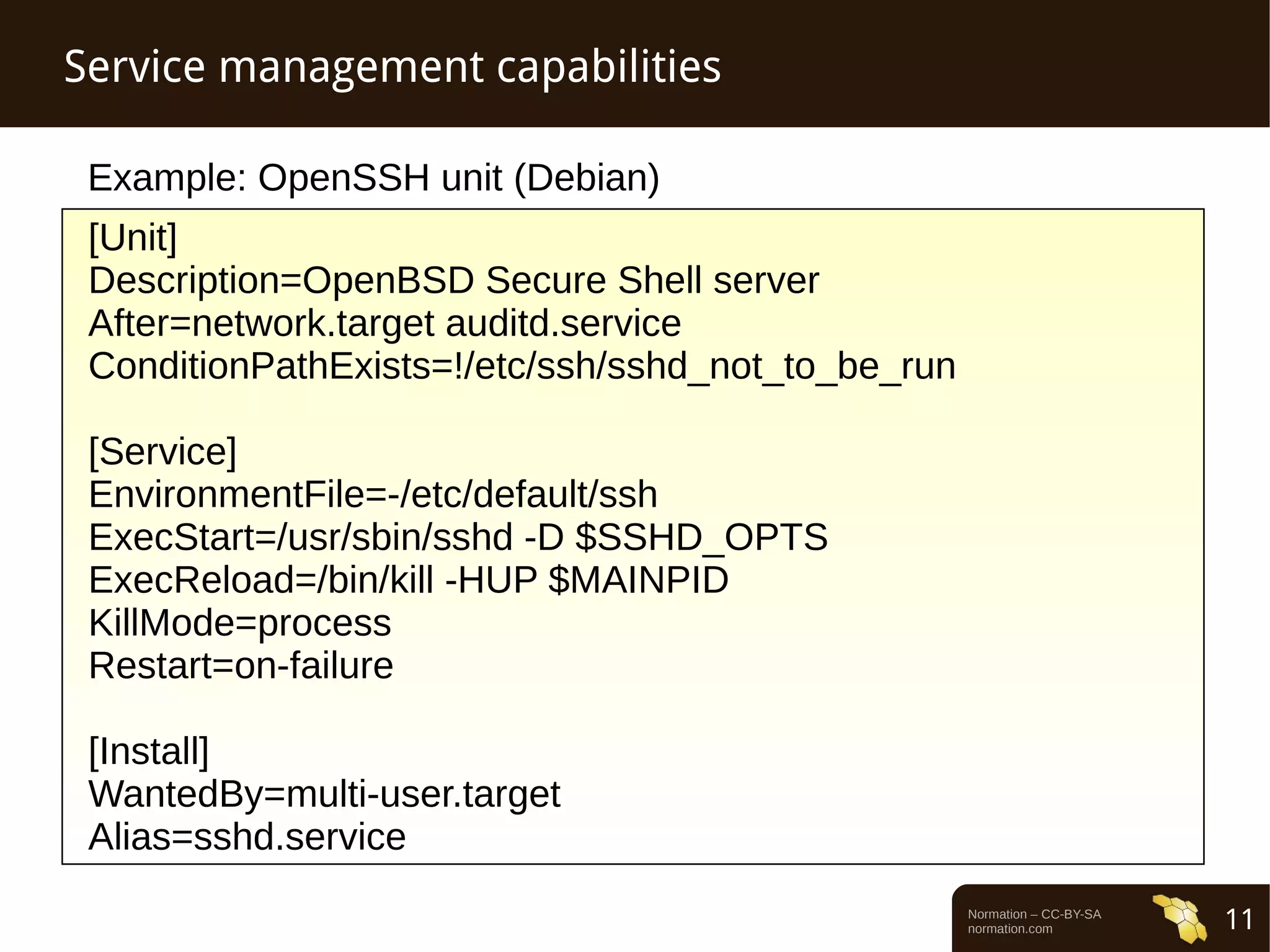

Service management capabilities
Example: OpenSSH unit (Debian)
[Unit]
Description=OpenBSD Secure Shell server
After=network.target auditd.service
ConditionPathExists=!/etc/ssh/sshd_not_to_be_run
[Service]
EnvironmentFile=-/etc/default/ssh
ExecStart=/usr/sbin/sshd -D $SSHD_OPTS
ExecReload=/bin/kill -HUP $MAINPID
KillMode=process
Restart=on-failure
[Install]
WantedBy=multi-user.target
Alias=sshd.service

12. Normation – CC-BY-SA
normation.com 12

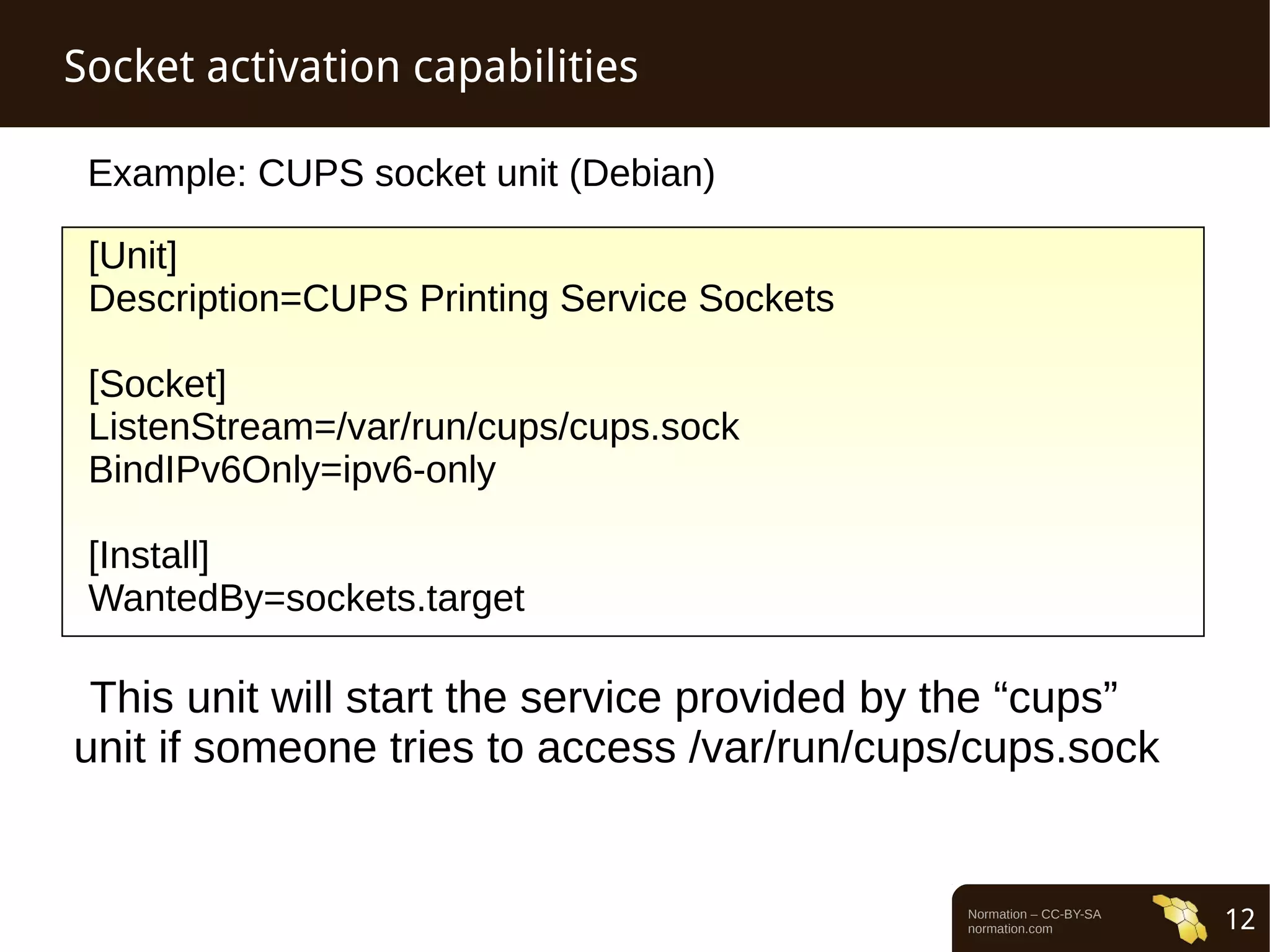

Socket activation capabilities
Example: CUPS socket unit (Debian)
[Unit]
Description=CUPS Printing Service Sockets
[Socket]
ListenStream=/var/run/cups/cups.sock
BindIPv6Only=ipv6-only
[Install]
WantedBy=sockets.target
This unit will start the service provided by the “cups”
unit if someone tries to access /var/run/cups/cups.sock

13. Normation – CC-BY-SA
normation.com 13

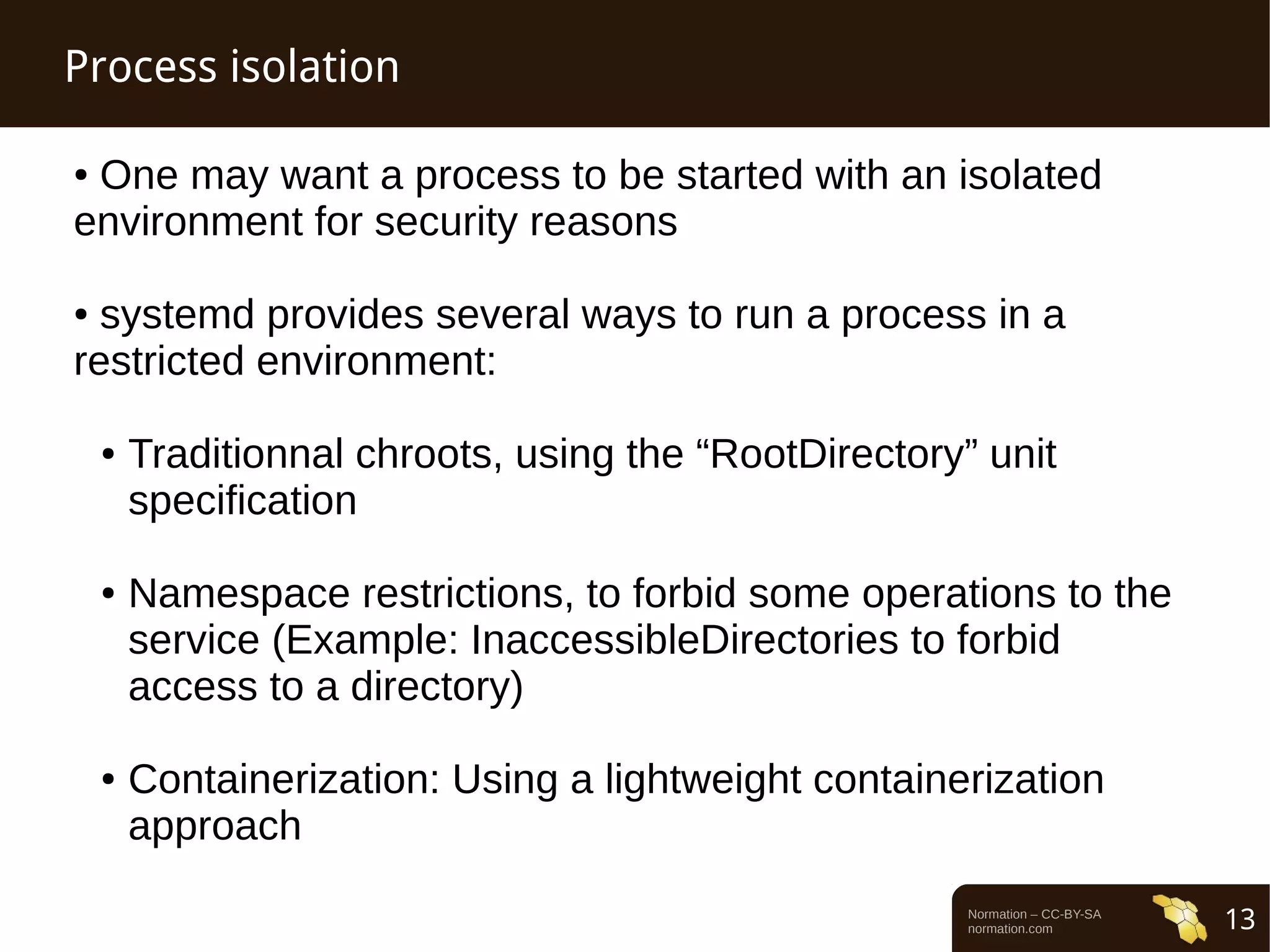

Process isolation
● One may want a process to be started with an isolated
environment for security reasons
● systemd provides several ways to run a process in a
restricted environment:
● Traditionnal chroots, using the “RootDirectory” unit
specification
● Namespace restrictions, to forbid some operations to the
service (Example: InaccessibleDirectories to forbid
access to a directory)
● Containerization: Using a lightweight containerization
approach

14. Normation – CC-BY-SA
normation.com 14

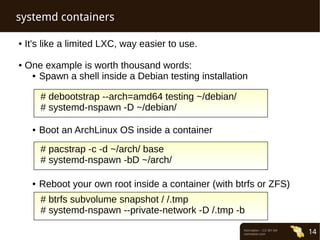

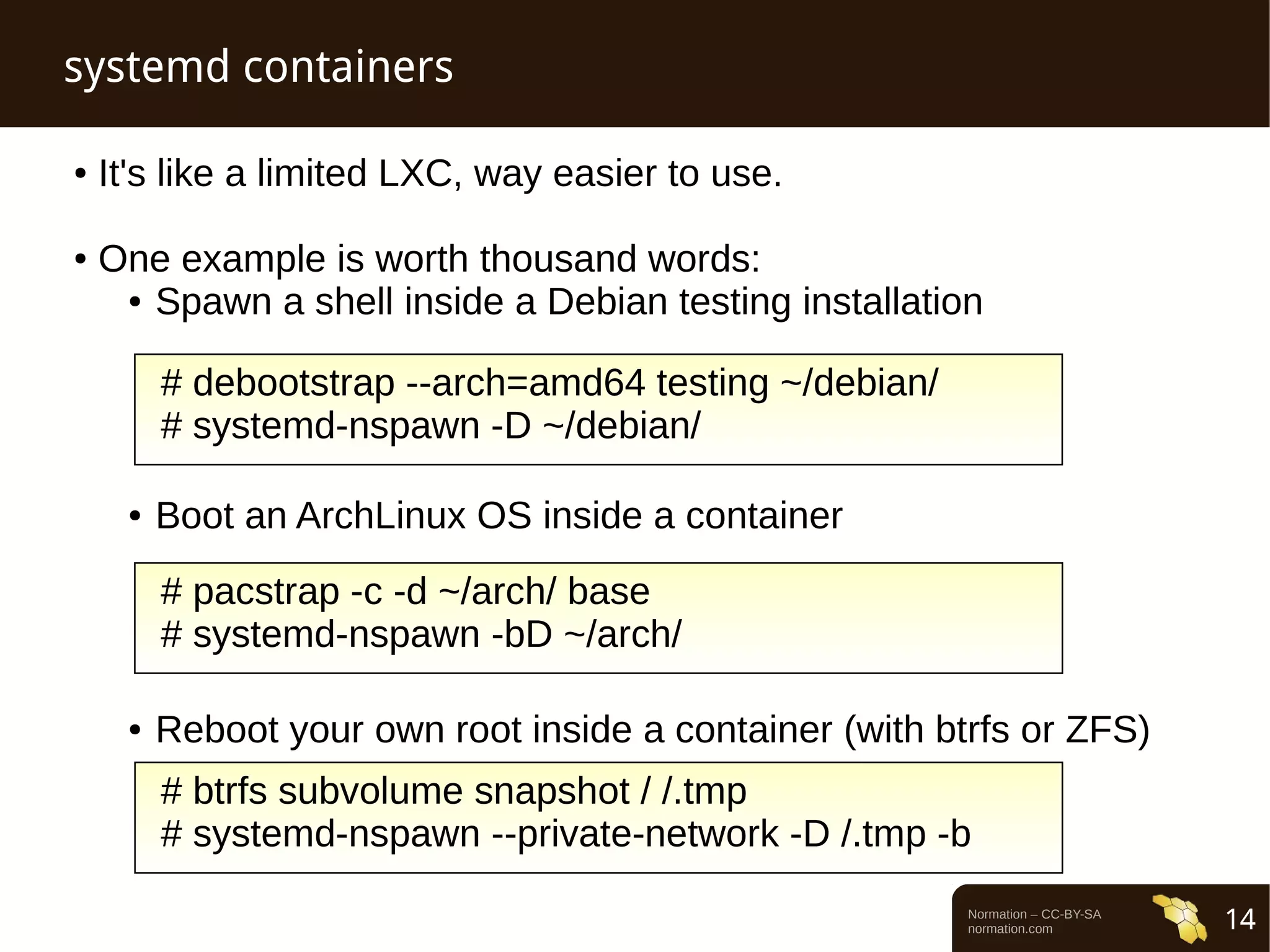

systemd containers
● It's like a limited LXC, way easier to use.
● One example is worth thousand words:
● Spawn a shell inside a Debian testing installation
# debootstrap --arch=amd64 testing ~/debian/
# systemd-nspawn -D ~/debian/
● Boot an ArchLinux OS inside a container
# pacstrap -c -d ~/arch/ base
# systemd-nspawn -bD ~/arch/
● Reboot your own root inside a container (with btrfs or ZFS)
# btrfs subvolume snapshot / /.tmp
# systemd-nspawn --private-network -D /.tmp -b

15. Normation – CC-BY-SA
normation.com 15

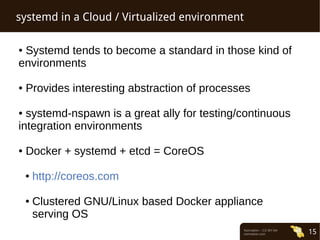

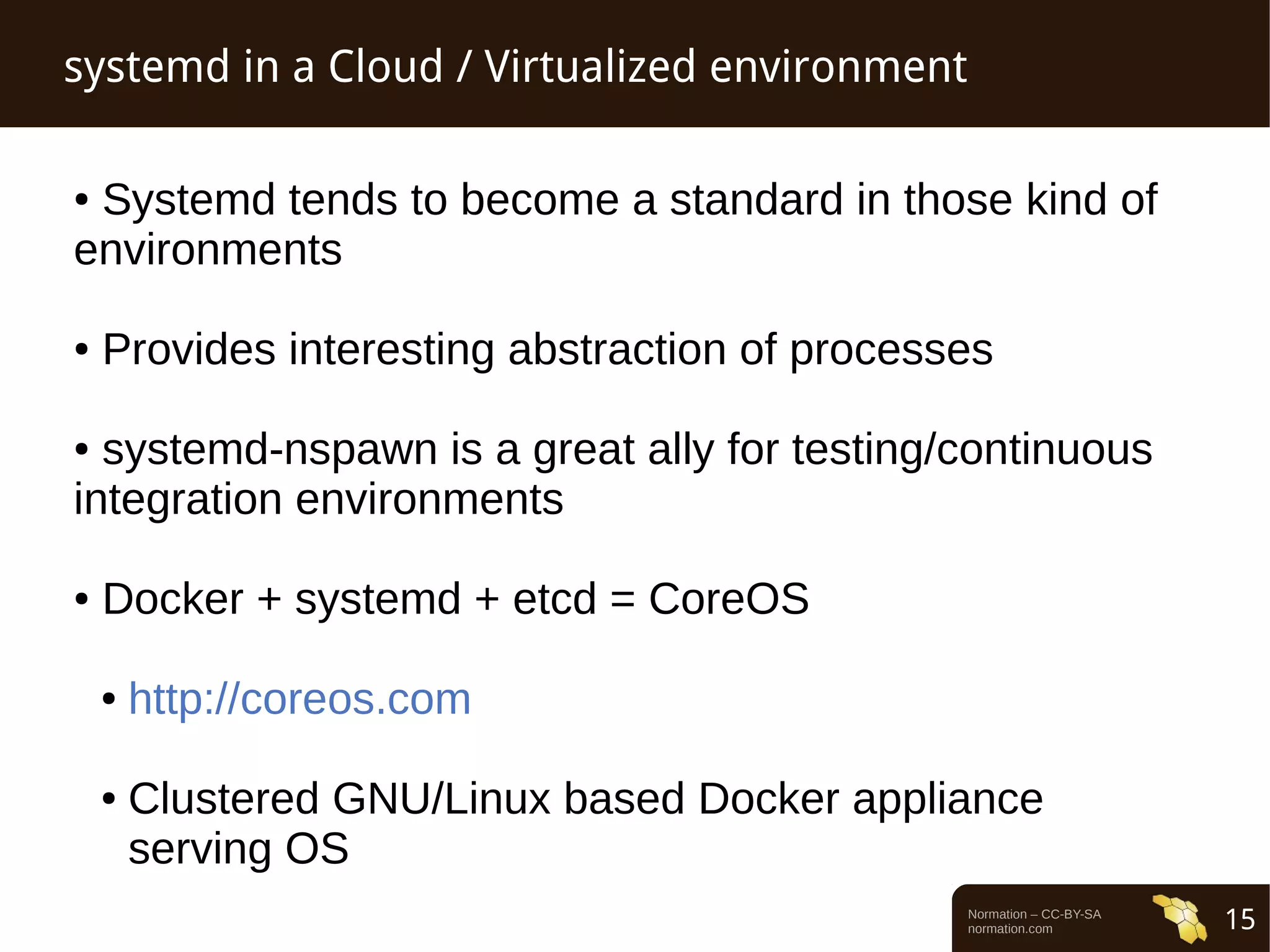

systemd in a Cloud / Virtualized environment
● Systemd tends to become a standard in those kind of
environments
● Provides interesting abstraction of processes
● systemd-nspawn is a great ally for testing/continuous
integration environments
● Docker + systemd + etcd = CoreOS
● http://coreos.com
● Clustered GNU/Linux based Docker appliance
serving OS

16. Normation – CC-BY-SA
normation.com 16

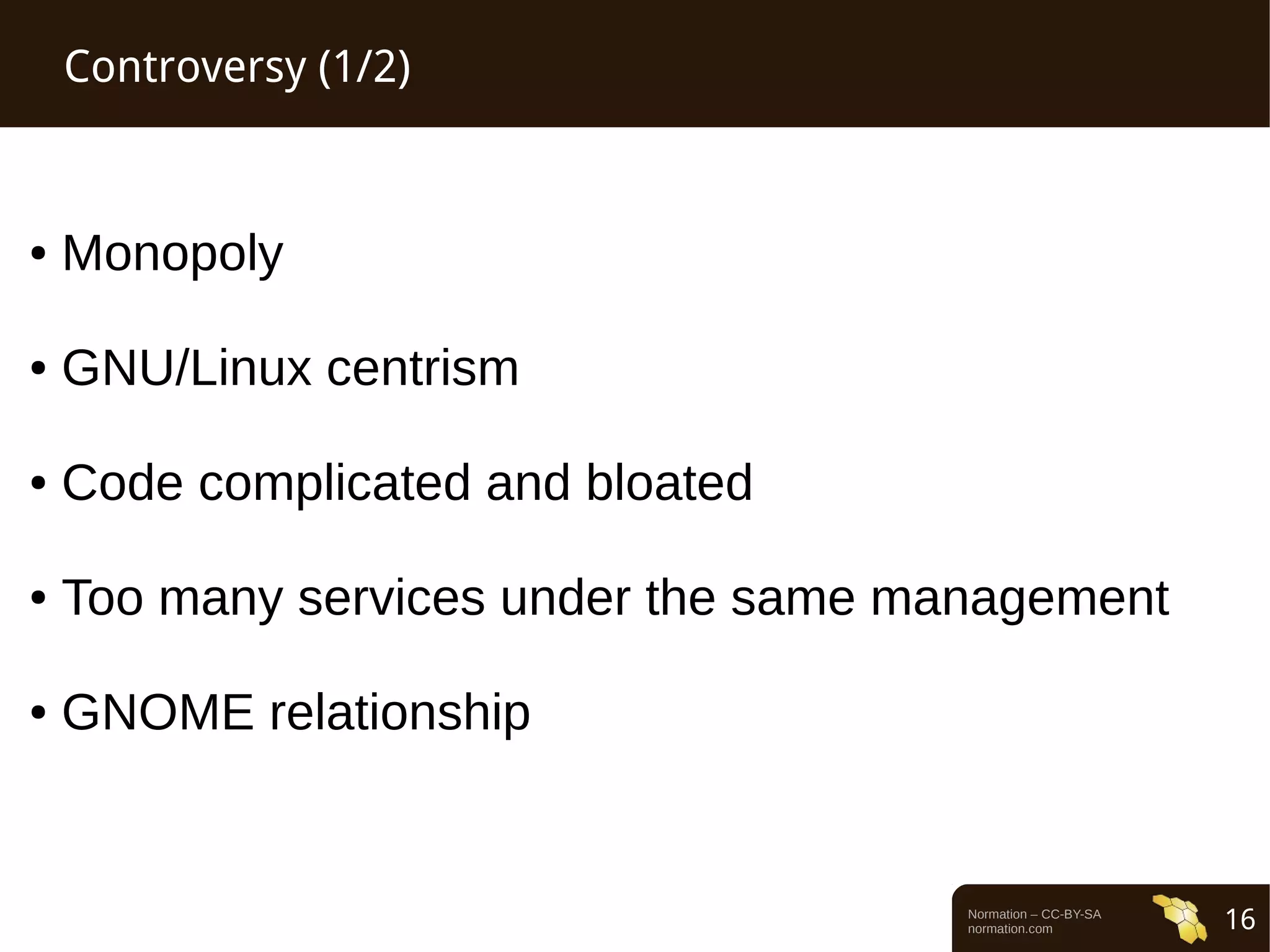

Controversy (1/2)
● Monopoly
● GNU/Linux centrism
● Code complicated and bloated
● Too many services under the same management
● GNOME relationship

17. Normation – CC-BY-SA
normation.com 17

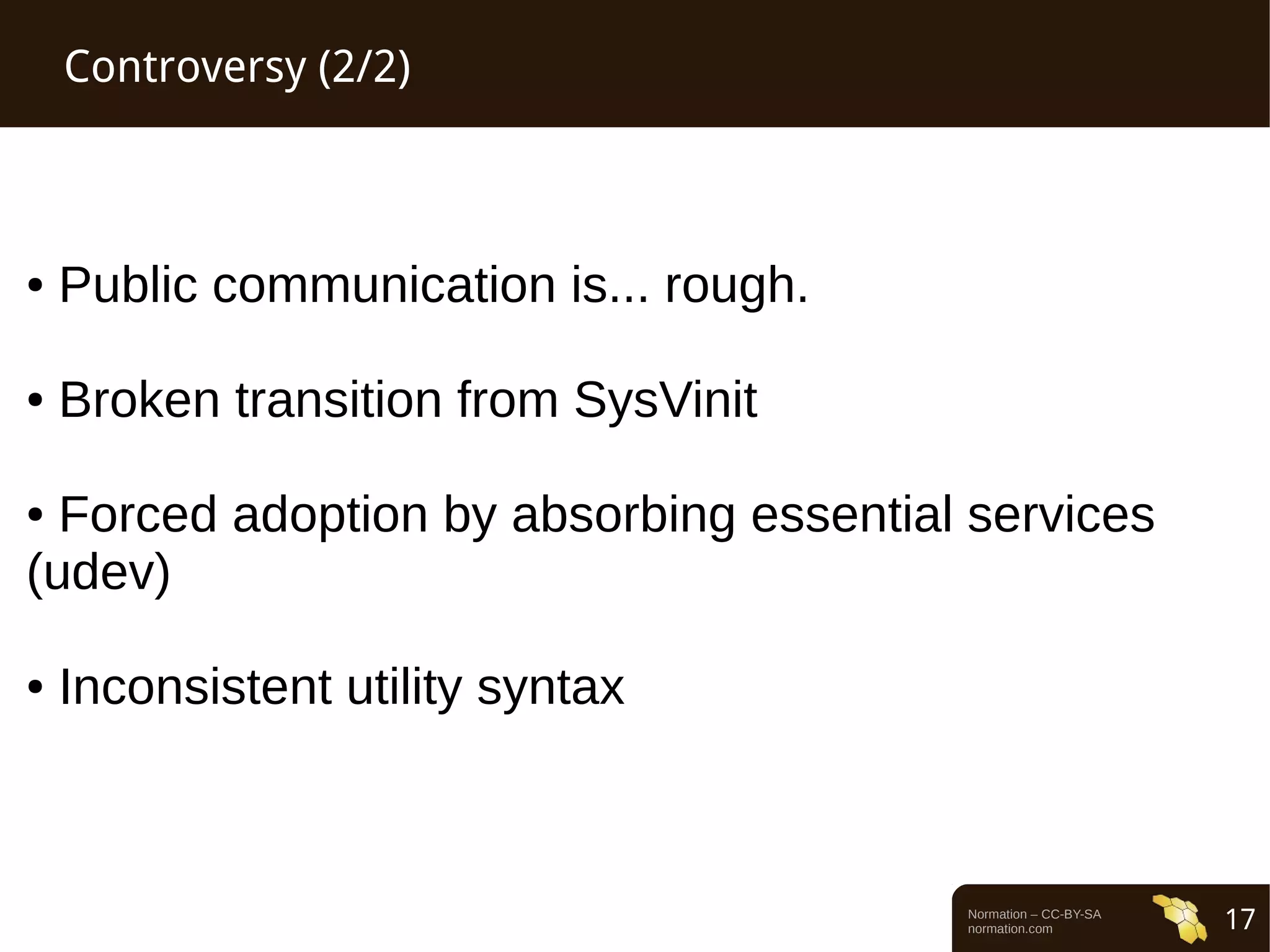

Controversy (2/2)
● Public communication is... rough.
● Broken transition from SysVinit
● Forced adoption by absorbing essential services
(udev)
● Inconsistent utility syntax

18. Normation – CC-BY-SA
normation.com 18
QQuueessttiioonnss ?? ::))
