systemd @ Facebook -- a year later
- 2. systemd @ FB– a year later Davide Cavalca Production Engineer

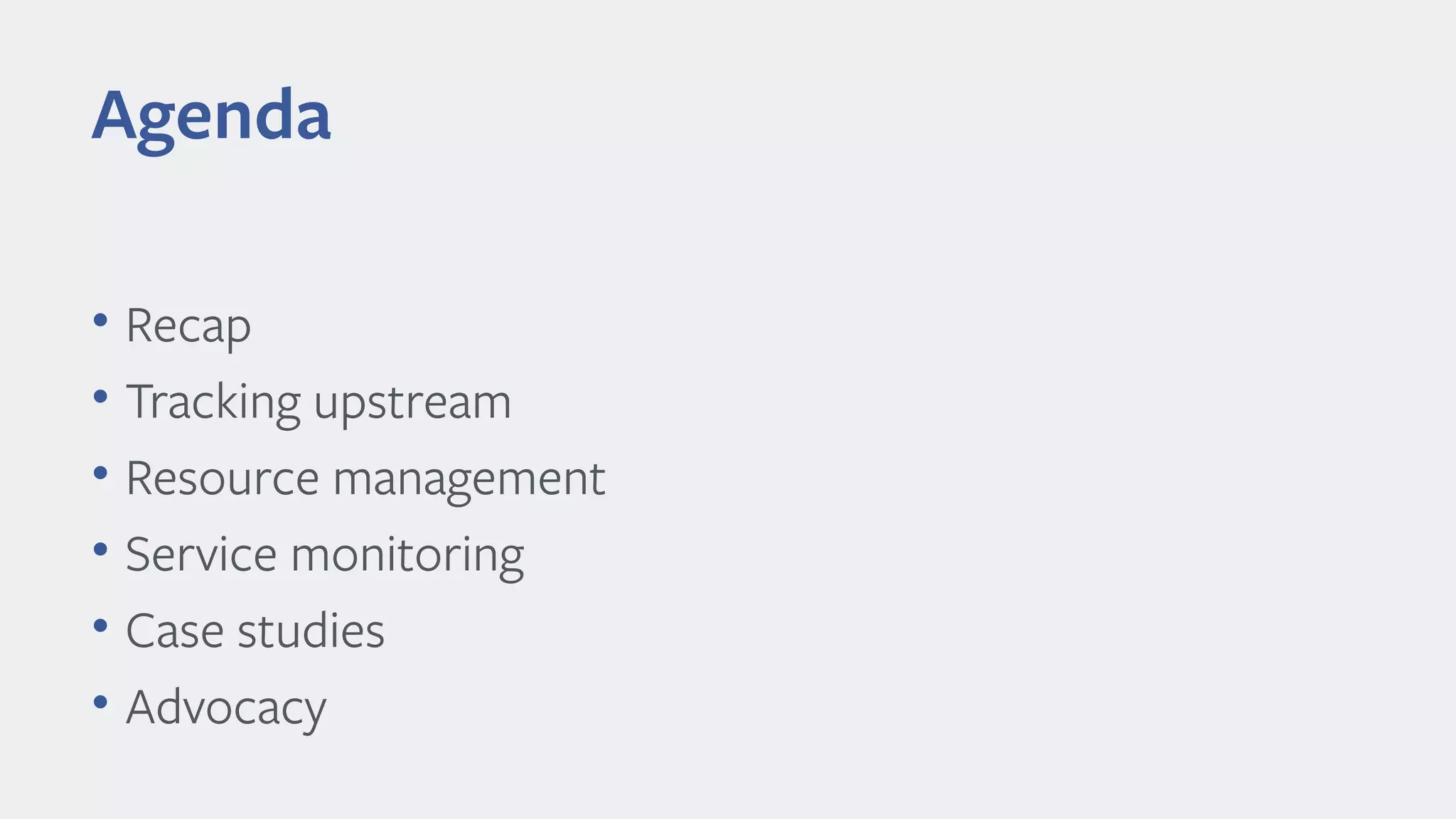

- 3. • Recap • Trackingupstream • Resource management • Service monitoring • Case studies • Advocacy Agenda
- 4.

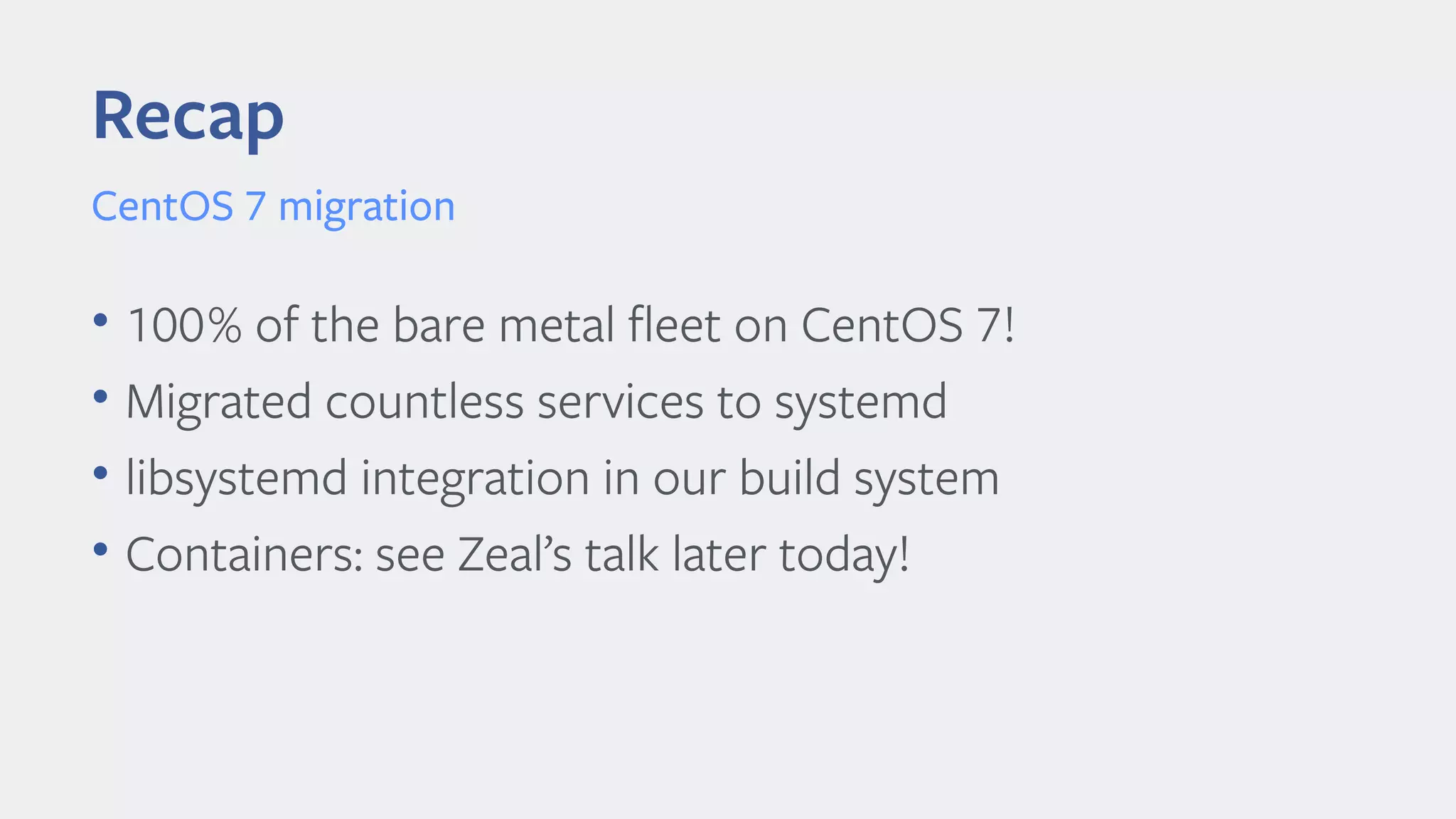

- 6. • 100% ofthe bare metal feet on CentOS 7! • Migrated countless services to systemd • libsystemd integration in our build system • Containers: see Zeal’s talk later today! Recap CentOS 7 migration
- 7.

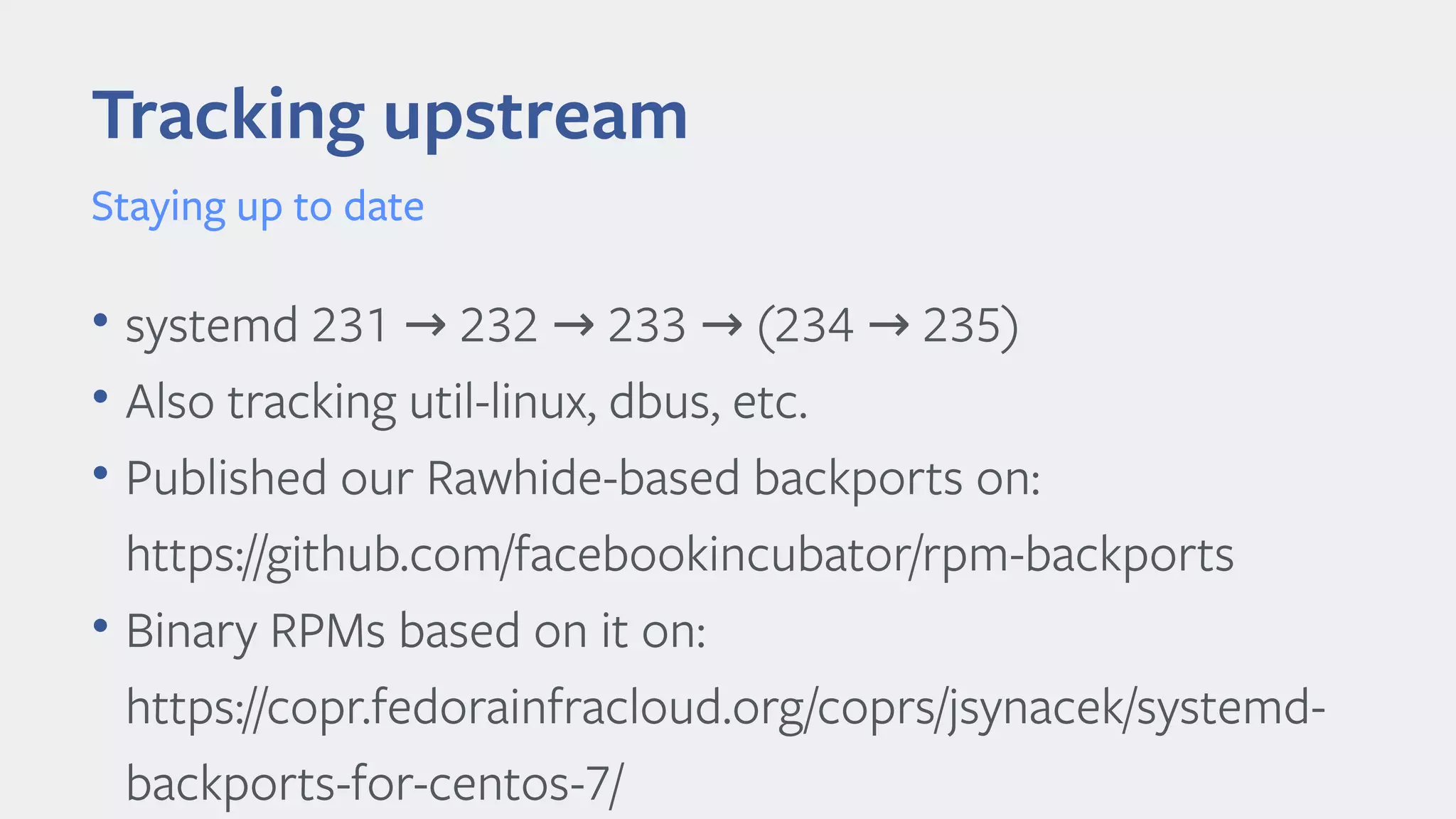

- 8. • systemd 231232 233 (234 235)→ → → → • Also tracking util-linux, dbus, etc. • Published our Rawhide-based backports on: https://github.com/facebookincubator/rpm-backports • Binary RPMs based on it on: https://copr.fedorainfracloud.org/coprs/jsynacek/systemd- backports-for-centos-7/ Tracking upstream Staying up to date

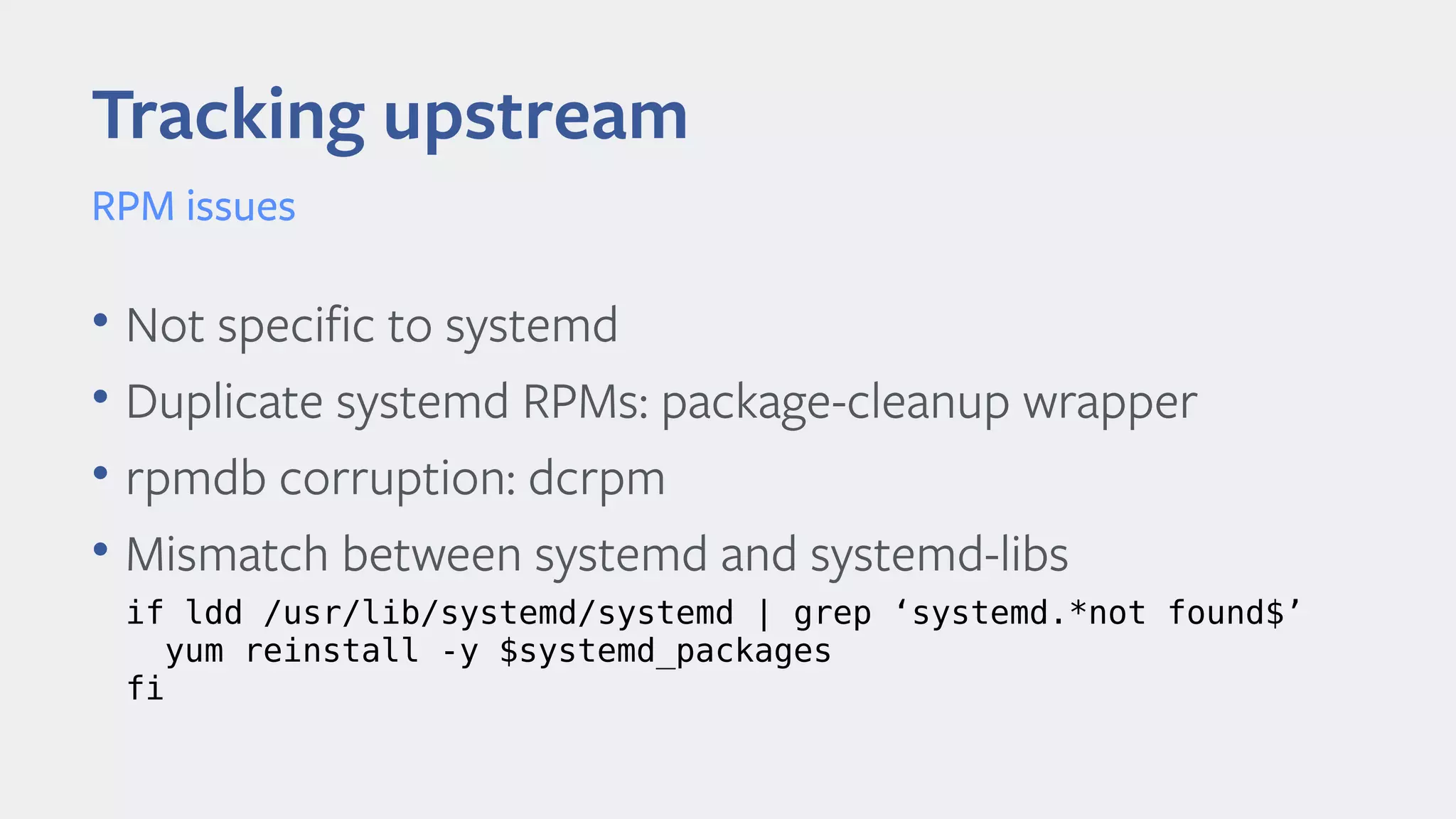

- 9. • Not specifcto systemd • Duplicate systemd RPMs: package-cleanup wrapper • rpmdb corruption: dcrpm • Mismatch between systemd and systemd-libs Tracking upstream RPM issues if ldd /usr/lib/systemd/systemd | grep ‘systemd.*not found$’ yum reinstall -y $systemd_packages fi

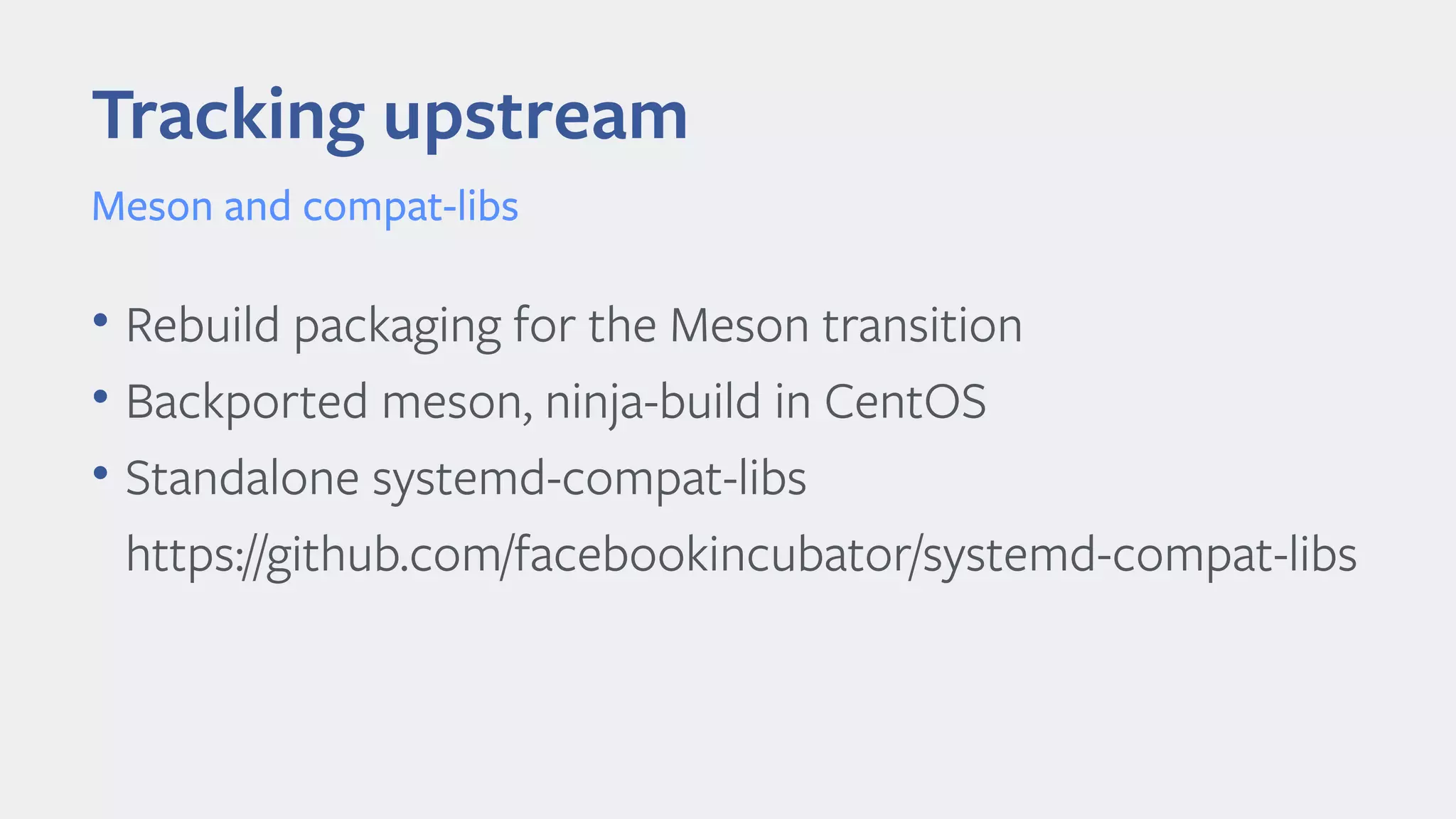

- 10. • Rebuild packagingfor the Meson transition • Backported meson, ninja-build in CentOS • Standalone systemd-compat-libs https://github.com/facebookincubator/systemd-compat-libs Tracking upstream Meson and compat-libs

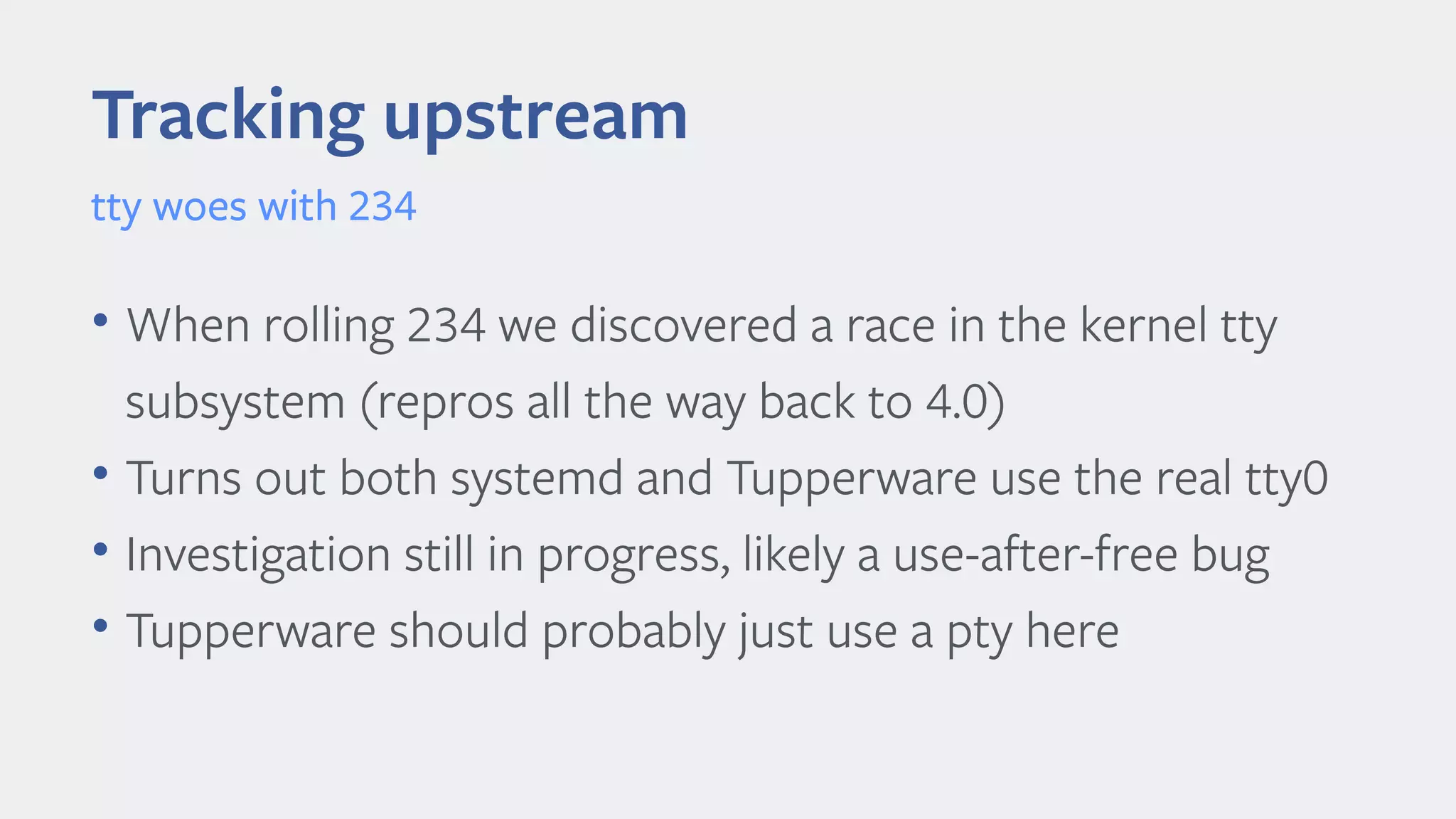

- 11. Tracking upstream tty woeswith 234 • When rolling 234 we discovered a race in the kernel tty subsystem (repros all the way back to 4.0) • Turns out both systemd and Tupperware use the real tty0 • Investigation still in progress, likely a use-after-free bug • Tupperware should probably just use a pty here
- 12.

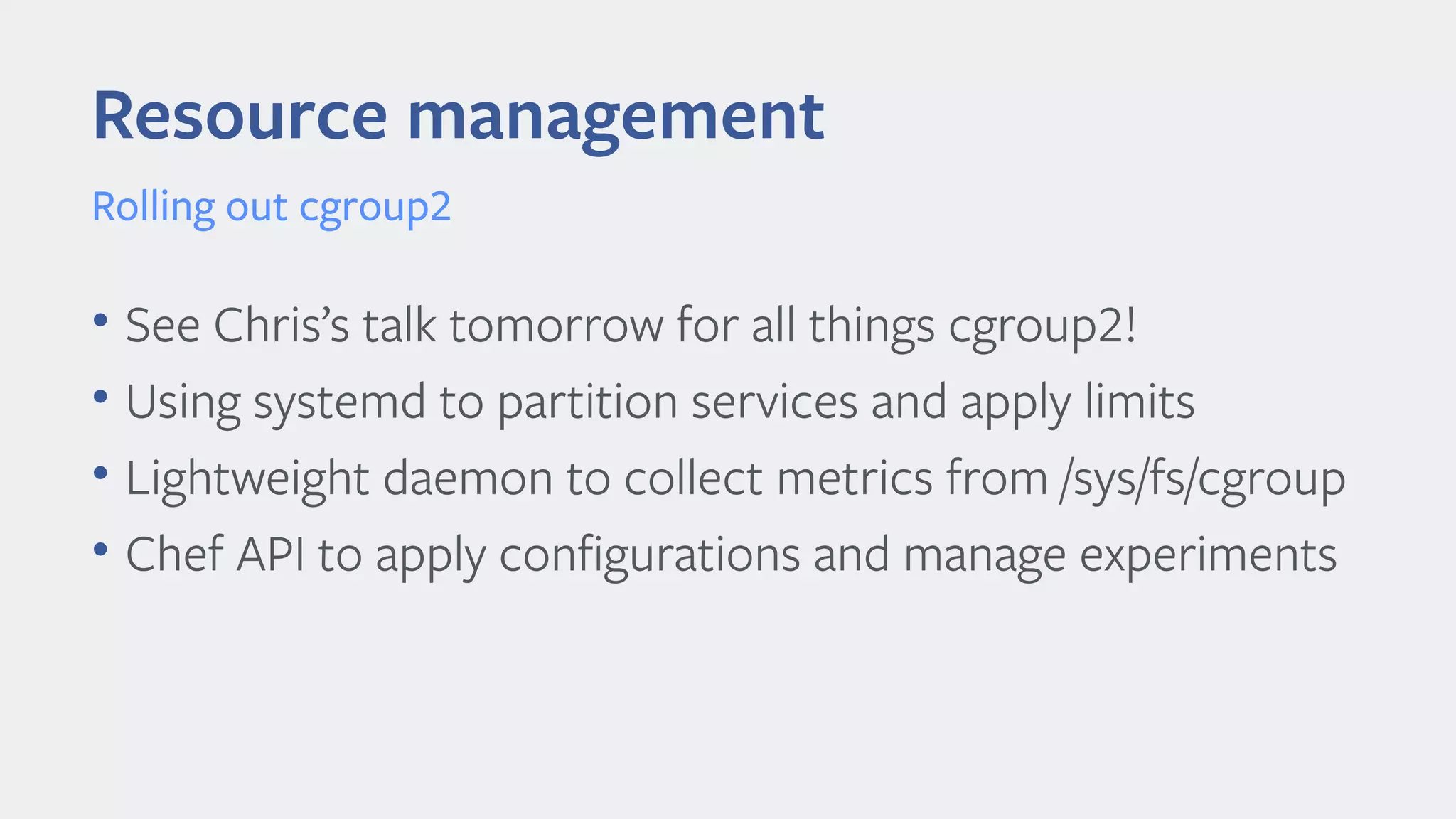

- 13. • See Chris’stalk tomorrow for all things cgroup2! • Using systemd to partition services and apply limits • Lightweight daemon to collect metrics from /sys/fs/cgroup • Chef API to apply confgurations and manage experiments Resource management Rolling out cgroup2

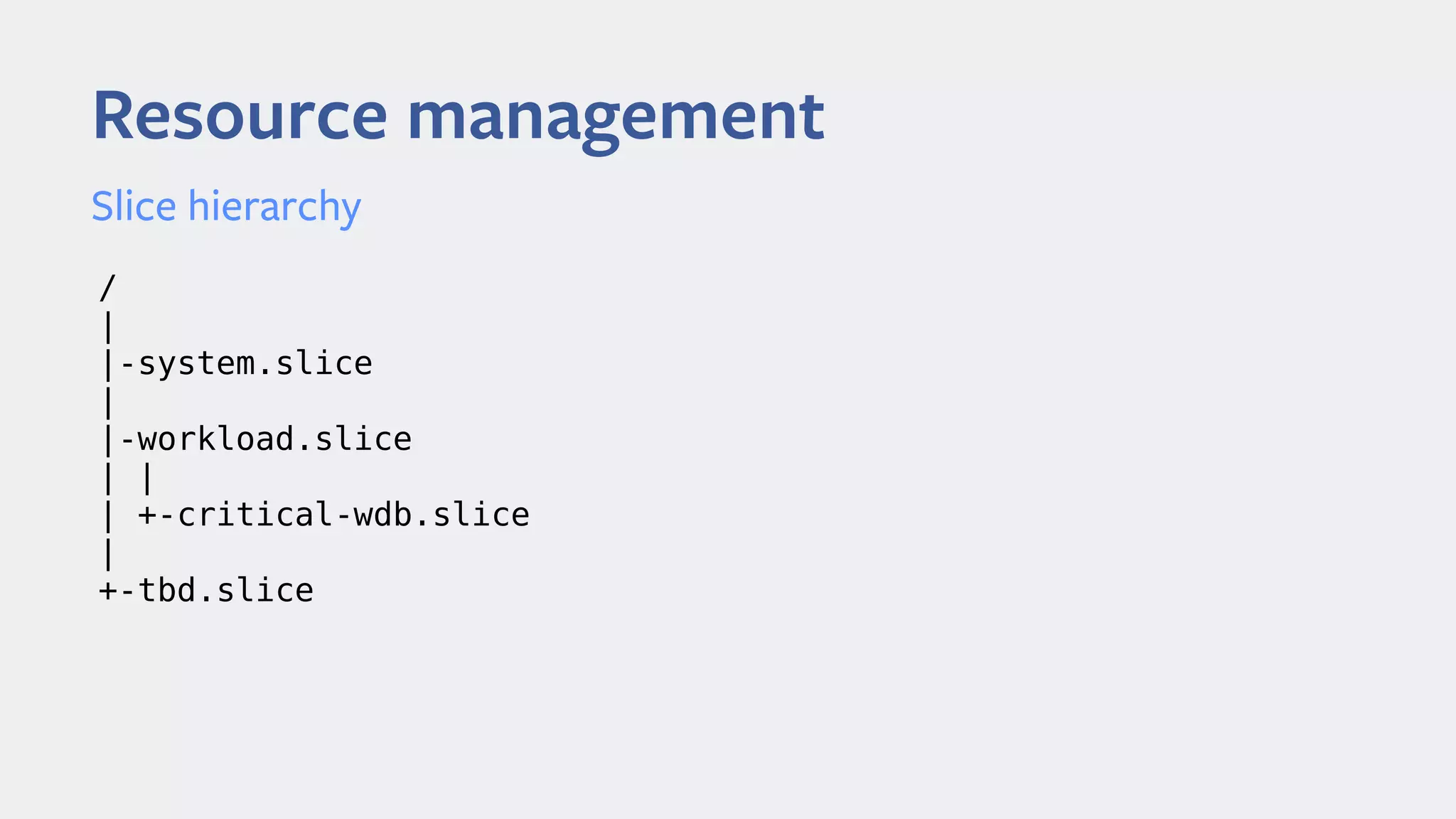

- 14. Resource management Slice hierarchy / | |-system.slice | |-workload.slice || | +-critical-wdb.slice | +-tbd.slice
- 15.

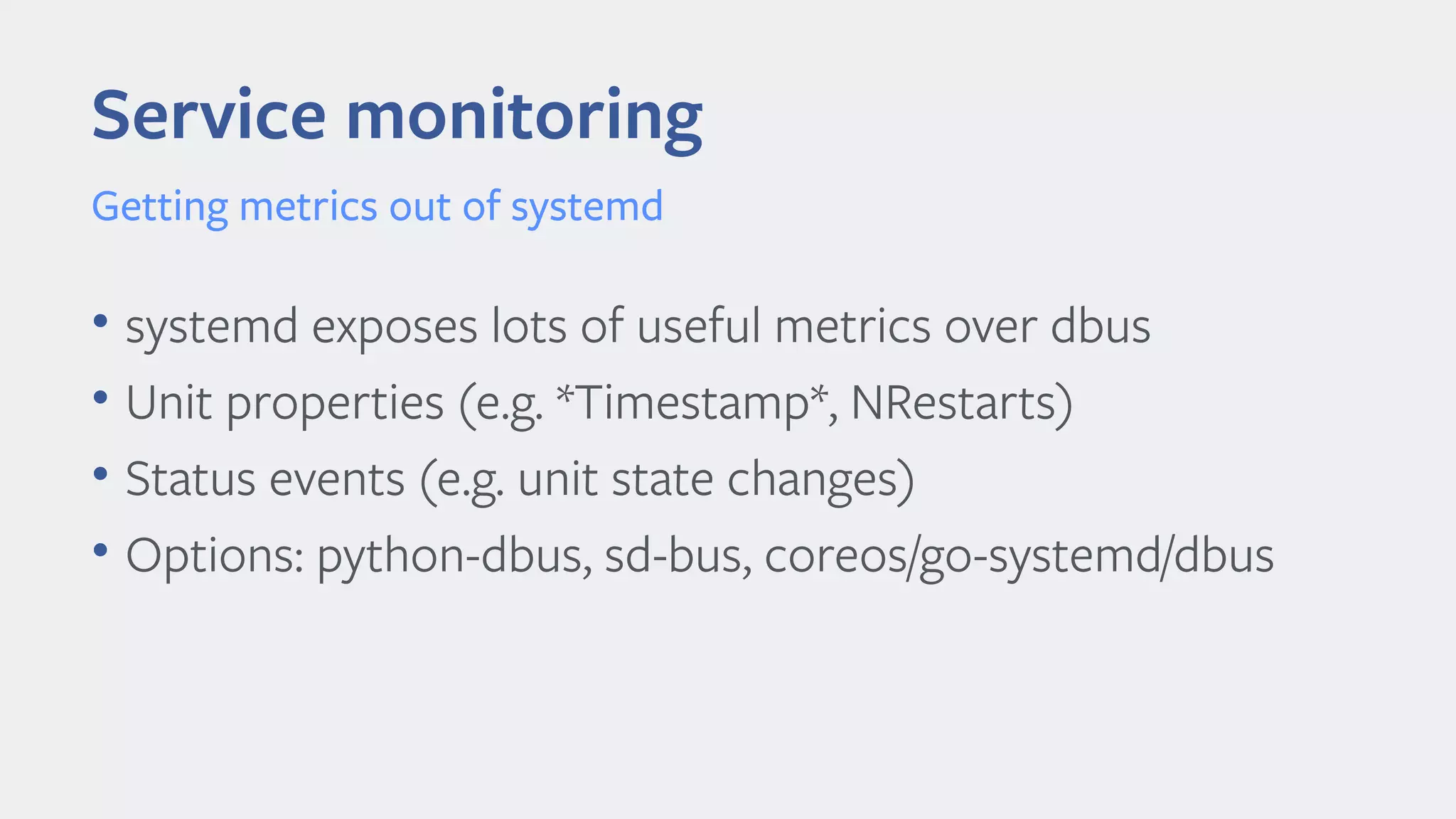

- 16. Service monitoring • systemdexposes lots of useful metrics over dbus • Unit properties (e.g. *Timestamp*, NRestarts) • Status events (e.g. unit state changes) • Options: python-dbus, sd-bus, coreos/go-systemd/dbus Getting metrics out of systemd

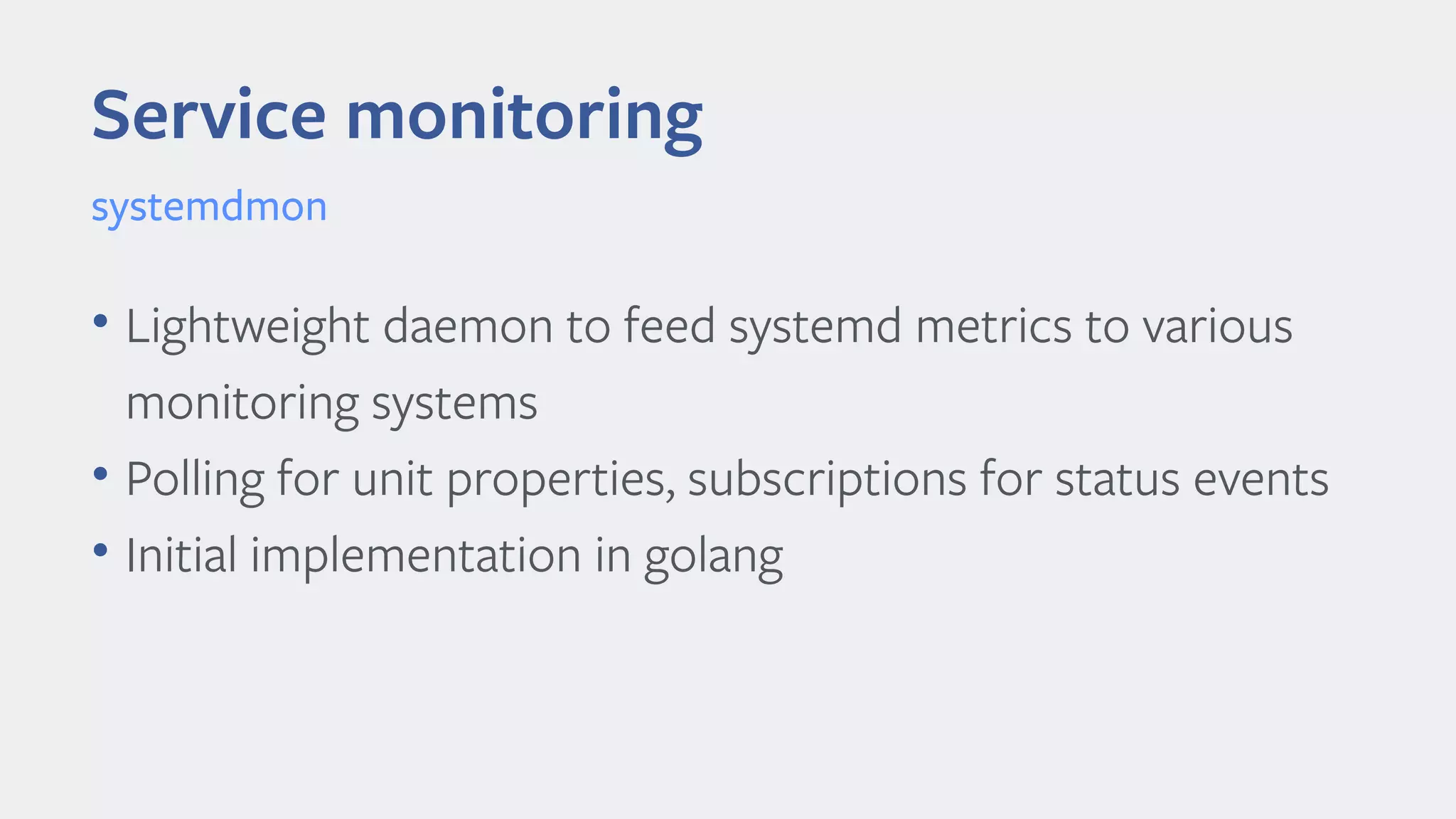

- 17. Service monitoring • Lightweightdaemon to feed systemd metrics to various monitoring systems • Polling for unit properties, subscriptions for status events • Initial implementation in golang systemdmon

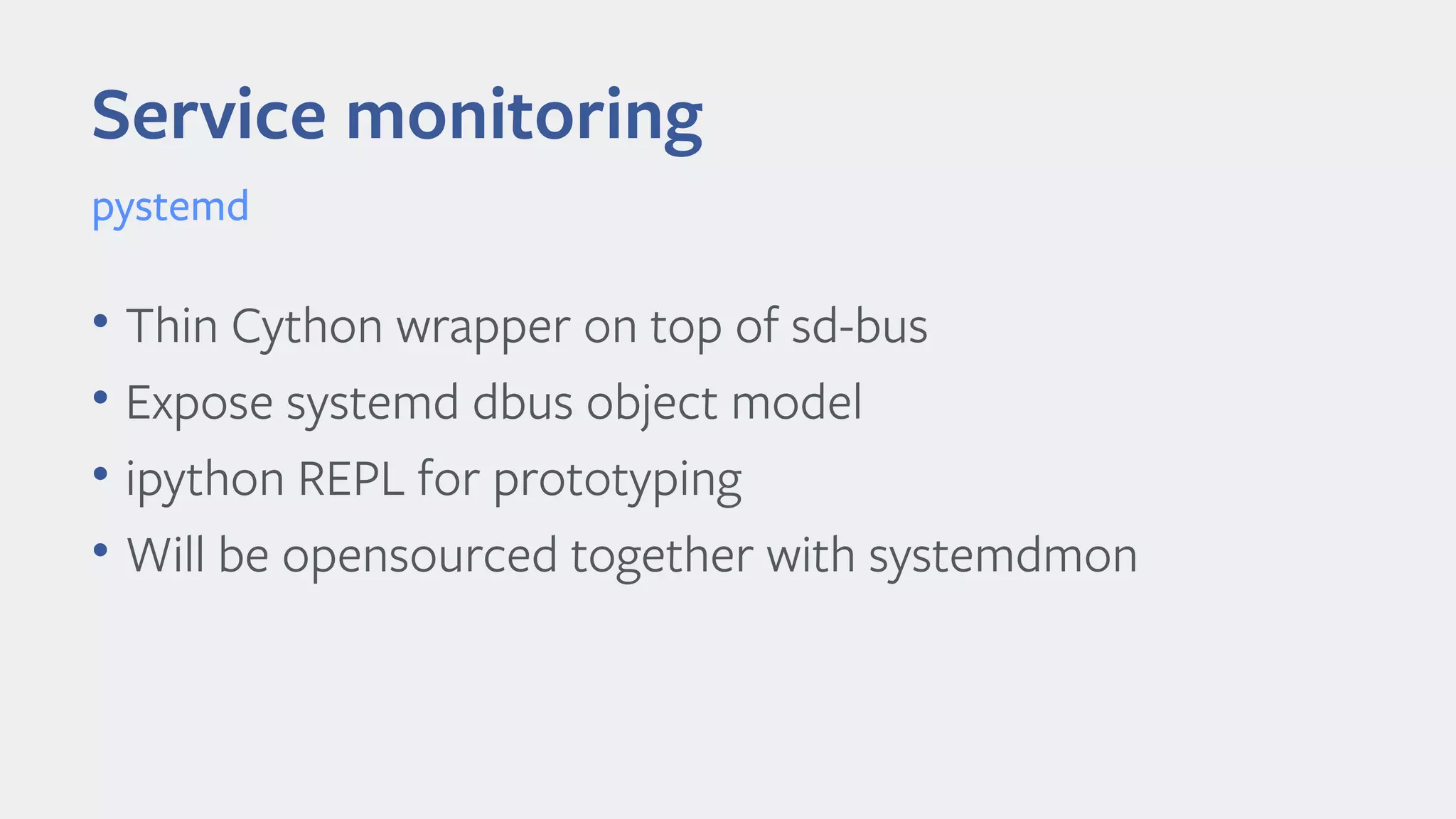

- 18. Service monitoring • ThinCython wrapper on top of sd-bus • Expose systemd dbus object model • ipython REPL for prototyping • Will be opensourced together with systemdmon pystemd
- 19.

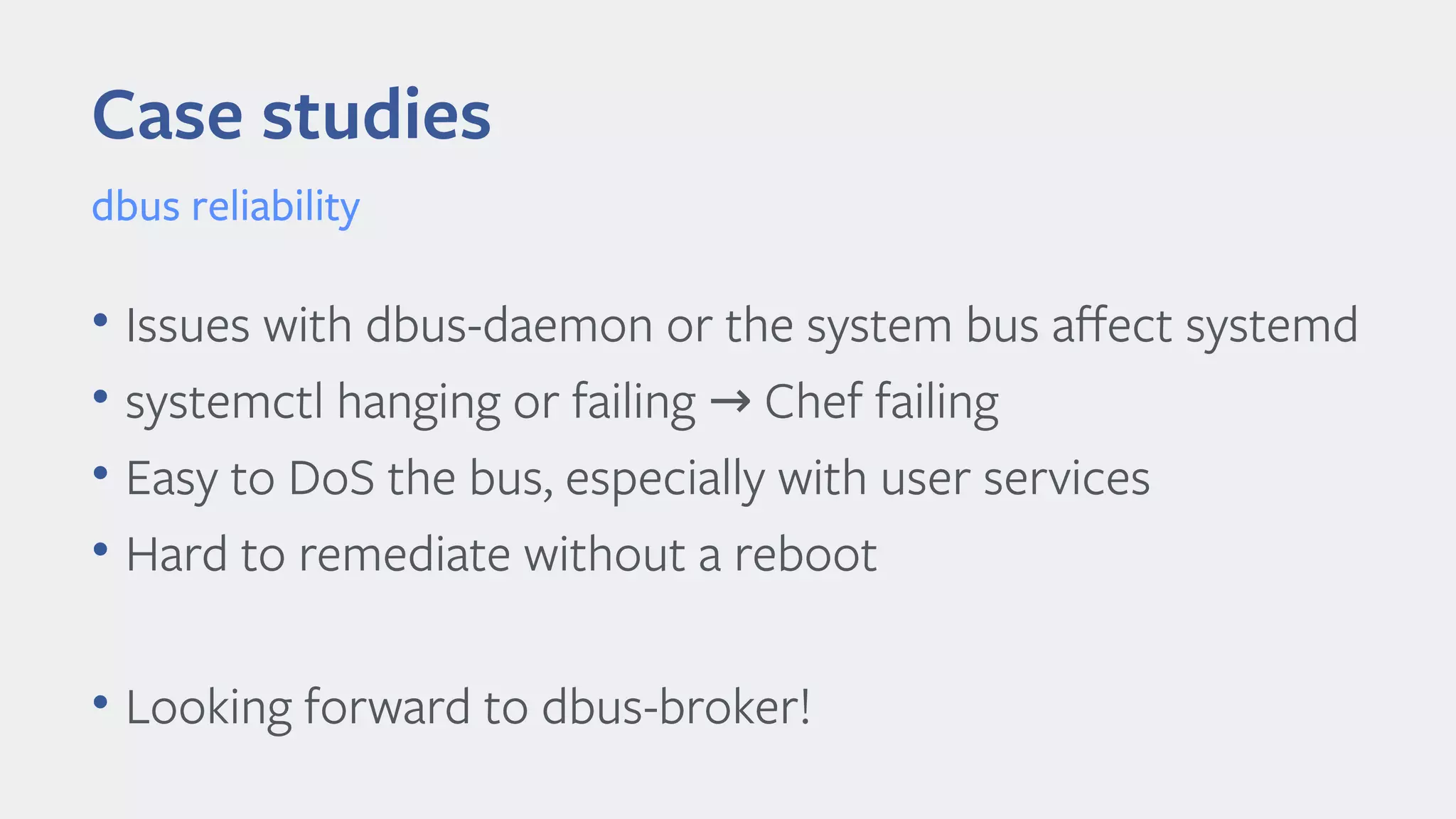

- 20. Case studies dbus reliability •Issues with dbus-daemon or the system bus afect systemd • systemctl hanging or failing Chef failing→ • Easy to DoS the bus, especially with user services • Hard to remediate without a reboot • Looking forward to dbus-broker!

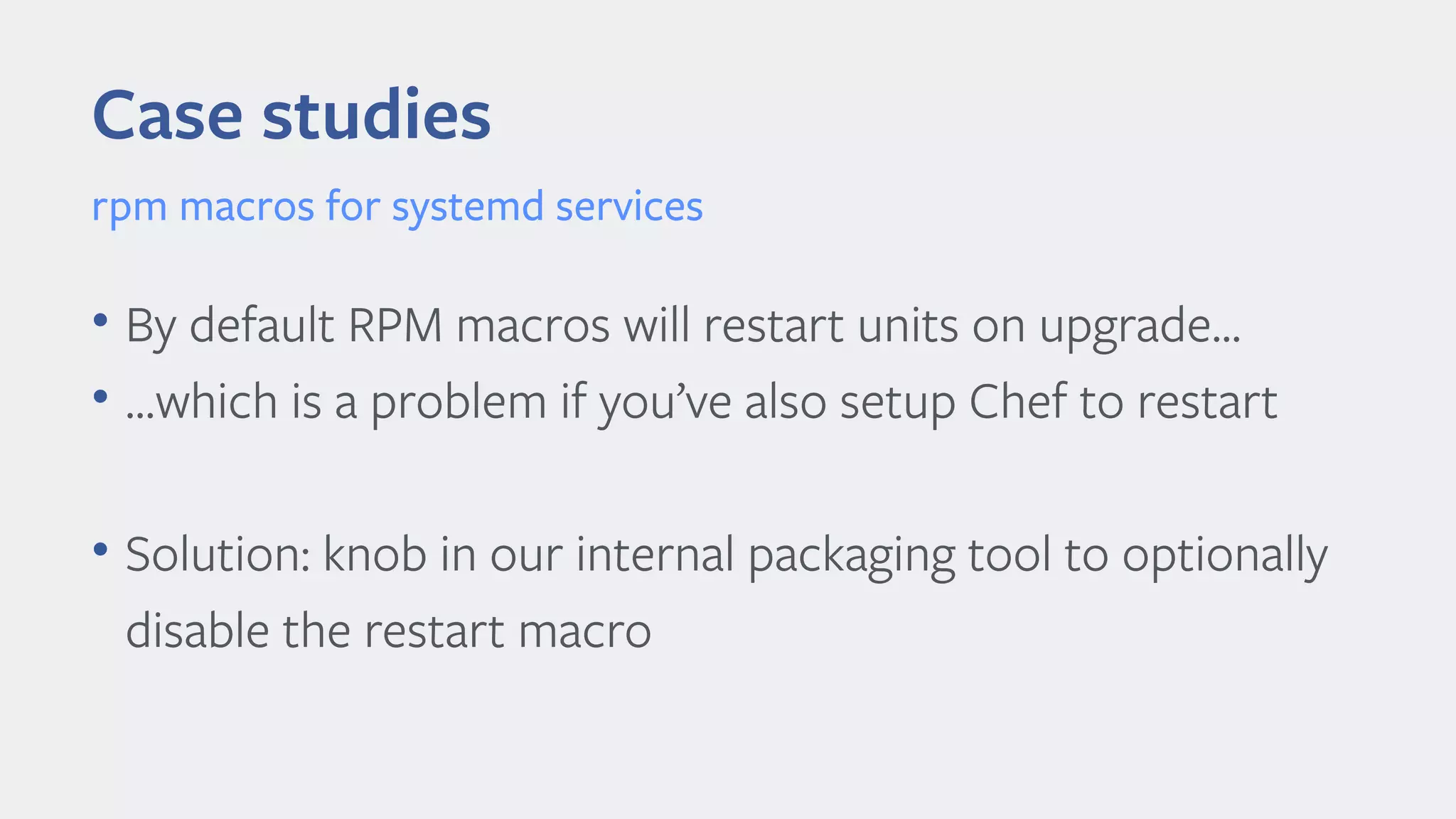

- 21. Case studies rpm macrosfor systemd services • By default RPM macros will restart units on upgrade... • …which is a problem if you’ve also setup Chef to restart • Solution: knob in our internal packaging tool to optionally disable the restart macro

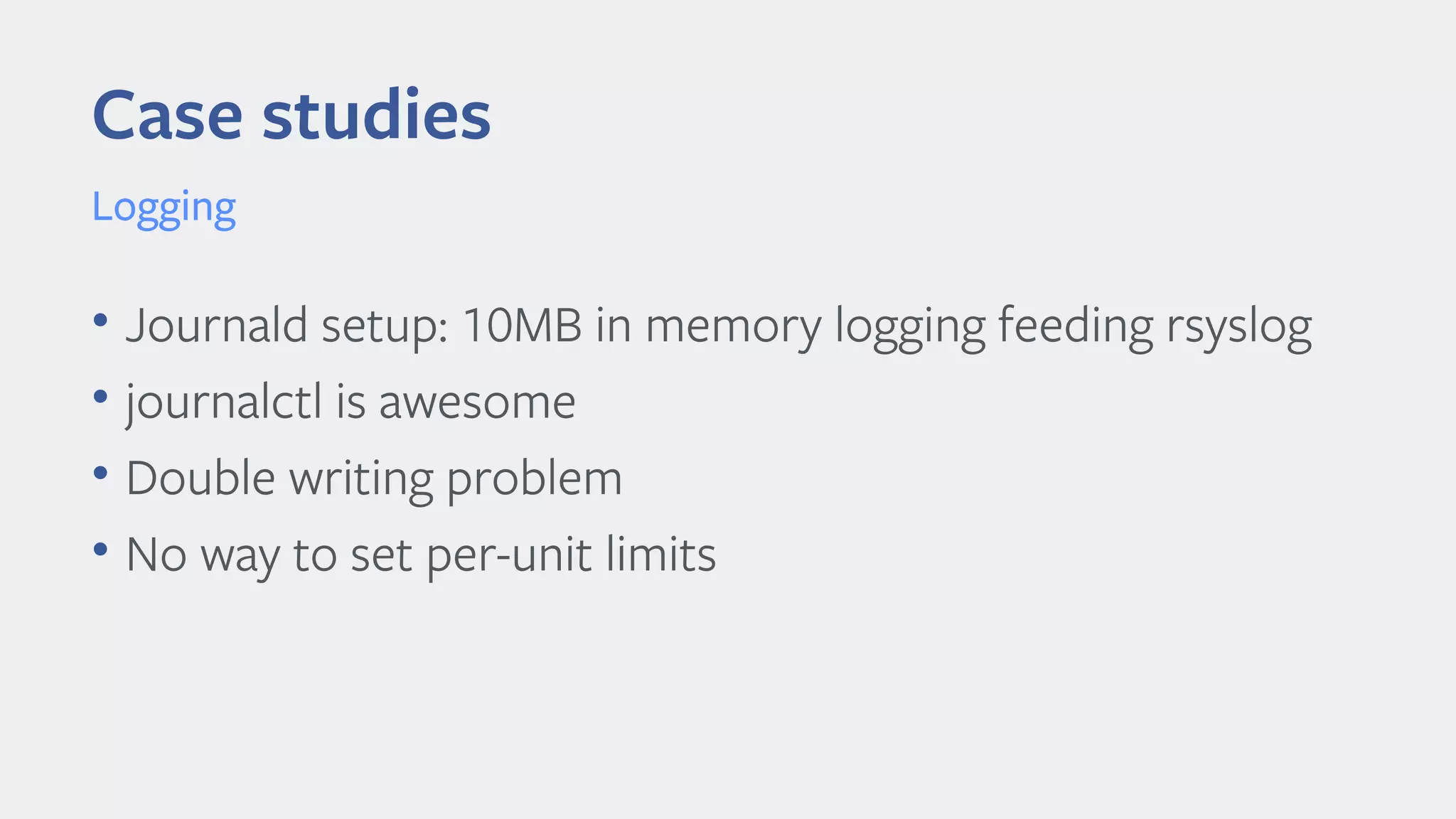

- 22. Case studies Logging • Journaldsetup: 10MB in memory logging feeding rsyslog • journalctl is awesome • Double writing problem • No way to set per-unit limits

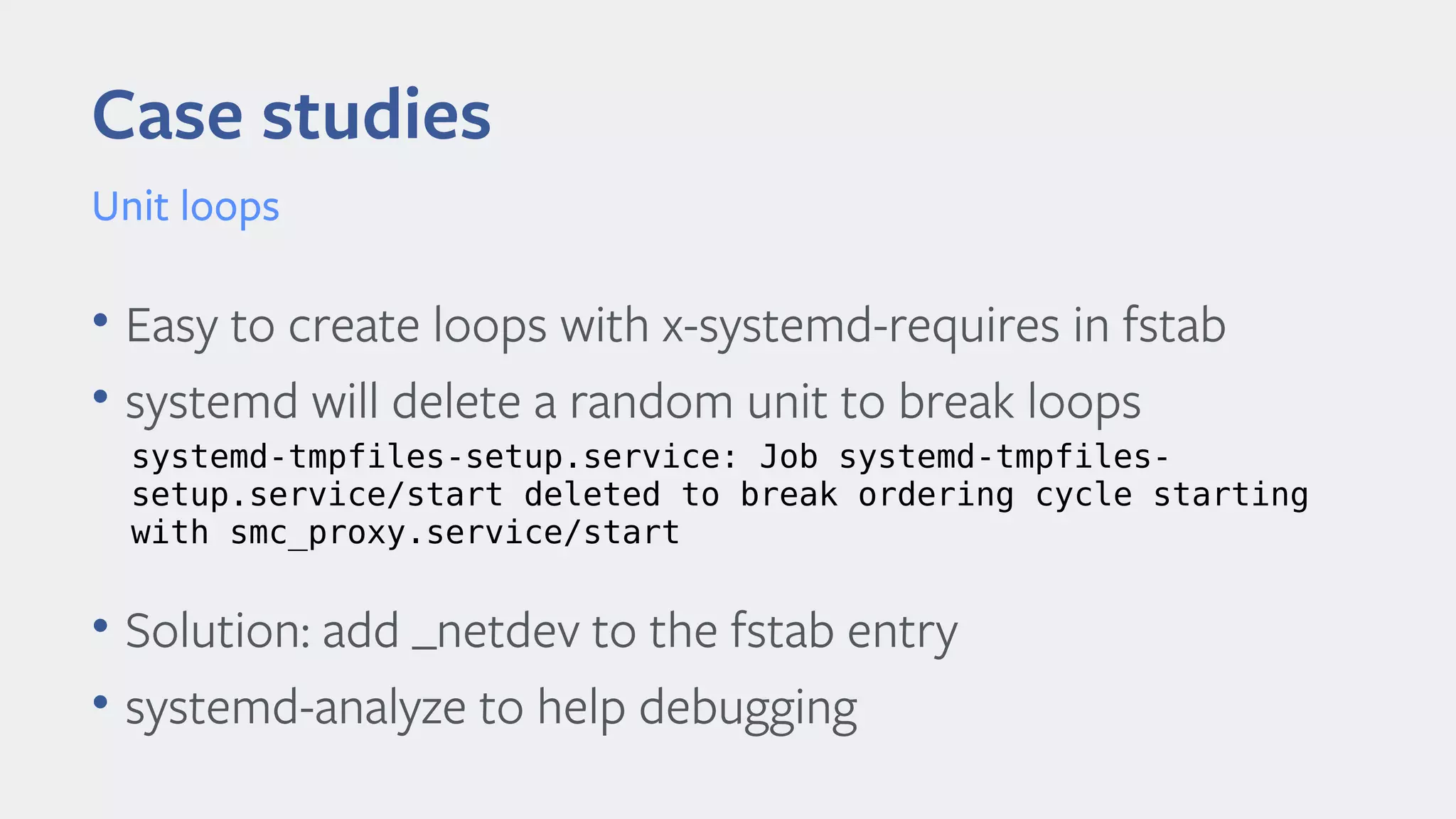

- 23. Case studies Unit loops •Easy to create loops with x-systemd-requires in fstab • systemd will delete a random unit to break loops • Solution: add _netdev to the fstab entry • systemd-analyze to help debugging systemd-tmpfiles-setup.service: Job systemd-tmpfiles- setup.service/start deleted to break ordering cycle starting with smc_proxy.service/start

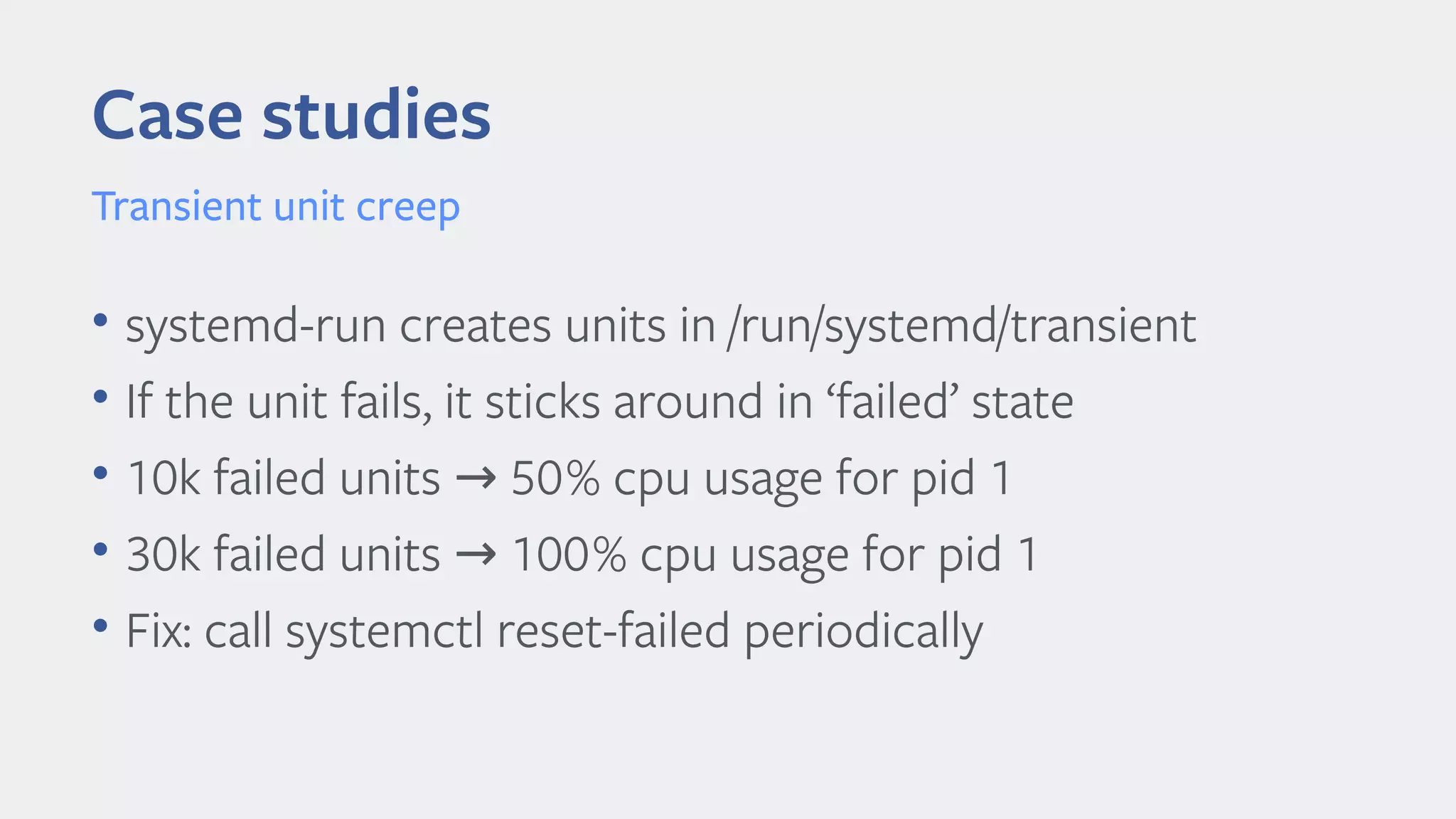

- 24. Case studies Transient unitcreep • systemd-run creates units in /run/systemd/transient • If the unit fails, it sticks around in ‘failed’ state • 10k failed units 50% cpu usage for pid 1→ • 30k failed units 100% cpu usage for pid 1→ • Fix: call systemctl reset-failed periodically

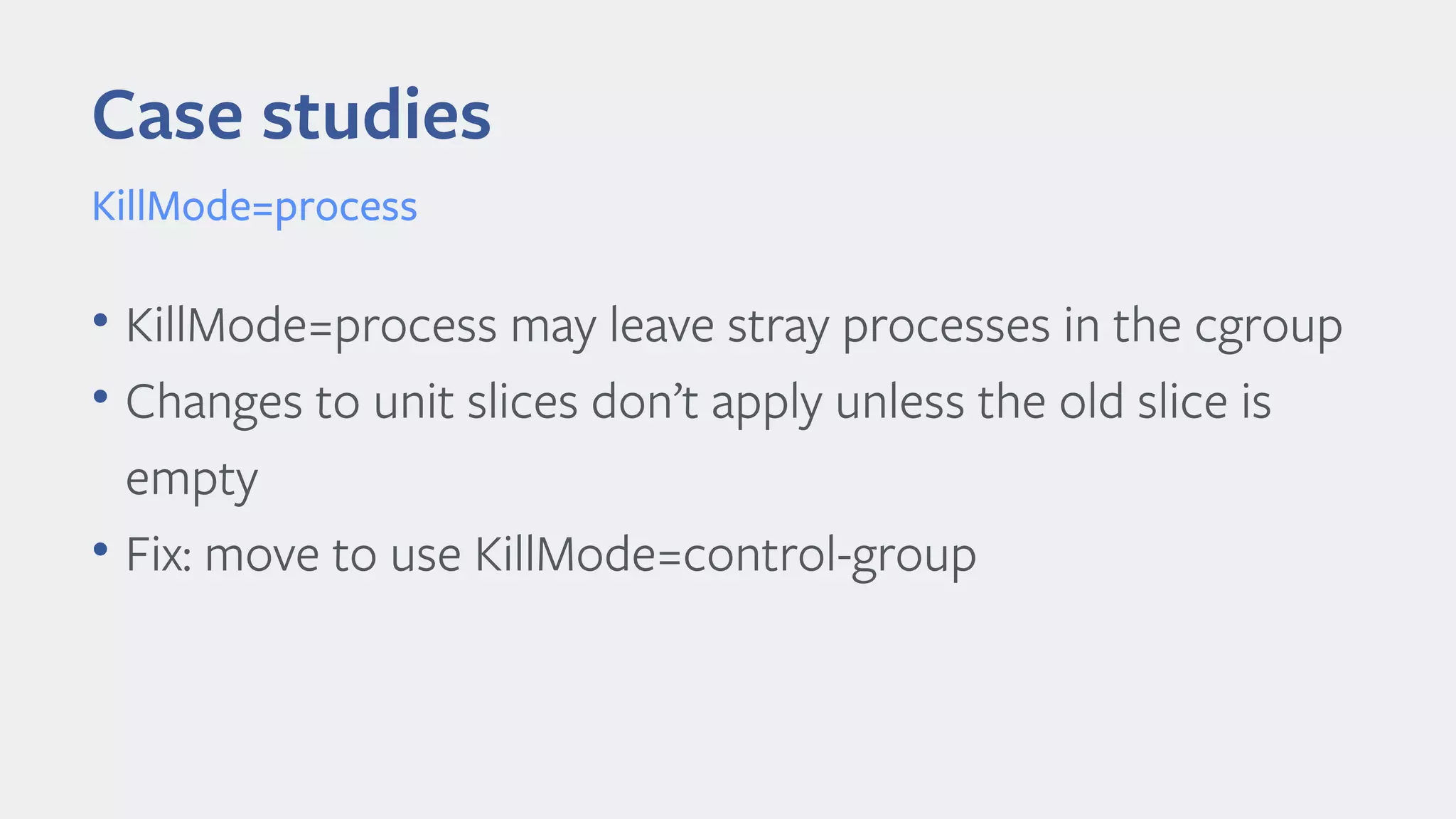

- 25. Case studies KillMode=process • KillMode=processmay leave stray processes in the cgroup • Changes to unit slices don’t apply unless the old slice is empty • Fix: move to use KillMode=control-group

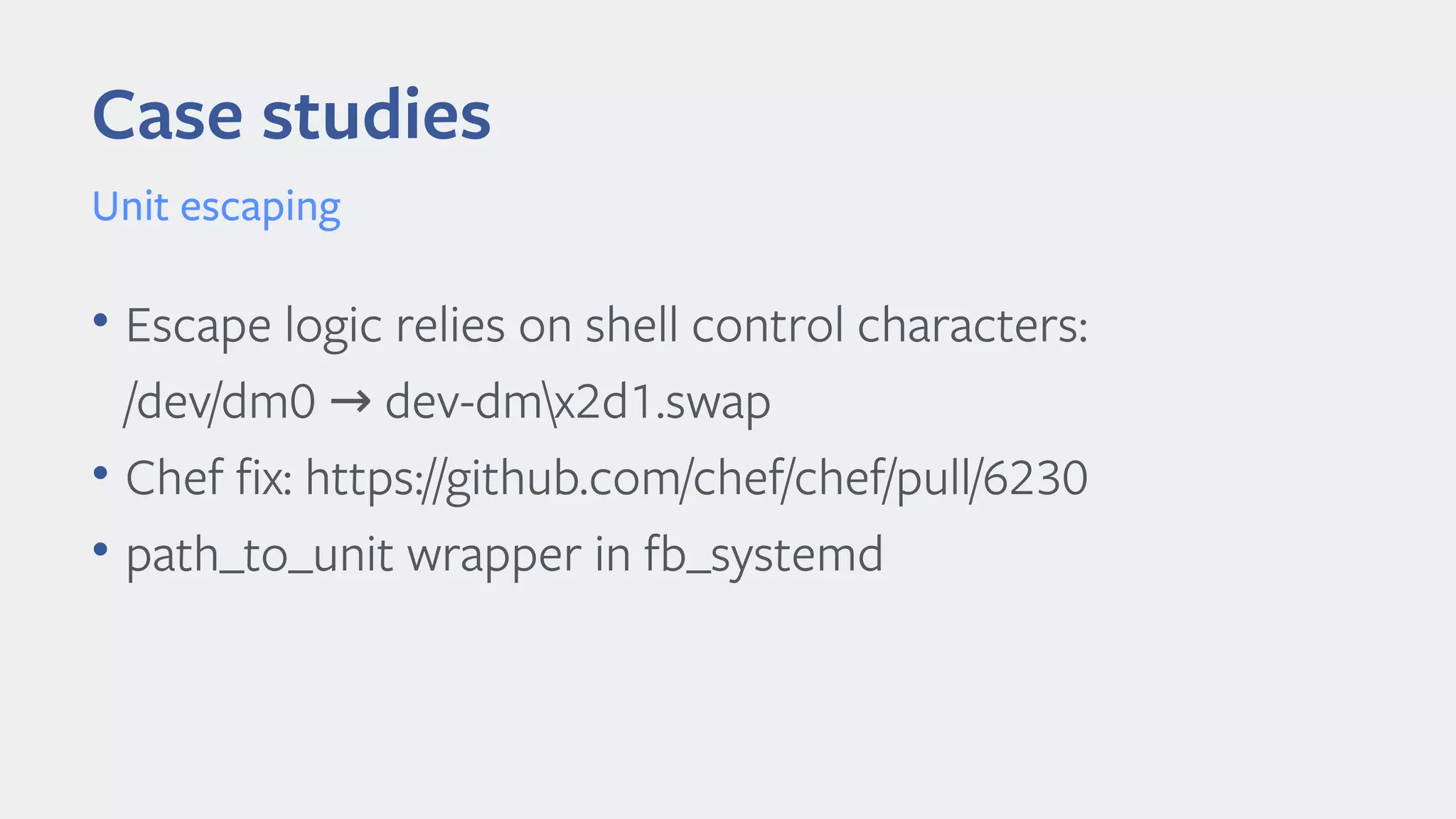

- 26. Case studies Unit escaping •Escape logic relies on shell control characters: /dev/dm0 dev-dmx2d1.swap→ • Chef fx: https://github.com/chef/chef/pull/6230 • path_to_unit wrapper in fb_systemd
- 27.

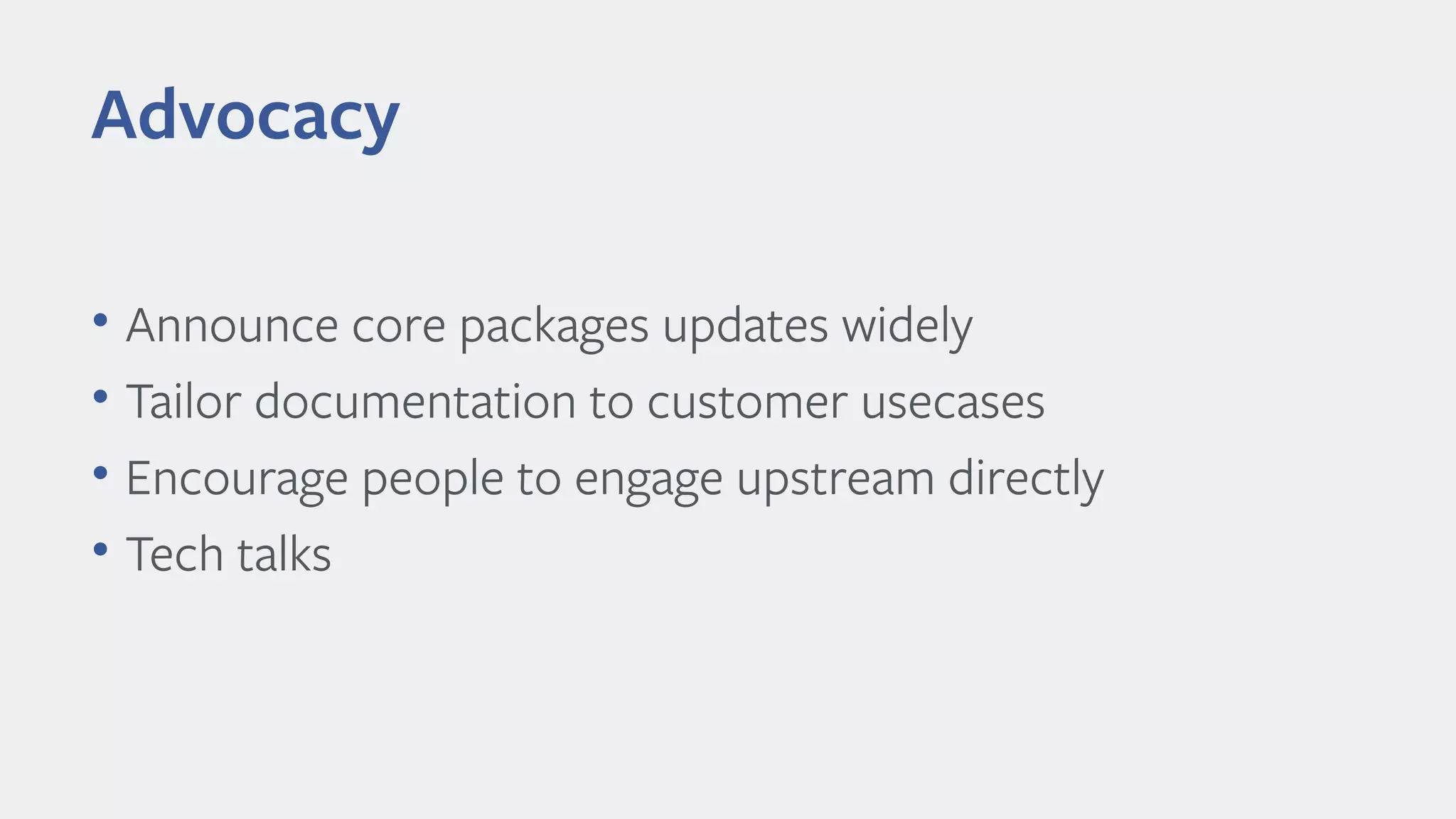

- 28. • Announce corepackages updates widely • Tailor documentation to customer usecases • Encourage people to engage upstream directly • Tech talks Advocacy
- 29.
