Max Melcher presented on building search-driven applications with SharePoint 2013. He discussed how modern portals are now driven by search to dynamically aggregate content from any source. This allows for individualized, high performance experiences tailored for each user. He demonstrated examples built with the content by search web part, JavaScript object model, and .NET client object model to retrieve and display search results.

1. Search-Driven Applications with
SharePoint 2013
#SPSBE16
Max Melcher
April 18th, 2015

2. PlatinumGoldSilver
Thanks to our sponsors!

3. Maximilian Melcher
Maximilian Melcher (MCSE, MCPD) is a Managing Consultant for Alegri
International Services in Munich, Germany. Max is a specialist in SharePoint
technologies focused on search, social computing, web content management
and collaboration. Max has led SharePoint implementations for Dax 30
companies since 2009. Max’s free time is spent on twitter mostly with a good
coffee in his hands.
Twitter: @maxmelcher
Blog: http://melcher.it
Email: Maximilian.Melcher@alegri.eu
www: http://alegri.de
2

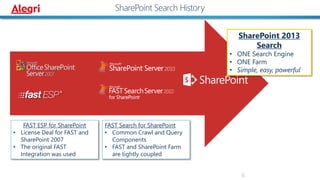

4. SharePoint Search History
FAST Search for SharePoint
• Common Crawl and Query
Components
• FAST and SharePoint Farm
are tightly coupled
FAST ESP for SharePoint
• License Deal for FAST and
SharePoint 2007
• The original FAST
Integration was used
SharePoint 2013
Search
• ONE Search Engine
• ONE Farm
• Simple, easy, powerful
6

5. 5

6. 6

7. 7

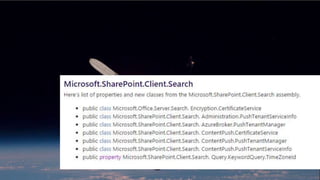

8. 2

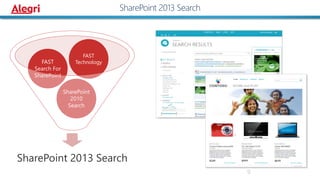

9. SharePoint 2013 Search
SharePoint 2013 Search
SharePoint
2010
Search
FAST
Search For
SharePoint
FAST
Technology
9

10. 10
SharePoint 2013 Search

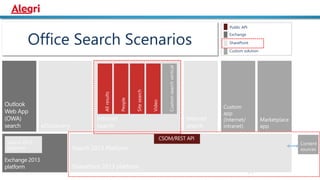

11. 11
`
Exchange
SharePoint
Custom solution
Public API
Office Search Scenarios

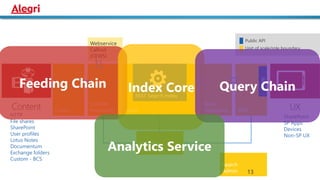

12. Public API
Unit of scale/role boundary
HTTP
File shares
SharePoint
User profiles
Lotus Notes
Documentum
Exchange folders
Custom - BCS
SharePoint
SP Apps
Devices
Non-SP UX
13

13. Continuous crawling
SP2010 SP2013
14

14. Crawled Property  Managed Property
DocId Partition Content Title Author Modified RefinableText1
111 0 Xyz... My lab ... Rune ... Some value
222 0 Abc... My Word ... Rune ... ...
333 1 .... ....
Crawled Properties
Managed Properties
Content
Processing
14

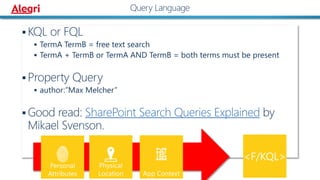

15.  KQL or FQL
 TermA TermB = free text search
 TermA + TermB or TermA AND TermB = both terms must be present
 Property Query
 author:”Max Melcher”
 Good read: SharePoint Search Queries Explained by
Mikael Svenson.
2
Query Language

16. Search-Driven Applications with
SharePoint 2013
#SPSBE16
Max Melcher
April 18th, 2015

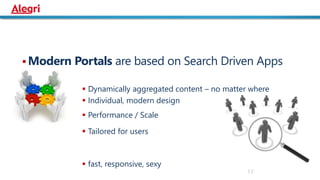

17.  Modern Portals are based on Search Driven Apps
 Dynamically aggregated content – no matter where
 Individual, modern design
 Performance / Scale
 Tailored for users
 fast, responsive, sexy
17

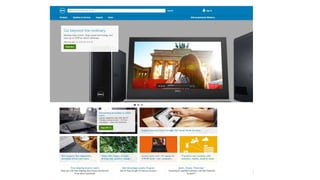

18. 2

20. 2
Motivation: a typical use case

21. 2
Motivation: a typical use case

22. 2

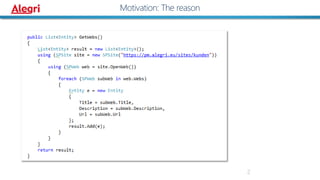

Motivation: The reason

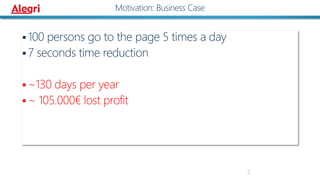

23.  100 persons go to the page 5 times a day
 7 seconds time reduction
 ~130 days per year
 ~ 105.000€ lost profit
2
Motivation: Business Case

24. 24

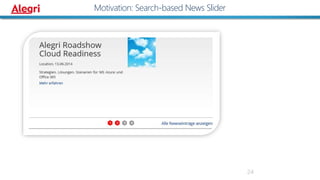

Motivation: Search-based News Slider

25. 25

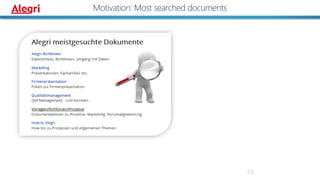

Motivation: Most searched documents

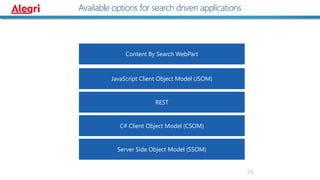

26. Available options for search driven applications
26
JavaScript Client Object Model (JSOM)
C# Client Object Model (CSOM)
REST
Server Side Object Model (SSOM)
Content By Search WebPart

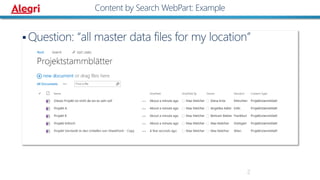

27.  Question: “all master data files for my location”
2
Content by Search WebPart: Example

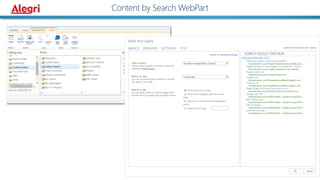

28. 2
Content by Search WebPart

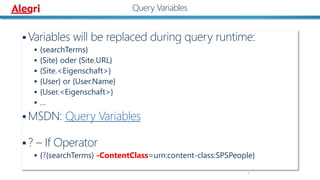

29.  Variables will be replaced during query runtime:
 {searchTerms}
 {Site} oder {Site.URL}
 {Site.<Eigenschaft>}
 {User} or {User.Name}
 {User.<Eigenschaft>}
 …
 MSDN: Query Variables
 ? – If Operator
 {?{searchTerms} -ContentClass=urn:content-class:SPSPeople}
2
Query Variables

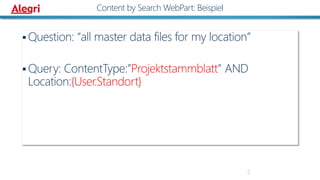

30.  Question: “all master data files for my location”
 Query: ContentType:”Projektstammblatt” AND
Location:{User.Standort}
2
Content by Search WebPart: Beispiel

31. 31
JavaScript: Demo

32. 2

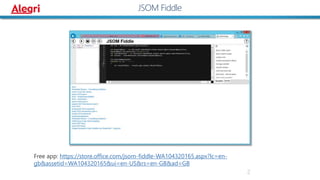

JSOM Fiddle
Free app: https://store.office.com/jsom-fiddle-WA104320165.aspx?lc=en-
gb&assetid=WA104320165&ui=en-US&rs=en-GB&ad=GB

33. Minimal example for JSOM:
var ctx = SP.ClientContext.get_current();
var keywordQuery = new Microsoft.SharePoint.Client.Search.Query.KeywordQuery(ctx);
keywordQuery.set_queryText("SharePoint");
var searchExecutor = new Microsoft.SharePoint.Client.Search.Query.SearchExecutor(ctx);
var results = searchExecutor.executeQuery(keywordQuery);
ctx.executeQueryAsync(
function (s, a) {// Success},
function (s, e) {// Error}
);
2
JSOM

34.  https://intranet.demo.com/_api/search/query?querytext
='SharePoint’
 Accept Header for JSON:
application/json;odata=verbose
 Tool recommendation:
 Google Chrome PostMan (free)
34
REST: Demo

35. 35

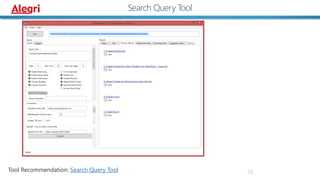

Search Query Tool
Tool Recommendation: Search Query Tool

36. 36
CSOM: Demo

37. 37

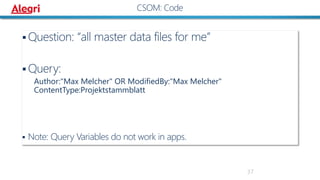

CSOM: Code
 Question: “all master data files for me”
 Query:
Author:"Max Melcher" OR ModifiedBy:"Max Melcher"
ContentType:Projektstammblatt
 Note: Query Variables do not work in apps.

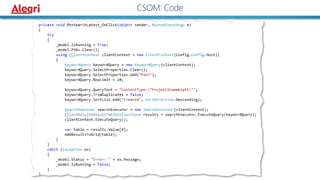

38. 2
CSOM: Code

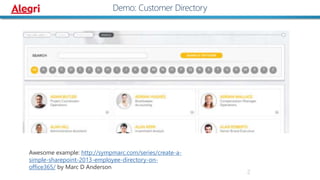

39. 2
Demo: Customer Directory
Awesome example: http://sympmarc.com/series/create-a-
simple-sharepoint-2013-employee-directory-on-
office365/ by Marc D Anderson

40. 40

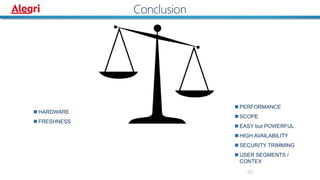

Conclusion
 PERFORMANCE
 SCOPE
 EASY but POWERFUL
 HIGH AVAILABILITY
 SECURITY TRIMMING
 USER SEGMENTS /
CONTEX
 HARDWARE
 FRESHNESS

41. 41
Questions?

42. Thank you!

43. http://form.responster.com/yphpWK
#SPSBE16

44. http://melcher.it/s/4k
#SPSBE16

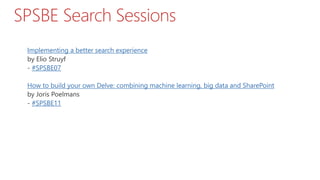

45. Implementing a better search experience
by Elio Struyf
- #SPSBE07
How to build your own Delve: combining machine learning, big data and SharePoint
by Joris Poelmans
- #SPSBE11
SPSBE Search Sessions
