1. Building Search Driven Applications
Brian Caauwe – Manager, Business Productivity
January 20th, 2018

2. Agenda

3. Who am I?
• Brian Caauwe
• Manager, Consultant, Speaker and new dad of 2
• Email: bcaauwe@avtex.com
• Twitter: @bcaauwe
• Technical Editor
• Professional SharePoint 2013 Administration
• Certifications
• MCM: SharePoint Server 2010
• MCSM: SharePoint

4. Gold Sponsors
SHAREPOINT SATURDAY
ST.LOUIS 2018
Silver Sponsors
Bronze Sponsors

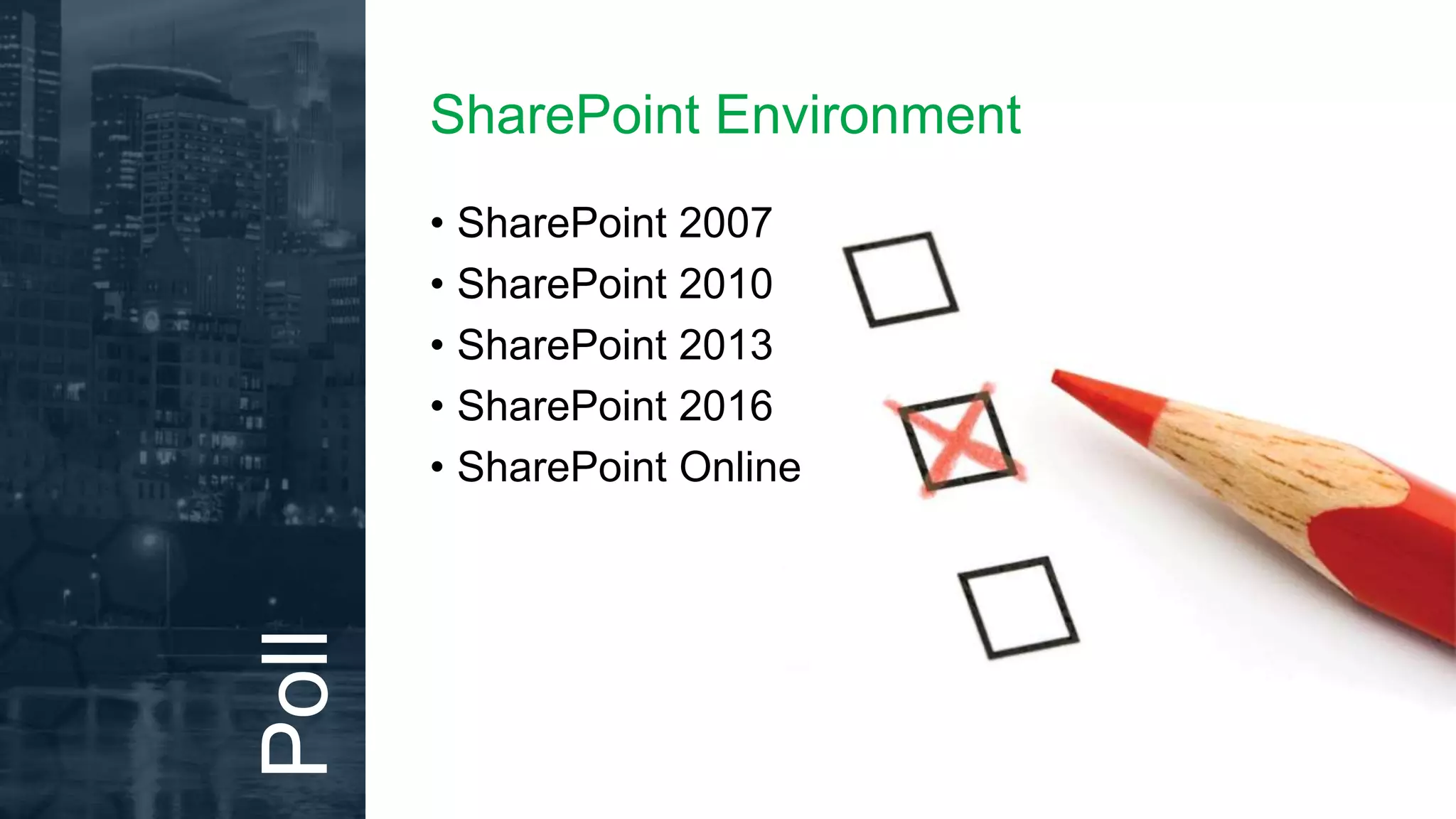

5. SharePoint Environment
Poll
• SharePoint 2007
• SharePoint 2010
• SharePoint 2013
• SharePoint 2016
• SharePoint Online

6. Search Schema

7. Properties Power
the Search Experience

8. Crawled Property
vs.
Managed Property

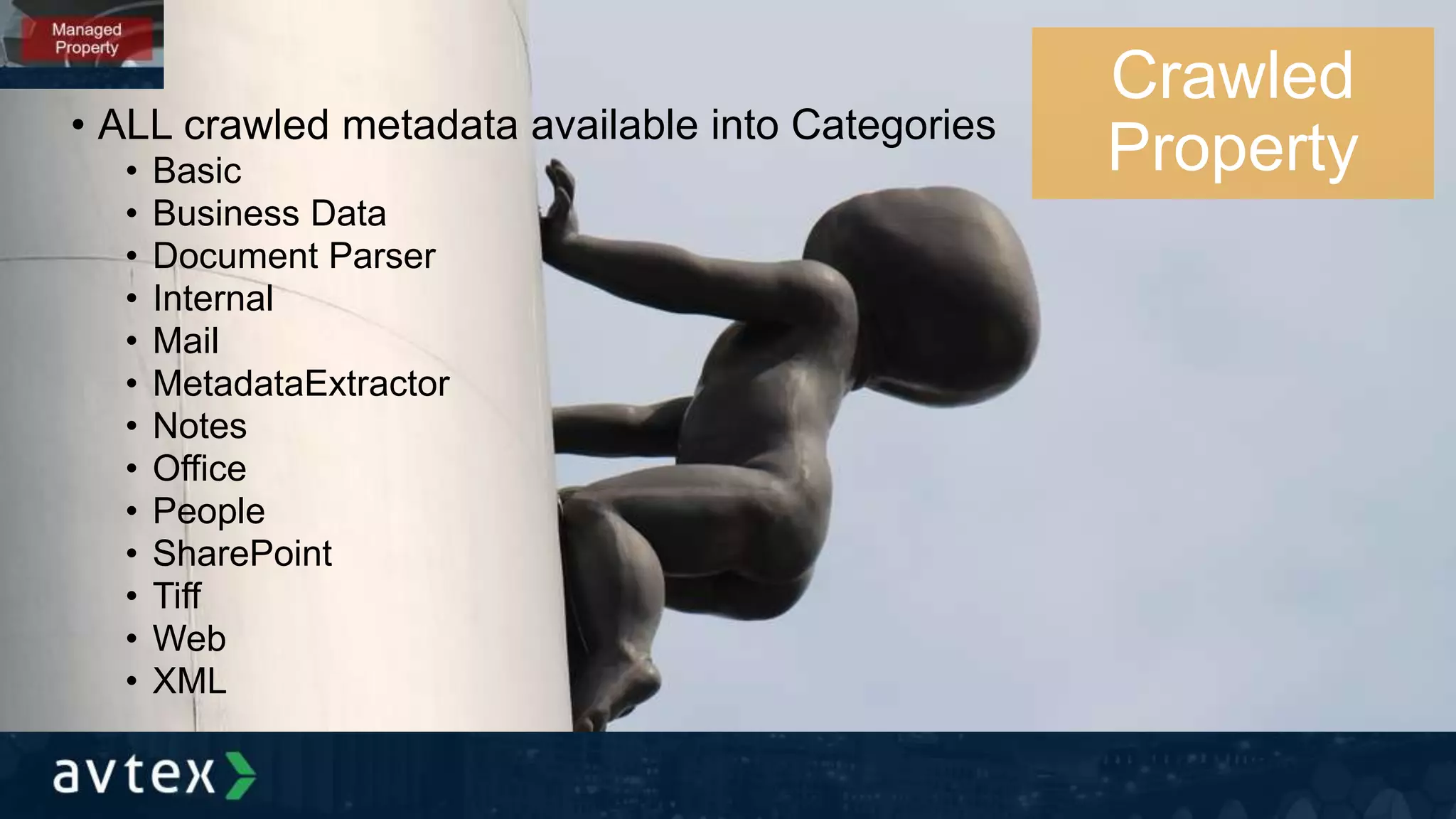

9. • ALL crawled metadata available into Categories
• Basic
• Business Data
• Document Parser
• Internal
• Mail
• MetadataExtractor
• Notes
• Office
• People
• SharePoint
• Tiff
• Web
• XML
Crawled
Property

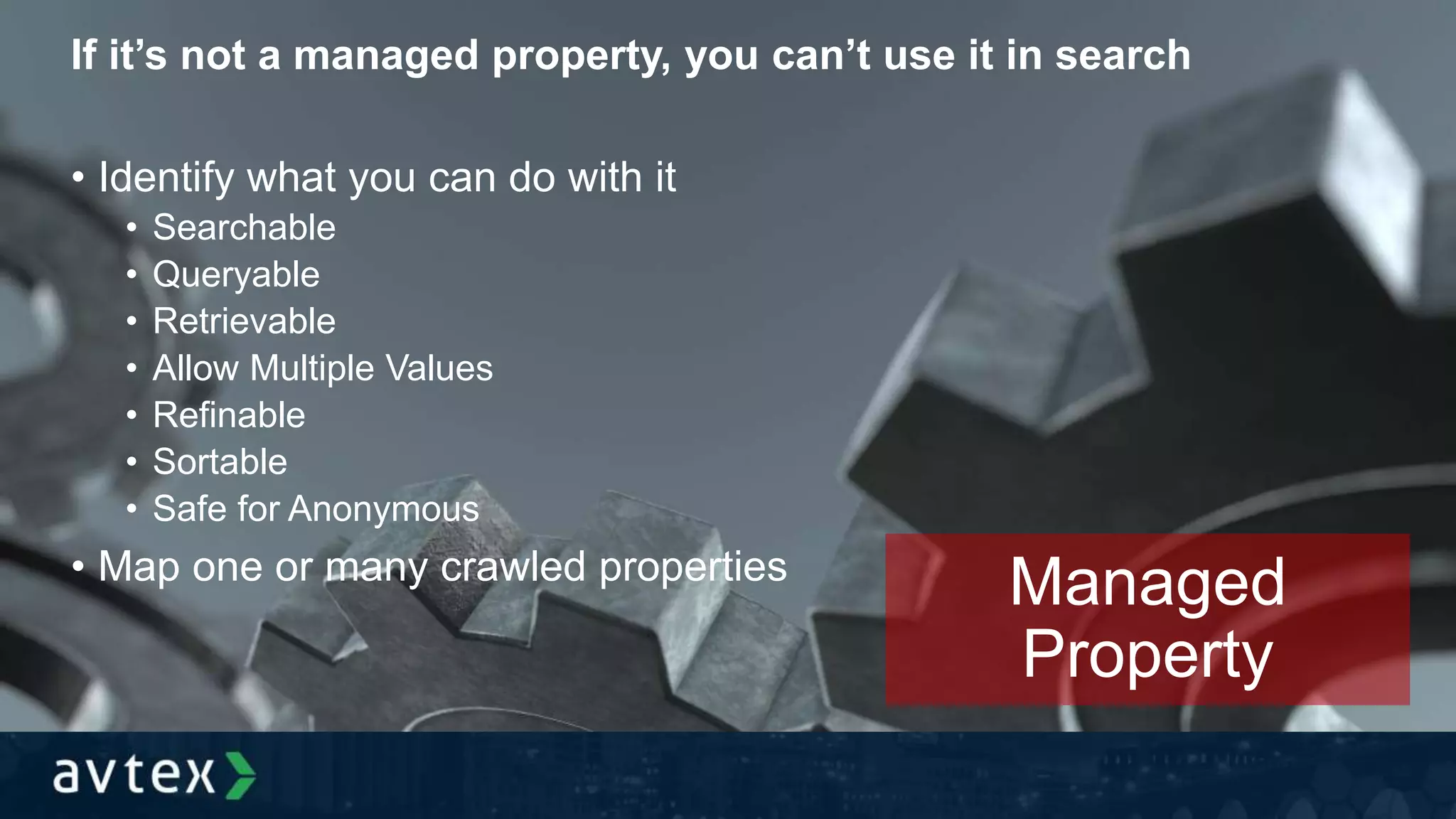

10. If it’s not a managed property, you can’t use it in search
• Identify what you can do with it
• Searchable
• Queryable
• Retrievable
• Allow Multiple Values
• Refinable
• Sortable
• Safe for Anonymous
• Map one or many crawled properties
Managed
Property

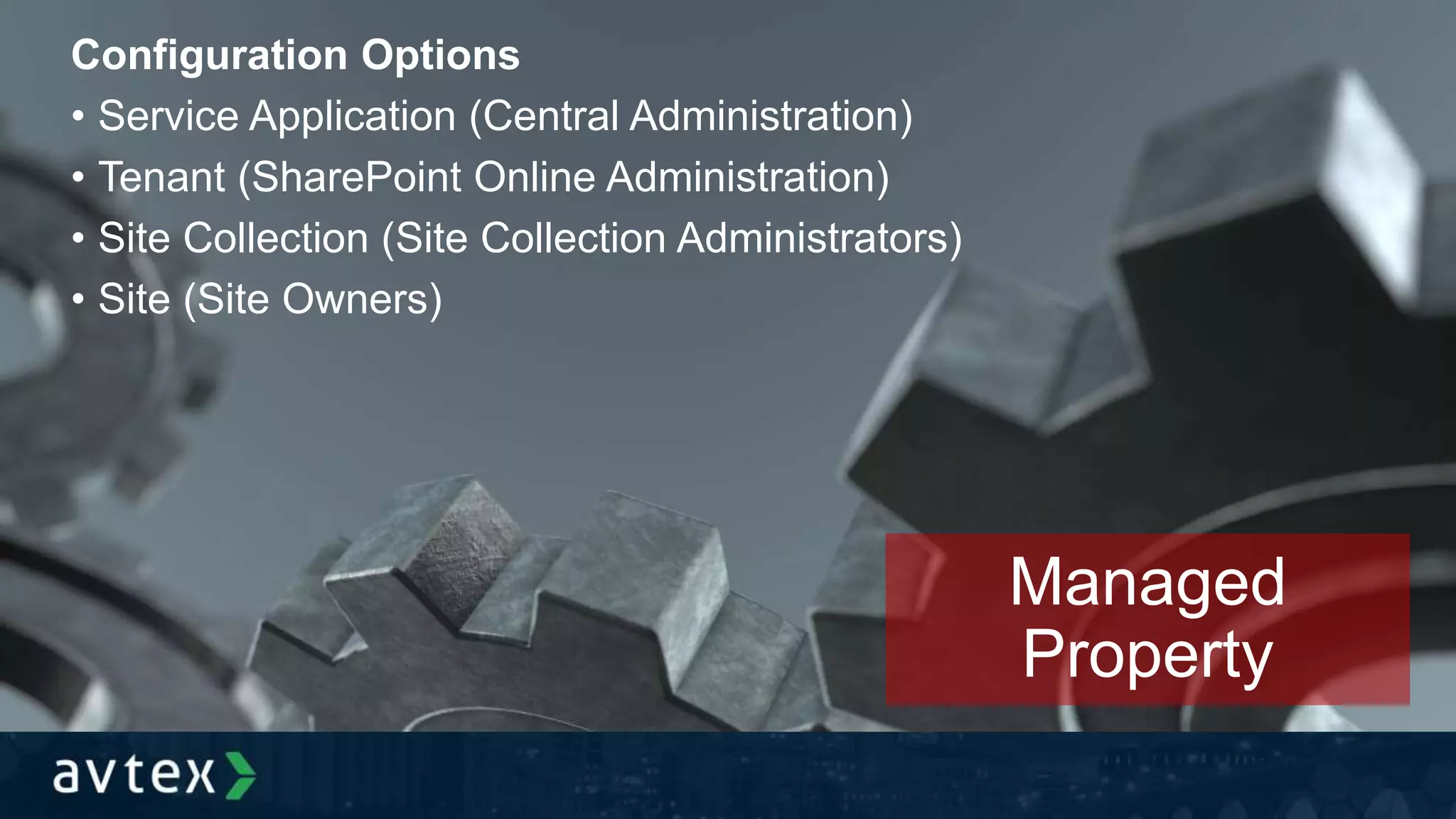

11. Configuration Options
• Service Application (Central Administration)
• Tenant (SharePoint Online Administration)
• Site Collection (Site Collection Administrators)
• Site (Site Owners)
Managed
Property

12. Search Settings

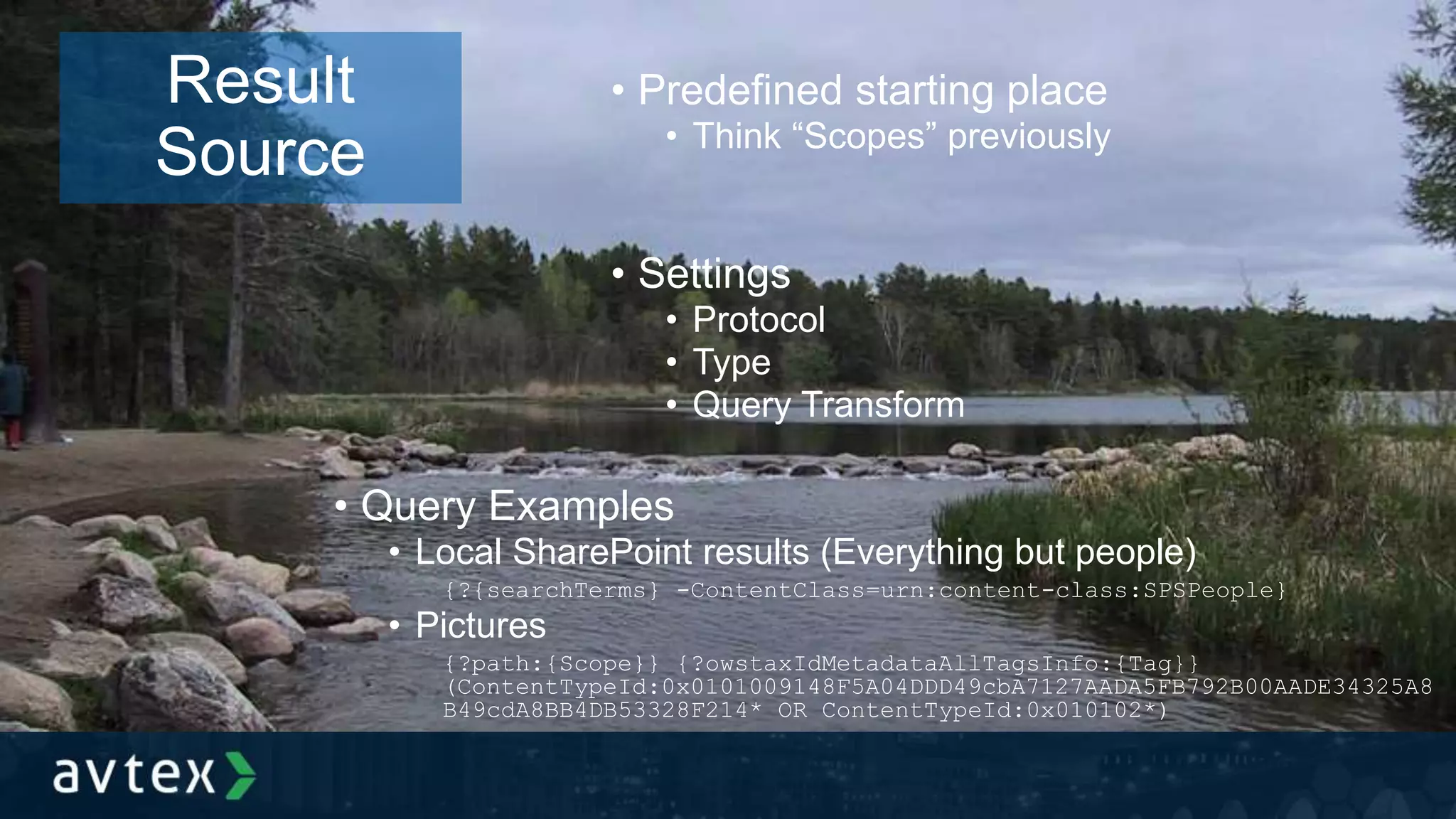

13. • Predefined starting place
• Think “Scopes” previously
• Settings
• Protocol
• Type
• Query Transform
Result
Source
• Query Examples
• Local SharePoint results (Everything but people)
{?{searchTerms} -ContentClass=urn:content-class:SPSPeople}
• Pictures
{?path:{Scope}} {?owstaxIdMetadataAllTagsInfo:{Tag}}
(ContentTypeId:0x0101009148F5A04DDD49cbA7127AADA5FB792B00AADE34325A8
B49cdA8BB4DB53328F214* OR ContentTypeId:0x010102*)

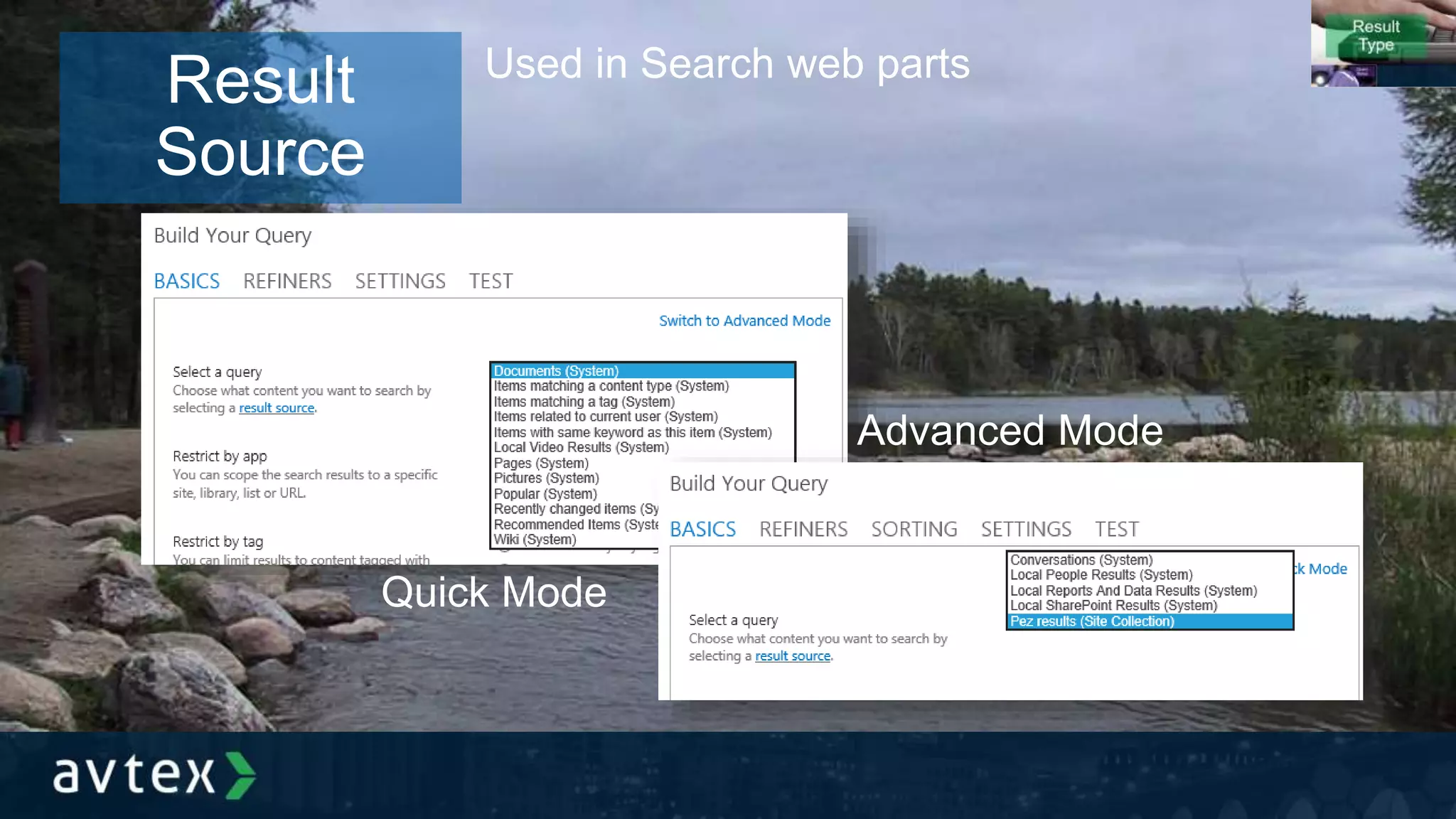

14. Used in Search web parts
Quick Mode
Advanced Mode
Result
Source

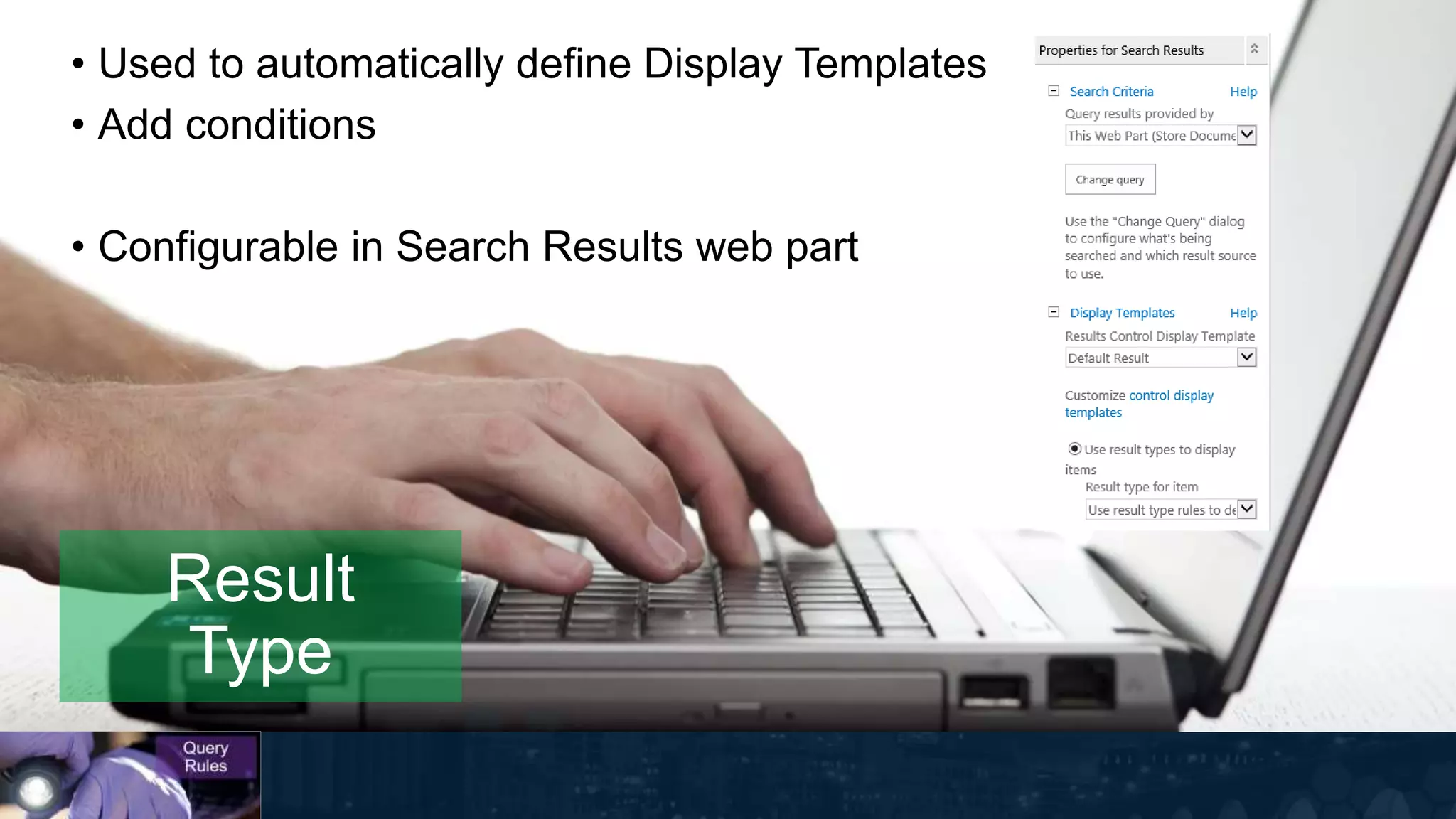

15. Used in Search web parts
Result
Type
• Used to automatically define Display Templates
• Add conditions
• Configurable in Search Results web part

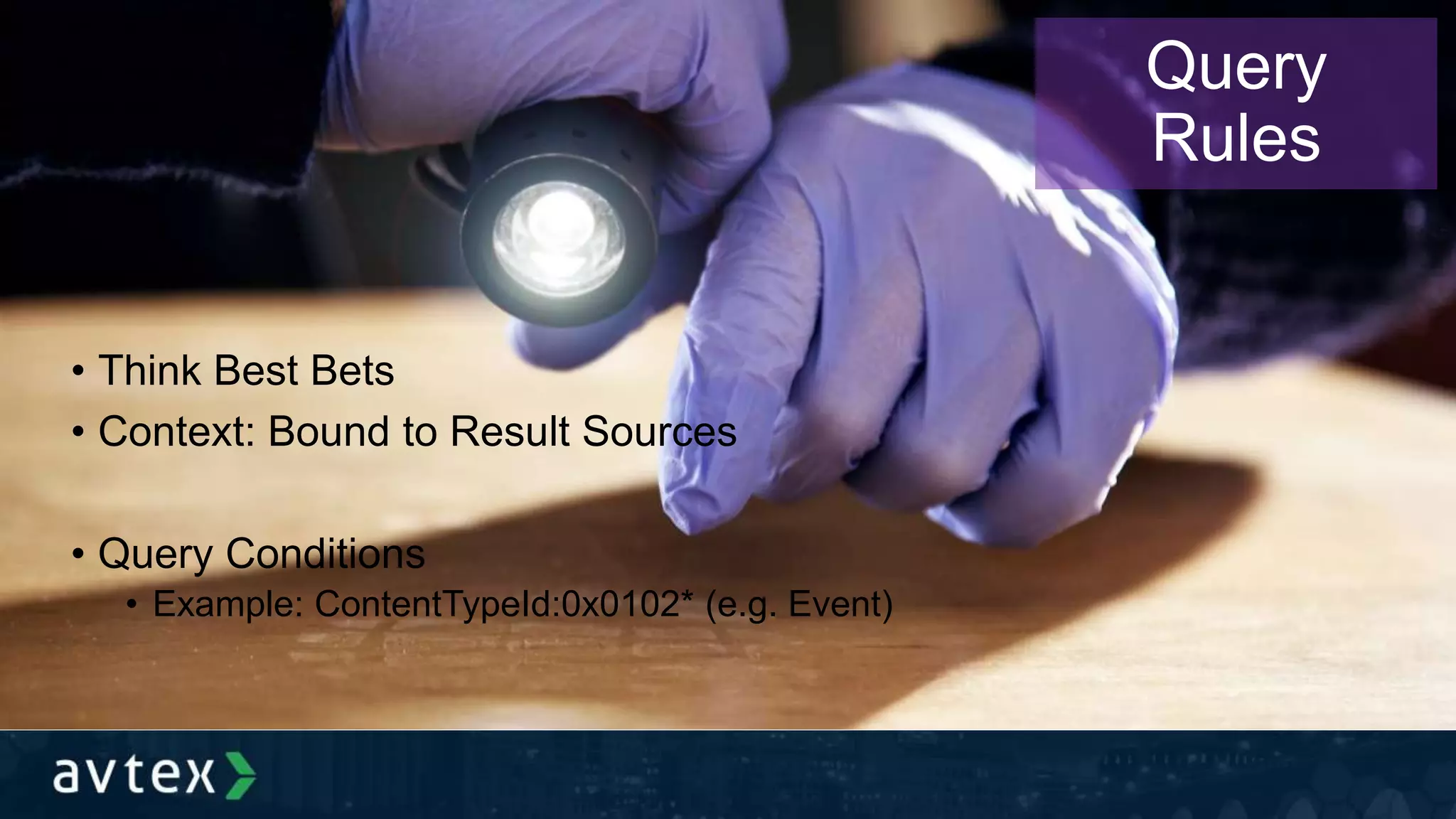

16. Query
Rules
• Think Best Bets
• Context: Bound to Result Sources
• Query Conditions
• Example: ContentTypeId:0x0102* (e.g. Event)

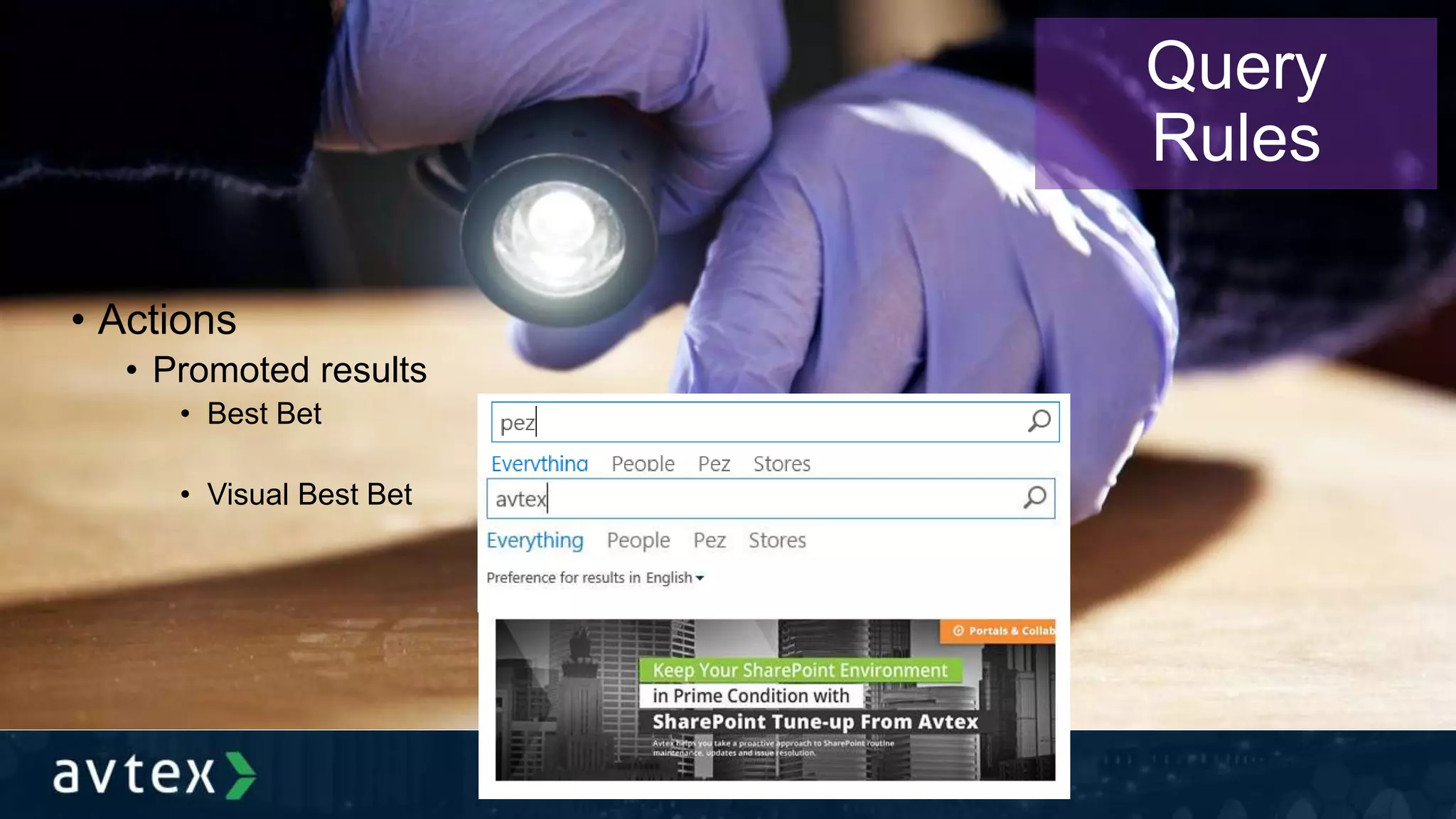

17. • Actions
• Promoted results
• Best Bet
• Visual Best Bet
Query
Rules

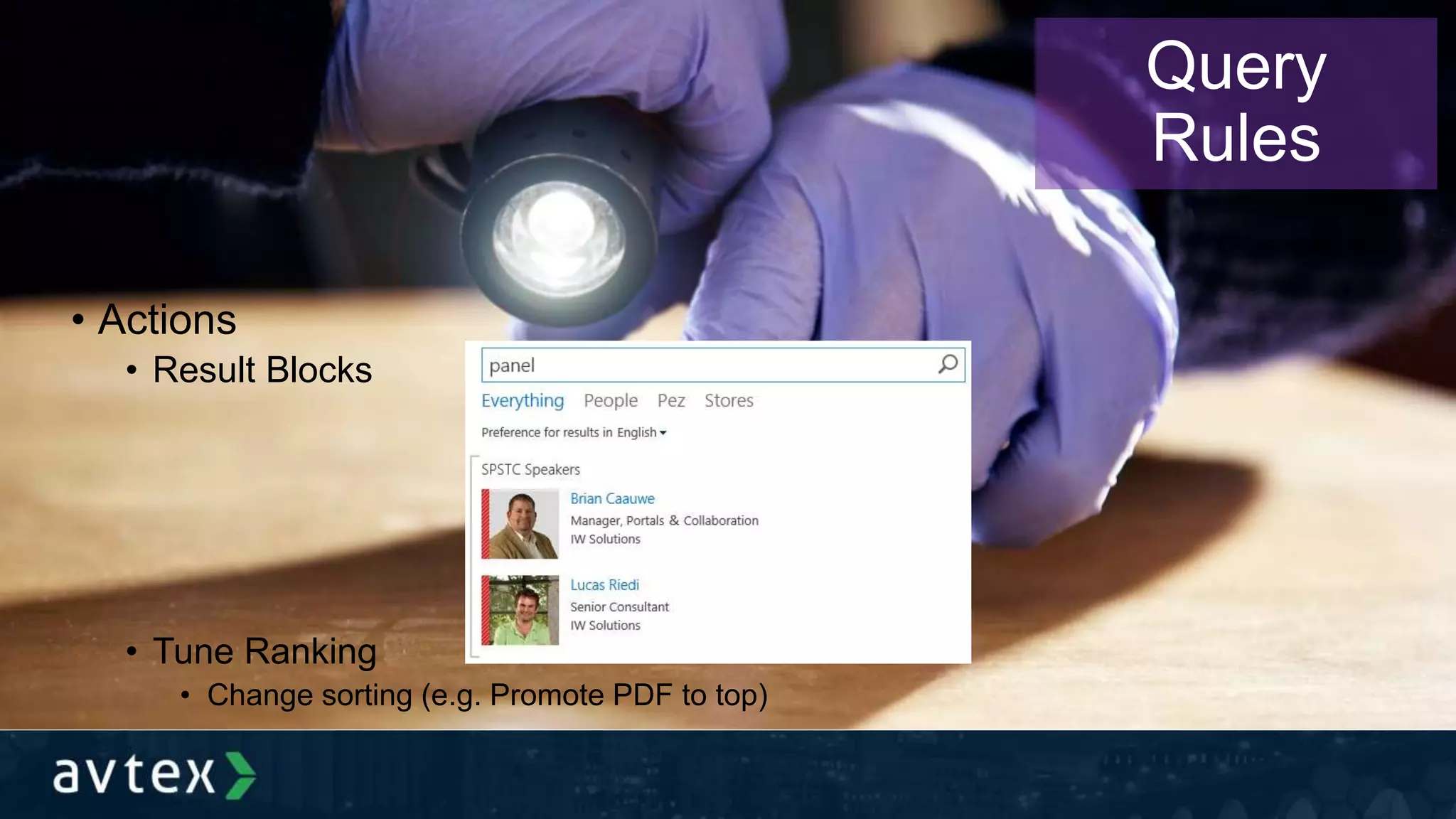

18. • Actions
• Result Blocks
• Tune Ranking
• Change sorting (e.g. Promote PDF to top)
Query
Rules

19. Search Patterns

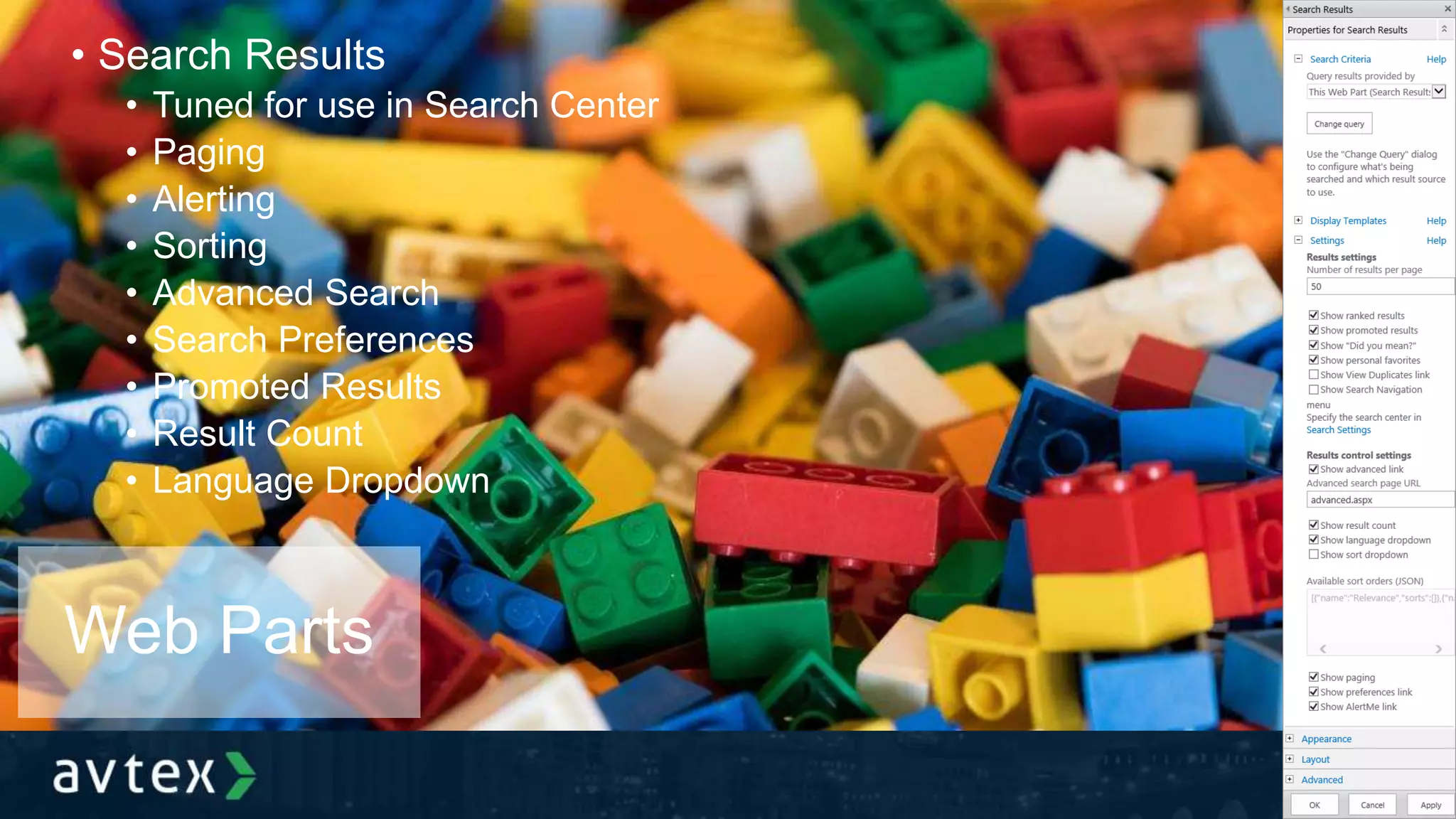

20. • Search Results
• Tuned for use in Search Center
• Paging
• Alerting
• Sorting
• Advanced Search
• Search Preferences
• Promoted Results
• Result Count
• Language Dropdown
Web Parts

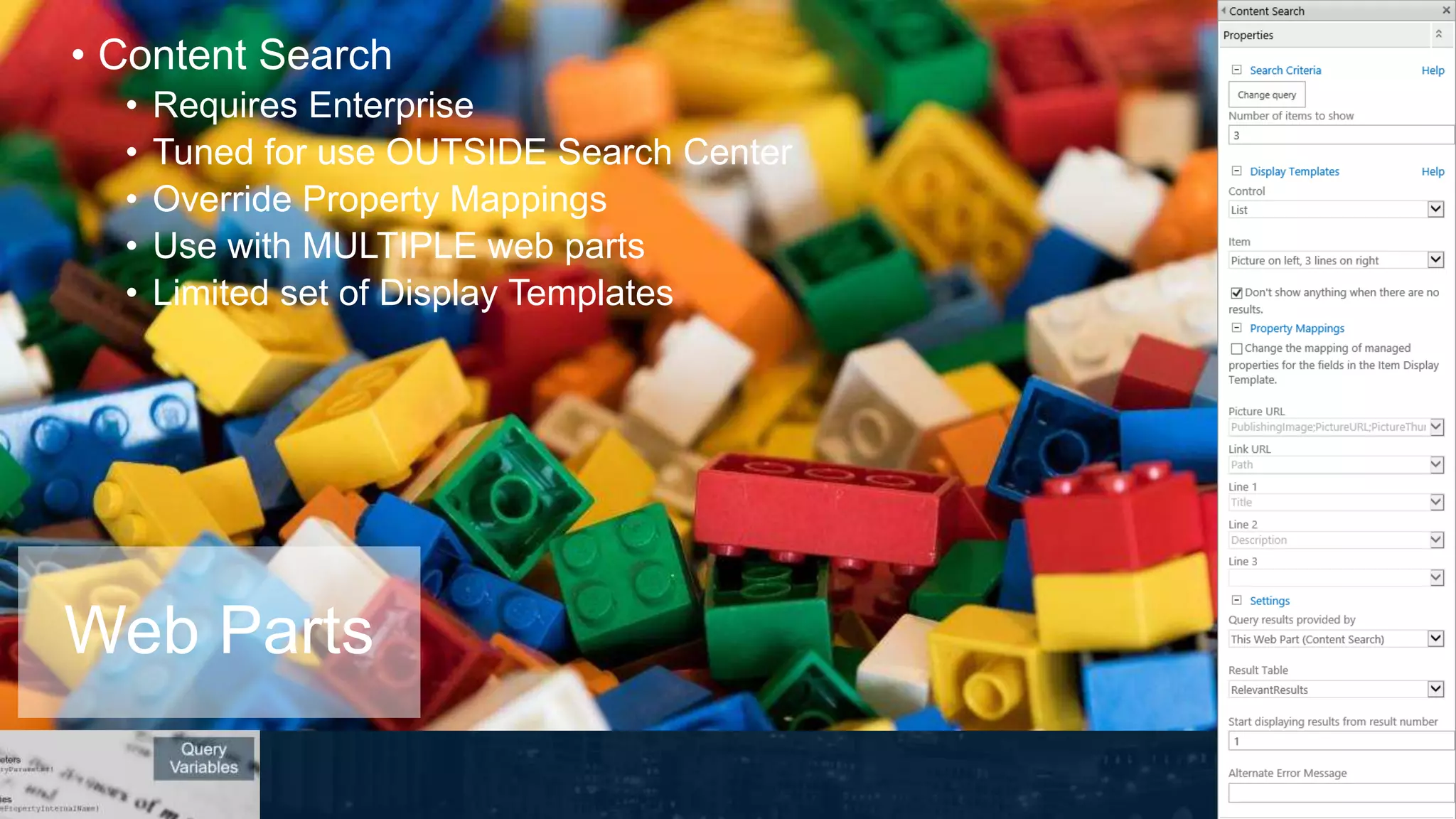

21. • Content Search
• Requires Enterprise
• Tuned for use OUTSIDE Search Center
• Override Property Mappings
• Use with MULTIPLE web parts
• Limited set of Display Templates
Web Parts

22. • Query String Parameters
{QueryString.QueryParameter}
• URL Tokens
{URLToken.1}
• User Profile Properties
{User.UserProfilePropertyInternalName}
• Site Properties
{Site.Url}
{Site.PropertyBagProperty}
• Site Collection Properties
{SiteCollection.Url}
{SiteCollection.PropertyBagProperty}
• Page Properties
{Page.InternalFieldName}
TechNet - https://technet.microsoft.com/en-us/library/jj683123.aspx
Query
Variables

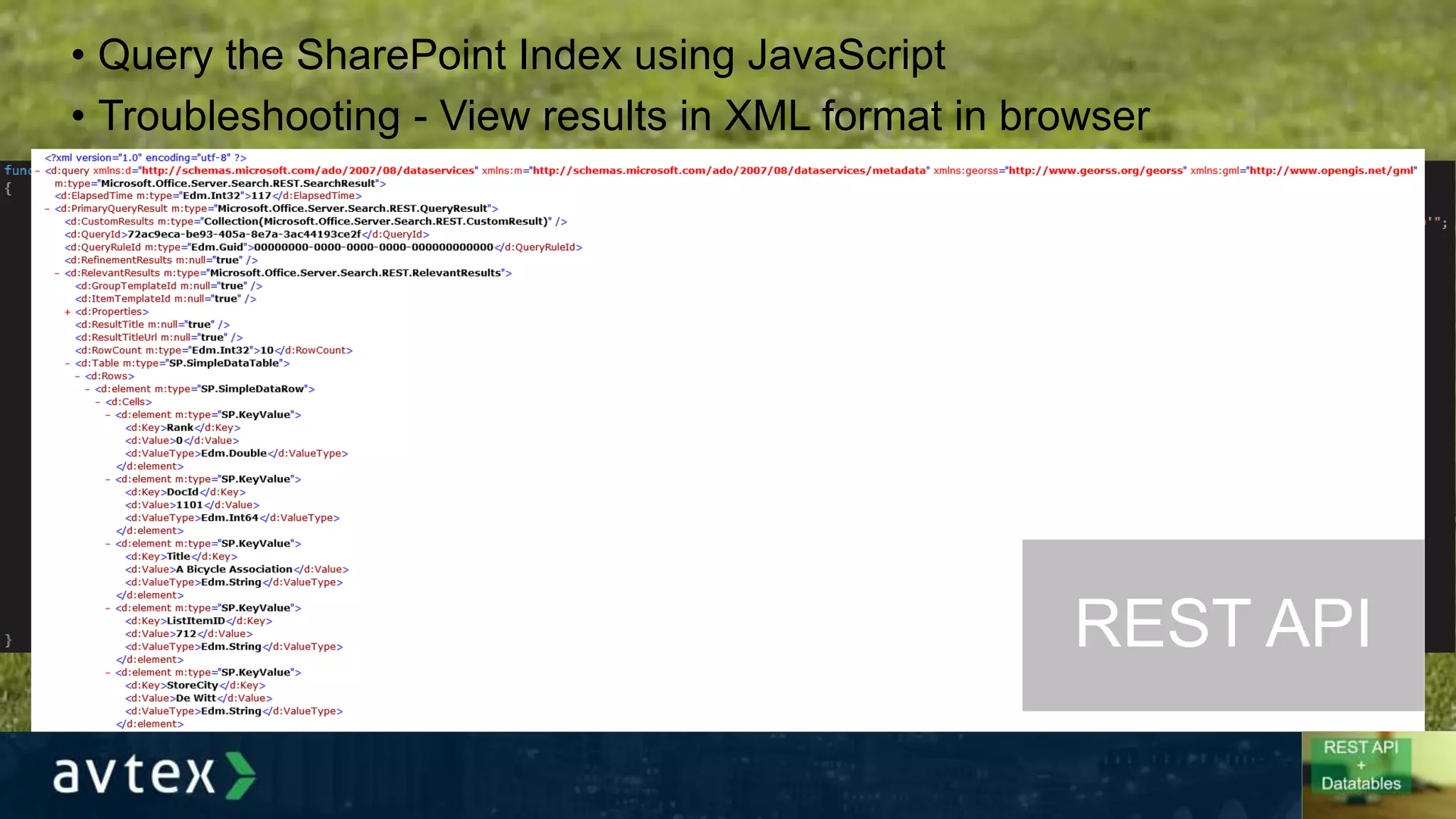

23. • Query the SharePoint Index using JavaScript
• Troubleshooting - View results in XML format in browser
REST API

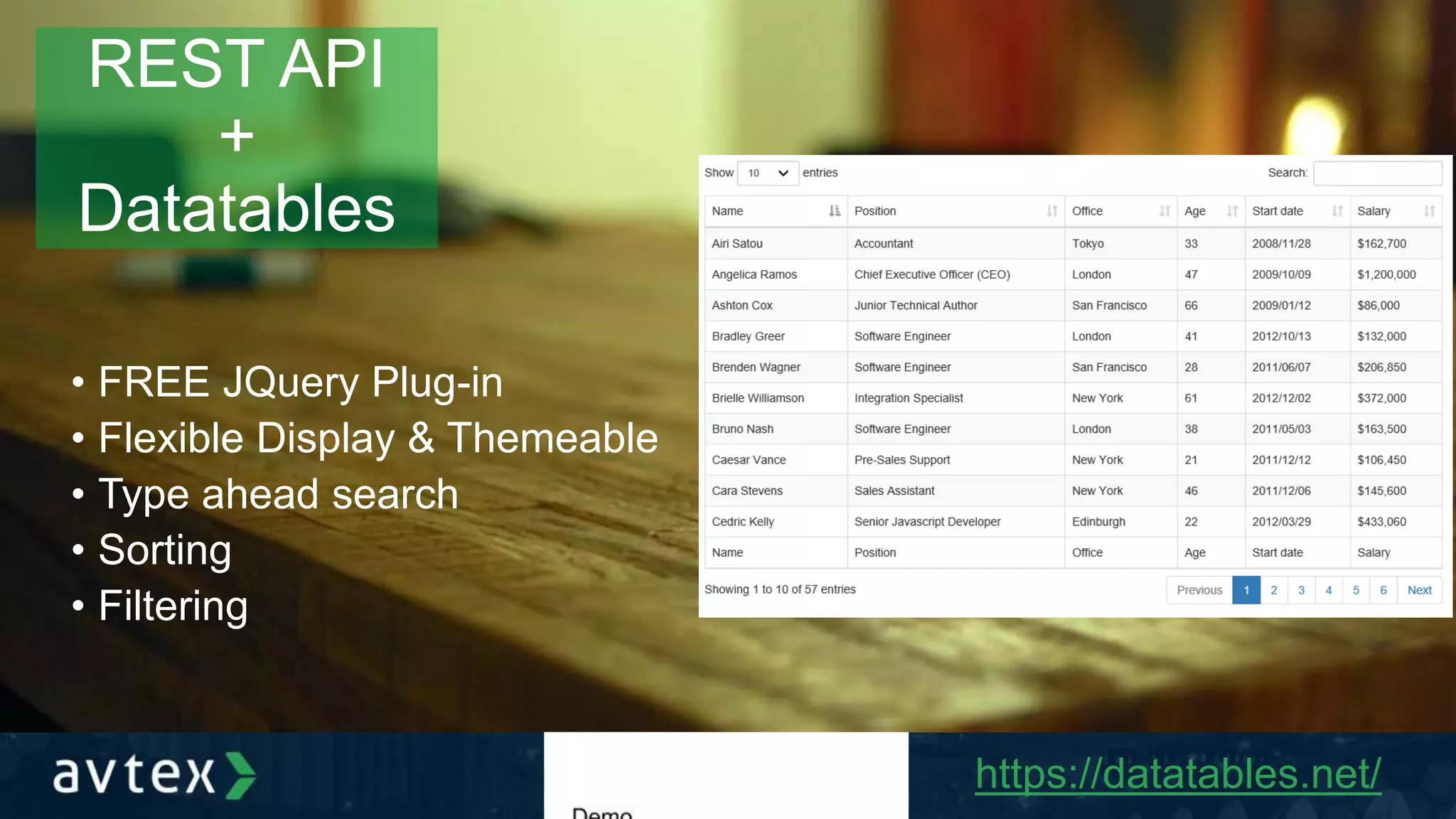

24. • FREE JQuery Plug-in
• Flexible Display & Themeable
• Type ahead search
• Sorting
• Filtering
https://datatables.net/
REST API
+
Datatables

25. Demo
Search Patterns

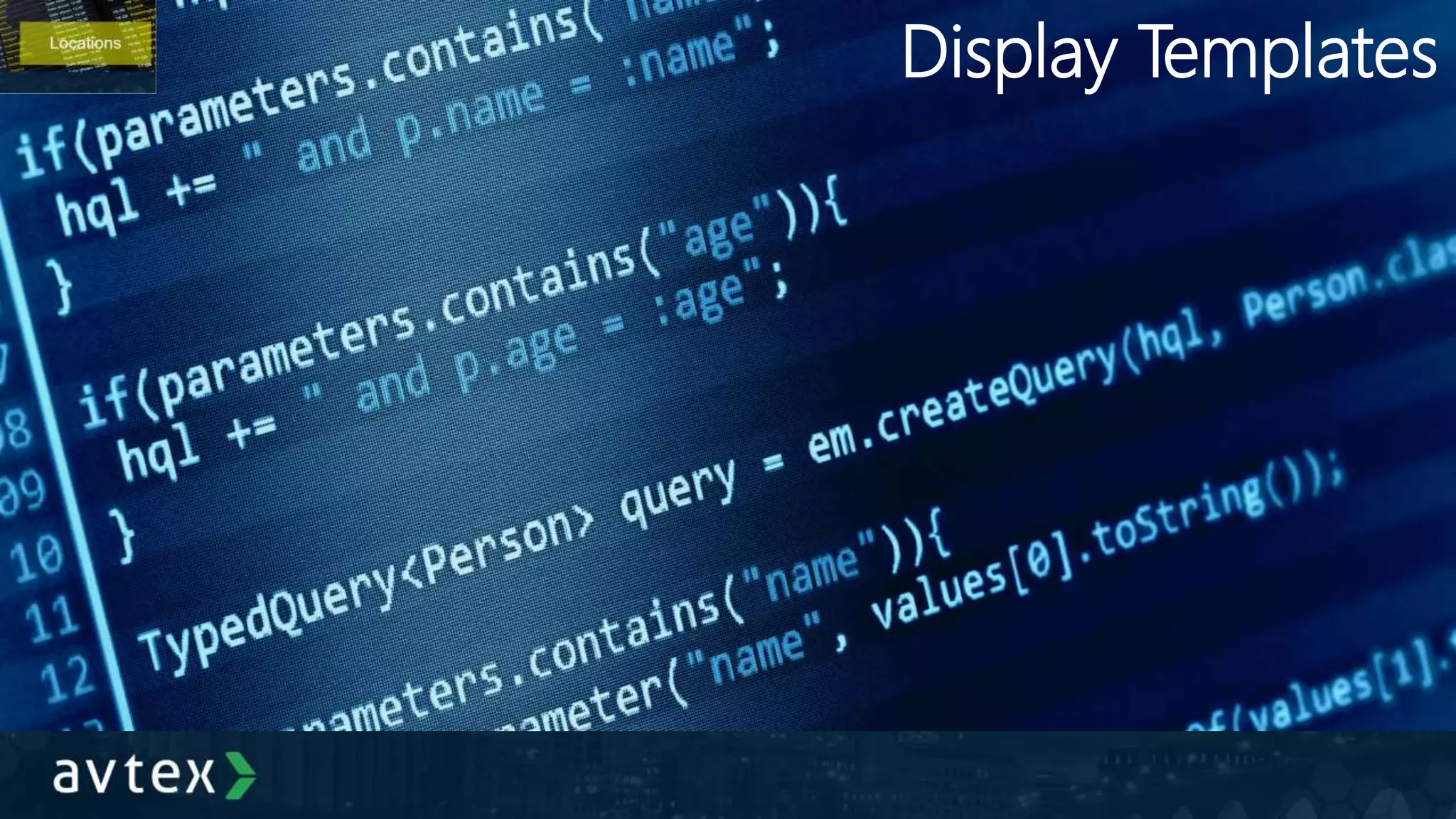

26. Display Templates

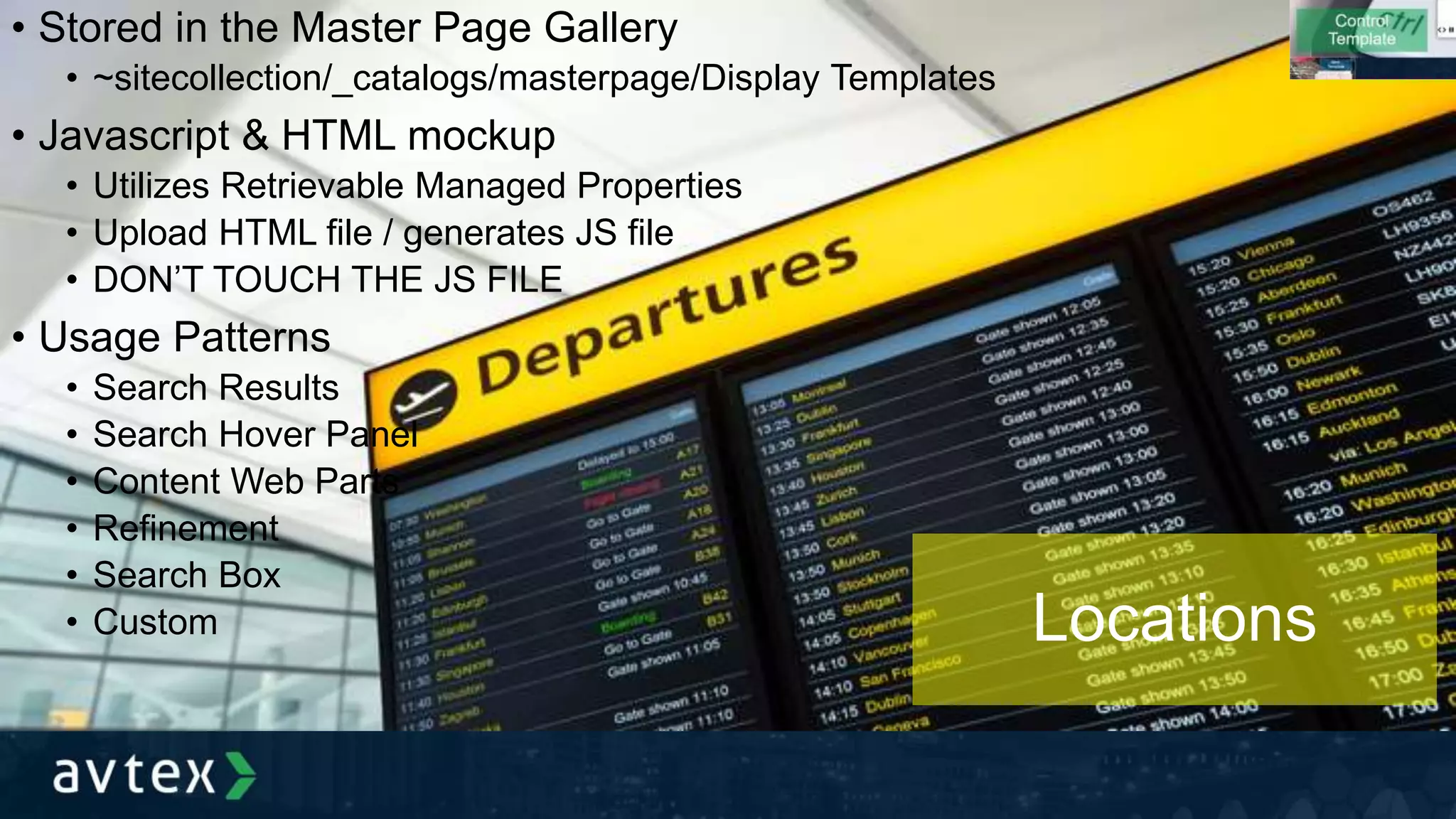

27. • Stored in the Master Page Gallery
• ~sitecollection/_catalogs/masterpage/Display Templates
• Javascript & HTML mockup
• Utilizes Retrievable Managed Properties
• Upload HTML file / generates JS file
• DON’T TOUCH THE JS FILE
• Usage Patterns
• Search Results
• Search Hover Panel
• Content Web Parts
• Refinement
• Search Box
• Custom Locations

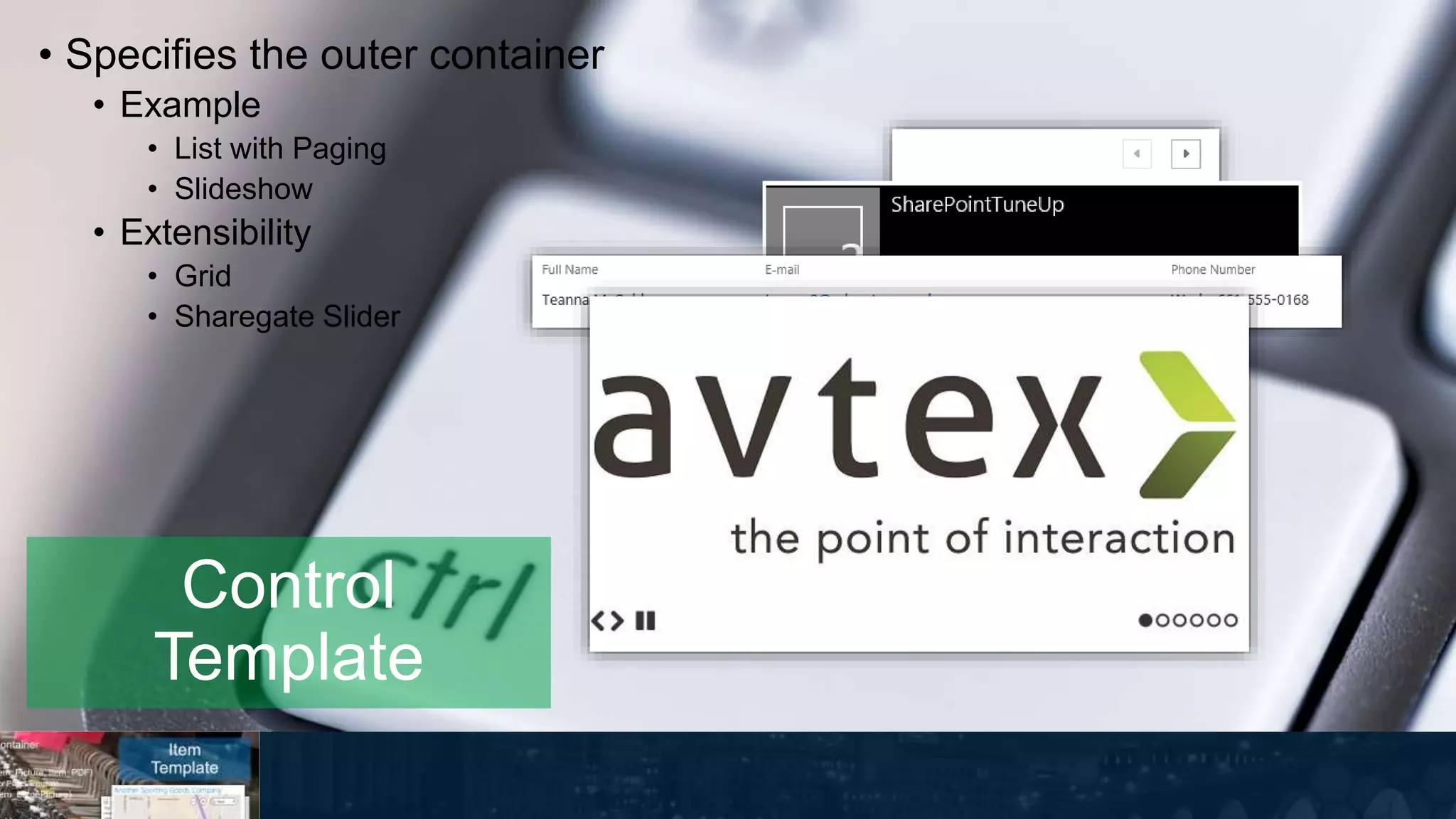

28. Control
Template
• Specifies the outer container
• Example
• List with Paging
• Slideshow
• Extensibility
• Grid
• Sharegate Slider

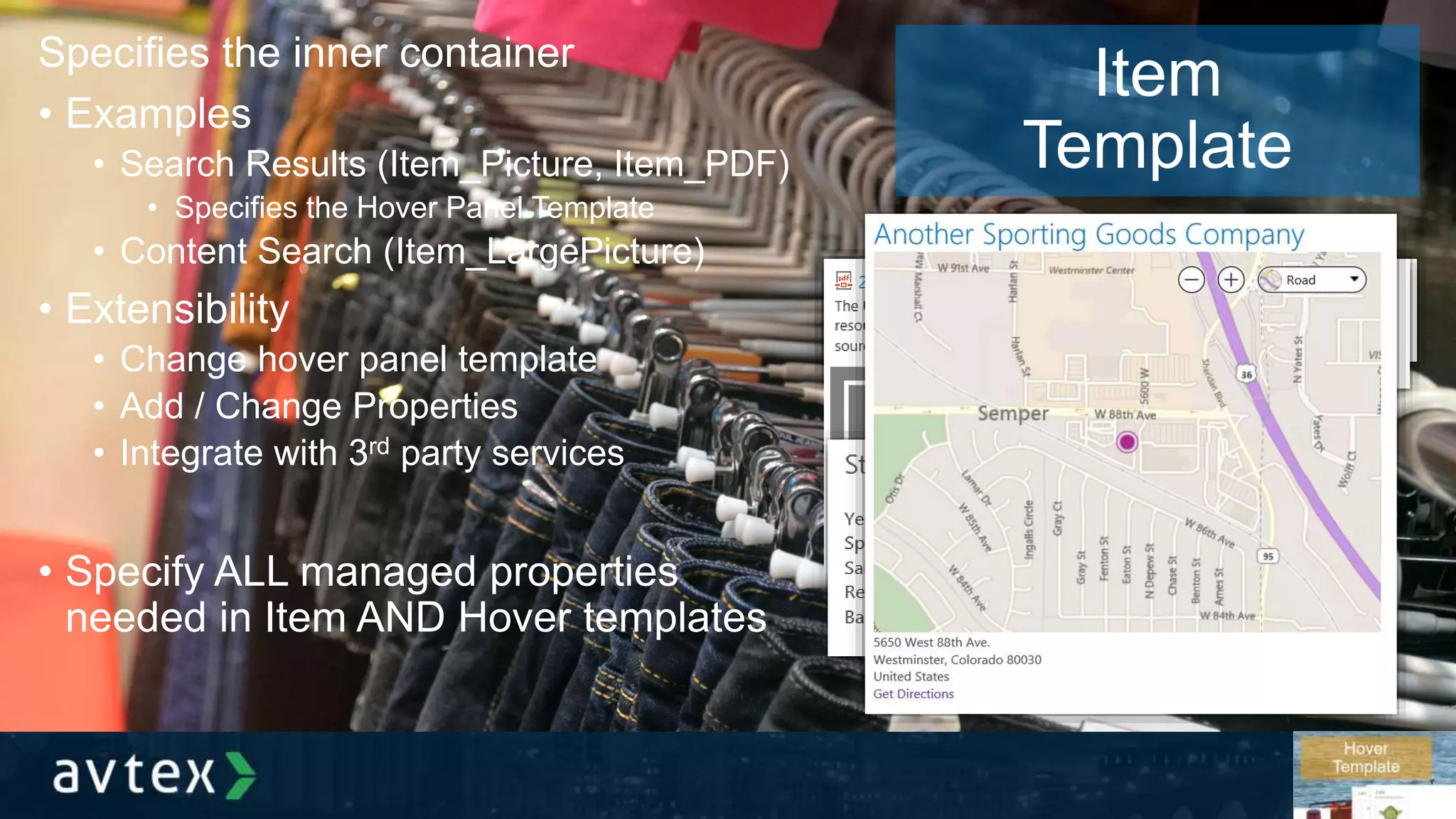

29. Item
Template
Specifies the inner container
• Examples
• Search Results (Item_Picture, Item_PDF)
• Specifies the Hover Panel Template
• Content Search (Item_LargePicture)
• Extensibility
• Change hover panel template
• Add / Change Properties
• Integrate with 3rd party services
• Specify ALL managed properties
needed in Item AND Hover templates

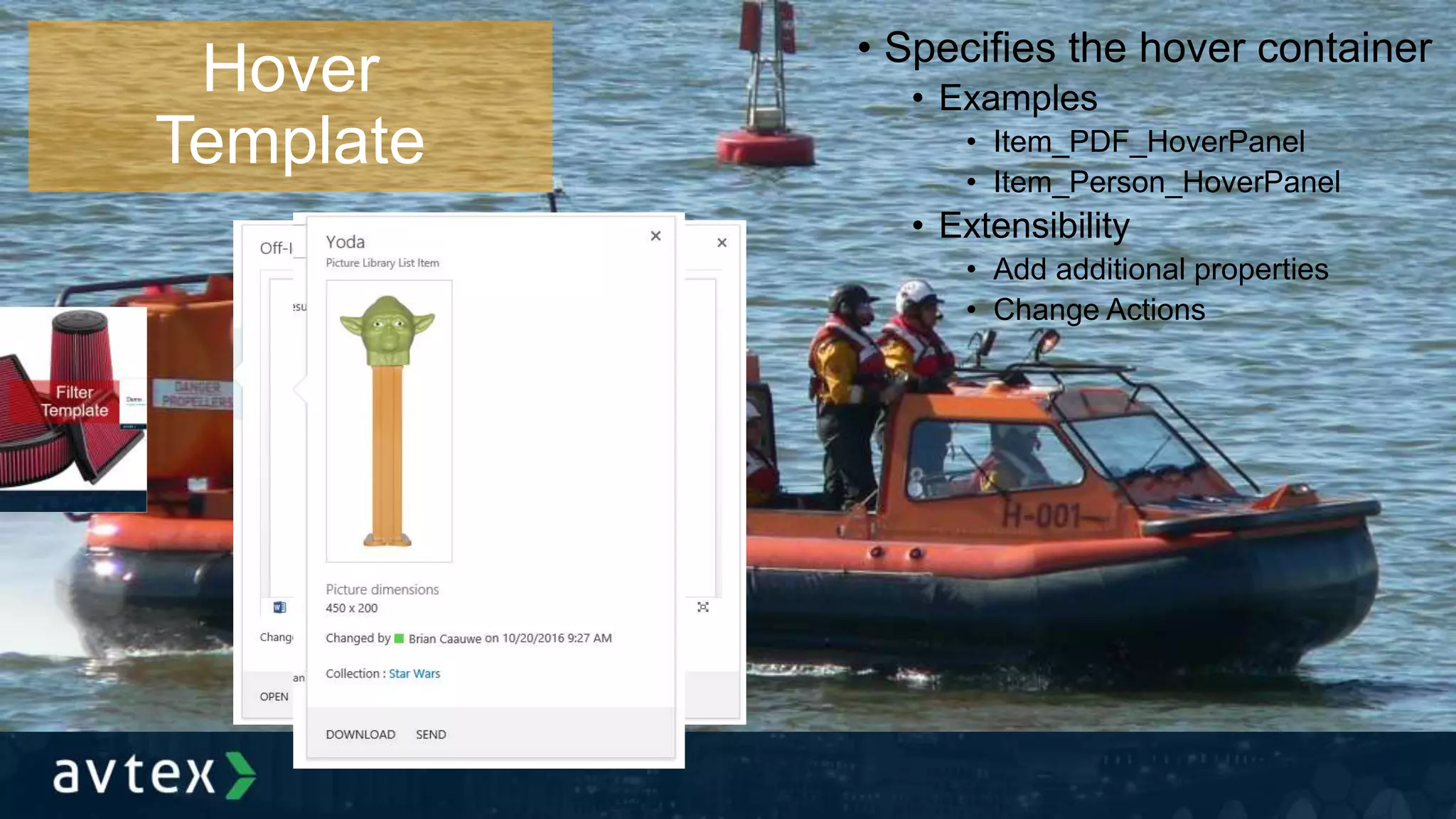

30. Hover
Template
• Specifies the hover container
• Examples
• Item_PDF_HoverPanel
• Item_Person_HoverPanel
• Extensibility
• Add additional properties
• Change Actions

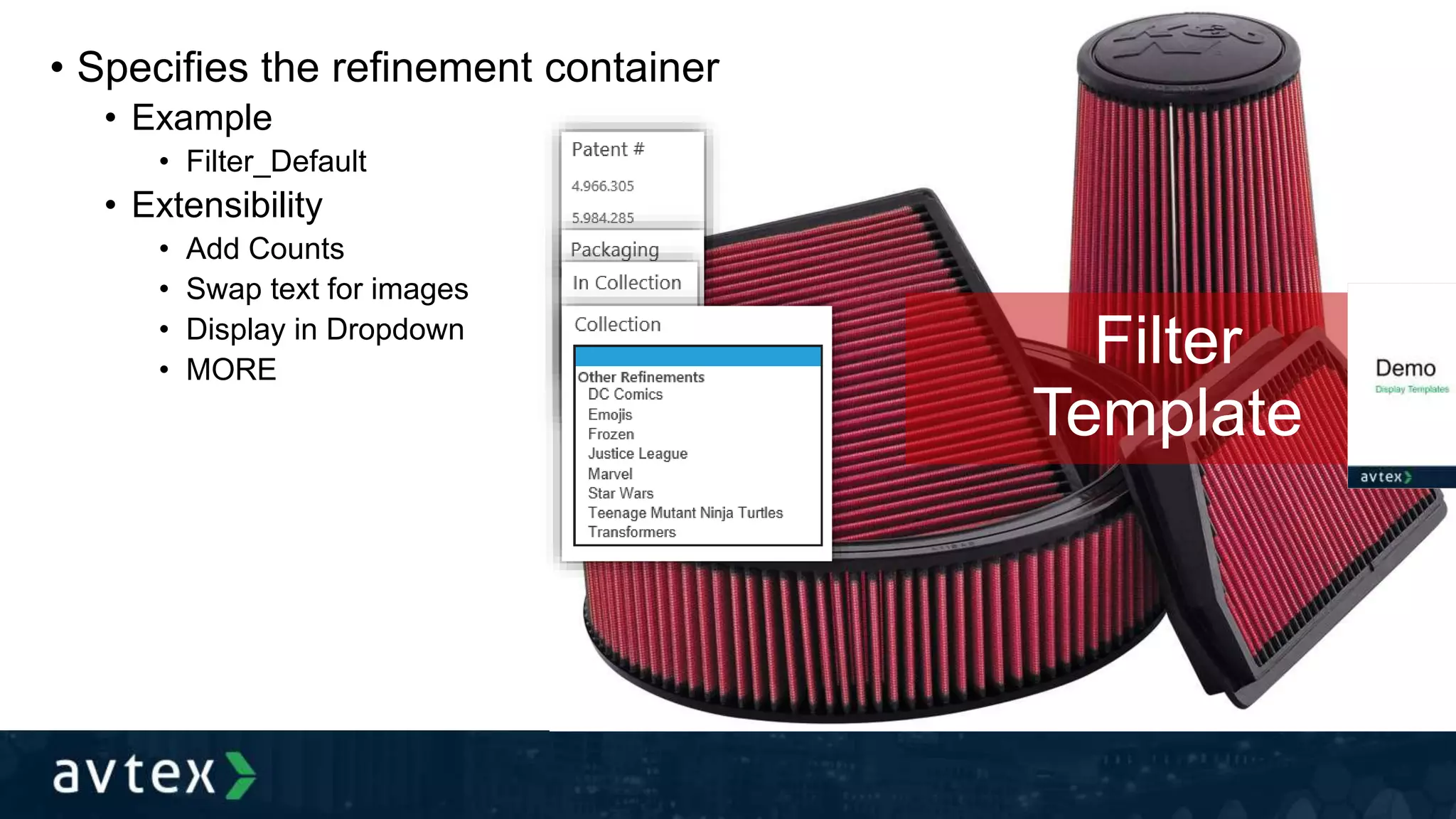

31. Filter
Template
• Specifies the refinement container
• Example
• Filter_Default
• Extensibility
• Add Counts
• Swap text for images
• Display in Dropdown
• MORE

32. Demo
Display Templates

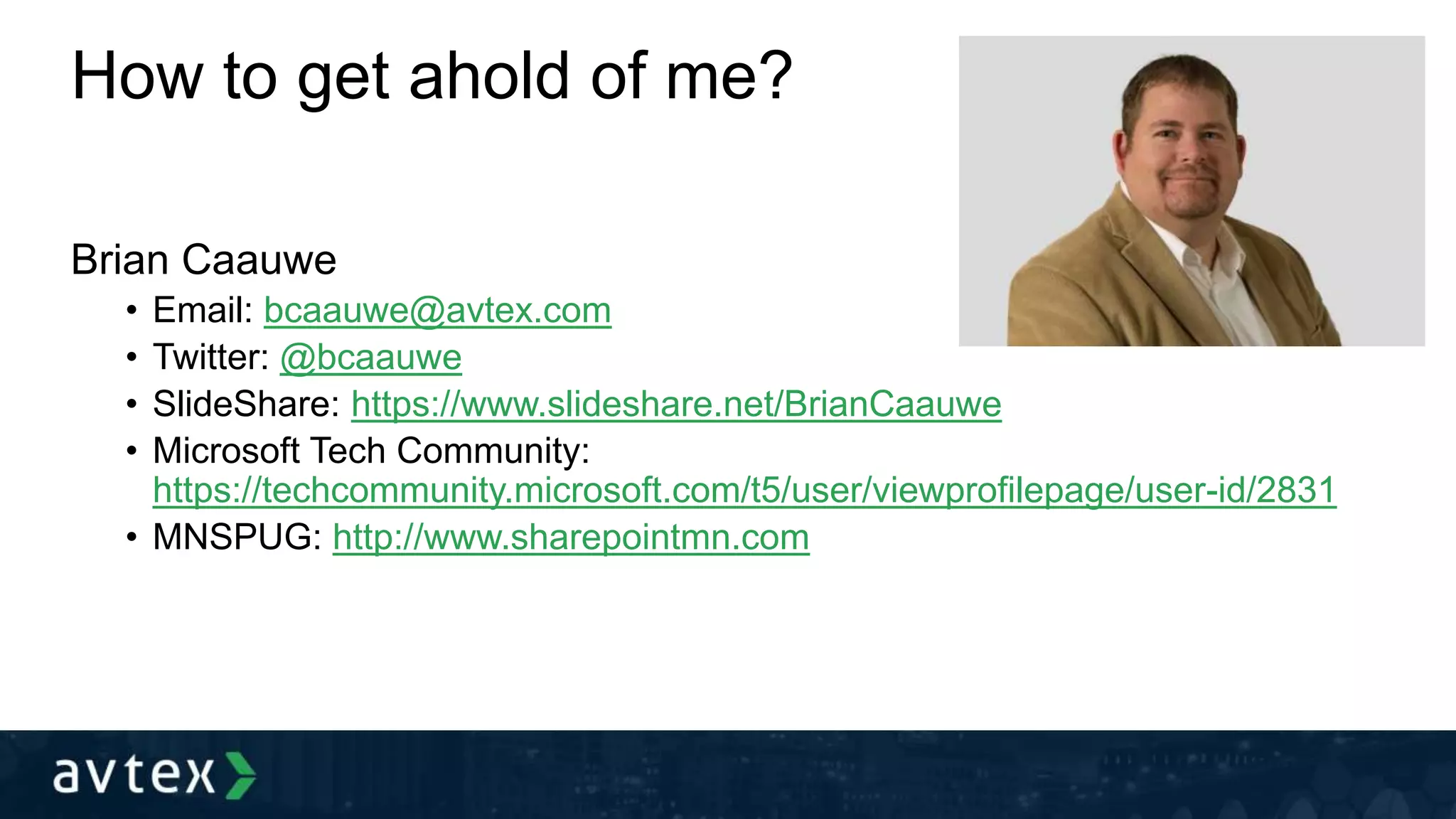

34. How to get ahold of me?
Brian Caauwe
• Email: bcaauwe@avtex.com
• Twitter: @bcaauwe
• SlideShare: https://www.slideshare.net/BrianCaauwe
• Microsoft Tech Community:
https://techcommunity.microsoft.com/t5/user/viewprofilepage/user-id/2831
• MNSPUG: http://www.sharepointmn.com

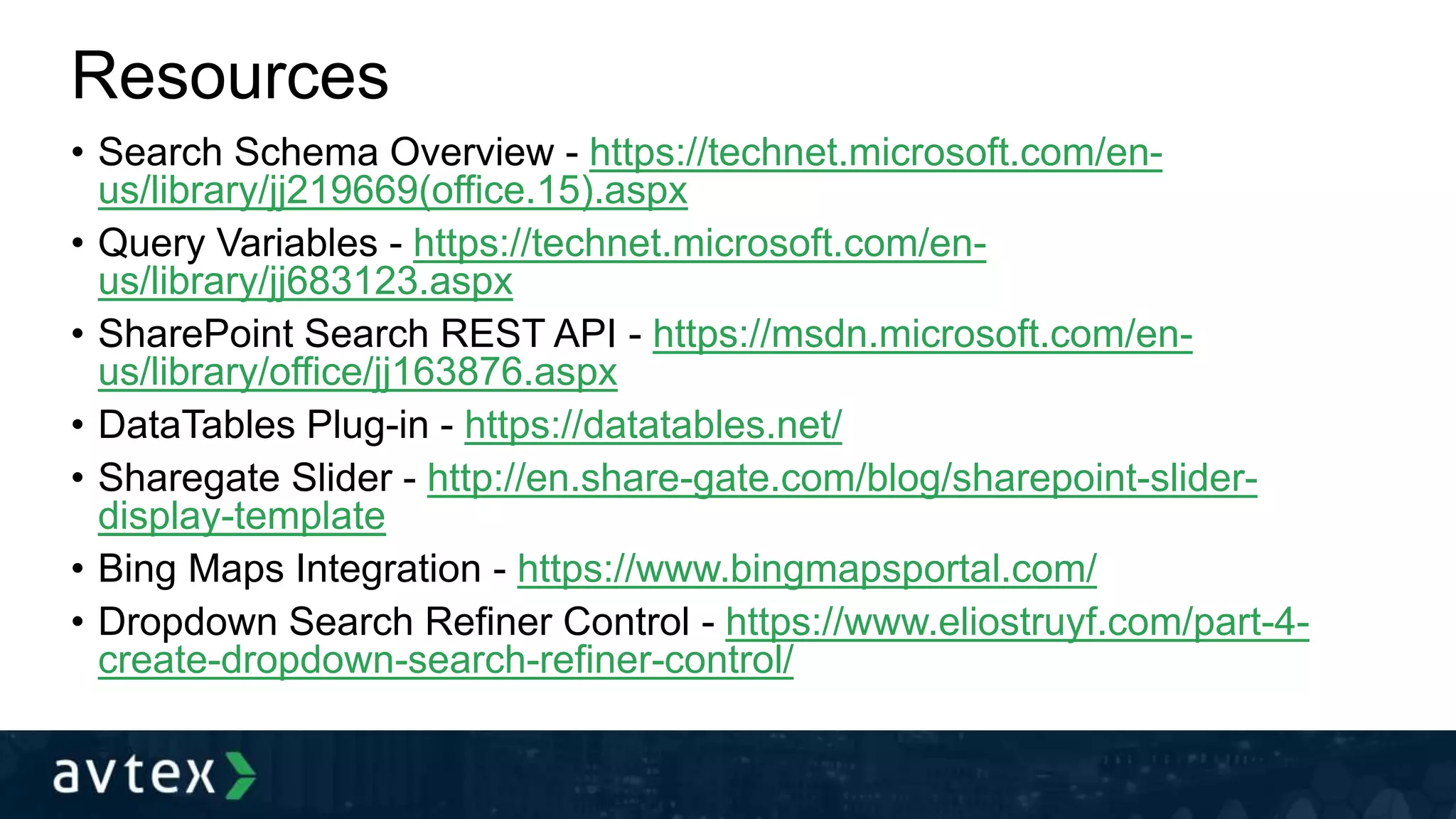

35. Resources
• Search Schema Overview - https://technet.microsoft.com/en-
us/library/jj219669(office.15).aspx
• Query Variables - https://technet.microsoft.com/en-
us/library/jj683123.aspx
• SharePoint Search REST API - https://msdn.microsoft.com/en-
us/library/office/jj163876.aspx
• DataTables Plug-in - https://datatables.net/
• Sharegate Slider - http://en.share-gate.com/blog/sharepoint-slider-
display-template
• Bing Maps Integration - https://www.bingmapsportal.com/
• Dropdown Search Refiner Control - https://www.eliostruyf.com/part-4-
create-dropdown-search-refiner-control/
