This document summarizes a presentation on building solutions using SharePoint and related technologies. It discusses using SharePoint add-ins and the SharePoint Framework to build web parts, list-based apps, and page-based apps. It also covers using the SharePoint Client Object Model, REST API, and JavaScript patterns. The presentation demonstrates solutions integrating SharePoint, Office UI Fabric, TypeScript, React, and ASP.NET Core 1.0 web APIs.

1. TUGA IT 2016
LISBON, PORTUGAL

2. THANK YOU TO OUR
SPONSORS

3. THANK YOU TO OUR
TEAM
ANDRÉ BATISTA ANDRÉ MELANCIA ANDRÉ VALA ANTÓNIO LOURENÇO BRUNO LOPES
CLÁUDIO SILVA
RUI BASTOS
NIKO NEUGEBAUER
RUI REISRICARDO CABRAL
NUNO CANCELO PAULO MATOS PEDRO SIMÕES
SANDRA MORGADO SANDRO PEREIRA

4. Working with a Super
model for SharePoint
Sonja Madsen

5. Sonja Madsen
sp2013.blogspot.com
@sonjamadsen
dev@sonjasapps.com
Sonja
Madsen
Microsoft MVP, SONJAsAPPS
Best International Developer

6. Super model project
https://code.msdn.microsoft.com/officeapps/SharePoint-Super-Model-7855df3a
Read from Web API

7. Building views and pages
• SharePoint add-in
• Single Page Add-in
• App Part – web part
• SharePoint List View
• Multiple languages
• Design
• Modules

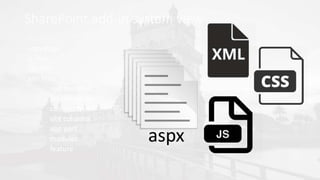

8. SharePoint add-in system view
.aspx page
.js files
.css files
.xml files
app manifest
list definition
content types
site columns
app part
modules
feature
aspx

9. Landing page HTML similar to a page layout
- Placeholders: PlaceHolderAdditionalPageHead,
PlaceHolderPageTitleInTitleArea, PlaceHolderMain
- SharePoint namespaces
- Inherits from
Microsoft.SharePoint.WebPartPages.WebPartPage
- Allows web part zones
- Allows web parts
- Parameters – properties in the URL: SPHostUrl, SPLanguage,
SPClientTag, SPProductNumber, SPAppWebUrl

10. App Part page
HTML
Inherits from Microsoft.SharePoint.WebPartPages.WebPartPage
No placeholders
No web part zones
No web parts
Parameters – properties in the URL: SPHostUrl, SPLanguage,
SPClientTag, SPProductNumber, SPAppWebUrl
Advanced Iframe
Advanced IFRAME
Edit web part: Title, layout, custom category and custom
properties
Resize
No data from the page
No data from parent page URL

11. Using SharePoint lists, libraries, and controls
• Controls such as
• List View,
• SharePoint:ScriptLink,
• SharePoint:EncodedLiteral,
• WebPartPages:XsltListViewWebPart
• Lists and libraries that are part of the add-in or part of a SharePoint site
• Lists and libraries that are part of the add-in do not have all the features
like the ones created on SharePoint
• No Site Contents
• No List Settings

12. Client-Side Object Model
_API
SharePoint 2013 - Office 365 - 2016

13. DEMO

14. REST and JSOM API
• JSOM - JavaScript Client Object Model
• REST - stateless, client-server, cacheable communications protocol
• What is better?
• Can we mix?

15. JavaScript
JSOM
context = new SP.ClientContext.get_current();
this.list =
context.get_web().get_lists().getByTitle(newsList);
var displayNewsQuery =
'<View><Query><OrderBy><FieldRef Name="ID"
Ascending="TRUE"/></OrderBy></Query></View>';
var query = new SP.CamlQuery();
query.set_viewXml(displayNewsQuery); news =
this.list.getItems(query);
context.load(news, 'Include(Title,ID)');
context.executeQueryAsync(onNewsSuccess,
onFail);
REST
var restUrl =
_spPageContextInfo.webAbsoluteUrl +
"/_api/web/lists/GetByTitle('Links')/items";
$.ajax({
url: restUrl,
method: "GET",
headers: { "ACCEPT":
"application/json;odata=verbose" },
success: onLinksSuccess,
error: onError
});

16. Resembles SharePoint Server API, SSOM
Strongly typed
Batch requests
Connection authentication to the server
Covers more SharePoint API than REST
JSOM Advantages

17. Add list and list columns with JSOM
var listCreationInfo = new SP.ListCreationInformation();
listCreationInfo.set_title(listName);
listCreationInfo.set_templateType(SP.ListTemplateType.genericList);
var list = web.get_lists().add(listCreationInfo);
var newCols = [
"<Field Type='DateTime' DisplayName='StartDate' />",
"<Field Name='LinkURL' DisplayName='Link URL' Type='URL' />", true];
var numberCols = newCols.length;
for (var i = 0; i < numberCols; i++) {
this.newColumns= list.get_fields().addFieldAsXml(newCols[i], true,
SP.AddFieldOptions.defaultValue);
}
context.load(this.newColumns);

19. DEMO

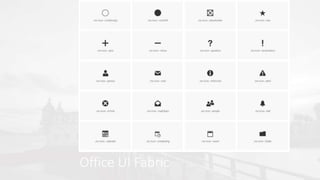

20. Office UI Fabric

21. Office UI Fabric
• http://dev.office.com/fabric/styles
• Fonts, colors, message colors
• Grid
• Icons
• Controls

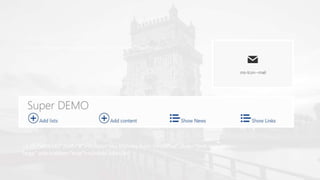

22. <i class="ms-Icon ms-Icon--mail" aria-hidden="true"></i>
<a id="addLists" href="#"><i class="ms-Icon ms-Icon--circlePlus" style="font-size: xx-
large" aria-hidden="true"></i>Add lists</a>

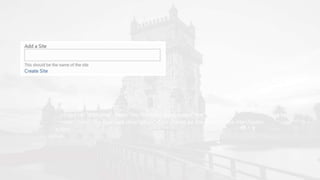

23. <div>
Add a Site
<div>
<input id="sitename" class="ms-TextField-field" type="text">
<span class="ms-TextField-description">This should be the name of the site</span>
</div>
</div>

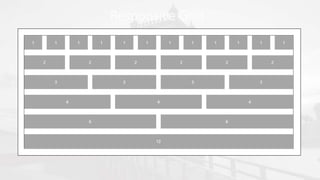

24. Responsive Grid

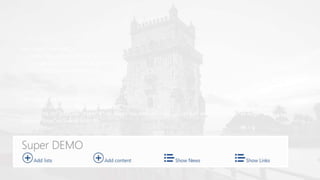

25. <div class="ms-Grid">
<div class="ms-Grid-row">
<div class="ms-Grid-col ms-u-md12">
<h1>Super DEMO</h1>
</div>
</div>
</div>
<div class="ms-Grid-row">
<div class="ms-Grid-col ms-u-md2">
<a id="addLists" href="#"><i class="ms-Icon ms-Icon--circlePlus" style="font-size: xx-large" aria-
hidden="true"></i>Add lists</a>
</div>

26. SharePoint Framework
Client-side web parts, list-and page based applications

27. No isolated app web
No app domain

28. &
Visual Studio Code
Or
Visual Studio
Workbench
SharePoint web part and Office 365
&
SharePoint 2016

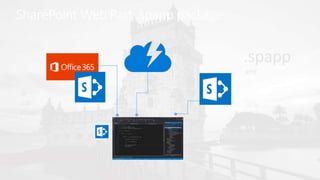

29. SharePoint Web Part .spapp package

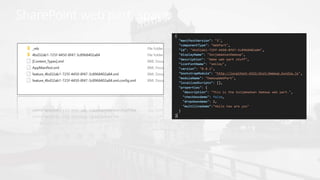

30. SharePoint web part .spapp

31. Development
Visual Studio Code
TypeScript
React is a suggested
framework
Office UI Fabric

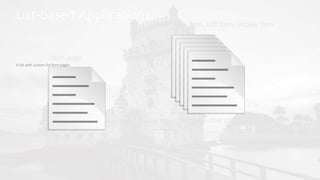

32. List-based Applications
A list with custom list form pages

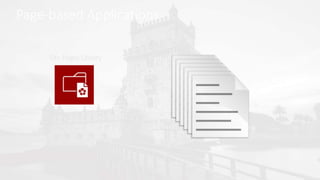

33. Page-based Applications

34. Webhooks
• List item receivers
• Add item, delete item, check-out, check-in

35. DEMO
Web part, React web part

36. What’s new
• Namespace – JavaScript
• Hosting of js and other files
• No cross-domain
• No .aspx page

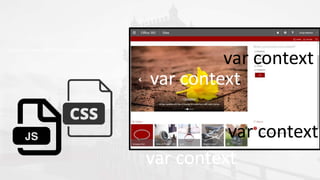

37. context = new SP.ClientContext.get_current();
var context
var context
var context
var context

38. JavaScript Patterns
function getImages() {
context = new SP.ClientContext.get_current();
var request = new SP.WebRequestInfo();
var url = rssurl;
var account = getProperty("Account");
}
var myApp = (function () {
var getImages = function () {
context = new SP.ClientContext.get_current();
var request = new SP.WebRequestInfo();
var url = rssurl;
var account = getProperty("Account");
};

39. TypeScript
• TypeScript is a typed superset of JavaScript that compiles to plain
JavaScript

40. JavaScript Frameworks
• Model-View-View Model (MVVM) is a design pattern for building user
interfaces
• Model - stored data
• View model - representation of the data and operations (add,
remove)
• View - visible, interactive UI

41. Reactjs
• React is front end library developed by Facebook
• Used for handling view layer for web and mobile apps
• JSX − JSX is JavaScript syntax extension
• Components − everything is a component
• Unidirectional data flow and Flux − React implements one way data
flow
• Virtual DOM which is JavaScript object
• Inline templating and JSX

42. SharePoint Add-ins - Advantages
• You can hide the lists from end-user
• Both pages and an app part
• .aspx page – HTML
• Images, scripts, stylesheets hosted on SharePoint
• Isolated is not always a bad thing

43. SharePoint Framework - Advantages
• Responsive mobile friendly
• No iframe
• Dynamic properties
• Webhooks
• List-based and Page-based
• No need for cross-domain library to access SharePoint resources

44. •SharePoint Add-ins on
Office 365
•Azure Web API
and Core 1.0

45. Front-end Back-end
SharePoint Azure
Core 1.0

46. Front-end
Back-end

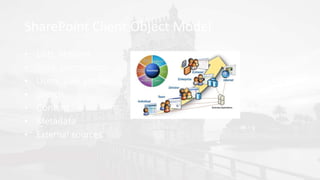

47. SharePoint Client Object Model
• Lists, libraries
• Sites, permissions
• Users, user profiles
• Search
• Content
• Metadata
• External sources

48. C# is what JavaScript is not
• Send email
• Connect to database
• Secret sauce, code-behind

49. Microsoft on Instagram

50. Code-behind
• Intelligent apps
• Current user name, takes pictures description, language-country,
customer profile, purchase history, your product inventory
• Secret sauce logic

51. Core 1.0
• Cross-platform
• project.json
• global.json
• appsettings.json
• Command line
• Rebirth of MVC
• Coexist with ASP.NET 4.6

52. DEMO
• Code-behind

53. Instagram
RSS feed
SharePoint
Add-in
JavaScript
Code-behind
Logic
REST
∫∞

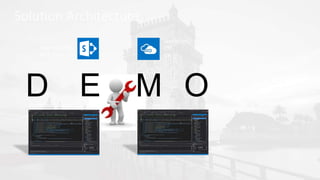

54. Solution Architecture
SharePoint add-in Core 1.0
App manifest
XML files
JavaScript
CSS
C#
D E M O

55. DEMO
• SQL Database
