1. By
Dr: Samiaa Hamdy Sadek
Lecturer of chest diseases
Assessment of small airways
functions

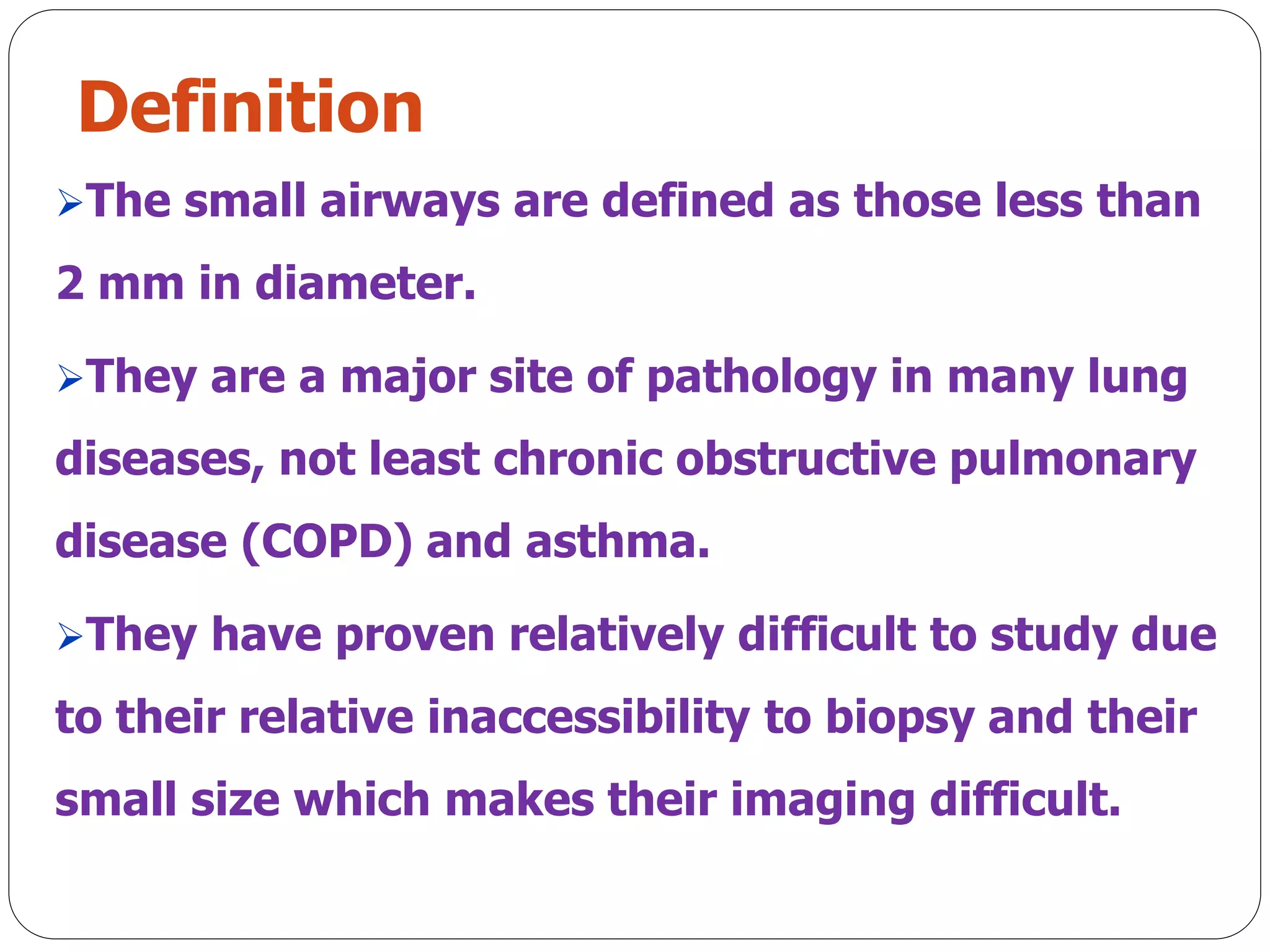

2. Definition
The small airways are defined as those less than
2 mm in diameter.
They are a major site of pathology in many lung
diseases, not least chronic obstructive pulmonary
disease (COPD) and asthma.
They have proven relatively difficult to study due
to their relative inaccessibility to biopsy and their
small size which makes their imaging difficult.

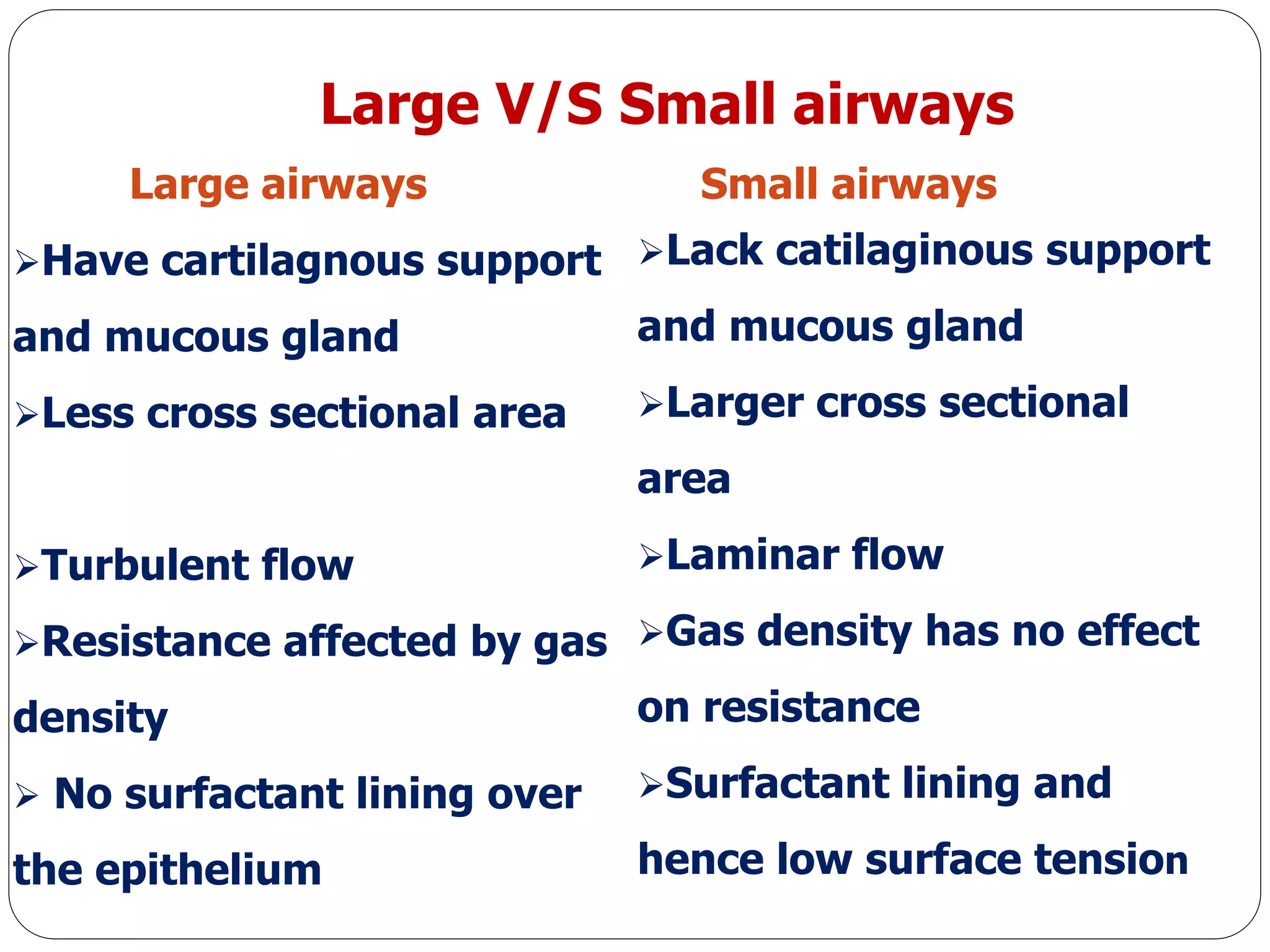

3. Large V/S Small airways
Large airways Small airways
Have cartilagnous support
and mucous gland
Less cross sectional area
Turbulent flow
Resistance affected by gas
density
 No surfactant lining over
the epithelium
Lack catilaginous support
and mucous gland
Larger cross sectional
area
Laminar flow
Gas density has no effect
on resistance
Surfactant lining and
hence low surface tension

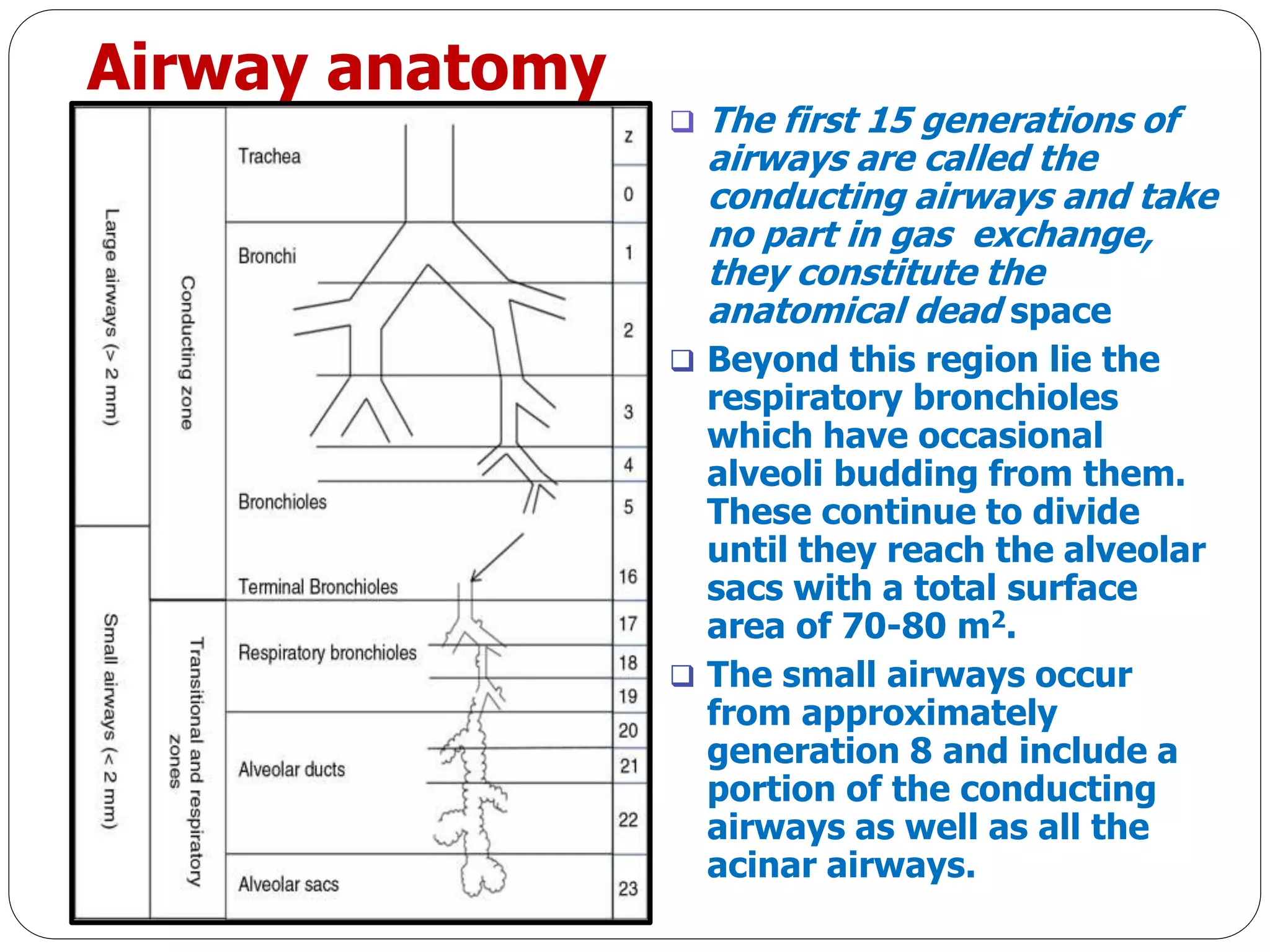

4. Airway anatomy
 The first 15 generations of
airways are called the
conducting airways and take
no part in gas exchange,
they constitute the
anatomical dead space
 Beyond this region lie the
respiratory bronchioles
which have occasional
alveoli budding from them.
These continue to divide
until they reach the alveolar
sacs with a total surface
area of 70-80 m2.
 The small airways occur
from approximately
generation 8 and include a
portion of the conducting
airways as well as all the
acinar airways.

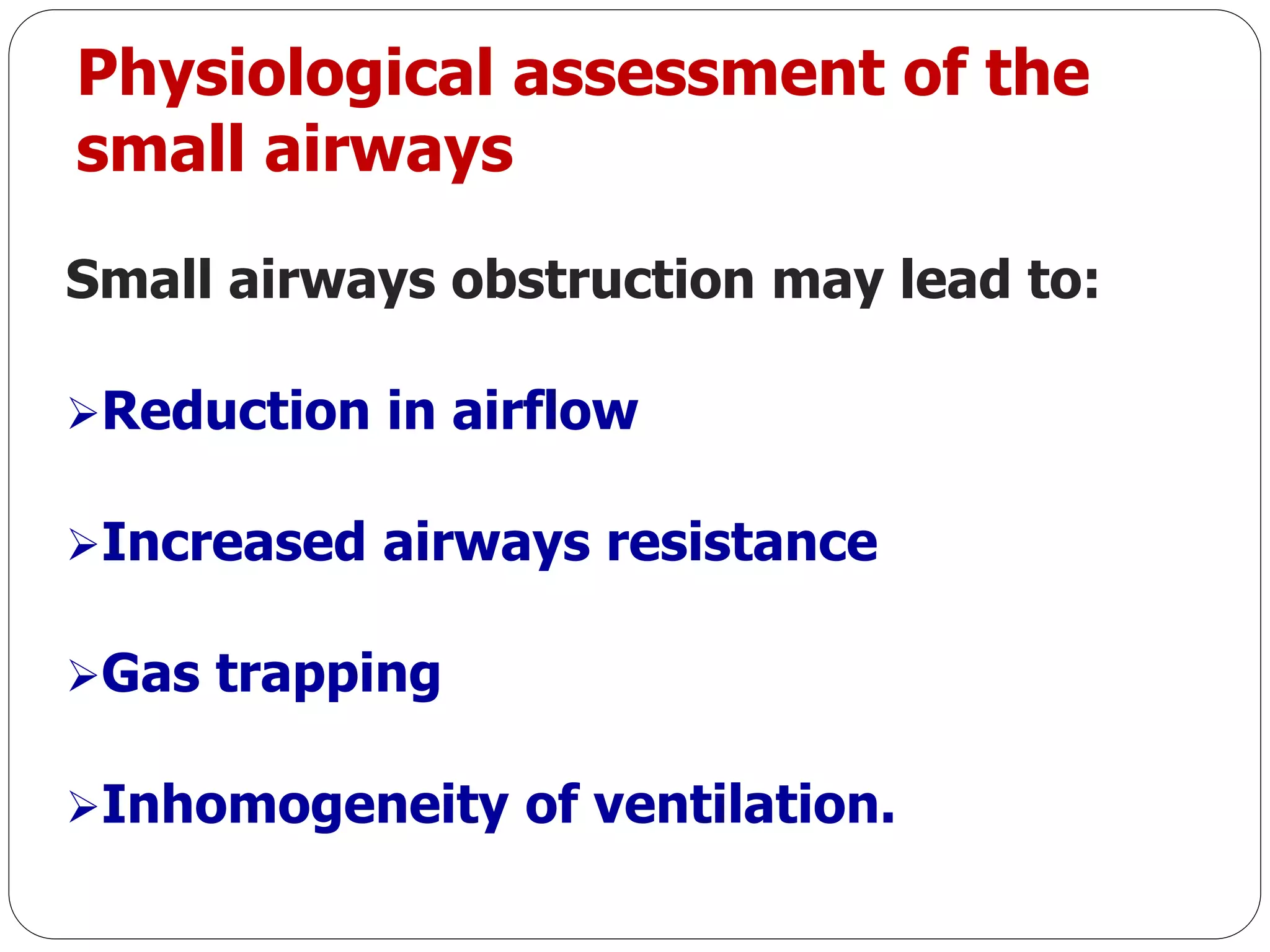

5. Physiological assessment of the
small airways
Small airways obstruction may lead to:
Reduction in airflow
Increased airways resistance
Gas trapping
Inhomogeneity of ventilation.

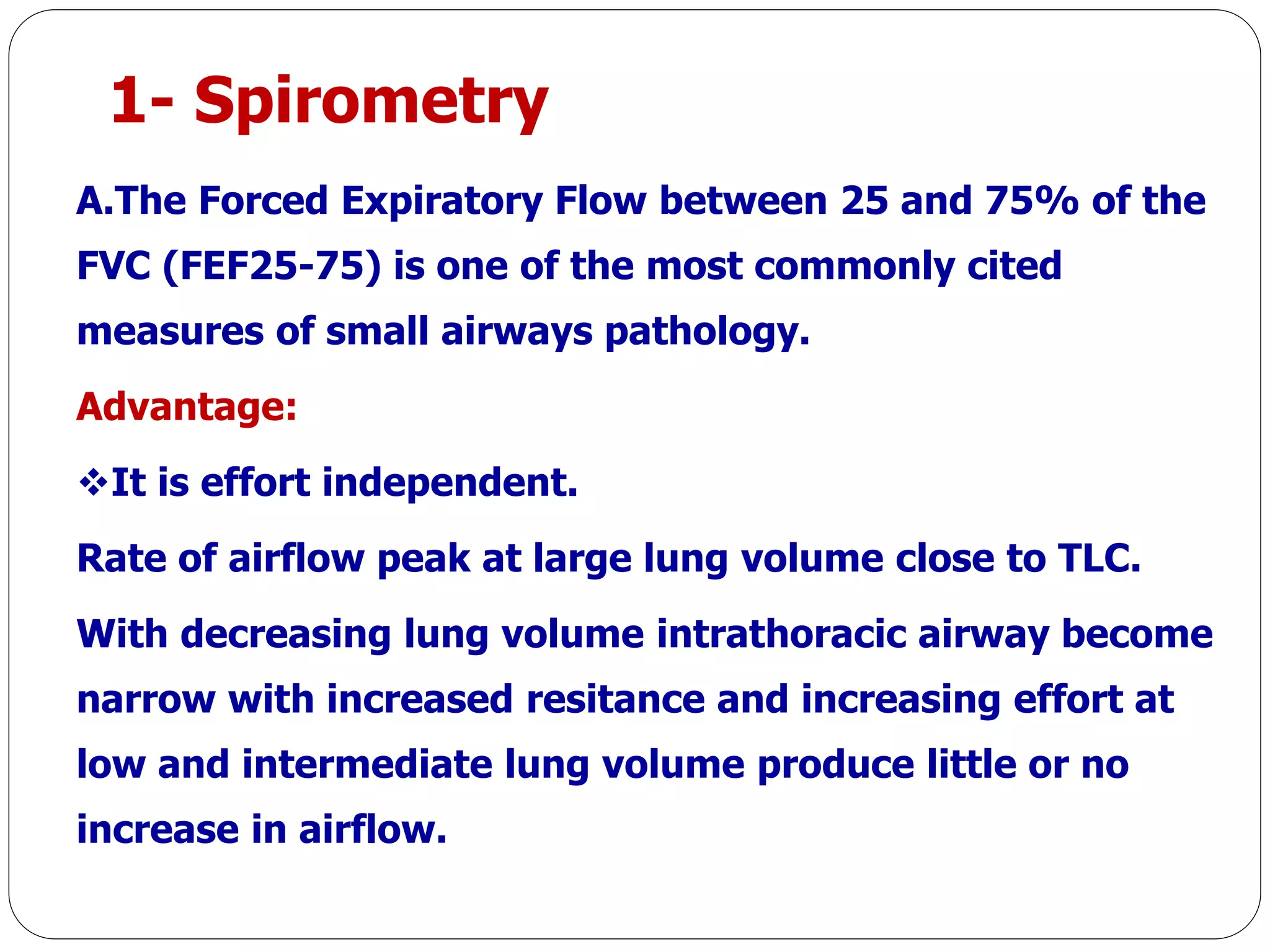

6. 1- Spirometry
A.The Forced Expiratory Flow between 25 and 75% of the
FVC (FEF25-75) is one of the most commonly cited
measures of small airways pathology.
Advantage:
It is effort independent.
Rate of airflow peak at large lung volume close to TLC.
With decreasing lung volume intrathoracic airway become
narrow with increased resitance and increasing effort at
low and intermediate lung volume produce little or no
increase in airflow.

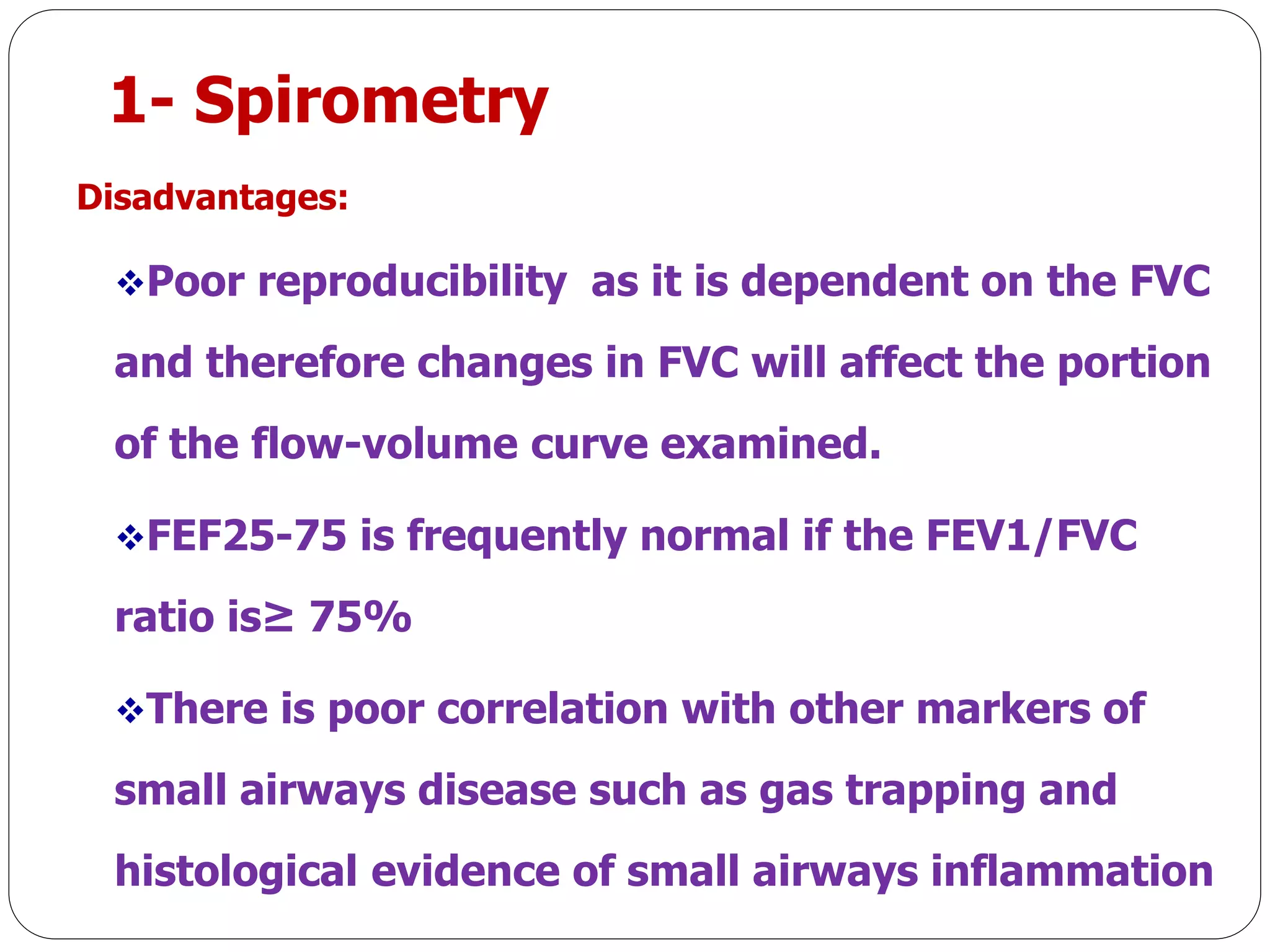

7. 1- Spirometry
Disadvantages:
Poor reproducibility as it is dependent on the FVC
and therefore changes in FVC will affect the portion
of the flow-volume curve examined.
FEF25-75 is frequently normal if the FEV1/FVC
ratio is≥ 75%
There is poor correlation with other markers of
small airways disease such as gas trapping and
histological evidence of small airways inflammation

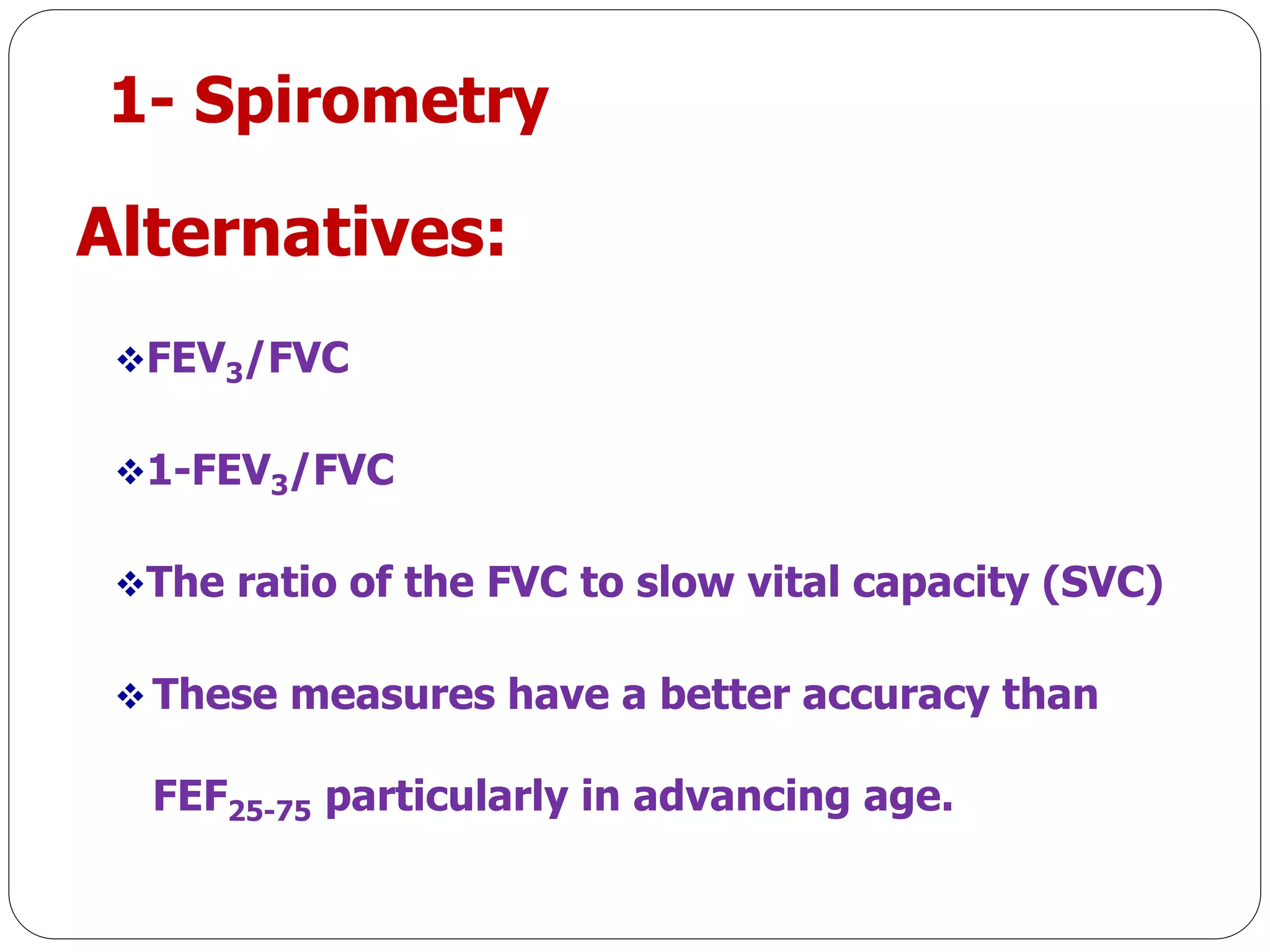

8. 1- Spirometry
Alternatives:
FEV3/FVC
1-FEV3/FVC
The ratio of the FVC to slow vital capacity (SVC)
 These measures have a better accuracy than
FEF25-75 particularly in advancing age.

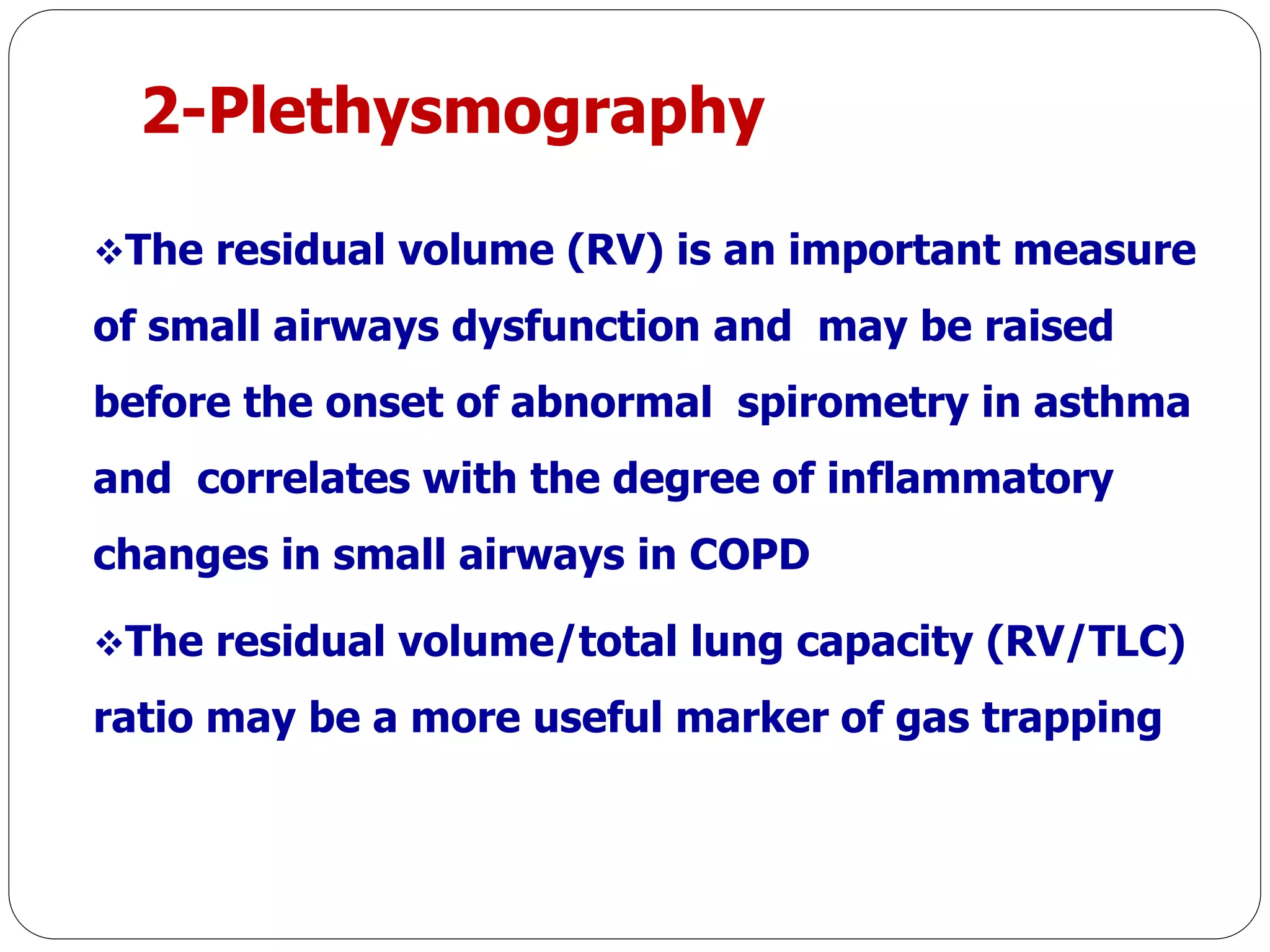

9. 2-Plethysmography
The residual volume (RV) is an important measure
of small airways dysfunction and may be raised
before the onset of abnormal spirometry in asthma
and correlates with the degree of inflammatory
changes in small airways in COPD
The residual volume/total lung capacity (RV/TLC)
ratio may be a more useful marker of gas trapping

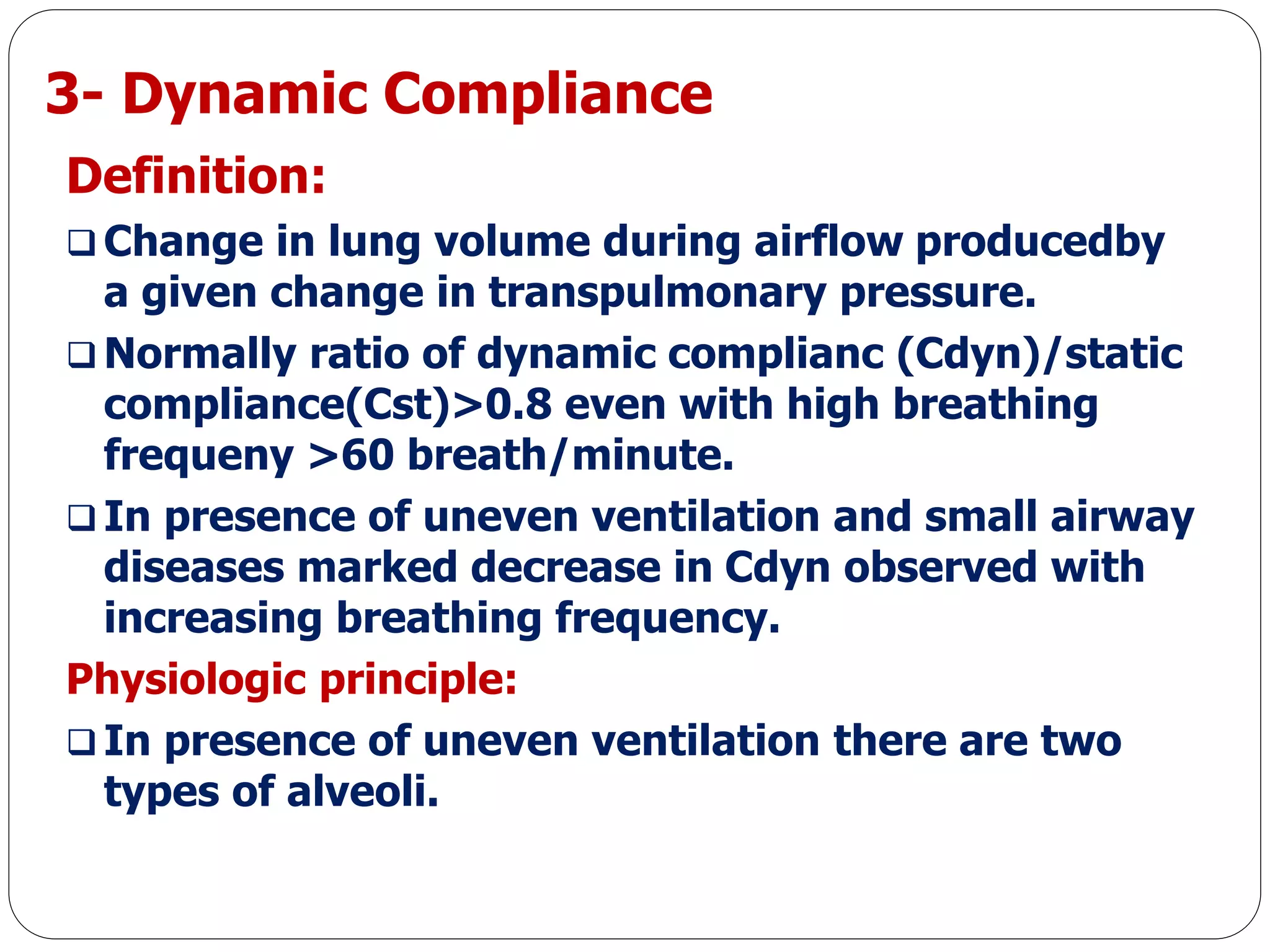

10. 3- Dynamic Compliance
Definition:
 Change in lung volume during airflow producedby
a given change in transpulmonary pressure.
 Normally ratio of dynamic complianc (Cdyn)/static
compliance(Cst)>0.8 even with high breathing
frequeny >60 breath/minute.
 In presence of uneven ventilation and small airway
diseases marked decrease in Cdyn observed with
increasing breathing frequency.
Physiologic principle:
 In presence of uneven ventilation there are two
types of alveoli.

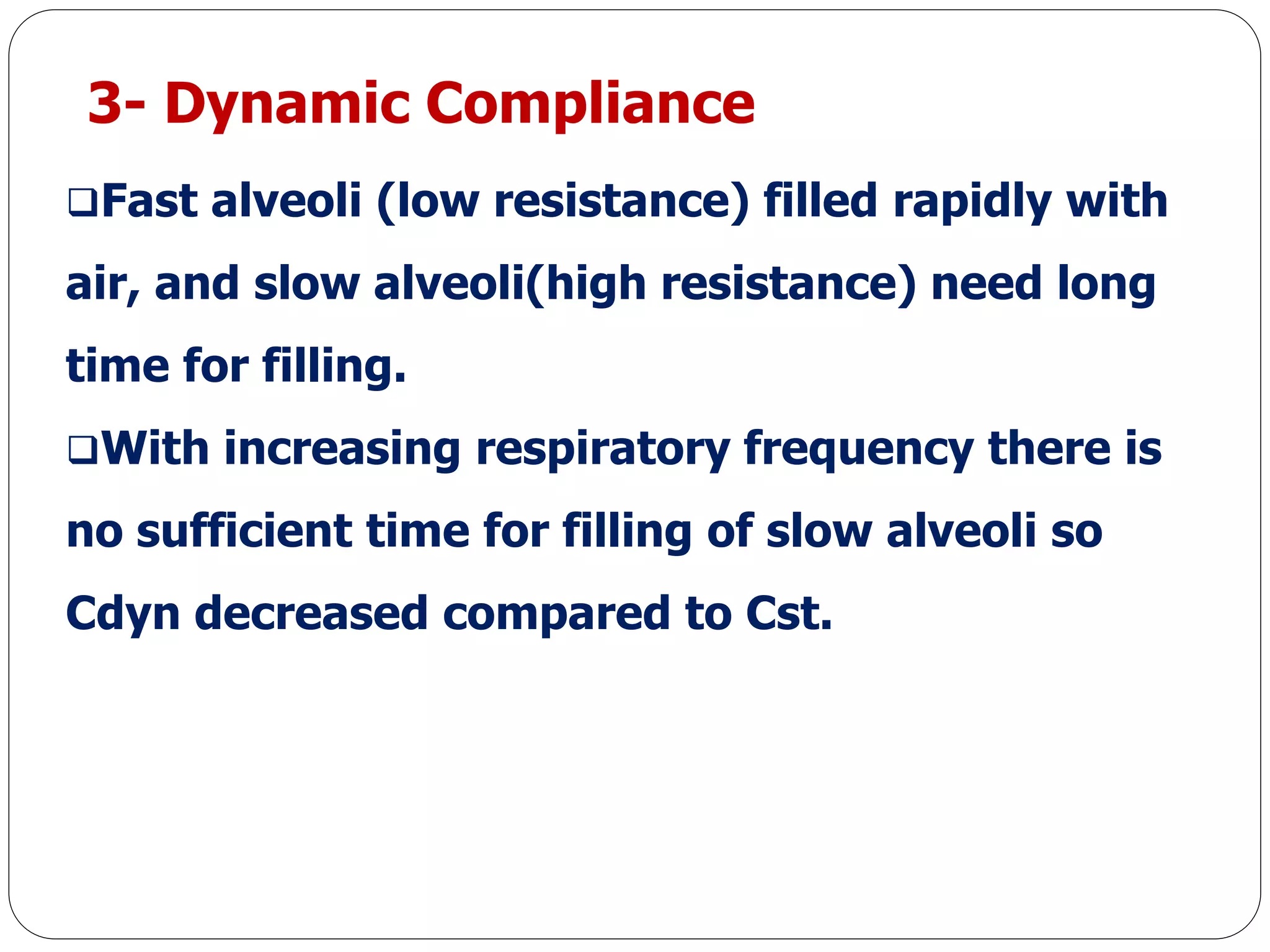

11. 3- Dynamic Compliance
Fast alveoli (low resistance) filled rapidly with
air, and slow alveoli(high resistance) need long
time for filling.
With increasing respiratory frequency there is
no sufficient time for filling of slow alveoli so
Cdyn decreased compared to Cst.

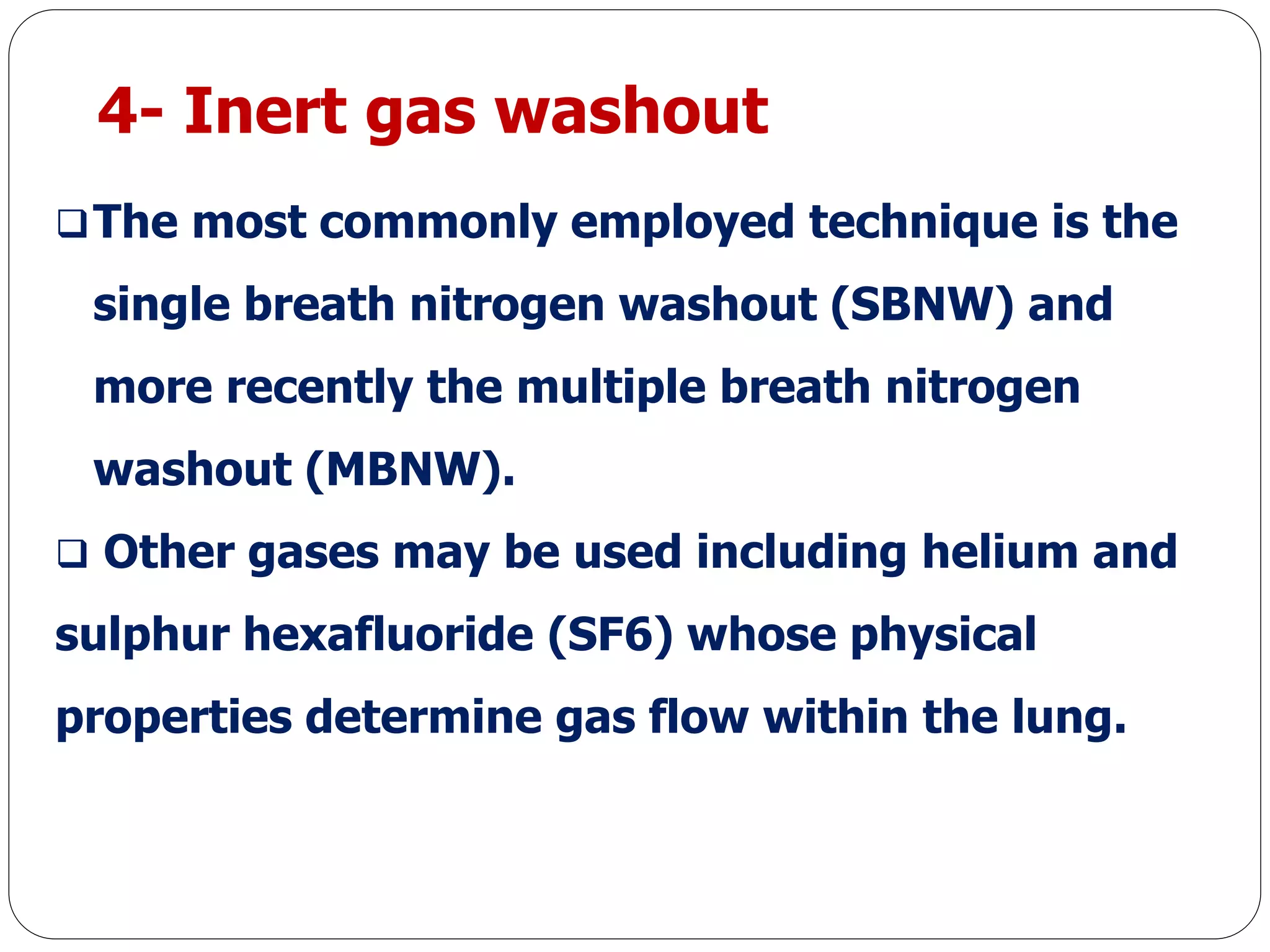

12. 4- Inert gas washout
The most commonly employed technique is the
single breath nitrogen washout (SBNW) and
more recently the multiple breath nitrogen
washout (MBNW).
 Other gases may be used including helium and
sulphur hexafluoride (SF6) whose physical
properties determine gas flow within the lung.

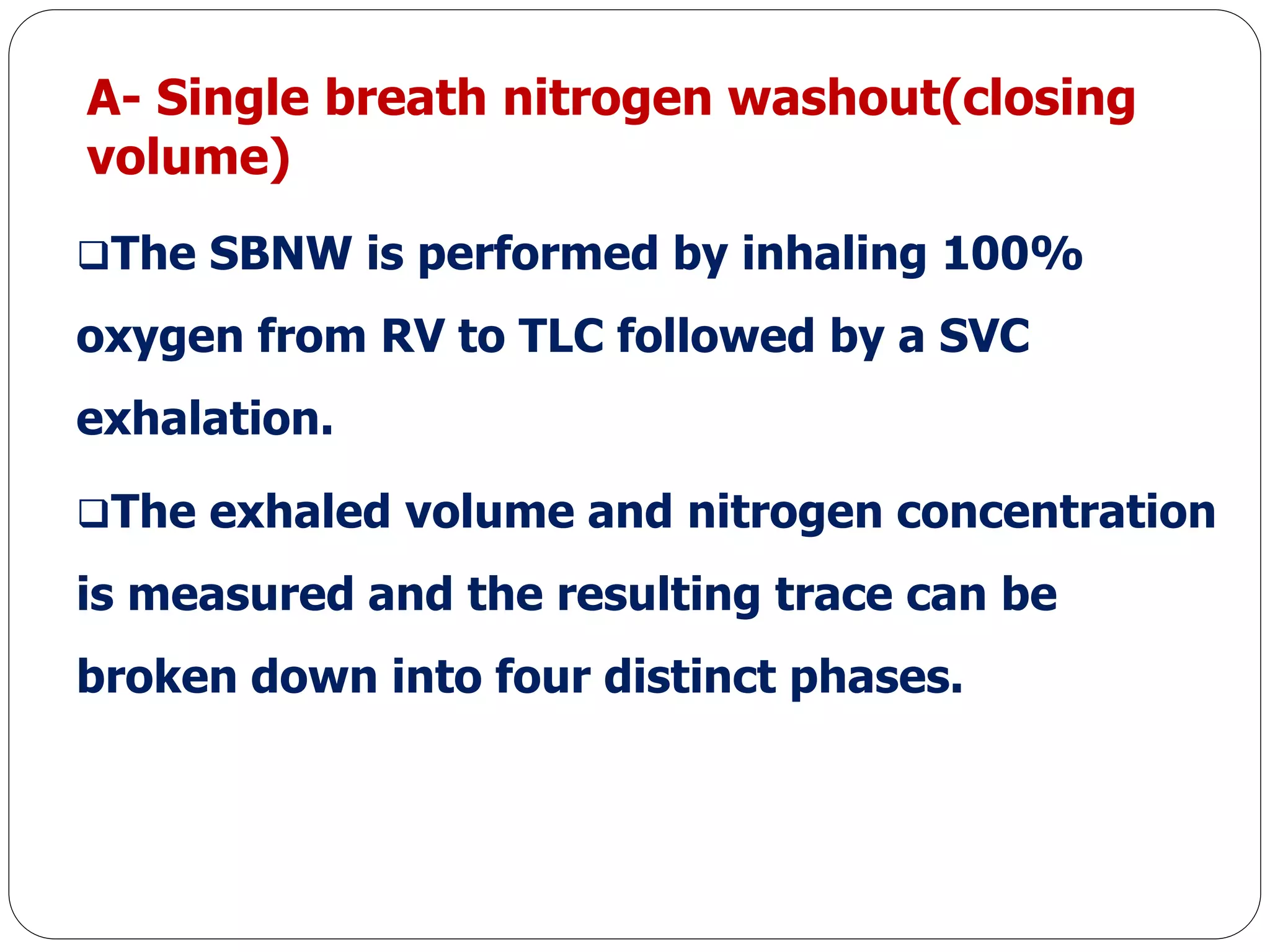

13. A- Single breath nitrogen washout(closing
volume)
The SBNW is performed by inhaling 100%
oxygen from RV to TLC followed by a SVC
exhalation.
The exhaled volume and nitrogen concentration
is measured and the resulting trace can be
broken down into four distinct phases.

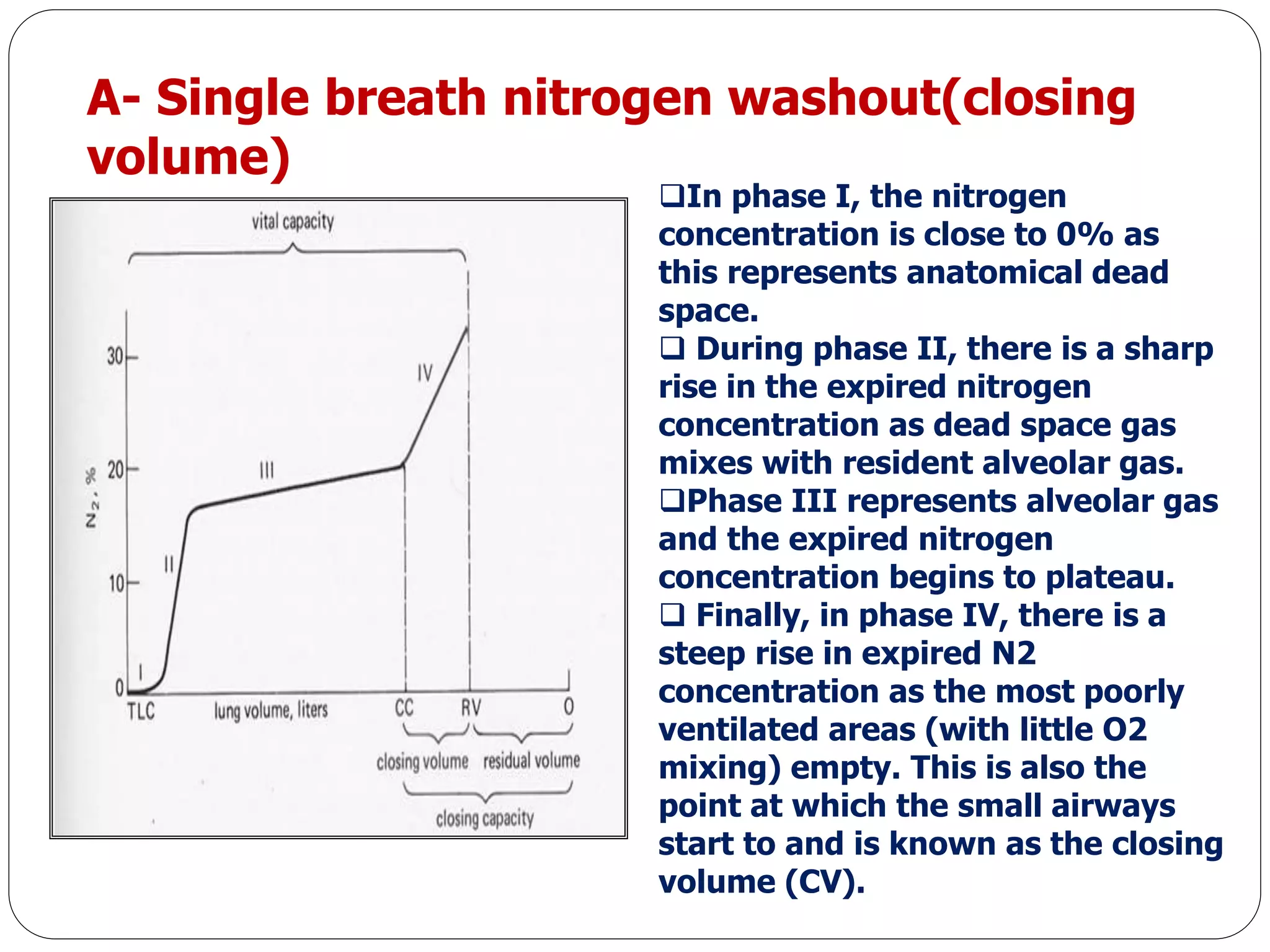

14. A- Single breath nitrogen washout(closing
volume)
In phase I, the nitrogen
concentration is close to 0% as
this represents anatomical dead
space.
 During phase II, there is a sharp
rise in the expired nitrogen
concentration as dead space gas
mixes with resident alveolar gas.
Phase III represents alveolar gas
and the expired nitrogen
concentration begins to plateau.
 Finally, in phase IV, there is a
steep rise in expired N2
concentration as the most poorly
ventilated areas (with little O2
mixing) empty. This is also the
point at which the small airways
start to and is known as the closing
volume (CV).

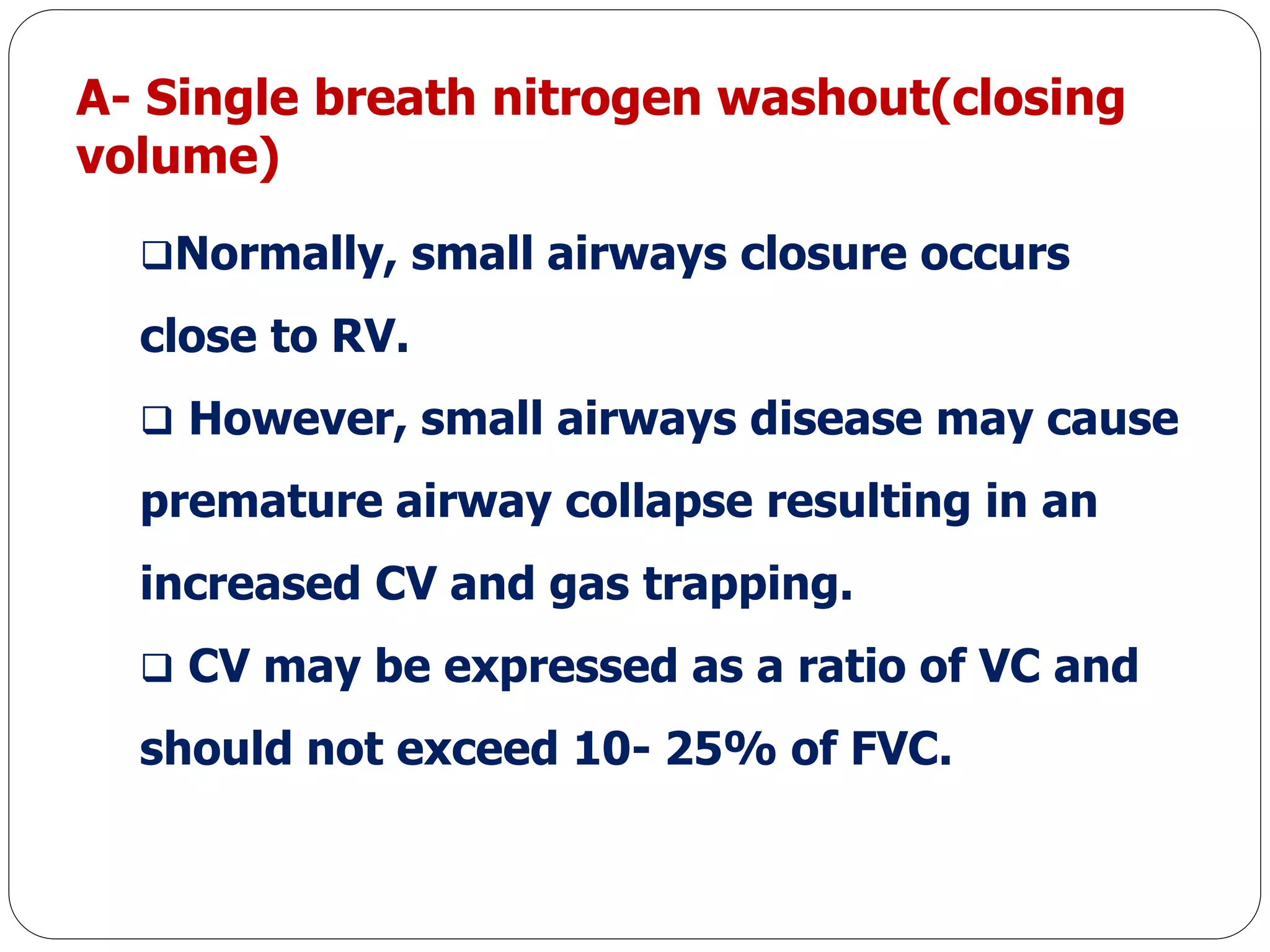

15. A- Single breath nitrogen washout(closing
volume)
Normally, small airways closure occurs
close to RV.
 However, small airways disease may cause
premature airway collapse resulting in an
increased CV and gas trapping.
 CV may be expressed as a ratio of VC and
should not exceed 10- 25% of FVC.

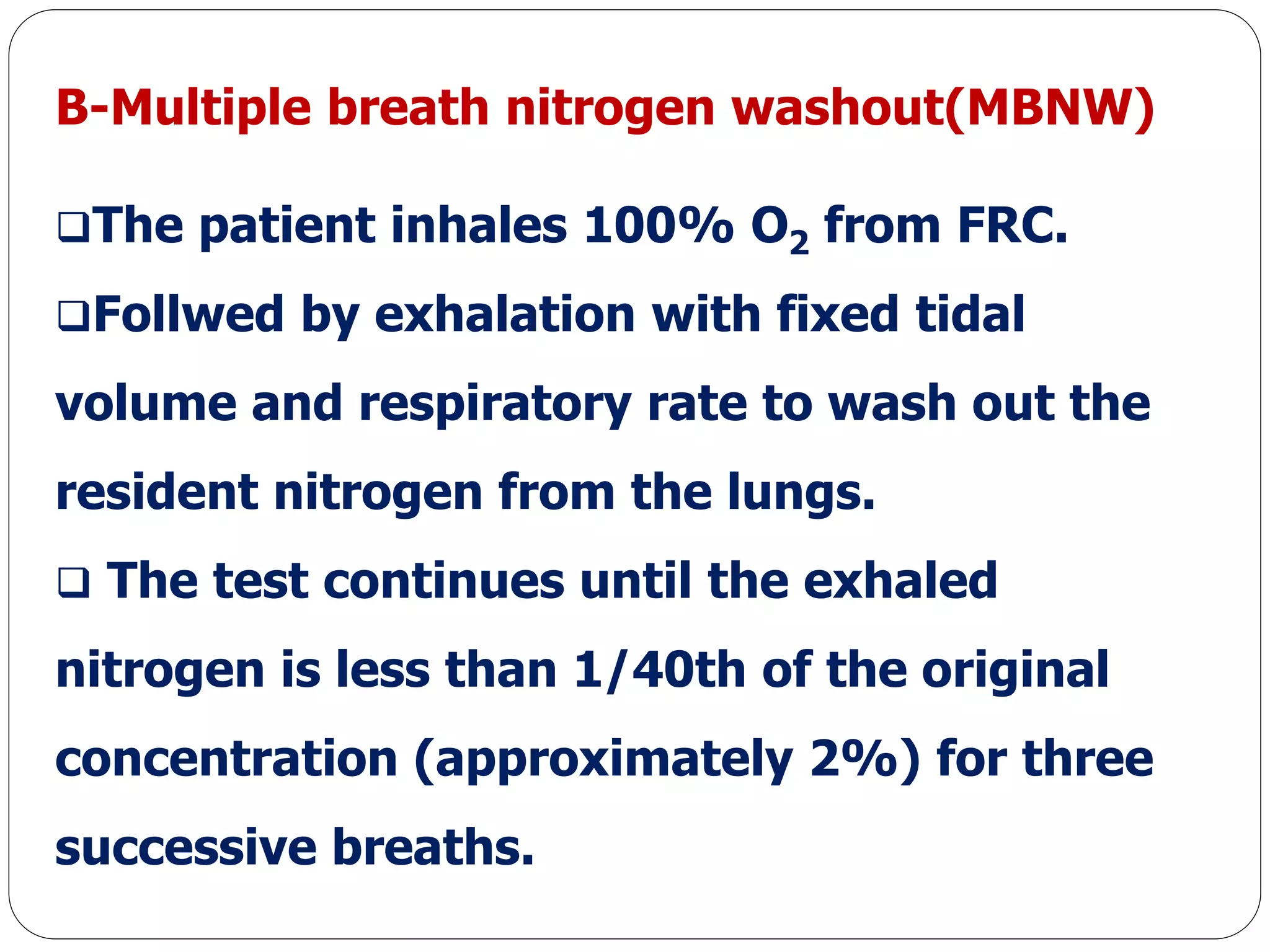

16. B-Multiple breath nitrogen washout(MBNW)
The patient inhales 100% O2 from FRC.
Follwed by exhalation with fixed tidal
volume and respiratory rate to wash out the
resident nitrogen from the lungs.
 The test continues until the exhaled
nitrogen is less than 1/40th of the original
concentration (approximately 2%) for three
successive breaths.

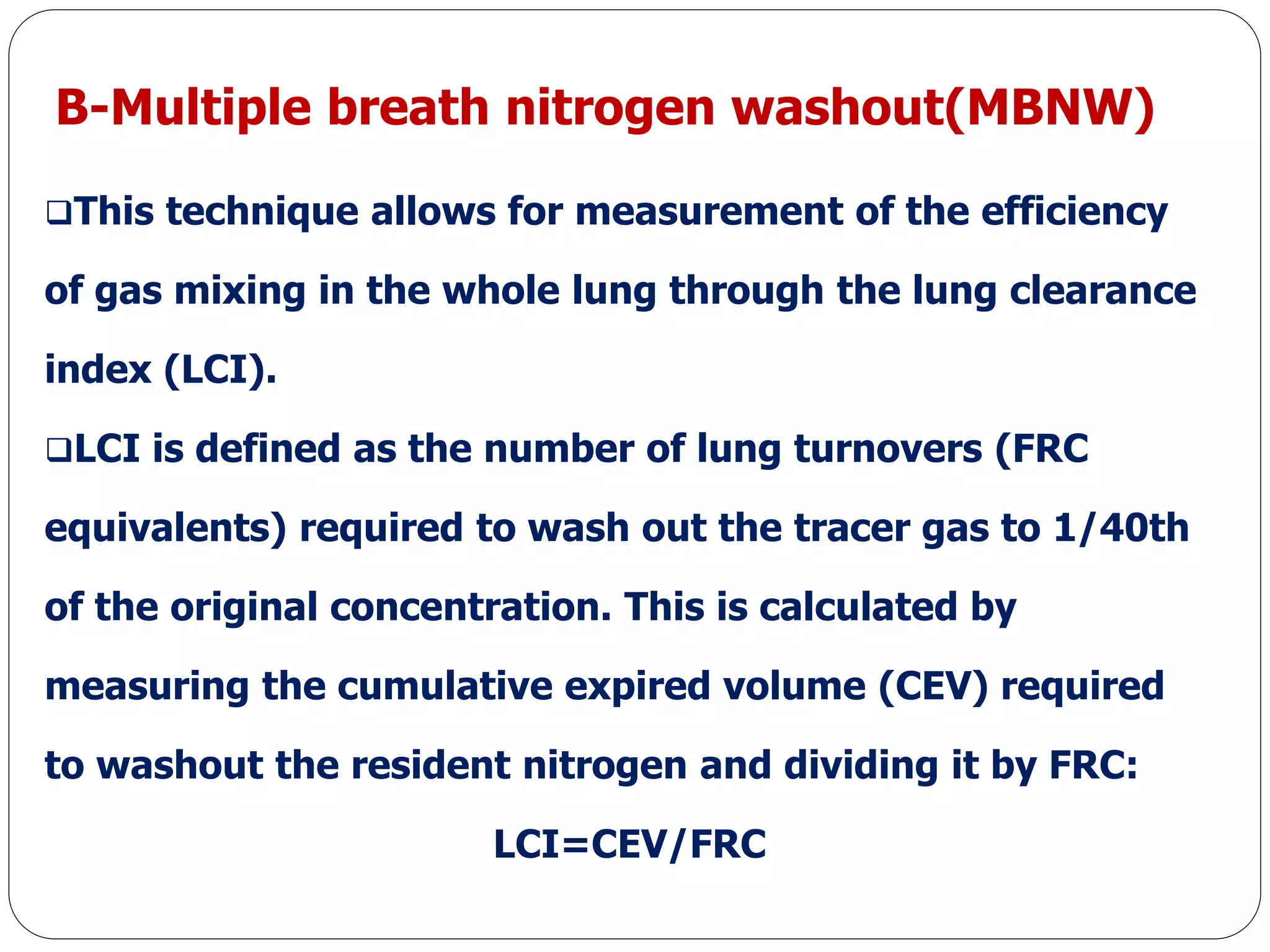

17. B-Multiple breath nitrogen washout(MBNW)
This technique allows for measurement of the efficiency
of gas mixing in the whole lung through the lung clearance
index (LCI).
LCI is defined as the number of lung turnovers (FRC
equivalents) required to wash out the tracer gas to 1/40th
of the original concentration. This is calculated by
measuring the cumulative expired volume (CEV) required
to washout the resident nitrogen and dividing it by FRC:
LCI=CEV/FRC

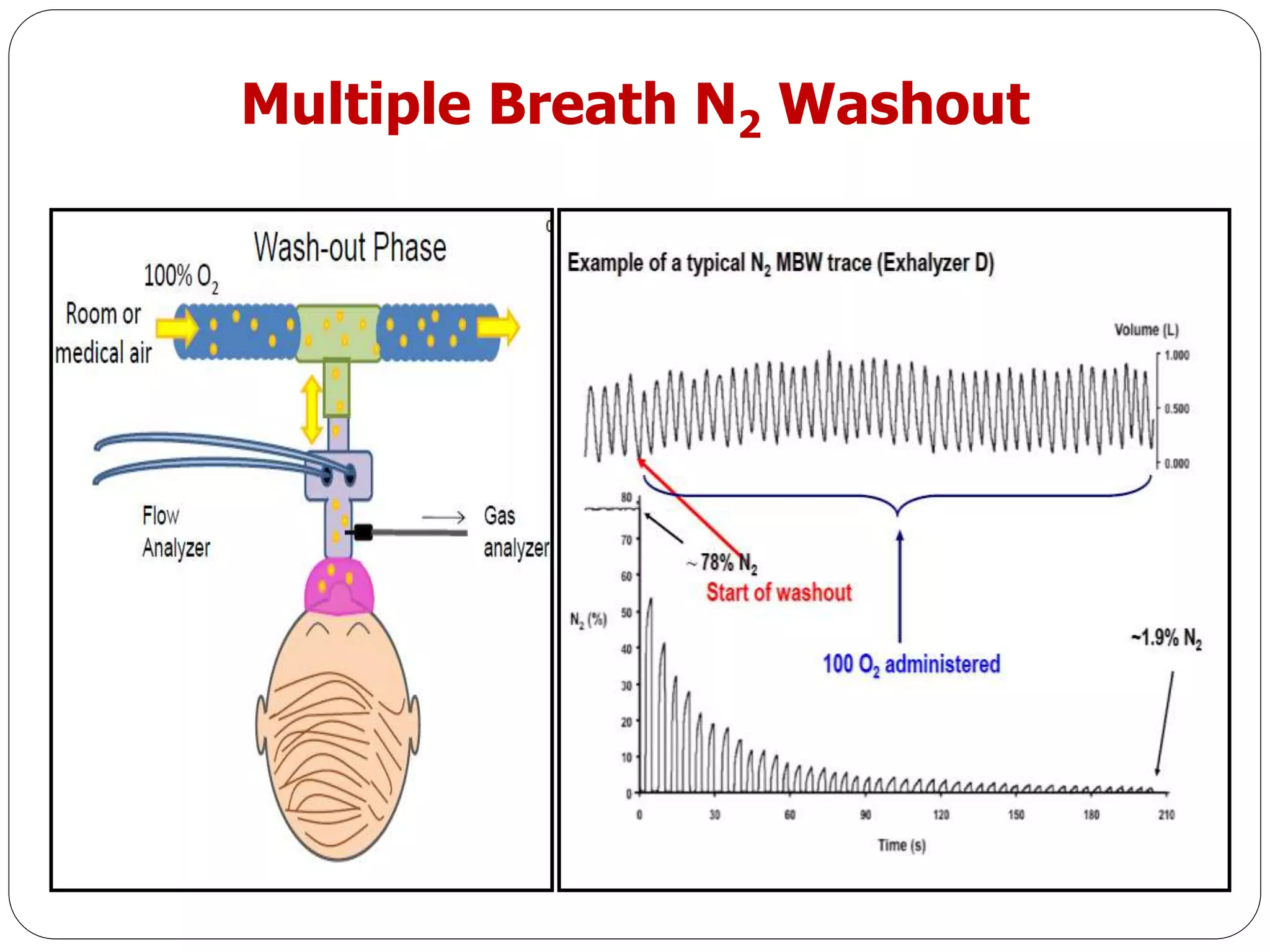

18. Multiple Breath N2 Washout

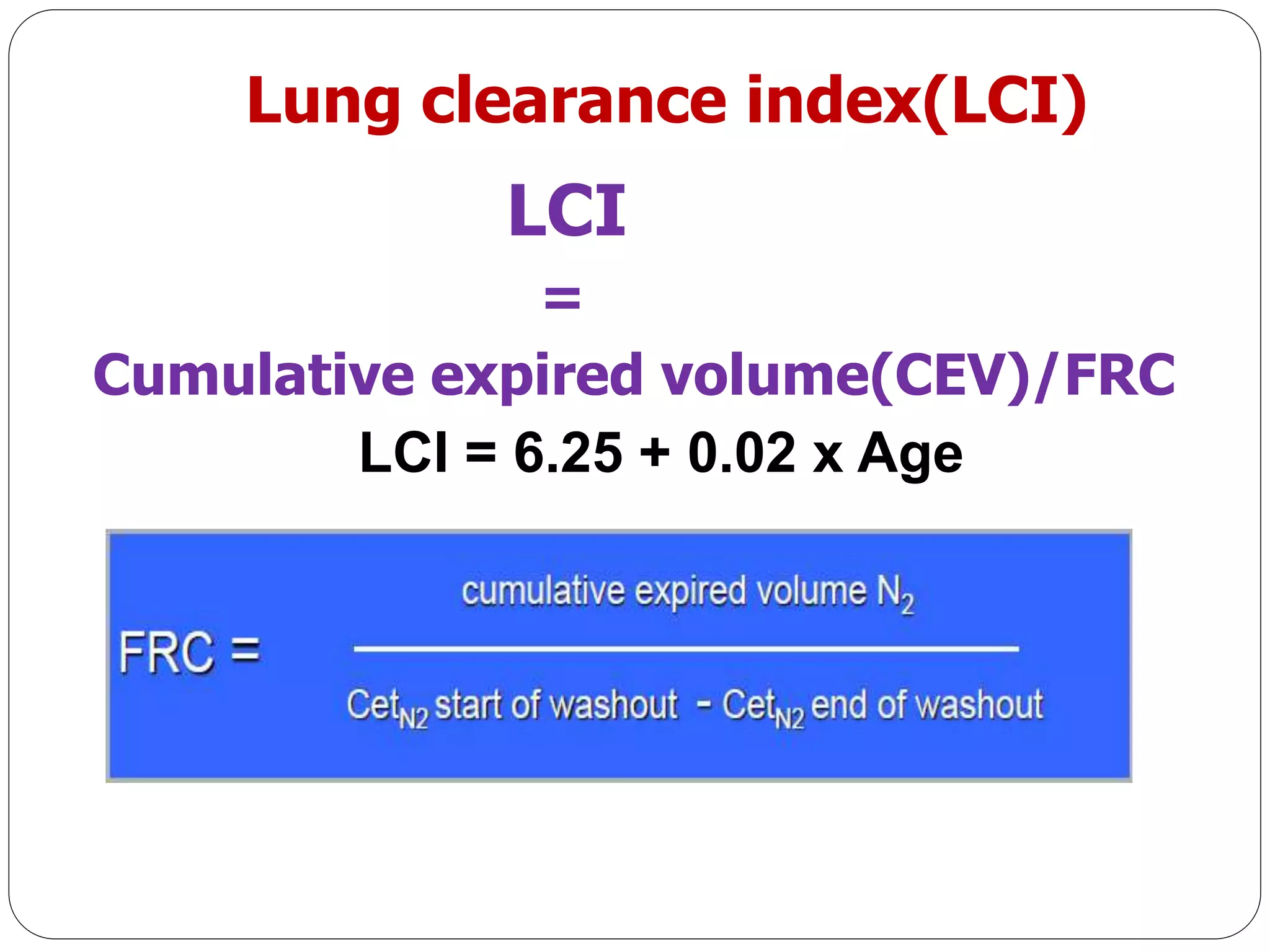

19. Lung clearance index(LCI)
LCI
=
Cumulative expired volume(CEV)/FRC
LCI = 6.25 + 0.02 x Age

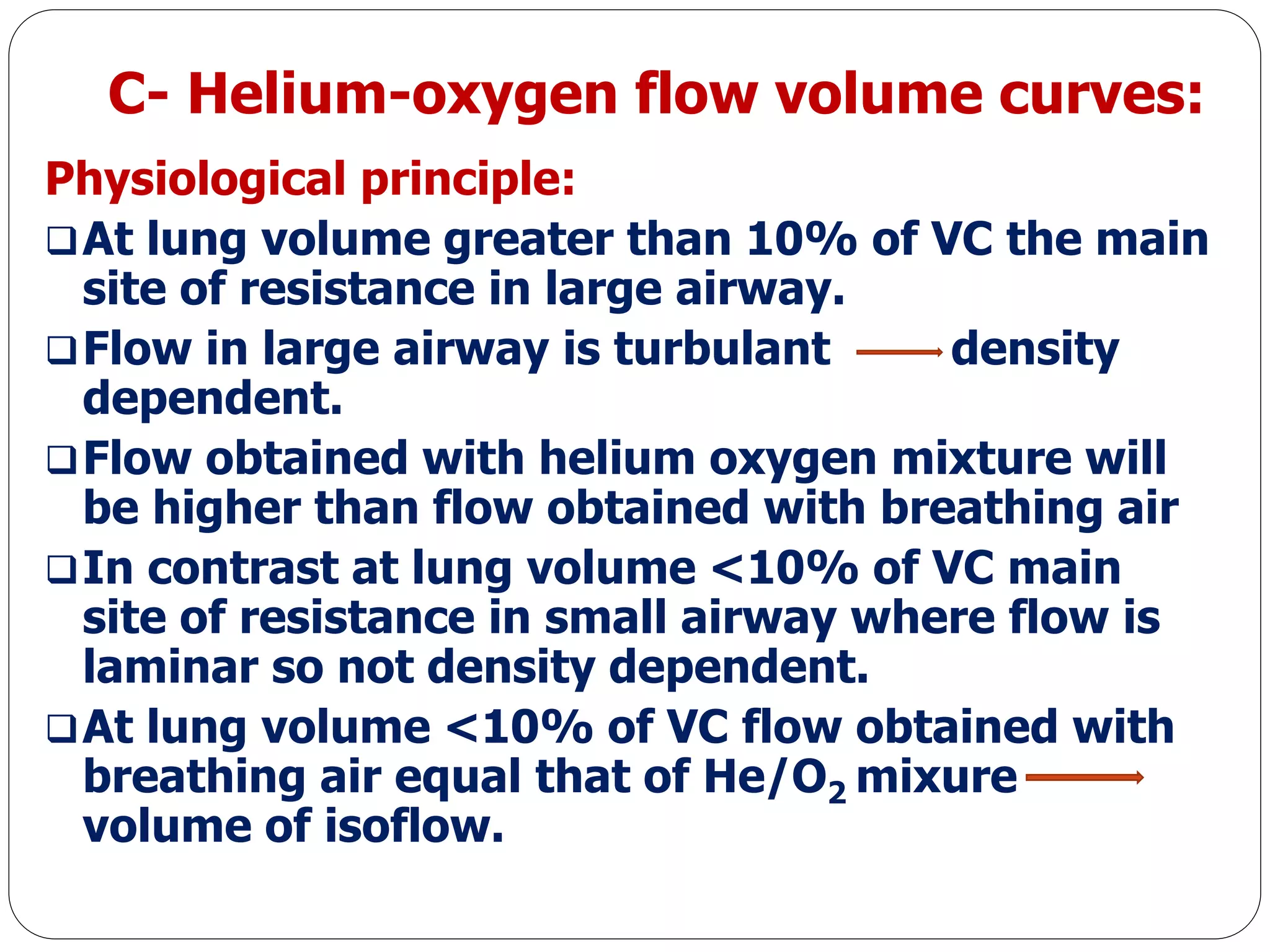

20. C- Helium-oxygen flow volume curves:
Physiological principle:
At lung volume greater than 10% of VC the main
site of resistance in large airway.
Flow in large airway is turbulant density
dependent.
Flow obtained with helium oxygen mixture will
be higher than flow obtained with breathing air
In contrast at lung volume <10% of VC main
site of resistance in small airway where flow is
laminar so not density dependent.
At lung volume <10% of VC flow obtained with
breathing air equal that of He/O2 mixure
volume of isoflow.

21. C- Helium-oxygen flow volume curves:
 In healthy subject
volume of isoflow at
10% of VC.
 In small airway
diseases volume of
isoflow > 10% of VC.
 VEmax50% He-air=
VEmax50% He-air VEmax50% air/
VEmax50% air

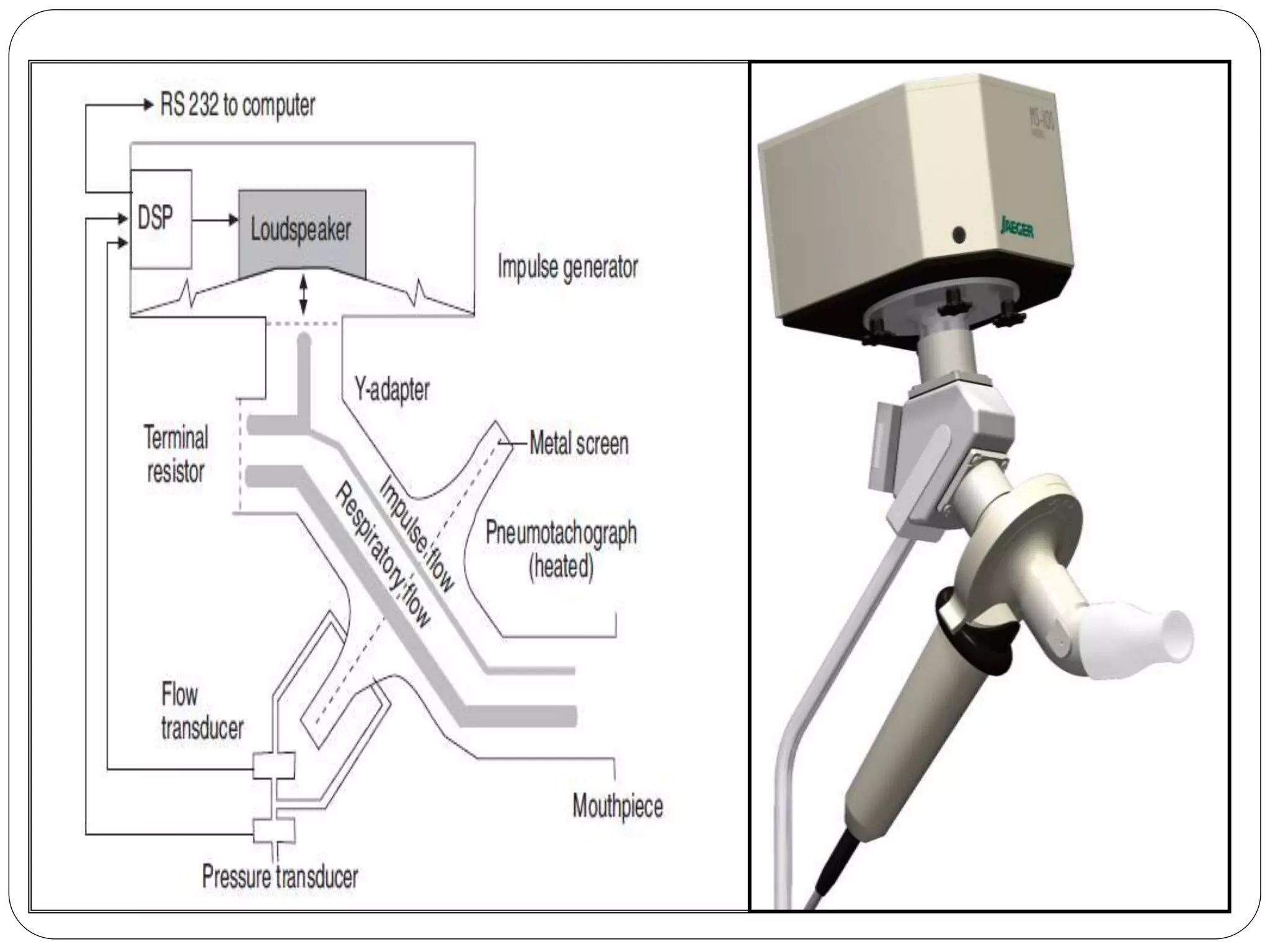

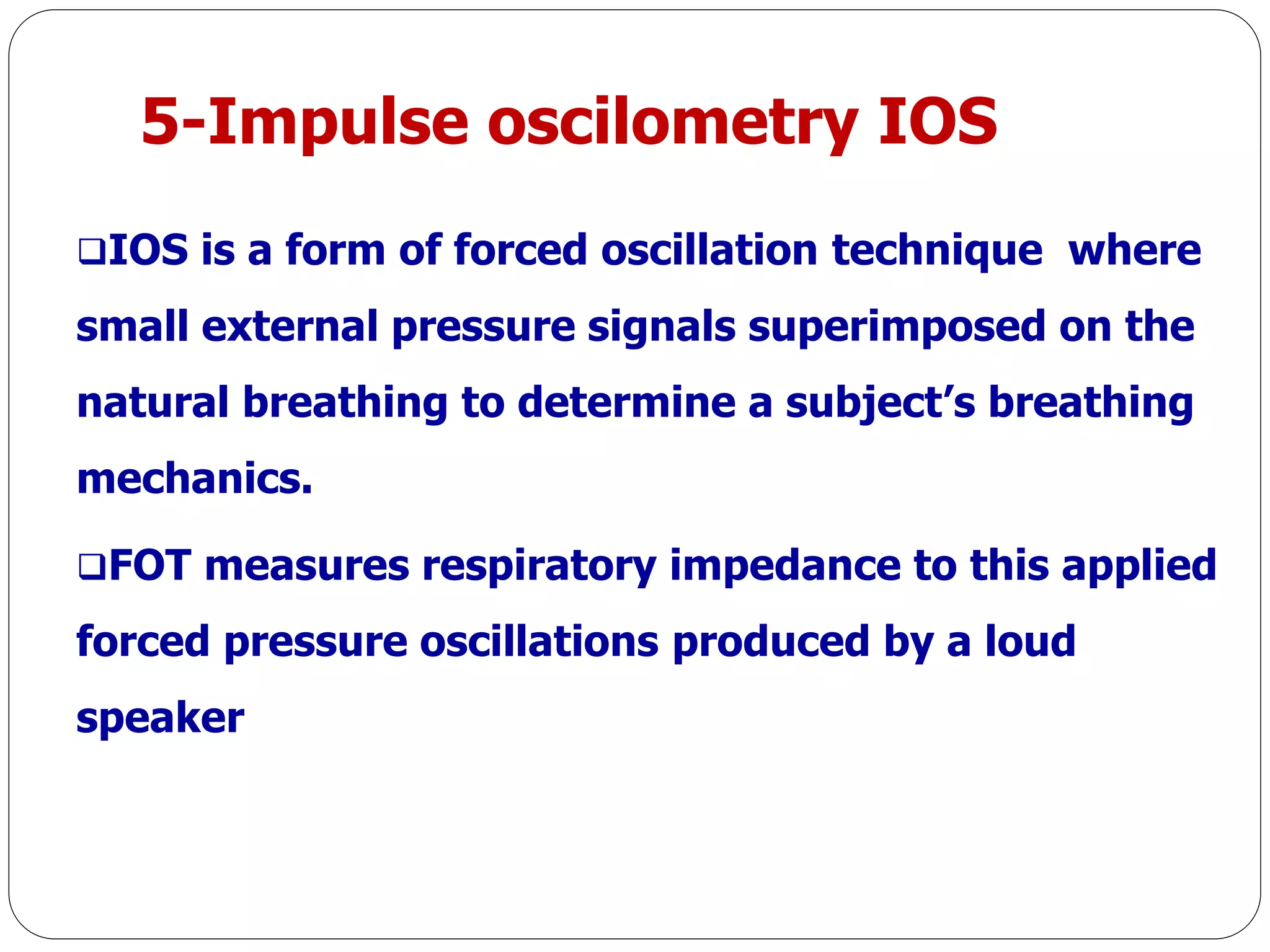

22. 5-Impulse oscilometry IOS
IOS is a form of forced oscillation technique where
small external pressure signals superimposed on the
natural breathing to determine a subject’s breathing
mechanics.
FOT measures respiratory impedance to this applied
forced pressure oscillations produced by a loud
speaker

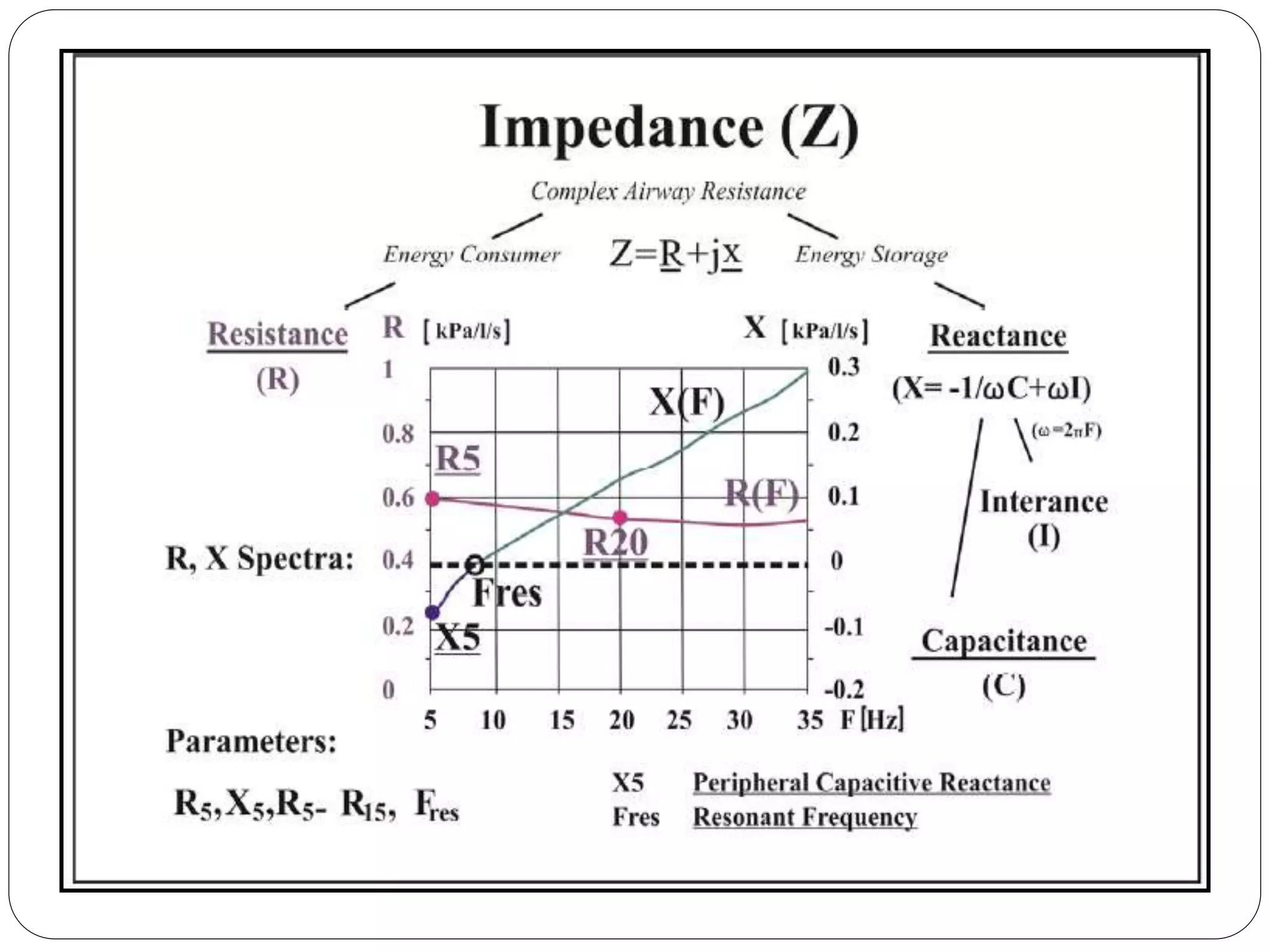

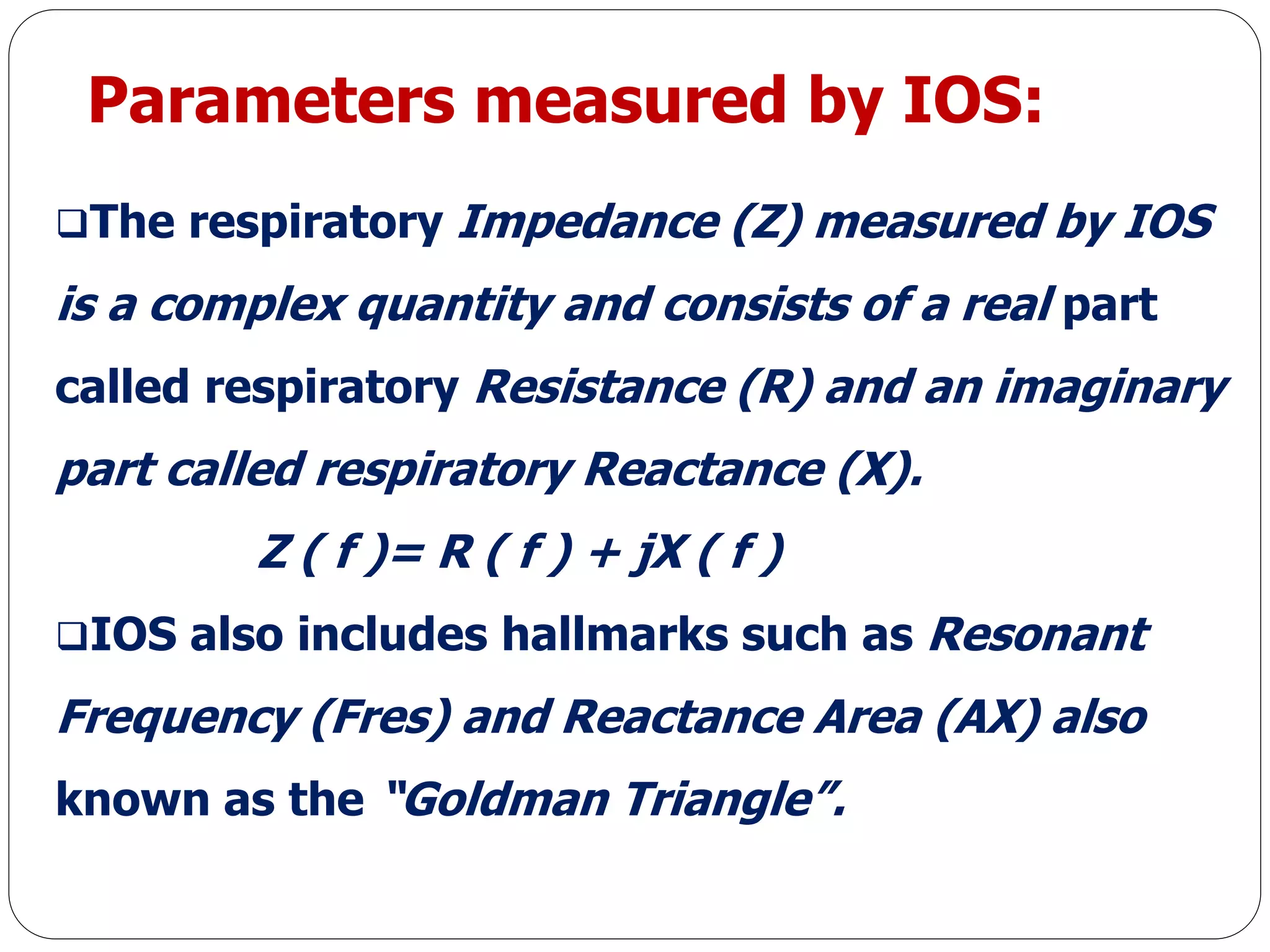

24. Parameters measured by IOS:
The respiratory Impedance (Z) measured by IOS
is a complex quantity and consists of a real part
called respiratory Resistance (R) and an imaginary
part called respiratory Reactance (X).
Z ( f )= R ( f ) + jX ( f )
IOS also includes hallmarks such as Resonant
Frequency (Fres) and Reactance Area (AX) also
known as the “Goldman Triangle”.

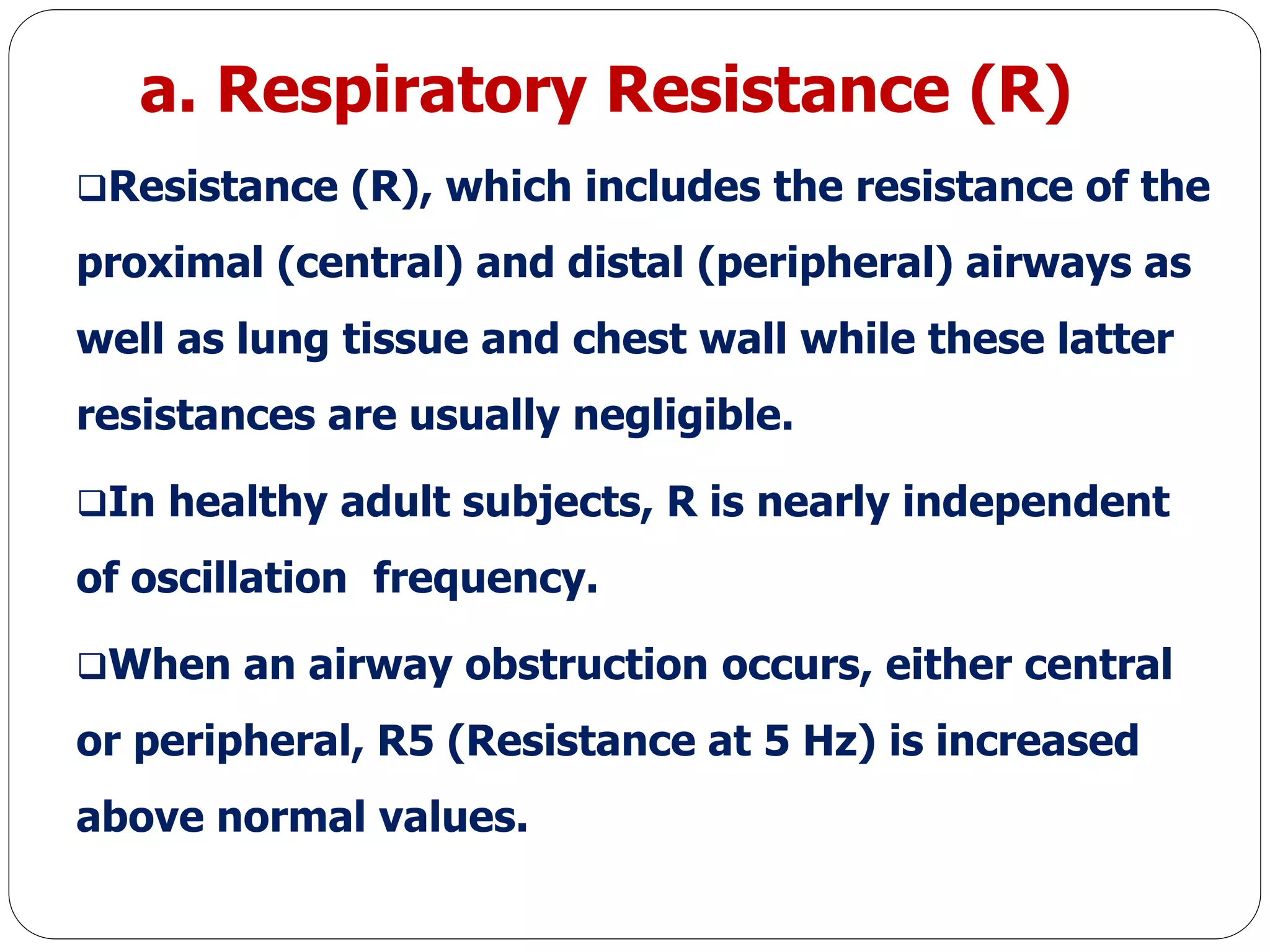

25. a. Respiratory Resistance (R)
Resistance (R), which includes the resistance of the
proximal (central) and distal (peripheral) airways as
well as lung tissue and chest wall while these latter
resistances are usually negligible.
In healthy adult subjects, R is nearly independent
of oscillation frequency.
When an airway obstruction occurs, either central
or peripheral, R5 (Resistance at 5 Hz) is increased
above normal values.

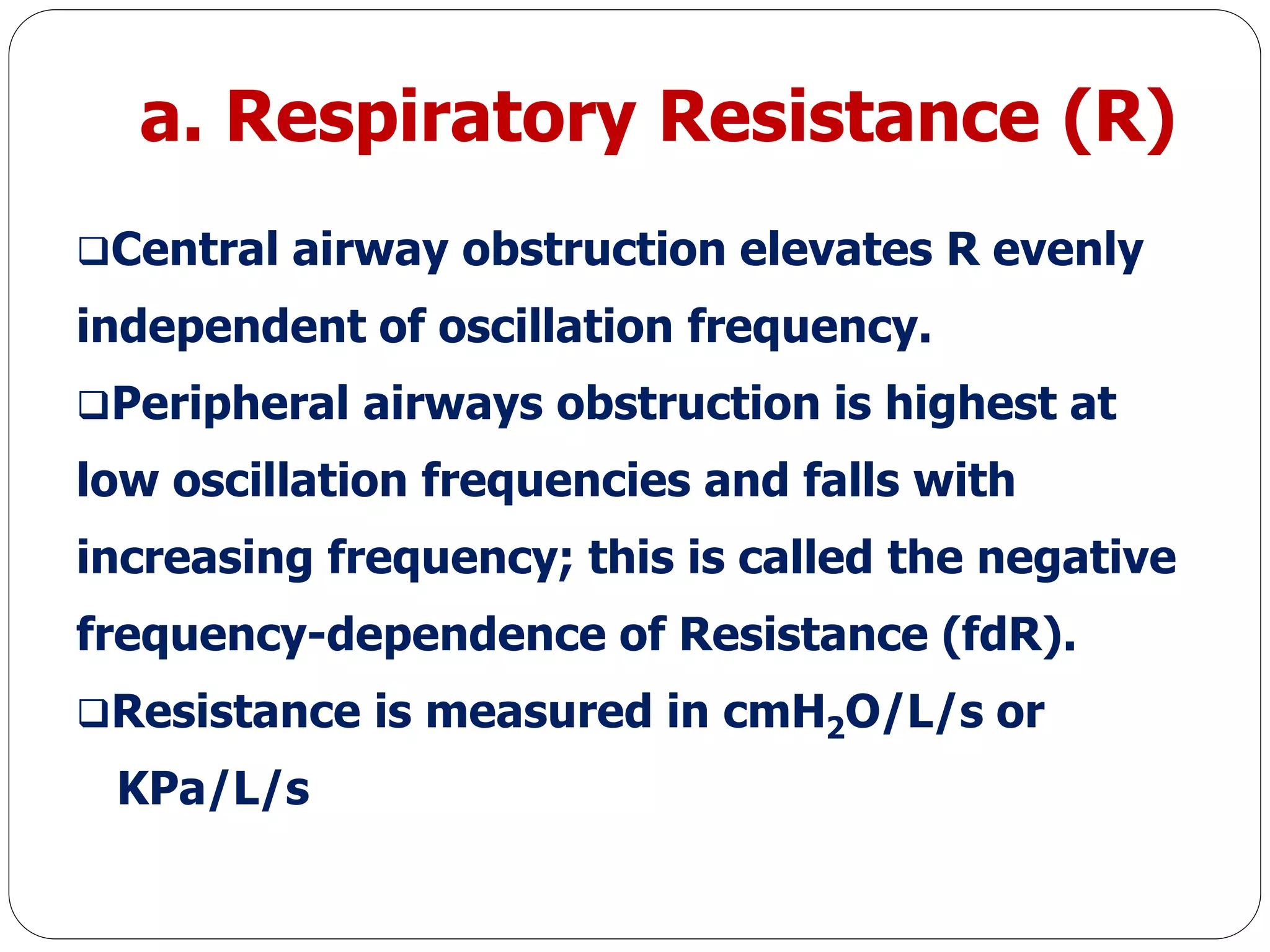

26. a. Respiratory Resistance (R)
Central airway obstruction elevates R evenly
independent of oscillation frequency.
Peripheral airways obstruction is highest at
low oscillation frequencies and falls with
increasing frequency; this is called the negative
frequency-dependence of Resistance (fdR).
Resistance is measured in cmH2O/L/s or
KPa/L/s

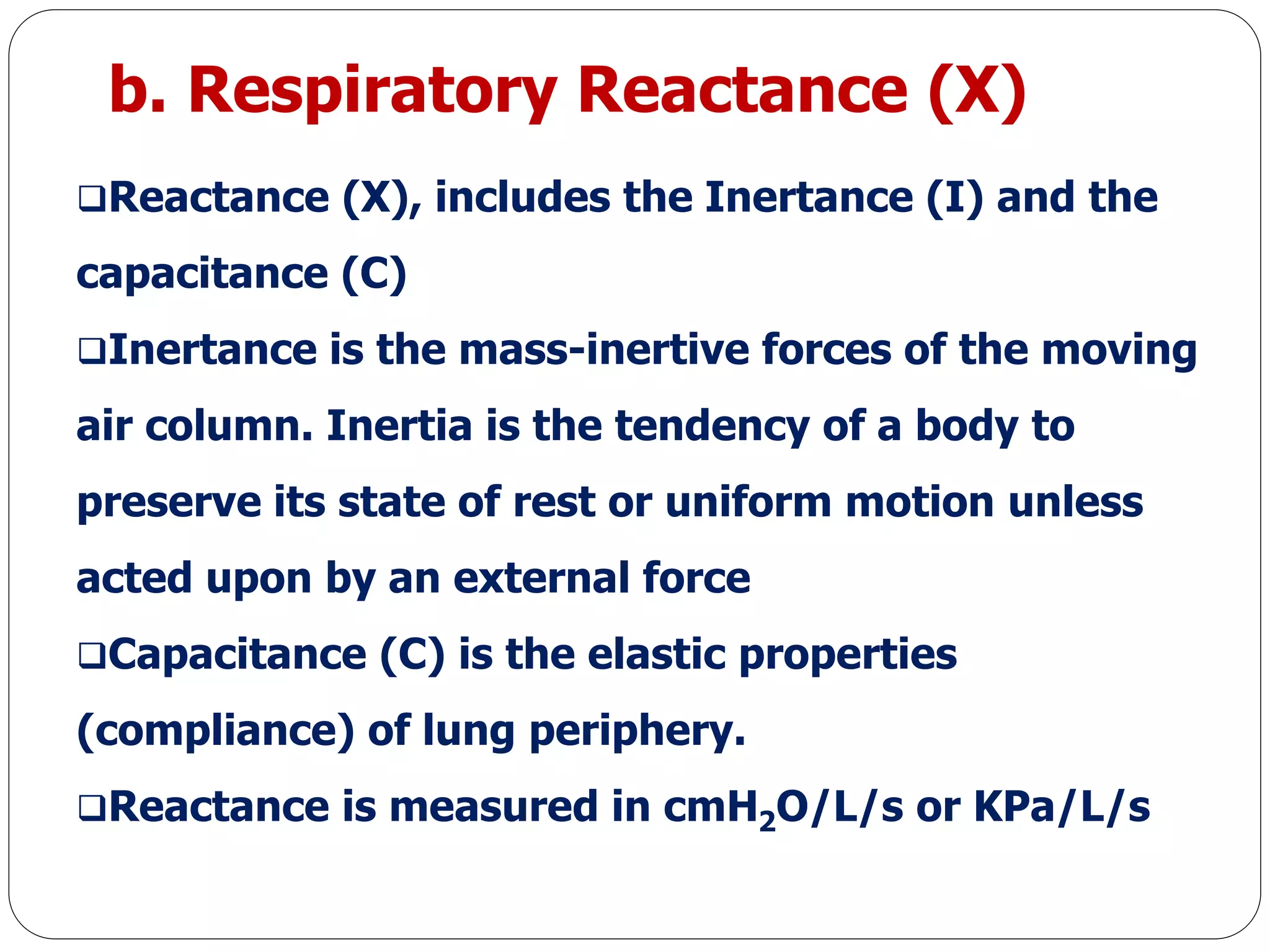

27. b. Respiratory Reactance (X)
Reactance (X), includes the Inertance (I) and the
capacitance (C)
Inertance is the mass-inertive forces of the moving
air column. Inertia is the tendency of a body to
preserve its state of rest or uniform motion unless
acted upon by an external force
Capacitance (C) is the elastic properties
(compliance) of lung periphery.
Reactance is measured in cmH2O/L/s or KPa/L/s

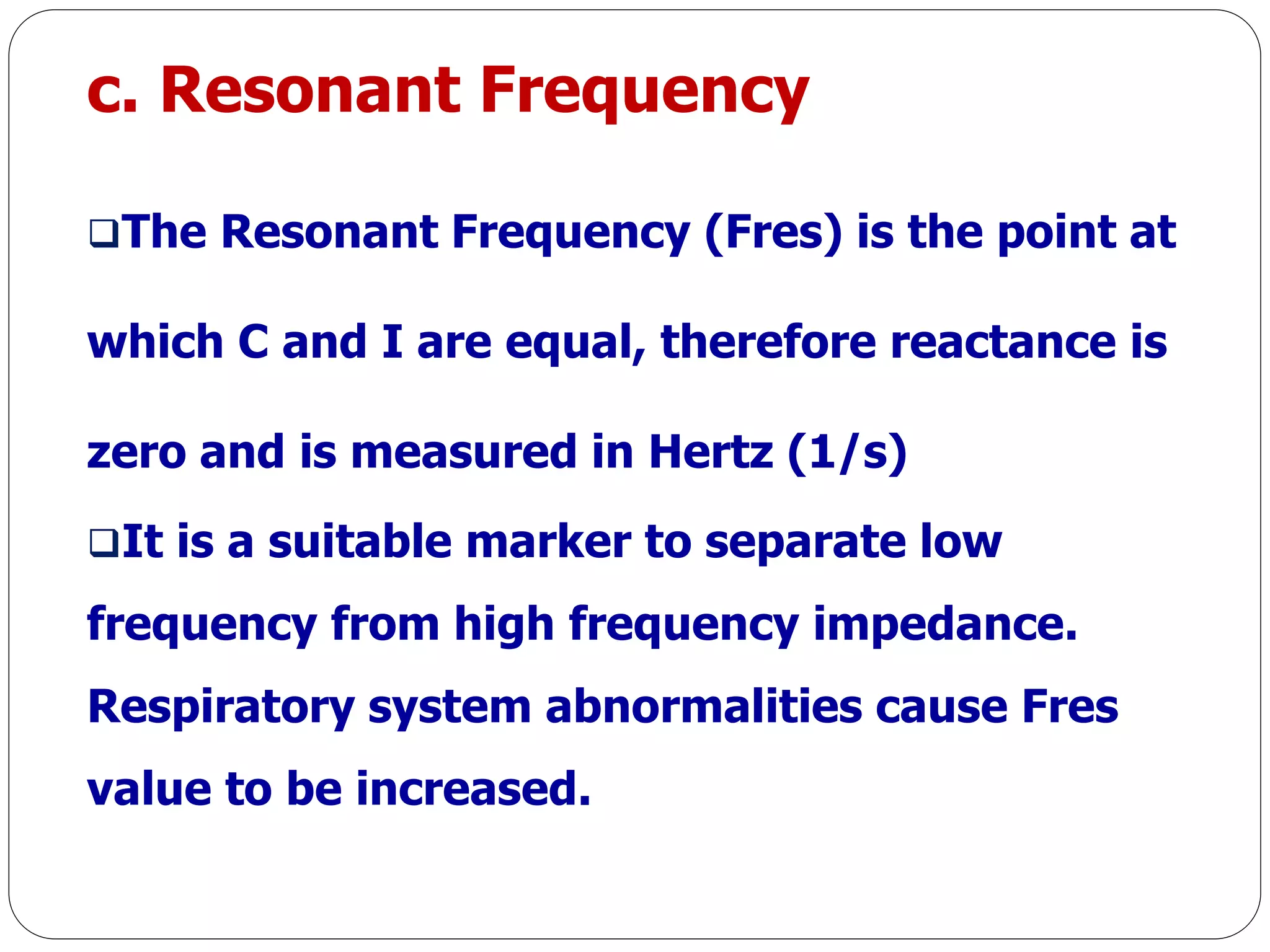

28. c. Resonant Frequency
The Resonant Frequency (Fres) is the point at
which C and I are equal, therefore reactance is
zero and is measured in Hertz (1/s)
It is a suitable marker to separate low
frequency from high frequency impedance.
Respiratory system abnormalities cause Fres
value to be increased.

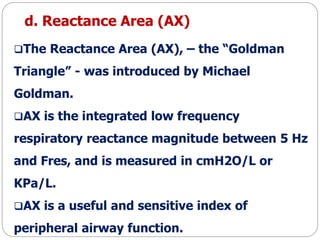

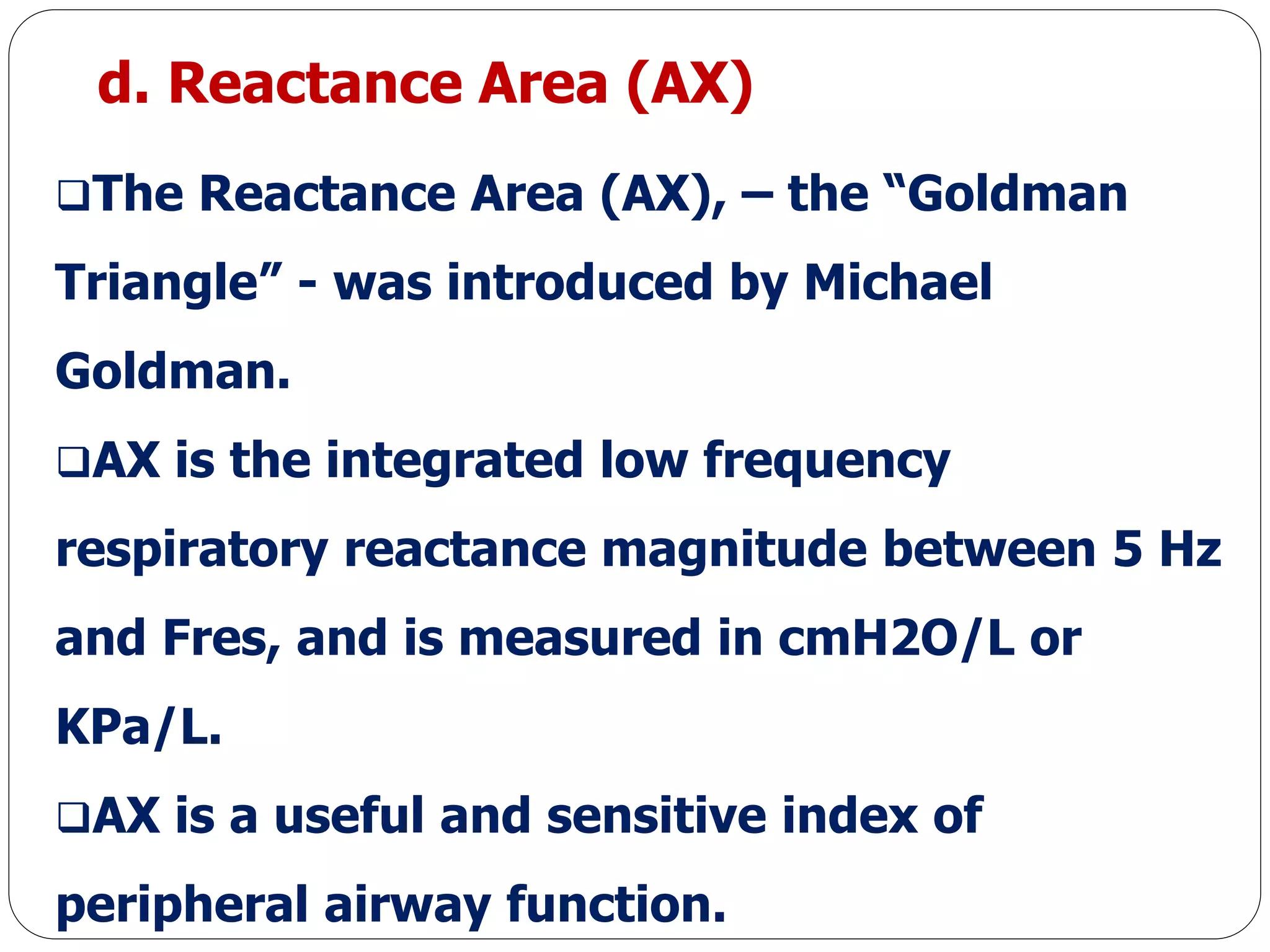

29. d. Reactance Area (AX)
The Reactance Area (AX), – the “Goldman
Triangle” - was introduced by Michael
Goldman.
AX is the integrated low frequency
respiratory reactance magnitude between 5 Hz
and Fres, and is measured in cmH2O/L or
KPa/L.
AX is a useful and sensitive index of
peripheral airway function.

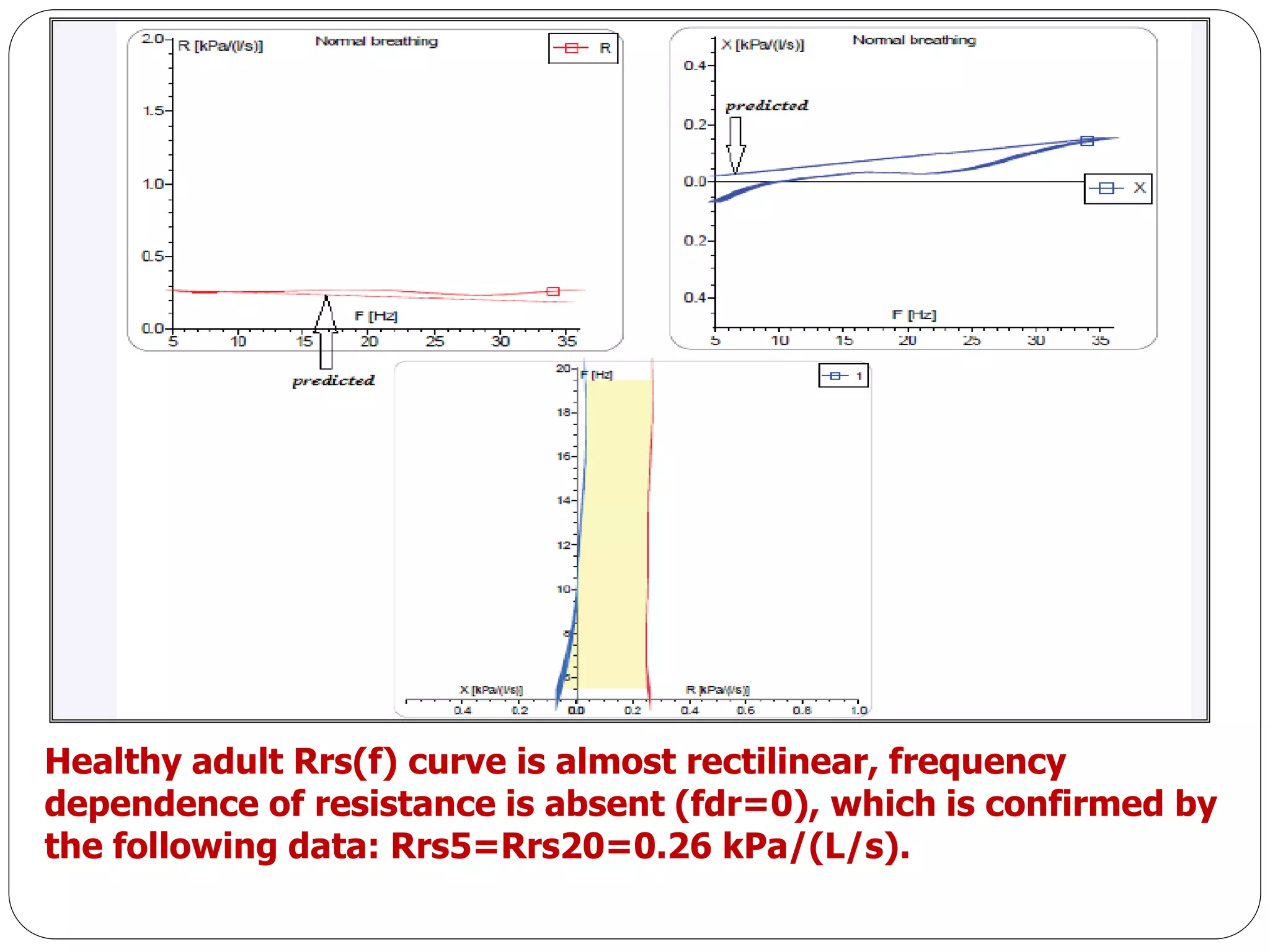

31. Healthy adult Rrs(f) curve is almost rectilinear, frequency
dependence of resistance is absent (fdr=0), which is confirmed by
the following data: Rrs5=Rrs20=0.26 kPa/(L/s).

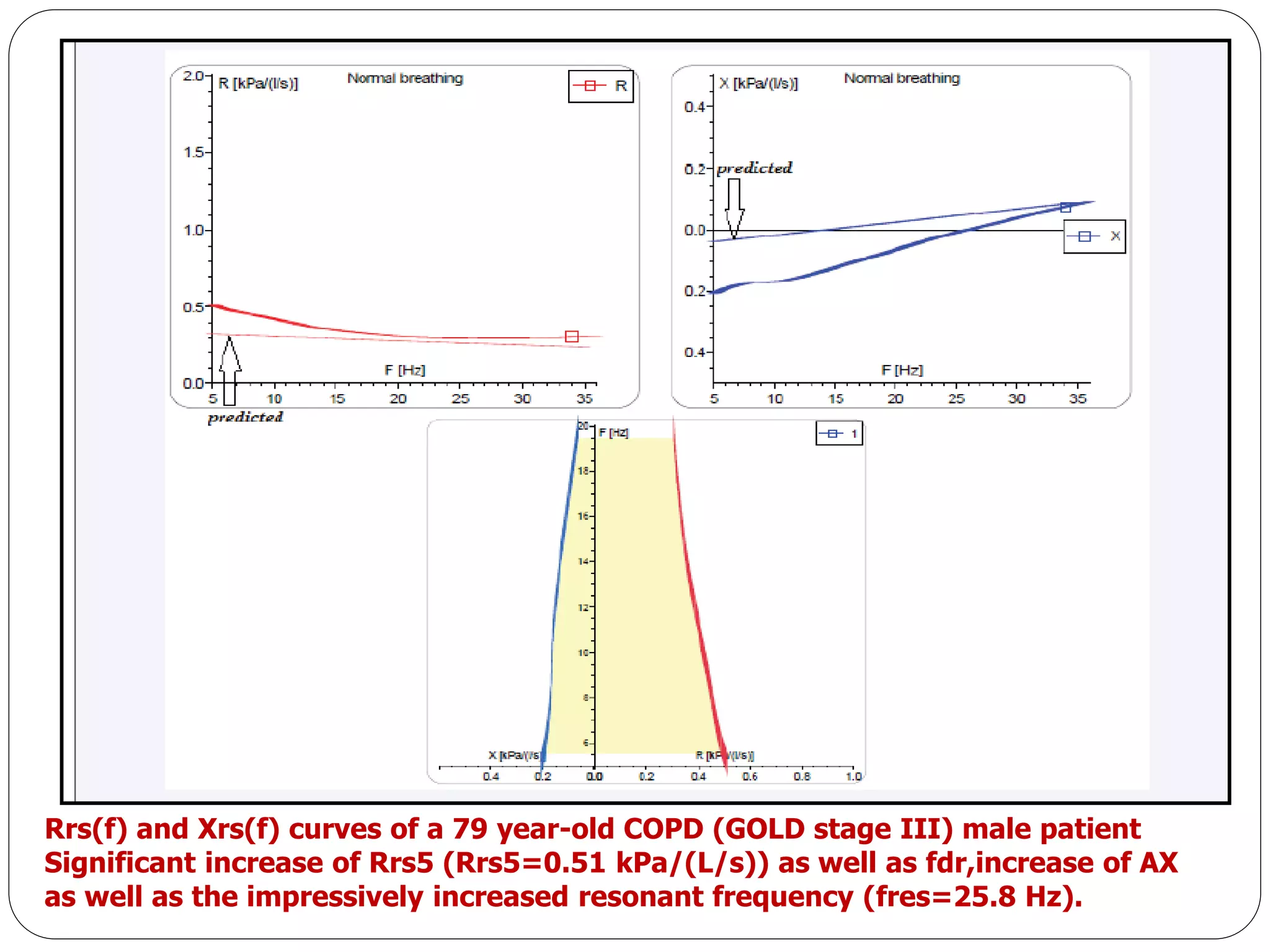

32. Rrs(f) and Χrs(f) curves of a 79 year-old COPD (GOLD stage III) male patient
Significant increase of Rrs5 (Rrs5=0.51 kPa/(L/s)) as well as fdr,increase of ΑΧ
as well as the impressively increased resonant frequency (fres=25.8 Ηz).

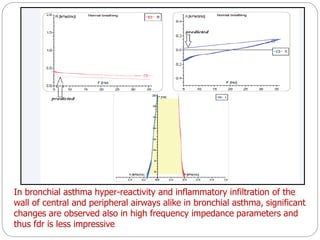

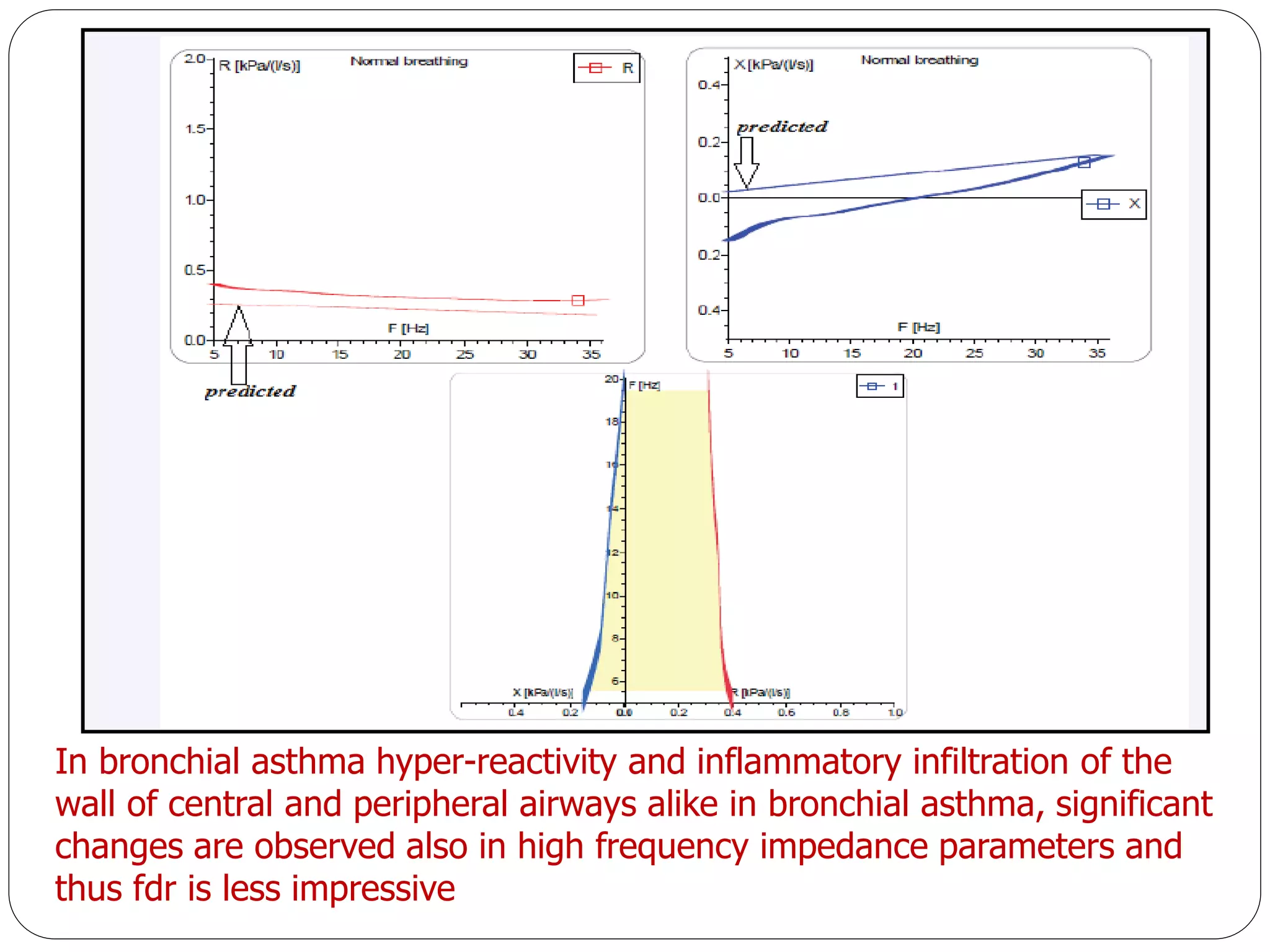

33. In bronchial asthma hyper-reactivity and inflammatory infiltration of the
wall of central and peripheral airways alike in bronchial asthma, significant
changes are observed also in high frequency impedance parameters and
thus fdr is less impressive

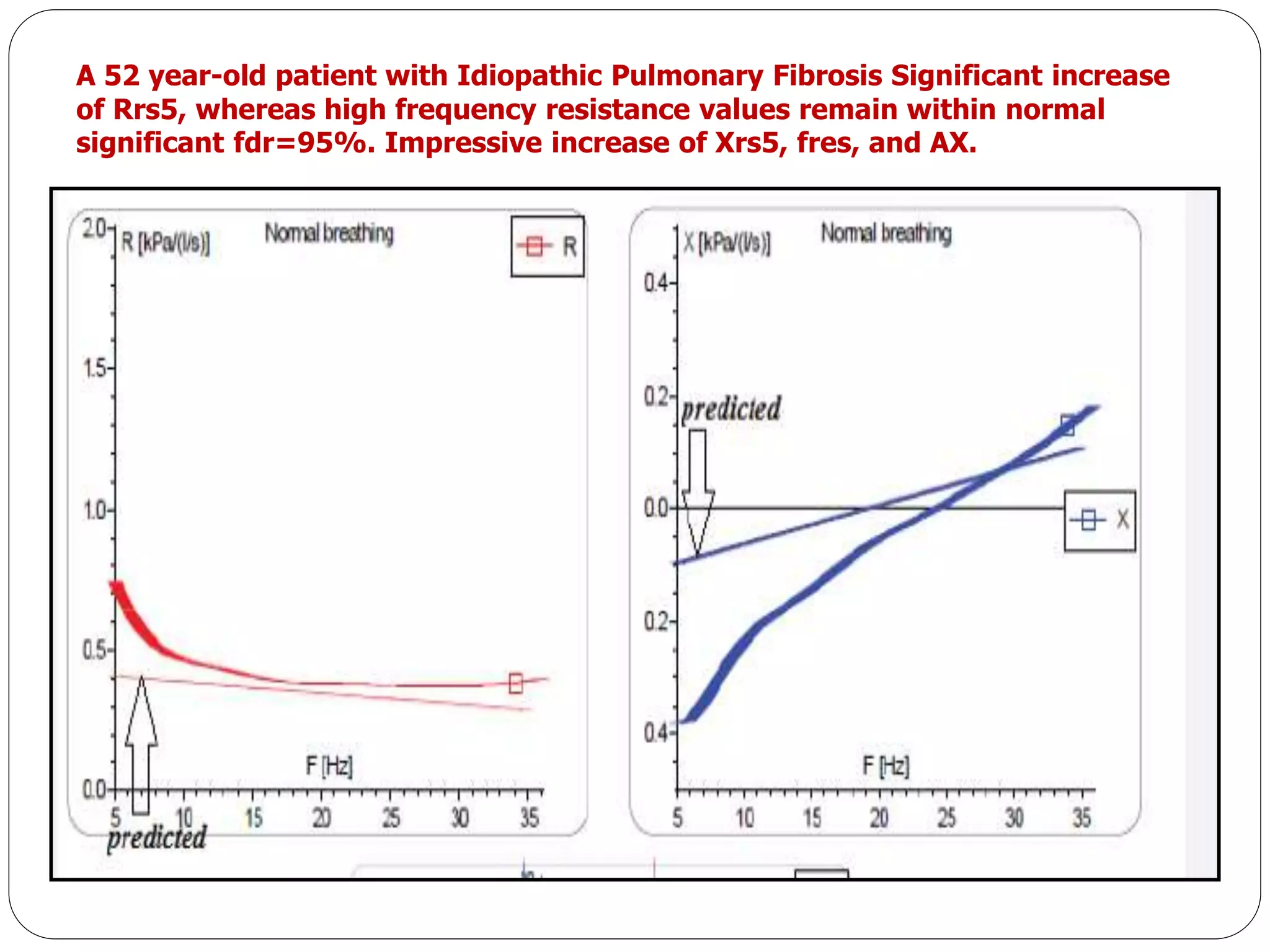

34. A 52 year-old patient with Idiopathic Pulmonary Fibrosis Significant increase
of Rrs5, whereas high frequency resistance values remain within normal
significant fdr=95%. Impressive increase of Xrs5, fres, and ΑΧ.

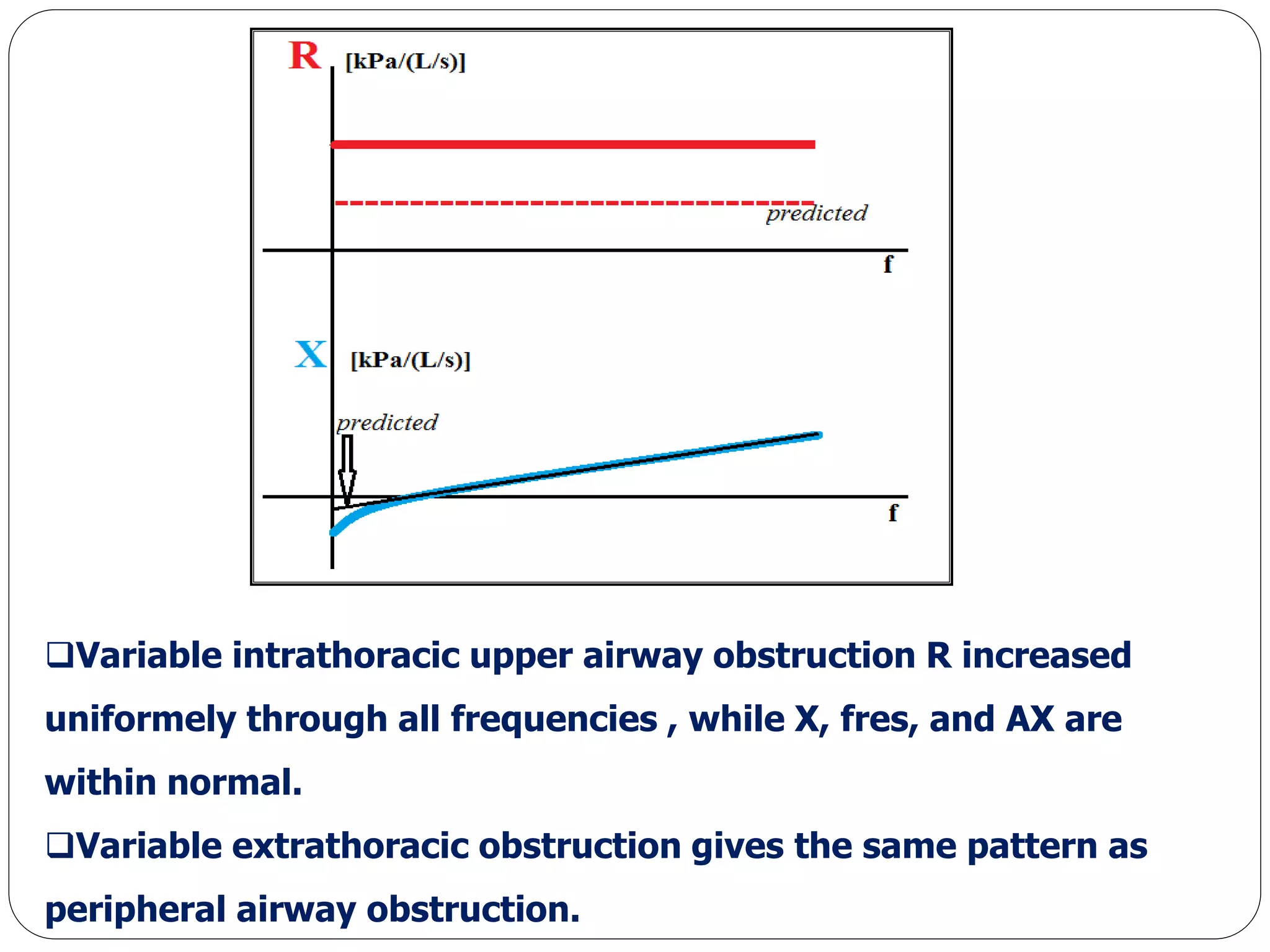

35. Variable intrathoracic upper airway obstruction R increased
uniformely through all frequencies , while X, fres, and ΑΧ are
within normal.
Variable extrathoracic obstruction gives the same pattern as
peripheral airway obstruction.

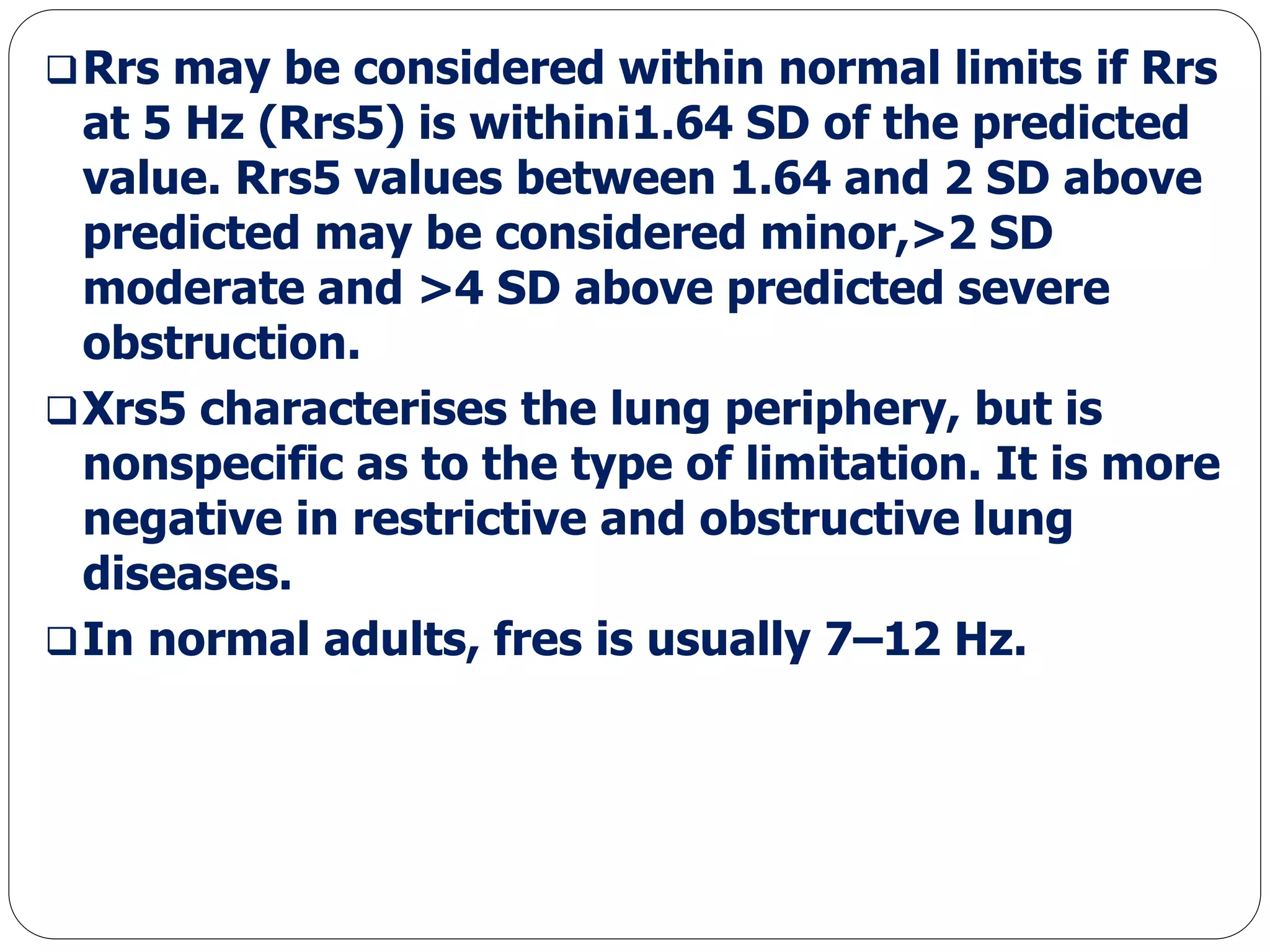

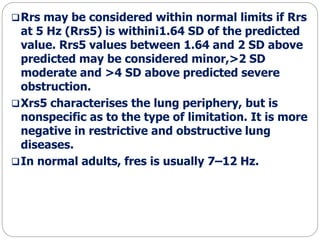

36. Rrs may be considered within normal limits if Rrs
at 5 Hz (Rrs5) is within¡1.64 SD of the predicted
value. Rrs5 values between 1.64 and 2 SD above
predicted may be considered minor,>2 SD
moderate and >4 SD above predicted severe
obstruction.
Xrs5 characterises the lung periphery, but is
nonspecific as to the type of limitation. It is more
negative in restrictive and obstructive lung
diseases.
In normal adults, fres is usually 7–12 Hz.

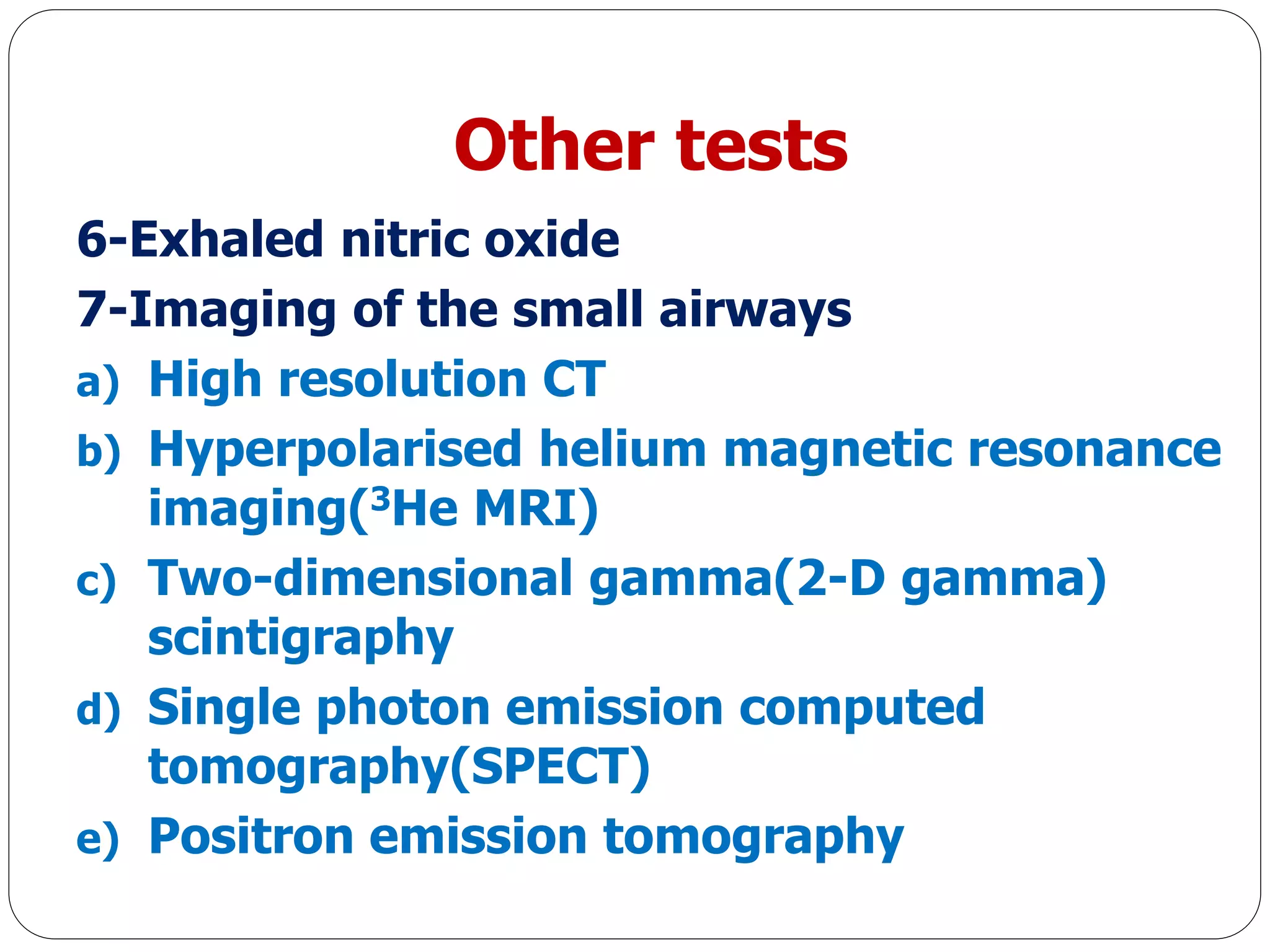

37. Other tests
6-Exhaled nitric oxide
7-Imaging of the small airways
a) High resolution CT
b) Hyperpolarised helium magnetic resonance
imaging(3He MRI)
c) Two-dimensional gamma(2-D gamma)
scintigraphy
d) Single photon emission computed
tomography(SPECT)
e) Positron emission tomography
