This document discusses the importance of site analysis for building design. Site analysis involves taking an inventory of the key elements of a property, including its location, orientation, topography, vegetation, climate and surroundings. This information is then analyzed to understand how these site features can be incorporated into an optimal and responsive design that considers factors like sunlight, wind, views and local materials. A thorough site analysis is essential for achieving a successful design that is tailored to the unique characteristics and context of the building site.

1. BY,
S.MOHAMMED ROSHAN ZAMEER

2. GOAL OF SITE ANALYSIS
 To achieve a successful design, site analysis is a must &
should be done carefully
 Site Analysis involves taking an inventory of site
elements and analyzing these factors relative to the
clients needs & aims
 Gather relevant information about the properties of
the site, from topography to climate to wind pattern
and vegetation
 Analyze these features and incorporate them into the
design

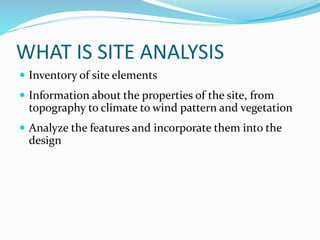

3. WHAT IS SITE ANALYSIS
 Inventory of site elements
 Information about the properties of the site, from
topography to climate to wind pattern and vegetation
 Analyze the features and incorporate them into the
design

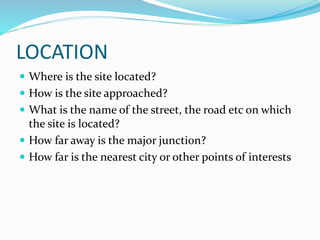

4. LOCATION
 Where is the site located?
 How is the site approached?
 What is the name of the street, the road etc on which
the site is located?
 How far away is the major junction?
 How far is the nearest city or other points of interests

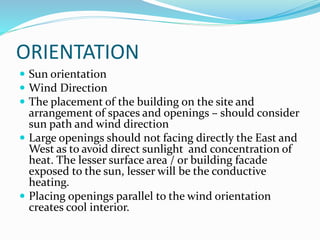

5. ORIENTATION
 Sun orientation
 Wind Direction
 The placement of the building on the site and
arrangement of spaces and openings – should consider
sun path and wind direction
 Large openings should not facing directly the East and
West as to avoid direct sunlight and concentration of
heat. The lesser surface area / or building facade
exposed to the sun, lesser will be the conductive
heating.
 Placing openings parallel to the wind orientation
creates cool interior.

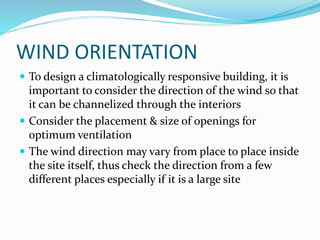

6. WIND ORIENTATION
 To design a climatologically responsive building, it is
important to consider the direction of the wind so that
it can be channelized through the interiors
 Consider the placement & size of openings for
optimum ventilation
 The wind direction may vary from place to place inside
the site itself, thus check the direction from a few
different places especially if it is a large site

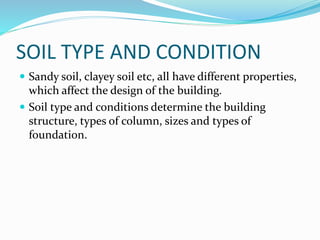

7. SOIL TYPE AND CONDITION
 Sandy soil, clayey soil etc, all have different properties,
which affect the design of the building.
 Soil type and conditions determine the building
structure, types of column, sizes and types of
foundation.

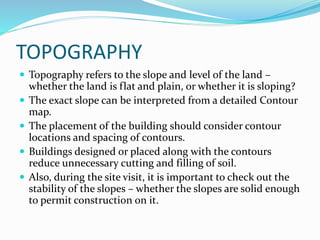

8. TOPOGRAPHY
 Topography refers to the slope and level of the land –
whether the land is flat and plain, or whether it is sloping?
 The exact slope can be interpreted from a detailed Contour
map.
 The placement of the building should consider contour
locations and spacing of contours.
 Buildings designed or placed along with the contours
reduce unnecessary cutting and filling of soil.
 Also, during the site visit, it is important to check out the
stability of the slopes – whether the slopes are solid enough
to permit construction on it.

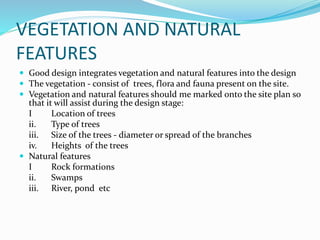

9. VEGETATION AND NATURAL
FEATURES
 Good design integrates vegetation and natural features into the design
 The vegetation - consist of trees, flora and fauna present on the site.
 Vegetation and natural features should me marked onto the site plan so
that it will assist during the design stage:
I Location of trees
ii. Type of trees
iii. Size of the trees - diameter or spread of the branches
iv. Heights of the trees
 Natural features
I Rock formations
ii. Swamps
iii. River, pond etc

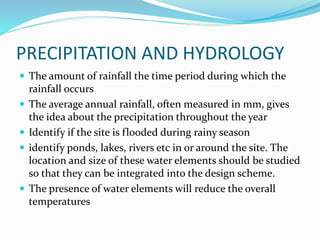

10. PRECIPITATION AND HYDROLOGY
 The amount of rainfall the time period during which the
rainfall occurs
 The average annual rainfall, often measured in mm, gives
the idea about the precipitation throughout the year
 Identify if the site is flooded during rainy season
 identify ponds, lakes, rivers etc in or around the site. The
location and size of these water elements should be studied
so that they can be integrated into the design scheme.
 The presence of water elements will reduce the overall
temperatures

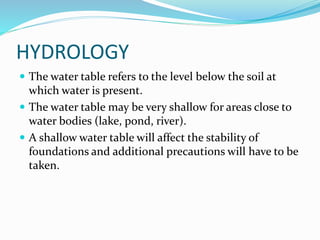

11. HYDROLOGY
 The water table refers to the level below the soil at
which water is present.
 The water table may be very shallow for areas close to
water bodies (lake, pond, river).
 A shallow water table will affect the stability of
foundations and additional precautions will have to be
taken.

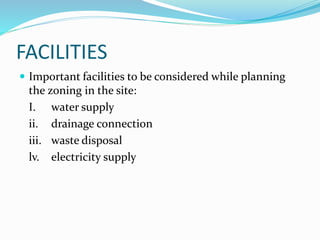

12. FACILITIES
 Important facilities to be considered while planning
the zoning in the site:
I. water supply
ii. drainage connection
iii. waste disposal
lv. electricity supply

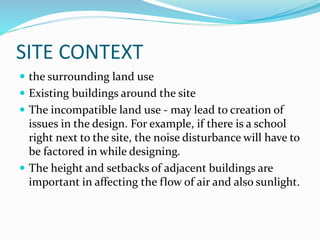

13. SITE CONTEXT
 the surrounding land use
 Existing buildings around the site
 The incompatible land use - may lead to creation of
issues in the design. For example, if there is a school
right next to the site, the noise disturbance will have to
be factored in while designing.
 The height and setbacks of adjacent buildings are
important in affecting the flow of air and also sunlight.

14. PROMINENT VISION LINES/VISUAL
LINKAGE
 Views:
I. The views to the site
ii. The views from the site
 Views are important factors to be considered –
important spaces such as living room, dining
Should be facing nice views
 If views are incompatible, creations of views should be
considered – such as gardens, ponds etc

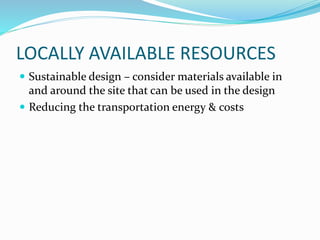

15. LOCALLY AVAILABLE RESOURCES
 Sustainable design – consider materials available in
and around the site that can be used in the design
 Reducing the transportation energy & costs
