It was lesson prepared to present chapter "SEMICONDUCTORS" for SSC students in previous syllabus

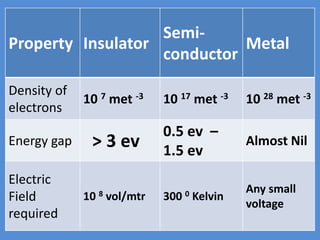

1. Energy Band Gap in Materials

2. Property Insulator
Semi-
conductor
Metal
Density of
electrons
10 7 met -3 10 17 met -3 10 28 met -3
Energy gap > 3 ev
0.5 ev –
1.5 ev
Almost Nil
Electric
Field
required
10 8 vol/mtr 300 0 Kelvin
Any small
voltage

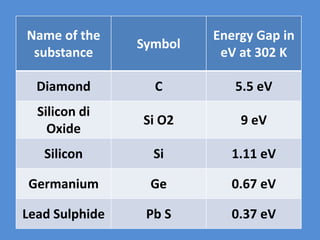

3. Name of the
substance
Symbol
Energy Gap in
eV at 302 K
Diamond C 5.5 eV
Silicon di
Oxide
Si O2 9 eV
Silicon Si 1.11 eV
Germanium Ge 0.67 eV
Lead Sulphide Pb S 0.37 eV

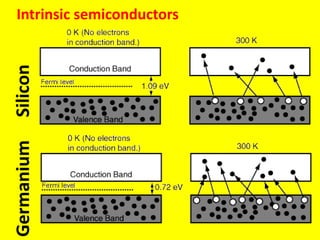

4. SiliconGermaniumIntrinsic semiconductors

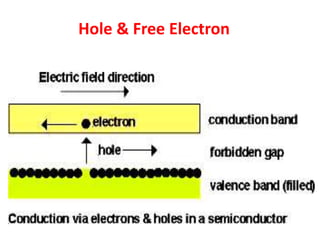

5. Hole & Free Electron

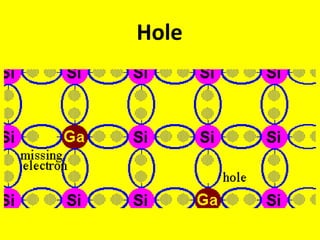

6. Hole

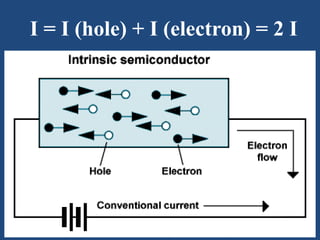

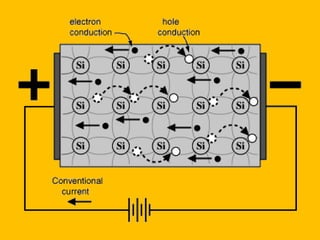

8. I = I (hole) + I (electron) = 2 I

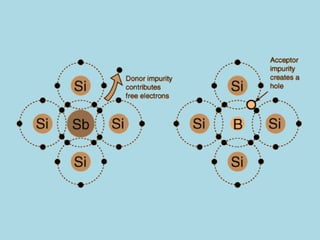

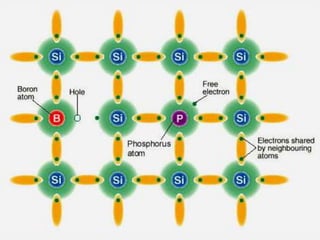

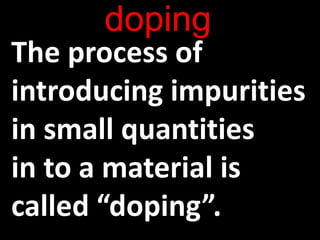

9. doping
The process of
introducing impurities
in small quantities
in to a material is
called “doping”.

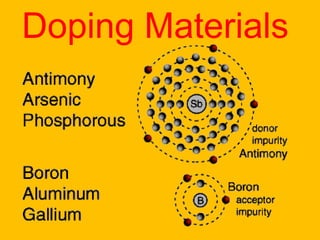

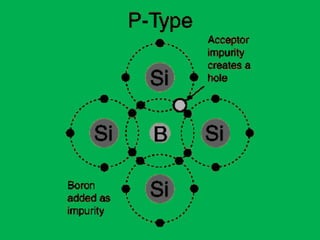

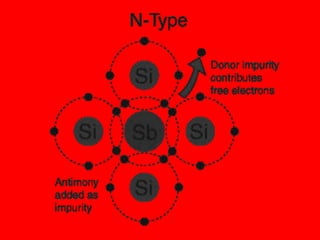

10. Doping Materials

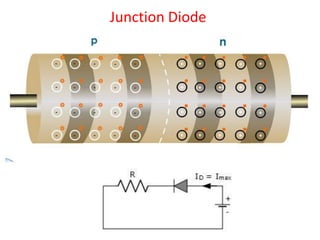

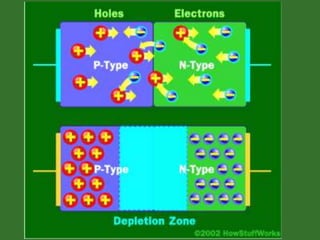

15. Junction Diode

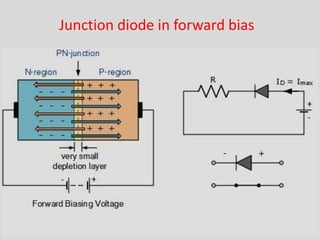

17. Junction diode in forward bias

18. Junction diode in reverse bias

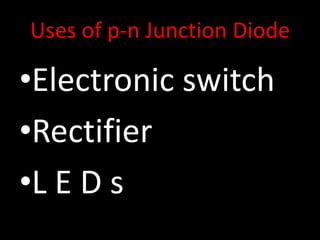

19. Uses of p-n Junction Diode
•Electronic switch
•Rectifier
•L E D s

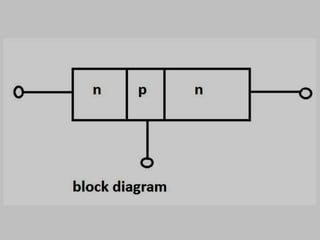

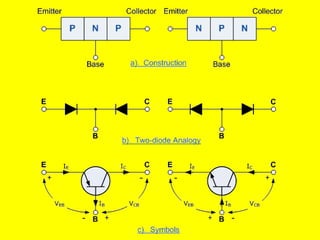

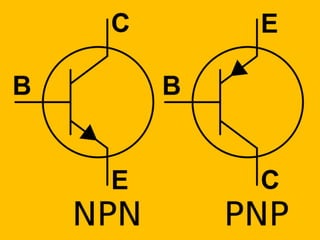

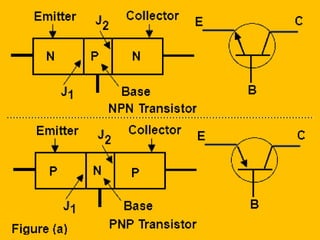

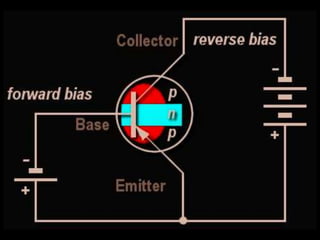

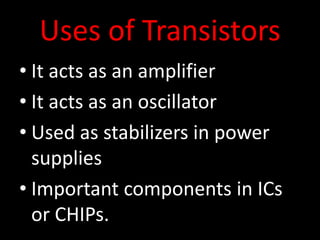

25. Uses of Transistors
• It acts as an amplifier
• It acts as an oscillator
• Used as stabilizers in power
supplies
• Important components in ICs
or CHIPs.

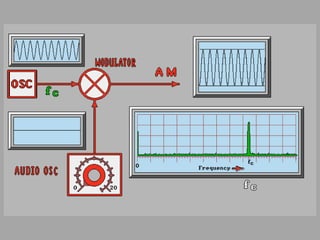

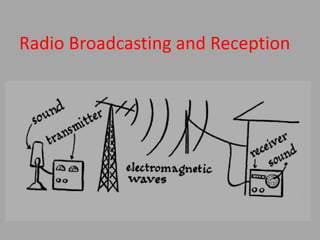

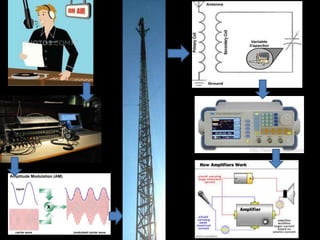

26. Radio Broadcasting and Reception
