Salvatella N - AIMRADIAL 2014 Technical - Improve support
- 1. How to improvesupport in transradial approach Neus Salvatella Hospital del Mar, Barcelona, Spain

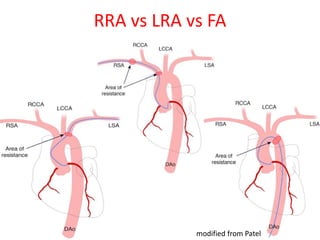

- 2. RRA vs LRAvs FA modified from Patel
- 3. RRA vs LRAvs TFA and aorta shape

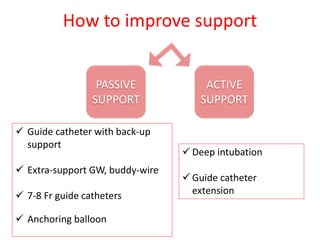

- 4. How to improvesupport ACTIVE SUPPORT PASSIVE SUPPORT Guide catheter with back-up support Extra-support GW, buddy-wire 7-8 Fr guide catheters Anchoring balloon Deep intubation Guide catheter extension

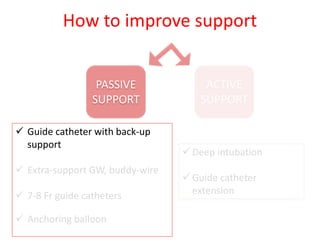

- 5. How to improvesupport ACTIVE SUPPORT PASSIVE SUPPORT Guide catheter with back-up support Extra-support GW, buddy-wire 7-8 Fr guide catheters Anchoring balloon Deep intubation Guide catheter extension

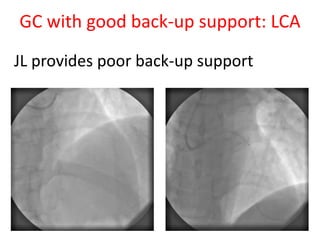

- 6. GC with goodback-up support: LCA JL provides poor back-up support

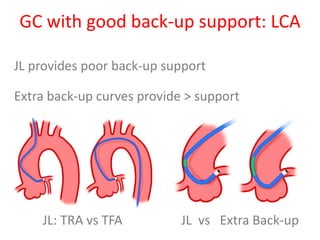

- 7. GC with goodback-up support: LCA JL provides poor back-up support Extra back-up curves provide > support JL: TRA vs TFA JL vs Extra Back-up

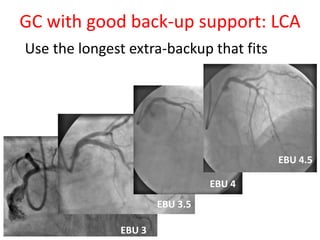

- 8. GC with goodback-up support: LCA Use the longest extra-backup that fits EBU 3 EBU 3.5 EBU 4 EBU 4.5

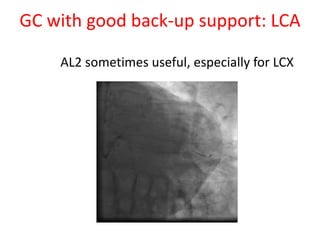

- 9. GC with goodback-up support: LCA AL2 sometimes useful, especially for LCX

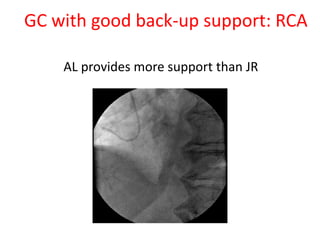

- 10. GC with goodback-up support: RCA AL provides more support than JR

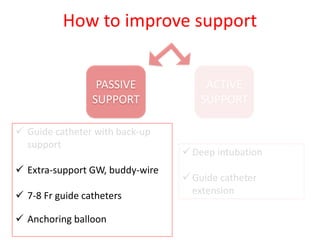

- 11. How to improvesupport ACTIVE SUPPORT PASSIVE SUPPORT Guide catheter with back-up support Extra-support GW, buddy-wire 7-8 Fr guide catheters Anchoring balloon Deep intubation Guide catheter extension

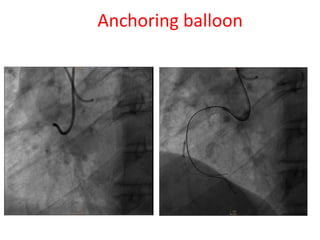

- 12. Anchoring balloon Choose a branch that is unlikely to cause ischaemia Choose an 1:1 balloon and keep it inflated at low pressure
- 13.

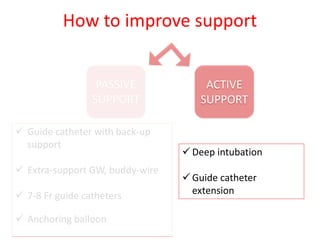

- 14. How to improvesupport ACTIVE SUPPORT PASSIVE SUPPORT Guide catheter with back-up support Extra-support GW, buddy-wire 7-8 Fr guide catheters Anchoring balloon Deep intubation Guide catheter extension

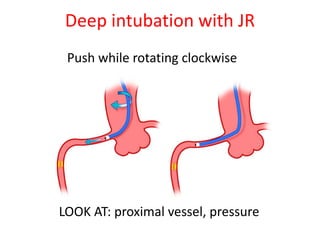

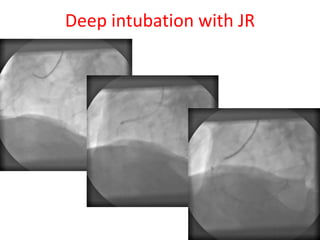

- 15. Deep intubation withJR Push while rotating clockwise LOOK AT: proximal vessel, pressure
- 16.

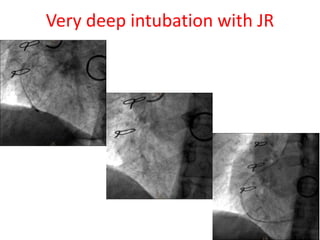

- 17. Very deep intubationwith JR
- 18. Very deep intubationwith JR
- 19. How to improvesupport ACTIVE SUPPORT PASSIVE SUPPORT Guide catheter with back-up support Extra-support GW, buddy-wire 7-8 Fr guide catheters Anchoring balloon Deep intubation Guide catheter extension

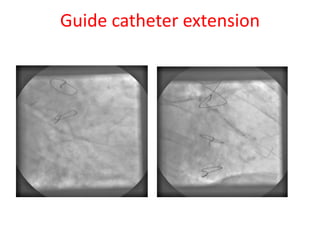

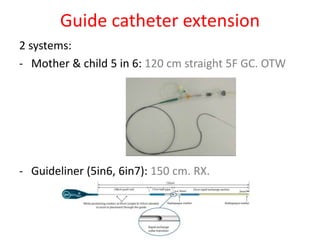

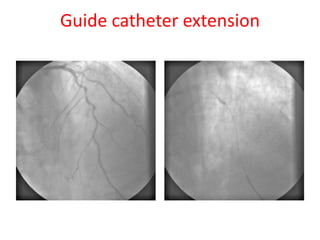

- 20. Guide catheter extension 2 systems: - Mother & child 5 in 6: 120 cm straight 5F GC. OTW - Guideliner (5in6, 6in7): 150 cm. RX.
- 21.
- 22.
- 23.

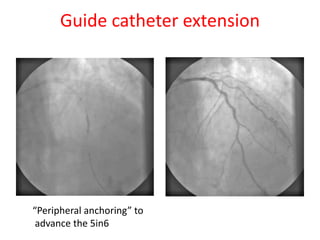

- 24. Guide catheter extension “Peripheral anchoring” to advance the 5in6

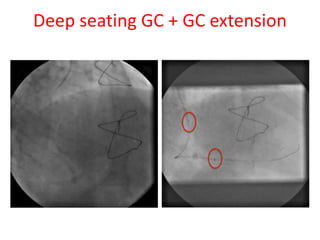

- 25. Deep seating GC+ GC extension

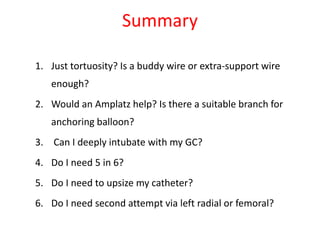

- 26. Summary 1. Justtortuosity? Is a buddy wire or extra-support wire enough? 2. Would an Amplatz help? Is there a suitable branch for anchoring balloon? 3. Can I deeply intubate with my GC? 4. Do I need 5 in 6? 5. Do I need to upsize my catheter? 6. Do I need second attempt via left radial or femoral?
- 27. Thank you verymuch
Editor's Notes
- #7 STEMNI, prox LAD occlusion JL GC gets out of the LM ostium when advancing thromboaspiration cath
- #8 Place of contact on the contralat aorta is differente from R vs F: less stable, less backup support The area of contact on the contralat aorta is larger for XB, therefore XB generate greater backup force than JL
- #10 More difficult to manipulate > Risc of damaging LM
- #11 AL 0.75 usually fits from TRA. Increased risk of damaging prox RCA.
- #16 Feasible if RCA has ccod caliber and No significant disease
- #21 When using 5in6. BE CAUTIOUS WITH: PRESSURE. AIR EMBOLISM. Guideliner prev generation: vessel dissection , stent dislodgement
- #24 Long calcified lesion on LAD. Good back up support (EBU4). BHW as buddy wire. Sould not reach the most calcified part of the plaque
