SAGE (Serial analysis of Gene Expression)
- 1. Mohammed Talha Khatkhatay 1 SAGE (Serial Analysis of Gene Expression) SAGE (Serial Analysis of Gene Expression)
- 2. WHAT IS GENE EXPRESSION? O U T L I N E SAGE AND ITS PRINCIPLE… STEPS IN SAGE, ITS APPLICATIONS AND PROBLEMS. REFERENCES. 2
- 3. What is Gene Expression? A process by which information from a gene is used in the synthesis of a functional gene product. These products are often proteins or functional RNA. DNA RNA Protein 3
- 4. SAGE: Serial analysis of gene expression (SAGE) is an approach that allows rapid and detailed analysis of overall gene expression patterns. SAGE provides quantitative and comprehensive expression profiling in a given cell population. An overview of a cell’s complete gene activity. 4

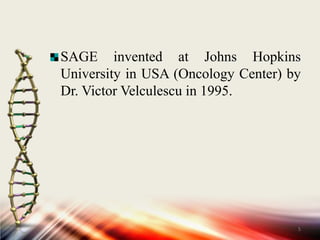

- 5. SAGE invented at Johns Hopkins University in USA (Oncology Center) by Dr. Victor Velculescu in 1995. 5
- 6. Principle Underlining SAGE methodology: A short sequence tag (10-14bp) contains sufficient information to uniquely identify a transcript provided that tag is obtained from a unique position within each transcript. Sequence tag can be linked together to form long serial molecules that can be cloned and sequenced. Quantitation of the number of times a particular tag is observed provides the expression level of the corresponding transcript. 6
- 7. Steps In Brief… 7

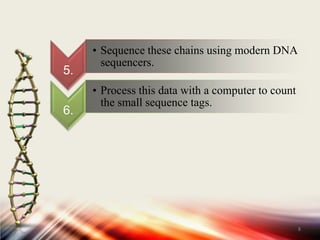

- 8. 8

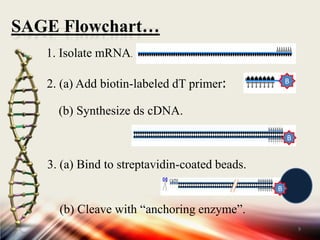

- 9. SAGE Flowchart… 1. Isolate mRNA. B 2. (a) Add biotin-labeled dT primer: (b) Synthesize ds cDNA. B 3.(a) Bind to streptavidin-coated beads. (b) Cleave with “anchoring enzyme”. 9 B
- 10. (c) Discard loose fragments. 4. (a) Divide into two pools and add linker sequences (b) Ligate. 10 B

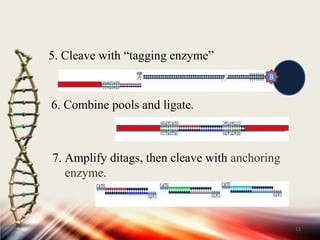

- 11. 5. Cleave with “tagging enzyme” 11 B 6. Combine pools and ligate. 7. Amplify ditags, then cleave with anchoring enzyme.

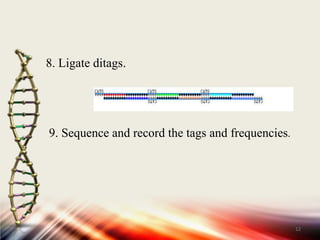

- 12. 8. Ligate ditags. 9. Sequence and record the tags and frequencies. 12
- 14. Molecules that consist of 20 or so dT’s acts like a attractant to capture mRNAs.

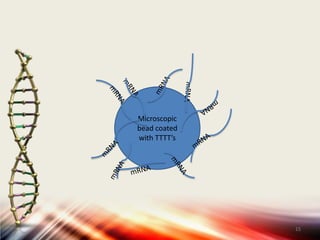

- 15. Coating of microscopic magnetic beads with “TTTTT” tails is done.
- 16. A magnet is used to withdraw the bead and the mRNA is isolated.13
- 17. 14 mRNA mRNA mRNA mRNA mRNA Microscopic bead coated with TTTT’s mRNA mRNA mRNA mRNA mRNA
- 18. 15 mRNA mRNA mRNA mRNA mRNA Microscopic bead coated with TTTT’s mRNA mRNA mRNA mRNA mRNA 15
- 20. cDNA synthesis is immobilized to streptavidin beads.16
- 21. 17 B B Biotinylated oligo dT (primers) B B B B mRNA B Streptavidin beads B cDNA B B
- 23. Type II restriction enzyme used (E.g. NlaIII.)
- 24. Average length of cDNA – 256bp with sticky ends created.18
- 25. 19 Nla III (Restriction enzyme) B B B B
- 28. NlaIII 4-nucleotide cohesive overhang.
- 29. Type IIs recognition sequence.

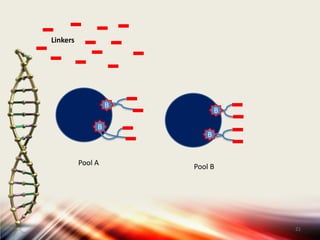

- 31. 21 Linkers B B B B Pool A Pool B
- 33. Repair of ends to make blunt ended tags using DNA polymerase (Klenow fragments) and dNTPs.22

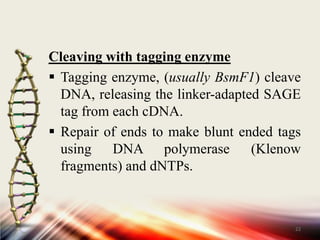

- 34. 23 Bsm FI (tagging Enzyme) B Linker adapted SAGE tag B
- 36. Two groups of cDNAs are ligated to each other, to create a “ditag” with linkers on either end.
- 37. Two tags are linked together using T4 DNA ligase.24
- 38. 25 Add DNA ligase

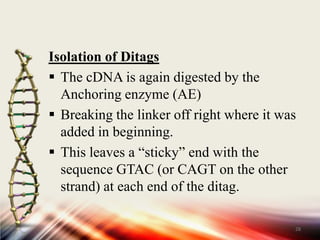

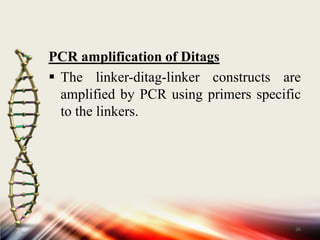

- 42. Breaking the linker off right where it was added in beginning.
- 43. This leaves a “sticky” end with the sequence GTAC (or CAGT on the other strand) at each end of the ditag.28

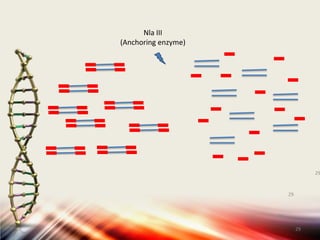

- 44. Nla III (Anchoring enzyme) 29 29 29 29 29 29 29 29
- 46. Each ditag is having an AE site, allowing the scientist and the computer to recognize where one ends and the next begins.30
- 47. 31 Concatemirize

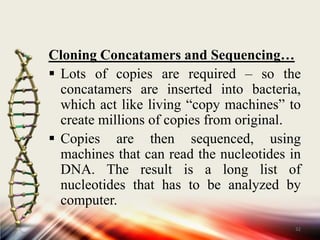

- 49. Copies are then sequenced, using machines that can read the nucleotides in DNA. The result is a long list of nucleotides that has to be analyzed by computer.32

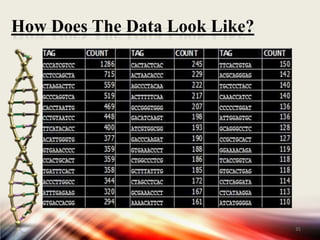

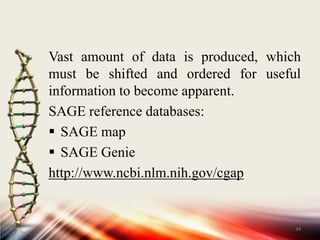

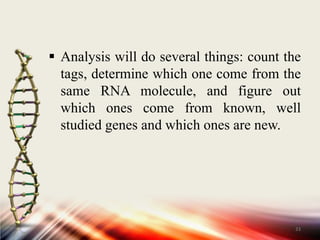

- 53. How Does The Data Look Like? 35
- 54. From Tags to Genes… Collect sequence records from GenBank. Assign sequence orientation (by finding poly-A tail) Assign UniGene identifier to each sequence with a SAGE tag. Record (for each tag-gene pair) 36

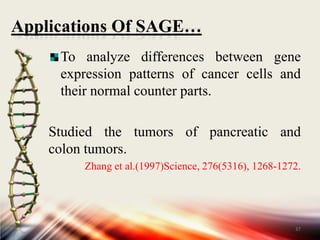

- 55. Applications Of SAGE… To analyze differences between gene expression patterns of cancer cells and their normal counter parts. Studied the tumors of pancreatic and colon tumors. Zhang et al.(1997)Science, 276(5316), 1268-1272. 37
- 56. Examining which transcripts are present in a cell. Allows rapid, detailed analysis of thousands of transcripts in a cell. By comparing different types of cells, generate profiles that will help to understand healthy cells and what goes wrong in diseases. 38
- 57. By comparing different types of cells, generate profiles that will help to understand healthy cells and what goes wrong in diseases. To identify downstream targets of oncogenes and tumor suppresser genes. Used colorectal cancer cell lines to discover p53 targets. Polyak et al.(1997)Nature, 389(6648), 300-305. 39

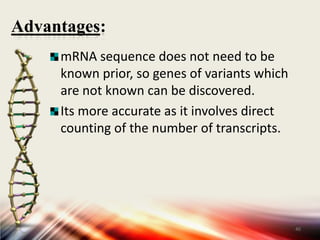

- 58. Advantages: mRNA sequence does not need to be known prior, so genes of variants which are not known can be discovered. Its more accurate as it involves direct counting of the number of transcripts. 40
- 59. Problems In SAGE… Length of gene tag is extremely short (13 or 14bp), so if the tag is derived from an unknown gene, it is difficult to analyze with such a short sequence. Type II restriction enzyme does not yield same length fragments. mRNA levels and protein expression do not are always correlate. 41
- 61. Ji-YeonLee and Dong-Hee Lee, “Use of Serial Analysis of Gene Expression Technology to Reveal Changes in Gene Expression in Arabidopsis Pollen Undergoing Cold Stress”. Plant Physiol. Vol. 132, 2003.
- 63. KanlayaneeSawanyawisuth, “High Throughput Gene Expression Analysis: a Review”.Srinagarind Med J 2009; 24(2): 154-8.42
- 65. Bioinformatics, Instant Notesby D.R. Westhead, J.H. Parish and R.M. Twyman.43
- 66. Thank You. 44
