The document is an analysis and design specification for a Restaurant Management System, detailing the system's requirements and use cases. It includes diagrams for use cases, system sequences, and operation contracts, along with roles such as waitstaff, kitchen staff, and managers. The document outlines various functions, including managing orders, processing payments, and handling table statuses, illustrating how different actors interact within the system.

1. Analysis and Design
Document
Version 3.1
12/13/2013
Restaurant Management System
Object Oriented Software Engineering
SE 6301
Ajit Gogul Balakrishnan Kannan
Harika Jammula
Narla Sandeep Narla Saibaba
Prabhakar Ganesamurthy
Sai Madhu Saranya Kachireddy
Page 1

2. Revision History
Version
Inception draft
Date
11/4/2013
Description
First draft. To be refined
primarily during elaboration.
Author
…
Elaboration 1 Draft 1
11/16/2013
…
Elaboration 1 Draft 2
12/3/2013
Elaboration 1 Draft 3
12/13/2013
First draft. To be refined
primarily later
Second draft. To be refined
primarily later
Revised draft.
Page 2
…

3. Table of Contents
1. Use Case Diagram
2. Use Case Descriptions
3. Domain Model
4. System Sequence Diagram

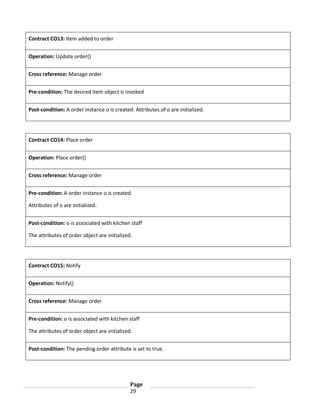

5. Operation Contracts

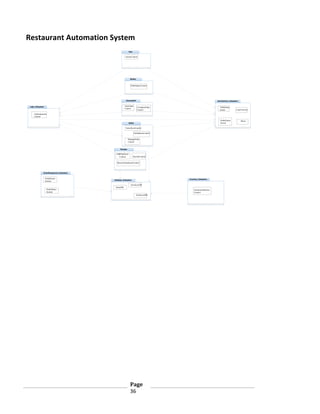

6. Subsystem Diagram

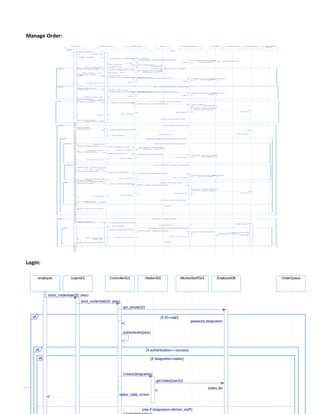

7. Use case Realization
8. Design Class Diagram

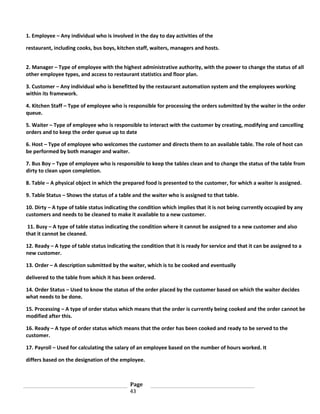

9. Glossary of terms

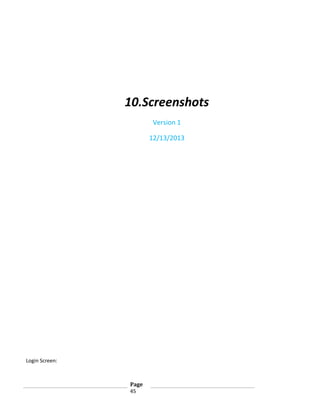

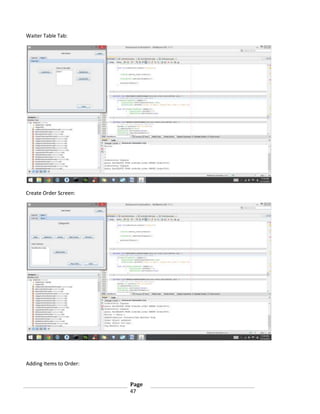

10. Screenshots
…4
...8
...17
...20
...24
...35
…38
…42
…44
…46
Page 3

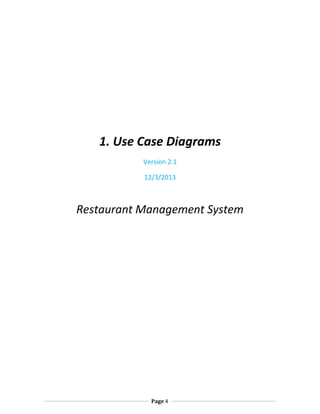

4. 1. Use Case Diagrams
Version 2.1
12/3/2013
Restaurant Management System
Page 4

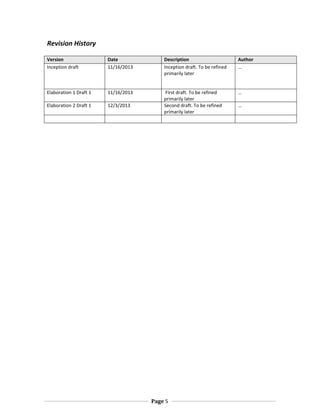

5. Revision History
Version
Inception draft
Date
11/16/2013
Description
Inception draft. To be refined
primarily later
Author
…
Elaboration 1 Draft 1
11/16/2013
…
Elaboration 2 Draft 1
12/3/2013
First draft. To be refined
primarily later
Second draft. To be refined
primarily later
Page 5
…

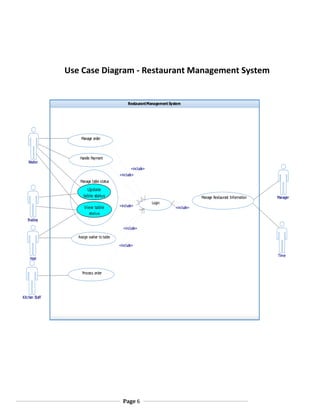

6. Use Case Diagram - Restaurant Management System
Restaurant Management System
Manage order
Waiter
Handle Payment
«include»
«include»
Manage table status
Update
table status
View table
status
Manage Restaurant Information
«include»
Login
Manager
«include»
Busboy
«include»
Assign waiter to table
«include»
Time
Host
Process order
Kitchen Staff
Page 6

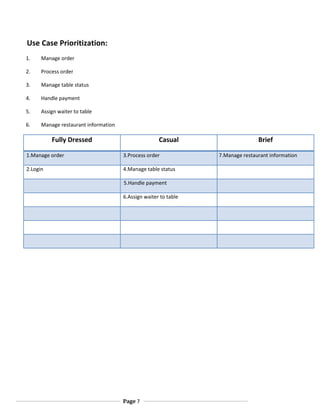

7. Use Case Prioritization:
1.
Manage order
2.
Process order
3.
Manage table status
4.
Handle payment
5.
Assign waiter to table
6.
Manage restaurant information
Fully Dressed
Casual
1.Manage order
3.Process order
2.Login
4.Manage table status
5.Handle payment
6.Assign waiter to table
Page 7
Brief
7.Manage restaurant information

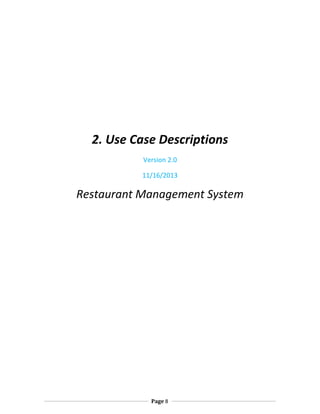

8. 2. Use Case Descriptions
Version 2.0
11/16/2013
Restaurant Management System
Page 8

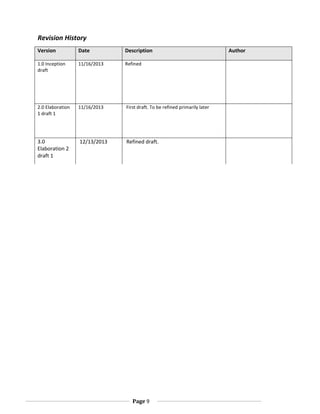

9. Revision History
Version
Date
Description
1.0 Inception
draft
11/16/2013
Refined
2.0 Elaboration
1 draft 1
11/16/2013
First draft. To be refined primarily later
3.0
Elaboration 2
draft 1
12/13/2013
Refined draft.
Page 9
Author

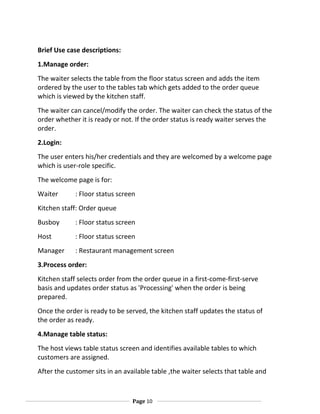

10. Brief Use case descriptions:
1.Manage order:
The waiter selects the table from the floor status screen and adds the item
ordered by the user to the tables tab which gets added to the order queue
which is viewed by the kitchen staff.
The waiter can cancel/modify the order. The waiter can check the status of the
order whether it is ready or not. If the order status is ready waiter serves the
order.
2.Login:
The user enters his/her credentials and they are welcomed by a welcome page
which is user-role specific.
The welcome page is for:
Waiter
: Floor status screen
Kitchen staff: Order queue
Busboy
: Floor status screen
Host
: Floor status screen
Manager
: Restaurant management screen
3.Process order:
Kitchen staff selects order from the order queue in a first-come-first-serve
basis and updates order status as 'Processing' when the order is being
prepared.
Once the order is ready to be served, the kitchen staff updates the status of
the order as ready.
4.Manage table status:
The host views table status screen and identifies available tables to which
customers are assigned.
After the customer sits in an available table ,the waiter selects that table and
Page 10

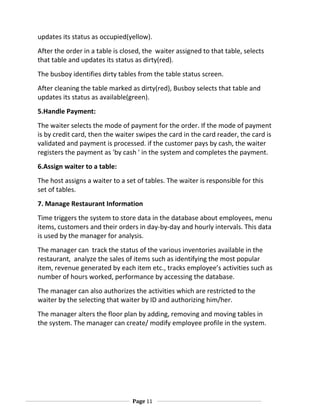

11. updates its status as occupied(yellow).
After the order in a table is closed, the waiter assigned to that table, selects
that table and updates its status as dirty(red).
The busboy identifies dirty tables from the table status screen.
After cleaning the table marked as dirty(red), Busboy selects that table and
updates its status as available(green).
5.Handle Payment:
The waiter selects the mode of payment for the order. If the mode of payment
is by credit card, then the waiter swipes the card in the card reader, the card is
validated and payment is processed. if the customer pays by cash, the waiter
registers the payment as 'by cash ' in the system and completes the payment.
6.Assign waiter to a table:
The host assigns a waiter to a set of tables. The waiter is responsible for this
set of tables.
7. Manage Restaurant Information
Time triggers the system to store data in the database about employees, menu
items, customers and their orders in day-by-day and hourly intervals. This data
is used by the manager for analysis.
The manager can track the status of the various inventories available in the
restaurant, analyze the sales of items such as identifying the most popular
item, revenue generated by each item etc., tracks employee’s activities such as
number of hours worked, performance by accessing the database.
The manager can also authorizes the activities which are restricted to the
waiter by the selecting that waiter by ID and authorizing him/her.
The manager alters the floor plan by adding, removing and moving tables in
the system. The manager can create/ modify employee profile in the system.
Page 11

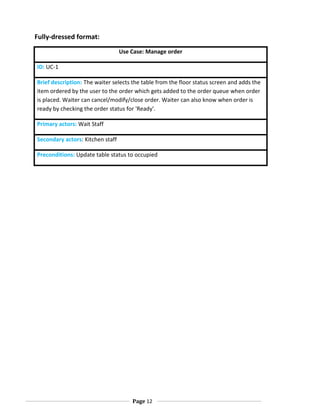

12. Fully-dressed format:
Use Case: Manage order
ID: UC-1
Brief description: The waiter selects the table from the floor status screen and adds the
item ordered by the user to the order which gets added to the order queue when order
is placed. Waiter can cancel/modify/close order. Waiter can also know when order is
ready by checking the order status for 'Ready'.
Primary actors: Wait Staff
Secondary actors: Kitchen staff
Preconditions: Update table status to occupied
Page 12

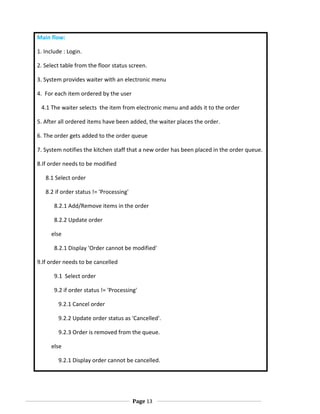

13. Main flow:
1. Include : Login.
2. Select table from the floor status screen.
3. System provides waiter with an electronic menu
4. For each item ordered by the user
4.1 The waiter selects the item from electronic menu and adds it to the order
5. After all ordered items have been added, the waiter places the order.
6. The order gets added to the order queue
7. System notifies the kitchen staff that a new order has been placed in the order queue.
8.If order needs to be modified
8.1 Select order
8.2 if order status != 'Processing'
8.2.1 Add/Remove items in the order
8.2.2 Update order
else
8.2.1 Display 'Order cannot be modified'
9.If order needs to be cancelled
9.1 Select order
9.2 if order status != 'Processing'
9.2.1 Cancel order
9.2.2 Update order status as 'Cancelled'.
9.2.3 Order is removed from the queue.
else
9.2.1 Display order cannot be cancelled.
Page 13

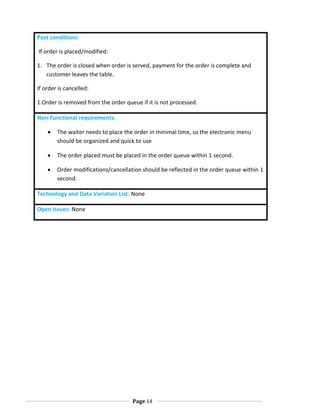

14. Post conditions:
If order is placed/modified:
1. The order is closed when order is served, payment for the order is complete and
customer leaves the table.
If order is cancelled:
1.Order is removed from the order queue if it is not processed.
Non-Functional requirements:
The waiter needs to place the order in minimal time, so the electronic menu
should be organized and quick to use
The order placed must be placed in the order queue within 1 second.
Order modifications/cancellation should be reflected in the order queue within 1
second.
Technology and Data Variation List: None
Open Issues: None
Page 14

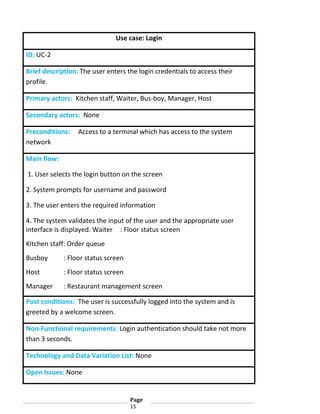

15. Use case: Login
ID: UC-2
Brief description: The user enters the login credentials to access their
profile.
Primary actors: Kitchen staff, Waiter, Bus-boy, Manager, Host
Secondary actors: None
Preconditions:
network
Access to a terminal which has access to the system
Main flow:
1. User selects the login button on the screen
2. System prompts for username and password
3. The user enters the required information
4. The system validates the input of the user and the appropriate user
interface is displayed. Waiter : Floor status screen
Kitchen staff: Order queue
Busboy
: Floor status screen
Host
: Floor status screen
Manager
: Restaurant management screen
Post conditions: The user is successfully logged into the system and is
greeted by a welcome screen.
Non-Functional requirements: Login authentication should take not more
than 3 seconds.
Technology and Data Variation List: None
Open Issues: None
Page
15

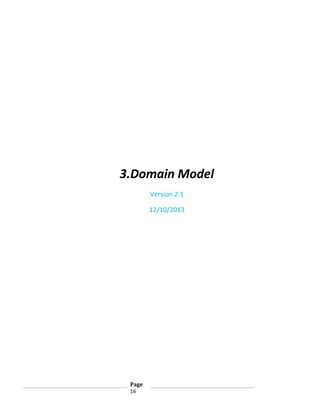

16. 3.Domain Model
Version 2.1
12/10/2013
Page
16

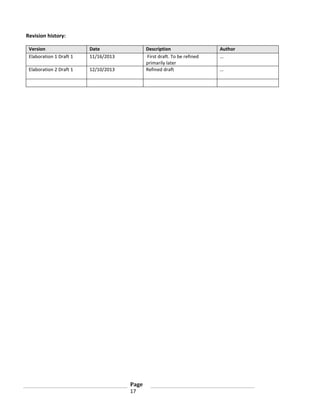

17. Revision history:
Version
Elaboration 1 Draft 1
Date
11/16/2013
Elaboration 2 Draft 1
Description
First draft. To be refined
primarily later
Refined draft
12/10/2013
Page
17
Author
…
…

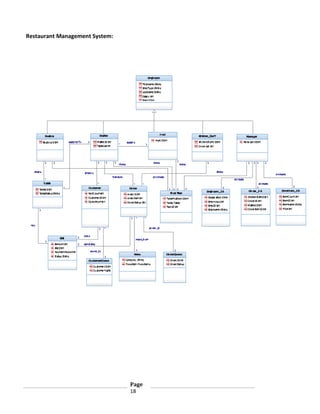

18. Restaurant Management System:
Page
18

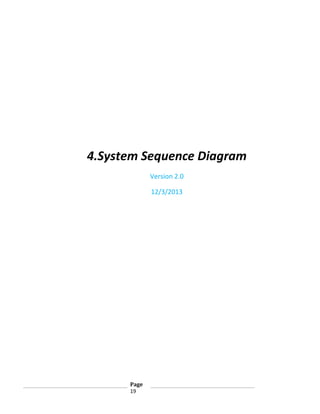

19. 4.System Sequence Diagram
Version 2.0
12/3/2013
Page
19

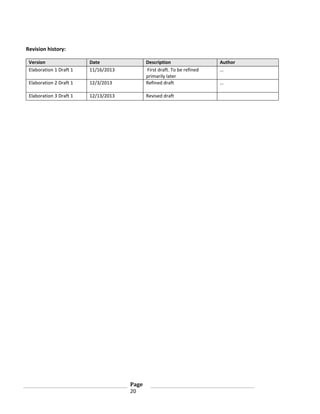

20. Revision history:
Version
Elaboration 1 Draft 1
Date
11/16/2013
Elaboration 2 Draft 1
12/3/2013
Description
First draft. To be refined
primarily later
Refined draft
Elaboration 3 Draft 1
12/13/2013
Revised draft
Page
20
Author
…
…

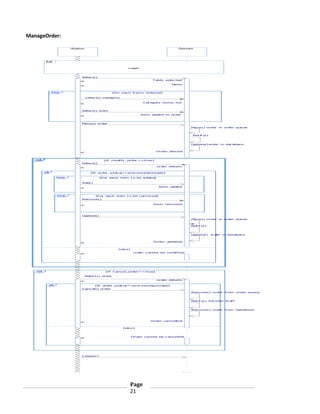

21. ManageOrder:
:Wai ter
Sys tem
Ref
Lo
gin
Sel ec t()
T abl e selec ted
Men
u
lo
op
[f or eac h it em s
s el ec t()
o
rdered]
category
Cat ego
ry i tems
Sel ec t()
l i st
it em
Item
add
ed to o
rder
Place() order
Place() order
in ord
er qu
eu
e
No if y()
t
Up
date() o
rder
i n dat abas e
Order p aced
l
op
t
[If
mod f y _o
i
rder ==true]
Sel ec t()
ord
er detai l s
alt
[If
o
rder _ tat u !=pro ess ing||ready]
s
s
c
lo
op
[Fo
r
each i tem
t o be add
ed
]
Ad
d()
Item
lo
op
[Fo
r
each i tem
add
ed
t o be r em o ed
v
]
Rem ove()
Item
rem oved
Up
date()
Place() order
in ord
er qu
eu
e
No if y()
t
Up
date()
o d
r er i n databas e
Order u
pdated
[els e]
ord
er c ann
ot be mod f i ed
i
op
t
[If
Sel ec t()
Cancel _
ord
er== true]
o
rder
ord
er detai l s
alt
[If
o
rder _ tat u !=pro ess ing||ready]
s
s
c
Canc el () order
Rem ove() order
No if y()
t
[els e]
Order cann
ot be c ancel l ed
Lo
go
ut()
Page
21
order queue
K it chen st af f
Rem ove() order
Order cancell ed
f ro
m
f ro
m
Database

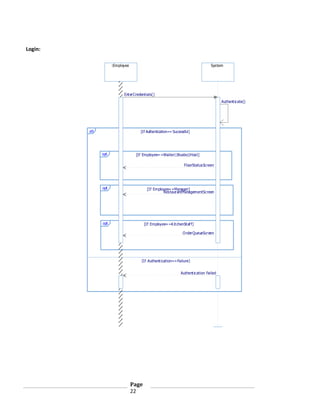

22. Login:
:Employee
System
Ent erCredentials()
Authent icate()
alt
[If Authentication== Successful]
opt
[If Employee==Waiter||Busbo||Host]
FloorStatusScreen
opt
[If Employee==Manager]
RestaurantManagementScreen
opt
[If Employee==K it chenSt af f]
O rderQueueScreen
[If Authent ication==Failure]
Authent ication Failed
Page
22

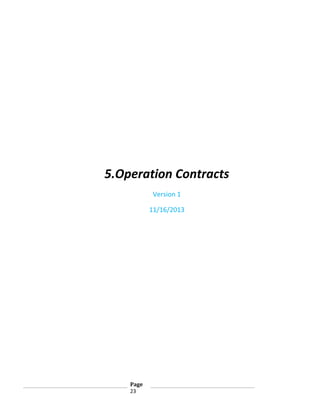

23. 5.Operation Contracts
Version 1
11/16/2013
Page
23

24. Revision history:
Version
Elaboration 1 Draft 1
Date
11/16/2013
Elaboration 2 Draft 1
Description
First draft. To be refined
primarily later
Refined draft
12/3/2013
Page
24
Author
…
…

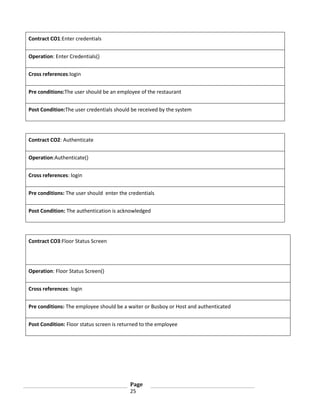

25. Contract CO1:Enter credentials
Operation: Enter Credentials()
Cross references:login
Pre conditions:The user should be an employee of the restaurant
Post Condition:The user credentials should be received by the system
Contract CO2: Authenticate
Operation:Authenticate()
Cross references: login
Pre conditions: The user should enter the credentials
Post Condition: The authentication is acknowledged
Contract CO3:Floor Status Screen
Operation: Floor Status Screen()
Cross references: login
Pre conditions: The employee should be a waiter or Busboy or Host and authenticated
Post Condition: Floor status screen is returned to the employee
Page
25

26. Contract CO4:Restaurant Management Screen
Operation: Restaurant Management Screen()
Cross references: login
Pre conditions: Employee should be a manager and authenticated
Post condition:Restaurant management screen is returned to the employee
Contract CO5:Order Queue Screen
Operation: Order Queue Screen()
Cross references:login
Pre conditions: The employee should be a kitchen staff and authenticated
Post condition:Order queue screen should be returned
Contract CO6: Authentication failed
Operation: Authentication failed()
Cross references:login
Pre conditions: Employee credentials should be incorrect
Post condition: Authentication failure is acknowledged
Page
26

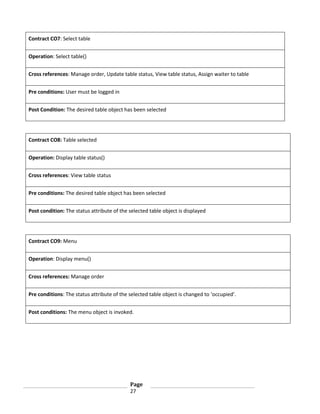

27. Contract CO7: Select table
Operation: Select table()
Cross references: Manage order, Update table status, View table status, Assign waiter to table
Pre conditions: User must be logged in
Post Condition: The desired table object has been selected
Contract CO8: Table selected
Operation: Display table status()
Cross references: View table status
Pre conditions: The desired table object has been selected
Post condition: The status attribute of the selected table object is displayed
Contract CO9: Menu
Operation: Display menu()
Cross references: Manage order
Pre conditions: The status attribute of the selected table object is changed to ‘occupied’.
Post conditions: The menu object is invoked.
Page
27

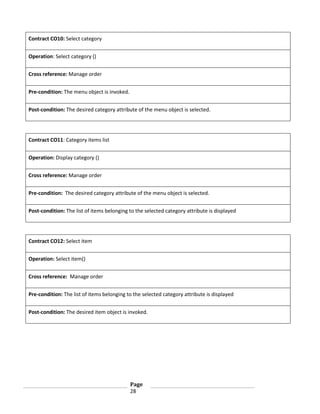

28. Contract CO10: Select category
Operation: Select category ()
Cross reference: Manage order
Pre-condition: The menu object is invoked.
Post-condition: The desired category attribute of the menu object is selected.
Contract CO11: Category items list
Operation: Display category ()
Cross reference: Manage order
Pre-condition: The desired category attribute of the menu object is selected.
Post-condition: The list of items belonging to the selected category attribute is displayed
Contract CO12: Select item
Operation: Select item()
Cross reference: Manage order
Pre-condition: The list of items belonging to the selected category attribute is displayed
Post-condition: The desired item object is invoked.
Page
28

29. Contract CO13: Item added to order
Operation: Update order()
Cross reference: Manage order
Pre-condition: The desired item object is invoked
Post-condition: A order instance o is created. Attributes of o are initialized.
Contract CO14: Place order
Operation: Place order()
Cross reference: Manage order
Pre-condition: A order instance o is created.
Attributes of o are initialized.
Post-condition: o is associated with kitchen staff
The attributes of order object are initialized.
Contract CO15: Notify
Operation: Notify()
Cross reference: Manage order
Pre-condition: o is associated with kitchen staff
The attributes of order object are initialized.
Post-condition: The pending order attribute is set to true.
Page
29

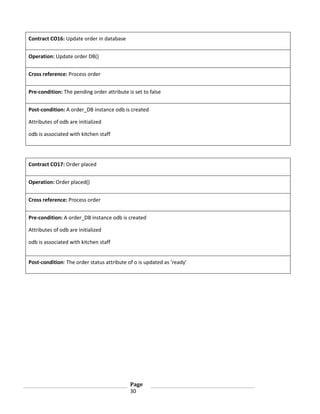

30. Contract CO16: Update order in database
Operation: Update order DB()
Cross reference: Process order
Pre-condition: The pending order attribute is set to false
Post-condition: A order_DB instance odb is created
Attributes of odb are initialized
odb is associated with kitchen staff
Contract CO17: Order placed
Operation: Order placed()
Cross reference: Process order
Pre-condition: A order_DB instance odb is created
Attributes of odb are initialized
odb is associated with kitchen staff
Post-condition: The order status attribute of o is updated as ‘ready’
Page
30

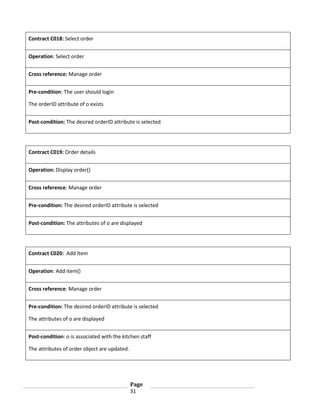

31. Contract C018: Select order
Operation: Select order
Cross reference: Manage order
Pre-condition: The user should login
The orderID attribute of o exists
Post-condition: The desired orderID attribute is selected
Contract C019: Order details
Operation: Display order()
Cross reference: Manage order
Pre-condition: The desired orderID attribute is selected
Post-condition: The attributes of o are displayed
Contract C020: Add Item
Operation: Add item()
Cross reference: Manage order
Pre-condition: The desired orderID attribute is selected
The attributes of o are displayed
Post-condition: o is associated with the kitchen staff
The attributes of order object are updated.
Page
31

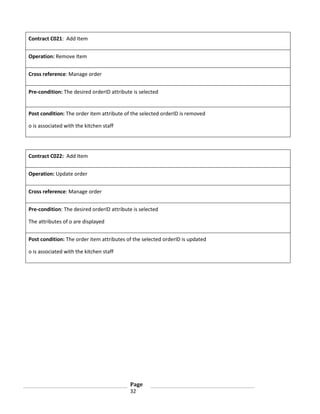

32. Contract C021: Add Item
Operation: Remove Item
Cross reference: Manage order
Pre-condition: The desired orderID attribute is selected
Post condition: The order item attribute of the selected orderID is removed
o is associated with the kitchen staff
Contract C022: Add Item
Operation: Update order
Cross reference: Manage order
Pre-condition: The desired orderID attribute is selected
The attributes of o are displayed
Post condition: The order item attributes of the selected orderID is updated
o is associated with the kitchen staff
Page
32

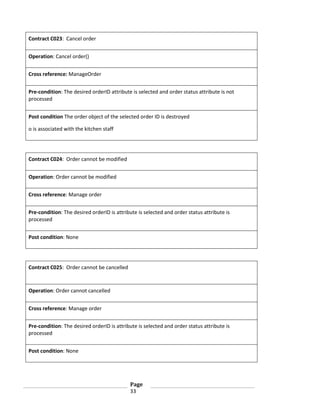

33. Contract C023: Cancel order
Operation: Cancel order()
Cross reference: ManageOrder
Pre-condition: The desired orderID attribute is selected and order status attribute is not
processed
Post condition The order object of the selected order ID is destroyed
o is associated with the kitchen staff
Contract C024: Order cannot be modified
Operation: Order cannot be modified
Cross reference: Manage order
Pre-condition: The desired orderID is attribute is selected and order status attribute is
processed
Post condition: None
Contract C025: Order cannot be cancelled
Operation: Order cannot cancelled
Cross reference: Manage order
Pre-condition: The desired orderID is attribute is selected and order status attribute is
processed
Post condition: None
Page
33

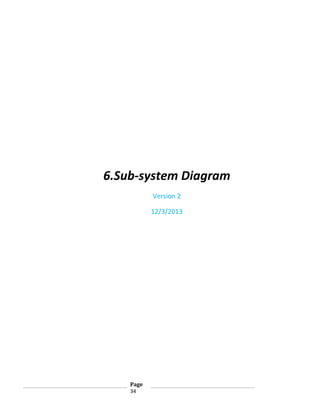

34. 6.Sub-system Diagram
Version 2
12/3/2013
Page
34

35. Revision history:
Version
Elaboration 1 Draft 1
Date
11/16/2013
Elaboration 2 Draft 1
Description
First draft. To be refined
primarily later
Refined draft
12/3/2013
Page
35
Author
…
…

36. Restaurant Automation System
Host
QueueControl
Busboy
TableStatusControl
KitchenStaff
TakeOrder
Control
Login_Subsystem
UserInterface_Subsystem
CompleteOrder
Control
TableStatus
screen
Login Screen
Authentication
Control
OrderQueue
Screen
Waiter
SelectItemControl
TableStatusControl
ManageOrder
Control
Manager
AddEmployee
Control
PayrollControl
RemoveEmployeeControl
OrderManagement_Subsystem
OrderQueue
System
Inventory_Subsystem
Database_Subsystem
InventoryDB
OrderDB
OrderStatus
System
InventoryStatistics
Control
EmployeeDB
Page
36
Menu

37. 7.Use Case Realization
Version 2
12/10/2013
Page
37

38. Revision history:
Version
Elaboration 2 Draft 1
Date
12/3/2013
Description
First draft. To be refined later.
Elaboration 3 Draft 1
12/10/2013
Refined draft
Page
38
Author
…

39. Manage Order:
:Wai t
e r
:Wai t
e r
G U I
:C ont roll erG U I
:M enu
:C ont roll erO rder
:O rder
:O rderQ ueu e
:O rderD B
:K i t chenS t af
fG U I
R ef
Log in
se le ct
_ t ab le (
)
t ab le _t ab
creat e_ order()
cre
at e o
_ rde
r_
re
qu st (W
e
ait erI
D,
Ta
bleID
)
cre
at e o
_ rde
r_
re
qu st (W
e
ait erI
D,Ta
bleID
)
cre
at e
(wa t e
i
rID
,t a l e
b
ID)
set
_W i t e
a
rID
,T a l e
b
ID
m e nu_ cat e go r es
i
l oop
sele
c t_
ca eg ry(na
t
o
me
)
o
rd
er_
cre
at e
d
orde r
orde r
ge t _m e nu (
)
ge t C at eg ori es()
cat eg ories
cat eg ories
[f or
e ach
it em
to
be
ad ded]
sele
c t_
ca eg ry(na
t
o
me
)
g
et
_ca e
t
go
ry_ t e
i
ms (n me)
a
me
nu c a e o
_
t
g ry _ t e
i
ms
sel ect _l ist _i t
e m(
)
A dd ()
ca t
e go r
y _ it em s
ca t
e go r
y _ it em s
up da t
e _i t em s _li st
a
dd i t e
_
ms_re u
q est (o
rd r,A d e
e
d dIt e
msL ist )
a
dd i t e
_
ms_re u
q est (o
rd r,It e
e
ms Li st )
u
pd t e
a
_it e
m _ st (o
li
rde
r,I emsLi st )
t
i te
m_
ad e
d d
orde r
orde r
ad ded_ it em _l ist
l oop
[f or
e ach
it em
to
be
rem ov ed]
sel ect _l ist _i t
e m(
)
R em ov e()
up da t
e _i t em s _li st
a
dd i t e
_
ms_re u
q est (o
rd r,A d e
e
d dIt e
msL ist )
a
dd i t e
_
ms_re u
q est (o
rd r,A d e
e
d dIt e
msL ist )
u
pd t e
a
_it e
m _ st (o
li
rde
r,I emsLi st )
t
orde r
orde r
orde r
up da t
e d_ it e m _l ist
pl ace_ order()
con irm _ rd r
f
o
e
al t
[order
co nf irm _ ord er()
orde r
_ conf irm ed (
or
d er
)
is
con fi rm ed]
pl ace_ order_requ est (
or
d er)
ge t
_ order()
ord erI D
set
_o
rd r_st a u
e
t
s_
In
Qu ue
e
st ore_o r
d er(
or
d er)
succe ss
o
rd
er_ l a
p
ced
o
rd
er_ l a
p
ced
S o
t
red
[order
not
conf i r
m e d]
no t _co nf irm ed()
ad de d_i t em s_l ist
l oop
[if
m odi f y _o r
d er=t rue]
S
ele
c t Or
de
r()
Mo i f yOrd
d
er(
)
C h ck Or
e
de
rS a us(o
t
t
rd
er
ID)
o
rd
er_ e ail s
d t
ord erS t
a t us
o
rd
er_ e ail s
d t
op t
[if (orderS t
st us!
= P rocessi ng| | R ead y
)]
l oop
[f or
cat eg ories
sele
c t_
ca eg ry(na
t
o
me
)
e ach
it em
to
be
ad ded]
sele
c t_
ca eg ry(na
t
o
me
)
g
et
_ca e
t
go
ry_ t e
i
ms (n me)
a
ca t
e go r
y _ it em s
ca t
e go r
y _ it em s
ca t
e go r
y _ it em s
sele
c t_ t
i em(it emID
)
sele
c t_ t
i em(it emID
)
a
dd i t e
_
m_
req e
u s t( te
i
mI
D)
a
dd i t e
_
m_ o_ st (i t e
t
li
mID)
i te
m_
ad e
d d
i te
m_
ad e
d d
it
e m
ad de d
ad de d_i t em _l ist
l oop
[f or
e ach
it em
to
be
rem ov ed]
se le ct
_ li st _i t em (i t em I D )
l ist _ it em _se le ct
e d
re
move i t e
_
m(i t e
mID)
re
move i t e
_
m(i t e
mID)
re
move i t e
_
m_re u
q est (i t
emID
)
re
move i t e
_
m_f ro
m_ i st (it emID
l
)
i te
m_
remo
ve
d
i te
m_
remo
ve
d
i te
m_
remo
ve
d
up da t
e d_ it e m _l ist
mo
dif y _ rd
o
er
()
con irm _ rd r
f
o
e
al t
co nf irm _ ord er()
[order
orde r
_ conf irm ed (
or
d er
)
is
con fi rm ed]
pl ace_ order_requ est (
or
d er)
set
_o
rd r_st a u
e
t
s_
In
Qu ue
e
st ore_o r
d er(
or
d er)
succe ss
o
rd
er_ l a
p
ced
o
rd
er_ l a
p
ced
U pd at ed
[order
not
conf i r
m e d]
no t _co nf irm ed()
ad de d_i t em s_l ist
[el se]
Ord r_ca no _ e_
e
n
t
b
mo
dif i e
d
al t
[if
S
ele
c t _ rd
o
er(
)
rem ov e_o rde r
()
cance l_o r
d er=t rue]
C h ck Or
e
de
rS a us(o
t
t
rd
er
ID)
o
rd
er_ e ail s
d t
ord erS t
a t us
o
rd
er_ e ail s
d t
al t
[if
order_st at us!
= processi ng| | read y ]
re
move _ rde
l
o
r(o
rd rID)
e
re
move ord r_
_
e
req e
u s t (o
rd rID)
e
re
move ord r(o
_
e
rde
rID
)
ord er_re m ov ed
ge t O rde r
Q
ue ue()
orde r
Li st
ord er_ca nce ll ed
ord er_ca nce ll ed
ord er_ca nce ll ed
t ab le _t ab
[el se]
o
rd
er_
ca
nn t _
o
be can
_
cell e
d
Login:
:employee
:LoginGUI
:ControllerGUI
:WaiterGUI
:KitchenStaffGUI
:EmployeeDB
enter_credentials(ID, pass)
send_credentials(ID, pass)
get_details(ID)
alt
[if ID=valid]
password,designation
authenticate(pass)
alt
[if authentication==success]
alt
[if designation=waiter]
Create(designation)
Page
39
waiter_table_screen
getTables(UserID)
[else if designation=kitchen_staff]
tables_list
:OrderQueue

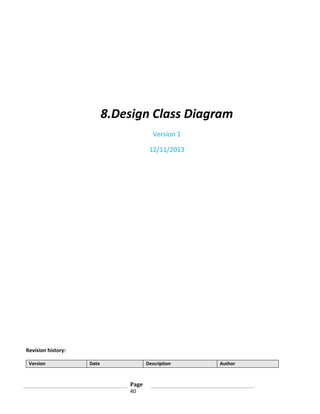

40. 8.Design Class Diagram
Version 1
12/11/2013
Revision history:
Version
Date
Description
Page
40
Author

41. Elaboration 2 Draft 1
12/3/2013
First draft. To be refined later.
Elaboration 3 Draft 1
12/11/2013
Refined

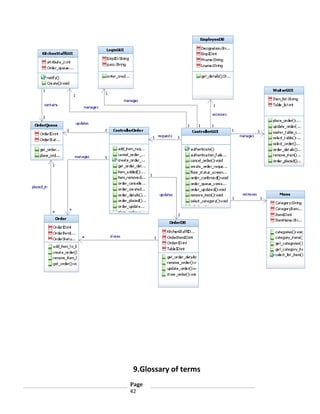

Design Class Diagram:
Page
41
…

42. 9.Glossary of terms
Page
42

43. 1. Employee – Any individual who is involved in the day to day activities of the
restaurant, including cooks, bus boys, kitchen staff, waiters, managers and hosts.
2. Manager – Type of employee with the highest administrative authority, with the power to change the status of all
other employee types, and access to restaurant statistics and floor plan.
3. Customer – Any individual who is benefitted by the restaurant automation system and the employees working
within its framework.
4. Kitchen Staff – Type of employee who is responsible for processing the orders submitted by the waiter in the order
queue.
5. Waiter – Type of employee who is responsible to interact with the customer by creating, modifying and cancelling
orders and to keep the order queue up to date
6. Host – Type of employee who welcomes the customer and directs them to an available table. The role of host can
be performed by both manager and waiter.
7. Bus Boy – Type of employee who is responsible to keep the tables clean and to change the status of the table from
dirty to clean upon completion.
8. Table – A physical object in which the prepared food is presented to the customer, for which a waiter is assigned.
9. Table Status – Shows the status of a table and the waiter who is assigned to that table.
10. Dirty – A type of table status indicating the condition which implies that it is not being currently occupied by any
customers and needs to be cleaned to make it available to a new customer.
11. Busy – A type of table status indicating the condition where it cannot be assigned to a new customer and also
that it cannot be cleaned.
12. Ready – A type of table status indicating the condition that it is ready for service and that it can be assigned to a
new customer.
13. Order – A description submitted by the waiter, which is to be cooked and eventually
delivered to the table from which it has been ordered.
14. Order Status – Used to know the status of the order placed by the customer based on which the waiter decides
what needs to be done.
15. Processing – A type of order status which means that the order is currently being cooked and the order cannot be
modified after this.
16. Ready – A type of order status which means that the order has been cooked and ready to be served to the
customer.
17. Payroll – Used for calculating the salary of an employee based on the number of hours worked. It
differs based on the designation of the employee.
Page
43

44. 18. Menu – List of dishes available in the restaurant from which the waiter chooses from based on the request from
the customer.
19. Floor Plan – Shows the arrangement of all the tables in the restaurant which can be modified only by the manager
when required.
Page
44

45. 10.Screenshots
Version 1
12/13/2013
Login Screen:
Page
45

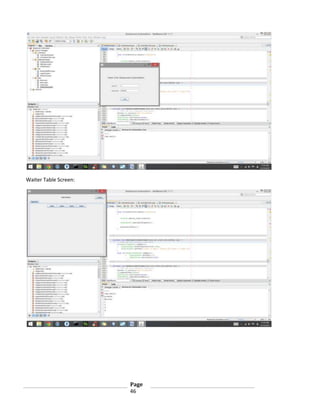

46. Waiter Table Screen:
Page
46

47. Waiter Table Tab:
Create Order Screen:
Adding Items to Order:
Page
47

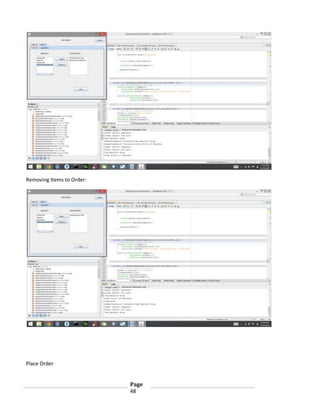

48. Removing Items to Order:
Place Order
Page
48

49. Waiter Login
Kitchen Staff GUI with OrderQueue:
Page
49

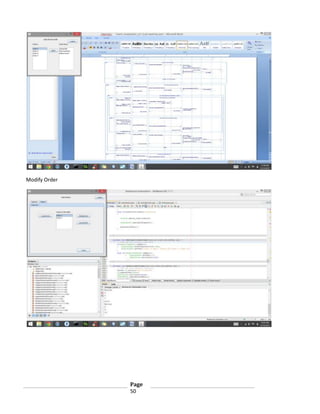

50. Modify Order
Page
50

51. Kitchen Staff GUI with updated orderQueue
Page
51

52. Cancel Order
Order removed from orderqueue
Page
52
