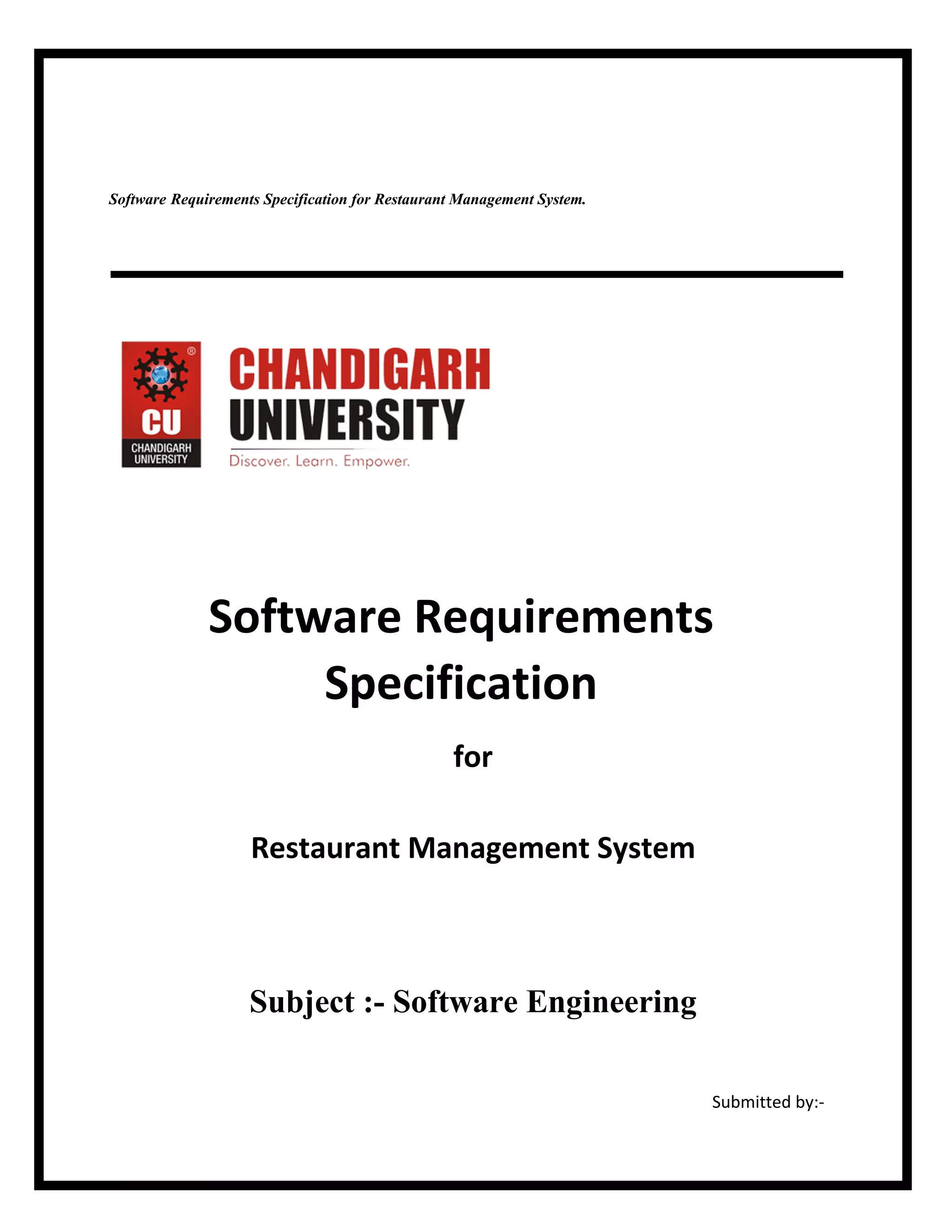

Software Requirements Specification for Restaurant Management System.
Software Requirements
Specification
for
Restaurant Management System
Subject :- Software Engineering
Submitted by:-

DECLARATION
I hereby declare that the project entitled “Restaurant Management System” submitted for the
Bachelor of Computer Application. This is my original work and the project has not formed the
basis for the award of any BCA, fellowship or any other similar titles.
Signature of the Students Place:-
Date:-

Acknowledgment
With great pleasure and sense of obligation express my heartfelt gratitude to Chandigarh
University for letting me go ahead with the project and being a constant source of inspiration
and motivation.
I would like to thank Prof. (Dr.) Kamaljit Singh Saini, HOD. University Institute of Computing
Department for having faith in me and allowing me to work on this project with all terms and
conditions and guiding me from time about my project.
I sincerely acknowledge, with thanks to Mr. Jagwinder (Project Co-ordinator) for giving me the
opportunity to undertake a major project work in the Institute and providing all necessary
Information and resources required for completion of the project.
I express my sincere thanks for the valuable guidance. Co-operation suggestions and other help
during the course of the project.

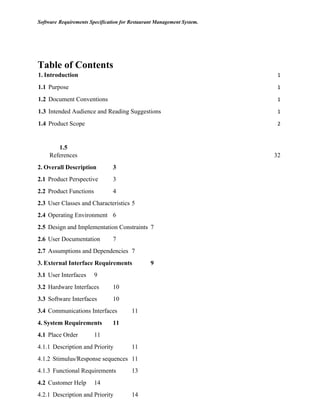

Table of Contents
1. Introduction 1
1.1 Purpose 1
1.2 Document Conventions 1
1.3 Intended Audience and Reading Suggestions 1
1.4 Product Scope 2
1.5
References 32
2. Overall Description 3
2.1 Product Perspective 3
2.2 Product Functions 4
2.3 User Classes and Characteristics 5
2.4 Operating Environment 6
2.5 Design and Implementation Constraints 7
2.6 User Documentation 7
2.7 Assumptions and Dependencies 7
3. External Interface Requirements 9
3.1 User Interfaces 9
3.2 Hardware Interfaces 10
3.3 Software Interfaces 10

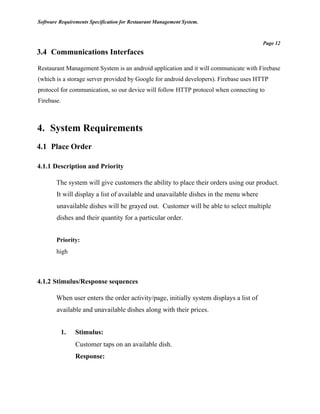

3.4 Communications Interfaces 11
4. System Requirements 11
4.1 Place Order 11
4.1.1 Description and Priority 11
4.1.2 Stimulus/Response sequences 11

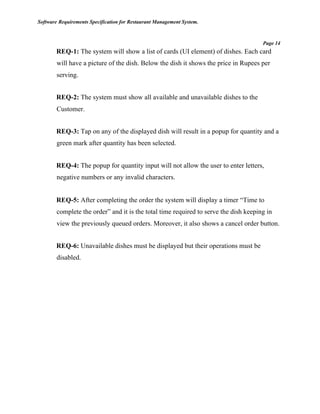

4.1.3 Functional Requirements 13

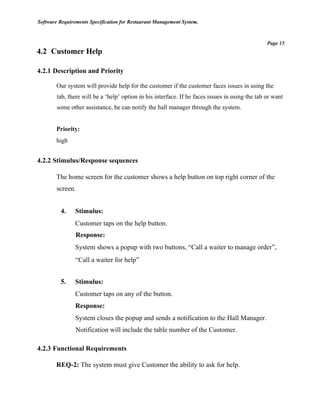

4.2 Customer Help 14

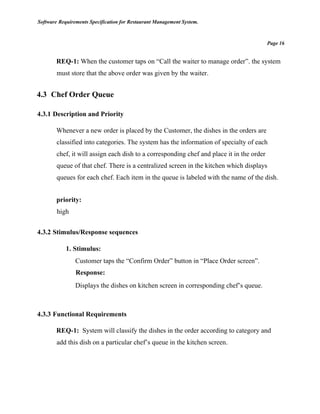

4.3 Chef Order Queue 15

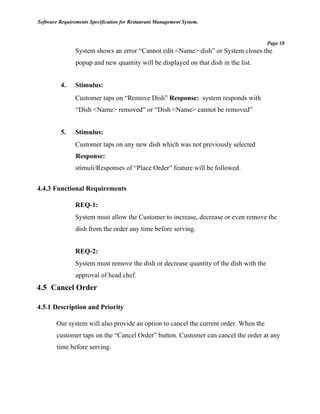

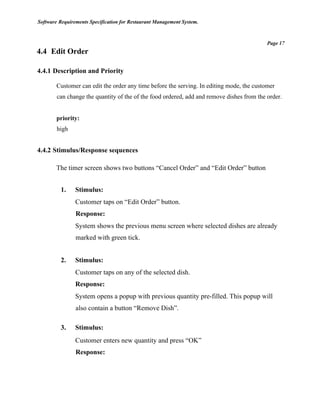

4.4 Edit Order 16

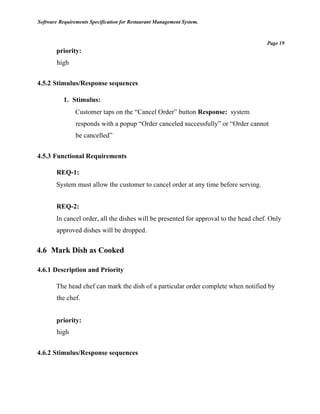

4.5 Cancel Order 18
4.6 Mark Dish as Cooked 19
4.7 Request Bill 20
4.8 Customer Feedback 21

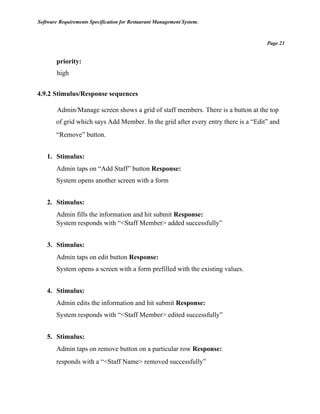

4.9 Add/Edit/Delete Staff Members 22

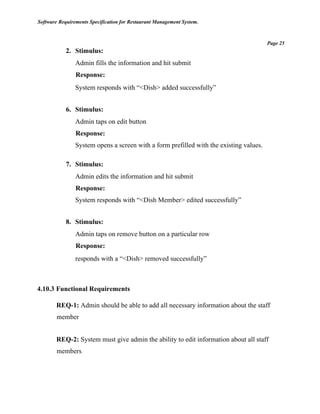

4.10 Add/Edit/Delete Menu Items 24
4.10.2 Stimulus/response sequences 24

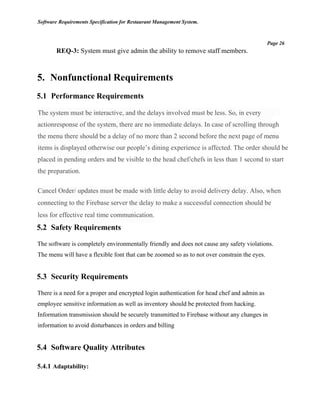

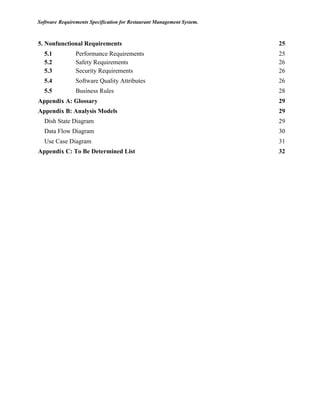

5. Nonfunctional Requirements 25
5.1 Performance Requirements 25
5.2 Safety Requirements 26
5.3 Security Requirements 26
5.4 Software Quality Attributes 26
5.5 Business Rules 28
Appendix A: Glossary 29
Appendix B: Analysis Models 29
Dish State Diagram 29
Data Flow Diagram 30
Use Case Diagram 31
Appendix C: To Be Determined List 32

Page 1

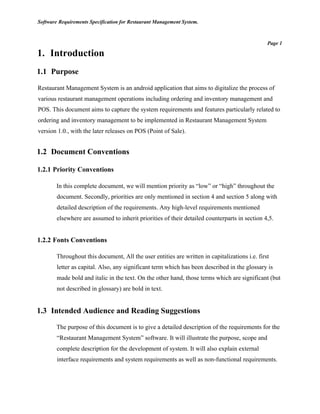

1. Introduction
1.1 Purpose
Restaurant Management System is an android application that aims to digitalize the process of
various restaurant management operations including ordering and inventory management and
POS. This document aims to capture the system requirements and features particularly related to
ordering and inventory management to be implemented in Restaurant Management System
version 1.0., with the later releases on POS (Point of Sale).
1.2 Document Conventions
1.2.1 Priority Conventions
In this complete document, we will mention priority as “low” or “high” throughout the
document. Secondly, priorities are only mentioned in section 4 and section 5 along with
detailed description of the requirements. Any high-level requirements mentioned
elsewhere are assumed to inherit priorities of their detailed counterparts in section 4,5.
1.2.2 Fonts Conventions
Throughout this document, All the user entities are written in capitalizations i.e. first
letter as capital. Also, any significant term which has been described in the glossary is
made bold and italic in the text. On the other hand, those terms which are significant (but
not described in glossary) are bold in text.
1.3 Intended Audience and Reading Suggestions
The purpose of this document is to give a detailed description of the requirements for the
“Restaurant Management System” software. It will illustrate the purpose, scope and
complete description for the development of system. It will also explain external
interface requirements and system requirements as well as non-functional requirements.

Page 2
This document is primarily intended to be proposed to a customer for its approval and
also for further processing such as additions to be developed in later releases.
Customers can refer to section 3 and 4 for the list of requirements implemented in
Version 1.0. Users are advised to refer to user documentation section for tutorials and
online support information.
This document will also be used as a reference for developing and testing Version 1.0 by
the development team as well as the testers. The development team can refer to section
2.3 and 2.6 for system level information and section 3 for system features that are to be
implemented in this version of the software.
1.4 Product Scope
Restaurant Management System is a restaurant management system developed with the intention
of automating the day to day tasks in a restaurant like order and inventory management, bill
generation and taking feedback. This release of the software would deal with these tasks only
whereas more areas might be automated in the future versions of this software. The main
purpose is to improve the performance of the restaurant by eradicating the daily paperwork.
With this system the tasks would be performed in less amount of time and more efficiently. An
additional benefit of this software is that during the rush hours the load can be balanced
effectively, and restaurants would perform better than usual. In addition to this, human error that
occurs when performing tasks manually is also minimized and presence of queues in the system
to assign tasks to chefs can reduce congestion in the kitchen. The system would also result in
reduction of labor which would result in the reduction of expenses of the restaurant. Feedback
module would help the restaurant check for how well they are performing, and monthly/yearly
figures can be checked by the billing module to see the trends in sales and profits. These benefits
can potentially result in generation of more revenues for the restaurant.

Page 3

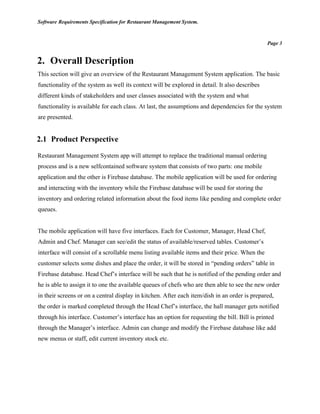

2. Overall Description
This section will give an overview of the Restaurant Management System application. The basic
functionality of the system as well its context will be explored in detail. It also describes
different kinds of stakeholders and user classes associated with the system and what
functionality is available for each class. At last, the assumptions and dependencies for the system
are presented.
2.1 Product Perspective
Restaurant Management System app will attempt to replace the traditional manual ordering
process and is a new selfcontained software system that consists of two parts: one mobile
application and the other is Firebase database. The mobile application will be used for ordering
and interacting with the inventory while the Firebase database will be used for storing the
inventory and ordering related information about the food items like pending and complete order
queues.
The mobile application will have five interfaces. Each for Customer, Manager, Head Chef,
Admin and Chef. Manager can see/edit the status of available/reserved tables. Customer’s
interface will consist of a scrollable menu listing available items and their price. When the
customer selects some dishes and place the order, it will be stored in “pending orders” table in
Firebase database. Head Chef’s interface will be such that he is notified of the pending order and
he is able to assign it to one the available queues of chefs who are then able to see the new order
in their screens or on a central display in kitchen. After each item/dish in an order is prepared,
the order is marked completed through the Head Chef’s interface, the hall manager gets notified
through his interface. Customer’s interface has an option for requesting the bill. Bill is printed
through the Manager’s interface. Admin can change and modify the Firebase database like add
new menus or staff, edit current inventory stock etc.

Page 4
Fig1 - System Perspective Diagram
2.2 Product Functions
Given below are the major functions that can be performed using Restaurant Management
System app. Moreover, a Data Flow Diagram (DFD) for better understanding of the system is
also given in Appendix B.
The system will:
• Allow Customers to scroll through the menu and select the dishes he/she wants.
• Allow the Customers to cancel/edit the order any time before its prepared.
• Allow Customers to provide feedback regarding the food and overall service of the
restaurant.
• Allow Customers to request for bill.
• Allow Customers to ask for help through the system.
• Assign Head Chef to assign the dishes in an order to chefs according to their specialties.
• Show dish queues and their status, for Chefs.

Page 5

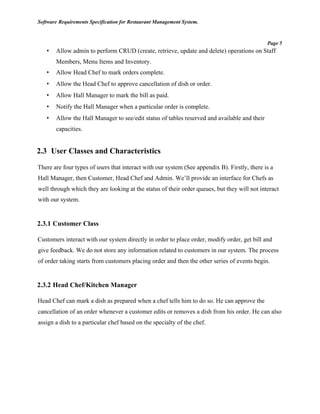

• Allow admin to perform CRUD (create, retrieve, update and delete) operations on Staff
Members, Menu Items and Inventory.
• Allow Head Chef to mark orders complete.
• Allow the Head Chef to approve cancellation of dish or order.
• Allow Hall Manager to mark the bill as paid.
• Notify the Hall Manager when a particular order is complete.
• Allow the Hall Manager to see/edit status of tables reserved and available and their
capacities.
2.3 User Classes and Characteristics
There are four types of users that interact with our system (See appendix B). Firstly, there is a
Hall Manager, then Customer, Head Chef and Admin. We’ll provide an interface for Chefs as
well through which they are looking at the status of their order queues, but they will not interact
with our system.
2.3.1 Customer Class
Customers interact with our system directly in order to place order, modify order, get bill and
give feedback. We do not store any information related to customers in our system. The process
of order taking starts from customers placing order and then the other series of events begin.
2.3.2 Head Chef/Kitchen Manager
Head Chef can mark a dish as prepared when a chef tells him to do so. He can approve the
cancellation of an order whenever a customer edits or removes a dish from his order. He can also
assign a dish to a particular chef based on the specialty of the chef.

Page 6

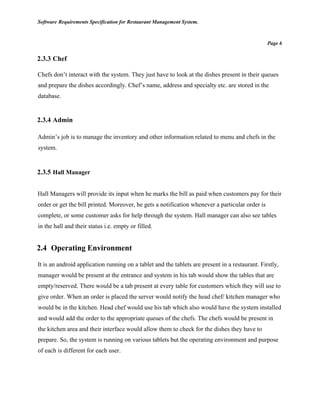

2.3.3 Chef
Chefs don’t interact with the system. They just have to look at the dishes present in their queues
and prepare the dishes accordingly. Chef’s name, address and specialty etc. are stored in the
database.
2.3.4 Admin
Admin’s job is to manage the inventory and other information related to menu and chefs in the
system.
2.3.5 Hall Manager
Hall Managers will provide its input when he marks the bill as paid when customers pay for their
order or get the bill printed. Moreover, he gets a notification whenever a particular order is
complete, or some customer asks for help through the system. Hall manager can also see tables
in the hall and their status i.e. empty or filled.
2.4 Operating Environment
It is an android application running on a tablet and the tablets are present in a restaurant. Firstly,
manager would be present at the entrance and system in his tab would show the tables that are
empty/reserved. There would be a tab present at every table for customers which they will use to
give order. When an order is placed the server would notify the head chef/ kitchen manager who
would be in the kitchen. Head chef would use his tab which also would have the system installed
and would add the order to the appropriate queues of the chefs. The chefs would be present in
the kitchen area and their interface would allow them to check for the dishes they have to
prepare. So, the system is running on various tablets but the operating environment and purpose
of each is different for each user.

Page 7
2.5 Design and Implementation Constraints
2.5.1 Operating System Constraint
System should be compatible and will smoothly run on Android version 6.0 or
above.
2.5.2 Device Constraint
Restaurant Management System’s core system and its user interfaces should be
compatible with tablets. However, running on small android mobile devices is not
necessary.
2.6 User Documentation
The software is accompanied by the following materials for further help:
● User Manual Version 1.0
● Online support at www.dinout.com
2.7 Assumptions and Dependencies
One assumption about the software is that it will always be used on tablets that have enough
resources to run the application. If the tablet does not have enough hardware resources available
for the application, there may be scenarios where the application does not work as intended or
not even at all.

Page 8

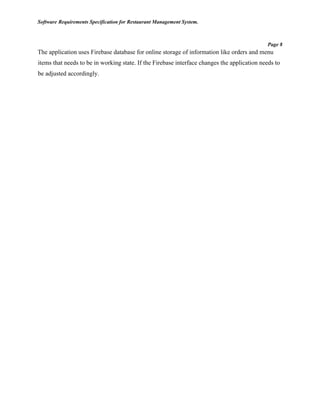

The application uses Firebase database for online storage of information like orders and menu
items that needs to be in working state. If the Firebase interface changes the application needs to
be adjusted accordingly.

9
Page

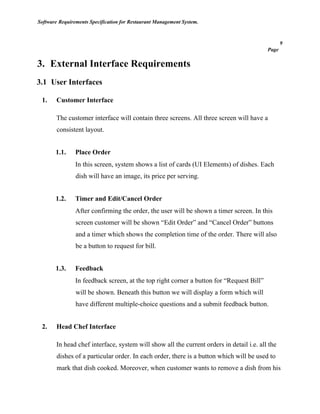

3. External Interface Requirements
3.1 User Interfaces
1. Customer Interface
The customer interface will contain three screens. All three screen will have a
consistent layout.
1.1. Place Order
In this screen, system shows a list of cards (UI Elements) of dishes. Each
dish will have an image, its price per serving.
1.2. Timer and Edit/Cancel Order
After confirming the order, the user will be shown a timer screen. In this
screen customer will be shown “Edit Order” and “Cancel Order” buttons
and a timer which shows the completion time of the order. There will also
be a button to request for bill.
1.3. Feedback
In feedback screen, at the top right corner a button for “Request Bill”
will be shown. Beneath this button we will display a form which will
have different multiple-choice questions and a submit feedback button.
2. Head Chef Interface
In head chef interface, system will show all the current orders in detail i.e. all the
dishes of a particular order. In each order, there is a button which will be used to
mark that dish cooked. Moreover, when customer wants to remove a dish from his

Page 10

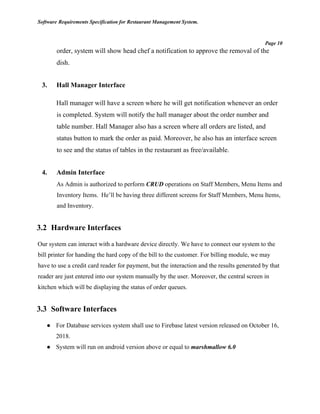

order, system will show head chef a notification to approve the removal of the
dish.
3. Hall Manager Interface
Hall manager will have a screen where he will get notification whenever an order
is completed. System will notify the hall manager about the order number and
table number. Hall Manager also has a screen where all orders are listed, and
status button to mark the order as paid. Moreover, he also has an interface screen
to see and the status of tables in the restaurant as free/available.
4. Admin Interface
As Admin is authorized to perform CRUD operations on Staff Members, Menu Items and
Inventory Items. He’ll be having three different screens for Staff Members, Menu Items,
and Inventory.
3.2 Hardware Interfaces
Our system can interact with a hardware device directly. We have to connect our system to the
bill printer for handing the hard copy of the bill to the customer. For billing module, we may
have to use a credit card reader for payment, but the interaction and the results generated by that
reader are just entered into our system manually by the user. Moreover, the central screen in
kitchen which will be displaying the status of order queues.
3.3 Software Interfaces
● For Database services system shall use to Firebase latest version released on October 16,
2018.
● System will run on android version above or equal to marshmallow 6.0

11

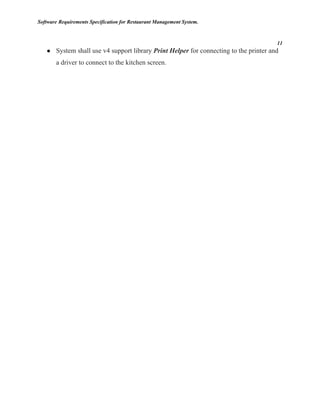

● System shall use v4 support library Print Helper for connecting to the printer and
a driver to connect to the kitchen screen.

Page 12
3.4 Communications Interfaces
Restaurant Management System is an android application and it will communicate with Firebase
(which is a storage server provided by Google for android developers). Firebase uses HTTP
protocol for communication, so our device will follow HTTP protocol when connecting to
Firebase.
4. System Requirements
4.1 Place Order
4.1.1 Description and Priority
The system will give customers the ability to place their orders using our product.
It will display a list of available and unavailable dishes in the menu where
unavailable dishes will be grayed out. Customer will be able to select multiple
dishes and their quantity for a particular order.
Priority:
high
4.1.2 Stimulus/Response sequences
When user enters the order activity/page, initially system displays a list of
available and unavailable dishes along with their prices.
1. Stimulus:
Customer taps on an available dish.
Response:

Page 13
System shows a popup having name of the dish and price per serving.
Also, it contains a text box for the customer to enter the quantity, OK
button and a Cancel button.
1.1. Stimulus:
Customer taps on an unavailable dish.
Response:
Nothing happens.
2. Stimulus:
Customer enters the quantity and press OK button.
Response:
System closes the popup, shows a small green tick mark at the side of dish.
Below the tick mark it shows quantity selected and total price of that dish.
2.1. Stimulus:
If Customer taps on cancel button after 1.
Response:
the system closes the popup, and nothing happens.
3. Stimulus:
Customer taps on confirm order button at the bottom
Response:
System closes the order screen and displays a timer along with a
“Cancel Order” button and “Edit Order” button
4.1.3 Functional Requirements

Page 14
REQ-1: The system will show a list of cards (UI element) of dishes. Each card
will have a picture of the dish. Below the dish it shows the price in Rupees per
serving.
REQ-2: The system must show all available and unavailable dishes to the
Customer.
REQ-3: Tap on any of the displayed dish will result in a popup for quantity and a
green mark after quantity has been selected.
REQ-4: The popup for quantity input will not allow the user to enter letters,
negative numbers or any invalid characters.
REQ-5: After completing the order the system will display a timer “Time to
complete the order” and it is the total time required to serve the dish keeping in
view the previously queued orders. Moreover, it also shows a cancel order button.
REQ-6: Unavailable dishes must be displayed but their operations must be
disabled.

Page 15
4.2 Customer Help
Our system will provide help for the customer if the customer faces issues in using the
tab, there will be a ‘help’ option in his interface. If he faces issues in using the tab or want
some other assistance, he can notify the hall manager through the system.
Priority:
high
The home screen for the customer shows a help button on top right corner of the
screen.
4. Stimulus:
Customer taps on the help button.
Response:
System shows a popup with two buttons, “Call a waiter to manage order”,
“Call a waiter for help”
5. Stimulus:
Customer taps on any of the button.
Response:
System closes the popup and sends a notification to the Hall Manager.
Notification will include the table number of the Customer.
REQ-2: The system must give Customer the ability to ask for help.

Page 16
REQ-1: When the customer taps on “Call the waiter to manage order”. the system
must store that the above order was given by the waiter.
4.3 Chef Order Queue
Whenever a new order is placed by the Customer, the dishes in the orders are
classified into categories. The system has the information of specialty of each
chef, it will assign each dish to a corresponding chef and place it in the order
queue of that chef. There is a centralized screen in the kitchen which displays
queues for each chef. Each item in the queue is labeled with the name of the dish.
priority:
high
1. Stimulus:
Customer taps the “Confirm Order” button in “Place Order screen”.
Response:
Displays the dishes on kitchen screen in corresponding chef’s queue.
REQ-1: System will classify the dishes in the order according to category and
add this dish on a particular chef’s queue in the kitchen screen.

Page 17
4.4 Edit Order
Customer can edit the order any time before the serving. In editing mode, the customer
can change the quantity of the of the food ordered, add and remove dishes from the order.
priority:
high
The timer screen shows two buttons “Cancel Order” and “Edit Order” button
1. Stimulus:
Customer taps on “Edit Order” button.
Response:
System shows the previous menu screen where selected dishes are already
marked with green tick.
2. Stimulus:
Customer taps on any of the selected dish.
Response:
System opens a popup with previous quantity pre-filled. This popup will
also contain a button “Remove Dish”.
3. Stimulus:
Customer enters new quantity and press “OK”
Response:

Page 18
System shows an error “Cannot edit <Name> dish” or System closes the
popup and new quantity will be displayed on that dish in the list.
4. Stimulus:
Customer taps on “Remove Dish” Response: system responds with
“Dish <Name> removed” or “Dish <Name> cannot be removed”
5. Stimulus:
Customer taps on any new dish which was not previously selected
Response:
stimuli/Responses of “Place Order” feature will be followed.
REQ-1:
System must allow the Customer to increase, decrease or even remove the
dish from the order any time before serving.
REQ-2:
System must remove the dish or decrease quantity of the dish with the
approval of head chef.
4.5 Cancel Order
Our system will also provide an option to cancel the current order. When the
customer taps on the “Cancel Order” button. Customer can cancel the order at any
time before serving.

Page 19
priority:
high
1. Stimulus:
Customer taps on the “Cancel Order” button Response: system
responds with a popup “Order canceled successfully” or “Order cannot
be cancelled”
REQ-1:
System must allow the customer to cancel order at any time before serving.
REQ-2:
In cancel order, all the dishes will be presented for approval to the head chef. Only
approved dishes will be dropped.
4.6 Mark Dish as Cooked
The head chef can mark the dish of a particular order complete when notified by
the chef.
priority:
high

Page 20

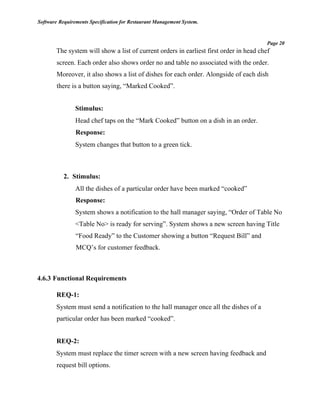

The system will show a list of current orders in earliest first order in head chef
screen. Each order also shows order no and table no associated with the order.
Moreover, it also shows a list of dishes for each order. Alongside of each dish
there is a button saying, “Marked Cooked”.
Stimulus:
Head chef taps on the “Mark Cooked” button on a dish in an order.
Response:
System changes that button to a green tick.
2. Stimulus:
All the dishes of a particular order have been marked “cooked”
Response:
System shows a notification to the hall manager saying, “Order of Table No
<Table No> is ready for serving”. System shows a new screen having Title
“Food Ready” to the Customer showing a button “Request Bill” and
MCQ’s for customer feedback.
REQ-1:
System must send a notification to the hall manager once all the dishes of a
particular order has been marked “cooked”.
REQ-2:
System must replace the timer screen with a new screen having feedback and
request bill options.

Page 21
4.7 Request Bill
Request bill option gives the ability to the customer to ask for receipt and pay the
bill.
priority:
high
1. Stimulus:
Customer taps on the request bill button
Response:
The system prints the bill through a printer. System will add a bill to
the hall manager’s view with the button that says “paid”.
REQ-1: The system must notify the hall manager that a customer has request for a
bill
REQ-2: The system must show Hall manager the order no, table no and total
payable amount
REQ-3: The system must give ability to the hall manager to change the status of
the bill to paid.

Page 22

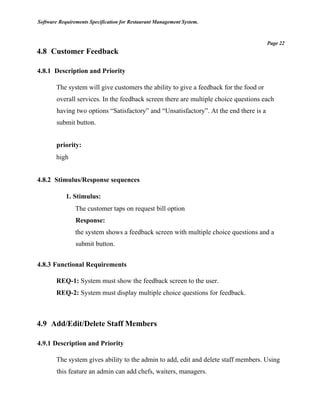

4.8 Customer Feedback
The system will give customers the ability to give a feedback for the food or
overall services. In the feedback screen there are multiple choice questions each
having two options “Satisfactory” and “Unsatisfactory”. At the end there is a
submit button.
priority:
high
1. Stimulus:
The customer taps on request bill option
Response:
the system shows a feedback screen with multiple choice questions and a
submit button.
REQ-1: System must show the feedback screen to the user.
REQ-2: System must display multiple choice questions for feedback.
4.9 Add/Edit/Delete Staff Members
The system gives ability to the admin to add, edit and delete staff members. Using
this feature an admin can add chefs, waiters, managers.

Page 23
priority:
high
Admin/Manage screen shows a grid of staff members. There is a button at the top
of grid which says Add Member. In the grid after every entry there is a “Edit” and
“Remove” button.
1. Stimulus:
Admin taps on “Add Staff” button Response:
System opens another screen with a form
2. Stimulus:
Admin fills the information and hit submit Response:
System responds with “<Staff Member> added successfully”
3. Stimulus:
Admin taps on edit button Response:
System opens a screen with a form prefilled with the existing values.
4. Stimulus:
Admin edits the information and hit submit Response:
System responds with “<Staff Member> edited successfully”
5. Stimulus:
Admin taps on remove button on a particular row Response:
responds with a “<Staff Name> removed successfully”

Page 24
REQ-1: Admin should be able to add all necessary information about the staff
member
REQ-2: System must give admin the ability to edit information about all staff
members
REQ-3: System must give admin the ability to remove staff members.
4.10 Add/Edit/Delete Menu Items
The system gives ability to the admin to add, edit and delete staff members. Using
this feature an admin can add chefs, waiters, managers.
priority:
high
4.10.2 Stimulus/response sequences
Admin screen shows all the previously added dishes. It also shows a “Add Dish” button
along with “Edit” and “Remove” with all the available dishes
1. Stimulus:
Admin taps on “Add Dish” button
Response:
System opens another screen with a form

Page 25
2. Stimulus:
Admin fills the information and hit submit
Response:
System responds with “<Dish> added successfully”
6. Stimulus:
Admin taps on edit button
Response:
System opens a screen with a form prefilled with the existing values.
7. Stimulus:
Admin edits the information and hit submit
Response:
System responds with “<Dish Member> edited successfully”
8. Stimulus:
Admin taps on remove button on a particular row
Response:
responds with a “<Dish> removed successfully”
REQ-1: Admin should be able to add all necessary information about the staff
member
REQ-2: System must give admin the ability to edit information about all staff
members

Page 26
REQ-3: System must give admin the ability to remove staff members.
5. Nonfunctional Requirements
5.1 Performance Requirements
The system must be interactive, and the delays involved must be less. So, in every
actionresponse of the system, there are no immediate delays. In case of scrolling through
the menu there should be a delay of no more than 2 second before the next page of menu
items is displayed otherwise our people’s dining experience is affected. The order should be
placed in pending orders and be visible to the head chef/chefs in less than 1 second to start
the preparation.
Cancel Order/ updates must be made with little delay to avoid delivery delay. Also, when
connecting to the Firebase server the delay to make a successful connection should be
less for effective real time communication.
5.2 Safety Requirements
The software is completely environmentally friendly and does not cause any safety violations.
The menu will have a flexible font that can be zoomed so as to not over constrain the eyes.
5.3 Security Requirements
There is a need for a proper and encrypted login authentication for head chef and admin as
employee sensitive information as well as inventory should be protected from hacking.
Information transmission should be securely transmitted to Firebase without any changes in
information to avoid disturbances in orders and billing
5.4 Software Quality Attributes
5.4.1 Adaptability:

Page 27
There can be a change in the menu and information stored in the database about
employees and inventory.
5.4.2 Availability:
The system is up and running for most of the time and server is not down for more than a
few minutes to avoid inconvenience of the customers.
5.4.3 Correctness:
The bill generated by the application must be accurate and the orders placed should
exactly be the same which the user has selected.
5.4.4 Flexibility:
If need arises in the future, software can be modified to change the requirements.
5.4.5 Interoperability:
The data is transferred from the customer’s end to the kitchen and then head chef assigns
orders to each chef. This way data is transferred from one part of the system to another.
5.4.6 Maintainability:
Software can be easily repaired if a fault occurs.
5.4.7 Portability:

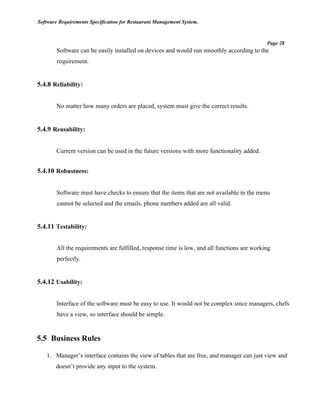

Page 28
Software can be easily installed on devices and would run smoothly according to the
requirement.
5.4.8 Reliability:
No matter how many orders are placed, system must give the correct results.
5.4.9 Reusability:
Current version can be used in the future versions with more functionality added.
5.4.10 Robustness:
Software must have checks to ensure that the items that are not available in the menu
cannot be selected and the emails, phone numbers added are all valid.
5.4.11 Testability:
All the requirements are fulfilled, response time is low, and all functions are working
perfectly.
5.4.12 Usability:
Interface of the software must be easy to use. It would not be complex since managers, chefs
have a view, so interface should be simple.
5.5 Business Rules
1. Manager’s interface contains the view of tables that are free, and manager can just view and
doesn’t provide any input to the system.

Page 29
2. Once the bill is paid, manager can mark the order as paid.
3. Admin has access to perform add, delete, update operations on the database for menu,
inventory, employees and no other person can modify the data in the db.
4. Customers can place order from the list of available items and can update order and pay bill.
5. Head chef assigns orders to chefs and can update the queues and has an additional
functionality of load balance.
6. Chefs can only view the orders and cannot remove an order from their queue. Only head chef
can interact with the queues containing orders.
Appendix A: Glossary
CRUD: In computer programming, create, read, update, and delete (CRUD) are the four basic
functions of persistent storage. Alternate words are sometimes used when defining the four basic
functions of CRUD, such as retrieve instead of reading, modify instead of update, or destroy
instead of deleting.
Print Helper: It is an android library that is used to connect to remote printer and send commands
to that printer for printing.
marshmallow 6.0: Android 6.0 "Marshmallow" is the sixth major version of the Android operating
system and the 13th version of Android. First released as a beta build on May 28, 2015, it was
officially released on October 5, 2015, with Nexus devices being the first to receive the update.
Appendix B: Analysis Models
Dish State Diagram

Page 30
Data Flow Diagram

Page 31
Use Case Diagram

Page 32
Appendix C: To Be Determined List
Weekly sales report and tracking most ordered dish and prioritizing its inventory stocking feature
(restock the items that are most ordered often) is yet to be determined by the client and may need
further meetings for elaboration.
Adding POS (point of sale) features to the application is yet to be determined as well.

Page 33
References
1. Android User Interface Guidelines, Available at:
https://developer.android.com/guide/practices/ui_guidelines/
2. IEEE. IEEE Std 830-1998 IEEE Recommended Practice for Software Requirements
Specifications. IEEE Computer Society, 1998.

System requirement system for restaurant management system.

More Related Content

What's hot

Similar to System requirement system for restaurant management system.

Recently uploaded

System requirement system for restaurant management system.
