1. KAMLESH KUMAR

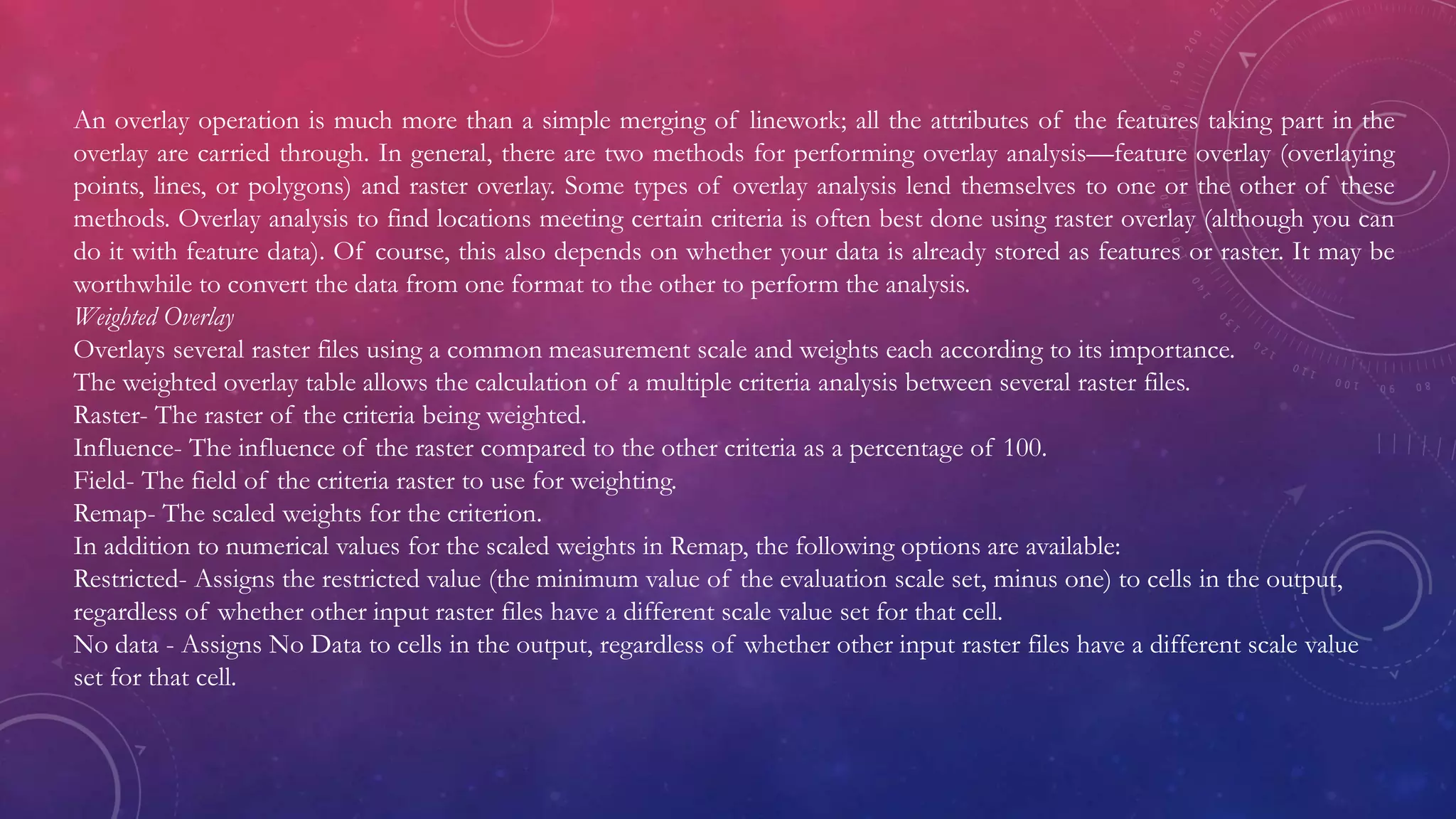

2. An overlay operation is much more than a simple merging of linework; all the attributes of the features taking part in the
overlay are carried through. In general, there are two methods for performing overlay analysis—feature overlay (overlaying
points, lines, or polygons) and raster overlay. Some types of overlay analysis lend themselves to one or the other of these
methods. Overlay analysis to find locations meeting certain criteria is often best done using raster overlay (although you can
do it with feature data). Of course, this also depends on whether your data is already stored as features or raster. It may be
worthwhile to convert the data from one format to the other to perform the analysis.
Weighted Overlay
Overlays several raster files using a common measurement scale and weights each according to its importance.
The weighted overlay table allows the calculation of a multiple criteria analysis between several raster files.
Raster- The raster of the criteria being weighted.
Influence- The influence of the raster compared to the other criteria as a percentage of 100.
Field- The field of the criteria raster to use for weighting.
Remap- The scaled weights for the criterion.
In addition to numerical values for the scaled weights in Remap, the following options are available:
Restricted- Assigns the restricted value (the minimum value of the evaluation scale set, minus one) to cells in the output,
regardless of whether other input raster files have a different scale value set for that cell.
No data - Assigns No Data to cells in the output, regardless of whether other input raster files have a different scale value
set for that cell.

3. Add both the classified
and unclassified image to
the window but the task
should be performed on
the unclassified image as
shown in the image.

4. LAYER – 1 RAINFALL

5. RAINFALL POINT FILE TO IDW(OUTPUT CELL SIZE - 50)

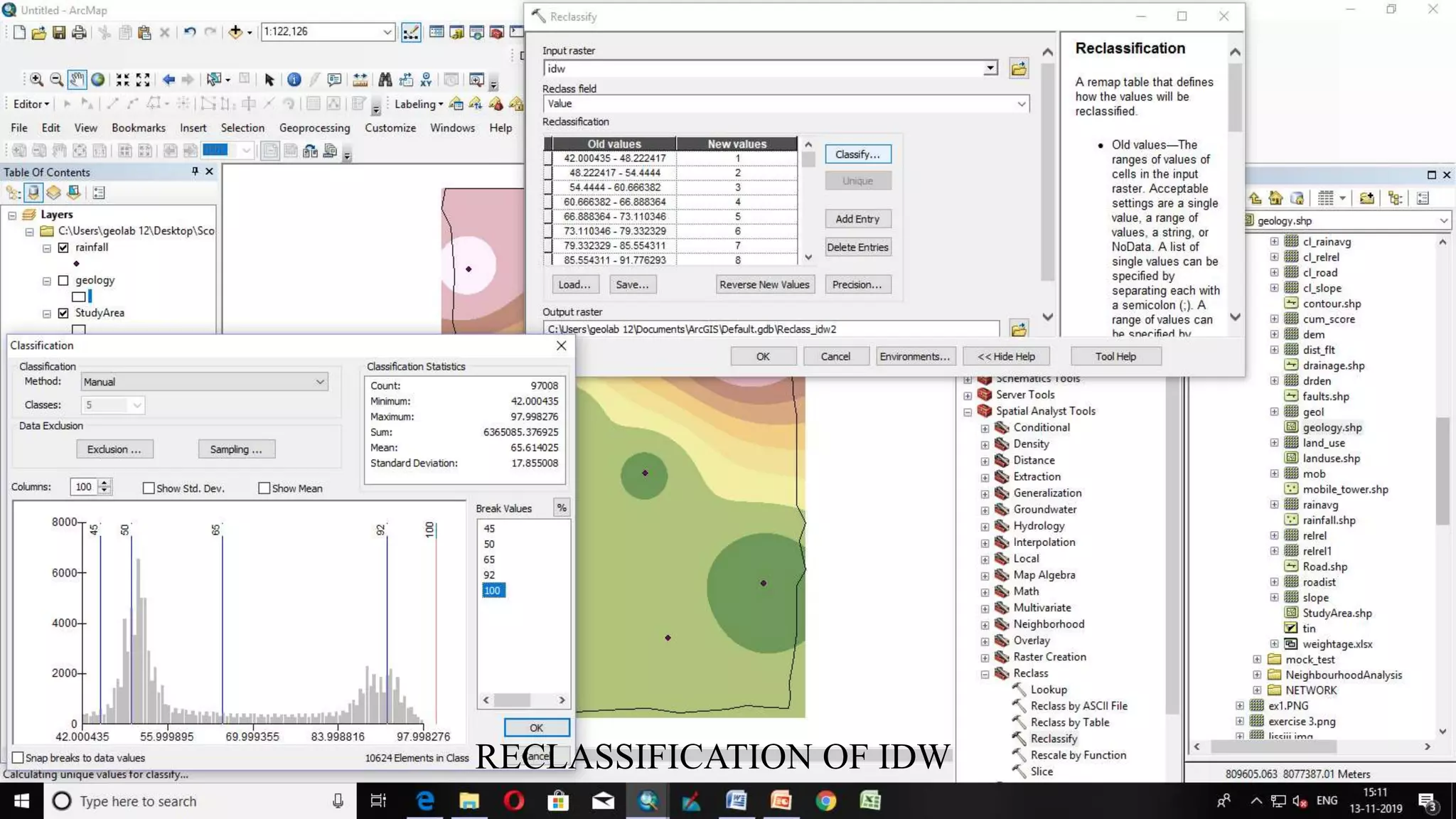

6. RECLASSIFICATION OF IDW

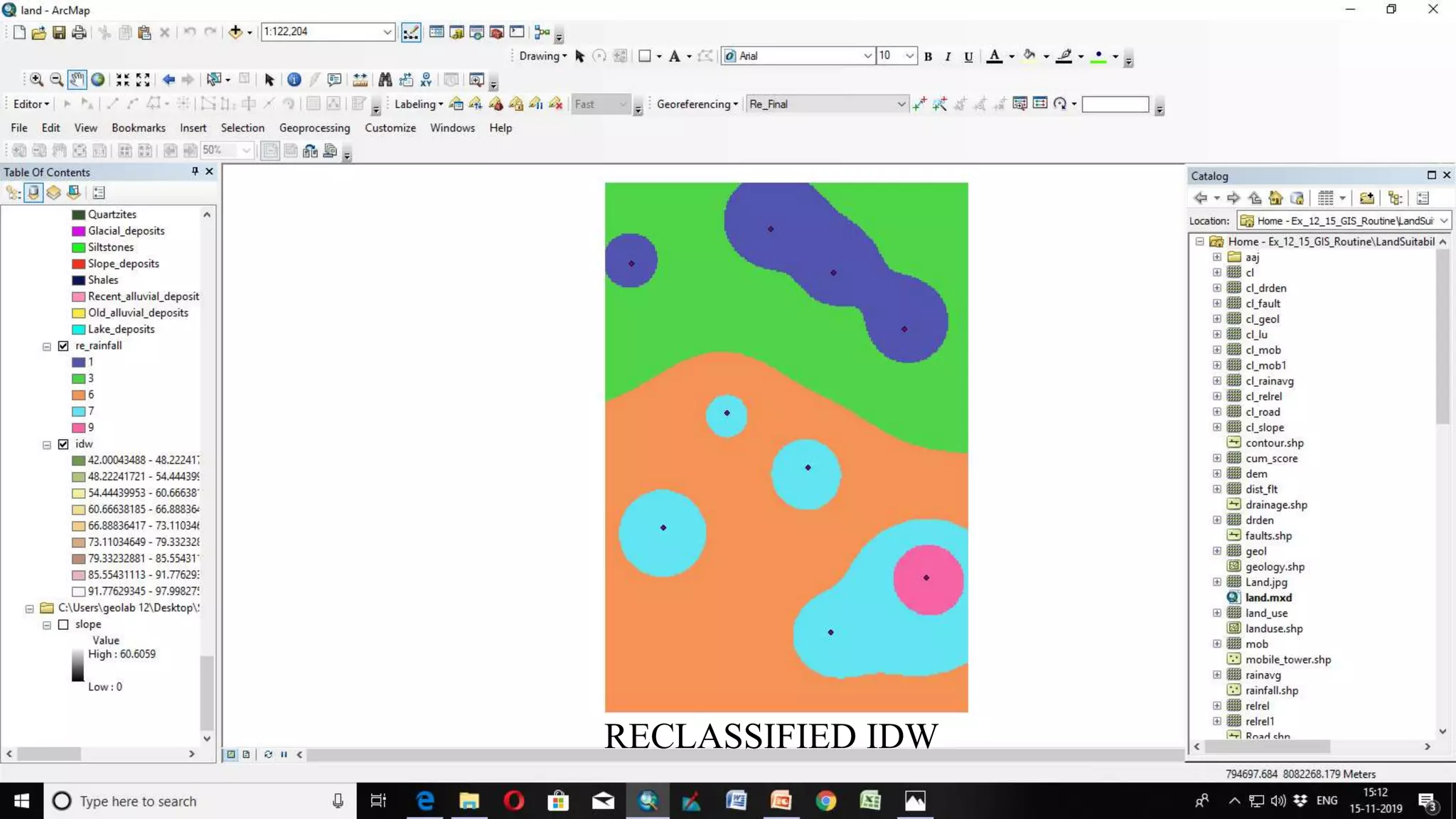

7. RECLASSIFIED IDW

8. LAYER 2: GEOLOGY

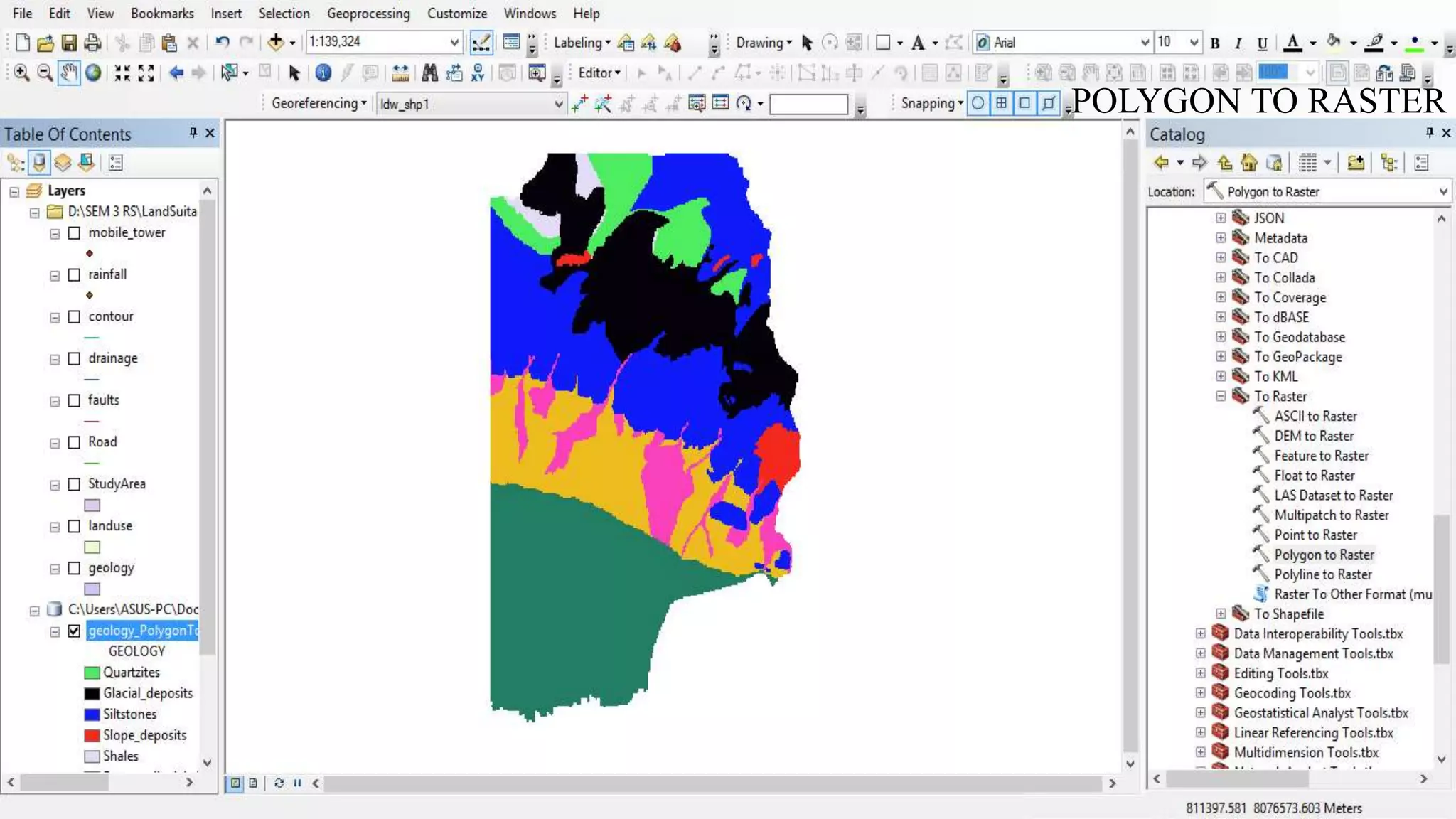

9. POLYGON TO RASTER

10. RECLASSIFIED LAYER

11. LAYER – 3 LANDUSE

12. POLYGON TO RASTER

13. RECLASSIFIED LAYER

14. LAYER -3 FAULTS

15. CALCULATE DISTANCE (EUCLIDIAN DISTANCE)

16. RECLASSIFIED LAYER

17. LAYER 5: DRAINAGE

18. CALCULATE DENSITY (LINE DENSITY WITH RADIUS-500)

19. RECLASSIFIED LAYER

20. LAYER 6: RELIEF

21. CREATE TIN

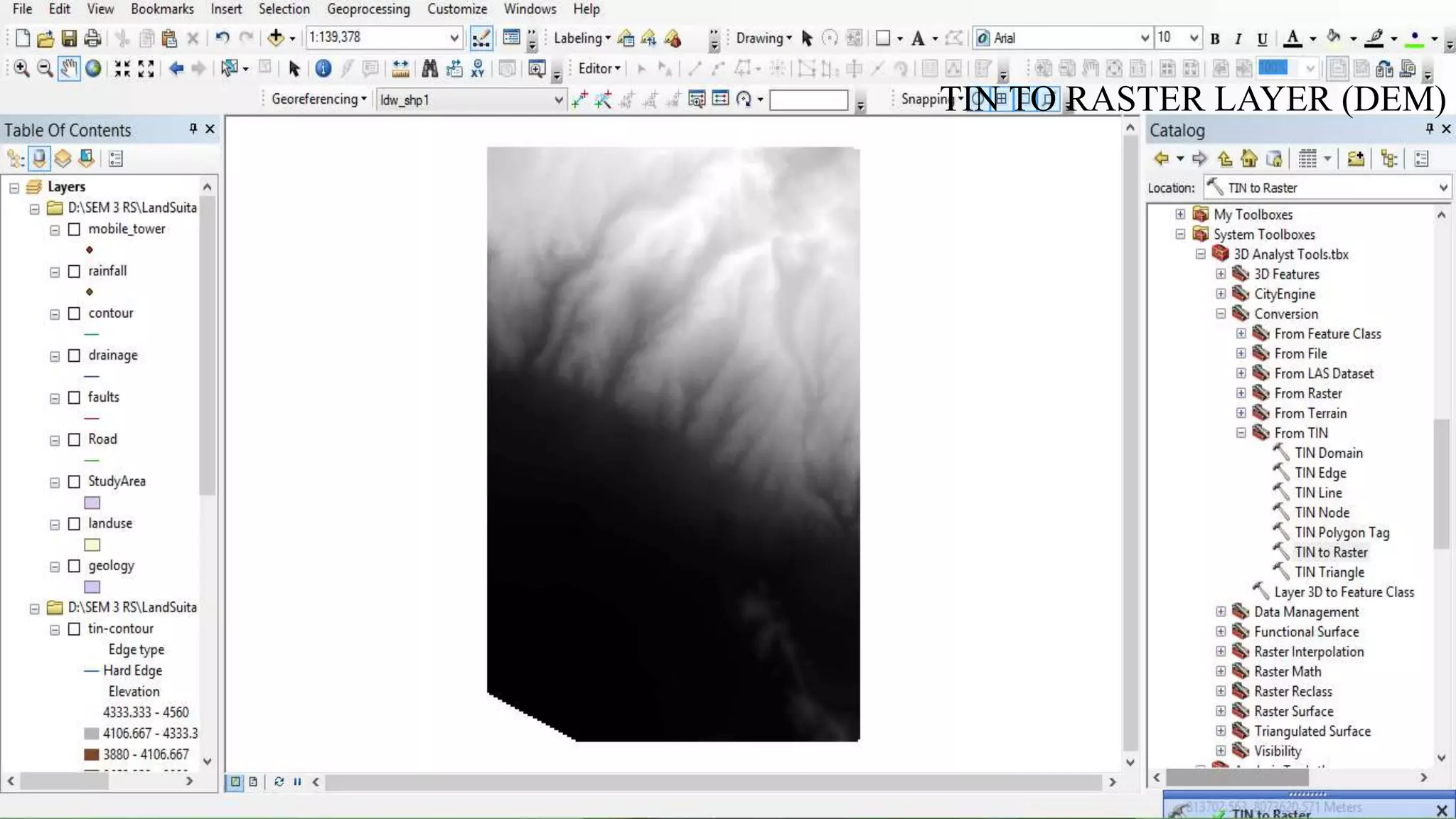

22. TIN TO RASTER LAYER (DEM)

23. NEIGHBOURHOOD → FOCAL STATISTICS

24. RECLASSIFIED LAYER

25. LAYER 7: SLOPE

26. Raster layer (DEM )

27. SLOPE

28. RECLASSIFIED LAYER

29. LAYER 8: MOBILE TOWERS

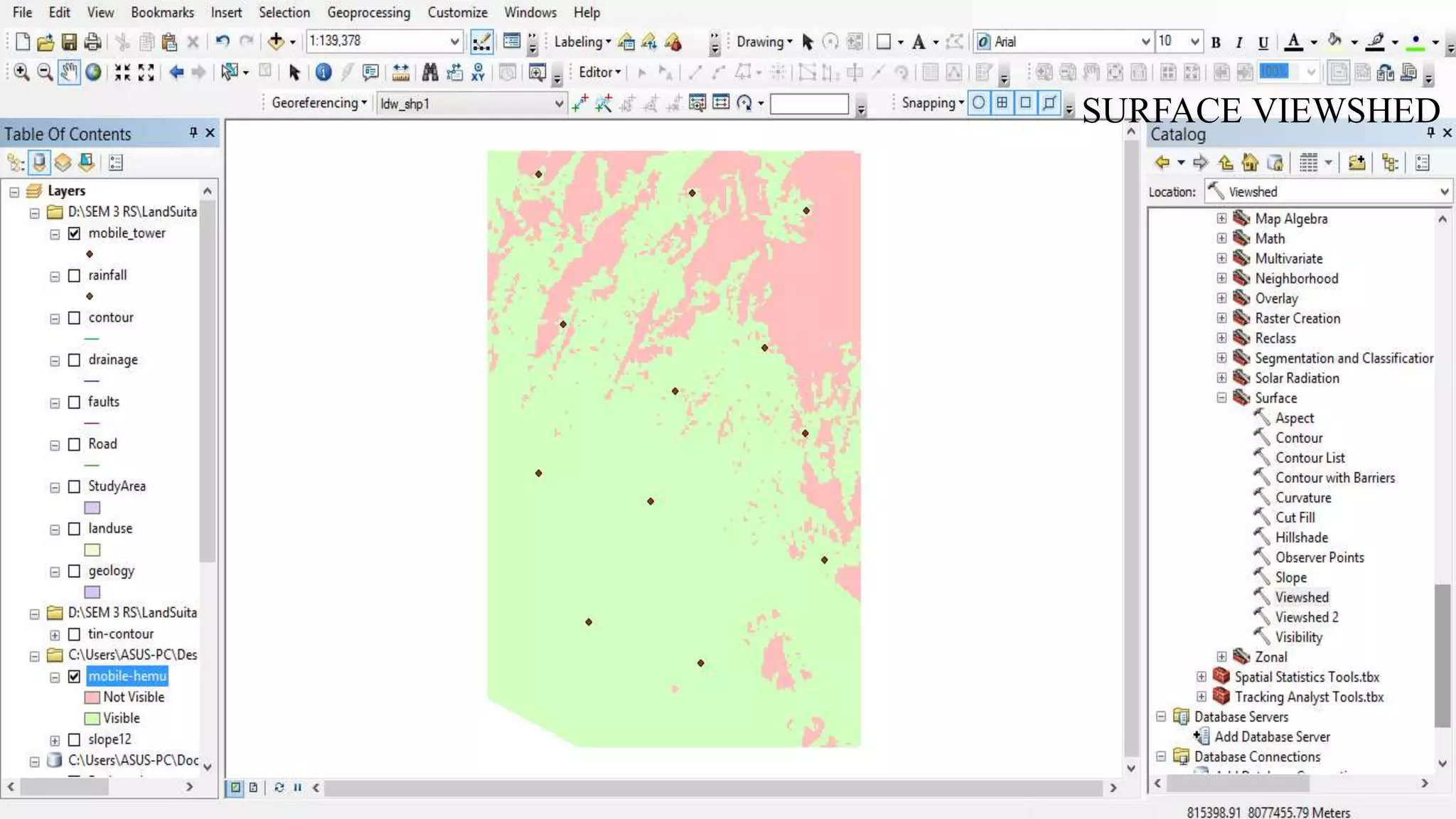

30. SURFACE VIEWSHED

31. RECLASSIFIED LAYER

32. LAYER 9: ROAD

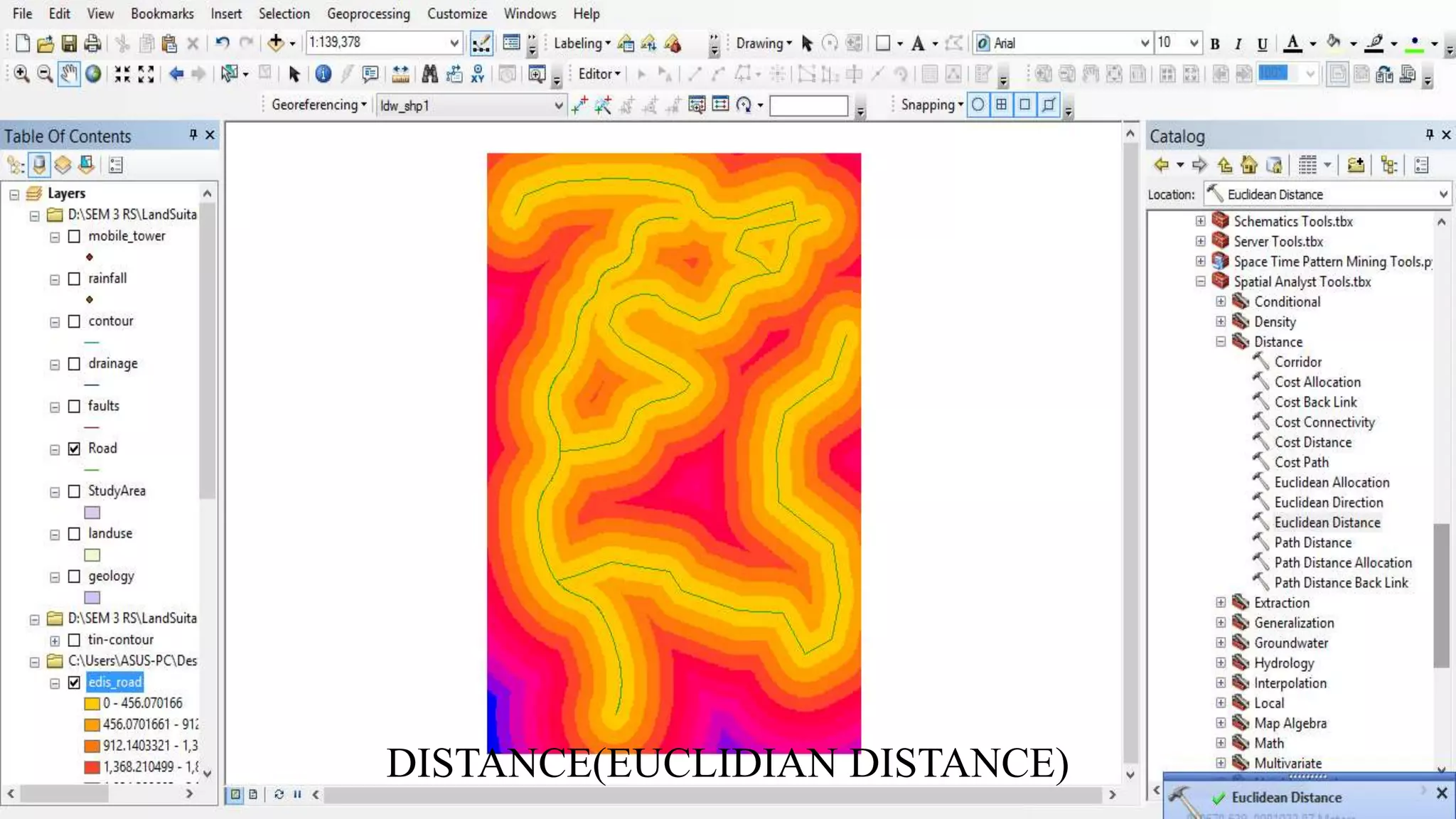

33. DISTANCE(EUCLIDIAN DISTANCE)

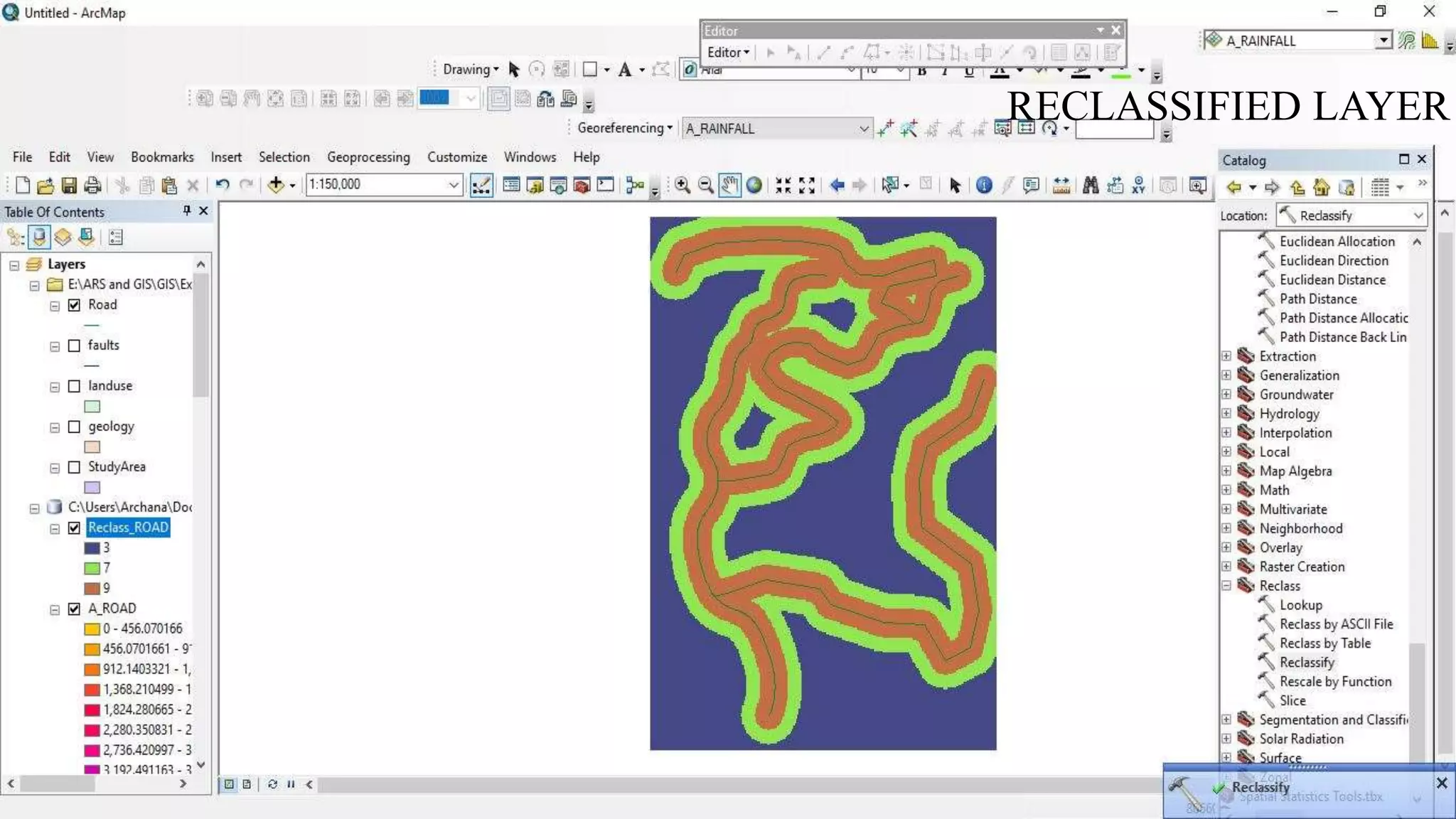

34. RECLASSIFIED LAYER

35. SPATIALANALYSIS TOOL → MAP ALGEBRA → RASTER CALCULATOR
FORMULA – (PRIORITY 1 * LAYER 1)+(PRIORITY 2 * LAYER 2)+(PRIORITY N * LAYER N)
INTEGRATION OF ALL LAYERS

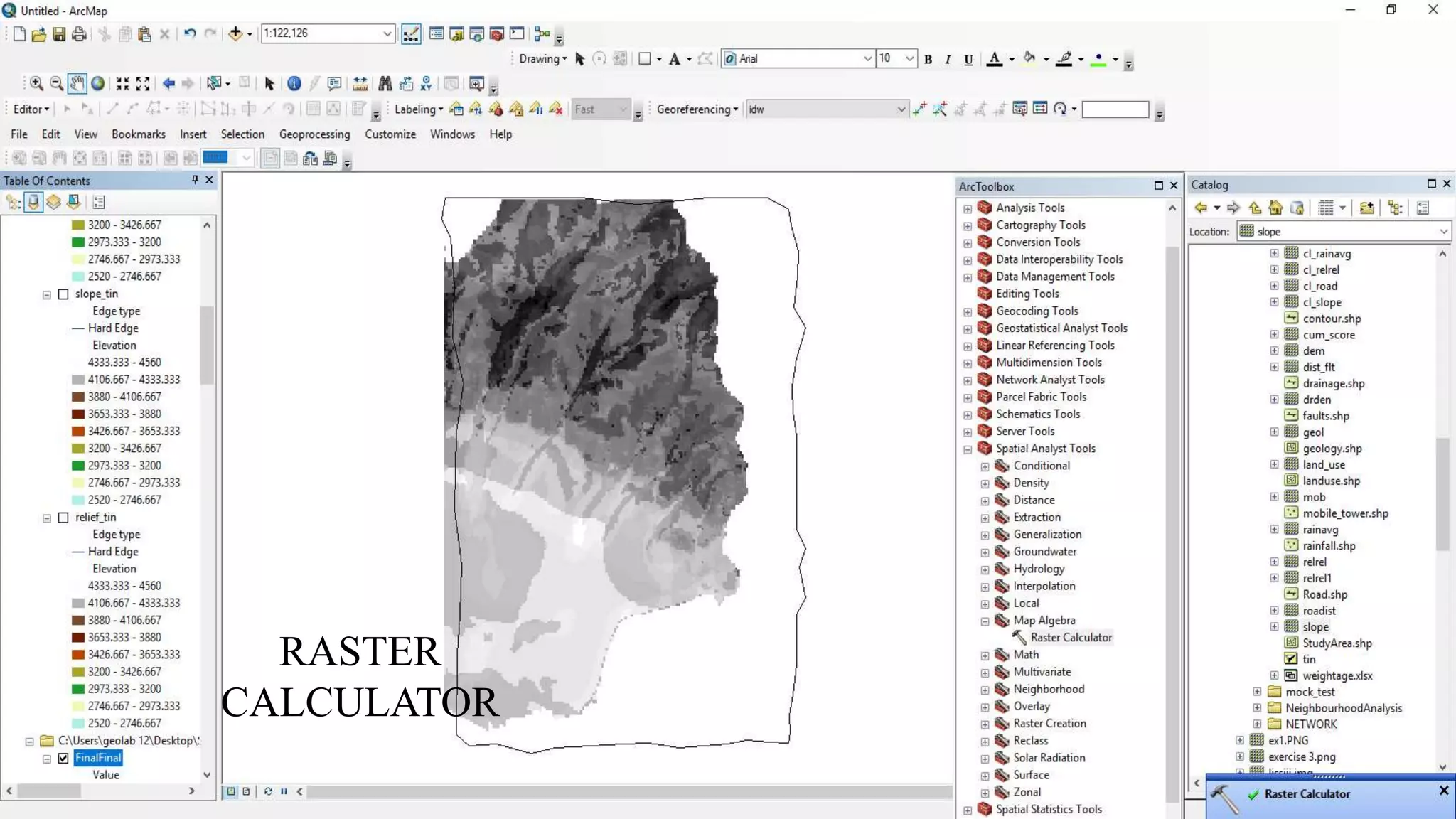

36. RASTER
CALCULATOR

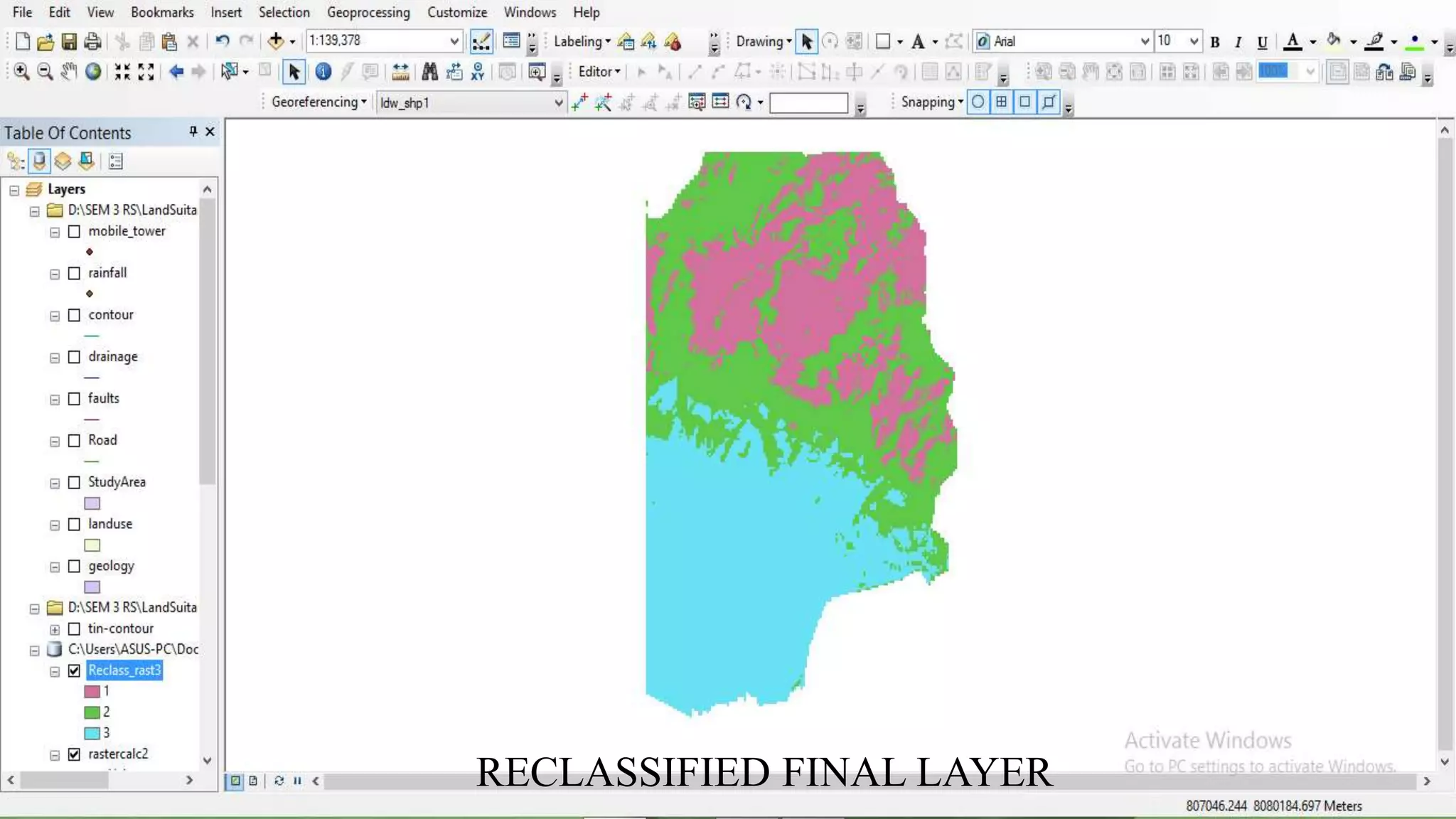

37. RECLASSIFIED FINAL LAYER

39. Signing off..
