1. Introduction to QoS
Protocols and RSVP
Jayaprakash.N

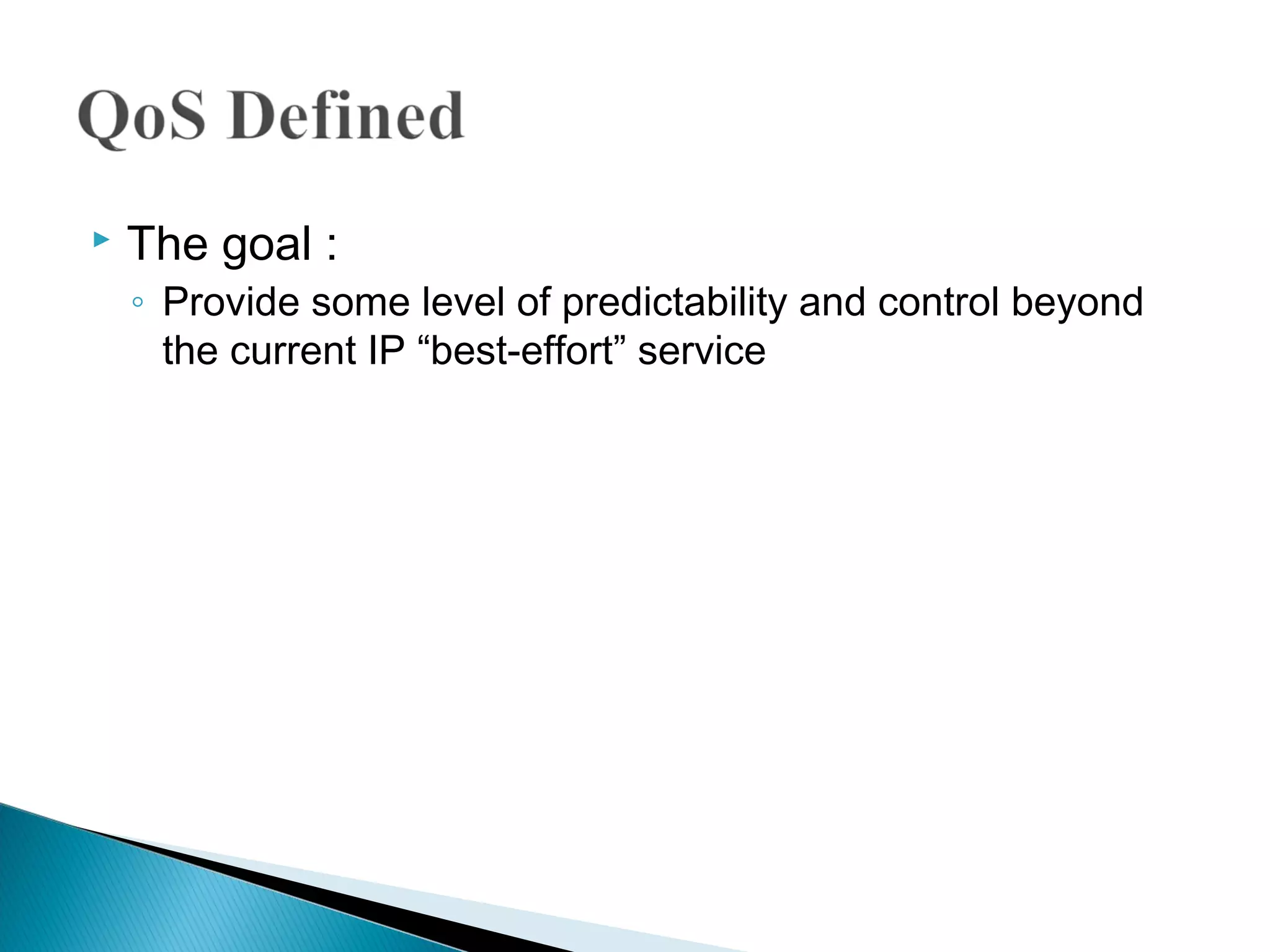

2.  The goal :
◦ Provide some level of predictability and control beyond
the current IP “best-effort” service

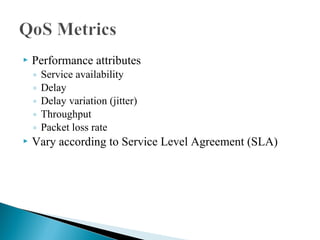

3.  Performance attributes
◦ Service availability
◦ Delay
◦ Delay variation (jitter)
◦ Throughput
◦ Packet loss rate
 Vary according to Service Level Agreement (SLA)

4.  ReSerVation Protocol (RSVP)
 Multi Protocol Labeling Switching (MPLS)
 Subnet Bandwidth Management (SBM)

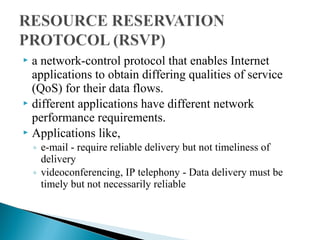

5.  a network-control protocol that enables Internet
applications to obtain differing qualities of service
(QoS) for their data flows.
 different applications have different network
performance requirements.
 Applications like,
◦ e-mail - require reliable delivery but not timeliness of
delivery
◦ videoconferencing, IP telephony - Data delivery must be
timely but not necessarily reliable

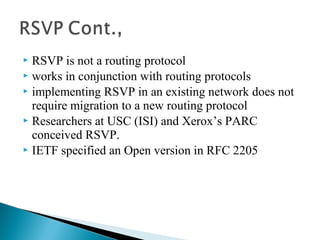

6.  RSVP is not a routing protocol
 works in conjunction with routing protocols
 implementing RSVP in an existing network does not
require migration to a new routing protocol
 Researchers at USC (ISI) and Xerox’s PARC
conceived RSVP.
 IETF specified an Open version in RFC 2205

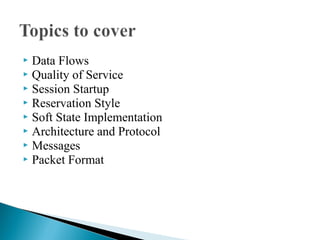

7.  Data Flows
 Quality of Service
 Session Startup
 Reservation Style
 Soft State Implementation
 Architecture and Protocol
 Messages
 Packet Format

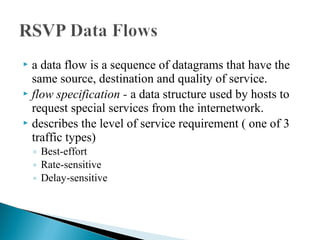

8.  a data flow is a sequence of datagrams that have the
same source, destination and quality of service.
 flow specification - a data structure used by hosts to
request special services from the internetwork.
 describes the level of service requirement ( one of 3
traffic types)
◦ Best-effort
◦ Rate-sensitive
◦ Delay-sensitive

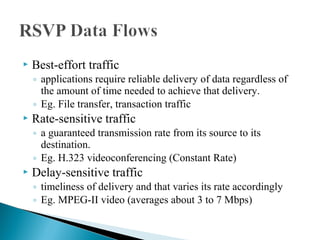

9.  Best-effort traffic
◦ applications require reliable delivery of data regardless of
the amount of time needed to achieve that delivery.
◦ Eg. File transfer, transaction traffic
 Rate-sensitive traffic
◦ a guaranteed transmission rate from its source to its
destination.
◦ Eg. H.323 videoconferencing (Constant Rate)
 Delay-sensitive traffic
◦ timeliness of delivery and that varies its rate accordingly
◦ Eg. MPEG-II video (averages about 3 to 7 Mbps)

10.  designed to manage flows of data rather than make
decisions
 Data flows consist of discrete sessions between specific
source and destination
 Sessions are identified by the following data:
destination address, protocol ID, and destination port.
 RSVP supports both unicast and multicast simplex
sessions.

11.  an attribute determine the way in which data
interchanges are handled by participating entities
(routers, receivers, and senders)
 used to specify the QoS by,
◦ Hosts (to request a QoS level from the network)
◦ Routers (deliver QoS requests to other routers along the
path(s))
 maintains the router and host state to provide the
requested service.

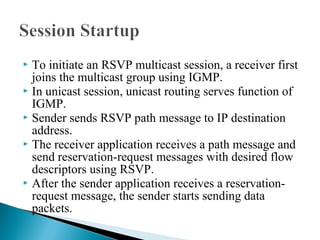

12.  To initiate an RSVP multicast session, a receiver first
joins the multicast group using IGMP.
 In unicast session, unicast routing serves function of
IGMP.
 Sender sends RSVP path message to IP destination
address.
 The receiver application receives a path message and
send reservation-request messages with desired flow
descriptors using RSVP.
 After the sender application receives a reservation-
request message, the sender starts sending data
packets.

13.  a set of control options that specify a number of
supported parameters
 supports two major classes of reservation:
◦ distinct reservations
 install a flow for each relevant sender in each session
◦ shared reservations
 used by a set of senders that are known not to interfere with each
other

14.  distinct and shared RSVP reservation-style types in
the context of their scope,
RSVP Supports Both Distinct Reservations and Shared Reservations

15.  Wildcard-Filter Style
◦ a single reservation is created into which flows from all
upstream senders are mixed.
◦ size is the largest of the resource requests for that link from
all receivers
 Fixed-Filter Style
◦ a distinct reservation request is created for data packets from
a particular sender
◦ scope is determined by an explicit list of senders
◦ The total reservation on a link for a given session is the total
of the FF reservations for all requested senders

16.  Shared-Explicit Style
◦ a shared reservation environment with an explicit reservation
scope
◦ the set of senders is specified explicitly by the receiver making
the reservation

17.  a soft state refers to a state in routers and end nodes
 updated by certain RSVP messages
 Permits dynamic group membership changes and
adapt to changes in routing
 To maintain a reservation state, RSVP tracks a soft
state in router and host nodes

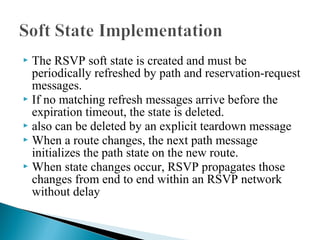

18.  The RSVP soft state is created and must be
periodically refreshed by path and reservation-request
messages.
 If no matching refresh messages arrive before the
expiration timeout, the state is deleted.
 also can be deleted by an explicit teardown message
 When a route changes, the next path message
initializes the path state on the new route.
 When state changes occur, RSVP propagates those
changes from end to end within an RSVP network
without delay

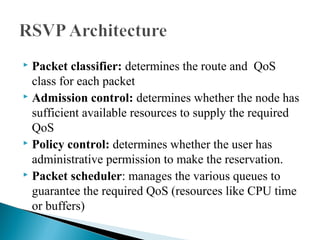

20.  Packet classifier: determines the route and QoS
class for each packet
 Admission control: determines whether the node has
sufficient available resources to supply the required
QoS
 Policy control: determines whether the user has
administrative permission to make the reservation.
 Packet scheduler: manages the various queues to
guarantee the required QoS (resources like CPU time
or buffers)

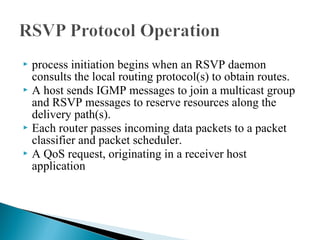

21.  process initiation begins when an RSVP daemon
consults the local routing protocol(s) to obtain routes.
 A host sends IGMP messages to join a multicast group
and RSVP messages to reserve resources along the
delivery path(s).
 Each router passes incoming data packets to a packet
classifier and packet scheduler.
 A QoS request, originating in a receiver host
application

22.  Protocol then is used to pass the request to all the
nodes (routers and hosts) along the reverse data
path(s) to the data source(s).
 At each node, the RSVP program applies a local
decision procedure called admission control and
policy control.
 If control succeeds, sets the parameters to obtain the
desired QoS
 If admission control fails at any node, the program
returns an error indication to the application that
originated the request.

23.  impossible to deploy RSVP or any new protocol at
the same moment throughout the entire Internet.
 when two RSVP-capable routers are interconnected
via non-RSVP routers
 Non-RSVP is incapable of performing resource
reservation
 but can provide acceptable and useful real-time
service
 RSVP supports tunneling, which occurs
automatically through non-RSVP routers.

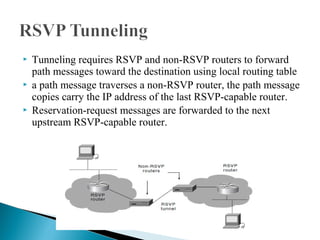

24.  Tunneling requires RSVP and non-RSVP routers to forward
path messages toward the destination using local routing table
 a path message traverses a non-RSVP router, the path message
copies carry the IP address of the last RSVP-capable router.
 Reservation-request messages are forwarded to the next
upstream RSVP-capable router.

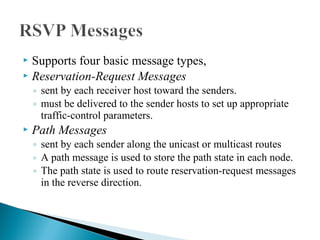

25.  Supports four basic message types,
 Reservation-Request Messages
◦ sent by each receiver host toward the senders.
◦ must be delivered to the sender hosts to set up appropriate
traffic-control parameters.
 Path Messages
◦ sent by each sender along the unicast or multicast routes
◦ A path message is used to store the path state in each node.
◦ The path state is used to route reservation-request messages
in the reverse direction.

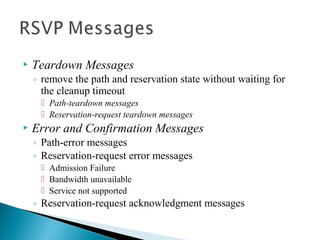

26.  Teardown Messages
◦ remove the path and reservation state without waiting for
the cleanup timeout
 Path-teardown messages
 Reservation-request teardown messages
 Error and Confirmation Messages
◦ Path-error messages
◦ Reservation-request error messages
 Admission Failure
 Bandwidth unavailable
 Service not supported
◦ Reservation-request acknowledgment messages

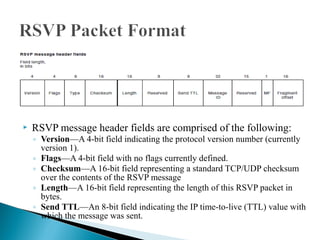

27.  RSVP message header fields are comprised of the following:
◦ Version—A 4-bit field indicating the protocol version number (currently
version 1).
◦ Flags—A 4-bit field with no flags currently defined.
◦ Checksum—A 16-bit field representing a standard TCP/UDP checksum
over the contents of the RSVP message
◦ Length—A 16-bit field representing the length of this RSVP packet in
bytes.
◦ Send TTL—An 8-bit field indicating the IP time-to-live (TTL) value with
which the message was sent.

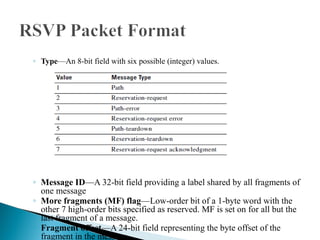

28. ◦ Type—An 8-bit field with six possible (integer) values.
◦ Message ID—A 32-bit field providing a label shared by all fragments of
one message
◦ More fragments (MF) flag—Low-order bit of a 1-byte word with the
other 7 high-order bits specified as reserved. MF is set on for all but the
last fragment of a message.
◦ Fragment offset—A 24-bit field representing the byte offset of the
fragment in the message

29.  RSVP is a transport layer protocol that enables a
network to provide differentiated levels of service to
specific flows of data.
 different application types have different performance
requirements.
 RSVP acknowledges these differences and provides
the mechanisms necessary to detect the levels of
performance required by different applications.

30.  Is it necessary to migrate away from your existing
routing protocol to support RSVP?
 Identify the three RSVP levels of service?
 What are the two RSVP reservation classes, and how
do they differ?
 How can RSVP be used through network regions that
do not support RSVP?

31. Thank You

32.  MPLS is a packet forwarding technology which uses
labels to make data forwarding decisions.
 With MPLS, the Layer 3 header analysis is done just
once (when the packet enters the MPLS domain). Label
inspection drives subsequent packet forwarding.
 MPLS provides these beneficial applications:
◦ Virtual Private Networking (VPN)
◦ Traffic Engineering (TE)
◦ Quality of Service (QoS)
◦ Any Transport over MPLS (AToM)
 Additionally, it decreases the forwarding overhead on the
core routers. MPLS technologies are applicable to any
network layer protocol.

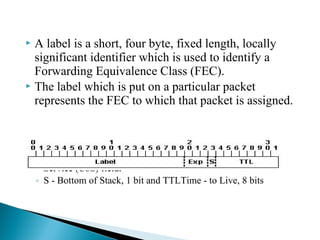

33.  A label is a short, four byte, fixed length, locally
significant identifier which is used to identify a
Forwarding Equivalence Class (FEC).
 The label which is put on a particular packet
represents the FEC to which that packet is assigned.
◦ Label - Label Value (Unstructured), 20 bits
◦ Exp - Experimental Use, 3 bits; currently used as a Class of
Service (CoS) field.
◦ S - Bottom of Stack, 1 bit and TTLTime - to Live, 8 bits

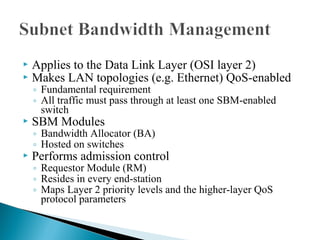

34.  Applies to the Data Link Layer (OSI layer 2)
 Makes LAN topologies (e.g. Ethernet) QoS-enabled
◦ Fundamental requirement
◦ All traffic must pass through at least one SBM-enabled
switch
 SBM Modules
◦ Bandwidth Allocator (BA)
◦ Hosted on switches
 Performs admission control
◦ Requestor Module (RM)
◦ Resides in every end-station
◦ Maps Layer 2 priority levels and the higher-layer QoS
protocol parameters

35. Thanks
