2. • Rapid Mixer Granulator is designed to achieve
excellent mixing and consistent granules at
lower
• operating cost along with higher productivity.
Better mixing and closed control of granule
size
• leads to faster tableting speeds with improved
quality and least rejections
8/21/2015 2

3. 8/21/2015 3

4. 8/21/2015 4

5. 8/21/2015 5

6. 8/21/2015 6

7. Container top view
8/21/2015 7

8. 8/21/2015 8

9. Working Principle of rapid mixer
granulator
• Blending and wet massing is accomplished by
high mechanical agitation by an impeller
chopper.
• Mixing, densification, and agglomeration of
wetted materials are achieved through
shearing and compaction forces exerted by
the impeller
8/21/2015 9

10. • The impeller rotates on the vertical shaft at a
rotational speed corresponding to a radial
blade tip speed of approximately 5-15 m/s.
the chopper rotates at a similar tip speed
which, because of its small diameter
corresponds to a very high rotation speed in
revolutions per minute (rpm)(i.e. 1500-4000
rpm).
8/21/2015 10

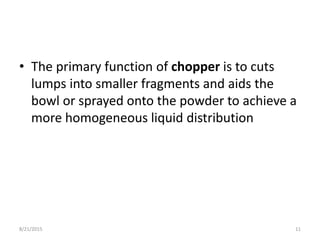

11. • The primary function of chopper is to cuts
lumps into smaller fragments and aids the
bowl or sprayed onto the powder to achieve a
more homogeneous liquid distribution
8/21/2015 11

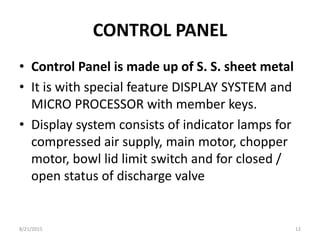

12. CONTROL PANEL
• Control Panel is made up of S. S. sheet metal
• It is with special feature DISPLAY SYSTEM and
MICRO PROCESSOR with member keys.
• Display system consists of indicator lamps for
compressed air supply, main motor, chopper
motor, bowl lid limit switch and for closed /
open status of discharge valve
8/21/2015 12

13. Operating valve
8/21/2015 13

14. • In case of insufficient compressed air supply
pressure switch contained in the panel will
prevent the machine from starting
• Limit switch is provided on main bowl lid, and
discharge valve,which will de-energies the
system when the lid is open
8/21/2015 14

15. FIG. - PRODUCT DISCHARGE VALVE
8/21/2015 15

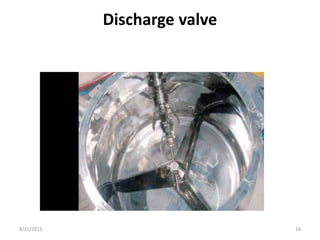

16. Discharge valve
8/21/2015 16
