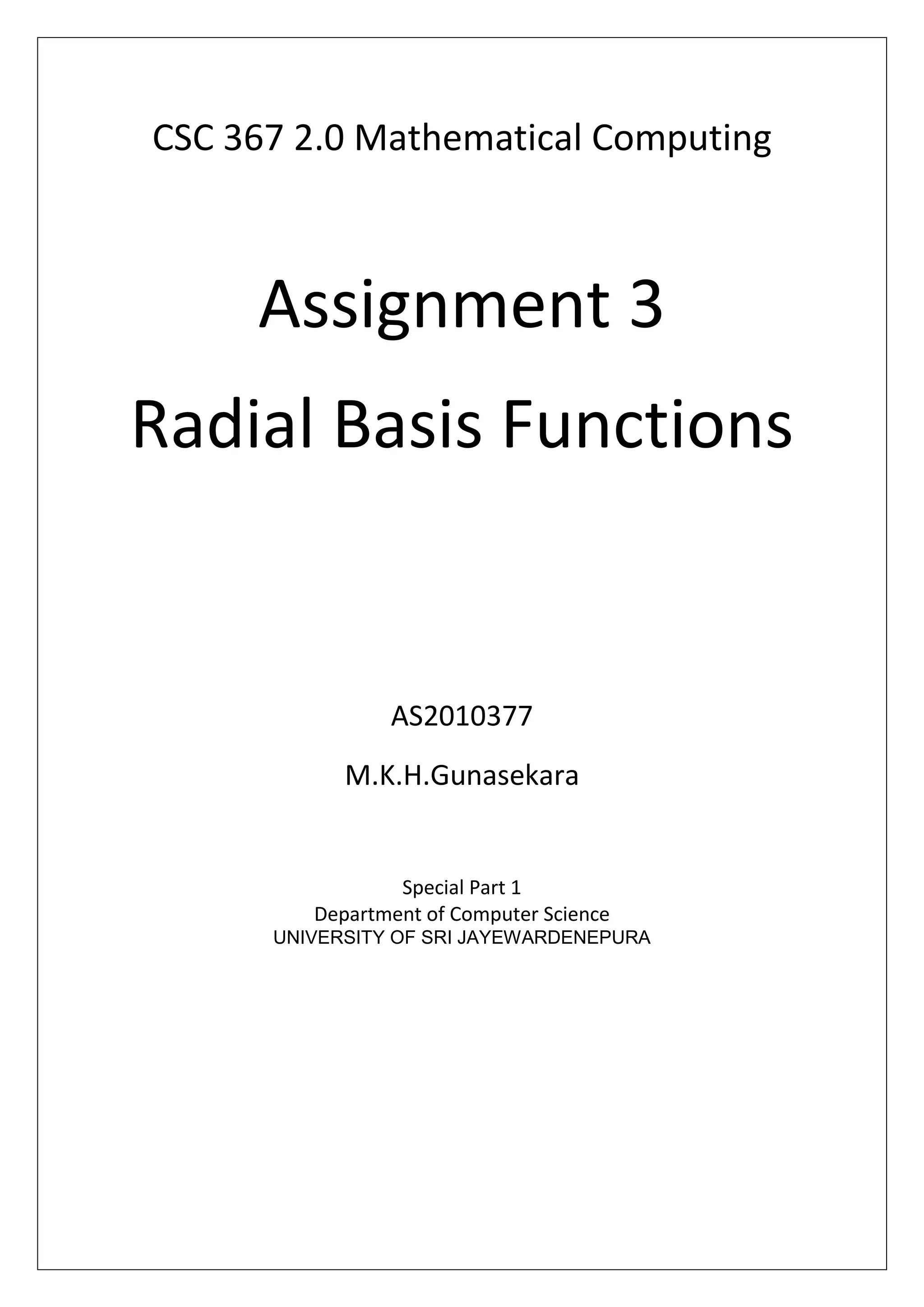

1. CSC 367 2.0 Mathematical Computing
Assignment 3
Radial Basis Functions
AS2010377
M.K.H.Gunasekara
Special Part 1
Department of Computer Science
UNIVERSITY OF SRI JAYEWARDENEPURA

2. M.K.H.Gunasekara - AS2010377
CSC 367 2.0 Mathematical Computing
Table of Contents
-
Introduction ............................................................................................................................................ 2
Methodology........................................................................................................................................... 3
Implementation ...................................................................................................................................... 5
Results ..................................................................................................................................................... 6
Discussion.............................................................................................................................................. 10
Appendices............................................................................................................................................ 11
1|Page

3. M.K.H.Gunasekara - AS2010377
CSC 367 2.0 Mathematical Computing
Introduction
Neural Networks offer a powerful framework for representing nonlinear mappings from
several inputs to one or more outputs.
An important application of neural networks is regression. Instead of mapping the inputs
into a discrete class label, the neural network maps the input variables into continuous
values. A major class of neural networks is the radial basis function (RBF) neural network.
We will look at the architecture of RBF neural networks, followed by its applications in both
regression and classification.
In this report Radial Basis function is discussed for clustering as unsupervised learning
algorithm. Radial basis function is simulated to cluster three flowers in a given data set
which is available in http://archive.ics.uci.edu/ml/machine-learning-databases/iris/iris.data.
2|Page

4. M.K.H.Gunasekara - AS2010377
CSC 367 2.0 Mathematical Computing
Methodology
Radial Basis Function
Figure 01 : One hidden layer with Radial Basis Activation Functions
Radial basis function (RBF) networks typically have three layers
1. Input Layer
2. A hidden layer with a non-linear RBF activation function
3. Output Layer
Where N is the number of neurons in the hidden layer,
is the center vector for neuron i, and is
the weight of neuron i in the linear output neuron. Functions that depend only on the distance from
a center vector are radially symmetric about that vector, hence the name radial basis function. In the
basic form all inputs are connected to each hidden neuron. The norm is typically taken to be the
Euclidean distance and the radial basis function is commonly taken to be Gaussian Function
(
)
(
‖
‖
)
------ (1)
There are some other Radial Basis functions
Logistic Basis Function
( )
( )
Multi-quadratics
( )
√
3|Page

5. M.K.H.Gunasekara - AS2010377
CSC 367 2.0 Mathematical Computing
Input nodes connected by weights to a set of RBF neurons fire proportionately to the distance
between the input and the neuron in the weight space
The activation of these nodes is used as inputs to the second layer. The second layer (output layer) is
treated as a simple Perceptron network
Training the RBF Network
This can be done positioning the RBF nodes and using the activation of RBF nodes to train the linear
outputs.
Positioning RBF nodes can be done in two ways; First method is randomly picking some of the data
points to act as basis functions. And the second method is trying to position the nodes so that they
are representative of typical inputs, like using k-means clustering algorithm.
In Activation function there is standard deviation parameter.
One option is, giving all nodes the same size, and testing lots of different sizes using a validation set
to select one that works. Alternatively we can select the size of RBF nodes so that the whole space is
coved by the receptive fields. So the width of the Gaussian should be set according to the maximum
distance between the locations of the hidden nodes (d), and the number of hidden nodes (M)
------ (2)
√
We can use this normalized Gaussian function also.
(
‖
(
)
∑
(
‖
‖
)
‖
------ (3)
)
Outputs of the RBF Network:
(
‖
‖
)
Training the Perceptron Network
We can train Pereceptron Network by using supervised learning method. Therefore we train the
MLP Network according to targets.
4|Page

6. M.K.H.Gunasekara - AS2010377
CSC 367 2.0 Mathematical Computing
Implementation
Implementation was done using MATLAB 7.10 (2010). Implementation was done according to
following methods
1.
2.
3.
4.
5.
Locate RBF nodes into centers
Calculate for the Gaussian function
Calculate outputs of the RBF layer – Unsupervised Training
Make Perceptron Network for second layer –( I used MLP network without a hidden layer)
Train MLP Network according to targets and inputs (inputs are the output of RBF network) –
Supervised Training
6. Simulate the network
I have implement RBF Network with different strategies to compare the results





Using Randomly selected centers
Using K-Means Cluster centers
Using Non-normalized Gaussian function
Using Normalized Gaussian function
Using SVM for second layer
