GraphRAG for Life Science
By Tomaz Bratanic

2. 2
LLM-based chatbots
Using the retrieval-augmented generation

3. © 2022 Neo4j, Inc. All rights reserved.
3

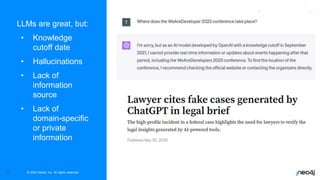

LLMs are great, but:
• Knowledge
cutoff date
• Hallucinations
• Lack of
information
source
• Lack of
domain-specific
or private
information

4. Retrieval-augmented generation (in-context passing) flow

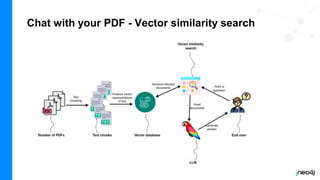

5. Chat with your PDF - Vector similarity search

7. © 2022 Neo4j, Inc. All rights reserved.
7

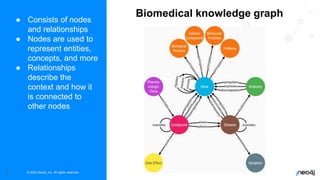

● Consists of nodes
and relationships
● Nodes are used to
represent entities,
concepts, and more
● Relationships
describe the
context and how it
is connected to
other nodes
Biomedical knowledge graph

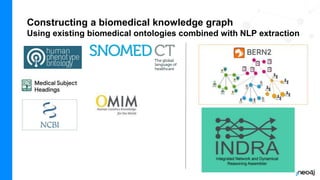

8. Constructing a biomedical knowledge graph
Using existing biomedical ontologies combined with NLP extraction

9. Graph RAG
MATCH(g:Gene)
WHERE g.id = $gene
MATCH (g)-[r:VARIANT_FOUND_IN_GENE]-(v:Known_variant)
WHERE NOT v.clinical_relevance = '-' AND NOT v.disease = '-'
RETURN g.id as gene, v.disease AS disease,
v.pvariant_id AS variant_id, v.clinical_relevance as relevance
LIMIT 20

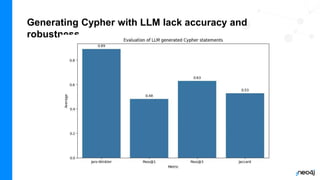

10. Generating Cypher with LLM lack accuracy and
robustness

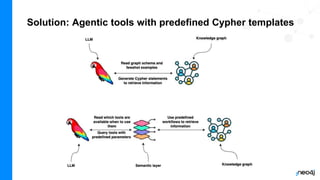

11. Solution: Agentic tools with predefined Cypher templates

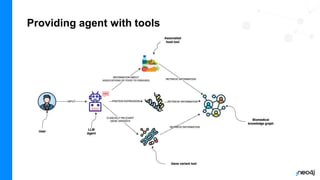

12. Providing agent with tools

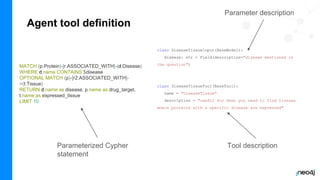

13. Agent tool definition
MATCH (p:Protein)-[r:ASSOCIATED_WITH]-(d:Disease)
WHERE d.name CONTAINS $disease
OPTIONAL MATCH (p)-[r2:ASSOCIATED_WITH]-
>(t:Tissue)
RETURN d.name as disease, p.name as drug_target,
t.name as expressed_tissue
LIMIT 10
class DiseaseTissueInput(BaseModel):
disease: str = Field(description="disease mentioned in
the question")
class DiseaseTissueTool(BaseTool):
name = "DiseaseTissue"
description = "useful for when you need to find tissues
where proteins with a specific disease are expressed"
Parameterized Cypher
statement
Parameter description
Tool description

14. 14
Demo time

15. 15
Questions
Repository: https://github.com/tomasonjo/clinical-agent
Slides:
Email: tomaz.bratanic@neo4j.com
LinkedIn: https://www.linkedin.com/in/tomaz-bratanic-a58891127/
