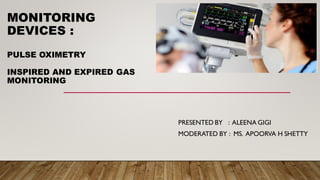

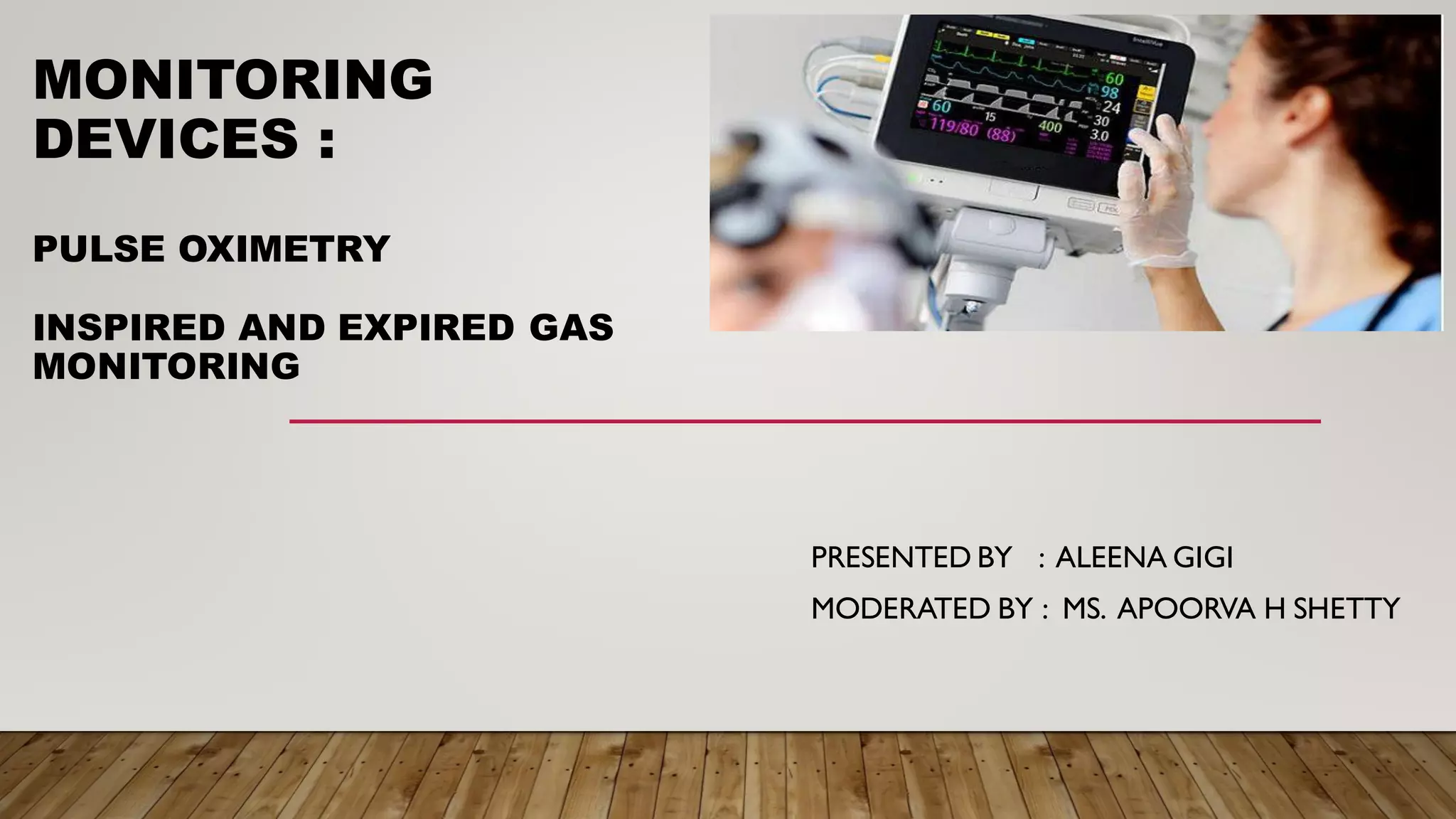

1. MONITORING
DEVICES :
PULSE OXIMETRY
INSPIRED AND EXPIRED GAS
MONITORING
PRESENTED BY : ALEENA GIGI
MODERATED BY : MS. APOORVA H SHETTY

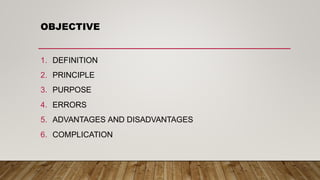

2. OBJECTIVE
1. DEFINITION
2. PRINCIPLE
3. PURPOSE
4. ERRORS
5. ADVANTAGES AND DISADVANTAGES
6. COMPLICATION

3. WHAT IS MONITORING ?
Monitoring generally means to be aware of the state of a system, to
observe a situation for any changes which may occur over time, using
a monitor or measuring device of some sort .

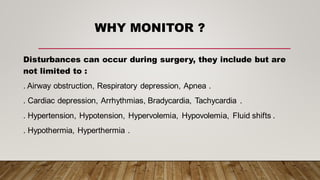

4. WHY MONITOR ?
Disturbances can occur during surgery, they include but are
not limited to :
. Airway obstruction, Respiratory depression, Apnea .
. Cardiac depression, Arrhythmias, Bradycardia, Tachycardia .
. Hypertension, Hypotension, Hypervolemia, Hypovolemia, Fluid shifts .
. Hypothermia, Hyperthermia .

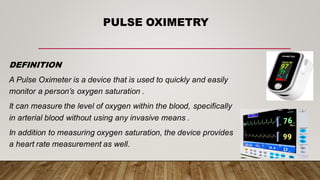

5. PULSE OXIMETRY
DEFINITION
A Pulse Oximeter is a device that is used to quickly and easily
monitor a person’s oxygen saturation .
It can measure the level of oxygen within the blood, specifically
in arterial blood without using any invasive means .
In addition to measuring oxygen saturation, the device provides
a heart rate measurement as well.

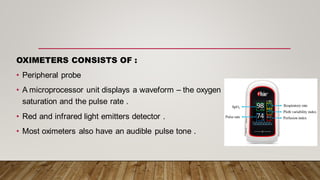

6. OXIMETERS CONSISTS OF :
• Peripheral probe
• A microprocessor unit displays a waveform – the oxygen
saturation and the pulse rate .
• Red and infrared light emitters detector .
• Most oximeters also have an audible pulse tone .

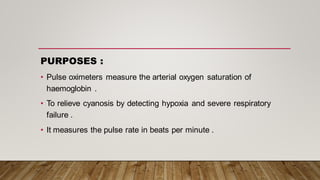

7. PURPOSES :
• Pulse oximeters measure the arterial oxygen saturation of
haemoglobin .
• To relieve cyanosis by detecting hypoxia and severe respiratory
failure .
• It measures the pulse rate in beats per minute .

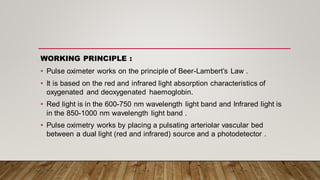

8. WORKING PRINCIPLE :
• Pulse oximeter works on the principle of Beer-Lambert’s Law .
• It is based on the red and infrared light absorption characteristics of
oxygenated and deoxygenated haemoglobin.
• Red light is in the 600-750 nm wavelength light band and Infrared light is
in the 850-1000 nm wavelength light band .
• Pulse oximetry works by placing a pulsating arteriolar vascular bed
between a dual light (red and infrared) source and a photodetector .

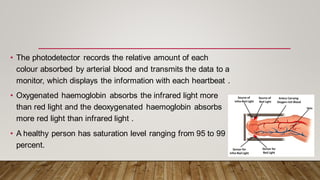

9. • The photodetector records the relative amount of each
colour absorbed by arterial blood and transmits the data to a
monitor, which displays the information with each heartbeat .
• Oxygenated haemoglobin absorbs the infrared light more
than red light and the deoxygenated haemoglobin absorbs
more red light than infrared light .
• A healthy person has saturation level ranging from 95 to 99
percent.

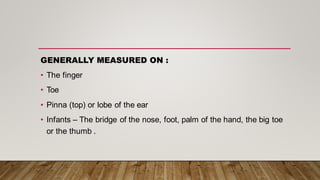

10. GENERALLY MEASURED ON :
• The finger
• Toe
• Pinna (top) or lobe of the ear
• Infants – The bridge of the nose, foot, palm of the hand, the big toe
or the thumb .

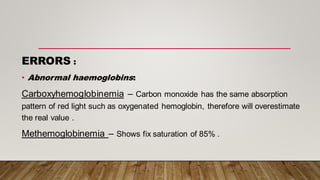

11. ERRORS :
• Abnormal haemoglobins:
Carboxyhemoglobinemia – Carbon monoxide has the same absorption
pattern of red light such as oxygenated hemoglobin, therefore will overestimate
the real value .
Methemoglobinemia – Shows fix saturation of 85% .

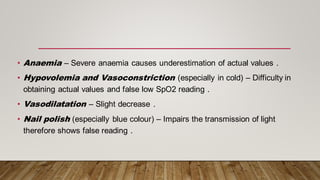

12. • Anaemia – Severe anaemia causes underestimation of actual values .
• Hypovolemia and Vasoconstriction (especially in cold) – Difficulty in
obtaining actual values and false low SpO2 reading .
• Vasodilatation – Slight decrease .
• Nail polish (especially blue colour) – Impairs the transmission of light
therefore shows false reading .

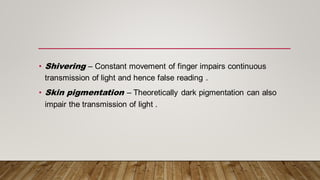

13. • Shivering – Constant movement of finger impairs continuous
transmission of light and hence false reading .
• Skin pigmentation – Theoretically dark pigmentation can also
impair the transmission of light .

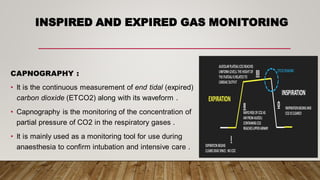

14. INSPIRED AND EXPIRED GAS MONITORING
CAPNOGRAPHY :
• It is the continuous measurement of end tidal (expired)
carbon dioxide (ETCO2) along with its waveform .
• Capnography is the monitoring of the concentration of
partial pressure of CO2 in the respiratory gases .
• It is mainly used as a monitoring tool for use during
anaesthesia to confirm intubation and intensive care .

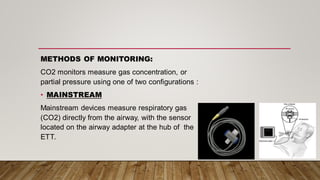

15. METHODS OF MONITORING:
CO2 monitors measure gas concentration, or
partial pressure using one of two configurations :
• MAINSTREAM
Mainstream devices measure respiratory gas
(CO2) directly from the airway, with the sensor
located on the airway adapter at the hub of the
ETT.

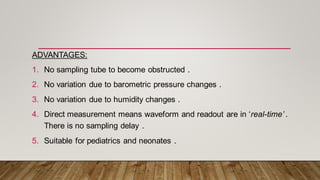

16. ADVANTAGES:
1. No sampling tube to become obstructed .
2. No variation due to barometric pressure changes .
3. No variation due to humidity changes .
4. Direct measurement means waveform and readout are in ‘real-time’ .
There is no sampling delay .
5. Suitable for pediatrics and neonates .

17. DISADVANTAGES:
1. The airway adapter sensor puts weight at the end of the ETT and thus
often needs to be supported .
2. In older models there were minor burn reported .
3. The sensor windows can become obstructed with secretions and water
rainout .
4. Sensor and airway adapter can be positional difficult to use in unusual
positions (prone, etc.)

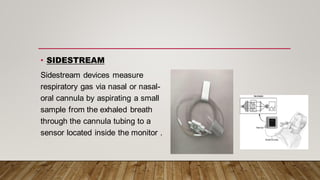

18. • SIDESTREAM
Sidestream devices measure
respiratory gas via nasal or nasal-
oral cannula by aspirating a small
sample from the exhaled breath
through the cannula tubing to a
sensor located inside the monitor .

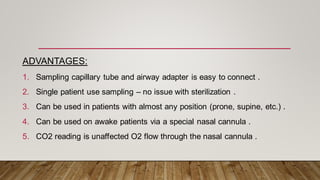

19. ADVANTAGES:
1. Sampling capillary tube and airway adapter is easy to connect .
2. Single patient use sampling – no issue with sterilization .
3. Can be used in patients with almost any position (prone, supine, etc.) .
4. Can be used on awake patients via a special nasal cannula .
5. CO2 reading is unaffected O2 flow through the nasal cannula .

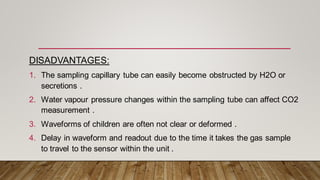

20. DISADVANTAGES:
1. The sampling capillary tube can easily become obstructed by H2O or
secretions .
2. Water vapour pressure changes within the sampling tube can affect CO2
measurement .
3. Waveforms of children are often not clear or deformed .
4. Delay in waveform and readout due to the time it takes the gas sample
to travel to the sensor within the unit .

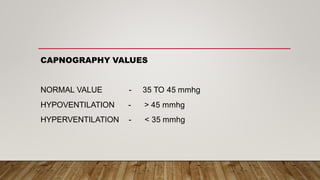

21. CAPNOGRAPHY VALUES
NORMAL VALUE - 35 TO 45 mmhg
HYPOVENTILATION - > 45 mmhg
HYPERVENTILATION - < 35 mmhg

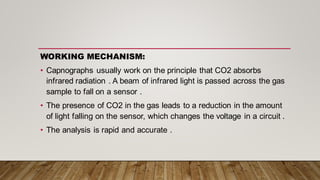

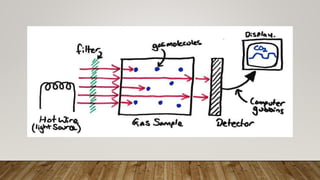

22. WORKING MECHANISM:
• Capnographs usually work on the principle that CO2 absorbs
infrared radiation . A beam of infrared light is passed across the gas
sample to fall on a sensor .
• The presence of CO2 in the gas leads to a reduction in the amount
of light falling on the sensor, which changes the voltage in a circuit .
• The analysis is rapid and accurate .

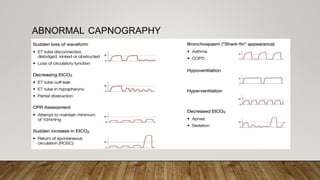

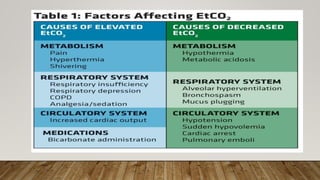

24. ABNORMAL CAPNOGRAPHY

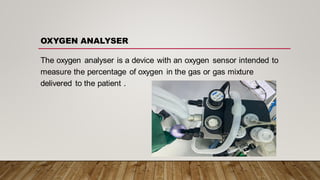

26. The oxygen analyser is a device with an oxygen sensor intended to
measure the percentage of oxygen in the gas or gas mixture
delivered to the patient .
OXYGEN ANALYSER

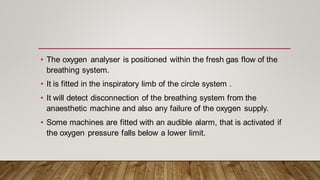

27. • The oxygen analyser is positioned within the fresh gas flow of the
breathing system.
• It is fitted in the inspiratory limb of the circle system .
• It will detect disconnection of the breathing system from the
anaesthetic machine and also any failure of the oxygen supply.
• Some machines are fitted with an audible alarm, that is activated if
the oxygen pressure falls below a lower limit.

28. WORKING
• An oxygen analyser contains an oxygen sensor which reacts with
the oxygen in the atmosphere or gas stream.
• The oxygen sensor will produce a small electrical current that is
proportional to level of oxygen it is reacting with.
• The oxygen analyser converts the current to percent oxygen level,
which is then displayed on the oxygen analyser's screen or used to
activate process alarms.

29. USES
• Measure percentage of oxygen.
• It is used to monitor trace gases in the OR.
• Measures oxygen output in anaesthesia machine and ventilator.
• It helps in the continuous administration of oxygen with alarm.
• It measures the final delivered concentration of oxygen to the
patient (in closed circuit).

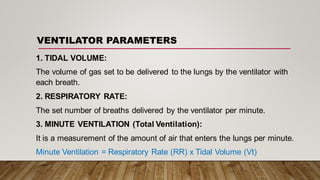

30. VENTILATOR PARAMETERS
1. TIDAL VOLUME:
The volume of gas set to be delivered to the lungs by the ventilator with
each breath.
2. RESPIRATORY RATE:
The set number of breaths delivered by the ventilator per minute.
3. MINUTE VENTILATION (Total Ventilation):
It is a measurement of the amount of air that enters the lungs per minute.
Minute Ventilation = Respiratory Rate (RR) x Tidal Volume (Vt)

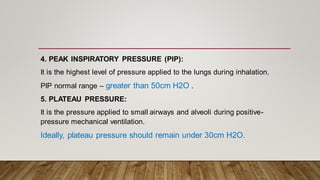

31. 4. PEAK INSPIRATORY PRESSURE (PIP):
It is the highest level of pressure applied to the lungs during inhalation.
PIP normal range – greater than 50cm H2O .
5. PLATEAU PRESSURE:
It is the pressure applied to small airways and alveoli during positive-
pressure mechanical ventilation.
Ideally, plateau pressure should remain under 30cm H2O.

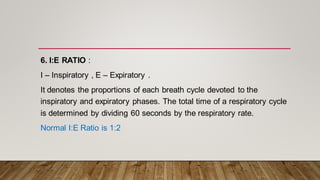

32. 6. I:E RATIO :
I – Inspiratory , E – Expiratory .
It denotes the proportions of each breath cycle devoted to the
inspiratory and expiratory phases. The total time of a respiratory cycle
is determined by dividing 60 seconds by the respiratory rate.
Normal I:E Ratio is 1:2

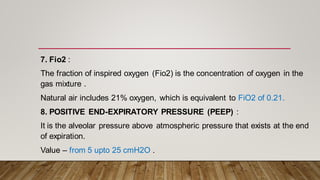

33. 7. Fio2 :
The fraction of inspired oxygen (Fio2) is the concentration of oxygen in the
gas mixture .
Natural air includes 21% oxygen, which is equivalent to FiO2 of 0.21.
8. POSITIVE END-EXPIRATORY PRESSURE (PEEP) :
It is the alveolar pressure above atmospheric pressure that exists at the end
of expiration.
Value – from 5 upto 25 cmH2O .

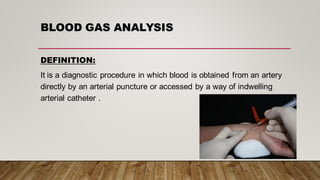

34. BLOOD GAS ANALYSIS
DEFINITION:
It is a diagnostic procedure in which blood is obtained from an artery
directly by an arterial puncture or accessed by a way of indwelling
arterial catheter .

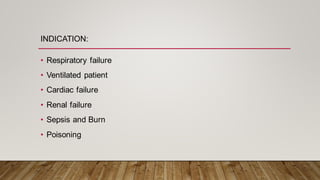

35. INDICATION:
• Respiratory failure
• Ventilated patient
• Cardiac failure
• Renal failure
• Sepsis and Burn
• Poisoning

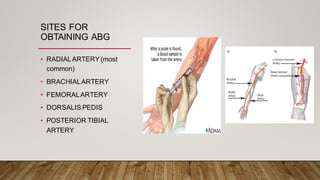

36. SITES FOR
OBTAINING ABG
• RADIALARTERY(most
common)
• BRACHIALARTERY
• FEMORALARTERY
• DORSALIS PEDIS
• POSTERIOR TIBIAL
ARTERY

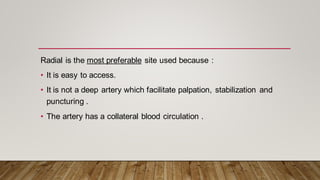

37. Radial is the most preferable site used because :
• It is easy to access.
• It is not a deep artery which facilitate palpation, stabilization and
puncturing .
• The artery has a collateral blood circulation .

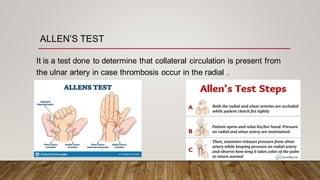

38. ALLEN’S TEST
It is a test done to determine that collateral circulation is present from
the ulnar artery in case thrombosis occur in the radial .

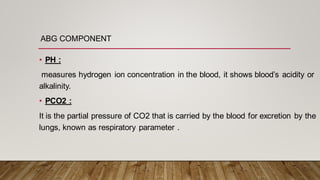

39. ABG COMPONENT
• PH :
measures hydrogen ion concentration in the blood, it shows blood’s acidity or
alkalinity.
• PCO2 :
It is the partial pressure of CO2 that is carried by the blood for excretion by the
lungs, known as respiratory parameter .

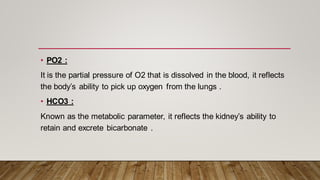

40. • PO2 :
It is the partial pressure of O2 that is dissolved in the blood, it reflects
the body’s ability to pick up oxygen from the lungs .
• HCO3 :
Known as the metabolic parameter, it reflects the kidney’s ability to
retain and excrete bicarbonate .

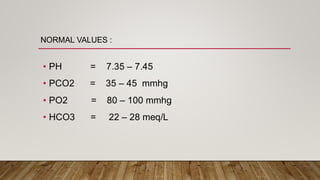

41. NORMAL VALUES :
• PH = 7.35 – 7.45
• PCO2 = 35 – 45 mmhg
• PO2 = 80 – 100 mmhg
• HCO3 = 22 – 28 meq/L

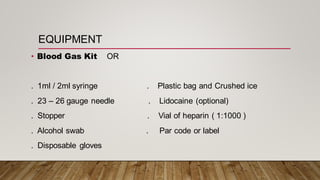

42. EQUIPMENT
• Blood Gas Kit OR
. 1ml / 2ml syringe . Plastic bag and Crushed ice
. 23 – 26 gauge needle . Lidocaine (optional)
. Stopper . Vial of heparin ( 1:1000 )
. Alcohol swab . Par code or label
. Disposable gloves

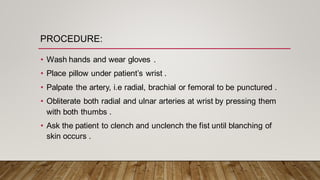

43. PROCEDURE:
• Wash hands and wear gloves .
• Place pillow under patient’s wrist .
• Palpate the artery, i.e radial, brachial or femoral to be punctured .
• Obliterate both radial and ulnar arteries at wrist by pressing them
with both thumbs .
• Ask the patient to clench and unclench the fist until blanching of
skin occurs .

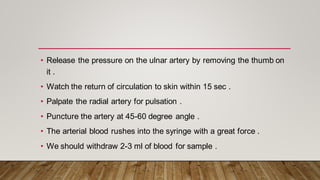

44. • Release the pressure on the ulnar artery by removing the thumb on
it .
• Watch the return of circulation to skin within 15 sec .
• Palpate the radial artery for pulsation .
• Puncture the artery at 45-60 degree angle .
• The arterial blood rushes into the syringe with a great force .
• We should withdraw 2-3 ml of blood for sample .

45. • Once the sample has been taken, withdraw the needle and apply
firm pressure over the site of puncture with dry sponge .
• Remove the air bubble from syringe and needle .
• Place the capped syringe into an ice container .
• Maintain firm pressure on puncture site for 5 min .
• If patient is on anticoagulants use the high pressure dressing .
• Assess for cold hands or numbness .

46. CONTRAINDICATION:
• Coagulopathy
• Atherosclerosis
• Infection at insertion site
• Use of thrombolytic agent

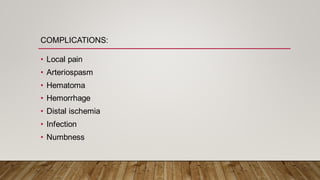

47. COMPLICATIONS:
• Local pain
• Arteriospasm
• Hematoma
• Hemorrhage
• Distal ischemia
• Infection
• Numbness
