CT Angiography is an important technique for diagnosing pulmonary embolism (PE). It allows direct visualization of blood clots in the lungs. A 16-slice CT scan can cover the entire chest in less than 10 seconds with 1mm resolution, evaluating vessels down to the 6th order branches. While CTPA is fast, non-invasive and highly sensitive and specific, limitations include potential allergic reactions to contrast dye or risks for patients with kidney problems or pregnancy. Proper technique including timing of contrast injection is important to avoid motion artifacts.

1. CT Angiography ofCT Angiography of
PulmonaryPulmonary EmbolismEmbolism
By
DR. Naglaa Mahmoud
KCCC

2. IntroductionIntroduction

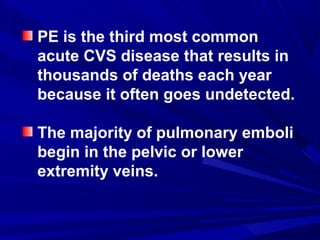

3. PE is the third most common
acute CVS disease that results in
thousands of deaths each year
because it often goes undetected.
The majority of pulmonary emboli
begin in the pelvic or lower
extremity veins.

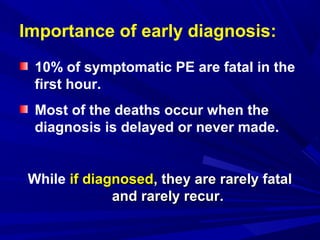

4. Importance of early diagnosis:
10% of symptomatic PE are fatal in the
first hour.
Most of the deaths occur when the
diagnosis is delayed or never made.
While if diagnosedif diagnosed, they are rarely fatal, they are rarely fatal
and rarely recurand rarely recur.

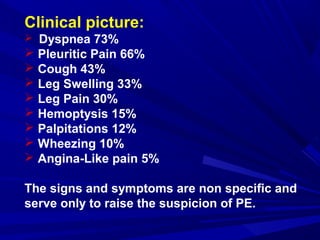

5. Clinical picture:
 Dyspnea 73%
 Pleuritic Pain 66%
 Cough 43%
 Leg Swelling 33%
 Leg Pain 30%
 Hemoptysis 15%
 Palpitations 12%
 Wheezing 10%
 Angina-Like pain 5%
The signs and symptoms are non specific and
serve only to raise the suspicion of PE.

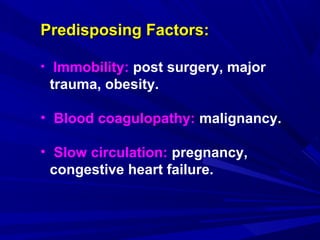

6. Predisposing Factors:Predisposing Factors:
• Immobility: post surgery, major
trauma, obesity.
• Blood coagulopathy: malignancy.
• Slow circulation: pregnancy,
congestive heart failure.

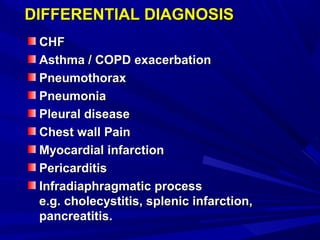

7. DIFFERENTIAL DIAGNOSISDIFFERENTIAL DIAGNOSIS
CHFCHF
Asthma / COPD exacerbationAsthma / COPD exacerbation
PneumothoraxPneumothorax
PneumoniaPneumonia
Pleural diseasePleural disease
Chest wall PainChest wall Pain
Myocardial infarctionMyocardial infarction
PericarditisPericarditis
Infradiaphragmatic processInfradiaphragmatic process
e.g. cholecystitis, splenic infarction,e.g. cholecystitis, splenic infarction,
pancreatitis.pancreatitis.

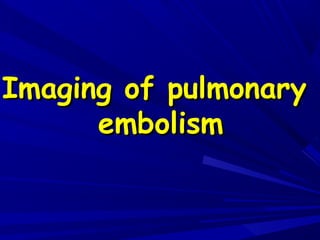

8. Imaging of pulmonaryImaging of pulmonary
embolismembolism

9. (1) Chest x-ray findings, non specific, may
include:
• Normal
• Diaphragm elevation
A diaphragm mayA diaphragm may
be elevated,be elevated,
reflecting volumereflecting volume
loss in the affectedloss in the affected
lung.lung.

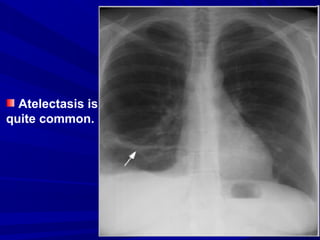

10. Atelectasis is
quite common.

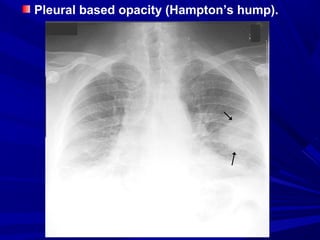

11. Pleural based opacity (Hampton’s hump).

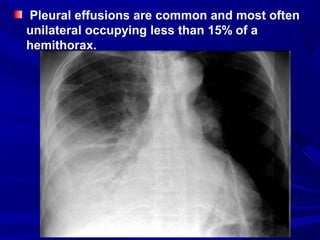

12. Pleural effusions are common and most often
unilateral occupying less than 15% of a
hemithorax.

13. Westermark’s Sign is a sign that represents a
focus of oligemia seen distal to a pulmonary
embolus.

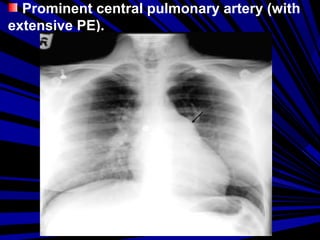

14. Prominent central pulmonary artery (with
extensive PE).

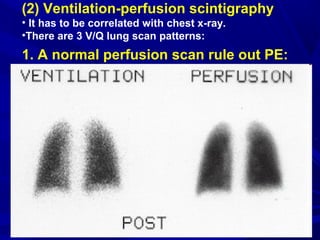

15. (2) Ventilation-perfusion scintigraphy
• It has to be correlated with chest x-ray.
•There are 3 V/Q lung scan patterns:
1. A normal perfusion scan rule out PE:

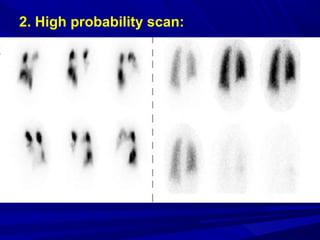

16. 2. High probability scan:

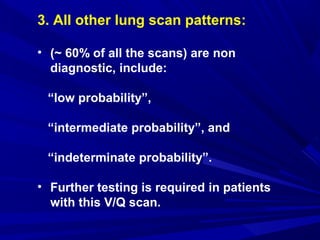

17. 3. All other lung scan patterns:
• (~ 60% of all the scans) are non
diagnostic, include:
“low probability”,
“intermediate probability”, and
“indeterminate probability”.
• Further testing is required in patients
with this V/Q scan.

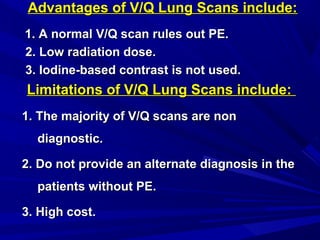

19. Advantages of V/Q Lung Scans include:Advantages of V/Q Lung Scans include:
1. A normal V/Q scan rules out PE.1. A normal V/Q scan rules out PE.
2. Low radiation dose.2. Low radiation dose.
3. Iodine-based contrast is not used.3. Iodine-based contrast is not used.
Limitations of V/Q Lung Scans include:Limitations of V/Q Lung Scans include:
1. The majority of V/Q scans are non1. The majority of V/Q scans are non
diagnostic.diagnostic.
2. Do not provide an alternate diagnosis in the2. Do not provide an alternate diagnosis in the
patients without PE.patients without PE.
3. High cost.3. High cost.

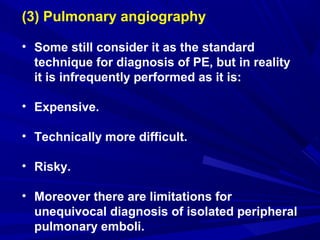

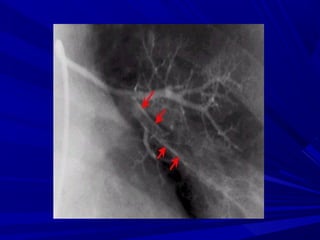

20. (3) Pulmonary angiography
• Some still consider it as the standard
technique for diagnosis of PE, but in reality
it is infrequently performed as it is:
• Expensive.
• Technically more difficult.
• Risky.
• Moreover there are limitations for
unequivocal diagnosis of isolated peripheral
pulmonary emboli.

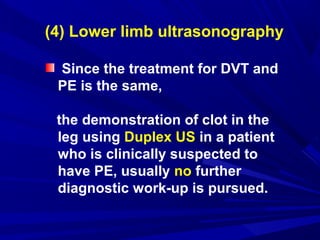

22. (4) Lower limb ultrasonography
Since the treatment for DVT and
PE is the same,
the demonstration of clot in the
leg using Duplex US in a patient
who is clinically suspected to
have PE, usually no further
diagnostic work-up is pursued.

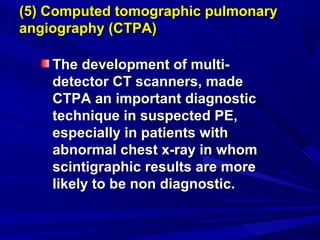

23. (5) Computed tomographic pulmonary(5) Computed tomographic pulmonary
angiography (CTPA)angiography (CTPA)
The development of multi-The development of multi-
detector CT scanners, madedetector CT scanners, made
CTPA an important diagnosticCTPA an important diagnostic
technique in suspected PE,technique in suspected PE,
especially in patients withespecially in patients with
abnormal chest x-ray in whomabnormal chest x-ray in whom
scintigraphic results are morescintigraphic results are more
likely to be non diagnostic.likely to be non diagnostic.

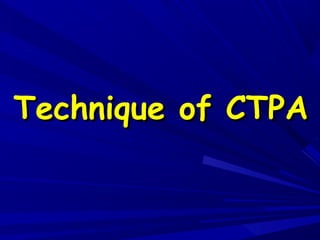

24. Technique of CTPATechnique of CTPA

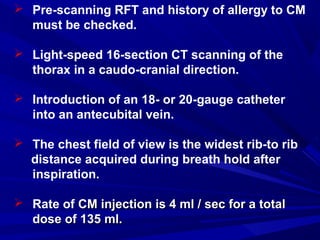

25.  Pre-scanning RFT and history of allergy to CM
must be checked.
 Light-speed 16-section CT scanning of the
thorax in a caudo-cranial direction.
 Introduction of an 18- or 20-gauge catheter
into an antecubital vein.
 The chest field of view is the widest rib-to rib
distance acquired during breath hold after
inspiration.
 Rate of CM injection is 4 ml / sec for a totalCM injection is 4 ml / sec for a total
dose of 135 ml.dose of 135 ml.

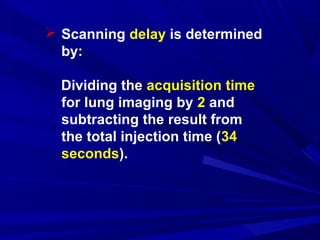

26.  Scanning delay is determined
by:
Dividing the acquisition time
for lung imaging by 2 and
subtracting the result from
the total injection time (34
seconds).

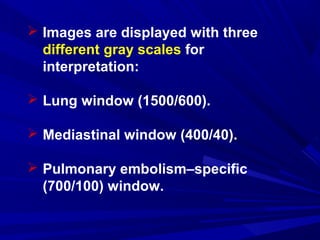

27.  Images are displayed with three
different gray scales for
interpretation:
 Lung window (1500/600).
 Mediastinal window (400/40).
 Pulmonary embolism–specific
(700/100) window.

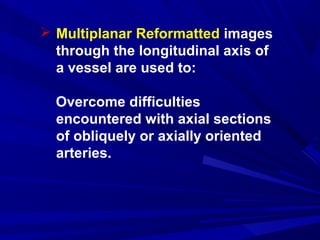

28.  Multiplanar Reformatted images
through the longitudinal axis of
a vessel are used to:
Overcome difficulties
encountered with axial sections
of obliquely or axially oriented
arteries.

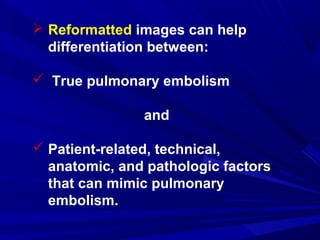

29.  Reformatted images can help
differentiation between:
 True pulmonary embolism
and
 Patient-related, technical,
anatomic, and pathologic factors
that can mimic pulmonary
embolism.

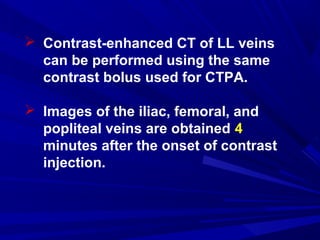

30.  Contrast-enhanced CT of LL veins
can be performed using the same
contrast bolus used for CTPA.
 Images of the iliac, femoral, and
popliteal veins are obtained 4
minutes after the onset of contrast
injection.

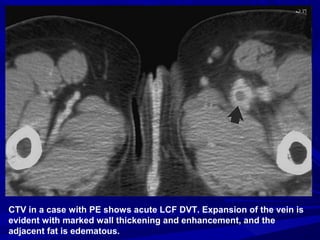

31. CTV in a case with PE shows acute LCF DVT. Expansion of the vein is
evident with marked wall thickening and enhancement, and the
adjacent fat is edematous.

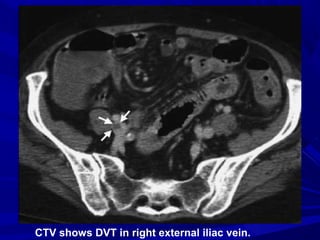

32. CTV shows DVT in right external iliac vein.

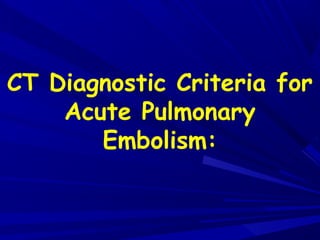

33. CT Diagnostic Criteria for
Acute Pulmonary
Embolism:

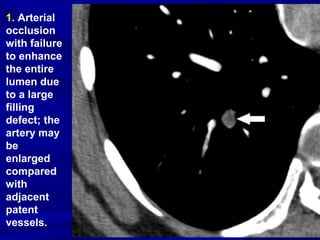

34. 1. Arterial
occlusion
with failure
to enhance
the entire
lumen due
to a large
filling
defect; the
artery may
be
enlarged
compared
with
adjacent
patent
vessels.

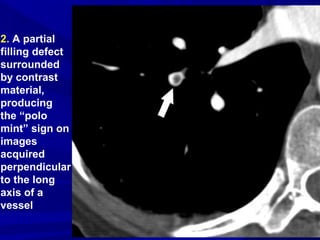

35. 2. A partial
filling defect
surrounded
by contrast
material,
producing
the “polo
mint” sign on
images
acquired
perpendicular
to the long
axis of a
vessel

36. 3. The
“railway
track” sign
on
longitudinal
images of
the vessel.

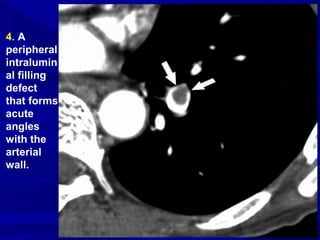

37. 4. A
peripheral
intralumin
al filling
defect
that forms
acute
angles
with the
arterial
wall.

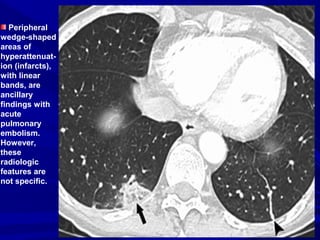

38. Peripheral
wedge-shaped
areas of
hyperattenuat-
ion (infarcts),
with linear
bands, are
ancillary
findings with
acute
pulmonary
embolism.
However,
these
radiologic
features are
not specific.

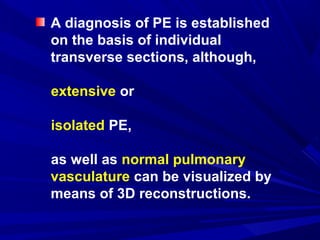

39. A diagnosis of PE is established
on the basis of individual
transverse sections, although,
extensive or
isolated PE,
as well as normal pulmonary
vasculature can be visualized by
means of 3D reconstructions.

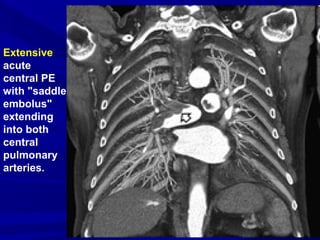

40. Extensive
acute
central PE
with "saddle
embolus"
extending
into both
central
pulmonary
arteries.

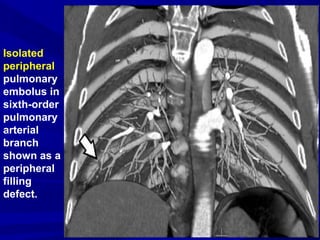

41. Isolated
peripheral
pulmonary
embolus in
sixth-order
pulmonary
arterial
branch
shown as a
peripheral
filling
defect.

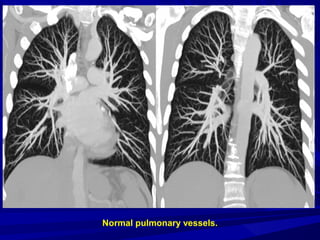

42. Normal pulmonary vessels.

43. What about smallWhat about small
peripheral clots?peripheral clots?

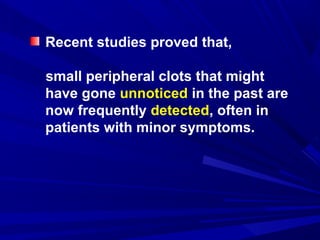

44. Recent studies proved that,
small peripheral clots that might
have gone unnoticed in the past are
now frequently detected, often in
patients with minor symptoms.

45. Consecutive transverse sections show isolated peripheral pulmonary
embolus in a subsegmental pulmonary artery in the left lung.

46. Oblique
sagittal
multiplanar
reformation
also shows
embolus.

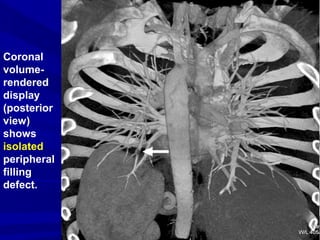

47. Coronal
volume-
rendered
display
(posterior
view)
shows
isolated
peripheral
filling
defect.

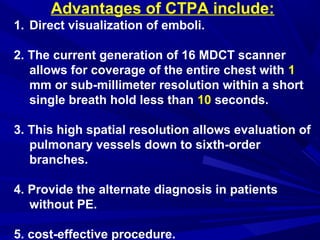

48. Advantages of CTPA include:
1. Direct visualization of emboli.
2. The current generation of 16 MDCT scanner
allows for coverage of the entire chest with 1
mm or sub-millimeter resolution within a short
single breath hold less than 10 seconds.
3. This high spatial resolution allows evaluation of
pulmonary vessels down to sixth-order
branches.
4. Provide the alternate diagnosis in patients
without PE.
5. cost-effective procedure.

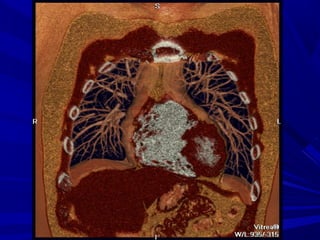

50. Limitations of CTPA include:Limitations of CTPA include:
1. Allergy to CM.
2. Patients with renal insufficiency.
3. Pregnancy.
4. Severe obesity.

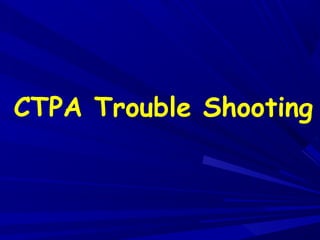

51. CTPA Trouble Shooting

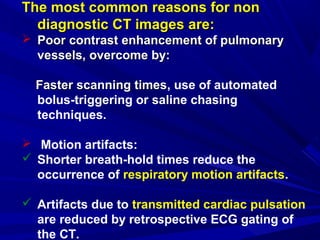

52. The most common reasons for nonThe most common reasons for non
diagnostic CT images are:diagnostic CT images are:
 Poor contrast enhancement of pulmonaryPoor contrast enhancement of pulmonary
vessels, overcome by:vessels, overcome by:
Faster scanning timesFaster scanning times, use of automated
bolus-triggering or saline chasing
techniques.
 Motion artifacts:
 Shorter breath-hold times reduce the
occurrence of respiratory motion artifacts.
 Artifacts due to transmitted cardiac pulsation
are reduced by retrospective ECG gating of
the CT.

53. Retrospective
ECG-gated
CTPA.
(a) During
systole, severe
stair-step
artifacts along
the course of
pulmonary
vessels due to
transmitted
cardiac motion.

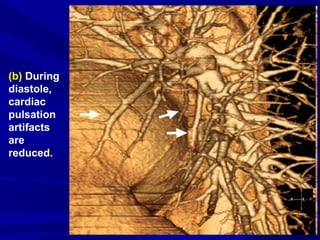

54. (b) During
diastole,
cardiac
pulsation
artifacts
are
reduced.

55. How to proceed ?How to proceed ?

56. Before proceeding to imaging,Before proceeding to imaging,
the most important first-linethe most important first-line forfor

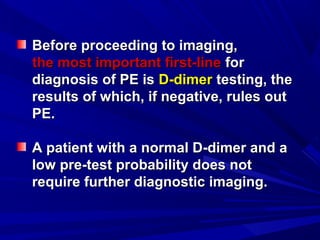

diagnosis of PE isdiagnosis of PE is D-dimerD-dimer testing, thetesting, the
results of which, if negative, rules outresults of which, if negative, rules out
PE.PE.
A patient with a normal D-dimer and aA patient with a normal D-dimer and a
low pre-test probability does notlow pre-test probability does not
require further diagnostic imaging.require further diagnostic imaging.

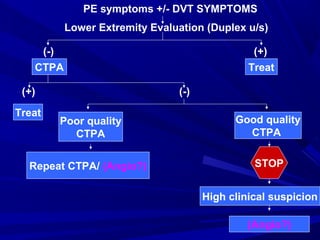

57. PE symptoms +/- DVT SYMPTOMS
Lower Extremity Evaluation (Duplex u/s)
(-) (+)
TreatCTPA
(+) (-)
Treat
Poor quality
CTPA
Repeat CTPA/ (Angio?)
Good quality
CTPA
STOP
High clinical suspicion
(Angio?)

58. conclusionconclusion

59. • The development of MDCT
technique has made CTPA the
first-line imaging test in daily
clinical routine for patients
suspected of having PE as it is:
• Fast
• Non invasive
• Has a high sensitivity and
specificity
• Can detect small emboli in
peripheral pulmonary arteries.
