This document discusses several congenital heart diseases and their characteristic chest x-ray appearances: - Partial anomalous pulmonary venous return appears as a vein curving outward along the right cardiac border. - Tetralogy of Fallot has a "boot shaped" heart due to ventricular septal defect, pulmonary stenosis, overriding aorta, and right ventricular hypertrophy. - Ebstein anomaly causes a downward displacement of the tricuspid valve and a "box shaped" heart due to right atrial and ventricular enlargement.

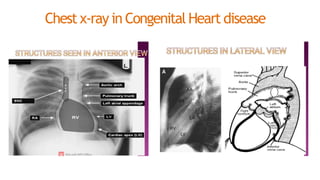

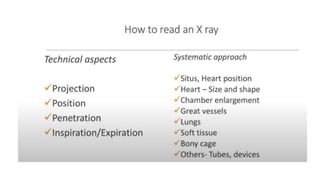

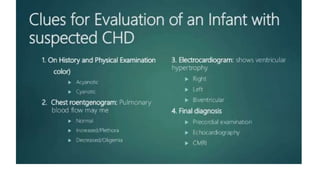

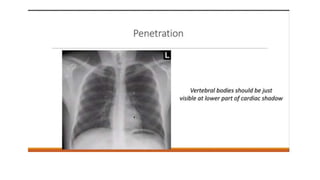

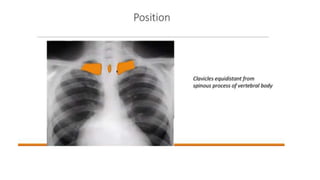

1. Chest x-ray in Congenital Heart disease

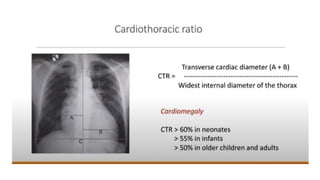

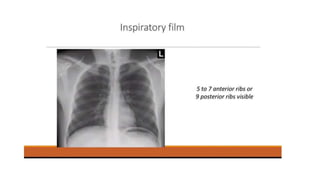

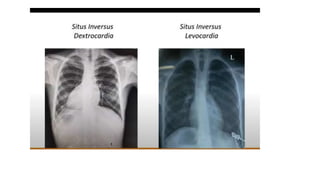

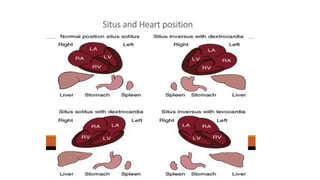

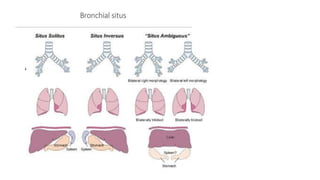

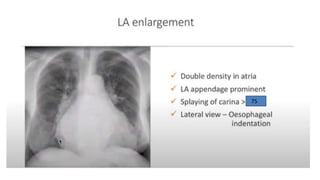

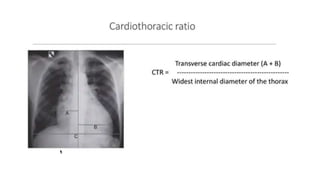

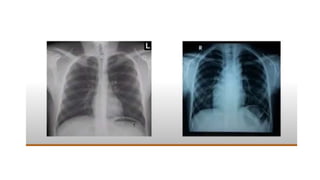

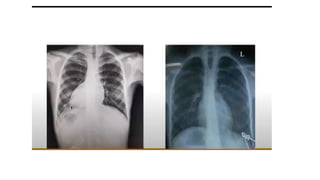

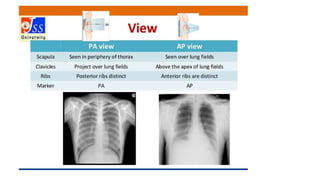

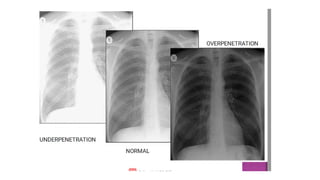

17. 75

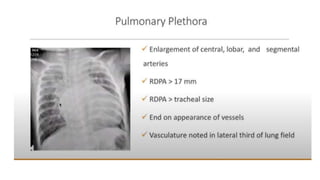

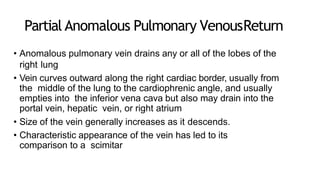

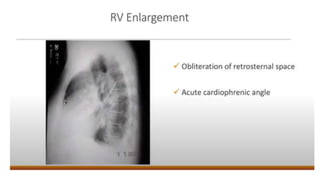

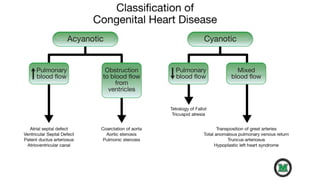

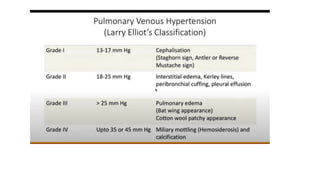

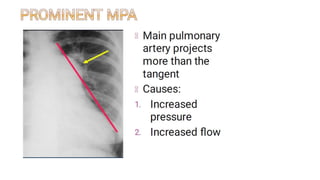

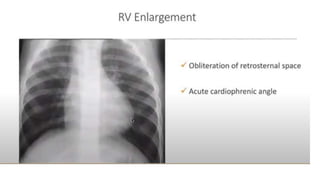

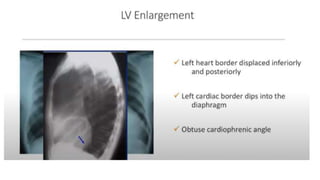

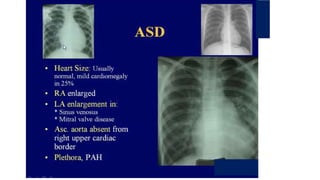

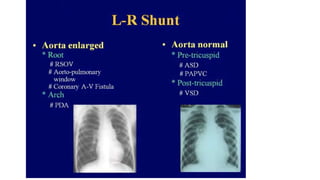

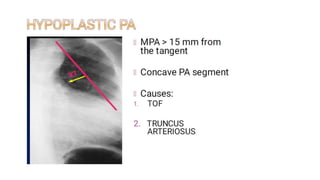

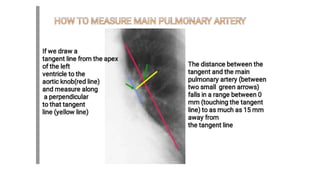

36. Partial Anomalous Pulmonary VenousReturn
• Anomalous pulmonary vein drains any or all of the lobes of the
right lung
• Vein curves outward along the right cardiac border, usually from
the middle of the lung to the cardiophrenic angle, and usually
empties into the inferior vena cava but also may drain into the
portal vein, hepatic vein, or right atrium
• Size of the vein generally increases as it descends.
• Characteristic appearance of the vein has led to its
comparison to a scimitar

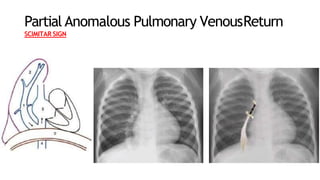

37. Partial Anomalous Pulmonary VenousReturn
SCIMITAR SIGN

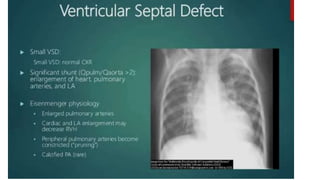

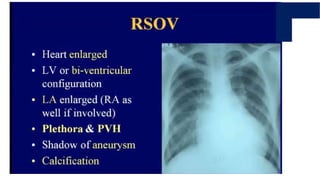

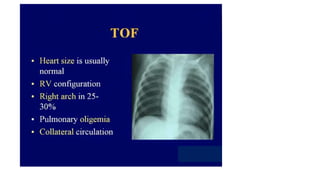

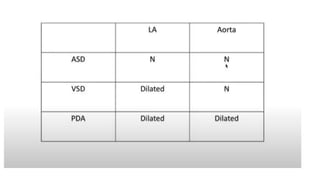

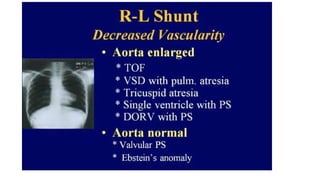

44. Tetralogy of Fallot
BOOT SHAPED SIGN

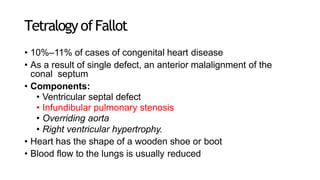

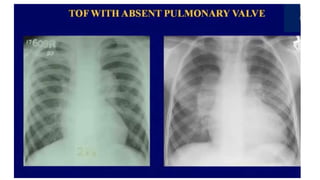

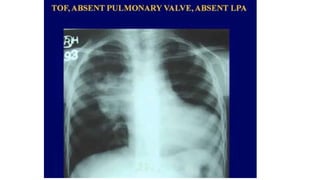

45. Tetralogy ofFallot
• 10%–11% of cases of congenital heart disease
• As a result of single defect, an anterior malalignment of the
conal septum
• Components:
• Ventricular septal defect
• Infundibular pulmonary stenosis
• Overriding aorta
• Right ventricular hypertrophy.
• Heart has the shape of a wooden shoe or boot
• Blood flow to the lungs is usually reduced

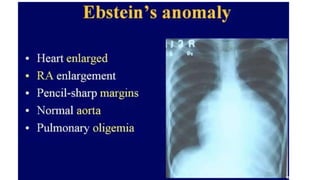

51. EbsteinAnomaly
• 0.5%–0.7% of cases of congenital heart disease.
• Characterized by the downward displacement of the septal leaflets and
posterior leaflets
of the tricuspid valve into the inflow portion of the right ventricle.
• Results in the formation of a common right ventriculoatrial chamber and causes
tricuspid regurgitation.
• Insufficiency of the tricuspid valve leads to dilatation of the right ventricular outflow
tract
and all proximal right heart structures,

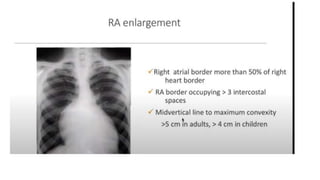

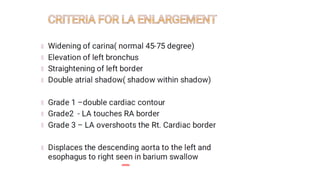

• Most consistent imaging feature is right atrial enlargement

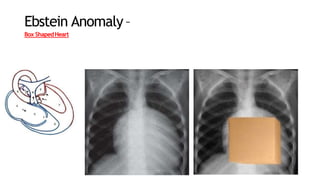

52. Ebstein Anomaly–
Box ShapedHeart

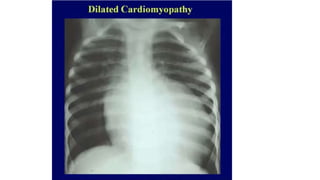

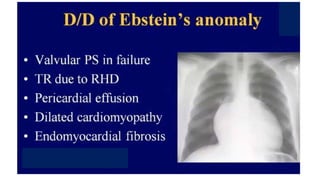

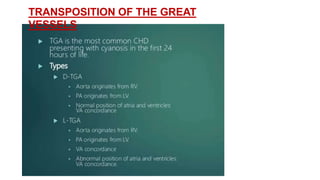

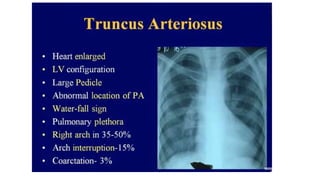

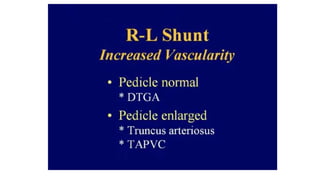

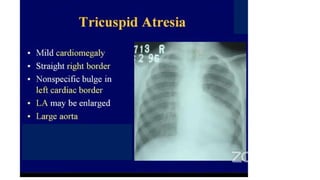

60. TRANSPOSITION OF THE GREAT
VESSELS

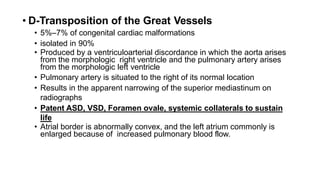

61. • D-Transposition of the Great Vessels
• 5%–7% of congenital cardiac malformations
• isolated in 90%
• Produced by a ventriculoarterial discordance in which the aorta arises
from the morphologic right ventricle and the pulmonary artery arises
from the morphologic left ventricle
• Pulmonary artery is situated to the right of its normal location
• Results in the apparent narrowing of the superior mediastinum on
radiographs
• Patent ASD, VSD, Foramen ovale, systemic collaterals to sustain
life
• Atrial border is abnormally convex, and the left atrium commonly is
enlarged because of increased pulmonary blood flow.

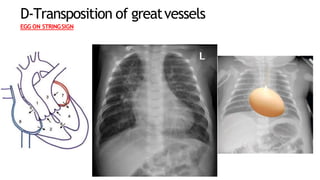

62. D-Transposition of greatvessels
EGG ON STRINGSIGN

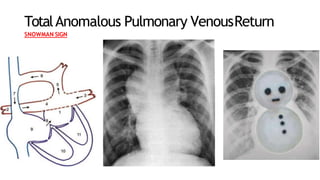

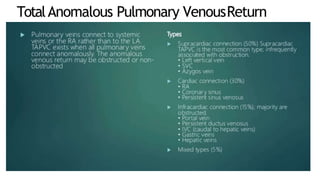

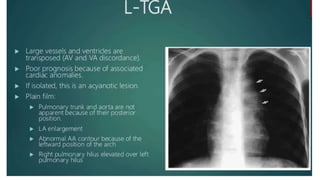

66. TotalAnomalous Pulmonary VenousReturn
SNOWMAN SIGN

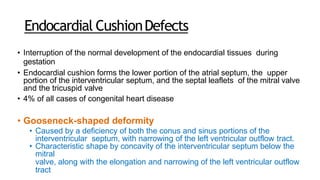

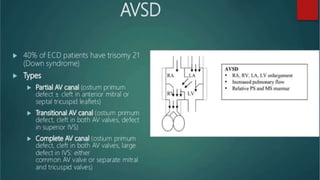

68. Endocardial CushionDefects
• Interruption of the normal development of the endocardial tissues during
gestation
• Endocardial cushion forms the lower portion of the atrial septum, the upper
portion of the interventricular septum, and the septal leaflets of the mitral valve
and the tricuspid valve
• 4% of all cases of congenital heart disease
• Gooseneck-shaped deformity
• Caused by a deficiency of both the conus and sinus portions of the
interventricular septum, with narrowing of the left ventricular outflow tract.
• Characteristic shape by concavity of the interventricular septum below the
mitral
valve, along with the elongation and narrowing of the left ventricular outflow
tract

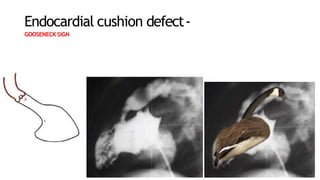

69. Endocardial cushion defect-
GOOSENECK SIGN

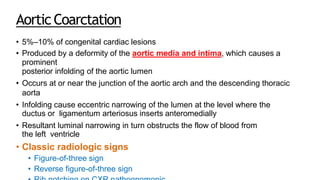

70. AorticCoarctation
• 5%–10% of congenital cardiac lesions
• Produced by a deformity of the aortic media and intima, which causes a
prominent
posterior infolding of the aortic lumen
• Occurs at or near the junction of the aortic arch and the descending thoracic
aorta
• Infolding cause eccentric narrowing of the lumen at the level where the
ductus or ligamentum arteriosus inserts anteromedially
• Resultant luminal narrowing in turn obstructs the flow of blood from
the left ventricle
• Classic radiologic signs
• Figure-of-three sign
• Reverse figure-of-three sign

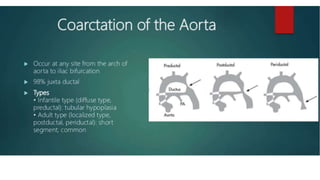

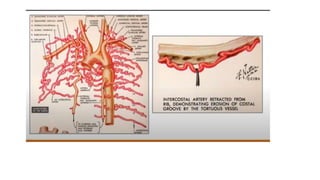

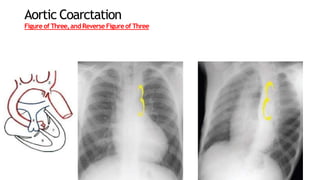

72. Aortic Coarctation
Figureof Three,and Reverse Figureof Three

73. Thank you

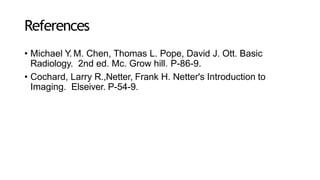

74. References
• Michael Y. M. Chen, Thomas L. Pope, David J. Ott. Basic
Radiology. 2nd ed. Mc. Grow hill. P-86-9.
• Cochard, Larry R.,Netter, Frank H. Netter's Introduction to
Imaging. Elseiver. P-54-9.
